OWNER’S MANUAL

Made from 70% Bagasse

(Environmentally Friendly Sugar

Cane Pulp By-product)

All Weather Woven Heater

Model No. GWU9850F / 35554 (A & B)

DANGER

CARBON MONOXIDE HAZARD

• This appliance can produce carbon monoxide which has no odor.

• Using it in an enclosed space can kill you.

• Never use this appliance in an enclosed space such as a camper, tent, car or home.

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

Improper installation, adjustment,

alteration, service or maintenance can cause injury or property damage.

Read the installation, operation and

maintenance instructions thoroughly before installing or servicing this equipment.

Failure to follow these instructions could

result in fire or explosion, which could cause property damage, personal injury or death.

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Exploded View & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installling LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Insert LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Secure LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connect LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disconnect LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Checking for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

When heater is ON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Re-Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

The use and installation of this product must conform to local codes. In absence of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1, Natural Gas and

Propane Installation Code.

California Proposition 65: Chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm are created by the combustion of propane.

Manufactured in China for: Blue Rhino Global Sourcing, Inc Winston-Salem, NC 27105 USA • 1.800.762.1142, www.bluerhino.com © Blue Rhino Global Sourcing, Inc. All Rights Reserved. Frontgate® is a Registered Trademark of Frontgate, Inc. All Rights Reserved

GWU9850F-OM-104 EF

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

DANGERS and WARNINGS: FOR YOUR SAFETY

All Weather Woven Heater, Model No. GWU9850F / 35554 (A & B)

DANGER

If you smell gas -

1. Shut off gas to appliance.

2. Extinguish any open flame.

3. If odor continues, keep away from the appliance and immediately call

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

WARNING

FOR YOUR SAFETY

your gas supplier or your fire department.

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion

causing damage to property.

WARNING:

This heater is for outdoor use only, and shall not be used in a building, garage

or any other enclosed area.

Always maintain at least 36” clearance (top), and 24” clearance (side) from

combustible materials.

This heater is for use with liquid propane (LP) gas only. The conversion to or

attempted use of natural gas in this LP gas heater is dangerous and will void your warranty.

LP gas Characteristics:

a. LP gas is flammable and hazardous if handled improperly. Become aware of

the characteristics before using any LP gas product.

b. LP gas is explosive under pressure, heavier than air and settles and pools in

low areas.

c. LP gas in its natural state has no odor. For your safety, an odorant is added

that smells like rotten cabbage.

d. Contact with LP gas can cause freeze burns to skin. LP gas tank needed to operate. Only tanks marked “propane” may be used. The LP gas supply tank must be constructed and marked in accordance

with the Specifications for LP-gas Cylinders of the U.S. Department of

Transportation (DOT); or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as

applicable. LP gas tank must be arranged for vapor withdrawal. The LP gas tank must have a listed overfilling prevention device (OPD). Only use 20-pound cylinders equipped with a cylinder connection device

compatible with the connection for outdoor cooking appliances. The LP gas tank must have a tank collar to protect the tank valve. Never use an LP gas tank with a damaged body, valve, collar or footing. Dented or rusted LP gas tanks may be hazardous and should be checked by

your LP gas supplier prior to use. The LP gas tank should not be dropped or handled roughly. Tanks must be stored outdoors out of the reach of children and must not be

stored in a building, garage or any other enclosed area. Your tank must never

be stored where temperatures can reach over 125°F. Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the

gas pressure to increase, which may open the relief valve and allow gas to

escape. Do not store a spare LP gas tank under or near this appliance. Never fill the tank beyond 80 percent full. Never attempt to attach this heater to the self-contained LP gas system of a

camper, trailer, motor home or house. If the above two items not followed exactly, a fire causing death or serious

injury may occur. Place the dust cap on the cylinder valve outlet whenever the cylinder is not

in use. Only install the type of dust cap on th cylinder valve that is provided

with the cylinder valve. Other types of caps or plugs may result in leakage of

propane. The use of alcohol, or prescription or non-prescription drugs may impair the

consumer’s ability to properly assemble or safely operate the appliance. Strong odors, colds, sinus congestion, etc. may prevent the detection of

propane. Use caution and common sense when testing for leaks. Your heater has been checked at all factory connections for leaks. Recheck all

connections, as movement in shipping can loosen connections. Check for leaks even if your unit was assembled for you by someone else. Do not operate if gas leak is present. Gas leaks may cause a fire or explosion. You must follow all leak-checking procedures before operating. To prevent fire

or explosion hazard when testing for a leak:

a. Always perform leak test before lighting the heater and each time the tank

is connected for use.

b. No smoking. Do not use or permit sources of ignition in the area while

conducting a leak test. c. Conduct the leak test outdoors in a well-ventilated area. d. Do not use matches, lighters, or a flame to check for leaks. e. Do not use heater until any and all leaks are corrected.

If you are unable to stop a leak, disconnect the LP gas supply. Call a gas

appliance serviceman or your local LP gas supplier.

Do not store or use gasoline or other flammable liquids or vapors within 25

feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep heater area clear and free from

combustible materials, gasoline and other flammable vapors and liquids.

Keep all combustible items and surfaces away from the heater at all times.

DO NOT use this heater or any gas product under any overhead or near any unprotected combustible constructions.

Combustion of propane creates carbon monoxide, which, when used in

enclosed areas, can kill you.

It is essential to keep the heater’s valve compartment, burners and circulating

air passages clean. Inspect heater before each use.

Installation and repair should be done by a qualified service person. Do not alter heater in any manner. Do not use the heater unless it is COMPLETELY assembled and all parts are

securely fastened and tightened.

This heater should be thoroughly inspected before each use. Clean and inspect

the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks the hose must be replaced prior to the appliance being put into operation.

Use only the regulator and hose assembly provided. The replacement regulator

and hose assembly shall be that specified by the manufacturer.

Do not attempt to repair or alter the hose/regulator for any “assumed” defect.

Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.

Inspect heater before each use. If a damaged part is detected, do not operate

until an original equipment replacement part has been properly installed.

Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The use of

any part that is not factory authorized can be dangerous. This will also void your warranty.

Dome and burner are extremely hot to the touch during operation. Never touch

the dome or burner while the heater is operating. The surface of heater’s emitter can reach temperatures approaching 1600ºF. Wait for unit to cool down (approximately 45 minutes) after use before touching.

Do not attempt to move heater when in use. Allow the heater to cool

(approximately 45 minutes) before moving or storing.

Always allow heater to cool (approximately 45 minutes) before attempting

service. Do not install or use in or on boats or recreational vehicles. Do not use this heater in a vehicle trunk, station wagon, pick-up truck, mini-

van, sport utility vehicle (SUV), or recreational vehicle (RV). Do not use heater in winds that exceed 10 m.p.h.. Unit will operate at reduced efficiency below 40ºF (5ºC). Do not leave a lit heater unattended, especially keep children and pets away

from heater at all times. Always use extreme caution when near heater. Alert both children and adults

to the hazards of high temperatures, especially to avoid burns or clothing

catching fire. Storage of heater indoors is permissible only if the tank is disconnected,

removed from the heater and properly stored outdoors. Do not attempt to disconnect the gas regulator from the tank or any gas fitting

while the heater is in use. Always place your heater on a hard, level surface. Use extreme caution on wooden decks. Move gas hoses as far away as possible from hot surfaces. Keep all electrical cords away from a hot heater. Do not use heater for indoor cooking or heating. TOXIC fumes can accumulate

and cause asphyxiation. Keep sprinklers and other water sources away from burner and controls. Do not hang clothing or other flammable materials either on or near heater. Never cover the heater shroud while LP gas tank is enclosed. Any guard or other protective device removed for servicing the heater must be

replaced prior to operating the heater. Certain materials or items, when stored under heater, will be subjected to

radiant heat and could be seriously damaged. After a period of storage and/or nonuse, check for leaks or burner obstructions

and inspect for any abrasion, wear or cuts to the hose. If at any time you are unable to light burner and smell gas, turn off, wait 5

minutes to allow gas to dissipate before attempting to light heater. Failure to not wait 5 minutes to allow the gas to clear if the heater does not

light, may result in an explosive flame-up. Be careful when attempting to manually ignite this heater. Holding in the

control knob for more than 10 seconds before igniting the gas will cause a ball

of flame upon ignition. Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor

from the burning of oils used in manufacturing will appear. Both smoke and

odor will dissipate after approximately 30 minutes. The heater should NOT

produce thick black smoke. If heater is not in use, the gas must be turned off at the supply tank. Do not use this appliance without reading the “Operating Instructions” in this

manual. Use protective gloves when assembling this product. Do not force parts together as this can result in personal injury or damage to

the product. Deaths, serious injury or damage to property may occur if the above is not

followed exactly.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

7/16"

page no.

Parts List

Upper Dome

Lower Dome

Emitter Top*

Emitter Screen*

Burner*

Pilot Heat Shield*

Bottom Plate

Valve Support Bracket*

Pilot Assembly*

Burner Orifice*

Electronic Igniter*

Igniter Button*

Control Knob*

56-01-614

56-01-615

56-01-616

56-01-617

56-01-618

56-01-619

56-01-620

56-01-621

56-01-127

56-01-131

56-01-142

56-01-622

56-01-156

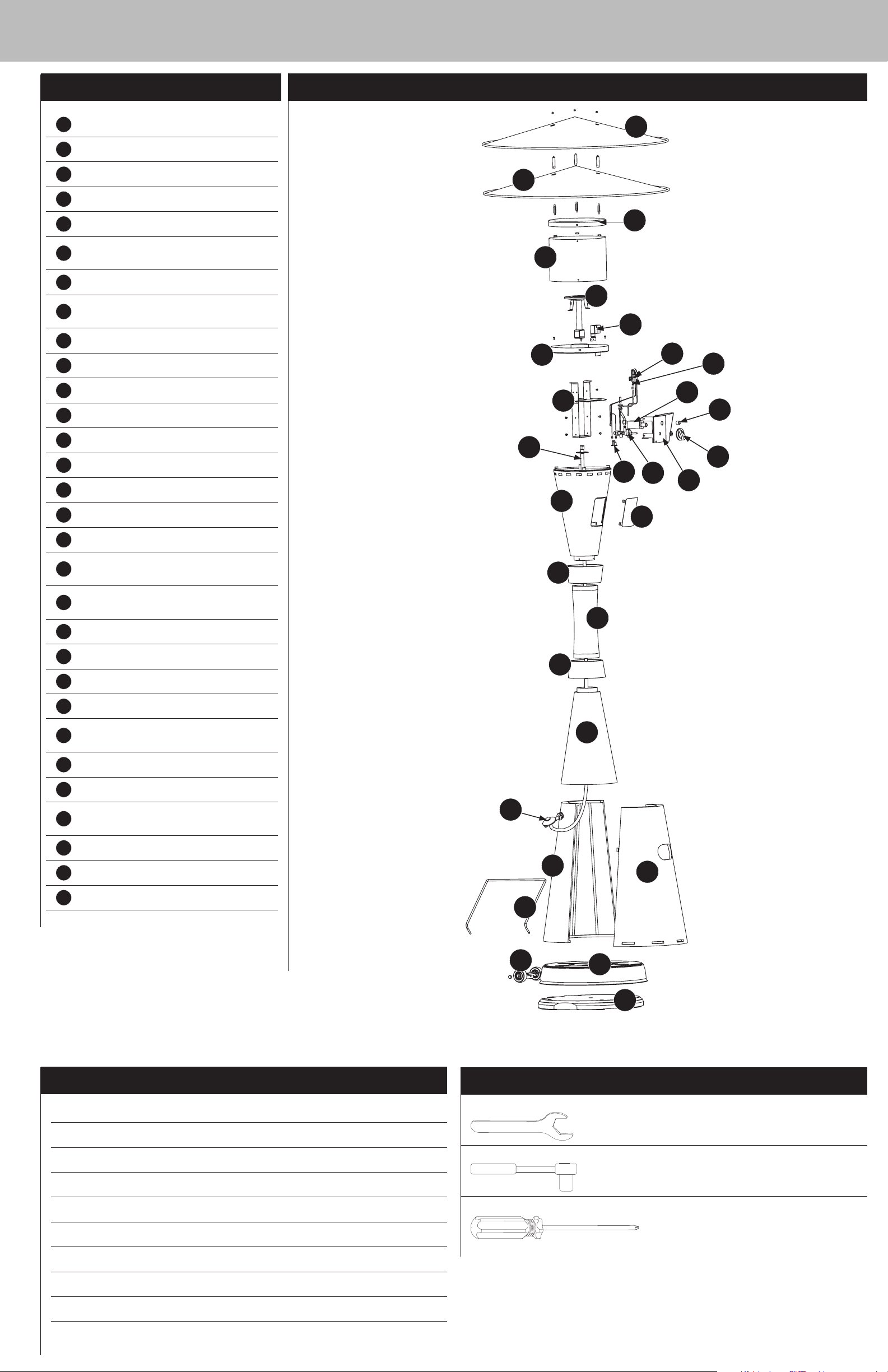

Exploded View

Access Panel*

Valve*

Tip Switch*

Gas Line

Engine Cover*

Control Panel Door*

Upper Cap

Pole

Lower Cap

Shroud Cap

Regulator/Hose Assembly

Shroud Back

Shroud Front

Tank Retainer Wire

56-01-623

56-01-144

56-01-019

56-01-190

56-01-624

56-01-625

56-01-626

56-01-627

56-01-628

56-01-629

56-01-192

56-01-630

56-01-631

56-01-632

Wheel Assembly

Base

Weight Plate

* Pre Assembled

Hardware

Screw

56-01-633

56-01-634

56-01-635

M6x25 Black Zinc Plated Philips Truss Head

4 pcs

Tools Required for Assembly (Not Included)

7/16” Wrench

B C D E F G H

Screw

Bolt

Nut

Washer

AA Battery

M6x40 Black Zinc Plated Philips Truss Head

Nickel Plated

M5 Stainless Steel

M6 Black Zinc Plated

ø5 Zinc Plated

AA Battery

4 pcs

3 pcs

4 pcs

3 pcs

4 pcs

3 pcs

1 pc

5/16’’ Socket and Socket Wrench

#2 Phillips Head Screwdriver

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

Assembly Instructions

All Weather Woven Heater, Model No. GWU9850F / 35554 (A & B)

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard, level surface that does not have cracks or openings.

• Clear an area large enough to lay out all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

To complete assembly you will need:

• (1) Leak Detection Solution (Instructions on how to make solution are included in step the “Operating Instructions”)

• (1) Precision Filled LP Gas Grill Tank with Acme Type 1 external threaded valve connection (4-5 gallon size)

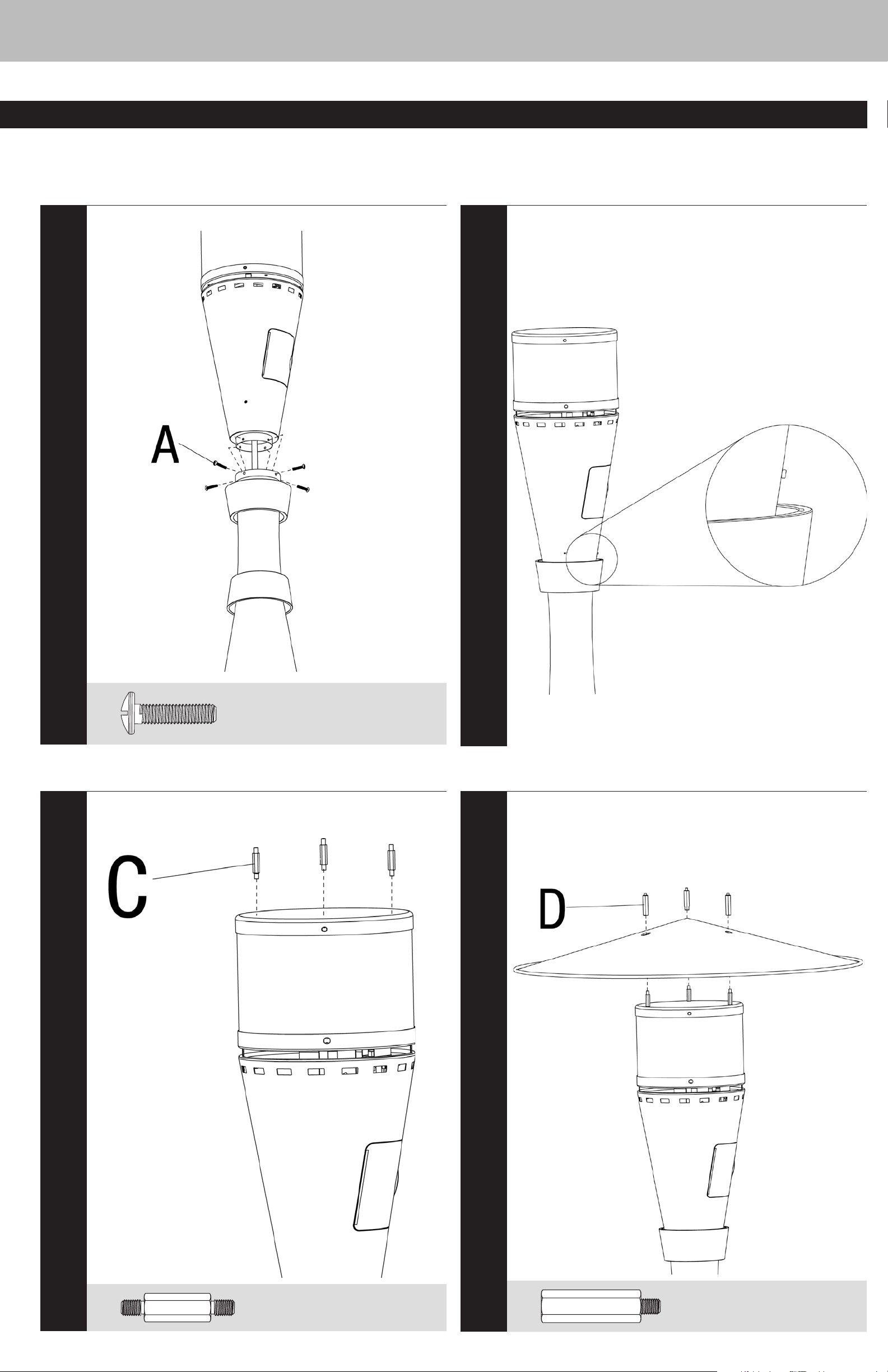

Attach Base

Typical assembly: approximately 1 (one) hour.

Attach Pole

Place Caps

x 4

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

Attach Engine Assembly

Secure Upper Cap

Note: Upper cap must align with the notch on the engine assembly and lock into position.

Attach Bolts

x 4

Attach Lower Dome

x 3

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

Assembly Instructions (continued)

All Weather Woven Heater, Model No. GWU9850F / 35554 (A & B)

Attach Upper Dome

Insert Battery

Attach Tank Retainer Wire

x 3

Attach Shroud Front

x 1

+ 14 hidden pages
