Uniflame Gbc1103w Owner's Manual

Made from 75% Bagasse

(Environmentally Friendly Sugar

Cane Pulp By-product)

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

OWNER’S MANUAL

Outdoor LP Gas Barbecue Grill

Model No. GBC1103W

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3. Failure to follow these instructions could result in ﬁre or explosion, which could cause property damage, personal injury or death.

4. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

5. Read and follow all warnings and instructions before assembling and using the appliance.

6. Follow all warnings and instructions when using the appliance.

7. Keep this manual for future reference.

Table of Contents

DANGER

If you smell gas -

1. Shut off gas to appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas supplier or your fire department.

WARNING

FOR YOUR SAFETY:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

DANGER

Never operate this appliance unattended.

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Exploded View & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

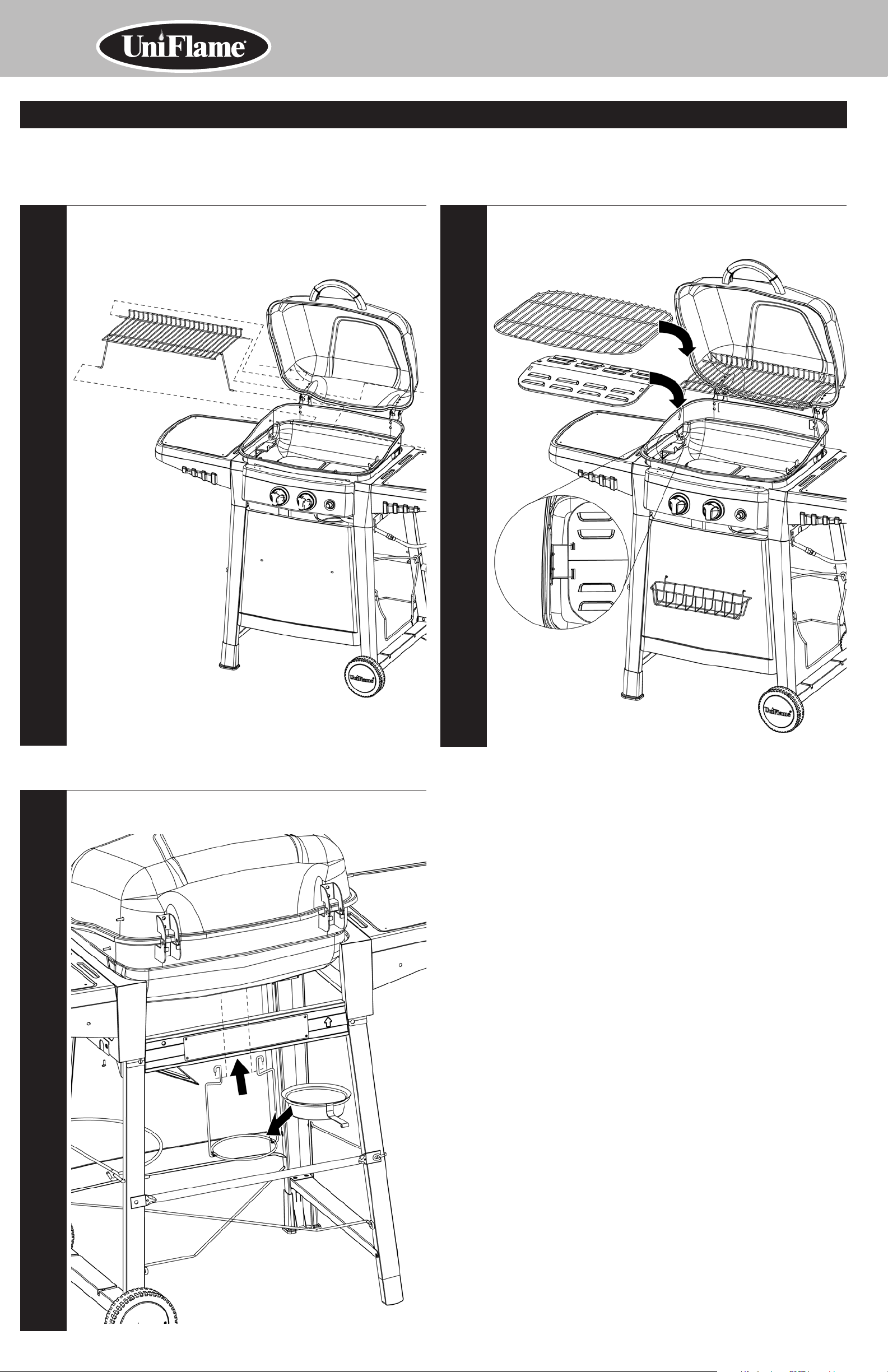

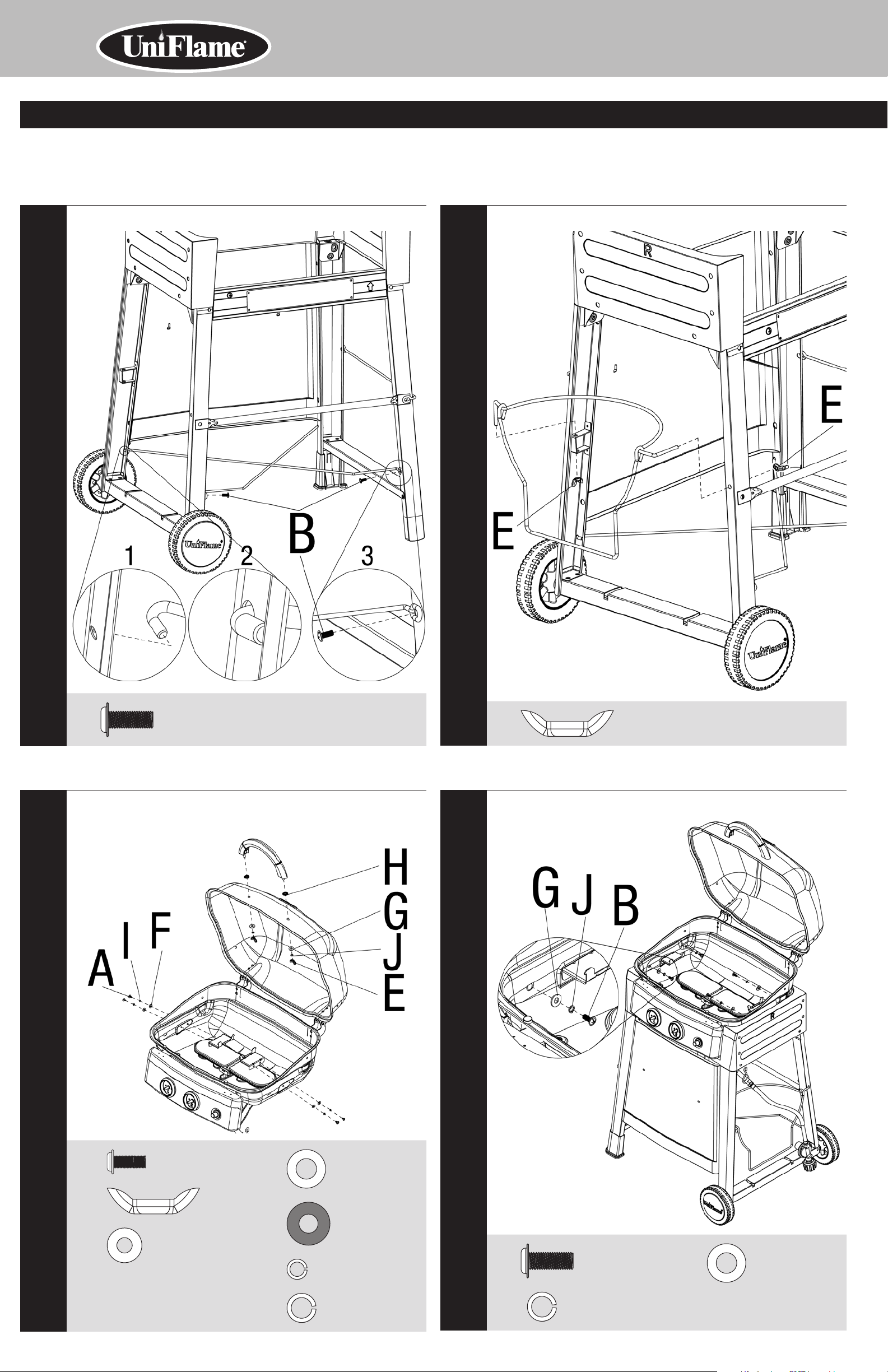

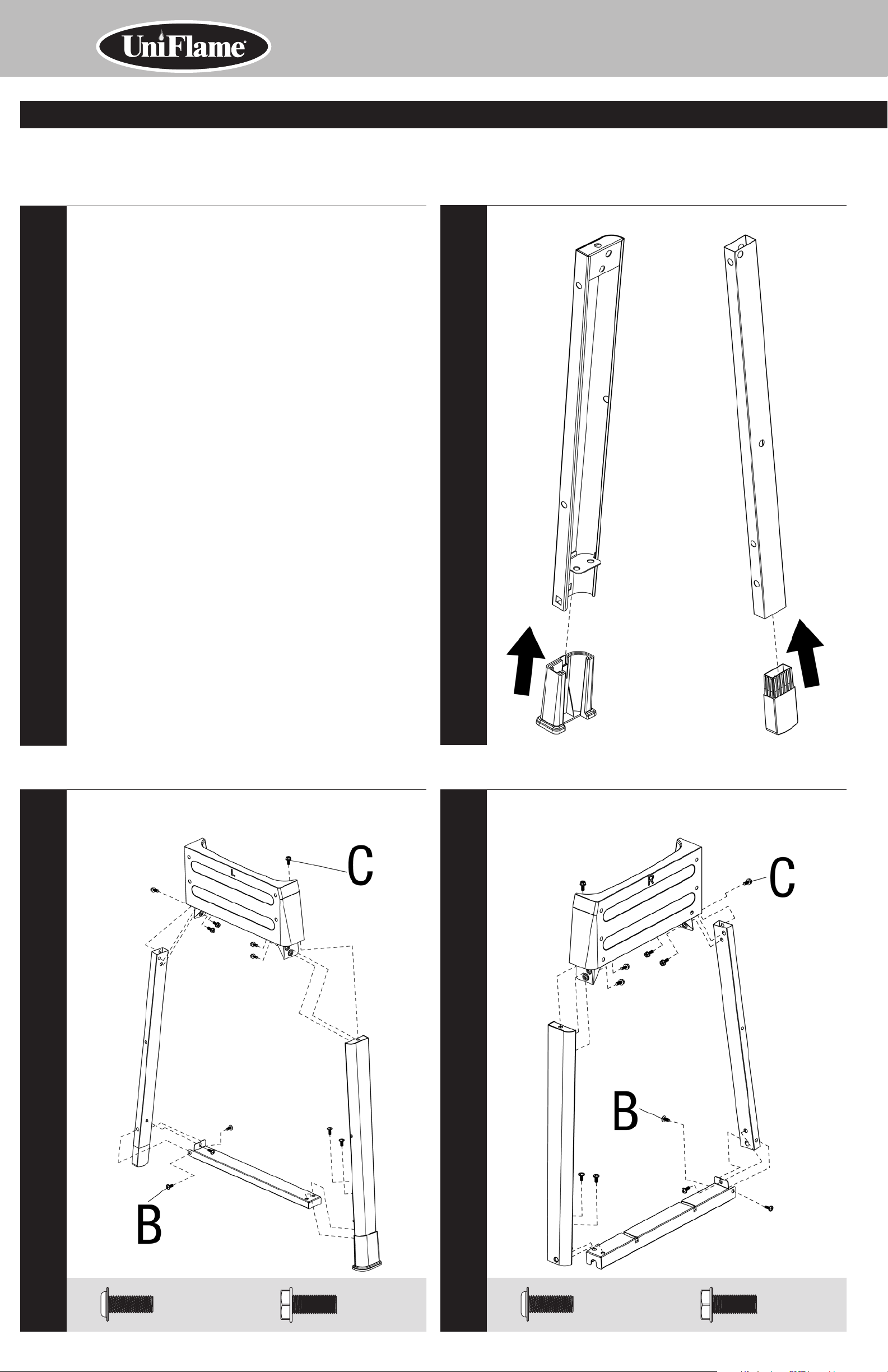

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

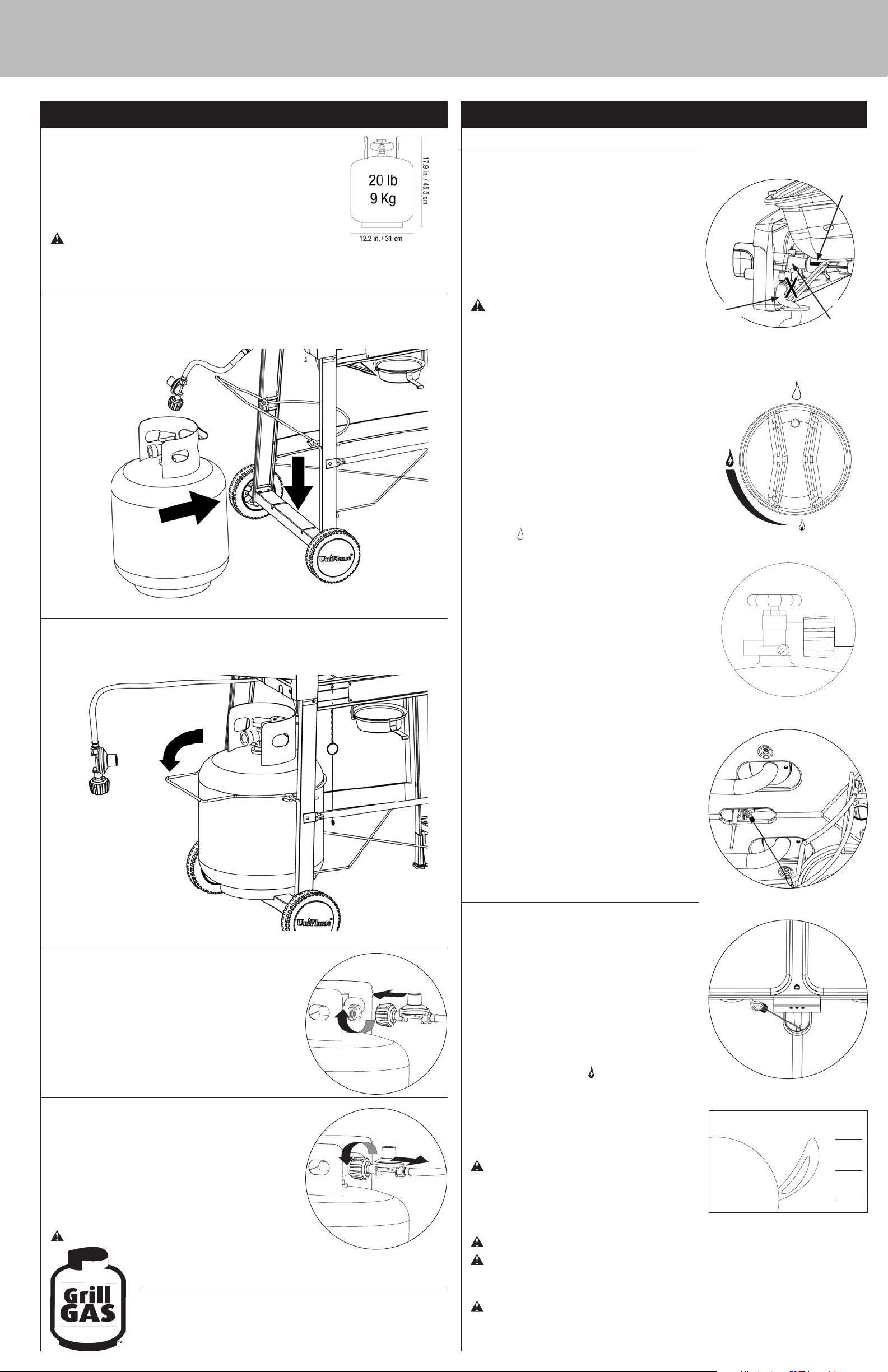

Installling LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Insert LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Secure LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connect LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Disconnect LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operating Main Burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

The use and installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas

and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2,or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

California Proposition 65: Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

California Proposition 65: Wash your hands after handling this product.

Manufactured in China for: Blue Rhino Global Sourcing, Inc Winston-Salem, NC USA • 1.800.762.1142, www.bluerhino.com

Outdoor LP Gas Barbecue Grill Model No. GBC1103W

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage

to property.

WARNING:

This grill is for outdoor use only, and shall not be used in a building,

garage, or any other enclosed area. Do NOT operate, light or use this appliance within ten (10) feet (3.05 m)

of walls, structures or buildings.

For residential use only. This grill is NOT for commercial use.

This grill is not intended for and should never be used as a heater. TOXIC

fumes can accumulate and cause asphyxiation.

This grill is safety certified for use in the United States and/or Canada

only. Do not modify for use in any other location. Modification will result in a safety hazard. Apartment Dwellers: Check with management to learn the requirements

and fire codes for using an LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a ten (10) foot (3.05 m) clearance from any structure. Do not use on or under balconies.

This grill is for use with liquid propane (LP) gas only. The conversion to

or attempted use of natural gas in this LP gas grill is dangerous and will void your warranty.

LP gas Characteristics:

a. LP gas is flammable and hazardous if handled improperly. Become

aware of the characteristics before using any LP gas product.

b. LP gas is explosive under pressure, heavier than air, and settles and

pools in low areas.

c. LP gas in its natural state has no odor. For your safety, an odorant is

added that smells like rotten cabbage.

d. Contact with LP gas can cause freeze burns to skin.

LP gas tank needed to operate. Only tanks marked “propane” may be

used. The LP gas tank must be constructed and marked in accordance

with the Specifications for LP gas Cylinders of the U.S. Department of

Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods; and Commission.

LP gas tank must be arranged for vapor withdrawal. The LP gas tank must have a listed overfilling prevention device (OPD). Only use LP gas cylinders equipped with a cylinder connection device

compatible with the connection for outdoor cooking appliances. The LP gas tank must have a tank collar to protect the tank valve. Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous and should be checked

by your LP gas supplier prior to use. The LP gas tank should not be dropped or handled roughly.

LP gas tanks must be stored outdoors out of the reach of children and

must not be stored in a building, garage, or any other enclosed area. Your tank must never be stored where temperatures can reach over 125°F.

Do not insert any tool or foreign object into the valve outlet or safety

relief valve. You may damage the valve and cause a leak. Leaking

propane may result in explosion, fire, severe personal injury or death. Do not block holes in sides or back of grill. Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause

the gas pressure to increase, which may open the relief valve and allow

gas to escape. Place dust cap on cylinder valve outlet whenever the cylinder is not in

use. Only install the type of dust cap on the cylinder valve outlet that is

provided with the cylinder valve. Other types of caps or plugs may result

in leakage of propane. If grill is not in use, the gas must be turned off at the supply tank and

disconnect. Do not store a spare LP gas tank under or near this appliance. Never fill the tank beyond 80 percent full. A fire causing, serious injury or damage to property may occur if the

above is not followed exactly. Never attempt to attach this grill to the self-contained LP gas system of a

camper trailer, motor home or house. The use of alcohol, prescription or non-prescription drugs may impair the

consumer’s ability to properly assemble or safely operate the appliance. Strong odors, colds, sinus congestion, etc. may prevent the detection of

propane. Use caution and common sense when testing for leaks. Never use charcoal, lighter fluid, lava rocks, gasoline, kerosene or alcohol

with this product. Your grill has been checked at all factory connections for leaks. Recheck

all connections as described in the “Operating Instructions” section of

the manual, as movement in shipping can loosen connections. Check for leaks even if your unit was assembled for you by someone

else. Do not operate if gas leak is present. Gas leaks may cause a fire or

explosion. You must follow all leak-checking procedures before operating. To

prevent fire or explosion hazard when testing for a leak:

a. Always perform leak test before lighting the grill and each time the

tank is connected for use.

b. No smoking. Do not use or permit sources of ignition in the area

while conducting a leak test. c. Conduct the leak test outdoors in a well-ventilated area. d. Do not use matches, lighters, or a flame to check for leaks.

e. Do not use grill until any and all leaks are corrected. If you are unable to stop a leak, disconnect the LP gas supply. Call a

gas appliance serviceman or your local LP gas supplier.

Do not store or use gasoline or other flammable liquids or vapors within

25 feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep grill area clear and free

from combustible materials, gasoline and other flammable vapors and liquids.

Minimum clearance from sides and back of unit to combustible

construction is 36 inches (91.4 cm). Do not use this appliance under any type of overhang or roof.

It is essential to keep the grill’s valve compartment, burners, and

circulating air passages clean. Inspect grill before each use. Do not alter grill in any manner. Any alteration will void your warranty. Do not use the grill unless it is COMPLETELY assembled and all parts are

securely fastened and tightened. Do not build this model of grill in any built-in or slide in construction.

Ignoring this warning could cause a fire or an explosion that can damage

property and cause serious bodily injury or death. This grill should be thoroughly cleaned and inspected on a regular basis.

Clean and inspect the hose before each use of the appliance. If there is

evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior

to the appliance being put into operation. Use only the regulator and hose assembly provided. The replacement

regulator and hose assembly shall be that specified by the manufacturer. Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The

use of any part that is not factory authorized can be dangerous. Doing so

will also void your warranty. Do not operate this appliance without reading “Operating Instructions” in

this manual. Do not touch metal parts of grill until it has completely cooled (about 45

min.) to avoid burns, unless you are wearing protective gear (pot holders,

gloves, BBQ mittens, etc.). Do not install or use in or on boats or recreational vehicles. When cooking, fire extinguishing materials shall be readily accessible. In

the event of an oil/grease fire, do not attempt to extinguish with water.

Use type BC dry chemical fire extinguisher or smother with dirt, sand or

baking soda. Do not use grill in high winds. Never lean over the grill when lighting. Do not leave a lit grill unattended, especially keep children and pets

away from grill at all times.

Do not leave grill unattended while preheating or burning off food

residue on high. If grill has not been cleaned, a grease fire can occur that

may damage the product. Do not place empty cooking vessels on the appliance while in operation. Use caution when placing anything on the grill while the appliance is in

operation.

Do not attempt to move grill when in use. Allow the grill to cool before

moving or storing.

LP gas tank must be properly disconnected and removed prior to moving

this grill.

Storage of grill indoors is permissible only if the tank is disconnected,

removed from the grill and properly stored outdoors.

Always open grill lid carefully and slowly as heat and steam trapped

within grill can severely burn you.

Do not attempt to disconnect the gas regulator from the tank or any gas

fitting while the grill is in use.

Always place your grill on a hard, non-combustible, level surface. An

asphalt or blacktop surface may not be acceptable for this purpose.

Move gas hoses as far away as possible from hot surfaces and dripping

hot grease.

Keep all electrical cords away from a hot grill. All electrical accessories (such as rotisserie) must be electrically

grounded in accordance with local codes, or National Electrical Code, ANSI / NFPA 70 or Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel supply hoses away from any hot surfaces.

After a period of storage and/or nonuse, check for leaks, burner

obstructions and inspect for any abrasion, wear or cuts to the hose.

Failure to open lid while igniting the grill’s burners, or not waiting 5

minutes to allow the gas to clear if the grill does not light, may result in an explosive flame-up.

Never operate grill without heat plates installed. Always use a meat thermometer to ensure food is cooked to a safe

temperature.

Use protective gloves when assembling this product. Do not force parts together as this can result in personal injury or

damage to the product.

Never cover entire cooking area with aluminum foil. Maximum load for side shelf is 22 lbs. Deaths, serious injury or damage to property may occur if the above is

not followed exactly.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

For great recipes and tips, visit recipes.uniflame.com

page no.

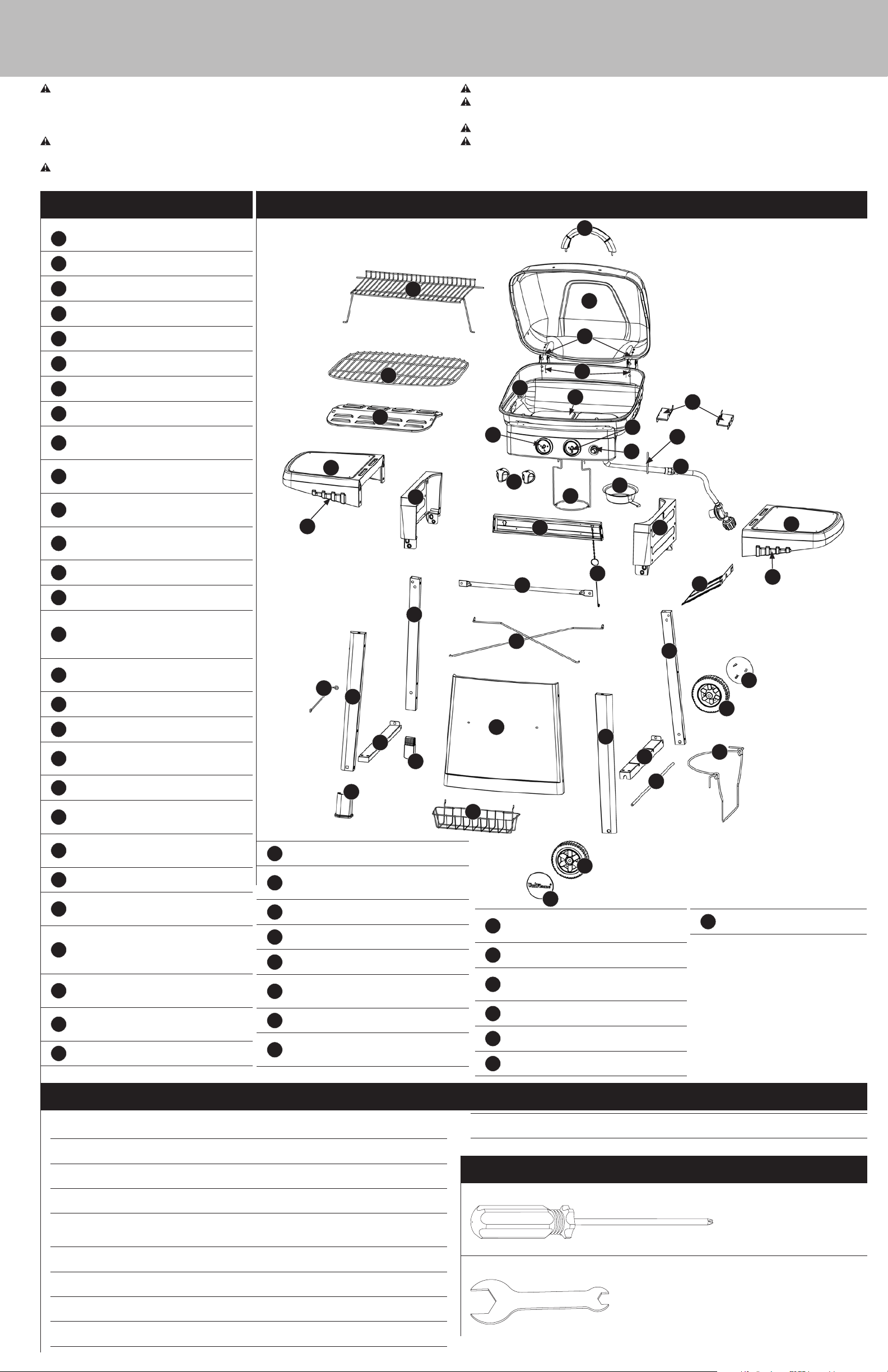

Parts List

Handle

Lid*

Warming Rack

Top Hinge (2)*

Bottom Hinge (2)*

Cooking Grid

Burner*

Grill Body Assembly*

Heat Plate

Heat Plate Support (2)

Left Control Knob Bezel*

Right Control Knob Bezel*

Control Knob (2)

Side Shelf (2)

55-11-287

55-11-288

55-09-321

55-07-360

55-07-306

55-09-300

55-09-295

55-11-289

55-09-303

55-11-290

55-11-291

55-11-292

55-09-298

55-11-293

Exploded View

Left Upper Cart Frame

Support

Grease Cup Support

Grease Cup

Regulator/Hose

Assembly* Right Upper Cart Frame

Support

Igniter*

Left Side Shelf Front*

Upper Rear Cart Frame

Support

Lighting Hook*

Right Side Shelf Front*

LP Gas Tank Heat Shield

Lower Rear Cart Frame

Support Cart Frame Support

Wire B (2)

Left Rear Leg

55-11-294

55-07-316

55-11-410

55-11-411

55-11-295

55-11-296

55-11-297

55-11-298

55-07-331

55-11-300

55-11-301

55-11-302

55-11-303

55-11-304

Right Rear Leg

Cart Frame Support

Wire A

Left Front Leg

Front Panel

Right Front Leg

Left Lower Cart Frame

Support

Hardware

A B C D

Screw

Bolt

Nut

55-11-305

55-11-306

55-11-307

55-11-308

55-11-309

55-11-310

M4x10 Nickel Plated Phillips Truss Head

M6x14 Nickel Plated Phillips Truss Head

M6x14 Nickel Plated Hex Head

M10 Nickel Plated

Left Rear Foot

Right Lower Cart Frame

Support LP Gas Tank Retainer

Wire

Left Front Foot

Condiment Basket

Axle

4 pcs

29 pcs

20 pcs

2 pcs

55-11-311

55-11-312

55-11-313

55-11-314

55-09-297

55-11-315

Wheel (2)

Hub Cap (2)

QCC Clip*

* Pre assembled

Lock Washer

55-11-316

55-11-317

55-11-412

ø6.4 Nickel Plated

Tools Required for Assembly (Included)

#2 Phillips Head Screwdriver 1 pc

6 pcs

E F G H

Wing Nut

Washer

Lock Washer

M6 Steel

ø4.5 Nickel Plated

ø6.4 Nickel Plated

ø6.4 Heat Resistant

ø4.5 Nickel Plated

4 pcs

6 pcs

2 pcs

4 pcs

M10-M6 Wrench 2 pcs

Assembly Instructions

Outdoor LP Gas Barbecue Grill Model No. GBC1103W

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and model number available for reference.

Note: The model number can be found on the back or side of the cart assembly.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

To complete assembly you will need:

• (1) Leak Detection Solution (Instructions on how to make solution are included in the “Operating Instructions” section of this manual)

• (1) Precision Filled LP Gas Grill Tank with Acme Type 1 external threaded valve connection (4-5 gallon size)

Attach Feet

Typical assembly: approximately 1 (one) hour.

Attach Upper and Lower Left Cart Frame Supports

Attach Upper and Lower Right Cart Frame Supports

x 5

x 6

x 5

x 6

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

For great recipes and tips, visit recipes.uniflame.com

page no.

Attach Axle, Wheels and Hub Caps

Attach Front Panel

Attach Upper Rear Cart Frame Support

x 2

Attach Lower Rear Cart Frame Support and Cart Frame Support Wire A

x 4

x 3

Assembly Instructions (continued)

Outdoor LP Gas Barbecue Grill Model No. GBC1103W

Attach Cart Frame Support Wires B

Attach LP Gas Tank Retainer Wire

Attach Handle and Heat Plate Supports

x 2

Insert and Secure Grill Body Assembly

x 2

A E

x 4

x 2

x 4

x 2

x 4

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

For great recipes and tips, visit recipes.uniflame.com

page no.

Assemble LP Gas Tank Heat Shield

Attach Left Side Shelf Assembly

Note: Leave 5 mm of bolt threads exposed.

Attach Right Side Shelf Assembly

Note: Leave 5 mm of bolt threads exposed.

x 2

Insert Control Knobs and Condiment Basket

x 4

Assembly Instructions (continued)

Outdoor LP Gas Barbecue Grill Model No. GBC1103W

Insert Warming Rack

Insert Heat Plate and Cooking Grid

Insert Grease Cup Support and Grease Cup

+ 16 hidden pages
