Uniflame Ebc1102l Owner's Manual

0 (0)

Master Forge and M Design® is a registered trademark of LF, LLC. All rights reserved.

ITEM #0332739

Outdoor

Electric

®

Smoker/Griller

MODEL #EBC1102L

Français p. 18

Español p. 35

FOR HOUSEHOLD USE ONLY

ATTACH YOUR RECEIPT HERE

Serial Number



Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-963-0211, 8 a.m. - 6 p.m., Monday - Thursday, 8 a.m. - 5 p.m., Friday, EST.

1

TABLE OF CONTENTS

Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Extension Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Turning On Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Smoking Instructions.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Grilling Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Adding Additional Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Controlling Flare-ups.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Replacement Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

WARNING

For Outdoor Use Only (outside any enclosure)

WARNING

1.Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2.Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3.Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

4.This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

5.Read and follow all warnings and instructions before assembling and using the appliance.

6.Follow all warnings and instructions when using the appliance.

7.Keep this manual for future reference.

DANGER

Never operate this appliance unattended.

WARNING

1.Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2.When cooking with oil/grease do not allow the oil/grease to exceed 350ºF (176.5ºC). Do not store or use extra cooking oil in the vicinity of this or any other appliance.

DANGER

Do NOT use electric grill for indoor cooking or heating. NOT to be used in or on boats or recreational vehicles.

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

2

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product. If you have any questions regarding the product, please call customer service at 1-800-963-0211, 8 a.m. - 6 p.m., Monday - Thursday, 8 a.m. - 5 p.m., Friday, EST.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

11. Always attach plug to appliance first, then plug cord into

should always be followed including the following:

the wall outlet. To disconnect, turn the control to “OFF”,

1.

Read all instructions.

then remove plug from wall outlet.

2.

Do not touch hot surfaces. Use handles or knobs.

12. Do not use appliance for anything other than intended

3.

To protect against electrical shock do not immerse cord,

use.

13. Use only on properly grounded outlet.



plugs or heating element in water or other liquids.

4.

Close supervision is necessary when any appliance is

14. Fuel, such as charcoal briquettes, is not to be used with



used by or near children.

appliance.

5.

Unplug from outlet when not in use and before cleaning.

15. Longer detachable power-supply cords or a grounding



Allow to cool before putting on or taking off parts.

type 3-wire extension cords are available and may be

6.

Do not operate any appliance with a damaged cord or

used if care is exercised in their use.

16. If a longer detachable power-supply cord or a grounding



plug or after the appliance malfunctions or has been



damaged in any manner. Return appliance to the nearest

type 3-wire extension cord is used:



authorized service facility for examination, repair or

a. The marked electrical rating of the cord set or



adjustment.

extension cord should be at least as great as the

7.

The use of accessory attachments not recommended by

electrical rating of the appliance.



the appliance manufacturer may cause injuries.

b. The cord should be arranged so that it will not drape

8.

Do not let cord hang over edge of table or counter or

over a countertop or tabletop where it can be pulled



touch hot surfaces.

on by children or tripped over unintentionally.

9.

Do not place on or near a hot gas or electric burner or in

17. SAVE THESE INSTRUCTIONS.



a heated oven.



10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

WARNINGS AND CAUTIONS:

This smoker/grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.

For residential use only. This smoker/grill is NOT for commercial use.

This smoker/grill is not intended for and should never be used as a heater. TOXIC fumes can accumulate and cause asphyxiation.

This smoker/grill is safety certified for use in the United States only. Do not modify for use in any other location. Modification will result in a safety hazard.

Do NOT operate, light or use this appliance within ten (10) feet (3.05 m) of walls, structures or buildings.

Apartment Dwellers: Check with management to learn the requirements and fire codes for using an electric smoker/grill in your apartment complex. If allowed, use outside on the ground floor with a ten (10) foot (3.05 m) clearance from any structure. Do not use on or under balconies.

This smoker/grill is for use with electricity.

This is not a tabletop smoker/grill. Therefore, do not place this smoker/grill on any type of tabletop surface.

Do not use 16 gauge extension cords. Damage to household wiring and/or fire could result.

ELECTRIC SHOCK CAN KILL OR RESULT IN SERIOUS INJURY. TO PREVENT ELECTRICAL SHOCK:

a.Use only with GFI (Ground Fault Interrupter) protected circuit.

b.Do not use smoker/grill when raining.

c.To prevent smoker/grill from being splashed or falling into water, do not use smoker/grill within ten (10) feet (3.05 m) of pool, pond or other body of water.

d.Keep smoker/grill and electric controller dry and out of rain when not in use.

e.Do not operate smoker/grill with an electric controller that has a damaged cord, plug, or metal probe. Use only the controller provided. The replacement controller shall be that specified by the manufacturer.

f.Never remove grounding plug, or use with an adapter to two prongs.

g.Keep electric plugs off ground, and dry.

h.In case of fire, turn controller OFF, unplug smoker/grill from outlet and allow fire to burn out. Do not use water to put out a fire in this or any other electrical appliance.

i.Do not use water or other liquid spray to clean smoker/grill without first unplugging electric controller and removing heating element.

The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance.

Never use charcoal, lighter fluid, gasoline, kerosene or alcohol with this product.

Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep smoker/grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

If using flavored wood follow instructions on flavored wood packaging.

Note: Most fruit or nut tree wood may be used for smoke flavoring, such as hickory, pecan, apple, cherry, or mesquite. Use wood chunks/sticks 3 in. to 4 in. long and 1 in. to 2 in. thick.

Note: Unless the wood is still “green,” soak the wood in water for 20 minutes prior to use, or wrap each piece in foil and tear several small holes in the top of the foil to produce more smoke and prevent the wood from burning too quickly.

Minimum clearance from sides and back of unit to combustible construction is 36 inches (91.4 cm). Do not use this appliance under any type of overhang or roof.

Do not alter smoker/grill in any manner. Any alteration will void your warranty.

Do not use the smoker/grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened.

Do not build this model of smoker/grill in any built-in or slide in construction. Ignoring this warning could cause a fire or an explosion

that can damage property and cause serious bodily injury or death. 3

SAFETY INFORMATION

This smoker/grill should be thoroughly cleaned and inspected on a regular basis. Clean and inspect the temperature control assembly

/electric cord before each use of the appliance. If there is evidence of abrasion, wear or cuts, the temperature control assembly / electric cord must be replaced prior to the appliance being put into operation.

Use only the manufacturer’s factory authorized parts. The use of any part that is not factory authorized can be dangerous and will void your warranty.

Use only the controller provided. The replacement controller shall be that specified by the manufacturer.

Use only Ovis Enterprises Int’l Co., LTD, model OPT-001, cord type SJTOW, temperature controlling plug.

Do not operate this appliance without reading “Operating Instructions” in this manual.

Do not touch metal parts of smoker/grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

Never touch grates to see if they are hot.

Do not install or use in or on boats or recreational vehicles.

When cooking, fire extinguishing materials shall be readily accessible. In the event of an oil/grease fire, do not attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.

Do not use smoker/grill in high winds.

Never lean over the smoker/grill when lighting.

Do not leave a lit smoker/grill unattended, especially keep children and pets away from smoker/grill at all times.

Do not leave smoker/grill unattended while preheating or burning off food residue on high. If smoker/grill has not been cleaned, a grease fire can occur that may damage the product.

Do not place empty cooking vessels on the appliance while in operation.

Use caution when placing anything on the smoker/grill while the appliance is in operation.

Do not attempt to move smoker/grill when in use. Allow the smoker/grill to cool (about 45 min.) before moving or storing.

Always open smoker/grill lid carefully and slowly as heat and steam trapped within smoker/grill can severely burn you.

Do not use on wooden decks, wooden furniture or other combustible surfaces.

Always place your smoker/grill on a hard, non-combustible level surface. An asphalt or blacktop surface may not be acceptable for this purpose.

Keep all electrical cords away from a hot smoker/grill.

The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

After a period of storage and/or nonuse, inspect the controller and electrical cord for any abrasion, wear or cuts.

Make sure electric pan is securely and completely in place before using the smoker/grill.

Do not move smoker/grill while water pan contains liquid.

Always use the water pan designed for this smoker/grill.

Do not allow water in water pan to completely evaporate while smoker/grill is in use. Check water pan at least every 2 hours and add water if level is low. Add water per “Adding Additional Water” section in this manual.

Do not remove water from water pan once food is removed. Allow smoker/grill to cool and water to evaporate.

Before smoker/grill can be left unattended:

a.Smoker/grill must be cool.

b.Temperature control assembly / electric cord must be OFF and unplugged from outlet.

Use caution when lifting or moving cooled smoker/grill to prevent strains and back injuries.

Always use a meat thermometer to ensure food is cooked to a safe temperature.

Use protective gloves when assembling this product.

Do not force parts together as this can result in personal injury or damage to the product.

Never cover entire cooking area with aluminum foil.

Outdoor extension cords should be used with outdoor use products and are surface marked with suffix letters “W” and with a tag stating “Suitable for Use with Outdoor Appliances.”

Connections from your smoker/grill to an extension cord should be kept dry and off the ground.

Store products indoors when not in use – out of the reach of children.

Do not clean this product with a spray water or the like.

Never add water or other liquids into electric pan.

Never use or connect smoker/grill to electrical outlet when water or other liquids are in the electric pan.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid

ahazard.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Outdoor electric smokers/grills:

a.Fuel, such as charcoal briquettes, is not to be used with appliance.

b.Use only on properly grounded outlets.

Deaths, serious injury or damage to property may occur if the above is not followed exactly.

California Proposition 65: Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

California Proposition 65: Wash your hands after handling this product.

4

PACKAGE CONTENTS

A B

C

D



D

E

F



A A

G

H

I

J

N

L K Q

L

O

P M

L

Part

Description

Quantity

A

Handle

3

B

Lid

1

C

Temperature Gauge

1

D

Cooking Grid

2

E

Cooking Grid Support

6

F

Water Pan

1

G

Upper Smoker Body

1

H

Door

1

I

Water Pan Support

3

J

Lower Smoker Body

1

K

Electric Pan

1

L

Lock

3

Part

Description

Quantity

M

Bottom Bowl

1

N

Temperature Control

1

Assembly / Electric Cord











O

Heating Element*

1

P

Lava Rock

1



Temperature Control



Q

Assembly / Electric Cord

1



Cover









*Pre assembled

5

HARDWARE CONTENTS (shown actual size)

AA

BB

CC

DD

M4 x 15 mm Screw

M5 x 12 mm Screw





Qty. 18

M4 Wing Nut

M5 Wing Nut

Qty. 10





Qty. 8

Qty. 18





PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.

For Easiest Assembly:

To avoid losing any small components or hardware, assemble your product on a hard, level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

Estimated Assembly Time: 30 minutes

Tools Required for Assembly (Included): No. 2 Phillips Head Screwdriver

6

ASSEMBLY INSTRUCTIONS

1.Attach temperature gauge (C) to lid (B) using one wing nut (C).

Attach handle (A) to lid (B) using two screws (BB) and two wing nuts (DD).

Hardware used

BB

M5 x 12 mm Screw

x 2

DD

M5 Wing Nut

x 2

2.Attach handles (A) to upper smoker body (G) using four screws (BB) and four wing nuts (DD).

Hardware used

BB

M5 x 12 mm Screw

x 4

DD

M5 Wing Nut

x 4

3.Attach door (H) to upper smoker body (G) using two screws (AA) and two wing nuts (CC).

Hardware used

AA

M4 x 15 mm Screw

x 2

CC

M4 Wing Nut

x 2

1

2

3

7

ASSEMBLY INSTRUCTIONS

4.Attach water pan supports (I) to upper smoker body (G) using three screws (BB) and three wing nuts (DD).

Attach cooking grid supports (E) to upper smoker body (G) using six screws (BB) and six wing nuts (DD).

Hardware used

BB

M5 x 12 mm Screw

x 9

DD

M5 Wing Nut

x 9

5.Flip the upper smoker body (G) upside down.

Attach lower smoker body (J) to upper smoker body (G) using three screws (BB) and three wing nuts (DD).

Turn assembled smoker body right-side up.

Hardware used

BB

M5 x 12 mm Screw

x 3

DD

M5 Wing Nut

x 3

6.Attach temperature control assembly / electric cord cover (Q) to bottom bowl (M) using two screws (AA).

Attach locks (L) to bottom bowl (M) using six screws (AA) and six wing nuts (CC).

Hardware used

AA

M4 x 15 mm Screw

x 8

CC

M4 Wing Nut

x 6

4

5

6

8

ASSEMBLY INSTRUCTIONS

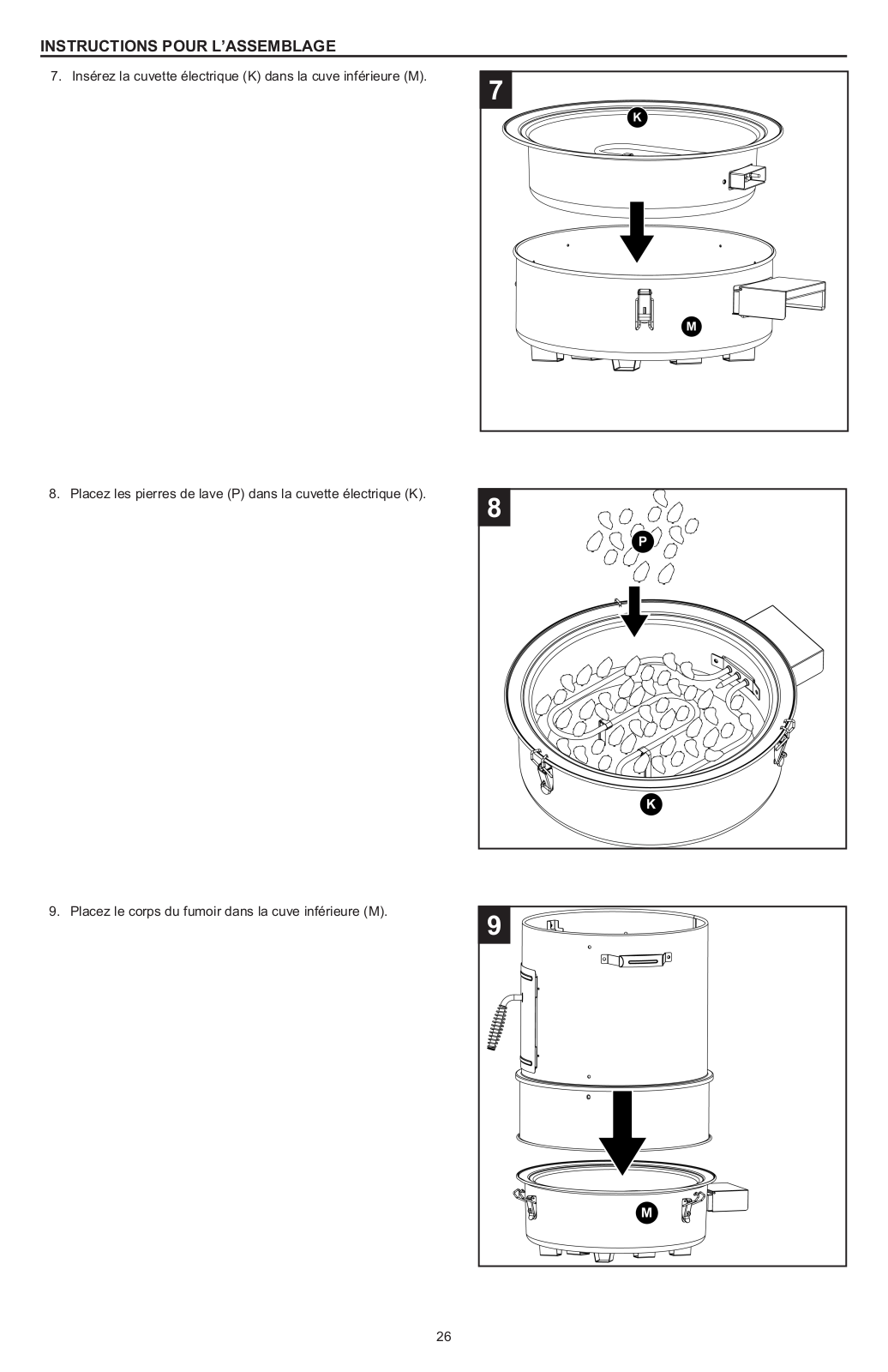

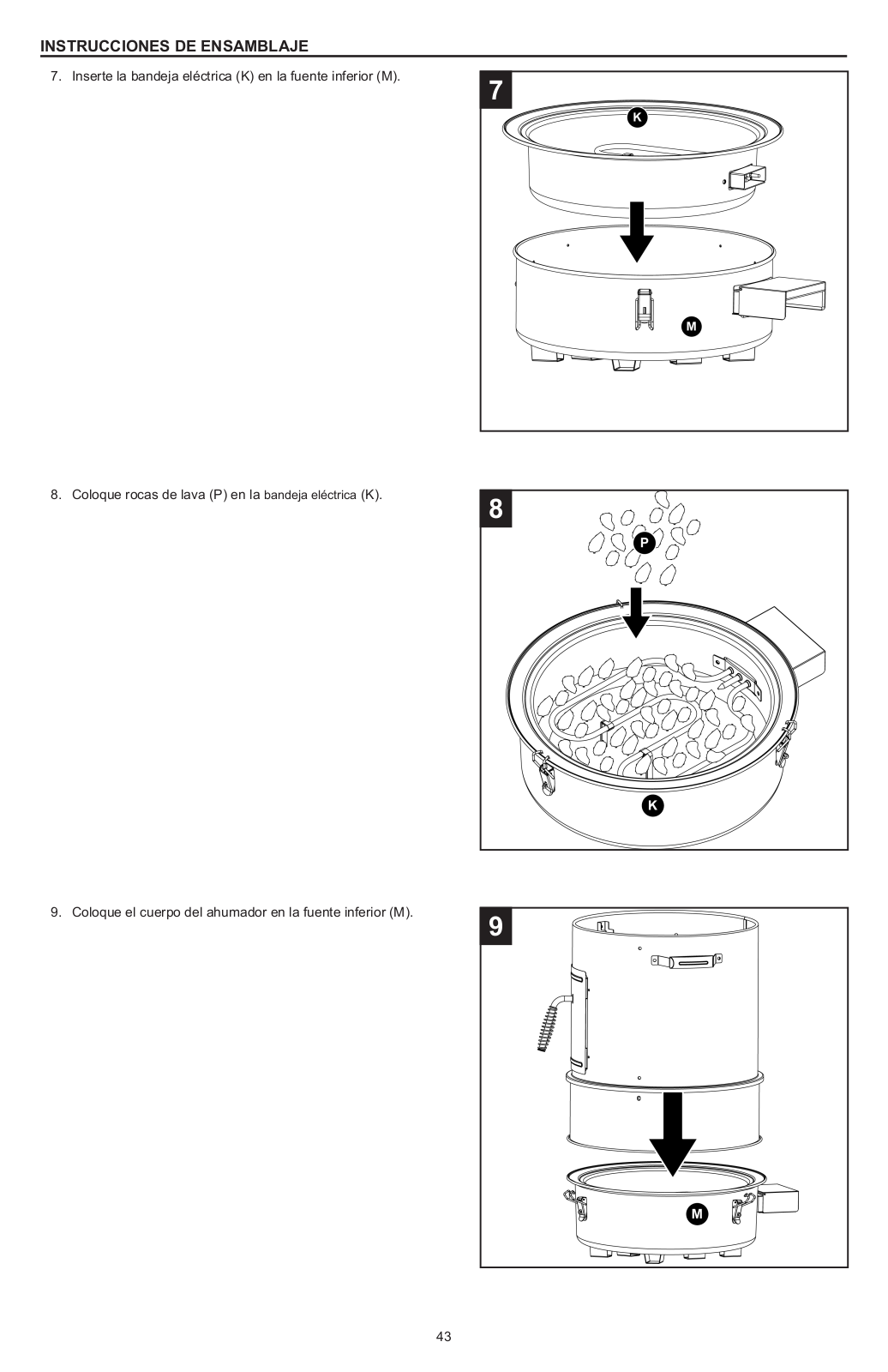

7. Insert the electric pan (K) into the bottom bowl (M).

8. Place lava rocks (P) into electric pan (K).

9. Place smoker body onto bottom bowl (M).

7

8

9

9

ASSEMBLY INSTRUCTIONS

10.To lock the smoker/grill:

Close the lid. Slide the lock forward, till the sides of the lock cover the lid and bottom bowl. See 9a.

To unlock the smoker/grill:

Slide the lock backwards, till the lock stops, or both sides of the lock are free from the lid and bottom bowl. See 9b.

11.Insert the water pan (F) and cooking grids (D) into smoker body. Place the lid (B) onto smoker body.

12.Insert the temperature control assembly / electric cord (N) into the heating element (O).

10

11

12

9a

9b

10

OPERATING INSTRUCTIONS

CAUTION

Always place your smoker/grill on a hard, non-combustible, level surface. An asphalt or blacktop surface may not be acceptable for this purpose.

CAUTION

Do not use on wooden decks, wooden furniture or other combustible surfaces.

CAUTION

Position smoker/grill to prevent smoke from entering house through open doors or windows.

CAUTION

Do not use in high winds.

Extension Cord

Note: Smoker/grill functions best WITHOUT an extension cord.

1.The short cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.

2.An extension cord may be used, if care is exercised.

3.If an extension cord is necessary:

Use a UL approved, 3 prong plug (grounded) that is rated for at least 15 amperes and suitable for outdoor use.

Never connect two or more extension cords together.

• Use the shortest extension cord possible.

• A 12or 14-gauge cord of less than 50 feet is preferable.

• Keep connections dry and off the ground.

• Avoid draping the smoker/grill cord over a countertop or tabletop where it can be pulled on by children, animals or tripped over unintentionally.

Figure 1

Figure 2

Grounding Instructions

1.

This smoker/grill must be grounded while in use to protect the







operator from electrical shock.





2.

The smoker/grill is equipped with a 3-conductor cord and a dry GFI







(Ground-Fault Interceptor) 3-prong outlet. (See Figure 1).





3. An adaptor should be used for connecting a 3-prong plug to a











2-plug to 2-prong receptacle. (See Figure 2).

Figure 3



4.

The grounding tab, which extends from the adaptor, must be





connected to a permanent ground such as a properly grounded







outlet box using a metal screw. (See Figure 3).





First Use

1. Make sure all labels, packaging and protective films have been removed from the smoker/grill.

2. Remove manufacturing oils before cooking on this smoker/grill for the first time:

a. Light smoker/grill per “Turning On Instructions” section in this



manual.

Metal Screw

b. Operate smoker/grill for at least 2 hours with the lid closed. This will “heat clean” the internal parts and dissipate odors.

c.Do not touch the exterior of the smoker/grill or open the lid during this process.

d.After the 2 hours, follow “Smoking Instructions” or “Grilling Instructions” sections in this manual.

3.Apply a protective coat:

a.Remove water pan, electric pan and heating element from smoker/grill.

b.Apply a light coat of vegetable oil or vegetable oil spray to all interior surfaces of smoker/grill.

CAUTION

Do not apply vegetable oil to water pan, electric pan or heating element.

11

OPERATING INSTRUCTIONS

Turning On Instructions

CAUTION

Keep outdoor electric cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

CAUTION

Before each use check smoker/grill for any damaged or loose parts. Tighten any loose parts and replace any damaged parts before using smoker/grill.

CAUTION

Make sure electric pan is empty and securely and completely in place before using the smoker/grill.

1.Make sure electric pan and smoker/grill are secure.

2.Make sure that temperature controller assembly is turned fully to the “OFF” position. (Figure 4).

3.Plug the temperature controller assembly into the smoker/grill.

(Figures 5 and 6).

4.Plug the other end into a dry GFI (Ground-Fault Interceptor)

3-prong outlet, per “Grounding Instructions” section.

5.Turn the temperature controller to “HIGH”.

6.Close lid and preheat smoker/grill.

Note: If using flavored wood follow instructions on flavored wood packaging.

Turning Off Instructions

1.Turn the temperature controller knob to “OFF” position.

(Figure 4).

2.Unplug the power cord from the wall outlet.

3.Unplug the temperature controller assembly from the smoker/grill.

Smoking Instructions

CAUTION

Check to make sure the unit is free of debris before use.

1.Light smoker/grill per “Turning On Instruction” in this manual.

2.While wearing protective gloves, carefully remove the smoker/grill lid. Make sure to open the lid away from you. This will allow the steam to escape away from you.

3.If using flavored wood follow instructions on flavored wood packaging.

Note: Most fruit or nut tree wood may be used for smoke flavoring, such as hickory, pecan, apple, cherry, or mesquite. Use wood chunks/sticks 3 in. to 4 in. long and 1 in. to 2 in. thick.

Note: Unless the wood is still “green,” soak the wood in water for 20 minutes prior to use, or wrap each piece in foil and tear several small holes in the top of the foil to produce more smoke and prevent the wood from burning too quickly.

4.While wearing protective gloves, carefully place water pan on water pan brackets. (Figure 7).

5.While wearing protective gloves, carefully fill water pan with water or other liquid to 1 inch (2.54 cm) below the water pan rim

(Figure 8, p. 13). Do not fill past “Max Fill Line”.

Note: Water pan holds 2 liters (2.2 quarts) of water and will last about 2-3 hours when smoker/grill is in use.

6.While wearing protective gloves, carefully place cooking grid on the lower cooking grid supports. (Figures 10a, 10b, or 10c, p. 13).

7.While wearing protective gloves, carefully place food in a single layer and evenly spaced on the lower cooking grid.

8.While wearing protective gloves, carefully place other cooking grid on upper cooking grid supports.

(Figures 10a, 10b, or 10c, p. 13).

9.While wearing protective gloves, carefully place the food in a single layer and evenly spaced on the upper cooking grid.

Figure 4





MUIDE





H

M

W

G

I



O

H





L













N







O

O

F

F

Position of controller is indicated by triangular mark.

Illustration shows controller in “OFF” position.

Figure 5

Figure 6

Raised lip of controller should be inserted until it is snug against element bracket.

Figure 7

12

Uniflame Ebc1102l Owner's Manual

OPERATING INSTRUCTIONS

10. While wearing protective gloves, carefully place lid on smoker/

Figure 8

grill.

11. Check water level per “Adding Additional Water” section in this



manual.

MAX:



CAUTION

1 in.

Always use a meat thermometer to ensure

2,54 cm



food is cooked to a safe temperature.



Grilling Instructions



CAUTION







Figure 9

Check to make sure the unit is free of debris







before use.





CAUTION

Open lid slowly as flare-up can occur, when fresh air suddenly comes in contact with fire.

Cooking directly over heat source is ideal for searing in juices and grilling food requiring less than 25 minutes of grilling time, such as steaks, hamburgers, hot dogs, chicken parts, vegetables and fruit.

1.Remove lid, cooking grids and water pan. Set aside.

2.Unlock and remove smoker/grill body. Set aside.

3.Make sure electric pan is secure.

4.Place lava rocks into electric pan. (Figure 9).

5.Place cooking grid on electric pan.

6.Start grill per “Turning On Instructions” section.

7.Close lid and preheat grill on “HIGH” setting.

cooking grid with long handle tongs.

Figure 10a

8. While wearing protective gloves, open lid and place food onto







9.Adjust control as needed to desired temperature.

10.With lid open or closed, cook until desired internal food temperatures are achieved.

11.Turn grill OFF per “Turning Off instructions”.

12.Leave lid open to cool off.

Adding Additional Water

While using the smoker/grill check water level at least every 2 hours. If water is needed it can be added through top of the smoker/ grill or through the smoker/grill side door. See instructions below.

Note: Low water level can be detected by listening for the sound of water sizzling.

Adding Water Option 1 - Through Top of Smoker/grill

1.While wearing protective gloves, carefully remove the smoker/grill lid. Make sure to open the lid away from you. This will allow the steam to escape away from you.

CAUTION

Figure 10b





Open door slowly as flare-up can occur, when fresh air suddenly comes in contact with fire.

2.Determine water level in water pan:

a.If water is needed continue to step 3.

b.If water is not needed, replace lid on smoker/grill.

3.Upper cooking grid only used:

a.While wearing protective gloves and using long cooking tongs, slide food over to one side of cooking grid.

b.Carefully pour water into water pan to 1 inch (2.54 cm) below the water pan rim. (Figure 8). Do not over fill water pan.

CAUTION

Stand to side of smoker/grill and use extreme caution while pouring water as it may turn directly to steam.

13

OPERATING INSTRUCTIONS

c. Move food back to the proper location.

Figure 10c

d. Replace lid on smoker/grill.

Upper and lower cooking grid used:



a. While wearing protective gloves and using long cooking



tongs, remove food and upper cooking grid.



b. While wearing protective gloves and using long cooking



tongs, slide food over to one side of lower cooking grid.



c. Carefully pour water into water pan to 1 inch (2.54 cm)



below the water pan rim. (Figure 8, p. 13). Do not over



fill water pan.



CAUTION

Stand to side of smoker/grill and use extreme caution while pouring water as it may turn directly to steam.

d.Move food back to the proper location on lower cooking grid.

e.Replace upper cooking grid and food.

f.Replace lid on smoker/grill.

Adding Water Option 2 - Through Side of Smoker/grill

1.While wearing protective gloves, carefully open the smoker/grill side door. Make sure to stand on the opposite side of door opening. This will allow the steam to escape away from you.

CAUTION

Open door slowly as flare-up can occur, when fresh air suddenly comes in contact with fire.

2.Determine water level in water pan:

a.If water is needed continue to step 3.

b.If water is not needed, close side door on smoker/grill.

3.Using a funnel or a container with a spout, carefully pour water into water pan to 1 inch (2.54 cm) below the water pan rim. (Figure 8, p. 12). Do not over fill water pan.

CAUTION

Stand to side of smoker/grill and use extreme caution while pouring water as it may turn directly to steam.

4. Close side door on smoker/grill.

Controlling Flare-ups:

WARNING

Do not use water on an oil/grease fire. This can cause the grease to splatter and could result in serious burns, bodily harm or other damage.

CAUTION

Do not leave smoker/grill unattended while preheating, cooking or burning off food residue. If smoker/ grill has not been cleaned, an oil/grease fire can occur that may damage the product.

CAUTION

When cooking, fire extinguishing materials shall be readily accessible. In the event of an oil/grease fire, do not attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.

Flare-ups are a part of cooking meats on a smoker/grill and add to the unique flavor of smoking.

Excessive flare-ups can over-cook your food and cause a dangerous situation for you and your smoker/grill. Excessive flare-ups result from the build-up of grease in the bottom of your smoker/grill.

If excessive flare-ups occur, DO NOT pour water onto the flames.

If grease fire occurs, close the lid until the grease burns out. Use caution when opening the lid as sudden flare-ups may occur.

Minimize Flare-ups:

1.Trim excess fat from meats prior to cooking.

2.Ensure that your smoker/grill is on a hard, level, non-combustible surface.

Tips for Better Cookouts and Longer Smoker/grill Life

1.There is very little difference in temperature and cooking times between the upper and lower cooking grid. The food that requires the least amount of cooking time should be placed on the upper cooking grid.

14

OPERATING INSTRUCTIONS

2.To get the best results with your smoker/grill, remember to keep the water pan full with water or other liquids, keep your heating element hot and keep the lid closed.

3.To reduce flare-ups keep smoker/grill clean, use lean cuts of meat (or trim fat) and avoid cooking on very high temperatures.

4.Place delicate foods like fish and vegetables in aluminum foil pouches and indirect cook or place on upper cooking levels.

5.To avoid losing natural juices, use long handled tongs or spatulas instead of forks and turn foods over just once during cooking.

6.When indirect cooking roasts and larger cuts of meat, place meat onto a roasting rack inside a heavy gauge metal pan.

7.Clean cooking grids and racks after every use with a quality smoker/grill brush designed for your grid material. Wear protective gloves and gently remove the build-up while grids are hot.

8.Allow smoker/grill to fully cool after every use. Then protect clean cooking grids with a light coat of cooking oil, clean out all ashes, wipe outside surfaces with a suitable kitchen cleaner and protect surfaces with a quality cover that properly fits your smoker/grill.

9.Watch barbecue themed TV shows or purchase related barbecue cookbooks to learn helpful and interesting tips.

CARE AND MAINTENANCE

CAUTION

All cleaning and maintenance should be done when smoker/grill is cool (about 45 minutes) and with the fuel supply removed.

CAUTION

DO NOT clean any smoker/grill part in a self cleaning oven. The extreme heat will damage the finish.

CAUTION

Do not leave smoker/grill unattended while preheating, cooking or burning off food residue on high. If smoker/grill has not been cleaned, a grease fire can occur that may damage the product.

CAUTION

Do not allow water in water pan to completely evaporate. Check water pan at least every 2 hours and add water if level is low. Add water per “Adding Additional Water” section in this manual.

CAUTION

Do not remove water from water pan once food is removed. Allow smoker/grill to cool and water to evaporate.

CAUTION

Before smoker/grill can be left unattened:

a.Smoker/grill must be cool.

b.Temperature control assembly / electric cord must be OFF and unplugged from outlet.

Notices

1.Abrasive cleaners will damage this product.

2.Never use oven cleaner to clean any part of smoker/grill.

Cleaning Surfaces

1.Clean all surfaces with warm water and mild dish washing detergent or baking soda.

2.For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.

3.Rinse clean with water and dry.

Tips

1.Keep smoker/grill covered when not in use to help prevent rust.

2.Applying a light coat of vegetable oil or vegetable oil spray to the interior surfaces of the smoker/grill can help prevent rust.

a.Remove water pan and charcoal grid from smoker/grill.

b.Apply a light coat of vegetable oil or vegetable oil spray to all interior surfaces of smoker/grill.

CAUTION

Do not apply vegetable oil to water pan, electric pan or heating element.

15

LIMITED WARRANTY

Blue Rhino Global Sourcing, Inc (“Vendor”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one

(1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. Vendor may require reasonable proof of your date of purchase. Therefore, you should retain your sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service and which Vendor shall determine in its reasonable discretion upon examination to be defective. Before returning any parts, you should contact Vendor’s Customer Service Department using the contact information listed below. If Vendor confirms, after examination, a defect covered by this Limited Warranty in any returned part, and if Vendor approves the claim, Vendor will replace such defective part without charge. If you return defective parts, transportation charges must be prepaid by you. Vendor will return replacement parts to the original retail purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance or service by you or any third party, or failure to perform normal and routine maintenance on the product as set out in this owner’s manual.  In addition, the Limited Warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.

This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for products that are purchased from sellers other than authorized retailers or distributors, including the warranty of merchantability or the warranty of fitness for a particular purpose. VENDOR ALSO DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. VENDOR SHALL HAVE NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Vendor further disclaims any implied or express warranty of, and assumes no responsibility for, defects in workmanship caused by third parties.

This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to everyone.

Vendor does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and no such representations are binding on Vendor.

For warranty service call, Change to: 1-800-963-0211, 8 a.m. - 6 p.m., Monday - Thursday, 8 a.m. - 5 p.m., Friday, EST.

16

Loading...
+ 36 hidden pages
