USER GUIDE & SERVICE MANUAL
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.
ADA Series • ADA24RGL • 24" Glass Door Refrigerator
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Contents
Intro |

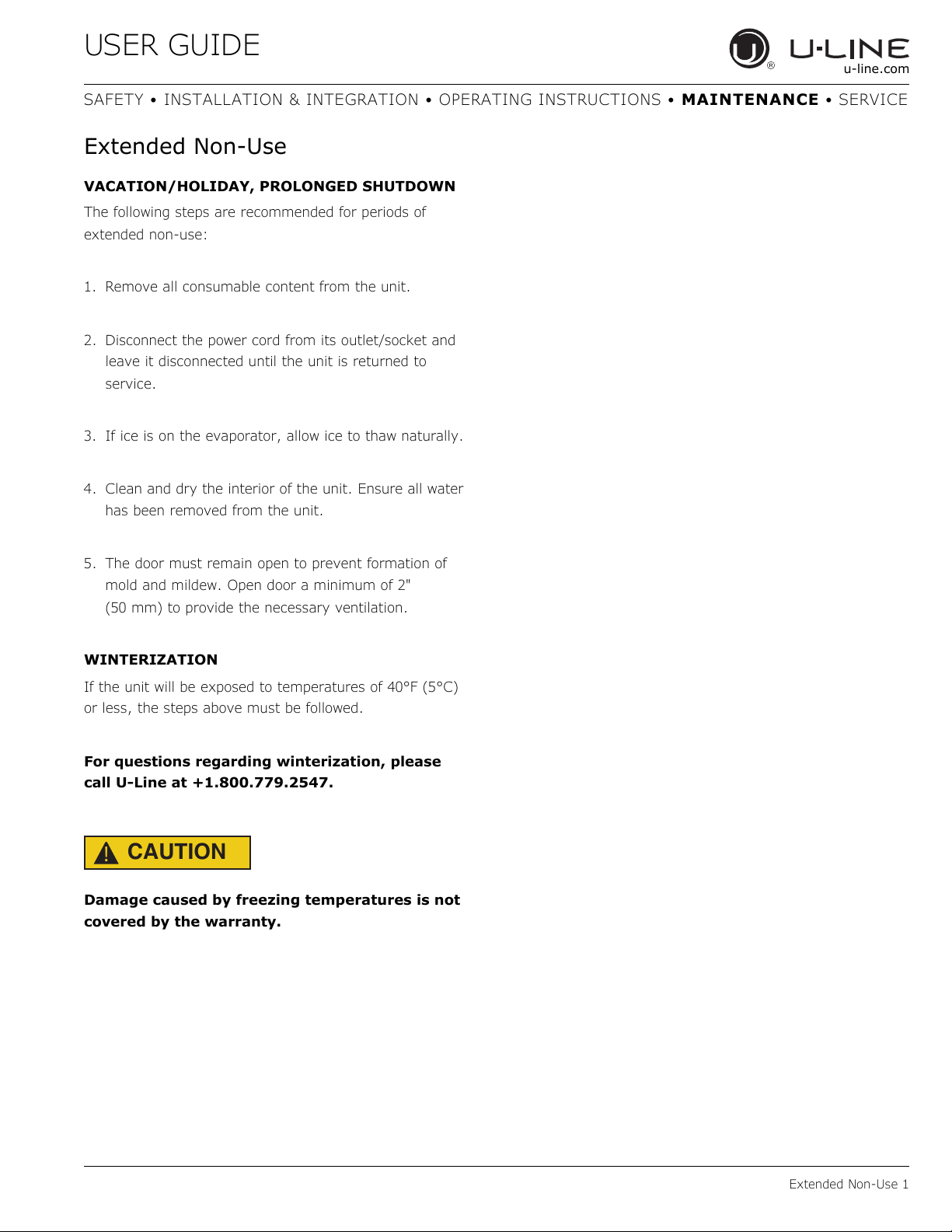

Extended Non-Use |
Safety |
Service |
Safety and Warning |

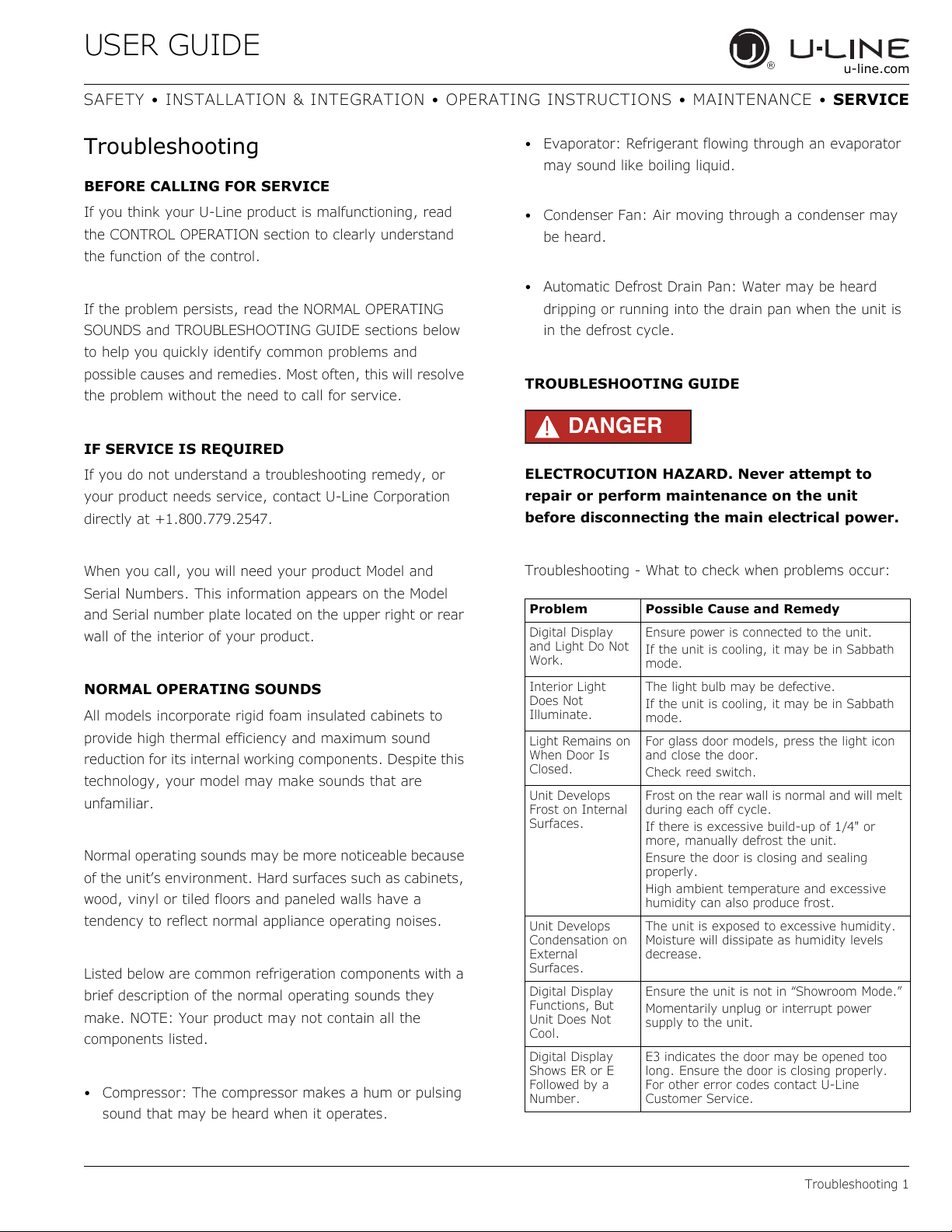

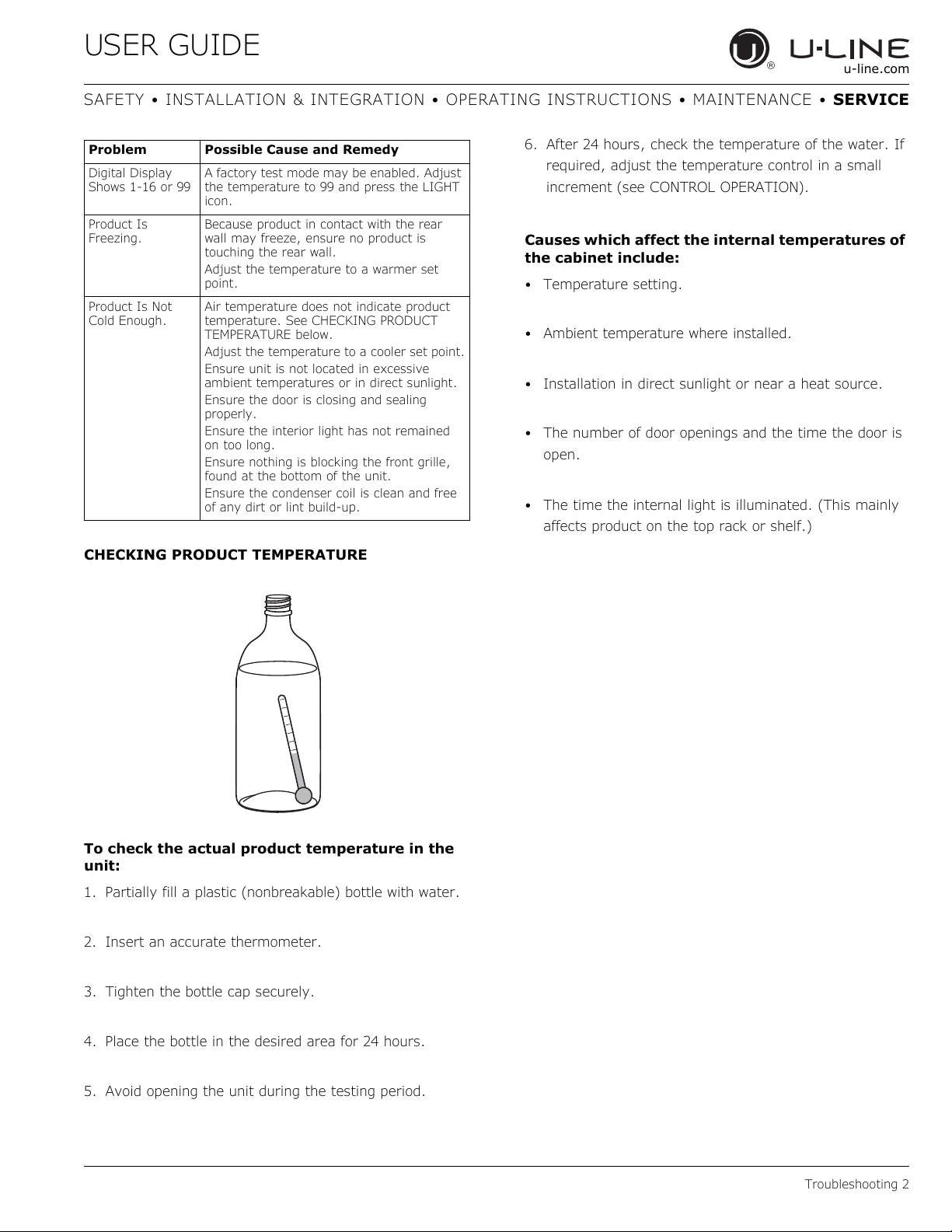

Troubleshooting |
Disposal and Recycling |

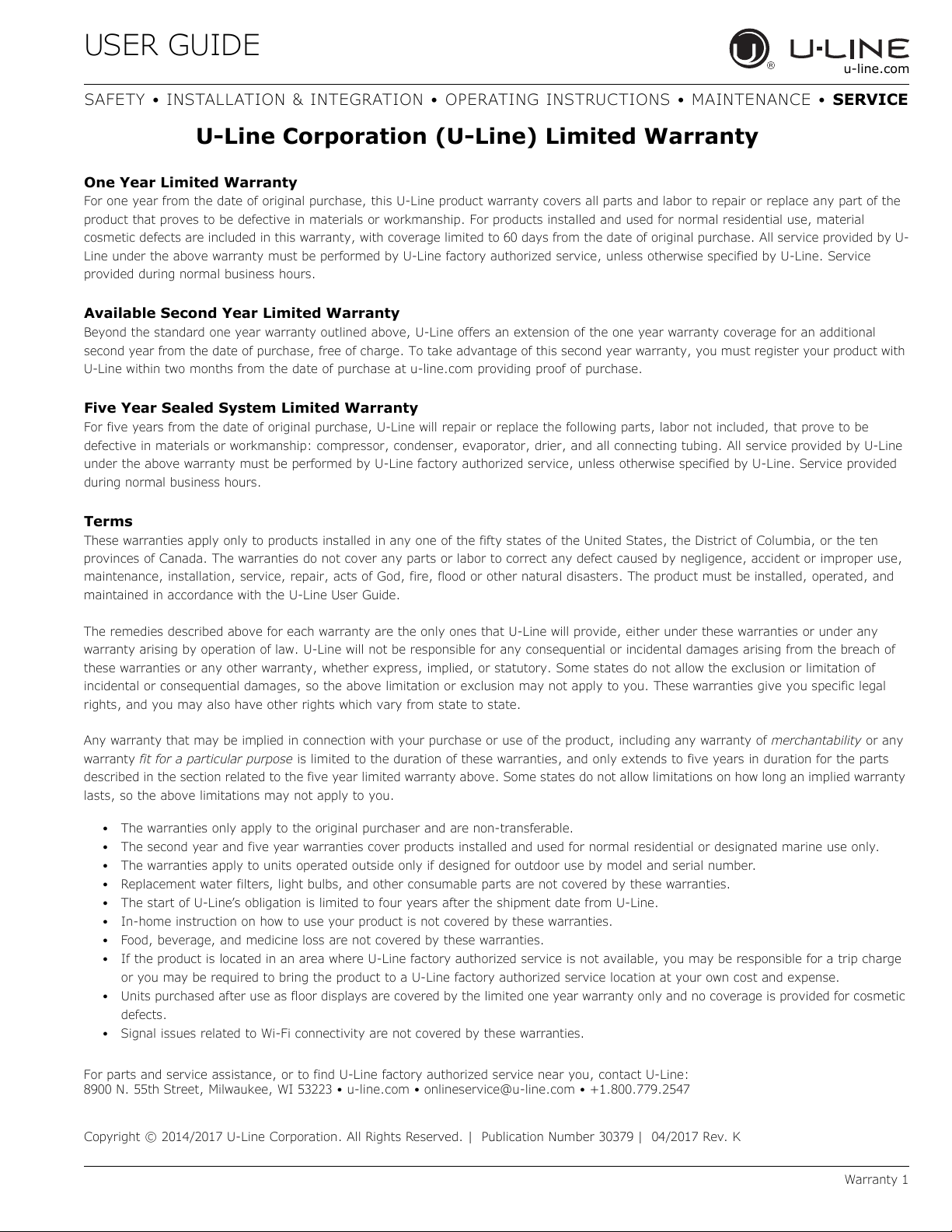

Warranty |
Installation |
Service Extended |
Environmental Requirements |

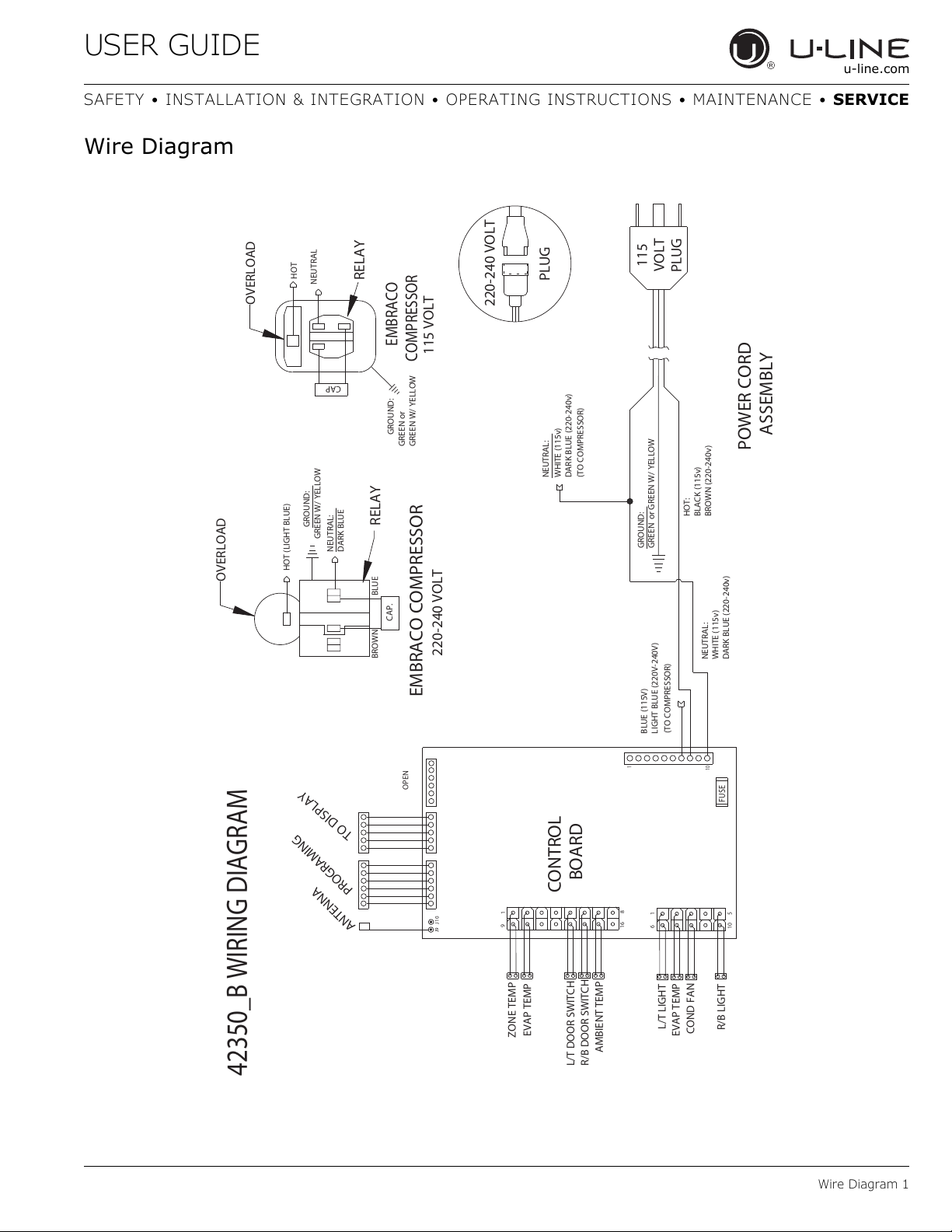

Wire Diagram |
Electrical |

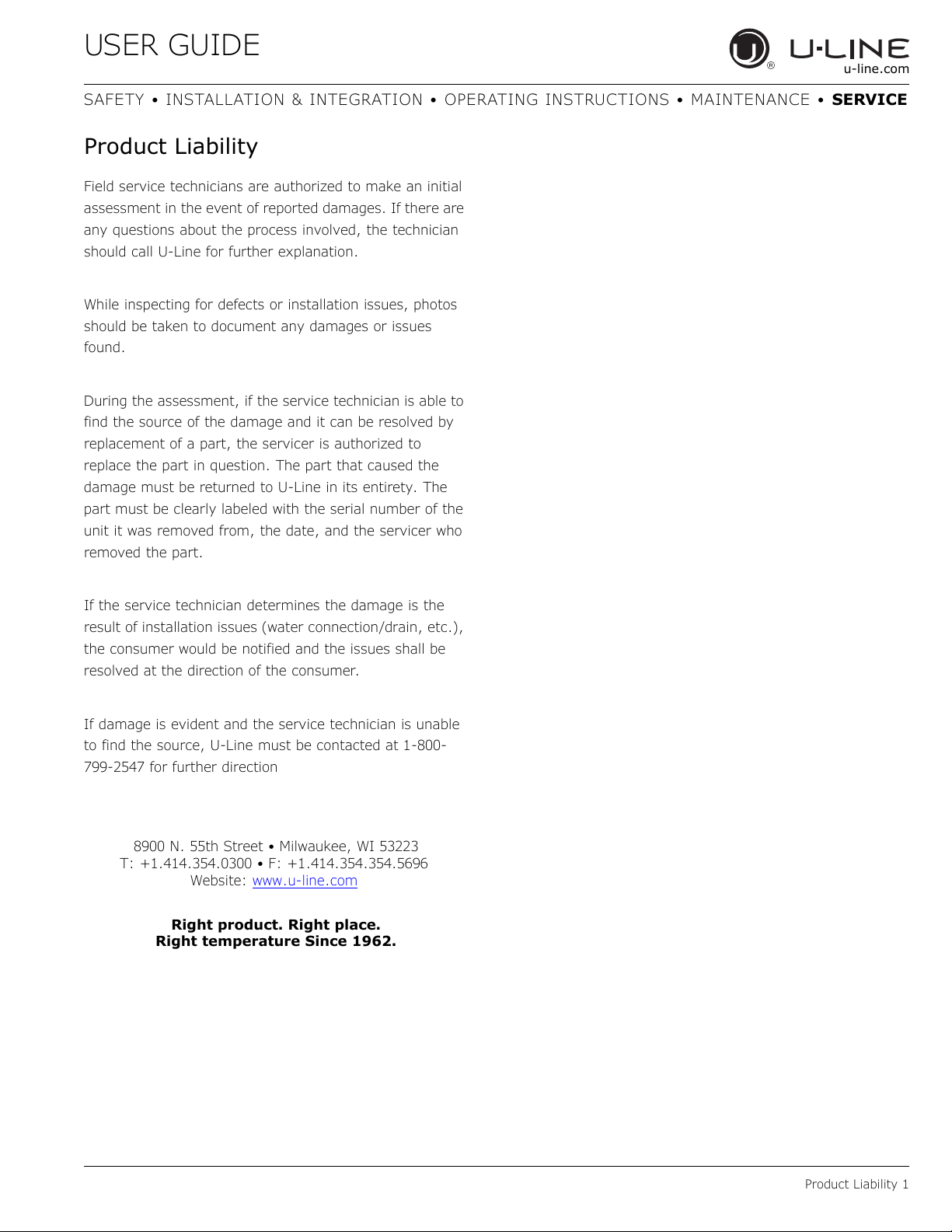

Product Liability |
Cutout Dimensions |

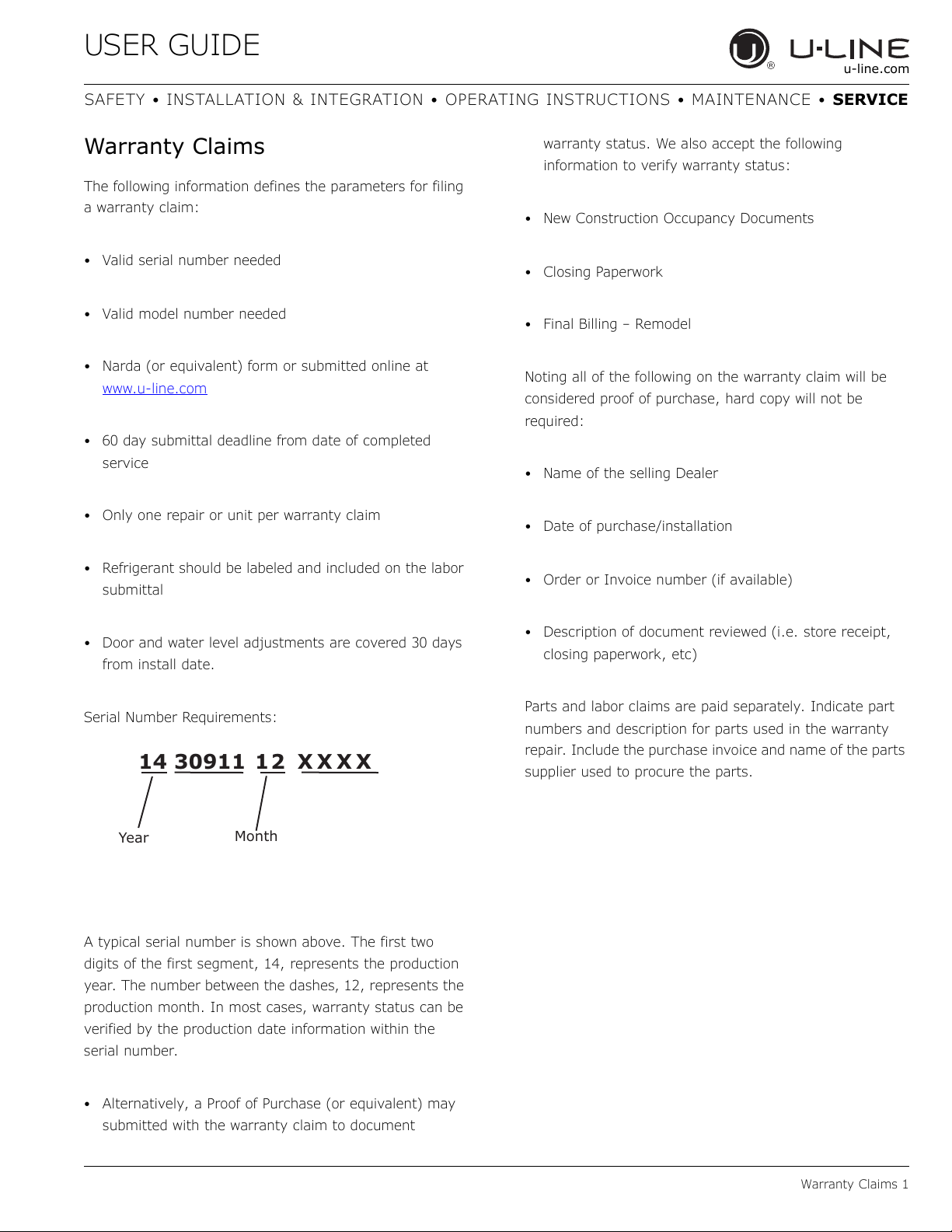

Warranty Claims |
Product Dimensions |

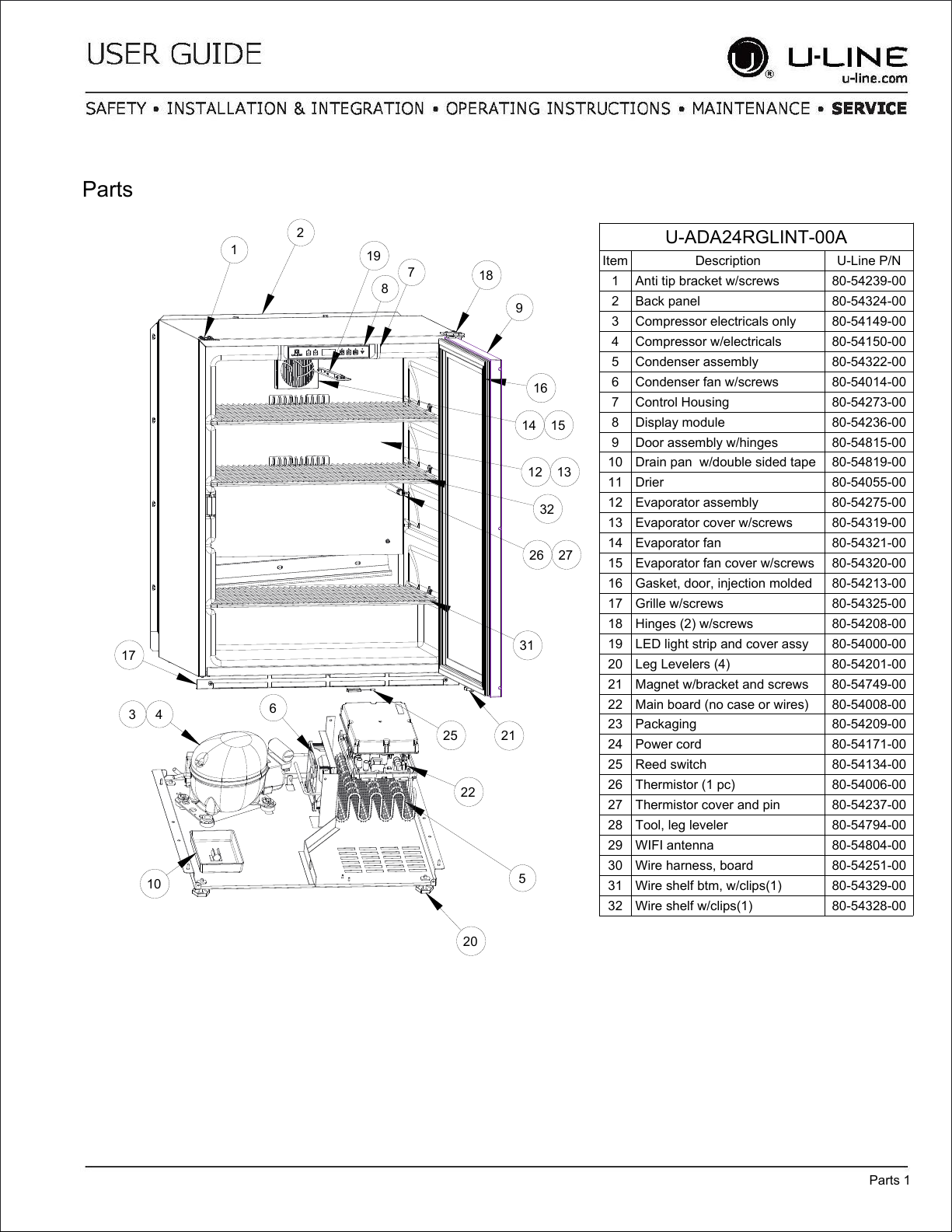

Parts |
Side by Side Installation |

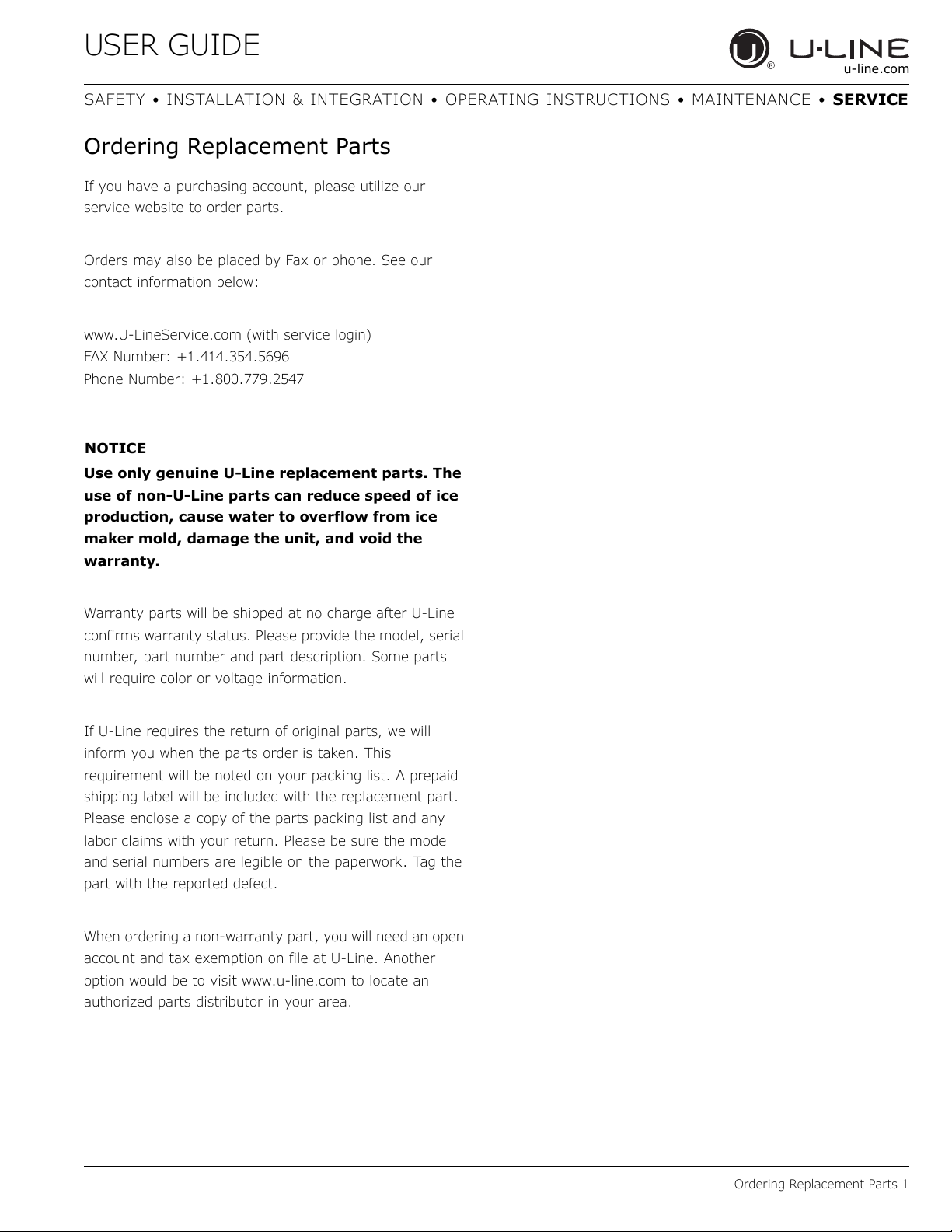

Ordering Replacement Parts |
Anti-Tip Bracket |

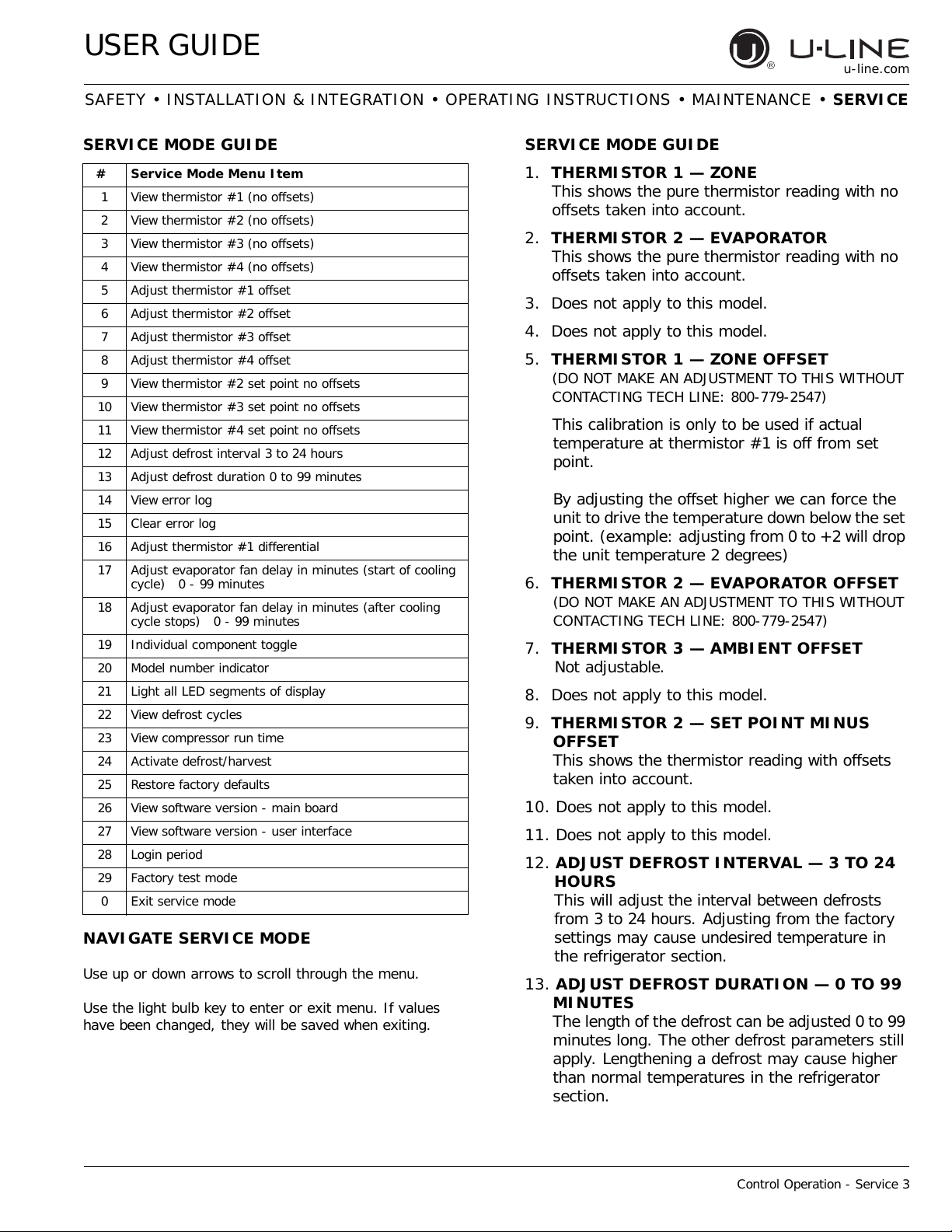

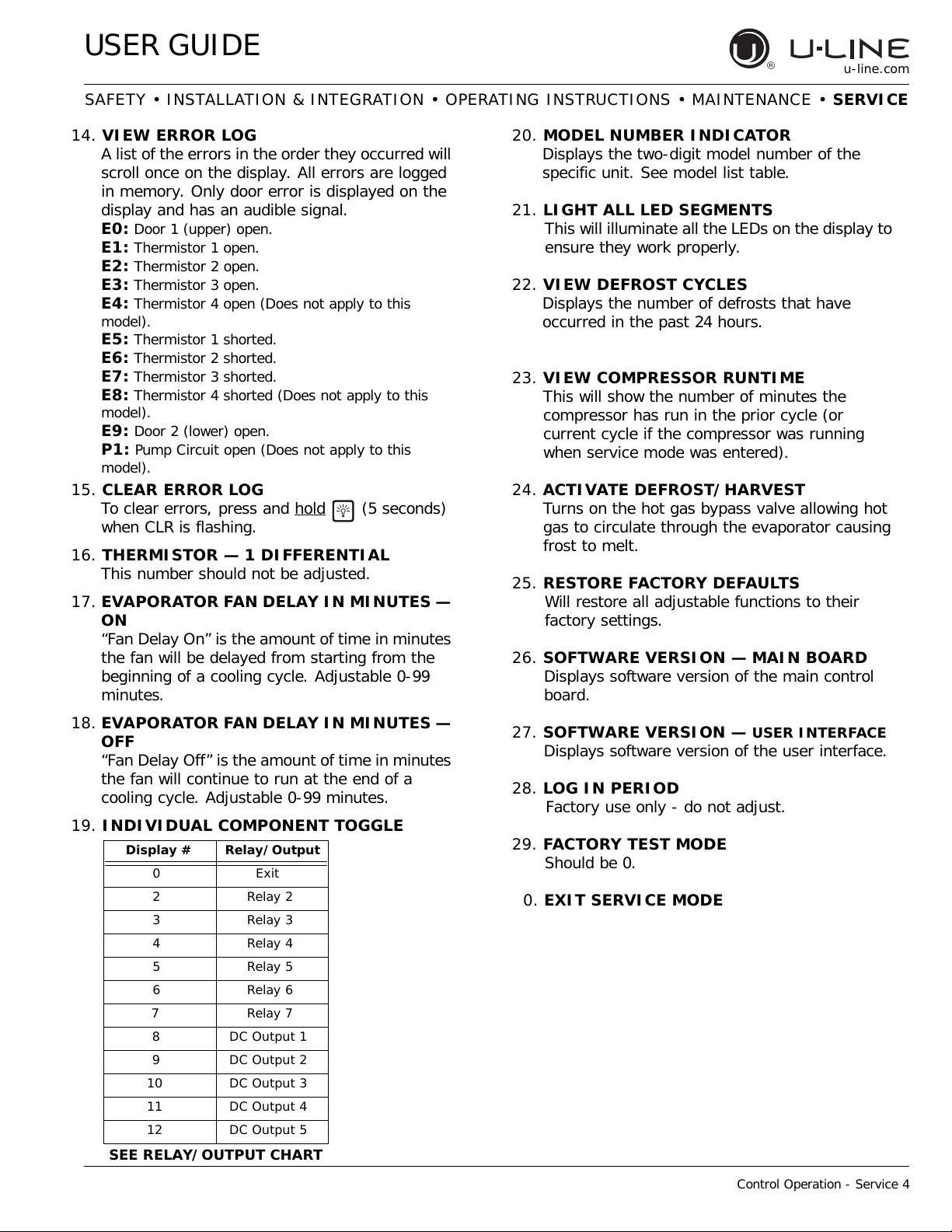

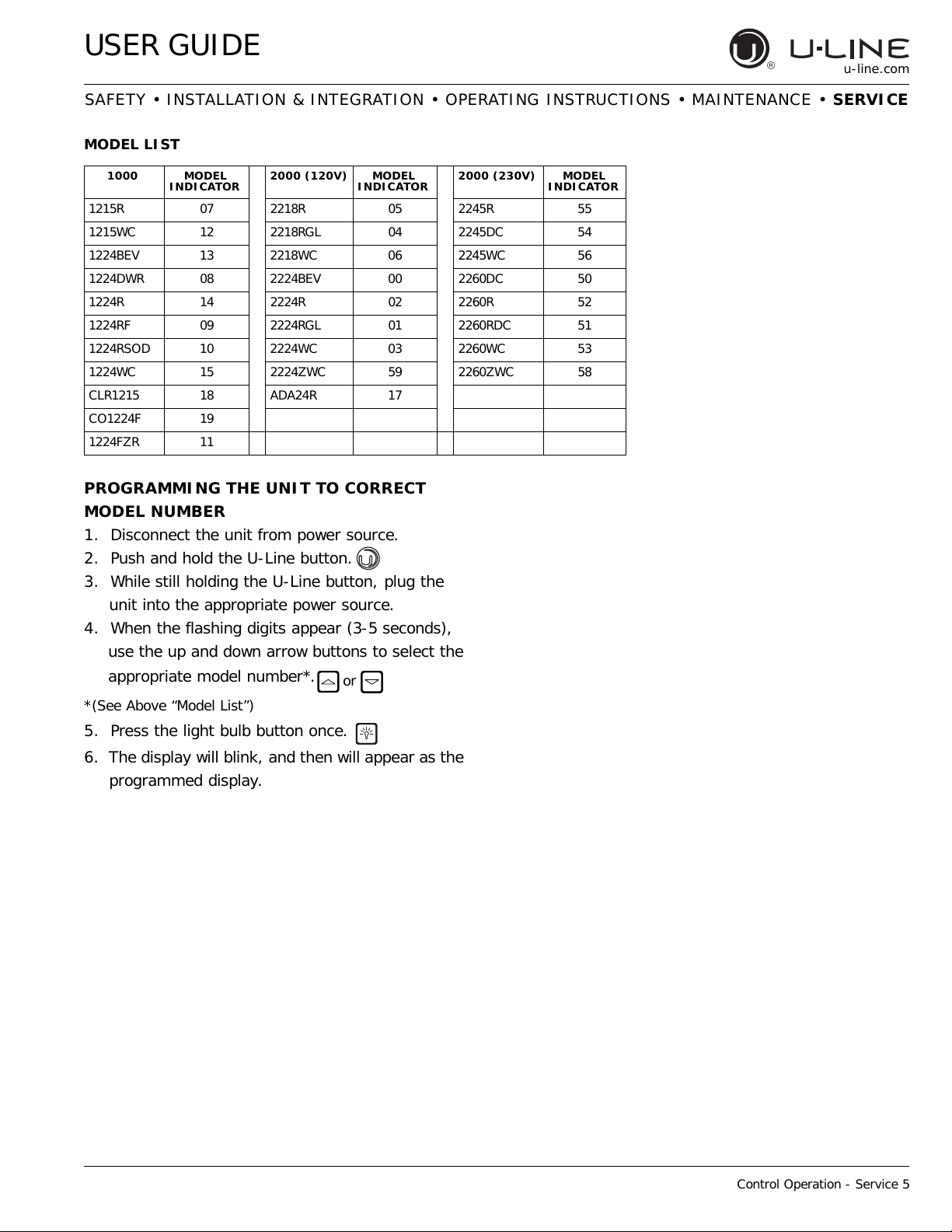

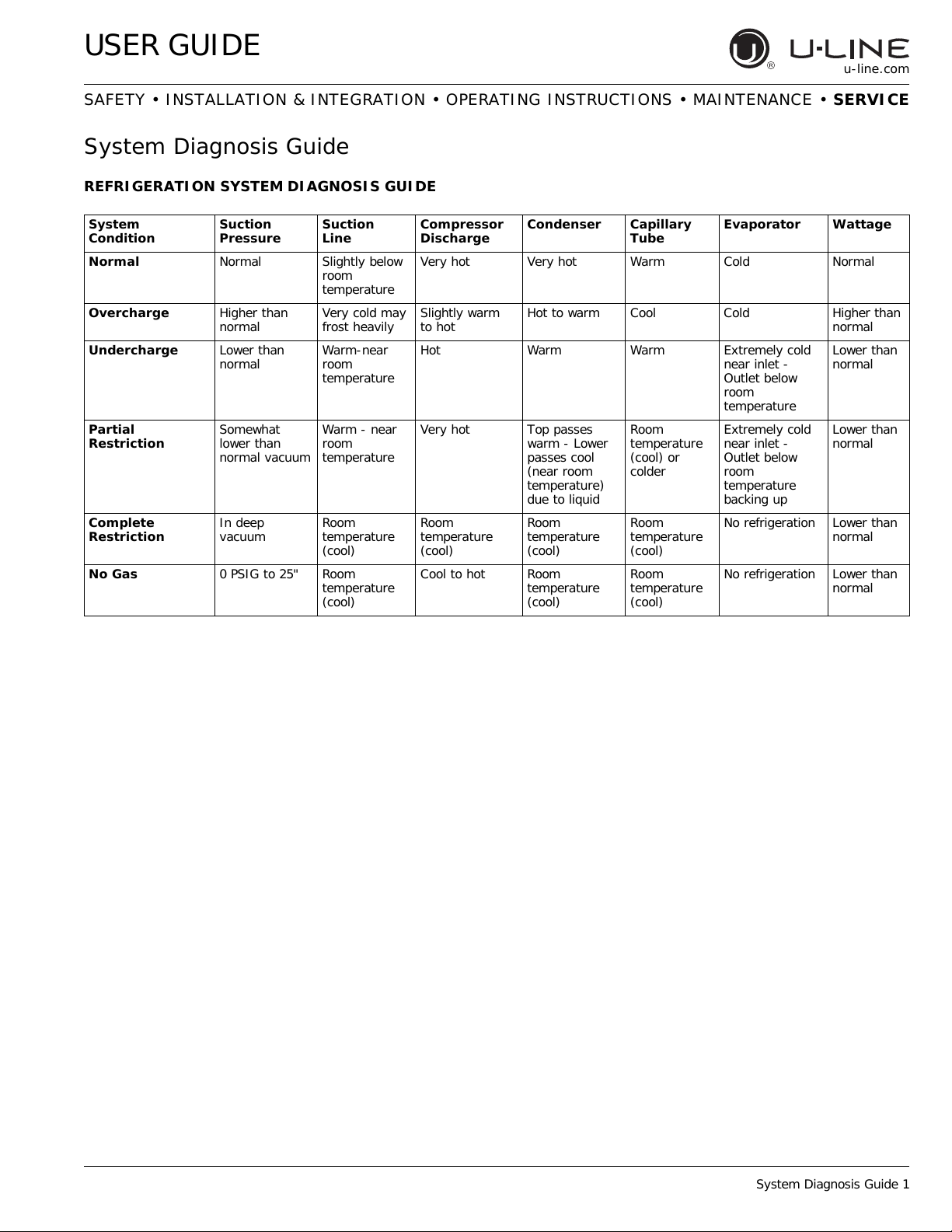

System Diagnosis Guide |
General Installation |

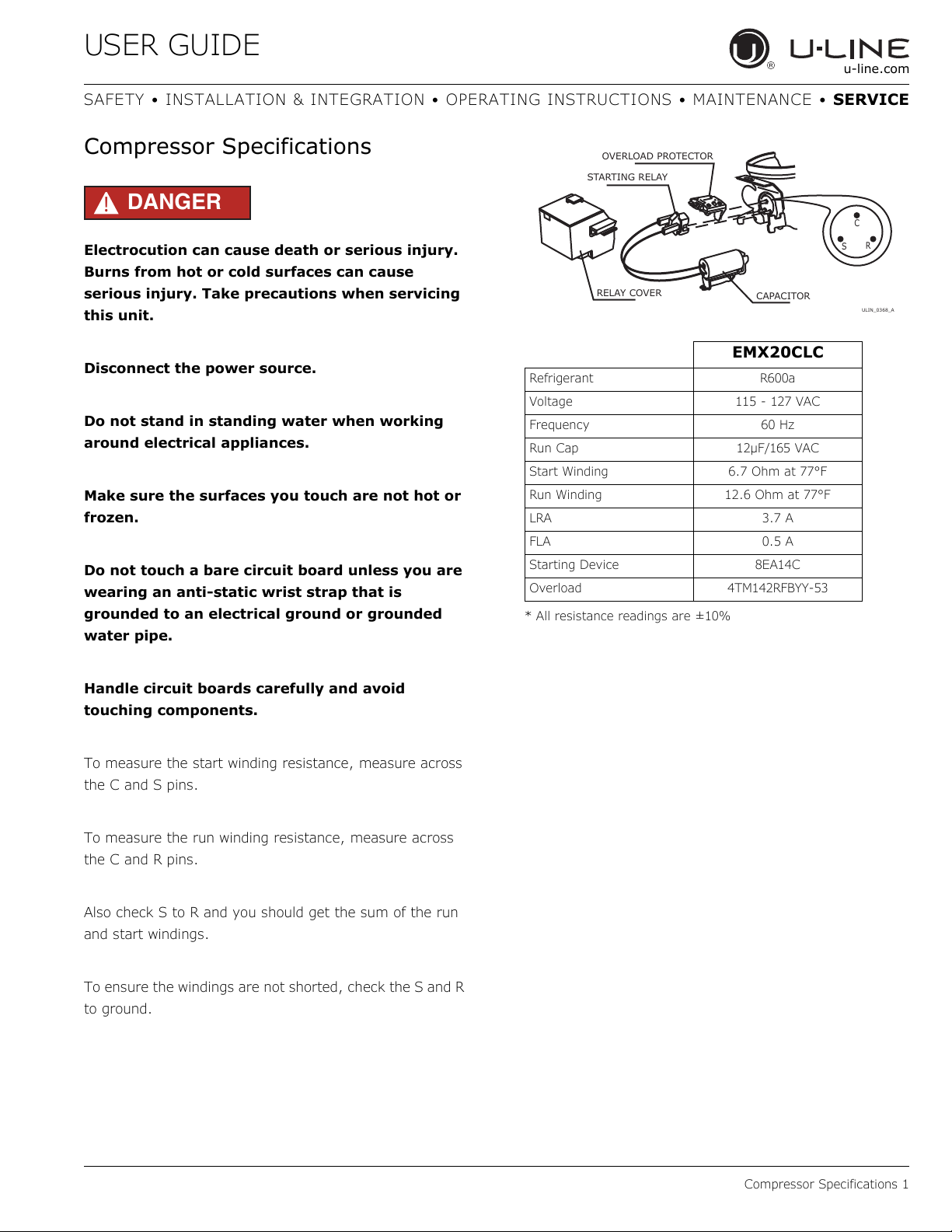

Compressor Specifications |
Integrated Panel Dimensions |

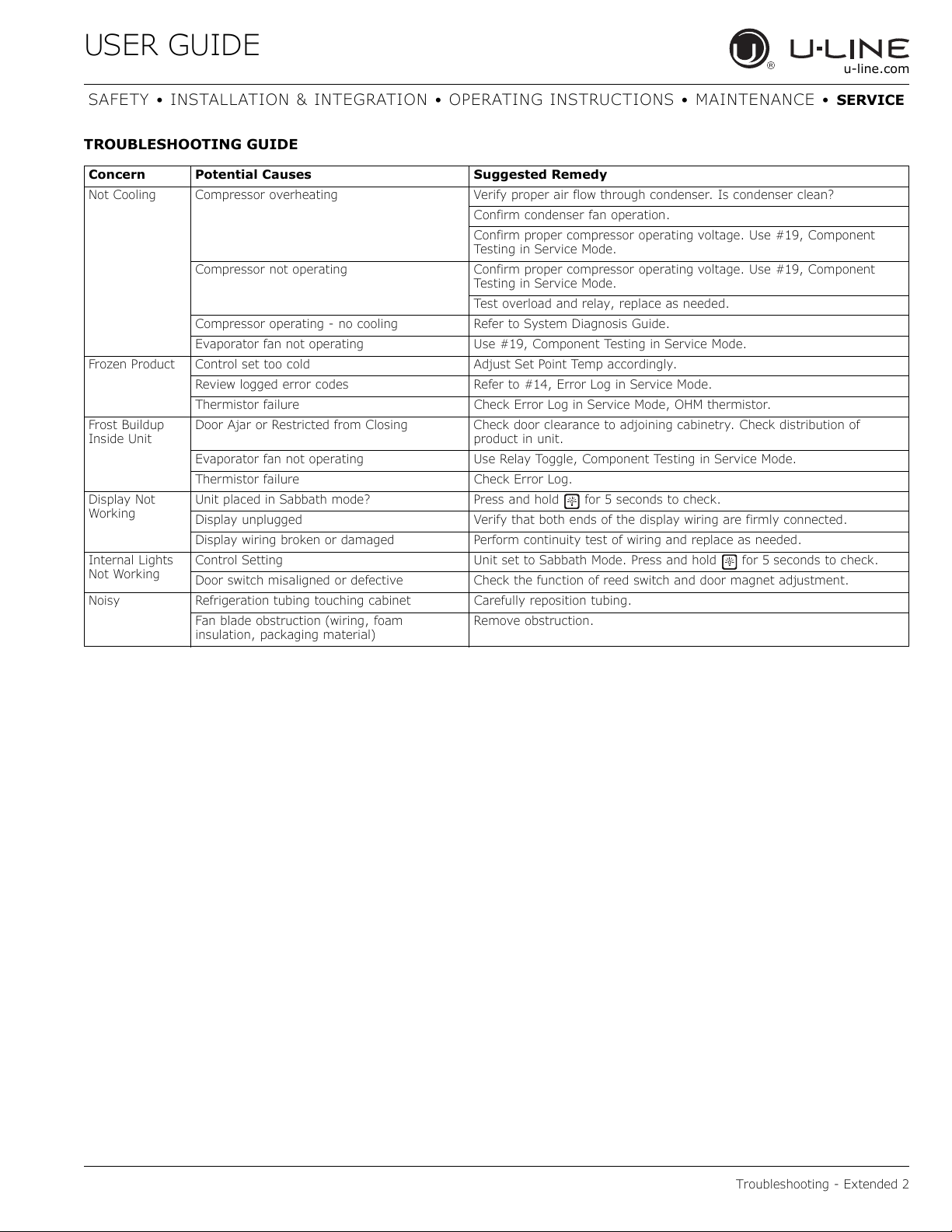

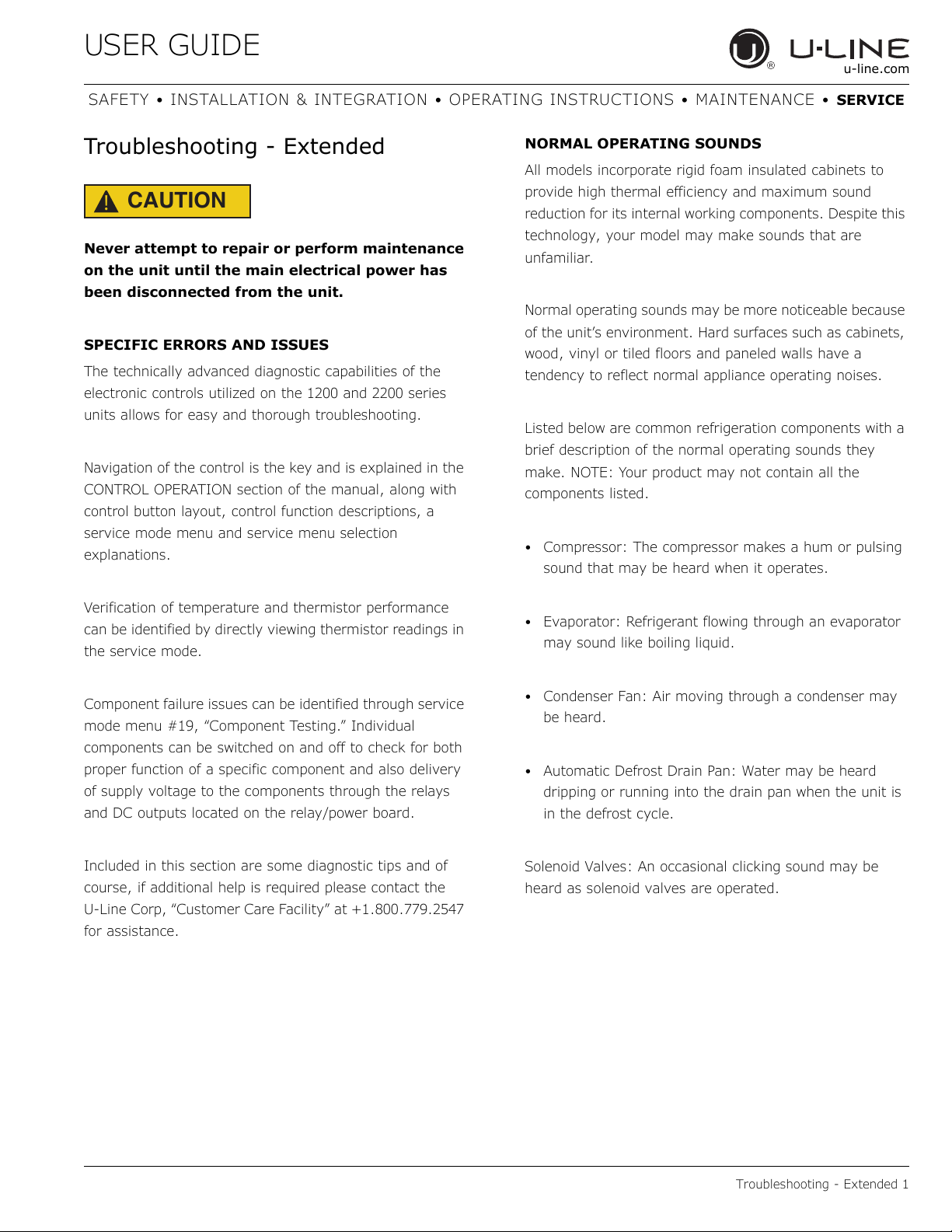

Troubleshooting Extended |
Integrated Panel Installation |

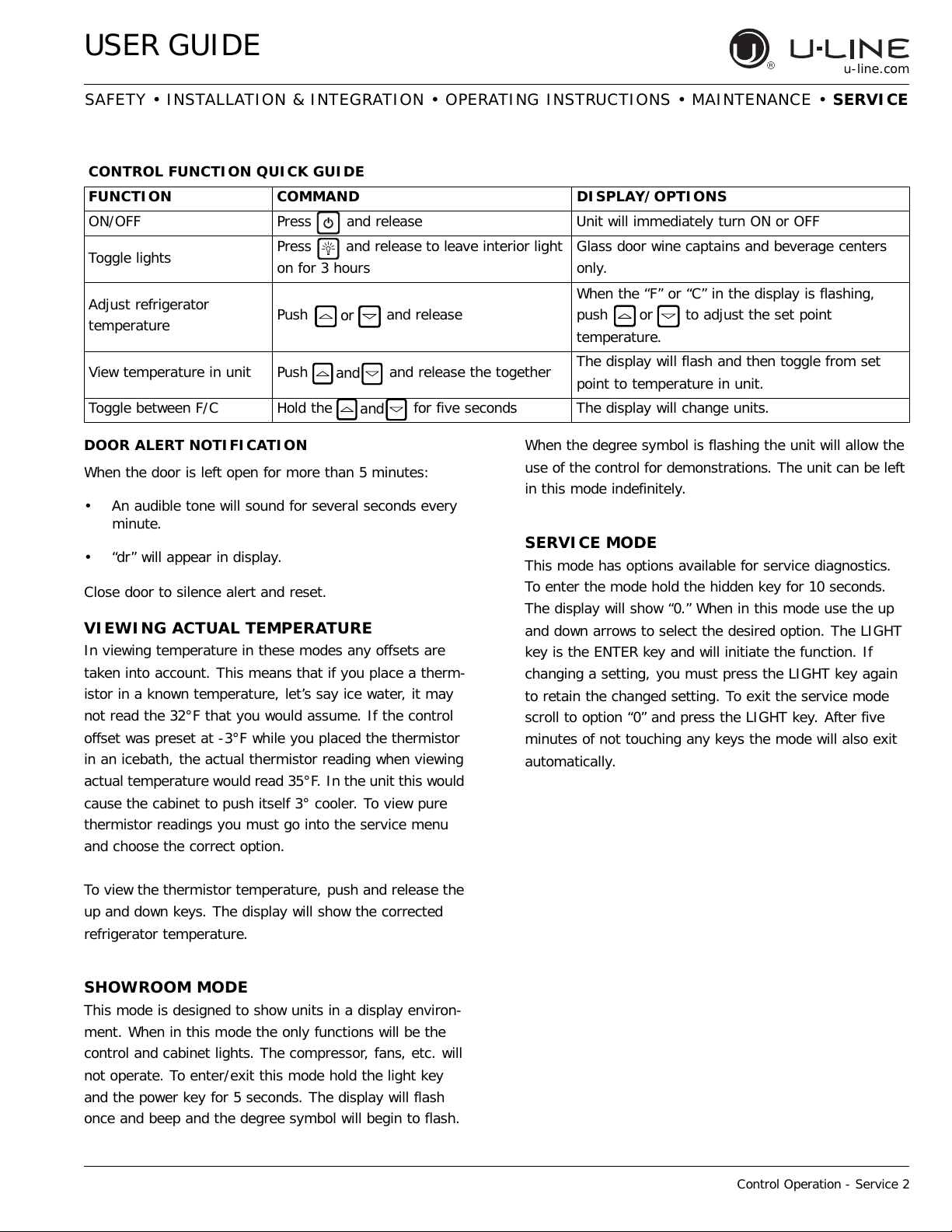

Control Quick Guide |
Grille / Plinth Installation |

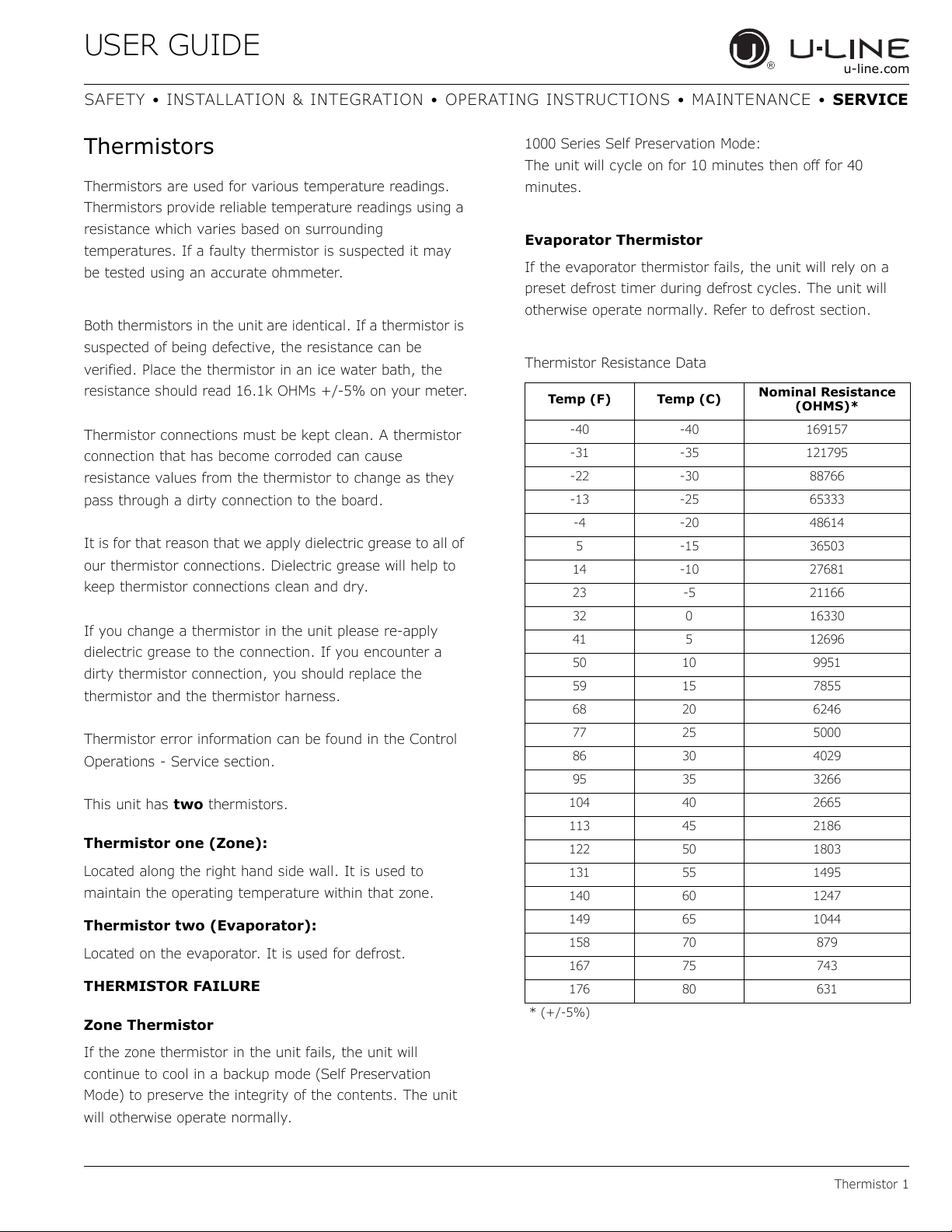

Thermistor |

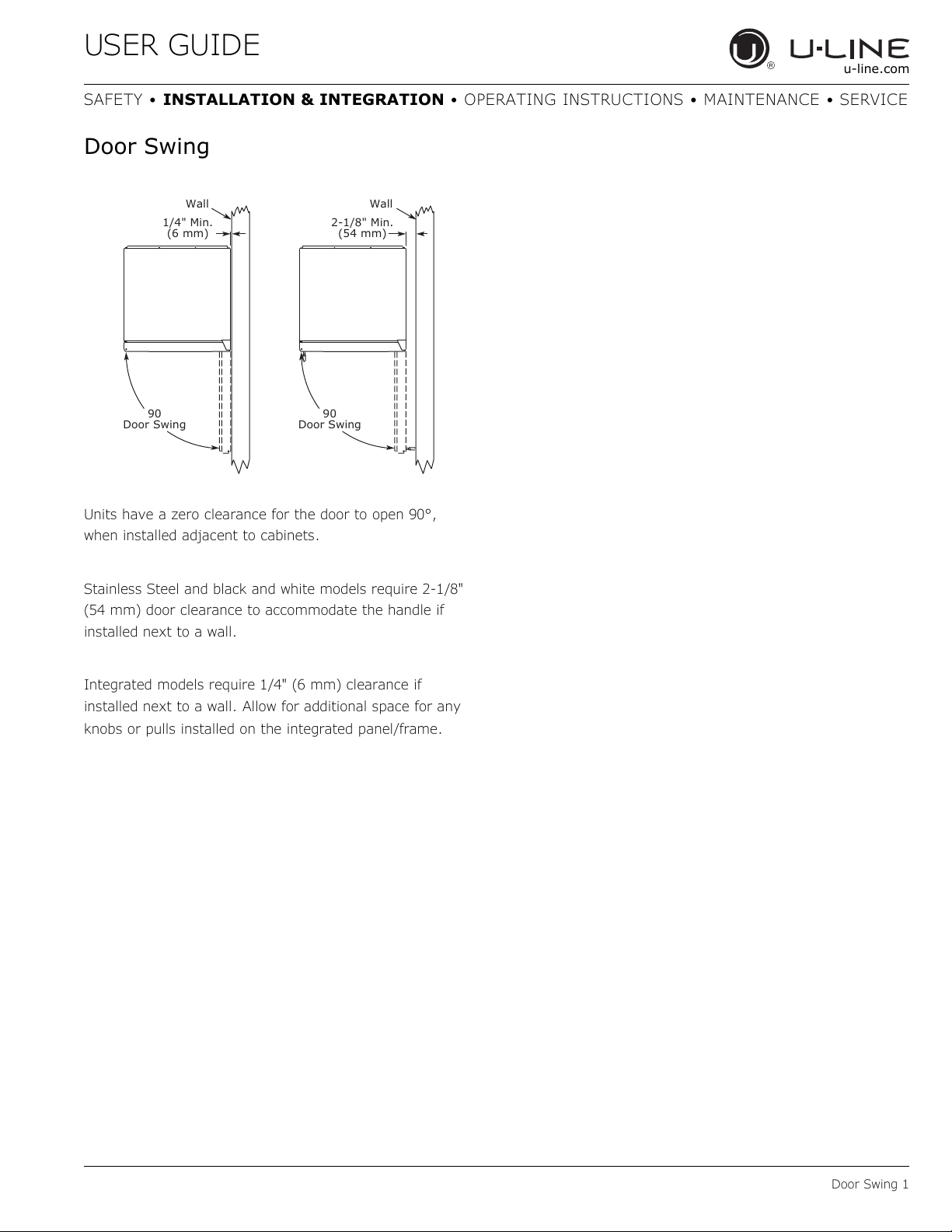

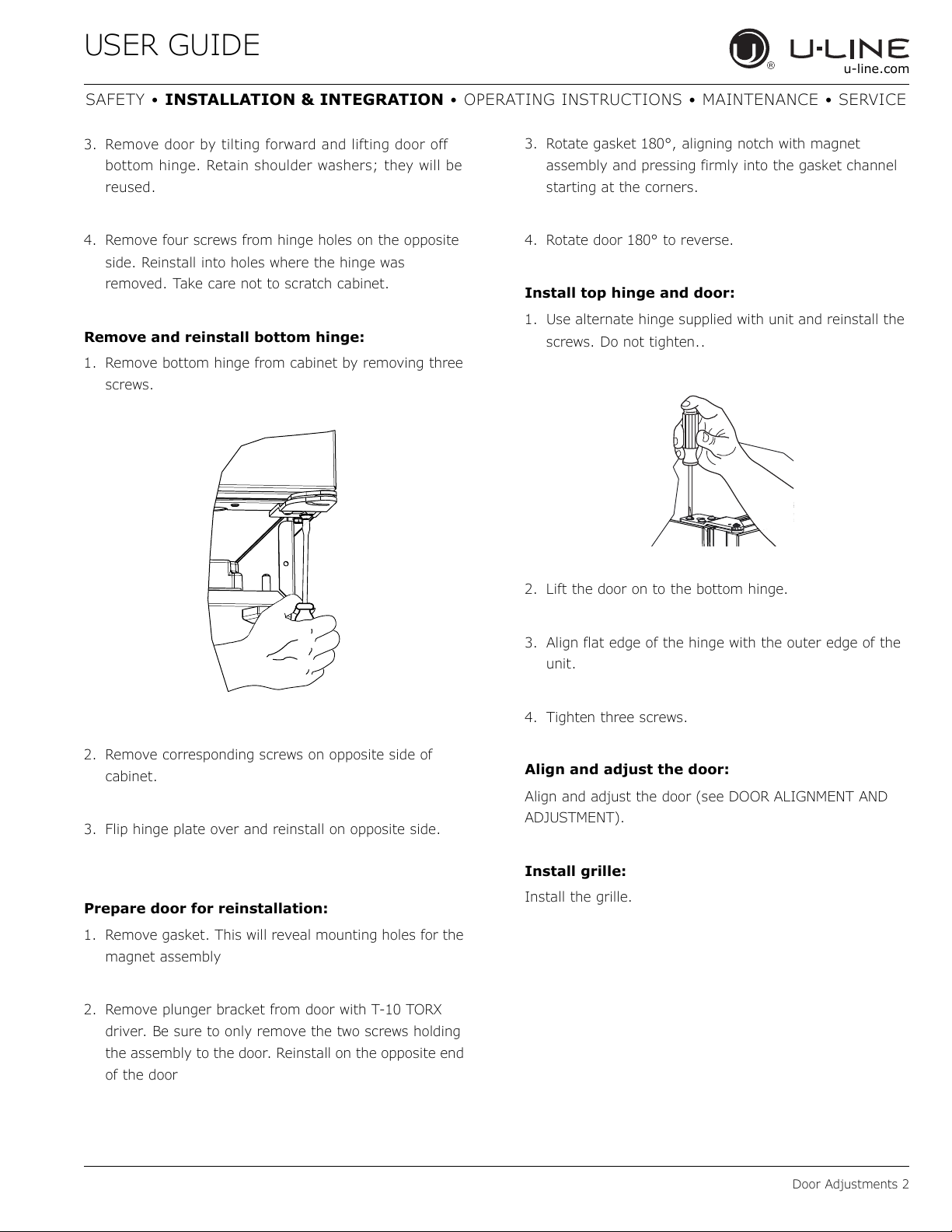

Door Swing |

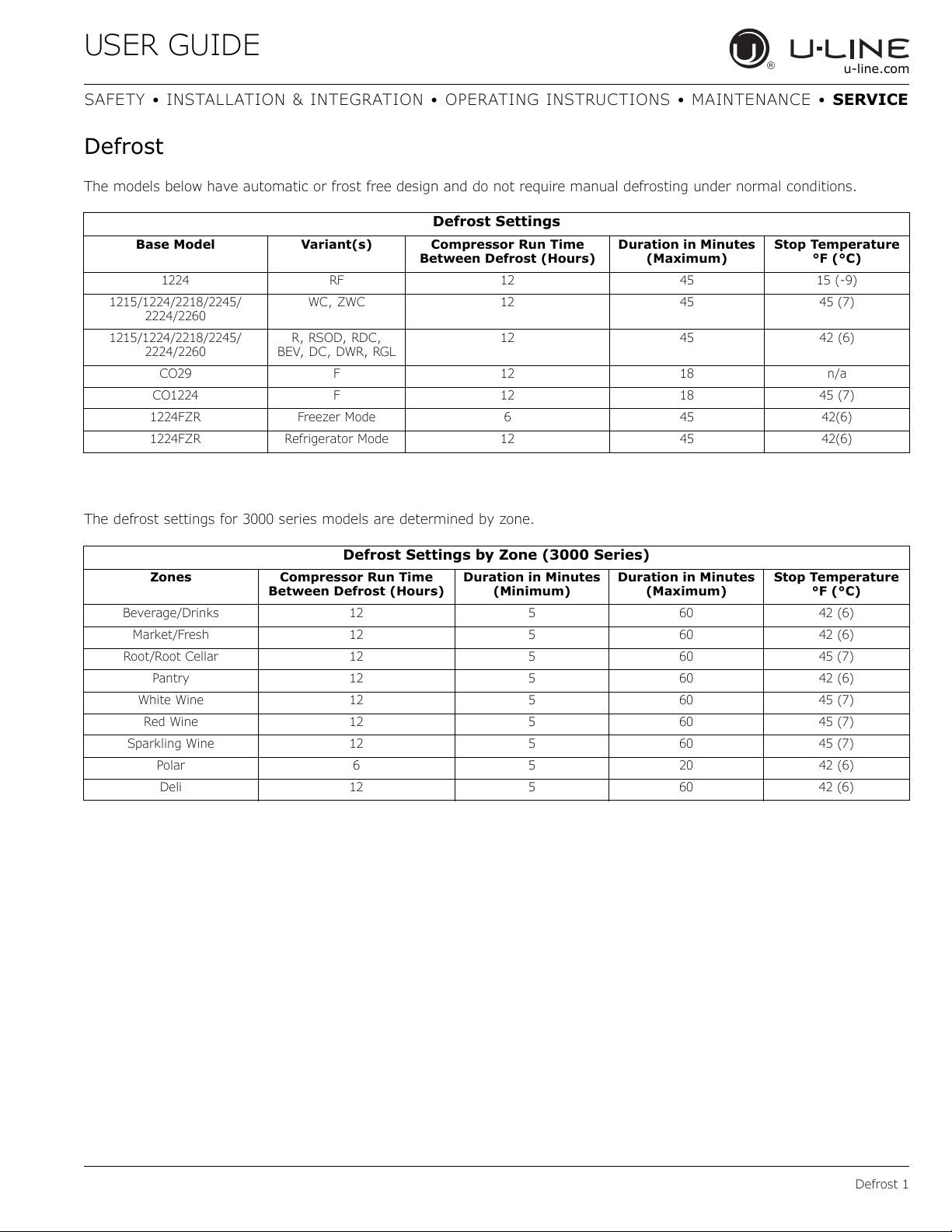

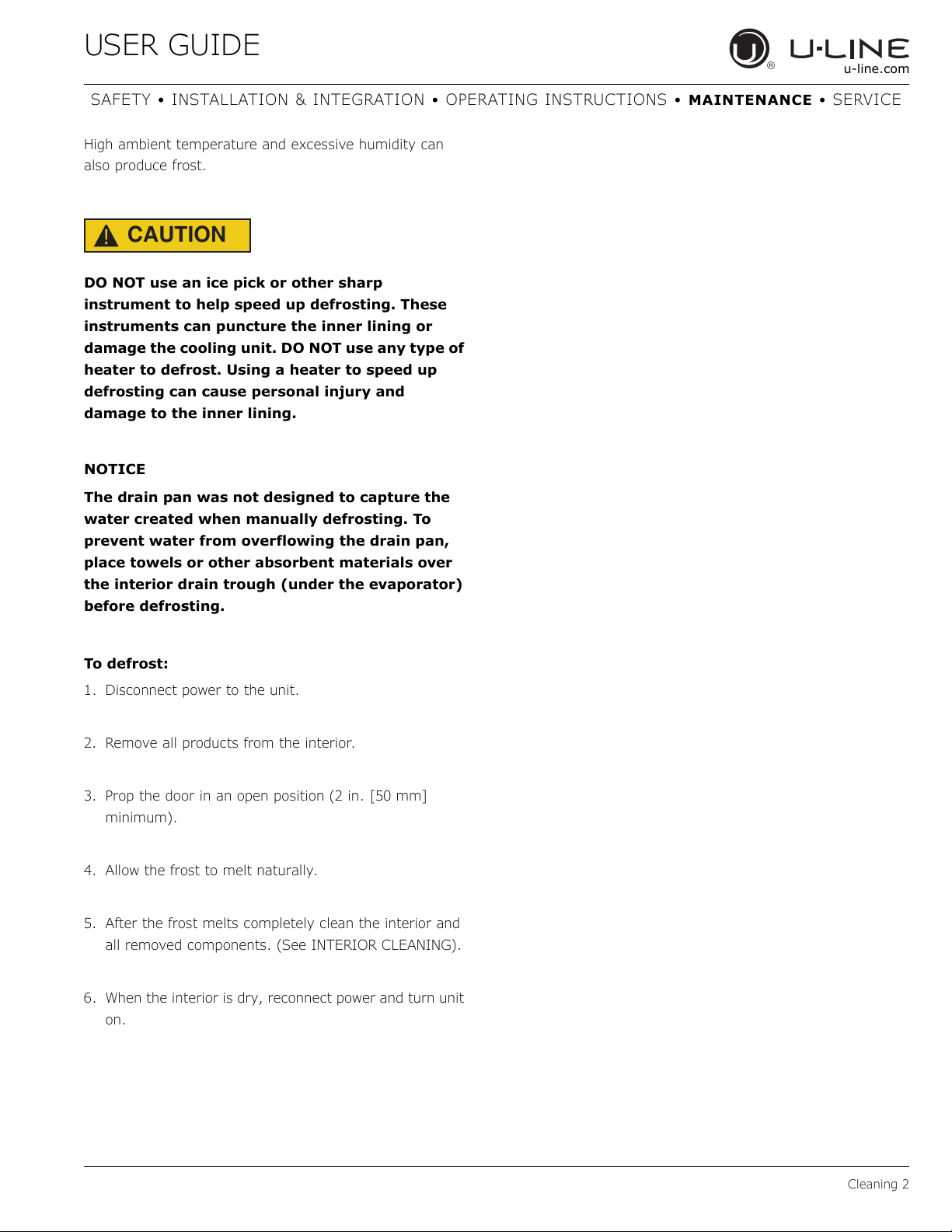

Defrost |

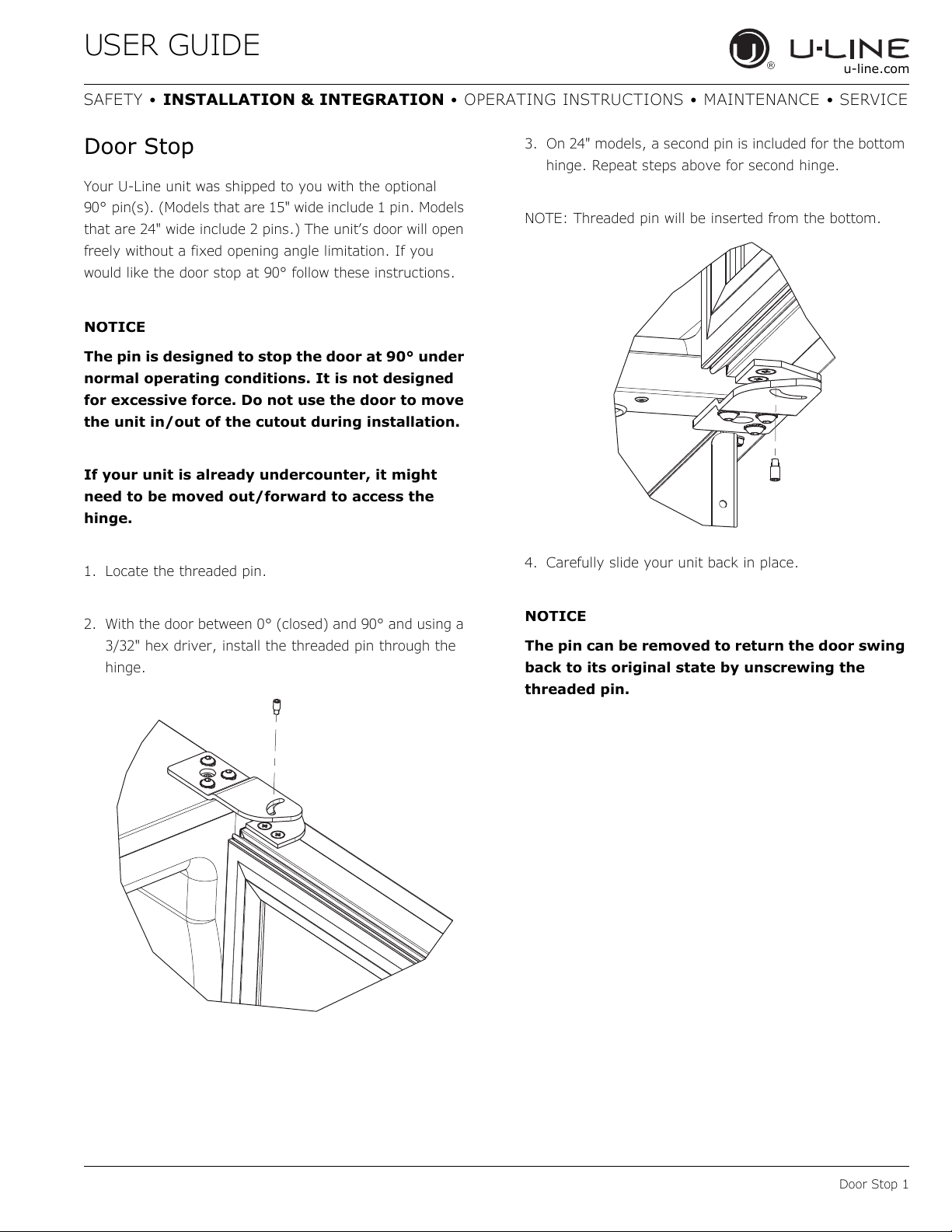

Door Stop |

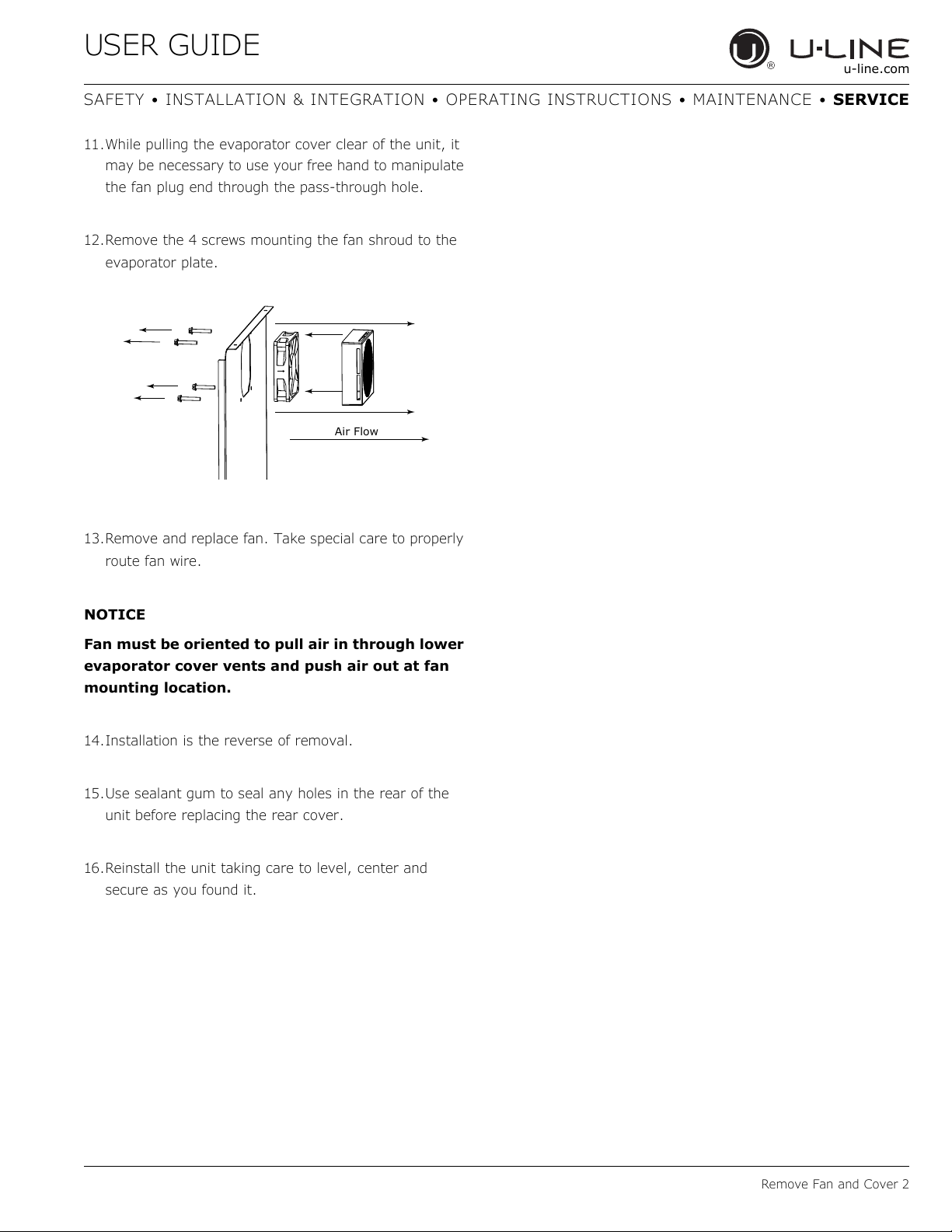

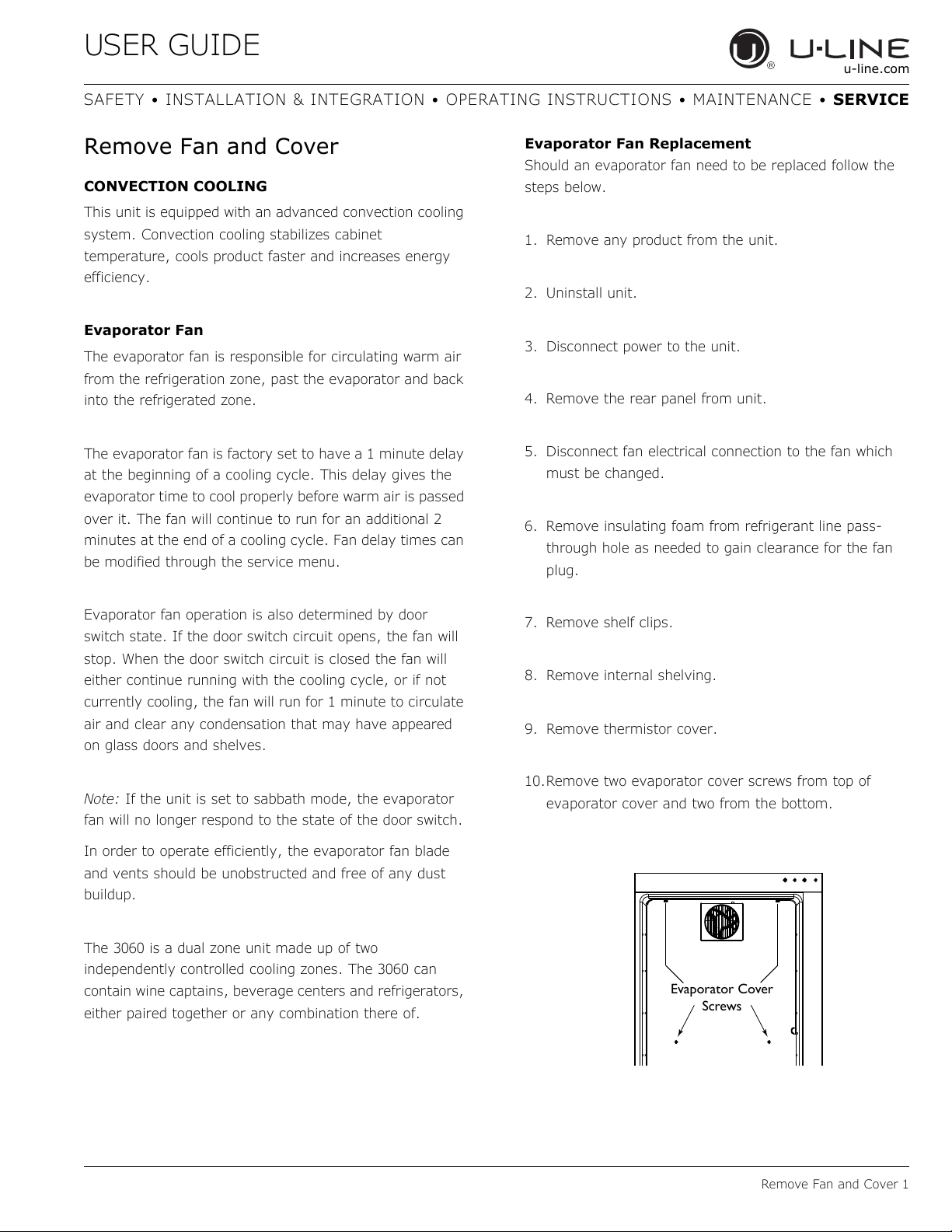

Remove Fan and Cover |

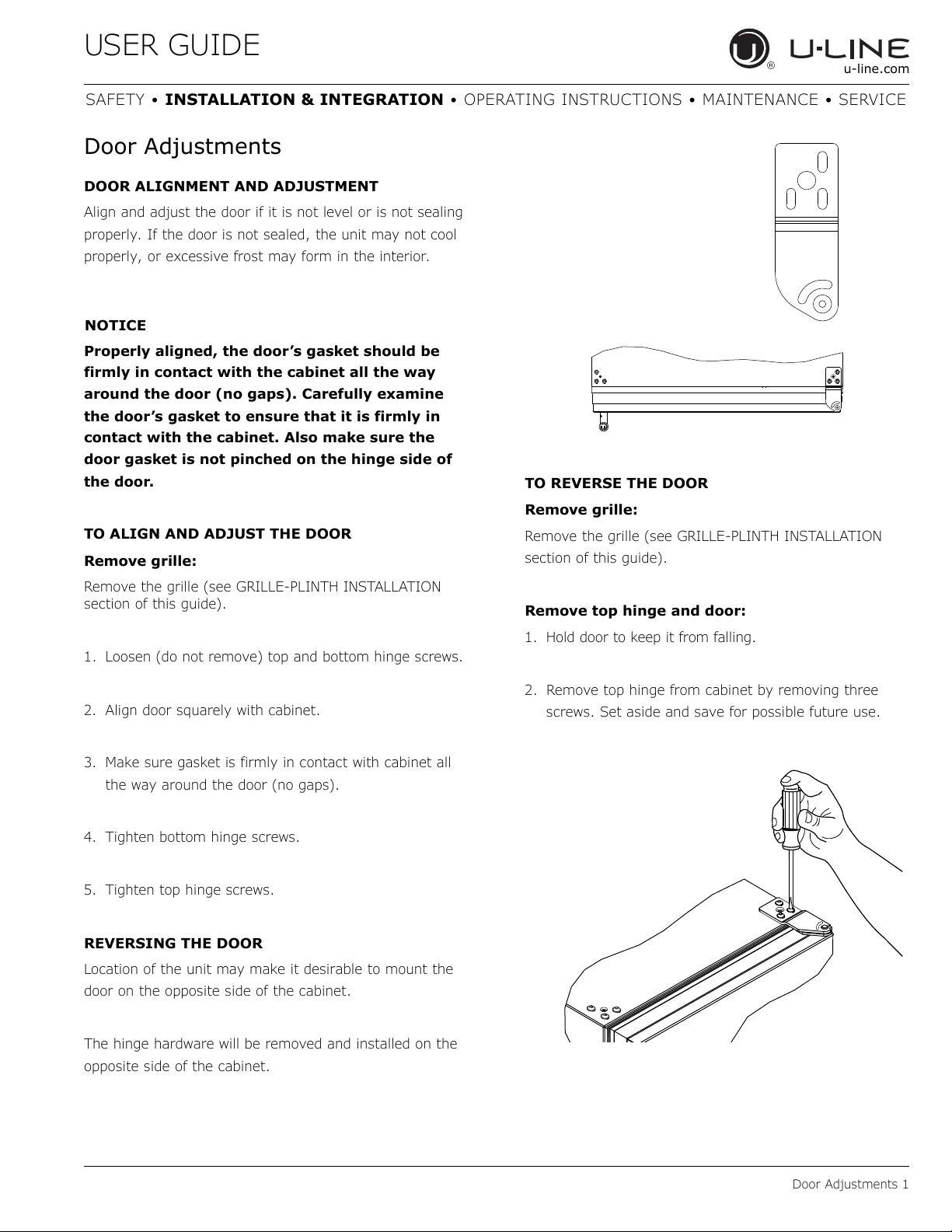

Door Adjust |
|
Operating Instructions |
|

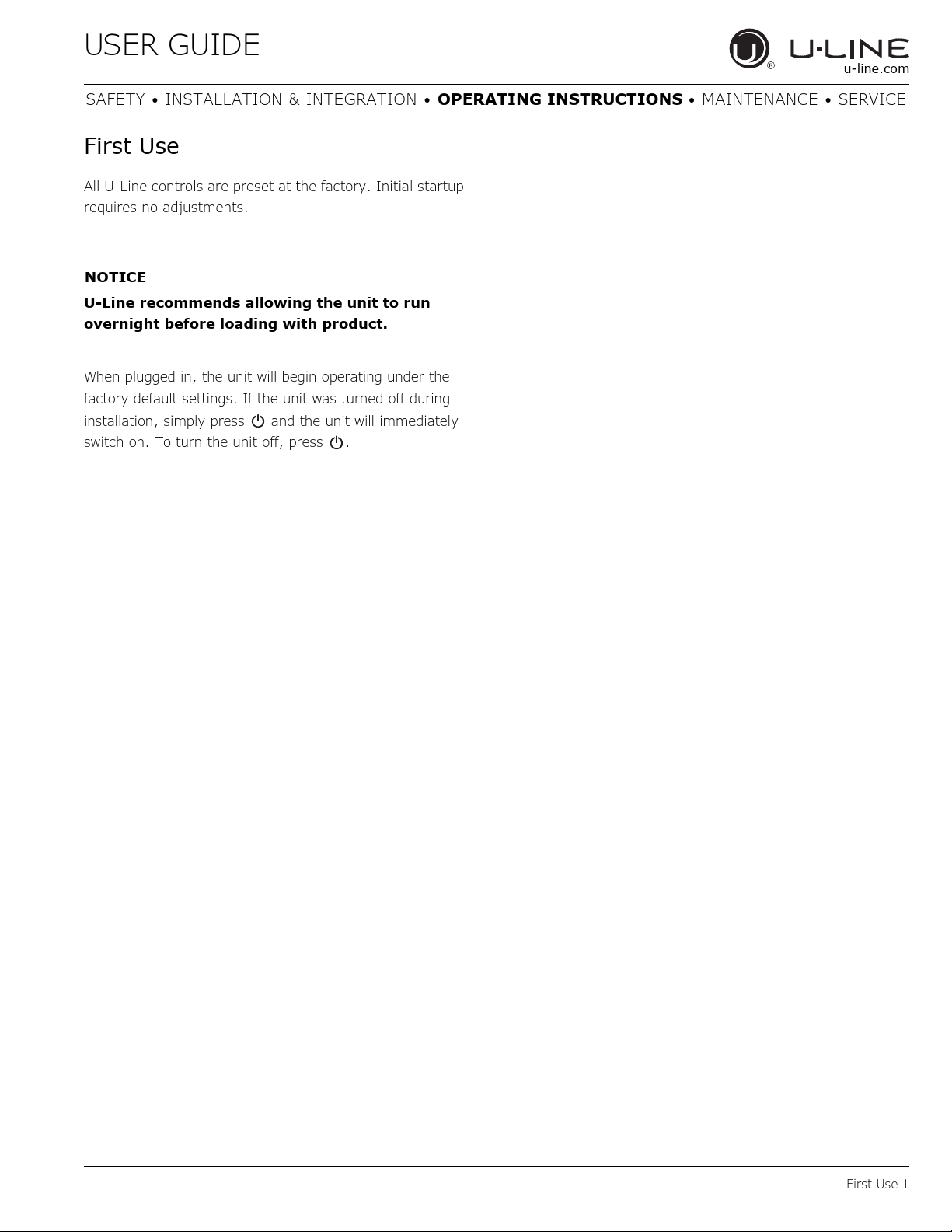

First Use |
|

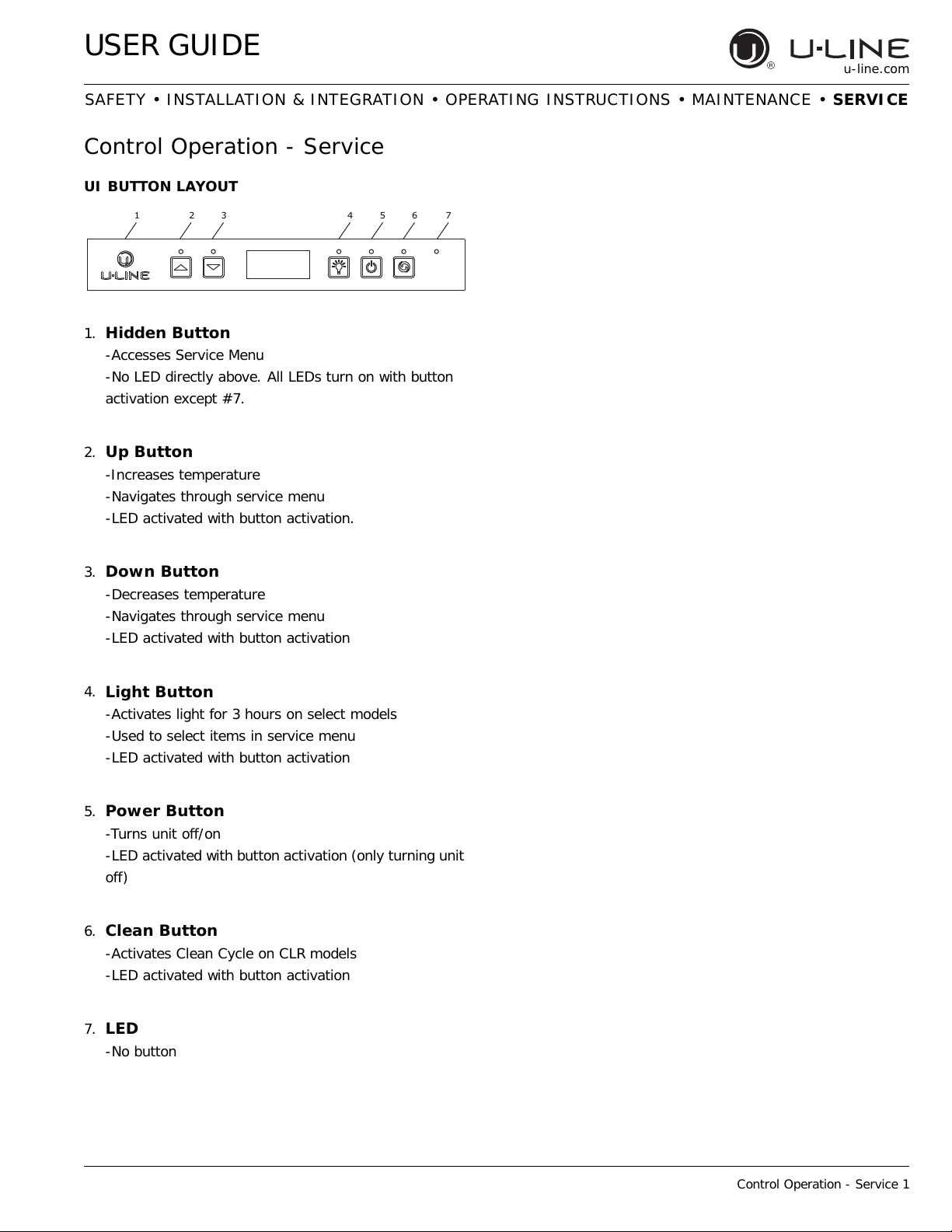

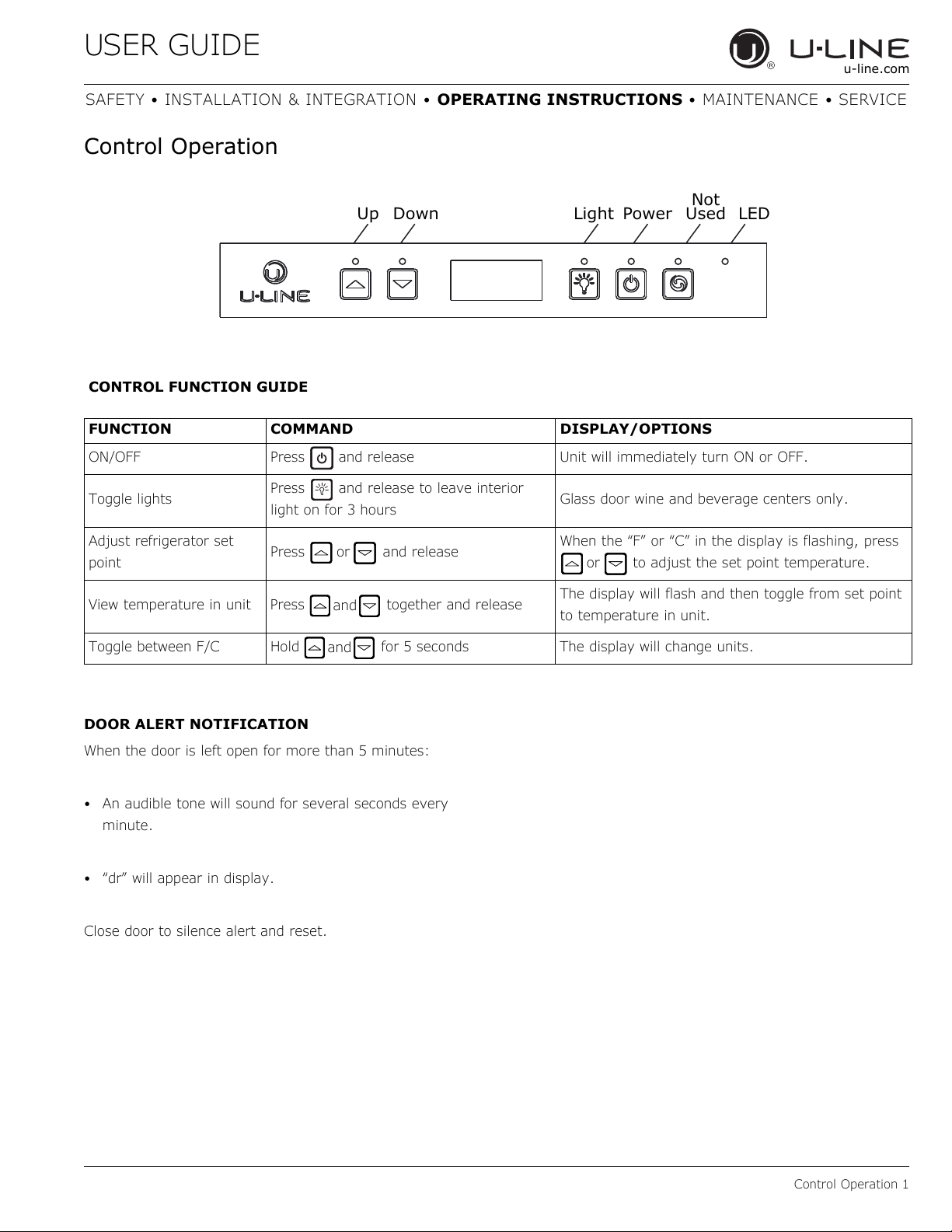

Control Operation |
|

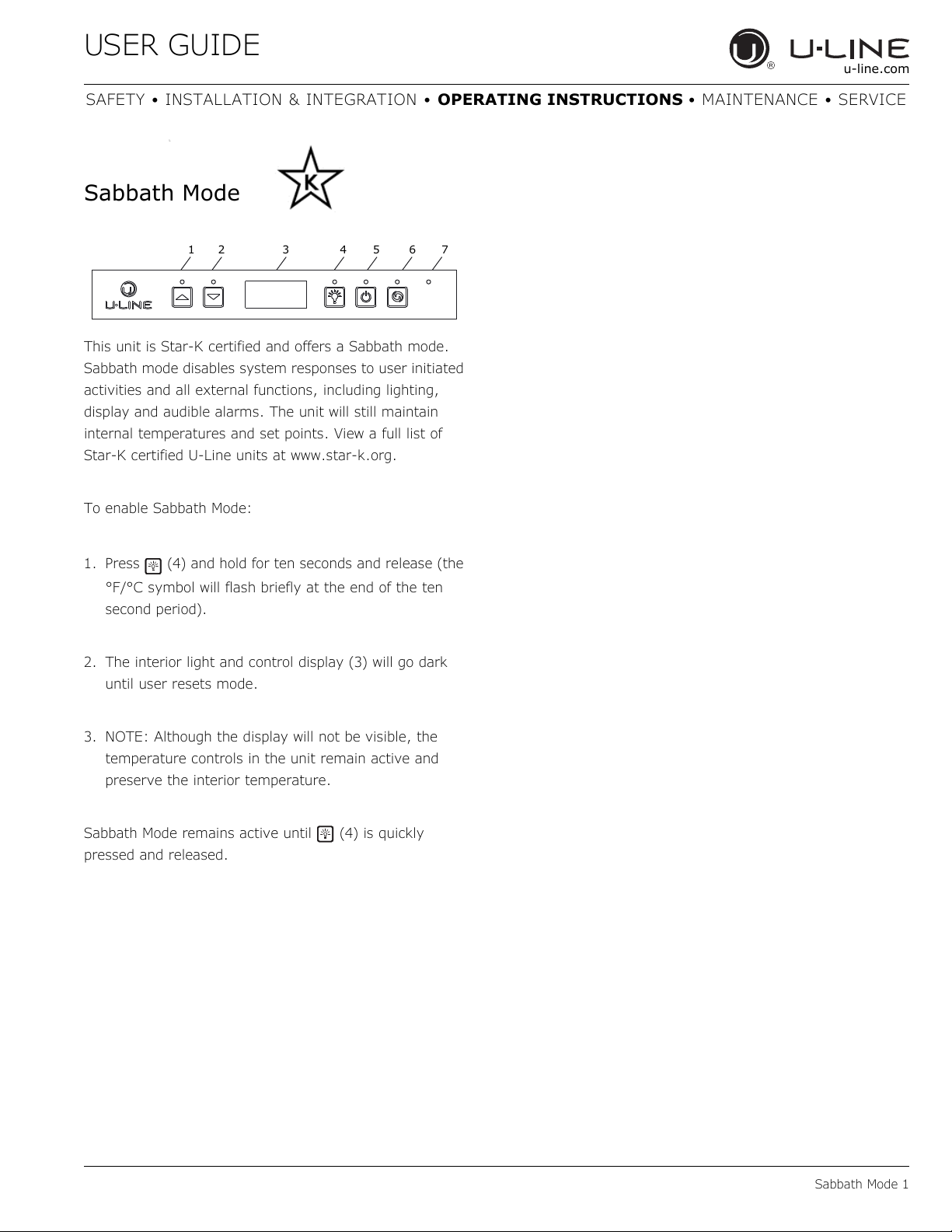

Sabbath Mode |
|
Airflow and Product Loading |
|

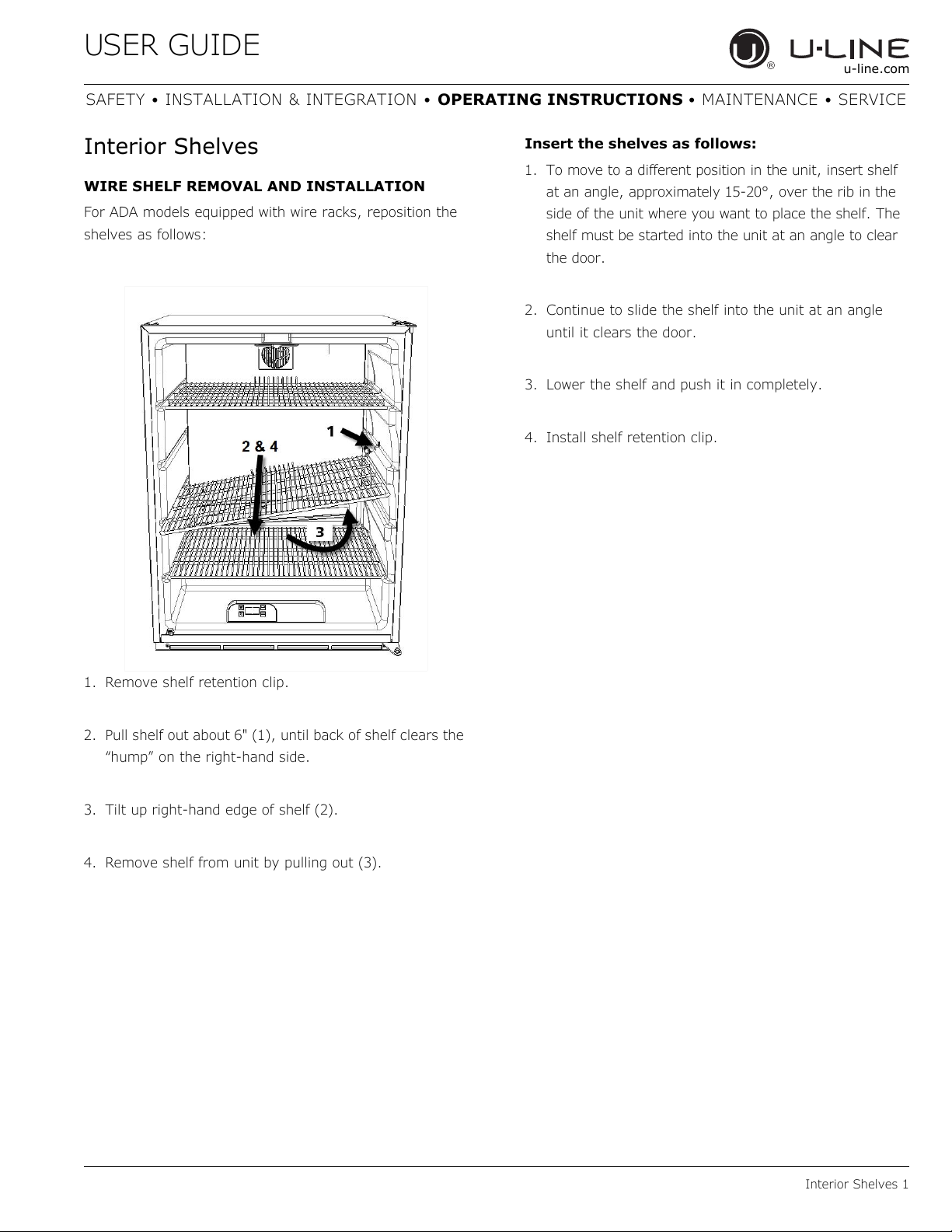

Interior Shelves |
|
Maintenance |
|

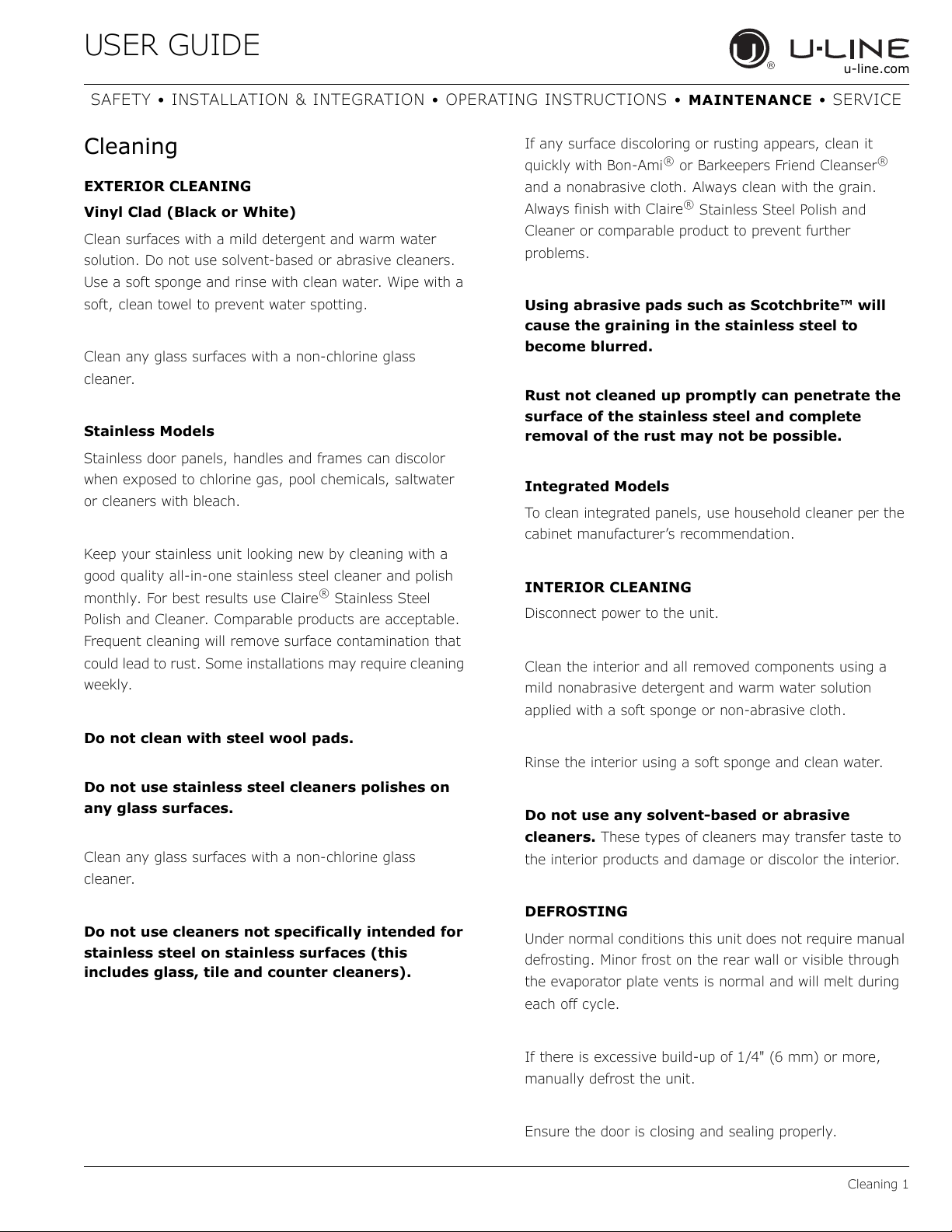

Cleaning |
|

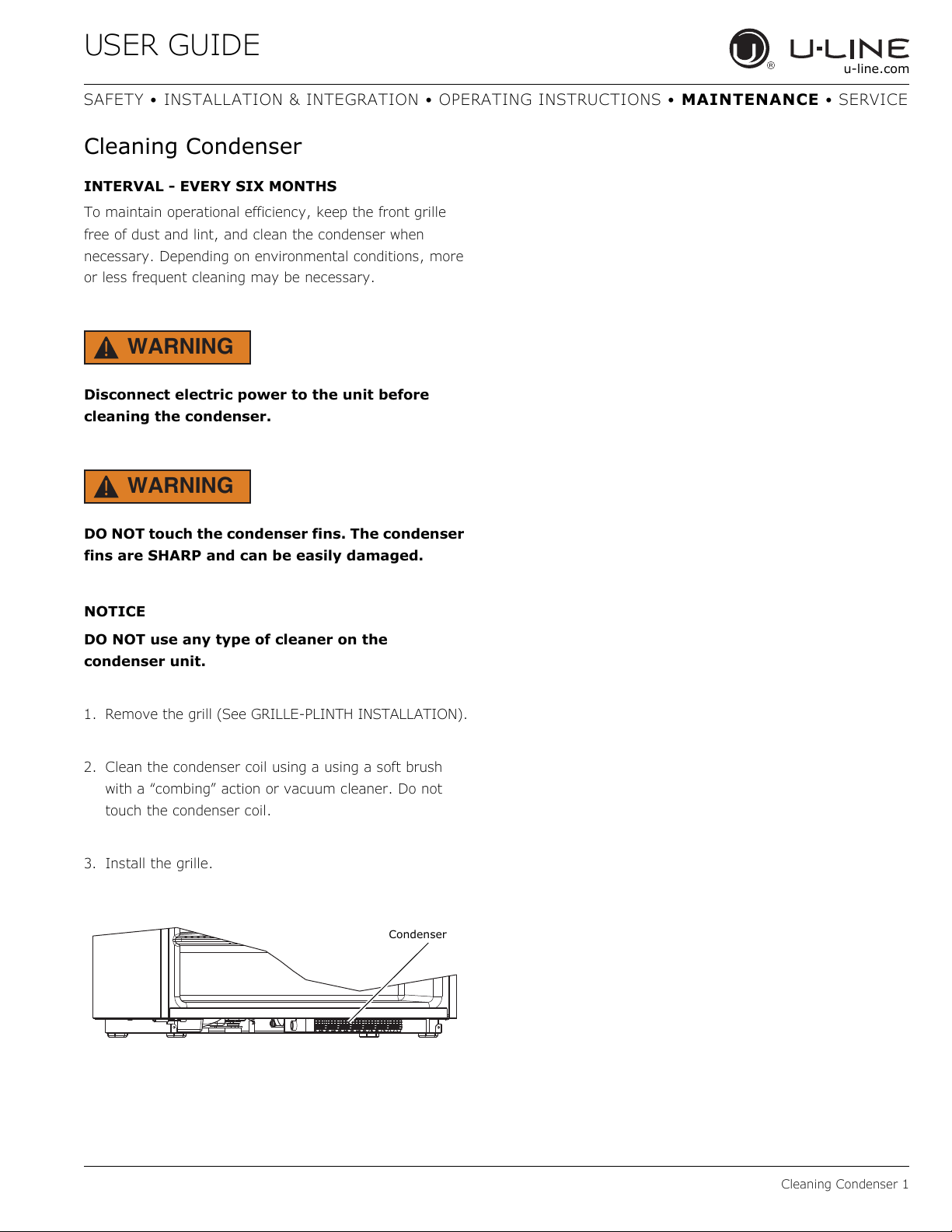

Cleaning Condenser |
|
|
|
USER GUIDE
u-line.com
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product collection includes modular Wine Captain® Models, Beverage Centers, Clear Ice Machines, Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, and Combo® Models.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations and attention to even the smallest details. We are known and respected for our unwavering dedication to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over two decades and is proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance Documentation, and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following steps:
1.U-Line Customer Care must be contacted immediately at +1.800.779.2547.
2.Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
SERVICE INFORMATION
Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our Customer Care group directly, contact information below.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA Monday - Friday 8:00 am to 4:30 pm CST T: +1.414.354.0300
F: +1.414.354.7905 Email: sales@u-line.com u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST T: +1.800.779.2547
F: +1.414.354.5696
Service Email: onlineservice@u-line.com Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
Introduction 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing, operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow these general precautions with those listed throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a Danger, Warning or Caution based on the risk type:
! DANGER
Danger means that failure to follow this safety statement will result in severe personal injury or death.
! DANGER
This unit contains R600a (Isobutane) which is a flammable hydrocarbon. It is safe for regular use. Do not use sharp objects to expedite defrosting. Do not service without consulting the “R600a specifications” section included in the User Guide. Do not damage the refrigerant circuit.
! WARNING
Service must be done by factory authorized service personnel. Any parts shall be replaced with like components. Failure to comply could increase the risk of possible ignition due to incorrect parts or improper service.
! WARNING
Warning means that failure to follow this safety statement could result in serious personal injury or death.
! CAUTION
Caution means that failure to follow this safety statement may result in minor or moderate personal injury, property or equipment damage.
Safety and Warning 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Disposal and Recycling
! DANGER
RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside.
If the unit is being removed from service for disposal, check and obey all federal, state and local regulations regarding the disposal and recycling of refrigeration appliances, and follow these steps completely:
1.Remove all consumable contents from the unit.
2.Unplug the electrical cord from its socket.
3.Remove the door(s)/drawer(s).
Disposal and Recycling 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Environmental Requirements
This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct sunlight and away from heat generating equipment.
In climates where high humidity and dew points are present, condensation may appear on outside surfaces. This is considered normal. The condensation will evaporate when the humidity drops.
! CAUTION
Damages caused by ambient temperatures of 40°F (4°C) or below are not covered by the warranty.
Environmental Requirements 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Electrical
! WARNING
SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing power plug, or direct wiring can cause serious injury, fire, loss of property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and local codes. This unit requires connection to a grounded (three-prong), polarized receptacle that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An individual, properly grounded branch circuit or circuit breaker is recommended. A GFCI (ground fault circuit interrupter) is usually not required for fixed location appliances and is not recommended for your unit because it could be prone to nuisance tripping. However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle location.
Electrical 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed for either freestanding or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear.
! CAUTION
Unit can NOT be installed behind a closed cabinet door.
CUTOUT DIMENSIONS
|
Preferred location |
|
|
|
for electrical |
|
24" |
|
outlet is in |
5/8" |
(610 mm) |
|
adjacent |
(16 mm) |
|
|
cabinet. |
|
|
|
|
|
|
32" |
|
|
|
(813 mm) |
|
|
|
to |
|
|
|
33" |
7" |
|
|
(838 mm) |
|
|
|
(178 mm) |
|
|
|
|
|
|
|
|
4" |
|
|
|
(102 mm) |
|
|
24-1/4"
(616 mm)
Cutout Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Product Dimensions
Not Including Handle
23-1/4" (591 mm)
32" to 33”
(813 mm 838 mm)
24" (610 mm)
Product Dimensions 1
USER GUIDE
|
|
u-line.com |
|
||
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE |
||
Side-by-Side Installation |
3. |
Place bracket over holes and attach to unit with two |
|
|
screws removed in step 2 using a T-25 Torx driver. |
Two units may be installed side-by-side. |
|
Tighten screws fully. |
Cutout width for a side-by-side installation is the cutout |
4. |
Gently push units into position. Be careful not to |
dimension of a single unit times two. |
|
entangle the electrical cord or water line, if applicable. |
No trim kit is required. However, 1/4" (6 mm) of space |
5. |
Re-check the leveling, from front to back and side to |
needs to be maintained between the units to ensure |
|
side. Make any necessary adjustments. The unit’s top |
unobstructed door swing. |
|
surface should be approximately 1/8" (3 mm) below |
|
|
the countertop. |
Units must operate from separate, properly grounded electrical receptacles placed according to each unit’s electrical specifications requirements.
Side-by-Side Installation with Bracket
1.Slide both units out so screws on top of units are easily accessible.
2.Remove screws as shown below.
Side-by-Side Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Anti-Tip Bracket
1.Slide unit out so screws on top of unit are easily accessible.
2.Remove the two screws from the opposite side of the hinge assembly using a T-25 Torx driver (see below).
NOTE: 1224 models shown with four screw. 1215 models only have three screws, but same screws are used in both applications.
3.Place bracket (part #14154) over holes and attach to unit with two screws removed in step 2 using a T-25 Torx driver. Tighten screws fully.
4.Gently push unit into position. Be careful not to entangle the electrical cord or water line, if applicable.
5.Check to be sure the unit is level from front to back and side to side. Make any necessary adjustments. The unit’s top surface should be approximately 1/8" (3 mm) below the countertop.
6.Secure bracket into adjoining surface.
Anti-Tip Bracket 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
General Installation |
INSTALLATION |
LEVELING INFORMATION |
1. Plug in the power/electrical cord. |
|
1. Use a level to confirm the unit is level. Level should be placed along top edge and side edge as shown.
1
2.If the unit is not level, adjust the legs on the corners of the unit as necessary.
Turn to Adjust
3.Confirm the unit is level after each adjustment and repeat the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout opening, adjust the rear legs to achieve a total unit rear height of 1/8" (3 mm) less than the opening’s rear height. Shorten the unit height in the front by adjusting the front legs. This allows the unit to be gently tipped into the opening. Readjust the front legs to level the unit after it is correctly positioned in the opening.
2.Gently push the unit into position. Be careful not to entangle the cord.
3.Re-check the leveling, from front to back and side to side. Make any necessary adjustments. The unit’s top surface should be approximately 1/8" (3 mm) below the countertop.
4.Remove the interior packing material and wipe out the inside of the unit with a clean, water-dampened cloth.
General Installation 1
USER GUIDE
|
u-line.com |
|
|
||
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE |
||
Integrated Frame |
2. Optional: Stain or Finish panel to desired stain or color. |
|
|
Be sure to closely follow the instructions provided by |
|
NOTICE |
the manufacturer. |
|
|
||
Due to differences in surrounding cabinetry the |
3. Optional: Install handles and hardware. |
|
panel may not perfectly align with door. The |
||
|
||
procedure below is designed to provide a |
|
|
finished integrated panel that seamlessly |
Integrated Frame Dimensions |
|
integrates with surrounding cabinetry. |
|
|
The door panel must not weigh more than 20 lbs (10 kg).
It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.
When applying an integrated panel to a unit, ensure that both sides are finished in order to prevent warping. In some frame installations, the panel may be visible through the glass while the door is open.
A full integrated door panel completely covers the door frame and provides a built-in appearance.
Integrated Frame Preparation
1.Cut the panels to the dimensions listed in the diagram below.
3/4"
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT (20 mm) INTERFERENCE
|
23-3/4" |
|
(603 mm) |
2-3/4" |
|
(70 mm) |
30-1/4" |
|
|
|
(768 mm) |
Integrated Frame
Integrated Panel Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Installation
1. Fully open door/drawer.
2. Starting at corner, pull gasket away from door/ drawer.
3.Continue to pull gasket free from gasket channel.
4.Upon removal, lay gasket down on a flat surface.
5.The panel should be aligned with the outside edge (opposite the hinge) and high enough to align with the highest point in the door/drawer.
Align Top Of Panel With Highest Point Of Door/Drawer
Align Panel
Against
Door/Drawer
Edge First
NOTICE
Due to differences in floor construction or surrounding cabinetry, the panel may not sit flush with the top of the door/drawer.
6.Secure integrated panel to door/drawer using clamps. A robust tape may also be used. U-Line recommends the use of bar clamps to secure the panel to the door/drawer. If using tape, be certain the tape will not damage panel finish upon removal.
Bar
Clamp
Door/Drawer
Wood
Panel
7. Using a 7/64" (3 mm) drill bit, drill 6 pilot holes into the wood
panel 1/2" (12 mm)
deep using the holes in the door/drawer frame as a guide.
NOTICE
It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardwood is installed.
8.Locate 6 of the #6x 1-1/4" (32 mm) screws provided with your unit.
9.Using a Phillips screwdriver, place one screw into each of the 6 pilot holes and screw down. Do not overtighten screws.
Door
Panel |
10.Be sure the screws force their way past the opening on |
|
|
|
the gasket channel and sit flush against the bottom of |
|
the channel. |
Integrated Panel |
Integrated Panel |
Integrated Panel Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
11.Remove clamps from door/drawer.
NOTICE
If panel requires additional adjustment after removing clamps, slightly loosen each screw and adjust panel as necessary. Tighten screws upon completion.
12.Starting at the corners, re-install the gasket into the gasket channel in the frame. Make sure the gasket is fully seated. This may take some force.
Integrated Panel Installation 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Grille - Plinth Installation
REMOVING AND INSTALLING GRILLE
! WARNING
Disconnect electric power to the unit before removing the grille.
When using the unit, the grille (plinth strip/base fascia) must be installed.
! WARNING
DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged.
Removing the grille
1.Disconnect power to the unit.
2.Loosen the two screws (1). Some models may have only one screw in the center.
3.Remove grille (2) and grille cap from unit.
Installing the grille
1.Align cabinet and grille holes and secure, but do not overtighten grille screws (1).
2.Reconnect power to the unit.
1
2
Grille - Plinth Installation 1
Loading...
