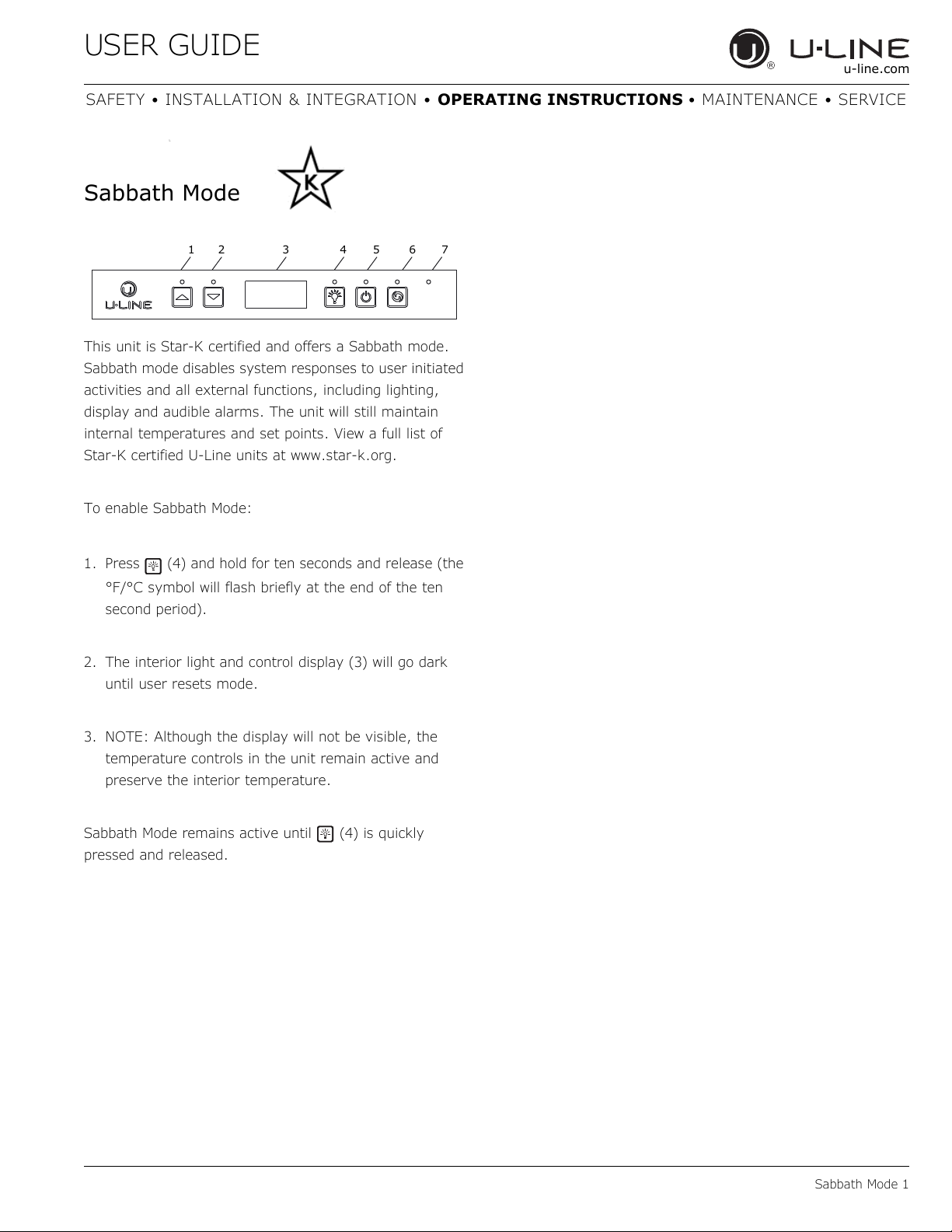

Sabbath Mode
Airflow and Product Loading
U-Line Wine Guide
Recommended Wine Storage
Interior Shelves
Maintenance
Cleaning
Cleaning Condenser
Wine Rack Installation
Extended Non-Use
Service
Troubleshooting
Warranty
Service Extended
Wire Diagram
Product Liability
Warranty Claims
Parts
Ordering Replacement Parts
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended

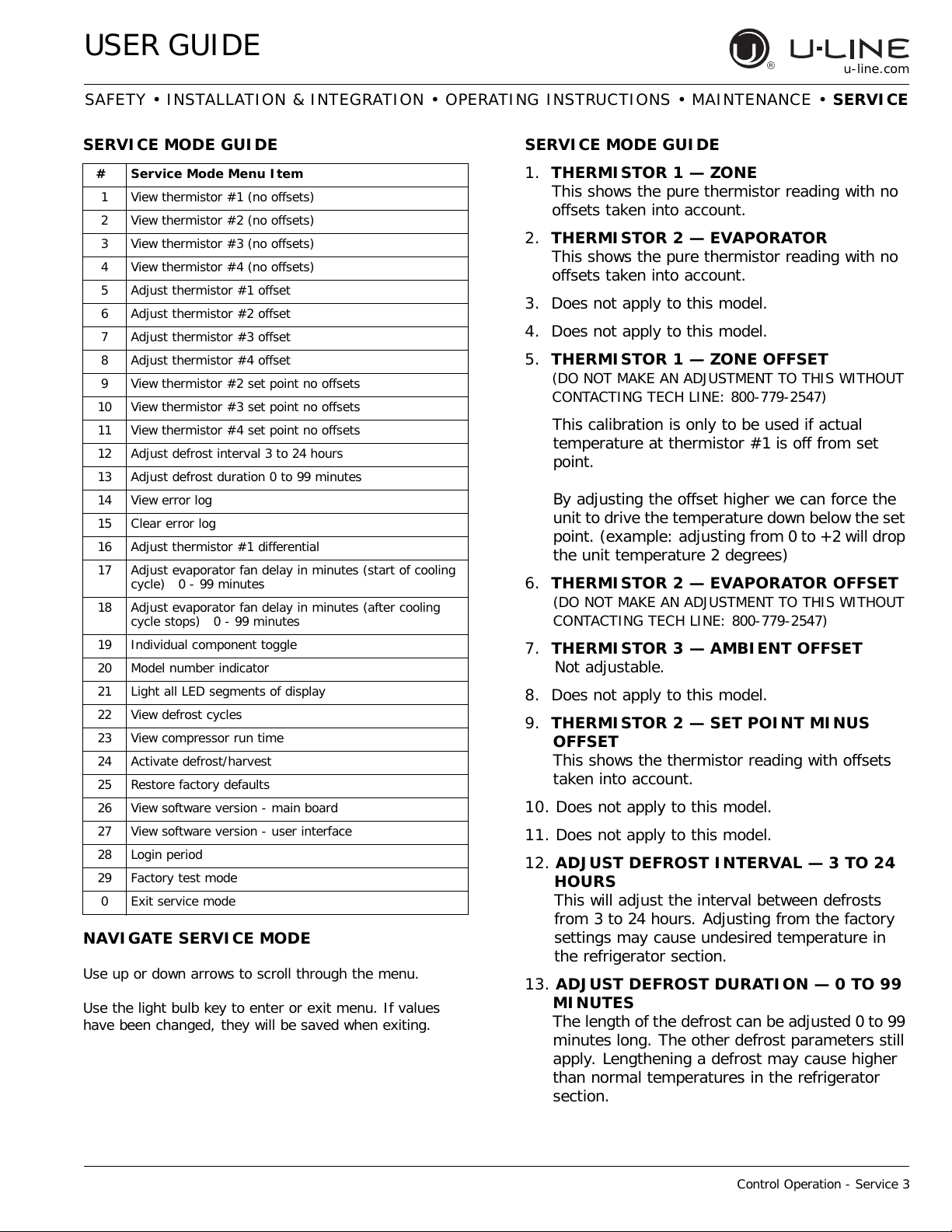

Control Quick Guide
Thermistor
Defrost

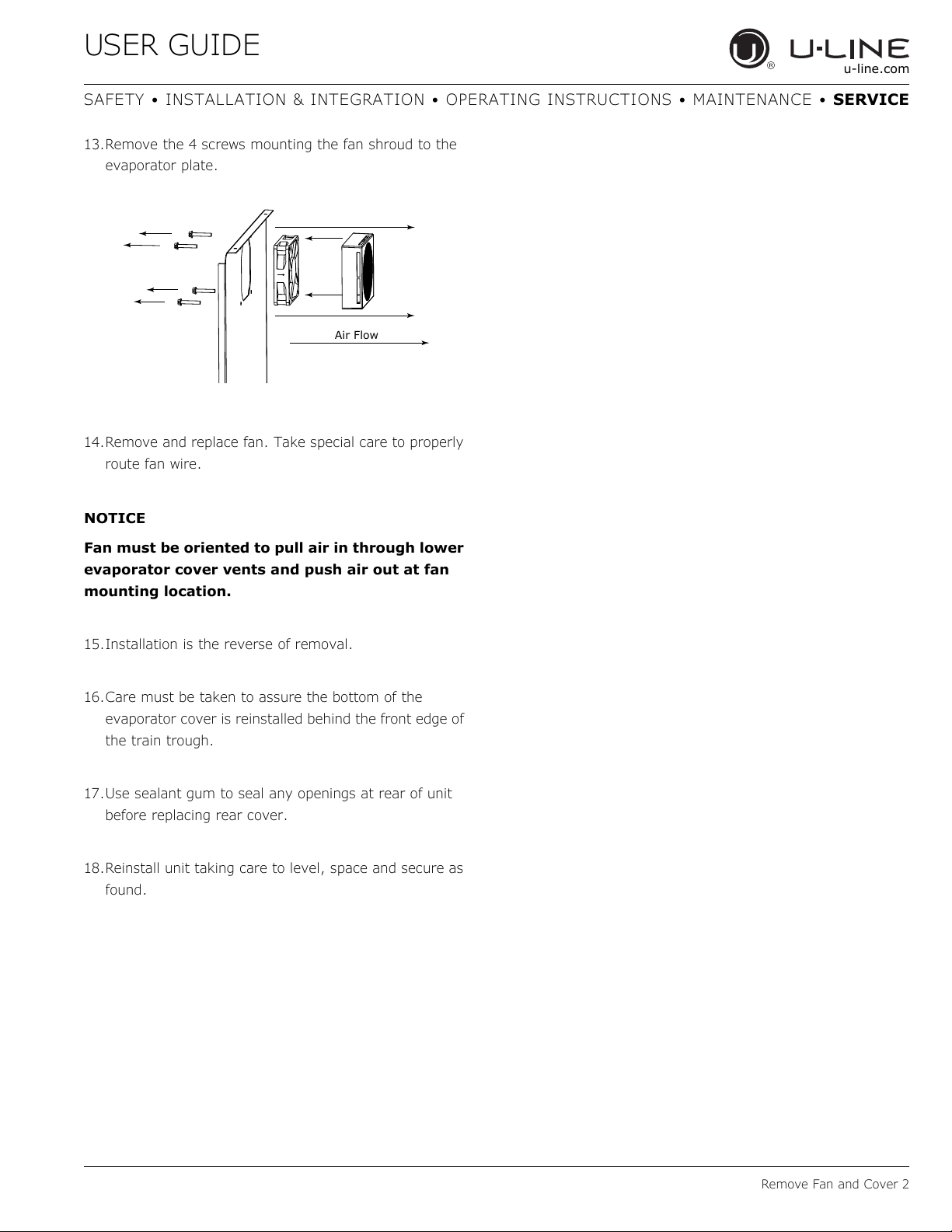

Remove Fan and Cover
USER GUIDE
u-line.com
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations and attention to even the smallest details. We are known and respected for our unwavering dedication to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over two decades and is proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following steps:
1.U-Line Customer Care must be contacted immediately at +1.800.779.2547.
2.Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA Monday - Friday 8:00 am to 4:30 pm CST T: +1.414.354.0300
F: +1.414.354.7905 Email: sales@u-line.com u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST T: +1.800.779.2547
F: +1.414.354.5696
Service Email: onlineservice@u-line.com Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
Introduction 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing, operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow these general precautions with those listed throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a Danger, Warning or Caution based on the risk type:
! DANGER
Danger means that failure to follow this safety statement will result in severe personal injury or death.
! DANGER
This unit contains R600a (Isobutane) which is a flammable hydrocarbon. It is safe for regular use. Do not use sharp objects to expedite defrosting. Do not service without consulting the “R600a specifications” section included in the User Guide. Do not damage the refrigerant circuit.
! WARNING
Service must be done by factory authorized service personnel. Any parts shall be replaced with like components. Failure to comply could increase the risk of possible ignition due to incorrect parts or improper service.
! WARNING
Warning means that failure to follow this safety statement could result in serious personal injury or death.
! CAUTION
Caution means that failure to follow this safety statement may result in minor or moderate personal injury, property or equipment damage.
Safety and Warning 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Disposal and Recycling
! DANGER
RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside.
If the unit is being removed from service for disposal, check and obey all federal, state and local regulations regarding the disposal and recycling of refrigeration appliances, and follow these steps completely:
1.Remove all consumable contents from the unit.
2.Unplug the electrical cord from its socket.
3.Remove the door(s)/drawer(s).
Disposal and Recycling 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Environmental Requirements
This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct sunlight and away from heat generating equipment.
In climates where high humidity and dew points are present, condensation may appear on outside surfaces. This is considered normal. The condensation will evaporate when the humidity drops.
! CAUTION
Damages caused by ambient temperatures of 40°F (4°C) or below are not covered by the warranty.
Environmental Requirements 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Electrical
! WARNING
SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing power plug, or direct wiring can cause serious injury, fire, loss of property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and local codes. This unit requires connection to a grounded (three-prong), polarized receptacle that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An individual, properly grounded branch circuit or circuit breaker is recommended. A GFCI (ground fault circuit interrupter) is usually not required for fixed location appliances and is not recommended for your unit because it could be prone to nuisance tripping. However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle location.
Electrical 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed exclusively for a built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille (plinth strip/base fascia) must NOT be obstructed.
! CAUTION
Unit can NOT be installed behind a closed cabinet door.
U-Line products are designed and manufactured to be installed in the specified cutout openings shown, and variance to the floors or cabinetry must be accounted for in your installation.
CUTOUT DIMENSIONS
33-7/8"
(860 mm) to 34-7/8" (886 mm)
Preferred location for electrical outlet
is in adjacent
cabinet. 5/8" (16 mm)
24"
(610 mm)
7" (178 mm)
4"
(102 mm)
23-3/4"
(605 mm)
Metric measurements rounded and optimized.
Cutout Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Product Dimensions
Not Including Handle
23-7/16" (590 mm)
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/16"
(84 mm)
Product Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Side-by-Side Installation |
Hinge-by-Hinge Installation (Mullion) |
|
OTHER SITE REQUIREMENTS |
When installing two units hinge-by-hinge, 13/16" (22 mm) |
|
is required for integrated models. Additional space may be |
||
|
||
Side-by-Side Installation |
needed for any knobs, pulls or handles installed. |
Units must operate from separate, properly grounded electrical receptacles placed according to each unit’s
electrical specifications requirements. |
13/16" (22 mm) |
|
Cutout width for a side-by-side installation is the total of the widths listed under Cutout Dimensions in each unit’s Installation Guide. Each door can be opened individually (one at a time) without interference.
Stainless steel models which include the standard stainless handle will require 4-9/16" (116 mm) to allow both doors to open to 90° at the same time.
4-9/16" (116 mm)
However, to ensure unobstructed door swing (opening both doors at the same time), 1/4" (6.4 mm) of space needs to be maintained between the units.
1/4" (6 mm)
Side-by-Side Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Anti-Tip Bracket
! CAUTION
The anti-tip bracket must be installed to prevent the unit from tipping when doors are fully opened or excess weight is placed on the front of the unit.
The anti-tip bracket has multiple mounting options. Mounting will depend on your particular cabinet configuration. Locate 3 #8x5/8" screws included with your unit.
SIDE MOUNT
Left Hinged Cabinet |
Right Hinged Cabinet |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TOP MOUNT
For ease of installation, the anti-tip bracket is pre-installed in the top mount position.
1.Completely slide the unit into its position in the cabinet. Be certain unit height is properly adjusted. (See GENERAL INSTALLATION).
2.Open door completely. Make certain door clears surrounding cabinetry.
3.Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes 5/8" (16 mm) deep into bottom of counter top. Use the anti-tip bracket as a template.
4.Install 3 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
Side mount position is used when you are unable to mount the bracket to the underside of your countertop.
1.Remove the pre-installed anti-tip bracket from the top mount position and align the bracket to the hinge side of the unit as shown above.
2.Reinstall the 2 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
3.Completely slide the unit into its position in the cabinet. Be certain unit height is properly adjusted. (See GENERAL INSTALLATION).
4.Open door completely. Make certain door clears surrounding cabinetry.
5.Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes 5/8" (16 mm) deep into cabinetry frame using the anti-tip bracket as a template.
6.Install 3 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
Anti-Tip Bracket 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
General Installation |
|
INSTALLATION |
||
LEVELING INFORMATION |
|
1. |
Plug in the power/electrical cord. |
|
|
|
|
||
1. Use a level to confirm |
|
|
2. |
Gently push the unit into position. Be careful not to |
the unit is level. Level |
|
|
||
|
|
|
entangle the cord. |
|
should be placed along |
|
|
|
|
|
|
|
|
|
top edge and side |
1 |
|
|
|
|
|
3. |
Re-check the leveling, from front to back and side to |
|
edge as shown. |
|
|
||
|
|
|
|
side. Make any necessary adjustments. The unit’s top |
2. If the unit is not level, |
|
|
|
surface should be approximately 1/8" (3 mm) below |
|
|
|
the countertop. |
|
remove grille and |
|
|
|
|
|
|
|
|
|
adjust legs as |
|
|
4. |
Install the anti-tip bracket. |
necessary. |
|
2 |
||
|
|
|
5. |
Remove the interior packing material and wipe out the |
|
|
|
|
inside of the unit with a clean, water-dampened cloth. |
Rotate Front and Back Legs to Adjust
3.Confirm the unit is level after each adjustment and repeat the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout opening, adjust the rear legs to achieve a total unit rear height of 1/8" (3 mm) less than the opening’s rear height. Shorten the unit height in the front by adjusting the front legs. This allows the unit to be gently tipped into the opening. Adjust the front legs to level the unit after it is correctly positioned in the opening.
General Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions |
Integrated Frame Dimensions |
|
|
|
||||||||||
Metric measurements rounded and optimized. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE |
3/4" |
|
||||||
|
|
|
|
|
|
|
|
|||||||
INTEGRATED FRAME |
|
|
|
|
|
|
(20 mm) |
|||||||
|
|
|
|
|
|
INTERFERENCE |
||||||||
|
|
|
|
|
|
|
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTICE |
23-1/2" |
|
|
|
|
|
||||||||
|
|
|
|
|
||||||||||
|
|
|
||||||||||||
Due to differences in surrounding cabinetry the |
|
|
|
|
|
|
|
|
(595 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
panel may not perfectly align with door. The |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
procedure below is designed to provide a |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
finished integrated panel that seamlessly |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
integrates with surrounding cabinetry. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Panel Preparation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A full integrated door panel completely covers the door |
|
|
|
|
|
|
|
2-3/4" MIN |
|
|
|
|||
frame and provides a built-in appearance. |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
(70 mm MIN) |
30" |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
(762 mm) |
||
NOTICE
The door panel must not weigh more than 20 lbs (10 kg).
It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.
Integrated Frame
1.Cut the panels to the dimensions listed in the diagram below.
2.Optional: Stain or finish panel to desired stain or color. Be sure to closely follow the instructions provided by the manufacturer.
3.Optional: Install handles and hardware.
NOTICE
When applying an integrated frame to a unit, ensure that both sides are finished in order to prevent warping. In some frame installations, the panel may be visible through the glass while the door is open.
Integrated Panel Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
HANDLELESS INTEGRATED FRAME
The following procedure is designed to provide a finished, handleless frame for a 24" (600 mm) door that seamlessly integrates with its surrounding cabinetry.
NOTE: Many cabinet manufacturers provide a ready solution for a handleless, integrated design that can be easily applied to your U-Line 3000 Series model. Consult your cabinet manufacturer for applicable design and installation details. The cabinet manufacturer’s solution to this design and integration detail will often result in an integrated frame solution wherein the size of the frame may result in a height dimension taller than what we specify. This can be achieved provided the additional height is positioned above the appliance door.
NOTICE
The integrated frame aligns with the surrounding cabinetry and, due to differences in cabinetry, may not align perfectly with the door.
The appliance will need up to 34-1/2" (876 mm) to the underside of the counter to leave room for leveling adjustments.
A single prepared frame with insert must not weigh more than 20 lbs (10 kg).
Integrated Frame Preparation
1. |
Cut the main panel to the appropriate dimensions |
|
|
below. For details, see the drawings on the next page. |
|
|
|
|
Main panel width |
Main panel depth |
|
|
|
|
23-1/2" (595 mm) |
28-13/16" (732 mm) |
|
|
|
|
2. |
Create the top design for the handleless feature and |
|
|
the 1/8" (3 mm) notch for the insert(s) indicated on the |
|
|
Top Detail drawing, on the next page. |
|
3.Prepare the insert(s) that will back up the handleless design. Wooden Insert – Cut 1/8" (3 mm) thick wooden insert(s) to the dimensions below.
Wooden insert width |
Wooden insert depth |
|
|
23-1/2" (595 mm) |
3-1/2" (89 mm) |
|
|
Wooden Insert
Top Design
and Insert Notch
Main Panel
Cutout
Integrated Frame
4.Optional: Stain or finish frame and wooden insert to desired stain or color. Be sure to closely follow the instructions provided by the manufacturer.
NOTICE
If finishing panel or wooden insert, all sides must be finished to prevent warping.
5.Attach the insert to the frame. Wood glue or equivalent adhesive should be used to attach insert to frame.
Attach Wooden Insert
Integrated Panel Dimensions 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Handleless Integrated Frame Dimensions
1/8" |
|
|
(3 mm) |
|
|
|
Top Design |
|
1/4" (6 mm) |
|
|
7/8" (22 mm) |
||
|
Ref. |
|
R 5/8" |
2-3/8" |
|
(60 mm) |
||
(R 16 mm) |
||
|
||
23-1/2" |
|
|
(595 mm) |
|
|
2-3/4" |
|
|
(70 mm) |
|
|
2-3/4" |
Insert Notch |
|
|
||
(70 mm) |
|
|
|
Wooden Insert |
|
|
Notch Depth: 1/8" (3 mm |
|
|
Top Detail |
|
Cutout |
|
|
for Frame |
|
|
Units |
|
|
28-13/16" |
|
|
(732 mm) |
|
|
3/4" (20 mm) |
|
|
Wooden Insert Dimensions
23-1/2" |
|
|
|
|
|
|
|
|
|
|
|
|
|
(595 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
1/8" (3 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3-1/2" (89 mm) |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Integrated Panel Dimensions 3
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
EXTENDED INTEGRATED FRAME
NOTICE
Due to differences in surrounding cabinetry the panel may not perfectly align with door. The procedure below is designed to provide a finished panel that seamlessly integrates with surrounding cabinetry.
Panel Preparation
An extended integrated panel can be used to maintain alignment with an adjacent extended cabinet height or a reduced toe-kick/grille application.
1.Cut the panels to the dimensions listed in the appropriate diagram on the next page.
2.Optional: Stain or finish panel to desired stain or color. Be sure to closely follow the instructions provided by the manufacturer.
3.Optional: Install handles and hardware.
NOTICE
The door panel must not weigh more than 20 lbs (10 kg).
It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.
Appliance will need up to 34-1/2" (876 mm) to the under side of the counter to leave room for leveling adjustments.
When applying an integrated frame to a unit, ensure that both sides are finished in order to prevent warping. In some installations, the panel may be visible through the glass while the door is open.
Integrated Panel Dimensions 4
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
|
Front |
Side |
|
Integrated Panel/Integrated Frame |
Integrated Panel |
||
|
|
||
Cabinet |
U-Line |
U-Line |
|
Unit |
Unit |
||
|
|||
|
|
|
|
|
|
|
|
|
|
|
3-5/16" (89 mm) |
|
|
|
|
3-5/16" (89 mm) |
|
|
> 3-5/16" |
|
|
|
|
|
|
|
|
|
|
to |
|
|
|
|
to |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
(> 89 mm) |
|
|
|
|
|
|
|
|
|
|
4-5/16" (114 mm) |
|
|
|
|
|
4-5/16" (114 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
Floor |
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
Front |
|
|
|
|
Side |
|
|
|
|
|
|
|
|
Extended Integrated Panel/Extended Integrated Frame |
Integrated Panel |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Panel can extend beyond the door frame.
**A minimum of 1" (25 mm) from the floor is required for proper ventilation.
Cabinet |
U-Line |
U-Line |
|
Unit |
Unit |
||
|
* |
3-5/16" (89 mm) |
3-5/16" (89 mm) |
|
to |
to |
|
1" (25 mm)** |
1" (25 mm)** |
Floor
Integrated Panel Dimensions 5
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Extended Integrated Frame Dimensions
3/4"
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT (20 mm) INTERFERENCE
23-1/2"
(595 mm)
32-7/8"
2-3/4" MIN
to
(70 mm MIN)
33-7/8"
(834 mm to
860 mm)*
Integrated Frame
*A minimum of 1" (25 mm) is required from the floor to the bottom of the extended integrated panel/frame for proper ventilation.
NOTICE
The minimum border thickness for a 30" (762 mm) tall integrated frame is 2-3/4"
(70 mm). The top/bottom border of the frame must account for any additional length.
Integrated Panel Dimensions 6
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Grille - Plinth
Dimensions
PREPARE AND INSTALL INTEGRATED GRILLE (PLINTH STRIP/BASE FASCIA)
1.Use the dimensions provided in the diagram to cut and shape your integrated grille (plinth strip/base fascia) panel. Recommended panel thickness is between 1/4" (6 mm) and 3/8" (9 mm).
2.Finish or stain your grille (plinth strip/base fascia) panel to match your surrounding furniture. Finish front, back and edges to prevent warping. Carefully follow the manufacturer’s recommendations for finish application and cure times.
INTEGRATED GRILLE (PLINTH STRIP/BASE FASCIA) DIMENSIONS
1-9/16" (40 mm) |
|
|
|
|
|
|
|
|
3-5/16" (84 mm) |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1" (25 mm) |
||
|
|
|
|
|
|
|
|
|
|
20-5/8" (525 mm) |
23-3/4" (605 mm) |
3.Apply double sided tape to the backside of the integrated grill (plinth strip/base fascia). Use the diagram below for reference. U-Line recommends 3M™ VHB™ tape, a high strength bonding tape.
Apply Tape To Shaded Area
1-9/16" 40 mm)
4.Remove backing paper from double sided tape.
5.Carefully align grille (plinth strip/base fascia) over integrated panel and press into position.
Integrated Grille - Plinth Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Installation
NOTICE
1. Fully open door.
2. Starting at corner, pull gasket away from door.
3.Continue to pull gasket free from gasket channel.
4.Upon removal, lay gasket down on a flat surface.
5.Align top of panel with top edge of door. Center panel on door. (For 3036/3090 models, align panel on the hinge side-edge of door.)
NOTICE
Due to differences in floor construction or surrounding cabinetry, the panel may not sit flush with the top of the door.
It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardwood is installed.
8.Locate 6 of the #6x 1-1/2" (38 mm) screws provided with your unit.
9.Using a Phillips screwdriver, place one screw into each of the 6 pilot holes and screw down. Do not overtighten screws.
10.Ensure the screws sit flush against the bottom of the channel.
Integrated Panel |
Integrated Panel |
6. |
Secure integrated |
Bar |
|
panel to door using |
|
|
Clamp |
|
|
clamps. A robust |
|
|
tape may also be |
|
|
used. U-Line |
|
|
recommends the |
|
|
use of bar clamps |
Door/Drawer |
|
to secure the panel |
|
|
to the door. If using |
Wood |
|
tape, be certain the |
|
|
Panel |
|
|
tape will not |
|
|
damage panel finish |
|
|
upon removal. |
|
7. |
Using a 7/64" |
Bar |
|
(3 mm) drill bit, drill |
|
|
Clamp |
|
|
6 pilot holes into |
|
|
the wood panel 1/2" |
|
|
(12 mm) deep using |
|
|
the holes in the door |
|
|
frame as a guide. |
|
11.Remove clamps from door.
NOTICE
If panel requires additional adjustment after removing clamps, slightly loosen each screw and adjust panel as necessary. Tighten screws upon completion.
12.Starting at the corners, re-install the gasket into the gasket channel in the frame. Make sure the gasket is fully seated.
Integrated Panel Installation 1
Loading...
