Ubiquiti UMA-D Data sheet

Datasheet

Directional Dual-Band Antenna for UAP-AC-M

Model: UMA-D

Dual-Band, Dual-Polarity Optimized for 802.11ac

High Efciency Directional Radiation Pattern

Three-Axis Ball Joint Mount for Precise Aiming

Hardware Overview

The UniFi Antenna, model UMA-D, is an optional mesh
antenna designed to work with the UniFi® AC Mesh AP,
model UAP-AC-M. With dual-band support, the UMA-D
expands range coverage and provides customized pattern

Datasheet

shaping. It is available in single- and ve-packs.

Antenna Features Optimized for 802.11ac, the UMA-D

offers a high efciency directional radiation pattern with

dual polarity.

Weather-Resistant Enclosure Encased in UV-stabilized
plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting The UMA-D has a ball joint mount
designed for precise aiming and can be mounted on a
pole or wall.

Compatibility The UMA-D is a connectorized antenna
that is compatible with the UAP-AC-M.

Pole-Mount Installation

Mounting Kit

Wall-Mount Kit Lock Ring

Ball Joint Mount

Mount Assembly

2

Specications

UMA-D

Dimensions

Weight
(with Mount)
(without Mount)

Enclosure Outdoor UV Stabilized Plastic

RF Connections (2) RP-SMA

Supported Frequency Range 2.4 - 2.5 GHz, 5.1 - 5.9 GHz

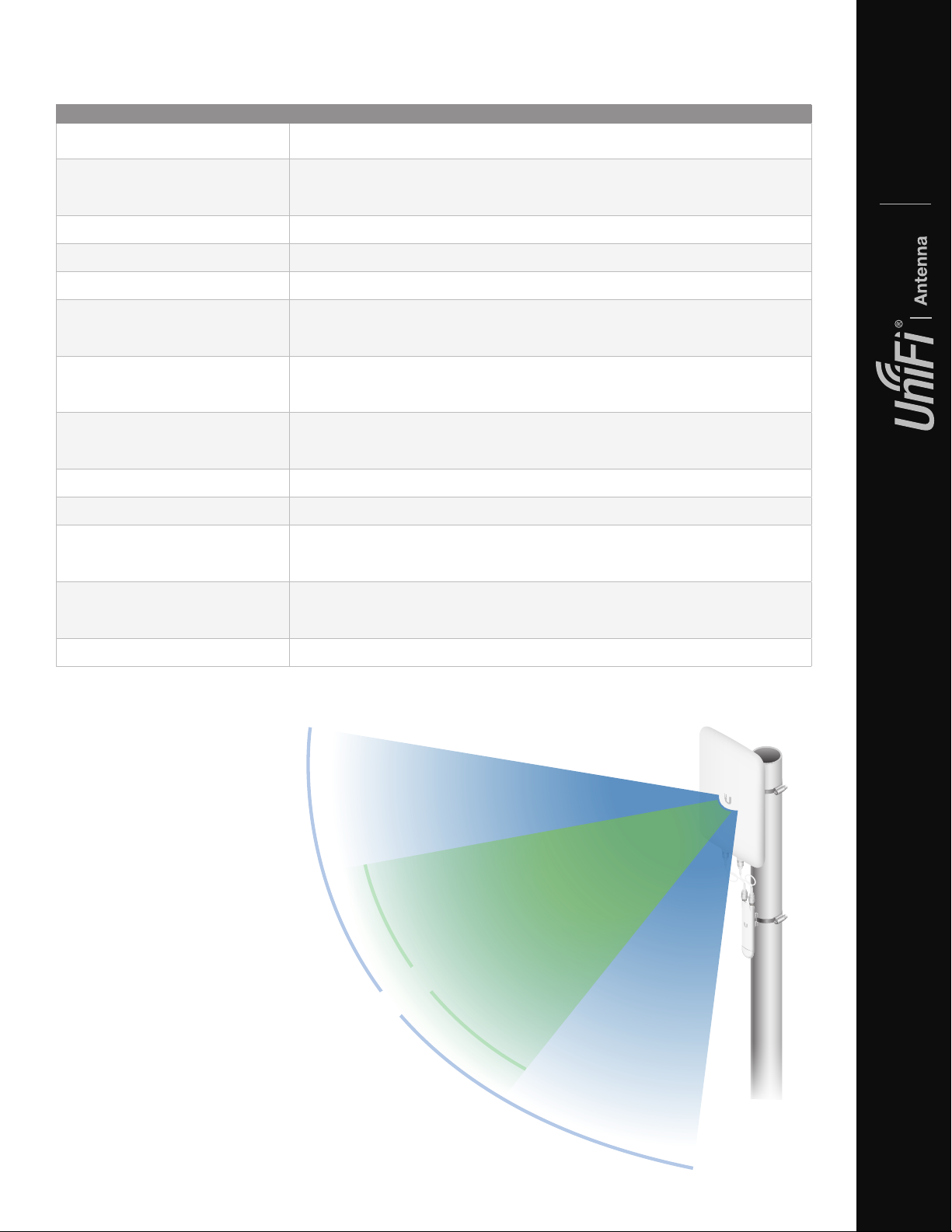

HPOL Beamwidth

2.4 GHz
5 GHz

VPOL Beamwidth

2.4 GHz
5 GHz

Elevation Beamwidth

2.4 GHz
5 GHz

Maximum VSWR 2:1

Polarization Dual-Linear

Cross-Pol Isolation

2.4 GHz
5 GHz

Antenna Gain

2.4 GHz
5 GHz

Mounting Wall/Pole (Kits Included)

201.3 x 128.0 x 32.5 mm
(7.93 x 5.04 x 1.28")

480 g (16.93 oz)

400 g (14.11 oz)

Datasheet

90°
45°

90°
45°

90°
45°

25 dB
30 dB

10 dBi
15 dBi

(2.4 GHz)

90°

Beamwidth

(5 GHz)

45°

(2.4 GHz)

3

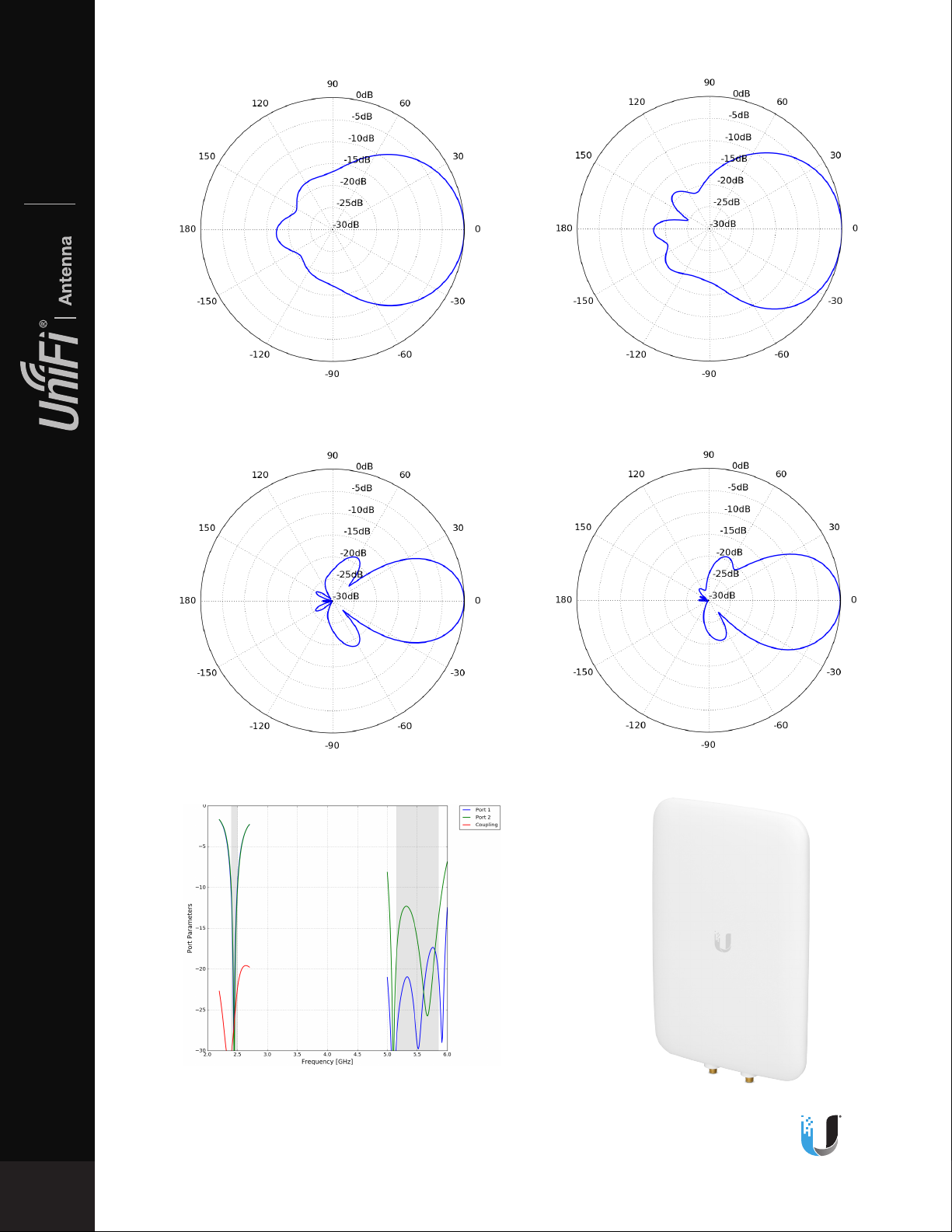

Azimuth (2.4 GHz) Elevation (2.4 GHz)

Datasheet

Azimuth (5 GHz) Elevation (5 GHz)

Return-Loss

AJ082917

4

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
