Ubiquiti UF-WiFi Data sheet

DATASHEET

Gigabit Passive Opcal Network

GPON End-to-End Soluon

High-Performance OLTs

Low-Cost, Robust ONU CPEs

High-Performance GPON

Conguring a ber network just became as easy as setting
up a smartphone. Say goodbye to command lines, manuals,
and paid support licenses. Introducing U Fiber OLT – a ber
solution that anyone can deploy.

UF-GP-B+
GPON SFP

DATASHEET

U Fiber oers internet and telecom service providers a
cost‑eective ber optic delivery system for Triple Play
Services (data, voice, IPTV/VoD) with speeds of up to

2.488Gbps downstream and 1.244 Gbps upstream.

The U Fiber network is intelligently managed using the
included UNMS™ (Ubiquiti® Network Management System)
controller. U Fiber devices consist of the U Fiber OLT or OLT‑4
(deployed at the provider premises) and the U FiberNano™G,
loco, or UF‑WiFi clients, which function as ONU CPEs
(Customer Premises Equipment).

Controller Software

Ubiquiti distinguishes itself with a library of powerful and
intuitive management software that is included at no
additional cost. UNMS is the latest addition to the library.

UNMS is a comprehensive management controller, featuring a
graphical UI that is easy to learn and navigate. UNMS manages
all of the registered UFiber OLTs and all of their ONU clients.

Features

• Intuitive, Graphical Web UI

• Quick Conguration and Deployment of U Fiber Devices

• Centralized Management of Multiple GPON Networks/Sites

• Visual Reports for Ecient Monitoring and Troubleshooting

• Linux‑based Software Installation

• Bundled Software – No Licensing or Support Fees

UF-OLT

PLC

Splitter

Splitter

Up to 128 UF-Nano or UF-LOCO

per OLT GPON Port

2

DATASHEET

Optical Line Terminal

U Fiber OLT supports up to 128ONU CPEs per GPON port
with physical links of up to 20km in distance. It also features
SFP+ connectivity for uplinking. The UFiber OLT can be
mounted in a 1U rack, mounted on a wall, or placed on a
desktop. Management options include the Gigabit Ethernet
port (out‑of‑band), RJ45 serial console port (CLI), and uplink
(in‑band) – congured via the UFiber UI or UNMS.

8-Port GPON Optical Line Terminal

• (8) GPON SFP and (2)SFP+Ports

• 1024 ONUs Total Concurrent Clients (128 Clients per Port)

• 40W Max. Power Consumption

• Hot‑Swappable Power Module(s)

• AC/DC Power Module (Included)

• DC/DC Power Module (Optional)

4-Port GPON Optical Line Terminal

• (4) GPON SFP and (1)SFP+Ports

• 512 ONUs Total Concurrent Clients (128 Clients per Port)

• 35W Max. Power Consumption

• 100‑240VAC/50‑60Hz, Universal Power Input and

Secondary Power Option: 24VDC

GPON Performance

Detail Downstream Upstream

GPON Speeds 2.488 Gbps 1.244 Gbps

Wavelengths 1490 nm 1310 nm

OLT Models

UF-OLT

UF-OLT-4

Optical Network Unit

Ubiquiti oers a variety of GPON ONU models to suit any
application. Each can be easily mounted on an indoor wall.

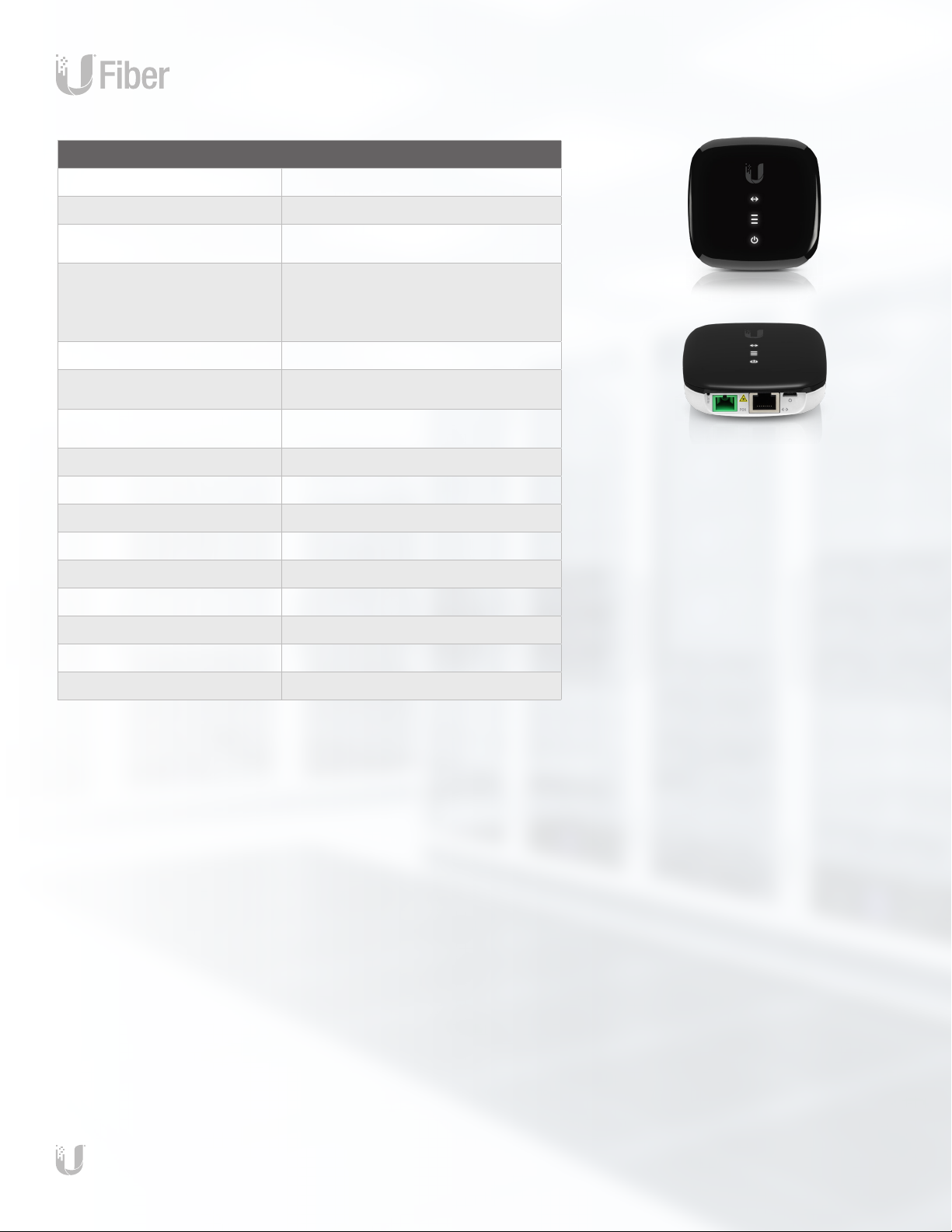

UFiber Nano G

Featuring an informational LED display, the U Fiber NanoG
is a robust, high‑performance GPON CPE housed in a
sophisticated design. It is powered by 24V passive PoE.

• (1) GPON WAN Port and (1) Gigabit LAN Ethernet Port

• Digital Display LED for Status Reporting

• 7W Max. Power Consumption

UFiber loco

The sleek U Fiber loco is a robust, high‑performance GPON
CPE that features extremely low power consumption and the
choice of 24V passive PoE or Micro‑USBpower.

• (1) GPON WAN Port and (1) Gigabit LAN Ethernet Port

• 3.5W Max. Power Consumption

• Powered by 24V Passive PoE or Micro‑USB Power Adapter*

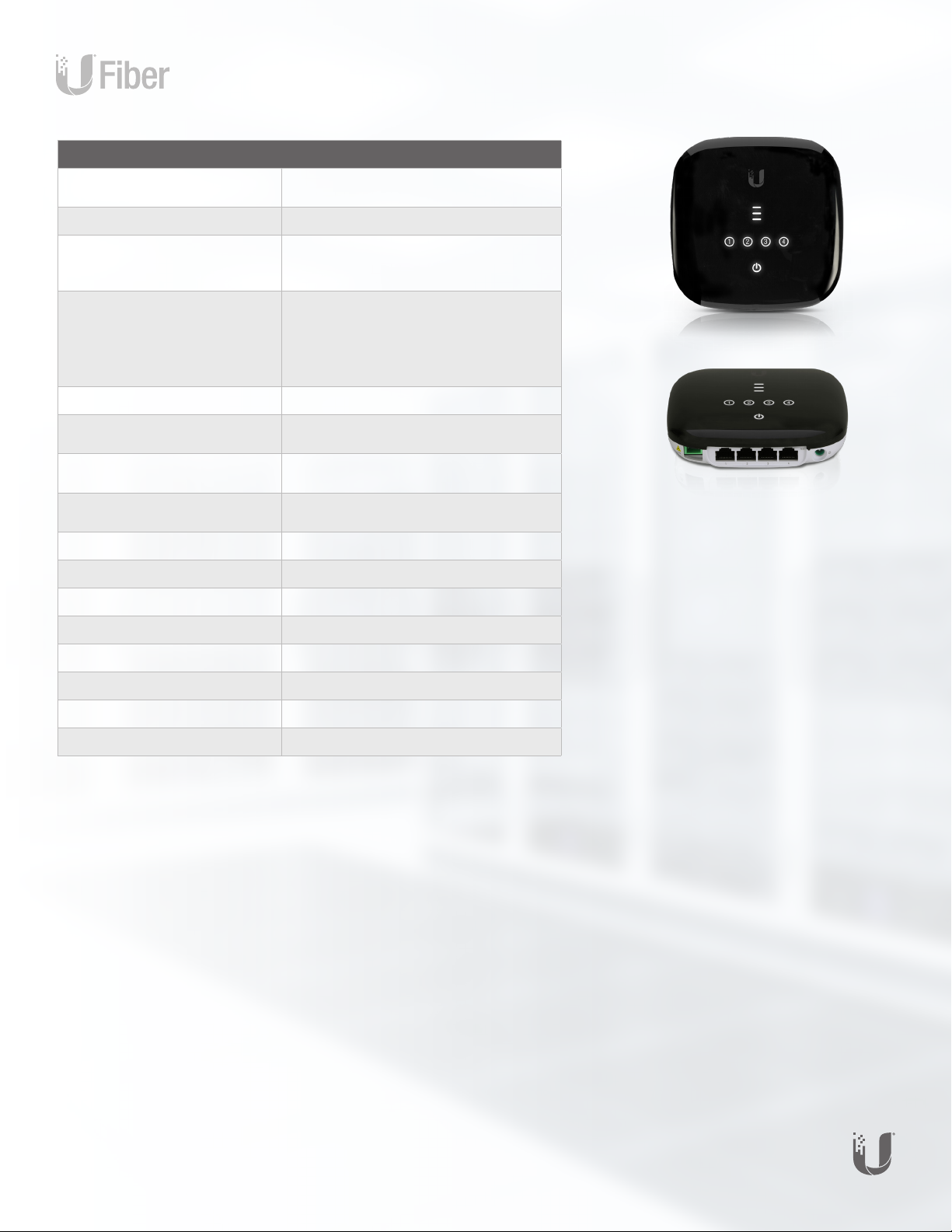

UFiber WiFi

U Fiber WIFI is a robust, high‑performance GPON CPE that
oers routing, four LAN ports, and Wi‑Fi. It is powered by
24Vpassive PoE or a 24V, 0.5A power adapter.

• (1) GPON WAN Port and (4) Gigabit Ethernet Ports

• 802.11n Wi‑Fi

• 7W Max. Power Consumption

* Included only in the single-pack

ONU Models

UF-Nano

UF-loco

UF-WiFi

3

DATASHEET

Module Accessories

GPON OLT SFP Modules

The UFiber OLT’s GPON SFP ports are
designed for use with the UF‑GP‑B+ and
UF‑GP‑C+ SFP modules.

Each model, the UF‑OLT or UF‑OLT‑4,
includes one UF‑GP‑B+ module;
additional modules can be purchased
separately.

Supported Media

Connector Type

TX Wavelength

RX Wavelength

TX Power Range

RX Power Range

Downstream Data Rate

Upstream Data Rate

Cable Distance

Pack Options

Model Comparison

UF‑GP‑B+ UF‑GP‑C+

Single-Mode Fiber Single-Mode Fiber

(1) SC/UPC (1) SC/UPC

1490 nm 1490 nm

1310 nm 1310 nm

1.5 to 5 dBm 3 to 7 dBm

-28 to -8 dBm -30 to -12 dBm

2.5 Gbps 2.5 Gbps

1.25 Gbps 1.25 Gbps

20 km 20 km

20-Pack 20-Pack

Power Modules

The UF‑OLT comes with one AC/DC
power module pre‑installed and
features two modular power adapter
bays for exible power options:

Backup Power The second power bay
can house a backup power module.
If the UF‑OLT detects failure of the
primary power module, the backup
module automatically activates to
supply uninterrupted power.

DC/DC Power Both power bays can
also house a DC/DC power module for
use with DCpower.

Available power modules are:
RPS‑AC‑100W and RPS‑DC‑100W.

Power Type

Input Voltage Range

Output Voltage Range

Operating Temp.

Operating Humidity

Model Comparison

RPS‑AC‑100W RPS‑DC‑100W

AC/DC DC/DC

90-264VAC 38-54VDC

24-26VDC 23-25V

-10 to 45° C (14 to 104° F) -10 to 50° C (14 to 122° F)

5 to 95% Noncondensing 5 to 95% Noncondensing

4

GPON Network Accessories

APC/APC Cable

Long-Haul Cable

DATASHEET

To help you design and deploy your GPON networks, Ubiquiti
oers the following accessories:

• SC/APC Adapters

• Patch Cables

• PLC Splitters

Internet

EdgeRouter

UFiber OLT

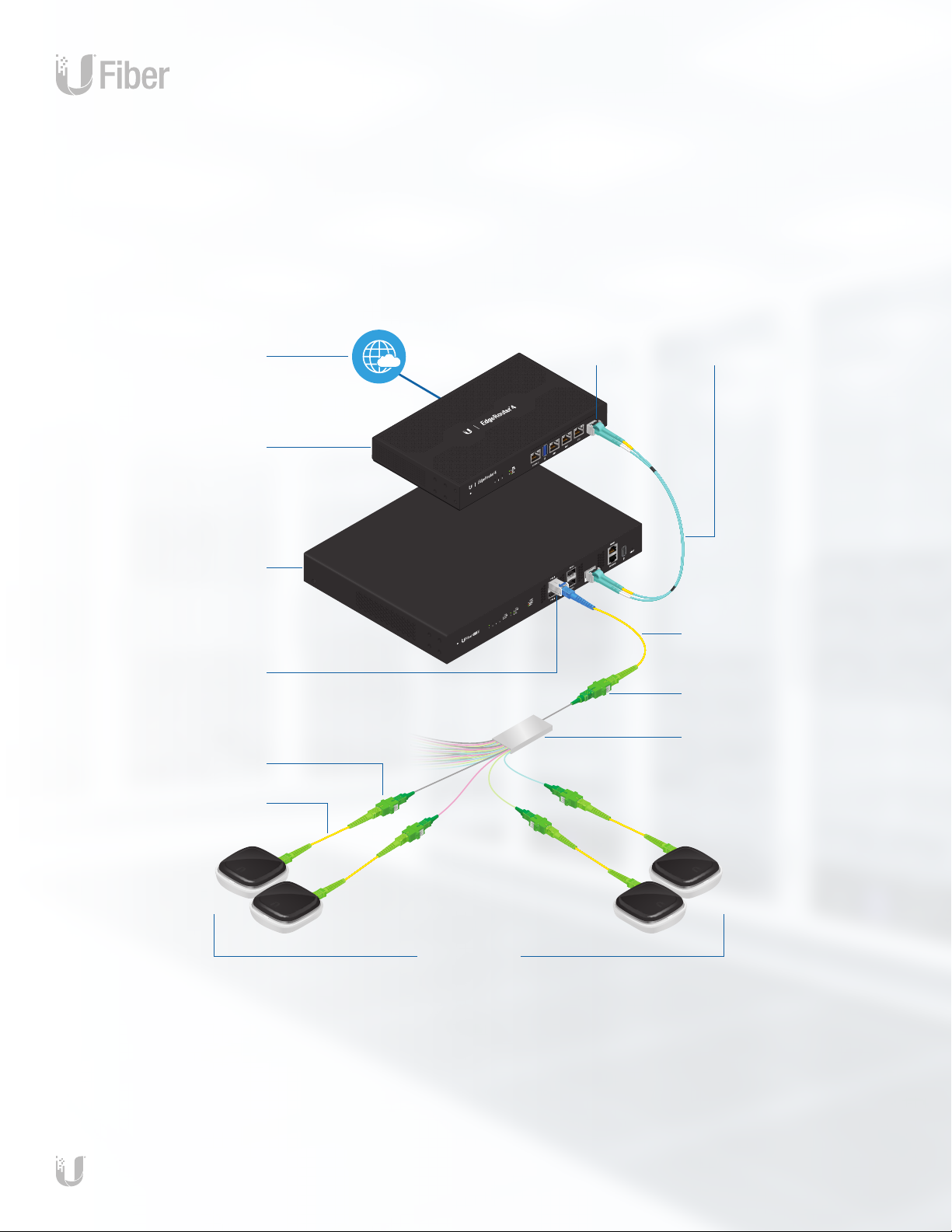

The diagram* below illustrates the basic topology for a
GPON network using U Fiber accessories with U Fiber OLT and
ONU equipment. Each GPON port of the OLT supports up to
128ONUs.

* Cable lengths are not shown to scale for maximum clarity.

SFP Transceiver

ODN Cable

UPC/APC

GPON

Transceiver

APC Adapter

APC Adapter

PLC Splier

UFiber ONUs

U Fiber GPON Network Topology Example

5

DATASHEET

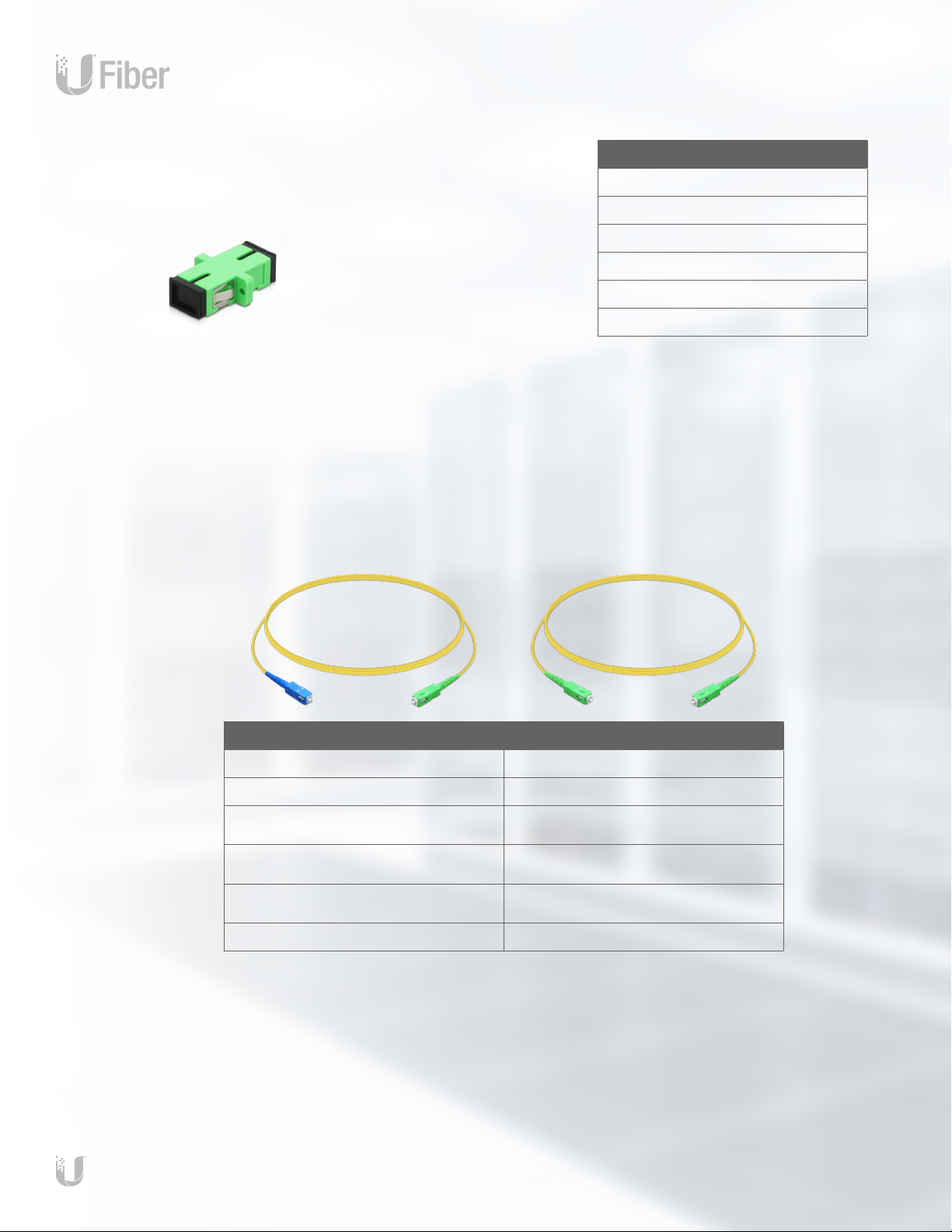

Adapter

Ubiquiti also oers an adapter, model
UF‑ADAPTER‑APC, to connect cables with
SC/APC‑type connectors. Available in 50‑packs

UF-ADAPTER-APC

Patch Cables

Ubiquiti oers two patch cables to help you
build out your GPON networks:

• UF‑SM‑PATCH‑UPC‑APC

• UF‑SM‑PATCH‑APC‑APC

Each patch cable is available as a single‑pack.

Connectors

Insertion Loss

Durability

Operating Temperature

Compliance

Dimensions

Model Comparison

UF‑ADAPTER‑APC

(1) SC/APC

≤ 0.2 dB

< 0.2 dB Typical Change (1000 Matings)

-40 to +85°C (-40 to +185°F)

Telcordia, ANSI, TIA/EIA, NTT, and JIS

27.5 x 12.9 x 9.2 mm (1.08 x 0.50 x 0.36")

Connectors

Insertion Loss

Return Loss

Cable Type

Connectors

Total Length

UF‑SM‑PATCH‑UPC‑APC UF‑SM‑PATCH‑APC‑APC

(1) SC/UPC, (1) SC/APC (2) SC/APC

≤ 0.3 dB ≤ 0.3 dB

UPC: ≥ 50 dB
APC: ≥ 60 dB

SM9/125 SX 2.0 mm, PVC Jacket, Yellow SM9/125 SX 2.0 mm, PVC Jacket, Yellow

(1) SC/UPC 2.0 mm SM SX Connector, Blue

(1) SC/APC 2.0 mm SM SX Connector, Green

1.5 m (59.1") 1.5 m (59.1")

(2) SC/APC 2.0 mm SM SX Connector, Green

≥ 60 dB

6

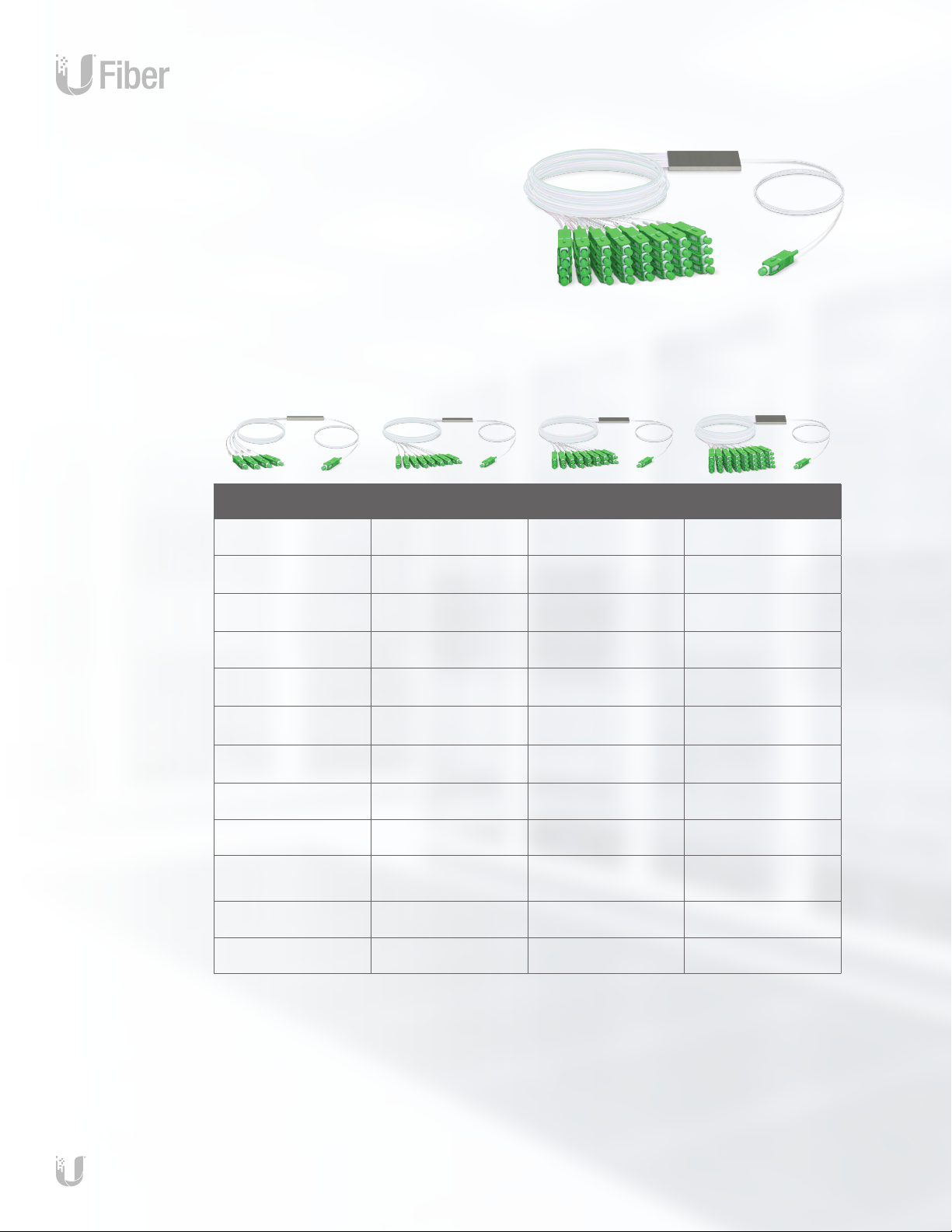

PLC Splitters

Ubiquiti oers four PLC splitters that provide
from 4 to 32 outputs.

• UF‑SPLITTER‑4

• UF‑SPLITTER‑8

• UF‑SPLITTER‑16

• UF‑SPLITTER‑32

Each model is available as a single‑pack.

UF‑SPLITTER‑4 UF‑SPLITTER‑8 UF‑SPLITTER‑16 UF‑SPLITTER‑32

DATASHEET

UF-SPLITTER-32

Model Comparison

Input

Outputs

Insertion Loss

with Connectors

Uniformity Loss

Polarization

Dependent Loss

Wavelength

Bandwidth

Return Loss

(All Ports)

Directivity

Fiber Type

Operating

Temperature

Total Length

Weight

(1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC

(4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC

7.4 dB 10.5 dB 13.7 dB 17.0 dB

0.6 dB 0.8 dB 1.2 dB 1.5 dB

0.3 dB 0.3 dB 0.3 dB 0.3 dB

1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm

50 dB 50 dB 50 dB 50 dB

55 dB 55 dB 55 dB 55 dB

G657A1 G657A1 G657A1 G657A1

-40 to 85° C

(-40 to 185° F)

4.06 m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39')

58 g (2.0 oz) 62 g (2.2 oz) 110 g (3.9 oz) 160 g (5.6 oz)

-40 to 85° C

(-40 to 185° F)

-40 to 85° C

(-40 to 185° F)

-40 to 85° C

(-40 to 185° F)

7

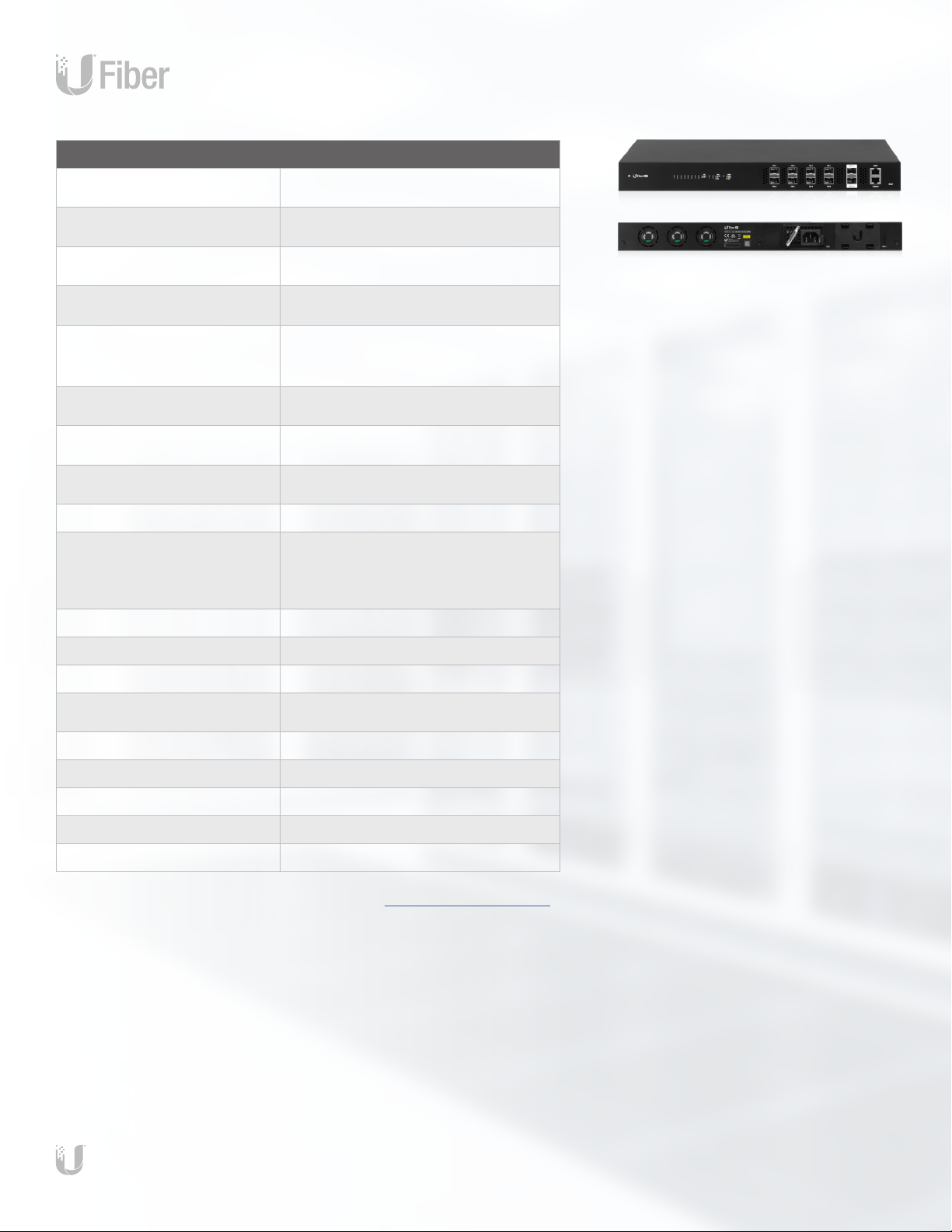

8‑Port GPON Optical Line Terminal (Model: UF‑OLT)

Dimensions 442.4 x 285.6 x 43.7 mm

(17.42 x 11.24 x 1.72")

Weight

(with Mount Brackets)

Networking Interfaces (8) GPON OLT SFP

Concurrent Clients 1024 Registered ONUs/ONTs

Management Interfaces (1) Ethernet for Out‑of‑Band Management

(1) RJ45 Serial Console Port

(2) Uplink for In‑Band Management

GPON Speeds 2.488 Gbps Downstream

Operating Wavelengths 1490 nm TX

Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm

Max. Fiber Distance 20 km*

Power Method 100‑240VAC, 100W AC/DC Power Module

38‑54VDC, 100W DC/DC Power Module

4.40 kg (9.70 lb)

4.495 kg (9.91 lb)

(2) 1G/10G SFP+

(128 per GPON Port)

1.244 Gbps Upstream

1310 nm RX

RX: ‑28 to ‑8 dBm

(Included)

(Optional)

SPECIFICATIONS

Power Supply (1) 25V, 100W AC/DC PSU Module (Included)

Max. Power Consumption 40W (Excluding SFP Modules)

Operating Mode OLT GPON Core and Layer 2 Ethernet Switch

Advanced QoS Supports 8 Priority Queues per User Port and

Trac Classication

Processor Specs MIPS 1004kc, 880 MHz Dual Core

Memory Information 512 MB DDR3, 512 MB NAND

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

* Distance varies according to your optical network design.

For details, visit: ubnt.link/Designing-a-GPON-Network

8

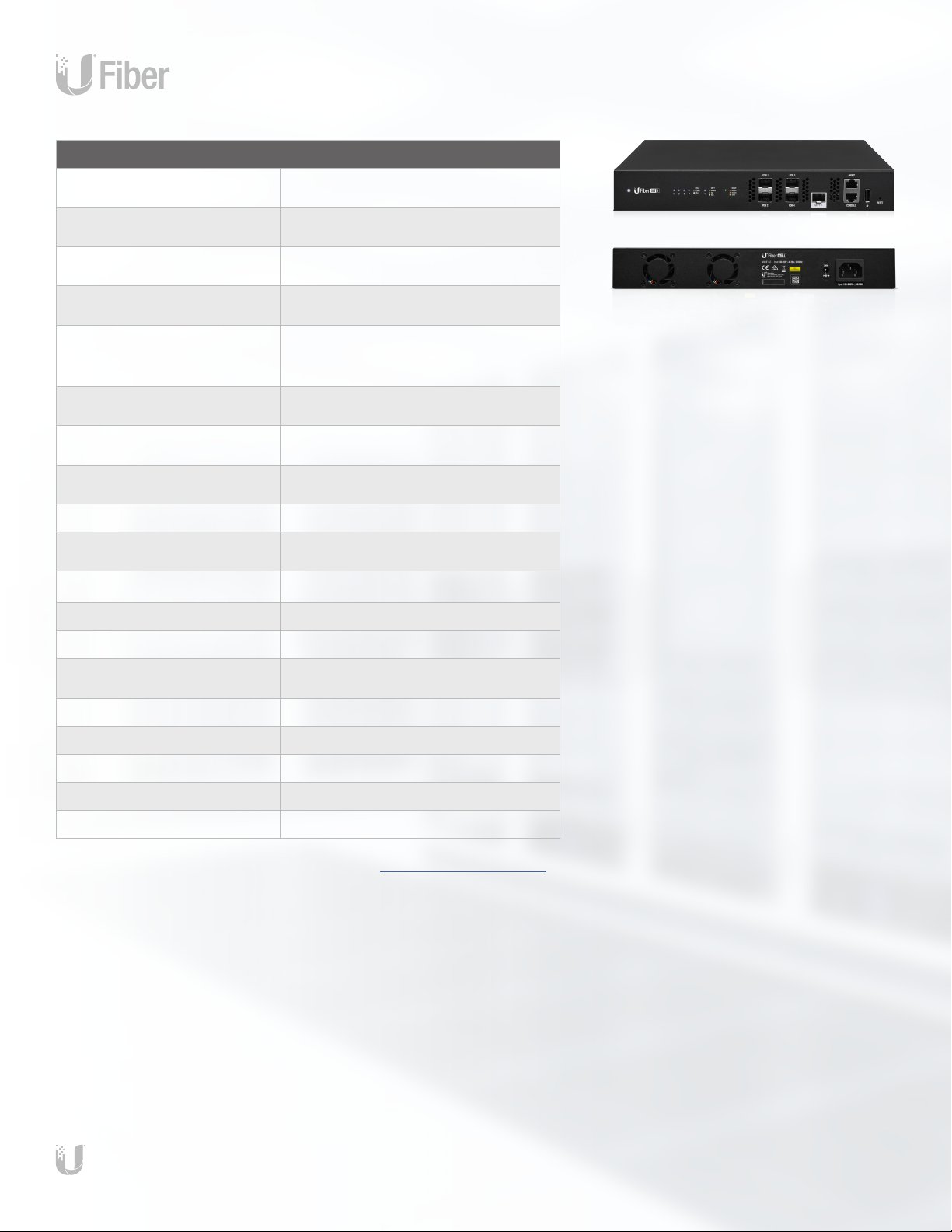

4‑Port GPON Optical Line Terminal (Model: UF‑OLT‑4)

Dimensions 299.80 x 258.95 x 42.55 mm

(11.80 x 10.19 x 1.68")

Weight

(with Mount Brackets)

Networking Interfaces (4) GPON OLT SFP

Concurrent Clients 512 Registered ONUs/ONTs

Management Interfaces (1) Ethernet for Out‑of‑Band Management

(1) RJ45 Serial Console Port

(1) Uplink for In‑Band Management

GPON Speeds 2.488 Gbps Downstream

Operating Wavelengths 1490 nm TX

Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm

Max. Fiber Distance 20 km*

Power Method 100‑240VAC/50‑60 Hz, Universal Input

1.93 kg (4.25 lb)

2.13 kg (4.70 lb)

(1) 1G/10G SFP+

(128 per GPON Port)

1.244 Gbps Upstream

1310 nm RX

RX: ‑28 to ‑8 dBm

24VDC

SPECIFICATIONS

Power Supply AC/DC Internal 56W DC

Max. Power Consumption 35W (Excluding SFP Modules)

Operating Mode OLT GPON Core and Layer 2 Ethernet Switch

Advanced QoS Supports 8 Priority Queues per User Port and

Trac Classication

Processor Specs MIPS 1004kc, 880 MHz Dual Core

Memory Information 512 MB DDR3, 512 MB NAND

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

* Distance varies according to your optical network design.

For details, visit: ubnt.link/Designing-a-GPON-Network

9

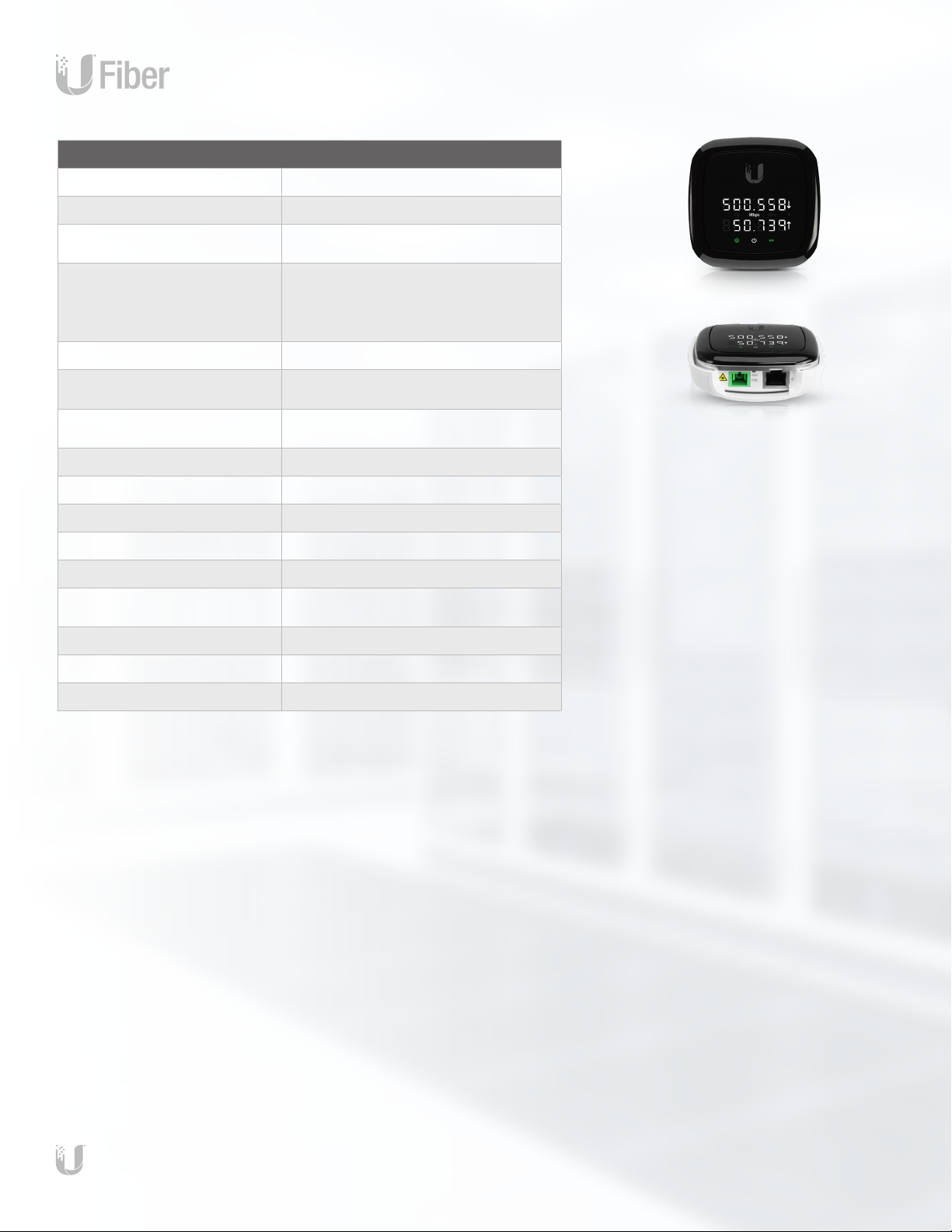

UFiber Nano G (Model: UF‑Nano)

Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")

Weight 110 g (3.88 oz)

Networking Interfaces (1) SC/APC, GPON WAN

(1) Gigabit RJ45, Ethernet LAN

Networking Interface Speeds

(1) GPON WAN, ITU G.984

(1) GbE LAN

Management Interface In‑Band Ethernet/PON

Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm

Power Method Passive PoE (Pins +4, 5; ‑7, 8)

Power Supply PoE Adapter: 24V, 0.3A (Included)

Max. Power Consumption 7W

Supported Voltage Range 20V to 28V

2.488 Gbps Downstream

1.244 Gbps Upstream
10/100/1000 Mbps

RX: ‑28 to ‑8 dBm

Dying Gasp Support

SPECIFICATIONS

Processor Specs MIPS32, 240 MHz

Memory Information 128 MB DDR3

Buttons (1) Display Information

(1) Reset

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

10

UFiber loco (Model: UF‑LOCO)

Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")

Weight 77 g (2.72 oz)

Networking Interfaces (1) SC/APC, GPON WAN

(1) Gigabit RJ45, Ethernet LAN

Networking Interface Speeds

GPON WAN, ITU G.984

GbE LAN

Management Interface In‑Band Ethernet/PON

Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm

Power Method Micro‑USB: 5V, 1A

Power Supply Micro‑USB Power Adapter*: 5V, 1A

Max. Power Consumption 3.5W

Supported Voltage Range 4.7 to 5.3V

2.488 Gbps Downstream

1.244 Gbps Upstream
10/100/1000 Mbps

RX: ‑28 to ‑8 dBm

24V Passive PoE (Pins +4, 5; ‑7, 8)

SPECIFICATIONS

Processor Specs MIPS32, 240 MHz

Memory Information 128 MB DDR3

Buttons (1) Reset

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

* Included only in the single-pack of the UF-LOCO

11

UFiber WiFi (Model: UF‑WIFI)

Dimensions 126.34 x 126.09 x 31.65 mm

(4.97 x 4.96 x 1.25")

Weight 190 g (6.70 oz)

Networking Interfaces (1) SC/APC, GPON WAN

(4) Gigabit RJ45, Ethernet LAN

(1) Wi‑Fi, 802.11n

Networking Interface Speeds

GPON WAN, ITU G.984

2.488 Gbps Downstream

1.244 Gbps Upstream

GbE LAN
Wi‑Fi

10/100/1000 Mbps

300 Mbps

Management Interface In‑Band Ethernet/PON

Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm

RX: ‑28 to ‑8 dBm

Power Method DC Jack, 24VDC

24V Passive PoE (Pins 4, 5+; 7, 8‑)

Power Supply 100‑240VAC / 50‑60 Hz Universal AC/DC

Power Adapter: 24V / 0.5A

Max. Power Consumption 7W

SPECIFICATIONS

Supported Voltage Range 20 to 28V

Processor Specs MIPS, 900 MHz

Memory Information 256 MB DDR

Buttons (1) Reset

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
©2017‑2019 Ubiquiti Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, FiberModule, Nano, PowerModule, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the
United States and in other countries. All other trademarks are the property of their respective owners.

JL040419
