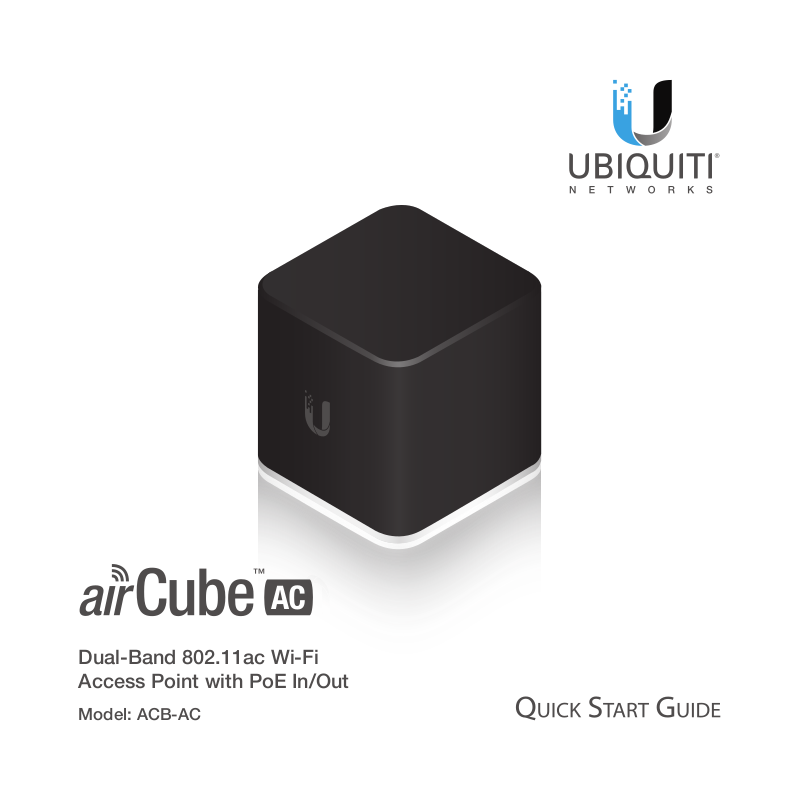

UBIQUITI UBI ACB-AC Instructions

Dual-Band 802.11ac Wi-Fi
Access Point with PoE In/Out

Model: ACB-AC

Introduction

Thank you for purchasing the airMAX® airCube™ AC Access Point. This
Quick Start Guide is designed to guide you through installation and also
includes warranty terms.

Package Contents

Dual-Band 802.11ac Wi-Fi
Access Point with PoE In/Out

Model: ACB-AC

airCube AC Access Point Quick Start Guide

Power Adapter

Hardware Overview

Access Point Front

LED

The LED lights up when the airCube is powered on.

Access Point Back

WAN

24V PoE OUT

Ethernet Port 1

Ethernet Ports 2 & 3

1-3

Three Gigabit Ethernet ports available to connect
10/100/1000 Mbps devices to the Internet. Port 1 also allows
24V PoE input and can be used to power the airCube.

Connects to and powers a 24V PoE airMAX device.

The Power Adapter connects to this port.

WAN Port

Power Port

Hardware Installation

1. Connect one end of an Ethernet cable to the WAN Port on the back
of the airCube. Connect the other end of the Ethernet cable to your
airMAX CPE radio.

2. Connect the Power Adapter to the Power Port on the back of the
airCube.

3. Plug the other end of the Power Adapter into a power outlet.

4. The LED in the base of the airCube will light up when the device is
powered on.

UNMS App

The airCube can be installed and configured using the UNMS™ (Ubiquiti®
Network Management System) app on your mobile phone or tablet.
Follow these steps to ensure proper installation:

1. Download and install the UNMS app from the AppStore (iOS) or
Google Play™ (Android).

Ensure that Wi-Fi is enabled on your mobile phone or tablet.

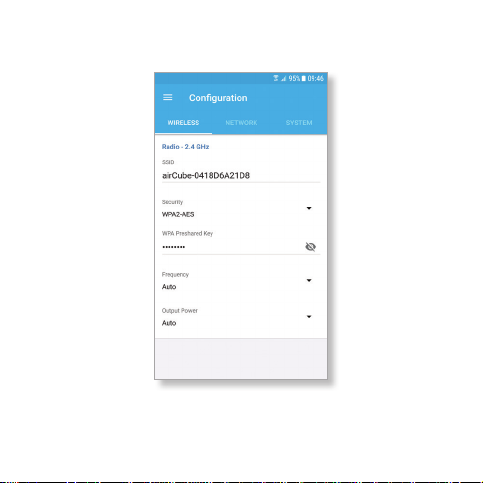

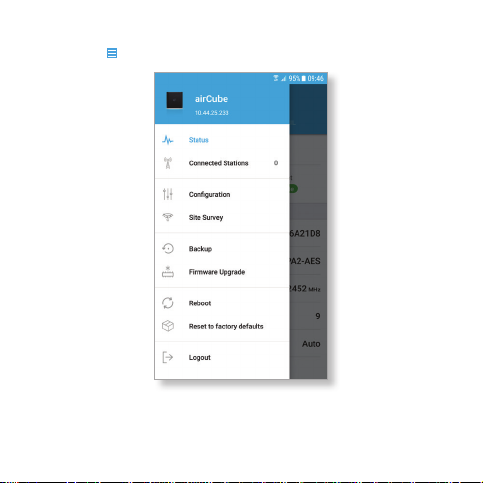

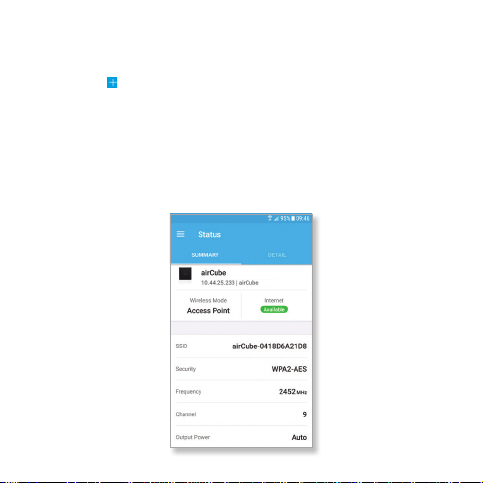

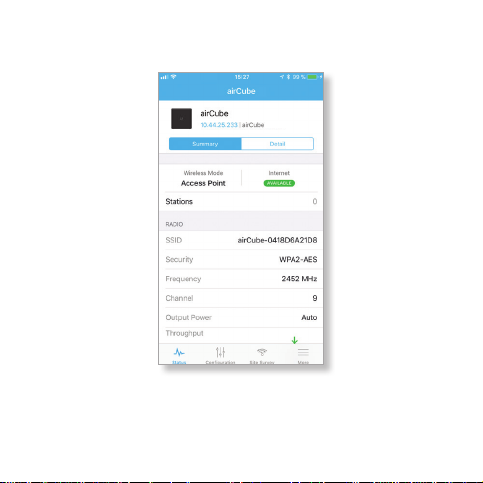

2. Launch the UNMS app and proceed to the section that corresponds
with your mobile device: Android Users or iOS Users.
