Page 1
Datasheet
802.11ac Dual-Radio Access Points
Models: UAP-AC-LITE, UAP-AC-LR, UAP-AC-EDU, UAP-AC-PRO, UAP-AC-Outdoor
Unlimited Indoor/Outdoor AP Scalability in a Unied Management System
Breakthrough Speeds up to 1300 Mbps in the 5 GHz Band
Intuitive UniFi Controller Software
Page 2
Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines
enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a rened industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high‑density client deployments requiring low latency and high uptime performance.
Features
Save money and save time Unlike traditional enterprise
Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that
can be deployed on an on‑site PC, Mac, or Linux machine; in a private cloud; or using a public cloudservice.
Powerful Hardware The UniFi 802.11AC Dual-Radio APs
feature the latest in Wi‑Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software Congure and manage your APs with the easy‑to‑learn user interface.
Use the UniFi Controller software to quickly congure and administer an enterprise Wi‑Fi network – no special training required. RF map and performance features,
real-time status, automatic UAP device detection, and
advanced security options are all seamlessly integrated.
Expandable Unlimited scalability: build wireless
networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unied management system.
Extend Your Coverage
With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Below are some deployment examples.
Corporate Buildings
University/Industrial Campus
Internet Cafe
Dorm or Residence
2
Hotel
Page 3
UniFi Controller
Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system trafc, and provision additional UniFi APs.
Breakthrough RF Map
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, conguration, and troubleshooting.
Powerful RF Performance Features
Advanced RF performance and conguration features include spectral analysis, airtime fairness, and band steering.
Detailed Analytics
Use the congurable reporting and analytics to manage large user populations and expedite troubleshooting.
Dashboard
UniFi provides a visual representation of your network’s status and delivers basic information about each network segment.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real‑time changes to network topology.
*
Guest Portal/Hotspot Support
Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and
limit duration of use.
All UniFi APs include Hotspot functionality:
• Built‑in support for billing integration using
major credit cards.
• Built‑in support for voucher‑based
authentication.
• Built‑in Hotspot Manager for voucher creation,
guest management, and payment refund.
• Full customization and branding of Hotspot
portal pages.
RF Map
Monitor UniFi APs and analyze the surrounding RF environment.
Multi-Site Management
A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own conguration, maps, statistics, guest portal, and administrator read/write and
read-only accounts.
WLAN Groups
The UniFi Controller can manage exible congurations of large deployments. Create multiple WLAN groups and assign them to an AP’sradio.
* Not currently supported by the UAP‑AC‑Outdoor.
Statistics
UniFi organizes and visualizes network trafc in clear and easy‑to‑read graphs.
3
Page 4
Models
Hardware Overview
Easy Mounting Sleek design for seamless integration
into any environment (allaccessories included).
LED Unique LED provisioning ring or square provides administrator location tracking and alerts for each device.
Designed for the Great Outdoors The UniFi AC Pro
PoE Switching
UniFi Switch with PoE You can power your UniFi devices
with a UniFi Switch with PoE (sold separately). Available in 8, 16, 24, and 48‑port versions with multiple power output options, the UniFi Switch with PoE conveniently offers auto‑sensing IEEE 802.3af PoE/802.3at PoE+ and congurable 24V passive PoE.
and UniFi AC Outdoor APs feature weatherproof casing designed specically for outdoor applications.
Advanced Acoustic Speaker The UniFi AC EDU AP
provides high‑quality sound with accurate voice reproduction for announcements over Wi‑Fi.
Power over Ethernet (PoE) Includes PoE functionality.
Each single‑pack includes a PoE adapter.
PoE Standards The UniFi AC EDU, Pro, and Outdoor APs
are compatible with an 802.3at PoE+ compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.
Model Comparison Chart
UAP-AC-LITE UAP-AC-LR UAP-AC-EDU UAP-AC-PRO UAP-AC-Outdoor
Environment Indoor Indoor Indoor Indoor/Outdoor Outdoor
Simultaneous
Dual-Band
Range
*
*
*
2.4 GHz Speed
2.4 GHz MIMO 2x2 3x3 3x3 3x3 3x3
5 GHz Speed
5 GHz MIMO 2x2 2x2 3x3 3x3 3x3
Secondary
Ethernet Port
Loudspeaker
PoE Mode 24V Passive PoE 24V Passive PoE 802.3at PoE+
Ceiling Mount
Wall Mount
✓ ✓ ✓ ✓ ✓
300 Mbps 450 Mbps 450 Mbps 450 Mbps 450 Mbps
867 Mbps 867 Mbps 1300 Mbps 1300 Mbps 1300 Mbps
122 m (400 ft) 183 m (600 ft) 122 m (400 ft) 122 m (400 ft) 183 m (600 ft)
✓ ✓ ✓
✓
802.3af PoE
802.3at PoE+
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
48V Passive POE
or UniFi Switch
Pole Mount
Wireless Uplink
✓ ✓ ✓ ✓
* Speed and Range values may vary and are based on optimal environments.
✓
4
Page 5

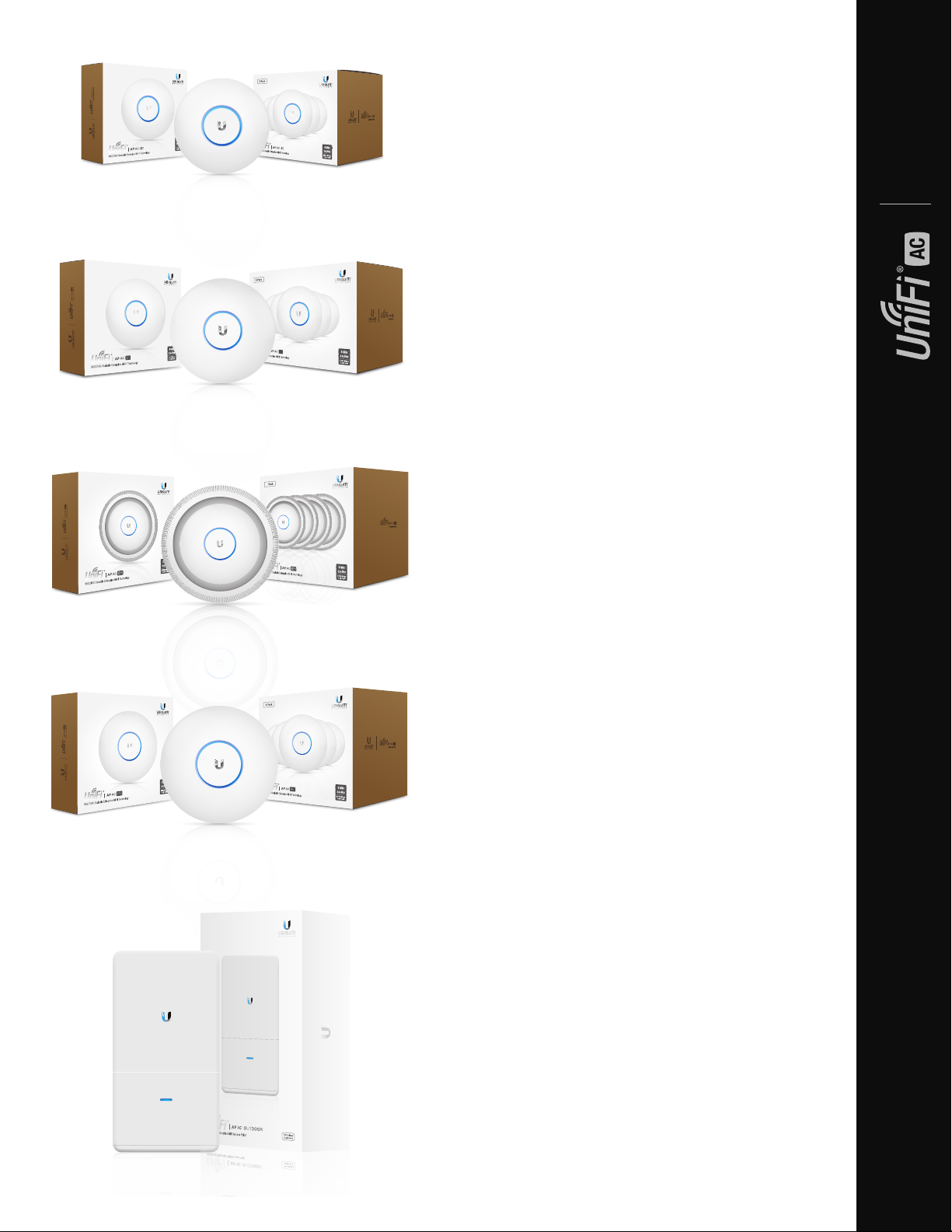

UAP-AC-LITE
Featuring an ultra‑compact design, the UniFi AC Lite
AP delivers a cost-effective combination of value and
performance in a reduced footprint: 25% smaller than the standard UniFi AP. The UniFi AC Lite AP provides simultaneous, dual‑band, 2x2 MIMO technology and is available in single‑ and ve‑packs*.
UAP-AC-LR
Ideal for long‑range deployments, the UniFi AC LR AP offers simultaneous, dual‑band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long‑range, symmetrical‑link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one‑way, high transmit power does for connecting distant clients. It is available in single‑ and ve‑packs*.
4
UAP-AC-EDU
The UniFi AC EDU AP conveniently integrates Wi‑Fi and public address capabilities, making it ideal for campus‑wide deployment. The UniFi AC EDU AP features simultaneous, dual‑band, 3x3 MIMO technology and convenient 802.3at PoE+ compatibility. It will be available in single‑ and four‑packs* starting in Q4.
UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance. Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual‑band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single‑ and ve‑packs*.
UAP-AC-Outdoor
The standard outdoor model, the UniFi AC Outdoor AP,
offers simultaneous dual‑band operation with 3x3 MIMO technology for each band. It is available in single‑packs.
* Four‑ or ve‑packs do not ship with PoE adapters; we recommend
powering the UniFi APs with the UniFi Switch instead.
5
Page 6
UAP-AC-LITE Specications
UAP-AC-LITE
Dimensions 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
Weight
With Mounting Kits
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method Passive Power over Ethernet (24V),
(Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Power Save Supported
Maximum Power Consumption 6.5W
Maximum TX Power
2.4 GHz 5 GHz
Antennas (2) Dual‑Band Antennas, 3 dBi Each
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature ‑10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC
* Only the single‑pack of the UAP‑AC‑LITE includes a PoE adapter.
170 g (6.0 oz) 185 g (6.5 oz)
20 dBm 20 dBm
Advanced Trafc Management
VLAN 802.1Q
Advanced QoS Per‑User Rate Limiting
Guest Trafc Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 ‑ MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 ‑ MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
6
Page 7
UAP-AC-LR Specications
UAP-AC-LR
Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight
With Mounting Kits
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method Passive Power over Ethernet (24V),
(Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Power Save Supported
Maximum Power Consumption 6.5W
Maximum TX Power
2.4 GHz 5 GHz
Antennas (1) Dual‑Band Antenna, Tri‑Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature ‑10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC
* Only the single‑pack of the UAP‑AC‑LR includes a PoE adapter.
240 g (8.5 oz)
315 g (11.1 oz)
24 dBm 22 dBm
Advanced Trafc Management
VLAN 802.1Q
Advanced QoS Per‑User Rate Limiting
Guest Trafc Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 ‑ MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
7
Page 8
UAP-AC-EDU Specications
UAP-AC-EDU
Dimensions 287.5 x 287.5 x 125.9 mm
Weight 1.820 kg (4.012 lb)
Networking Interface Dual‑Band Wi‑Fi / Gigabit Ethernet
Ports (2) 10/100/1000 Ethernet Ports
Buttons Reset
Power Method
Power Supply 48V, 0.5A PoE Gigabit Adapter*
Power Save Supported
Maximum Power Consumption 20W
Maximum TX Power
2.4 GHz 5 GHz
Antennas (3) Dual‑Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature ‑10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC
Passive Power over Ethernet (48V), 802.3at Supported
(Supported Voltage Range: 44 to 57VDC)
* Only the single‑pack of the UAP‑AC‑EDU includes a PoE adapter.
(11.32 x 11.32 x 4.96")
(1) USB 2.0 Port
22 dBm 22 dBm
Advanced Trafc Management
VLAN 802.1Q
Advanced QoS Per‑User Rate Limiting
Guest Trafc Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 ‑ MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Loudspeaker Acoustics
Sensitivity 94 dB (1W/1 m)
Maximum SPL 103 dB @ 1 m
Frequency Response 100 ‑ 20,000 Hz
Type Two‑Way Speaker with Second‑Order HP Filter
8
Page 9
UAP-AC-PRO Specications
UAP-AC-PRO
Dimensions 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
Weight
With Mounting Kits
Networking Interface (2) 10/100/1000 Ethernet Ports
Port (1) USB 2.0 Port
Buttons Reset
Power Method
Power Supply 48V, 0.5A PoE Gigabit Adapter*
Power Save Supported
Maximum Power Consumption 9W
Maximum TX Power
2.4 GHz 5 GHz
Antennas (3) Dual‑Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature ‑10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC
Passive Power over Ethernet (48V), 802.3af/802.3
(Supported Voltage Range: 44 to 57VDC)
* Only the single‑pack of the UAP‑AC‑PRO includes a PoE adapter.
350 g (12.4 oz) 450 g (15.9 oz)
at Supported
22 dBm 22 dBm
Advanced Trafc Management
VLAN 802.1Q
Advanced QoS Per‑User Rate Limiting
Guest Trafc Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 ‑ MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
9
Page 10
UAP-AC-Outdoor Specications
UAP-AC-Outdoor
Dimensions 340 x 180 x 65 mm (13.39 x 7.09 x 2.56")
Weight
With Wall Mount With Pole Mount
Networking Interface (2) 10/100/1000 Ethernet Ports
Buttons Reset
Antennas
2.4 GHz 5 GHz
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method 48V Passive POE or UniFi Switch
Power Supply 48V, 0.5A PoE Gigabit Adapter (Included)
Power Save Supported
Maximum Power Consumption 22 W
Maximum TX Power
2.4 GHz 5 GHz
Antennas
2.4 GHz 5 GHz
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four Per Radio
Mounting Wall and Pole (Kits Included)
Operating Temperature ‑30 to 60 °C (‑22 to 140 °F)
Operating Humidity 5 to 80% Noncondensing
Certications CE, FCC, IC
Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity) Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity)
Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity) Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity)
1.55 kg (3.42 lb) 2 kg (4.41 lb)
28 dBm 28 dBm
10
Advanced Trafc Management
VLAN 802.1Q
Advanced QoS Per‑User Rate Limiting
Guest Trafc Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 ‑ MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Page 11

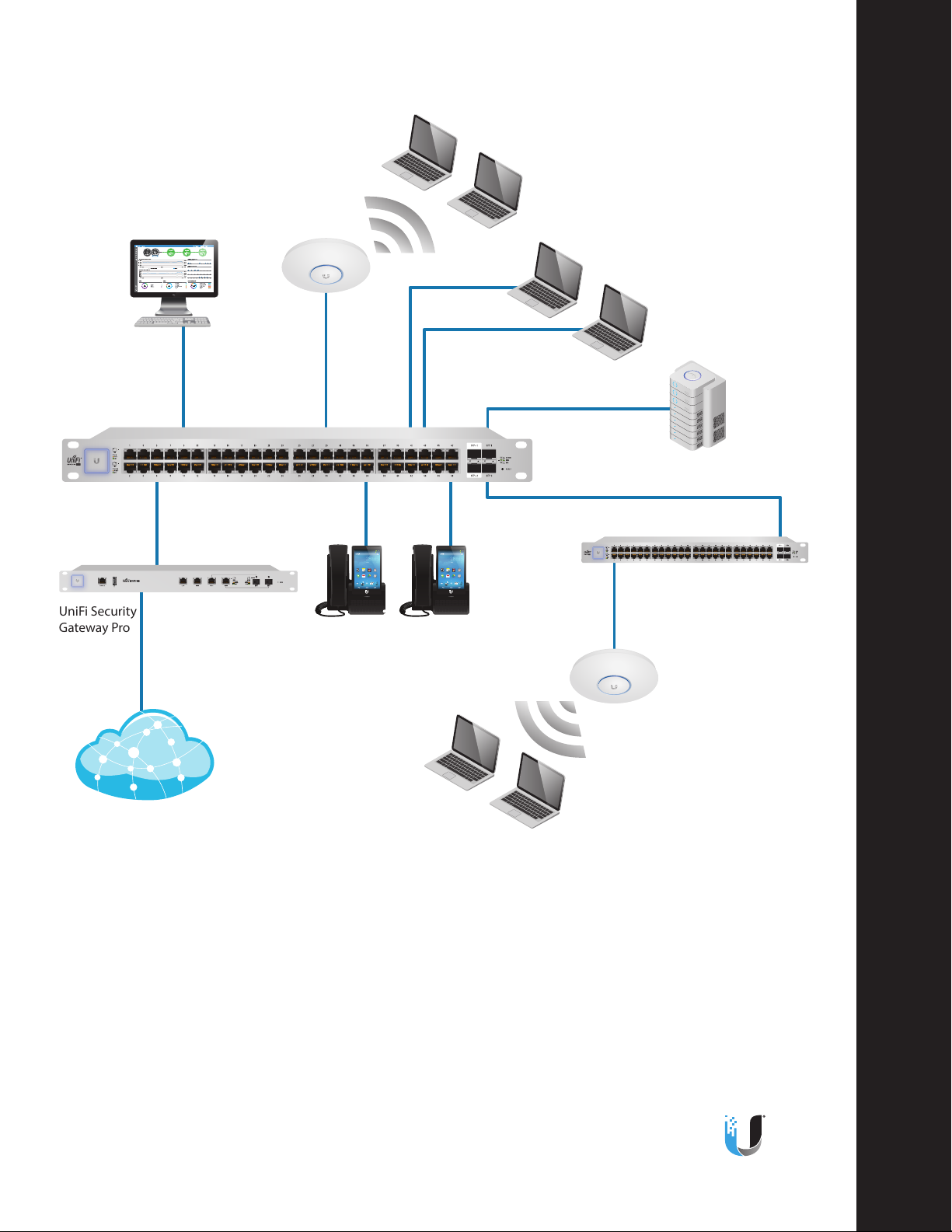

System Example
Calculator
Calculator
Calendar
Calendar
Gallery
Gallery
Sound Recorder
Sound Recorder
Hangouts
Hangouts
Gmail
Gmail
Settings
Settings
Drive
Drive
Calculator
Calculator
Calendar
Calendar
Gallery
Gallery
Sound Recorder
Sound Recorder
Hangouts
Hangouts
Gmail
Gmail
Settings
Settings
Drive
Drive
UniFi Security Gateway Pro
Wireless Clients
UniFi Controller
UniFi Switch
(LAN Devices)
UniFi AC
UniFi VoIP Phones
Wired Clients
Server
UniFi Switch
1:28
1:28
TUE, MAY 20
1:28
1:28
TUE, MAY 20
Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty ©2015‑2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
Internet
Wireless Clients
UniFi AC
www.ubnt.com
JL060216
11
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
