Topcon FC-25 Operator's Manual
Trademarks
Microsoft, Windows, the Windows logo, Windows Media, Outlook and
ActiveSync are registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries. Microsoft products are licensed to
OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft
Corporation. The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. All other brand and product names are trademarks or registered
trademarks of their respective companies.
Disclaimer
Specifications and manuals are subject to change without notice. Topcon
Corporation assumes no liability for damage incurred directly or indirectly from
errors, omissions, or discrepancies between the device and the manuals.
i
Table of Contents
1 Getting Started ............................................................................... 1
1.1 Unpacking ............................................................................................ 1
1.2 Identifying Hardware Components ...................................................... 2
Front Components ............................................................................... 2
Back Components ............................................................................... 3
Left-Side Components ......................................................................... 4
Top Components ................................................................................. 5
Bottom Components ............................................................................ 5
1.3 Getting Your Device Ready for Use .................................................... 6
Installing the Battery ............................................................................ 6
Performing Initial Startup ..................................................................... 7
Connecting to AC Power and Charging the Battery ............................ 8
1.4 Synchronizing with Your Computer ..................................................... 9
Installing ActiveSync or WMDC ........................................................... 9
1.5 Using an SD/SDHC/MMC Card ......................................................... 11
2 Basic Skills ................................................................................... 12
2.1 Power Saving and Turning Off .......................................................... 12
Backlight Off ...................................................................................... 12
Entering the Suspend Mode .............................................................. 12
Turning Off ......................................................................................... 13
2.2 Using the Stylus ................................................................................. 13
2.3 Using the Navigation Stick ................................................................. 13
2.4 Home screen ..................................................................................... 14
Landscape View ................................................................................ 14
2.5 Navigation Bar and Toolbar ............................................................... 14
2.6 Running Programs ............................................................................. 15
2.7 Shortcut Menus .................................................................................. 16
2.8 Notifications ....................................................................................... 17
2.9 Entering Information .......................................................................... 17
Entering Text Using the Input Panel .................................................. 17
Writing on the Screen ........................................................................ 19
Drawing on the Screen ...................................................................... 19
ii
Recording a Message ........................................................................ 20
2.10 Locking Your Pocket PC .................................................................... 22
3 Managing Your Pocket PC .......................................................... 23
3.1 Managing Power ................................................................................ 23
Low Battery Signals and Actions ....................................................... 23
Power-Saving Tips ............................................................................. 24
3.2 Customizing Your Pocket PC ............................................................ 25
3.3 Searching and Organizing Information .............................................. 27
4 Microsoft Pocket Outlook ........................................................... 28
4.1 Calendar: Scheduling Appointments and Meetings .......................... 28
Creating an Appointment ................................................................... 29
Using the Calendar Summary Screen ............................................... 30
4.2 Contacts: Tracking Friends and Colleagues ..................................... 31
Creating a Contact ............................................................................. 32
Using the Contacts Summary Screen ............................................... 33
4.3 Tasks: Keeping a To Do List ............................................................. 34
Creating a Task ................................................................................. 35
Using the Tasks Summary Screen .................................................... 36
4.4 Notes: Capturing Thoughts and Ideas ............................................... 37
Creating a Note .................................................................................. 38
4.5 E-mail: Sending and Receiving E-mail Messages ............................. 39
Synchronizing E-mail Messages ....................................................... 39
Connecting Directly to an E-mail Server ............................................ 39
Using the Message List ..................................................................... 40
Composing and Sending Messages .................................................. 41
Managing Email Messages and Folders ........................................... 42
5 More Programs ............................................................................ 43
5.1 Microsoft ActiveSync ......................................................................... 43
Synchronizing Data ............................................................................ 44
5.2 Office Mobile ...................................................................................... 45
Creating an Office File ....................................................................... 45
Opening an Office File ....................................................................... 46
5.3 Windows Live Messenger .................................................................. 47
Setting up Windows Live ................................................................... 47
Signing in to Messenger .................................................................... 47
5.4 Using Internet Explorer Mobile .......................................................... 48
Browsing the Internet ......................................................................... 49
5.5 Windows Media Player for Pocket PC ............................................... 50
5.6 Pictures & Videos .............................................................................. 51
5.7 Camera (Select Models Only) ........................................................... 52
iii
Taking Pictures .................................................................................. 52
Recording Video Clips ....................................................................... 54
Camera Controls, Options, and Settings ........................................... 55
5.8 Additional Programs .......................................................................... 56
E-Compass (Select Models Only) ..................................................... 56
TacLink .............................................................................................. 59
6 Getting Connected ....................................................................... 61
6.1 Wireless Network Connection ........................................................... 61
Turning On and Off the Wi-Fi Radio .................................................. 61
Connecting to a Wireless Network .................................................... 62
Starting and Ending the Wireless Network Connection ..................... 62
6.2 Bluetooth Feature .............................................................................. 63
Turning On and Off the Bluetooth Radio ........................................... 63
Transferring Files via Bluetooth Technology ..................................... 64
Bluetooth Partnership ........................................................................ 65
7 Troubleshooting and Maintenance ............................................ 66
7.1 Resetting Your Pocket PC ................................................................. 66
7.2 Restoring the Factory Default State .................................................. 67
7.3 Troubleshooting ................................................................................. 68
Power Problems ................................................................................ 68
Memory Problems .............................................................................. 68
Screen Problems ............................................................................... 69
Connection Problems ........................................................................ 70
7.4 Taking Care of Your Pocket PC ........................................................ 71
General Guidelines ............................................................................ 71
Travel Guidelines ............................................................................... 72
8 Product Specifications ................................................................ 73
9 Regulatory Information ............................................................... 75
9.1 Regulations Statements..................................................................... 75
9.2 Safety Precautions ............................................................................. 75
About Charging .................................................................................. 75
About the Charger ............................................................................. 76
About the Battery ............................................................................... 76
About the Radio Frequency Exposure ............................................... 76
1
1 Getting Started
This chapter introduces you to the external components of your Pocket PC and
guides you through the process of setting up your Pocket PC for use.
NOTE: Depending on the model you purchased, the cabinet color and the look of the
accessories may be different from the ones shown in this manual.
1.1 Unpacking
After unpacking the shipping carton, you should find these standard items:
FC-25
Accessories:
USB cable
AC adapter set
Hand strap
Stylus
Screen protection film
Getting Started Disc
Quick Start Guide
Safety Caution Manual
2
1.2 Identifying Hardware Components
Front Components
Ref
Component
Description
RF Indicator
Glows in blue to indicate that RF is on or active.
Multi-Functional
Indicator
Glows in green to indicate that battery is fully charged.
Glows in amber to indicate that battery charging is in
progress.
Glows in red to indicate that battery power is low.
Flashes in red (on battery power) when a notification comes
up.
Flashes in amber and green alternately (on AC power) when
a notification comes up.
Touch Screen
Displays the output of your Pocket PC. Tap the screen with
the stylus to select menu commands or enter information.
3
Ref
Component
Description
Program Buttons
Each of the three buttons provides a quick way to use a
program or function. The buttons are customizable. The
icons on the buttons indicate the default functions:
Contacts
Start Menu
GPS Application
NOTE: The buttons can provide different functions if you are using
a navigation software that allows you to define the buttons.
Navigation Stick
Moves up, down, left or right by pushing the button toward
the corresponding direction.
Selects by pressing.
Microphone
Receives sound and voice to record voice.
Power Button
Turns your Pocket PC on or off by pressing briefly.
Back Components
4
Ref
Component
Description
Stylus
Tap on the touch screen to make selections and enter
information. Pull the stylus out of its slot to use and store it in
the slot when not in use.
Car Antenna
Connector
This connector (under rubber dust cover) allows use of an
optional external antenna with magnetic mount, which may
be positioned on top of the car for better signal reception in
areas with poor reception.
CMOS Camera
Lens
Allows you to use your Pocket PC’s camera function
(FC-25A only).
Speaker
Sends out music, sounds, and voice.
Battery Cover
Inside is the battery.
Left-Side Components
Ref
Component
Description
SD/MMC Slot
Accepts an optional SD (Secure Digital) or MMC
(MultiMediaCard) card for removable storage.
NOTE: Be sure the rubber cover is tightly closed to prevent
water damage.
5
Ref
Component
Description
Headphone
Connector
Connects to a pair of stereo headphones.
Top Components
Ref
Component
Description
GPS Antenna
Receives signals from the GPS satellites overhead.
Bottom Components
Ref
Component
Description
Power
Connector
Connects to the AC adapter for charging the battery.
Reset Button
Restarts your Pocket PC.
Mini-USB
Connector
Connects to the USB cable for ActiveSync or charging.
Connects to a USB device such as USB mouse or keyboard
through a converter (available as an option).
NOTE: Make sure to enable the USB Host Mode by tapping
Settings System USB Client/Host Setting.
6
Ref
Component
Description
ON/OFF Switch
The main power/battery cutoff switch.
Hand String
Hole
Hand string attaches to this hole.
WARNING: Be careful not to allow infants and small children play
with the hand string stopper as this may easily be swallowed,
thereby causing injury or choking.
1.3 Getting Your Device Ready for Use
Installing the Battery
1. To remove the battery cover, unfasten the four screws using a tool such as a
coin.
2. Fit the battery into place.
7
3. Replace the battery cover and tighten the four screws.
Performing Initial Startup
Initial startup includes setting the ON/OFF switch and completing the setup
wizard.
1. Slide the ON/OFF switch to the ON position.
CAUTION: Always leave the ON/OFF switch in the ON position for normal operation.
2. Your device will automatically turn on. Charge the battery as described in
the next sub-section.
3. Wait for a few seconds until the startup screen appears. Follow the onscreen
instructions to complete the setup wizard. You will then see the Home
screen.
8
Connecting to AC Power and Charging the Battery
When charging the battery for the very first time, charge it for at least 8 hours.
1. Fit the converter plug to the AC charger ().
2. Connect the DC jack end of the AC adapter to your device () and the other
end to a wall outlet ().
3. The multi-functional indicator glows amber when charging is in progress.
Do not disconnect your Pocket PC from AC power until the battery is fully
charged. This will take a couple of hours.
CAUTION: For optimal performance of the lithium battery, take note of the following:
Use the included power adapter (for use with power supply model PC11R-050).
Do not charge the battery where the temperature is high (e.g. in direct sunlight).
There is no need to fully discharge the battery before charging. You can charge the
battery before it is discharged.
If you will not use the product for a long period of time, be sure to fully charge the
battery at least once every two weeks. Over discharge of the battery can affect the
charging performance.
NOTE: Your device can also be charged when it is connected to a desktop computer via
the USB cable.
Converter Plug
9
1.4 Synchronizing with Your Computer
ActiveSync and Windows Mobile Device Center (WMDC) provide an easy way
to synchronize data on a Windows-based computer with your device.
ActiveSync works on computers that have the Windows XP operating systems.
WMDC works only on computers that have Windows Vista or Windows 7.
ActiveSync and WMDC act as gateways between your device and your
computer for transferring Outlook e-mail, appointments, contacts, and tasks, and
media such as pictures, music, and videos. You can also use the Explore feature
in either program to move files or programs from your computer to your device.
Installing ActiveSync or WMDC
If you’re using Windows XP or earlier versions of Windows, download and
install the latest ActiveSync. If you’re using Windows Vista or Windows 7,
download and install the latest Windows Mobile Device Center. (Visit the
Microsoft website to download the program and to obtain operating
instructions.)
NOTE:
Before installation, make sure that you have Microsoft Outlook installed on your
computer.
Connect your device to the computer AFTER Windows Mobile Device Center or
ActiveSync is installed.
ActiveSync connection problems may occur in some specific cases. They are likely
caused by interoperability with desktop firewall applications or applications that manage
network traffic. For troubleshooting information, visit the Microsoft web site.
10
After the software installation, connect your device to your computer with the
USB cable and you are ready to synchronize.
11
1.5 Using an SD/SDHC/MMC Card
Your Pocket PC has a SD/MMC slot where you can insert an optional Secure
Digital or MultiMediaCard storage card. With the removable memory, you can
store or backup your data and exchange data with other devices.
NOTE:
A storage card is also called a memory card.
Make sure that no foreign objects enter the slot.
Keep a SD or MMC card in a well-protected box to avoid dust and humidity when you are
not using it.
To use a card, insert it into the slot, with the
connector pointing to the slot and its label
facing the front of the Pocket PC. Follow the
instructions supplied with the card for more
information.
To remove a card, first make sure that no
application is accessing the card, then
slightly push the top edge of the card to
release it and pull it out of the slot.
12
2 Basic Skills
This chapter familiarizes you with the basic operations of your Pocket PC such
as using the stylus, navigation stick, Home screen, menus, and programs. You
will also know how to enter information and lock your Pocket PC.
CAUTION: The device can get uncomfortably warm when you use it in high temperatures.
As a safety precaution in such a circumstance, do not place the device on your lap or touch
it with your bare hands for extended periods of time. Prolonged body contact can cause
discomfort and potentially a burn.
2.1 Power Saving and Turning Off
Backlight Off
The backlight of the screen dims out after a period of inactivity (default 30
seconds while on battery power and 1 minute while on external power).
To restore the backlight, tap the screen or press a button. Note that where you tap
or what you press also causes the related task to be performed.
Entering the Suspend Mode
Your device automatically suspends after a period of inactivity (default 3
minutes while on battery power and 5 minutes while on external power).
To manually suspend the device, briefly press the power button.
To resume operation, press the power button. You will be back to where you left
off.
13
Turning Off
If you will not be using the device for a long time, you can turn off the device by
sliding the ON/OFF switch to the OFF position. To start using the device, slide
the switch to the ON position.
2.2 Using the Stylus
Use the stylus to navigate and select objects on the screen.
Pull the stylus out of the slot and extend it for ease of use. Store it in the slot
when not in use.
Tap
Touch the screen once with the stylus to
open items and select options.
Drag
Hold the stylus on the screen and drag
across the screen to select text and
images. Drag in a list to select multiple
items.
Tap and hold
Tap and hold the stylus on an item to see
a list of actions available for that item.
On the shortcut menu that appears, tap
the action you want to perform.
2.3 Using the Navigation Stick
With the navigation stick, you can move up, down, left
and right within a menu. This is particularly useful for
one-hand operation.
To move in a direction, simply push the stick toward
the corresponding direction.
Up
Left
Right
Down
14
To activate the selected item, press the stick.
2.4 Home screen
When you turn on your Pocket PC for the first time each day, you will see the
Home screen. The Home screen shows your upcoming appointments, active
tasks, and information about e-mail messages. You can tap a section of the Home
screen to open the program that is associated with that section. The Home screen
is accessible from anywhere by tapping
and then Home.
Landscape View
You can use your Pocket PC in a landscape manner. To change the screen view,
tap
Settings System Screen General Landscape or Portrait.
2.5 Navigation Bar and Toolbar
The Navigation bar is located at the top of the screen. It displays the active
program name and indicators for connectivity, volume, power, time, and others.
You can tap this bar to set up related items.
Your day at a glance.
Tap an item to access associated
program so that you can view or
change information.
15
An example of the Navigation bar:
Use the toolbar at the bottom of the screen to perform tasks in the active
program. The toolbar includes buttons such as the input panel button and Menu
button.
An example of the toolbar:
2.6 Running Programs
You can switch from one program to another without closing any program.
To run a program, tap
at the left-bottom corner of the screen to open the Start
menu. The Start menu contains all the program icons. You can drag the screen up
or down to see other program icons.
Menu button
Input panel
button
Tap to set time zone, date,
and time.
Tap to adjust the volume.
Tap to zoom in the screen.
Tap to set up various connections.
Tap to set power options.
16
2.7 Shortcut Menus
With shortcut menus, you can quickly choose an action for an item. For example,
you can use the shortcut menu in the contact list to quickly delete a contact, make
a copy of a contact or send an email message to a contact. The actions in the
shortcut menus vary from program to program. To access a shortcut menu, tap
and hold the stylus on the name of the item that you want to perform the action
on. When the menu appears, lift the stylus and tap the action you want to
perform. Or tap anywhere outside the menu to close the menu without
performing an action.
Tap and hold to display the
shortcut menu.
Lift the stylus and tap the action
you want.
Tap outside the menu to close it
without performing an action.
17
2.8 Notifications
Your Pocket PC reminds you in a variety of ways when you have something to
do. For example, if you have set up an appointment in Calendar, a task with a due
date in Tasks or an alarm in Clock, you will be notified in any of the following
ways:
A message appears on the screen.
A sound, which you can specify, is played.
The notification indicator flashes.
To choose reminder types and sounds for your Pocket PC, tap
Settings
Sounds & Notifications.
2.9 Entering Information
You have several options for entering new information:
Use the Input panel to enter typed text, either by using the soft keyboard or
other input methods.
Write directly on the screen.
Draw pictures on the screen.
Speak into the microphone to record a message.
Entering Text Using the Input Panel
Use the Input panel to enter information in any program on your Pocket PC. You
can either type using the soft keyboard or write using a recognizer. In any case,
the characters appear as typed text on the screen.
To show or hide the Input panel, tap . By default, the soft keyboard appears.
To change to a different input mode, tap and hold
and select from the popup
menu.
18
When you use the Input panel, your Pocket PC anticipates the word you are
typing or writing and displays it above the Input panel. When you tap the
displayed word, it is inserted into your text at the insertion point. The more you
use your Pocket PC, the more words it learns to anticipate.
Recognizer
NOTE: The availability of recognizers depends on the region and the language version you
purchased.
With a recognizer, you can write letters using the stylus just as you would use a
pen on paper.
When you write a letter, it is converted to typed text that appears on the screen.
For specific instructions on using a recognizer, open a recognizer and then tap
the question mark next to the writing area.
Select an input method.
Input panel button.
Tap here if this is
the right word.
19
Writing on the Screen
In any program that accepts writing, such as the Notes program, you can use
your stylus to write directly on the screen. Write the way you do on paper. You
can edit and format what you have written and convert the information to text
later.
To write on the screen, tap Draw to switch to drawing mode. A check ()
appears before the command.
NOTE: Not all programs support the drawing mode.
Drawing on the Screen
You can draw on the screen in the same way that you write on the screen.
1. Tap Draw to enable drawing mode. A check () appears before the
command.
2. To create a drawing, cross three ruled lines on your first stroke. A drawing
box appears.
3. Subsequent strokes in or touching the drawing box become part of the
drawing. Drawings that do not cross three ruled lines will be treated as
writing.
20
Recording a Message
You can quickly capture thoughts, reminders and phone numbers by recording a
message. In the Notes program, you can either create a stand-alone recording or
include a recording in a written note. If you want to include the recording in a
note, open the note first. In the Messaging program, you can add a recording to
an email message.
To create a recording:
1. Tap
Notes to switch to the program.
2. Tap View Recording Toolbar to show the Recording toolbar.
3. Hold the Pocket PC’s microphone near your mouth or other source of sound.
4. Tap the Record button on the Recording toolbar to start recording.

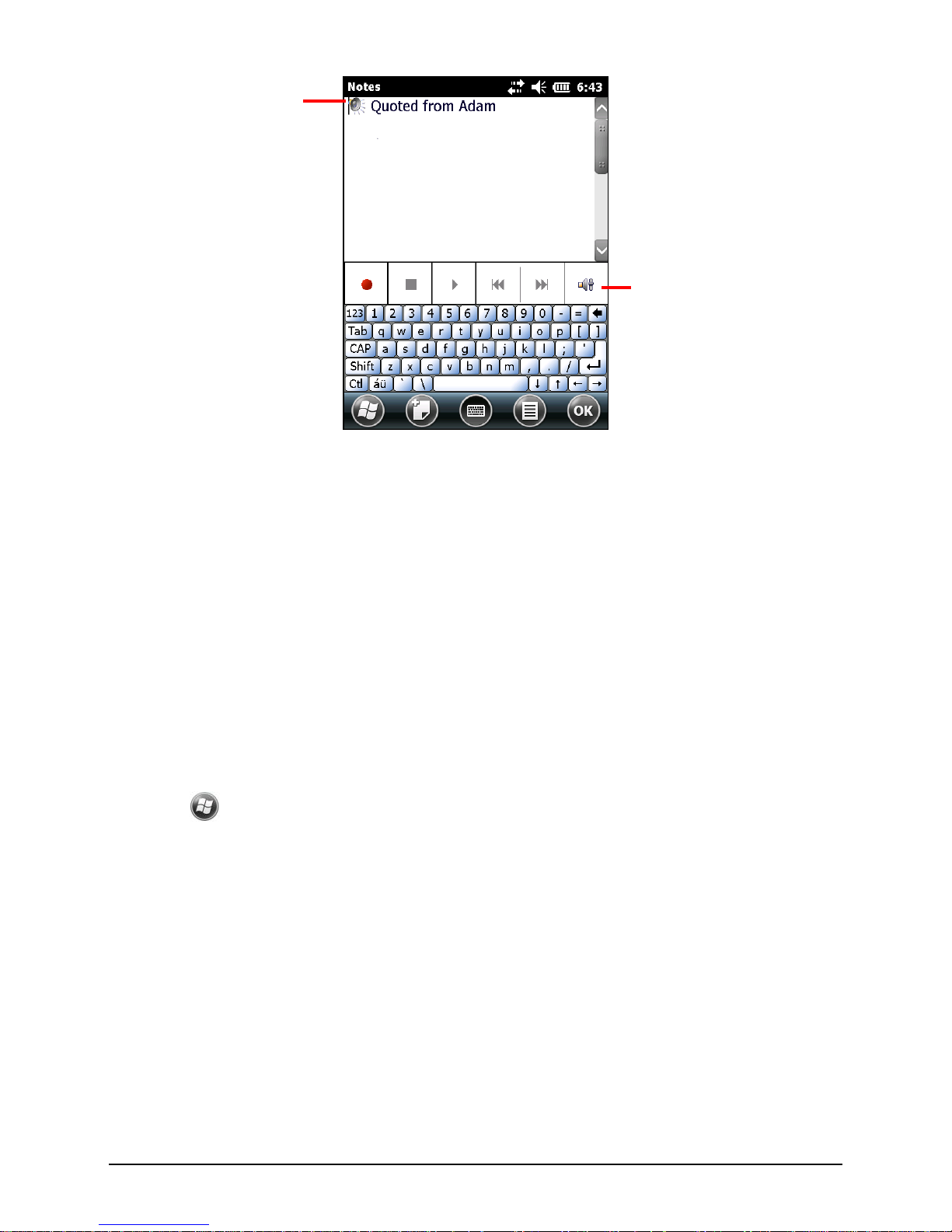

5. To stop recording, tap the Stop button on the Recording toolbar. The new
recording appears in the note list or as an embedded icon.
To play a recording, tap it in the list or tap its icon in the note.
The drawing box indicates
the boundaries of the
drawing.
Loading...
