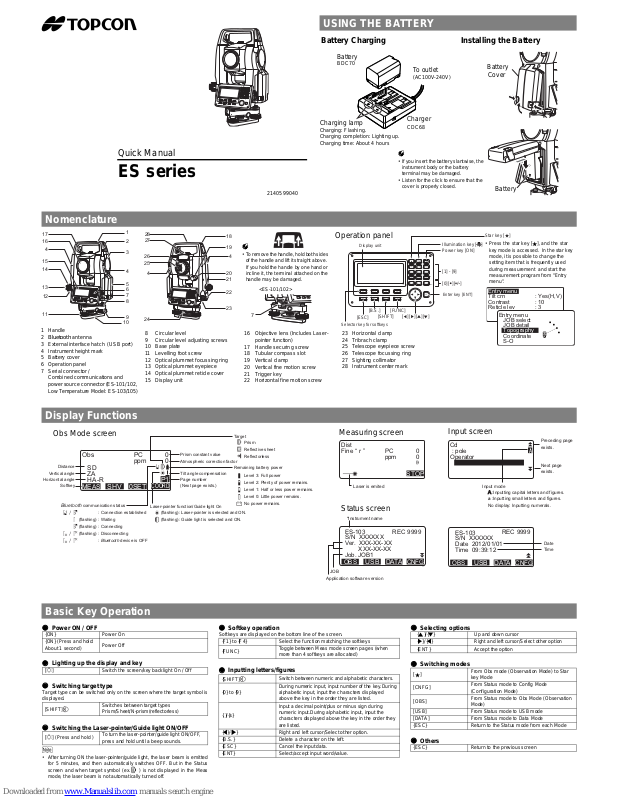

Topcon ES series Quick Manual
7
USING THE BATTERY
Nomenclature
Display Functions
Basic Key Operation
Battery
BDC70
Charger
CDC68
Battery
(AC100V-240V)
Cover
1
2
3
4
8
6
5
7
9
10
11
13
12
15
14
16
4
17
18
21
19
4
20
22
23
25
24
4
26
27
28
1 Handle
2 Bluetooth antenna
3 External interface hatch (USB port)
4 Instrument height mark
5 Battery cover
6 Operation panel
7 Serial connector /
Combined communications and
power source connector (ES-101/102,
Low Temperature Model: ES-103/105)
8 Circular level
9 Circular level adjusting screws
10 Base plate
11 Levelling foot screw
12 Optical plummet focussing ring
13 Optical plummet eyepiece
14 Optical plummet reticle cover
15 Display unit
16 Objective lens (Includes Laser-
pointer function)
17 Handle securing screw
18 Tubular compass slot
19 Vertical clamp
20 Vertical fine motion screw
21 Trigger key
22 Horizontal fine motion screw
23 Horizontal clamp
24 Tribrach clamp
25 Telescope eyepiece screw
26 Telescope focussing ring
27 Sighting collimator
28 Instrument center mark
Enter key [ENT]
[SHIFT]
[B.S.]
[ ]
[0][ ] [ ]
[1] - [9]
Power key [ON]
Star key [ ]
Illumination key [ ]
[ ][ ] [ ]
[ESC]
[FUNC]
Selector key for softkeys
Display unit
Prism constant value
Atmospheric correction factor
Remaining battery power
Tilt angle compensation
Page number
(Next page exists.)
Distance
Vertical angle
Horizontal angle
Softkey
Tar g et
Prism
Reflective sheet
Reflectorless
Laser-pointer function/Guide light On
Bluetooth
communication status
Level 3: Full power
Level 2: Plenty of power remains.
Level 1: Half or less power remains.
Level 0: Little power remains.
No power remains.
(flashing): Laser-pointer is selected and ON.
(flashing): Guide light is selected and ON.
: Connection established
(flashing) : Waiting
(flashing) : Connecting
(flashing) : Disconnecting
: Bluetooth device is OFF
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
Dist
Fine “ r ” PC
ppm00
STOP
#
OBS
DATA
USB
CNFG
OBS
DATA
CNFG
USB
Laser is emited
Next page
exists.
Preceding page
exists.
Input mode
A
A
:Inputting capital letters and figures.
a
:Inputting small letters and figures.
No display: Inputting numerals.
*Instrument name
JOB
A
pplication software version
Date
Time
Cd
: pole
Operator
ES-103
S/N XXXXXX
Date 2012/01/01
Time 09:39:12
ES-103 REC 9999 REC 9999
S/N XXXXXX
Ver. XXX-XX-XX
XXX-XX-XX
Job. JOB1
● Power ON / OFF
● Lighting up the display and key
● Switching target type
Target type can be switched only on the screen where the target symbol is
displayed.
● Switching the Laser-pointer/Guide light ON/OFF
$
• After turning ON the laser-poin ter/guide ligh t, the laser bea m is emitted
for 5 minutes, and then automatically switches OFF. But in the Status
screen and when target symbol (ex. ) is not displayed in the Meas
mode, the laser beam is not automatically turned off.
{ON} Power On
{ON} (Press and hold:
About 1 second)
Power Off
[J] Switch the screen/key backlight On / Off
[SHIFT]
Switches between target types
Prism/Sheet/N-prism(reflectorless)
[J] (Press and hold )
To turn the laser-pointer/guide light ON/OFF,
press and hold until a beep sounds.
● Softkey operation
Softkeys are displayed on the bottom line of the screen.
● Inputting letters/figures
{F1} to {F4} Select the function matching the softkeys
{FUNC}
Toggle between Meas mode screen pages (when
more than 4 softkeys are allocated)
{SHIFT}
Switch between numeric and alphabetic characters.
{0} to {9}
During numeric input, input number of the key.During
alphabetic input, input the characters displayed
above the key in the order they are listed.
{.}/{±}
Input a decimal point/plus or minus sign durin g
numeric input.During alphabetic input, input the
characters displayed above the key in the order th ey
are listed.
{K}/{L} Right and left cursor/Select other option.
{B.S.} Delete a character on the left.
{ESC} Cancel the input data.
{ENT} Select/accept input word/value.
● Selecting options
● Switching modes
● Others
{O}/{G} Up and down cursor
{L}/{K} Right and left cursor/Select other option
{ENT} Accept the option
[]
From Obs mode (Observation Mode) to Star
key Mode
[CNFG]
From Status mode to Config Mode
(Configuration Mode)
[OBS]
From Status mode to Obs Mode (Observation
Mode)
[USB] From Status mode to USB mode
[DAT A] From Status mode to Data Mode
{ESC} Return to the Status mode from each Mode
{ESC} Return to the previous screen
<ES-101/102>
• Press the star key [ ], and the star
key mode is accessed. In the star key
mode, it is possible to change the
setting item that is frequently used
during measurement and start the
measurement program from "Entry
menu".
Battery
Battery Charging
Entry menu
Tilt crn
Contrast
Reticle lev
Entry menu
JOB select
JOB detail
Topography
Coordinate
S-O
: Yes(H,V)
: 10
: 3
G
• To remove the handle, hold both sides
of the handle and lift it straight above.
If you hold the handle by one hand or
incline it, the terminal attached on the
handle may be damaged.
Installing the Battery
Status screen
Measuring screen
Input screen
Obs Mode screen
Operation panel
Charging lamp
Charging: Flashing.
Charging completion: Lighting up.
Charging time: About 4 hours
To outlet
ES series
Quick Manual
21405 99040
G
• If you insert the battery slantwise, the
instrument body or the battery
terminal may be damaged.
• Listen for the click to ensure that the
cover is properly closed.
1. Collimate the first target "A".
2. Set the horizontal angle of target "A" to
0°00'00".
Press [0 SET], and it flashes.
Press [0 SET] again at once,
and the horizontal angle of
target "A" is set to 0°.
3. Collimate the second target "B".
The horizontal angle and vertical angle of target "B",
which you want to know, are displayed.
1. Collimate the target center.
Make sure that setting is applicable to the
measurement conditions.
2. Press [MEAS].
Distance measurement starts.
$
• Press the trigger key when the ES is in the Obs
mode or when [MEAS]/[STOP] is indicated on the
display unit. You can start/stop measurement.
The results of the measurement are displayed.
Hereafter, the results are updated whenever
measurement is performed.
Press [SHV], and the displayed contents are
changed.
[1] Slope distance/Vertical angle/Horizontal angle
[2] Slope distance/Horizontal distance/Height
difference
[3] Horizontal distance/Height difference/Horizontal
angle
The following is a list of the error messages displayed by the ES and the meaning
of each message. If the same error message is repeated or if any message not
shown below appears, the instrument has malfunctioned. Contact your local dealer .
BadCondition
The air is shimmering a lot, etc., measuring conditions are poor.
The center of the target cannot be sighted.
Resight the target.
Unsuitable distance measurement conditions when reflectorless measurement
is set. When reflectorless measurement is set, distance cannot be measured
because the laser beam is striking at least two surfaces at the same time.
Choose a single surface target for distance measurement.
Bad file name
File name is not entered when saving data on USB memory device.
Calculation error
Coordinates identical to the known point coordinates observed during resection
exist. Set another known point so that the known point coordinates do not
coincide.
Checksum error
A sending/repetition error has occured between the ES and external equipment.
Send/receive the data again.
Clock error
Clock error occurs when the voltage of the lithium battery decreases or the
battery itself is depleted. For details on replacing lithium batteries contact your
local dealer.
Communication error
A reception error has occurred in coordinate data from an external instrument.
Check the settings of parameters concerning communication conditions.
Flash write error!
It is impossible to read in data.
Contact your local dealer.
Incorrect Password
Input password does not match set password. Input correct password.
Insert USB
USB memory device is not inserted.
Invalid USB
Incorrect USB memory device is inserted.
Invalid baseline
During setting-out line measurement or point projection measurement, baseline
has not been defined correctly.
Memory is full
There is no more room to enter data.
Record the data again after deleting unnecessary data from the JOB or
coordinate data from the memory.
Need 1st obs
During missing line measurement, the observation of the starting position was
not completed normally.
Sight the starting position accurately and press [OBS] to perform the
measurement again.
Need 2nd obs
During missing line measurement, the observation of the target was not
completed normally.
Sight the target accurately and press [MLM] to perform the measurement again.
Need offset pt.
Observation of the offset point during offset measurement was not completed
normally.
Sight the offset point accurately and press [OBS] to perform the measurement
again.
Angular Measurement
Distance Measurement
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
80° 30’ 15”
0° 00’ 00”
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
80° 30’ 15”
120° 30’ 40”
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
80° 30’ 15”
120° 30’ 40”
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
80° 30’ 15”
132° 40’ 20”
Target “A”
0°00'00"
Target “A”
Target “B”
0°00'00"
132°40'20"
Horizontal angle
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
ZA
HA-R
80° 30’ 15”
120° 12’ 00”
Dist
Fine “ r ” PC
ppm
0
0
STOP
STOP
P1
Obs PC
ppm
0
0
SD 525.450m
ZA
HA-R
80° 30’ 10”
120° 10’ 00”
0SET
P1
SHV
COORD
MEAS
Obs PC
ppm00
SD
HD
VD
518.248m
620.450m
86.699m
Need prism obs
During REM measurement, the observation of the target was not completed
normally.
Sight the target accurately and press [OBS] to perform measurement again.
New password Diff.
Passwords input when setting a new password do not match.
Input the same password twice.
No data
When searching for or reading in coordinate data or searching for code data, the
search stopped either because the item in question does not exist or the data
volume is large.
No file
There is no file for loading known point data or displaying data on the currently
selected USB memory device.
No solution
The calculation of the instrument station coordinates during resection does not
converge.
Assess the results and if necessary, perform the observation again.
Intersect point could not be calculated. Either necessary data items were not
input or the Intersect point does not exist.
North/East is null, Read error
The Northing or Easting field of the given coordinate is null.
Input the coordinate.
Out of range
The tilt of the instrument exceeds the tilt angle compensation range during
measurement.
Level the instrument again.
Out of value
During gradient % display, the display range (less than ±1000%) has been
exceeded.
During REM measurement, either the vertical angle has exceeded horizontal
±89° or the measured distance is greater than 9999.999m.
Install the instrument station far from the target.
The instrument station coordinates calculated during resection are too high.
Perform the observation again.
During setting-out line measurement, scale factor has been less than 0.100000
or exceeded 9.999999.
During area calculation, results exceeded the display range.
Print or send first
JOB data output (transmission to the host computer or output to the printer) is
not completed before JOB is cleared.
Either transmit the JOB to be cleared to the host computer or output it to the
printer.
Pt already on route
Traverse tried to close on a traverse point other than the Start pt. during
automatic route search. Press any key to return to the last point found in
automatic route search. Either select the next traverse point to continue the
current search or specify the Start pt. to close a closed-loop traverse.
Please use the Star key in obs mode
Can be used only in the Observation mode.
Pt1-Pt2 too near
When setting the baseline with "Point to Line", two reference point s are too close.
Leave the space of 1 m or longer between the two reference points.
Read-only file
Read-only file on the USB memory device cannot be changed and file contents
cannot be edited or deleted.
Same coordinates
The same values are input in Pt.1 and Pt.2 in setting-out lin e mea suremen t. ES
cannot define the baseline.
SDR format err
The file read in is not SDR format. Check the file.
Signal off
Measuring conditions are poor, and there is not any reflecti ve light for measuring
distances.
Resight the target. When using reflective prisms, effectiveness will be improved
by increasing the number of prisms used.
Station coord is Null
Cannot calculate. Station point coordinate is set to “Null”.
Input the coordinate.
Temp Range OUT
ES is outside useable temperature range and accurate measurement cannot be
performed. Repeat measurement within the appropriate temperature range. If
the ES is used under direct sunlight, use an umbrella to protect it aga inst the heat
of the sun.
Time out (during measurement)
Measuring conditions are poor, and due to the insufficient amount of reflective
light, measuring could not be carried out within the time specified.
Resight the target. When using reflective prisms, effectiveness will be improved
by increasing the number of prisms used.
Too short
Input password has fewer than 3 characters. Password must have 3 or more
characters and 8 or fewer characters.
USB error
An error has occurred in loading or saving data to USB memory device.
USB full !
There is no more room to enter data on USB memory device.
USB not found
USB memory device was removed during USB mode operation.
АААААААА
The calculated result is too large to be displayed on the screen in its totality.
If connected data collector or host computer is turned Off, the above screen
appears. This is normal, and does not indicate trouble. If connected data
collector or host computer is turned On again or cable is connected again, the
previous screen is restored.
Trigger key
Message List
Loading...
