Topcom Butler 4502/Twin/Triple/Quattro
1 Description of telephone 6
1.1 Handset and base Butler 4502 6
1.2 Charger Butler 4502 7
1.3 Display 7
1.4 Handset indicator (LED) 8
2 Telephone installation 8
2.1 Connections 8
2.2 Rechargeable batteries 9
3 Using the telephone 10
3.1 Setting menu language 10
3.2 Handset ON/OFF 10
3.3 Receiving a call 10
3.4 Making an external call 10
3.5 Making an internal call 10
3.6 Internal call transfer 10
3.7 Conference Call 11
3.8 Handsfree mode 11
3.9 Display of call duration 11
3.10 Microphone mute 11
3.11 Pause Key 11
3.12 Caller Identification 11
3.13 Redial memory 12
3.14 Calling from the phonebook 13
3.15 Using the alphanumerical keypad 13
3.16 Using the menu 14
4 Personalisation 14
4.1 adjusting the ring volume 14
4.2 Choosing the ring melody 14
4.3 Speaker volume during call 15
4.4 Activation / Deactivation of beeps 15
4.5 Handset name 16
4.6 Changing the PIN code 16
4.7 Setting the dialling mode 17
4.8 flash time duration 17
4.9 Automatic answer 17
4.10 Reset 17
4.11 Keypad lock 18
4.12 Setting the time 18
4.13 Setting the date 19
4.14 Setting the alarm 19
5 Advanced functions 19
5.1 Phonebook 19
5.2 Searching a handset from the base 20
ENGLISH
Topcom Butler 4502/Twin/Triple/Quattro 3
Topcom Butler 4502/Twin/Triple/Quattro
6 Managing multiple handsets 21
6.1 Setting up an additional handset 21
6.2 Removing a handset 22
6.3 Setting up a handset on another base 22
6.4 Selecting a base 22
7 Troubleshooting 23
8 Topcom warranty 23
8.1 Warranty period 23
8.2 Warranty handling 24
8.3 Warranty exclusions 24
9 Technical characteristics 24
4 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
Safety Instructions
• Only use the charger plug supplied. Do not use other chargers, as this may damage the
battery cells.
• Only insert rechargeable batteries of the same type. Never use ordinary, nonrechargeable batteries. Insert rechargeable batteries so they connect to the right poles
(indicated in the battery compartment of the handset).
• Do not touch the charger and plug contacts with sharp or metal objects.
• The operation of some medical devices may be affected.
• The handset may cause an unpleasant buzzing sound in hearing aids.
• Do not place the basic unit in a damp room or at a distance of less than 1.5 m away from
a water source. Keep water away from the handset.
• Do not use the telephone in environments where there is a risk of explosions.
• Dispose of the batteries and maintain the telephone in an environment-friendly manner.
• As this telephone cannot be used in case of a power cut, you should use a mainsindependent telephone for emergency calls, e.g. a mobile phone.
Disposal of the device (environment)
At the end of the product lifecycle, you should not throw this product into the normal
household garbage but bring the product to a collection point for the recycling of electrical
and electronic equipments. The symbol on the product, user guide and/or box indicate this.
Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to
the protection of the environment.
Please contact your local authorities in case you need more information on the collection
points in your area.
ENGLISH
Cleaning
Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning
agents or abrasive solvents.
The CE symbol indicates that the unit complies with the essential requirements
of the R&TTE directive.
Topcom Butler 4502/Twin/Triple/Quattro 5
Topcom Butler 4502/Twin/Triple/Quattro
1 Description of telephone
1.1 Handset and base Butler 4502
Earpiece
Handset indicator
LED
Display
Mute/Delete key
Handsfree key
Up key/Redial/
Pause key
Phonebook/Escape key
Down key/Call log key
Menu/OK
Flash key
Internal call
Power ON/OFF
Microphone
Power indicator
Charge indicator
Incoming call LED
6 Topcom Butler 4502/Twin/Triple/Quattro
1.2 Charger Butler 4502

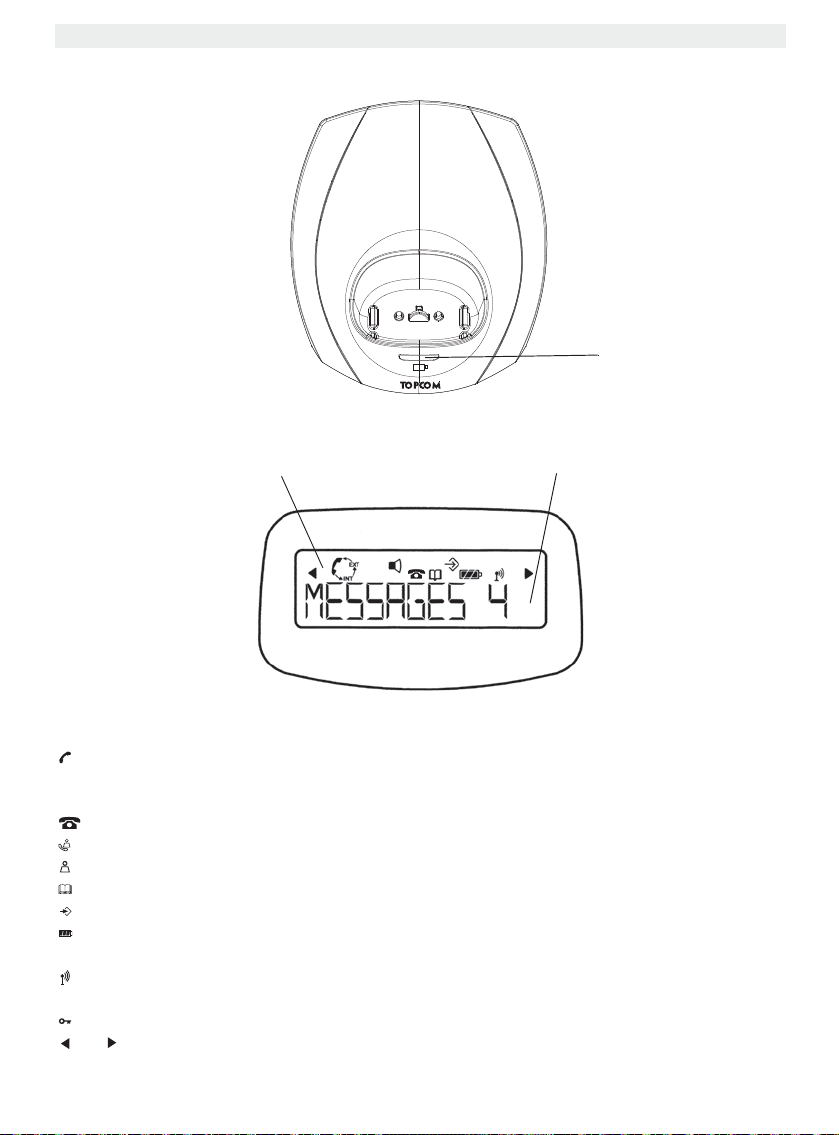

1.3 Display
Icon line Character display line
Topcom Butler 4502/Twin/Triple/Quattro
ENGLISH
Charge indicator
(12 characters maximum)
Each operation has an associated icon
Icon: Meaning:
You are online
EXT You are in external communication
INT You are in internal communication
New numbers in call list
Indicate answered call
Indicate unanswered call
You are opening your address book.
You are in the menu.
rechargeable battery level indicator
1 segment: weak, 2 segments: medium, 3 segments: full.
The antenna indicates the quality of reception.
The antenna flashes when the handset is not registered on the base.
Handset keypad locked
or Indicates that the displayed number is longer than the screen (12 digits)
Topcom Butler 4502/Twin/Triple/Quattro 7
Topcom Butler 4502/Twin/Triple/Quattro
1.3.1 Standby display
In standby mode, the display shows the time and the handset number:
12-05 HS1
1.4 Handset indicator (LED)
The handset LED has following function:
• ON when the external line is busy
• OFF when all handset are in stanby mode
• Flashes on all handset when there is an incoming call
2 Telephone installation
2.1 Connections
Back view of base Butler 4502
TEL
Telephone cord
Power cable
8 Topcom Butler 4502/Twin/Triple/Quattro
Back view of charger Butler 4502
Before you use your Butler 4502 for the first time, you must first make sure
that the batteries are charged for 6-8 hours. The telephone will not work
optimally if not properly charged.
+
-
The maximum standby time of the batteries is approx. 200 h and the
maximum talk time is 10 hours! In the course of time the batteries will start
to drain faster. The batteries must be replaced. 2 rechargeable batteries,
type AAA NiMH!
2.2 Rechargeable batteries
To change or insert a rechargeable battery:
1. Slide the cover towards the bottom and then lift it up.
2. Insert the batteries respecting the (+ and -) polarity.
3. Replace the battery cover.
Topcom Butler 4502/Twin/Triple/Quattro
ENGLISH
Power cable
Cover
Back view of hand-set
-
+
Rechargeable
batteries
Topcom Butler 4502/Twin/Triple/Quattro 9
Topcom Butler 4502/Twin/Triple/Quattro
3 Using the telephone
3.1 Setting menu language
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select LANGUAGE using the up and down keys
5. Press OK
6. Select the language of choice by means of the up and down keys.
7. Press OK to validate
3.2 Handset ON/OFF
• Turn ON handset: Press the key on the handset. The handset will search the base.
• Turn OFF handset: Press for 3 sec. The display will go OFF.
3.3 Receiving a call
When the handset rings, press to answer. You are then connected to your correspondent.
If the hand-set is on the base when the telephone rings, you just need to pick up the handset to answer the call (if the option autoanswer is activated: See 4.9. Automatic answer).
3.4 Making an external call
3.4.1 Normal:
1. Press
2. Enter telephone number
3.4.2 Block dialling:
1. Dial your correspondents number
2. Press
To correct a number use the key to delete an entered digit
3.5 Making an internal call
1. Press INT
2. Enter the number of the internal handset (1 to 5)
3.6 Internal call transfer
When you want to transfer an external call to another handset:
1. During a conversation, press INT
2. Select the number of the internal handset, the external caller is put on hold.
3. When the other handset picks up, press to hang up and transfer the call.
If the internal corespondent does not pick-up, press INT again to reconnect to the external
caller on line.
10 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
3.7 Conference Call
Only possible when more then one handset are registered to the base!!
You can converse simultaneously with an internal correspondent and an external
correspondent.
When you are on line with an external correspondent:
1. Press INT
2. Enter the number of the internal handset that you want to call
3. When the internal correspondent picks- up, press and hold #
4. If the internal correspondent does not answer, press INT again to reconnect to the
external correspondent on-line.
3.8 Handsfree mode
You can speak with your correspondent without picking up the handset. To activate or
deactivate the handsfree mode, press the key during a call. To adjust the volume, See 4.3
“Speaker volume during call” on page 15.
3.9 Display of call duration
The call duration is displayed after 15 seconds, in minutes - seconds.
At the end of each call, the total call duration is displayed for 5 seconds.
3.10 Microphone mute
It is possible to mute the microphone during a conversation.
Press during the conversation, the microphone is then deactivated, you can talk freely
without being heard by the calling party.
‘MUTE’ is displayed. Press again to return to normal mode.
ENGLISH
3.11 Pause Key
When dialling a number you can add a pause between two digits by pressing the redail/pause
key for 2s.
3.12 Caller Identification
Caller identification is only available if you have subscribed to this service with your
telephone operator.
When you receive an external call, the callers number will appear on the display as the
telephone rings.
If the network sends it, or if the name of the caller is in the address book, the caller is identified
by his or her name.
The caller identity is replaced by the call duration after 15 seconds in communication. It is still
possible to display the caller’s identity after this time by pressing OK-key repeatedly for the
name and number.
Topcom Butler 4502/Twin/Triple/Quattro 11
Topcom Butler 4502/Twin/Triple/Quattro
3.12.1 List of calls
Your telephone keeps a list in memory of the last 40 calls received. This function is only
available if your are subscribed to the caller ID information. The correspondents that have
called are identified by their telephone number or name in the same way as in caller
identification.
The presence of new / unanswered calls is indicated by the flashing -icon on the display.
To consult the list of calls:
1. Press . If there are no calls in the list ‘EMPTY’ will appear.
2. Scroll through the calls using the up or down arrows. The callers names will be
shown if the name is send by the network or is stored in the phonebook. When is
shown, this call is been aswered. When is shown, the call is unaswered. If you are
at the end of the list you will hear a beep tone.
3. If you press OK, the telephone number will be shown. Note: if the telephone number is
longer then 12 digits, press OK again to see the complete number.
4. Press OK again to see the time and date when the call is received
5. Pressing OK again will give you the option to add this entry in the phonebook if it’s not
already stored:
– Press OK when ‘ADD’ is shown on the display. Enter or modify the name and
press OK. Enter or modify the telephonenumber and press OK. Select the
melody (1-10) which will be heard when this number is calling by means of the
up/down keys and press OK. The entry will be stored in the phonebook.
6. To call back a correspondent, simply press the key when their telephone number or
name are displayed.
If a caller is in the phonebook, they are identified by their name in the list of calls.
3.12.2 Delete an entry or all entries in the call list
You can delete each entry separately or all entries at ones:
• When scrolling through the calls, press:
– the mute key short to delete this entry only. ‘DELETE’ appears on the screen.
– the mute key long (2 sec.) to delete all entries: ‘DELETE ALL’ appears on the
screen.
• Press OK to delete current/all entr(y)(ies), or to cancel the delete operation.
3.13 Redial memory
Your telephone keeps a list of the 10 last calls (of 32 digits) you have made in memory; The
correspondents called are identified by their telephone number or by their name if they
appear in the phonebook.
To consult the redial list:
1. Press
2. Scroll through the calls with the up and down arrows.
3. To call by the selected correspondent, simply press when their telephone number
or name is displayed.
12 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
When name is displayed, you can toggle between name and number by
pressing the OK key!
3.14 Calling from the phonebook
To call a correspondent whose name you have saved in the phonebook:
1. Press to enter the phonebook
2. Press the first letter of the name. The first name that starts with this letter or the
nearest letter in the alphabet will be displayed.
3. Go through the list of names with the up and down keys. The list scrolls in an
alphabetical order.
4. Press to dial the number of the correspondent whose name is displayed.
To see the number before dialling, carry out steps 1 to 3 from before and press Ok.
3.15 Using the alphanumerical keypad
With your telephone you can also enter alphanumeric characters. This is useful for entering
a name into the phonebook, giving a name to a hand-set, …
To select a letter, press the corresponding key as many times as is necessary. For example
to select an ‘A’, press ‘2’ once, to select a ‘B’, press ‘2’ twice and so on. To select ‘A’ and then
B consecutively, select ‘A’, wait until the cursor moves on to the next character, then press
‘2’ twice.
To select a space, press 1.
To select a dash, press ‘1’ twice.
The keypad characters are as follows:
Key First Second Third Fourth Fifth
press press press press press
1 space - 1
2ABC2
3D E F 3
4G H I 4
5J K L 5
6M N O 6
7P Q R S 7
8T U V 8
9W X Y Z 9
ENGLISH
Topcom Butler 4502/Twin/Triple/Quattro 13
Topcom Butler 4502/Twin/Triple/Quattro
Every programmation is confirmed at the end by a double or single long
beep. A double beep confirms the validation of your choice. A long beep
signifies that the modification has not been taken into account.
3.16 Using the menu
A wide range of telephone functions are accessible through a user friendly menu.
1. To enter the menu, press /OK
2. Scroll through the selections using the up and down keys, the selections scroll in
a loop ( you return to the first after the last).
3. To validate a selection, press OK
4. To return to the previous menu, press
4 Personalisation
4.1 adjusting the ring volume
4.1.1 Handset ringvolume External/internal calls
The handset ringvolume for internal or external calls can be set separately:
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select INT RING VOL or EXT RING VOL using the up and down keys
5. Press OK
6. Select the desired volume (OFF or 1 to 5 )
7. Press OK to confirm or to return to the previous menu.
4.1.2 Base ring
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select BASE VOLUME using the up and down keys
5. Press OK
6. Select the desired volume (OFF or 1 to 5 )
7. Press OK to confirm or to return to the previous menu.
4.2 Choosing the ring melody
The base and each handset can ring with a different melody.
The handsets can ring with a different melody according to whether the call is internal or
external.
14 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
4.2.1 Base melody
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select BASE MELODY using the up and down keys
5. Press OK
6. Select the melody of your choice (1 to 5) using the up and down keys
7. Press OK to confirm or to return to the previous menu.
4.2.2 Handset melody, external call
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select EXT MELODY using the up and down keys
5. Press OK
6. Select the melody of your choice (1 to 10) using the up and down keys
7. Press OK to confirm or to return to the previous menu.
4.2.3 Handset melody, internal call
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select INT MELODY using the up and down keys
5. Press OK
6. Select the melody of your choice (1 to 10) using the up and down keys
7. Press OK to confirm or to return to the previous menu.
ENGLISH
4.3 Speaker volume during call
During conversation, press the up or down key to change the volume accordingly.
The handsfree volume is also adjusted together with the receiver in the
handset as above described.
4.4 Activation / Deactivation of beeps
The handsets can emit beeptone when a key is pressed, when the batteries are low or when
the handset is out of range.
Topcom Butler 4502/Twin/Triple/Quattro 15
Topcom Butler 4502/Twin/Triple/Quattro
4.4.1 Key pressed beeptone on/off
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select BEEP using the up and down keys
5. Press OK
6. Select KEY TONE using the up and down keys
7. Press OK
8. Select ON to activate, OFF to deactivate
9. Press OK to confirm.
4.4.2 Low battery
Proceed as before, but select at point 6 "LOW BATTERY" instead of "KEY TONE".
4.4.3 Handset out of range
Proceed as before, but select at point 6 "OUT RANGE" instead of “KEY TONE".
4.5 Handset name
This function allows you to personalise each handset.
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select NAME using the up and down keys
5. Press OK
6. Enter the name
7. Press OK to validate
While entering the name, press ‘c’ to delete a character and press and hold to exit the
menu without taking any modifications into account.
4.6 Changing the PIN code
Certain functions are only available to users who know the PIN code. By default this is PIN
code = 0000.
To change the PIN code:
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select PIN CODE using the up and down keys
5. Press OK
6. Enter the old 4 figure PIN code.
7. Press OK
8. Enter the new 4 figure PIN code
9. Press OK
10. Enter the new PIN code a second time
11. Press OK to validate
16 Topcom Butler 4502/Twin/Triple/Quattro
4.7 Setting the dialling mode
There are two types of dialling mode:
• DTMF/Tone dialling (the most common)
• Pulse dialling ( for older installations )
Topcom Butler 4502/Twin/Triple/Quattro
To change the dialling mode:
1. Enter the menu by pressing /OK
2. Select setup using the up and down keys
3. Press OK
4. Select DIAL MODE using the up and down keys
5. Press OK
6. Select the dialling mode using the up and down keys
7. Press OK to validate
4.8 flash time duration
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select RECALL using the up and down keys
5. Choose RECALL 1 for short flash time (100ms) or RECALL 2 for long flash time
(250ms)
4.9 Automatic answer
When there is a incoming call and the handset in on the base, the phone automatically takes
the line when lifted. This is the default setting, but can be set OFF:
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select AUTO ANSWER using the up and down keys
5. Select ON (for automatic answer) or OFF
6. Press OK
ENGLISH
4.10 Reset
It is possible to return the phone to the original default configuration. This is the configuration
which was installed when you first received the telephone.
To return to default settings:
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select DEFAULT using the up and down keys
5. Press OK
6. Enter the 4 digit PIN code (default =0000). Press OK.
7. Press again OK to validate
Topcom Butler 4502/Twin/Triple/Quattro 17
Topcom Butler 4502/Twin/Triple/Quattro
Returning to default settings will delete all entries in the phonebook and call
log. The PIN code will also be reset to 0000.
DEFAULT PARAMETERS ARE:
Low battery beeps ON
Out of range warning beeps OFF
Key click ON
Auto answer ON
Internal melody 1
Internal volume 3
External melody 3
External volume 3
Ear volume 3
Phonebook Empty
Call log list Empty
Redial list Empty
Pin code 0000
Dial mode DTMF
Keypad lock OFF
4.11 Keypad lock
The keypad can be locked so that no settings can be changed or no telephone number can
be dialed. The -icon will appear on the screen when keypad is locked.
4.11.1 Locking the keypad by Menu
1. Enter the menu by pressing /OK
2. Select HANDSET using the up and down keys
3. Press OK
4. Select KEY LOCK? using the up and down keys
5. Press OK to lock the keypad
4.11.2 Locking the keypad by the *-key (quick lock)
Press and hold the ‘*’-key for 3 seconds. The keypad will be locked.
4.11.3 Unlock the keypad
1. Press any key
2. ‘PRESS *’ will appear on the screen
3. Press the ‘*’ key within 3 seconds to unlock the keypad
4.12 Setting the time
1. Enter the menu by pressing /OK
2. Select DATE-TIME using the up and down keys
3. Press OK
18 Topcom Butler 4502/Twin/Triple/Quattro
4. Select CLOCK SET using the up and down keys
5. Press OK
6. Enter the time (24h format).
7. Press OK to validate
Topcom Butler 4502/Twin/Triple/Quattro
4.13 Setting the date
1. Enter the menu by pressing /OK
2. Select DATE-TIME using the up and down keys
3. Press OK
4. Slect DATE SET using the up and down keys
5. Press OK
6. Enter the date (DD-MM).
7. Press OK to validate
4.14 Setting the alarm
1. Enter the menu by pressing /OK
2. Select DATE-TIME using the up and down keys
3. Press OK
4. Select ALARM SET using the up and down keys
5. Press OK
6. Select ON to turn On the alarm and press OK. Enter the time (24h format) when the
alarm must be activate.
Or
7. Select OFF to turn off the alarm and press OK to confirm.
When the alarm goes off you can press any handset key to turn it off.
5 Advanced functions
5.1 Phonebook
The Phonebook allows you to memorise 50 telephone numbers and names. You can enter
names of up to 12 characters length and numbers of up to 20 digits length.
To call a correspondent whose number is stored in the phonebook, refer to the section 3.14.
To enter alphanumerical characters, refer to the section 3.15.
ENGLISH
5.1.1 Add an entry into the phonebook
1. Enter the menu by pressing /OK
2. Select PHONE BOOK using the up and down keys
3. Press OK
4. Select ADD ENTRY using the up and down keys
5. Press OK
Topcom Butler 4502/Twin/Triple/Quattro 19
Topcom Butler 4502/Twin/Triple/Quattro
6. Enter the name
7. Press OK to validate.
8. Enter the telephone number
9. Press OK to validate
10. Select the desired melody (1-10) by means of the up/down key
11. Press OK to Validate
5.1.2 Modify a name or number
To modify a number in the phonebook:
1. Enter the menu by pressing /OK
2. Select PHONE BOOK using the up and down keys
3. Press OK
4. Select MODIFY ENTRY using the up and down keys
5. Press OK
6. Move through the list of names with the up and down keys. The list scrolls in
alphabetical order.
7. Press OK when you find the name to modify
8. Use the ‘ ’ key to go back and enter the new name
9. Press OK to validate
10. Enter the new telephone number
11. Press OK to validate
Warning! If you enter the Phonebook first with the key and modify a
telephone number with the key, the modification will be taken into
account only for this call and will not be stored in the phonebook!
5.1.3 Deleting an entry
To delete an entry:
1. Enter the menu by pressing /OK
2. Select PHONE BOOK using the up and down keys
3. Press OK
4. Select DELETE ENTRY using the up and down keys
5. Press OK
6. Move through the list of names using the up and down keys the list scrolls in
alphabetical order.
7. Press OK when you find the name you wish to delete
8. ‘CONFIRM’ appears, press OK to confirm or to stop.
5.2 Searching a handset from the base
When the paging button on the base is pressed all the handsets will ring. This ringing will
help you locate a lost handset. By simply pressing one of the handset keys the ringing stops.
20 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
You only need to register a 2nd handset in case your 2nd handset does
not link with the base anymore or when you have bought a new one!!!
6 Managing multiple handsets
6.1 Setting up an additional handset
You can register new handsets on the base if these handsets support the DECT GAP
protocol.
The base can support a maximum of 5 handsets. If you already have 5 handsets, and you
wish to add another one or change one handset, you must first delete a handset, then
associate the new handset.
To register any handset, the base must be put into a special registration mode:
1. Press and hold the paging key of the base for 6 seconds.
2. The base will then emit a beeptone. The base is now ready to register a new handset.
You have 90 seconds after pressing the button to register a new handset.
After putting the base into registration mode, start the procedure on the new handset:
6.1.1 if your additional handset is a Butler 450x
3. Enter the menu by pressing /OK
4. Select REGISTER using the up and down keys
5. Press OK
6. Select REG BASE using the up and down keys
7. Enter a base number ( from 1 to 4 ). The flashing numbers are already in use.
8. Enter the Base PIN code (0000 by default )
9. Press OK. The handset will start searching for the DECT base
10. If the handset has located the base, it will display the base identification number,
validate the base registration by pressing OK or stop by pressing .
11. If the handset does not locate the base, it will return to the standby mode after a few
seconds.
12. Try again by changing the base number and check that you are not in a environment
where there is interference. Move closer to the base.
ENGLISH
6.1.2 if your handset is another model
After starting the registration procedure on the base, refer to the handset manual to find out
how to register the handset. The handset must be GAP compatible.
The icon and the text ‘NOT REG’ flashes on the display when the handset is not
associated with the base.
When a handset is associated with a base, it is attributed a handset number by the base. It
is this number that is displayed on the handset after the name and must be used for internal
calls.
Topcom Butler 4502/Twin/Triple/Quattro 21
Topcom Butler 4502/Twin/Triple/Quattro
DECT GAP Profile only guarentees that basic calling-functions will work
correctly between different brands/types. There’s a possibility that
certain services (like CLIP) will not work correctly.
6.2 Removing a handset
You can remove a handset with a base to allow another handset to be registered
1. Enter the menu by pressing /OK
2. Select SETUP using the up and down keys
3. Press OK
4. Select DEL HANDSET using the up and down keys
5. Press OK
6. Enter the 4 digit base PIN code
7. Press OK
8. Select the handset to be removed
9. Press OK to validate
6.3 Setting up a handset on another base
If you want to use a Butler 450x handset with a base of another model. The base must be
GAP compatible.
1. To put the base in registration mode, refer to the base user manual.
2. Carry out operations 3 to 10 from the paragraph 6.1.
6.4 Selecting a base
The handsets can be registered up to 4 bases simultaneously.
To select a base:
1. Enter the menu by pressing /OK
2. Select REGISTER using the up and down keys
3. Press OK
4. Select SELECT BASE using the up and down keys
5. Press OK
6. Select a base or select AUTO using the up and down keys
7. Press OK
When selecting the base, the currect selected base in indicated by a blinking base number.
If you select ‘Auto’ the handset will automatically search for another base when you are out
of range!
22 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
7 Troubleshooting
Symptom Possible cause Solution
No display Batteries uncharged Check the position of the
batteries
Recharge the batteries
Handset turned OFF Turn ON the handset
No tone Telephone cord badly
connected
The line is occupied by
another handset
Check the telephone cord
connection
Wait until the other handset
hangs up
ENGLISH
The icon flashes
Base or handset do not ring The ringing volume is zero or
Tone is good, but there is no
communication
Not possible to transfer a call
on PABX
Telephone does not react to
pressing the keys
Handset out of range Bring the handset closer to
the base
The base has no power
supply
The handset is not registered
on the base
low
The dialling mode is wrong Adjust the dialling mode
The FLASH time is too short Set the unit to Long Flash
Manipulation error Remove the batteries and put
Check the mains connection
to the base
Register the handset on the
base
Adjust the ringing volume
(pulse/tone)
time
them back in place
8 Topcom warranty
8.1 Warranty period
The Topcom units have a 24-month warranty period. The warranty period starts on the day
the new unit is purchased. The warranty on batteries is limited to 6 months after purchase.
Consumables or defects causing a negligible effect on operation or value of the equipment
are not covered.
The warranty has to be proven by presentation of the original purchase receipt, on which the
date of purchase and the unit-model are indicated.
Topcom Butler 4502/Twin/Triple/Quattro 23
Topcom Butler 4502/Twin/Triple/Quattro
8.2 Warranty handling
A faulty unit needs to be returned to a Topcom service centre including a valid purchase note.
If the unit develops a fault during the warranty period, Topcom or its officially appointed
service centre will repair any defects caused by material or manufacturing faults free of
charge.
Topcom will at its discretion fulfil its warranty obligations by either repairing or exchanging
the faulty units or parts of the faulty units. In case of replacement, colour and model can be
different from the original purchased unit.
The initial purchase date shall determine the start of the warranty period. The warranty period
is not extended if the unit is exchanged or repaired by Topcom or its appointed service
centres.
8.3 Warranty exclusions
Damage or defects caused by incorrect treatment or operation and damage resulting from
use of non-original parts or accessories not recommended by Topcom are not covered by
the warranty.
Topcom cordless phones are designed to work with rechargeable batteries only. The
damage caused by the use of non-rechargeable batteries is not covered under warranty.
The warranty does not cover damage caused by outside factors, such as lightning, water and
fire, nor any damage caused during transportation.
No warranty can be claimed if the serial number on the units has been changed, removed or
rendered illegible.
Any warranty claims will be invalid if the unit has been repaired, altered or modified by the
buyer or by unqualified, non-officially appointed Topcom service centres.
9 Technical characteristics
• Standard: DECT (Digital Enhanced Cordless Telecommunications)
GAP (Generic Access Profile)
• Frequency range: 1880 MHZ to 1900 MHz
• Number of channels: 120 duplex channels
• Modulation: GFSK
• Speech coding: 32 kbit/s
• Emission power: 10 mW (average power per channel)
• Range: max 300 m in open space /10-50 m inhouse
• Base power supply: 230 V / 50 Hz for the base
• Handset Batteries: 2 rechargeable batteries AAA, NiMh 550mAh
• Handset autonomy: 200 hours in standby
• Talk time: 10 hours
• Charging time: 6-8 hours
• Normal conditions of use: +5 °C to +45 °C
• Dialling mode: Pulse / Tone
• Flash time 100 or 250 ms
24 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
NEDERLANDS
1 Beschrijving van de telefoon 28
1.1 Handset Butler 4502 28
1.2 Oplader Butler 4502 29
1.3 Display 29
1.4 Handsetindicator (LED) 30
2 Telefooninstallatie 30
2.1 Aansluitingen 30
2.2 Herlaadbare batterijen 31
3 De telefoon gebruiken 31
3.1 Menutaal kiezen 31
3.2 Handset AAN/UIT 32
3.3 Oproepen ontvangen 32
3.4 Een externe oproep 32
3.5 Een interne oproep (INT) 32
3.6 Interne oproep doorschakelen 32
3.7 Conferentiegesprek 32
3.8 Handenvrije modus 33
3.9 Tonen van de gespreksduur 33
3.10 Microfoon uitschakelen (Mute) 33
3.11 Pauzetoets 33
3.12 Identificatie van de beller 33
3.13 Herkies-geheugen 34
3.14 Bellen vanuit het telefoonboek 35
3.15 Het alfanumerieke toetsenbord gebruiken 35
3.16 Het menu gebruiken 36
4 Personalisering 36
4.1 Belvolume aanpassen 36
4.2 Belmelodie kiezen 37
4.3 Luidsprekervolume tijdens oproep 38
4.4 Bieptonen activeren/desactiveren 38
4.5 Naam van de handset wijzigen 38
4.6 De PIN-code wijzigen 39
4.7 De kiesmodus instellen 39
4.8 Flashtijd instellen 39
4.9 Automatisch opnemen 39
4.10 Reset 40
4.11 Vergrendeling toetsenbord 40
4.12 Klok instellen 41
4.13 Datum instellen 41
4.14 Alarm instellen 41
5 Geavanceerde functies 42
5.1 Telefoonboek 42
5.2 Een intern toestel zoeken via het basistoestel 43
Topcom Butler 4502/Twin/Triple/Quattro 25
Topcom Butler 4502/Twin/Triple/Quattro
6 Gebruik van meerdere handsets 43
6.1 Een bijkomende handset registreren 43
6.2 Een handset verwijderen 44
6.3 Een Butler handset installeren op een ander basistoestel 45
6.4 Een basistoestel selecteren 45
7 Problemen verhelpen 45
8 Garantie 46
8.1 Garantieperiode 46
8.2 Afwikkeling van garantieclaims 46
8.3 Garantiebeperkingen 46
9 Technische kenmerken 47
26 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
NEDERLANDS
Het toestel voldoet aan de basiseisen van de R&TTE-richtlijn.
Dit wordt bevestigd door de CE-markering.
Veiligheidsvoorschriften
• Gebruik enkel de meegeleverde adapter. Geen vreemde adapters gebruiken, de
accucellen kunnen hierdoor beschadigd worden.
• Gebruik enkel oplaadbare batterijen van hetzelfde type. Gebruik nooit gewone, niet
oplaadbare batterijen. Let bij het plaatsen van de oplaadbare batterijen op de polariteit
(aangeduid in de batterijruimte van de handset).
• Raak de laad- en stekkercontacten niet aan met scherpe en metalen voorwerpen.
• De werking van medische toestellen kan worden beïnvloed.
• De handset kan een onaangenaam gezoem veroorzaken in hoorapparaten.
• Het basisstation niet opstellen in vochtige ruimten en niet op minder dan 1,5 m van een
waterbron. De handset niet in aanraking brengen met water.
• De telefoon niet gebruiken in explosieve omgevingen.
• Ontdoe u op een milieuvriendelijke wijze van de batterijen en de telefoon.
• Daar bij stroomuitval met dit toestel niet kan getelefoneerd worden, in geval van nood
een telefoon gebruiken die geen netstroom nodig heeft bvb. een GSM.
Het toestel verwijderen (milieu)
Op het einde van de levenscyclus van het product mag u dit product niet bij het normale
huishoudelijke afval gooien, maar moet u het naar een inzamelpunt brengen voor de
recyclage van elektrische en elektronische apparatuur. Dit wordt aangeduid door het
symbool op het product, in de handleiding en/of op de doos.
Sommige materialen van het product kunnen worden hergebruikt als u ze naar een
inzamelpunt brengt. Door onderdelen of grondstoffen van gebruikte producten te
hergebruiken, levert u een belangrijke bijdrage tot de bescherming van het milieu.
Wend u tot uw lokale overheid voor meer informatie over de inzamelpunten in uw buurt.
Reinigen
Veeg de telefoon met een licht vochtig doek of met een antistatische doek af. Gebruik nooit
reinigingsmiddelen of agressieve oplosmiddelen.
Geschikt voor aansluiting op het openbare analoog geschakelde telefoonnetwerk.
Topcom Butler 4502/Twin/Triple/Quattro 27
Topcom Butler 4502/Twin/Triple/Quattro
1 Beschrijving van de telefoon
1.1 Handset Butler 4502
Luidspreker
Handset
indicator LED
Display
Mute/Wis-toets
Handenvrijtoets
Toets omhoog/
Herkies/pauzetoets
Telefoonboek/Escape
Toets omlaag/
Oproeplijst
Menu/
OK
Flash-toets
AAN/UIT
Microfoon
Interne oproep
Spanning/ inkomende
Laadindicator
oproep indicator
28 Topcom Butler 4502/Twin/Triple/Quattro
Topcom Butler 4502/Twin/Triple/Quattro
NEDERLANDS
1.2 Oplader Butler 4502
1.3 Display
Regel voor pictogrammen Regel voor karakters en cijfers
(max. 12 karakters)
Laadindicator
Elke handeling heeft zijn bijhorend icoon
Pictogram: Betekenis:
In verbinding
EXT Er vindt een externe oproep plaats
INT Er vindt een interne oproep plaats
Nieuwe nummers in de oproeplijst
Indicatie beantwoorde oproep
Indicatie onbeantwoorde oproep
Het adresboek openen
U bevindt zich in het menu.
Laadniveau van de herlaadbare batterijen
1 blokje: laag, 2 blokjes: half, 3 blokjes: vol
De antenne toont de kwaliteit van de ontvangst.
De antenne knippert als de handset niet is aangemeld op de basis.
Toetsenbord handset vergrendeld
of Geeft aan dat het getoonde nummer langer is dan het scherm (12 cijfers)
Topcom Butler 4502/Twin/Triple/Quattro 29
Loading...
