Thank you for purchasing TOA's Network Video Receiver.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
NETWORK VIDEO RECEIVER
N-VR2010
INSTRUCTION MANUAL
10/100M PoE
2
1. SAFETY PRECAUTIONS ............................................................................... 3
2. LIST OF INCLUDED COMPONENTS AND PARTS ............................... 6
3. GENERAL DESCRIPTION ............................................................................. 6
4. FEATURES .......................................................................................................... 6
5. HANDLING PRECAUTIONS .......................................................................... 7
6. SYSTEM CONFIGURATION .......................................................................... 8
7. NOMENCLATURE AND FUNCTIONS
[ Front ] ......................................................................................................................9
[ Rear ] ..................................................................................................................... 10
8. CONNECTIONS
8.1. Connection example ........................................................................................ 11
8.2. Monitor Connection .......................................................................................... 12
8.3. Network Connection ......................................................................................... 12
8.4. Microphone Connection ................................................................................... 12
8.5. Audio Signal I/O Connection ............................................................................ 12
8.6. Contact Input and Output Terminals ................................................................ 12
8.7. Serial Port ........................................................................................................ 13
8.8. DIP Switch Setting ........................................................................................... 14
9. SETTING INITIALIZATION ............................................................................. 14
10. TROUBLESHOOTING ..................................................................................... 14
11. SPECIFICATIONS ............................................................................................. 15
TABLE OF CONTENTS
3
SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• Keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which could result in death
or serious personal injury if ignored or mishandled.
WARNING
When Installing the Unit
• This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
• Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified
may result in fire or electric shock.
• Do not cut, kink, or otherwise damage or modify the power supply cord. Also, avoid using the power cord in
close proximity to heaters, and never place heavy objects, including the unit itself, on the power cord as
doing otherwise may result in fire or electric shock.
• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface
because a fire or electric shock may result.
• Since the unit is designed for in-door use, do not install it outdoors. If installed outdoors, the aging of parts
causes the unit to fall off, resulting in personal injury. Also, when it gets wet with rain, there is a danger of
electric shock.
Do not expose the unit to rain or an environment where it may be
splashed by water or other liquids, as doing so may result in fire or
electric shock.
WARNING
4
Indicates a potentially hazardous situation which could result in death
or serious personal injury if ignored or mishandled.
WARNING
When the Unit is in Use
• Should the following irregularity be found during use, immediately switch off the power, disconnect the power
supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the
unit in this condition as this may cause fire or electric shock.
· If you detect smoke or a strange smell coming from the unit.
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
· If the connection cable is damaged (exposure of the core, disconnection, etc.)
· No sound output
· If no camera images are displayed on the monitor TV
• To prevent a fire or electric shock, never open nor remove the unit case as there are high voltage
components inside the unit. Refer all servicing to your nearest TOA dealer.
• Do not place cups, bowls or other containers of liquid or metal pieces on top of the unit. If they accidentally
spill into the unit, this may cause a fire or electric shock.
• Do not insert nor drop metallic objects or flammable materials in the unit, as this may result in fire or electric
shock.
• Do not touch a power supply plug during thunder and lightning, as this may result in an electric shock.
5
When Installing the Unit
• Never insert nor remove the power supply plug with wet hands, as an electric shock may result.
• When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord
itself. The power supply cord may be damaged, possibly causing a fire or electric shock.
• When moving the unit, be sure to remove its power supply cord from the wall outlet. Moving the unit with the
power cord connected to the outlet may cause damage to the power cord, resulting in fire or electric shock.
• Do not block the ventilation slots in the unit’s cover. Heat may build up in the unit, causing a fire.
• Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire or electric
shock.
When the Unit is in Use
• Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal
injury.
• If dust accumulates on the power supply plug or in the wall AC outlet, a fire may result. Clean them
periodically. In addition, insert the plug in the wall outlet securely.
• Switch off the power and unplug the power supply plug from the AC outlet for safety purposes when cleaning
or leaving the unit unused for 10 days or more. A fire or electric shock may result.
Indicates a potentially hazardous situation which could result in
moderate or minor personal injury, and/or property damage if ignored
or mishandled.
CAUTION
Note
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Modifications
Any modifications made to this device that are not approved by TOA Corporation may void the authority
granted to the user by the FCC to operate this equipment.
CU version complies with Part 15 of the FCC Rules.
6
2. LIST OF INCLUDED COMPONENTS AND PARTS
Check to be sure that the following components and parts are contained in the package:
Power conversion cable ...................................................................................................... 1
Network Video Receiver Instruction Manual ........................................................................ 1
3. GENERAL DESCRIPTION
TOA's N-VR2010 Network Video Receiver can convert images transmitted by the digital signals on a LAN
from a Network Camera or Network Video Transmitter into an analog composite signal and output it. MPEG-4
allows smooth moving images to be monitored.
The N-VR2010 can transmit bi-directional sub-band ADPCM or PCM quality voice. Its power supply features
PoE compatibility in addition to 24V AC or 24V DC operation, permitting simplified wiring work and cable
savings during construction by supplying power via the network.
The N-VR2010 has a 12V DC power output which supplies power to the equipment such as remote
controllers.
Since the N-VR2010 is equipped with RS-232C and RS-485 connectors, it can remotely operate a Digital
Video Recorder and Combination Dome Cameras connected to the Network Video Transmitter when used in
combination with a Remote Controller.
4. FEATURES
• After receiving streamed MPEG-4 data, the Network Video Receiver decompresses and converts it into an
analog signal, and then transmits the analog video signal.
• The Receiver is equipped with audio input and output (line/microphone input and line output) that enable
two-way signal transmission.
• External connected equipment, such as the Digital Video Recorder, Multi-Switcher, and Combination Dome
Camera can be controlled via the RS-232C/RS-485 interfaces.
• A built-in web server can be accessed using a web browser.
• The Receiver can function as a monitor system if the supplied software decoder is also used.
• Since the hub is compatible with PoE Standards, power can be supplied to the Network Video Receiver
using a single network cable. This eliminates the necessity for preparing a separate power supply in each
camera installation location, and greatly improves installation freedom. PoE (Power over Ethernet) (This
complies with the IEEE802.3af standard and allows simultaneous transmission of both normal data and DC
power using a 10BASE-T or 100BASE-TX network.)
7
5. HANDLING PRECAUTIONS
• Do not give the Receiver a great shock or vibration, as this will damage the Receiver.
• It is recommended that the Receiver be always used in locations where the ambient temperature ranges
from -0°C to +50°C and humidity levels of less than 90% to ensure that no condensation is formed.
• To clean, wipe with a dry soft cloth. Never use benzene, thinner or chemically processed towel as the
Receiver's plastic or other parts may be deformed or discolored.
• Installing the camera cables and monitor cables in close proximity to fluorescent lamps or other electrical
appliances can downgrade the picture quality. In such cases, change the wiring.
• If there is a strong electric or magnetic field near the Receiver, such as television transmission antennas,
motors or transformers, this may distort or roll the monitor picture. In such cases, run the entire wiring route
through metal conduit tubing.
• Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards.
• Secure sufficient space for cable installation.
• Install the Receiver in well-ventilated locations.
• Use appropriate cables to prevent electrical failures.
• Install cables so as to prevent their damage and provide ample cable slack if they need to be stretched taut.
• The IP address, subnet mask and gateway IP address must be set.
• When a connection is established between the Transmitter and multiple Receivers, if the data rate requested
by each Receiver differs, the transmission will be limited to the minimum set data rate.
• Personal computers running Microsoft Windows XP are required when setting the Network Video Receiver.
• TOA's software decoder does not support Macintosh or Unix operating systems.
MPEG-4 visual patent portfolio license
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (1) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”)AND/OR (2) DECODING
MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSE BY MPEG LA
TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA,LLC.
SEE HTTP://WWW.MPEGLA.COM.
8
H
D
D
DEO
NETWORK
V
I
E
R
ROR
N-
RECORDER
P
O
W
E
R
DR2000
6. SYSTEM CONFIGURATION
The connection of a basic system is shown below.
The analog CCTV system is comprised of conventional cameras and switchers.
When using a PoE-compatible hub, the power supply need not be connected to the N-VT2010 Network Video
Transmitter, N-VR2010 Network Video Receiver and N-CC2360 Network Color camera. When using a hub not
supporting PoE, power must be independently supplied to each device. Connect the AC mains to N-DR2000
Network Video Recorder.
Connect 24V AC to the N-CC2564 Network Combination Dome Camera.
Analog
CCTV system
Network Color Camera
N-CC2360
Network Combination
Dome Camera
N-CC2564
Network Video Recorder
N-DR2000
To 24V AC
TM
To AC mains
Network Video Transmitter
N-VT2010
PoE compatible
switching HUB
Network Video Receiver
N-VR2010
DC-IN
12345678
To AC mains
Network Video Transmitter
N-VT2010
Software Decoder
N-SD2000
Monitor
: Coaxial cable
: 10BASE-T/100BASE-TX
: 100BASE-TX/1000BASE-T
Combination Dome Camera
RS-485
To 24V AC
9
7. NOMENCLATURE AND FUNCTIONS
[Front]
(1) Initialization Key [INIT]
Initializes the setting contents to default conditions.
(2) Reset Key [RESET]
Restarts the Receiver.
(3) Ready Indicator (Green)
Lights continuously while the Receiver is operating. The indicator flashes quickly when the Receiver is set
to start mode, and flashes slowly during firmware update.
(4) Busy Indicator (Yellow)
Lights continuously during communications.
(5) Error Indicator (Red)
Lights when the Receiver's operation stops due to equipment failure. The indicator extinguishes when the
Receiver automatically resets and returns to normal.
(6) Network Terminal (RJ-45)
Connect this terminal to a 10BASE-T or 100BASE-TX compatible network.
• LINK/ACT (Green)
Lights when the network is correctly connected, and flashes while data is being transmitted or received
• FD/COL (Yellow)
Lights continuously while the Receiver is operating in full-duplex mode, and remains unlit while the
Receiver is in half-duplex mode. The indicator flashes when a data collision occurs over the network.
10/100M PoE
4
3
2
1
5
6
(7) Audio Input Terminal
(-10 dB, 10 kΩ, unbalanced type)
Receives line level audio signals.
(8) Microphone Input Volume Control
Adjusts the microphone input level.
(9) Microphone Input Terminal (-60 dB, 2.2 kΩ)
Inputs signals from the microphone. 9V can be
supplied for phantom power supply.
(10) Video Output Terminal
Outputs video signals.
(11) Setting switch
• MIC/LINE (default: LINE)
Selects either line level (7) or microphone level
(9) for audio signal input.
• PHANTOM (default: OFF)
Sets whether to supply the 9 V phantom power
supply to the microphone input terminal.
• AUDIO ADJ (default: OFF)
Used when adjusting the audio/microphone
level.
• NC (default: OFF)
This terminal is not used.
(12) 12 V DC Output Terminal (2P)
Outputs 12 V DC power. (Maximum 0.2 A)
Connect TOA's remote controllers to this
terminal.
(13) 24 V AC/24 V DC Input Terminal (3P)
Receives 24 V AC or 24 V DC power. Do not
use this terminal when a PoE-compatible hub is
used for connection.
(14) Audio Output Terminal
(-10 dB, low impedance, unbalanced type)
Outputs audio signals received via a network.
(15) Contact Input and Output Terminals
• CONTACT IN (3P) : Contact input terminal
(2 channels)
• CONTACT OUT (3P): Contact output terminal
(2 channels)
(16) RS-485 Terminal (3P)
Controls the remote controllers and other
external connected devices.
(17) RS-232C
Connect this port to the RS-232C terminal of a
PC when controlling other devices via a
network.
10
[Rear]
8
7
LINE
IN
AUDIO
OUT
VOL
IN
12
MIC IN
CONTACTCONTACT
12
C
9
OUT
14
11
10
AUDIO ADJ.
VIDEO
PHANTOM
OUT
MIC
LINE
RS485
+
C
CONTACT
15 16
NC
12V OUT
ON
RS485
12
MAX 0.2A
1
RS-232C
17
13
2
24V
IN
Terminal name
No.
+
-
1 2 3
24 V AC/DC
1
24 V AC/DC
2
FG
3
Terminal name
1 2 3 4 5 6
No. No.
CONTACT IN 1
1
CONTACT IN 2
2
C
3
Terminal name
CONTACT OUT 1
4
CONTACT OUT 2
5
C
6
7 8 9
No. Terminal name
7
8
9
RS-485
GND
RS-485
+
-
1 2
No. Terminal name
12 V DC
1
GND
2
11
8. CONNECTIONS
8.1. Connection example
2
Notes
• Do not connect the 24 V AC or 24 V DC power when using a PoE-compatible hub since the power is
supplied from the hub.
• Connect the 24 V AC or 24 V DC power when not using a PoE-compatible hub since no power is supplied
from the hub.
• Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards.
PoE Compatible
Switching HUB
DC-IN
12345678
To AC mains
Network Video Receiver
N-VR2010
VIDEO
MIC IN
LINE
VOL
OUT
CONTACTCONTACT
RS485
IN
OUT
+
12
12
C
C
AUDIO
IN
OUT
PHANTOM
MIC
LINE
CONTACT
AUDIO ADJ.
NC
ON
RS485
12V OUT
MAX 0.2A
RS-232C
2
1
24V
IN
Video input
Software Decoder
N-SD2000
Video output
Network Video Transmitter
Monitor
N-VT2010
: BNC plug (optional)
Microphone
: Coaxial cable
Color Camera
: 10BASE-T/100BASE-TX
: 100BASE-TX/1000BASE-T
12
8.2. Monitor connection
Connect the Receiver's video output terminal to the monitor's video input terminal using a coaxial cable (75Ω,
BNC).
8.3. Network Connection
Connect the Receiver to a hub using a straight cable. Use a null modem cable when connecting the Receiver
directly to a PC.
8.4. Microphone Connection
Connect a microphone using a mini-Jack.
When using an electret-condenser microphone, set the 9 V phantom power to ON.
8.5. Audio Input/Output connection
Connect line level audio signals using a pin jack. Audio input cannot be used simultaneously with microphone
input.
8.6. Contact Input and Output Terminals
Contact Input
There are two no-voltage contact inputs for connection of sensor trigger signals, etc. For details, refer to the
setup manual.
Contact Output
There are two contact outputs, allowing external connected device control and contact bridging between video
network system devices. For details, refer to the setup manual.
• Applicable cable
Solid cable: AWG28 (Ø 0.32 mm) - AWG22 (Ø 0.65 mm)
Stranded cable: AWG28 (0.08 mm2) - AWG22 (0.32 mm2)
Note
Strip the cable sheath approximately 10mm, then insert the cable while pushing down on the terminal button
with a screwdriver.
13
UT
8.7. Serial Port
[RS-232C]
Use a null modem cable such as the YR-S2320 when connecting control terminals of the remote controller to
this terminal. No RS-232C connector plug is supplied with the unit.
[RS-485]
Connect the control terminal of the remote controller to this terminal.
• Applicable cable
Solid cable: AWG28 (Ø 0.32 mm) - AWG22 (Ø 0.65 mm)
Stranded cable: AWG28 (0.08 mm
2
) - AWG22 (0.32 mm2)
Note
Strip the cable sheath approximately 10mm, then insert the cable while pushing down on the terminal button
with a screwdriver.

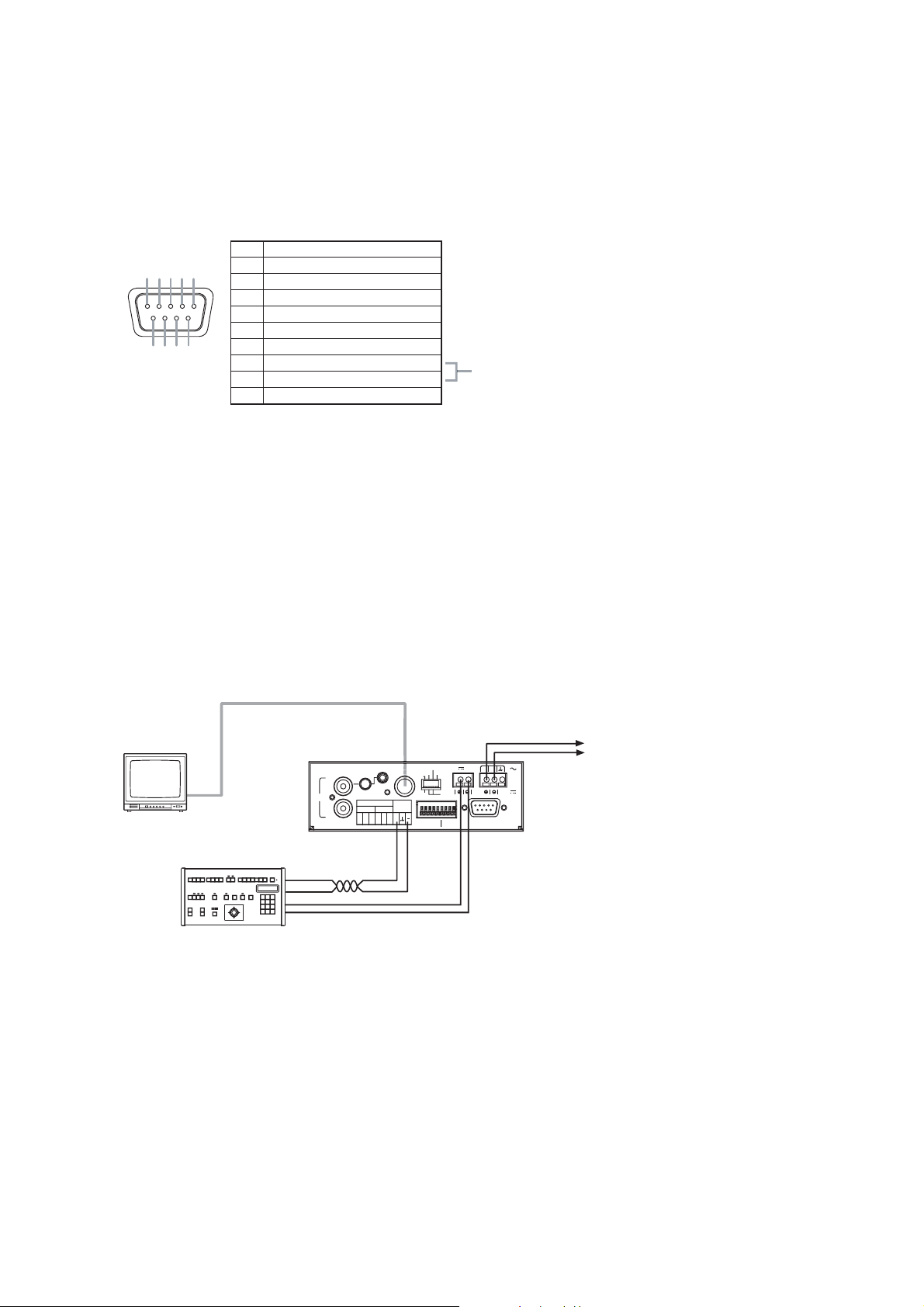

• RS-232C Connector D-sub 9P
Terminal name
Unconnected
RXD (Reception data)
TXD (Transmission data)
Unconnected
GND
Unconnected
RTS (Transmission request)
CTS (Transmission permission)
Unconnected
Both the RTS and CTS pins are internally shorted.
1 2 3 4 5
6 7 8 9
No.
1
2
3
4
5
6
7
8
9
Monitor
VIDEO IN
Remote Controller
C-RM500
Rear
Network
Video Receiver
N-VR2010
LINE
IN
AUDIO
OUT
RS-485
DC12 V
VIDEO OUT
AUDIO ADJ.
VIDEO
MIC IN
VOL
CONTACTCONTACT
IN
OUT
12
12
C
RS-485(+) RS-485(-)
NC
PHANTOM
OUT
MIC
LINE
RS485
+
C
CONTACT
Connect the 24 V AC or 24 V DC
when not using a PoE-compatible hub.
ON
RS485
12V OUT
RS-232C
2
1
24V
IN
Note: Connect the 12 V DC terminal when using a remote controller.
14
1: Selects either microphone level signal or line level signal as the audio input. Set to "MIC" when connecting
a microphone, and to "LINE" when connecting other devices. ("LINE" is the default.)
2: Supply voltage is 9 V DC.
When supplying the phantom power to the device connected to the audio input terminal, set the MIC/LINE
switch to MIC, then set this switch 2 to ON. ("OFF" is the default.)
3: Used for audio adjustment.
When adjusting, set this switch to ON and restart the Receiver. When the adjustment is complete, set this
switch to OFF and restart the Receiver. Audio signals from the audio input and microphone can be output
through the audio output terminal and monitored. ("OFF" is the default.)
4: This switch is not used.
9. SETTING INITIALIZATION
Returns the set contents to default conditions.
1. Either press the Reset key or switch on the power again while holding down the INIT key.
2. Continue to press the INIT key until the Ready indicator has switched from flashing to steady-on mode.
8.8. DIP Switch Setting
Remedy
Supply power independently to the
Receiver.
Confirm that the cable type (category, null
modem or straight) is appropriate for the
connected port, then connect correctly.
Symptom
Receiver does not start.
(Ready LED does not
light.)
LINK/ACT LED does
not light.
Possible Cause
Power is not supplied.
[ When using a PoE-compatible hub
for power supply ]
• Receiver not connected to the
PoE-compatible hub.
• PoE-compatible hub’s PoE
function is not made valid.
• Receiver is connected to the PoE-
compatible hub’s port not
supporting PoE.
• Power requirement exceeds the
PoE-compatible hub’s supply
capability.
[ When using 24V AC or 24V DC for
power supply ]
• Incorrect terminal connections.
Cable is not correctly connected to
the Receiver’s network terminal.
10. TROUBLESHOOTING
Terminal name
No.
MIC/ LINE
1
PHANTOM
2
AUDIO ADJ
1 2 3 4
3
NC
4
15
* 0 dB = 1V
11. SPECIFICATIONS
Power Source
24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af)
Power Consumption
10 W: at 24 V AC (9 W: PoE, 400 mA: 24 V DC)
Power Terminal Screwless connector (Solid cable: ø 0.4 – ø 1.2 mm (AWG 26 – 16)
Stranded cable: 0.3 – 1.25 mm
2
(AWG 22 – 16))
Power Output 12 V DC, max. 0.2 A, screwless connector
Video Output 1 channel, VBS 1.0 V(p-p), 75 Ω, BNC jack, NTSC
Audio Input 1 channel, unbalanced, LINE/MIC changeable, volume adjustable
LINE: – 10 dB*, 10 kΩ, RCA pin jack
MIC: – 60 dB*, 2.2 kΩ, mini-jack, volume adjustable
phantom power supply (9 V, can be set with the switch)
Audio Output 1 channel, – 10 dB*, low impedance, unbalanced, RCA pin jack
Audio Frequency Response 50 to 14,000 Hz (when the sampling frequency is 32 kHz)
Contact Input 2 channel, no-voltage contact input, open voltage: 3 V DC,
short-circuit current : Under 10 mA, loop resistance: Under 200 Ω,
screwless connector
Contact Output 2 channel, open collector output, withstand voltage: 30 V DC,
control current: 50 mA, screwless connector
Serial Port
RS-232C: D-sub connector (9 pins, male), RS-485:
screwless
connector
Network
Network I/F
10BASE-T/100BASE-TX, Auto-Nego/Manual: RJ45
connector
Network Protocol
TCP, UDP, SIP, RTP, IGMP, HTTP, ARP, DHCP, DNS, SNTP
Video Compression/Resolution MPEG-4: D1 (720 x 480), Half D1 (720 x 240), QVGA (320 x 240)
Frame Rate
MPEG-4: D1 max. 30 fps
Audio Compression/Decompression Sub-band
ADPCM, PCM (non-compression)
Audio Sampling Frequency 8 kHz, 32 kHz
Image Transfer Rate MPEG-4: max. 4 Mbps
Other Function Password authentication
Operating Temperature
0°C to +50°C (32°F to 122°F)
Operating Humidity Under 90% RH (no condensation)
Finish Case: Surface-treated steel plate, silver, paint
Dimensions 136 (W) x 44 (H) x 127.9 (D) mm (5.35" x 1.73" x 5.04")
Weight 700 g (1.54 lb)
Note: The design and specifications are subject to change without notice for improvement.
[N-VR2010 CU]
* 0 dB = 1V
Power Source
24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af)
Power Consumption
10 W: at 24 V AC (9 W: PoE, 400 mA: 24 V DC)
Power Terminal Screwless connector (Solid cable: ø 0.4 – ø 1.2 mm (AWG 26 – 16)
Stranded cable: 0.3 – 1.25 mm
2
(AWG 22 – 16))
Power Output 12 V DC, max. 0.2 A, screwless connector
Video Output 1 channel, VBS 1.0 V(p-p), 75 Ω, BNC jack, PAL
Audio Input 1 channel, unbalanced, LINE/MIC changeable, volume adjustable
LINE: – 10 dB*, 10 kΩ, RCA pin jack
MIC: – 60 dB*, 2.2 kΩ, mini-jack, volume adjustable
phantom power supply (9 V, can be set with the switch)
Audio Output 1 channel, – 10 dB*, low impedance, unbalanced, RCA pin jack
Audio Frequency Response 50 to 14,000 Hz (when the sampling frequency is 32 kHz)
Contact Input 2 channel, no-voltage contact input, open voltage: 3 V DC,
short-circuit current : Under 10 mA, loop resistance: Under 200 Ω,
screwless connector
Contact Output 2 channel, open collector output, withstand voltage: 30 V DC,
control current: 50 mA, screwless connector
Serial Port
RS-232C: D-sub connector (9 pins, male), RS-485:
screwless
connector
Network
Network I/F
10BASE-T/100BASE-TX, Auto-Nego/Manual: RJ45
connector
Network Protocol
TCP, UDP, SIP, RTP, IGMP, HTTP, ARP, DHCP, DNS, SNTP
Video Compression/Resolution MPEG-4: D1 (720 x 576), Half D1 (720 x 288), CIF (352 x 288)
Frame Rate
MPEG-4: D1 max. 25 fps
Audio Compression/Decompression Sub-band
ADPCM, PCM (non-compression)
Audio Sampling Frequency 8 kHz, 32 kHz
Image Transfer Rate MPEG-4: max. 4 Mbps
Other Function Password authentication
Operating Temperature
0°C to +50°C (32°F to 122°F)
Operating Humidity Under 90% RH (no condensation)
Finish Case: Surface-treated steel plate, silver, paint
Dimensions 136 (W) x 44 (H) x 127.9 (D) mm (5.35" x 1.73" x 5.04")
Weight 700 g (1.54 lb)
Note: The design and specifications are subject to change without notice for improvement.
133-22-050-80
URL: http://www.toa.jp/
[N-VR2010 PL]
Loading...
