Teac TD-X250I User Manual

77-20DX220I0420

Micro Hi-Fi System

OWNER’S MANUAL

X250i

Includes adapters for:

iPod nano

iPod with video

iPod mini

iPod with Click Wheel

iPod with color display

Adapters sold separately:

iPod with dock connector

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Before Using the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote Control Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Unit Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

iPod

Listening to iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CD/MP3

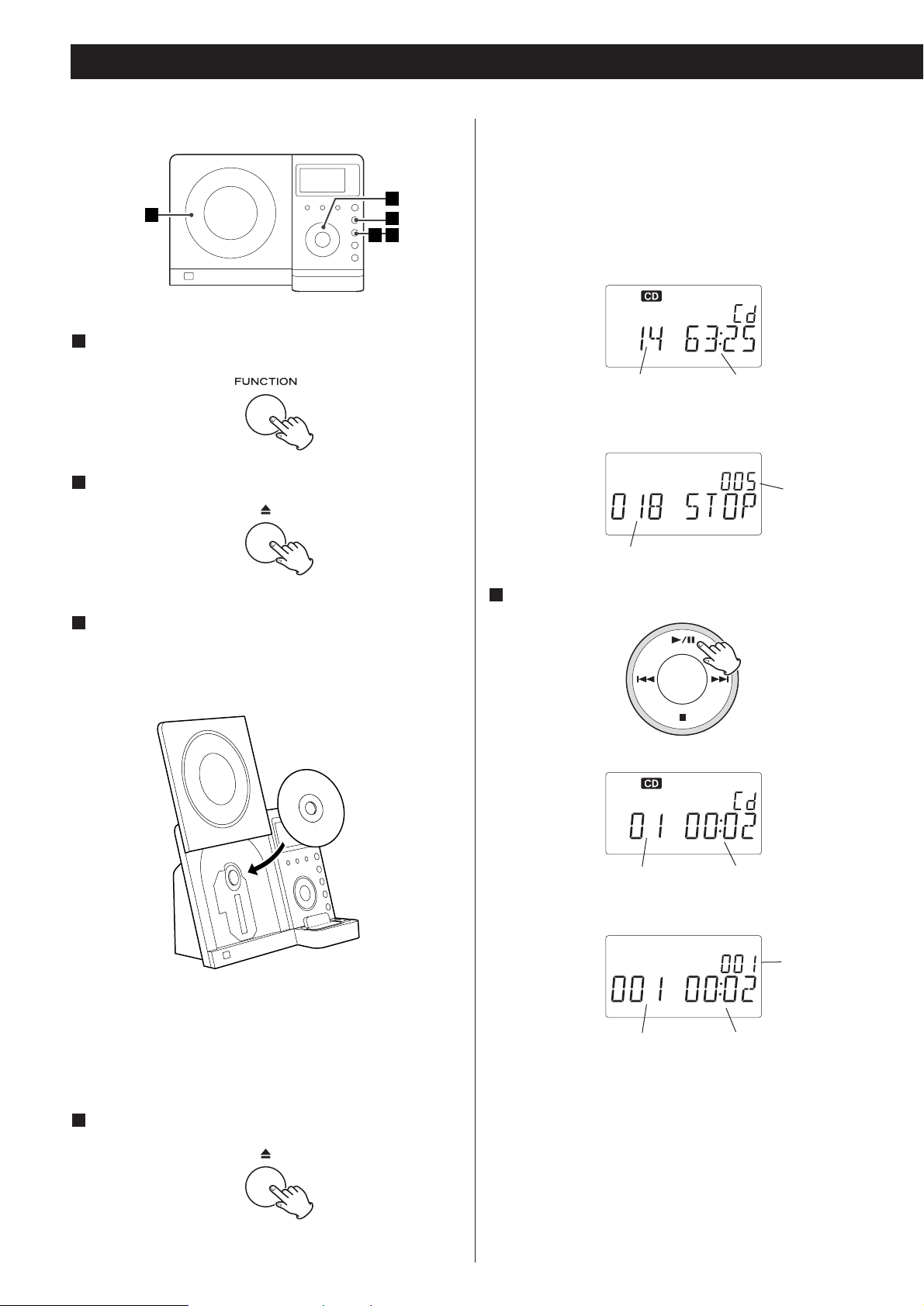

Listening to CD/MP3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

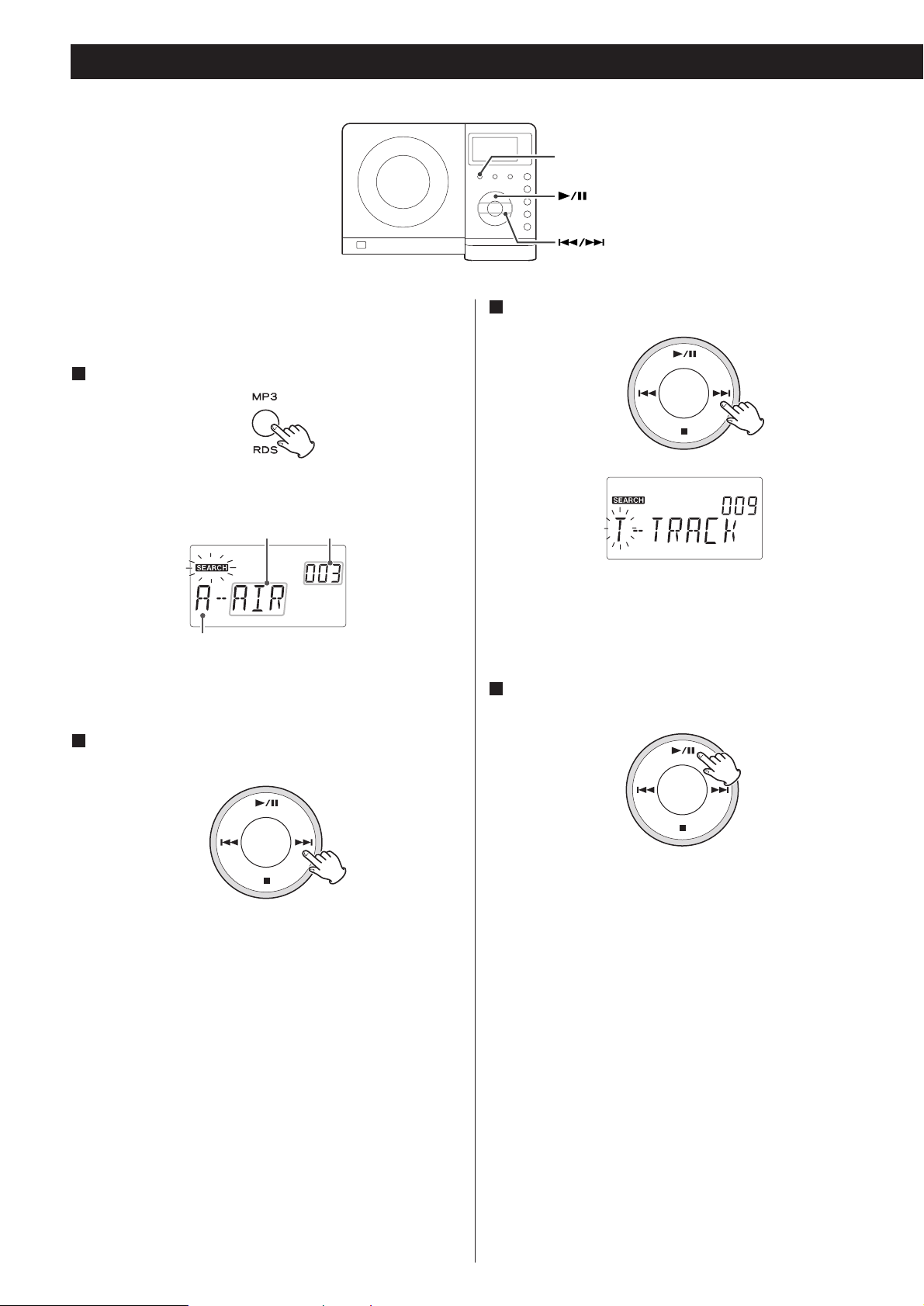

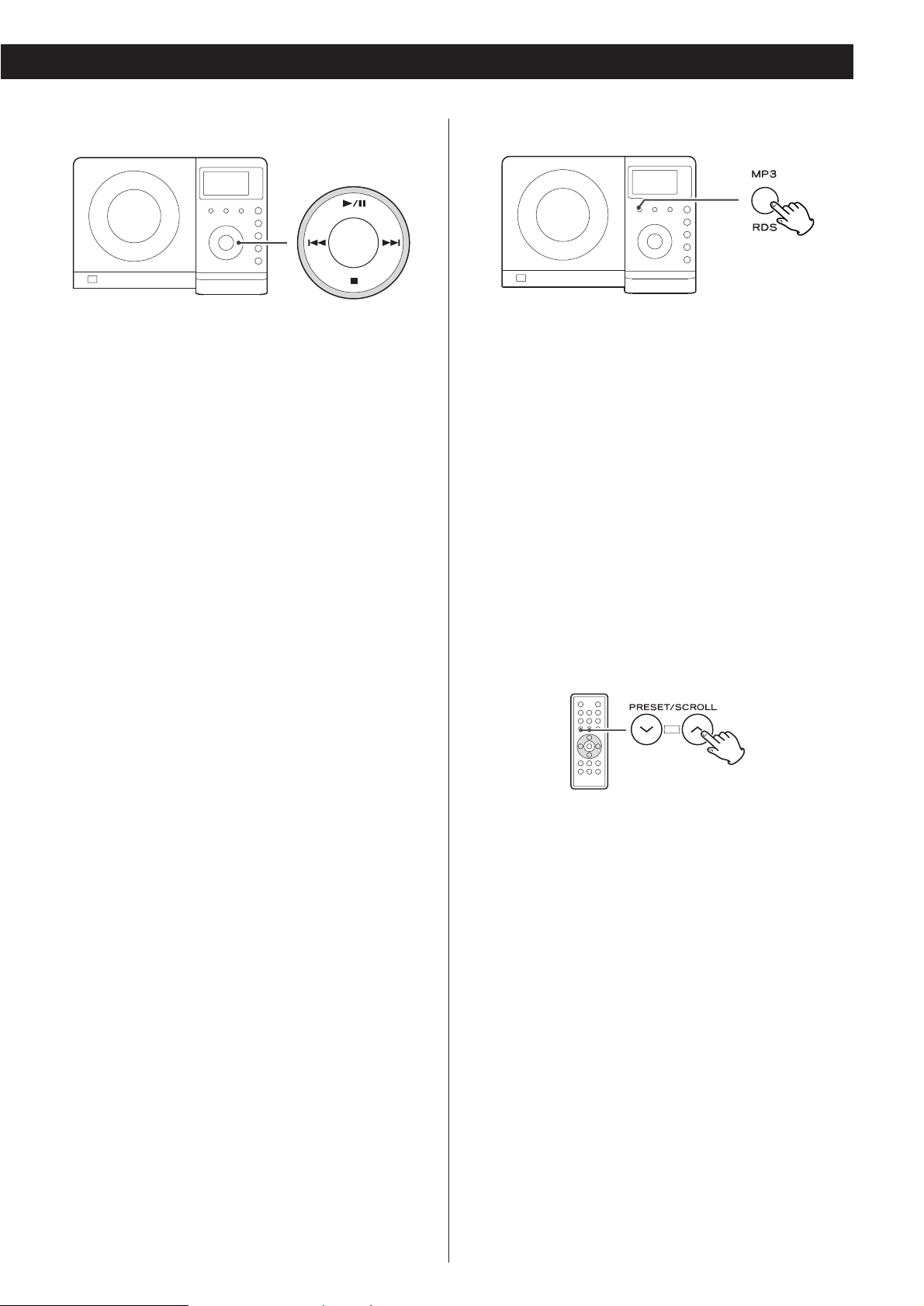

Search Mode (MP3 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

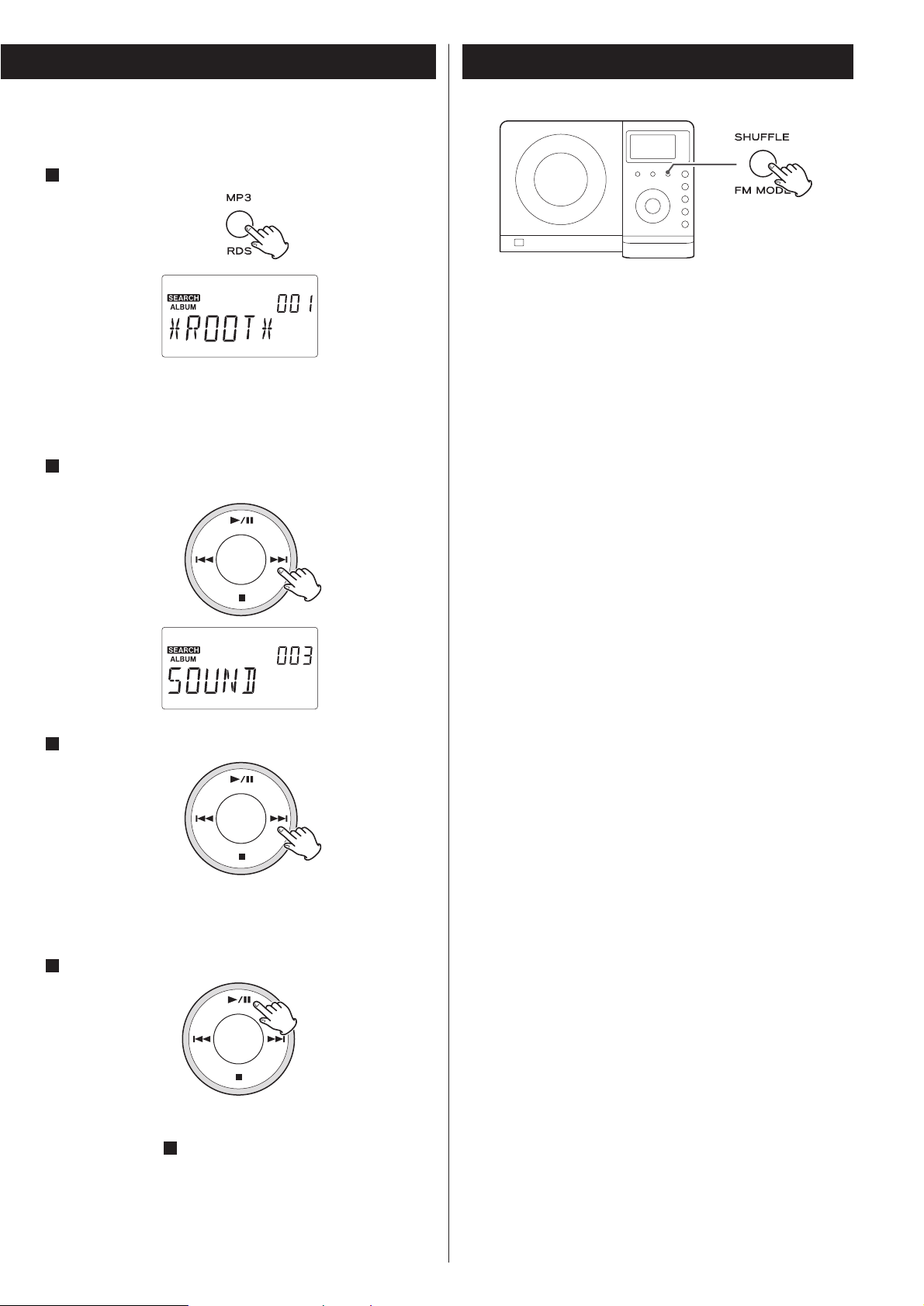

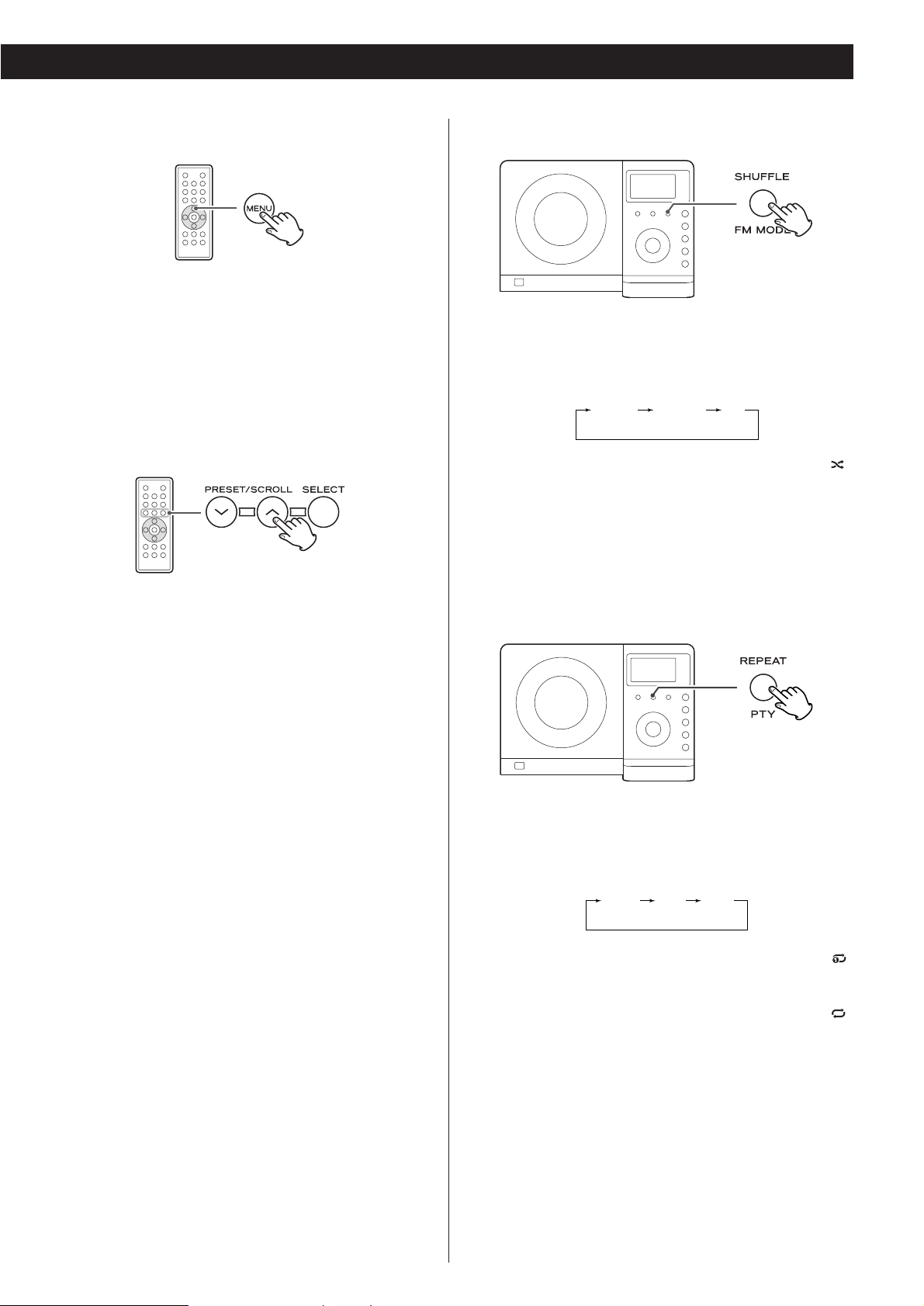

Shuffle Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

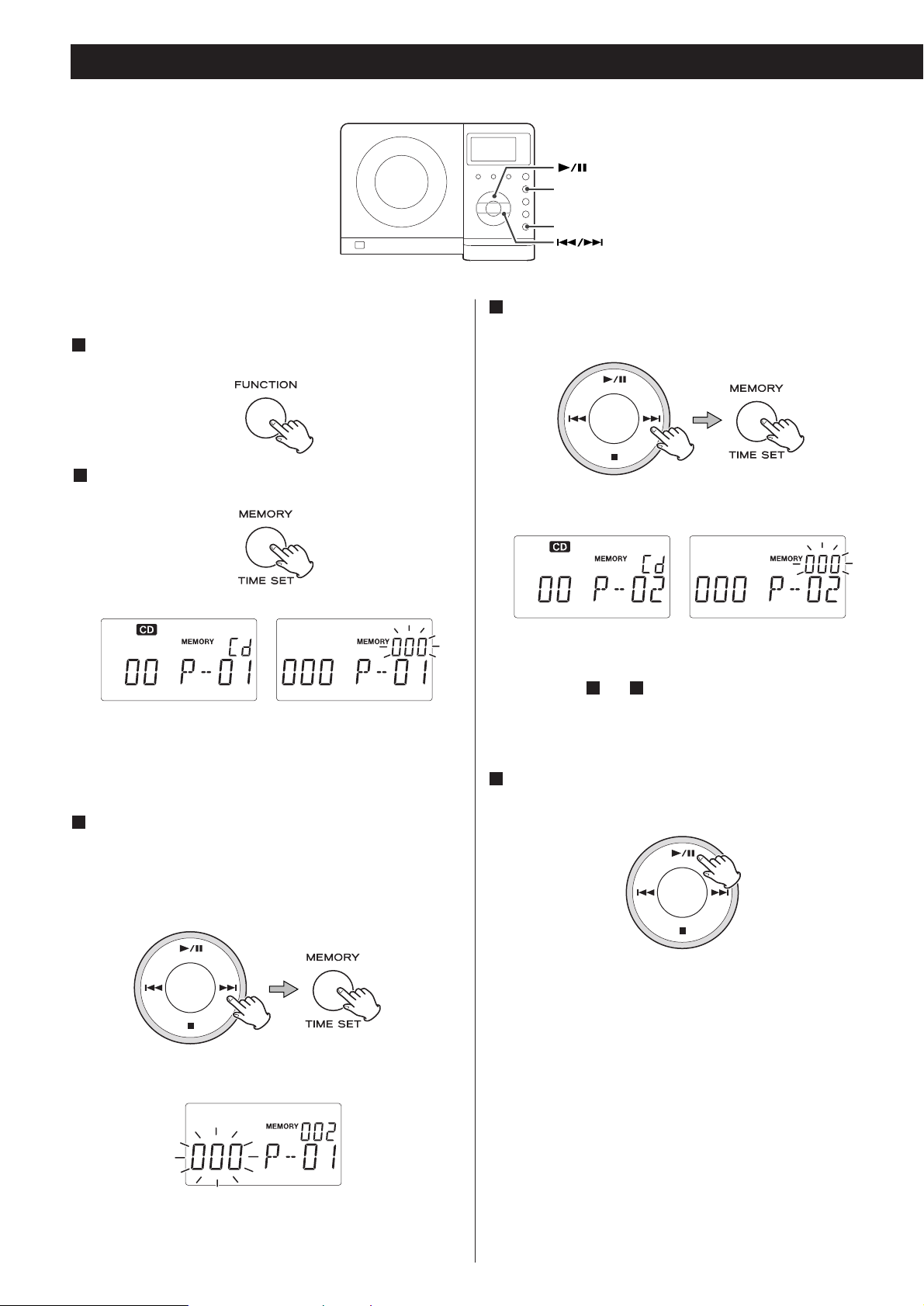

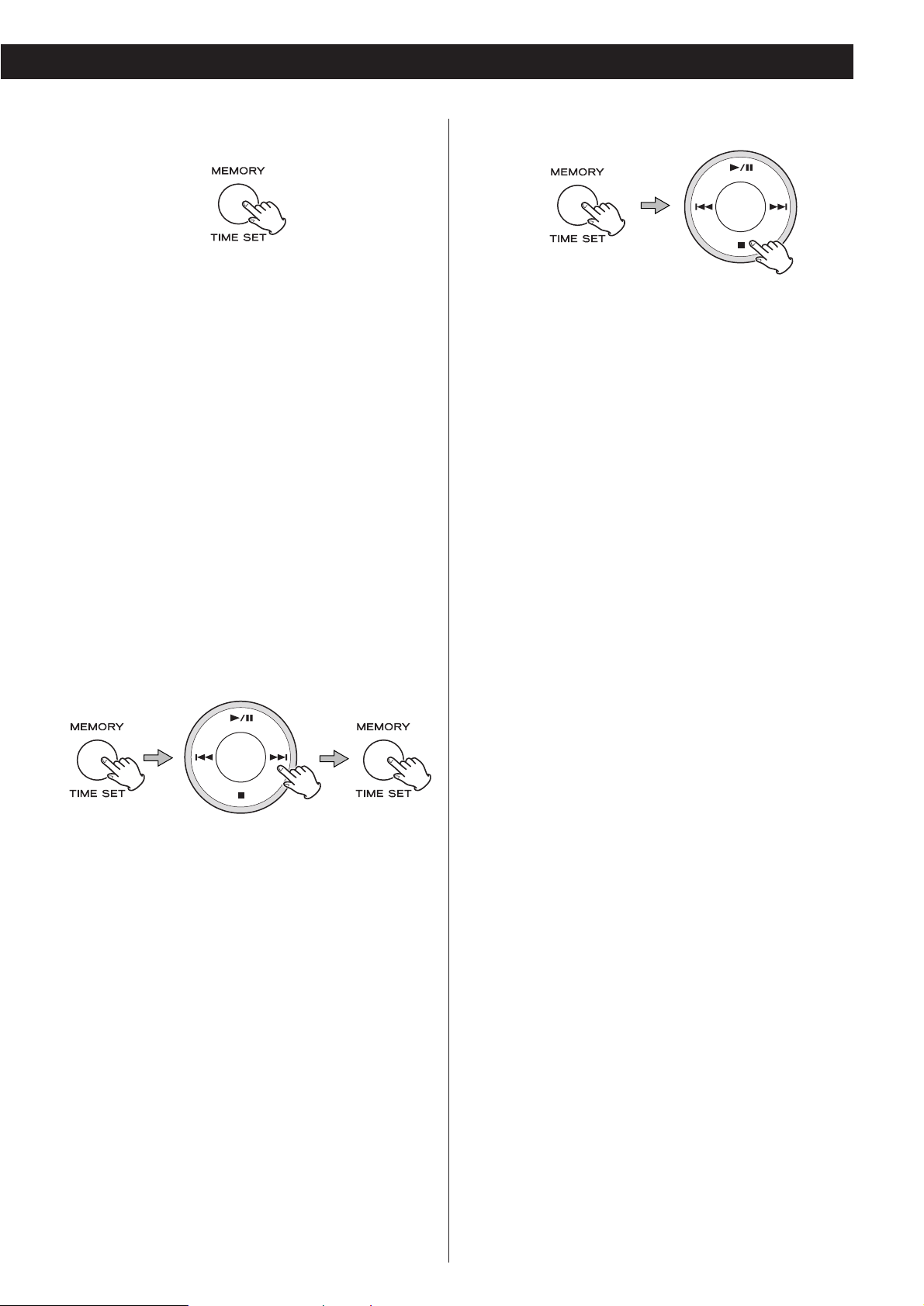

Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

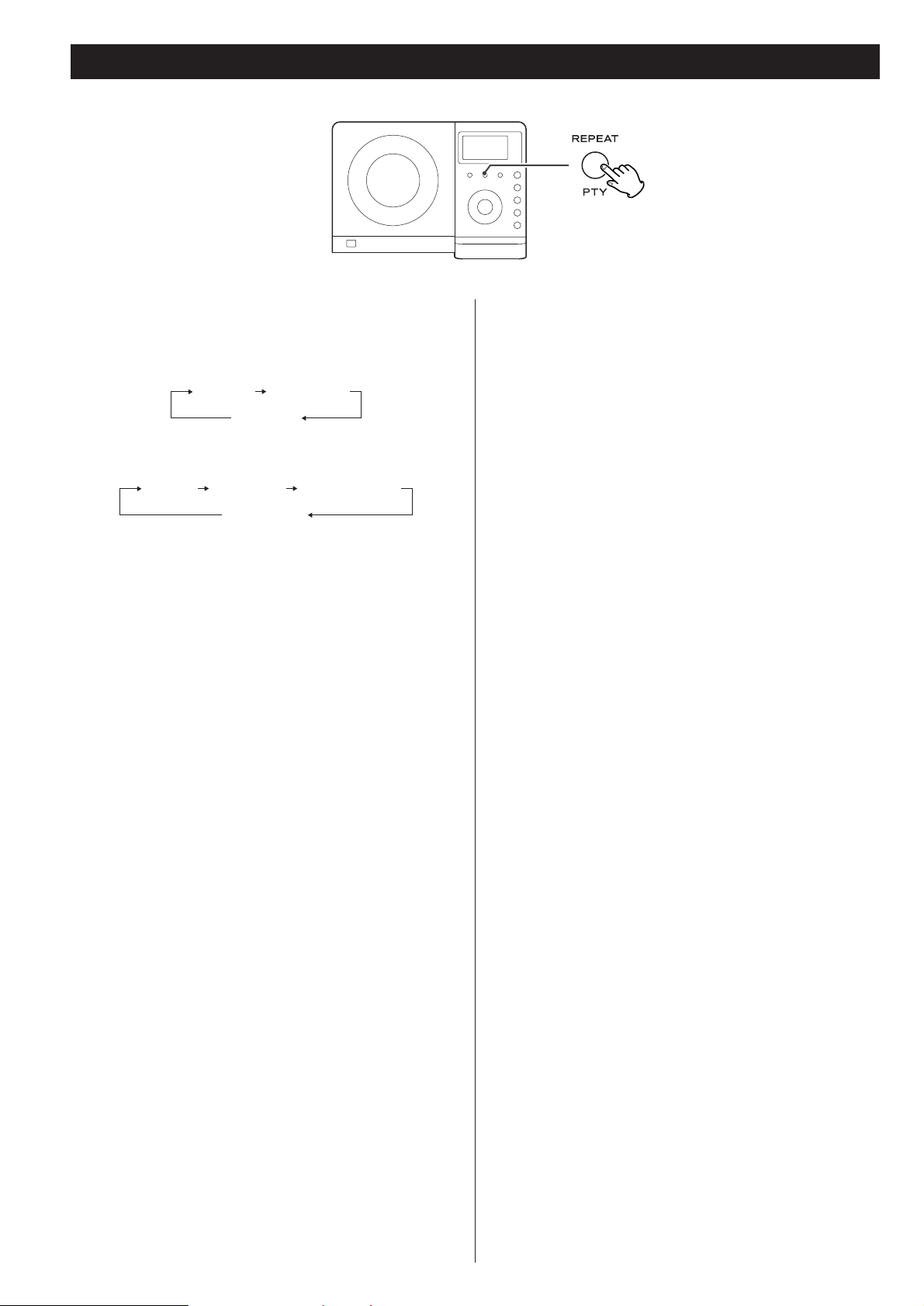

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

TUNER

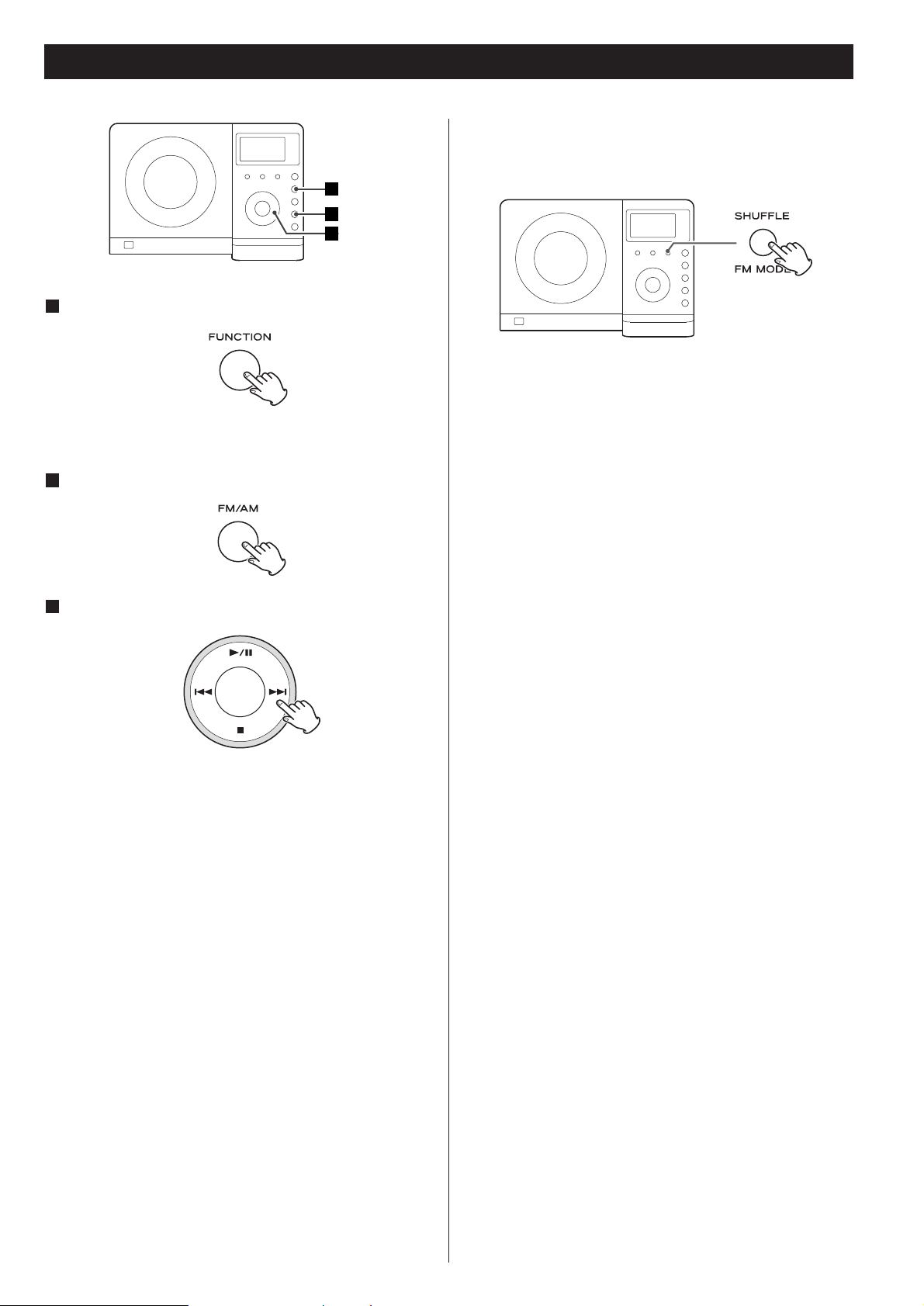

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

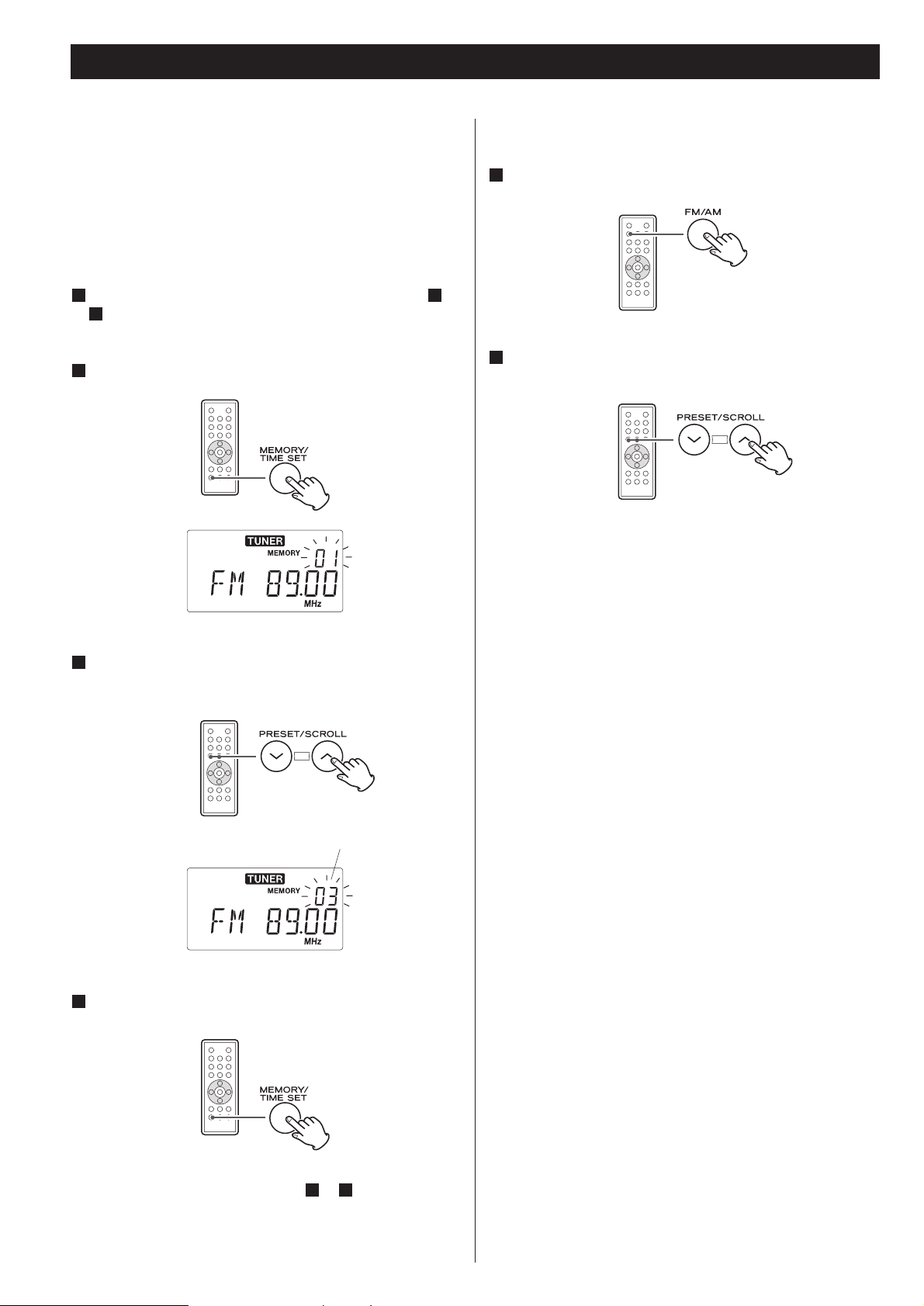

Preset Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

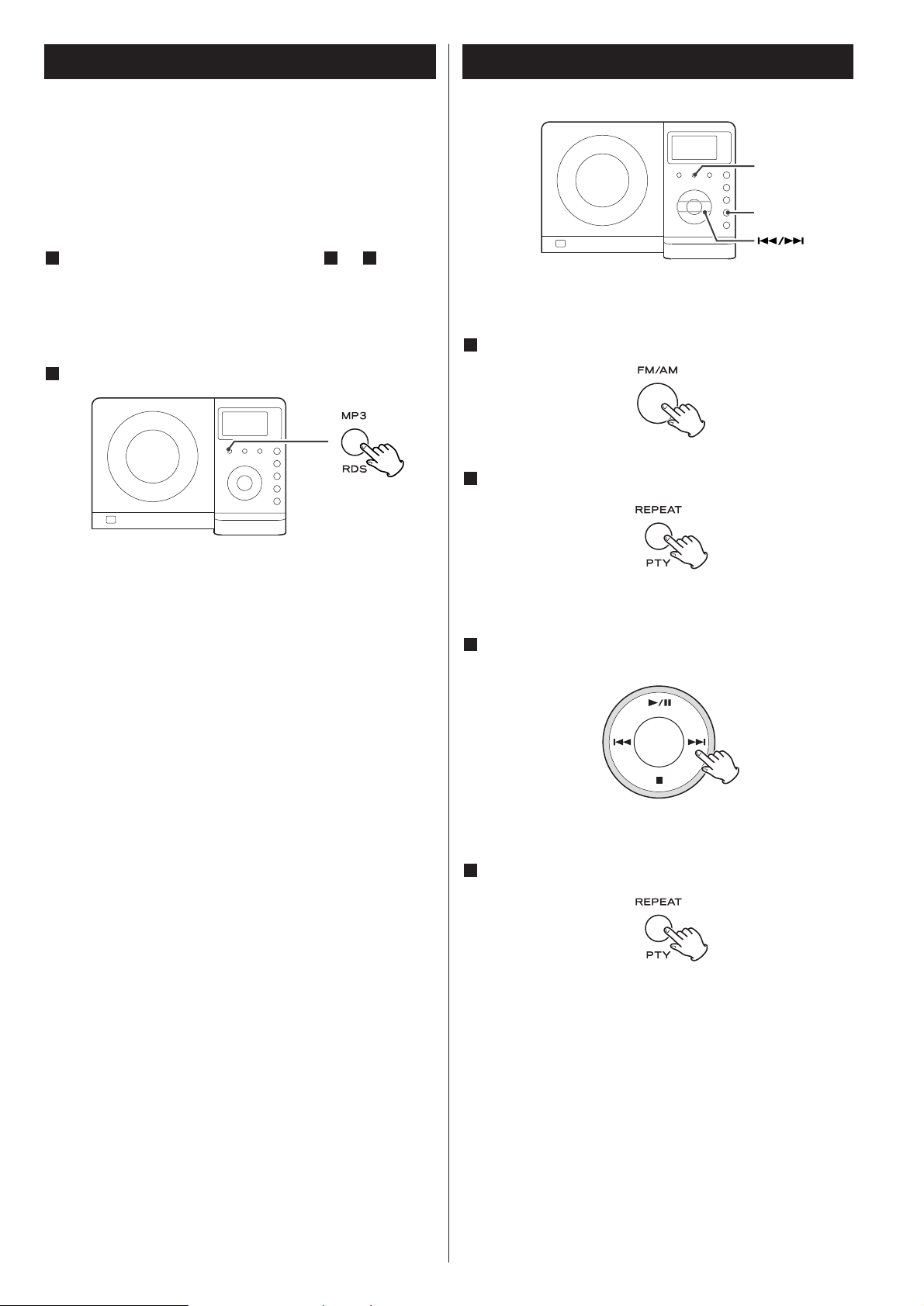

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

RDS (PTY Search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

AUX

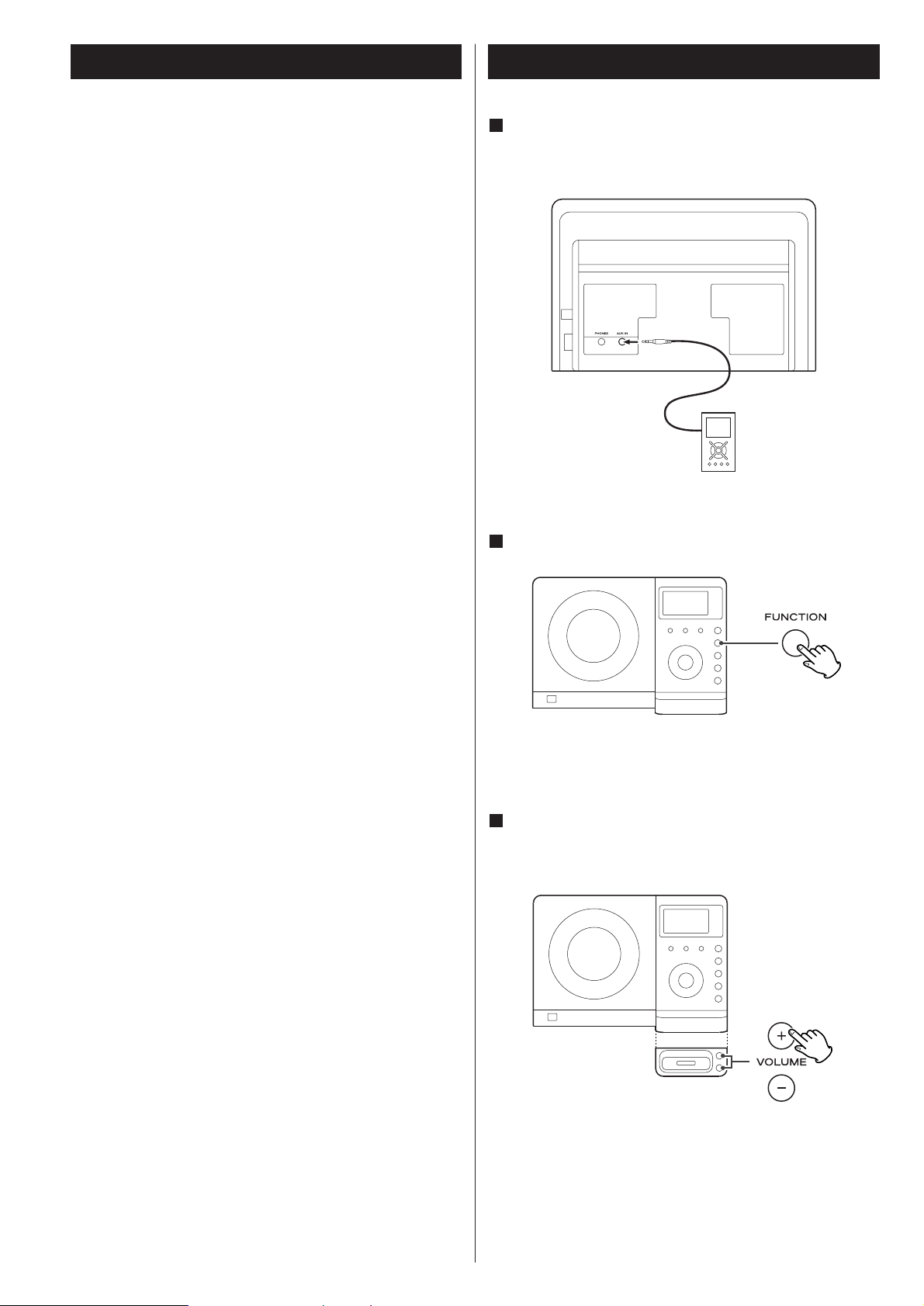

Listening to an External Source . . . . . . . . . . . . . . . . . . . . . . . . 26

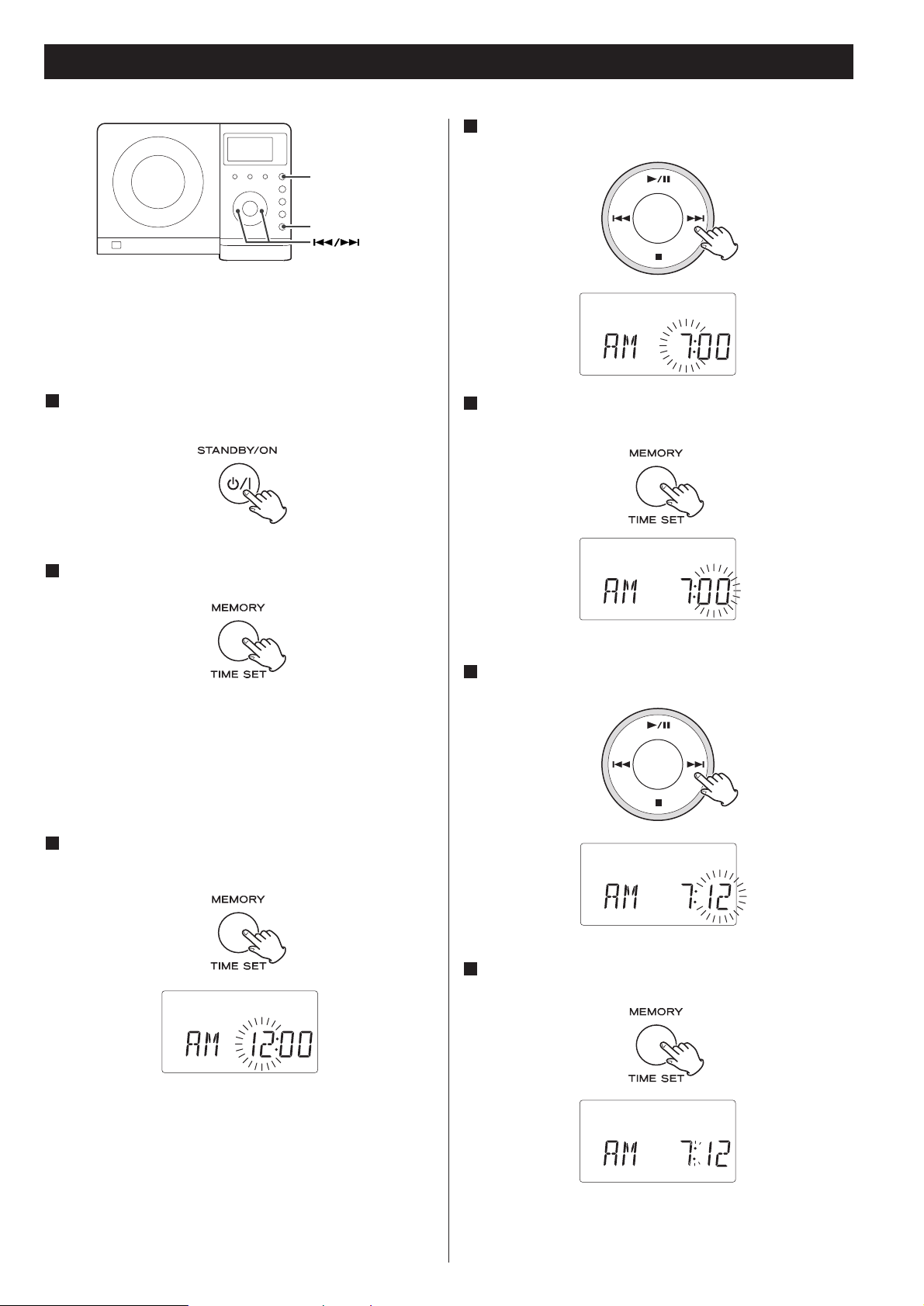

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

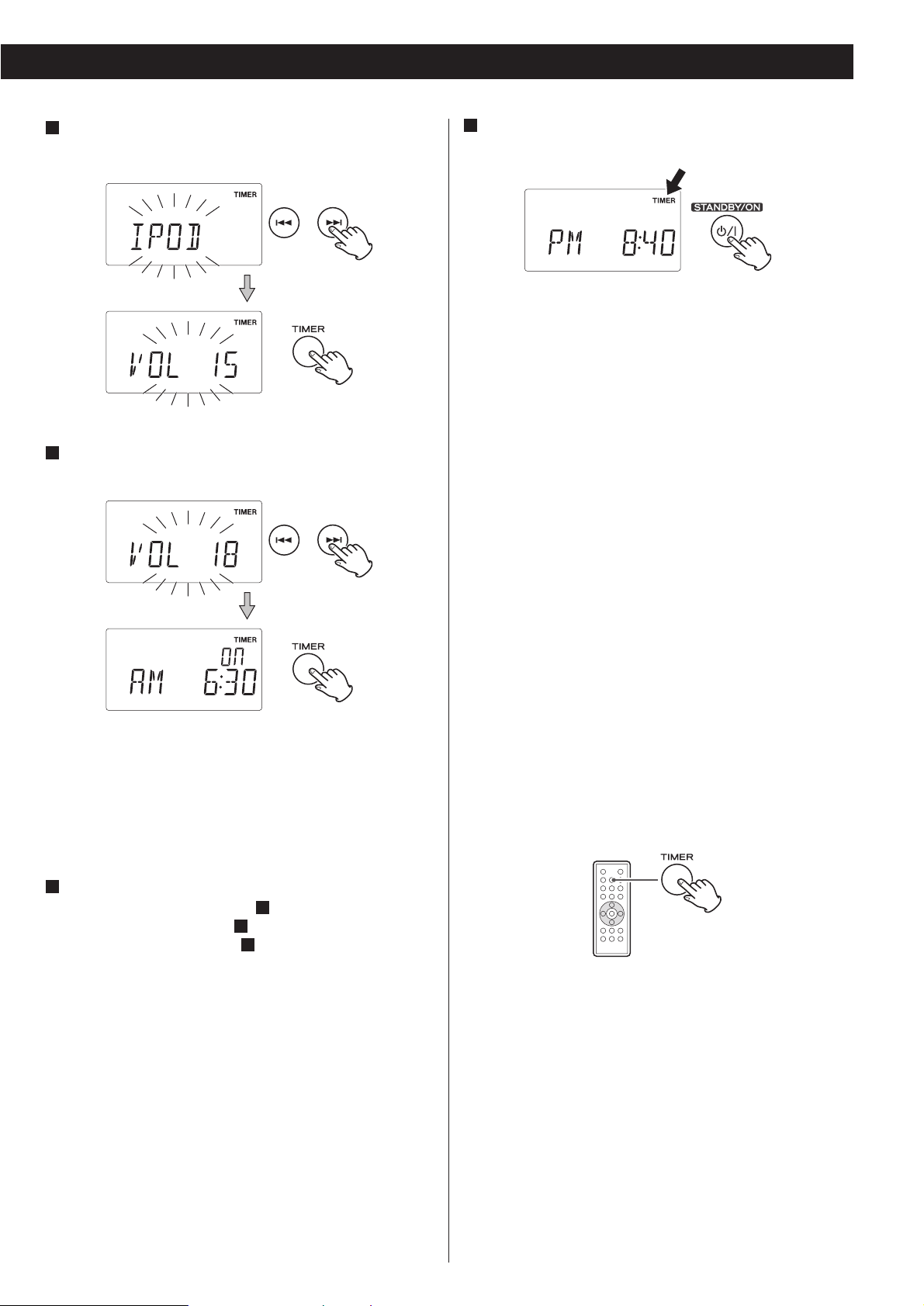

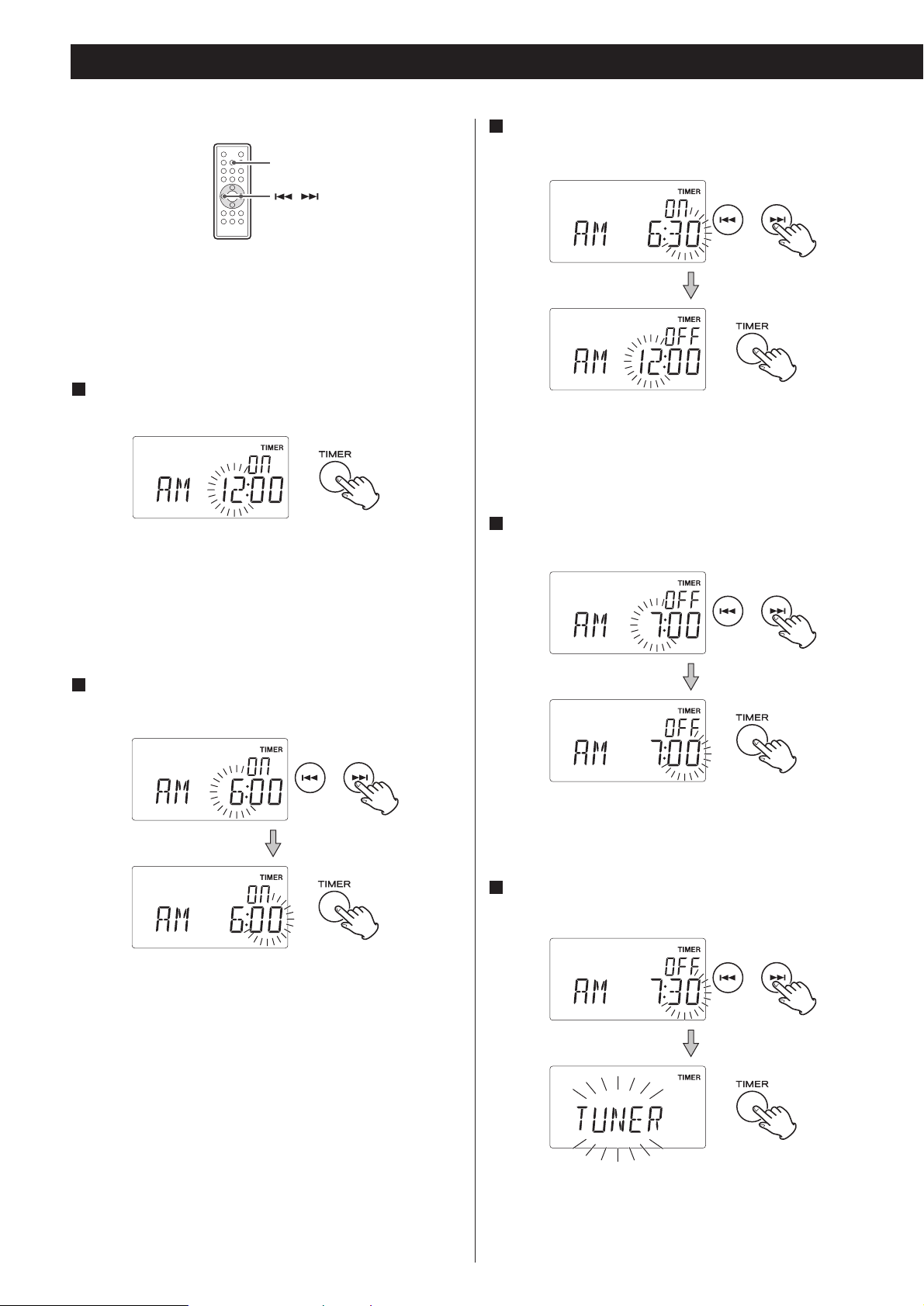

Setting the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

CAUTION

< DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO

EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!

< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,

CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

< USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

< Do not expose this apparatus to drips or splashes.

< Do not place any objects filled with liquids, such as vases, on

the apparatus.

< Do not install this apparatus in a confined space such as a

book case or similar unit.

< The apparatus draws nominal non-operating power from the

AC outlet with its STANDBY/ON switch in the standby position.

< The apparatus should be located close enough to the AC

outlet so that you can easily grasp the power cord plug at any time.

< An apparatus with Class

construction shall be connected to

an AC outlet with a protective grounding connection.

< Batteries (battery pack or batteries installed) shall not be

exposed to excessive heat such as sunshine, fire or the like.

< Excessive sound pressure from earphones and headphones

can cause hearing loss.

Before Using the Unit

Read this before operation

< As the unit may become warm during operation, always leave

sufficient space around the unit for ventilation. The ventilation holes should not be covered. Make sure there is at least 5 cm of space on each side of the unit. Do NOT place anything on top of the unit.

< The voltage supplied to the unit should match the voltage as

printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

< Choose the installation location of your unit carefully. Avoid

placing it in direct sunlight or close to a source of heat. Avoid locations subject to vibrations and excessive dust, heat, cold or moisture.

< Do not place the unit on any other electronic components.

< Do not open the cabinet as this might result in damage to the

circuitry or electrical shock. If a foreign object should fall into the unit, contact your dealer or service company as soon as possible.

< When removing the power plug from a wall outlet, always

pull directly on the plug. Do not pull on the line cord.

< To keep the laser pickup clean, do not touch it and always

close the CD door after each use.

< Do not attempt to clean the unit with chemical solvents as

this might damage the finish. Use a clean, dry, lint-free cloth.

< Keep this manual in a safe place for future reference.

CAUTION: DO NOT MOVE THE UNIT DURING PLAYBACK

During playback, the disc rotates at high speeds. Do NOT lift or move the unit during playback. Doing so may damage the disc or the unit.

WHEN MOVING THIS UNIT

When changing places of installation or packing the unit for moving, be sure to remove the disc. Moving this unit with the disc loaded may result in malfunction or other damage.

NXT is a trademark of New Transducers Ltd.

Remote Control Unit

Remove the battery compartment cover.

Put in the lithium battery (CR2032, 3V).

Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the battery is exhausted. In this case, replace the battery with a new one.

Precautions concerning batteries

Do not heat or disassemble batteries and never dispose of old batteries by throwing them in a fire.

The provided Remote Control Unit allows the unit to be operated from a distance. When operating the remote control unit, point it towards the remote sensor on the front panel of the unit.

< Even if the remote control unit is operated within the effective

range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.

< If the remote control unit is operated near other products

which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other products may also operate incorrectly.

Battery Installation

Discs

Discs which can be played on this unit:

• Conventional audio CDs bearing the COMPACT DISC DIGITAL AUDIO logo on the label:

• Properly finalized CD-R and CD-RW discs

• MP3 CDs

Note:

< Depending on the quality of the disc and/or the condition of

the recording, some CD-R/CD-RW discs may not be playable.

< Copy-protected discs and other discs that do not conform to

the CD standard may not play back correctly in this player. If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such non-standard discs, you should contact the producers of the disc.

MP3 compatibility

< File names of MP3 should be alphanumeric characters. This

unit cannot display symbols and full-size or 2 bytes-wide characters (such as Japanese, Chinese, etc.) correctly. Also, be sure to use the file extension “.mp3”.

< The disc must be finalized in order to play.

< The CD-ROM must be ISO 9660 compatible.

< When more than 200 files or 50 folders are recorded on the

disc, the unit might not be able to play it correctly.

< The file must be mono or stereo MPEG-1 Audio Layer 3

format, 44.1 or 48 kHz, fixed bit-rate.

How to remove the disc How to hold the disc

< Always place the disc on the disc tray with the label side up.

(Compact discs can be played or recorded only on one side.)

< To remove a disc from its storage case, press down on the

center of the case and lift the disc out, holding it carefully by the edges.

< CD-R and CD-RW discs are more sensitive to the effects of

heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location with direct sunlight and keep your discs away from sources of heat such as radiators or heat-generating electrical devices.

< Printable discs aren’t recommended because the label side

might be sticky (or contain glue), which will damage the unit.

< Do not stick papers or protective sheets on the discs and do

not use any protective coating spray.

< Use a soft oil-based felt-tipped pen to write information on

the label side of a disc. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side of the disc.

< Never use a stabilizer. Using commercially available CD

stabilizers with this unit will damage the mechanisms and cause them to malfunction.

< Do not use irregular shape CDs (octagonal, heart shaped,

business card size, etc.). CDs of this sort can damage the unit:

< If you are in any doubt as to the care and handling of any

disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.

< Should the disc become dirty, wipe the surface from the

center hole outward towards the outer edge with a soft, dry, lint-free cloth:

< Never use chemicals such as record (LP) sprays, antistatic

sprays or fluids, benzine or thinner to clean the discs. Such chemicals will do irreparable damage to the disc’s plastic surface.

< Discs should be returned to their cases after each use to avoid

dust and scratches that may eventually cause your disc to skip.

< Do not expose discs to direct sunlight, high humidity, or high

temperatures for extended periods. Long exposure to high temperatures will warp the disc.

< Do not play any disc that is warped, scratched, deformed or

damaged. Playing such discs may cause irreparable harm to the playback mechanism.

Connection

CAUTION

< Turn off the power of all the equipment before making connections. < Read instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, do not bundle the connection

cords with the power cord.

Speaker (R) Speaker (L)

Side panel of the main unit

Subwoofer

Connect the “TO SUBWOOFER” and the “FROM MAIN” sockets using the supplied cable.

< Connect the Connectors in the direction as figured.

AM loop antenna

Position the antenna for the best sound. If you want, you can hook the AM antenna on a wall as shown below:

FM antenna

While in FM mode, tune in an FM station and extend the lead to find the best position for reception. This antenna may need to be repositioned if you move your unit to a new location.

FM Outdoor Antenna

In an area where FM signals are weak, it will be necessary to use a 75-ohm unbalanced-type outdoor FM antenna using an optional (not supplied) matching transformer connected to an external antenna. Generally, a 3-element antenna will be sufficient; if you live in an area where the FM signals are particularly weak, it may be necessary to use one with 5 or more elements.

Outdoor FM Antenna (75Ω)

SPEAKERS

Connect the left speaker’s plug to L, and the right speaker’s plug to R.

< If not using the included speakers, make sure the speakers

you use are at least 4 Ω impedance.

< Do not connect anything other than speakers to these

terminals.

AC Power Cord

Be sure to connect the power cord to an AC outlet which supplies the correct voltage.

Hold the power plug when plugging or unplugging the power cord. Never pull or yank on the power cord.

POWER switch of the Subwoofer

Use this switch to turn the system on or off.

< If the power switch of the subwoofer turned off, the

settings kept in memory (clock, preset stations, timer setting) will be erased. To avoid loosing your settings, it is advisable to keep this switch ON when not in use.

AUX IN

You can connect a portable audio player to this jack. Connect the LINE OUT or PHONES jack (audio output jack) of the player using the supplied stereo mini plug cable.

When using the PHONES jack of your mini player, you must adjust the volume of the mini-player or you may hear no sound from your TD-X250i.

The equipment draws a nominal amount of power from the AC outlet even with its POWER switch in the OFF position.

Wall Mounting

You can mount the left and right speakers on a wall.

Precautions

< Be aware that the length of the cables are approximately 3 m.

Do not attempt to mount the speakers too far from the subwoofer.

< Drill holes into solid wall support, such as wooden frame or

concrete wall.

< TEAC supplies these brackets as a convenience to the product

owner. Consult your local building codes and exercise all necessary caution when mounting these brackets. If you are unsure how to use the supplied brackets, consult with a local tradesmen or building supply expert.

To hook on the wall

1. Fix the brackets on the rear panel of the speakers using the supplied short screws.

2. Use the supplied guide sheet to mark the exact drilling points on the wall.

3. Drill holes in the wall at the marked points.

4. Screw the supplied long screws into the wall.

Leave about 5 mm space between the screw’s head and the wall.

< As a convenience, a set of tapered plastic anchors is supplied.

If you chose to use these anchors, drill a pilot hole using a 6 mm drill bit then tap the anchor into the pilot hole. Only use these anchors if they are appropriate for the materials onto which the unit is to be mounted. Consult your local hardware store if you are uncertain.

5.Before going on, connect the speakers and the

subwoofer using the supplied speaker cables (see page 6-7).

6. Carefully hang the speakers onto the screws.

Note:

Ensure that the speaker locks onto the hooks and that the hooks are strong enough to support the weight before removing your hands.

The TD-X250i comes mounted with an adapter for iPod with color display (40GB, 60GB), “60GB (color) + Photo 40GB/60GB”. To play your iPod through the TD-X250i, you have first to check if the factory mounted adapter fits your model of iPod. If it does not, you have to replace it with a correct one, as explained below.

1. Remove the adapter from the Dock of the TD-X250i.

Hold the left and right sides of the adapter and gently pull it up.

2. Choose the Dock adapter that fits your iPod mobile digital device.

“Video 30GB” for iPod with video (30 GB).

“Video 60GB/80GB” for iPod with video (60 GB, 80 GB).

“nano” for iPod nano.

“mini” for iPod mini.

“20GB (color) + Photo 30GB” for iPod with color display (20GB, 30GB, U2 Special Edition).

“60GB (color) + Photo 40GB/60GB” for iPod with color display (40GB, 60GB).

“20GB + U2” for iPod with Click Wheel (20 GB, U2 Special Edition).

“40GB” for iPod with Click Wheel (40 GB).

< Use a commercially available adapter to play iPod with dock

connector (with four buttons under the display).

< When you need to remove the adapter, hold the left and

right sides of the adapter and gently pull it up.

< When you don’t use the Dock, use the supplied cover for the

Dock to prevent dust from settling on the Dock.

3. Insert the adapter into the Dock of the TD-X250i.

Fit the front edge of the adapter into the Dock, and then press the back edge of the adapter onto the Dock until a slight “click” is heard indicating the adapter is inserted correctly.

Compatible iPod Software

In case your iPod will not work with the TD-X250i or with the remote control unit, software update may solve the problem. Visit the Apple website and download the latest iPod Software.

http://www.apple.com/ipod/download/

iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

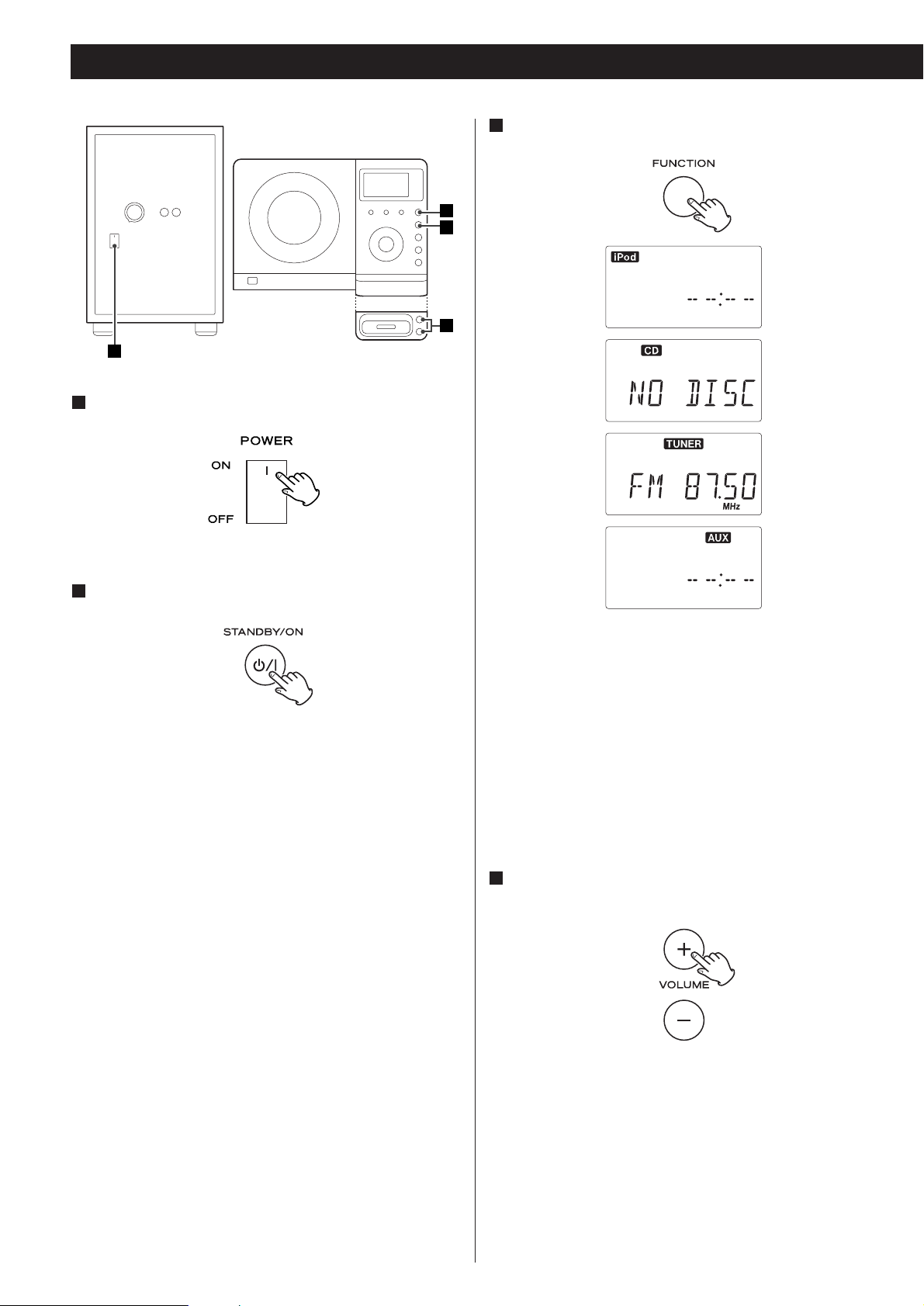

Getting started

Note:

To simplify explanations, instructions in this manual refer to the names of the buttons and controls on the front panel only. Associated controls on the remote control will also operate similarly.

Unit Functions

U V

CBA D E

C D

+ 22 hidden pages

Teac TD-X250I User Manual

IMPORTANT SAFETY INSTRUCTIONS

Contents

Before Using the Unit

Remote Control Unit

Discs

Connection

Wall Mounting

Getting started

Unit Functions
