TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
PORTABLE CART WARNIN
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
S3125A
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or water,
Safety Information and Introduction
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician to
restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or
electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and follow
local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is
adequate ventilation.
Leave 20 cm (8") of free space at the top and sides and
10 cm (4") at the rear. The rear edge of the shelf or
board above the apparatus shall be set 10 cm (4") away
from the rear panel or wall, creating a flue-like gap for
warm air to escape.
The temperature protection operates if the apparatus
attain an abnormal high temperature.
The apparatus cannot operate until it has cooled down.
En-2
Precautions
1. Recording Copyright—Unless it’s for personal use
only, recording copyrighted material is illegal without
the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact the
dealer from whom you purchased this unit.
3. Care—Occasionally you should dust the unit all over
with a soft cloth. For stubborn stains, use a soft cloth
dampened with a weak solution of mild detergent and
water. Dry the unit immediately afterwards with a
clean cloth. Don’t use abrasive cloths, thinners,
alcohol, or other chemical solvents, because they may
damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SECTION
CAREFULLY.
AC outlet voltages vary from country to country. Make
sure that the voltage in your area meets the voltage
requirements printed on the unit’s rear panel (e.g., AC
230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug is
readily operable (easily accessible) at all times.
For models with [POWER] button, or with both
[POWER] and [STANDBY/ON] buttons:
Pressing the [POWER] button to select OFF mode
does not fully disconnect from the mains. If you do not
intend to use the unit for an extended period, remove
the power cord from the AC outlet.
For models with [STANDBY/ON] button only:
Pressing the [STANDBY/ON] button to select
Standby mode does not fully disconnect from the
mains. If you do not intend to use the unit for an
extended period, remove the power cord from the AC
outlet.
Safety Information and Introduction
5. Preventing Hearing Loss
Caution
Excessive sound pressure from earphones and
headphones can cause hearing loss.
6. Batteries and Heat Exposure
Warning
Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat as sunshine, fire or the
like.
7. Never Touch this Unit with Wet Hands—Never
handle this unit or its power cord while your hands are
wet or damp. If water or any other liquid gets inside
this unit, have it checked by the dealer from whom you
purchased this unit.
8. Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you originally
bought it.
• Do not leave rubber or plastic items on this unit for a
long time, because they may leave marks on the
case.
• This unit’s top and rear panels may get warm after
prolonged use. This is normal.
• If you do not use this unit for a long time, it may not
work properly the next time you turn it on, so be sure
to use it occasionally.
En-3
Supplied Accessories
Make sure you have the following accessories:
Indoor FM antenna (➔ page 18)
AM loop antenna (➔ page 18)
Speaker cable labels (➔ page 12)
Speaker setup microphone (➔ page 27)
Remote controller (RC-1303) and two batteries (AA/R6)
Quick Start Guide
*
In catalogs and on packaging, the letter at the end of the product
name indicates the color. Specifications and operations are the
same regardless of color.
■ Installing the batteries
Batteries (AA/R6)
Note
• If the remote controller doesn’t work reliably, try replacing the
batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time,
remove the batteries to prevent damage from leakage or
corrosion.
• Remove expired batteries as soon as possible to prevent damage
from leakage or corrosion.
• Be sure to insert the batteries with correct positive (+) and
negative (–) orientations.
• If the batteries leak, wipe away the leakage inside the battery
compartment and replace the batteries with new ones.
Safety Information and Introduction
• Do not heat or disassemble batteries.
• Do not carry or store batteries with other metallic objects. The
batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a
rechargeable type.
■ Aiming the remote controller
To use the remote controller, point it at the AV receiver’s
remote control sensor, as shown below.
Remote control sensor
AV receiver
Approx. 5 m
Thank you for purchasing a TEAC AV Receiver.
Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will
enable you to obtain optimum performance and
listening enjoyment from your new AV Receiver.
Please retain this manual for future reference.
En-4
Table of Contents
Safety Information and Introduction
Important Safety Instructions ......................................2
For detailed information, see the pages in parentheses.
a STANDBY/ON button (19)
b HDMI THRU indicator (49)
c SUBWOOFER LEVEL buttons (50)
d Remote control sensor (4)
e LISTENING MODE buttons (30)
f Display (8)
g RT/PTY/TP button (25)
h MEMORY button (24)
i TUNING MODE button (23)
j DISPLAY button (36)
k SETUP button (39)
d
qo
l TUNING q/w (23), PRESET e/r (24), cursor and
m RETURN button
n MASTER VOLUME control (20)
o MUSIC OPTIMIZER button (37, 51)
p PHONES jack (37)
q TONE and Tone Level buttons (50)
r Input selector buttons (20)
s AUX INPUT AUDIO and VIDEO jacks (16)
t USB port (16)
u SETUP MIC jack (27)
egfhijklm n
rs
ENTER buttons
t u
En-7
Display
Safety Information and Introduction
bca
For detailed information, see the pages in parentheses.
a HDMI indicator (49, 63)
b M.Opt indicator (37, 51)
c Listening mode and format indicators (30, 47)
d Audyssey indicator (27, 45)
RDS indicator (25)
AUTO indicator (23)
TUNED indicator (23)
FM STEREO indicator (23)
f SLEEP indicator (35)
g MUTING indicator (37)
h Message area
ed
f
g
h
En-8
Rear Panel
Safety Information and Introduction
abc
g
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e SUBWOOFER PRE OUT jack
f Power cord
g uREMOTE CONTROL jack
h Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
e
d
hi
i MONITOR OUT V jack
j SPEAKERS terminals
(FRONT, CENTER, SURROUND, SURROUND
BACK or FRONT HIGH)
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 18).
f
j
En-9

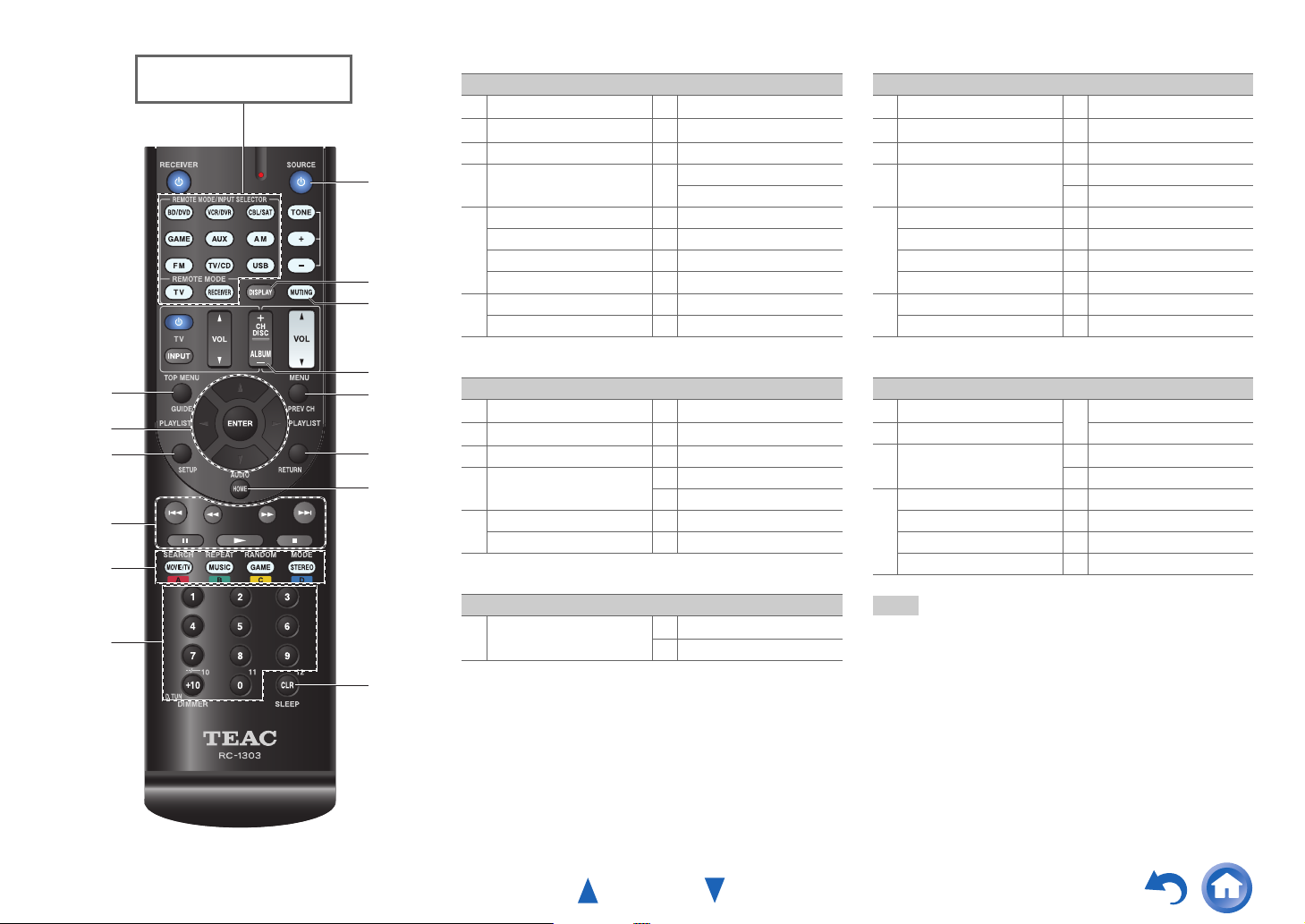

Remote Controller
Controlling the AV Receiver
*1
a
*1
b
ac
d
e
*1
g
*1
h
ic
*1
j
d
k
l

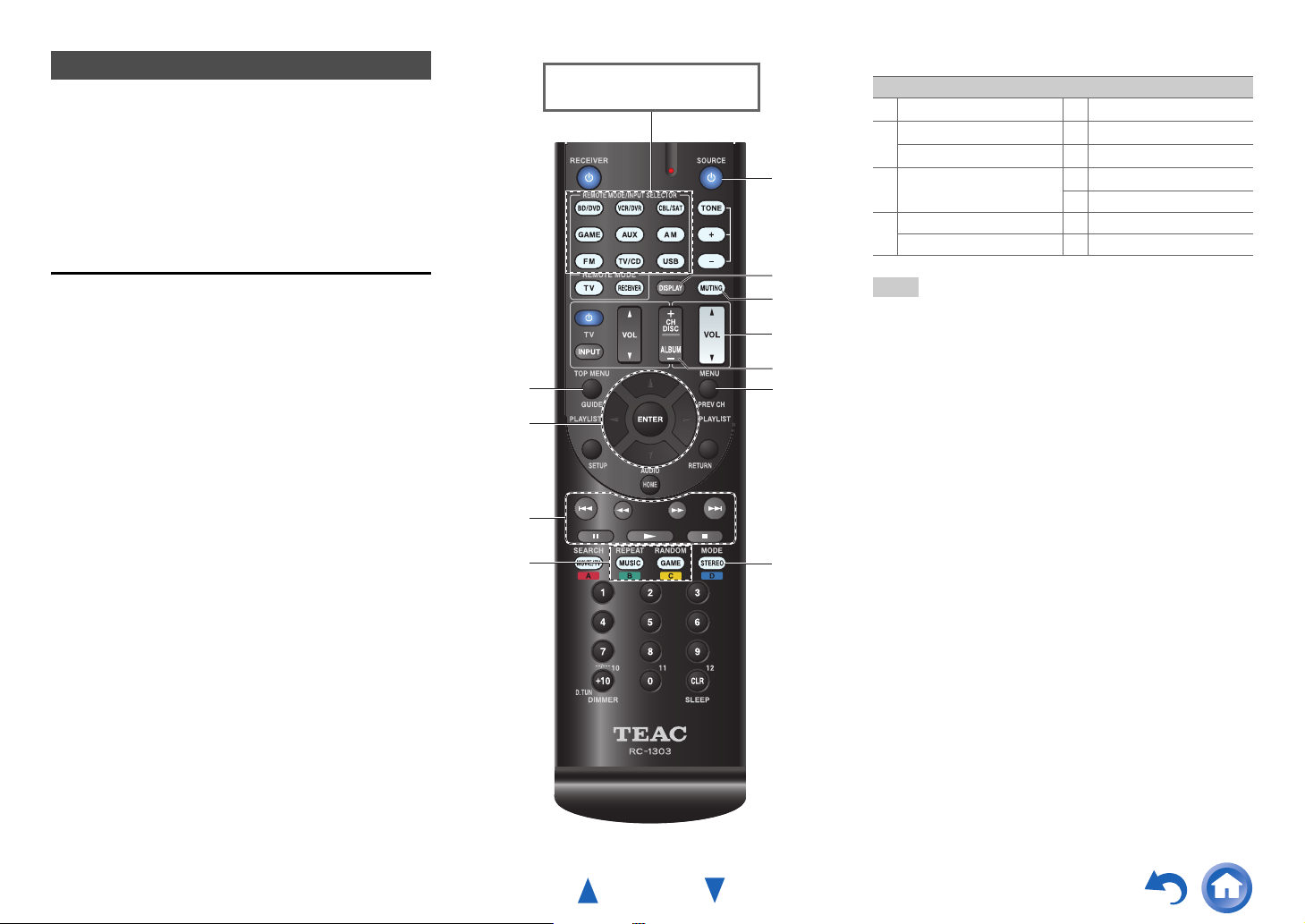

To control the AV receiver, press RECEIVER to select
Receiver mode.
You can also use the remote controller to control
TEAC(Esoteric)/TASCAM Blu-ray Disc/DVD player,
CD player, and other components.
See “Entering Remote Control Codes” for more
details (➔ page 54).
For detailed information, see the pages in parentheses.
a 8RECEIVER button (19)
b REMOTE MODE/INPUT SELECTOR buttons (20)
c q/w/e/r and ENTER buttons
d SETUP button (39)
e Listening Mode buttons (30)
f DIMMER button (36)
g TONE and Tone Level buttons (50)
h MUTING button (37)
i DISPLAY button (36)
j VOL q/w button (20)
k RETURN button
l HOME button (35)
m SLEEP button (35)
Safety Information and Introduction
■ Controlling the tuner
To control the AV receiver’s tuner, press AM or FM (or
RECEIVER).
a q/w buttons (23)
b D.TUN button (24)
c DISPLAY button
d CH +/– button (24)
e Number buttons (24)
*1
These buttons can also be used when a REMOTE MODE
other than Receiver mode is selected.
bf
e
m
En-10
Connections
Connecting the AV
Receiver
Connecting Your Speakers
Speaker Configuration
The following table indicates the channels you should use
depending on the number of speakers that you have.
No matter how many speakers you use, a powered
subwoofer is recommended for a really powerful and solid
bass.
To get the best from your surround sound system, you need
to set the speaker settings automatically (➔ page 27) or
manually (➔ page 42).
Number of speakers2 3 4 5 6 7 7
Front speakers✔✔✔✔✔✔✔
Center speaker✔✔✔✔✔
Surround speakers✔✔✔✔✔
Surround back speaker
Surround back speakers
Front high speakers
*1
If you’re using only one surround back speaker, connect it to
the SURROUND BACK or FRONT HIGH L terminals.
*2
Front high and surround back speakers cannot be used at the
same time.
*1*2
*2
*2
✔
✔
✔
Connecting the Speaker Cables
The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround
back speaker, connect it to the SURROUND BACK or FRONT HIGH L terminals.
Tip
• You can specify whether surround back or front high speakers are connected in the “Sp Config (Speaker Configuration)” menu
(➔ page 42) or during Audyssey 2EQ
Surround back/
front high
right
®
Room Correction and Speaker Setup (➔ page 27).
Surround back/
front high
left
Surround
right
Surround
left
Center
■ Screw-type speaker terminals
Strip 12 to 15 mm of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown.
12 to 15 mm
En-11
Front rightFront left
Attaching the Speaker Cable Labels
The speaker terminals are color-coded for identification
purpose.
SpeakerColor
Front left, Front high leftWhite
Front right, Front high rightRed
CenterGreen
Surround leftBlue
Surround rightGray
Surround back leftBrown
Surround back rightTan
The supplied speaker cable labels are also color-coded and
you should attach them to the positive (+) side of each
speaker cable in accordance with the table above. Then all
you need to do is to match the color of each label to the
corresponding speaker terminal.
Speaker Connection Precautions
Read the following before connecting your speakers:
• You can connect speakers with an impedance of between
6 and 16 ohms. If you use speakers with a lower
impedance, and use the amplifier at high volume levels
for a long period of time, the built-in amp protection
circuit may be activated.
• Disconnect the power cord from the wall outlet before
making any connections.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals only to positive (+)
terminals, and negative (–) terminals only to negative (–)
terminals. If you get them the wrong way around, the
sound will be out of phase and will sound unnatural.
• Unnecessarily long, or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the positive and negative wires.
Doing so may damage the AV receiver.
• Make sure the metal core of the wire does not have
contact with the AV receiver’s rear panel. Doing so may
damage the AV receiver.
Connections
• Don’t connect more than one cable to each speaker
terminal. Doing so may damage the AV receiver.
• Don’t connect one speaker to several terminals.
En-12
Using a Powered Subwoofer
LINE INPUT
LINE INPUT
Powered subwoofer
Corner
position
1/3 of wall
position
To find the best position for your subwoofer, while playing
a movie or some music with good bass, experiment by
placing your subwoofer at various positions within the
room, and choose the one that provides the most satisfying
results.
Tip
• If your subwoofer is unpowered and you’re using an external
amplifier, connect the subwoofer pre out jack to an input on the
amplifier.
Connections
En-13
About AV Connections
Connecting AV components
a
HDMI cable
TV, projector, etc.
*1
Blu-ray Disc/
DVD player
Other cables
TV, projector, etc.
Blu-ray Disc/
DVD player
*1
If your TV doesn’t support Audio Return Channel (ARC), you
need to connect an optical digital cable together with the
HDMI cable to the AV receiver.
• Before making any AV connections, read the manuals
supplied with your AV components.
• Don’t connect the power cord until you’ve completed and
double-checked all AV connections.
: Video & Audio
AV receiver
Game console
: Video: Audio
AV receiver
Game console
• Push plugs in all the way to make
Right!
good connections (loose connections
can cause noise or malfunctions).
• To prevent interference, keep audio
and video cables away from power
Wrong!
cords and speaker cables.
AV Cables and Jacks
■ HDMI
HDMI connections can carry digital video and audio.
■ Component video
Component video separates the luminance (Y) and color
difference signals (P
quality (some TV manufacturers label their component
video sockets slightly differently).
Y
P
B
PR
■ Composite video
Composite video is commonly used on TVs, VCRs, and
other video equipment.
B, PR), providing the best picture
Green
Blue
Red
Yellow
Connections
■ Optical digital audio
Optical digital connections allow you to enjoy digital
sound such as PCM
*2
, Dolby Digital or DTS. The audio
quality is the same as coaxial.
■ Coaxial digital audio
Coaxial digital connections allow you to enjoy digital
*2
sound such as PCM
, Dolby Digital or DTS. The audio
quality is the same as optical.
Orange
■ Analog audio (RCA)
Analog audio connections (RCA) carry analog audio.
White
Red
*2
For PCM signals, the supported sampling rates are
32/44.1/48/88.2/96 kHz. With HDMI connections, 176.4 and
192 kHz are also supported.
Note
• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers
that open when an optical plug is inserted and close when it’s
removed. Push plugs in all the way.
Caution
• To prevent shutter damage, hold the optical plug straight
when inserting and removing.
En-14
Connecting Components with HDMI
VCR or DVD recorder/digital video recorder
Connections
Game console
Satellite/cable set-top box, etc.Blu-ray Disc/DVD player
*
If your TV doesn’t support Audio Return Channel (ARC), you
need to connect an optical digital cable together with the HDMI
cable to the AV receiver.
*
When listening to an HDMI component through the AV
receiver, set the HDMI component so that its video can be seen
on the TV screen (on the TV, select the input of the HDMI
component connected to the AV receiver). If the TV power is off
or the TV is set to another input source, this may result in no
sound from the AV receiver or the sound may be cut off.
Connect your components to the appropriate jacks. The
default input assignments are shown below.
✔: Assignment can be changed (➔ page 41).
JackComponents
HDMI IN1Blu-ray Disc/DVD player✔
HDMI IN2VCR or DVD recorder/digital video recorder ✔
HDMI IN3Satellite/cable set-top box, etc.✔
HDMI IN4Game console✔
HDMI OUT TV, projector, etc.
See also:
• “Connection Tips and Video Signal Path” (➔ page 63)
• “Using an RIHD-compatible TV, Player, or Recorder”
(➔ page 64)
• “About HDMI” (➔ page 66)
Tip
• To listen to the audio of a component connected via HDMI
through your TV’s speakers, enable “HDMI Through”
(➔ page 49) and set the AV receiver to standby mode.
Note
• In the case of Blu-ray Disc/DVD players, if no sound is output
despite following the above-mentioned procedure, set your Bluray Disc/DVD player’s HDMI audio settings to PCM.
TV, projector, etc.
■ Audio Return Channel (ARC) function
Audio Return Channel (ARC) function enables an HDMI
capable TV to send the audio stream to the HDMI OUT of
the AV receiver.
• This function can be used when:
– Your TV is ARC capable, and
–The TV/CD input selector is selected, and
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48), and
–“Audio Return Ch (ARC)” is set to “Auto” (➔ page 49).
En-15
Connecting Your Components
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
ACB
EDF
Connect your components to the appropriate jacks. The
default input assignments are shown below.
See “Connection Tips and Video Signal Path” for more
information (➔ page 63).
✔: Assignment can be changed (➔ pages 41, 42).
No. Jack/PortComponents
AUX INPUT
A
VIDEOCamcorder, etc.
AUDIO L/R
USB, AUX INPUT
B
C
D
E
F
*1
VIDEO
*2
USB
DIGITAL IN
OPTICAL 1 (GAME)Game console✔
OPTICAL 2 (TV/CD)TV, CD player✔
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
COMPONENT VIDEO
IN 1 (BD/DVD)Blu-ray Disc/DVD player,
IN 2 (CBL/SAT)Satellite/cable set-top box,
OUTTV, projector, etc.
MONITOR OUTTV, projector, etc.
BD/DVD INBlu-ray Disc/DVD player
VCR/DVR INVCR, DVD recorder/
CBL/SAT INSatellite/cable set-top box,
GAME INGame console, RI dock
TV/CD INTV, CD player, cassette
iPod/iPhone (video
playback)
iPod/iPhone, MP3 player,
USB flash drive
etc.
RI dock
RI dock, etc.
digital video recorder, RI
dock
etc.
tape deck, MD, CD-R,
Turntable
*3
, RI dock
Note
*1
When USB input is selected, you can input video signals from
the AUX INPUT VIDEO jack. Video signals input from AUX INPUT VIDEO will be output from the MONITOR OUT jack.
*2
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*3
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection D, you can enjoy Dolby Digital and
DTS.
• With connection F, if your Blu-ray Disc/DVD player has
both the main stereo and multichannel outputs, be sure to
✔
connect to the main stereo.
■ How to record a video source
With the connections described above, you cannot record
✔
the videos through the AV receiver. See “Recording” about
connections for video recording (➔ page 38).
✔
Connections
En-16
Connections
Connecting RI Components
Make sure that each u-capable component is
1
connected with an analog audio cable (connection
F in the hookup examples) (➔ page 16).
Make the u connection (see the illustration).
2
If you’re using an RI Dock or cassette tape deck,
3
change the Input Display (➔ page 36).
With u (Remote Interactive), you can use the following
special functions:
■ System On/Auto Power On
When you start playback on a component connected via
u while the AV receiver is on standby, the AV
receiver will automatically turn on and select that
component as the input source.
■ Direct Change
When playback is started on a component connected via
u, the AV receiver automatically selects that
component as the input source.
■ Remote Control
You can use the AV receiver’s remote controller to
control your other u-capable components, pointing the
remote controller at the AV receiver’s remote control
sensor instead of the component. You must enter the
appropriate remote control code first (➔ page 55).
L R
ANALOG
e.g., cassette tape deck
RI Dock
Note
•Use only u cables for u connections. u cables are supplied
with u-capable components.
• Some components have two u jacks. You can connect either
one to the AV receiver. The other jack is for connecting
additional u-capable components.
• Connect only u-capable components to u jacks. Connecting
other manufacturer’s components may cause a malfunction.
• Some components may not support all u functions. Refer to the
manuals supplied with your u-capable components.
AUDIO OUT
ANALOG
AUDIO OUT
L R
Connecting a Recording Component
See “Recording” for details on recording (➔ page 38).
LR
AUDI O
VCR, DVD recorder,
cassette tape deck,
CDR, MD recorder, etc.
Note
• The AV receiver must be turned on for recording. Recording is
not possible while it’s in standby mode.
• If you want to record directly from your TV or playback VCR to
the recording VCR without going through the AV receiver,
connect the TV/VCR’s audio and video outputs directly to the
recording VCR’s audio and video inputs. See the manuals
supplied with your TV and VCR for details.
• Video signals connected to composite video inputs can be
recorded only via composite video outputs. For example, if your
TV/VCR is connected to a composite video input, the recording
VCR must be connected to a composite video output.
• The surround sound and DSP listening modes cannot be recorded.
• Copy-protected Blu-ray Discs and DVDs cannot be recorded.
• Sources connected to a digital input cannot be recorded. Only
analog inputs can be recorded.
• DTS signals will be recorded as noise, so don’t attempt analog
recording of DTS CDs or LDs.
VIDEO
IN
IN
En-17
Connections
Connecting the Antennas
This section explains how to connect the supplied indoor FM antenna and AM loop antenna.
The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use
the tuner.
Insert the plug fully into the jack.Push.Insert wire.Release.
Assembling the AM loop antenna
AM loop antenna (supplied)
Caution
• Be careful not to injure yourself
when using thumbtacks.
Thumbtacks, etc.
Indoor FM antenna (supplied)
Connecting the Power Cord
Plug the power cord into an AC wall outlet.
1
Note
• Before connecting the power cord, connect all of your
speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge
that might interfere with other electrical equipment on the same
circuit. If this is a problem, plug the AV receiver into a different
branch circuit.
Note
• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible
reception.
• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.
Tip
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM
antenna.
En-18
Turning On & Basic Operations
Turning On/Off the AV
Receiver
STANDBY/ON
8RECEIVER
Turning On
Press STANDBY/ON on the front panel.
1
or
Press RECEIVER followed by 8RECEIVER on the
remote controller.
The AV receiver comes on, and its display lights.
Turning Off
Press STANDBY/ON on the front panel.
1
or
Press RECEIVER followed by 8RECEIVER on the
remote controller.
The AV receiver will enter standby mode. To prevent
any loud surprises when you turn on the AV receiver,
always turn down the volume before you turn it off.
Tip
• For details on power management settings, see “Auto Standby”
(➔ page 48).
RECEIVER
En-19
Playback
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.

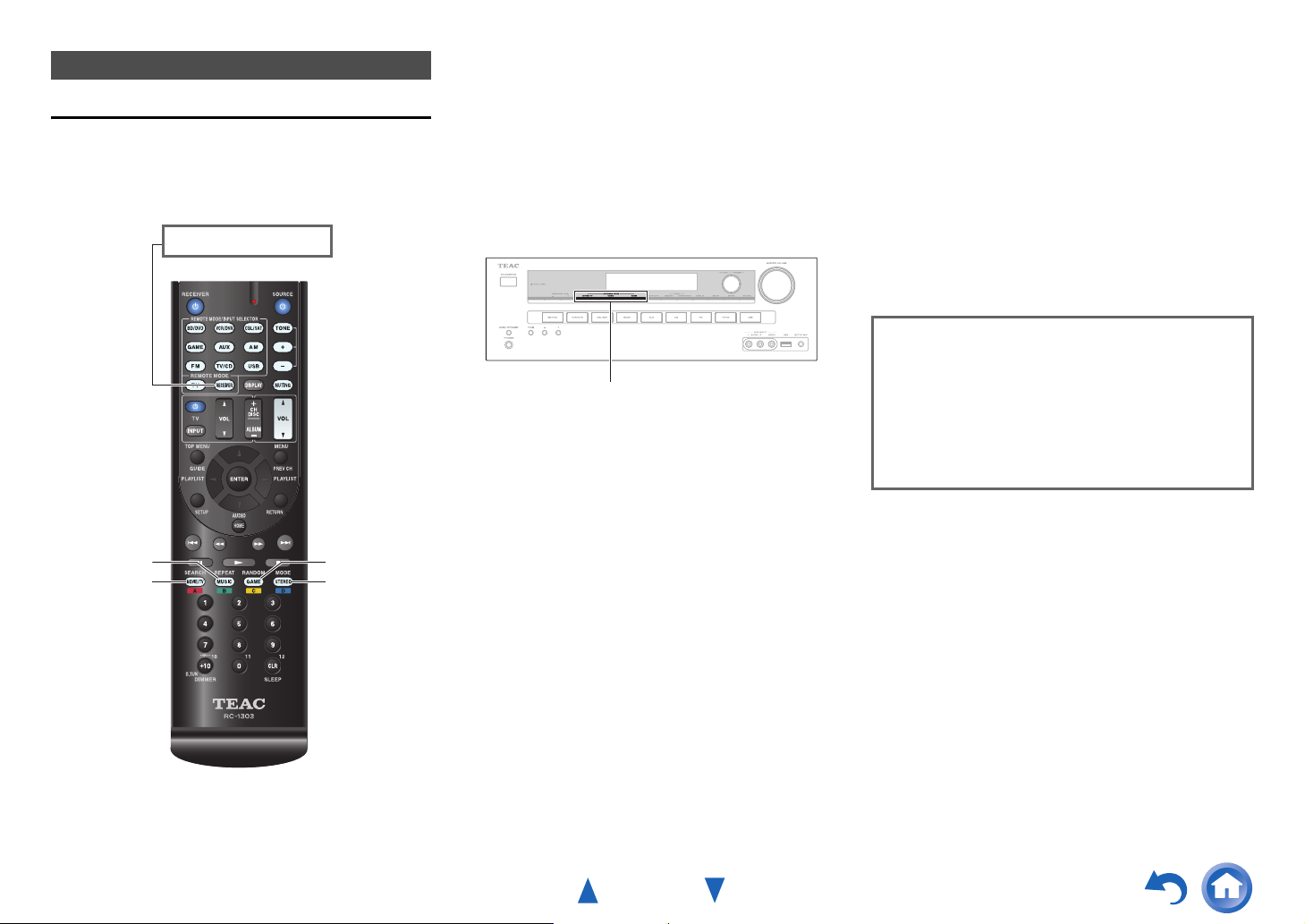

Playing the Connected Component
■ Operating with the remote controller
INPUT SELECTOR
Turning On & Basic Operations
■ Operating on the AV receiver
Input selector buttons
MASTER VOLUME LISTENING MODE
This section describes the procedure for using the
remote controller unless otherwise specified.
RECEIVER
VOL q/w
Listening mode buttons
Press RECEIVER followed by an INPUT
1
SELECTOR button.
Start playback on the source component.
2
See also:
• “Playing an iPod/iPhone via USB” (➔ page 22)
• “Playing a USB Device” (➔ page 23)
• “Listening to AM/FM Radio” (➔ page 23)
• “Playing Audio and Video from Separate Sources”
(➔ page 26)
• “iPod/iPhone Playback via RI Dock” (➔ page 52)
• “Controlling Other Components” (➔ page 54)
To adjust the volume, use VOL q/w.
3
Select a listening mode and enjoy!
4
See also:
• “Using the Listening Modes” (➔ page 30)
Use the input selector buttons to select the input
1
source.
Start playback on the source component.
2
To adjust the volume, use the MASTER VOLUME
3
control.
Select a listening mode and enjoy!
4
En-20
Turning On & Basic Operations
Controlling Contents of USB Devices
Press USB
first.
h
i
a
b
j
c
d
e
k
l
m
f
g
n
o
p
TOP MENU
a
This button displays the top menu for each media or service.
b
q/w and ENTER
These buttons navigate through the menus.
e/r
This button cycles through pages.
PLAYLIST e/r
In Standard Mode (iPod/iPhone), this button selects
playlists.
c
1
This button starts playback.
d
7
This button selects the beginning of the current song.
Pressing this button twice selects the previous song.
e
5
This button fast-reverses the current song.
f
3
This button pauses playback.
SEARCH
g
You can toggle between the playback screen and the list
screen during playback.
DISPLAY
h
This button switches between song information during
playback.
ALBUM +/–
i
In Standard Mode (iPod/iPhone), this button selects albums.
RETURN
j
This button returns to the previous menu.
k
4
This button fast-forwards the current song.
l
6
This button selects the next song.
m
2
This button stops playback.
MODE
n
You can switch between Standard Mode and Extended Mode
(iPod/iPhone).
RANDOM
o
This button performs random playback.
REPEAT
p
Press this button repeatedly to cycle through the repeat
modes.
Tip
• See “Controlling Other Components” about the operation of
other components (➔ page 54).
Note
• The buttons you can use will differ depending on the devices and
media used for playback.
En-21
Turning On & Basic Operations
Understanding Icons on the Display
This section describes icons that appear on the AV
receiver’s display during media playback.
IconDescription
Folder
Track
Playback
Pause
Fast Forward
Fast Reverse
Artist
Album
Repeat One Track
Repeat Folder (USB Device)
Repeat
Shuffle
Shuffle Album (iPod/iPhone)
Playing an iPod/iPhone via USB
The on-screen menus appear only on a TV that is
connected to the HDMI OUT.
This section explains how to play music files on the
iPod/iPhone.
Compatible iPod/iPhone models
Made for:
iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic,
iPod nano (2nd, 3rd, 4th, 5th and 6th generation),
iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
Press USB to select the “USB” input.
1
Connect the USB cable that comes with the
2
iPod/iPhone to the USB port on the front of the AV
receiver.
While reading the contents of your iPod/iPhone, the
message “Connecting...” appears on the AV
receiver’s display.
A list of your iPod/iPhone model’s contents appears
(Extended Mode).
Tip
• When connecting your iPod/iPhone with a USB cable, we
recommend you use an official USB cable from Apple Inc.
Use q/w to select a folder, and then press ENTER to
3
open it.
Tip
• If you want to operate using the iPod/iPhone or the remote
controller, press MODE to switch to Standard mode.
• When you disconnect the iPod/iPhone, the AV receiver
remembers the current mode. This means that if you
disconnect when in Extended Mode, the AV receiver will
start in Extended Mode the next time you connect the
iPod/iPhone.
• You can also use the q/w, ENTER and TUNING MODE
buttons on the front panel. TUNING MODE allows you to
switch modes.
Use q/w to select a music file, and press ENTER or
4
1 to start playback.
Note
• While the message “Connecting...” appears on the AV receiver’s
display, do not disconnect the USB cable supplied with your
iPod/iPhone or the USB device from the USB port.
• If you connect an iPod or iPhone to the USB port, no sound will
be output from the headphones jack.
Extended Mode Control
The content information is displayed (lists are displayed),
and you can control the content while looking at the screen.
Top screen list:
Playlists, Artists, Albums, Genres, Songs, Composers,
Shuffle Songs, Now Playing.
Standard Mode Control
En-22
The content information is not displayed, but can be
operated using the iPod/iPhone or the remote controller.
Turning On & Basic Operations
Playing a USB Device
The on-screen menus appear only on a TV that is
connected to the HDMI OUT.
This section explains how to play music files from a USB
device (e.g., USB flash drives and MP3 players).
See also:
• “USB Features” (➔ page 67).
Press USB to select the “USB” input.
1
Plug your USB device into the AV receiver’s USB
2
port.
While reading the contents of your USB device, the
message “Connecting...” appears on the AV
receiver’s display.
Press ENTER.
3
A list of the device’s contents appears. To open a
folder, use q/w to select it, and then press ENTER.
Use q/w to select a music file, and press ENTER or
4
1 to start playback.
Note
• While the message “Connecting...” appears on the AV receiver’s
display, do not disconnect the USB cable supplied with your
iPod/iPhone or the USB device from the USB port.
Listening to AM/FM Radio
This section describes the procedure using the buttons
on the front panel unless otherwise specified.
Using the Tuner
With the built-in tuner you can enjoy AM and FM radio
stations. You can store your favorite stations as presets for
quick selection.
You can also change the frequency steps (➔ page 48).
Press AM or FM to select either “AM” or “FM”.
1
In this example, FM has been selected.
BandFrequency
(Actual display depends on the country.)
Tuning into Radio Stations
■ Auto tuning mode
Press TUNING MODE so that the AUTO indicator
1
lights on the AV receiver’s display.
Press TUNING q/w.
2
Searching stops when a station is found.
When tuned into a station, the TUNED indicator
lights. When tuned into a stereo FM station, the FM STEREO indicator lights as shown.
FM STEREO
AUTO
TUNED
Tip
• Tuning into weak FM stereo stations
If the signal from a stereo FM station is weak, it may be
impossible to get good reception. In this case, switch to
manual tuning mode and listen to the station in mono.
En-23
■ Manual tuning mode
In manual tuning mode, FM stations will be in mono.
Press TUNING MODE so that the AUTO indicator
1
goes off on the AV receiver’s display.
Press and hold TUNING q/w.
2
The frequency stops changing when you release the
button.
Press the buttons repeatedly to change the frequency
one step at a time.
Presetting AM/FM Stations
You can store a combination of up to 40 of your favorite
AM/FM radio stations as presets.
Tune into the AM/FM station that you want to store
1
as a preset.
See the previous section.
Press MEMORY.
2
The preset number flashes.
Turning On & Basic Operations
■ Selecting Presets
To select a preset, use PRESET e/r on the AV
1
receiver, or the remote controller’s CH +/–.
Tip
• You can also use the remote controller’s number buttons to
select a preset directly.
■ Deleting Presets
■ Tuning into stations by frequency
You can tune into AM and FM stations directly by entering
the appropriate frequency.
On the remote controller, press AM or FM to select
1
“AM” or “FM”, followed by D.TUN.
(Actual display depends on the country.)
Within 8 seconds, use the number buttons to enter
2
the frequency of the radio station.
For example, to tune to 87.5 (FM), press 8, 7, 5 or 8,
7, 5, 0.
If you have entered the wrong number, you can retry
after 8 seconds.
(Actual display depends on the country.)
While the preset number is flashing (about 8
3
seconds), use PRESET e/r to select a preset from
1 through 40.
Press MEMORY again to store the station or
4
channel.
The station or channel is stored and the preset number
stops flashing.
Repeat this procedure for all of your favorite AM/FM
radio stations.
Select the preset that you want to delete.
1
See the previous section.
While holding down MEMORY, press TUNING
2
MODE.
The preset is deleted and its number disappears from
the AV receiver’s display.
En-24
Using RDS
■ Displaying Radio Text (RT)
Turning On & Basic Operations
■ Listening to Traffic News (TP)
RDS works only in areas where RDS broadcasts are
available.
When tuned into an RDS station, the RDS indicator lights.
When the station is broadcasting text information, the text
can be displayed.
■ What is RDS?
RDS stands for Radio Data System and is a method of
transmitting data in FM radio signals. It was developed by
the European Broadcasting Union (EBU) and is available
in most European countries. Many FM stations use it these
days. In addition to displaying text information, RDS can
also help you find radio stations by type (e.g., news, sport,
rock, etc.).
The AV receiver supports four types of RDS information:
PS (Program Service)
When tuned to an RDS station that’s broadcasting PS
information, the station’s name will be displayed. Pressing
DISPLAY will display the frequency for 3 seconds.
RT (Radio Text)
When tuned to an RDS station that’s broadcasting text
information, the text will be shown on the AV receiver’s
display as described in the next section.
PTY (Program Type)
This allows you to search for RDS radio stations by type.
TP (Traffic Program)
This allows you to search for RDS radio stations that
broadcast traffic information.
Note
• In some cases, the text characters displayed on the AV receiver
may not be identical to those broadcast by the radio station. Also,
unexpected characters may be displayed when unsupported
characters are received. This is not a malfunction.
• If the signal from an RDS station is weak, RDS data may be
displayed intermittently or not at all.
Press RT/PTY/TP once.
1
The RT information scrolls across the AV receiver’s
display.
Note
• The message “Waiting” may appear while the AV receiver
waits for the RT information.
• If the message “No Text Data” appears, no RT information
is available.
■ Finding Stations by Type (PTY)
You can search for radio stations by type.
Press RT/PTY/TP twice.
1
The current program type appears on the AV
receiver’s display.
Use PRESET e/r to select the type of program
2
you want.
See the table shown later in this chapter.
To start the search, press ENTER.
3
The AV receiver searches until it finds a station of the
type you specified, at which point it stops briefly
before continuing with the search.
When a station you want to listen to is found, press
4
ENTER.
If no stations are found, the message “Not Found”
appears.
You can search for stations that broadcast traffic news.
Press RT/PTY/TP three times.
1
If the current radio station is broadcasting TP (Traffic
Program), “[TP]” will appear on the AV receiver’s
display. If “TP” without square brackets appears, this
means that the station is not broadcasting TP.
To locate a station that is broadcasting TP, press
2
ENTER.
The AV receiver searches until it finds a station that’s
broadcasting TP.
If no stations are found, the message “Not Found”
appears.
En-25
RDS program types (PTY)
TypeDisplay
NoneNone
News reportsNews
Current affairsAffairs
InformationInfo
SportSport
EducationEducate
DramaDrama
CultureCulture
Science and technologyScience
VariedVaried
Pop musicPop M
Rock musicRock M
Middle of the road musicEasy M
Light classicsLight M
Serious classicsClassics
Other musicOther M
WeatherWeather
FinanceFinance
Children’s programmesChildren
Social affairsSocial
ReligionReligion
Phone inPhone In
TravelTravel
LeisureLeisure
Jazz musicJazz
Country musicCountry
National musicNation M
Oldies musicOldies
Folk musicFolk M
DocumentaryDocument
Alarm testTEST
AlarmAlarm!
Playing Audio and Video from Separate
Sources
You can listen to the audio of one input source while
watching the video of another. This function takes
advantage of the fact that when an audio-only input source
(TV/CD, AM, FM) is selected, the video input source
remains unchanged. The following procedure shows how
to listen to a CD player’s audio source connected to
TV/CD IN while watching a Blu-ray Disc/DVD player’s
video source connected to BD/DVD.
Tip
• To use an input selector as audio-exclusive, you must assign all
video inputs to “-----” (➔ page 41).
Press BD/DVD.
1
Press TV/CD.
2
The audio output changes to the CD source, but the
video of previously-selected BD/DVD is retained.
Start playback on your Blu-Ray Disc/DVD and CD
3
players.
You can now enjoy watching your Blu-ray Disc/DVD
with the sound of your CD player.
Turning On & Basic Operations
En-26
Turning On & Basic Operations
Using Basic Functions
Using the Automatic Speaker Setup
With the supplied calibrated microphone, Audyssey 2EQ®
automatically determines the number of speakers
connected, their size for purposes of bass management,
optimum crossover frequencies to the subwoofer (if
present), and distances from the primary listening position.
Audyssey 2EQ then removes the distortion caused by room
acoustics by capturing room acoustical problems over the
listening area in both the frequency and time domain. The
result is clear, well-balanced sound for everyone.
Audyssey 2EQ can be used with Audyssey Dynamic EQ
and Audyssey Dynamic Volume
®
(➔ pages 45, 46).
Before using this function, connect and position all of your
speakers.
Audyssey 2EQ offers two ways of measuring: the
“Audyssey Quick Start” and “Audyssey 2EQ Full Calibration”.
•“Audyssey Quick Start” uses the measurement from one
position to perform the speaker setting only.
•“Audyssey 2EQ Full Calibration” uses the
measurement from three positions to correct room
response in addition to the speaker setting.
The more positions are used in measuring, the better the
listening environment will become. We recommend using
a measurement from three positions to create the best
listening environment.
The Quick Start takes 2 minutes and Full Calibration takes
about 10 minutes.
Total measurement time varies depending on the number
of speakers.
®
Measurement procedure
To create a listening environment in your home theater that
all listeners will enjoy, Audyssey 2EQ takes measurements
at up to three positions within the listening area. Position
the microphone at ear height of a seated listener with the
microphone tip pointed directly at the ceiling using a
tripod. Do not hold the microphone in your hand during
measurements as this will produce inaccurate results.
a First measurement position
Also referred to as the Main Listening Position, this
refers to the most central position where one would
normally sit within the listening environment.
Audyssey 2EQ uses the measurements from this
position to calculate speaker distance, level, polarity,
and the optimum crossover value for the subwoofer.
b Second measurement position
The right side of the listening area.
c Third measurement position
The left side of the listening area.
The distances from position a to b and a to c must be
at least 1 meter.
TV
abc
: Listening area
ato c: Listening position
Note
• Make the room as quiet as possible. Background noise and Radio
Frequency Interference (RFI) can disrupt the room
measurements. Close windows, televisions, radios, air
conditioners, fluorescent lights, home appliances, light dimmers,
or other devices. Turn off the cell phone (even if it is not in use)
or place it away from all audio electronics.
• The microphone picks up test tones played through each speaker
as Audyssey 2EQ Room Correction and Speaker Setup runs.
• Audyssey 2EQ Room Correction and Speaker Setup cannot be
performed while a pair of headphones is connected.
En-27
Turning On & Basic Operations
Turn on the AV receiver and the connected TV.
1
On the TV, select the input to which the AV receiver
is connected.
Note
• Before plugging the Speaker setup microphone to perform
Automatic Speaker Setup, please make sure that all your
connected speakers and subwoofers produce sound.
Set the speaker setup microphone at the Main
2
Listening Position a, and connect it to the SETUP
MIC jack.
SETUP MIC jack
Speaker setup microphone
The speaker setting menu appears.
Note
• The on-screen menus appear only on a TV that is connected
to the HDMI OUT. If your TV is connected to other video
outputs, use the AV receiver’s display when changing
settings.
When you’ve finished making the settings, press
3
ENTER.
Audyssey
Perform the
2EQ: Auto Setup
SurrBk/FrontHigh < SurrBack >
“Sp Config (Speaker Configuration)”
according to your speaker configuration:
–“SurrBk/FrontHigh” (➔ page 42)
Use q/w to select “Audyssey Quick Start” or
4
“Audyssey 2EQ Full Calibration”, and then press
ENTER.
Press ENTER.
5
Audyssey 2EQ
®
Room Correction and Speaker Setup
starts.
Test tones are played through each speaker as
Audyssey 2EQ Room Correction and Speaker Setup
runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand
between speakers and the microphone.
Do not disconnect the speaker setup microphone
during Audyssey 2EQ Room Correction and Speaker
Setup, unless you want to cancel the setup.
If you select “Audyssey Quick Start”, you will go to
step 8.
Place the speaker setup microphone at the next
6
position, and then press ENTER.
Audyssey 2EQ performs more measurements. This
takes a few minutes.
When prompted, repeat step 6.
7
Use q/w to select an option, and then press ENTER.
8
2EQ: Auto Setup
<- Review Speaker Configuration ->
Subwoofer : Yes
Front : Small
Center : Small
Surround : Small
Front High : None
Surr Back : Small
Surr Back Ch : 2ch
Crossover : 100Hz
Save
Cancel
Audyssey
The options are:
` Save:
Save the calculated settings and exit
Audyssey 2EQ Room Correction and Speaker
Setup.
` Cancel:
Cancel Audyssey 2EQ Room Correction and
Speaker Setup.
Tip
• You can view the calculated settings for the speaker
configuration, speaker distances, and speaker levels by
using e/r.
Use q/w to select a target, and use e/r to change
9
the setting.
After the results of Audyssey 2EQ have been saved,
the menu will display the “Audyssey” (➔ page 45),
“Dynamic EQ” (➔ page 46), “Dynamic Volume”
(➔ page 46) settings.
Note
• When “Audyssey Quick Start” has been used for
measurement, “Audyssey” cannot be selected.
• These settings are applied to all input selectors.
Press ENTER.
10
Disconnect the speaker setup microphone.
11
Note
• You can cancel Audyssey 2EQ Room Correction and Speaker
Setup at any point in this procedure simply by disconnecting the
setup microphone.
• Do not connect or disconnect any speakers during Audyssey 2EQ
Room Correction and Speaker Setup.
• If the AV receiver is muted, it will be unmuted automatically
when Audyssey 2EQ Room Correction and Speaker Setup starts.
• Changes to the room after Audyssey 2EQ Room Correction and
Speaker Setup requires you run Audyssey 2EQ Room Correction
and Speaker Setup again, as room EQ characteristics may have
changed.
En-28
Turning On & Basic Operations
Error Messages
While Audyssey 2EQ® Room Correction and Speaker
Setup is in progress, one of the error messages below may
appear.
2EQ: Auto Setup
Ambient noise is too high.
Retry
Cancel
The options are:
` Retry:
Try again.
` Cancel:
Cancel Audyssey 2EQ Room Correction and Speaker
Setup.
• Ambient noise is too high.
The background noise is too loud. Remove the source of
the noise and try again.
• Speaker Matching Error!
The number of speakers detected was different from that
of the first measurement. Check the speaker connection.
• Writing Error!
This message appears if saving fails. Try saving again. If
this message appears after 2 or 3 attempts, contact the
dealer from whom you purchased this unit.
• Speaker Detect Error
This message appears if a speaker is not detected. “No”
means that no speaker was detected.
Tip
• See “Speaker Configuration” for appropriate settings
(➔ page 11).
Audyssey
Error message
Changing the Speaker Setup Manually
You can manually make changes to the settings found
during Audyssey 2EQ Room Correction and Speaker
Setup.
See also:
• “Sp Config (Speaker Configuration)” (➔ page 42)
• “Sp Distance (Speaker Distance)” (➔ page 43)
• “Level Cal (Level Calibration)” (➔ page 44)
Using a Powered Subwoofer
If you’re using a powered subwoofer and it outputs very
low-frequency sound at a low volume level, it may not be
detected by Audyssey 2EQ Room Correction and Speaker
Setup.
If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s
volume to the half-way point, set it to its highest crossover
frequency, and then try running Audyssey 2EQ Room
Correction and Speaker Setup again. Note that if the
volume is set too high and the sound distorts, detection
issues may occur, so use an appropriate volume level. If the
subwoofer has a low-pass filter switch, set it to Off or
Direct. Refer to your subwoofer’s instruction manual for
details.
En-29
Using the Listening Modes
Selecting Listening Modes
See “About Listening Modes” for detailed information
about the listening modes (➔ page 31).
■ Listening Mode Buttons
Press RECEIVER first.
MOVIE/TV, MUSIC, GAME
Turning On & Basic Operations
MOVIE/TV button
This button selects the listening modes intended for use
with movies and TV.
MUSIC button
This button selects the listening modes intended for use
with music.
GAME button
This button selects the listening modes intended for use
with video games.
STEREO button
This button selects the Stereo listening mode and All
Channel Stereo listening mode.
• The Dolby Digital and DTS listening modes can only be
selected if your Blu-ray Disc/DVD player is connected to
the AV receiver with a digital audio connection (coaxial,
optical, or HDMI).
• The listening modes you can select depends on the format
of the input signal. To check the format, see “Displaying
Source Information” (➔ page 36).
• While a pair of headphones is connected, you can select the
following listening modes: Direct, Stereo, and Mono.
MUSIC
MOVIE/TV
GAME
STEREO
En-30
About Listening Modes
The AV receiver’s listening modes can transform your
listening room into a movie theater or concert hall, with
high fidelity and stunning surround sound.
■ Explanatory Notes
f
de
ij
gh
abc
abFront speakers
cCenter speaker
deSurround speakers
fSubwoofer
ghSurround back speakers
ijFront high speakers
Input Source
The following audio formats are supported by the listening
mode.
A
S
D
F
G
H
This is mono (monophonic) sound.
This is stereo (stereophonic) sound. Two
independent audio signal channels are reproduced
through two speakers.
This is 5.1-channel surround sound. This surround
system has five main channels of sound and a sixth
subwoofer channel (called the point-one channel).
This is 7.1-channel surround sound. This is a further
sound enhancement to 5.1-channel sound with two
additional speakers that provide greater sound
envelopment and more accurate positioning of
sounds.
This is DTS-ES surround sound. This surround
system can produce a discrete or a matrix-encoded
sixth channel from existing DTS 5.1 encoded
material.
This is Dolby Digital EX surround sound. This
provides a center back surround channel from 5.1channel sources.
Turning On & Basic Operations

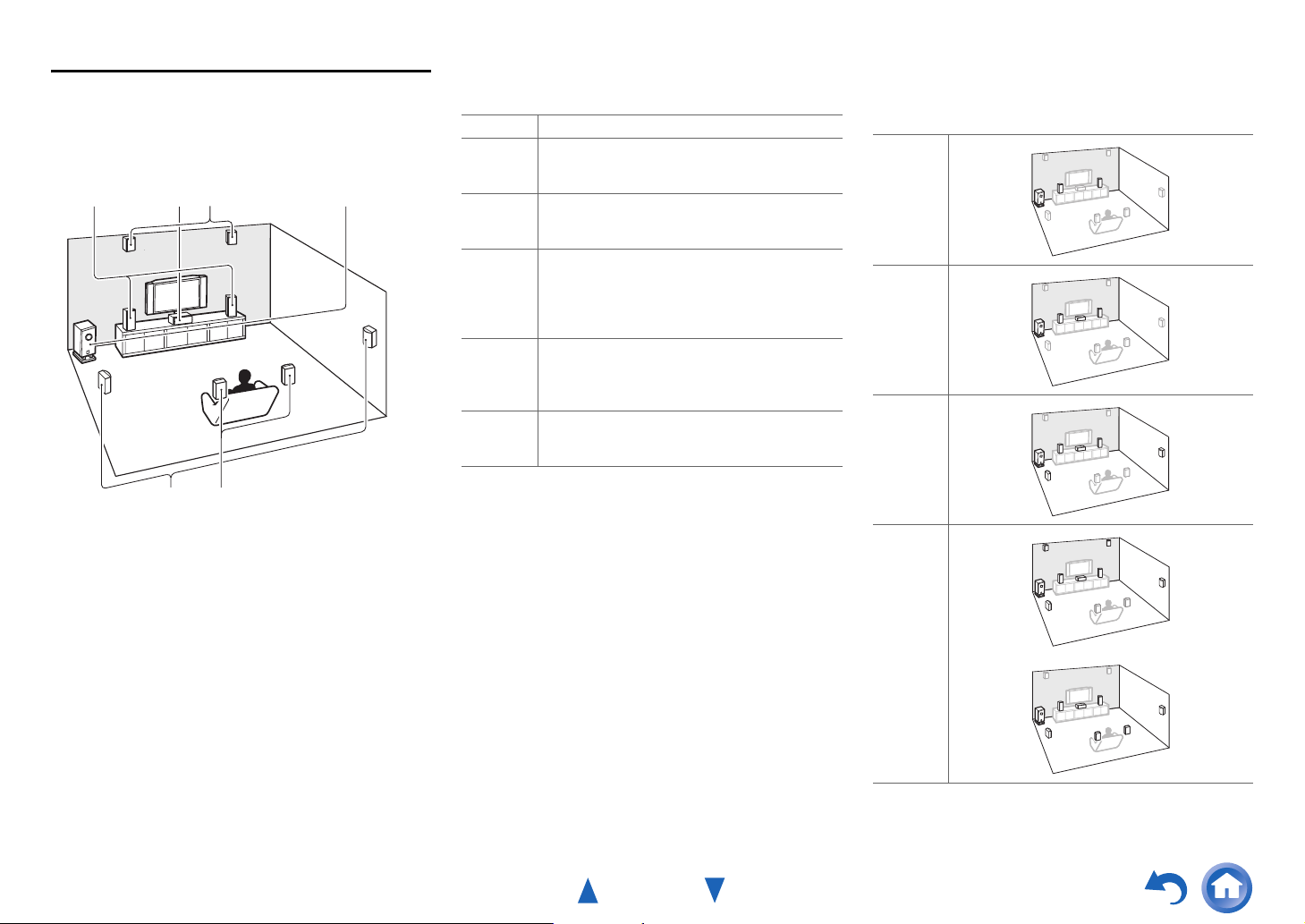

Speaker Layout
The illustration shows which speakers are activated in each
channel. See “Sp Config (Speaker Configuration)” for the
speaker setup (➔ page 42).
Z
X
C
NB
En-31
V
■ DSP Listening Modes
Listening ModeDescriptionInput
Orchestra
Or c e s t rah
*1
Suitable for classical or operatic music, this
mode emphasizes the surround channels in
order to widen the stereo image, and
simulates the natural reverberation of a large
hall.
Unplugged
Unp u gg edl
*1
Suitable for acoustic instruments, vocals,
and jazz, this mode emphasizes the front
stereo image, giving the impression of being
right in front of the stage.
Studio-Mix
Stu io– Mi xd
*1
Suitable for rock or pop music, listening to
music in this mode creates a lively sound
field with a powerful acoustic image, like
being at a club or rock concert.
TV Logic
TVog i cL
*1
This mode adds realistic acoustics to TV
shows produced in a TV studio, surround
effects to the entire sound, and clarity to
voices.
Game-RPG
Gam – R P Ge
*1
Game-Action
Gam –A c t i one
Game-Rock
Gam–RockeGam –Ro c ke
Game-Sports
Gam – S p ortse
*1
*1
*1
In this mode, the sound has a dramatic feel
with a similar atmosphere to Orchestra
mode.
In this mode, sound localization is distinct
with emphasis on bass.
In this mode, sound pressure is emphasized
to heighten live feel.
In this mode, reverberation is increased and
sound localization decreased slightly.
All Ch StereoIdeal for background music, this mode fills
Al l Ch Stereo
the entire listening area with stereo sound
from the front, surround, and surround back
speakers.
Full MonoIn this mode, all speakers output the same
Fu lMonol
sound in mono, so the sound you hear is the
same regardless of where you are within the
listening room.
Source
A
S
D
F
G
H
Speaker
Layout
CN
XCN
Turning On & Basic Operations
Listening ModeDescriptionInput
T-D (TheaterDimensional)
T – D
*1
With this mode you can enjoy a virtual
surround sound even with only two or three
speakers. This works by controlling how
sounds reach the listener’s left and right ears.
Good results may not be possible if there’s
too much reverb, so we recommend that you
use this mode in an environment with little
or no natural reverb.
Source
A
S
D
F
G
H
Speaker
Layout
ZXC
N
En-32
■ Listening Modes
Listening ModeDescriptionInput
DirectIn this mode, audio from the input source is
Di rec t
output without surround-sound processing.
The speaker configuration (presence of
speakers) and speaker distance settings are
enabled, but much of the processing set via
Home menu is disabled. See “On-screen
Setup” for more details (➔ page 39).
StereoSound is output from the front left and right
Stereo
speakers and subwoofer.
MonoUse this mode when watching an old movie
Mono
with a mono soundtrack, or use it with the
foreign language soundtracks recorded in the
left and right channels of some movies. It
can also be used with DVDs or other sources
containing multiplexed audio, such as
karaoke DVDs.
MultichannelThis mode is for use with PCM multichannel
Mu l t i ch
*3
DSD
DSD
Dolby Digital
Dolby D
Dolby Digital Plus
Dolby D +
sources.
In this mode, audio from the input source is
output without surround-sound processing.
The speaker configuration (presence of
speakers), crossover frequency, speaker
distance, A/V Sync and much of the
processing set via Home menu are enabled.
*4
See “On-screen Setup” for more details
(➔ page 39).
Dolby TrueHD
Dolby TrueHD
DTS
DTS
Source
A
S
D
F
G
H
D
F
DXCN
DXCN
FXC
DXCN
FXC
DXCN
Speaker
Layout
ZXC
*2
N
ZXC
N
XCN
*2
N
*2
N
Turning On & Basic Operations
Listening ModeDescriptionInput
DTS-HD High
Resolution Audio
DTS– HD HR
DTS-HD Master
Audio
DTS– HD MS TR
DTS Express
DTS E xp r e s s
DTS 96/24
DTS 96 / 2 4
*5
In this mode, audio from the input source is
output without surround-sound processing.
The speaker configuration (presence of
speakers), crossover frequency, speaker
distance, A/V Sync and much of the
processing set via Home menu are enabled.
See “On-screen Setup” for more details
(➔ page 39).
This mode is for use with DTS 96/24
sources. This is high-resolution DTS with a
96 kHz sampling rate and 24-bit resolution,
providing superior fidelity. Use it with
DVDs that bear the DTS 96/24 logo.
*6
DTS-ES Discrete
ESi screteD
This mode is for use with DTS-ES Discrete
soundtracks, which use a discrete surround
back channel for true 6.1/7.1-channel
playback. The seven totally separate audio
channels provide better spatial imaging and
360-degree sound localization, perfect for
sounds that pan across the surround
channels. Use it with DVDs that bear the
DTS-ES logo, especially those with a DTSES Discrete soundtrack.
DTS-ES Matrix
ESa t r i xM
*6
This mode is for use with DTS-ES Matrix
soundtracks, which use a matrix-encoded
back-channel for 6.1/7.1-channel playback.
Use it with DVDs that bear the DTS-ES
logo, especially those with a DTS-ES Matrix
soundtrack.
Source
DXCN
FXC
DXCN
FXC
DXCN
DXCN
GV
Speaker
Layout
*2
N
*2
N
En-33
Turning On & Basic Operations
Listening ModeDescriptionInput
Source
*7
Dolby Pro Logic IIx
Dolby Pro Logic II
Dolby Pro Logic IIx expands any 2-channel
source for 7.1-channel playback. It provides
a very natural and seamless surround-sound
experience that fully envelops the listener.
As well as music and movies, video games
can also benefit from the dramatic spatial
effects and vivid imaging.
PLMov i e
If you’re not using any surround back
speakers, Dolby Pro Logic II will be used
SXCN
instead of Dolby Pro Logic IIx.
PLMus i c
• Dolby PLIIx Movie
Use this mode with any stereo or Dolby
PLGame
Surround (Pro Logic) movie (e.g., TV,
DVD, VHS).
PL x Mov i e
PL x Mus i c
PL x Game
• Dolby PLIIx Music
Use this mode with any stereo or Dolby
Surround (Pro Logic) music source (e.g.,
CD, radio, cassette, TV, VHS, DVD).
•Dolby PLIIx Game
Use this mode with video games, especially
those that bear the Dolby Pro Logic II logo.
• Dolby PLIIx Movie
DV
• Dolby PLIIx Music
These modes use the Dolby Pro Logic IIx
modes to expand 5.1-channel sources for
7.1-channel playback.
Dolby Pro Logic IIz
Height
PL z He i gh t
Dolby Pro Logic IIz Height is designed to
more effectively use existing program
material when height channel speaker
outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of
sources from movies and music, but are
S
D
F
G
H
particularly well-suited to upmix game
content.
Dolby EXThese modes expand 5.1-channel sources for
Dolby EX
Dolby D EX
6.1/7.1-channel playback. They’re especially
suited to Dolby EX soundtracks that include
a matrix-encoded surround back channel.
The additional channel adds an extra
D
H
dimension and provides an enveloping
surround sound experience, perfect for
rotating and fly-by sound effects.
Speaker
Layout
B
V
Listening ModeDescriptionInput
Source
Speaker
Layout
DTS Neo:6This mode expands any 2-channel source for
up to 7.1-channel playback. It uses seven
full-bandwidth channels of matrix decoding
for matrix-encoded material, providing a
very natural and seamless surround sound
experience that fully envelops the listener.
Neo6:Ne o 6 C i nema:
• DTS Neo:6 Cinema
Use this mode with any stereo movie (e.g.,
SXCN
TV, DVD, VHS).
Neo 6 Music:
• DTS Neo:6 Music
Use this mode with any stereo music source
(e.g., CD, radio, cassette, TV, VHS, DVD).
Neo 6:
•DTS Neo:6
This mode uses DTS Neo:6 to expand 5.1-
DV
channel sources for 6.1/7.1-channel
playback.
Note
*1
These listening modes cannot be selected during USB or iPod playback.
*2
Based on the audio channel signal contained in the source, the corresponding speakers will output
the sound.
*3
The AV receiver can input the DSD signal from HDMI IN. Depending on the player, setting the
output on the player side to PCM might bring better sound.
*4
For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.
*5
DTS is used depending on the configuration of the AV receiver.
*6
If there are no surround back speakers, DTS is used.
*7
If there are no surround back speakers, Dolby Pro Logic II is used.
• The listening modes cannot be selected with some source formats.
En-34
Using the Home Menu
The Home menu provides quick access to frequently used
settings. You can change settings and view the current
information.
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
Note
• The on-screen menus are displayed when:
– There is no video input, or
– The video input is 480p, 576p, 720p, 1080i, or 1080p.
Press RECEIVER followed by HOME.
1
The Home menu will be superimposed on the TV
screen.
Use q/w and ENTER to make the desired selection.
2
■ Input
` You can select the input source.
Use q/w to select the desired input source.
Pressing ENTER switches to the selected input
source.
grouped in the following categories:
“MOVIE/TV”, “MUSIC” and “GAME”.
Use q/w to select the category and e/r to
select the listening mode. Press ENTER to
switch to the selected listening mode.
Note
*1
Depending on the input source and listening mode, not all
channels shown here output the sound.
*2
• This setting is not available in either of the following cases:
–The “Audio TV Out” setting is set to “On” (➔ page 49).
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and
you’re listening through your TV speakers.
Turning On & Basic Operations
Using the Sleep Timer
With the sleep timer, you can set the AV receiver to turn
off automatically after a specified period.
Press RECEIVER once followed by SLEEP
1
repeatedly to select the required sleep time.
The sleep time can be set from 90 to 10 minutes in 10
minute steps.
The SLEEP indicator lights on the AV receiver’s
display when the sleep timer has been set. The
specified sleep time appears for about 5 seconds, then
the previous display reappears.
Tip
• If you need to cancel the sleep timer, press SLEEP
repeatedly until the SLEEP indicator goes off.
• To check the time remaining until the AV receiver sleeps,
press SLEEP. Note that if you press again on SLEEP as
the time being displayed is 10 minutes or less, the sleep
timer will go off.
En-35
Turning On & Basic Operations
Setting the Display Brightness
You can adjust the brightness of the AV receiver’s display.You can display various information about the current
Press RECEIVER once followed by DIMMER
1
repeatedly to switch between: normal, dim, or
dimmer brightness.
Displaying Source Information
input source as follows.
Press RECEIVER once followed by DISPLAY
1
repeatedly to cycle through the available
information.
Tip
• Alternatively, you can use DISPLAY on the AV receiver.
The following information can be typically displayed.
Input source &
*1
volume
Listening mode
Signal format*2
or sampling
frequency
*1
When AM or FM radio is used, the band, frequency, and preset
number are displayed.
*2
If the input signal is digital, the signal format is displayed.
Information is displayed for about three seconds, then the
previously displayed information reappears.
Changing the Input Display
When you connect an u-capable component, you must
configure the input display so that u can work properly.
This setting can be done only from the front panel.
Press TV/CD, GAME or VCR/DVR.
1
“TV/CD”, “GAME” or “VCR/DVR” appears on the
AV receiver’s display.
Press and hold down the same button (about
2
3 seconds) to change the input display.
Repeat this step to select the desired input display.
■ TV/CD:
Note
•“DOCK” can be selected for the “TV/CD”, “GAME” or
“VCR/DVR” input selector, but not at the same time.
• Enter the appropriate remote control code before using the
remote controller for the first time (➔ page 55).
TV/CD→ DOCK
→
TAPE
GAME ↔ DOCK■ GAME:
VCR/DVR ↔ DOCK■ VCR/DVR:
→
En-36
Turning On & Basic Operations
Using the Music Optimizer
The Music Optimizer function enhances the sound quality
of compressed music files.
Press MUSIC OPTIMIZER on the front panel.
1
The M.Opt indicator lights on the AV receiver’s
display.
Tip
• Alternatively, you can use the remote controller’s HOME.
• See “Music Optimizer” for more details (➔ page 51).
Muting the AV Receiver
You can temporarily mute the output of the AV receiver.
Press RECEIVER followed by MUTING.
1
The output is muted and the MUTING indicator
flashes on the AV receiver’s display.
Tip
• To unmute, press MUTING again or adjust the volume.
• Muting is automatically cancelled when the AV receiver is
set to standby.
Using Headphones
Connect a pair of stereo headphones with a
1
standard plug (6.3 mm) to the PHONES jack.
Note
• Always turn down the volume before connecting your
headphones.
• While the headphones plug is inserted in the PHONES
jack, the speakers are turned off.
• When you connect a pair of headphones, the listening mode
is set to Stereo, unless it’s already set to Stereo, Mono, or
Direct.
• If you connect an iPod or iPhone to the USB port on the AV
receiver, no sound will be output from the headphones jack.
En-37
Recording
This section explains how to record the selected input
source to a component with recording capability.
AV Recording
Audio sources can be recorded to a recorder (e.g., cassette
tape deck, CDR, MD recorder). Video sources can be
recorded to a video recorder (e.g., VCR, DVD recorder).
Use the input selector buttons to select the source
1
that you want to record.
You can watch the source while recording. The AV
receiver’s MASTER VOLUME control has no effect
on recording.
On your recorder, start recording.
2
On the source component, start playback.
3
If you select another input source during recording,
that input source will be recorded.
Turning On & Basic Operations
En-38
Advanced Operations
On-screen Setup
The setup menus provides a convenient way to change the
AV receiver’s various settings. Settings are organized into
10 categories.
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
This section describes the procedure for using the
remote controller unless otherwise specified.
Note
• The on-screen menus are displayed when:
– There is no video input, or
– The video input is 480p, 576p, 720p, 1080i, or 1080p.

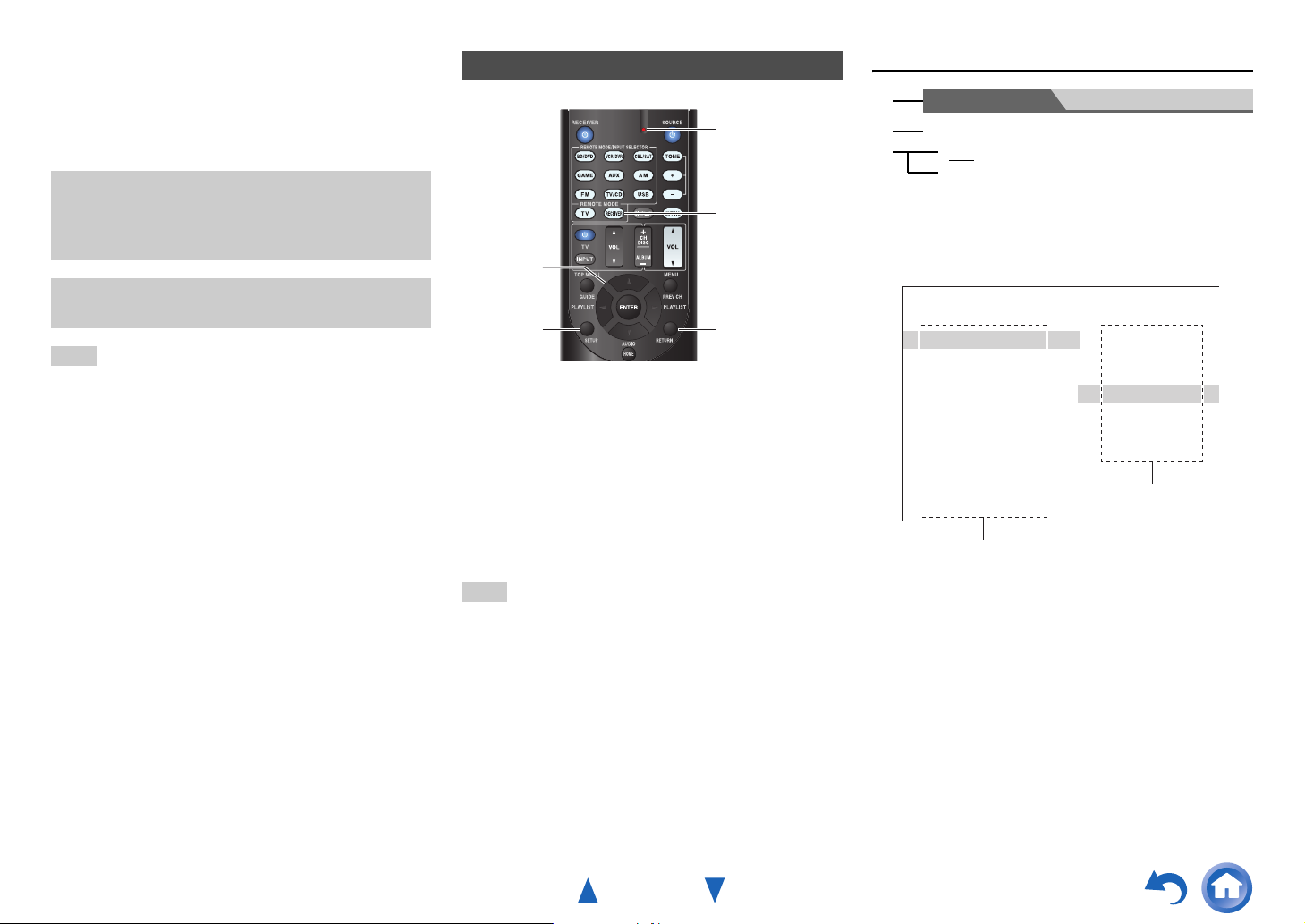

Common Procedures in Setup Menu
Remote indicator
RECEIVER
ENTER
q/w/e/r
SETUP
Press RECEIVER followed by SETUP.
1
Use q/w to select a menu item, and then press
2
ENTER.
Use q/w to select a setting target, and use e/r to
3
change the setting.
Press SETUP to close the menu.
Press RETURN to return to the previous menu.
RETURN
Explanatory Notes
a
b
c
a Menu selection
b Setting target
c Setting options (default setting underlined)
MenuSp Config
■ Subwoofer
` Yes
` No
Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Source Setup
9. Hardware
10. HDMI Setup
Menu
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Setting target
Note
• This procedure can also be performed on the AV receiver by
using SETUP, the cursor buttons, and ENTER.
• During Audyssey 2EQ
messages, etc., that are displayed on the TV screen will appear on
the AV receiver’s display.
®
Room Correction and Speaker Setup,
En-39
Advanced Operations
Setup menu items
Menu itemSetting target
HDMI Input
(➔ page 41)
Component
(➔ page 41)
Digital Audio
(➔ page 42)
Sp Config
(➔ page 42)
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
Subwoofer
Front
Center
Surround
Front High
Surround Back
Surround Back Ch
Crossover
Double Bass
Menu itemSetting target
Sp Distance
(➔ page 43)
Level Cal
(➔ page 44)
Audio Adjust
(➔ page 44)
Source Setup
(➔ page 45)
Unit
Left
Front High Left
Center
Front High Right
Right
Surround Right
Surr Back Right
Surr Back Left
Surround Left
Subwoofer
Left
Front High Left
Center
Front High Right
Right
Surround Right
Surr Back Right
Surr Back Left
Surround Left
Subwoofer
Input Ch (Mux)
Input Ch (Mono)
Panorama
Dimension
Center Width
Height Gain
Dolby EX
Center Image
Listening Angle
Audyssey
Dynamic EQ [Reference Level]
Dynamic Volume
A/V Sync
Name
Audio Selector [Fixed Mode]
Menu itemSetting target
Hardware
(➔ page 48)
HDMI Setup
(➔ page 48)
Volume OSD
Remote ID
AM Freq Step
Auto Standby
HDMI Ctrl (RIHD)
HDMI Through
Audio TV Out
Audio Return Ch
LipSync
En-40
Advanced Operations
HDMI Input
123456
MenuHDMI Input
If you connect a video component to an HDMI input, you
must assign that input to an input selector. For example, if
you connect your Blu-ray Disc/DVD player to HDMI IN 2,
you must assign “HDMI2” to the “BD/DVD” input
selector.
Here are the default assignments.
Input selectorDefault assignment
BD/DVDHDMI1
VCR/DVRHDMI2
CBL/SATHDMI3
GAMEHDMI4
AUX- - - - -
TV/CD-----
■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` HDMI1, HDMI2, HDMI3, HDMI4:
Select the input to which the component has been
connected.
` -----:
Select if you’re not using the HDMI OUT.
Each HDMI input cannot be assigned to two input
selectors or more. When HDMI1 - HDMI4 have already
been assigned, you must first set any unused input
selectors to “-----” or you will be unable to assign HDMI1 - HDMI4 to input selector.
Note
• If no video component is connected to HDMI output (even if the
HDMI input is assigned), the AV receiver selects the video
source based on the setting of “Component (Component Video
Input)”.
• When an HDMI IN is assigned to an input selector as explained
here, the same HDMI IN will be set as a priority in the “Digital
Audio (Digital Audio Input)” (➔ page 42). In this case, if you
want to use the coaxial or optical audio input, make the
appropriate selection in the “Audio Selector” setting
(➔ page 47).
• Do not assign an HDMI IN to the TV/CD selector while “HDMI Ctrl (RIHD)” is set to “On” (➔ page 48), otherwise
appropriate CEC (Consumer Electronics Control) operation will
not be guaranteed.
• If you assign “-----” to an input selector that is currently
selected in “HDMI Through” (➔ page 49), the “HDMI Through” setting will be automatically switched to “Off”.
•The “TUNER” selector cannot be assigned and is fixed at the
“-----” option.
Component (Component Video Input)
123456
MenuComponent
If you connect a video component to a component video
input, you must assign that input to an input selector. For
example, if you connect your Blu-ray Disc/DVD player to
COMPONENT VIDEO IN 2, you must assign “IN2” to
the “BD/DVD” input selector.
Here are the default assignments.
Input selectorDefault assignment
BD/DVDIN1
VCR/DVR-----
CBL/SATIN2
GAME-----
AUX-----
TV/CD-----
■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` IN1, IN2:
Select the input to which the component has been
connected.
` -----:
Select if you’re not using the COMPONENT
VIDEO OUT.
Note
•The “TUNER” selector cannot be assigned and is fixed at the
“-----” option.
En-41
Digital Audio (Digital Audio Input)
123456
MenuDigital Audio
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example, if
you connect your CD player to the OPTICAL IN 1, you
must assign “OPTICAL1” to the “TV/CD” input selector.
Here are the default assignments.
Input selectorDefault assignment
BD/DVDCOAXIAL1
VCR/DVR- - - - -
CBL/SATCOAXIAL2
GAMEOPTICAL1
AUX- - - - -
TV/CDOPTICAL2
■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` COAXIAL1, COAXIAL2, OPTICAL1,
OPTICAL2:
Select the input to which the component has been
connected.
` -----:
Select if the component is connected to an analog
audio input.
Note
•When an HDMI IN is assigned to an input selector in
“HDMI Input” (➔ page 41), the same HDMI IN will be set as
a priority in this assignment. In this case, if you want to use the
coaxial or optical audio input, make the appropriate selection in
the “Audio Selector” (➔ page 47).
• Supported sampling rates for PCM signals (stereo/mono) from a
digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16,
20, 24 bit.
•The “TUNER” selector cannot be assigned and is fixed at the
“-----” option.
Sp Config (Speaker Configuration)
123456
MenuSp Config
Some of the settings in this section are set automatically
by Audyssey 2EQ® Room Correction and Speaker Setup
(➔ page 27).
Here you can check the settings made by Audyssey 2EQ
Room Correction and Speaker Setup, or set them manually,
which is useful if you change one of the connected
speakers after using Audyssey 2EQ Room Correction and
Speaker Setup.
This section explains how to specify which speakers are
connected and their sizes.
Cone diameter
For speakers with a cone diameter larger than 16 cm,
specify Large (full band). For those with a smaller
diameter, specify Small (default crossover 100 Hz).
The crossover frequency can be changed in the “Crossover
(Crossover Frequency)” (➔ page 43).
Note
• These settings are not available in either of the following cases:
– A pair of headphones is connected.
–The “Audio TV Out” setting is set to “On” (➔ page 49).
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and you’re
listening through your TV speakers.
Advanced Operations
■ Subwoofer
` Yes
` No
■ Front
` Small
` Large:
Select based on the cone diameter.
Note
• If the “Subwoofer” setting is set to “No”, this setting is fixed to
“Large”.
■ Center*1, Surround
*1
` Small
` Large:
Select based on the cone diameter.
` None
■ Front High
*2*3*4
` Small
` Large:
Select based on the cone diameter.
` None
■ Surround Back
*2*3*5
` Small
` Large:
Select based on the cone diameter.
` None
Note
*1
If the “Front” setting is set to “Small”, the “Large” option
cannot be selected.
*2
If the “Surround” setting is set to “None”, this setting cannot
be selected.
*3
If the “Surround” setting is set to “Small”, the “Large”
option cannot be selected.
*4
If the “Surround Back” setting is set to other than “None”,
this setting is set to “None”.
*5
If the “Front High” setting is set to other than “None”, this
setting is set to “None”.
To be continued
En-42
■ Surround Back Ch
` 1ch:
Select if only one surround back speaker is
connected.
` 2ch
:
Select if two (left and right) surround back speakers
are connected.
Note
• If the “Surround Back” setting is set to “None”, this setting
cannot be selected.
■ Crossover (Crossover Frequency)
This setting is advantageous for the speakers that you
specified as “Small” in the “Sp Config (Speaker
Configuration)” (➔ page 42). To get the best bass
performance from your speaker system, you need to set
the crossover frequency according to the size and
frequency response of your speakers.
` 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz,
120Hz, 150Hz, 200Hz
Use the diameter of the smallest speaker in your system
when choosing the crossover frequency.
Speaker cone diameterCrossover frequency
Over 20 cm
16 to 20 cm
13 to 16 cm100 Hz
9 to 13 cm120 Hz
Under 9 cm
*1
Choose the setting suitable for the speaker.
Note
• For a more accurate setting, look up the frequency response in the
manuals supplied with your speakers and set accordingly.
• Choose a higher crossover frequency if you want more sound
from your subwoofer.
40/50/60 Hz
70/80/90 Hz
150/200 Hz
*1
*1
*1
■ Double Bass
This setting is NOT set automatically by
Audyssey 2EQ® Room Correction and Speaker Setup
(➔ page 27).
` On
` Off
Turn this setting on to boost bass output by feeding bass
sounds from the front left, right, and center channels to the
subwoofer.
Note
• When the “Subwoofer” setting is set to “No” or the “Front”
setting to “Small”, this setting is fixed to “Off” (➔ page 42).
• This setting is set to “On” automatically when the “Subwoofer”
and “Front” settings are set for the first time to “Yes” and
“Large” respectively.
Advanced Operations
Sp Distance (Speaker Distance)
123456
MenuSp Distance
This setting is set automatically by Audyssey 2EQ Room
Correction and Speaker Setup (➔ page 27).
Here you can specify the distance from each speaker to the
listening position so that the sound from each speaker
arrives at the listener’s ears as the sound designer intended.
Note
• These settings are not available in either of the following cases:
– A pair of headphones is connected.
–The “Audio TV Out” setting is set to “On” (➔ page 49).
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and you’re
listening through your TV speakers.
■ Unit
` feet:
Distances can be set in feet. Range: 1ft to 30ft in
1 foot steps.
` meters
■ Left, Front High Left, Center, Front High Right,
Right, Surround Right, Surr Back Right, Surr
Back Left, Surround Left, Subwoofer
` Specify the distance from the each speaker to your
Note
• Speakers that you set to “No” or “None” in the “Sp Config
(Speaker Configuration)” (➔ page 42) cannot be selected.
:
Distances can be set in meters. Range: 0.3m to 9.0m
in 0.3 meter steps.
listening position.
En-43
Advanced Operations
Level Cal (Level Calibration)
123456
MenuLevel Cal
This setting is set automatically by Audyssey 2EQ®
Room Correction and Speaker Setup (➔ page 27).
Here you can adjust the level of each speaker with the
built-in test tone so that the volume of each speaker is the
same at the listening position.
Note
• These settings cannot be calibrated in either of the following
cases:
– A pair of headphones is connected.
–The “Audio TV Out” setting is set to “On” (➔ page 49).
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and you’re
listening through your TV speakers.
– The AV receiver is muted.
■ Left, Front High Left, Center*1, Front High Right,
Right, Surround Right, Surr Back Right, Surr
Back Left, Surround Left
` –12 dB to 0dB to +12 dB in 1 dB step.
■ Subwoofer
` –15 dB to 0dB to +12 dB in 1 dB step.
Note
• Speakers that you set to “No” or “None” in the “Sp Config
(Speaker Configuration)” (➔ page 42) cannot be selected.
*1
For the center speaker and subwoofer, the level settings made
by using the Home menu are saved in this menu (➔ page 50).
Tip
• If you’re using a handheld sound level meter, adjust the level of
each speaker so that it reads 75 dB SPL at the listening position,
measured with C-weighting and slow reading.
*1
Audio Adjust
123456
MenuAudio Adjust
With the Audio Adjust functions and settings, you can
adjust the sound and listening modes as you like.
Multiplex/Mono
■ Multiplex
Input Ch (Mux)
` Main
` Sub
` Main/Sub
This setting determines which channel of a stereo
multiplex source is output. Use it to select audio channels
or languages with multiplex sources, multilingual TV
broadcasts, and so on.
■ Mono
Input Ch (Mono)
` Left + Right
` Left
` Right
This setting specifies the channel to be used for playing
any 2-channel digital source such as Dolby Digital, or
2-channel analog/PCM source in the Mono listening mode.
Dolby
■ PL IIx Music (2ch Input)
These settings apply to only 2-channel stereo sources.
If you’re not using any surround back speakers, these
settings apply to Dolby Pro Logic II, not Dolby Pro
Logic IIx.
Panorama
` On
` Off
With this setting, you can broaden the width of the front
stereo image when using the Dolby Pro Logic IIx Music
listening mode.
Dimension
` –3 to 0
With this setting, you can move the sound field forward or
backward when using the Dolby Pro Logic IIx Music
listening mode. Higher settings move the sound field
backward. Lower settings move it forward.
If the stereo image feels too wide, or there’s too much
surround sound, move the sound field forward to improve
the balance. Conversely, if the stereo image feels like it’s
in mono, or there’s not enough surround sound, move it
backward.
Center Width
` 0 to 3
With this setting, you can adjust the width of the sound
from the center speaker when using the Dolby Pro Logic
IIx Music listening mode. Normally, if you’re using a
center speaker, the center channel sound is output from
only the center speaker. (If you’re not using a center
speaker, the center channel sound will be distributed to the
front left and right speakers to create a phantom center).
This setting controls the front left, right, and center mix,
allowing you to adjust the weight of the center channel
sound.
to +3
to 7
En-44
To be continued
■ PL IIz Height Gain
` Low
` Mid
` High
The Height Gain Control in Dolby Pro Logic IIz enables
the listener to select how much gain is applied to the front
high speakers. There are three settings, “Low”, “Mid” and
“High”, and the front high speakers are accentuated in that
order. While “Mid” is the default listening setting, the
listener may adjust the Height Gain Control to their
personal preference.
Note
• If the “Front High” setting is set to “None” (➔ page 42), this
setting cannot be selected.
■ Dolby EX
` Auto:
If the source signal contains a Dolby EX flag, the
Dolby EX listening mode is used.
` Manual
:
You can select any available listening mode.
This setting determines how Dolby EX encoded signals are
handled. This setting is unavailable if no surround back
speakers are connected. This setting is effective with
Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.
Note
• If the “Surround Back” setting is set to “None” (➔ page 42),
this setting cannot be selected.
• If the “Front High” setting is enabled (➔ page 42), this setting
is fixed to “Manual”.
DTS
■ Neo:6 Music
Center Image
` 0 to 2
to 5
The DTS Neo:6 Music listening mode creates 6-channel
surround sound from 2-channel stereo sources. With this
setting, you can specify by how much the front left and
right channel output is attenuated in order to create the
center channel.
Changing the value from “0” to “5” will spread the sound
of the center channel to left and right (outwards).
Theater-Dimensional
■ Listening Angle
` Wide
:
Select if the listening angle is greater than 30 degrees.
` Narrow:
Select if the listening angle is less than 30 degrees.
With this setting, you can optimize the TheaterDimensional listening mode by specifying the angle of the
front left and right speakers relative to the listening
position. Ideally, the front left and right speakers should be
equidistant from the listening position and at an angle close
to one of the two available settings.
Front left speakerFront right speaker
Listening angle: 30°
Note
• For best results, we recommend setting “
“Wide” to 40°.
Narrow” to 20° and
Advanced Operations
Source Setup
123456
Items can be set individually for each input selector.
Preparation
Press the input selector buttons to select an input source.
MenuSource Setup
Audyssey
The tone for each speaker is set automatically by
Audyssey 2EQ® Room Correction and Speaker Setup.
To enable the following settings, you must first perform
the Room Correction and Speaker Setup (➔ page 27).
• These technologies cannot be used when:
–a pair of headphones is connected, or
–Direct listening mode is selected, or
–the USB input selector is selected.
■ Audyssey
` Off
` Movie:
` Music:
Note
• When “Audyssey Quick Start” has been used for measurement,
“Audyssey” cannot be selected.
• Audyssey equalizing does not work with DSD sources.
®
Select this setting for movie material.
The Audyssey indicator will light.
Select this setting for music material.
The Audyssey indicator will light.
En-45
■ Dynamic EQ
` Off
` On:
Audyssey Dynamic EQ® becomes active.
The Dynamic EQ indicator will light.
With Audyssey Dynamic EQ, you can enjoy great sound
even when listening at low volume levels.
Audyssey Dynamic EQ solves the problem of deteriorating
sound quality as volume is decreased by taking into
account human perception and room acoustics. It does so
by selecting the correct frequency response and surround
volume levels moment-by-moment so that the content
sounds the way it was created at any volume level — not
just at reference level.
■ Reference Level
Audyssey Dynamic EQ Reference Level Offset
` 0dB:
This should be selected for movie contents.
` 5dB:
Select this setting for content that has a very wide
dynamic range, such as classical music.
` 10dB:
Select this setting for jazz or other music that has a
wider dynamic range. This setting should also be
selected for TV content as that is usually mixed at
10 dB below film reference.
` 15dB:
Select this setting for pop/rock music or other
program material that is mixed at very high listening
levels and has a compressed dynamic range.
Movies are mixed in rooms calibrated for film reference.
To achieve the same reference level in a home theater
system each speaker level must be adjusted so that
–30 dBFS band-limited (500 Hz to 2000 Hz) pink noise
produces 75 dB sound pressure level at the listening
position. A home theater system automatically calibrated
®
by Audyssey 2EQ
will play at reference level when the
master volume control is set to the 0 dB position. At that
level you can hear the mix as the mixers heard it.
Audyssey Dynamic EQ is referenced to the standard film
mix level. It makes adjustments to maintain the reference
response and surround envelopment when the volume is
turned down from 0 dB. However, film reference level is
not always used in music or other non-film content.
Audyssey Dynamic EQ Reference Level Offset provides
three offsets from the film level reference (5 dB, 10 dB,
and 15 dB) that can be selected when the mix level of the
content is not within the standard.
Note
• If “Dynamic EQ” setting is set to “Off”, this technology cannot
be used.
■ Dynamic Volume
` Off
` Light:
Activates Light Compression Mode.
` Medium:
Activates Medium Compression Mode.
` Heavy:
Activates Heavy Compression Mode. This setting
affects volume the most. It quiets the loud parts, such
as explosions, and boosts the quiet parts so they can
be heard.
Note
• If you make Dynamic Volume active, “Dynamic EQ” is set to
“On”. The Dynamic Vol indicator will light.
• When “Dynamic EQ” is set to “Off”, “Dynamic Volume” is
automatically switched to “Off”.
Advanced Operations
About Audyssey Dynamic EQ
®
Audyssey Dynamic EQ solves the problem of
deteriorating sound quality as volume is decreased by
taking into account human perception and room
acoustics. Dynamic EQ selects the correct frequency
response and surround levels moment-by-moment at any
user-selected volume setting. The result is bass response,
tonal balance and surround impression that remain
constant despite changes in volume.
Dynamic EQ combines information from incoming
source levels with actual output sound levels in the
room, a prerequisite for delivering a loudness correction
solution. Audyssey Dynamic EQ works in tandem with
®
Audyssey 2EQ
to provide well-balanced sound for
every listener at any volume level.
About Audyssey Dynamic Volume
®
Audyssey Dynamic Volume solves the problem of large
variations in volume level between television programs,
commercials, and between the soft and loud passages of
movies. Dynamic Volume looks at the preferred volume
setting by the user and then monitors how the volume of
program material is being perceived by listeners in real
time to decide whether an adjustment is needed.
Whenever necessary, Dynamic Volume makes the
necessary rapid or gradual adjustments to maintain the
desired playback volume level while optimizing the
dynamic range. Audyssey Dynamic EQ is integrated into
Dynamic Volume so that as the playback volume is
adjusted automatically, the perceived bass response,
tonal balance, surround impression and dialog clarity
remain the same whether watching movies, flipping
between television channels or changing from stereo to
surround sound content.
En-46
Advanced Operations
A/V Sync
■ A/V Sync
` 0ms
to 400 ms in 10 msec steps.
When using progressive scanning on your Blu-ray
Disc/DVD player, you may find that the picture and sound
are out of sync. With this setting, you can correct this by
delaying the audio signals.
To view the TV picture while setting the delay, press
ENTER.
To return to the previous screen, press RETURN.
The range of values you can adjust will depend on whether
your TV supports HDMI Lip Sync and if the “LipSync”
setting is set to “On” or not (➔ page 49).
Note
• A/V Sync is disabled when the Direct listening mode is used with
an analog input source.
Preset Name For Input Selector
■ Name
` ---
, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo,
CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD,
TAPE, iPod:
To reset to the default, select “---”.
You can enter a preset name for each individual input
selector for easy identification. When entered, the preset
name will be displayed.
Note
• You can’t assign the same preset name to multiple input selectors.
• This setting cannot be used for the AM, FM or USB input
selector.
Audio Selector
■ Audio Selector
` ARC:
The audio signal from your TV tuner can be sent to
the HDMI OUT of the AV receiver.
With this selection, the TV’s audio can be
automatically selected as a priority among other
assignments.
` HDMI:
This can be selected when HDMI IN has been
assigned as an input source. If both HDMI (HDMI
IN) and digital audio inputs (COAXIAL IN or
OPTICAL IN) have been assigned, HDMI input is
automatically selected as a priority.
` COAXIAL:
This can be selected when COAXIAL IN has been
assigned as an input source. If both coaxial and
HDMI inputs have been assigned, coaxial input is
automatically selected as a priority.
` OPTICAL:
This can be selected when OPTICAL IN has been
assigned as an input source. If both optical and HDMI
inputs have been assigned, optical input is
automatically selected as a priority.
` Analog:
The AV receiver always outputs analog signals.
You can set priorities of audio output when there are both
digital and analog inputs.
Note
• This setting can be made only for the input source that is assigned
as HDMI IN, COAXIAL IN, or OPTICAL IN.
*1
You can select “ARC” if you select the TV/CD input selector.
But you cannot if you’ve selected “Off” in the “Audio Return Ch” setting (➔ page 49).
*1
Setting the Incoming Digital Signal (Fixed
Mode)
■ Fixed Mode
` Off
:
The format is detected automatically. If no digital
input signal is present, the corresponding analog
input is used instead.
` PCM:
Only 2-channel PCM format input signals will be
heard. If the input signal is not PCM, the PCM
indicator will flash and noise may also be produced.
` DTS:
Only DTS (but not DTS-HD) format input signals
will be heard. If the input signal is not DTS, the dts
indicator will flash and there will be no sound.
When “HDMI”, “COAXIAL” or “OPTICAL” is selected
in the “Audio Selector” setting, you can then specify the
signal type in “Fixed Mode”.
Normally, the AV receiver detects the signal format
automatically. However, if you experience either of the
following issues when playing PCM or DTS material, you
can manually set the signal format to PCM or DTS.
• If the beginnings of tracks from a PCM source are cut off,
try setting the format to PCM.
• If noise is produced when fast forwarding or reversing a
DTS CD, try setting the format to DTS.
Note
• The setting will be reset to “Off” when you change the setting in
the “Audio Selector”.
En-47
.
Hardware
Tuner
Advanced Operations
HDMI Setup
123456
MenuHardware
OSD
■ Volume OSD
` On
` Off
Turn this setting on to display the volume level on the TV
screen while it is adjusted.
Remote ID
■ Remote ID
` 1, 2, or 3
When several other components are used in the same room,
their remote ID codes may overlap. To differentiate the AV
receiver from the other components, you can change its
remote ID from “1”, to “2” or “3”.
Note
• If you do change the AV receiver’s remote ID, be sure to change
the remote controller to the same ID (see below), otherwise, you
won’t be able to control it with the remote controller.

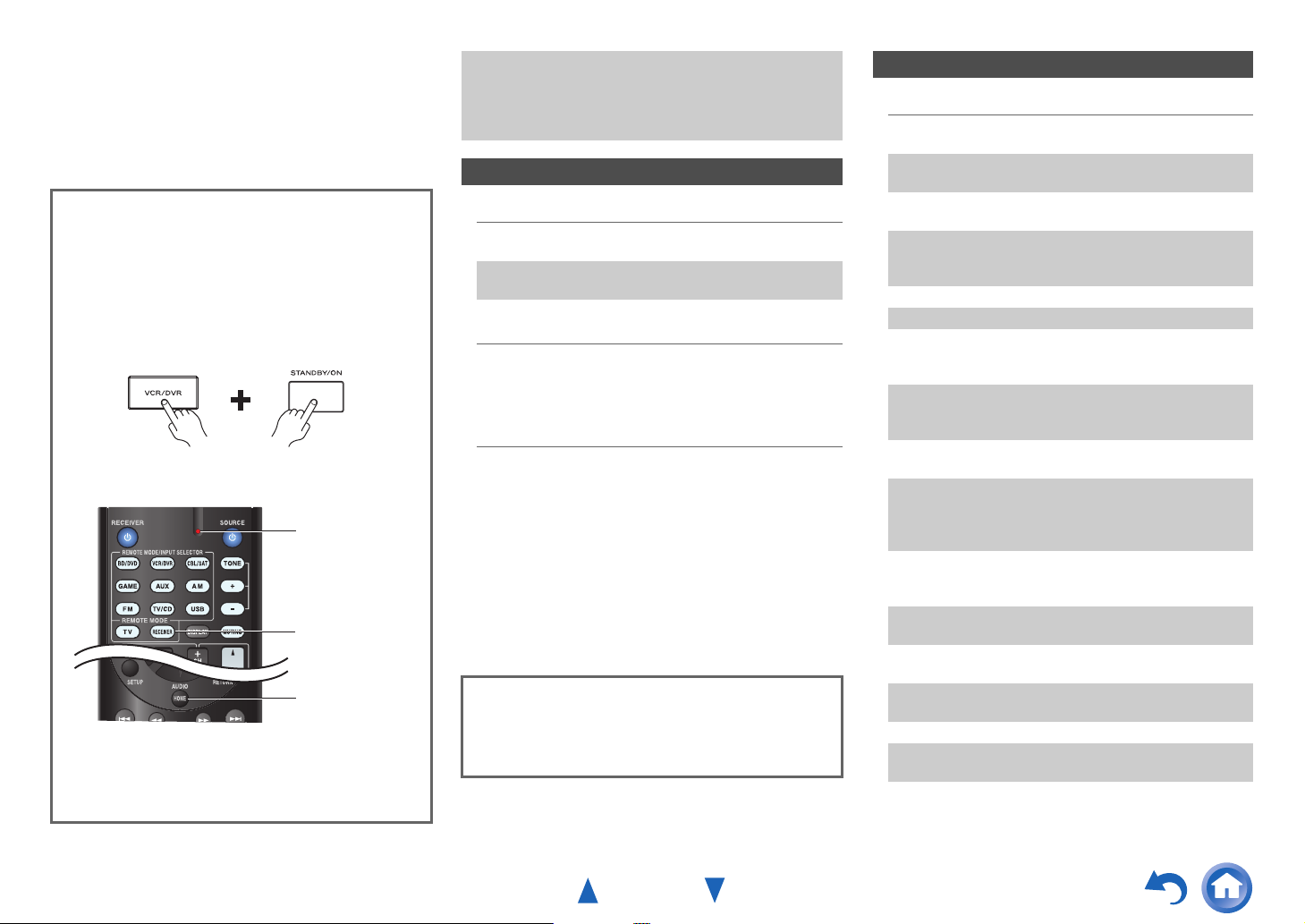

Changing the remote controller’s ID
1
2
While holding down RECEIVER, press and hold
down SETUP until the remote indicator lights
(about 3 seconds).
Use the number buttons to enter ID 1, 2, or 3.
The remote indicator flashes twice.
■ AM Freq Step
` 10kHz:
` 9kHz
:
Select the frequency step according to your area.
For AM tuning to work properly, you must specify the AM
frequency step used in your area.
Note
• When this setting is changed, all radio presets will be deleted.
Auto Standby
■ Auto Standby
` Off
` On
When “Auto Standby” is set to “On”, the AV receiver
will automatically enter standby mode if there is no
operation for 30 minutes with no audio and no video signal
input.
“Auto Standby” will appear on the AV receiver’s display
and OSD 30 seconds before the Auto Standby comes on.
Note
On”, the Auto Standby function may activate itself during
•Set to “
playback with some sources.
123456
MenuHDMI Setup
■ HDMI Ctrl (RIHD)
` Off
` On
Turn this setting on to allow p-compatible
components connected via HDMI to be controlled by the
AV receiver (➔ page 64).
Note
• When the setting is set to “On” and the menu is closed, the names
of connected p-compatible components and “RIHD On”
are displayed on the AV receiver.
“Search…” → “(name)” → “RIHD On”
When the AV receiver cannot receive the name of the component,
it is displayed as “Player
and indicates the number of components, when two or more are
received).
• When an p-compatible component is connected to the
AV receiver via an HDMI cable, the name of the connected
component is displayed on the AV receiver’s display. For
example, while you are watching TV broadcasting, if you operate
a Blu-ray Disc/DVD player (being powered on) with the remote
control of the AV receiver, the name of the Blu-ray Disc/DVD
player will be displayed on the AV receiver.
• Set it to
• If operation is not normal when set to
• Refer to the connected component’s instruction manual for
• When the “HDMI Ctrl (RIHD)” setting is set to “On”, the power
•
“Off” when a connected piece of equipment is not
compatible or it is unclear whether the equipment is compatible
or not.
“Off”.
details.
consumption in standby mode slightly increases. (Depending on
the TV status, the AV receiver will enter standby mode as usual.)
When the source equipment is connected with the u connection,
it may malfunction if “
*
” or “Recorder*”, etc (“*” shows up
“On”, change the setting to
HDMI Ctrl (RIHD)
” is set to “On”.
En-48
■ HDMI Through
` Off
` BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD:
Selects the input source for which the HDMI
Through function is enabled.
` Last:
The HDMI Through function is activated on the input
source selected at the time of setting the AV receiver
to standby mode.
When enabling the HDMI Through function, regardless of
whether the AV receiver is on or in standby, both audio
and video streams from an HDMI input will be output to
the TV or other components via HDMI connection. In
standby mode, the HDMI THRU and HDMI indicators
will light (HDMI will be dimly-lit).
This setting is fixed to “Auto” automatically when the
above “HDMI Ctrl (RIHD)” setting is set to “On”,
resulting in automatic input source selection.
Note
• Only the input source assigned to the HDMI IN via
“HDMI Input” is enabled (➔ page 41).
• The power consumption in standby mode will increase during the
HDMI Through function; however in the following cases, the
power consumption can be saved:
– The TV is in standby mode.
– You are watching a TV program.
• Refer to the connected component’s instruction manual for
details.
• Depending on the connected component, the correct input source
may not be selected with the setting fixed to “Auto”.
• This setting is set to “Off” automatically when the “HDMI Ctrl
(RIHD)” setting is set to “Off”.
■ Audio TV Out
` Off
` On
This preference determines whether the incoming audio
signal is output from the HDMI output. You may want to
turn this preference on if your TV is connected to the
HDMI output and you want to listen to the audio from a
connected component through your TV’s speakers.
Normally, this should be set to “Off”.
Note
• If “On” is selected and the audio can be output from the TV, the
AV receiver will output no sound through its speakers. In this
case, “TV Speaker” appears on the AV receiver’s display by
pressing DISPLAY.
• When
“HDMI Ctrl (RIHD)” is set to “On”, this setting is fixed
“Auto” (➔ page 48).
to
• With some TVs and input signals, no sound may be output even
when this setting is set to
• When “Audio TV Out” or
(➔ page 48)and you’re listening through your TV’s speakers
(➔ page 15), turning up the AV receiver’s volume control will
make the sound be output from the AV receiver’s front left and
right speakers. To stop the AV receiver’s speakers producing
sound, change the settings, change your TV’s settings, or turn
down the AV receiver’s volume.
• Listening mode cannot be changed when this setting is set to
“On” and the input source is not HDMI.
“On”.
“HDMI Ctrl (RIHD)” is set to “On”
Advanced Operations
■ Audio Return Ch (ARC)
` Off
` Auto:
The audio signal from your TV tuner can be sent to
the HDMI OUT of the AV receiver.
The audio return channel (ARC) function allows an ARC
capable TV to send the audio stream to the HDMI OUT of
the AV receiver. To use this function, you must select the
TV/CD input selector and your TV must be ARC capable.
Default setting: “
Note
• This setting is fixed to “----” when the “HDMI Ctrl (RIHD)”
setting is set to “Off” (➔ page 48).
• This setting is set to “Auto” automatically when the “HDMI Ctrl (RIHD)” setting is set to “On” for the first time (➔ page 48).
• If you set “Audio Return Ch” to “Auto”, the “Audio Selector”
settings of the TV/CD input selector will be automatically
switched to “ARC” (➔ page 47).
----”.
■ LipSync
` Off
` On
This function allows the AV receiver to automatically
correct any delay between the video and the audio, based
on the data from the connected monitor.
Note
• This function works only if your HDMI-compatible TV supports
HDMI Lip Sync.
After changing the settings of the “HDMI Ctrl
”, “HDMI Through” or “Audio Return Ch”
(RIHD)
turn off the power on all connected pieces of equipment
and then turn them on again. Refer to the user’s manuals
for all connected pieces of equipment.
En-49
Using the Audio Settings
Speaker Levels
Audyssey
Advanced Operations
®
You can change various audio settings from the Home
menu (➔ page 35).
Press RECEIVER followed by HOME.
1
Use q/w and ENTER to select “Audio”, and then
2
use q/w/e/r to make the desired selection.
Note
• These settings are not available in either of the following cases:
–The “Audio TV Out” setting is set to “On”.
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and you’re
listening through your TV speakers.
Tone Control
■ Bass
` –10 dB to 0dB
You can boost or cut low-frequency sounds output
from the front speakers.
■ Treble
` –10 dB to 0dB
You can boost or cut high-frequency sounds output
from the front speakers.
You can adjust the bass and treble for the front speakers,
except when the Direct listening mode is selected.
to +10 dB in 2 dB steps
to +10 dB in 2 dB steps
■ Subwoofer Level
*1
` –15 dB to 0dB to +12 dB in 1 dB steps
■ Center Level
` –12 dB to 0dB to +12 dB in 1 dB steps
You can adjust the volume of each speaker while listening
to an input source.
These temporary adjustments are cancelled when the AV
receiver is set to standby. To save the setting you made
here, go to “Level Cal (Level Calibration)” (➔ page 44)
before setting the AV receiver to standby.
Note
• These settings cannot be calibrated in either of the following
cases:
– A pair of headphones is connected.
– The AV receiver is muted.
• Speakers that are set to “No” or “None” in the “Sp Config
(Speaker Configuration)” (➔ page 42) cannot be adjusted.
*1
This procedure can also be performed on the AV receiver by
using its SUBWOOFER LEVEL.
■ Audyssey
See
“Audyssey” in “Source Setup” (➔ page 45).
■ Dynamic EQ
See
“Dynamic EQ” in “Source Setup” (➔ page 46).
■ Dynamic Volume
See “Dynamic Volume” in “Source Setup” (➔ page 46).
Note
• These technologies can be used when all the following conditions
are met:
– Room Correction and Speaker Setup is completed. Note that
“Audyssey” requires the “Audyssey 2EQ Full Calibration”
method.
– Any listening mode other than Direct is selected.
– A pair of headphones is not connected.
– The input selector other than USB is selected.
• The setting is stored individually for each input selector.
Operating on the remote controller directly
Press RECEIVER once followed by TONE
1
repeatedly to select either “Bass” or “Treble”.
Use – and + to adjust.
2
Tip
• Alternatively, you can use the AV receiver’s TONE and –/+.
En-50
Advanced Operations
Late Night
■ Late Night
For Dolby Digital and Dolby Digital Plus sources, the
options are:
` Off
` Low:
Small reduction in dynamic range.
` High:
Large reduction in dynamic range.
For Dolby TrueHD sources, the options are:
` Auto
:
The Late Night function is set to “On” or “Off”
automatically.
` Off
` On
Turn this setting on to reduce the dynamic range of Dolby
Digital material so that you can still hear quiet parts even
when listening at low volume levels—ideal for watching
movies late at night when you don’t want to disturb
anyone.
Note
• The effect of the Late Night function depends on the material that
you are playing and the intention of the original sound designer,
and with some material there will be little or no effect when you
select the different options.
• The Late Night function can be used only when the input source
is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.
• The Late Night function is set to “Off” when the AV receiver is
set to standby. For Dolby TrueHD sources, it will be set to
“Auto”.
Music Optimizer
■ Music Optimizer
` Off
` On
The Music Optimizer function enhances the sound quality
of compressed music files. The M.Opt indicator lights on
the AV receiver’s display.
Tip
• Alternatively, you can use the AV receiver’s MUSIC
OPTIMIZER.
Note
• The Music Optimizer function only works with PCM digital
audio input signals with a sampling rate below 48 kHz and analog
audio input signals.
• The Music Optimizer is disabled when the Direct listening mode
is selected.
• The setting is stored individually for each input selector.
CinemaFILTER
■ Cinema Filter
` Off
` On
Turn this setting on to soften overly bright movie
soundtracks, which are typically mixed for reproduction in
a movie theater.
CinemaFILTER can be used with the following listening
modes: Dolby Digital, Dolby Digital EX, Dolby Digital
Plus, Dolby TrueHD, Dolby Pro Logic IIx Movie, Dolby
Pro Logic II Movie, Dolby Pro Logic IIz Height,
Multichannel, DTS, DTS-ES, DTS Neo:6 Cinema, DTS
96/24, Neo:6, DTS-HD High Resolution Audio, DTS-HD
Master Audio and DTS Express.
Note
• The CinemaFILTER may not work when used with certain input
sources.
En-51
iPod/iPhone Playback
via RI Dock
RI Dock
With the RI Dock, you can easily play the music of your
iPod/iPhone, or watch the slideshows and videos of your
iPod/iPhone on a TV. In addition, the on-screen display
(OSD) allows you to view, navigate, and select your
iPod/iPhone model’s contents on your TV, and with the
supplied remote controller, you can control your
iPod/iPhone from the comfort of your sofa. You can even
use the AV receiver’s remote controller to operate your
iPod/iPhone.
Note
• Enter the appropriate remote control code before using the AV
receiver’s remote controller for the first time (➔ page 55).
• Connect the RI Dock to the AV receiver with an u cable
(➔ page 17).
• Set the RI Dock’s RI MODE switch to “HDD” or
“HDD/DOCK”.
• Set the AV receiver’s Input Display to “DOCK” (➔ page 36).
■ System Function
Direct Change
If you start iPod/iPhone playback while listening to another
input source, the AV receiver will automatically switch to
the input to which RI Dock is connected.
Other Remote Operations
You can use the remote controller that came with the AV
receiver to control other iPod/iPhone functions. The
available functionality depends on the AV receiver.
Note
• If you use your iPod/iPhone with any other accessories,
iPod/iPhone playback detection may not work.
• The System On function may not work depending on the RI
Dock.
iPod Alarm
If you use the Alarm function on your iPod to start
playback, the AV receiver will turn on at the specified time
and select your iPod as the input source automatically.
Note
• This linked operation won’t work while a video is being played
or when the sound set for the alarm is a built-in sound (Beep).
• This linked operation won’t work with models on which music
files cannot be used to set the alarm sound.
Controlling Other Components
■ Operating Notes
• Use the AV receiver’s volume control to adjust the playback
volume.
• While your iPod/iPhone is inserted in the RI Dock, its volume
control has no effect.
• If you do adjust the volume control on your iPod/iPhone while
it’s inserted in the RI Dock, be careful that it’s not set too loud
before you reconnect your headphones.
*
For RI Dock, please check Onkyo DS-A** series, etc.
For the latest information on the Onkyo Dock components,
see the Onkyo web site at:
http://www.onkyo.com
Depending on your iPod/iPhone model and generation,
some of the linked operations may not be available.
System On
When you turn on the AV receiver, the RI Dock and
iPod/iPhone turn on automatically. In addition, when RI
Dock and iPod/iPhone are on, the AV receiver can be
turned on by pressing 8SOURCE.
Auto Power On
If you press the remote controller’s 1 (Playback) while
the AV receiver is on
standby, the AV receiver will
automatically turn on, select your iPod/iPhone as the input
source, and your iPod/iPhone will start playback.
En-52
Controlling Other Components
Controlling Your iPod/iPhone
By pressing the REMOTE MODE button that’s been
programmed with the remote control code for your Dock,
you can control your iPod/iPhone in the Dock with the
buttons described further in this section.
See “Entering Remote Control Codes” for details on
entering a remote control code (➔ page 54).
See the Dock’s instruction manual for more information.
RI Dock
• Set the RI Dock’s RI MODE switch to “HDD” or
“HDD/DOCK”.
• 8SOURCE may not work with a remote control code
(without u). In this case, make an u connection and
enter the remote control code 81993 (with u).
■ With the RI Control
Make an u connection and enter the remote
control code 81993 (with u).
• Set the AV receiver’s Input Display to “DOCK”
(➔ page 36).
■ Without the RI Control
You must enter the remote control code 82990 first.
Press the appropriate REMOTE
MODE button first.
a
b
c
d
e
f
g
h
i
j
k
■ u Dock operation
Available buttons
TOP MENU
a
b q/w/e/r, ENTERf
PLAYLISTe/rg
c 1, 3, 2, 5, 4,
7, 6
REPEAT
d
RANDOM
Note
• With some iPod/iPhone models, generations and RI Docks,
certain buttons may not work as expected.
• For detailed operation of iPod/iPhone, please refer to the
instruction manual of the RI Dock.
*1
TOP MENU works as the mode button when used with some
RI Dock.
*2
This button does not turn the RI Dock on or off. Also, your
iPod/iPhone may not respond the first time you press this
button, in which case you should press it again. This is because
the remote controller transmits the On and Standby commands
alternately, so if your iPod/iPhone is already on, it will remain
on when the remote controller transmits the On command.
Similarly, if your iPod/iPhone is already off, it will remain off
when the remote controller transmits the Off command.
*3
DISPLAY turns on the backlight for a few seconds.
*4
Resume mode
With the Resume function, you can resume playback of the
song that was playing when you removed your iPod/iPhone
from some RI Dock.
*1
e 8SOURCE
DISPLAY
MUTING
h VOL q/w
ALBUM +/–
i
MENU
j
MODE
k
*2
*3
*4
En-53
Controlling Other Components
Controlling Other
Components
You can use the AV receiver’s remote controller to control
your other AV components, including those made by other
manufacturers. This section explains how to enter the
remote control code for a component that you want to
control: DVD, TV, CD, etc.
Preprogrammed Remote Control
Codes
The following REMOTE MODE butttons are
preprogrammed with remote control codes for controlling
the components listed. You do not need to enter a remote
control code to control these components.
For details on controlling these components, see the
indicated pages.
BD/DVD TEAC(Esoteric)/TASCAM Blu-ray Disc player
(➔ page 56)
TV/CDTEAC/TASCAM CD player (➔ page 57)
Entering Remote Control Codes
You’ll need to enter a code for each component that you
want to control.
Look up the appropriate remote control code in the
1
separate Remote Control Codes list.
The codes are organized by category (e.g., DVD
player, TV, etc.).
While holding down the REMOTE MODE button to
2
which you want to assign a code, press and hold
down DISPLAY (about 3 seconds).
The remote indicator lights.
Note
• Remote control codes cannot be entered for RECEIVER.
• Only TV remote control codes can be entered for TV.
• Except for RECEIVER, TV, and the multi zone button,
remote control codes from any category can be assigned for
the REMOTE MODE buttons. However, these buttons also
work as input selector buttons (➔ page 20), so choose a
REMOTE MODE button that corresponds with the input to
which you connect your component. For example, if you
connect your CD player to the CD input, choose TV/CD
when entering its remote control code.
Within 30 seconds, use the number buttons to enter
3
the 5-digit remote control code.
The remote indicator flashes twice.
If the remote control code is not entered successfully,
the remote indicator will flash once slowly.
Remapping Colored Buttons
You can change the configuration of colored buttons, with
which REMOTE MODE buttons are preset.
While holding down the REMOTE MODE button
1
that you want to program, press and hold down A
(Red) until the remote indicator lights (about 3
seconds).
You can only change colored buttons for components
whose codes belong to categories of the Remote
Control Codes list (BD/DVD player, TV, cable set-top
box, etc).
Within 30 seconds, press the colored buttons in the
2
order that you want to reassign them.
The button presses are assigned to each button from
left to right. The remote indicator flashes twice,
indicating that the sequence has been successfully
assigned. If the sequence is not successfully assigned,
the remote indicator will flash once slowly.
Tip
•To reset the REMOTE MODE buttons to their default settings,
see “Resetting the REMOTE MODE Buttons” (➔ page 55).
Note
• If any other button than the colored buttons is pressed, the
operation will be cancelled.
• This operation cannot be done while the AV receiver is in
Receiver mode.
Note
• Though the provided remote control codes are correct at the time
of release, they are subject to change.
En-54
Controlling Other Components
Remote Control Codes for Components
Connected via RI
Components that are connected via u are controlled by
pointing the remote controller at the AV receiver, not the
component. This allows you to control components that are
out of view, in a rack, for example.
Make sure the component is connected with an u
1
cable and an analog audio cable (RCA).
See “Connecting RI Components” for details
(➔ page 17).
Enter the appropriate remote control code for a
2
REMOTE MODE button, by referring to the
previous section.
` 42157:
Cassette tape deck with u
` 81993:
Dock with u
Press the REMOTE MODE button, point the
3
remote controller at the AV receiver, and operate
the component.
Resetting the REMOTE MODE Buttons
You can reset a REMOTE MODE button to its default
remote control code.
While holding down the REMOTE MODE button
1
that you want to reset, press and hold down HOME
until the remote indicator lights (about 3 seconds).
Within 30 seconds, press the REMOTE MODE
2
button again.
The remote indicator flashes twice, indicating that the
button has been reset.
Each REMOTE MODE button is preprogrammed
with a remote control code. When a button is reset, its
preprogrammed code is restored.
Resetting the Remote Controller
You can reset the remote controller to its default settings.
While holding down RECEIVER, press and hold
1
down HOME until the remote indicator lights
(about 3 seconds).
Within 30 seconds, press RECEIVER again.
2
The remote indicator flashes twice, indicating that the
remote controller has been reset.
Controlling Other Components
By pressing the REMOTE MODE button that’s been
programmed with the remote control code for your
component, you can control your component as described
below.
For details on entering a remote control code for other
components, see “Entering Remote Control Codes”
(➔ page 54).
Controlling a TV
TV is preprogrammed with the remote control code for
controlling a TV that supports the p
some models). The TV must be able to receive remote
control commands via p and be connected to the
AV receiver via HDMI. If controlling your TV via
p doesn’t work very well, program your TV’s
remote control code into TV and use the TV remote mode
to control your TV.
Use the following remote control codes:
` 11807/13100/13500:
TV with p
Controlling Apple TV
By programming the supplied remote controller with the
appropriate remote control code, you can use it to operate
your Apple TV.
Use the following remote control codes:
` 02615:
Apple TV
*1
(limited to
En-55
Controlling a Blu-ray Disc/DVD Player, HD
DVD Player or DVD Recorder
BD/DVD is preprogrammed with the remote control code
for controlling a component that supports the p*1
(limited to some models). The component must be able to
receive remote control commands via p and be
connected to the AV receiver via HDMI.
Use the following remote control codes:
` 32910/33101/33501/31612:
Blu-ray Disc/DVD player with p
*1
The p supported by the AV receiver is the CEC system
control function of the HDMI standard.
Press the appropriate REMOTE
MODE button first.
a
b
c
d
e
f
g
h
i
j
k
l
m
n
Controlling Other Components
■ TV operation
Available buttons
a 8, INPUT, TV VOL q/w g
GUIDE
b
c q/w/e/r, ENTERi
SETUP
d
e 1, 3, 2, 5, 4,
7, 6
A
f
B
C (Yellow)
D
(Red)
(Green)
(Blue)
*1
*1
*1
*1
*1
Number: 1 to 9, 0
Number: +10
DISPLAY
MUTING
j
CH +/–
k
PREV CH
l
RETURN
m
AUDIO
n
CLR
o
*1
*1
■ Blu-ray Disc player/HD-DVD player operation
Available buttons
TOP MENU
b
c q/w/e/r, ENTERi
SETUP
d
e 1, 3, 2, 5, 4,
7, 6
(Red)
A
f
(Green)
B
(Yellow)
C
D (Blue)
Number: 1 to 9, 0
g
Number: +10
*1
h 8SOURCE
DISPLAY
MUTING
j
CH +/–
k
DISC +/–
MENU
l
RETURN
m
*1
AUDIO
n
CLR
o
En-56
o
Press the appropriate REMOTE
MODE button first.
h
i
j
■ DVD player/DVD recorder operation
Available buttons
TOP MENU
b
c q/w/e/r, ENTERi
SETUP
d
e 1, 3, 2, 5, 4,
7, 6
*1
(Red)
A
f
(Green)
B
C
D (Blue)
Number: 1 to 9, 0
g
Number: +10
(Yellow)
*1
*1
*1
h 8SOURCE
DISPLAY
MUTING
j
CH +/–
k
DISC +/–
MENU
l
RETURN
m
*1
AUDIO
n
CLR
o
Controlling Other Components
■ Satellite receiver/Cable receiver operation
Available buttons
GUIDE
b
c q/w/e/r, ENTERi
SETUP
d
e 1, 3, 2, 5, 4,
7, 6
(Red)
A
f
(Green)
B
(Yellow)
C
(Blue)
D
Number: 1 to 9, 0
g
Number: +10
h 8SOURCE
DISPLAY
MUTING
j
CH +/–
k
PREV CH
l
RETURN
m
AUDIO
n
CLR
o
b
c
d
e
f
g
k
l
m
n
o
■ VCR/PVR operation
Available buttons
GUIDE
b
c q/w/e/r, ENTERi
SETUP
d
e 1, 3, 2, 5, 4,
7, 6
Number: 1 to 9, 0
g
Number: +10
h 8SOURCE
DISPLAY
MUTING
j
CH +/–
k
PREV CH
l
RETURN
m
CLR
o
■ Cassette tape deck operation
Available buttons
e 1, 3 (reverse playback),
2, 5, 4, 7, 6
h 8SOURCE
MUTING
j
■ CD player/CD recorder/MD recorder operation
Available buttons
c q/w/e/r, ENTERg
SETUPNumber: +10
d
e 1, 3, 2, 5, 4,
7, 6
SEARCH
f
REPEAT
RANDOM
MODE
Note
• With some components, certain buttons may not work as
expected, and some may not work at all.
• See “Controlling Your iPod/iPhone” about the operation of
iPod/iPhone (➔ page 53).
*1
The p function is not supported. The p
supported by the AV receiver is the CEC system control
function of the HDMI standard.
Number: 1 to 9, 0
h 8SOURCE
DISPLAY
i
MUTING
j
DISC +/–
k
CLR
o
En-57
Appendix
Troubleshooting
If you have any trouble using the AV receiver, look for a
solution in this section. If you can’t resolve the issue
yourself, contact the dealer from whom you purchased this
unit.
If you can’t resolve the issue yourself, try resetting the
AV receiver before contacting the dealer from whom
you purchased this unit.
To reset the AV receiver to its factory defaults, turn it
on and, while holding down VCR/DVR, press
STANDBY/ON. “Clear” will appear on the AV
receiver’s display and the AV receiver will enter
standby mode.
Note that resetting the AV receiver will delete your radio
presets and custom settings.
Remote indicator
RECEIVER
HOME
To reset the remote controller to its factory defaults,
while holding down RECEIVER, press and hold down
HOME until the remote indicator lights (about 3
seconds). Within 30 seconds, press RECEIVER again.
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
Power
■ Can’t turn on the AV receiver
Make sure that the power cord is properly plugged
into the wall outlet.
Unplug the power cord from the wall outlet, wait five
seconds or more, then plug it in again.
■ The AV receiver turns off unexpectedly
The AV receiver will automatically enter standby
mode when Auto Standby has been set and launches.
■ The AV receiver turns off and after restoring the
power, it turns off again
The protection circuit has been activated. Remove the
power cord from the wall outlet immediately. Make
sure that all speaker cables and input sources are
properly connected, and leave the AV receiver with
its power cord disconnected for 1 hour. After that,
reconnect the power cord and turn the power on. If
the AV receiver turns off again, unplug the power
cord and contact the dealer from whom you
purchased this unit.
Caution: If “CHECK SP WIRE” appears on the AV
receiver’s display, the speaker cables may be
shorting.
WARNING
If smoke, smell or abnormal noise is produced by the AV
receiver, unplug the power cord from the wall outlet
immediately and contact the dealer from whom you
purchased this unit.
—
—
48
12
Audio
■ There’s no sound, or it’s very quiet
Make sure that the digital input source is selected
properly.
Make sure that all audio connecting plugs are pushed
in all the way.
Make sure that the inputs and outputs of all
components are connected properly.
Make sure that the polarity of the speaker cables is
correct, and that the bare wires are in contact with the
metal part of each speaker terminal.
Make sure that the input source is properly selected. 20
Make sure that the speaker cables are not shorting.12
Check the volume. The AV receiver is designed for
home theater enjoyment. It has a wide volume range,
allowing precise adjustment.
If the MUTING indicator is flashing on the AV
receiver’s display, press the remote controller’s
MUTING to unmute the AV receiver.
While a pair of headphones is connected to the
PHONES jack, no sound is output from the speakers.
If there’s no sound from a DVD player connected to
an HDMI IN, check the DVD player’s output
settings, and be sure to select a supported audio
format.
Check the digital audio output setting on the
connected device. On some game consoles, such as
those that support DVD, the default setting is off.
With some DVD-Video discs, you need to select an
audio output format from a menu.
If your turntable uses an MC cartridge, you must
connect an MC head amp, or an MC transformer.
Make sure that none of the connecting cables are
bent, twisted, or damaged.
Not all listening modes use all speakers.31
Specify the speaker distances and adjust the
individual speaker levels.
Make sure that the speaker setup microphone is not
still connected.
42
14
15-17
12
—
37
37
—
—
—
—
—
43
—
En-58
If the input signal format is set to “PCM” or “DTS”.
Set it to “Off”.
■ Only the front speakers produce sound
When the Stereo or Mono listening mode is selected,
only the front speakers and subwoofer produce
sound.
Check the Speaker Configuration.42
■ Only the center speaker produces sound
If you use the Dolby Pro Logic IIx Movie, Dolby Pro
Logic IIx Music, or Dolby Pro Logic IIx Game
listening mode with a mono source, such as an AM
radio station or mono TV program, the sound is
concentrated in the center speaker.
Make sure the speakers are configured correctly.42
■ The surround speakers produce no sound
When the T-D (Theater-Dimensional), Stereo or
Mono listening mode is selected, the surround
speakers produce no sound.
Depending on the source and current listening mode,
not much sound may be produced by the surround
speakers. Try selecting another listening mode.
Make sure the speakers are configured correctly.42
■ The center speaker produces no sound
When the Stereo or Mono listening mode is selected,
the center speaker produces no sound.
Make sure the speakers are configured correctly.42
■ The front high or surround back speakers
produce no sound
Depending on the current listening mode, no sound
may be produced by the front high or surround back
speakers. Select another listening mode.
Not much sound may be produced by the front high
or surround back speakers with some sources.
Make sure the speakers are configured correctly.42
47
33
—
—
30
—
30
—
■ The subwoofer produces no sound
When you play source material that contains no
information in the LFE channel, the subwoofer
produces no sound.
Make sure the speakers are configured correctly.42
—
■ There’s no sound with a certain signal format
Check the digital audio output setting on the
connected device. On some game consoles, such as
those that support DVD, the default setting is off.
With some DVD-Video discs, you need to select an
audio output format from a menu.
Depending on the input signal, some listening modes
cannot be selected.
—
—
31-32
■ Can’t get 6.1/7.1 playback
If no surround back speakers or front high speakers
are connected, 6.1/7.1 playback is not possible.
Depending on the number of connected speakers, it is
not always possible to select all of the listening
modes.
—
31-32
■ The speaker volume cannot be set as required
After the volume level of each individual speaker has
been adjusted, the maximum volume may be reduced.
If the volume level of each individual speaker has
been adjusted to high positive values, then the
maximum master volume possible may be reduced.
Note that the individual speaker volume levels are set
automatically after the Audyssey 2EQ
Correction and Speaker Setup has been completed.
®
Room
44
27, 44
■ Noise can be heard
Using cable ties to bundle audio cables with power
cords, speaker cables, and the like may degrade the
audio performance, so refrain from doing it.
An audio cable may be picking up interference. Try
repositioning your cables.
—
—
Appendix
■ The Late Night function doesn’t work
Make sure the source material is Dolby Digital,
Dolby Digital Plus, or Dolby TrueHD.
51
■ About DTS signals
When DTS program material ends and the DTS
bitstream stops, the AV receiver remains in DTS
listening mode and the dts indicator remains on. This
is to prevent noise when you use the pause, fast
forward, or fast reverse function on your player. If
you switch your player from DTS to PCM, you may
not hear any sound because the AV receiver does not
switch formats immediately. In such case, you should
stop your player for about three seconds and then
resume playback.
With some CD and LD players, you won’t be able to
playback DTS material properly even though your
player is connected to a digital input on the AV
receiver. This is usually because the DTS bitstream
has been processed (e.g., output level, sampling rate,
or frequency response changed) and the AV receiver
doesn’t recognize it as a genuine DTS signal. In such
cases, you may hear noise.
Playing DTS program material, using the pause, fast
forward, or fast reverse function on your player may
produce a short audible noise. This is not a
malfunction.
—
—
—
■ The beginning of audio received by an HDMI IN
can’t be heard
Since it takes longer to identify the format of an
HDMI signal than it does for other digital audio
signals, audio output may not start immediately.
—
En-59
Appendix
Video
■ There’s no picture
Make sure that all video connecting plugs are pushed
in all the way.
Make sure that each video component is properly
connected.
If the video source is connected to a component video
input, you must assign that input to an input selector,
and your TV must be connected to COMPONENT VIDEO OUT.
If the video source is connected to a composite video
input, your TV must be connected to the
corresponding composite video output.
If the video source is connected to an HDMI input,
you must assign that input to an input selector, and
your TV must be connected to the HDMI OUT.
On your TV, make sure that the video input to which
the AV receiver is connected is selected.
■ There’s no picture from a source connected to
an HDMI IN
Reliable operation with an HDMI-to-DVI adapter is
not guaranteed. In addition, video signals from a PC
are not guaranteed.
■ The on-screen menus don’t appear
On your TV, make sure that the video input to which
the AV receiver is connected is selected.
When the AV receiver is not connected to a TV via
HDMI OUT, on-screen menus are not displayed.
14
15, 17
16, 41
16
15, 41
—
66
—
—
Tuner
■ Reception is noisy, FM stereo reception is noisy,
or the FM STEREO indicator doesn’t light
Relocate your antenna.—
Move the AV receiver away from your TV or
computer.
Listen to the station in mono.24
When listening to an AM station, operating the
remote controller may cause noise.
Passing cars and airplanes can cause interference.—
Concrete walls weaken radio signals.—
If nothing improves the reception, install an outdoor
antenna.
—
—
—
Remote Controller
■ The remote controller doesn’t work
Before operating this unit, be sure to press
RECEIVER.
Make sure that the batteries are installed with the
correct polarity.
Install new batteries. Don’t mix different types of
batteries, or old and new batteries.
Make sure that the remote controller is not too far
away from the AV receiver, and that there’s no
obstruction between the remote controller and the AV
receiver’s remote control sensor.
Make sure that the AV receiver is not subjected to
direct sunshine or inverter-type fluorescent lights.
Relocate if necessary.
If the AV receiver is installed in a rack or cabinet
with colored-glass doors, the remote controller may
not work reliably when the doors are closed.
Make sure you’ve selected the correct remote
controller mode.
When using the remote controller to control other
manufacturers’ AV components, some buttons may
not work as expected.
—
4
4
4
—
—
10, 54
—
Make sure you’ve entered the correct remote control
code.
Make sure to set the same ID on both the AV receiver
and remote controller.
■ Can’t control other components
If it’s an u-capable component, make sure that the
u cable and analog audio cable are connected
properly. Connecting only an u cable won’t be
enough.
Make sure you’ve selected the correct remote
controller mode.
For a proper operation of the remote controller as a
cassette tape deck is connected to the TV/CD IN jack,
or as an RI Dock is connected to the TV/CD IN,
VCR/DVR IN or GAME IN jacks, you must set the
input display accordingly.
If you cannot operate it, you will need to enter the
appropriate remote control code.
To control another manufacturer’s component, point
the remote controller at that component.
To control a component that’s connected via u,
point the remote controller at the AV receiver. Be
sure to enter the appropriate remote control code first.
u Dock for iPod/iPhone
■ There’s no sound
Make sure your iPod/iPhone is actually playing.—
Make sure your iPod/iPhone is properly inserted in
the Dock.
Make sure the AV receiver is turned on, the correct
input source is selected, and the volume is turned up.
Make sure the plugs are pushed in all the way.—
Try resetting your iPod/iPhone.—
■ There’s no video
Make sure that your iPod/iPhone model’s TV OUT
setting is set to On.
54
48
17
10, 55
36
54
54
54
—
—
—
En-60
Make sure the correct input is selected on your TV or
the AV receiver.
Some versions of the iPod/iPhone do not output
video.
Appendix
—
—
To prevent signal loops and damage to the AV
receiver, input signals are not fed through to outputs
with the same name (e.g., VCR/DVR IN to
VCR/DVR OUT).
—
■ How do I change the language of a multiplex
source
Use the “Input Ch (Mux)” setting on the “Audio
Adjust” menu to select “Main” or “Sub”.
44
■ The AV receiver’s remote controller doesn’t
control my iPod/iPhone
Make sure your iPod/iPhone is properly inserted in
the Dock. If your iPod/iPhone is in a case, it may not
connect properly to the Dock. Always remove your
iPod/iPhone from the case before inserting it into the
Dock.
The iPod/iPhone cannot be operated while it’s
displaying the Apple logo.
Make sure you’ve selected the right remote mode.53
When you use the AV receiver’s remote controller,
point it toward your AV receiver.
If you still can’t control your iPod/iPhone, start
playback by pressing your iPod/iPhone model’s Play
button. Remote operation should then be possible.
Try resetting your iPod/iPhone.—
Depending on your iPod/iPhone, some buttons may
not work as expected.
—
—
—
—
—
■ The AV receiver unexpectedly selects my
iPod/iPhone as the input source
Always pause iPod/iPhone playback before selecting
a different input source. If playback is not paused, the
Direct Change function may select your iPod/iPhone
as the input source by mistake during the transition
between tracks.
—
■ iPod/iPhone doesn’t work properly
Try reconnecting your iPod/iPhone.—
Recording
■ Can’t record
On your recorder, make sure the correct input is
selected.
—
USB Device Playback
■ Can’t access the music files on a USB device
Make sure the USB device is plugged in properly.—
The AV receiver supports USB devices that support
the USB mass storage device class. However,
playback may not be possible with some USB devices
even if they conform to the USB mass storage device
class.
USB memory devices with security functions cannot
be played.
67
23
Others
■ Standby power consumption
In the following cases, the power consumption in
standby mode may reach up to a maximum of 34 W:
–“HDMI Ctrl (RIHD)” setting is set to “On”.
(Depending on the TV status, the AV receiver will
enter standby mode as usual.)
–The “HDMI Through” setting is set to other than
“Off”.
■ The sound changes when I connect my
headphones
When a pair of headphones is connected, the listening
mode is set to Stereo, unless it’s already set to Stereo,
Mono, or Direct.
■ The speaker distance cannot be set as required
The values entered may be automatically adjusted
with values best-suited for your home theater.
48, 49
—
—
■ The u functions don’t work
To use u, you must make an u connection and an
analog audio connection (RCA) between the
component and AV receiver, even if they are
connected digitally.
17
■ When performing Automatic Speaker Setup, the
measurement fails and the message “Ambient
noise is too high.” is displayed.
This can be caused by a malfunction in your speaker
unit. Check if the unit produces normal sounds.
—
En-61
■ The following settings can be made for the
composite video inputs
You must use the buttons on the unit to make these
settings.
On the AV receiver, press the input selector for the input
source that you want to set and the SETUP button
simultaneously. While holding down the input selector
button, press SETUP until “Video ATT :On” appears
on the AV receiver’s display. Then, release both buttons.
To turn the setting off, repeat the above process so that
“Video ATT :Off” appears on the AV receiver’s
display, and release the buttons.
• Video Attenuation
This setting can be made for the BD/DVD, VCR/DVR,
CBL/SAT, GAME, AUX, or USB input.
If you have a games console connected to the composite
video input, and the picture isn’t very clear, you can
attenuate the gain.
Video ATT :Off: (default).
Video ATT :On: Gain is reduced by 2 dB.
■ If the picture on your TV/monitor connected to
the HDMI OUT is unstable, try switching the
DeepColor function off
To turn off the DeepColor function, simultaneously
press the CBL/SAT and STANDBY/ON buttons on the
AV receiver. While holding down CBL/SAT, press
STANDBY/ON until “Deep Color: Off” appears on the
AV receiver’s display. Then, release both buttons. To
reactivate the DeepColor function, repeat the above
process until “Deep Color: On” appears on the AV
receiver’s display and release the buttons.
Appendix
The AV receiver contains a microcomputer for signal
processing and control functions. In very rare situations,
severe interference, noise from an external source, or
static electricity may cause it to lockup. In the unlikely
event that this happens, unplug the power cord from the
wall outlet, wait at least five seconds, and then plug it
back in.
TEAC is not responsible for damages (such as CD rental
fees) due to unsuccessful recordings caused by the unit’s
malfunction. Before you record important data, make
sure that the material will be recorded correctly.
Before disconnecting the power cord from the wall
outlet, set the AV receiver to standby.
En-62
Appendix
Connection Tips and
Video Signal Path
The AV receiver supports several connection formats for
compatibility with a wide range of AV equipment. The
format you choose will depend on the formats supported by
your components. Use the following sections as a guide.
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
Note
• The on-screen setup menus are displayed when:
– There is no video input, or
– The video input is 480p, 576p, 720p, 1080i, or 1080p.
Video Connection Formats
Video components can be connected by using any one of
the following video connection formats: composite video,
component video, or HDMI, the latter offering the best
picture quality.
When choosing a connection format, bear in mind that the
AV receiver doesn’t convert between formats, so only
outputs of the same format as the input will output the
signal.
Video Signal Flow Chart
Blu-ray Disc/DVD player, etc.
Composite
AV receiver
Composite
Component
IN
MONITOR OUT
Component
TV, projector, etc.
HDMI
HDMI
Audio Connection Formats
Audio components can be connected by using any of the
following audio connection formats: analog, optical,
coaxial, or HDMI.
When choosing a connection format, bear in mind that the
AV receiver does not convert digital input signals for
analog line outputs and vice versa. For example, audio
signals connected to an optical or coaxial digital input are
not output by the analog VCR/DVR OUT.
If signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, digital, analog.
Audio Signal Flow Chart
Blu-ray Disc/DVD player, etc.
HDMICoaxial Analog
*1
HDMI Analog
*1
AV receiver
Optical
IN
*1
*1
OUT
TV, projector, etc.
*2
En-63
*1
Depends on the “Audio TV Out” setting (➔ page 49).
*2
This is possible, when “Audio Return Ch” is set to “Auto”
(➔ page 49), the TV/CD input selector is selected, and your
TV is ARC capable.
Tip
• When a signal is input via HDMI and the corresponding input
selector is selected, the HDMI indicator lights.
Appendix
Using an RIHDcompatible TV, Player,
or Recorder
p, which stands for Remote Interactive over
HDMI, is the name of the system control function found on
u-capable components. The AV receiver can be used
with CEC (Consumer Electronics Control), which allows
system control over HDMI and is part of the HDMI
standard. CEC provides interoperability between various
components, however, operation with components other
than p-compatible components cannot be
guaranteed.
About p-compatible components
The following components are p-compatible (As
of January 2012).
■ TV
• Toshiba TV
•Sharp TV
■ Players/Recorders
• Onkyo and Integra p-compatible players
• Toshiba players and recorders (only when used together
with Toshiba TV)
• Sharp players and recorders (only when used together
with Sharp TV)
*
Models other than those mentioned above may have some
interoperability if compatible with CEC which is part of the
HDMI Standard, but operation cannot be guaranteed.
Note
• For proper linked operations, do not connect more p-
compatible components than the quantities specified below, to
the HDMI input terminal.
– Blu-ray Disc/DVD players: up to three.
– Blu-ray Disc/DVD recorders/Digital Video Recorders: up to
three.
– Cable/Satellite Set-top boxes: up to four.
• Do not connect the AV receiver to the other AV receiver/AV
amplifier via HDMI.
• Proper linked operations are not guaranteed when more
p-compatible components than the above-mentioned
quantities are connected.
Operations that can be performed with
p connection
■ For p-compatible TV
The following linked operations are enabled by connecting
the AV receiver to an p-compatible TV.
• The AV receiver will enter standby mode when the TV is
set to standby.
• You can set on the menu screen of the TV to either output
the audio from the speakers connected to the AV
receiver, or from the speakers of the TV.
• It is possible to output the audio coming from the tuner or
auxiliary input of your TV to the speakers of the AV
receiver. (A connection such as an optical digital cable or
similar is required in addition to the HDMI cable.)
• Input to the AV receiver can be selected with the remote
controller of the TV.
• Operations such as volume adjustment or similar for the
AV receiver can be performed from the remote controller
of the TV.
■ For p-compatible players/recorders
The following linked operations are enabled by connecting
the AV receiver to an p-compatible
player/recorder.
• When the playback is started on the player/recorder, input
of the AV receiver will switch to the HDMI input of the
player/recorder that is playing back.
• Operation of the player/recorder is possible using the
remote controller supplied with the AV receiver.
*
Depending on the model used, not all operations may be
available.
En-64
To be continued
■ How to connect and setup
Confirm the connecting and setting.
1
1. Connect the HDMI OUT jack to the HDMI input
jack of the TV.
Blu-ray Disc/DVD player, etc.
HDMI
connection
AV receiver
DIGITAL AUDIO
connection
(OPTICAL)
TV, projector, etc.
HDMI
connection
2. Connect the audio output from the TV to the
OPTICAL IN 2 jack of the AV receiver using an
optical digital cable.
Note
• When the audio return channel (ARC) function is used with
an ARC capable TV, this connection is not necessary
(➔ page 49).
3. Connect the HDMI output of the Blu-ray
Disc/DVD player/recorder to the HDMI IN 1 jack
of the AV receiver.
Note
• It is necessary to assign the HDMI input when connecting
the Blu-ray Disc/DVD player/recorder to other jacks
(➔ page 41). Do not assign an HDMI IN to the TV/CD
selector at this time, otherwise appropriate CEC (Consumer
Electronics Control) operation will not be guaranteed.
Change each item in the “HDMI Setup” menu
2
according to the following settings:
• HDMI Ctrl (RIHD): On
• Audio Return Ch (ARC): Auto
See details of each setting (➔ pages 48, 49).
Confirm the settings.
3
1. Turn on the power for all connected components.
2. Turn off the power of the TV, and confirm that the
power of the connected components is turned off
automatically with the link operation.
3. Turn on the power of the Blu-ray Disc/DVD
player/recorder.
4. Start playback on the Blu-ray Disc/DVD
player/recorder, and verify the following.
• The AV receiver automatically turns on, and
selects the input to which the Blu-ray
Disc/DVD player/recorder is connected.
• The TV automatically turns on, and selects the
input to which the AV receiver is connected.
5. Following the operating instructions of the TV,
select “Use the TV speakers” from the menu
screen of the TV, and confirm that the audio is
output from the speakers of the TV, and not from
the speakers connected to the AV receiver.
6. Select “Use the speakers connected from the AV
receiver” from the menu screen of the TV, and
confirm that the audio is output from the speakers
connected to the AV receiver, and not from the
TV speakers.
Note
• Perform the above operations when you use the AV receiver
for the first time, when the settings of each component are
changed, when the main power of each component is turned
off, when the power cable is disconnected from the power
supply, or when there has been a power outage.
Operate with the remote controller.
4
For buttons that can be operated (➔ page 54).
Note
• Audio from DVD-Audio or Super Audio CD may not output
from the TV speakers. You will be able to output the audio
from the TV speakers by setting the audio output of the
DVD player to 2ch PCM. (It may not be possible depending
on the player models.)
• Even if you set to output audio on the TV speakers, audio
will be output from the speakers connected to the AV
receiver when you adjust the volume or switch the input on
the AV receiver. To output audio from the TV speakers, redo the operations on the TV.
• In case of an p connection with u and u audio
control compatible components, do not connect the u
cable at the same time.
• On the TV, when you select anything other than the HDMI
jack to which the AV receiver is connected, the input on the
AV receiver will be switched to “TV/CD”.
• The AV receiver will automatically power on in conjunction
when it determines it to be necessary. Even if the AV
receiver is connected to an p compatible TV or
player/recorder, it will not power on if it is not necessary. It
may not power on in conjunction when the TV is set to
output audio from the TV.
• Linked functions with the AV receiver may not work
depending on the component model connected. In such
cases, operate the AV receiver directly.
Appendix
En-65
Appendix
About HDMI
Designed to meet the increased demands of digital TV,
HDMI (High Definition Multimedia Interface) is a new
digital interface standard for connecting TVs, projectors,
Blu-ray Disc/DVD players, set-top boxes, and other video
components. Until now, several separate video and audio
cables have been required to connect AV components.
With HDMI, a single cable can carry control signals,
digital video, and up to eight channels of digital audio (2channel PCM, multichannel digital audio, and
multichannel PCM).
The HDMI video stream (i.e., video signal) is compatible
with DVI (Digital Visual Interface)
with a DVI input can be connected by using an HDMI-toDVI adapter cable. (This may not work with some TVs and
displays, resulting in no picture.)
The AV receiver uses HDCP (High-bandwidth Digital
Content Protection)*2, so only HDCP-compatible
components can display the picture.
The AV receiver’s HDMI interface is based on the
following:
Audio Return Channel, 3D, x.v.Color, DeepColor, Lip
Sync, DTS-HD Master Audio, DTS-HD High
Resolution Audio, Dolby TrueHD, Dolby Digital Plus,
DSD and Multichannel PCM.
*1
, so TVs and displays
Supported Audio FormatsAbout Copyright Protection
• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)
• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz,
16/20/24 bit)
• Bitstream (DSD, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS, DTS-HD High Resolution Audio,
DTS-HD Master Audio)
Your Blu-ray Disc/DVD player must also support HDMI
output of the above audio formats.
The AV receiver supports HDCP (High-bandwidth Digital
*2
Content Protection)
, a copy-protection system for digital
video signals. Other devices connected to the AV receiver
via HDMI must also support HDCP.
*1
DVI (Digital Visual Interface): The digital display interface
standard set by the DDWG
*2
HDCP (High-bandwidth Digital Content Protection): The
video encryption technology developed by Intel for
HDMI/DVI. It’s designed to protect video content and requires
a HDCP-compatible device to display the encrypted video.
*3
DDWG (Digital Display Working Group): Lead by Intel,
Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon
Image, this open industry group’s objective is to address the
industry’s requirements for a digital connectivity specification
for high-performance PCs and digital displays.
Note
• The HDMI video stream is compatible with DVI (Digital Visual
Interface), so TVs and displays with a DVI input can be
connected by using an HDMI-to-DVI adapter cable. (Note that
DVI connections only carry video, so you’ll need to make a
separate connection for audio.) However, reliable operation with
such an adapter is not guaranteed. In addition, video signals from
a PC are not supported.
• The HDMI audio signal (sampling rate, bit length, etc.) may be
restricted by the connected source component. If the picture is
poor or there’s no sound from a component connected via HDMI,
check its setup. Refer to the connected component’s instruction
manual for details.
*3
in 1999.
En-66
Appendix
USB Features
USB Device Requirements
• USB mass storage device class (but not always
guaranteed).
• FAT16 or FAT32 file system format.
• Up to 255 folders can be displayed, and folders may be
nested up to 8 levels deep.
• USB hubs and USB devices with hub functions are not
supported.
Note
• If the media you connect is not supported, the message “No
Storage” will be displayed.
• If you connect a USB hard disk drive to the AV receiver’s USB
port, we recommend that you use its AC adapter to power it.
• The AV receiver supports USB MP3 players that support the
USB Mass Storage Class standard, which allows USB devices to
be connected to computers without the need for special drivers or
software. Note that not all USB MP3 players support the USB
Mass Storage Class standard. Refer to your USB MP3 player’s
instruction manual for details.
• Protected WMA music files on an MP3 player cannot be played.
• TEAC accepts no responsibility whatsoever for the loss or
damage to data stored on a USB device when that device is used
with the AV receiver. We recommend that you back up your
important music files beforehand.
• MP3 players containing music files that are managed with special
music software are not supported.
• Operation is not guaranteed for all USB devices, which includes
the ability to power them.
• Do not connect your USB device via a USB hub. The USB device
must be connected directly to the AV receiver’s USB port.
• If the USB device contains a lot of data, the AV receiver may take
a while to read it.
• USB devices with security functions cannot be played.
Supported Audio File Formats
For playback from a USB device, the AV receiver supports
the following music file formats.
Variable bit-rate (VBR) files are supported. However,
playback time may not be display correctly.
■ MP3 (.mp3 or .MP3)
• MP3 files must be MPEG-1/MPEG-2.5 Audio Layer 3
format with a sampling rates of 8 kHz, 11.025 kHz,
12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz,
48 kHz and bitrates of between 8 kbps and 320 kbps.
Incompatible files cannot be played.
■ WMA (.wma or .WMA)
WMA stands for Windows Media Audio and is an audio
compression technology developed by Microsoft
Corporation. Audio can be encoded in WMA format by
using Windows Media
• WMA files must have the copyright option turned off.
• Sampling rates of 32 kHz, 44.1 kHz, 48 kHz, bitrates of
between 48 kbps and 320 kbps are supported.
Manufactured under license from Dolby Laboratories. Dolby,
Pro Logic and the double-D symbol are trademarks of Dolby
Laboratories.
Music Optimizer™ is a trademark of Onkyo Corporation.
“HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.”
iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and
iPod touch are trademarks of Apple Inc., registered in the U.S.
and other countries.
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with iPod or iPhone
may affect wireless performance.
Apple TV is a trademark of Apple Inc., registered in the U.S. and
other countries.
Manufactured under license from Audyssey Laboratories™, Inc.
U.S. and foreign patents pending. Audyssey 2EQ
Audyssey Dynamic EQ
registered trademarks of Audyssey Laboratories, Inc.
TEAC AUDIO EUROPE [UK Branch Oce]Unit 19, Building 6 Croxley Green Business Park Hatters Lane Watford Hertfordshire WD18 8YH United Kingdom
e-Mail: support_eu@teac-audio.eu
This appliance has a serial number located on the rear panel. Please record the
model number and serial number and retain them for your records.
Model number : AG-D200Serial number
MA-1833A
Remote Control Codes
Remote Control Codes
/
While holding down the REMOTE MODE button to which you want to assign a
1
code, press and hold down [DISPLAY] (about 3 seconds).
The REMOTE MODE button/Remote indicator lights.
Notes:
• Remote control codes cannot be entered for [RECEIVER] and the multi zone button.
• Only TV remote control codes can be entered for [TV].
• Except for [RECEIVER], [TV], and the multi zone button, remote control codes from any
category can be assigned for the REMOTE MODE buttons. However, these buttons also work
as input selector buttons, so choose a REMOTE MODE button that corresponds with the input
to which you connect your component. For example, if you connect your CD player to the CD
input, choose [TV/CD] when entering its remote control code.
Within 30 seconds, use the number buttons to enter the 5-digit remote control
2
code.
The REMOTE MODE button/Remote indicator flashes twice.
If the remote control code is not entered successfully, the REMOTE MODE
button/Remote indicator will flash once slowly.
Notes:
• The flashing element of the remote controller will differ according to your AV receiver’s model.
• The remote controller is preconfigured with remote controller presets of different components.
By entering a code from the Remote Control Code list, you can activate the relevant preset for
that component.
• When there are multiple codes related to one manufacturer, try and enter them one-by-one until
it matches your component.
• Depending on the model and year of your component, compatibility is not guaranteed.
• With some models, the remote controller may not not work or its compatibility may be limited
to part of the component’s functionality.
• Besides, it is not possible to add new codes to the existing remote controller presets.
• Though the provided remote control codes are correct at the time of printing, they are subject to
change by the manufacturer.
1
Codes de télécommandeCódigos de control remoto
Remote Control Codes
Tout en maintenant enfoncé le bouton REMOTE MODE auquel vous souhaitez
1
associer un code, pressez et maintenez enfoncé le bouton [DISPLAY] (pendant
environ 3 secondes).
Le bouton REMOTE MODE/le témoin Remote s’allume.
Remarques :
• Les codes de télécommande ne peuvent pas être entrés pour [RECEIVER] et le bouton multi
zone.
• Seul les code de télécommande de téléviseurs peuvent être entrés pour [TV].
• À l’exception de [RECEIVER], [TV] et du bouton multi zone, vous pouvez affecter des codes
de télécommande de n’importe quelle catégorie pour les boutons REMOTE MODE. Cependant,
ces boutons font également office de bouton de sélecteur d’entrée : par conséquent, choisissez
un bouton REMOTE MODE correspondant à l’entrée à laquelle vous souhaitez raccorder votre
appareil. Par exemple, si vous raccordez votre lecteur CD à l’entrée CD, choisissez [TV/CD]
lorsque vous saisissez le code de télécommande.
Vous disposez de 30 secondes pour saisir le code de télécommande à cinq chiffres
2
à l’aide des boutons numérotés.
Le bouton REMOTE MODE/le témoin Remote clignote deux fois.
Si le code de télécommande n’a pas été saisi correctement le bouton REMOTE
MODE/l’indicateur Remote ne clignote qu’une seule fois.
Remarques :
• L’élément clignotant de la télécommande différera selon le modèle de votre ampli-tuner AV.
• La télécommande est préconfigurée avec des préréglages de télécommande de différents
appareils. En entrant un code de la liste des codes de télécommandes, vous pouvez activer le
préréglage approprié pour cet appreil.
• Quand il y a de multiples codes liés à un fabricant, essayez-les et entrez-les un par un jusqu’à ce
que cela corresponde à votre appareil.
• Selon le modèle et l’année de votre appareil, la compatibilité n’est pas garantie.
• Avec certains modèles, la télécommande peut ne pas fonctionner ou sa compatibilité peut être
limitée à une partie de la fonctionnalité de l’appareil.
• En outre, il n’est pas possible d’ajouter de nouveaux codes aux préréglages de télécommande
existants.
• Bien que les codes de télécommande fournis soient corrects au moment de l’impression de la
liste, ils sont susceptibles d’être modifiés par le fabricant.
Manteniendo pulsado el botón REMOTE MODE para el cual desea introducir un
1
código, pulse y mantenga presionado el botón [DISPLAY] (aproximadamente 3
segundos).
Se iluminará el botón REMOTE MODE/indicador Remote.
Notas:
• No podrán introducirse códigos de mando a distancia para [RECEIVER] y el botón multizona.
• Únicamente podrán introducirse códigos de mando a distancia de televisor para el botón [TV].
• Con la excepción de [RECEIVER], [TV] y el botón multizona, se pueden asignar códigos de
mando a distancia de cualquier categoría a los botones de REMOTE MODE. No obstante, estos
botones también pueden funcionar como botones de selector de entrada; por tanto, seleccione
un botón REMOTE MODE que se corresponda con la entrada a la cual está conectado el
componente. Por ejemplo, si conecta un reproductor de CD a la entrada de CD, seleccione
[TV/CD] cuando introduzca su código de mando a distancia.
Antes de que transcurran 30 segundos, utilice los botones numéricos para
2
introducir el código de mando a distancia de 5 dígitos.
El botón REMOTE MODE/indicador Remote parpadeará dos veces.
Si el código de mando a distancia no se introduce correctamente, el botón REMOTE
MODE/indicador Remote parpadeará una vez despacio.
Notas:
• El parpadeo del mando distancia será distinto según el modelo de receptor de AV.
• El mando a distancia está preconfigurado con los ajustes predeterminados de los distintos
componentes. Al introducir un código de la lista de códigos del mando a distancia se puede
activar el ajuste predeterminado de ese componente.
• Cuando hay múltiples códigos relacionados con un fabricante, pruebe a introducirlos uno a uno
hasta que coincida con su componente.
• Dependiendo del modelo y el año de su componente, la compatibilidad no está garantizada.
• Con algunos modelos, es posible que el mando a distancia no funcione o que su compatibilidad
esté limitada a una parte de las funciones del componente.
• Además, no es posible añadir nuevos códigos a los ajustes predeterminados existentes del
mando a distancia.
• Los códigos de mando a distancia suministrados son correctos en el momento de la impresión,
pero el fabricante puede realizar cambios.
2
Codici del telecomandoFernbedienungscodes
Remote Control Codes
Tenendo premuto il tasto REMOTE MODE al quale si desidera assegnare il
1
codice, premere e tenere premuto [DISPLAY] (per circa 3 secondi).
Il tasto REMOTE MODE/l'indicatore Remote si accende.
Note:
• I codici di controllo del telecomando non possono essere inseriti per [RECEIVER] e i tasti multi
zona.
• Per [TV] è possibile immettere solo codici telecomando del televisore.
• Tranne che per [RECEIVER], [TV], e per il tasto multi zona, è possibile assegnare codici di
controllo di ogni categoria per i tasti REMOTE MODE. Tuttavia, tali tasti fungono anche da
tasti del selettore d'ingresso, quindi scegliere un tasto REMOTE MODE che corrisponda
all'ingresso al quale viene collegato il dispositivo. Per esempio, se si collega il lettore CD
all'ingresso CD, scegliere il [TV/CD] quando si immette il relativo codice telecomando.
Entro 30 secondi utilizzare i tasti numerici per inserire il codice telecomando a 5
2
cifre.
Il tasto REMOTE MODE/l'indicatore Remote lampeggia due volte.
Se il codice telecomando non viene inserito correttamente, il tasto REMOTE
MODE/l'indicatore Remote lampeggia lentamente una volta.
Note:
• L'elemento lampeggiante del telecomando varia a seconda del modello del ricevitore AV.
• Il telecomando è preconfigurato con preselezioni per diversi apparecchi. Inserendo un codice
dall'elenco dei codici telecomando, è possibile attivare la relativa preselezione per tale
apparecchio.
• Se sono presenti più codici relativi allo stesso produttore, provare a inserirli uno a uno finché
non si arrivi al codice corrispondente dell'apparecchio.
• A seconda del modello e dell'anno dell'apparecchio, la compatibilità non è garantita.
• Con alcuni modelli, il telecomando può non funzionare o la sua compatibilità può essere limitata
a una parte della funzionalità dell'apparecchio.
• Inoltre, non è possibile aggiungere nuovi codici alle preselezioni esistenti del telecomando.
• I codici telecomando specificati sono validi alla data della stampa del presente documento, ma
sono soggetti a variazioni da parte del produttore.
Halten Sie die REMOTE MODE-Taste gedruckt, fur die Sie den Code eingeben
1
mochten, und drucken Sie (ca. 3 Sekunden lang) die [DISPLAY]-Taste.
Die REMOTE MODE-Taste/Remote-Anzeige leuchtet.
Hinweise:
• Der Fernbedienungscode kann nicht [RECEIVER] und der Multi-Zonen-Taste zugeordnet
werden.
• Der Taste [TV] können nur Fernbedienungscodes für einen Fernseher zugeordnet werden.
• Abgesehen von [RECEIVER], [TV] und der Multi-Zone-Taste, können die
Fernbedienungscodes jeder Kategorie den REMOTE MODE-Tasten zugewiesen werden.
Allerdings dienen diese Tasten auch als Quellenwahltasten. Wählen Sie also nach Möglichkeit
eine REMOTE MODE-Taste, die dem Eingang zugeordnet ist, an den Sie die betreffende Quelle
angeschlossen haben. Wenn Sie z.B. einen CD-Player an den CD-Eingang anschließen, sollten
Sie [TV/CD] wenn Sie den Fernbedienungscode eingeben.
Geben Sie mit den Zifferntasten innerhalb von 30 Sekunden den 5-stelligen
2
Herstellercode ein.
Die REMOTE MODE-Taste/Remote-Anzeige blinkt zwei Mal.
Wenn der Fernbedienungscode nicht ordnungsgemäß eingegeben wurde, blinkt die
REMOTE MODE-Taste/Remote-Anzeige einmal langsam.
Hinweise:
• Das blinkende Element auf der Fernbedienung unterscheidet sich je nach AV-Receiver-Modell.
• Die Fernbedienung ist mit den Voreinstellungen der Fernbedienung der verschiedenen
Komponenten vorkonfiguriert. Indem ein Code aus der Liste der Fernbedienungscodes
eingegeben wird, können Sie die entsprechende Voreinstellung für die Komponente aktivieren.
• Wenn es mehrere Codes gibt, die sich auf einen Hersteller beziehen, versuchen Sie sie einzeln
einzugeben, bis einer mit Ihrer Komponente übereinstimmt.
• Dies hängt vom Modell und Herstellungsjahr Ihrer Komponente ab und die Kompatibilität ist
nicht garantiert.
• Es kann sein, dass bei einigen Modellen die Fernbedienung nicht funktioniert oder ihre
Kompatibilität sich auf nur auf Teile der Funktionalität der Komponente beschränkt.
• Abgesehen davon ist es nicht möglich, den bestehenden Voreinstellungen der Fernbedienung
neue Codes hinzuzufügen.
• Obwohl die angegebenen Fernbedienungscodes dem Stand bei Drucklegung entsprechen, sind
Änderungen durch den Hersteller vorbehalten.
3
AfstandsbedieningscodesFjärrstyrningskoder
Remote Control Codes
Houd terwijl u de REMOTE MODE toets ingedrukt houdt waarvoor u een code
1
wilt toewijzen de [DISPLAY] toets ingedrukt (ongeveer 3 seconden).
De toets REMOTE MODE (afstandsbedieningsmodus) / Het indicatielampje
afstandsbediening gaat branden.
Opmerkingen:
• Er kunnen geen afstandsbedieningscodes worden ingevoerd voor [RECEIVER] en de multi
zone-toets.
• Alleen TV afstandsbedieningscodes kunnen worden ingevoerd voor [TV].
• Behalve voor [RECEIVER], [TV] en de multi zone-toets, kunnen afstandsbedieningscodes
vanuit elke categorie worden toegewezen aan de REMOTE MODE toetsen. Deze toetsen
werken overigens ook als ingangsselectortoetsen, kies dus een REMOTE MODE toets die
overeenkomt met de ingang waarop u uw component wilt aansluiten. Kies indien u bijvoorbeeld
uw CD-speler aansluit op de CD-ingang de [TV/CD] toets bij het invoeren van de
afstandsbedieningscode.
Gebruik binnen 30 seconden de cijfertoetsen om de 5-cijferige
2
afstandsbedieningscode in te voeren.
De toets REMOTE MODE (afstandsbedieningsmodus) / Het indicatielampje
afstandsbediening knippert tweemaal.
Indien de afstandsbedieningscode niet met succes wordt ingevoerd, zal de toets
REMOTE MODE/Remote-indicator eenmaal traag knipperen.
Opmerkingen:
• Het knippergedeelte van de afstandsbediening zal verschillen ten opzichte van het model van
uw AV-receiver.
• De afstandsbediening is voorgeprogrammeerd met voorkeuzetoetsen van verschillende
componenten. Door het invullen van een code uit de afstandsbediening codelijst kunt u de
voorkeuzetoets voor die component activeren.
• Wanneer er meerdere codes gerelateerd zijn aan één fabrikant, probeer deze dan een voor een
totdat de juiste code overeenkomt met uw component.
