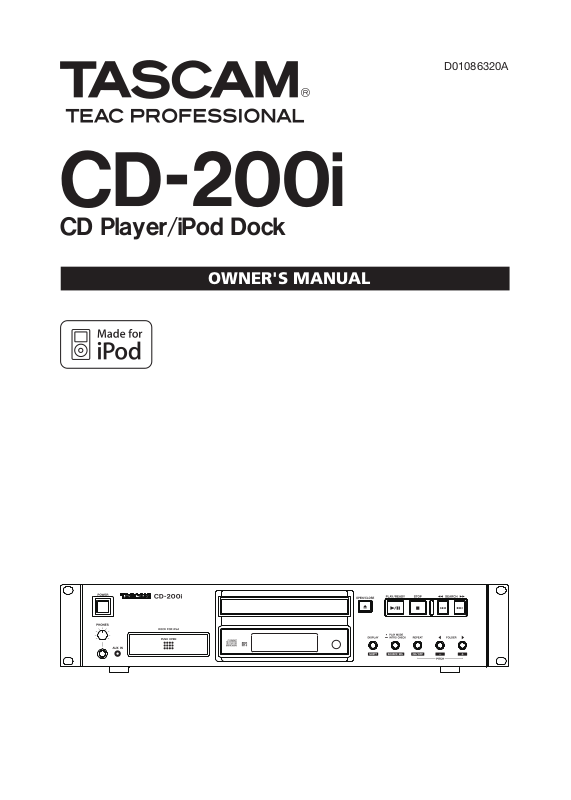

CD-200i
CD Player/iPod Dock
OWNER'S MANUAL
D01086320A
IMPORTANT SAFETY PRECAUTIONS
2
TASCAM CD-200i
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This appliance has a serial number located on the rear
panel. Ple ase record the model number and serial
number and retain them for your records.
Model number
Serial number
For U.S.A.
TO THE USER
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provi de reasonable protection a gainst harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and,
if not instal led a nd used i n accordan ce with the
instruction manual, may cause harmful interference to
radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.
WARNING: TO PREVENT FIRE
OR SHOCK HAZARD, DO
NOT EXPOSE THIS
APPLIANCE TO RAIN OR
MOISTURE.
CE Marking Information
a) Applicable electromagnetic environment: E4
b) Peak inrush current: 2.0 A
In North America use only on 120V supply.
CAUTION
Chang es or modi fications to this equipm ent not
expressly approved by TEA C CORPORATION for
compliance could void the user's authority to operate
this equipment.
IMPORTANT SAFETY INSTRUCTIONS
TASCAM CD-200i
3
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8 Do not inst a l l near any heat sou rc e s such
as radiators, heat regis ters, stoves, or other
apparatus (including amplifiers) that produce
heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by
the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Do not expose this apparatus to drips or splashes.
•
Do not place any objects filled with liquids, such
•
as vases, on the apparatus.
Do not install this apparatus in a confined space
•
such as a book case or similar unit.
The apparatus draws nominal non-operating
•
power from the AC outlet with it s POWER or
STANDBY/ON switch not in the ON position.
The apparatus should be located close enough
•
to the AC outlet so that you can easily grasp the
power cord plug at any time.
The mains plug is used as the disconnect device,
•
th e di s con n ect de v ic e sh al l re ma in re ad il y
operable.
Products with Class I construction are equipped
•
wi th a power supply cord that has a 3- p rong
grounding plug. The cord of such a product must
be plugged into an AC outlet that has a protective
grounding connection.
If the product uses batteries (including a battery
•
pack or installed batteries), they should not be
exposed to sunshine, fire or excessive heat.
CAUTION for products that use replaceable lithium
•
batteries: there is danger of explosion if a battery
is replaced wi th an in c orrect type of bat ter y.
Replace only with the same or equivalent type.
Caution should be taken when using earphones or
•
headphones with the product because excessive
sound pressure (volume) from earphones or headphones can cause hearing loss.
For the customers in Europe
WARNING
This is a Class A product. In a domestic environment,
this product may cause radio interference in which
case t he user may be required to take adequat e
measures.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Pour les utilisateurs en Europe
AVERTISSEMENT
Il s' a g it d' un pr o du i t de Cl ass e A. Dan s un
environnem e n t domestiq u e , cet ap p a r e i l peut
provo quer des inte rférenc es radio, dans ce cas
l'utilisateur peut être amené à prendre des mesures
appropriées.
Für Kunden in Europa
Warnung
Dies ist eine Einrichtung, welche die Funk-Entstörung
nach Klasse A besitzt. Diese Einrichtung kann im
Woh n b e r e i c h Funkstörun g e n ve rs u r s a c h e n ; in
dies em Fall kann vom Betrie ber verlang werden,
angemessene Maßnahmen durchzuführen und dafür
aufzukommen.
4
TASCAM CD-200i
Safety Information
CAUTIONS ABOUT BATTERIES
ª
This product uses batteries. Misuse of batterie s
could cause a leak, rupture or other trouble. Always
abide by the following precautions when using batteries.
Never recharge non-rechargeable batteries. The
•
batteries could rupture or leak, causing fire or
injury.
When installing batter ies, pay attention to the
•
polarity indications (plus/minus (+/–) orientation),
and install them correctly in the battery compartment as indicated. Putting them in backward could
make the batteries rupture or leak, causing fire,
injury or stains around them.
When you store or dispose batteries, isolate their
•
terminals with insulation tape or something like that
to prevent them from contacting other batteries or
metallic objects.
When throwing used batteries away, follow the
•
disposal instructions indicated on the batteries
and the local disposal laws.
Do not use batteries other than those specified.
•
Do not mix and use new and old batteries or differ-
ent types of batteries together. The batteries could
rupture or leak, causing fire, injury or stains around
them.
Do not carry or store batteries together with small
•
metal objects. The batteries could short, causing
leak, rupture or other trouble.
Do not heat or disassemble batteries. Do not put
•
them in fire or water. Batteries could rupture or
leak, causing fire, injury or stains around them.
If the battery fluid leaks, wipe away any fluid on
•
the battery case before inserting new batteries. If
the battery fluid gets in an eye, it could cause loss
of eyesight. If fluid does enter an eye, wash it out
thoroughly with clean water without rubbing the
eye and then consult a doctor immediately. If the
fluid gets on a person’s body or clothing, it could
cause skin injuries or burns. If this should happen,
wash it off with clean water and then consult a
doctor immediately.
CAUTIONS ABOUT LASER RADIATION
ª
This product has been designed and manufactured
according to FDA regulations “title 21, CFR, chapter
1, subchapter J, based on the Radiation Control for
Health and Safety Act of 1968,” and is classified as
a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible
laser radiation emitted inside of this product is completely confined in the protective housings.
The label required in this regulation is shown at .
Cautions:
DO NOT REMOVE THE PROTECTIVE HOUSING
•
USING A SCREWDRIVER.
USE OF CONTROLS OR ADJUSTMENTS OR
•
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
IF TH IS P R OD UC T DE VE LO PS TR O UB LE ,
•
CONTACT YOUR NEAREST QUALIFIED SERVICE
PERSONNEL, AND DO NOT USE THE PRODUCT
IN ITS DAMAGED STATE.
Optical pickup
Type : SF-P101VF
Manufacturer : SANYO Electric Co., Ltd.
Laser output : Less than 0.25 mW on the objective lens
Wavelength : 760 to 820 nm
The unit power should be off when you install and
•
replace batteries.
Remove the batteries if you do not plan to use
•
the unit for a long time. Batteries could rupture or
leak, causing fire, injur y or stains around them.
If the battery fluid leaks, wipe away any fluid on
the battery compartment before inserting new
batteries.
Do not disassemble a battery. The acid inside the
•
battery could harm skin or clothing.
IMPORTANT SAFETY INSTRUCTIONS
TASCAM CD-200i
5
RACK-MOUNTING THE UNIT
ª
If you are mounting the unit in a rack, leave 2U (10 cm) or
more of space above it to prevent interference with devices
installed above it and 4 inch (10 cm) or more of space at the
rear.
Use the rack-mounting kit to mount the unit in a standard
19-inch equipment rack, as shown below. Remove the feet
of the unit before mounting.
IMPORTANT SAFETY PRECAUTIONS
Contents
1 − Introduction .........................................7
Main features .................................................. 7
Included items ................................................. 7
About this manual .......................................... 7
Trademarks ...................................................... 8
Precautions and notes for placement
and use ............................................................ 8
Power supply ................................................... 8
Beware of condensation ................................ 8
Cleaning the unit ............................................ 8
About discs ...................................................... 8
Handling of compact discs ........................ 8
2 − Names and Functions of Parts ............9
Front panel ...................................................... 9
iPod dock .................................................. 10
Rear panel ..................................................... 11
Display ........................................................... 12
Remote control unit (RC-CD200i) ................ 13
3 − Preparation for Use ............................15
Connecting audio and video devices .......... 15
Connecting an iPod ...................................... 16
Opening the iPod dock ........................... 17
Closing the iPod dock .............................. 17
Removing a dock adapter ....................... 17
Removing the iPod .................................. 18
Connecting external audio players .............. 18
Preparing the remote control ...................... 19
Inserting batteries ................................... 19
Replacing the batteries ........................... 19
Cautions about the use of batteries ....... 19
Cautions about using the remote
control ...................................................... 19
Changing the output sound source ............ 20
Setting the program ............................... 26
Checking the program ............................ 27
Replacing a program track ..................... 27
Adding more program tracks ................. 27
Clearing the program ............................. 27
Repeat playback ........................................... 28
Time and text information display ............. 28
Pitch control .................................................. 29
Intro Check ................................................... 30
5 − iPod Playback ..................................... 31
iPod dock ...................................................... 31
Controlling an iPod ...................................... 31
Settings made on the iPod .......................... 31
iPod playback ................................................ 31
Setting the iPod video output ..................... 31
6 − Message Lists ..................................... 32
Operation messages .....................................32
Warning messages ........................................ 32
Error messages .............................................. 32
7 − Troubleshooting .................................33
8 − Specifications ..................................... 34
Ratings ........................................................... 34
Input/Output ratings .................................... 34
Audio performance (CD playback) ..............34
Backup memory ............................................34
General .......................................................... 35
Dimensions .................................................... 35
4 − Playing Back CDs ................................ 21
Discs that can be played .............................. 21
Folders and tracks on data CDs ................... 21
Loading a CD ................................................. 22
Playback ......................................................... 22
Selecting a track ............................................ 23
Skipping to the next or previous track .. 23
Selecting by track number ...................... 23
Search forward and backward .................... 24
Folder playback (with data CDs only) ......... 24
Selecting the folder ................................. 24
Playback modes ............................................. 25
Select the playback mode ....................... 25
Programmed playback ................................. 25
TASCAM CD-200i
6
TASCAM CD-200i
7
1 − Introduction
CAUTION
1 − Introduction
Thank you for your purchase of the TASCAM CD-200i CD
Player/iPod Dock.
Before connecting and using the unit, please take time
to read this manual thoroughly to ensure you understand
how to properly set up and connect the unit, as well as the
operation of its many useful and convenient functions. After
you have finished reading this manual, please keep it in a
safe place for future reference.
You can also download the Owner's Manual from the
TASCAM web site (http://www.tascam.com).
Main features
In addition to audio CDs (CD-DA), plays data CDs
•
(CD-ROM) on which WAV and MP3 format files are
recorded.
CD-R/RW playback
•
2U rack mount size
•
Analog output (RCA) and digital outputs (coaxial and
•
optical)
Headphone output with level control
•
10-key wireless remote control
•
Displays textual information (artist name, album name,
•
track name, etc.) including CD text and ID3 tags.
Three types of play mode (continuous, shuffle, and pro-
•
gramed)
Repeat playback (single repeat, all repeat)
•
±14.0% pitch control
•
Intro check
•
Folder repeat for data CDs
•
Various time display (track elapsed time, track remain-
•
ing time and total remaining time for audio CDs, total
elapsed time for data CDs).
Included items
The included items are listed below.
Take care when opening the package not to damage the
items. Keep the package materials for transportation in the
future.
Please contact the store where you purchased this unit if
any of these items are missing or have been damaged during transportation.
Main unit• .........................................................................1
Wireless remote control unit (RC-CD200i)• ....................1
AA batteries for the remote control unit• .........................2
A rack-mounting screw kit• ..............................................1
A warranty card• ..............................................................1
Owner's manual (this manual)
•
The batteries are not supplied for Taiwan.
........................................1
About this manual
In this manual, we use the following conventions:
The names of keys and controls are given in the follow-
•
ing typeface: PL AY/RE A DY.
When the alphanumeric portion of the display shows a
•
message, this is shown in the following typeface: OPEN.
If a preset indicator in the display (i.e. one which cannot
•
change) is shown, this is shown as follows: INTRO.
The CD-DA format may also be mentioned as • “audio
CD” format.
CDs on which MP3 or WAV audio files are recorded
•
may be mentioned as “data CDs”.
Additional information is introduced in the styles below
•
when needed:
10-second shockproof memory built-in (protection
•
against skipping).
The built-in iPod dock allows the unit to output sound
•
and video playing back from an iPod, as well as to control and recharge the iPod.
The stereo mini-jack audio line input allows sound to be
•
input from portable audio devices other than iPods.
Useful hints when using the unit.
Explanation of actions in special situation and
supplement.
Instructions that should be followed to avoid injury,
damage to the unit or other equipment, and loss of
data.
8
TASCAM CD-200i
1 − Introduction
Trademarks
TASCAM is a registered trademark of TEAC
•
Corporation.
MPEG Layer-3 audio coding technology licensed from
•
Fraunhofer IIS and Thomson.
"Made for iPod" means that an electronic accessory has
•
been designed to connect specifically to iPod and has
been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
Other company names, product names and logos in this
•
document are the trademarks or registered trademarks
of their respective owners.
Precautions and notes for placement and use
The operating temperature should be between 5°C and
•
35°C (41°F and 95°F).
Make sure that the unit is mounted in a level position for
•
correct operation.
Do not place any object on the unit for heat dissipation.
•
Avoid installing this unit on top of any heat-generating
•
electrical device such as a power amplifier.
format files are recorded. The CD player can also play
3-inch CDs
Handling of compact discs
Always place the compact discs in the trays with their
•
label facing upward.
To remove a disc from its case, press down on the center
•
of the disc holder, then lift the disc out, holding it carefully by the edges.
Do not touch the signal side (the unlabeled side).
•
Fingerprints, oils and other substances can cause errors
during playback.
To clean the signal side of a disc, wipe gently with a soft
•
dry cloth from the center towards the outside edge.
Dirt on discs can lower the sound quality, so clean them
and always store them in a clean state.
Do not use any record spray, anti-static solutions, ben-
•
zene, paint thinner or other chemical agents to clean
CDs as they could damage the delicate playing surface.
It may cause CDs to become unplayable.
Do not apply labels or other materials to discs. Do not
•
use discs that have had tape, stickers or other materials applied to their surface. Do not use discs that have
sticky residue from stickers, etc. Such discs could
become stuck in the unit or cause it to malfunction.
Never use a commercially available CD stabilizer. Using
•
stabilizers with this player will damage the mechanism
and cause it to malfunction.
Power supply
Connect the unit to the standard power outlet. Hold the plug
when connecting and disconnecting the power cord.
Beware of condensation
If the unit (or a compact disc) is moved from a cold to a
warm place, or used after a sudden temperature change,
there is a danger of condensation; vapor in the air could
condense on the internal mechanism, making correct
operation impossible. To prevent this, or if this occurs,
let the player sit for one or two hours at the new room
temperature before using.
Cleaning the unit
To clean the unit, wipe it gently with a soft dry cloth. Do
not wipe with chemical cleaning cloths, benzene, paint
thinner, ethyl alcohol or other chemical agents to clean the
unit as they could damage the surface.
About discs
Do not use cracked discs.
•
Only use circular compact discs. Avoid using non-circu-
•
lar promotional, etc. discs.
Music discs with copy control, a copy-protection sys-
•
tem, have been released form several record companies
in an attempt to protect the copyright. Since some of
these discs do not comply with the CD specifications,
they may not be playable on the CD-200i.
In addition to audio CDs (CD-DA), the CD-200i can play
CD-R and CD-RW discs on which audio CD, MP3, or WAV
TASCAM CD-200i
9
2 − Names and Functions of Parts
CAUTION
CAUTION
CAUTION
2 − Names and Functions of Parts
Functions work with the output sources (CD, iPod and AUX
IN) indicated next to the part name in the explanation below
when selected.
Front panel
POWER switch
Press this switch to turn the unit on or off.
Before turning on the power, minimize the volume of
connected devices. Failure to do so could cause a sudden
burst of loud noise, which might result in hearing
damage, for example.
Disc tray
Insert discs (CD, CD-R, CD-RW) here.
OPEN/CLOSE key
Use to open and close the disc tray.
PLAY/READY (
¥/π) key (CD and iPod)
Press during playback to pause. When playback is
stopped or paused, press to start playback.
STOP (
) key (CD and iPod)
ª
When the output source is set to CD, press this key to
stop playback.
When the output source is set to iPod, press this key to
pause playback.
SKIP/SEARCH
iPod)
Ô/
Â/
/¯
keys (CD and
Press briefly to select tracks (skip). Press and hold to
search a track.
PHONES jack and knob (CD, iPod and AUX IN)
Use this standard stereo phones jack to connect stereo
headphones. Use a plug adapter when connecting
headphones with mini-plugs.
Use the PHONES knob to minimize the volume before
connecting headphones. Failure to do so could cause
a sudden burst of loud noise, which might result in
hearing damage, for example.
AUX IN jack
This is a stereo mini-jack audio line input that can
be used to connect portable digital players and other
external audio devices.
Minimize the volume on the external device before
connecting it to the AUX IN jack. Failure to do so could
cause a sudden burst of loud noise, which might result
in hearing damage, for example.
DOCK FOR iPod
Press the front of the iPod dock panel to unlock it so
that it can be pulled forward. Insert the appropriate dock
adapter and connect the iPod.
When not in use, remove the iPod and press the dock
panel while pressing and holding the CLOSE button
until it shuts with a clicking sound. (See “Connecting
an iPod” on page 16.)
Display
Displays various information.
Remote Sensor
When operating the remote control unit (RC-CD200i),
point it towards here.
Use the PHONES knob to adjust the headphone output
level.
10
TASCAM CD-200i
2 − Names and Functions of Parts
DISPLAY (SHIFT) key (CD and iPod)
When the output source is set to CD, press this key to
change the type of time and text information shown
on the display. When this key is pressed, the type
of information currently displayed is shown for two
seconds. Press the key again during this time to change
the type of information shown. The information that can
be shown depends on the type of disc and the status of
operation. (See “Time and text information display” on
page 28.)
When iPod is selected, you can switch whether its video
is shown on the iPod itself or output through this unit’s
VIDEO OUT jack.
You cannot, however, switch the video output
destination during video playback. Switch it while the
iPod is stopped or stop the playback once and then
switch it if the iPod is already playing back.
If switched during video playback, the new output
destination is used when playback is stopped then
started again.
Press this key while holding down the DISPL AY (SHIFT)
key to turn the pitch control function ON and OFF. (See
“Pitch control” on page 29.)
The pitch control function cannot be used with iPods.
FOLDER ˙/¥ (PITCH –/+) key (CD and iPod)
Use these keys when the output source is set to CD
and a data CD is loaded to change the playback folder.
Select ALL to set the entire disc as the playback area.
(See “Folder playback (with data CDs only)” on page
24.)
When the output source is set to iPod, use these to select
(skip between) albums.
Use these keys while holding down the DIS PL AY
(SHIFT) key to set the pitch control value. (See “Pitch
control” on page 29.)
When pressed at the same time as another key, this key
acts as the shift key, enabling the functions labeled under
each key in black characters on a white background.
PLAY MODE/INTRO CHECK (SOURCE SEL) key (CD
and iPod)
When the output source is set to CD, press this key
briefly to change the playback mode. The three
types of playback modes are continuous, shuffle and
programmed. (See “Playback modes” on page 25.)
During playback or when stopped, press and hold
this key to use the intro check playback feature. The
beginning of each track on the CD plays for 10 seconds
in order. During intro check playback, press and hold
this key again to return to the previous playback mode
and continue playing the current track. (See “Intro
Check” on page 30.)
Press this key while holding down the DIS PL AY
(SHIFT) key to cycle through the sound output sources
in the following order (see “Changing the output sound
source” on page 20.):
When the output source is set to iPod, press to cycle
through the three iPod shuffle modes, which include
Off, Song and Album.
The pitch control function cannot be used with iPods.
iPod dock
CLOSE button
Press this button to unlock the iPod dock when you want
to close it.
To close the iPod dock, press the dock panel while
pressing and holding this button.
The intro check function cannot be used with iPods.
•
iPod and AUX IN cannot be selected if devices are not
•
connected to this unit.
REPEAT (PITCH ON/OFF) key (CD and iPod)
Press this key to cycle through the repeat playback
modes in the following order (see “Repeat playback” on
page 28.):
TASCAM CD-200i
11
2 − Names and Functions of Parts
Rear panel
CAUTION
CAUTION
ANALOG OUTPUT (UNBALANCED) jacks (CD, iPod
and AUX IN)
These jacks output analog signals (–10 dBV) of the
CD or iPod playback sound signal or the signals input
through the AUX IN jack.
DIGITAL OUTPUT (COAXIAL) jack (CD)
This jack outputs the CD playback signal in S/PDIF
digital format.
The iPod playback sound signal and the AUX IN input
can only be output from the analog jacks. Digital output
of these signals is not possible.
When MP3 or WAV file is playing, the sampling
•
frequency of digital output is 44.1 kHz.
Digital output is possible when the pitch control
•
function is on with Audio CD, MP3, or WAV file, but
the sampling frequency is changed by an amount
proportional to the pitch control value.
When pitch control is ON, digital output signal from
•
CD-200i cannot be received in some equipment.
VIDEO OUTPUT (iPod)
iPod playback video signal is transmitted through this
composite video output jack.
Please change the iPod’s TV signal setting (NTSC or
PAL) and TV Screen (or Widescreen) setting to suit the
connected device.
S-VIDEO OUTPUT (iPod)
iPod playback video signal is transmitted from this S-
VIDEO output jack.
Please change the iPod’s TV signal setting (NTSC or
PAL) and TV Screen (or Widescreen) setting to suit the
connected device.
VOLTAGE SELECTOR
Switches the voltage to either 230 V or 120 V.
The voltage selector is only available on units for
•
specific markets.
In North America, use only on 120V supply.
•
DIGITAL OUTPUT (OPTICAL) jack (CD)
This jack outputs the CD playback signal in S/PDIF
digital format.
The iPod playback sound signal and the AUX IN input
can only be output from the analog jacks. Digital output
of these signals is not possible.
When MP3 or WAV file is playing, the sampling
•
frequency of digital output is 44.1 kHz.
Digital output is possible when the pitch control
•
function is on with Audio CD, MP3, or WAV file, but
the sampling frequency is changed by an amount
proportional to the pitch control value.
When pitch control is ON, digital output signal from
•
CD-200i cannot be received in some equipment.
