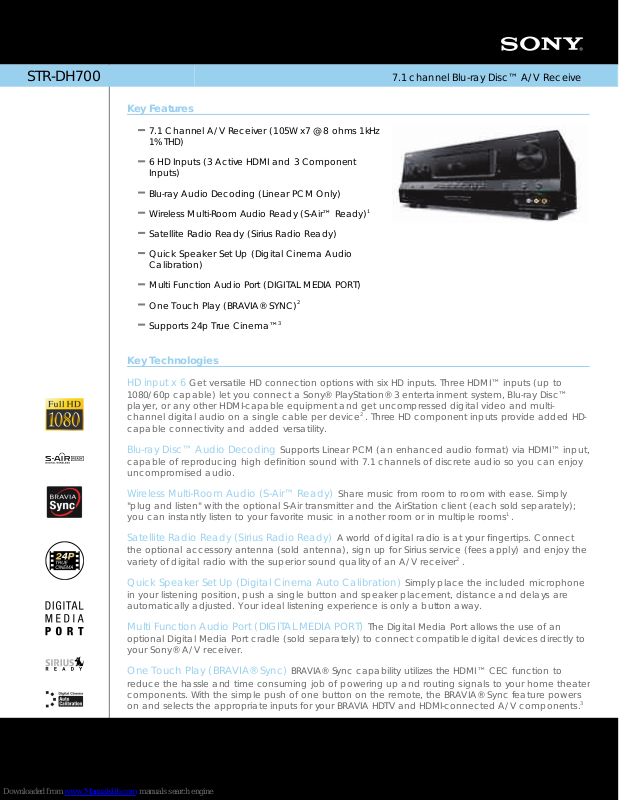

Sony STR-DH700 Marketing Specification Sheet

STR-DH700

7.1 channel Blu-ray Disc

™

A/V Receive

Key Features

7.1 Channel A/V Receiver (105W x7 @ 8 ohms 1kHz
1% THD)

6 HD Inputs (3 Active HDMI and 3 Component
Inputs)

Blu-ray Audio Decoding (Linear PCM Only)

Wireless Multi-Room Audio Ready (S-Air

™ Ready)

1

Satellite Radio Ready (Sirius Radio Ready)

Quick Speaker Set Up (Digital Cinema Audio
Calibration)

Multi Function Audio Port (DIGITAL MEDIA PORT)

One Touch Play (BRAVIA® SYNC)

2

Supports 24p True Cinema™

3

Key Technologies

HD input x 6

Get versatile HD connection options with six HD inputs. Three HDMI™ inputs (up to

1080/60p capable) let you connect a Sony® PlayStation® 3 entertainment system, Blu-ray Disc™
player, or any other HDMI-capable equipment and get uncompressed digital video and multi

-

channel digital audio on a single cable per device . Three HD component inputs provide added HD

-

capable connectivity and added versatility.

2

Blu-ray Disc

™ Audio Decoding Supports Linear PCM (an enhanced audio format) via HDMI™ input,

capable of reproducing high definition sound with 7.1 channels of discrete audio so you can enjoy
uncompromised audio.

Wireless Multi

-Room Audio (S-

Air

™ Ready) Share music from room to room with ease. Simply

"plug and listen" with the optional S-Air transmitter and the AirStation client (each sold separately);
you can instantly listen to your favorite music in another room or in multiple rooms .

1

Satellite Radio Ready (Sirius Radio Ready)

A world of digital radio is at your fingertips. Connect

the optional accessory antenna (sold antenna), sign up for Sirius service (fees apply) and enjoy the
variety of digital radio with the superior sound quality of an A/V receiver .

2

Quick Speaker Set Up (Digital Cinema Auto Calibration)

Simply place the included microphone

in your listening position, push a single button and speaker placement, distance and delays are
automatically adjusted. Your ideal listening experience is only a button away.

Multi Function Audio Port (DIGITAL MEDIA PORT) The Digital Media Port allows the use of an

optional Digital Media Port cradle (sold separately) to connect compatible digital devices directly to
your Sony® A/V receiver.

One Touch Play (BRAVIA®

Sync)

BRAVIA® Sync capability utilizes the HDMI™ CEC function to

reduce the hassle and time consuming job of powering up and routing signals to your home theater
components. With the simple push of one button on the remote, the BRAVIA® Sync feature powers
on and selects the appropriate inputs for your BRAVIA HDTV and HDMI-connected A/V components.

3

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 06/29/2009

STR-DH700

7.1 channel Blu-ray Disc

™

A/V Receive

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

Audio

dts® Decoding: Yes
Dolby® Digital Decoding: Yes
Dolby® Digital EX Decoding: Yes
dts®-

ES Decoding:

Yes (MATRIX 6.1,

DISCRETE 6.1)

dts® 96/24 Decoding: Yes
dts® NEO:6 Decoding: Yes
Dolby® Pro Logic® Decoding: Yes
Dolby® Pro Logic® II Decoding: Yes
Dolby® Pro Logic® IIX Decoding:

Yes

Dolby® Digital Dual Mono: Yes
Digital Cinema Sound™

Technology:

Yes

96k/24Bit PCM: Yes
Cinema Studio EX. A/B/C mode: Yes
LPCM:

Yes via HDMI™ input

S-

Air Ready: Yes

Convenience

A/B Speaker Switch: Yes (A / B)
Digital Cinema Auto Calibration: Bronze

(Mic - Mono)

Specifications

Audio

Impedance: 8 Ohms
Channel Power Rating: 7.1 Channel Power

Rating: 105W x 7 Amp Power (8 ohms,
1KhzTHD 1.0%)

Sound Fields: Cinema - 3; Music - 6; Auto

Format Decoding - 11; 2 Channel - 2;
Headphone - 2

Tuner Type: Auto Tuning, Direct Tuning,

Station Name

A/V Sync:

Yes (fixed)- 60ms/48kHz

DCAC:

Yes (Mono)

Equalizer:

BASS and Treble control

Sub Woofer Crossover: 13 Point (40-160Hz)
Bi-AMP: Yes
Bravia® Sync™:

Yes

Convenience

Preset Memory: 90 (30 Sirius, 30 FM, 30

AM)

AM/FM Memory Presets: 30 AM, 30 FM
Auto Tuning: Yes
Direct Tuning: Yes
Sleep Timer: Yes
Station Name Display: Yes
Sirius Radio Ready: Yes- with optional

accessory

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s): 3

(Rear)

Digital Media Port: 1 (Rear)
HDMI™ Connection Output(s): 1 (Rear)
HDMI™ Connection Input(s): 3 (Rear)

2

4

Optical Audio Input(s): 2 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
Component Video (Y/Pb/Pr) Output(s): 1

(Rear)

HD Component Video Input(s): 3 (Rear)
HD Component Video Output(s): 1 (Rear)
Composite Video Input(s): 4 (1 Front/3

Rear)

Composite Video Output(s): 1 (Rear)
RCA Audio Input(s): 5 (Rear)
RCA Audio Output(s): 2 (Rear)
Subwoofer Output(s): 1 (Rear)
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s): Yes (Gold)

Power

Power Requirements: 120V 60Hz
Power Consumption (in Operation): 240W
Power Consumption (in Standby): 0.3W

Hardware

Remote Control: U-RM, RM-AAU021

Speaker

Speaker Terminal Type: A: Front

(Screw)/Others(Push), B:Push

Service and Warranty Information

Limited Warranty Term: 2 Year Parts and

Labor

Weights and Measurements

Weight (Approx.): 17.6 lbs. (8kg)
Dimensions (Approx.): 16.9 x 6.2 x 12.6 in

(430 x 157.5 x 322mm)

Supplied Accessories

RM-AAU021 Remote
2 AA Batteries
Mono Microphone for setup
Owners Manual
Quick Start Guide

Color:

Black

UPC Code:

027242753532

1. Requires Digital Media Port accessory compatible with the device
(sold separately).

2. Transmits up to 164 feet. Signal and sound quality may vary.

3. Each product must include BRAVIA

® Theatre Sync™

feature. Please

refer to owner’s manual for compatibility.

4. Sirius requires optional antenna and subscription service.

5. iPod® support is limited based upon which optional Digital Media Port
is being used. The TDM-IP10 will support the following players: iPod

®

touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation, iPod

®

4th& 5th generation &iPod® Mini. The TDM-IP 50 adds iPhone

™

support as well.
