SONY CDX-GT39 User Manual [fr]

4-156-428-11(1)

FM/MW/LW Compact Disc Player

Operating Instructions

Bedienungsanleitung

Mode d’emploi

Istruzioni per l’uso

Gebruiksaanwijzing

To cancel the demonstration (DEMO) display, see page 6. Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 6 nach. Pour annuler la démonstration (DEMO), reportez-vous à la page 6. Per annullare la dimostrazione (DEMO), vedere pagina 6. Om de demonstratie (DEMO) te annuleren, zie pagina 6.

CDX-GT39U CDX-GT35U

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual.

This label is located on the bottom of the chassis.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

ZAPPIN is a trademark of Sony Corporation.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Content providers are using the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (“Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

Warning if your car’s ignition has no ACC position

Be sure to set the Auto Off function (page 16). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold (OFF) until the display disappears each time you turn the ignition off.

Table of Contents

Getting Started

Playable discs on this unit . . . . . . . . . . . . . . . . . 6

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . . . 6

Canceling the DEMO mode . . . . . . . . . . . . . . . 6

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 6

Detaching the front panel . . . . . . . . . . . . . . . . . 7

Attaching the front panel . . . . . . . . . . . . . . . 7

Location of controls and basic operations

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Searching for a track . . . . . . . . . . . . . . . . . . . . 10

Searching a track by name

— Quick-BrowZer . . . . . . . . . . . . . . . . . . . 10

Searching a track by listening to track passages

— ZAPPIN™ . . . . . . . . . . . . . . . . . . . . . . . 11

Radio

Storing and receiving stations . . . . . . . . . . . . . 11

Storing automatically — BTM . . . . . . . . . . 11

Storing manually. . . . . . . . . . . . . . . . . . . . . 11

Receiving the stored stations . . . . . . . . . . . 11

Tuning automatically . . . . . . . . . . . . . . . . . 11

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting AF and TA . . . . . . . . . . . . . . . . . . . 12

Selecting PTY. . . . . . . . . . . . . . . . . . . . . . . 13

Setting CT. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Display items . . . . . . . . . . . . . . . . . . . . . . . 13

Repeat and shuffle play . . . . . . . . . . . . . . . 13

USB devices

Playing back a USB device. . . . . . . . . . . . . . . 14

Display items . . . . . . . . . . . . . . . . . . . . . . . 14

Repeat and shuffle play . . . . . . . . . . . . . . . 14

Other functions

Changing the sound settings. . . . . . . . . . . . . . 15

Adjusting the sound characteristics . . . . . . 15

Customizing the equalizer curve

— EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting setup items — SET . . . . . . . . . . . . 16

Using optional equipment. . . . . . . . . . . . . . . . 17

Auxiliary audio equipment. . . . . . . . . . . . . 17

Card remote commander RM-X114. . . . . . 17

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Notes on discs . . . . . . . . . . . . . . . . . . . . . . 18

Playback order of MP3/WMA/AAC

files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Removing the unit. . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 21

Error displays/Messages. . . . . . . . . . . . . . . 23

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

http://support.sony-europe.com/

Provides information on:

• Models and manufacturers of compatible digital audio players

• Supported MP3/WMA/AAC files

Getting Started

Canceling the DEMO mode

Playable discs on this unit

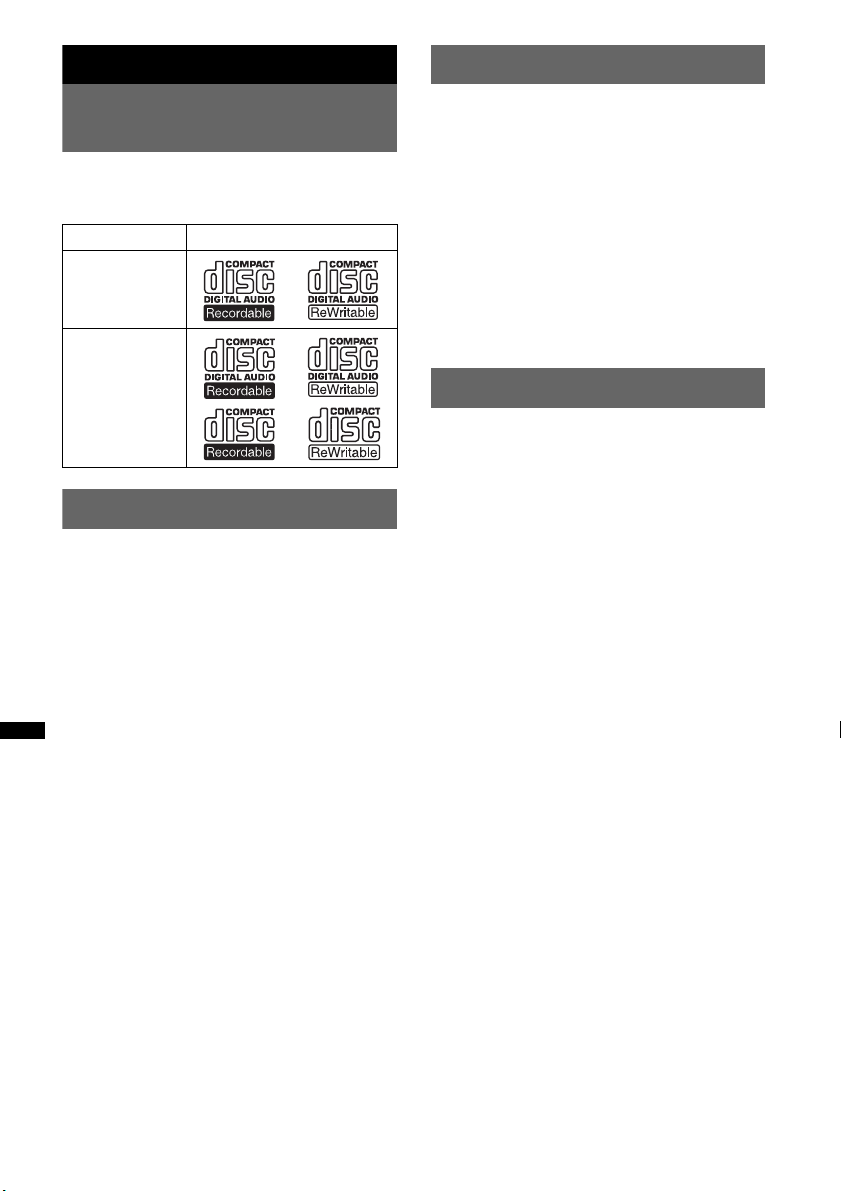

This unit can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA/AAC files (page 18)).

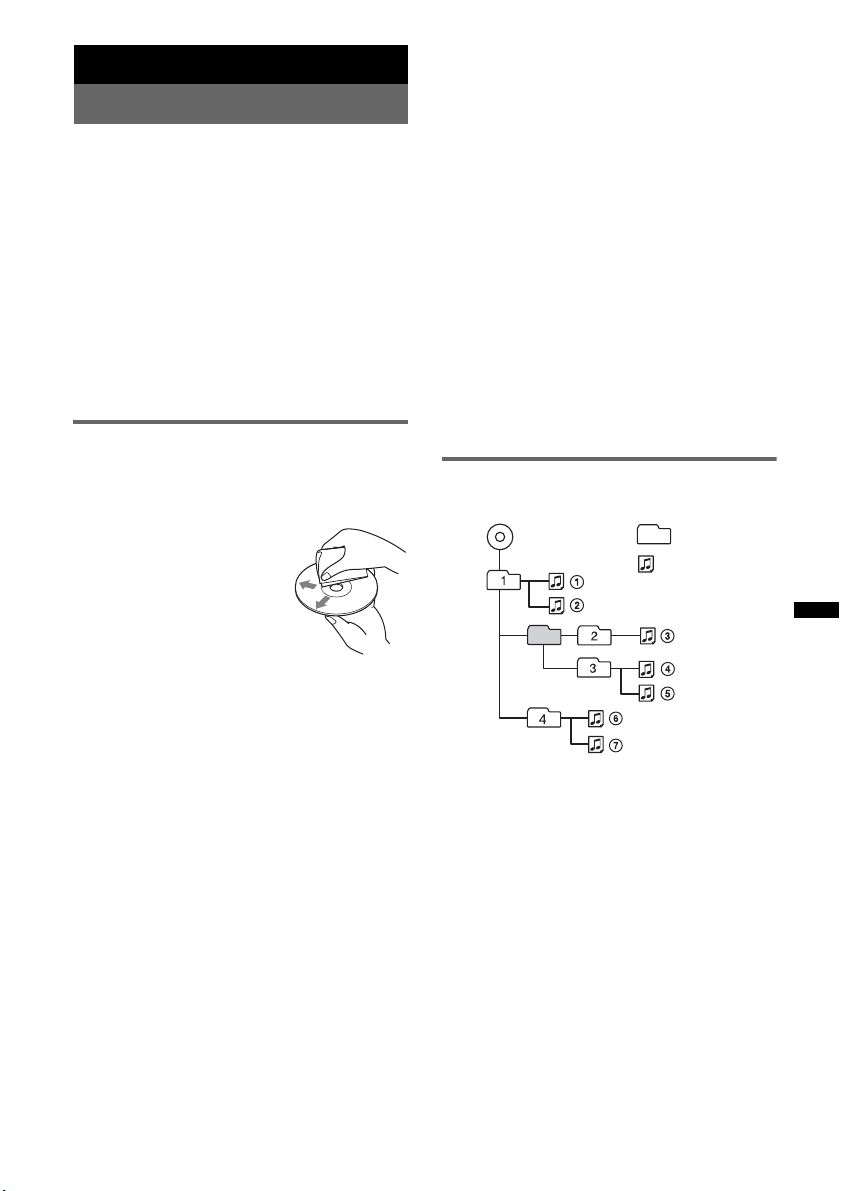

Type of discs Label on the disc

CD-DA

MP3

WMA

AAC

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Detach the front panel (page 7) and press the RESET button (page 8) with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

You can cancel the demonstration display which appears during turning off.

1 Press and hold the select button.

The setup display appears.

2 Press the select button repeatedly

until “DEMO” appears.

3 Rotate the control dial to select

“DEMO-OFF.”

4 Press and hold the select button.

The setup is complete and the display returns to normal reception/play mode.

Setting the clock

The clock uses a 24-hour digital indication.

1 Press and hold the select button.

The setup display appears.

2 Press the select button repeatedly

until “CLOCK-ADJ” appears.

3 Press (SEEK) +.

The hour indication flashes.

4 Rotate the control dial to set the hour

and minute.

To move the digital indication, press (SEEK) –/+.

5 After setting the minute, press the

select button.

The setup is complete and the clock starts.

To display the clock, press (DSPL). Press (DSPL) again to return to the previous display.

Tip

You can set the clock automatically with the RDS feature (page 13).

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press (OFF).

The unit is turned off.

2 Press , then pull it off towards you.

Notes

• Do not drop or put excessive pressure on the front panel and display window.

• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

• Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.

Attaching the front panel

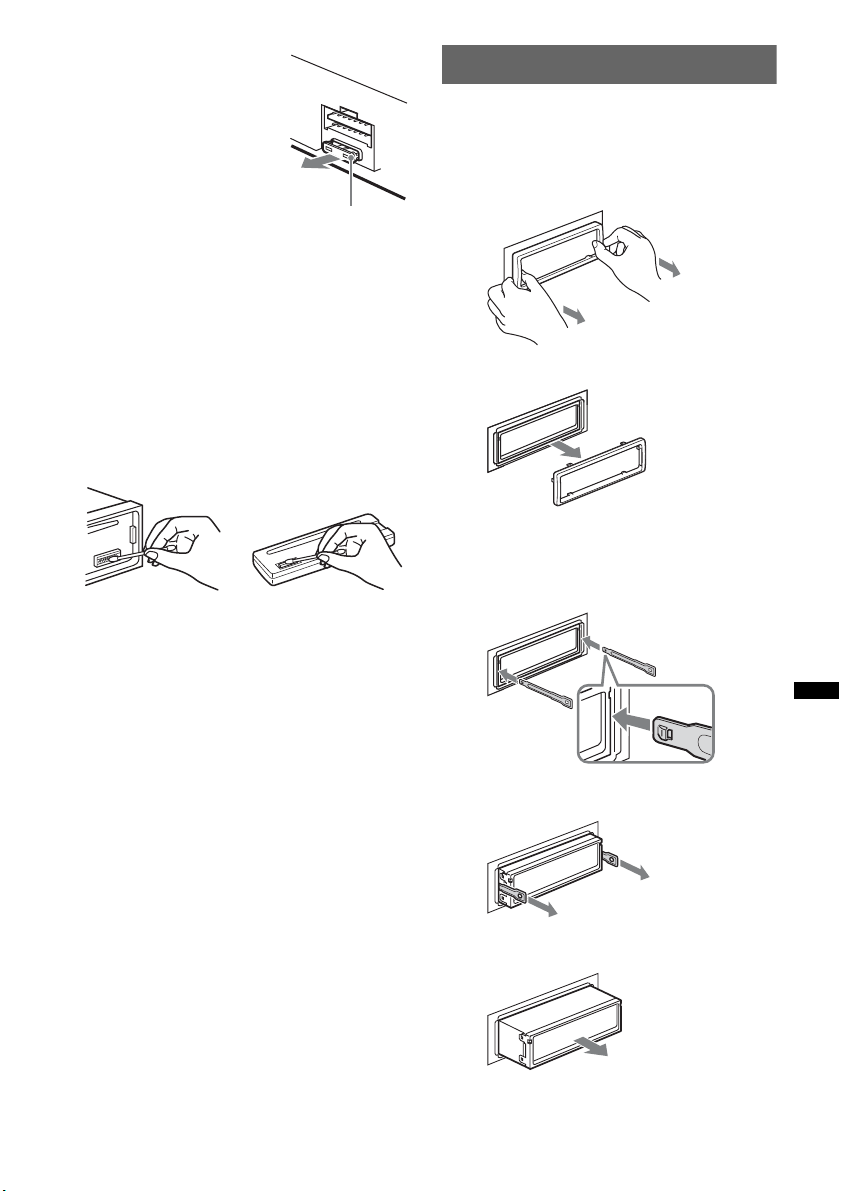

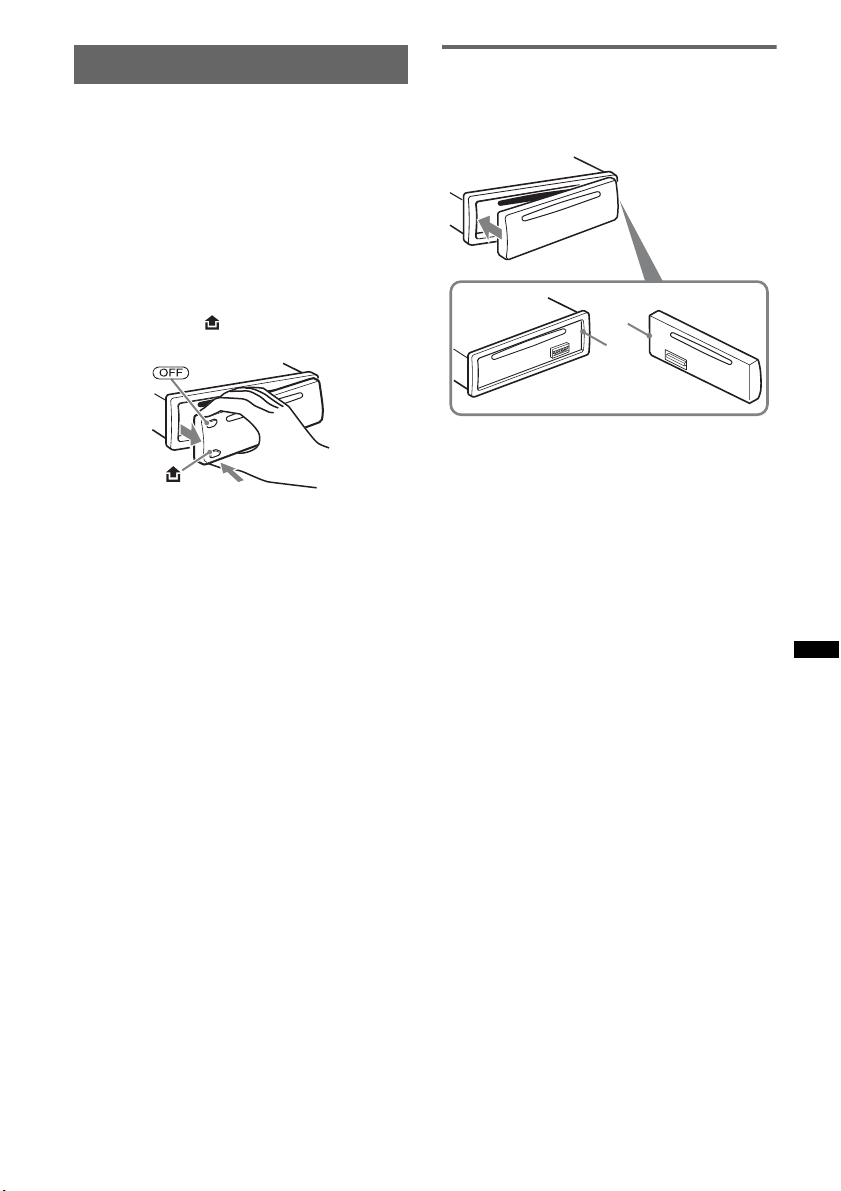

Engage part A of the front panel with part B of the unit, as illustrated, and push the left side into position until it clicks.

Note

Do not put anything on the inner surface of the front panel.

Location of controls and basic operations

qkq

4 65 7

qdq

Main unit

OFF

SEEK

SOURCE

PUSH ENTER / SELECT

ALBM ARTIST TRACK SHUF ZAP

LOUDDISCREGTPTAAF

MODE

SEEK

;

This section contains instructions on the location of controls and basic operations. For details, see the respective pages.

A OFF button

To power off; stop the source.

B (BACK) button page 10

To return to the previous display.

C SOURCE button

To power on; change the source (Radio/CD/ USB/AUX).

D (BROWSE) button page 10

To enter the Quick-BrowZer mode.

E Control dial/select button page 15, 16

To adjust volume (rotate); select setup items (press and rotate).

F Disc slot

Insert the disc (label side up), playback starts.

G Display window

REP SHUF

ZAP

ALBM

1 2 3 4 5 6

H Z (eject) button

To eject the disc.

I USB connector page 14

To connect to the USB device.

J SEEK +/– buttons

CD/USB: To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold). Radio: To tune in stations automatically (press); find a station manually (press and hold).

K (front panel release) button page 7 L MODE button page 11

To select the radio band (FM/MW/LW).

M Receptor for the card remote

commander

N RESET button (located behind the front

panel) page 6

O ZAP button page 11

To enter ZAPPIN™ mode.

PAUSE

AUX

SCRLPTY

DSPLAF/TA

P AF (Alternative Frequencies)/

TA (Traffic Announcement)/ PTY (Program Type) button page 12,

To set AF and TA (press); select PTY (press and hold) in RDS.

Q Number buttons

CD/USB:

(1)/(2): ALBM –/+ (during MP3/WMA/ AAC playback)

To skip albums (press); skip albums continuously (press and hold).

(3): REP* page 13, 14 (4): SHUF page 13, 14 (5): DM+

Improves digitally compressed sound, such as MP3. To activate the DM+ function, set “ON.” To cancel, set “OFF.”

(6): PAUS E

To pause playback. To cancel, press

again. Radio: To receive stored stations (press); store stations (press and hold).

R DSPL (display)/SCRL (scroll) button

page 12, 13, 14

To change display items (press); scroll the display item (press and hold).

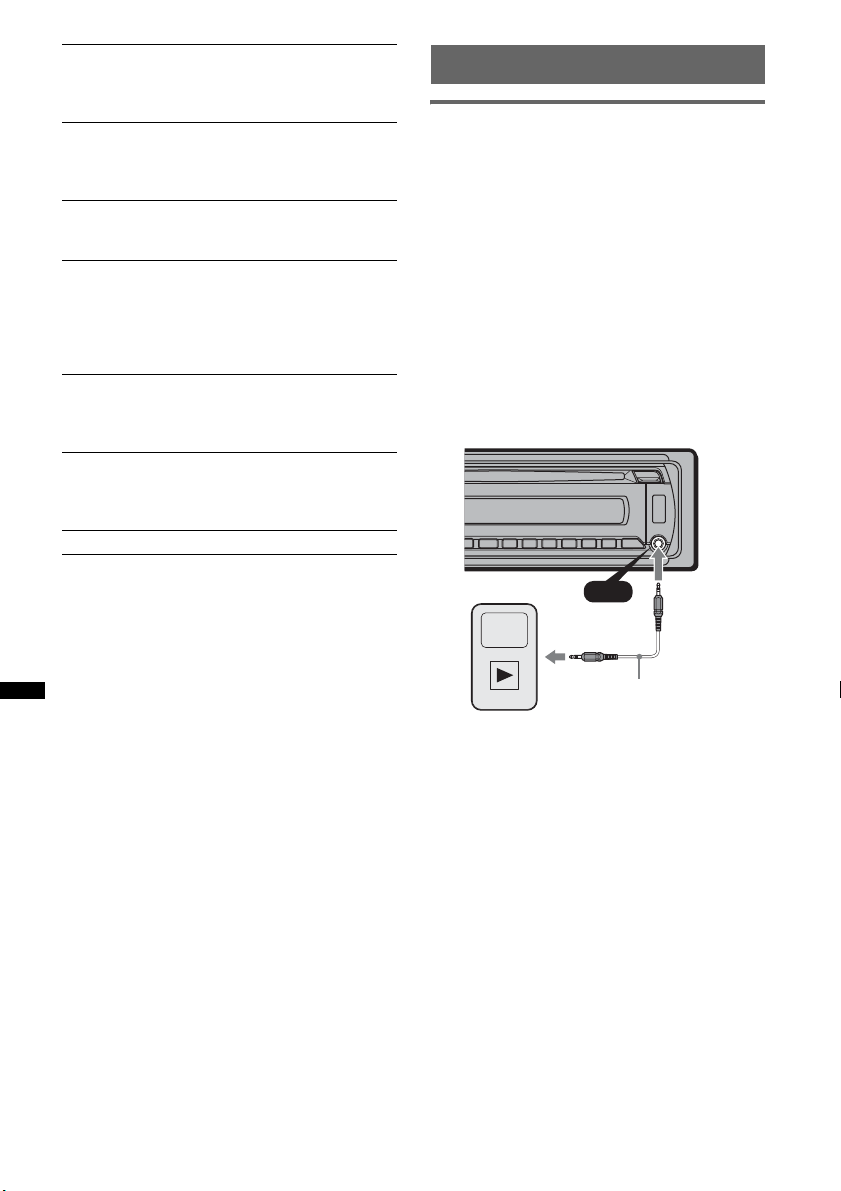

S AUX input jack page 17

To connect a portable audio device.

* This button has a tactile dot.

Note

When ejecting/inserting a disc, keep any USB devices disconnected to avoid damage to the disc.

Searching for a track

Searching a track by name — Quick-BrowZer

You can search for a track in a CD or USB device easily by category.

Searching by skip items — Jump mode

When many items are in a category, you can search the desired item quickly.

1 Press (SEEK) + in Quick-BrowZer mode.

The following display appears.

(BROWSE)

SEEK +/–

OFF

SEEK

(BACK)

Control dial/ select button

1 Press (BROWSE).

The unit enters the Quick-BrowZer mode, and the list of search categories appears.

2 Rotate the control dial to select the

desired search category, then press it to confirm.

3 Repeat step 2 until the desired track is

selected.

Playback starts.

To return to the previous display

Press (BACK).

To exit the Quick-BrowZer mode

Press (BROWSE).

Note

When entering the Quick-BrowZer mode, the repeat/ shuffle setting is canceled.

A Current item number B Total item number in the current layer

Then the item name will appear.

2 Rotate the control dial to select the desired

item, or one near the desired item. It skips in steps of 10% of the total item number.

3 Press the select button.

The display returns to the Quick-BrowZer mode and the selected item appears.

4 Rotate the control dial to select the desired

item and press it. Playback starts if the selected item is a track.

To cancel Jump mode

Press (BACK) or (SEEK) –.

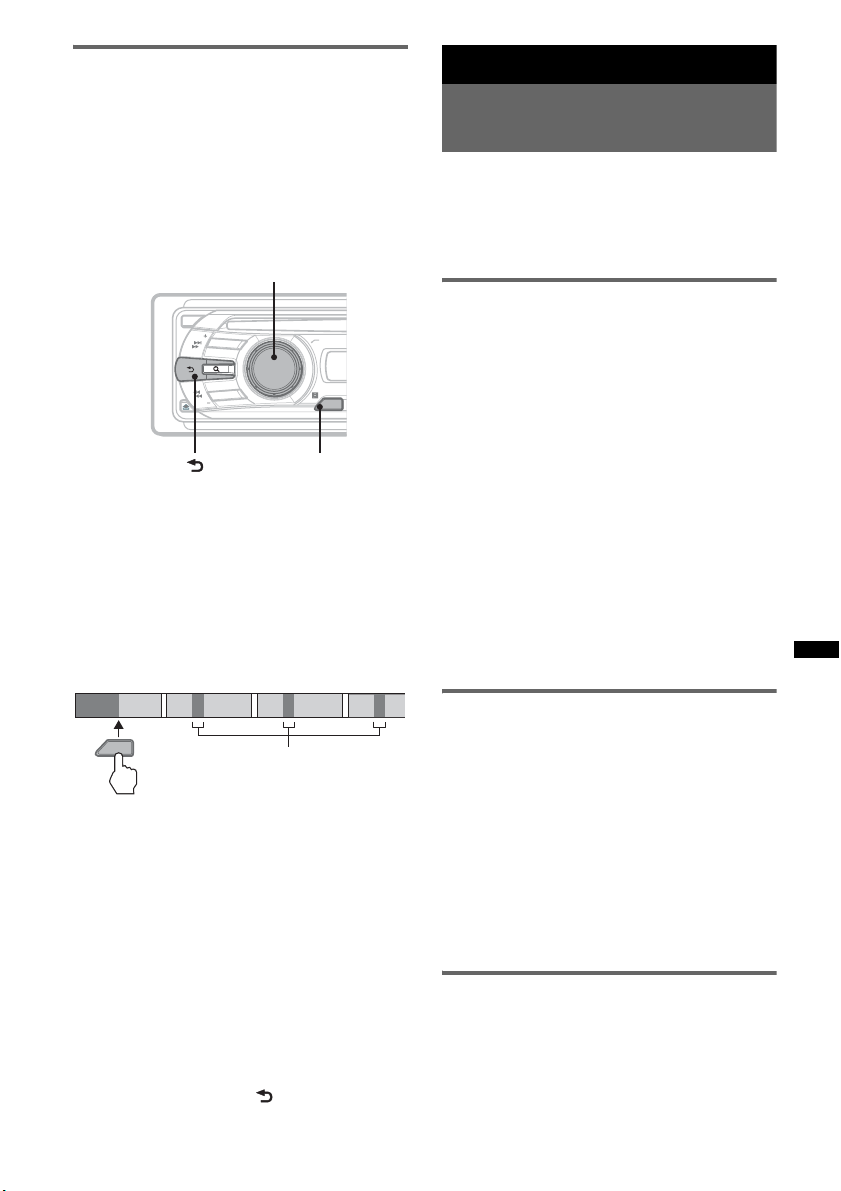

Searching a track by listening to

Radio

track passages — ZAPPIN™

While playing back short track passages in a CD or USB device in sequence, you can search for a track you want to listen to. ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode.

Select button

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

OFF

SEEK

PUSH ENTE

ZAP

1 Press (SOURCE) repeatedly until

“TUNER” appears.

To change the band, press (MODE) repeatedly. You can select from FM1, FM2, FM3, MW or LW.

2 Press and hold the select button.

The setup display appears.

(BACK)

ZAP

3 Press the select button repeatedly

until “BTM” appears.

1 Press (ZAP) during playback.

After “ZAPPIN” appears in the display, playback starts from a passage of the next track.

4 Press (SEEK) +.

The unit stores stations in order of frequency on the number buttons.

A beep sounds when the setting is stored. The passage is played for the set time, then a click sounds and the next passage starts.

Tra ck

ZAP

The part of each track to playback in ZAPPIN mode.

2 Press the select button or (ZAP) when

a track you want to listen is played back.

The track that you select returns to normal

Storing manually

1 While receiving the station that you

want to store, press and hold a

number button ((1) to (6)) until

“MEM” appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Tip

When a RDS station is stored, the AF/TA setting is also stored (page 12).

play mode from the beginning. To search a track by ZAPPIN mode again, repeat steps 1 and 2.

Tips

• You can select the playback time from about 6 seconds/9 seconds/30 seconds (page 16).You cannot select the passage of the track to playback.

• Press (SEEK) +/– or (1)/(2) (ALBM –/+) in ZAPPIN mode to skip a track or album.

• Pressing (BACK) also confirms a track to playback.

Receiving the stored stations

1 Select the band, then press a number

button ((1) to (6)).

Tuning automatically

1 Select the band, then press (SEEK) +/–

to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) +/– to locate the approximate frequency, then press (SEEK) +/– repeatedly to fine adjust to the desired frequency (manual tuning).

RDS

Overview

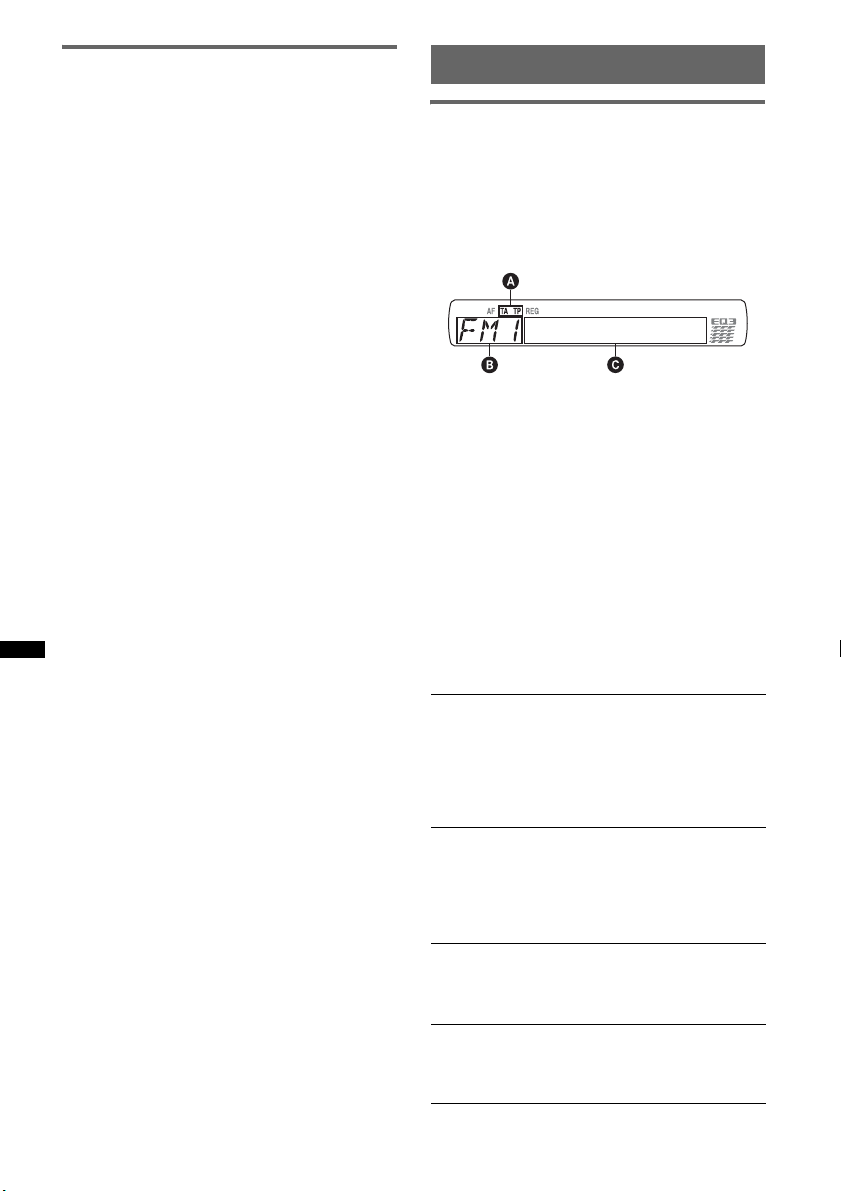

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

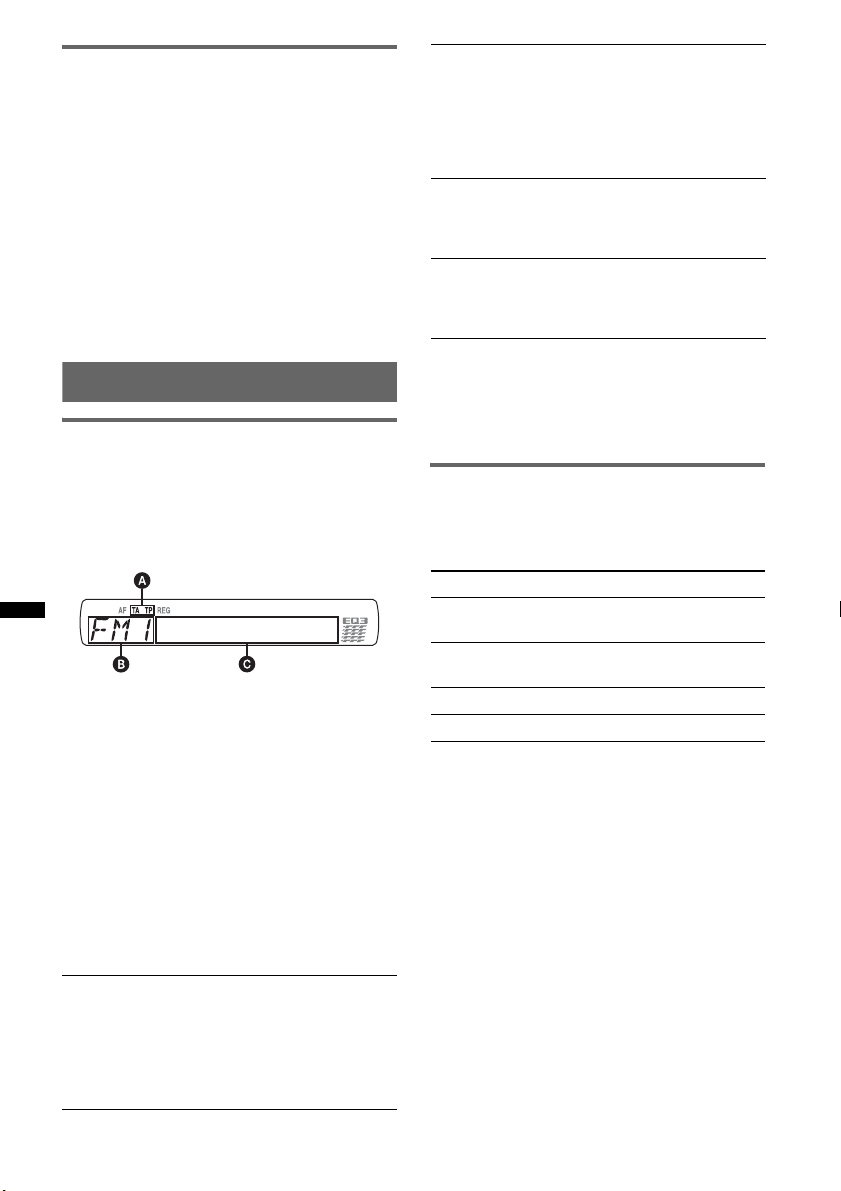

A TA/ TP* B Radio band, Function C Frequency*

*1 “TA” flashes during traffic information. “TP” lights

*2 While receiving the RDS station, “ *” is displayed

To change display items C, press (DSPL).

RDS services

This unit automatically provides RDS services as follows:

AF (Alternative Frequencies)

Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually.

TA (Traffic Announcement)/TP (Traffic Program)

Provides current traffic information/programs. Any information/program received, will interrupt the currently selected source.

PTY (Program Types)

Displays the currently received program type. Also searches your selected program type.

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Notes

• Depending on the country/region, not all RDS functions may be available.

• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

(Program service name), Preset

number, Clock, RDS data

up while such a station is received.

on the left of the frequency indication.

Setting AF and TA

1 Press (AF/TA) repeatedly until the

desired setting appears.

Select To

AF-ON activate AF and deactivate TA. TA-ON activate TA and deactivate AF. AF, TA-ON activate both AF and TA. AF, TA-OFF deactivate both AF and TA.

Storing RDS stations with the AF and TA setting

You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored with the same AF/TA setting. If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.

1 Set AF/TA, then store the station with BTM or

manually.

Receiving emergency announcements

With AF or TA on, the emergency announcements will automatically interrupt the currently selected source.

Tip

If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

Staying with one regional program — REG

When the AF function is on: this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.

If you leave this regional program’s reception area, set “REG-OFF” in setup during FM reception (page 16).

Note

This function does not work in the UK and in some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

1 During FM reception, press a number button

((1) to (6)) on which a local station is stored.

2 Within 5 seconds, press again a number button

of the local station. Repeat this procedure until the local station is received.

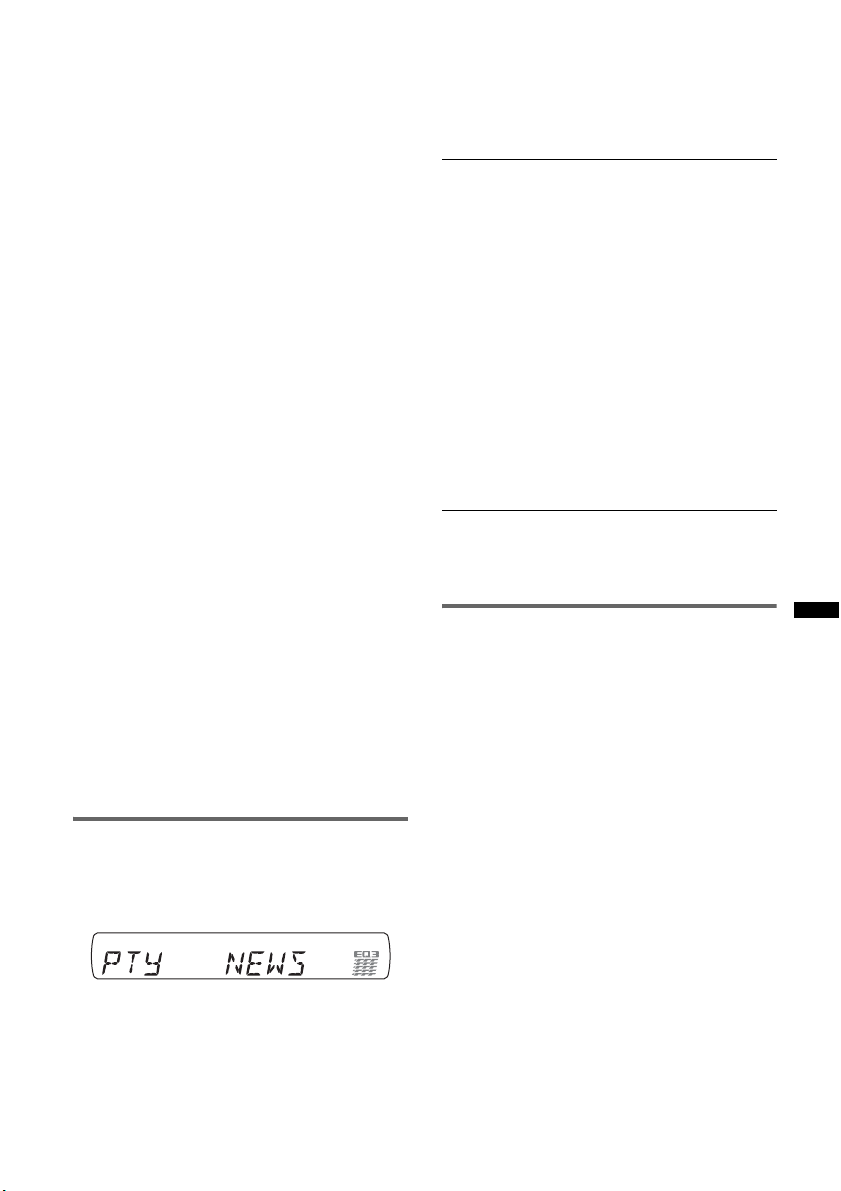

Selecting PTY

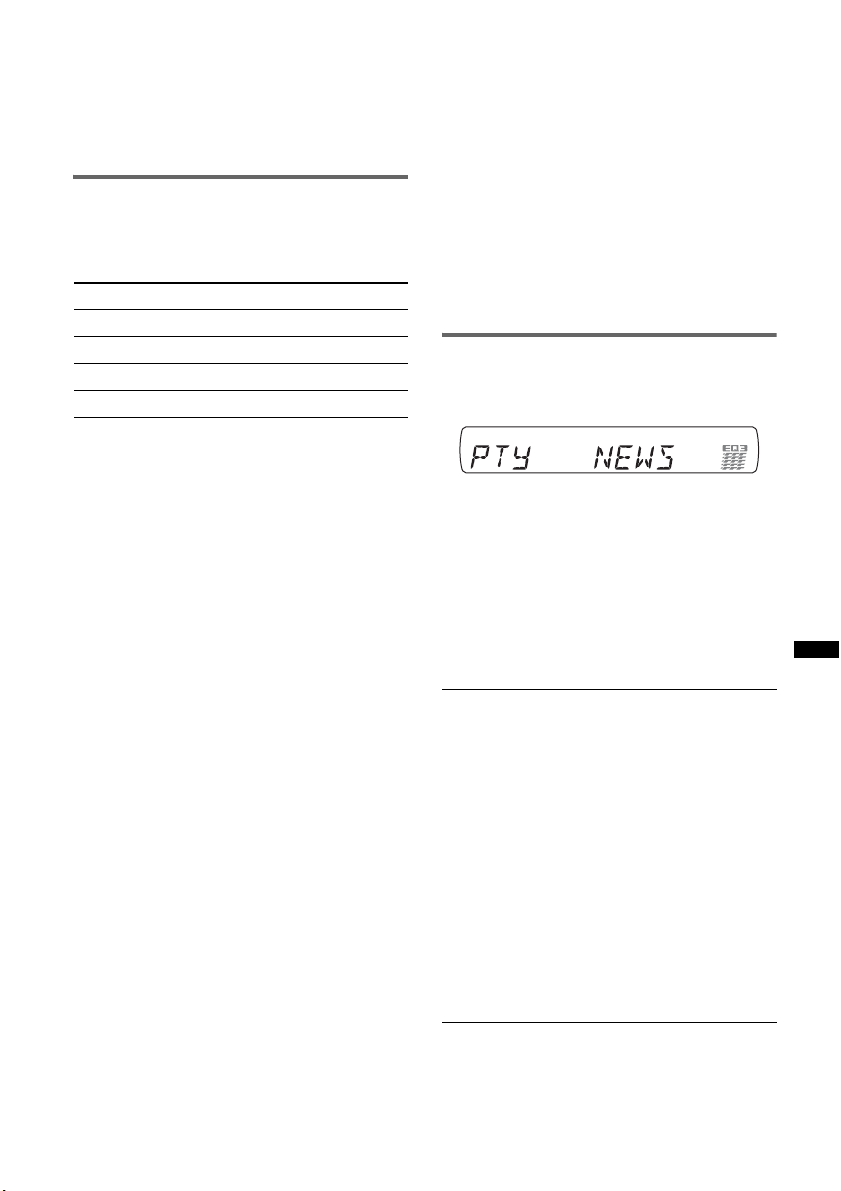

1 Press and hold (AF/TA) (PTY) during

FM reception.

The current program type name appears if the station is transmitting PTY data.

2 Press (AF/TA) (PTY) repeatedly until

the desired program type appears.

3 Press (SEEK) +/–.

The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light Classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies

Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Note

You cannot use this function in countries/regions where no PTY data is available.

Display items

A Source B Track name*

name* Track number/Elapsed playing time, Clock

*1 The information of a CD TEXT, MP3/WMA/AAC is

displayed.

*2 Album number is displayed only when the album is

changed.

To change display items B, press (DSPL).

Tip

Displayed items may differ depending on model, disc type, recording format and settings.

Repeat and shuffle play

1 During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select To play

TRACK track repeatedly.

ALBUM* album repeatedly. SHUF ALBUM* album in random order. SHUF DISC disc in random order.

* When an MP3/WMA/AAC is played.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

, Disc/artist name*1, Artist

, Album number*2, Album name*1,

Setting CT

1 Set “CT-ON” in setup (page 16).

Notes

• The CT function may not work even though an RDS station is being received.

• There might be a difference between the time set by the CT function and the actual time.

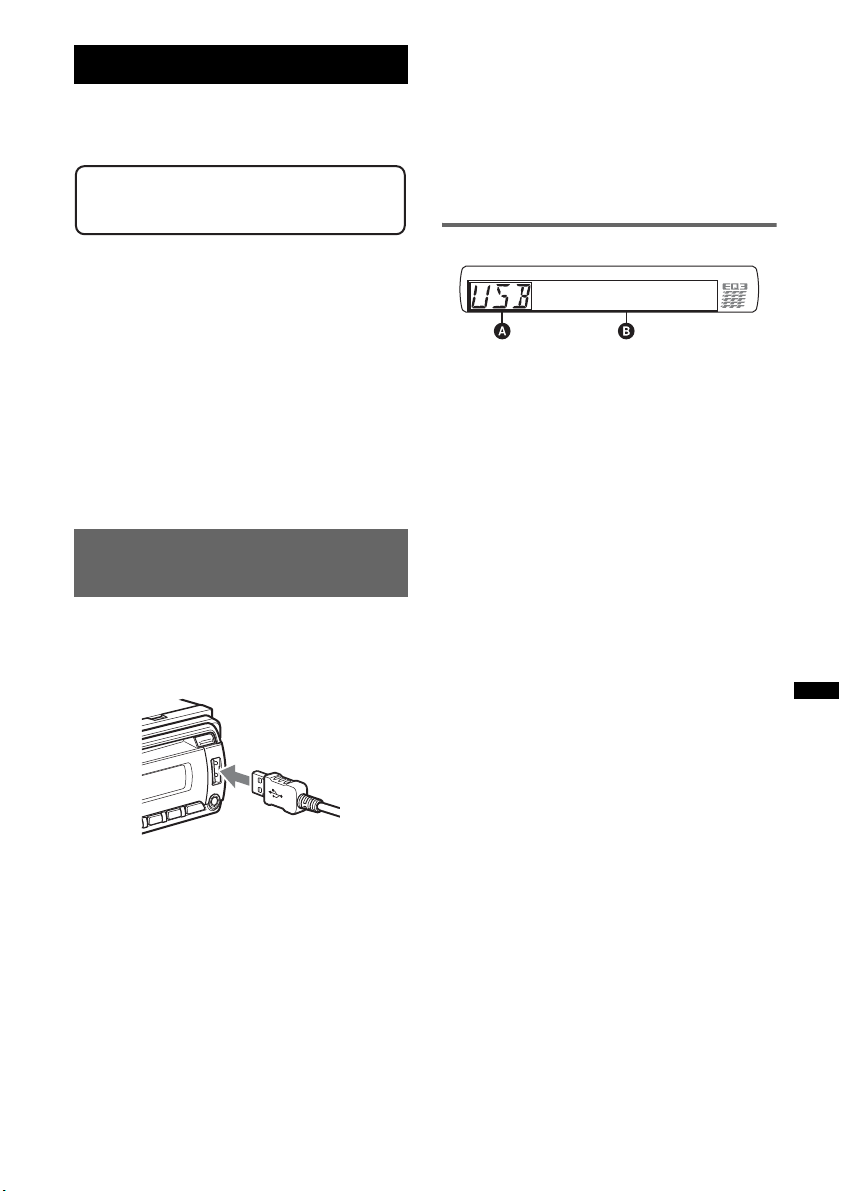

USB devices

For details on the compatibility of your USB device, visit the support site.

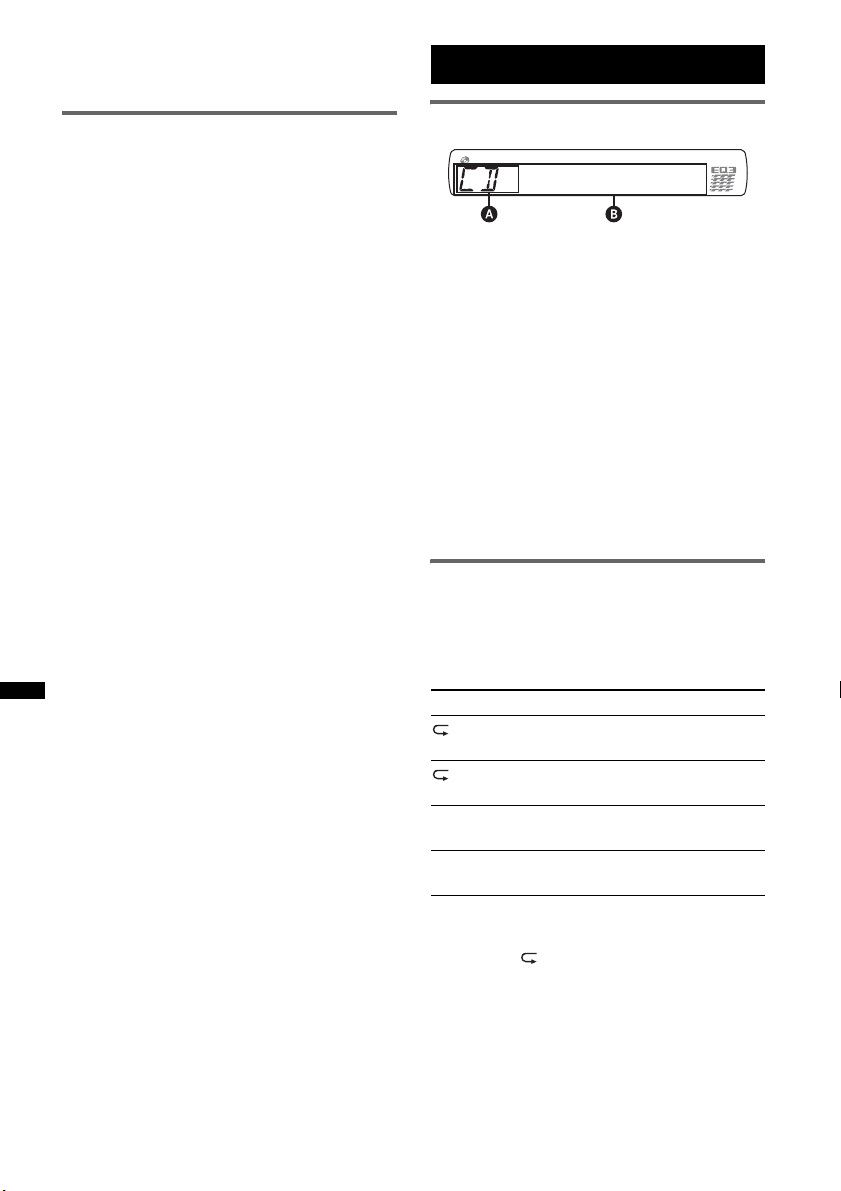

Display items

Support site

http://support.sony-europe.com/

• MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.

• Corresponding codec is MP3 (.mp3), WMA (.wma) and AAC (.m4a).

• Backup of data in a USB device is recommended.

Note

Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.

Playing back a USB device

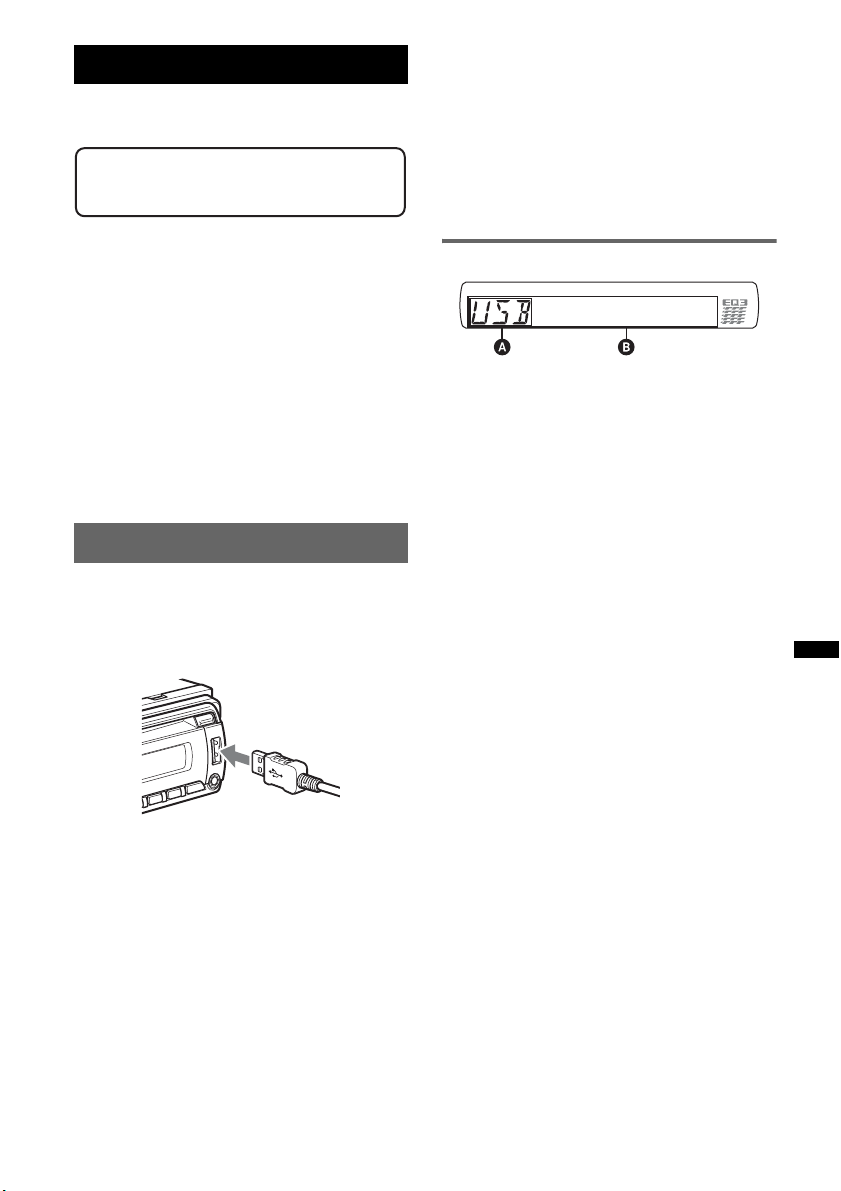

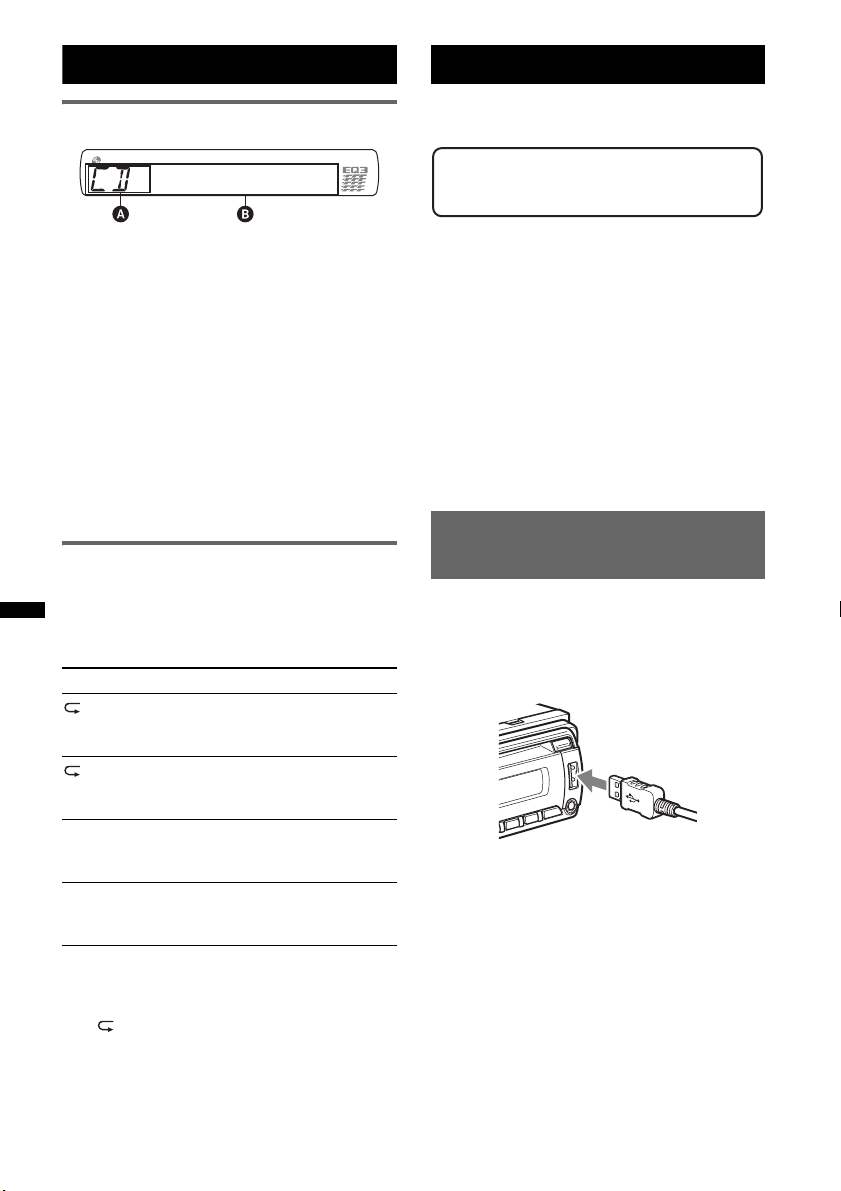

1 Connect the USB device to the USB

connector.

When using a cable, use the one supplied with the USB device to connect.

Playback starts.

If a USB device is already connected, to start playback, press (SOURCE) repeatedly until “USB” appears.

Press (OFF) to stop playback.

Removing the USB device

1 Stop the USB device playback. 2 Remove the USB device.

If you remove your USB device during playback, data in the USB device may be damaged.

Notes

• Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.

• Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.

• This unit cannot recognize USB devices via a USB hub.

A Source B Track name, Artist name, Album number*,

Album name, Track number/Elapsed playing time, Clock

* Album number is displayed only when the album is

changed.

To change display items B, press (DSPL).

Notes

• Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.

• The maximum number of displayable data is as follows. – folders (albums): 128 – files (tracks) per folder: 500

• Do not leave a USB device in a parked car, as malfunction may result.

• It may take time for playback to begin, depending on the amount of recorded data.

• DRM (Digital Rights Management) files may not be played.

• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.

• Playback of the following MP3/WMA/AAC files is not supported. – lossless compression – copyright-protected

Repeat and shuffle play

1 During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select To play

TRACK track repeatedly.

ALBUM album repeatedly. SHUF ALBUM album in random order. SHUF DEVICE device in random order.

After 3 seconds, the setting is complete. To return to normal play mode, select “ OFF”

or “SHUF OFF. ”

Other functions

Changing the sound settings

Adjusting the sound characteristics

1 Press the select button repeatedly

until the desired item appears.

2 Rotate the control dial to adjust the

selected item.

3 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

The following items can be set (follow the page reference for details):

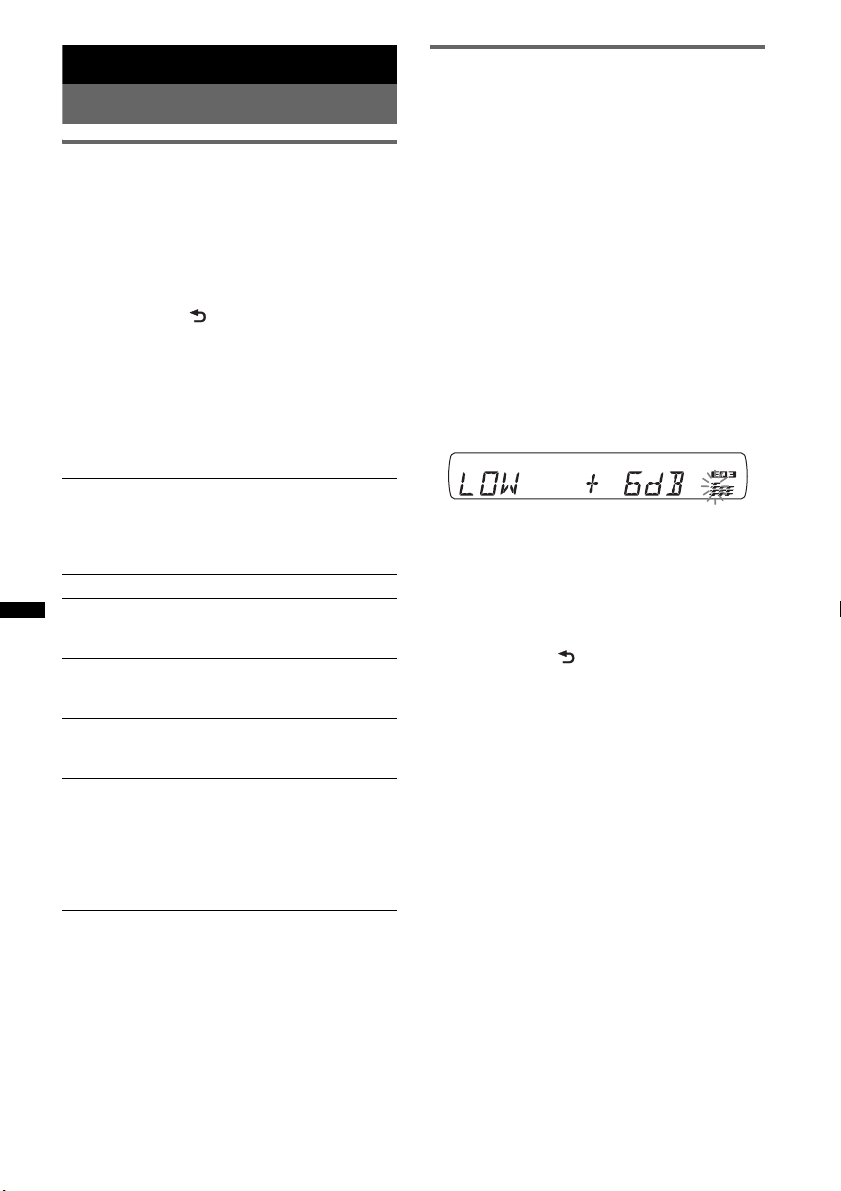

Customizing the equalizer curve — EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press the select

button repeatedly to select “EQ3.”

2 Rotate the control dial to select

“CUSTOM.”

3 Press the select button repeatedly

until “LOW,” “MID” or “HI” appears.

4 Rotate the control dial to adjust the

selected item.

The volume level is adjustable in 1 dB steps, from –10 dB to +10 dB.

EQ3

Selects an equalizer curve from 7 music types (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).

LOW*

, MID*1, HI*1 (page 15)

BAL (Balance)

Adjusts the sound balance between the left and right speakers.

FAD (Fader)

Adjusts the relative level between the front and rear speakers.

SUB*

(Subwoofer volume)

Adjusts the subwoofer volume.

AUX*3 (AUX level)

Adjusts the volume level for each connected auxiliary equipment: “+18 dB” – “0 dB” – “–8 dB.” This setting negates the need to adjust the volume level between sources.

*1 When EQ3 is activated. *2 When the audio output is set to “SUB-OUT”

(page 16). “ATT” is displayed at the lowest setting, and can be adjusted up to 21 steps.

*3 When AUX source is activated (page 17).

Repeat steps 3 and 4 to adjust the equalizer curve. To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

5 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

Tip

Other equalizer types are also adjustable.

Adjusting setup items — SET

1 Press and hold the select button.

The setup display appears.

2 Press the select button repeatedly

until the desired item appears.

3 Rotate the control dial to select the

setting (example “ON” or “OFF”).

4 Press and hold the select button.

The setup is complete and the display returns to normal reception/play mode.

Note

Displayed items will differ, depending on the source and setting.

The following items can be set (follow the page reference for details):

CLOCK-ADJ (Clock Adjust) (page 6) CT (Clock Time)

Activates the CT function: “ON,” “OFF” (page 12, 13).

BEEP

Activates the beep sound: “ON,” “OFF.”

AUX-A*1 (AUX Audio)

Activates the AUX source display: “ON,” “OFF” (page 17).

A.OFF (Auto Off)

Shuts off automatically after a desired time when the unit is turned off: “NO,” “30S (Seconds),” “30M (Minutes),” “60M (Minutes).”

SUB/REAR*

Switches the audio output: “SUB-OUT” (subwoofer), “REAR-OUT” (power amplifier).

DEMO

Activates the demonstration: “ON,” “OFF.”

DIM (Dimmer)

Changes the display brightness: “ON,” “OFF.”

A.SCRL (Auto Scroll)

Scrolls long items automatically: “ON,” “OFF.”

LOCAL (Local Seek Mode)

– “ON”: to only tune into stations with stronger

signals.

– “OFF”: to tune normal reception.

MONO*

Selects monaural reception mode to improve poor FM reception: “ON,” “OFF.”

REG*

Restricts reception to a specific region: “ON,” “OFF” (page 12).

(Demonstration)

(Monaural Mode)

(Regional)

Z.TIME (Zappin Time)

Selects the playback time for the ZAPPIN function. – “Z.TIME-1 (about 6 seconds),” “Z.TIME-2

(about 9 seconds),” “Z.TIME-3 (about 30 seconds).”

LPF*

(Low Pass Filter) Selects the subwoofer cut-off frequency: “OFF,” “55Hz,” “85Hz,” “120Hz.”

LOUD (Loudness)

Reinforces bass and treble for clear sound at low volume levels: “ON,” “OFF.”

BTM (page 11)

*1 When the unit is turned off. *2 When FM is received. *3 When the audio output is set to “SUB-OUT.”

Using optional equipment

Auxiliary audio equipment

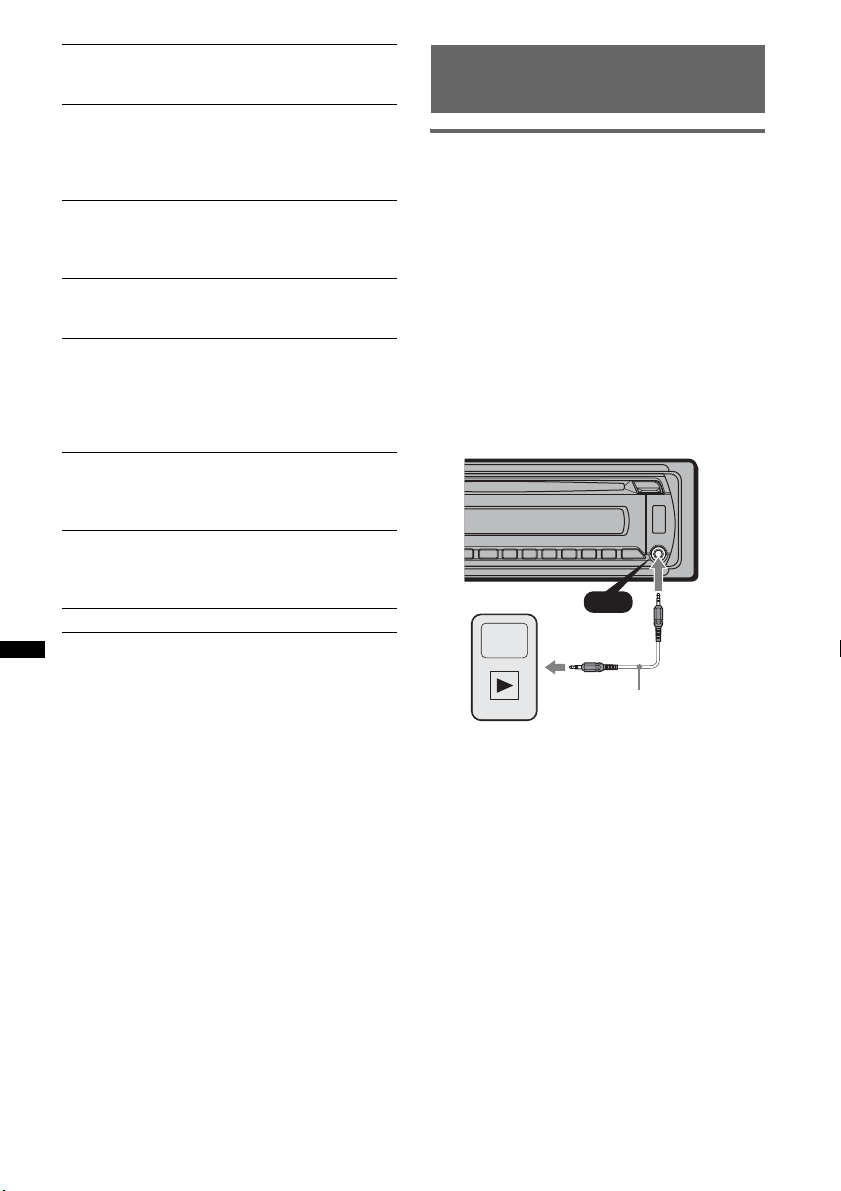

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect to the unit.

AUX

Connecting cord* (not supplied)

* Be sure to use a straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit. 2 Press (SOURCE) repeatedly until “AUX”

appears. After that, “AUX FRONT IN” appears.

3 Start playback of the portable audio device at a

moderate volume.

4 Set your usual listening volume on the unit. 5 Adjust the input level (page 15).

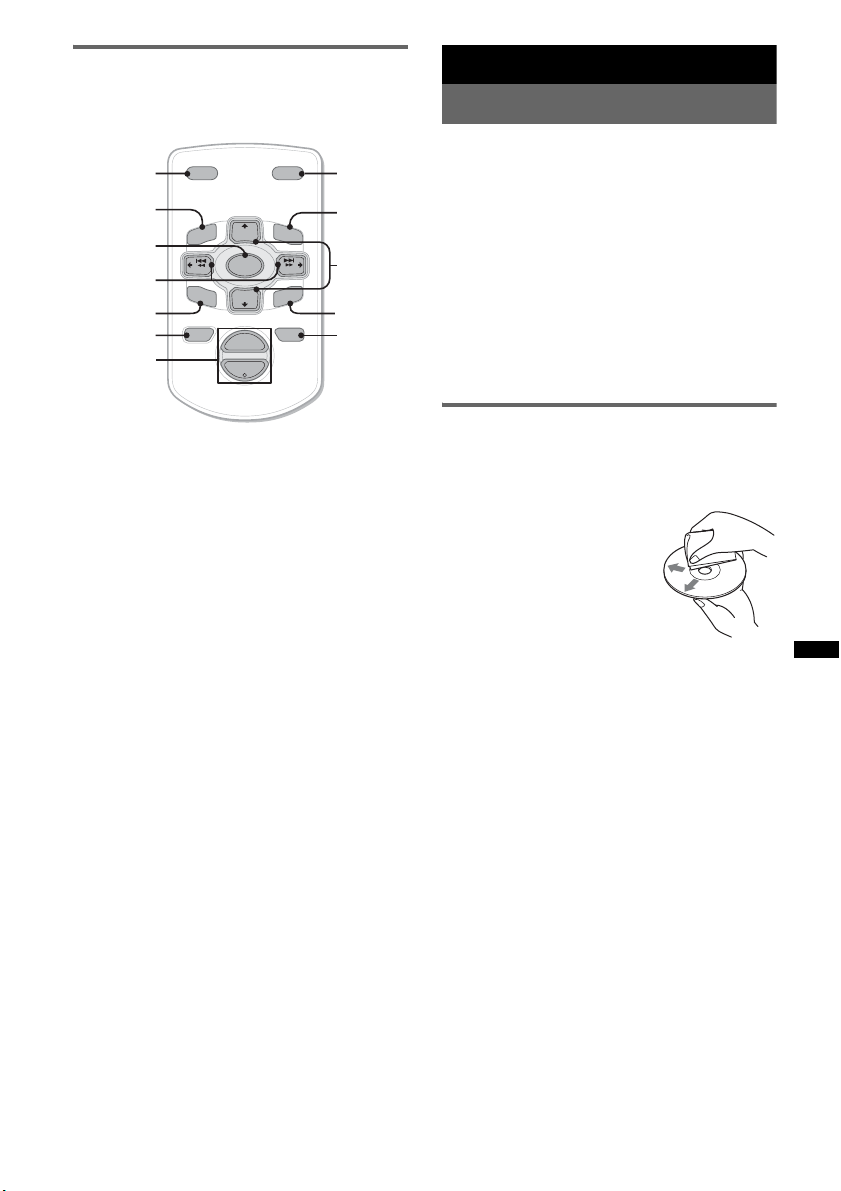

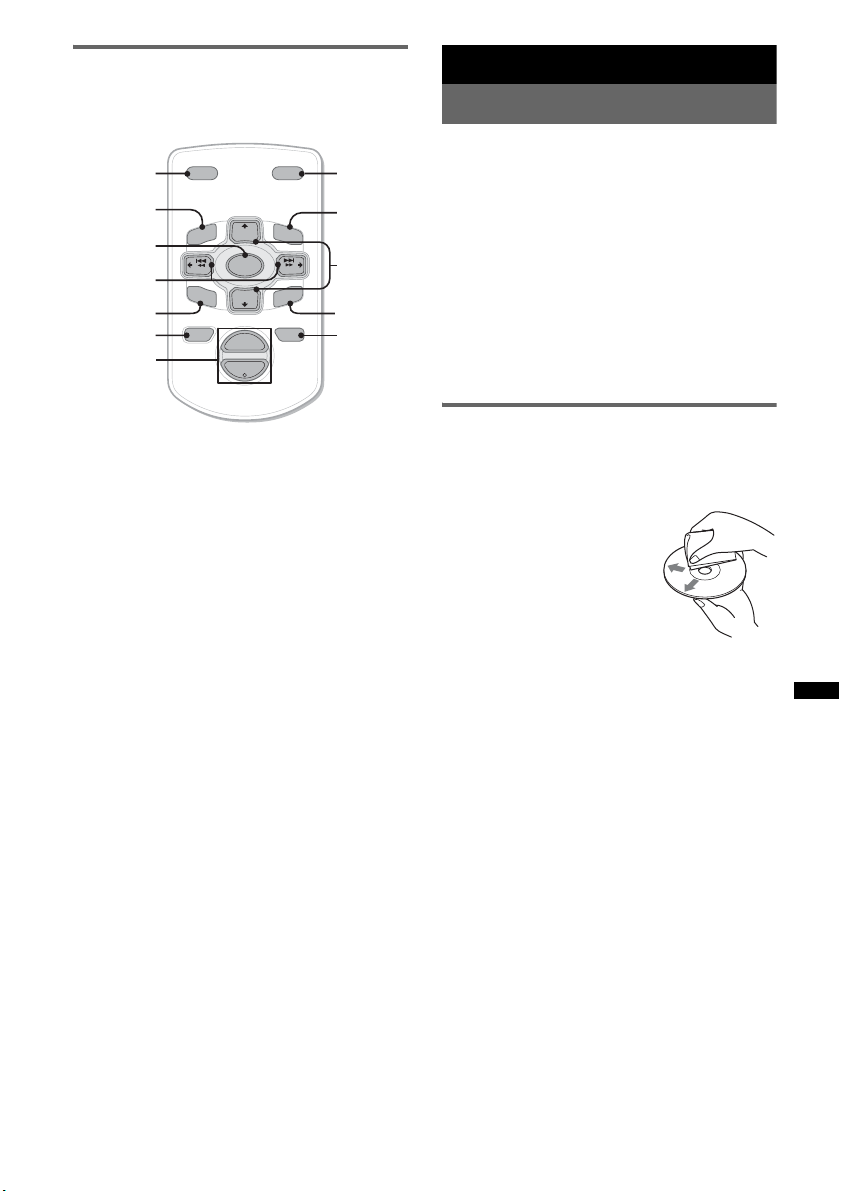

Card remote commander RM-X114

The corresponding buttons on the card remote commander control the same functions as those on this unit.

DSPL MODE

PRESET

DISC

SOURCE

–

SEEK

SOUND

DISC

PRESET –

VOL

–

LIST

SEEK

ATTOFF

MODE

LIST

m/M

(DISC

PRESET +/ –)

ENTER

ATT

DSPL

SOURCE

</,

(SEEK –/+ )

SOUND

OFF

VOL (+/ –)

The following buttons on the card remote commander have also different buttons/functions from the unit.

• DSPL (display) button

To change display items.

• </, (SEEK –/+) buttons

To control radio/CD/USB, the same as (SEEK) –/+ on the unit.

• SOUND button

The same as the select button on the unit.

• LIST button

To select PTY in RDS.

• M/m (DISC*/PRESET +/–) buttons

To control CD/USB, the same as (1)/(2) (ALBM –/+) buttons on the unit.

• ATT (attenuate) button

To attenuate the sound. To cancel, press again.

* Not available for this unit.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first.

Additional Information

Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.

• Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

• This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

• Discs that this unit CANNOT play – Discs with labels, stickers, or sticky tape or

paper attached. Doing so may cause a malfunction, or may ruin the disc.

– Discs with non-standard shapes (e.g., heart,

square, star). Attempting to do so may damage the unit.

–8 cm (3

/4 in) discs.

Notes on CD-R/CD-RW discs

• The maximum number of: (CD-R/CD-RW only) – folders (albums): 150 (including root folder) – files (tracks) and folders: 300 (may less than 300

if folder/file names contain many characters)

– displayable characters for a folder/file name: 32

(Joliet)/64 (Romeo)

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played back.

• Discs that this unit CANNOT play – CD-R/CD-RW of poor recording quality. – CD-R/CD-RW recorded with an incompatible

recording device. – CD-R/CD-RW which is finalized incorrectly. – CD-R/CD-RW other than those recorded in

music CD format or MP3 format conforming to

ISO9660 Level 1/Level 2, Joliet/Romeo or

multi-session.

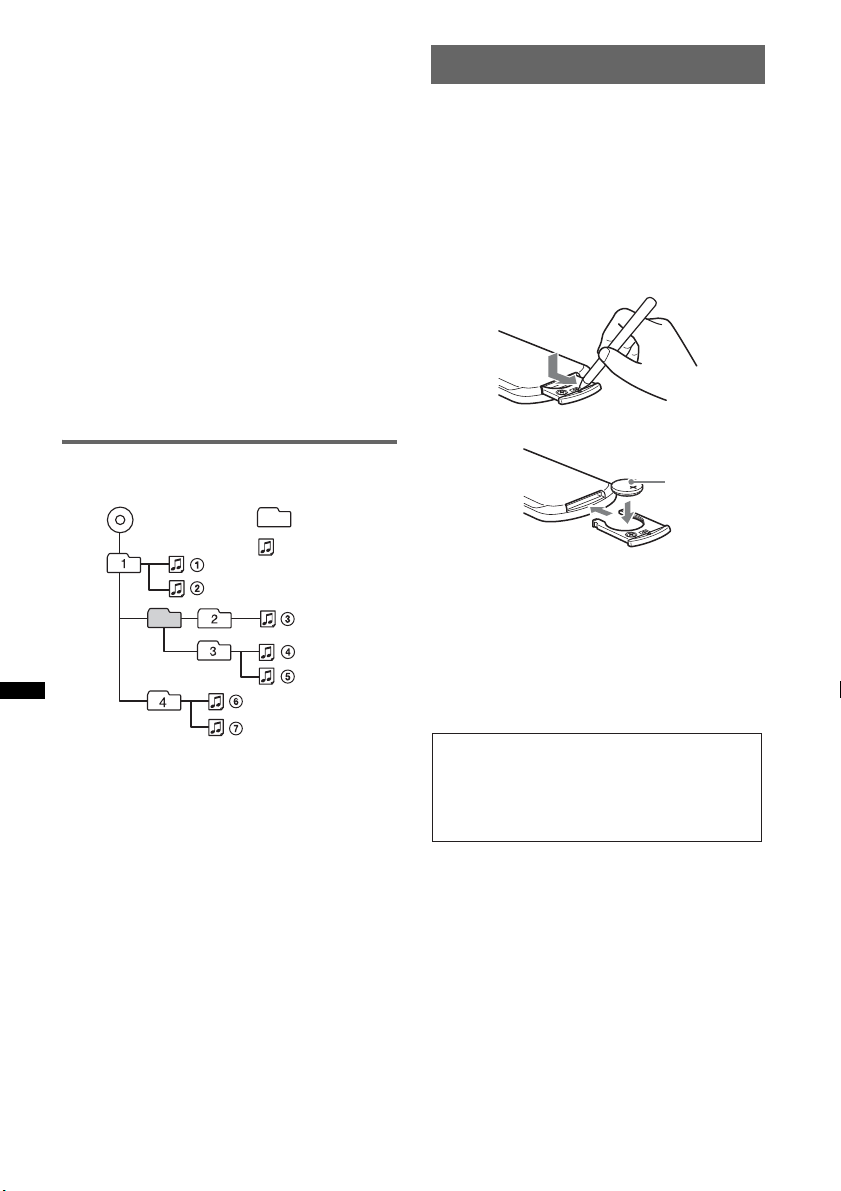

Playback order of MP3/WMA/AAC files

MP3/WMA/AAC

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Folder (album)

MP3/WMA/ AAC file (track)

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

+ side up

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10 A)

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a good contact.

• Be sure to observe the correct polarity when installing the battery.

• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Main unit Back of the front

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.

• Never touch the connectors directly with your fingers or with any metal device.

panel

Removing the unit

Specifications

1 Remove the protection collar.

1 Detach the front panel (page 7). 2 Pinch both edges of the protection collar,

then pull it out.

2 Remove the unit.

1 Insert both release keys simultaneously

until they click.

Hook facing inwards.

Tuner section

Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz Usable sensitivity: 10 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 70 dB (mono) Separation: 40 dB at 1 kHz Frequency response: 20 – 15,000 Hz

MW/LW

Tuning range:

MW: 531 – 1,602 kHz LW: 153 – 279 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz Sensitivity: MW: 26 µV, LW: 45 µV

CD Player section

Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit

USB Player section

Interface: USB (Full-speed) Maximum current: 500mA

Power amplifier section

Output: Speaker outputs (sure seal connectors) Speaker impedance: 4 – 8 ohms Maximum power output: 45 W × 4 (at 4 ohms)

2 Pull the release keys to unseat the unit.

3 Slide the unit out of the mounting.

General

Outputs:

Audio outputs terminal (sub/rear switchable) Power antenna (aerial) relay control terminal Power amplifier control terminal

Inputs:

Telephone ATT control terminal Remote controller input terminal Antenna (aerial) input terminal AUX input jack (stereo mini jack) USB signal input connector

Tone controls:

Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery

(negative ground (earth))

Dimensions: Approx. 178 × 50 × 179 mm

/8 × 2 × 71/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 162 mm

/4 × 21/8 × 61/2 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz) Supplied accessory:

Parts for installation and connections (1 set)

Optional accessory/equipment:

Card remote commander: RM-X114

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

• Halogenated flame retardants are not used in the certain printed wiring boards.

• Halogenated flame retardants are not used in cabinets.

• Packaging cushions are made from paper.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

If the problem is not solved, visit the following support site.

Support site

http://support.sony-europe.com/

General

No power is being supplied to the unit.

• Check the connection or fuse.

• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.

t Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.

• The position of the fader control “FAD” is not set for a 2-speaker system.

No beep sound.

• The beep sound is canceled (page 16).

• An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed.

t Store again into the memory.

• The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown. Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the car’s accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with “DEMO-ON” set, demonstration mode starts. t Set “DEMO-OFF” (page 16).

The display disappears from/does not appear in the display window.

• The dimmer is set “DIM-ON” (page 16).

• The display disappears if you press and hold (OFF).

t Press and hold (OFF) on the unit until the

display appears.

• The connectors are dirty (page 19).

continue to next page t

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit. t Turn off the unit.

Radio reception

The stations cannot be received. The sound is hampered by noises.

• The connection is not correct.

tConnect a power antenna (aerial) control lead

(blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster (only when your car has built-in FM/ MW/LW antenna (aerial) in the rear/side glass).

tCheck the connection of the car antenna (aerial). tIf the auto antenna (aerial) will not go up, check

the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.

tTuning stops too frequently:

Set “LOCAL-ON” (page 16).

tTuning does not stop at a station:

Set “LOCAL-OFF” (page 16).

• The broadcast signal is too weak.

tPerform manual tuning.

During FM reception, the “ST” indication flashes.

• Tune in the frequency accurately.

• The broadcast signal is too weak.

tSet “MONO-ON” (page 16).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode. t Set “MONO-OFF” (page 16).

RDS

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. t Deactivate TA (page 12).

No traffic announcements.

• Activate TA (page 12).

• The station does not broadcast any traffic announcements despite being TP.

tTune in another station.

PTY displays “- - - - - - - -.”

• The current station is not an RDS station.

• RDS data has not been received.

• The station does not specify the program type.

CD playback

The disc cannot be loaded.

• Another disc is already loaded.

• The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

• Defective or dirty disc.

• The CD-Rs/CD-RWs are not for audio use (page 18).

MP3/WMA/AAC files cannot be played back.

The disc is incompatible with the MP3/WMA/AAC format and version. For details on playable discs and formats, visit the support site.

MP3/WMA/AAC files take longer to play back than others.

The following discs take a longer time to start playback. – a disc recorded with a complicated tree structure. – a disc recorded in Multi Session. – a disc to which data can be added.

The display items do not scroll.

• For discs with very many characters, those may not scroll.

• “A.SCRL” is set to “OFF.”

t Set “A.SCRL-ON” (page 16). t Press and hold (DSPL) (SCRL).

The sound skips.

• Installation is not correct.

t Install the unit at an angle of less than 45° in a

sturdy part of the car.

• Defective or dirty disc.

The operation buttons do not function. The disc will not eject.

Press the RESET button (page 6).

USB playback

You cannot play back items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

Cannot play back items.

A USB device does not work. t Reconnect it.

The USB device takes longer to play back.

The USB device contains files with a complicated tree structure.

A beep sounds.

During playback, the USB device has been disconnected. t Before disconnecting a USB device, make sure to

stop playback first for data protection.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate of more than 320 kbps.

Error displays/Messages

CHECKING

The unit is confirming the connection of a USB device. tWait until confirming the connection is finished.

ERROR

• The disc is dirty or inserted upside down.

t Clean or insert the disc correctly.

• A blank disc has been inserted.

• The disc cannot play due to a problem.

t Insert another disc.

• USB device was not automatically recognized.

t Reconnect it again.

•Press Z to remove the disc.

FAILURE

The connection of speakers/amplifiers is incorrect. tSee the installation/connections manual of this

model to check the connection.

HUB NO SUPRT (HUB Not Support)

USB hub is not supported on this unit.

L. SEEK +/–

The local seek mode is on during automatic tuning.

NO AF

There is no alternative frequency for the current station. tPress (SEEK) +/– while the program service name

is flashing. The unit starts searching for another frequency with the same PI (Program Identification) data (“PI SEEK” appears).

NO DEV (No Device)

(SOURCE) is selected without a USB device connected. A USB device or a USB cable has been disconnected during playback. tBe sure to connect a USB device and USB cable.

NO MUSIC

The disc or USB device does not contain a music file.

tInsert a music CD in this unit. tConnect a USB device with a music file in it.

NO NAME

A disc/album/artist/track name is not written in the track.

NO TP

The unit will continue searching for available TP stations.

OFFSET

There may be an internal malfunction. tCheck the connection. If the error indication

remains on in the display, consult your nearest Sony dealer.

OVERLOAD

USB device is overloaded. tDisconnect the USB device, then change the source

by pressing (SOURCE).

tIndicates that the USB device is out of order, or an

unsupported device is connected.

READ

The unit is reading all track and album information on the disc. t Wait until reading is complete and playback starts

automatically. Depending on the disc structure, it may take more than a minute.

RESET

This unit or USB device cannot be operated due to a problem. t Press the RESET button (page 6).

USB NO SUPRT (USB Not Support)

The connected USB device is not supported. t For details on the compatibility of your USB

device, visit the support site.

“” or “”

During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.

“”

The character cannot be displayed with the unit.

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Wichtig! Bitte nehmen Sie sich etwas Zeit, um

den Geräte-Pass vollständig auszufüllen. Dieser befindet sich auf der hinteren Umschlagseite dieser Bedienungsanleitung.

Montieren Sie dieses Gerät aus Sicherheitsgründen im Armaturenbrett des Fahrzeugs. Zur Installation und zum Anschluss siehe die mitgelieferte Installations-/Anschlussanleitung.

Dieses Etikett befindet sich an der Unterseite des Gehäuses.

Hinweis für Kunden: Die folgenden Informationen gelten nur für Geräte, die in Ländern verkauft werden, in denen EU-Richtlinien gelten

Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1 Konan, Minato-ku, Tokio, Japan. Autorisierter Vertreter für EMV und Produktsicherheit ist Sony Deutschland GmbH, Hedelfinger Straße 61, 70327 Stuttgart, Deutschland. Kontaktadressen für Kundendienst oder Garantieansprüche finden Sie in den separaten Kundendienst- oder Garantiedokumenten.

Entsorgung von gebrauchten elektrischen und elektronischen Geräten (anzuwenden in den Ländern der Europäischen Union und anderen europäischen Ländern mit einem separaten Sammelsystem für diese Geräte)

Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall zu behandeln ist, sondern an einer Annahmestelle für das Recycling von elektrischen und elektronischen Geräten abgegeben werden muss. Durch Ihren Beitrag zum korrekten Entsorgen dieses Produkts schützen Sie die Umwelt und die Gesundheit Ihrer Mitmenschen. Umwelt und Gesundheit werden durch falsches Entsorgen gefährdet. Materialrecycling hilft, den Verbrauch von Rohstoffen zu verringern. Weitere Informationen über das Recycling dieses Produkts erhalten Sie von Ihrer Gemeinde, den kommunalen Entsorgungsbetrieben oder dem Geschäft, in dem Sie das Produkt gekauft haben.

ZAPPIN ist ein Markenzeichen der Sony Corporation.

Windows Media und das Windows-Logo sind Markenzeichen oder

eingetragene Markenzeichen der Microsoft Corporation in den USA und/oder anderen Ländern.

MPEG Layer-3 Audiocodiertechnologie und Patente lizenziert von Fraunhofer IIS und Thomson.

Dieses Produkt ist durch bestimmte gewerbliche Schutz- und Urheberrechte der Microsoft Corporation geschützt. Die Verwendung oder der Vertrieb derartiger Technologie außerhalb dieses Produkts ohne eine Lizenz von Microsoft oder einer autorisierten Microsoft-Niederlassung ist untersagt.

Inhaltsanbieter verwenden die in diesem Gerät enthaltene Technologie zur Verwaltung digitaler Rechte für Windows Media („WM-DRM“, Windows Media Digital Rights Management), um die Integrität des Inhalts („Sicherer Inhalt“) zu gewährleisten, sodass sich keine Person das geistige Eigentum, einschließlich Urheberrecht, an diesen Inhalten widerrechtlich aneignen kann. Bei diesem Gerät wird WM-DRM-Software zum Wiedergeben sicherer Inhalte verwendet („WMDRM-Software“). Bei Gefährdung der Sicherheit der WM-DRM-Software dieses Geräts können Eigentümer sicherer Inhalte („Secure Content Owners“) fordern, dass Microsoft das Recht der WM-DRM-Software zum Erwerb neuer Lizenzen zum Kopieren, Anzeigen und/oder Wiedergeben von sicherem Inhalt aufhebt. Trotz der Aufhebung kann mithilfe der WM-DRM-Software ungeschützter Inhalt wiedergegeben werden. Eine Liste widerrufener WM-DRM-Software wird jedes Mal an Ihr Gerät gesendet, wenn Sie eine Lizenz für sicheren Inhalt aus dem Internet oder von einem PC herunterladen. Microsoft lädt möglicherweise im Auftrag von Secure Content Owners zusammen mit einer solchen Lizenz Sperrlisten auf Ihr Gerät herunter.

Warnhinweis, wenn die Zündung Ihres Fahrzeugs nicht über eine Zubehörposition (ACC oder I) verfügt

Aktivieren Sie unbedingt die Abschaltautomatik (Seite 17). Nach dem Ausschalten wird das Gerät dann nach der voreingestellten Zeit automatisch vollständig abgeschaltet, so dass der Autobatterie kein Strom mehr entzogen wird. Wenn Sie die Abschaltautomatik nicht aktivieren, müssen Sie jedes Mal, wenn Sie die Zündung ausschalten, die Taste (OFF) gedrückt halten, bis die Anzeige ausgeblendet wird.

Inhalt

Vorbereitungen

Auf diesem Gerät abspielbare CDs . . . . . . . . . . 6

Zurücksetzen des Geräts . . . . . . . . . . . . . . . . . . 6

Beenden des DEMO-Modus . . . . . . . . . . . . . . . 6

Einstellen der Uhr . . . . . . . . . . . . . . . . . . . . . . . 6

Abnehmen der Frontplatte. . . . . . . . . . . . . . . . . 7

Anbringen der Frontplatte. . . . . . . . . . . . . . . 7

Lage und Grundfunktionen der Teile und Bedienelemente

Hauptgerät. . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Suche nach einem Titel . . . . . . . . . . . . . . . . . . 10

Suchen nach einem Titel anhand seines

Namens — Quick-BrowZer . . . . . . . . . . . . 10

Suchen nach einem Titel durch Anspielen der

Titel — ZAPPIN™. . . . . . . . . . . . . . . . . . . 11

Radio

Speichern und Empfangen von Sendern . . . . . 11

Automatisches Speichern von Sendern

— BTM. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Manuelles Speichern von Sendern . . . . . . . 11

Einstellen gespeicherter Sender . . . . . . . . . 11

Automatisches Einstellen von Sendern. . . . 12

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Übersicht. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Einstellen von AF und TA . . . . . . . . . . . . . 12

Auswählen des Programmtyps (PTY) . . . . 13

Einstellen der Uhrzeit (CT). . . . . . . . . . . . . 13

Informationen im Display . . . . . . . . . . . . . 14

Repeat und Shuffle Play. . . . . . . . . . . . . . . 14

USB-Geräte

Wiedergabe mit einem USB-Gerät. . . . . . . . . 14

Informationen im Display . . . . . . . . . . . . . 15

Repeat und Shuffle Play. . . . . . . . . . . . . . . 15

Weitere Funktionen

Ändern der Klangeinstellungen . . . . . . . . . . . 16

Einstellen der Klangeigenschaften. . . . . . . 16

Individuelles Einstellen der Equalizer-Kurve

— EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Einstellen von Konfigurationsoptionen

— SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Verwenden gesondert erhältlicher Geräte. . . . 18

Zusätzliche Audiogeräte. . . . . . . . . . . . . . . 18

Kartenfernbedienung RM-X114 . . . . . . . . 18

Weitere Informationen

Sicherheitsmaßnahmen. . . . . . . . . . . . . . . . . . 19

Hinweise zu CDs . . . . . . . . . . . . . . . . . . . . 19

Wiedergabereihenfolge von MP3-/WMA-/

AAC-Dateien . . . . . . . . . . . . . . . . . . . . . . . 19

Wartung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Ausbauen des Geräts. . . . . . . . . . . . . . . . . . . . 21

Technische Daten . . . . . . . . . . . . . . . . . . . . . . 21

Störungsbehebung. . . . . . . . . . . . . . . . . . . . . . 22

Fehleranzeigen/Meldungen . . . . . . . . . . . . 24

Support-Website

Wenn Sie Fragen haben oder die neuesten Support-Informationen zu diesem Produkt abrufen möchten, rufen Sie bitte folgende Website auf:

http://support.sony-europe.com/

Hier finden Sie folgende Informationen:

• Modelle und Hersteller kompatibler digitaler Audioplayer

• Unterstützte MP3-/WMA-/AAC-Dateien

Vorbereitungen

Beenden des DEMO-Modus

Auf diesem Gerät abspielbare CDs

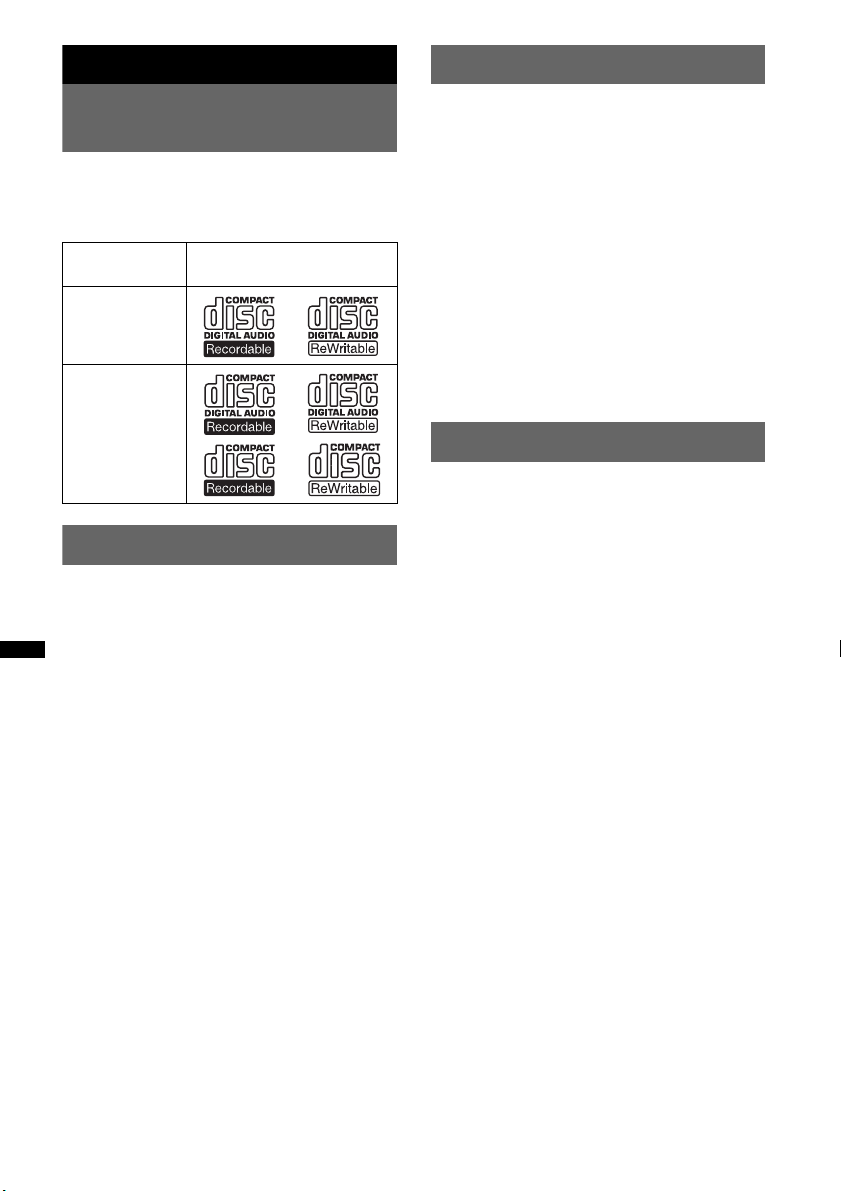

Mit dem Gerät lassen sich CD-DAs (auch solche mit CD TEXT) und CD-Rs/CD-RWs (MP3-/ WMA-/AAC-Dateien abspielen (Seite 19)).

CD-Typ Beschriftung auf der CD

CD-DA

MP3

WMA

AAC

Zurücksetzen des Geräts

Bevor Sie das Gerät zum ersten Mal benutzen oder wenn Sie die Autobatterie ausgetauscht oder die Verbindungen gewechselt haben, müssen Sie das Gerät zurücksetzen. Nehmen Sie die Frontplatte ab (Seite 7) und drücken Sie die Taste RESET (Seite 8) mit einem spitzen Gegenstand, wie z. B. einem Kugelschreiber.

Hinweis

Wenn Sie die Taste RESET drücken, werden die eingestellte Uhrzeit und einige weitere gespeicherte Einstellungen gelöscht.

Sie können die Demo, die beim Ausschalten des Geräts angezeigt wird, abbrechen.

1 Halten Sie die Auswahltaste gedrückt.

Die Einstellanzeige erscheint.

2 Drücken Sie die Auswahltaste so oft,

bis „DEMO“ angezeigt wird.

3 Wählen Sie durch Drehen des

Steuerreglers „DEMO-OFF“ aus.

4 Halten Sie die Auswahltaste gedrückt.

Die Einstellung ist damit abgeschlossen und im Display erscheint wieder die Anzeige für den normalen Empfangsmodus bzw. Wiedergabemodus.

Einstellen der Uhr

Die Uhr zeigt die Uhrzeit im 24-Stunden-Format digital an.

1 Halten Sie die Auswahltaste gedrückt.

Die Einstellanzeige erscheint.

2 Drücken Sie die Auswahltaste so oft,

bis „CLOCK-ADJ“ angezeigt wird.

3 Drücken Sie (SEEK) +.

Die Stundenanzeige blinkt.

4 Drehen Sie den Steuerregler, um die

Stunden und Minuten einzustellen.

Drücken Sie (SEEK) –/+, um zur jeweils nächsten Ziffer in der Digitalanzeige zu wechseln.

5 Drücken Sie die Auswahltaste,

nachdem Sie die Minuten eingestellt haben.

Der Einstellvorgang ist damit abgeschlossen und die Uhr beginnt zu laufen.

Zum Einblenden der Uhrzeit drücken Sie (DSPL). Drücken Sie (DSPL) erneut, um zur vorherigen Anzeige zurückzuschalten.

Tipp

Mithilfe der RDS-Funktion können Sie die Uhr auch automatisch einstellen lassen (Seite 13).

Abnehmen der Frontplatte

Um zu verhindern, dass das Gerät gestohlen wird, können Sie die Frontplatte abnehmen.

Warnton

Wenn Sie den Zündschlüssel in die Position OFF stellen, ohne die Frontplatte abzunehmen, ertönt einige Sekunden lang ein Warnton. Der Warnton wird nur ausgegeben, wenn der integrierte Verstärker verwendet wird.

1 Drücken Sie (OFF).

Das Gerät schaltet sich aus.

2 Drücken Sie und ziehen Sie die

Frontplatte auf sich zu und heraus.

Hinweise

• Lassen Sie die Frontplatte nicht fallen und drücken Sie nicht zu stark auf die Frontplatte und das Display.

• Schützen Sie die Frontplatte vor Hitze bzw. hohen Temperaturen und vor Feuchtigkeit. Lassen Sie sie nicht in geparkten Autos, auf dem Armaturenbrett oder auf der Hutablage liegen.

• Nehmen Sie die Frontplatte nicht ab, während die Wiedergabe am USB-Gerät läuft. Andernfalls können die USB-Daten beschädigt werden.

Anbringen der Frontplatte

Setzen Sie Teil A der Frontplatte wie abgebildet an Teil B am Gerät an und drücken Sie dann die linke Seite hinein, bis sie mit einem Klicken einrastet.

Hinweis

Legen Sie auf der Innenseite der Frontplatte nichts ab.

Lage und Grundfunktionen der Teile und Bedienelemente

qkq

4 65 7

qdq

Hauptgerät

OFF

SEEK

SOURCE

PUSH ENTER / SELECT

ALBM ARTIST TRACK SHUF ZAP

LOUDDISCREGTPTAAF

MODE

SEEK

;

In diesem Abschnitt werden Lage und Grundfunktionen der Teile und Bedienelemente beschrieben. Nähere Erläuterungen finden Sie auf den jeweiligen Seiten.

A Taste OFF

Ausschalten bzw. Stoppen der Tonquelle.

B Taste (BACK) Seite 10

Zurückschalten zur vorherigen Anzeige.

C Taste SOURCE

Einschalten bzw. Wechseln der Tonquelle (Radio/CD/USB/AUX).

D Taste (BROWSE) Seite 10

Aktivieren des Quick-BrowZer-Modus.

E Steuerregler/Auswahltaste

Seite 16, 17

Einstellen der Lautstärke (drehen) bzw. Auswählen von Einstelloptionen (drücken und drehen).

F CD-Einschub

Legen Sie eine CD mit der beschrifteten Seite nach oben ein. Die Wiedergabe beginnt.

G Display H Taste Z (Auswerfen)

Auswerfen der CD.

I USB-Anschluss Seite 14

Anschließen eines USB-Geräts.

REP SHUF

ZAP

ALBM

1 2 3 4 5 6

J Tasten SEEK +/–

CD/USB: Überspringen von Titeln (drücken), Überspringen mehrerer Titel hintereinander (drücken, dann innerhalb von 1 Sekunde erneut drücken und gedrückt halten) bzw. Rückwärts-/Vorwärtssuchen in einem Titel (gedrückt halten). Radio: Automatisches Einstellen von Sendern (drücken) bzw. manuelle Sendersuche (gedrückt halten).

K Taste (Lösen der Frontplatte)

Seite 7

L Taste MODE Seite 11

Auswählen des Radiofrequenzbereichs (FM (UKW)/MW/LW).

M Empfänger für die

Kartenfernbedienung

N Taste RESET (hinter der Frontplatte)

Seite 6

O Taste ZAP Seite 11

Aufrufen des ZAPPIN™-Modus.

PAUSE

AUX

SCRLPTY

DSPLAF/TA

+ 90 hidden pages
