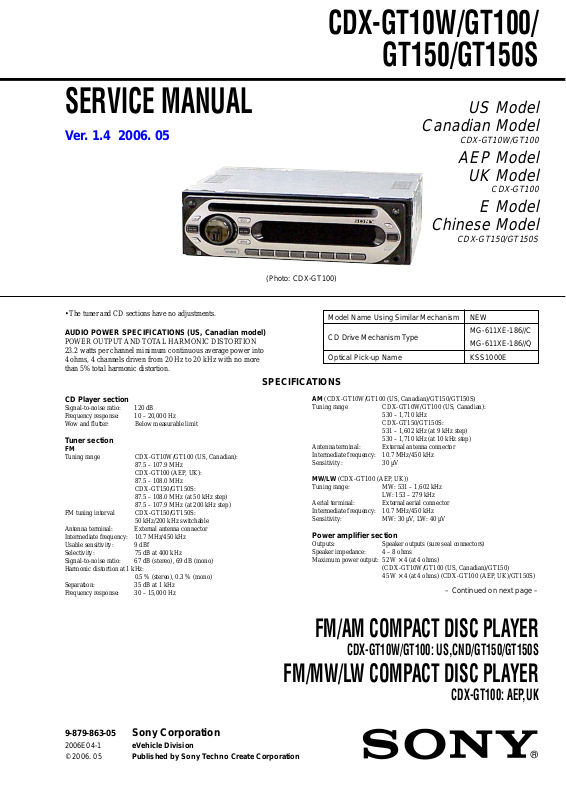

CDX-GT10W/GT100/

GT150/GT150S

SERVICE MANUAL

Ver. 1.4 2006. 05

(Photo: CDX-GT100)

• The tuner and CD sections have no adjustments.

AUDIO POWER SPECIFICATIONS (US, Canadian model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

SPECIFICATIONS

US Model

Canadian Model

CDX-GT10W/GT100

AEP Model

UK Model

CDX-GT100

E Model

Chinese Model

CDX-GT150/GT150S

Model Name Using Similar Mechanism NEW

CD Drive Mechanism Type

Optical Pick-up Name KSS1000E

MG-611XE-186//C MG-611XE-186//Q

CD Player section

Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit

Tuner section

FM

Tuning range CDX-GT10W/GT100 (US, Canadian):

87.5 – 107.9 MHz CDX-GT100 (AEP, UK):

87.5 – 108.0 MHz CDX-GT150/GT150S:

87.5 – 108.0 MHz (at 50 kHz step)

87.5 – 107.9 MHz (at 200 kHz step)

FM tuning interval CDX-GT150/GT150S:

50 kHz/200 kHz switchable Antenna terminal: External antenna connector Intermediate frequency: 10.7 MHz/450 kHz Usable sensitivity: 9 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono) Harmonic distortion at 1 kHz:

0.5 % (stereo), 0.3 % (mono) Separation: 35 dB at 1 kHz Frequency response: 30 – 15,000 Hz

AM (CDX-GT10W/GT100 (US, Canadian)/GT150/GT150S) Tuning range CDX-GT10W/GT100 (US, Canadian):

530 – 1,710 kHz CDX-GT150/GT150S: 531 – 1,602 kHz (at 9 kHz step)

530 – 1,710 kHz (at 10 kHz step) Antenna terminal: External antenna connector Intermediate frequency: 10.7 MHz/450 kHz Sensitivity: 30 µV

MW/LW (CDX-GT100 (AEP, UK)) Tuning range: MW: 531 – 1,602 kHz

LW: 153 – 279 kHz Aerial terminal: External aerial connector Intermediate frequency: 10.7 MHz/450 kHz Sensitivity: MW: 30 µV, LW: 40 µV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors) Speaker impedance: 4 – 8 ohms Maximum power output: 52 W × 4 (at 4 ohms)

(CDX-GT10W/GT100 (US, Canadian)/GT150)

45 W × 4 (at 4 ohms) (CDX-GT100 (AEP, UK)/GT150S)

– Continued on next page –

FM/AM COMPACT DISC PLAYER

CDX-GT10W/GT100: US,CND/GT150/GT150S

9-879-863-05

FM/MW/LW COMPACT DISC PLAYER

CDX-GT100: AEP,UK

Sony Corporation

eVehicle Division Published by Sony Techno Create Corporation

1

CDX-GT10W/GT100/GT150/GT150S

Ver. 1.2

General

Outputs: Audio outputs terminal (sub/rear switchable)

Power antenna relay control terminal Power amplifier control terminal

Inputs: Antenna input terminal

AUX input jack (stereo mini jack)

Tone controls: Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery (negative ground) Dimensions: Approx. 178 × 50 × 179 mm

(7 1/8 × 2 × 7 1/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 161 mm

(7 1/4 × 2 1/8 × 6 3/8 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz) Supplied accessories: Parts for installation and connections (1 set)

Design and specifications are subject to change without notice.

Us and foreign patents licensed from Dolby Laboratories.

SERVICE NOTES

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the exterior.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

•Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick-up block.

optical pick-up

AEP, UK, E model

This label is located on the bottom of the chassis.

Chinese model

semi-fixed resistor

TEST DISCS

This set can playback CD-R and CD-ROM discs. The following test discs should be used to check the capability:

CD-R test disc TCD-R082LMT (Part No. J-2502-063-1) CD-RW test disc TCD-W082L (Part No. J-2502-063-2)

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

CDX-GT10W/GT100/GT150/GT150S

D

Notes on CD-DA/CD-R/CD-RW

• CD playback: You can play CD-DA and CD-R/CD-RW for audio use.

z

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!

• Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.

EXTENSION CABLE AND SERVICE POSITION

When repairing or servicing this set, connect the jig (extension cable) as shown below.

• Connect the MAIN board (CNP301) and the SER VO board (CN1) with the extension cable (Part No. J-2502-076-1).

MAIN BOARD CNP301

J-2502-076-1

SERVO BOAR CN1

3

CDX-GT10W/GT100/GT150/GT150S

GENERAL

• CDX-GT10W/GT100 • CDX-GT150/GT150S

Location of controls and basic operations

Main unit

CDX-GT100 CDX-GT10W

This section is extracted from instruction manual.

Refer to the pages listed for details.

A OFF button

To po wer off; stop the source.

B Volume control dial/select button 6

To ad ju st volume (rotate); select setup items (press and rotate).

C EQ3 (equalizer) button 6

To se le ct an equalizer type (XPLOD , VOCAL , CLUB, JAZZ, NEW AGE, ROCK, CUSTOM or OFF).

D Disc slot

To in se rt the disc (label side up), playback starts.

E Display window F Z (eject) button

To ej ect the disc.

G DSPL (display)/DIM (dimmer) button

4

To ch ange display items (press); change the display brightness (press and hol d).

H (front panel release) button 4 I SEEK –/+ buttons

CD: To sk ip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold). Radio: To tune in stations automatically (press); f ind a station manually (press and ho ld).

J SOURCE button

To power on; change the source (Radio/CD/ AUX).

K BTM button 6

To s t art t he BTM function (press and hold).

L MODE button 6

To s e lect t he radio band (FM/AM).

M RESET button (located behind the front

panel) 4

N Number buttons

CD: (3): REP

To pl ay the current track rep eatedly.

(4): SHUF

To pl ay the tracks in random order. Radio: To r e ceive stored stations (press); store stations (press and hold).

O SENS button

To improve weak reception: LOCAL/ MONO.

P AUX input jack 7

To c o nn ect a portable audio device.

5

CDX-GT10W/GT100/GT150/GT150S

• CONNECTIONS

from car antenna à partir de l’antenne de la voiture

BUS

AUDIO

IN

1

*

L

R

Fuse (10 A) Fusible (10 A)

1

RCA pin cord (not supplied)

*

2

*

AUDIO OUT can be switched to SUB

or REAR.

For details, see the supplied

Operating Instructions.

1

*

Cordon à broche RCA (non fourni)

2

*

AUDIO OUT peut être commuté sur

SUB ou REAR.

Pour obtenir plus de détails, reportez-

vous au mode d’emploi fourni.

AMP REM

Max. supply current 0.3 A Courant max. fourni 0,3 A

Left Gauche

Right Droit

Left Gauche

Right Droit

Connection diagram

To a metal surface of the car

1

First connect the black ground lead, then connect the yellow and red power input leads.

To the power antenna control lead or power

2

supply lead of antenna booster amplifi er

Notes

•

It is not necessary to connect this lead if there is no power antenna or antenna booster, or with a manually-operated telescopic antenna.

•

When your car has a built-in FM/AM antenna in the rear/ side glass, see “Notes on the control and power supply leads.”

To AMP REMOTE IN of an optional power

3

amplifi er

This connection is only for amplifi ers. Connecting any other system may damage the unit.

To the +12 V power terminal which is

4

energized in the accessory position of the ignition key switch

Notes

•

If there is no accessory position, connect to the +12 V power (battery) terminal which is energized at all times. Be sure to connect the black ground lead to a metal surface of the car fi rst.

•

When your car has a built-in FM/AM antenna in the rear/ side glass, see “Notes on the control and power supply leads.”

5 To the +12 V power terminal which is

energized at all times

Be sure to connect the black ground lead to a metal surface of the car fi rst.

Notes on the control and power supply leads

•

The power antenna control lead (blue) supplies +12 V DC when you turn on the tuner.

•

When your car has built-in FM/AM antenna in the rear/side glass, connect the power antenna control lead (blue) or the accessory power input lead (red) to the power terminal of the existing antenna booster. For details, consult your dealer.

•

A power antenna without a relay box cannot be used with this unit.

Memory hold connection

When the yellow power input lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Notes on speaker connection

•

Before connecting the speakers, turn the unit off.

•

Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid its damage.

•

Do not connect the speaker terminals to the car chassis, or connect the terminals of the right speakers with those of the left speaker.

•

Do not connect the ground lead of this unit to the negative (–) terminal of the speaker.

•

Do not attempt to connect the speakers in parallel.

•

Connect only passive speakers. Connecting active speakers (with built-in amplifi ers) to the speaker terminals may damage the unit.

•

To avoid a malfunction, do not use the built-in speaker leads installed in your car if the unit shares a common negative (–) lead for the right and left speakers.

•

Do not connect the unit’s speaker leads to each other.

Note on connection

If speaker and amplifi er are not connected correctly, “FAILURE” appears in the display. In this case, make sure the speaker and amplifi er are connected correctly.

Blue/white striped Rayé bleu/blanc

White Blanc

White/black striped Rayé blanc/noir

Gray Gris

Gray/black striped Rayé gris/noir

Green Vert

Green/black striped Rayé vert/noir

Purple Mauve

Purple/black striped Rayé mauve/noir

2

Black Noir

Blue Bleu

Max. supply current 0.1 A Courant max. fourni 0,1 A

Red Rouge

Yellow Jaune

Schéma de raccordement

1 À un point métallique de la voiture

Branchez d’abord le câble de mise à la masse noir et, ensuite, les câbles d’entrée d’alimentation jaune et rouge.

2 Vers le câble de commande d’antenne

électrique ou le câble d’alimentation de l’amplifi cateur d’antenne

Remarques

•

Il n’est pas nécessaire de raccorder ce câble s’il n’y a pas d’antenne électrique ni d’amplifi cateur d’antenne, ou avec une antenne télescopique manuelle.

•

Si votre voiture est équipée d’une antenne FM/AM intégrée dans la vitre arrière/latérale, voir « Remarques sur les câbles de commande et d’alimentation ».

3 Au niveau de AMP REMOTE IN de

l’amplifi cateur de puissance en option

Ce raccordement s’applique uniquement aux amplifi cateurs. Le branchement de tout autre système risque d’endommager l’appareil.

4 À la borne +12 V qui est alimentée quand la

clé de contact est sur la position accessoires

Remarques

•

S’il n’y a pas de position accessoires, raccordez la borne d’alimentation (batterie) +12 V qui est alimentée en permanence. Raccordez d’abord le câble de mise à la masse noir à un point métallique du véhicule.

•

Si votre voiture est équipée d’une antenne FM/AM intégrée dans la vitre arrière/latérale, voir « Remarques sur les câbles de commande et d’alimentation ».

5 À la borne +12 V qui est alimentée en

permanence

Raccordez d’abord le câble de mise à la masse noir à un point métallique du véhicule.

Remarques sur les câbles de commande et d’alimentation

•

Le câble de commande d’antenne électrique (bleu) fournit une alimentation de +12 V CC lorsque vous mettez la radio sous tension.

•

Lorsque votre voiture est équipée d’une antenne FM/AM intégrée dans la vitre arrière/latérale, raccordez le câble de commande d’antenne (bleu) ou l’entrée d’alimentation des accessoires (rouge) à la borne d’alimentation de l’amplifi cateur d’antenne existant. Pour plus de détails, consultez votre détaillant.

•

Une antenne électrique sans boîtier de relais ne peut pas être utilisée avec cet appareil.

Raccordement pour la conservation de la mémoire

Lorsque le câble d’entrée d’alimentation jaune est raccordé, le circuit de la mémoire est alimenté en permanence même si la clé de contact est sur la position d’arrêt.

Remarques sur le raccordement des haut-parleurs

•

Avant de raccorder les haut-parleurs, mettez l’appareil hors tension.

•

Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms avec une capacité électrique adéquate pour éviter de les endommager.

•

Ne raccordez pas les bornes du système de haut-parleurs au châssis de la voiture et ne raccordez pas les bornes des hautparleurs droit à celles du haut-parleur gauche.

•

Ne raccordez pas le câble de mise à la masse de cet appareil à la borne négative (–) du haut-parleur.

•

N’essayez pas de raccorder les haut-parleurs en parallèle.

•

Raccordez uniquement des haut-parleurs passifs. Le raccordement de haut-parleurs actifs (avec amplifi cateurs intégrés) aux bornes des haut-parleurs peut endommager l’appareil.

•

Pour éviter tout dysfonctionnement, n’utilisez pas les câbles des haut-parleurs intégrés installés dans votre voiture si l’appareil partage un câble négatif commun (–) pour les hautparleurs droit et gauche.

•

Ne raccordez pas entre eux les cordons des haut-parleurs de l’appareil.

Remarque sur le raccordement

Si les haut-parleurs et l’amplifi cateur ne sont pas raccordés correctement, le message « FAILURE » s’affi che. Dans ce cas, assurez-vous que les haut-parleurs et l’amplifi cateur sont bien raccordés.

ANT REM

6

SECTION 2

DISASSEMBLY

Note : This set can be disassemble according to the following sequence.

SET

2-1. SUB PANEL ASSY

(Page 8)

2-2. CD MECHANISM BLOCK

(Page 8)

CDX-GT10W/GT100/GT150/GT150S

2-3. MAIN BOARD

(Page 9)

2-7. OPTICAL PICK-UP

(Page 11)

2-4. CHASSIS (T) SUB ASSY

(Page 9)

2-5. ROLLER ARM ASSY

(Page 10)

2-6. CHASSIS (OP) ASSY

(Page 10)

2-8. SL MOTOR ASSY (M902)

(Page 11)

2-10. SERVO BOARD

(Page 12)

2-9. LE MOTOR ASSY (M903)

(Page 12)

7

CDX-GT10W/GT100/GT150/GT150S

s

)

Note : Follow the disassembly procedure in the numerical order given.

2-1. SUB PANEL ASSY

3

two claws

1

two

screws

(+PTT 2.6

×

6)

2-2. CD MECHANISM BLOCK

7

CD mechanism block

4

sub panel assy

6

bracket (CD)

5

two

screws

(+PTT 2.6

2

two claw

×

4)

2

screw

(+PTT 2.6

4

CNP301

×

6)

3

1

screw

(+PTT 2.6

×

6

8

2-3. MAIN BOARD

1

(+BTT 2.6

three

screws

×

CDX-GT10W/GT100/GT150/GT150S

5)

2

two

screws

×

8)

3

MAIN board

(+PTT 2.6

2-4. CHASSIS (T) SUB ASSY

2

two

screws

(+P 1.7

5

SENSOR board

3

claw

×

2.2)

4

claw

1

two

screws

×

(+P 1.7

6

2.2)

chassis (T) sub assy

9

CDX-GT10W/GT100/GT150/GT150S

2-5. ROLLER ARM ASSY

3

washer (1.1-2.5)

4

gear (RA1)

1

spring (RAL)

5

roller arm assy

2

spring (RAR)

2-6. CHASSIS (OP) ASSY

0

coil spring (damper)

4

washer

5

gear (LE1)

lever (D)

6

8

qa

chassis (OP) assy

1

CN2

9

two coil springs (damper)

7

slider (R)

10

2

Remove the six solders.

3

tension spring (KF60)

2-7. OPTICAL PICK-UP

)

5

claw

CDX-GT10W/GT100/GT150/GT150S

2

chucking arm sub assy

1

tension coil spring (CHKG

7

optical pick-up

2-8. SL MOTOR ASSY (M902)

6

main shaft

4

rack (SL)

3

screw

(+B 1.4

×

5)

2

SL motor assy (M902)

1

screw

(+P 1.4

×

1.8

11

CDX-GT10W/GT100/GT150/GT150S

2-9. LE MOTOR ASSY (M903)

0

gear (LE) assy

qa

screw

×

qf

two toothed lock

(+M 1.4

bracket (LEM-N)

qs

(+M 1.7

screw

)

×

2.5)

6

(+P 1.7

screw

screws

×

(+M 1.7

qd

2.2)

2.5)

qg

LE motor assy

(M903)

7

leaf spring (LE)

8

screw

(+M 1.7

9

bearing (LEB-N)

2

washer

3

gear (LE1)

lever (D)

×

2.5)

4

5

slider (R)

2-10. SERVO BOARD

1

Remove the eight solders.

1

Remove the solders.

6

2

SERVO board

Remove the three solders.

4

toothed lock

(M 1.7

5

claw

×

screw

2.5)

12

3

CN2 (16P)

3-1. BLOCK DIAGRAM — CD SECTION —

DETECTOR

PD1

PD2

PD1

PD2

I-V AMP

A

82

B

84

C

83

D

85

SECTION 3

DIAGRAMS

RFO

78

CDX-GT10W/GT100/GT150/GT150S

• R-ch is omitted due to same as L-ch.

• Siganal Path

: CD PLAY

AGCO

AGCI

77

76

RF AMP,DIGITAL SERVO,

DIGITAL SIGNAL PROCESSOR

71

IC1

EFM

RFI

68

ASY

69

LOUT

ROUT

LMUTE

RMUTE

20

16

R-CH

30

29

CD_MUTE-L

94

CD_MUTE-R

93

CD-L

MAIN

A

SECTION

(Page 14)

E

F

LASER DIODE

PICK-UP BLOCK

(KSS1000E)

2-AXIS DEVICE

(FOCUS)

(TRACKING)

PD LD

OPTICAL

PD

FCS+

FCS–

TRK+

TRK–

E

F

LD

AUTOMATIC

POWER

CONTROL

M902

(SLED)

Q1

M

87

86

1

FOCUS/TRACKING COIL DRIVE,

11

12

13

14

15

16

FEO

E

F

LD

SLED/SPINDLE/LOADING

VO2–

VO2+

VO1–

VO1+

VO4+

VO4–

93

TEO

96

2

PD

MOTOR DRIVE

IC2

OPIN2+

OPIN2–

OPIN1+

OPIN1–

OPIN4+

OPIN4–

FE–

92

TE2

TE–

95

5

6

2

3

27

26

97

TEC

98

12

SO

13

SI

11

SCK

6

RFOK

7

INTQ

10

STB

9

A0

8

RST

23

FD+

52

FD–

53

TD+

54

TD–

55

SD+

56

SD–

57

XTAL

24

X1

16.9344MHz

SW1

(DOWN)

SW2

(SELF)

SW3

(DISC IN)

CD_SI

18

CD_SO

19

CD_SCK

20

CD RFOK

89

CD INTQ

55

CD_STB

92

CD_A0

91

CD RST

90

CD_DSW

99

CD_SELFSW

96

CD_INSW

95

SYSTEM CONTROL

IC501 (1/3)

M901

(SPINDLE)

M903

(LOADING)

CDX-GT10W/GT100/GT150/GT150S

OPIN3+

OPIN3–

FWD

REV

24

23

1

28

17

M

VO3+

18

VO3–

10

VOL+

9

VOL–

MD+

58

MD–

59

SW4

(LIMIT)

100

97

98

CD_LIMIT

CD LM LO

CD LM EJ

13 13

CDX-GT10W/GT100/GT150/GT150S

3-2. BLOCK DIAGRAM — MAIN SECTION —

ELECTRONIC VOLUME

IC401

J1

(ANTENNA)

1

ANT

TU1

(TUNER UNIT)

TU VDD

E2P VDD

TU-SCL TU-SDA

S-METER TU MUTE

E2P SCL

E2P SDA

L-CH

R-CH

VCC

10 11 15

13 14

16 17

4 3

6 7

AUDIO+8.3V TU+5V

BU+3.3V

SCL SDA

J901

AUX

CD

SECTION

(Page 13)

R-CH

CD-L

A

AUX

BUFFER

IC901

R-CH

9

CD LCH

8

CD RCH

5

AUX LCH

3

AUX RCH

7

TU LCH

6

TU RCH

SYSTEM CONTROL

39

VSM

12

TU ATT

25

EEP CKO

24

EEP SIO

OUT SUB-L

OUT SUB-R

IC501 (2/3)

OUT FL

OUT RL

OUT FR

OUT RR

MUTE

SCL SDA

I2C CKO

I2C SIO

VOL ATT

ATT

BEEP

AMP STB

DIAG

17 18

23

22

25 24

29

30 31

33 34

9

86

5

26

8

R-CH

R-CH (FRONT) R-CH (REAR)

SCL SDA

MUTE

Q481

MUTE DRIVE

Q478,479

R-CH

MUTE

Q441

D479

MUTE Q461

BATT

J330

L

REAR

AUDIO OUT

R

IC2-BUS CONTROLLED POWER AMP/

MULTIPLE

VOLTAGE

REGULATOR

SDA SCL

IC750

12

IN FL

11

IN RL

2

SDA

4

SCL

16

BEEP

22

STB

25

DIAG

OUT FL+ OUT FL–

OUT RL+ OUT RL–

AMP-REM

ANT-REM

AUDIO8.3V

B.UP+B

SERVO3.3V

MECHA6V

PANEL+B

29 27

30 37 31 33 34

5 3

9 7

R-CH

BATT

AUDIO+8.3V BU+3.3V SERVO+3.3V

MECHA+6V PANEL+B

FU601

CN601

10

12

11

16

1

FL+

9

FL–

2

RL+ RL–

4

FR+ FR–

3

RR+ RR–

5

AMP-REM

6

ANT-REM

• R-CH is omitted due to same as L-CH.

• Signal Path

: CD PLAY

: FM

: AM

: AUX

ACC IN

TEST IN

BU IN

35

BATT

72

73

54

BATTERY CHECK

Q580-582

D580,581

BATT

VP

TU+5V

TU+5V REG

Q1

ACCESSORY

CHECK

Q631

AUDIO+8.3V

7

ACC

15

TEST

CDX-GT10W/GT100/GT150/GT150S

1414

CDX-GT10W/GT100/GT150/GT150S

t

3-3. BLOCK DIAGRAM — DISPLAY SECTION —

SYSTEM CONTROL

IC501 (3/3)

KEYIN0

S702

RESET

41

KEYIN1

40

KEY ACK

52

XKEY ON

76

RE-IN0

31

RE-IN1

32

AREASEL0

3

7

NOSE DET

88

SYS RST

RESET

77

79

XOUT

XIN

80

LCD SO

LCD CKO

LCD CE

OSC IN

OSC OUT

KEY MATRIX

LSW901-903,908-920

RE901

PUSH SELECT

(VOLUME)

ROTARY

ENCODER

S502

FREQUENCY

()

SELECTOR

GT150/GT150S

BU+3.3V

D503

KEY ACKNOWLEDGE

10K

9K

RESET

IC602

2 1

VDD VOUT

SWITCH

Q664

BU+3.3V

X502

32.678kHz

3-4. CIRCUIT BOARDS LOCATION

• NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

LCD DRIVER

IC901

5

S1

28

64

DI CLK

63 62

CL CE

CE

BACK LIGHT

1

29 27

|

55

•

S48

60

COM4

51

|

COM1

54

DIMMER

2

LED932

LCD BACK

()

LIGHT

LCD BACK LIGHT

LED DRIVE

Q932

LCD901

LIQUID

CRYSTAL

DISPLAY

PANEL

DIMMER

LED DRIVE

Q931

PANEL+B

LED941-944,951 LSW901-903,908º-920

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and 1/ specified.

f

•

: internal component.

• C : panel designation.

Note:

The components identified by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified.

• A : B+ Line.

• B : B– Line.

• H : adjustment for repair.

•Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.

• CD mechanism section

no mark : CD PLAY

• Main (1/3), (2/3), (3/3) and Key sections

no mark : FM

(): AM <>: CD PLAY

4

W or less unless otherwise

Note:

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

For printed wiring boards.

Note:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

a

•

• : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated.

: Through hole.

C

Q

These are omitted

EB

E

CB

These are omitted

∗ : Impossible to measure

82

83

X501

18.432MHz

•Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.

•Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

J : CD PLAY F : FM f : AM L : AUX

C

BE

These are omitted

SENSOR board

KEY board

CDX-GT10W/GT100/GT150/GT150S

SERVO board

tuner uni (TU1)

MAIN board

JACK board

15 15

CDX-GT10W/GT100/GT150/GT150S

3-5. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 15 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

234567891011 12 13 14

FMB9

R5

R70

FB2

R72

R45

R82

R80

IC1

R78

R8

C19

R44

C2

C32

C31

R13

C39

C38

R15

R11

Q1

R14

C34

R12

C37

C35

FMB7

CN2

C30

C36

C27

TP21

R9

R7

C20

C23

R6

C18

C26

C25

C21

C1

C29

C28

C5

R84

R2

C11

R41

C17

FB1

C13

R42

JR40

C7

JR41

MAIN

BOARD

CNP301

(Page 18)

R10

R3

R4

JR90 JR91

FB3

C6

X1

R1

R76

R74

E

F

G

R77

R75

R71

R73

C73

C72

C75

C71

C70

IC2

C79

C78

C76

C74

R85

R83

R79

R81 C77

SW1

(DOWN)

1-864-902-

12

(12)

FMB8

FMB10

CN1

1-864-902-

(12)

SW3

SW2

11

12

1-864-903-

(11)

CDX-GT10W/GT100/GT150/GT150S

1616

• Refer to page 24 for Waveforms.

• Refer to page 27 for IC Pin Description.

3-6. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 24 for IC Block Diagrams.

CDX-GT10W/GT100/GT150/GT150S

C20

SW3

SW2

TP19 C18

CN2

C36

R13

R12

C35

C34

R11

SW4

M901

M902

TP27

TP28

TP29

TP31

TP30

TP29

TP14

TP28

TP27

TP26

TP81

TP80

TP85

TP83

TP84

TP82

TP87

TP88

TP89

SW1

Q1

TP33TP32

R14 R15

C37

TP90

TP91

C38

C39

TP22

TP20

C26

TP21

C27

C28

C30

C29

TP23

TP24

C31

TP25

C32

C1

R9

C25

C23

C21

C2

R7

R6

C19

IC1

R2

R3

R4

R5

R8

R10

C5

C6

C7

IC B/D

FB2

JR40

R41

JR41

R42

C17

R1

C13

TP13

TP12

TP11

TP10

TP9

TP8

TP7

TP6

TP5

TP4

TP3

TP2

TP1

C11

FB3

JR90

JR91

X1

FB1

TP65

TP64

TP63

TP62

TP61

TP60

R45

TP59

R44

TP58

TP57

TP56

TP55

TP54

TP48

TP52

TP51

TP53

TP49

TP50

TP47

TP46

TP45

TP44

TP43

TP42

TP41

TP40

CN1

(Page 21)

CDX-GT10W/GT100/GT150/GT150S

M903

TP92

TP93

R70 R71

R72

R74 R75

R76

C70

C71

R73

C72

C73

R77

TP100

C74

TP71

TP70

TP73

TP72

17 17

R85

IC2

C79

R84

R82R83

C78

R80R81

C77

R78R79

C76

TP75

TP74

C75

CDX-GT10W/GT100/GT150/GT150S

3-7. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 15 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

E

F

G

H

J

1

(ANTENNA)

JW101

C7

JW100

I

JW105

JW104

234567891011 12 13 14

J330

REAR

J1

JW143

JW142

JC1

TU1

C404

C405

163 JW

R1

C4

C6

D1

R903

R904

JW138

R907

JW168

IC901

C905

L1

162 JW

R901

R914

C918

C5

Q1

FB1

R13

R12

C12

C13

R2

R3

R912

R913

R906

R905

C901

C902

94 JW

R902

R5

R4

C917

AUDIO OUT

LR

C484

R482

Q471

R472

Q481

R481

R471

C471

C481

C401

165

JW164

JW

JW124

JW72

JW150

166

160

JW

JW161

R910

JW155

JW154

C903

R911

JW128

JW139

D903

CN701

JW21

C452

R441

C455

C441

C431

169 JW

JW156

71 JW

R442

C445

R431

IC401

JW129

JW130

167 JW

Q441

C465

JW91

R662

R664

R661

R663

R570

76 JW

FB603

C474

R451

R461

C412

FB410

JW121

JW122

JW70

C451

C461

R405

R408

R407

R409

R411

Q431

R432

C442

C432

C435

JW108

D719

C462

FB411

C410

JW89

R401

JW83

JW80

R575

R577

JW54

R452

C413

R406

C411

JW123

R557

22 JW

Q451

R462

132 JW

R410

C756

C753

Q461

JW90

103 JW

JW88

131 JW

JW81

69 JW

FB501

133 JW

R505

R513

R514

JW20

R522

74 JW

JW153

C758

JW92

R534

R757

R532

40 JW

C504

R521

JW93

C754

R752

C755

GT150/GT150S

FREQUENCY

9K

10K

67

34

JW

C503

R510

R502

R504

D503

JC795

C751

C763

JW15

JW16

JW17

JW18

S502

SELECTOR

35 JW

68 JW

R503

C769

C750

C623

C776

R511

R512

JW14

38 JW

C479

JW95

JW96

JW97

R544

C513

C501

JC504

Q479

C516

R671

JC754

C771

D755

D756

Q478

D479

GT10W/GT100

R545

R551

R546

R550

GT150/GT150S

R756

C512

C514

C502

R567

R565

JC755

JW13

D758

24

R538

R507

R537

FMB4

JW

IC501

JW12

R479

66 JW

C775

C765

JW11

D757

25 JW

R559

R572

R560

FMB3

R558

42 JW

JC501

R561

JW10

C770

IC750

R531

JC534

R677

R681

R528

R527

JC753

JC756

D753

C622

C774

C764

FB605

FB604

118 JW

R571

R530

87 JW

JW7

X502

Q664

D754

R676

JW144

JW9

JW6

23 JW

JW55

R518

C509

R568

R517

JW8

D751

R515

C510

JW137

JC681

JW29

R675

R566

C511

D752

R516

R529

141 JW

JW30

X501

JW5

26 JW

JW50

C508

C507

R533

L301

C406

X501

C407

JW56

L501

R509

R508

R672

R519

R536

75 JW

C302

R302

FB307

JW28

D759

FB304

FB302

R301

R525

R674

R535

S702

RESET

C308

S702

D760

D609

JW82

JW65

JW62

CN601YEL

CNP301

FU601

C618

R556

C617

D617

C519

R523

R524

JW111

R526

51 JW

R636

R543

JW3

R609

FB305

FB306

C307

C306

52 JW

JW63

C343

C305

D761

D762

R563

R680

R601

JW39

C301

C303

JC536

R584

4

IC602

JW31

JW32

46 JW

JW27

JW44

23 1

C601

FB303

FB301

FB311

JW119

FB606

JW115

FB310

JW109

Q631

R673

C602

JW106

JW117

R539

R540

R541

JW1

JW2

JW107

58 JW

D601

R634

C631

R633

Q582

R585

YEL

R631

R632

Q581

D581

Q580

D580

L601

R583

R582

1-868-117-

11

(11)

CN1

(Page 16)

• Semiconductor Location

Ref. No. Location D1 F-3

D479 E-6 D503 I-5 D580 F-11 D581 F-11 D601 C-10 D609 D-8 D617 C-9 D719 I-4 D751 D-7 D752 D-7 D753 D-7 D754 D-7 D755 C-5 D756 C-6 D757 C-6 D758 C-6 D759 D-8 D760 D-8 D761 C-9 D762 D-9 D903 I-3

IC401 E-3 IC501 H-6 IC602 I-9 IC750 B-6 IC901 H-2

Q1 F-2 Q431 B-4 Q441 B-4 Q451 C-4 Q461 D-4 Q471 B-3 Q478 E-6 Q479 E-5 Q481 C-3 Q580 F-11 Q581 I-10 Q582 I-10 Q631 H-10 Q664 I-7

CDX-GT10W/GT100/GT150/GT150S

(Page 22)

1818

3-8. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • Refer to page 25 for IC Block Diagrams.

CDX-GT10W/GT100/GT150/GT150S

TU1

C484

J330

IC B/D

R905

R912 R913

R906

IC401

C411

R405

R406 R407

R408 R409

R411

R410

C902 C901

FB410FB411

C410

C413

C412

R401

C431

C461

C481

C471

C451

C441

R431

R451

R441

R461

R481

R471

R432

R452

R442

R462

R482

R472

Q431

Q451

Q441

Q461

Q481

Q471

Q479

C474

C435 C432

C455 C452

C445 C442

C465 C462

(Page 20)

D479

C401

JC1

J1

R13

R12

R3

R2

C405

C404

C7

C406

C407

JW169

IC901

C5

C13

C6

C12

FB1

R4

D1

C4

R5

R1

Q1

L1

R907

R911

R914

C903

C905

R904 R903

D903

R910

Q478

C479

(Page 21)

CDX-GT10W/GT100/GT150/GT150S

19 19

CDX-GT10W/GT100/GT150/GT150S

3-9. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • Refer to page 26 for IC Block Diagrams.

C750

C751

JC795

JC754

JC755

C775 C765

C764 C774

IC750

IC B/D

D751

D752

D753

D754

D755

D756

D757

D758

CN601

D760D759

(Page 19)

R479

JC753

C753

JC756

R752

C755

Q631

C754

C756

JC681

R633

C631

R631

R632R634

C623

C622

C776

C758

JW111

C769

C770

C771

C763

D609

D761

D762

C602

D617

C601

D601

L601

R609

C618C617

FU601

CDX-GT10W/GT100/GT150/GT150S

(Page 21)

2020

• Refer to page 29 for IC Pin Description.

3-10. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 24 for Waveforms.

CDX-GT10W/GT100/GT150/GT150S

JW107

FB303

FB305

FB306

FB301

C303

C343

C307

C301

C305

JW28

R516

R515

FB310

FB311

C306

JW55

CNP301

(Page 17)

C308

R302

FB307

R301

C302

FB302

L301

FB304

(Page 19)

R902

D719

C917R901

(Page 20)

FB603

CN701

(Page 23)

C918

JW128JW141

FB604

L501

C511

R528

JC534

R531

R675

R676

R539

R524

R525

R523

JC536

R526

R527

R681

R677

R572

R571

X501

C510

X502

R508

R509

R566

R560

R559R530

C507C508

R674

R636

R563

R556

R533

R672

R529

R519

R518

IC501

R536

R535

R558

JW46

R680

C509

R568

R565

R567

C512

R661

R543

R517

R671

C501

C513

R522 R521

JC501

R561

D503

R503

R502

C516

C514

C502

JC504

R505

R673

R504

Q664

FB605

R540

R541

R584

R585

Q582

S702

R601

FB606

Q580

C519

Q581

IC602

D581

D580

R582

R583

CDX-GT10W/GT100/GT150/GT150S

S502

R545

R546

R537

R551

R538

R507

R550

R756

R757

R557

R534

R544

R577

R575

JW34

JW35

C504

JW38

C503

FB501

R510

R512

R511

R513

R514

21 21

R570

R532

R662

R663

R664

CDX-GT10W/GT100/GT150/GT150S

3-11. PRINTED WIRING BOARDS — KEY SECTION — • Refer to page 15 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

LSW

OFF

LSW

SEEK–

902

910

1

LSW902

R902

R903

23456789101112

908

LSW

EQ3

909

R941

LSW910

LED941-944

(RING ILLUMINATION)

R962

R961

LED941

R954

R953

LED943

LED942

R963

R952

R964

LED944

LSW

SOURCE

903

R957

LSW909

R958

LSW911

LSW903

LSW

>

M

SEEK+

911

LSW

BTM

LSW908

R910

R909

LED932

LSW912

MODE

(LCD BACK LIGHT)

LSW913

LSW

LED932

52

913

1

LSW914

LSW

914

2

LED951

(DISC SLOT)

LED951

LSW

3/REP

LCD901

915

LIQUID CRYSTAL DISPLAY PANEL

LSW915

LSW916 LSW917

916

LSW

4/SHUF

LSW

1

LSW918

R916

917

5

R917

LSW918

6

R918

LSW919

LSW

SENS

1-868-118-

919

R942

R943

LSW901

LSW920

11

(11)

901

LSW

920

LSW DSPL/DIM

13

E

F

G

H

J

11

(11)

1-868-119-

J901

AUX

RED

R

BLK

G

(Page 18)

MAIN BOARD

CN701

W

HT

L

1-868-119-

11

(11)

B

R912

R911

C921

C922

R922

R921

1

3

2

R956

RE901

5

R901

4

RE901

PUSH SELECT

E)

(VOLUM

R905

I

R904

R955

R951

R908

R907

R950

Q931

Q932

R934

R906

R913

R949

FM

R948

B3

R914

R947

R915

IC901

R946

C985

FM

B4

C986

R985

C983

R984

R986

C981

D903

C984

R991

R987

D981

CN901

R976

R977

R981

D901

R979

R978

D982

R982

R974

FB903

FB901

FB902

RED

R

BLK

G

R933

R931

WHT

L

944 R

R932

R945

1-868-118-

11

(11)

• Semiconductor Location

Ref. No. Location D901 H-10

D903 H-10 D981 I-10 D982 I-10

IC901 I-8 LED932 B-5

LED941 C-2 LED942 C-3 LED943 B-3 LED944 C-4 LED951 B-7

Q931 H-5 Q932 H-5

CDX-GT10W/GT100/GT150/GT150S

2222

3-12. SCHEMATIC DIAGRAM — KEY SECTION —

R931

R932

R933

LSW902(2/2)

R941

LED951

R942

R943

LSW919(2/2)

LSW918(2/2)

LSW916(2/2)

LSW914(2/2)

LSW913(2/2)

LSW903(2/2)

R952

LSW909(2/2)

R955 R957

LSW910(2/2)

LSW908(2/2)

LSW911(2/2)

CDX-GT10W/GT100/GT150/GT150S

R981

R982

R958R956

(Page 21)

LED932

R934

Q932

LSW901(2/2) LSW920(2/2)

Q931

R991

CN901

R944

R945

D903

R976

R974

LSW917(2/2)

D901

LSW915(2/2) LSW912(2/2)

R946

R947 R949

R948 R953

901(1/2)

LSW

R950

R951 R954

R901 R902 R903 R904

903(1/2)

902(1/2)

LSW

RE901

LED941

R961 R963

R962

LED942

R921

R922

C922

C921

R905

LED943

LED944

R964

C981

IC901

R977

R978

R979

R984

R985

R986

LCD901

C983

C984

R987 982 D

1 98

D

C986C985

J901

CDX-GT10W/GT100/GT150/GT150S

FB902

FB901

R906 R907 R908 R910R909 R911 R912 R913 R914 R915 R916

917(1/2)

916(1/2)

915(1/2)

914(1/2)

913(1/2)

912(1/2)

911(1/2)

910(1/2)

909(1/2)

903

FB

908(1/2)

LSW

918(1/2)

LSW

R917 R918

919(1/2)

LSW

920(1/2)

LSW

23 23

CDX-GT10W/GT100/GT150/GT150S

Ver. 1.4

• WAVEFORMS

— SERVO BOARD — (CD PLAY)

1

IC1 wd (XTAL)

1.2 Vp-p

16.9344MHz

0.2 V/DIV, 0.2

2

IC1 uj (AGCI)

0.5 V/DIV, 0.5

3

IC1 od (FEO)

µ

sec/DIV

µ

sec/DIV

0.85 V to

1.45 Vp-p

— MAIN BOARD —

1 IC501 i; (XIN)

32.768 kHz

0.2 V/DIV, 0.1 µsec/DIV

2 IC501 is (OSC IN)

18.432 MHz

1 V/DIV, 0.1

µ

sec/DIV

0.7 Vp-p

0.8 Vp-p

• IC BLOCK DIAGRAMS

IC2 BA5966FP-FE2 (SERVO Board)

1

FWD

LEVEL SHIFT

FWD

OUTR OUTF

LEVEL SHIFT

2

LDCTL

3

NC

4

OPOUT1

5

NC

6

NC

7

OPOUT2

8

POWVCC VCC

9

VOL–

VOL+

10

11

VOL2–

12

VOL2+

VO1–

13

14

VO1+

REV

LEVEL SHIFT

MUTE

28

27

26

25

24

23

22

21 20 19

18

17

16

15

REV

OPIN4+

OPIN4–

OPOUT4

OPIN3+

OPIN3–

OPOUT3

MUTE

VOL+ GND

VOL3–

VOL3+

VOL4–

VOL4+

Approx. 620mVp-p

200 mV/DIV, 5 msec/DIV

4

IC1 oh (TEO)

Approx. 200mVp-p

50 mV/DIV, 5 msec/DIV

0 V

CDX-GT10W/GT100/GT150/GT150S

2424

IC401 BD3806AFS-E2 (MAIN Board (1/3))

DGND

SDA

SCL

MUTE

SEL

ADJ

VCC

32 31 30 29 28 27 26 25 24 23 22

OUTFROUTRROUTFLOUT

VCC

CDX-GT10W/GT100/GT150/GT150S

RL

NC

21 20 19 18 17

OUT

SUB R

OUT

NC

SUB L

2

C BUS

I

LOGIC

BASS fo:60,70,80,100,120,140,160,200Hz Q:0.5,0.75,1,1.25

MIDDLE fo:500Hz,1kHz Q:1

TABLE fo:5,7.5,10,12.5kHz

VCO

FADER (0~-58,

-∞dB)

TONE PASS

fc:53.3kHz fc:53.3kHz

(0~15dB,1dB STEP)

(3 STEREO INCLUDE 1 ISOLATION INPUT)

FADER (0~-58,

-∞dB)

TONE PASS

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

VOLUME

(+23~-79dB,-∞dB

1dB STEP)

ANTI-ALIASING

FILTER

INPUT GAIN

MUTE

INPUT SELECTOR

FADER

(0~-58,

-∞dB)

(+23~-79dB,-∞dB

(0~15dB,1dB STEP)

FADER

(0~-58,

-∞dB)

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

VOLUME

1dB STEP)

ANTI-ALIASING

FILTER

INPUT GAIN

MUTE

2ND ORDER LPF fc:OFF,80,120,160Hz Q: 0.707

MIX

GAIN+ATT (+10~-29,

-∞dB)

2ND ORDER

LPF

AGND

VCC/2

6 7 8 9 10 113 4 521

TU

RCH

AN

LCH

AUX

FIL

AUX

RCH

TU

CD

LCH

RCH

CD

LCH

NC

12 14 1613 15

NC

25

CDX-GT10W/GT100/GT150/GT150S

IC750 TDA8588BJ/N2/R1 (GT10W/GT100/GT150) (MAIN Board (2/3)) IC750 TDA8589BJ/N2/R1 (GT150S) (MAIN Board (2/3))

TAB

1

OUT-FL-

3

OUT-FL+

5

OUT-RL-

7

9

OUT-RL+

IN-RL

11

S-GND

IN-RR

OUT-RR+

OUT-RR-

13

15

17

19

PROTECTION/

DIAGNOSTIC

2

SDA

I2C BUS

4

FL

RL

MUTE

VP

RR

SCL

6

VP2

8

PGND3

10

SVR

IN-FL

12

14

IN-FR

16

BEEP

18

PGND2

OUT-FR+

OUT-FR-

DIAG

ANT-REM

AMP-REM

SERVO5V

MECH6V

B.UP+B

VP

21

23

25

27

29

31

33

35

37

CHIP DETECT/

DIAGNOSTIC

SWITCH

REFERENCE

DETECTION

VOLTAGE

FR

BATTERY

STANDBY/

MUTE

TEMPERATURE

PROTECTION

LOADDUMP

PROTECTION

ENABLE

LOGIC

REGULATOR

BACK-UP SWITCHREGULATOR

20

22

24

26

28

30

32

34

36

VP1

STB

PGND1

RST

CRES

AUDIO8.3V

GND

PANEL+B

CBU

26

CDX-GT10W/GT100/GT150/GT150S

• IC PIN DESCRIPTIONS

IC1 µPD63712GC-8EU-A (RF AMP, DIGITAL SERVO, DIGITAL SIGNAL PROCESSOR) (SERVO BOARD) Pin No. Pin Name I/O Pin Description

1LDOLaser diode ON/OFF control signal output (L: laser OFF, H: laser ON) 2PDIDimmer monitor input from optical pick-up laser diode. 3PNINot used. (Fixed at L in this set.) 4AVDD — Analog power supply pin (+3.3 V) 5 DGND — Ground pin 6 RFOK O RFOK signal output to system control IC. 7 INTQ O CD text pack synchronization signal output to system control IC. 8 RST I CD reset signal input from system control IC.

9A0I

10 STB I Data strobe signal input from system control IC.

11 SCK I Serial clock signal input from system control IC. 12 SO O Serial data signal output to system control IC. 13 SI I Serial data signal input from system control IC. 14 DVDD — Power supply pin (+3.3 V) 15 DAVDD — D/A converter power supply (+) pin (+3.3 V) 16 ROUT O Analog audio signal output (R-ch) 17 DAGND — Ground pin 18 REGC — Capacitor connection pin for SCF regulator. 19 DAGND — Ground pin 20 LOUT O Analog audio signal output (L-ch) 21 DAVDD — D/A converter power supply (+) pin (+3.3 V) 22 XVDD — Power supply pin (+3.3 V) 23 XTAL O Main system clock output (16.9344 MHz) 24 XTAL I Main system clock input (16.9344 MHz) 25 XGND — Ground pin 26 DVDD — Power supply pin (+3.3 V) 27 C1D1/FZD O Not used. (Open) 28 C1D2/TZD O Not used. (Open) 29 C2D1/RMUTE O CD R-ch data zero detection signal output 30 C2D2/LMUTE O CD L-ch data zero detection signal output 31 C2D3/SHOCK/SBSY O Not used. (Open) 32 LOCK/FR O Not used. (Open) 33 WFCK/MIRR O Not used. (Open) 34 RFCK/HOLD O Not used. (Open) 35 PLCK O Not used. (Open) 36 C16M O Not used. (Open) 37 DGND — Ground pin 38 TX O Not used. (Open) 39 EMPH/RAMOVER O Not used. (Open) 40 FLAG O Not used. (Open) 41 DVDD — Power supply pin (+3.3 V) 42 LIMIT I Not used. (Fixed at L in this set.)

43 XTALEN I 44 DGND — Ground pin

45 DIN I Not used. (Connect to DOUT in this set.) 46 DOUT O Not used. (Connect to DIN in this set.) 47 SCKIN I Not used. (Connect to SCKO in this set.) 48 SCKO O Not used. (Connect to SCKIN in this set.) 49 LRCKIN I Not used. (Connect to LRCK in this set.)

Command/parameter discrimination signal input from system control IC. (L: command transmission, H: parameter transmission)

Oscillation circuit ON/OFF control signal input (L: ON, H: OFF) (Fixed at L in this set.)

27

CDX-GT10W/GT100/GT150/GT150S

Pin No. Pin Name I/O Pin Description

50 LRCK O Not used. (Connect to LRCKIN in this set.) 51 DVDD — Power supply pin (+3.3 V) 52 FD+ O Focus servo drive PWM signal output (+) 53 FD– O Focus servo drive PWM signal output (–) 54 TD+ O Tracking servo drive PWM signal output (+) 55 TD– O T racking servo drive PWM signal output (–) 56 SD+ O Sled servo drive PWM signal output (+) 57 SD– O Sled servo drive PWM signal output (–) 58 MD+ O Spindle servo drive PWM signal output (+) 59 MD– O Spindle servo drive PWM signal output (–) 60 DGND — Ground pin 61 TESTEN I Test setting input (Fixed at L in this set.)

62 to 66 TEST4 to TEST0 I Test setting input (Fixed at L in this set.)

67 ADGND — A/D converter power supply (–) pin 68 EFM O EFM signal output 69 ASY I EFM comparator reference voltage input 70 ADVDD — A/D converter power supply pin (+3.3 V) 71 RFI I RF signal input for EFM data growing. 72 EQ2 — Not used. (Open) 73 EQ1 — RF amplifier equalizer parts connection pin 74 RF– I Not used. (Open) 75 RF2– I RF amplifier inversion input 76 AGCO O RF signal output after on AGC. 77 AGCI I RF AGC signal amplifier input 78 RFO O RF signal output before on AGC. 79 ATEST I Not used. (Open) 80 C3T — Capacitor connection pin for 3T detection. 81 AGND — Ground pin 82 A I Signal input (A) from optical pick-up detector. 83 C I Signal input (C) from optical pick-up detector. 84 B I Signal input (B) from optical pick-up detector. 85 D I Signal input (D) from optical pick-up detector. 86 F I Signal input (F) from optical pick-up detector. 87 E I Signal input (E) from optical pick-up detector. 88 VREFIN I Reference voltage (+1.65 V) input 89 A VDD — Analog power supply pin (+3.3 V) 90 REFOUT O Reference voltage (+1.65 V) output 91 REFC — Capacitor connection pin for reference voltage output. 92 FE– I Focus error signal amplifier inversion input 93 FEO O Focus error signal amplifier output 94 ADCIN I Not used. (Open) 95 TE– I Tracking error signal amplifier inversion input 96 TEO O Tracking error signal amplifier before output 97 TE2 O Tracking error signal amplifier after output 98 TEC I Tracking error signal comparator input 99 AGND — Ground pin

100 PWMSW I Not used. (Fixed at L in this set.)

28

CDX-GT10W/GT100/GT150/GT150S

IC501 MB90487APF-G-155 (SYSTEM CONTROL) (MAIN BOARD (3/3))

Pin No. Pin Name I/O Pin Description

1 AREASEL2 I Destination setting pin 2 AREASEL1 I Destination setting pin 3 AREASEL0 I Destination setting pin 4 COL SW I Illumination color select signal input 5 BEEP O Beep signal output 6 CYRIL SEL I Cyril select signal input Not used in this set. (Open) 7 NOSE SW I Front panel open/close detect signal input Not used in this set. 8 DIAG I Power AMP status signal input 9 VOL ATT O Electronic volume attenuate control signal output

10 NCO O Not used. (Open)

11 VSS — Ground pin 12 TU ATT O Tuner mute control signal output 13 NS MASK O Noise mask signal output Not used in this set. (Open) 14 ILLUMI SEL1 I Illumination voltage setting signal input 1 15 ILLUMI SEL2 I Illumination voltage setting signal input 2

16, 17 NCO O Not used. (Open)

18 CD SI I CD servo serial data signal input 19 CD SO O CD servo serial data signal output 20 CD SCK O CD servo serial clock signal output

21, 22 NCO O Not used. (Open)

23 VCC5 — Power supply pin (+3.3 V) 24 EEP SIO I/O EEPROM bus serial data input/output 25 EEP CKO O EEPROM bus serial clock output 26 AMP STB O Power AMP satandby signal output 27 LCD CE O LCD driver chip enable signal output 28 LCD SO O LCD driver serial data signal output 29 LCD SCK O LCD driver serial clock signal output 30 RDS ON O RDS ON signal output Not used in this set. (Open) 31 RE IN0 I Rotary encoder signal input 0 32 RE IN1 I Rotary encoder signal input 1 33 I2C CKO O I2C bus serial clock signal output 34 I2C SIO I/O I2C bus serial data signal input/output 35 DAVDD — A/D converter power supply pin (+3.3 V) 36 AVRH — A/D converter external reference power supply pin (+3.3 V) 37 DAVSS — Ground pin 38 QUALITY I Noise detect signal input Not used in this set. 39 VSM I S-meter voltage detect signal input 40 KEY IN1 I Key signal input 1 41 KEY IN0 I Key signal input 0 42 VSS — Ground pin 43 RC IN0 I Rotary commander key signal input

44 to 48 NCO O Not used. (open)

49 MD0 I Operation mode setting pin (Connect to VDD.) 50 MD1 I Operation mode setting pin (Connect to VDD.) 51 MD2 I Operation mode setting pin (Connect to VSS.)

29

CDX-GT10W/GT100/GT150/GT150S

Pin No. Pin Name I/O Pin Description

52 KEY ACK I Key acknowledgment detect signal input 53 TU ATT IN I Tuner mute zero cross detect signal input 54 BU IN I Back-up power supply detect signal input 55 CD INTQ I CD servo text pack synchronization signal input 56 DAVN I RDS data block synchronized detect signal input Not used in this set. 57 NCO O Not used. (Open) 58 UNISI I SONY bus data signal input Not used in this set. 59 UNI SO O SONY bus data signal output Not used in this set. (Open) 60 UNI SCK O SONY bus clock signal output Not used in this set. 61 611 SEL I Mechanism deck select signal input Not used in this set. (Open) 62 WMA I WMA select signal input Not used in this set. (Open) 63 NCO O Not used. (Open) 64 SIRCS I Remote control signal input Not used in this set.

65 to 67 NCO O Not used. (Open)

68 FLASH W I Memory mode select signal input Not used in this set.

69, 70 NCO O Not used. (Open)

71 RC IN1 I Rotary commander shift key signal input Not used in this set. 72 ACC IN I Accessory power supply detect signal input 73 TEST IN I Test mode detect signal input 74 TEL ATT I Telephone attenuate detect signal input Not used in this set. 75 NCO O Not used. (Open) 76 XKEY ON O A/D converter power supply control signal output 77 RESET I CPU reset signal input 78 NCO O Not used. (Open) 79 XOUT O Sub-clock output (32.768 kHz) 80 XIN I Sub-clock input (32.768 kHz) 81 VSS1 — Ground pin 82 OSC IN I Main-clock input (3.68 MHz) 83 OSC OUT O Main-clock output (3.68 MHz) 84 VCC3 — Power supply pin (+3.3 V) 85 DEMOSEL I DEMO select signal input 86 ATT O Audio mute control signal output 87 BUS ON O Bus on signal output 88 SYS RST O System reset signal output 89 CD RFOK O Shutter open information signal output to CD mechanism 90 CD RST O CD servo reset signal output 91 CD A0 O CD servo command/parameter signal output 92 CD STB O CD servo data strob signal output 93 CD MUTE R I CD mechanism zero cross mute detect signal input R 94 CD MUTE L I CD mechanism zero cross mute detect signal input L 95 CD INSW I Cd mechanism disc in switch detect signal input 96 CD SELFSW I CD self switch signal input 97 CD LM LO O CD mechanism loading motor (+6 V) control signal output 98 CD LM EJ O CD mechanism eject motor control signal output 99 CD DSW I CD mechanism disc in switch detect signal input

100 CD LIMIT I CD mechanism limit switch detect signal input

30

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

4-1. MAIN SECTION

CDX-GT10W/GT100/GT150/GT150S

SECTION 4

EXPLODED VIEWS

• Color Indication of Appearance Parts Example :

KNOB, BALANCE (WHITE) ... (RED)

RR

Parts Color Cabinet’s Color

• Accessories are given in the last of this parts list.

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

A

#1

A

MG-611XE-186//C

B

8

#2

not supplied

FU601

5

#3

4

6

7

3

#1

TU1

not supplied

B

2

#1

1

Ref. No. Part No. Description Remark

1 X-2067-566-1 PANEL ASSY, SUB 22-583-939-01 SCREW (+B 2X4) 3 X-2055-203-2 LOCK ASSY (S) 43-246-006-31 COVER 52-583-940-01 SCREW +BTT 2.6X5

6 A-1134-204-A MAIN BOARD, COMPLETE (GT10W/GT100) 6 A-1134-470-A MAIN BOARD, COMPLETE (GT150) 6 A-1147-203-A MAIN BOARD, COMPLETE (GT150S)

#1

not supplied

Ref. No. Part No. Description Remark

7 2-345-298-01 PLATE (TU), GROUND 8 1-776-206-21 CORD (WITH CONNECTOR) (POWER) FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A TU1 A-3220-961-A TUNER UNIT (TUX-032) #1 7-685-792-09 SCREW +PTT 2.6X6 (S)

#2 7-685-790-01 SCREW +PTT 2.6X4 (S) #3 7-685-793-09 SCREW +PTT 2.6X8 (S)

31

CDX-GT10W/GT100/GT150/GT150S

4-2. FRONT PANEL SECTION

60

63

LCD901

not supplied

55

RE901

58

57

56

not supplied

59

53

not supplied

63

61

64

62

not supplied

51

not supplied

65

51 X-2067-579-1 BUTTON ASSY (S) (GT10W/GT100/GT150) 51 X-2102-530-1 BUTTON ASSY (S) (GT150S) 52 A-1134-211-A JACK BOARD, COMPLETE 53 2-631-526-01 PLATE (CD), LIGHT GUIDE 54 A-1134-207-A PANEL ASSY, FRONT (GT100)

54 A-1134-242-A PANEL ASSY, FRONT (GT10W) 54 A-1134-473-A PANEL ASSY, FRONT (GT150) 54 A-1134-487-A PANEL ASSY, FRONT (GT150S) 55 X-2102-729-1 KNOB (VOL) (SV) ASSY 56 2-349-626-01 SPRING (RELEASE)

57 1-780-199-11 CONDUCTIVE BOARD, CONNECTION 58 2-634-438-01 ILLUMINATOR (LCD) 59 X-2067-569-1 HOLDER (LCD) ASSY 60 A-1134-209-A KEY BOARD, COMPLETE (GT100) 60 A-1134-244-A KEY BOARD, COMPLETE (GT10W)

60 A-1134-246-A KEY BOARD, COMPLETE (GT150/GT150S)

54

52

Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

61 2-631-511-01 PANEL, FRONT BACK 62 X-2024-133-3 CASE ASSY (for FRONT PANEL) (EXCEPT US) 63 3-250-543-91 SCREW (+B P-TITE M2) 64 3-040-315-01 COVER (AC OUT) 65 X-2067-570-1 PANEL SUB ASSY, FRONT (GT100)

65 X-2067-571-1 PANEL SUB ASSY, FRONT (GT100W) 65 X-2067-572-1 PANEL SUB ASSY, FRONT (GT150) 65 X-2102-528-1 PANEL SUB ASSY, FRONT (GT150S) 66 3-251-320-01 EMBLEM (No. 2.5), SONY LCD901 1-805-919-11 DISPLAY PANEL, LIQUID CRYSTAL

(GT150/GT150S)

LCD901 1-805-920-11 DISPLAY PANEL, LIQUID CRYSTAL

(GT10W/GT100)

RE901 1-478-474-12 ENCODER, ROTARY (PUSH SELECT/VOLUME)

32

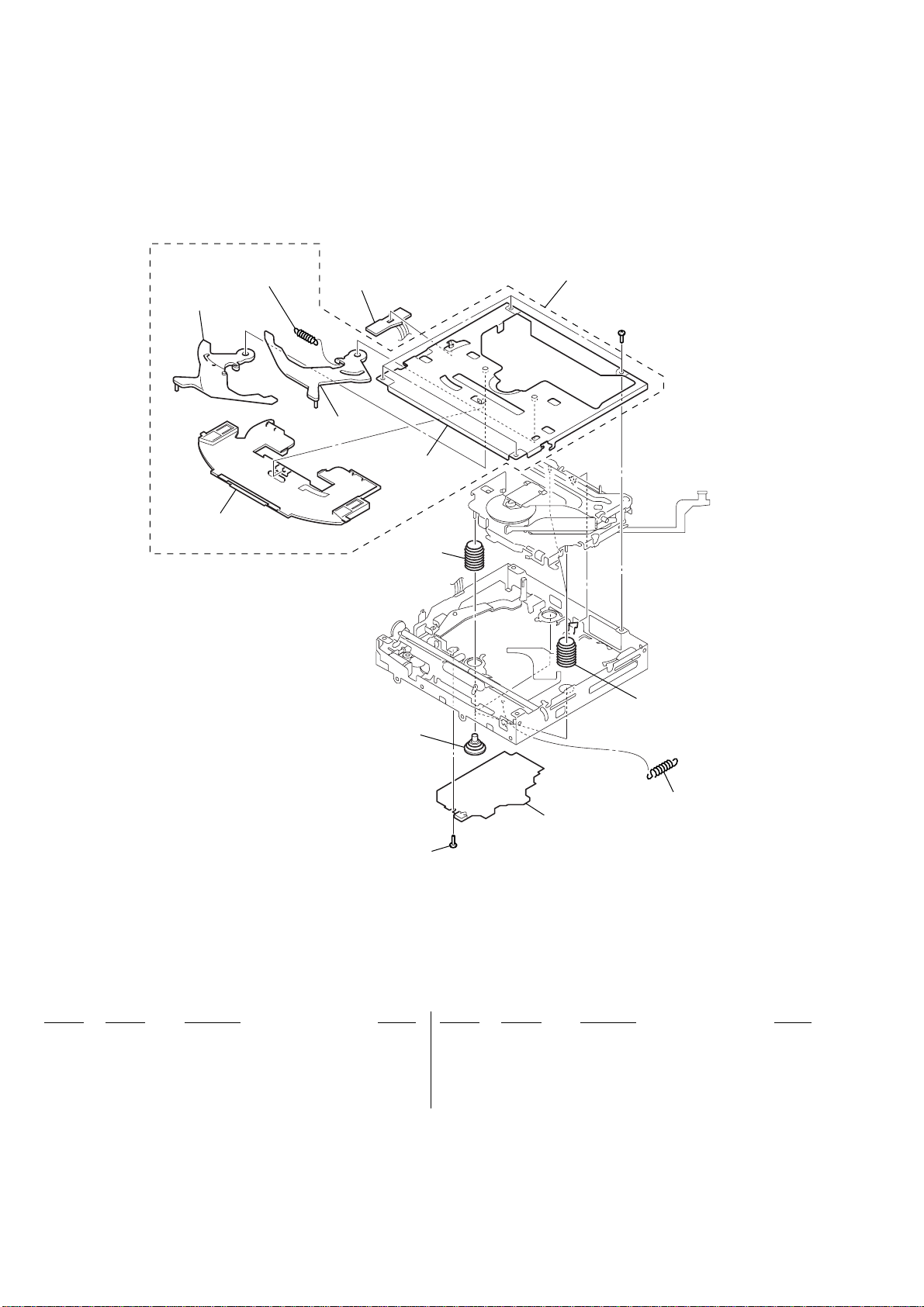

4-3. CD MECHANISM SECTION (1)

(MG-611XE-186//C)

CDX-GT10W/GT100/GT150/GT150S

not supplied

not supplied (SENSOR board)

not supplied

101

#4

103

104

106

105

102

107

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 A-1088-624-A CHASSIS (T) SUB ASSY 102 A-1083-497-A SERVO BOARD, COMPLETE 103 2-345-865-11 SPRING (DAMPER), COMPRESSION (BLACK) 104 2-345-865-01 SPRING (DAMPER), COMPRESSION

(NATURAL)

105 2-345-767-21 SPRING (KF60), TENSION 106 3-253-748-11 DAMPER (S) 107 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK #4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2

33

CDX-GT10W/GT100/GT150/GT150S

4-4. CD MECHANISM SECTION (2)

(MG-611XE-186//C)

154

(including M901)

155

156

157

#5

SW4

151

not supplied

M902

160

159

158

153

not supplied

152

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 A-1088-612-A CHASSIS (OP) COMPLETE ASSY 152 3-316-938-91 SCREW (B1.4X5), TAPPING

0 153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)

154 A-1088-615-A CHASSIS (OP) SUB ASSY (including M901) 155 A-1088-616-A ARM SUB ASSY, CHUCKING

156 A-1088-613-A LEVER (SL) SUB ASSY 157 X-2024-784-3 LEVER (SL) ASSY

158 3-261-959-21 SPRING (SL), TORSION 159 3-253-736-21 SPRING (CHKG), TENSION 160 3-253-742-21 WHEEL (SL), WORM M902 A-1088-614-A MOTOR ASSY, SL (SLED) SW4 1-786-339-11 SWITCH (M) (LIMIT)

#5 7-627-850-77 SCREW, PRECISION +P 1.4X1.8

34

4-5. CD MECHANISM SECTION (3)

(MG-611XE-186//C)

CDX-GT10W/GT100/GT150/GT150S

209

207

208

201

202

207

#4

M903

206

207

210

203

211

204

205

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 3-262-755-11 WASHER (1.1-2.5) 202 2-186-699-21 GEAR (RA1) 203 A-1088-618-A ARM ASSY, ROLLER 204 3-259-455-21 SPRING (RAL) 205 3-253-713-21 SPRING (RAR)

206 3-259-469-21 SPRING (LE), LEAF 207 2-134-636-51 SCREW (M1.7X2.5)

208 2-186-696-21 BRACKET (LEM-N) 209 3-345-648-91 SCREW (M1.4), TOOTHED LOCK 210 A-1088-623-A GEAR (LE) ASSY 211 2-186-697-21 BEARING (LEB-N) M903 A-1088-622-A MOTOR ASSY, LE (LOADING)

#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2

35

CDX-GT10W/GT100/GT150/GT150S

4-6. CD MECHANISM SECTION (4)

(MG-611XE-186//C)

258

252

254

255

256

251

253

257

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 2-186-700-21 GEAR (CHK1) 252 3-344-223-01 WASHER 253 3-259-470-23 GEAR (LE1) 254 3-253-755-21 LEVER (D)

255 3-899-829-01 WASHER (SLIT) 256 2-590-545-21 GEAR (LE2-M) 257 A-1088-620-A CHASSIS (M) BLOCK ASSY 258 3-262-755-11 WASHER (1.1-2.5)

36

CDX-GT10W/GT100/GT150/GT150S

SECTION 5

ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS All resistors are in ohms. MET AL:Metal-film resistor . METAL OXIDE: Metal oxide-film resistor. F:nonflammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-1134-211-A JACK BOARD, COMPLETE

*********************

< JACK >

J901 1-819-732-11 JACK (SMALL TYPE) (DIA. 3.5) (AUX)

*************************************************************

A-1134-209-A KEY BOARD, COMPLETE (GT100) A-1134-244-A KEY BOARD, COMPLETE (GT10W) A-1134-246-A KEY BOARD, COMPLETE (GT150/GT150S)

********************

< CAPACITOR >

C921 1-163-031-11 CERAMIC CHIP 0.01uF 50V C922 1-163-031-11 CERAMIC CHIP 0.01uF 50V C981 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C983 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C984 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C985 1-131-664-11 CERAMIC CHIP 0.15uF 10% 10V C986 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

< CONNECTOR >

CN901 1-819-758-11 PLUG, CONNECTOR 15P

< DIODE >

D901 6-500-886-01 DIODE RSA6.1ENTR D903 6-501-180-01 DIODE UDZW-TE17-18B D981 6-501-167-01 DIODE UDZW-TE17-5.1B D982 6-501-193-01 DIODE 1SS355WTE-17

< JUMPER RESISTOR >

FB901 1-216-864-11 SHORT CHIP 0 FB902 1-216-864-11 SHORT CHIP 0 FB903 1-216-295-11 SHORT CHIP 0

< IC >

IC901 6-707-063-01 IC LC75826WH-US-E

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA..: µPA.. uPB.. : µPB.. uPC..: µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

LED932 6-501-339-01 LED NESW505CT-AST (LCD BACK LIGHT) LED941 6-500-450-01 LED CL-195SR-CD-T (RING ILLUMINATION)

LED941 6-500-510-01 LED CL-195PG-CD-T (RING ILLUMINATION)

LED942 6-500-450-01 LED CL-195SR-CD-T (RING ILLUMINATION)

LED942 6-500-510-01 LED CL-195PG-CD-T (RING ILLUMINATION)

LED943 6-500-450-01 LED CL-195SR-CD-T (RING ILLUMINATION)

LED943 6-500-510-01 LED CL-195PG-CD-T (RING ILLUMINATION)

LED944 6-500-450-01 LED CL-195SR-CD-T (RING ILLUMINATION)

LED944 6-500-510-01 LED CL-195PG-CD-T (RING ILLUMINATION)

LED951 6-500-450-01 LED CL-195SR-CD-T (DISC SLOT)

LED951 6-500-510-01 LED CL-195PG-CD-T (DISC SLOT) (GT10W)

LSW901 1-786-805-11 SWITCH, TACTILE (WITH LED) (Z)

LSW901 1-786-806-11 SWITCH, TACTILE (WITH LED) (Z) (GT10W) LSW902 1-786-805-11 SWITCH, TACTILE (WITH LED) (OFF)

LSW902 1-786-806-11 SWITCH, TACTILE (WITH LED) (OFF) (GT10W) LSW903 1-786-805-11 SWITCH, TACTILE (WITH LED) (SOURCE)

LSW903 1-786-806-11 SWITCH, TACTILE (WITH LED) (SOURCE)

LSW908 1-786-805-11 SWITCH, TACTILE (WITH LED) (EQ3)

LSW908 1-786-806-11 SWITCH, TACTILE (WITH LED) (EQ3) (GT10W) LSW909 1-786-805-11 SWITCH, TACTILE (WITH LED)

LSW909 1-786-806-11 SWITCH, TACTILE (WITH LED)

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

< DIODE >

< SWITCH >

(M > SEEK +) (GT100/GT150/GT150S)

(M > SEEK +) (GT10W)

JACK KEY

(GT100/GT150/GT150S)

(GT10W)

(GT100/GT150/GT150S)

(GT10W)

(GT100/GT150/GT150S)

(GT10W)

(GT100/GT150/GT150S)

(GT10W)

(GT100/GT150/GT150S)

(GT10W)

(GT100/GT150/GT150S)

LSW910 1-786-805-11 SWITCH, TACTILE (WITH LED)

(. m SEEK –) (GT100/GT150/GT150S)

LSW910 1-786-806-11 SWITCH, TACTILE (WITH LED)

(. m SEEK –) (GT10W)

37

CDX-GT10W/GT100/GT150/GT150S

KEY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

LSW911 1-786-805-11 SWITCH, TACTILE (WITH LED) (BTM)

(GT100/GT150/GT150S) LSW911 1-786-806-11 SWITCH, TACTILE (WITH LED) (BTM) (GT10W) LSW912 1-786-805-11 SWITCH, TACTILE (WITH LED) (MODE)

(GT100/GT150/GT150S) LSW912 1-786-806-11 SWITCH, TACTILE (WITH LED) (MODE)

(GT10W)

LSW913 1-786-805-11 SWITCH, TACTILE (WITH LED) (1)

(GT100/GT150/GT150S)

LSW913 1-786-806-11 SWITCH, TACTILE (WITH LED) (1) (GT10W) LSW914 1-786-805-11 SWITCH, TACTILE (WITH LED) (2)

(GT100/GT150/GT150S) LSW914 1-786-806-11 SWITCH, TACTILE (WITH LED) (2) (GT10W) LSW915 1-786-805-11 SWITCH, TACTILE (WITH LED) (3/REP)

(GT100/GT150/GT150S) LSW915 1-786-806-11 SWITCH, TACTILE (WITH LED) (3/REP)

(GT10W)

LSW916 1-786-805-11 SWITCH, TACTILE (WITH LED) (4/SHUF)

(GT100/GT150/GT150S) LSW916 1-786-806-11 SWITCH, TACTILE (WITH LED) (4/SHUF)

(GT10W)

LSW917 1-786-805-11 SWITCH, TACTILE (WITH LED) (5)

(GT100/GT150/GT150S) LSW917 1-786-806-11 SWITCH, TACTILE (WITH LED) (5) (GT10W) LSW918 1-786-805-11 SWITCH, TACTILE (WITH LED) (6)

(GT100/GT150/GT150S)

LSW918 1-786-806-11 SWITCH, TACTILE (WITH LED) (6) (GT10W) LSW919 1-786-805-11 SWITCH, TACTILE (WITH LED) (SENS)

(GT100/GT150/GT150S) LSW919 1-786-806-11 SWITCH, TACTILE (WITH LED) (SENS)

(GT10W)

LSW920 1-786-805-11 SWITCH, TACTILE (WITH LED) (DSPL/DIM)

(GT100/GT150/GT150S) LSW920 1-786-806-11 SWITCH, TACTILE (WITH LED) (DSPL/DIM)

(GT10W)

< TRANSISTOR >

Q931 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q932 8-729-027-58 TRANSISTOR DTC143ZKA-T146

< RESISTOR >

R901 1-216-819-11 METAL CHIP 680 5% 1/10W R902 1-216-819-11 METAL CHIP 680 5% 1/10W R903 1-216-819-11 METAL CHIP 680 5% 1/10W R904 1-216-821-11 METAL CHIP 1K 5% 1/10W R905 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R906 1-216-819-11 METAL CHIP 680 5% 1/10W R907 1-216-819-11 METAL CHIP 680 5% 1/10W R908 1-216-819-11 METAL CHIP 680 5% 1/10W R909 1-216-821-11 METAL CHIP 1K 5% 1/10W R910 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R931 1-216-812-11 METAL CHIP 180 5% 1/10W R932 1-216-812-11 METAL CHIP 180 5% 1/10W R933 1-216-812-11 METAL CHIP 180 5% 1/10W R934 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R941 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R941 1-216-813-11 METAL CHIP 220 5% 1/10W

(GT100/GT150/GT150S)

R942 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R942 1-216-813-11 METAL CHIP 220 5% 1/10W

(GT100/GT150/GT150S)

R943 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R943 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT100/GT150/GT150S)

R944 1-216-811-11 METAL CHIP 150 5% 1/10W R945 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R945 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT100/GT150/GT150S)

R946 1-216-807-11 METAL CHIP 68 5% 1/10W

(GT10W)

R946 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT100/GT150/GT150S)

R947 1-216-807-11 METAL CHIP 68 5% 1/10W

(GT10W)

R947 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT100/GT150/GT150S) R948 1-216-811-11 METAL CHIP 150 5% 1/10W R949 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R949 1-216-812-11 METAL CHIP 180 5% 1/10W

(GT100/GT150/GT150S)

R950 1-216-807-11 METAL CHIP 68 5% 1/10W

(GT10W)

R950 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT100/GT150/GT150S) R951 1-216-807-11 METAL CHIP 68 5% 1/10W

(GT10W)

R951 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT100/GT150/GT150S) R952 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R952 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT100/GT150/GT150S) R953 1-216-811-11 METAL CHIP 150 5% 1/10W R954 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R954 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT100/GT150/GT150S) R955 1-216-811-11 METAL CHIP 150 5% 1/10W

R911 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R912 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R913 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R914 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R915 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R916 1-216-833-11 METAL CHIP 10K 5% 1/10W R917 1-216-835-11 METAL CHIP 15K 5% 1/10W R918 1-216-837-11 METAL CHIP 22K 5% 1/10W R921 1-216-025-11 RES-CHIP 100 5% 1/10W R922 1-216-025-11 RES-CHIP 100 5% 1/10W

38

R956 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R956 1-216-812-11 METAL CHIP 180 5% 1/10W

(GT100/GT150/GT150S) R957 1-216-811-11 METAL CHIP 150 5% 1/10W R958 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R958 1-216-812-11 METAL CHIP 180 5% 1/10W

(GT100/GT150/GT150S)

R961 1-216-811-11 METAL CHIP 150 5% 1/10W

CDX-GT10W/GT100/GT150/GT150S

MAINKEY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R962 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R962 1-216-812-11 METAL CHIP 180 5% 1/10W

(GT100/GT150/GT150S) R963 1-216-811-11 METAL CHIP 150 5% 1/10W R964 1-216-810-11 METAL CHIP 120 5% 1/10W

(GT10W)

R964 1-216-812-11 METAL CHIP 180 5% 1/10W

(GT100/GT150/GT150S)

R974 1-216-864-11 SHORT CHIP 0 R976 1-216-864-11 SHORT CHIP 0 R977 1-216-809-11 METAL CHIP 100 5% 1/10W R978 1-216-809-11 METAL CHIP 100 5% 1/10W R979 1-216-809-11 METAL CHIP 100 5% 1/10W

R981 1-216-811-11 METAL CHIP 150 5% 1/10W R982 1-216-811-11 METAL CHIP 150 5% 1/10W R984 1-216-821-11 METAL CHIP 1K 5% 1/10W R985 1-216-821-11 METAL CHIP 1K 5% 1/10W R986 1-216-821-11 METAL CHIP 1K 5% 1/10W

R987 1-216-857-11 METAL CHIP 1M 5% 1/10W R991 1-216-864-11 SHORT CHIP 0

< ROTARY ENCODER >

RE901 1-478-474-12 ENCODER, ROTARY (PUSH SELECT/VOLUME)

*************************************************************

C431 1-126-964-11 ELECT 10uF 20% 50V C432 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C435 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C441 1-126-964-11 ELECT 10uF 20% 50V C442 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C445 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C451 1-126-964-11 ELECT 10uF 20% 50V C452 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C455 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C461 1-126-964-11 ELECT 10uF 20% 50V

C462 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C465 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C471 1-126-964-11 ELECT 10uF 20% 50V C474 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C479 1-126-947-11 ELECT 47uF 20% 35V

C481 1-126-964-11 ELECT 10uF 20% 50V C484 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C501 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C502 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C503 1-104-665-11 ELECT 100uF 20% 25V

C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C507 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C508 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C509 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

A-1134-204-A MAIN BOARD, COMPLETE (GT10W/GT100) A-1134-470-A MAIN BOARD, COMPLETE (GT150) A-1147-203-A MAIN BOARD, COMPLETE (GT150S)

*********************

7-621-284-40 SCREW +P 2.6X10 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT 7-685-793-09 SCREW +PTT 2.6X8 (S) 7-685-795-09 SCREW +PTT 2.6X12 (S)

< CAPACITOR >

C4 1-126-947-11 ELECT 47uF 20% 35V C5 1-126-947-11 ELECT 47uF 20% 35V C6 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C7 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C12 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C13 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C301 1-128-551-11 ELECT 22uF 20% 63V C302 1-104-665-11 ELECT 100uF 20% 25V C303 1-128-551-11 ELECT 22uF 20% 63V C305 1-104-665-11 ELECT 100uF 20% 25V

C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C308 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C401 1-126-964-11 ELECT 10uF 20% 50V

C511 1-104-665-11 ELECT 100uF 20% 25V C512 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C513 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C514 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C516 1-216-864-11 SHORT CHIP 0

C519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C601 1-131-868-81 ELECT 3300uF 20% 16V C602 1-165-319-11 CERAMIC CHIP 0.1uF 50V C617 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C618 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C622 1-126-916-11 ELECT 1000uF 20% 6.3V C623 1-126-916-11 ELECT 1000uF 20% 6.3V C631 1-126-960-11 ELECT 1uF 20% 50V C750 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C751 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V

C753 1-128-551-11 ELECT 22uF 20% 63V C754 1-126-961-11 ELECT 2.2uF 20% 50V C755 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C756 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C758 1-126-964-11 ELECT 10uF 20% 50V

C763 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C764 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C765 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C769 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C770 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

C404 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C405 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C406 1-126-960-11 ELECT 1uF 20% 50V C407 1-126-960-11 ELECT 1uF 20% 50V C410 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C411 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C412 1-126-934-11 ELECT 220uF 20% 16V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C771 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C774 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C775 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C776 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C901 1-109-982-11 CERAMIC CHIP 1uF 10% 10V

C902 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C903 1-126-961-11 ELECT 2.2uF 20% 50V C905 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

39

CDX-GT10W/GT100/GT150/GT150S

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C917 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V C918 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V

< CONNECTOR >

CN601 1-774-701-21 PIN, CONNECTOR 16P CN701 1-819-773-11 SOCKET, CONNECTOR 15P CNP301 1-817-536-11 CONNECTOR, BOARD TO BOARD 28P

< DIODE >

IC501 6-806-030-01 IC MB90488BPF-G-154E1 IC602 8-759-659-13 IC PST3428UL IC750 6-705-360-02 IC TDA8588BJ/N2/R1 (GT10W/GT100/GT150) IC750 6-705-363-02 IC TDA8589BJ/N2/R1 (GT150S) IC901 8-759-681-42 IC NJM12902V(TE2)

< JACK >

J1 1-815-185-13 JACK (ANTENNA) J330 1-774-698-11 JACK, PIN 2P (AUDIO OUT REAR)

D1 6-501-168-01 DIODE UDZW-TE17-5.6B D479 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D580 6-501-171-01 DIODE UDZW-TE17-7.5B D581 6-501-180-01 DIODE UDZW-TE17-18B

D601 8-719-049-38 DIODE 1N5404TU D609 6-501-170-01 DIODE UDZW-TE17-6.8B D617 6-501-180-01 DIODE UDZW-TE17-18B D719 6-501-180-01 DIODE UDZW-TE17-18B D751 6-500-522-01 DIODE 10EDB40-TA1B2

D752 6-500-522-01 DIODE 10EDB40-TA1B2 D753 6-500-522-01 DIODE 10EDB40-TA1B2 D754 6-500-522-01 DIODE 10EDB40-TA1B2 D755 6-500-522-01 DIODE 10EDB40-TA1B2 D756 6-500-522-01 DIODE 10EDB40-TA1B2

D757 6-500-522-01 DIODE 10EDB40-TA1B2 D758 6-500-522-01 DIODE 10EDB40-TA1B2 D759 6-500-522-01 DIODE 10EDB40-TA1B2 D760 6-500-522-01 DIODE 10EDB40-TA1B2 D761 6-500-522-01 DIODE 10EDB40-TA1B2

D762 6-500-522-01 DIODE 10EDB40-TA1B2 D903 6-501-170-01 DIODE UDZW-TE17-6.8B

< FERRITE BEAD >

FB1 1-500-245-11 INDUCTOR, FERRITE BEAD FB301 1-216-864-11 SHORT CHIP 0 FB302 1-216-864-11 SHORT CHIP 0 FB303 1-469-876-11 INDUCTOR, FERRITE BEAD FB304 1-216-295-11 SHORT CHIP 0

FB305 1-500-245-11 INDUCTOR, FERRITE BEAD FB306 1-500-245-11 INDUCTOR, FERRITE BEAD FB307 1-216-864-11 SHORT CHIP 0 FB310 1-216-864-11 SHORT CHIP 0 FB311 1-216-864-11 SHORT CHIP 0

FB410 1-216-864-11 SHORT CHIP 0 FB411 1-216-864-11 SHORT CHIP 0 FB501 1-216-295-11 SHORT CHIP 0 FB603 1-216-295-11 SHORT CHIP 0 FB604 1-500-245-11 INDUCTOR, FERRITE BEAD

FB605 1-216-864-11 SHORT CHIP 0 FB606 1-216-864-11 SHORT CHIP 0

< JUMPER RESISTOR >

JC1 1-216-864-11 SHORT CHIP 0 JC501 1-216-864-11 SHORT CHIP 0 JC504 1-216-864-11 SHORT CHIP 0 JC534 1-216-864-11 SHORT CHIP 0 JC536 1-216-864-11 SHORT CHIP 0

JC681 1-216-864-11 SHORT CHIP 0 JC753 1-216-296-11 SHORT CHIP 0 JC754 1-216-296-11 SHORT CHIP 0 JC755 1-216-296-11 SHORT CHIP 0 JC756 1-216-864-11 SHORT CHIP 0

JC795 1-216-864-11 SHORT CHIP 0

< COIL >

L1 1-469-844-11 INDUCTOR 2.2uH L301 1-216-295-11 SHORT CHIP 0 L501 1-216-295-11 SHORT CHIP 0 L601 1-456-617-11 COIL, CHOKE

< TRANSISTOR >

Q1 6-551-431-01 TRANSISTOR 2SC6027T100 Q431 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q441 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q451 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q461 8-729-027-44 TRANSISTOR DTC114TKA-T146

Q471 6-551-392-01 TRANSISTOR RT6N140C-TP-1 Q478 1-801-806-11 TRANSISTOR DTC144EKA Q479 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q481 6-551-392-01 TRANSISTOR RT6N140C-TP-1 Q580 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q581 1-801-806-11 TRANSISTOR DTC144EKA Q582 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q631 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q664 8-729-027-23 TRANSISTOR DTA114EKA-T146

< RESISTOR >

R1 1-216-821-11 METAL CHIP 1K 5% 1/10W R2 1-414-595-11 INDUCTOR, FERRITE BEAD R3 1-414-595-11 INDUCTOR, FERRITE BEAD R4 1-216-839-11 METAL CHIP 33K 5% 1/10W R5 1-216-843-11 METAL CHIP 68K 5% 1/10W

< FUSE >

FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

< IC >

IC401 6-708-880-01 IC BD3806AFS-E2

40

R12 1-414-595-11 INDUCTOR, FERRITE BEAD R13 1-414-595-11 INDUCTOR, FERRITE BEAD R301 1-216-821-11 METAL CHIP 1K 5% 1/10W R302 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-797-11 METAL CHIP 10 5% 1/10W

R405 1-218-881-11 METAL CHIP 27K 0.5% 1/10W

CDX-GT10W/GT100/GT150/GT150S

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W

R411 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-821-11 METAL CHIP 1K 5% 1/10W R432 1-216-841-11 METAL CHIP 47K 5% 1/10W R441 1-216-821-11 METAL CHIP 1K 5% 1/10W R442 1-216-841-11 METAL CHIP 47K 5% 1/10W

R451 1-216-821-11 METAL CHIP 1K 5% 1/10W R452 1-216-841-11 METAL CHIP 47K 5% 1/10W R461 1-216-821-11 METAL CHIP 1K 5% 1/10W R462 1-216-841-11 METAL CHIP 47K 5% 1/10W R471 1-216-809-11 METAL CHIP 100 5% 1/10W

R472 1-216-841-11 METAL CHIP 47K 5% 1/10W R479 1-216-805-11 METAL CHIP 47 5% 1/10W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-841-11 METAL CHIP 47K 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W

R503 1-216-821-11 METAL CHIP 1K 5% 1/10W R504 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R505 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R507 1-216-845-11 METAL CHIP 100K 5% 1/10W R508 1-216-864-11 SHORT CHIP 0

R509 1-216-812-11 METAL CHIP 180 5% 1/10W R510 1-216-821-11 METAL CHIP 1K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-821-11 METAL CHIP 1K 5% 1/10W R513 1-216-845-11 METAL CHIP 100K 5% 1/10W

R514 1-216-845-11 METAL CHIP 100K 5% 1/10W R515 1-247-807-31 CARBON 100 5% 1/4W R516 1-247-807-31 CARBON 100 5% 1/4W R517 1-216-841-11 METAL CHIP 47K 5% 1/10W R518 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R519 1-216-845-11 METAL CHIP 100K 5% 1/10W R521 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R523 1-216-821-11 METAL CHIP 1K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W

R525 1-216-821-11 METAL CHIP 1K 5% 1/10W R526 1-216-809-11 METAL CHIP 100 5% 1/10W R527 1-216-821-11 METAL CHIP 1K 5% 1/10W R528 1-216-845-11 METAL CHIP 100K 5% 1/10W R529 1-216-821-11 METAL CHIP 1K 5% 1/10W

R530 1-216-845-11 METAL CHIP 100K 5% 1/10W R531 1-216-845-11 METAL CHIP 100K 5% 1/10W R532 1-216-845-11 METAL CHIP 100K 5% 1/10W R533 1-216-845-11 METAL CHIP 100K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W

R535 1-216-845-11 METAL CHIP 100K 5% 1/10W R536 1-216-845-11 METAL CHIP 100K 5% 1/10W R537 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150/GT150S)

R538 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT10W/GT100)

R539 1-216-864-11 SHORT CHIP 0

R540 1-216-845-11 METAL CHIP 100K 5% 1/10W

R541 1-216-845-11 METAL CHIP 100K 5% 1/10W R543 1-216-821-11 METAL CHIP 1K 5% 1/10W R544 1-216-821-11 METAL CHIP 1K 5% 1/10W R545 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150/GT150S)

R546 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150/GT150S)

R550 1-216-845-11 METAL CHIP 100K 5% 1/10W R551 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT10W/GT100) R556 1-216-833-11 METAL CHIP 10K 5% 1/10W R557 1-216-809-11 METAL CHIP 100 5% 1/10W R558 1-216-821-11 METAL CHIP 1K 5% 1/10W

R559 1-216-845-11 METAL CHIP 100K 5% 1/10W R560 1-216-845-11 METAL CHIP 100K 5% 1/10W R561 1-216-845-11 METAL CHIP 100K 5% 1/10W R563 1-216-845-11 METAL CHIP 100K 5% 1/10W R565 1-216-845-11 METAL CHIP 100K 5% 1/10W

R566 1-216-845-11 METAL CHIP 100K 5% 1/10W R567 1-216-845-11 METAL CHIP 100K 5% 1/10W R568 1-216-821-11 METAL CHIP 1K 5% 1/10W R570 1-216-817-11 METAL CHIP 470 5% 1/10W R571 1-216-845-11 METAL CHIP 100K 5% 1/10W

R572 1-216-809-11 METAL CHIP 100 5% 1/10W R575 1-216-845-11 METAL CHIP 100K 5% 1/10W R577 1-216-845-11 METAL CHIP 100K 5% 1/10W R582 1-216-821-11 METAL CHIP 1K 5% 1/10W R583 1-216-821-11 METAL CHIP 1K 5% 1/10W

R584 1-216-841-11 METAL CHIP 47K 5% 1/10W R585 1-216-849-11 METAL CHIP 220K 5% 1/10W R601 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-821-11 METAL CHIP 1K 5% 1/10W R631 1-249-425-11 CARBON 4.7K 5% 1/4W

R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R633 1-216-841-11 METAL CHIP 47K 5% 1/10W R634 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R636 1-216-845-11 METAL CHIP 100K 5% 1/10W R661 1-216-821-11 METAL CHIP 1K 5% 1/10W

R662 1-216-845-11 METAL CHIP 100K 5% 1/10W R663 1-216-821-11 METAL CHIP 1K 5% 1/10W R664 1-216-845-11 METAL CHIP 100K 5% 1/10W R671 1-216-809-11 METAL CHIP 100 5% 1/10W R672 1-216-809-11 METAL CHIP 100 5% 1/10W

R673 1-216-833-11 METAL CHIP 10K 5% 1/10W R674 1-216-845-11 METAL CHIP 100K 5% 1/10W R675 1-216-821-11 METAL CHIP 1K 5% 1/10W R676 1-216-821-11 METAL CHIP 1K 5% 1/10W R677 1-216-864-11 SHORT CHIP 0

R680 1-216-821-11 METAL CHIP 1K 5% 1/10W R681 1-216-821-11 METAL CHIP 1K 5% 1/10W R752 1-216-811-11 METAL CHIP 150 5% 1/10W R756 1-216-841-11 METAL CHIP 47K 5% 1/10W R757 1-216-864-11 SHORT CHIP 0

R901 1-216-817-11 METAL CHIP 470 5% 1/10W R902 1-216-817-11 METAL CHIP 470 5% 1/10W R903 1-216-834-11 METAL CHIP 12K 5% 1/10W R904 1-216-834-11 METAL CHIP 12K 5% 1/10W R905 1-216-841-11 METAL CHIP 47K 5% 1/10W

41

CDX-GT10W/GT100/GT150/GT150S

SENSOR SERVOMAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R906 1-216-841-11 METAL CHIP 47K 5% 1/10W R907 1-216-845-11 METAL CHIP 100K 5% 1/10W R910 1-216-789-11 METAL CHIP 2.2 5% 1/10W R911 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R912 1-216-864-11 SHORT CHIP 0

C38 1-104-609-11 ELECT CHIP 100uF 20% 4V C39 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C70 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C71 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C72 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

R913 1-216-864-11 SHORT CHIP 0 R914 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

< SWITCH >

S502 1-571-478-11 SWITCH, SLIDE (FREQUENCY SELECTOR)

(GT150/GT150S)

S702 1-786-826-11 SWITCH, TACTILE (RESET)

< TUNER UNIT >

TU1 A-3220-961-A TUNER UNIT (TUX-032)

< VIBRATOR >

X501 1-813-524-21 VIBRATOR, CERAMIC (18.432MHz) X502 1-813-202-11 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

SENSOR BOARD

**************

< SWITCH >

SW2 1-529-566-61 SWITCH, PUSH (1 KEY) (SELF) SW3 1-529-566-61 SWITCH, PUSH (1 KEY) (DISC IN)

*************************************************************

A-1083-497-A SERVO BOARD, COMPLETE

**********************

< CAPACITOR >

C1 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C5 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6 1-100-381-11 ELECT CHIP 10uF 20% 16V C7 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C11 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C13 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C17 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C19 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C20 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C21 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C23 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C25 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C26 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C27 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C28 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C29 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C30 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C31 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C32 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C34 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C35 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C36 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C37 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C73 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C74 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C75 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C76 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C77 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C78 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C79 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

< CONNECTOR >

CN1 1-817-275-21 CONNECTOR, BOARD TO BOARD 28P CN2 1-815-016-61 CONNECTOR, FFC/FPC (ZIF) 16P

< FERRITE BEAD >

FB1 1-216-864-11 SHORT CHIP 0 FB2 1-414-760-21 FERRITE, EMI (SMD) (1608) FB3 1-414-760-21 FERRITE, EMI (SMD) (1608)

< IC >

IC1 6-703-699-01 IC uPD63712GC-8EU-A IC2 6-705-002-01 IC BA5966FP-FE2

< FERRITE BEAD >

JR40 1-414-760-21 FERRITE, EMI (SMD) (1608) JR41 1-414-760-21 FERRITE, EMI (SMD) (1608) JR90 1-414-760-21 FERRITE, EMI (SMD) (1608) JR91 1-414-760-21 FERRITE, EMI (SMD) (1608)

< TRANSISTOR >

Q1 8-729-904-87 TRANSISTOR 2SB1197K-R

< RESISTOR >

R1 1-216-841-11 METAL CHIP 47K 5% 1/10W R2 1-216-809-11 METAL CHIP 100 5% 1/10W R3 1-216-809-11 METAL CHIP 100 5% 1/10W R4 1-216-809-11 METAL CHIP 100 5% 1/10W R5 1-216-809-11 METAL CHIP 100 5% 1/10W

R6 1-216-833-11 METAL CHIP 10K 5% 1/10W R7 1-216-840-11 METAL CHIP 39K 5% 1/10W R8 1-414-760-21 FERRITE, EMI (SMD) (1608) R9 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R10 1-414-760-21 FERRITE, EMI (SMD) (1608)

R11 1-216-833-11 METAL CHIP 10K 5% 1/10W R12 1-216-809-11 METAL CHIP 100 5% 1/10W R13 1-216-833-11 METAL CHIP 10K 5% 1/10W R14 1-216-797-11 METAL CHIP 10 5% 1/10W R15 1-216-797-11 METAL CHIP 10 5% 1/10W

R41 1-216-821-11 METAL CHIP 1K 5% 1/10W R42 1-216-821-11 METAL CHIP 1K 5% 1/10W R44 1-414-760-21 FERRITE, EMI (SMD) (1608) R45 1-414-760-21 FERRITE, EMI (SMD) (1608) R70 1-216-842-11 METAL CHIP 56K 5% 1/10W

R71 1-216-833-11 METAL CHIP 10K 5% 1/10W

42

CDX-GT10W/GT100/GT150/GT150S

SERVO

Ref. No. Part No. Description Remark

R72 1-216-842-11 METAL CHIP 56K 5% 1/10W R73 1-216-833-11 METAL CHIP 10K 5% 1/10W R74 1-216-837-11 METAL CHIP 22K 5% 1/10W R75 1-216-833-11 METAL CHIP 10K 5% 1/10W R76 1-216-837-11 METAL CHIP 22K 5% 1/10W

R77 1-216-833-11 METAL CHIP 10K 5% 1/10W R78 1-216-833-11 METAL CHIP 10K 5% 1/10W R79 1-216-833-11 METAL CHIP 10K 5% 1/10W R80 1-216-833-11 METAL CHIP 10K 5% 1/10W R81 1-216-833-11 METAL CHIP 10K 5% 1/10W

R82 1-216-837-11 METAL CHIP 22K 5% 1/10W R83 1-216-833-11 METAL CHIP 10K 5% 1/10W R84 1-216-837-11 METAL CHIP 22K 5% 1/10W R85 1-216-833-11 METAL CHIP 10K 5% 1/10W

< SWITCH >

SW1 1-529-565-61 SWITCH, PUSH (1 KEY) (DOWN)

< VIBRATOR >

X1 1-795-562-21 VIBRATOR, CERAMIC (16.9344MHz)

*************************************************************

MISCELLANEOUS

***************

Ref. No. Part No. Description Remark

PARTS FOR INSTALLATION AND CONNECTIONS

***************************************

301 X-3382-647-1 FRAME ASSY, FITTING 302 2-187-743-02 COLLAR 303 3-246-011-01 KEY (FRAME) 304 A-1082-993-A SCREW ASSY (BS4), FITTING (GT150/GT150S) 305 3-259-776-01 SCREW (+K 5X8 TP)

306 1-776-206-21 CORD (WITH CONNECTOR) (POWER)

301

302

303

× 2

304

305

× 4

306

81-776-206-21 CORD (WITH CONNECTOR) (POWER) 57 1-780-199-11 CONDUCTIVE BOARD, CONNECTION

0 153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)

154 A-1088-615-A CHASSIS (OP) SUB ASSY (including M901) LCD901 1-805-919-11 DISPLAY PANEL, LIQUID CRYSTAL

(GT150/GT150S)

LCD901 1-805-920-11 DISPLAY PANEL, LIQUID CRYSTAL

M902 A-1088-614-A MOTOR ASSY, SL (SLED) M903 A-1088-622-A MOTOR ASSY, LE (LOADING) RE901 1-478-474-12 ENCODER, ROTARY (PUSH SELECT/VOLUME) SW4 1-786-339-11 SWITCH (M) (LIMIT)

*************************************************************

ACCESSORIES

************

2-651-184-12 MANUAL, INSTRUCTION (ENGLISH,FRENCH)

2-651-184-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,

2-651-184-32 MANUAL, INSTRUCTION (ENGLISH,SPANISH)

2-651-186-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

2-651-186-41 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

SPANISH,SIMPLIFIED CHINESE)

(GT10W/GT100)

(GT10W:CND/GT100)

SIMPLIFIED CHINESE)

(GT150/GT150S)

(GT10W:US)

FRENCH)

(GT10W:CND/GT100)

(GT150/GT150S)

2-651-186-51 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

SPANISH)

(GT10W:US)

X-2024-133-3 CASE ASSY (for FRONT PANEL) (EXCEPT US)

*************************************************************

43

CDX-GT10W/GT100/GT150/GT150S

MEMO

44

CDX-GT10W/GT100/

GT150/GT150S

US Model

Canadian Model

CDX-GT10W/GT100

SERVICE MANUAL

Ver. 1.4 2006. 05

SUPPLEMENT-1

File this supplement with the service manual.

Subject : Production country change of CDX-GT150S.

AEP, UK model addition of CDX-GT100.

The CDX-GT150S (E) model has been changed in the production country to Thailand from Chinese. This service manual, SUPPLEMENT-1 only contains the change. When servicing and inspecting, check the Model Number Label to see if the model is made in Thailand or Chinese.

DISCRIMINATION

CDX-GT150S (Chinese Production model) CDX-GT150S (Thailand production model)

MODEL NO.CDX-GT150SSONY

Chinese Model

AEP Model

UK Model

CDX-GT100

E Model

CDX-GT150/GT150S

CLASS 1 LASER PRODUCT

CDX-GT150S(E) : 2-654-640-0

2-654-663-0

CLASS 1 LASER PRODUCT

MADE IN THAILAND CDX-GT100 (Thailand production model)

MODEL NO.CDX-GT100SONY

CLASS 1 LASER PRODUCT

MADE IN THAILAND

CDX-GT150S(E) : 2-668-627-0

CDX-GT100(AEP,UK) : 2-668-437-0

9-879-863-81

1

CDX-GT10W/GT100/GT150/GT150S

DIAGRAMS

CDX-GT10W/GT100/GT150/GT150S

Ver. 1.4

• NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and 1/ specified.

f

•

• C : panel designation.

• A : B+ Line.

• B : B– Line.

• H : adjustment for repair.

•Voltages and waveforms are dc with respect to ground

• CD mechanism section

no mark : CD PLAY

• Main (1/3), (2/3), (3/3) and Key sections

no mark : FM

: internal component.

Note:

The components identified by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified.

under no-signal (detuned) conditions.

(): AM/MW/LW <>: CD PLAY

4

W or less unless otherwise

Note:

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

For printed wiring boards.

Note:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

a

•

• : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated.

C

Q

E

: Through hole.

These are omitted

EB

CB

These are omitted

∗ : Impossible to measure

•Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.

•Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

J : CD PLAY F : FM f : AM/MW/LW L : AUX

C

BE

These are omitted

• WAVEFORMS

— SERVO BOARD (CD PLAY) —

1 IC1 wd (XTAL)

1.2 Vp-p

16.9344 MHz

0.2 V/DIV, 0.2 µsec/DIV

2 IC1 uj (AGCI)

0.85 V to

1.45 Vp-p

0.5 V/DIV, 0.5 µsec/DIV

3 IC1 od (FEO)

0 V

Approx. 620 mVp-p

200 mV/DIV, 5 msec/DIV

4 IC1 oh (TEO)

0 V

Approx. 200 mVp-p

— MAIN BOARD —

1 IC51 9 (XTI)

8.664 MHz

0.5 V/DIV, 0.1

µ

sec/DIV

2 IC501 i; (XIN)

32.768 kHz

0.2 V/DIV, 0.1 µsec/DIV

3 IC501 is (OSC IN)

18.432 MHz

µ

0.5 V/DIV, 0.1

sec/DIV

1 Vp-p

0.7 Vp-p

0.8 Vp-p

CDX-GT10W/GT100/GT150/GT150S

50 mV/DIV, 5 msec/DIV

33

CDX-GT10W/GT100/GT150/GT150S

1-1. PRINTED WIRING BOARDS — CD MECHANISM SECTION — : Uses unleaded solder.

A

B

C

D

1

234567891011 12 13 14

R5

JR90 JR91

FB3

R70

C5

R72

R84

R82

R80

IC1

R45

R78

R8

C19

R44

C2

C32

C31

R13

C39

C38

Q1

R15

R11

R14

C34

R12

C37

C35

CN2

C30

C36

C27

TP21

R9

C20

R7

R6

C23

C18

C26

C25

C21

C1

C29

C28

C6

FB2

X1

R1

R76

R74

R2

C11

R41

C17

FB1

C13

R42

C7

JR41

JR40

R10

R3

R4

(Page 6)

E

F

G

R77

R75

R73

R71

C73

C72

C75

C71

C70

IC2

C79

C78

C76

C74

R85

R83

R79

R81 C77

SW1

1-863-346-

M901

SW4

M902

M903

CN1

SW3

SW2

1-689-230-

1-863-346-

CDX-GT10W/GT100/GT150/GT150S

44

• Refer to page 3 for Waveforms.

1-2. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 12 for IC Block Diagrams.

CDX-GT10W/GT100/GT150/GT150S

C20

SW3

SW2

TP19 C18

CN2

TP27

TP28

TP29

TP31

TP30 TP29 TP14

TP28

TP27

TP26

Q1

C36

R13

C37

R12

C35

C34

R11

SW4

M901

M902

TP81 TP80

TP89

SW1

TP85 TP83 TP84

TP82

TP87

TP88

TP90

TP91

R14 R15

C38

TP33TP32

C39

TP22

TP20

C26

TP21

C27

C28

TP23

C29

C30

TP24

TP25

C31

C32

C1

R9

C25

C23

C2

R7

C21

R6

C19

IC1

R10

R8

R5

R4

R3

R2

C5

C6

C7

IC B/D

FB2

R41 JR41

JR40

R42

C17

R1

C13

TP13 TP12

TP11

TP10 TP9

TP8 TP7

TP6 TP5

TP4 TP3

TP2

TP1

C11

FB3

JR91

JR90

X1

FB1

TP65 TP64

TP63 TP62

TP61 TP60

R45

TP59

R44

TP58 TP57

TP56 TP55

TP54 TP48

TP52 TP51 TP53

TP49 TP50

TP47 TP46

TP45 TP44

TP43 TP42 TP41

TP40

CN1

(Page 9)

CDX-GT10W/GT100/GT150/GT150S

M903

TP92 TP93

R70 R71

R72 R73

R74 R75

R76 R77 R78R79

TP71 TP70

TP73 TP72

C70

C71

C72

C73

TP100

C74

IC2

C79

C78

C77

C76

C75

55

R85

R84

R82R83

R80R81

TP75

TP74

CDX-GT10W/GT100/GT150/GT150S

1-3. PRINTED WIRING BOARD — MAIN SECTION — : Uses unleaded solder.

A

B

C

D

E

F

G

H

J

1

(ANTENNA)

JW101

C7

JW100

R6

GT100:AEP,UK

C62

C54

R51

R52

R54

C51

GT100:AEP,UK

I

JW104

JW105

234567891011 12 13 14

J330

AUDIO OUT

REAR0

LR

C484

R482

Q471

R472

JW21

Q481

C452

R481

R471

C455

C471

R441

C481

C431

C401

JW164

JW124

JW72

JW150

169

166

JW

JW161

JW156

R61

JW84

JW85

JW155

JW154

C903

GT100:AEP,UK

JW139

CN701

C441

IC401

71 JW

Q441

R442

C445

R431

JW91

JW129

JW130

167 JW

R570

76 JW

FB603

C465

R662

R664

R661

R663

C474

R451

R461

C412

FB410

JW121

JW122

JW70

Q431

C462

C451

C461

R405

R408

R407

R409

R411

C410

R432

C442

C432

C435

JW89

JW123

JW108

D719

22 JW

C753

Q451

R452

R462

Q461

R401

C413

R406

132 JW

R410

C411

FB411

JW90

C756

JW83

JW80

R557

R575

R577

103 JW

JW54

126 JW

GT100:AEP,UK

JW88

131 JW

JW81

69 JW

FB501

133 JW

R505

R513

R514

JW20

R522

74 JW

JW153

C758

R534

R757

R532

40 JW

C504

JW92

R752

C755

R521

67 JW

R510

JC795

C763

JW18

JW93

C754

GT150S

S502

FREQUENCY

SELECT

9K

10K

34

35

JW

C503

GT100:AEP,UK

R502

R504

R503

D503

C751

C750

C776

R694

GT100: AEP,UK

R511

R512

68 JW

JW14

JW15

JW16

JW17

C769

C623

38 JW

86 JW

C479

JW95

JW96

JW97

C513

C501

JC504

Q479

R544

C516

R671

JC754

C771

D755

D756

Q478

D479

GT100:AEP,UK

R545

R551

R546

R550

R506

R756

GT100:AEP,UK

C512

C514

C502

R567

R565

JC755

JW13

24 JW

R573

R507

R537

FMB4

D758

R479

66 JW

GT150S

IC501

GT150S

JW12

D757

25 JW

R559

R572

R560

FMB3

R558

C765

JW11

JW42

JC501

R561

JW10

C770

IC750

R531

JC534

R677

R681

R528

R527

JC753

C622

C774C775

C764

JC756

D753

FB605

FB604

R571

R530

87 JW

JW7

118 JW

X502

C509

Q664

R676

YEL

JW144

JW9

JW8

JW6

D751

D754

23 JW

R515

JW55

R518

GT150S

R568

R517

125 JW

GT100:AEP,UK

JC681

JW29

C511

C510

JW137

D752

R516

R675

R566

X501

R529

JW141

JW30

X501

JW5

26 JW

JW50

L501

C508

R533

JW140

L301

C406

C407

JW56

R509

R508

C507

GT100:AEP,UK

R653

R654

D759

FB304

FB302

C302

C308

R302

FB307

R301

JW28

R525

R672

R674

R519

R536

R535

75 JW

RESET

S702

D760

R651

D609

JW82

JW65

JW62

CN601

Q651

CNP301

FU601

C617

D617

C618

R652

R556

GT150S

D651

R523

R524

JW111

R526

51 JW

R636

R543

C519

JW3

FB305

FB306

C307

C306

52 JW

63 JW

C343

C305

R609

R563

R564

R680

R601

53 JW

C301

D761

D762

JW31

JW32

JW39

FB301

JC536

R584

IC602

C601

JW27

FB303

JW115

C303

FB311

JW109

46 JW

GT100:AEP,UK

JW119

JW44

FB606

R673

JW106

FB310

R539

Q631

R540

R541

C602

JW1

JW2

JW107

JW117

58 JW

R634

C631

D601

R633

Q582

R585

YEL

R631

R632

Q581

D581

Q580

D580

L601

1-868-117-

R583

R582

(Page 4)

• Semiconductor Location

Ref. No. Location D1 F-3

D479 E-6 D503 I-5 D580 F-11 D581 F-11 D601 C-10 D609 D-8 D617 C-9 D651 C-9 D719 I-4 D751 D-7 D752 D-7 D753 D-7 D754 D-7 D755 C-5 D756 C-6 D757 C-6

21

(21)

D758 C-6 D759 D-8 D760 D-8 D761 C-9 D762 D-9 D903 I-3

C55

J1

JW143

JW142

JC1

TU1

GT100:AEP,UK

C404

C405

R29

C1

C2

C12

C13

R2

R3

FB1

R12

R13

C53

C57

R53

C58

C56

Q22

D704

IC51

R912

R913

R906

R905

C59

C60

C901

C902

R8

L51

C3

94 JW

C917

R902

102 JW

165

163

JW

R1

C4

C6

D1

R55

X51

Q51

R58

R903

JW138

60 JW

R56

C905

R907

JW168

IC901

R904

L1

R59

R57

C918

R901

162 JW

R60

R914

R911

D903

160 JW

R910

JW128

C5

Q1

R7

R5

R9

R4

GT100:AEP,UK

GT150S

Ref. No. Location IC51 H-2

IC401 E-3 IC501 H-6 IC602 I-9 IC750 B-6 IC901 H-2

Q1 F-2 Q22 E-2 Q51 G-2 Q431 B-4 Q441 B-4 Q451 C-4 Q461 D-4 Q471 B-3 Q478 E-6 Q479 E-5 Q481 C-3 Q580 F-11 Q581 I-10 Q582 I-10 Q631 H-10 Q651 D-8 Q664 I-7

CDX-GT10W/GT100/GT150/GT150S

(Page 10)

66

• Refer to page 3 for Waveforms.

1-4. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • Refer to page 12 for IC Block Diagrams.

CDX-GT10W/GT100/GT150/GT150S

TU1

J1

JC1

13

12

3

2 R

R

J330

C484 C474

IC B/D

R905

R912 R913

R906

R907

IC401

R911

R914

C903

C905

FB411 FB410

C411

R405

R406

R407

R408

R409

R411

R410

C902 C901

R904 R903

D903

R910

C410

C413

C412

R401

C431

C451

C441

C461

C481

C471

R431

R451

R441

R461

R481

R471

R432

R452

R442

R462

R482

R472

Q431

Q451

Q441

Q461

Q481

Q471

Q478

Q479

C435 C432

C455 C452

C445 C442

C465 C462

(Page 8)

D479

C479

C3

JW102

C2 R8 R29

C5

R4

C1

C13

D1

C6

C4

C12

51 R

C53

R5

R1

Q1

R52

C57

C56

C54

C55

L1

Q51

L51

C51

C58

54 R

R53

R61

IC51

IC B/D

C62

58 R

55

57

56

R

84

85

JW

X51

C59

C60

R6

R7

C7

JW126

R9

R60

FB1

C405

C406

C404

C407

Q22

JW60

R59

C401

JW169

IC901

CDX-GT10W/GT100/GT150/GT150S

(Page 9)

77

CDX-GT10W/GT100/GT150/GT150S

1-5. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • Refer to page 13 for IC Block Diagrams.

C750

C751

JC795

JC754

JC755

C775 C765

C764 C774

IC750

IC B/D

D751

D752

D753

D754

D755

D756

D757

D758

CN601

D760D759

(Page 7)

R479

JW52

C753

JC753

JC756

R752

C755

Q631

C754

C756

JC681

R633

C631

R631

R632R634

C623

C622

C776

C758

JW111

JW53

C769

C770

C771

C763

Q651

R652

R653R654 D609

D761

D762

C602

C601

D651

R651

R609

FU601

C618C617

D617

L601

D601

CDX-GT10W/GT100/GT150/GT150S

(Page 9)

88

1-6. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 3 for Waveforms.

CDX-GT10W/GT100/GT150/GT150S

(Page 7) (Page 8)

FB301

FB305FB303

C343

C301

FB306JW107

C303

C307

R572

C305

R516 R515

FB310

FB311

L501

JW55

C306

C507C508

X501

C511

R675

R676 R539 R524

R525 R523

JC536 R526

R527 R681

R677

R528 R559

S502

R508

C510

R566

X502

R509

R571 R530

R546

R545

R507

(Page 5)

R560

CNP301

JC534

R551

R573

R531

R537

R550

R564

R563

R674

R636

R756

R757

R506

C308

R556

R557

R302

FB307 R301

R534

R672

R533

R529

R544

C302

R577

IC501

R575

R694

R519

R558

R518

JW34

JW35

JW38

R535

R536

C504

C503

FB501

L301

FB302

JW86

FB304

JW46

R680

R512

R511

R514

R510

R513

C509

R568

R570

R532

R561

R565

R567

C512

R661

R662

R543

R517

C514 C502

R671

C501

C513

R522 R521

R663

R664

JC501

JW125

D503

R503

R502

Q664

JC504

R505

R673

R504

C516 C516

R902

JW140

FB603

D719

CN701

(Page 11)

C917R901

C918

D704

FB604

C519

D580

IC602

D581

R582

R583

FB605

R541

R540

FB606

R601

S702

R585

R584

Q581

Q582

Q580

CDX-GT10W/GT100/GT150/GT150S

99

CDX-GT10W/GT100/GT150/GT150S

1-7. PRINTED WIRING BOARDS — KEY SECTION — : Uses unleaded solder.

A

B

C

D

E

LSW

SEEK–

.

OFF

902

910

m

1

LSW902

LSW910

R902

23456789101112

FB903

FB902

FB901

1-868-899-

LED941-944

(RE LIGHT)

LED943

R962

R961

LED941

R953

11

(11)

R963

LED942

R964

LED944

LSW903

SOURCE

LED908

S908

LED911

LED952

LED908,

S908

EQ3

909

LSW

SEEK+

>

M

LSW909

S911

R910

S912

LED912,S912

MODE

S911

PTY/BTM

(GT150S)

BTM

LED911

(GT100:AEP,UK)

PTY

BTM

(GT150S)

LED932

(LCD BACK LIGHT)

LED932

LED912

LED913,S913

(GT100:AEP,UK)

S913

LED951

(DISC INDICATOR)

LED951

S917

LCD901

S918

LED917

5

LED918,S918

LED918

R918

LED919,S919

6

S919

AF/TA

SENS

LED919

(GT100:AEP,UK)

(GT150S)

LIQUID CRYSTAL DISPLAY PANEL

52

LED913

1

LED914,S914

LED914

S914 S915 S916

2

LED915 LED916

LED915

S915 S916 LED917,S917

3/REP

3

LED916

4/SHUF

4

R942

1

1-868-898-

LSW901

LSW920

11

(11)

13

LSW901

920

LSW

DSPL/DIM

F

G

H

J

J901

AUX

BLK

R

BRN

G

BLU

L

11

1-868-899-

R903

R956

I

R904

(11)

R921

C921

R954

1

4

PUSH SELECT

C922

3

RE901

(VOLUM

R924

R998

FM

R914

R947

B4

R915

R946

IC901

R916

R979

R978

R917

C986

FM

B3

R985

C983

R984

R986

C981

R949

R996

R913

R948

R997

R911

R923

R950

R922

2

R955

5

R941

E)

R958

R951

R957

R909

R908

R907

R901

R934

Q931

R912

Q932

R906

C984

MAIN BOARD

D903

R991

R987

D981

(Page 6)

CN701

B

CN901

R976

R977

R982

D901

D982

R981

R974

R899

BLK

R931

R933

R995

BRN

R945

BLU

1-868-898-

R944

R932

11

(11)

• Semiconductor Location

Ref. No. Location D901 I-10

D903 H-10 D981 I-10 D982 I-10

IC901 I-8 LED908 B-4

LED911 C-4 LED912 C-5 LED913 C-6 LED914 C-6 LED915 C-7 LED916 C-8 LED917 C-9 LED918 C-10 LED919 C-10 LED932 B-5 LED941 B-2 LED942 C-3 LED943 B-3 LED944 B-4 LED951 B-7

Q931 I-5 Q932 I-5

CDX-GT10W/GT100/GT150/GT150S

1010

1-8. SCHEMATIC DIAGRAM — KEY SECTION —

CDX-GT10W/GT100/GT150/GT150S

R934

R931

R932

R933

LSW902(2/2)

LED932

LSW901(2/2)

Q931

Q932

LED919

R995

R941

R942

LSW920(2/2) LSW903(2/2)

R944

R945

R991

CN901

LED918

LED917

R946 R948

R947

D903

R976

R974

LED916

LED915

R949

D901

LED914

LED913

LED912

LED952

R950

R951

R901 R903 R904

R953

R954

R902

R961

R962

LED941

LED942

RE901

LED943

LED944

R963

R964

C922

LED951

R996

R997

R998

LSW909(2/2)

LSW910(2/2)

R955

R956

LED908

LED911

R957

R958

D981

R981

R982

R899

C981

C986

IC901

R977

R978

R979

R984

R985

R986

LCD901

C983

C984

2

987 R

D98

(Page 9)

FB901

J901

FB902

FB903

CDX-GT10W/GT100/GT150/GT150S

R923

R924

S914

C921

R921

S915

R922

S916

S917

S918

901(1/2)

LSW

R906 R907 R908 R909 R910 R911 R912 R913 R914 R915 R916 R917

909(1/2)

S908

LSW

910(1/2)

LSW

W LS

S913

S911

S912

903(1/2)

902(1/2)

11 11

S919

R918

920(1/2)

LSW

CDX-GT10W/GT100/GT150/GT150S

• IC Block Diagrams

IC2 BA5968FP-FE2 (SERVO Board)

1

FWD

LEVEL

SHIFT

FWD

OUTR OUTF

LEVEL SHIFT

2

LDCTL

3

NC

4

OPOUT1

5

NC

6

NC

7

OPOUT2

8

POWVCC VCC

9

VOL–

VOL+

10

11

VOL2–

12

VOL2+

VO1–

13

14

VO1+

REV

LEVEL SHIFT

MUTE

28

27

26

25

24

23

22

21 20 19

18

17

16

15

REV

OPIN4+

OPIN4–

OPOUT4

OPIN3+

OPIN3–

OPOUT3

MUTE

VOL+ GND

VOL3–

VOL3+

VOL4–

VOL4+

IC401 BD3806AFS-E2 (MAIN Board (1/3))

DGND

SDA

SCL

MUTE

SEL

ADJ

VCC

32 31 30 29 28 27 26 25 24 23 22

2

C BUS

I

LOGIC

BASS fo:60,70,80,100,120,140,160,200Hz Q:0.5,0.75,1,1.25

MIDDLE fo:500Hz,1kHz Q:1

TABLE fo:5,7.5,10,12.5kHz

VCO

FADER

(0~-58,

-∞dB)

TONE PASS

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

(+23~-79dB,-∞dB

fc:53.3kHz fc:53.3kHz

ANTI-ALIASING

OUTFROUTRROUTFLOUT

VCC

FADER

(0~-58,

-∞dB)

VOLUME

1dB STEP)

FILTER

TONE PASS

RL

FADER (0~-58,

-∞dB)

FADER (0~-58,

-∞dB)

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

VOLUME

(+23~-79dB,-∞dB

1dB STEP)

ANTI-ALIASING

FILTER

OUT

NC

21 20 19 18 17

2ND ORDER LPF fc:OFF,80,120,160Hz Q: 0.707

MIX

NC

SUB R

GAIN+ATT (+10~-29,

-∞dB)

2ND ORDER

LPF

OUT

SUB L

IC51 TDA7333013TR (MAIN Board (1/3))

INTERPOLATOR

1

VDDA

REF3

REF2

REF1

VSS

VDDD

RESETN

2

3

4

5

6

TM

7

8

INTN

MPX

RDS

DEMODULATOR &

SYNCHRONIZATION

RDSREG

BAND PASS

FILTER

RAM

BUFFER

&

CONTROL

LOGIC

INPUT GAIN

(0~15dB,1dB STEP)

MUTE

INPUT SELECTOR

(3 STEREO INCLUDE 1 ISOLATION INPUT)

VCC/2

3

SDAOUT SDAIN SCK SPI TESTREG

SIGMA DELTA

CONVERTER

TEST LOGIC

&

PIN MUX'S

OSCILLATOR

16

MPX

15

INTN

14

CSN

13

SA

12

SDA

11

SCL

10

XTO

9

XTI

AGND

FIL

AUX

RCH

AN

SINC4

FILTER

SINC4REG

I2C/SPI

INTERFACE

2

AUX

LCH

6 7 8 9 10 113 4 521

TU

CD

LCH

RCH

INPUT GAIN

(0~15dB,1dB STEP)

MUTE

CD

LCH

NC

12 14 1613 15

NC

CDX-GT10W/GT100/GT150/GT150S

1212

CDX-GT10W/GT100/GT150/GT150S

IC750 TDA8588BJ/N2/R1 (MAIN Board (2/3))

(GT150S)

IC750 TDA8588BJ/N2/R1/M5 (MAIN Board (2/3))

(GT100: AEP, UK)

TAB

1

OUT-FL-

3

PROTECTION/

DIAGNOSTIC

FL

RL

MUTE

VP

RR

OUT-FL+

OUT-RL-

OUT-RL+

IN-RL

S-GND

IN-RR

OUT-RR+

OUT-RR-

5

7

9

11

13

15

17

19

I2C BUS

10

12

14

16

18

2

4

6

8

SDA

SCL

VP2

PGND3

SVR

IN-FL

IN-FR

BEEP

PGND2

OUT-FR+

OUT-FR-

DIAG

ANT-REM

AMP-REM

SERVO3.3V

MECH6V

B.UP+B

VP

21

23

25

27

29

31

33

35

37

CHIP DETECT/

DIAGNOSTIC

SWITCH

REFERENCE

DETECTION

VOLTAGE

FR

BATTERY

STANDBY/

MUTE

TEMPERATURE

PROTECTION

LOADDUMP

PROTECTION

ENABLE

REGULATOR

BACK-UP

SWITCHREGULATOR

LOGIC

20

VP1

22

STB

24

PGND1

26

RST

CRES

28

30

AUDIO8.3V

32

GND

34

PANEL+B

36

CBU

13

CDX-GT10W/GT100/GT150/GT150S

EXPLODED VIEWS

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

2-1. MAIN SECTION

• Color Indication of Appearance Parts Example :

KNOB, BALANCE (WHITE) ... (RED)

• Accessories are given in the last of this parts list.

SECTION 2

RR

Parts Color Cabinet’s Color

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

A

not supplied

#1

A

MG-611XE-186//Q

B

4

5

3

#2

not supplied

7

FU601

#3

6

#1

TU1

not supplied

B

2

#1

1

Ref. No. Part No. Description Remark

1 X-2059-813-1 PANEL ASSY, SUB 2 3-042-244-11 SCREW (T) 3 X-3383-739-1 LOCK ASSY (S) 4 2-050-124-01 SCREW +BTT 2.6X5 5 A-1156-943-A MAIN BOARD, COMPLETE (GT150S)

5 A-1172-819-A MAIN BOARD, COMPLETE (GT100:AEP,UK) 6 2-021-848-01 SHEET (TU), GROUND 7 1-776-206-21 CORD (WITH CONNECTOR) (POWER) (GT150S)

14

#1

not supplied

Ref. No. Part No. Description Remark

7 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

(GT100:AEP,UK)

FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A TU1 A-3220-961-B TUNER UNIT (TUX-032) #1 7-685-792-09 SCREW +PTT 2.6X6 (S) #2 7-685-790-01 SCREW +PTT 2.6X4 (S)

#3 7-685-793-09 SCREW +PTT 2.6X8 (S)

2-2. FRONT PANEL SECTION

CDX-GT10W/GT100/GT150/GT150S

58

LCD901

not supplied

RE901

57

56

55

not supplied

60

not supplied (KEY board)

not supplied

60

59

61

not supplied

51

54

53

52

51 X-2103-315-1 BUTTON ASSY (S) (GT150S) 51 X-2108-724-1 BUTTON ASSY (S) (GT100:AEP,UK) 52 3-251-320-01 EMBLEM (NO. 2.5), SONY 53 X-2103-299-1 PANEL SUB ASSY, FRONT (GT150S) 53 X-2108-485-1 PANEL SUB ASSY, FRONT (GT100:AEP,UK)

54 X-2108-723-1 KNOB (VOL) (SV) ASSY 55 2-639-881-01 SPRING (RELEASE) 56 1-780-199-11 CONDUCTIVE BOARD, CONNECTION

not supplied

not supplied (JACK board)

Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

57 2-661-454-01 ILLUMINATOR (LCD) 58 A-1156-947-A PANEL ASSY, FRONT (GT150S) 58 A-1169-335-A PANEL ASSY, FRONT (GT100:AEP,UK) 59 2-652-792-01 PANEL, FRONT BACK 60 3-250-543-21 SCREW (+B P-TITE M2)

61 X-2055-358-1 CASE ASSY (for FRONT PANEL) (GT150S) LCD901 1-805-919-11 DISPLAY PANEL, LIQUID CRYSTAL RE901 1-478-474-12 ENCODER, ROTARY (PUSH SELECT/VOLUME)

15

CDX-GT10W/GT100/GT150/GT150S

2-3. CD MECHANISM SECTION (1)

(MG-611XE-186//Q)

not supplied

102

not supplied (SENSOR board)

not supplied

101

#4

not supplied

103

104

106

105

108

107

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 A-3372-444-C CHASSIS (T) SUB ASSY 102 3-253-729-11 SPRING (LR), TENSION COIL 103 3-257-892-12 SPRING (DAMPER), COIL (GREEN) 104 3-257-892-01 SPRING (DAMPER), COIL (NATURAL) 105 2-345-767-11 SPRING (KF60), TENSION

106 3-259-033-01 DAMPER (S) 107 2-587-505-01 SCREW 108 A-1082-775-A SERVO BOARD, COMPLETE #4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2

16

2-4. CD MECHANISM SECTION (2)

(MG-611XE-186//Q)

154

(including M901)

CDX-GT10W/GT100/GT150/GT150S

155

156

157

#5

SW4

151

not supplied

153

152

not supplied

M902

not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 A-1075-644-A CHASSIS (OP) COMPLETE ASSY 152 3-316-938-91 SCREW (B1.4X5), TAPPING

0 153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)

154 A-1075-645-A CHASSIS (OP) SUB ASSY (including M901) 155 A-3372-449-A ARM SUB ASSY, CHUCKING

156 A-3372-446-A LEVER (SL) SUB ASSY 157 X-3384-090-3 LEVER (SL) ASSY M902 A-3372-447-A MOTOR ASSY, SL (SLED) SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT) #5 7-627-850-77 SCREW, PRECISION +P 1.4X1.8

17

CDX-GT10W/GT100/GT150/GT150S

2-5. CD MECHANISM SECTION (3)

(MG-611XE-186//Q)

209

207

208

201

202

207

#4

M903

206

207

210

203

211

204

205

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 3-348-993-01 WASHER 202 2-186-699-01 GEAR (RA1) 203 A-1075-641-C ARM ASSY, ROLLER 204 2-635-295-11 SPRING (RAL-B) 205 2-635-296-11 SPRING (RAR-B)

206 3-259-469-12 SPRING (LE), LEAF 207 2-134-636-21 SCREW (M1.7X2.5)

208 2-186-696-02 BRACKET (LEM-N) 209 3-345-648-91 SCREW (M1.4), TOOTHED LOCK 210 A-1083-636-A GEAR (LE) ASSY 211 2-186-697-01 BEARING (LEB-N) M903 A-1166-300-A MOTOR ASSY (B), LE (LOADING)

#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2

18

2-6. CD MECHANISM SECTION (4)

(MG-611XE-186//Q)

252

CDX-GT10W/GT100/GT150/GT150S

254

255

251

258

256

253

257

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 2-186-700-01 GEAR (CHK1) 252 3-344-223-01 WASHER 253 3-259-470-12 GEAR (LE1) 254 3-253-755-41 LEVER (D)

255 2-630-962-01 WASHER (SLIT) 256 2-590-545-31 GEAR (LE2-M) 257 A-1075-640-B CHASSIS (M) BLOCK ASSY 258 3-348-993-01 WASHER

19

CDX-GT10W/GT100/GT150/GT150S

SECTION 3

JACK KEY

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

JACK BOARD

***********

< JUMPER RESISTOR >

FB901 1-216-864-11 SHORT CHIP 0 FB902 1-216-864-11 SHORT CHIP 0 FB903 1-216-295-11 SHORT CHIP 0

< JACK >

J901 1-819-732-11 JACK (DIA. 3.5) (AUX)

*************************************************************

ELECTRICAL PARTS LIST

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA..: µPA.. uPB.. : µPB.. uPC..: µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

LED917 8-719-053-09 LED SML-310VTT86 (5) LED918 8-719-053-09 LED SML-310VTT86 (6) LED919 8-719-053-09 LED SML-310VTT86 (AF/TA) (GT100:AEP,UK) LED919 8-719-053-09 LED SML-310VTT86 (SENS) (GT150S) LED932 6-501-339-01 LED NESW505CT-AST (LCD BACK LIGHT)

LED941 8-719-053-09 LED SML-310VTT86 (RE LIGHT) LED942 8-719-053-09 LED SML-310VTT86 (RE LIGHT) LED943 8-719-053-09 LED SML-310VTT86 (RE LIGHT) LED944 8-719-053-09 LED SML-310VTT86 (RE LIGHT) LED951 8-719-053-09 LED SML-310VTT86 (DISC INDICATOR)

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

< RESISTOR >

KEY BOARD

**********

< CAPACITOR >

C921 1-163-031-11 CERAMIC CHIP 0.01uF 50V C922 1-163-031-11 CERAMIC CHIP 0.01uF 50V C981 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C983 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C984 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C986 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V

< CONNECTOR >

CN901 1-819-758-11 PLUG, CONNECTOR 15P

< DIODE >

D901 6-500-886-01 DIODE RSA6.1ENTR D903 8-719-083-66 DIODE UDZSTE-1718B D981 8-719-069-54 DIODE UDZSTE-175.1B D982 8-719-988-61 DIODE 1SS355TE-17

< IC >

IC901 6-707-063-01 IC LC75826WH-US-E

< DIODE >

LED908 8-719-053-09 LED SML-310VTT86 (EQ3) LED911 8-719-053-09 LED SML-310VTT86 (PTY) (GT100:AEP,UK) LED911 8-719-053-09 LED SML-310VTT86 (BTM) (GT150S) LED912 8-719-053-09 LED SML-310VTT86 (MODE) LED913 8-719-053-09 LED SML-310VTT86 (1)

LED914 8-719-053-09 LED SML-310VTT86 (2) LED915 8-719-053-09 LED SML-310VTT86 (3) LED916 8-719-053-09 LED SML-310VTT86 (4)

LED952 1-216-813-11 METAL CHIP 220 5% 1/10W

< SWITCH >

LSW901 1-786-805-12 SWITCH, TACTILE (WITH LED) (Z) LSW902 1-786-805-12 SWITCH, TACTILE (WITH LED) (OFF) LSW903 1-786-805-12 SWITCH, TACTILE (WITH LED) (SOURCE) LSW909 1-786-805-12 SWITCH, TACTILE (WITH LED)

(SEEK+ M >)

LSW910 1-786-805-12 SWITCH, TACTILE (WITH LED)

(SEEK– . m)

LSW920 1-786-805-12 SWITCH, TACTILE (WITH LED) (DSPL/DIM)

< TRANSISTOR >

Q931 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q932 8-729-027-58 TRANSISTOR DTC143ZKA-T146

< RESISTOR >

R899 1-216-864-11 SHORT CHIP 0 R901 1-216-819-11 METAL CHIP 680 5% 1/10W R902 1-216-819-11 METAL CHIP 680 5% 1/10W R903 1-216-819-11 METAL CHIP 680 5% 1/10W R904 1-216-821-11 METAL CHIP 1K 5% 1/10W

R906 1-216-819-11 METAL CHIP 680 5% 1/10W R907 1-216-819-11 METAL CHIP 680 5% 1/10W R908 1-216-819-11 METAL CHIP 680 5% 1/10W R909 1-216-821-11 METAL CHIP 1K 5% 1/10W R910 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R911 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R912 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R913 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R914 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R915 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

20

CDX-GT10W/GT100/GT150/GT150S

MAINKEY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R916 1-216-833-11 METAL CHIP 10K 5% 1/10W R917 1-216-835-11 METAL CHIP 15K 5% 1/10W R918 1-216-837-11 METAL CHIP 22K 5% 1/10W R921 1-216-041-00 RES-CHIP 470 5% 1/10W R922 1-216-041-00 RES-CHIP 470 5% 1/10W

S914 1-786-653-21 SWITCH, TACTILE (2) (GT100:AEP,UK) S915 1-786-653-11 SWITCH, TACTILE (3/REP) (GT150S) S915 1-786-653-21 SWITCH, TACTILE (3/REP) (GT100:AEP,UK) S916 1-786-653-11 SWITCH, TACTILE (4/SHUF) (GT150S) S916 1-786-653-21 SWITCH, TACTILE (4/SHUF) (GT100:AEP,UK)

R923 1-216-041-00 RES-CHIP 470 5% 1/10W R924 1-216-041-00 RES-CHIP 470 5% 1/10W R931 1-216-031-00 RES-CHIP 180 5% 1/10W R932 1-216-031-00 RES-CHIP 180 5% 1/10W R933 1-216-031-00 RES-CHIP 180 5% 1/10W

R934 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R941 1-216-033-00 RES-CHIP 220 5% 1/10W R942 1-216-033-00 RES-CHIP 220 5% 1/10W R944 1-216-031-00 RES-CHIP 180 5% 1/10W R945 1-216-031-00 RES-CHIP 180 5% 1/10W

R946 1-216-027-00 RES-CHIP 120 5% 1/10W R947 1-216-029-00 RES-CHIP 150 5% 1/10W R948 1-216-033-00 RES-CHIP 220 5% 1/10W R949 1-216-033-00 RES-CHIP 220 5% 1/10W R950 1-216-027-00 RES-CHIP 120 5% 1/10W

R951 1-216-029-00 RES-CHIP 150 5% 1/10W R953 1-216-037-00 RES-CHIP 330 5% 1/10W R954 1-216-037-00 RES-CHIP 330 5% 1/10W R955 1-216-031-00 RES-CHIP 180 5% 1/10W R956 1-216-031-00 RES-CHIP 180 5% 1/10W

R957 1-216-033-00 RES-CHIP 220 5% 1/10W R958 1-216-033-00 RES-CHIP 220 5% 1/10W R961 1-216-033-00 RES-CHIP 220 5% 1/10W R962 1-216-033-00 RES-CHIP 220 5% 1/10W R963 1-216-033-00 RES-CHIP 220 5% 1/10W

R964 1-216-033-00 RES-CHIP 220 5% 1/10W R974 1-216-864-11 SHORT CHIP 0 R976 1-216-864-11 SHORT CHIP 0 R977 1-216-809-11 METAL CHIP 100 5% 1/10W R978 1-216-809-11 METAL CHIP 100 5% 1/10W

R979 1-216-809-11 METAL CHIP 100 5% 1/10W R981 1-216-811-11 METAL CHIP 150 5% 1/10W R982 1-216-811-11 METAL CHIP 150 5% 1/10W R984 1-216-821-11 METAL CHIP 1K 5% 1/10W R985 1-216-821-11 METAL CHIP 1K 5% 1/10W

R986 1-216-821-11 METAL CHIP 1K 5% 1/10W R987 1-216-857-11 METAL CHIP 1M 5% 1/10W R991 1-216-864-11 SHORT CHIP 0 R995 1-216-031-00 RES-CHIP 180 5% 1/10W R996 1-216-035-00 RES-CHIP 270 5% 1/10W

R997 1-216-037-00 RES-CHIP 330 5% 1/10W R998 1-216-033-00 RES-CHIP 220 5% 1/10W

< SWITCH >

S908 1-786-653-11 SWITCH, TACTILE (EQ3) (GT150S) S908 1-786-653-21 SWITCH, TACTILE (EQ3) (GT100:AEP,UK) S911 1-786-653-11 SWITCH, TACTILE (BTM) (GT150S) S911 1-786-653-21 SWITCH, TACTILE (PTY/BTM) (GT100:AEP,UK) S912 1-786-653-11 SWITCH, TACTILE (MODE) (GT150S)

S912 1-786-653-21 SWITCH, TACTILE (MODE) (GT100:AEP,UK) S913 1-786-653-11 SWITCH, TACTILE (1) (GT150S) S913 1-786-653-21 SWITCH, TACTILE (1) (GT100:AEP,UK) S914 1-786-653-11 SWITCH, TACTILE (2) (GT150S)

S917 1-786-653-11 SWITCH, TACTILE (5) (GT150S) S917 1-786-653-21 SWITCH, TACTILE (5) (GT100:AEP,UK) S918 1-786-653-11 SWITCH, TACTILE (6) (GT150S) S918 1-786-653-21 SWITCH, TACTILE (6) (GT100:AEP,UK) S919 1-786-653-11 SWITCH, TACTILE (SENS) (GT150S)

S919 1-786-653-21 SWITCH, TACTILE (AF/TA) (GT100:AEP,UK)

*************************************************************

A-1156-943-A MAIN BOARD, COMPLETE (GT150S) A-1172-819-A MAIN BOARD, COMPLETE (GT100:AEP,UK)

*********************

7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT 7-685-794-09 SCREW +PTT 2.6X10 (S)

< CAPACITOR >

C1 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(GT100:AEP,UK)

C2 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(GT100:AEP,UK)

C3 1-126-963-11 ELECT 4.7uF 20% 50V

(GT100:AEP,UK) C4 1-126-947-11 ELECT 47uF 20% 35V C5 1-126-947-11 ELECT 47uF 20% 35V

C6 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C7 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C12 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C13 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C51 1-126-947-11 ELECT 47uF 20% 35V

(GT100:AEP,UK)

C53 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK) C54 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK) C55 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK) C56 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK) C57 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK)

C58 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(GT100:AEP,UK) C59 1-164-237-11 CERAMIC CHIP 16PF 5% 50V

(GT100:AEP,UK) C60 1-162-916-11 CERAMIC CHIP 12PF 5% 50V

(GT100:AEP,UK) C62 1-162-959-11 CERAMIC CHIP 330PF 5% 50V

(GT100:AEP,UK) C301 1-128-551-11 ELECT 22uF 20% 63V

C302 1-104-665-11 ELECT 100uF 20% 25V C303 1-128-551-11 ELECT 22uF 20% 63V C305 1-104-665-11 ELECT 100uF 20% 25V C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C308 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

21

CDX-GT10W/GT100/GT150/GT150S

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C401 1-126-964-11 ELECT 10uF 20% 50V C404 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C405 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C406 1-126-960-11 ELECT 1uF 20% 50V C407 1-126-960-11 ELECT 1uF 20% 50V

C765 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C769 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C770 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C771 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C774 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V

C410 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C411 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C412 1-126-934-11 ELECT 220uF 20% 16V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C431 1-126-964-11 ELECT 10uF 20% 50V

C432 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C435 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C441 1-126-964-11 ELECT 10uF 20% 50V C442 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C445 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C451 1-126-964-11 ELECT 10uF 20% 50V C452 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C455 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C461 1-126-964-11 ELECT 10uF 20% 50V C462 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C465 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C471 1-126-964-11 ELECT 10uF 20% 50V C474 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C479 1-126-947-11 ELECT 47uF 20% 35V C481 1-126-964-11 ELECT 10uF 20% 50V

C484 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C501 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C502 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C503 1-104-665-11 ELECT 100uF 20% 25V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C775 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C776 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C901 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C902 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C903 1-126-961-11 ELECT 2.2uF 20% 50V

C905 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C917 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V C918 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V

< CONNECTOR >

CN601 1-774-701-21 PIN, CONNECTOR 16P CN701 1-819-773-11 SOCKET, CONNECTOR 15P CNP301 1-817-536-11 CONNECTOR, BOARD TO BOARD 28P

< DIODE >

D1 6-501-168-01 DIODE UDZW-TE17-5.6B D479 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D580 6-501-171-01 DIODE UDZW-TE17-7.5B D581 6-501-180-01 DIODE UDZW-TE17-18B

D601 8-719-049-38 DIODE 1N5404TU D609 6-501-170-01 DIODE UDZW-TE17-6.8B D617 6-501-180-01 DIODE UDZW-TE17-18B D651 6-501-180-01 DIODE UDZW-TE17-18B (GT100:AEP,UK) D704 1-216-295-11 SHORT CHIP 0

C507 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C508 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C509 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C511 1-104-665-11 ELECT 100uF 20% 25V

C512 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C513 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C514 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C516 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(GT100:AEP,UK)

C516 1-216-864-11 SHORT CHIP 0 (GT150S)

C519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C601 1-131-868-81 ELECT 3300uF 20% 16V C602 1-165-319-11 CERAMIC CHIP 0.1uF 50V C617 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C618 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C622 1-126-916-11 ELECT 1000uF 20% 6.3V C623 1-126-916-11 ELECT 1000uF 20% 6.3V C631 1-126-960-11 ELECT 1uF 20% 50V C750 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C751 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V

C753 1-128-551-11 ELECT 22uF 20% 63V C754 1-126-961-11 ELECT 2.2uF 20% 50V C755 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C756 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C758 1-126-964-11 ELECT 10uF 20% 50V

D719 6-501-180-01 DIODE UDZW-TE17-18B D751 6-500-522-01 DIODE 10EDB40-TA1B2 D752 6-500-522-01 DIODE 10EDB40-TA1B2 D753 6-500-522-01 DIODE 10EDB40-TA1B2 D754 6-500-522-01 DIODE 10EDB40-TA1B2

D755 6-500-522-01 DIODE 10EDB40-TA1B2 D756 6-500-522-01 DIODE 10EDB40-TA1B2 D757 6-500-522-01 DIODE 10EDB40-TA1B2 D758 6-500-522-01 DIODE 10EDB40-TA1B2 D759 6-500-522-01 DIODE 10EDB40-TA1B2

D760 6-500-522-01 DIODE 10EDB40-TA1B2 D761 6-500-522-01 DIODE 10EDB40-TA1B2 D762 6-500-522-01 DIODE 10EDB40-TA1B2 D903 6-501-170-01 DIODE UDZW-TE17-6.8B

< FERRITE BEAD >

FB1 1-500-245-11 INDUCTOR, FERRITE BEAD FB301 1-216-864-11 SHORT CHIP 0 FB302 1-216-864-11 SHORT CHIP 0 FB303 1-469-876-11 INDUCTOR, FERRITE BEAD FB304 1-216-295-11 SHORT CHIP 0

FB305 1-500-245-11 INDUCTOR, FERRITE BEAD FB306 1-500-245-11 INDUCTOR, FERRITE BEAD FB307 1-216-864-11 SHORT CHIP 0 FB310 1-216-864-11 SHORT CHIP 0 FB311 1-216-864-11 SHORT CHIP 0

C763 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C764 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V

22

FB410 1-216-864-11 SHORT CHIP 0 (GT150S) FB410 1-414-595-11 INDUCTOR, FERRITE BEAD (GT100:AEP,UK)

CDX-GT10W/GT100/GT150/GT150S

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

FB411 1-216-864-11 SHORT CHIP 0 (GT150S) FB411 1-414-595-11 INDUCTOR, FERRITE BEAD (GT100:AEP,UK) FB501 1-216-295-11 SHORT CHIP 0 FB603 1-216-295-11 SHORT CHIP 0 FB604 1-500-245-11 INDUCTOR, FERRITE BEAD

Q479 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q481 6-550-752-01 TRANSISTOR DTC614TKT146 Q580 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q581 1-801-806-11 TRANSISTOR DTC144EKA Q582 8-729-120-28 TRANSISTOR 2SC1623-L5L6

FB605 1-216-864-11 SHORT CHIP 0 FB606 1-216-864-11 SHORT CHIP 0

< FUSE >

FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

< IC >

IC51 6-803-747-01 IC TDA7333013TR (GT100:AEP,UK) IC401 6-708-880-01 IC BD3806AFS-E2 IC501 6-806-366-01 IC MB90488BPF-G-186E1 IC602 8-759-659-13 IC PST3428UL IC750 6-705-363-02 IC TDA8589BJ/N2/R1 (GT150S)

IC750 6-705-363-11 IC TDA8589BJ/N2/R1/M5 (GT100:AEP,UK) IC901 8-759-681-42 IC NJM12902V(TE2)

< JACK >

J1 1-815-185-13 JACK (ANTENNA) J330 1-774-698-11 JACK, PIN 2P (AUDIO OUT REAR)

< JUMPER RESISTOR >

JC1 1-216-864-11 SHORT CHIP 0 JC501 1-216-864-11 SHORT CHIP 0 JC504 1-216-864-11 SHORT CHIP 0 JC534 1-216-864-11 SHORT CHIP 0 JC536 1-216-864-11 SHORT CHIP 0

Q631 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q651 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (GT100:AEP,UK) Q664 8-729-027-23 TRANSISTOR DTA114EKA-T146

< RESISTOR >

R1 1-216-821-11 METAL CHIP 1K 5% 1/10W R2 1-414-595-11 INDUCTOR, FERRITE BEAD R3 1-414-595-11 INDUCTOR, FERRITE BEAD R4 1-216-839-11 METAL CHIP 33K 5% 1/10W R5 1-216-843-11 METAL CHIP 68K 5% 1/10W

R6 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GT100:AEP,UK) R7 1-216-843-11 METAL CHIP 68K 5% 1/10W

(GT100:AEP,UK) R8 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GT100:AEP,UK) R9 1-216-843-11 METAL CHIP 68K 5% 1/10W

(GT100:AEP,UK) R12 1-414-595-11 INDUCTOR, FERRITE BEAD

R13 1-414-595-11 INDUCTOR, FERRITE BEAD R29 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT100:AEP,UK) R51 1-216-797-11 METAL CHIP 10 5% 1/10W

(GT100:AEP,UK) R52 1-216-803-11 METAL CHIP 33 5% 1/10W

(GT100:AEP,UK) R53 1-414-595-11 INDUCTOR, FERRITE BEAD (GT100:AEP,UK)

JC681 1-216-864-11 SHORT CHIP 0 JC753 1-216-296-11 SHORT CHIP 0 JC754 1-216-296-11 SHORT CHIP 0 JC755 1-216-296-11 SHORT CHIP 0 JC756 1-216-864-11 SHORT CHIP 0

JC795 1-216-864-11 SHORT CHIP 0

< RESISTOR >

JW52 1-249-425-11 CARBON 4.7K 5% 1/4W

< COIL >

L1 1-469-844-11 INDUCTOR 2.2uH L51 1-216-295-11 SHORT CHIP 0 (GT100:AEP,UK) L301 1-216-295-11 SHORT CHIP 0 L501 1-216-295-11 SHORT CHIP 0 L601 1-456-617-11 COIL, CHOKE

< TRANSISTOR >

Q1 6-551-431-01 TRANSISTOR 2SC6027T100-QR Q22 1-801-806-11 TRANSISTOR DTC144EKA (GT100:AEP,UK) Q51 8-729-600-22 TRANSISTOR 2SA1235-F (GT100:AEP,UK) Q431 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q441 8-729-027-44 TRANSISTOR DTC114TKA-T146

Q451 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q461 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q471 6-550-752-01 TRANSISTOR DTC614TKT146 Q478 1-801-806-11 TRANSISTOR DTC144EKA

R54 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT100:AEP,UK) R55 1-216-864-11 SHORT CHIP 0 (GT100:AEP,UK) R56 1-414-595-11 INDUCTOR, FERRITE BEAD (GT100:AEP,UK) R57 1-414-595-11 INDUCTOR, FERRITE BEAD (GT100:AEP,UK) R58 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT100:AEP,UK)

R59 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT100:AEP,UK) R60 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT100:AEP,UK) R61 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT100:AEP,UK) R301 1-216-821-11 METAL CHIP 1K 5% 1/10W R302 1-216-821-11 METAL CHIP 1K 5% 1/10W

R401 1-216-797-11 METAL CHIP 10 5% 1/10W R405 1-218-881-11 METAL CHIP 27K 0.5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W

R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-821-11 METAL CHIP 1K 5% 1/10W R432 1-216-841-11 METAL CHIP 47K 5% 1/10W

R441 1-216-821-11 METAL CHIP 1K 5% 1/10W R442 1-216-841-11 METAL CHIP 47K 5% 1/10W R451 1-216-821-11 METAL CHIP 1K 5% 1/10W

23

CDX-GT10W/GT100/GT150/GT150S

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R452 1-216-841-11 METAL CHIP 47K 5% 1/10W R461 1-216-821-11 METAL CHIP 1K 5% 1/10W R462 1-216-841-11 METAL CHIP 47K 5% 1/10W R471 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-841-11 METAL CHIP 47K 5% 1/10W

R479 1-216-805-11 METAL CHIP 47 5% 1/10W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-841-11 METAL CHIP 47K 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-821-11 METAL CHIP 1K 5% 1/10W

R504 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R505 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R506 1-216-845-11 METAL CHIP 100K 5% 1/10W R507 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150S)

R508 1-216-864-11 SHORT CHIP 0

R509 1-216-812-11 METAL CHIP 180 5% 1/10W R510 1-216-821-11 METAL CHIP 1K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-821-11 METAL CHIP 1K 5% 1/10W R513 1-216-845-11 METAL CHIP 100K 5% 1/10W

R514 1-216-845-11 METAL CHIP 100K 5% 1/10W R515 1-247-807-31 CARBON 100 5% 1/4W R516 1-247-807-31 CARBON 100 5% 1/4W R517 1-216-841-11 METAL CHIP 47K 5% 1/10W R518 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R519 1-216-845-11 METAL CHIP 100K 5% 1/10W R521 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R523 1-216-821-11 METAL CHIP 1K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W

R525 1-216-821-11 METAL CHIP 1K 5% 1/10W R526 1-216-809-11 METAL CHIP 100 5% 1/10W R527 1-216-821-11 METAL CHIP 1K 5% 1/10W R528 1-216-845-11 METAL CHIP 100K 5% 1/10W R529 1-216-821-11 METAL CHIP 1K 5% 1/10W

R558 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT150S) R559 1-216-845-11 METAL CHIP 100K 5% 1/10W R560 1-216-845-11 METAL CHIP 100K 5% 1/10W R561 1-216-845-11 METAL CHIP 100K 5% 1/10W R563 1-216-845-11 METAL CHIP 100K 5% 1/10W

R564 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT100:AEP,UK) R565 1-216-845-11 METAL CHIP 100K 5% 1/10W R566 1-216-845-11 METAL CHIP 100K 5% 1/10W R567 1-216-845-11 METAL CHIP 100K 5% 1/10W R568 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT150S)

R570 1-216-817-11 METAL CHIP 470 5% 1/10W R571 1-216-845-11 METAL CHIP 100K 5% 1/10W R572 1-216-809-11 METAL CHIP 100 5% 1/10W R573 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT100:AEP,UK) R575 1-216-845-11 METAL CHIP 100K 5% 1/10W

R577 1-216-845-11 METAL CHIP 100K 5% 1/10W R582 1-216-821-11 METAL CHIP 1K 5% 1/10W R583 1-216-821-11 METAL CHIP 1K 5% 1/10W R584 1-216-841-11 METAL CHIP 47K 5% 1/10W R585 1-216-849-11 METAL CHIP 220K 5% 1/10W

R601 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-821-11 METAL CHIP 1K 5% 1/10W R631 1-249-425-11 CARBON 4.7K 5% 1/4W R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R633 1-216-841-11 METAL CHIP 47K 5% 1/10W

R634 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R636 1-216-845-11 METAL CHIP 100K 5% 1/10W R651 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT100:AEP,UK) R652 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT100:AEP,UK) R653 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT100:AEP,UK)

R530 1-216-845-11 METAL CHIP 100K 5% 1/10W R531 1-216-845-11 METAL CHIP 100K 5% 1/10W R532 1-216-845-11 METAL CHIP 100K 5% 1/10W R533 1-216-845-11 METAL CHIP 100K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W

R535 1-216-845-11 METAL CHIP 100K 5% 1/10W R536 1-216-845-11 METAL CHIP 100K 5% 1/10W R537 1-216-845-11 METAL CHIP 100K 5% 1/10W R539 1-216-864-11 SHORT CHIP 0 R540 1-216-845-11 METAL CHIP 100K 5% 1/10W

R541 1-216-845-11 METAL CHIP 100K 5% 1/10W R543 1-216-821-11 METAL CHIP 1K 5% 1/10W R544 1-216-821-11 METAL CHIP 1K 5% 1/10W R545 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150S)

R546 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT150S)

R550 1-216-845-11 METAL CHIP 100K 5% 1/10W R551 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT100:AEP,UK)

R556 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT150S)

R557 1-216-809-11 METAL CHIP 100 5% 1/10W

R654 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT100:AEP,UK) R661 1-216-821-11 METAL CHIP 1K 5% 1/10W R662 1-216-845-11 METAL CHIP 100K 5% 1/10W R663 1-216-821-11 METAL CHIP 1K 5% 1/10W R664 1-216-845-11 METAL CHIP 100K 5% 1/10W

R671 1-216-809-11 METAL CHIP 100 5% 1/10W R672 1-216-809-11 METAL CHIP 100 5% 1/10W R673 1-216-833-11 METAL CHIP 10K 5% 1/10W R674 1-216-845-11 METAL CHIP 100K 5% 1/10W R675 1-216-821-11 METAL CHIP 1K 5% 1/10W

R676 1-216-821-11 METAL CHIP 1K 5% 1/10W R677 1-216-864-11 SHORT CHIP 0 R680 1-216-821-11 METAL CHIP 1K 5% 1/10W R681 1-216-821-11 METAL CHIP 1K 5% 1/10W R694 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT100:AEP,UK)

R752 1-216-811-11 METAL CHIP 150 5% 1/10W R756 1-216-841-11 METAL CHIP 47K 5% 1/10W R757 1-216-864-11 SHORT CHIP 0 R901 1-216-817-11 METAL CHIP 470 5% 1/10W R902 1-216-817-11 METAL CHIP 470 5% 1/10W

24

CDX-GT10W/GT100/GT150/GT150S

SENSOR SERVOMAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R903 1-216-834-11 METAL CHIP 12K 5% 1/10W R904 1-216-834-11 METAL CHIP 12K 5% 1/10W R905 1-216-841-11 METAL CHIP 47K 5% 1/10W R906 1-216-841-11 METAL CHIP 47K 5% 1/10W R907 1-216-845-11 METAL CHIP 100K 5% 1/10W

C34 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C35 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C36 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C37 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C38 1-104-609-11 ELECT CHIP 100uF 20% 4V

R910 1-216-789-11 METAL CHIP 2.2 5% 1/10W R911 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R912 1-216-864-11 SHORT CHIP 0 R913 1-216-864-11 SHORT CHIP 0 R914 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

< SWITCH >

S502 1-571-478-11 SWITCH, SLIDE (FREQUENCY SELECT)

(GT150S)

S702 1-692-431-21 SWITCH, TACTILE (RESET)

< TUNER UNIT >

TU1 A-3220-961-B TUNER UNIT (TUX-032)

< VIBRATOR >

X51 1-813-173-11 VIBRATOR, CRYSTAL (8.664MHz)

(GT100:AEP,UK) X501 1-813-524-21 VIBRATOR, CERAMIC (18.432MHz) X502 1-813-202-11 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

SENSOR BOARD

**************

< SWITCH >

SW2 1-529-566-61 SWITCH, PUSH (1 KEY) (SELF) SW3 1-529-566-61 SWITCH, PUSH (1 KEY) (DISC IN)

*************************************************************

A-1082-775-A SERVO BOARD, COMPLETE

**********************

< CAPACITOR >

C1 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C5 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6 1-100-381-11 ELECT CHIP 10uF 20% 16V C7 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C11 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C13 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C17 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C19 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C20 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C21 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C23 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C25 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C26 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C27 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C28 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C29 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C30 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C31 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C32 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C39 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C70 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C71 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C72 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C73 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C74 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C75 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C76 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C77 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C78 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C79 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

< CONNECTOR >

CN1 1-817-275-21 CONNECTOR, BOARD TO BOARD 28P CN2 1-815-016-61 CONNECTOR, FFC/FPC (ZIF) 16P

< FERRITE BEAD >

FB1 1-216-864-11 SHORT CHIP 0 FB2 1-414-760-21 FERRITE, EMI (SMD) (1608) FB3 1-414-760-21 FERRITE, EMI (SMD) (1608)

< IC >

IC1 6-703-699-01 IC uPD63712GC-8EU-A IC2 6-705-002-01 IC BA5966FP-FE2

< FERRITE BEAD >

JR40 1-414-760-21 FERRITE, EMI (SMD) (1608) JR41 1-414-760-21 FERRITE, EMI (SMD) (1608) JR90 1-414-760-21 FERRITE, EMI (SMD) (1608) JR91 1-414-760-21 FERRITE, EMI (SMD) (1608)

< TRANSISTOR >

Q1 8-729-904-87 TRANSISTOR 2SB1197K-R

< RESISTOR >

R1 1-216-841-11 METAL CHIP 47K 5% 1/10W R2 1-216-809-11 METAL CHIP 100 5% 1/10W R3 1-216-809-11 METAL CHIP 100 5% 1/10W R4 1-216-809-11 METAL CHIP 100 5% 1/10W R5 1-216-809-11 METAL CHIP 100 5% 1/10W

R6 1-216-833-11 METAL CHIP 10K 5% 1/10W R7 1-216-840-11 METAL CHIP 39K 5% 1/10W R8 1-414-760-21 FERRITE, EMI (SMD) (1608) R9 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R10 1-414-760-21 FERRITE, EMI (SMD) (1608)

R11 1-216-833-11 METAL CHIP 10K 5% 1/10W R12 1-216-809-11 METAL CHIP 100 5% 1/10W R13 1-216-833-11 METAL CHIP 10K 5% 1/10W R14 1-216-797-11 METAL CHIP 10 5% 1/10W R15 1-216-797-11 METAL CHIP 10 5% 1/10W

R41 1-216-821-11 METAL CHIP 1K 5% 1/10W R42 1-216-821-11 METAL CHIP 1K 5% 1/10W

25

CDX-GT10W/GT100/GT150/GT150S

SERVO

Ref. No. Part No. Description Remark

R44 1-414-760-21 FERRITE, EMI (SMD) (1608) R45 1-414-760-21 FERRITE, EMI (SMD) (1608) R70 1-216-842-11 METAL CHIP 56K 5% 1/10W R71 1-216-833-11 METAL CHIP 10K 5% 1/10W R72 1-216-842-11 METAL CHIP 56K 5% 1/10W

R73 1-216-833-11 METAL CHIP 10K 5% 1/10W R74 1-216-837-11 METAL CHIP 22K 5% 1/10W R75 1-216-833-11 METAL CHIP 10K 5% 1/10W R76 1-216-837-11 METAL CHIP 22K 5% 1/10W R77 1-216-833-11 METAL CHIP 10K 5% 1/10W

R78 1-216-833-11 METAL CHIP 10K 5% 1/10W R79 1-216-833-11 METAL CHIP 10K 5% 1/10W R80 1-216-833-11 METAL CHIP 10K 5% 1/10W R81 1-216-833-11 METAL CHIP 10K 5% 1/10W R82 1-216-837-11 METAL CHIP 22K 5% 1/10W

R83 1-216-833-11 METAL CHIP 10K 5% 1/10W R84 1-216-837-11 METAL CHIP 22K 5% 1/10W R85 1-216-833-11 METAL CHIP 10K 5% 1/10W

< SWITCH >

SW1 1-529-565-61 SWITCH, PUSH (1 KEY) (DOWN)

< VIBRATOR >

X1 1-795-562-21 VIBRATOR, CERAMIC (16.9344MHz)

*************************************************************

Ref. No. Part No. Description Remark

PARTS FOR INSTALLATION AND CONNECTIONS

***************************************

301 X-3382-647-1 FRAME ASSY, FITTING 302 2-633-239-01 COLLAR 303 3-246-471-01 KEY (FRAME) 304 X-3381-154-1 SCREW ASSY (BS4), FITTING (GT150S) 305 X-3382-926-1 SCREW ASSY (BS), FITTING (GT100:AEP,UK)

306 3-349-410-11 BUSHING 307 1-465-459-31 ADAPTOR, ANTENNA (GT100:AEP,UK) 308 1-776-206-21 CORD (WITH CONNECTOR) (POWER) (GT150S) 309 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

(GT100:AEP,UK)

301

302

303

× 2

304

305

306

× 4

307

308

309

MISCELLANEOUS

***************

7 1-776-206-21 CORD (WITH CONNECTOR) (POWER) (GT150S) 7 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

56 1-780-199-11 CONDUCTIVE BOARD, CONNECTION

0 153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)

154 A-1075-645-A CHASSIS (OP) SUB ASSY (including M901)

LCD901 1-805-919-11 DISPLAY PANEL, LIQUID CRYSTAL M902 A-3372-447-A MOTOR ASSY, SL (SLED) M903 A-1166-300-A MOTOR ASSY (B), LE (LOADING) RE901 1-478-474-12 ENCODER, ROTARY (PUSH SELECT/VOLUME) SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT)

*************************************************************

ACCESSORIES

************

2-668-436-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN,

FRENCH,ITALIAN,DUTCH)

2-668-436-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,

2-669-722-12 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

GERMAN,FRENCH,ITALIAN,DUTCH)

2-669-722-41 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

SPANISH,SIMPLIFIED CHINESE)

X-2055-358-1 CASE ASSY (for FRONT PANEL) (GT150S)

*************************************************************

(GT100:AEP,UK)

SIMPLIFIED CHINESE)

(GT150S)

(GT100:AEP,UK)

(GT150S)

26

MEMO

CDX-GT10W/GT100/GT150/GT150S

27

CDX-GT10W/GT100/GT150/GT150S

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2005. 09 New

1.1 2006. 02

1.2 2006. 03 Chinese model addition of CDX-GT150.

1.3 2006. 03 Chinese model addition of CDX-GT150S.

1.4 2006. 05 Correction of RF level. (SPM-06010)

Production country change of CDX-GT150S. AEP, UK model addition of CDX-GT100. (ENG-06001)

28

SONY CDX GT35U Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

GENERAL

DISASSEMBLY

CD mechanism block

sub panel assy

MAIN board

chassis (T) sub assy

roller arm assy

chassis (OP) assy

optical pick-up

SL motor assy (M902)

SERVO board

DIAGRAMS

EXPLODED VIEWS

ELECTRICAL PARTS LIST

JACK KEY

MAINKEY

SENSOR SERVOMAIN

SUPPLEMENT-1

TABLE OF CONTENTS

DIAGRAMS

EXPLODED VIEWS

JACK KEY

ELECTRICAL PARTS LIST

MAINKEY

SENSOR SERVOMAIN

REVISION HISTORY
