Welcome!

Thank you for purchasing the Sony Compact Disc Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for model CDP-XA7ES, CDP-XA5ES and CDP-XA3ES. The CDP-XA5ES is the model used for illustration purposes, unless otherwise mentioned. Any difference in operation is clearly indicated in the text, for example,

"CDP-XA7ES only."

Conventions

• Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or simil. names as those on the player.

• The following icons are used in this manual

Indicates that you can do the task using the remote.

Indicates hints and tips for making the task easier.

Table of contents

Playing a CD...................................................................................................................................................4

Getting Started

Unpacking.............................................................................................................................................6

Hooking Up the Systena (for CDP-XA7ES)....................................................................................6

Hooking Up the System (for CDP-XA5ES/XA3ES)

Playing CDs

Using the Display...............................................................................................................................10

Locating a Specific Track................................................................................................................11

Locating a Particular Point in a Track.........................................................................................11

Playing Tracks Repeatedly..............................................................................................................12

Playing in Random Order (Shuffle Play)

Creating Your Own Program (Program Play)............................................................................13

Playing Only Specific Tracks (Delete Play)..................................................................................14

.....................................................................................

.....................................................................

Recording From CDs

Recording Your Own Program...................................................................................................... 15

Recording a CD by Specifying Tape Length (Time Edit/Just Edit)........................................15

Fading In or Out................................................................................................................................ 16

Useful Tips for Recording................................................................................................................17

Storing Information About CDs (Custom Files)

What You Can Do With the Custom Files....................................................................................18

Indexing a Disc (Custom Index).....................................................................................................19

Storing Specific Tracks of a Disc (Delete Bank)..........................................................................20

Additional Information

Precautions......................................................................................................................................... 21

Notes on CDs.......................................................................................................................................22

Troubleshooting................................................................................................................................. 22

Specifications......................................................................................................................................23

Index

Index.....................................................................................................................................................24

Playing a CD

headphone volume.

-tm

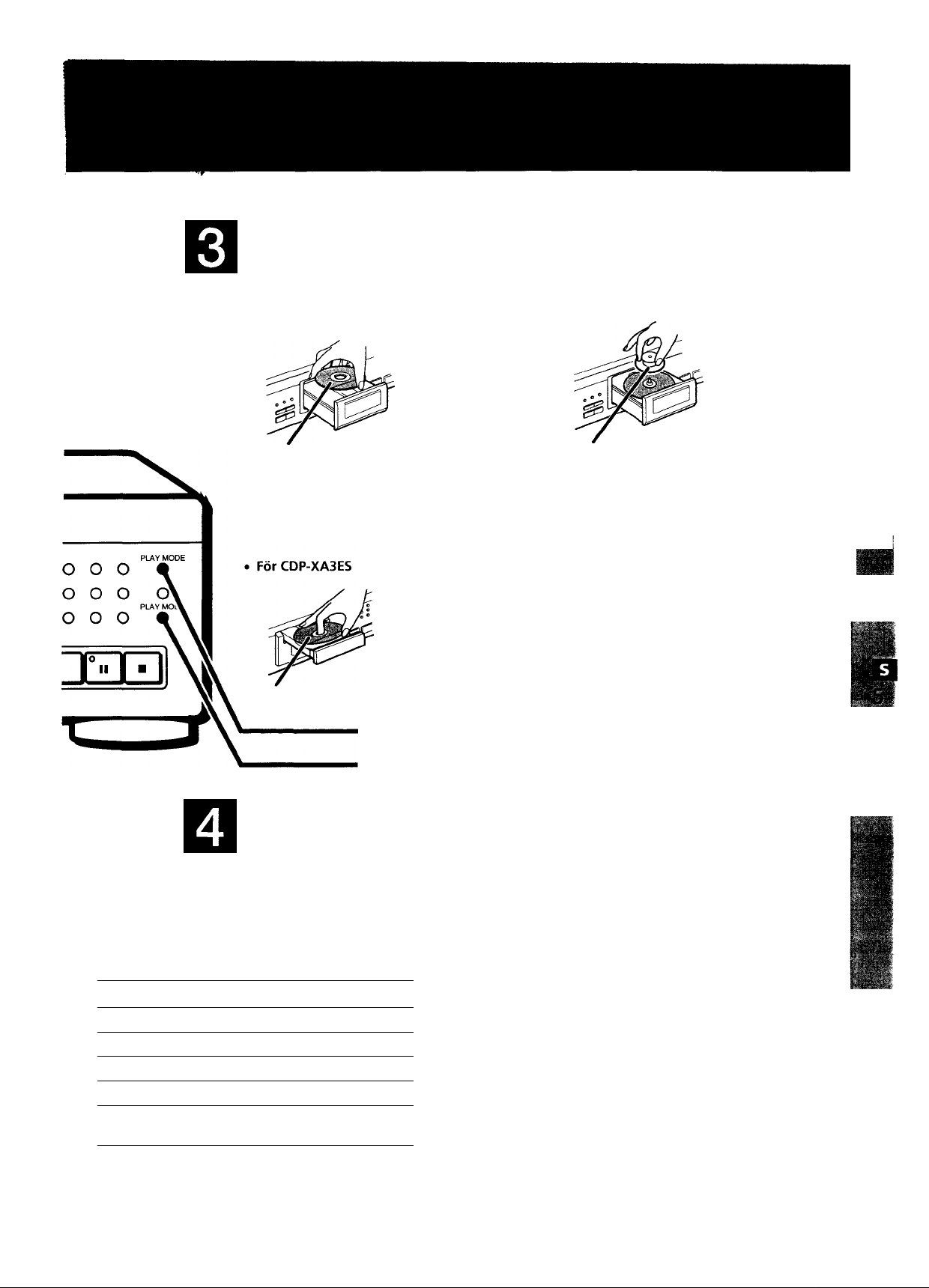

Press ^OPEN/CLOSE, and place a CD on the tray.

• For CDP-XA7ES/XA5ES

Place the supplied stabilizer on the CD.

'Q' If "

-----------

Place the supplied stabilizer on the CD. If you do not, this indication appears.

With the label side up

" appears in the display

Press ►.

The disc tray closes and the player plays all the tracks once (Continuous Play). Adjust the volume on the amplifier.

To stop playback

Press ■.

When you want to

Pause II

Resume play after pause II or^

Go to the next track

Go back to the preceding track KM

Stop play and remove the CD

Press

»1

SOPEN/Cl.OSr

PLAY MODE (for CDP-XA5ES/XA3ES)

PLAY MODE (for CDP-XA7ES)

Note

In Step 3, do not place two or more CDs at the same time.

If you do so, you may damage the discs and/or the player.

y' If play doesn't start from the first track

Press PLAY MODE repeatedly until "SHUFFLE", "PROGRAM" and "CUSTOM INDEX" disappear from the display (or press CONTINUE on the remote).

"*€■

Unpacking

Check that you received the following items:

• Audio connecting cord (1)

• Remote commander (remote) (1)

• Sony SUM-3 (NS) batteries (2)

• Stabilizer (1) (CDP-XA7ES/XA5ES only)

Inserting batteries into the remote

You can control the player using the supplied remote. Insert two size AA (R6) batteries by matching the + and - on the batteries. When using the remote, point it at the remote sensor H on the player.

Hooking Up the System (for CDP-XA7ES)

Overview

This section describes how to hook up the eu piayer to an amplifier. Be sure to turn off the power of each component before making the connections.

BALANCED

BALANCED OUT switch

DIGITAL OUT COAXIAL

CDP-XA7ES

To an AC outlet

When to replace batteries

With normal use, the batteries should last for about six months. When the remote no longer operates the player, replace all the batteries with new ones.

Notes

• Do not leave the remote near an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct suidight or lighting apparatuses. Doing so may cause a malfunction.

• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

: Signal flow

What cords will I need?

■ When making analog hookups

• Audio cord (supplied) (1)

White

(L)

Red

(R)

Cannon connector XLR-3-32 or equivalent (not supplied)

--------------------------

■ When making digital hookups

• Optical cable POC-15 (not supplied)

d>-

To an AC outlet

coirD

-cO>

White

(L)

Red

(R)

Coaxial cable (not supplied)

Hookups

■When making analog hookups

When connecting an audio cord, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise.

CD player

RXED

©©

If you have an analog power amplifier

Connect the amplifier via the VARIABLE LINE OUT jacks using the supplied audio cord. You can adjust the output level with the LINE OUT/PHONE LEVEL control on the player or the LINE OUT LEVEL buttons on the remote.

CD player Amplifier

VARIABLE

©© ©0

If you have an amplifier with balanced input connectors

Connect the amplifier via the BALANCED connectors using the cannon connector XLR-3-32 or equivalent (not supplied). The balanced connection is hardly affected by external noise and often used by professionals in studios and the broadcasting stations.

Cannon connector XLR-3-32 or equivalent (not supplied)

Amplifier

' INPUT '

—©L

^ f

’ INPUT '

-©L

(

[-®R

Getting Started

After making connections, set the BALANCED OUT switch on the rear to ON. When you don't use the

balanced output, set the switch back to OFF.

■When making digital hookups

You can avoid deterioration of the signal during transmission, since the music signal output through the digital output connectors retains digital form. You can connect a digital component such as a digital amplifier, D/A converter, DAT or MD. When you connect a DAT or MD, you can make digital recordings from CDs. Note that you cannot use fading in or out function (page 16) when making this connection.

If you have a digital component with an optical digital input connector

Connect the component via the DIGITAL OUT (OPTICAL) connector using the optical cable (not supplied). Take off the cap and plug in the optical cable.

CD player

/ \

...

OPTICAL

DIGITAL OUT

After making connections, press DIGITAL OUTPUT on the player to turn on the DIGITAL OUT indicator.

Digital component

3IG1TALINPU1

OPTICAL

—

a) To plug in the cormector, fit these positions and insert

the connector firmly.

b) To detach the connector, pull the connector out while

pressing this lock button.

Pin assignment

For Europe l.-GND

^¿3* 2: HOT

3: COLD

For U.S.A. and Canada 1:GND 2: COLD 3:HOT

□

o o o o o o o o o o O O 0 o o o

lullr..- r-l-ll

DIGITAL OUTPUT

Getting Started

If you have a digital component with a coaxial digital input connector

Connect the component via the DIGITAL OUT (COAXIAL) connector using the coaxial cable (not supplied).

Hooking Up the System (for CDP-XA5ES/XA3ES)

CO player

COAXIAL

After making connections, press DIGITAL OUTPUT on the player to turn on the DIGITAL OUT indicator.

Note

When you connect via the DIGITAL OUT connector, noise may occur when you play CD software other than music, such as a CD-ROM.

Digital component

DIGITAL INPUT

COAXIAL

Overview

This section describes how to hook up the c,D player to

an amplifier. Be sure to turn off the power of each

component before making the connections.

■ For CDP-XA5ES

LINE OUT DIGITAL OUT DIGITAL OUT

VARIABLE OPTICAL COAXIAL

CDP-XA5ES

Connecting the AC power cord

Connect the AC power cord to a wall outlet.

Removing the notice sheet

The notice sheet is put on the player. Remove the sheet before you use your player.

Where do I go next?

Now you're ready to use your player. If you aren't familiar with how to play CDs, go to the section

"Playing a CD" on page 4.

Then, go to the following sections for other operations.

■ For CDP-XA3ES DIGITAL OUT OPTICAL LINE OUT VARIABLE

I—: Signal flow

To an AC outlet

CDP-XA3ES

Signal flow

To an AC outlet

-4<

Getting Started

What cords will I need?

■ When making analog hookups

• Audio cord (supplied) (1)

White

(L)

Red

(R)

■When making digital hookups

• Optical cable POC-15 (not supplied)

<o=>

• Coaxial cable (not supplied) (CDP-XA5ES only)

-cQ>

White

Red

Hookups

■When making analog hookups

CD player

LINE OUT

FIXED

R©-©^

Amplifier

' INPUT '

-©L

“0R

(L)

(R)

If you have a digital component with a coaxial digital input connector (CDP-)(A5ES only)

Connect the component via the DIGITAL OUT (COAXIAL) connector using the coaxial cable (not supplied).

CD player Digital component

Note

When you connect via the DIGITAL OUT connector, noise may occur when you play CD software other than music, such as a CD-ROM.

Setting the voltage selector (only for CDP-XA3ES with the voltage selector)

Check that the voltage selector on the rear panel of the player is set to the local power line voltage. If not, set the selector to the correct position using a screwdriver before connecting the AC power cord to a wall outlet.

110- 120 V

220 - 240 V

Connecting the AC power cord

If you have an analog power amplifier

CD player

LINE OUT ' INPUT '

VARIABLE

o©^

lo©^

■When making digital hookups

Note that you cannot use fading in or out (page 16) and time fade (page 17) functions when making this connection.

If you have a digital component with an optical digital input connector

Connect the component via the DIGITAL OUT (OPTICAL) connector using the optical cable (not supplied). Take off the cap and plug in the optical cable.

CD player

Amplifier

—0L

-©R

Digital component

Connect the AC power cord to a wall outlet.

Removing the notice sheet (CDP-XA5ES only)

The notice sheet is put on the player. Remove the sheet before you use your player.

Where do I go next?

Now you're ready to use your player.

If you aren't familiar with how to play CDs, go to the section

"Playing a CD" on page 4.

Then, go to the following sections for other operations.

Using the Display

You can check information about the disc using the

display.

CD CD CDCD CD

TIME-

CD CD CD CD CD CD CD CD CD CD CD CD

cd|cdcd

CD CD CD

rganrinn CMl(^C3 SOC3

CD CD CD CD CD CD CD CD

CD CD

CH3

CHD

Checking the total number and playing time of the tracks

Press TIME before you start playing. (For CDP-XA7ES, use the remote.) The display shows the total number of tracks, total playing time and music calendar.

DISPLAY MODE

Display information while playing a disc

While playing a disc, the display shows the current track number, index number, playing time and the music calendar.

The track numbers in the music calendar disappear after they are played.

Checking the remaining time

Each time you press TIME while playing a disc, the display changes as shown in the chart below. (For CDP-XA7ES, use the remote.)

Playing time and number of the current

track

Remaining

time on the

current

track

Remaining time on the disc

While in Shuffle Play mode ("SHUFFLE" appears in the display; see page 13), a one-second access time blank is added between each track. This increase is automatically added to the total playing time in the display.

If the disc has more than 15 tracks, the ► indication appears next to 15 on the music calendar. The information also appears when you press ^ OPEN/ CLOSE to close the disc tray.

Turning off the music calendar in the display HE

Each time you press DISPLAY MODE on the remote while playing a disc, the music calendar turns off and on alternately in the display.

Playing CDs

Locating a Specific Track

You can quickly locate any track while playing a disc using the IKK/1»! (AMS: Automatic Music Sensor) buttons or number buttons.

CD CDCDCD CD CDS

Number buttons '

CD CD CD CD CD

' CUCDCDCDCD

>20 -

CD CD

■p5JUj«i|rsnn=n

To locate

The next or succeeding tracks

The current or preceding tracks

A specific track directly

By scanning each track for 10 seconds (Music Scan)

When you directly locate a track numbered over 12 (or 20 when using the remote)

Press >12 (or >20 on the remote) first, then the corresponding number buttons. To enter "0," use button

10.

Example: To play track number 30

You can extend the playing time during Music Scan [J]

Press MUSIC SCAN repeatedly until the playing time you want (10,20 or 30) appears in the display. Each time you press the button, the playing time changes cyclically.

Press

»1 repeatedly until you find the track

IKK) repeatedly until you find the track

Number button of the track

MUSIC SCAN before you start playing or while playing a disc. When you find the track you want, press ► to start playing.

Press >12 (or >20 on the remote) first, then 3 and 10.

aaaan

i—II—II—II—II—1

CD CD

CD CD CD CD

OD OD

MUSIC SCAN

Locating a Particular Point in a Track

You can also locate a particular point in a track while playing a disc.

CDl CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD

index

To locate a point Press

While monitoring the sound

Slowly by monitoring the sound jjj

Quickly by observing the display during pause

Using an index (only for indexed discs)

►► (forward) or (backward) and hold down until you find the point

hold down until you find the point

find the point. You will not hear the sound during the operation.

INDEX ^ repeatedly until you find the point

SLOW on the remote and

and hold down until you

....

/' ^ on the remote

SLOW

What is an index?

It is a number that divides a track or a disc into sections, enabling you to easily locate a desired point. You can determine if a disc uses indexes by its packaging.

Note

If" ”/ —/ " appears in the display, the disc has reached the end while you were pressing Press ◄◄ or IKK to go back.

Playing CDs

Playing Tracks Repeatedly

You can play tracks repeatedly in any play mode.

CDP-XA5ES/XA3ES

□

o o o 0 o o o o o

@ (D

CD CD CD CD

CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD CD

CD CD

REPEAT-

Press REPEAT while playing a disc. (For CDP-XA7ES, use the remote.)

"REPEAT" appears in the display. The player repeats

the tracks as follows:

When the disc is played in

Continuous Play (page 5) Shuffle Play (page 13)

Program Play (page 13) Delete Play (page 14) Delete Shuffle Play

(page 13,14) Custom Index Play

(page 20)

■■eD

C±3CDCDCD

rgnnnm

i-*n r-*~i

CD CD CD

The player repeats

AU the tracks All the tracks in random

orders The same program All the remaining tracks All the remaining tracks in

random orders The portion between two

indexes

o o o o o o

II-ill- ► M-ll

REPEAT

Repeating a Specific Portion (A-*—pB Repeat) [X]

You can play a specific portion in a track repeatedly. This might be useful when you want to memorize lyrics. Note that you cannot repeat a portion extending to two tracks

1 While playing a disc, press A'*—*-B on the remote

when you find the starting point (point A) to be played repeatedly. "A-" of "REPEAT A-" flashes in the display.

2 When you reach the ending point (point B), press

A-<—>-B again. "REPEAT A-B" appears. The player plays this specific portion repeatedly.

To cancel A<—>B Repeat

Press REPEAT.

Setting a new starting point

You can move the repeating portion ahead by changing the starting point. 1 Press A-»—>B while the player is repeating the

specific portion. The ending point B becomes the new starting point A. "A-" of "REPEAT A-" flashes in the display.

2 When you reach the ending point (point B), press

A-*—>B again. "REPEAT A-B" appears. The player repeats between the new starting and ending points.

When you want to restart from the starting point A

Press ► during A<—>B Repeat.

To cancel Repeat Play

Press REPEAT repeatedly until "REPEAT" disappears from the display.

Repeating the current track

You can repeat only the current track.

While the track you want is being played, press REPEAT repeatedly until "REPEAT 1" appears in the display. (For CDP-XA7ES, use the remote.)

Note

You cannot repeat the current track while the disc is played in Custom Index Play mode (see page 20).

Playing CDs

Playing in Random Order

(Shuffle Play)

You can have the player "shuffle" tracks and play in a random order.

CDP-XA7ES

Creating Your Own Program (Program Play)

You can arrange the order of the tracks on a disc and create your own program. The program can contain up to 24 tracks.

2 Press ► to start Shuffle Play.

The ^ T indication appears while the player is

"shuffling" the tracks.

To cancel Shuffle Play

Press PLAY MODE four times (or CONTINUE on the remote).

'Q' You can start Shuffle Play while playing

Press PLAY MODE once (or SHUFFLE on the remote),

and Shuffle Play starts from the current track.

'O' You can delete unwanted tracks during Shuffle Play

(Delete Shuffle Play)

Press the number button of the track you want to delete. The track number and "OFF" appear in the display, and

then the track number disappears from the music

calendar.

If you want to restore the track, press the number button again. To restore all the tracks, press ■ in stop mode.

Press PLAY MODE repeatedly until "PROGRAM" appears in the display. When using the remote, press PROGRAM.

Press the number buttons of the tracks you want to program in the order you want. To program the track numbered over 12 (or 20 when using the remote), use the >12 button (or >20 on the remote) (see page 11).

Last programmed track Total playing time

Playing order

If you've made a mistake

Press CLEAR, then press the correct number button.

Programmed tracks

3 Press ► to start Program Play.

To cancel Program Play

Press PLAY MODE three times (or CONTINUE on the remote).

Playing CDs

The program remains even after the Program Play ends

When you press ►, you can play the same program again.

Notes

• "—. —" appears instead of the total playing time in the display when it exceeds 100 minutes.

• "FULL" appears in the display when you try to add a track to a program which already contains 24 tracks.

Checking the track order

CONTINUE-

Number buttons'

>20-

C3| - CD

eDC+DCDCDCD

rraaaa CDCnCDCDa

CDCDCZICDCZD

aoana

gCDCS----------

CD CD

CD CD CD CD CD

lODOD

CEDCDCD

■ SHUFFLE

CLEAR

You can check your program before or after you start playing.

Press CHECK. Each time you press this button, the display shows the track number in the programmed order. After the last track in the program, the display shows "End" and returns to the original display. If you check the order after you start playing, the display shows only the remaining track numbers.

Changing the track order

You can change your program before you start playing.

Erase a track

Erase the last track in the program

Add tracks to the end of the program

Change the whole program completely

Press

CHECK until the track you don't want appears in the display, then press CLEAR

CLEAR. Each time you press the button, the last track will be cleared.

Number buttons of the tracks to be added

■ (stop). Create a new program following the programming procedure.

Playing Only Specific Tracks

1 Press SHUEFLE.

"SHUEELE" appears in the display.

2 Press the number buttons of the tracks you want to

delete. The track numbers disappear from the music

calendar after "OFF" appears for a while. To delete a track numbered over 20, use the >20 button (see page 11).

If you've made a mistake

Press the number button of the track. "On" the display and the track will be restored.

appears m

3 After you've deleted all the tracks you don't want,

press CONTINUE.

"SHUFFLE" disappears from the display.

If you press PLAY MODE on the player instead of CONTINUE on the remote

The deleted tracks will be restored. Be sure to do this step with the remote.

4 Press ►- to start Delete Play.

To cancel Delete Play

Press ■ in stop mode.

'Q'The player keeps the deleted tracks in memory even

after the Delete Play ends

When you press ►, you can play only the remaining tracks again.

(Delete Play)

You can delete unwanted tracks and play only the remaining tracks.

*0" You can play the tracks in random order (Delete

Shuffle Play)

Just skip Step 3 in the above procedure.

You can delete a track while playing

Press CLEAR while the track is being played. The player deletes the track and starts playing the next track.

y' You can store the deleted tracks of each disc

See "Storing Specific Tracks of a Disc" on page 20.

Recording From CDs

Recording Your Own Program

You can record the program you've created on a tape, DAT or MD. The program can contain up to 24 tracks. By inserting a pause during programming, you can divide the program into two for recording on both sides of a tape.

Number buttons PLAY MODE

- II >12

Number buttons

Create your program (for side A when recording on a tape) while checking the total playing time indicated in the display. Follow Steps 1 and 2 in "Creating Your Own Program" on page 13.

PLAY MODE

II >12

You can check the total playing time while programming (Program Edit)

This feature helps you find the last track that will fit on one side of the tape.

1 Press PLAY MODE repeatedly until "PROGRAM"

appears in the display. (When using the remote, press PROGRAM.)

2 Press IM<! or >CH1 until the track you want to program

appears in the display. The total playing time including the selected track appears in the display and the step number of the program flashes.

3 Press PLAY MODE (or PROGRAM on the remote) to

confirm your selection.

4 Repeat Steps 2 and 3 to program other tracks.

'Q' To check and change your program

See page 14.

"SIDE-A" appears while checking the program for side A

and "SIDE-B" while checking the program for side B.

‘Q' When tracks, which aren't numerically consecutive on

the disc, are programmed consecutively (i.e. 1, 3, 5

etc.)

A one-second access time blank is added between the

tracks.

You can automatically insert a blank space of 3

seconds between each track

Use the Auto Space function (see page 18).

When you record on both sides of the tape, press

II to insert a pause. The "P" indication appears in the display and the playing time is reset to "0.00." When you record on one side of the tape or on a DAT or MD, skip this step and go to Step 4.

A pause is counted as one track

You can program up to 23 tracks when you insert a pause.

Repeat Step 1 to create the program for side B.

Start recording on the deck and then press ► on

the player. When you record on both sides of the tape, the player pauses at the end of the program for side A.

When you record on side B, reverse the tape and press ► or II on the player to resume playing.

Recording a CD by Specifying Tape Length (Time Edit/Just Edit)

You cannot use this function when your player is CDP-XA7ES.

You can have the player create a program that will fit the length of the tape. Select one of the following options:

• Time Edit: automatically creates a program, keeping the original order of the disc.

• Just Edit: automatically arranges the track order to fit the tape length.

The program can contain up to 24 tracks (a pause inserted between tracks is counted as one track). Note that tracks whose numbers are over 24 cannot be programmed.

Recording From CDs

'Q' You can program the tracks you want in advance

Select the tracks before doing the above procedure. The

player creates a program from the remaining tracks. In this case, you cannot select "HALF" to specify the tape length.

IKKI/t>t>ll Е01ТЯ1МЕ FADE

Press EDIT/TIME FADE before you start playing as follows:

• To select Time Edit, press the button once. "EDIT" appears and "SIDE-A" flashes in tiLe display.

• To select Just Edit, press the button twice. "JUST EDIT" appears and "SIDE-A" flashes in the display.

Press KM or >C>I1 to specify the tape length. Each time you press these buttons, the display changes as shown below, with the tape length of one side following each indication.

• HALF

When you select "HALF"

The player sets the program of each side to a half of the total playing time of the disc. Note that you cannot select "HALF" when the disc has more than 24 tracks.

Press EDIT/TIME FADE to have the player create the program. The display shows the tracks to be recorded. "SIDE-B" flashes in the display.

When you record on both sides of the tape, press EDIT/TIME FADE again. The player inserts a pause, then creates the program for side B. The display shows the programmed tracks. When you record on one side of the tape or on a DAT or MD, skip this step.

Start recording on the deck and then press ► on the player. When you record on both sides of the tape, the player pauses at the end of the program for side A.

C-54 ^ C-60 C-74 C-90 .h

(23.00) (27.00) (30.00) (37.00) (45.00)

6 When you record on side B, reverse the tape and

press ► or II on the player to resume playing.

To cancel Time Edit/Just Edit

Press PLAY MODE repeatedly until "SHUFFLE", "PROGRAM" and "CUSTOM INDEX" disappear from the display (or press CONTINUE on the remote).

'Q' You can freely specify the tape length

Set the tape length using number buttons. T^- cnt-jT-D." use button 10. Example: When the tape length of one side is 30 minutes

and 15 seconds Press 3,10,1 and 5.

'Q' When tracks, which aren't numerically consecutive on

the disc, are programmed consecutively (i.e. 1, 3, 5 etc.)

A one-second access time blank is added between the tracks.

You can automatically insert a blank space of 3

seconds between each track

Use the Auto Space function (see page 18).

'Q' You can check and change the program

See page 14.

Fading In or Out

You can manually fade in or out to prevent tracks from starting or ending abruptly. Note that you cannot use this effect when you use the DIGITAL OUT connector.

CDP-XA5ES/XA3ES

0 о о о о о

о ••

Г t Г" 1 • ||

FADER

□

@ OD

IKKI/I»! Number buttons Е01ТЯ1МЕ FADE

CD CD CDCDCD CCD CD

□ cn

Number buttons-

□ CD

CD CD CD CD CD|CD CD

CD CD

CD CCD (CD CD CD CD CD CD CD CD CD CD CD

(CD CD CD

(CD CD

Recording From CDs

Start play fading in

End play fading out

Press FADER

During pause. "FADE" flashes and play fades in.

When you want to start fading out. "FADE" flashes. The play fades out and the player pauses.

Changing the fading time [H

You can change the fading time from 2 to 10 seconds

before fading in or out. If you don't change it, fading

lasts for 5 seconds.

1 Press FADER before you start playing.

"5 SEC" appears and "FADE" flashes in the display.

2 Press the number button to specify the fading time.

Notes

• The fading time remains even when you turn off the player.

• When you use the Custom File function (page 18), the fading time is memorized for each disc.

4 To record on side B, reverse the tape and press I

or II on the player to resume playing.

Again, the play fades out at the specified time.

To cancel Time Fade

Press EDIT/TIME FADE, or press ■ disc.

'Q' You can freely specify the playing time

See "You can freely specify the tape length" on page 16.

'Q' You can change discs during Time Fade

If the play ends before the specified fade-out time, (for example, when you record CD-singles on a tape) change the disc. The specified fade-out time is counted only during playing.

You can fade in to resume playing in Step 4 [J]

After you reverse the tape, press FADER.

I or ►► while playing a

Useful Tips for Recording X

Fading out at the specified time (Time Fade)

You cannot use this function when your player is

CDP-XA7ES.

You can have the player fade out automatically by specifying the playing time. Once you set the time fade, it works twice, that is, the play fades out at the end of

both sides of a tape.

1 Press EDIT/TIME FADE three times before you

start playing. 'TIME FADE" and "SIDE-A" appear in the display.

2 Press IKK or >t>ll to specify the playing time.

Each time you press these buttons, the display changes as shown below, with the playing time of one side following each indication.

.HALF

When you select "HALF"

The player sets the playing time to a half of the total playing time.

C-46 ^ C-54 C-60C-74 .e

(23.00) (27.00) (30.00) (37.00)

. C-90

(45.00)

Using these functions makes recording CDs more convenient.

AUTO SPACE

PEAK SEARCH

Adjusting the Recording Level (Peak Search)

The player locates the highest level among the tracks to be recorded to let you adjust the recording level before you start recording.

1 Before you start playing, press PEAK SEARCH.

"PEAK" flashes in the display and the player repeats the portion of the highest level.

2 Adjust the recording level on the deck.

3 Press ► to start playing.

At the specified time the play fades out with "FADE" flashing in the display and the player pauses. "SIDE-B" appears in the display.

3 Press ■ on the player to stop Peak Search.

"PEAK" disappears from the display.

Recording From CDs

&ote

The portion with the highest level may differ every time you try the adjustment on the same disc. The difference is, however, so slight that you won't find any problem in adjusting the recording level precisely.

Locating each track on a tape using the AMS function (Auto Space)

The auto space function inserts a blank space of 3 seconds between each track while playing, anu enables you to locate each track using the AMS function of the deck.

Before you start playing, press AUTO SPACE.

"AUTO SPACE" appears in the display.

To cancel Auto Space

Press AUTO SPACE until "AUTO SPACE" disappears in the display.

Storing Information About

CDs (Custom Files)

What You Can Do With the Custom Files

The player can store 2 types of information called

"Custom Files" for each disc. Once you have stored Custoni Files for a disc, the player automatically recalls what you have stored whenever you insert the disc. Note that Custom Files will be erased if you don't use the player for about 1 month.

You can store this information;

When you use

Custom Index (page 19)

Delete Bank (page 20)

You can

Index the disc at up to 8 points

(for a disc with 32 tracks or less) or 5 points (for a disc with over 32 tracks)

Delete unwanted tracks and store only the tracks you want

Note

If you use the Auto Space function when recording, for example, a medley or symphony, the sound may be interrupted where the track number changes. It happens when the track numbers are assigned in the middle of the piece.

The Custom File indication lights up when you store the corresponding information.

C.FILE

DELETE-

INDEX

When you store a Custom File for a disc, the player remembers how you played that disc last time even if you removed the disc from the player (last mode

memory). When you insert the same disc again, therefore, the player plays in the same play mode. The player also remembers the duration of fade in/out time if you've changed the time.

Note that when you press ► to close the disc tray and

start playing, the player plays in the play mode

currently selected instead of the stored one.

Where are Custom Files stored?

Custom Files are stored not on the disc but in the player's memory. This means you cannot use Custom Files when you play the disc on other players.

> Delete Bank . Custom Index

How many discs can you file?

You can file up to 224 discs in the Custom File. Note that the player counts a disc as two when you store the Custom Index and Delete Bank at the same time.

storing Information About CDs (Custom Files)

You can check how many discs you can file

'■r

Remove the disc from the player. Press = OPEN/CLOSE to close the disc tray. Press TIME while the music calendar disappears from the display. The number of the Custom Files you can file appears.

Erasing Custom Files

If the memory for Custom Files becomes full, the player displays "FULL" when you press FILE to store the information and you cannot store any more disc information. If necessary, erase any unwanted Custom Files as follows:

To erase all Custom Files of all discs

For CDP-XA7ES

While holding down ^ OPEN/CLOSE and DIGITAL OUTPUT, press POWER to turn on the player. "AL-CLr" appears in the display and all the custom files will be erased.

For CDP-XA5ES/XA3ES

While holding down ERASE and FILE, press POWER to turn on the player. "AL-CLr" appears in the display and all the custom files wiO be erased.

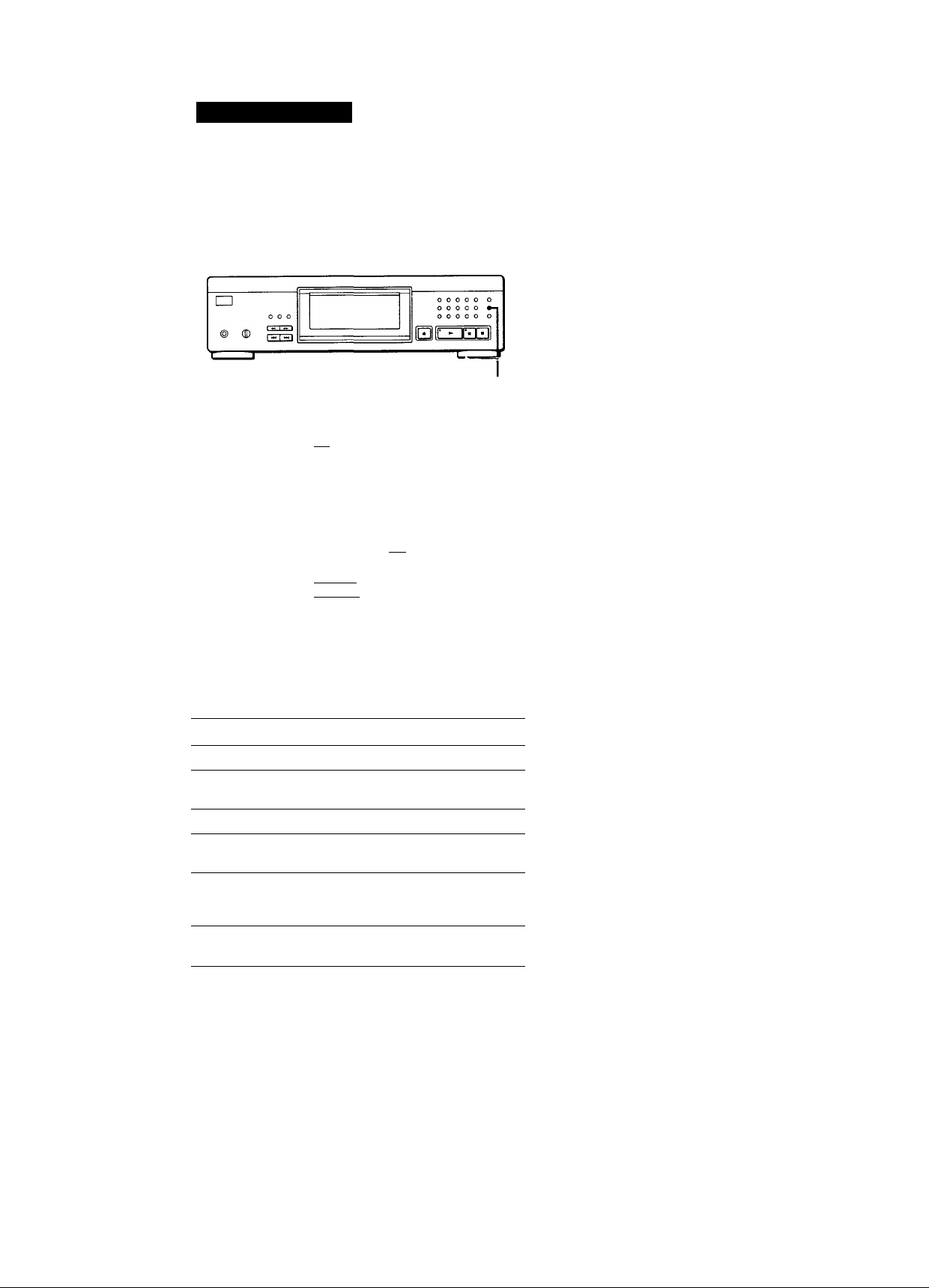

PLAY MODE

CDP-XA5ES/XA3ES

□

FILE ERASE Number buttons CHECK

Number buttons

CHECK

INDEX--—/-

Insert the disc.

Press PLAY MODE repeatedly until "CUSTOM INDEX" appears in the display. When using the remote, press C.INDEX. The music calendar disappears.

00^00 o

Bir- M-ll

C.INDEX

Indexing a Disc (Custom Index)

You can index a disc at up to 8 points (for a disc with 32 tracks or less) or 5 point (for a disc with over 32 tracks) so that you can easily locate a desired point. This might be useful when you play discs of symphonies or concertos that divide one piece into several tracks (see the example below).

Example

Track No. Custom

Index No. 1

First

piece ^

1 2 3 4

L i

Second

piece ^

5 6 7 8

L i

Third piece

PLAY MODE

Press FILE at the point you want to index. (For CDP-XA7ES, use the remote.) The Custom Index number flashes in the display. The player repeats the portion for 3 seconds from the point to be indexed.

4 Press or ►► to adjust the point so that the

player can repeat from the exact point you want to index. Pressing these buttons 7 times moves the point by about 1 second ahead or behind.

If you don't want to index at the point

Press CLEAR and search another point to be indexed.

Press FILE again to store the Custom Index. (For CDP-XA7ES, use the remote.)

"INDEX" in the Custom File indication lights up in

the display.

6 To mark more Custom Indexes, repeat Steps 3 to 5.

Number buttons

CHECK

Storing Information About CDs (Custom Files)

when you've already decided where to index

You can directly mark an index without adjusting the point. When you find the point to be indexed, first press II to pause playing and press FILE to mark an index. (For CDP-XA7ES, use the remote.)

Playing from an indexed point (Custom Index Play)

1 Press PLAY MODE repeatedly until "CUSTOM

INDEX" appears in the display.

When using the remote, press C.INDEX.

2 Locate the Custom Index you want as follows:

To locate

The next Custom Index [J] The current Custom Index

A specific Custom Index directly

By scanning the indexed points for 10 seconds [J]

Press

INDEX—fcINDEX--—

Number button of the Custom Index

MUSIC SCAN. When you find the point you want, press ► to start playing.

Erasing the Custom index

1 Insert the disc.

Press PLAY MODE repeatedly until "CUSTOM INDEX" appears in the display. When using the remote, press C.INDEX.

Press CHECK repeatedly until the Custom Index number you want to erase flashes.

Press ERASE while the number is flashing to erase the Custom Index. (For CDP-XA7ES, use the remote.) The succeeding Custom Index numbers decrease by one.

Storing Specific Tracks of a Disc (Delete Bank)

You can delete unwanted tracks and store only the tracks you want. You can start playing your favorite tracks without deleting tracks each time.

Playback starts from the selected Custom Index to the end of the disc.

To cancel the Custom Index Play

Press PLAY MODE twice (or CONTINUE on the remote).

Notes

• You cannot use the index search function (see page 11).

• Use INDEX ^ buttons to locate the next or the current Custom Indexes, instead of ll«/»ll buttons.

Playing from one index to the next one (Custom Index

Single Play)

1 Press PLAY MODE repeatedly until "CUSTOM INDEX

(1)" appears in the display. When using the remote, press C.INDEX.

2 Press the number button of the Custom Index you want.

Playback starts from the selected Custom Index and

stops at the beginning of the next index. To cancel the Custom Index Single Play, press PLAY MODE once (or CONTINUE on the remote).

y' You can play the portion between two indexes

repeatedly

Press REPEAT. (For CDP-XA7ES, use the remote.)

Insert the disc.

Delete tracks you don't want. Follow Steps 1 to 3 in "Playing Only Specific Tracks" on page 14.

Press FILE to store the remaining tracks. (For CDP-XA7ES, use the remote.) "DELETE" in the Custom File indication lights up in the display.

Playing using the Delete Bank

Press PLAY MODE repeatedly until "SHUFFLE",

"PROGRAM" and "CUSTOM INDEX" disappear from the display. When using the remote, press CONTINUE. The Delete Bank is recalled and the selected track numbers appear on the music calendar.

2 Press ► to start playing.

Additional Information

Precautions

On safety

• As the laser beam used in this unit is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified persormel only

• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

To cancel playing using the Delete Bank

Press ■.

To start playing using the Delete Bank again

While "PROGRAM" or "CUSTOM INDEX" appears in the display, press PLAY MODE repeatedly until these indications disappear from the display or until "SHUFFLE" appears in the display. The Delete Bank is recalled and you can start playing by pressing ►.

You can play in a random order using the Delete Bank

In Step 1, press PLAY MODE repeatedly until "SHUFFLE" appears in the display (or press SHUFFLE on the remote).

Erasing the Delete Bank

1 Insert the disc.

Press PLAY MODE repeatedly until "PROGRAM" and "CUSTOM INDEX" disappear from the display. When using the remote, press CONTINUE or SHUFFLE. The display shows the stored Delete Bank.

On power sources

• Before operating the player, check that the operating voltage of the player is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the player.

• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug

itself; never pull the cord.

• AC power cord must be changed only at the qualified service shop.

On placement

• Place the player in a location with adequate ventilation to

prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources, or in

a place subject to direct sunlight, excessive dust or mechanical shock.

On avoiding deterioration of sound quality (CDP-XA7ES/XA5ES only)

• Do not touch the lens inside.

Press ERASE to erase the Delete Bairk. "DELETE" in the Custom File indication disappears.

On using the stabilizer (CDP-XA7ES/XA5ES only)

• Be sure to use the supplied stabilizer. If you use any other

stabilizer, you may damage the player.

On operation

• If the player is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about an hour until the moisture evaporates.

On adjusting volume

• Do not turn up the volume while listening to a portion with

very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level portion is played.

Additional Information

dll inserting a disc

• You may hear a whistling sound from the player. This indicates that the player is automatically adjusting its internal mechanisms according to the inserted disc.

On cleaning

• Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any t)q3e of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On transportation (CDP-XA7ES/XA5ES only)

• Be sure to remove the CD and the stabilizer.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Notes on CDs

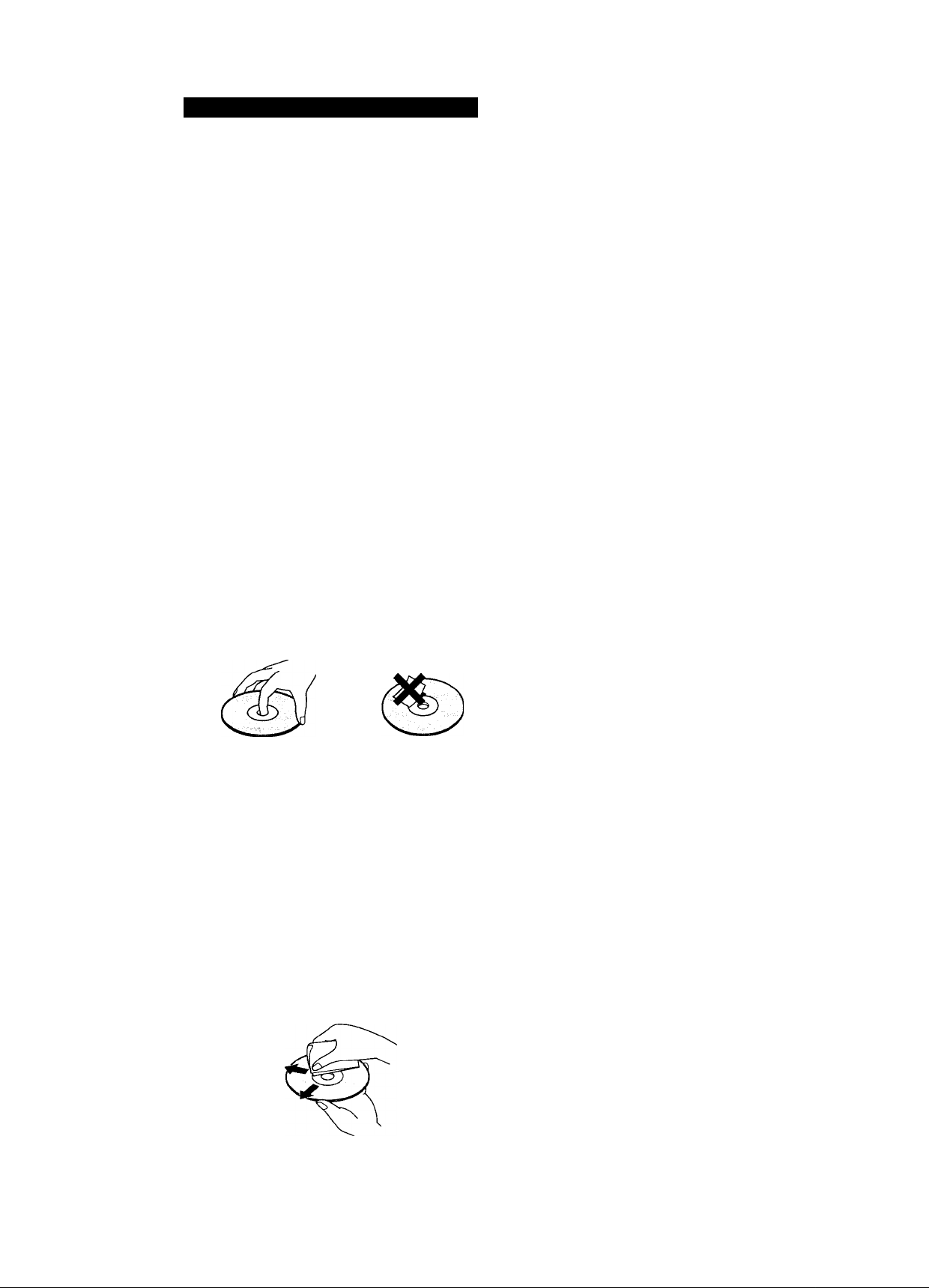

On handling CDs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

Not this way

• Do not expose the disc to direct sunlight or heat sources

such as hot air ducts, nor leave it in a car parked in direct sunlight as there can be considerable rise in temperature inside the car.

• Do not use any commercially available stabilizer and/or

disc protector. If you do, the disc and the player may be damaged.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe

the disc from the center out.

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult vour nearest Sony dealer.

There's no sound.

^Check that the player is connected securely. “♦•Make sure you operate the amplifier correctly. ^Adjust the playback level using the LINE OUT/

PHONE LEVEL control.

^The DIGITAL OUT indicator on the player is

turned off when making digital connections on CDP-XA7ES. Press DIGITAL OUTPUT to turn on the indicator.

^The BALANCED OUT switch on the rear is set

to OEF when making balanced connections on CDP-XA7ES. Set the switch to ON.

The CD does not play.

^There's no CD inside the player. Insert a CD. ^Use the stabilizer. (CDP-XA7ES/XA5ES only) ^Place the CD with the label side up on the disc

tray correctly. “♦Clean the CD (see page 22). ^Moisture has condensed inside the player.

Remove the disc and leave the player turned on

for about an hour (see page 21).

The recording level has changed.

^When you connect the amplifier via the

VARIABLE LINE OUT jacks, the recording level

changes if you adjust the LINE OUT/PHONE

LEVEL control on the player or press LINE

OUT LEVEL on the remote during recording.

The remote does not function.

“♦Remove the obstacles in the path of the remote

and the player. ^Point the remote at the remote sensor H on the

player. “♦Replace all the batteries in the remote with new

ones if they are weak.

Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Specifications

Compact disc player

Laser Wavelength Frequency response Dynamic range Harmonic distortion

Outputs

CDP-XA7ES

Jack type

(FIXED)

LINE OUT

(VARIABLE)

BALANCED

OUT

DIGITAL OUT (OPTICAL)

DIGITAL OUT (COAXIAL)

PHONES

jacks Phono

jacks XLR-3-32

Optical output connector

Coaxial 0.5Vp-p output (75 ohms) connector

Stereo 100 mW phone jack

CDP-XA5ES

Jack type

LINE OUT Phono 2 V Over 10 kilohms (FIXED) jacks (at 50 kilohms)

LINE OUT Phono 2 V Over 50 kilohms (VARIABLE) jacks (at 50 kilohms)

DIGITAL OUT (OPTICAL)

DIGITAL

OUT

(COAXIAL)

PHONES

Optical -18 dBm output connector

Coaxial 0.5Vp-p output (75 ohms) connector

Stereo 28 mW phone jack

Semiconductor laser 780 - 790 nm 2 Hz to 20 kHz ± 0.3 dB More than 100 dB CDP-XA7ES: Less than 0.0015%

CDP-XA5ES; Less than 0.0017% CDP-XA3ES: Less than 0.0018%

Maximum

output

level

Load impedance

•’-1-11

(at 50 kilohms)

Over 50 kilohms

(at 50 kilohms) 2V

600 ohms

(at 50 kilohms)

-18 dBm

Wave length: 660 nm

75 ohms

32 ohms

Maximum output

level

Load impedance

Wave length: 660 nm

75 ohms

32 ohms

Additional Information

CDP-XA3ES

Jack type

LINE OUT (FIXED)

LINE OUT (VARIABLE)

DIGITAL OUT (C^TtfAL)

PHONES Stereo

Phono jacks

Optical output

onnector

phone

jack

General

Power requirements

Where purchased Power requirements

Europe U.S.A., Canada Australia Other countries

Power consumption

Dimensions (approx.) (w/h/d)

Mass (approx.)

Supplied accessories

Audio cord (2 phono plugs - 2 phono plugs) (1) Remote commander (remote) (1) Sony SUM-3 (NS) batteries (2) Stabilizer (1) (CDP-XA7ES/XA5ES only)

Design and specifications are subject to change without notice.

Maximum output level

Load impedance

Over 10 kilohms

(at 50 kilohms)

Over 50 kilohms

(at 50 kilohms)

-18 dBm

28 mW

Wave length: 660 nm

32 ohms

220 V - 230 V AC, 50/60 Hz

120 V AC, 60 Hz 240 V AC, 50 Hz 110 V - 120 V or 220 V - 240 V AC.

adjustable, 50/60 Hz

CDP-XA7ES: 28 W CDP-XA5ES: 20 W CDP-XA3ES: 17 W (for Europe and

Australia)

19 W (for U.S.A. and

Canada)

CDP-XA7ES: 430 x 125 x 375 mm (17 X 5 X 14 7/8 in.) incl. projecting parts

’-XA5ES: 430 x 125 x 370 mm

CDP-: (17 x;

<5x14 5/8 in.) incl. projecting

parts

■-XA3ES: 430 x 125 x 345 nun

CDP-: (17x1

c 5 X 13 5/8 in.) inch projecting

parts

■-XA7ES: 15.0 kg (33 lbs 1 oz)

CDP-:

'-XA5ES: 13.5 kg (29 lbs 12 oz)

CDP-:

■-XA3ES; 6.6 kg (14 lbs 9 oz)

Index

A, B

A-B repeat 12 AMS 5,11 Automatic Music Sensor. See

AMS

Auto Space 18

Connecting 6,8 Continuous Play 5 Custom Files 18

Custom Index 19 Delete Bank 20

what you can do with 18 Custom Index 19 Custom Index Play 20 Custom Index Single Play 20

Delete Bank 20 Delete Play 14 Delete Shuffle Play 13,14

Editing. See Recording Erasing

Custom Files 19 Custom Index 20 Delete Bank 21

F, G

Eading 16

Time Eade 17

Half disc (HALE) 16,17 Handling CDs 22 Hookups 6,8

overview 6,8

Index 11

Custom 19

J, K

Just Edit 15

M, N, O

Music Scan 11

P, Q

Peak Search 17 Playback

Continuous Play 5 Custom Index Play 20 Custom Index Single

Play 20 Delete Play 14 Delete Shuffle Play 13,14 Program Play 13 Repeat Play 12 Shuffle Play 13

Program 13

changing 14 checking 14 for recording 15

Program Edit 15

Recording 15

a program 15 using Just Edit 15 using Time Edit 15

Remaining time 10 Remote control 6 Repeating

all 12 a specific portion 12

Scanning. See Music Scan Searching. See Locating Shuffle Play 13 Stabilizer 5 Storing

information about CDs specific tracks 20

Time Edit 15 Time Eade 17 Total playing time 10 Troubleshooting 22 Turning off the music

calendar 10

Unpacking 6

Names of controls

Buttons

A*-»B 12

AUTO SPACE 18 CHECK 14 C.INDEX 19 CLEAR 14 CONTINUE 5 DIGITAL OUTPUT 7 DISPLAY MODE 10 EDIT/TIME FADE 16,17 ERASE 20,21 EADER 17 FILE 19,20

index--—/—^ 11,20

LINE OUT LEVEL 7,9 MUSIC SCAN 11 ^OPEN/CLOSE 5 PEAK SEARCH 17 PLAY MODE 5 PROGRAM 13 REPEAT 12 SHUFFLE 13 ◄◄/►►SLOW 11 TIME 10 ► 5 II 5

■ 5

◄◄/►► 11

Kl</I»ll 5,11

>12 11 >20 11

Number 11

Switch

POWER 4

Control

LINE OUT/PHONE LEVEL 4

Jack

PHONES 4

Others

Disc tray 5 Display 10

Stabilizer 5

IS 6

Last mode memory 18 Locating

by monitoring 11 by observing the display 11 by scanning 11 directly 11 using AMS 11 using Custom Index 20 using index 11

w, X, Y, Z

Voltage selector 9

AVERTISSEMENT

Pour prévenir tout risque d'incendie ou d'électrocution, gardez cet appareil à l'abri de la pluie ou de l'humidité. Pour prévenir tout risque d'électrocution, abstenez-vous d'ouvrir le boîtier. Confiez l'entretien de votre lecteur exclusivement à un personnel qualifié.

Le composant laser de cet appareil est capable d'émettre des radiations dépassant la limite pour la Classe 1.

Bienvenue !

Nous vous remercions d'avoir fait l'acquisition de ce lecteur de disques compacts Sony. Avant de faire fonctionner cet appareil, nous vo"s recommandons de lire attentivement le présent mode d'emploi et de le conserver pour toute référence ultérieure.

A propos de ce manuel

Les instructions fournies dans le présent

mode d'emploi concernent les modèles CDP-XA7ES, CDP-XA5ES et CDP-XA3ES. Sauf mention contraire, le

modèle utilisé pour les illustrations est le CDP-XA5ES. Toute différence de

fonctionnement est clairement précisée

dans le texte, par exemple "CDP-XA7ES

uniquement."

Cet appareil entre dans la catégorie des produits LASER DE CLASSE 1. L'ETIQUETTE INDIQUANT

L'APPARTENANCE DE CE LECTEUR A LA CLASSE 1 est apposée à l'arrière du boîtier.

L'étiquette de mise en garde qui suit est apposée à l'intérieur de l'appareil.

riAUnOISl MVWaiE lASER RADtATION 0^.

eXPOSUW TO BEAM

ADVARSe.

VARO! VARNINQ AOVARSEL

USYNUO uttcnsTRALMO VED tamia nJLr SW(ERHH>6AFBRVDeC ER UOC AF FUNKTÌOM.

UNOOA VOS /ermx FOR strAuno. AWriAesSA JA SUOJAUAdTUS OHTETIAESSA

OLET AITTUNA LASERUTELYUf.

LASERSTRAUNO NAR OENNA DEL AR ORPNAO OCH sparren Ar urxorrlac

usvwjo laserstrAlm uta deksb. Arnes UNNOA EKSPONERMO FOR «TRALEN.

Pour les utilisateurs au Canada rAHENTION-

POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE nCHE POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

Conventions

• Les instructions fournies dans ce

manuel portent sur les commandes du lecteur. Vous pouvez également utiliser les commandes que comporte votre

télécommande si celles-ci portent le même nom ou un nom similaire à celles de votre lecteur de disques compacts.

• Les symboles suivants apparaissent dans ce mode d'emploi;

Ce symbole indique que vous pouvez effectuer l'opération correspondante en vous servant de la télécommande.

Ce symbole indique un conseil ou une astuce facilitant l'opération envisagée.

Table des matières

Lecture d'un disque compact.................................................................4

Préparation

Déballage............................................................................................................................................... 6

Raccordement du système (CDP-XA7ES)......................................................................................6

Raccordement du système (CDP-XA5ES/XA3ES)........................................................................8

Lecture de disques compacts

Utilisation de la fenêtre d'affichage................................................................................................10

Localisation d'une plage déterminée............................................................................................. 11

Localisation d'un passage déterminé sur une plage

Lecture de plages répétée................................................................................................................. 12

Lecture dans un ordre quelconque (lecture aléatoire) Création de programmes musicaux (lecture programmée)

Lecture de plages spécifiques (lecture sélective)..........................................................................14

....................................................................

................................................................

.......................................................

13 13

Enregistrement de disques compacts

Enregistrement de votre propre programme...............................................................................15

Enregistrement d'un disque compact en spécifiant la durée d'enregistrement

(montage temporel/montage précis)...............................................................................................15

Fondu enchaîné d'entrée et de sortie (Quelques conseils utiles pour l'enregistrement

.............................................................................................

..........................................................................

Mémorisation d'informations sur les disques compacts (fichiers de lecture personnalisée)

Que pouvez-vous faire avec les fichiers de lecture personnalisée?...........................................18

Indexation d'un disque (index personnalisé)................................................................................19

Mémorisation de plages déterminées d'un disque (suppression de bloc)................................20

Informations complémentaires

Precautions......................................................................................................................................... 21

Remarques sur les disques compacts.............................................................................................22

Dépannage...........................................................................................................................................22

Spécifications......................................................................................................................................23

Index

Index.....................................................................................................................................................24

Lecture d'un disque compact

Mettez l'amplificateur sous tension et sélectionnez la porition lecteur de disques compacts.

Amplificateur

PHONES PHONE LEVEL

i§) J»

O O O

Appuyez sur POWER pour mettre le

lecteur sous tension.

Si vous mettez le lecteur sous tension avec un disque

compact sur le plateau de lecture

Vous pouvez automatiquement démarrer la lecture au début du disque compact. Si vous branchez une minuterie disponible dans le commerce, vous pouvez démarrer la lecture d'un disque compact à l'heure que vous programmez.

Réglez le volume des écouteurs.

■ ■ ■ 1 "T -e .-i '

Appuyez sur ^ OPEN/CLOSE et placez un disque sur le plateau de lecture.

CDP-XA7ES/XA5ES

La face imprimée vers le haut

Si l'indication " d'affichage

Placez le stabilisateur fourni sur le disque compact. Sinon, l'indication suivante s'affiche.

La face imprimée vers le haut

---------

PLAY MODE (CDP-XA5ES/XA3ES)

PLAY MODE (CDP-XA7ES)

" apparaît dans la fenêtre

Placez le stabilisateur fourni sur le disque compact.

Appuyez sur

Le plateau de lecture se referme et le lecteur reproduit toutes les plages une fois (lecture

continue).

Réglez le volume sur l'amplificateur.

Pour arrêter la lecture

Appuyez sur ■.

Si vous voulez.

Activer la pause Ki-pmidie la leHure .iptC“-11 pau-st-

Pj-<-i t a b pLiqc suisanti-

Ri-venii d la plage préiislniti-

Arrêter la lecture et retirer le disque compact

Appuyez sur II llou^

D«

â OPEN/CLOSE

Remarque

A l'étape 3, ne placez pas deux ou plusieurs disques compacts

en même temps. Sinon, vous risquez d'endommager les disques et/ou le lecteur.

Si la lecture ne commence pas par la première plage

Appuyez plusieurs fois de suite sur PLAY MODE jusqu'à ce que "SHUFFLE", "PROGRAM" et "CUSTOM INDEX" disparaissent de la fenêtre d'affichage (ou appuyez sur CONTINUE sur la télécommande).

i '■ [

j L - -i'jf

+ 65 hidden pages
