Silvercrest WC3 Floor Plan
WESTERN HOMES CORPORATIONWESTERN HOMES CORPORATION
R
Westwood
CRAFTSMAN SERIESCRAFTSMAN SERIES
WC-03
Approx. 1491 SQ. FT. Approx. 1491 SQ. FT.

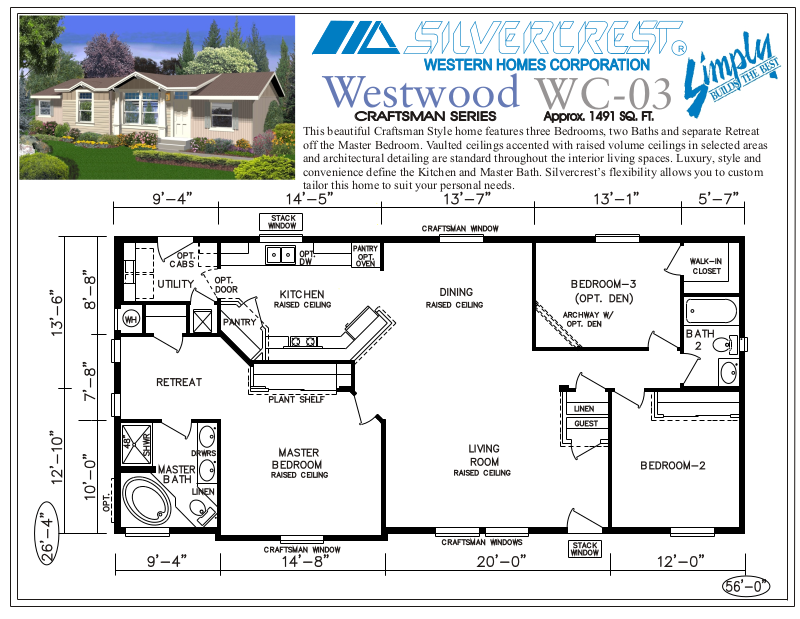

This beautiful Craftsman Style home features three Bedrooms, two Baths and separate Retreat
off the Master Bedroom. Vaulted ceilings accented with raised volume ceilings in selected areas
and architectural detailing are standard throughout the interior living spaces. Luxury, style and
convenience define the Kitchen and Master Bath. Silvercrest’s flexibility allows you to custom
tailor this home to suit your personal needs.
STACKSTACK
WHWH
OPT.OPT.
CABSCABS
UTILITYUTILITY
OPT.OPT.
DOORDOOR
PANTRY PANTRY
WINDOWWINDOW
OPT.OPT.
DWDW
KITCHENKITCHEN
RAISED CEILINGRAISED CEILING
PANTRY PANTRY
OPT.OPT.
OVENOVEN
CRAFTSMAN WINDOWCRAFTSMAN WINDOW
DININGDINING
RAISED CEILINGRAISED CEILING
ARCHWAY W/ARCHWAY W/
13'-6"13'-6"
RETREATRETREAT
7'-8"7'-8" 8'-8"8'-8"
PLANT SHELFPLANT SHELF
13'-1"13'-1"13'-7"13'-7"14'-5"14'-5"9'-4"9'-4"
BEDROOM-3BEDROOM-3
(OPT. DEN)(OPT. DEN)
OPT. DENOPT. DEN
LINENLINEN
GUESTGUEST
5'-7"5'-7"
WALK-INWALK-IN
CLOSET CLOSET
BATHBATH
2 2
48"48"
SHWRSHWR
MASTERMASTER
12'-10"12'-10"
10'-0"10'-0"
OPT.OPT.
26'-4"26'-4"
BATHBATH
DRWRSDRWRS
LINEN LINEN
MASTERMASTER
BEDROOMBEDROOM
RAISED CEILINGRAISED CEILING
CRAFTSMAN WINDOWCRAFTSMAN WINDOW
14'-8"14'-8"9'-4"9'-4"
LIVINGLIVING
ROOMROOM
RAISED CEILINGRAISED CEILING
CRAFTSMAN WINDOWSCRAFTSMAN WINDOWS
20'-0"20'-0"
STACKSTACK
WINDOWWINDOW
BEDROOM-2BEDROOM-2
12'-0"12'-0"
56'-0"56'-0"
299 North Smith Avenue P.O. Box 759 Corona, Ca. 92878-0759
Internet: http://www.silvercrest.com e-mail: info@silvercrest.com
Westwood Craftsman Features
ConstructionConstruction
Full 4/12 roof pitch with truss type rafters
Nominal 3/12 roof pitch in raised ceiling areas
2x6 exterior wall framing, 16” on center with timber headers
2x6 transverse floor joists on 16” centers
90” sidewall height except in raised ceiling areas
Vented attic
20 lb. roof load
White vinyl framed dual glazed low-E2 windows with
mullions
“Craftsman” style windows in selected areas
Baseboard moulding throughout
Water shut-off valves at sinks and toilets
5/8” fire rated drywall ceilings
Insulation values Zone II:
Ceiling areas, R-33 Insulation
Exterior walls, R-19 Fiberglass Insulation
Floor, R-11 Fiberglass Insulation
Insulation values Zone III:
Floor, R-22 Fiberglass Insulation
ExteriorExterior
“Craftsman” style exterior featuring elevated roof line
in accent area, “Craftsman” windows and gables
with corbel accents
Semi-gloss 2 or 3-color exterior
Class “A” fire rated composition roofing, with 25 year
manufacturers limited warranty
White framed windows
G.F.I. protected patio receptacles (2)
6-panel metal insulated entry door
Cottage type rear door
Full eave on front door side (26’ wides only)
Minimum eave on rear door side
(on 13’6” floor)
16”overhang on front and rear
WESTERN HOMES CORPORATION
(909)734-6610 (800)382-0709
Optional “Trex” Deck with railing (per plan)
Optional covered Porch/Deck (Plan WC-13)
AppliancesAppliances
Whirlpool “White on White” appliances: 30” gas
freestanding range, digital clock, window,
pilotless ignition; 16 cu. Ft. frost free refrigerator
30 gallon gas water heater
Coleman gas downflow heating system
(A/C ready)
UtilityUtility
100 amp electrical service
Plumbing for washer and gas dryer
Overhead utility shelf
BathsBaths
“Moen” faucets
Corner tub with obscure tempered window
(per plan)
48” stall shower with enclosure (per plan)
60” Tub/shower in Bath #2
3-Drawer bank - Master Bath
30” wide passage doors
Toe kick heat registers in base cabinet
Linen storage (per plan)
Power exhaust fans both baths
Medicine cabinet (Master Bath)
General InteriorGeneral Interior
Vaulted ceilings throughout
Architectural plant shelves where indicated
Finished ½” drywall throughout
Hand textured knock down ceilings throughout
Hollow core wardrobe doors
Recessed can light in entry
R
Group II carpet standard in all areas except
Kitchen, Bath 1, Bath 2 & Utility
½” rebond carpet pad
Easy clean 1-piece roll goods in Kitchen,
Utility, Bath 1 & Bath 2
Prehung Colonist passage doors with brass
knob hardware and (3) mortised hinges
Mini blinds all rooms (except baths) 3/4
coverage on Craftsman windows
Gathered valences on all windows (except
stacks and Bath #2)
KitchenKitchen
Raised panel prefinished cabinet doors
Solid end panel cabinet design
Interior lined cabinetry and drawers on metal
roller guides
Stainless finish steel sink
Drop edge Formica countertops with
backsplash
Pantry closet or cabinet (most plans)
Crown moulding accents overhead cabinets
Moen faucets
Toe kick heat register in base cabinet
W
“Smart Choice” Options “Smart Choice” Options
NE
Metlund D’mand hot water recirculation
Metlund D’mand hot water recirculation
system (saves water and energy)
system (saves water and energy)
All Steel Perimeter Framed “Super Floor”All Steel Perimeter Framed “Super Floor”
Sun Star Tubular Skylights (Saves Energy)Sun Star Tubular Skylights (Saves Energy)
Under Counter Water Filtration System in
Under Counter Water Filtration System in
Kitchen
Kitchen
For More Information click “Smart Choice”
For More Information click “Smart Choice”
button on home page
button on home page
R
Manufacturer’s NotesManufacturer’s Notes
Due to our continuing program of product improvement and federal code requirements, specifications and prices are subject to change without notice.
Silvercrest Western Homes Corporations reserves the right to improve models without incorporating these changes in similar models produced at an earlier date.
Dimensions shown and square footage are approximate. Consult factory for specific dimensional foundation plans. Illustrations are artist’s concepts.
