Table of contents
Introduction ................................................................................................................................... Page 6
Device description ............................................................................................................................... Page 7
Intended use ........................................................................................................................................ Page 7
Technical Data ....................................................................................................................................Page 7
Scope of delivery ................................................................................................................................ Page 8
Safety instructions ................................................................................................................... Page 8
Before use
Installation ...........................................................................................................................................Page 9
Electrical safety ...................................................................................................................................Page 9
Environmental protection .................................................................................................................... Page 9
Earthing ................................................................................................................................................ Page 9
Operation
Adding oil / petrol ............................................................................................................................... Page 10
Start the engine ................................................................................................................................... Page 10
To load the generator ......................................................................................................................... Page 10
Storing the engine ............................................................................................................................... Page 10
Overload protection 2 x 230 V sockets ............................................................................................Page 10
Cleaning, maintenance, storage, transport and
ordering replacement parts ............................................................................................ Page 10
Cleaning .............................................................................................................................................. Page 11
Air filter ................................................................................................................................................Page 11
Spark plug ........................................................................................................................................... Page 11
Petrol filter ............................................................................................................................................ Page 11
Changing the oil, checking the oil level (before each use) .............................................................. Page 11
Low oil switch off ................................................................................................................................. Page 11
Preparation for storage ....................................................................................................................... Page 12
Preparation for transporting ...............................................................................................................Page 12
Ordering spare parts .......................................................................................................................... Page 12
Disposal ............................................................................................................................................ Page 12
Troubleshooting guide ......................................................................................................... Page 12
Maintenance schedule .........................................................................................................Page 13
Warranty ......................................................................................................................................... Page 14
Translation of the original declaration of conformity /
Manufacturer ............................................................................................................................... Page 14
5 GB
Introduction

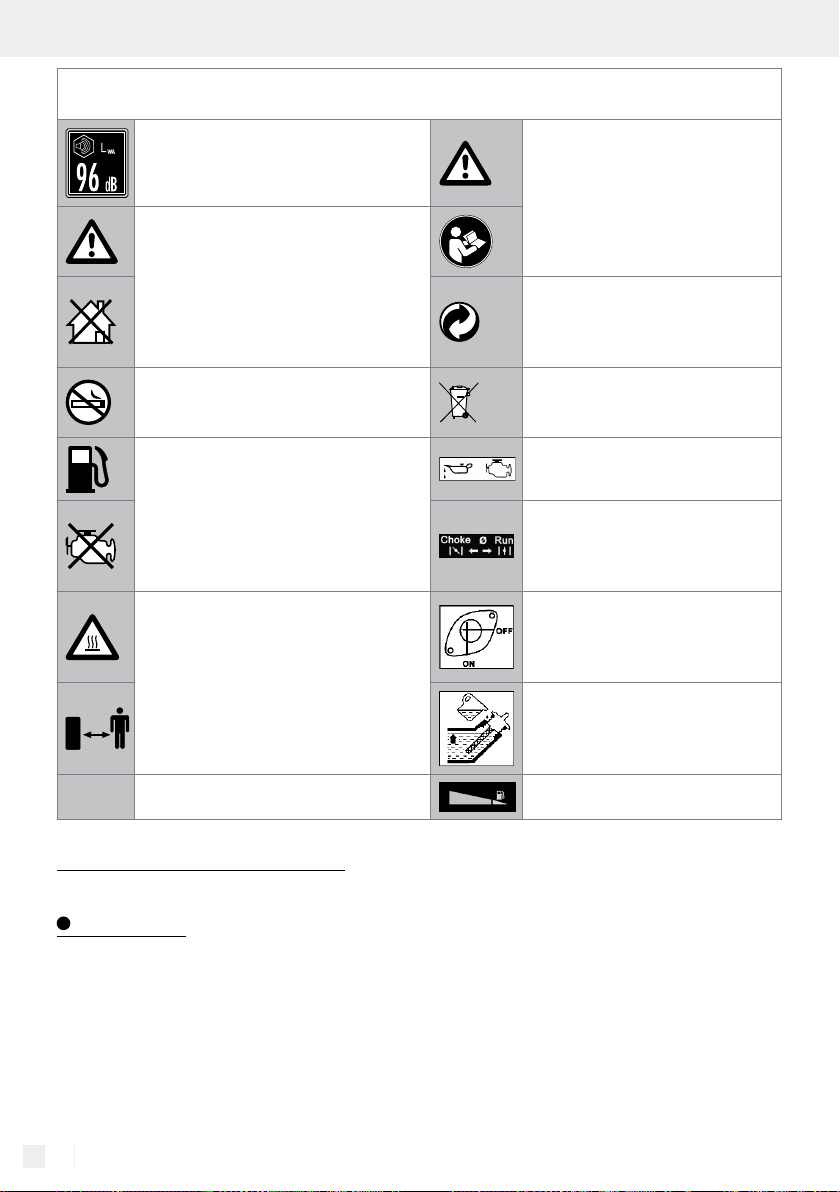

These original operating instructions / the device uses the following pictograms:
Sound power level L
Do not use the generator in non ventilated rooms or in highly flammable areas.
When the generator should be used in
a well ventilated room, the fumes must
be channeled outside through a exhaust
hose.
Do not refuel or empty near naked lights
or flames or flying sparks. Do not smoke!
Important!
Switch off the engine before refueling.
Important!
Hot parts. Keep your distance.
WA
Please read all safety information
and instructions.
The packaging is made of environmentally friendly materials. It can be
disposed of at your local recycling
centre.
Do not dispose of electric equipment
in the household waste!
Before first use, pour in the oil!
Before starting the engine, turn the
choke lever to position “choke“.
Push the choke lever back once the
engine has started (Run).
Open / close petrol tap
Pour in oil / check the oil level
∼
Alternating voltage Fuel gauge
Generator PSE 2800 B2
Q
Introduction
We congratulate you on the purchase of your new
device. You have chosen a high quality product. The
instructions for use are part of the product. They
contain important information concerning safety,
use and disposal. Before using the product, please
familiarise yourself with all of the safety information
and instructions for use. Only use the unit as de
and for the specified applications. If you pass the
6 GB
scribed
product on to anyone else, please ensure that you
also pass on all the documentation with it.
IMPORTANT!
When using the equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating instructions and
safety information with due care.
We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety information.
Device description
1
Petrol cap
2
Fuel gauge
3
2 x 230 V∼ sockets
4
Earth connector
5
Petrol filter
6
Overload switch
7
Volt meter
8
Oil fill plug
9
Oil drain plug
10
Low oil trip
11
On / off switch
12
Choke lever
13
Express start
14
Petrol tap
15
Wheels
16
Wheel axle
17
Stand
18
Push bar bracket
19
Push bar
20
Screws M8 x 40
21
Screws M8 x 12
22
Washers for the wheels
23
Safety split pins for the wheels
24
Nuts M8
25
Spark plug socket
26
Oil fill funnel
27
Spark plug
28
Spark plug connector
Intended use
Please ensure that this device was not intended for
commercial use. We do not accept any warranty liability if the device is used for commercial, manual,
or industrial operations, or activities similar to these.
Technical Data
Generator: Synchronic
Protection type: IP23M
Continuous output P
rated
(S1):
Maximal output P
max
(S2 2 min):
Nominal voltage U
Rated current I
Frequency F
rated
: 11.3 A
rated
: 50 Hz
rated
Type drive motor: 4 stroke air-cooled
Engine displacement: 208 cm³
Fuel: Petrol
Tank capacity: 15 l
Engine oil: approx. 0.6 l
Use at ⅔ engine load: approx. 1.36 l/h
Weight: 44 kg
Sound pressure level L
Sound power level L
WA
2600 W
2800 W
: 2 x 230 V∼
(15 W-40)
: 76 dB(A)
pA
:
The generator is suitable for devices which use a
230 AC voltage source.
The generator is designed to power electric power
tools and be the power supply for light sources.
Please check the suitability for use of house hold
devices on the manufacturer information.
The machine may only be utilised for its intended use.
Any other use is not intended. The user / operator,
not the manufacturer, is liable for resulting damages
or any type of injury resulting from any other use
that is not intended.
Uncertainty K: 1.98 dB(A)
Power factor cos ϕ: 1
Performance class: G1
Max temperature: 40 °C
Max. installation altitude
1000 m
(üNN):
Spark plug: F7RTC
Quality class: A
7 GB
Introduction / Safety instructions
Operating mode S1 (long use)
The machine can be used continuously with the
indicated power.
Operating mode S2 (Short term use)
The machine can be used in the short term with the
indicated power 2 min.
Acceptable ambient temperature:
-10 to +40 °C
Height: 1000 m above NN
rel. air humidity: 90 % (not condensed)
Generators may only be loaded under the specified
conditions and up to the specified nominal capacity.
Using the generator under conditions not specified
in ISO 8525 and motor or generator cooling is impaired, e.g. as a result of operation in confined spa
the load must be reduced.
The load is reduced if the temperature, altitude or
moisture are higher than specified in the instructions
for use.
ces,
Scope of delivery
1 Power generator PSE 2800 B2
2 Wheels
1 Axle
1 Base
1 Push bar bracket
1 Push bar
3 Screws M8 x 40
2 Screws M8 x 12
4 Washers for wheels
2 Safety splints for wheels
5 Nuts M8
1 Spark plug socket
1 Oil funnel
1 Set of instructions for use
Safety instructions
1. No modifications are allowed to be made to
the generator.
The speed preset by the manufacturer may not
be changed. The generator or connected devices could be damaged.
8 GB
2. RISK OF POISONING! Fumes, fuels and lu-
bricants are toxic. Do not breath in the fumes.
3. FIRE RISK! Petrol and petrol fumes are highly
flammable and explosive.
Do not use the generator
in non ventilated rooms or
in highly flammable areas.
When the generator should be used in a well
ventilated room, the fumes must be channeled
outside through a exhaust hose.
Even when using an exhaust hose, toxic gas can
still escape. Due to the risk of fire, the exhaust
hose should never be aimed at combustible
material.
Never use the generator in rooms with highly
flammable materials.
4. HOT SURFACE! Risk of burning, do not touch
the exhaust system and engine unit.
Do not touch any of the mechanically moving
or hot parts. Do not remove any of the protective caps.
5. PROTECTIVE EQUIPMENT! Use suitable ear
protection when near the device.
6. Only original parts should be used for maintenance and accessories.
Repairs, installation and adjustments must be
performed by authorised qualified personnel.
7. Protect yourself from electric shocks.
Never touch the generator with wet hands.
Only use outside with a extension cable which
is suitable for that and is appropriately marked
(H07RN).
When using an extension cable, the total length
should not exceed 50 m for 1.5 mm², 100 m
for 2.5 mm².
Do not use the generator in the rain or snow.
8. Always turn off the engine when transporting
or refuelling.
Ensure that no fuel is spilt on the engine or ex-
haust when refuelling.
Do not refuel or empty near naked
lights or flames or flying sparks. Do
not smoke!
9. Put the generator on a secure and level place.
Turning, tipping or changing its position during
operation is forbidden.
Install the generator at least 1 m away from the
walls or attached devices.
10. Keep the generator away from children.
11. Emission levels are represented in the technical
data under the stated values for sound power
level (L
) and sound pressure level (LpA) and
WA
are not compulsory definite working levels. Because there is a connection between emission
levels and immission levels, this can not reliably
used to determine the potentially necessary additional precautions. Influencing factors on the
workforce‘s current immission level includes the
properties of the work area, other noise sources,
air borne sound, etc. such as e.g. the number
of machines and other neighbouring processes
and intervals, to which the user is exposed. Also
the admissible immission levels can vary from
country to country. However, this information
gives the user of the machine the opportunity to
have a better estimation of the risks and dangers.
Occasionally acoustic measurements should be
take after installation in order to determine the
sound pressure level.
Take special care when needing to use highly
volatile fuels as a starting aid.
Ensure the connected electrical devices (incl.
power cable and plug connections) are not
defective.
Some parts of the combustible engine are hot
and may cause burns. Please observe the warnings on the generator.
Do not refuel during operation. Do not refuel
whilst smoking nearby or near open fire.
When operating in well ventilated spaces, ad-
ditional measures must be taken to prevent fire
and explosions.
Please read all safety information and instructions
Failure to observe the safety information and instructions can result in electric shock, fire and / or
serious injury.
Keep all safety advice and instructions in
a safe place for future reference.
Before use
Installation
You will need two open ended spanners
for install this device (spanner size 12).
Install the stand 17, wheels 15 and the push
19
bar
as shown in figures F–I.
Install all parts before pouring in the fuel and
oil to avoid the fluids leaking.
To install the wheels first push the wheel axle 16
through the brackets on the underside of the
generator and install the wheels
15
as shown
in figure G.
Electrical safety
Electrical cables and attached devices must be
defect free.
Never connect the generator to the mains
(power point).
Keep the cables as short as possible.
.
ATTENTION: Only use unleaded normal
petrol as fuel.
Important! Switch off
the engine before refueli
Important! Hot parts.
Keep your distance.
Environmental protection
Dispense of polluted maintenance and operatin
ng.
materials in a suitable collection point.
Earthing
Earthing is needed to disperse static discharge.
Connect a cable from one side of the earthing
connector
and from the other side to an external ground.
4
of the generator (fig. C / Pos. 4)
g
9 GB
... / Cleaning, maintenance, storage, transport and ordering replacement parts
Operation
Disconnect all electrical leads
and devices from the generator before starting the
engine.
ATTENTION! When being used for the first
time, motor oil (15 W-40, approx. 0.6 l) and petrol
(unleaded normal petrol) must be put in.
Check the fuel level and the oil, and if necessary
top them up.
Make sure you have adequate ventilation.
Ensure that the spark cable is securely in the
spark plug.
Unplug any electric device connected to the
generator.
Adding oil / petrol
When using the unit for the first time, unscrew
the red oil filler plug
of engine oil (15 W–40). Use the oil funnel
when doing so.
Unscrew the petrol cap 1 and fill the tank with
conventional unleaded petrol. The capacity is
max. 15 L.
8
and add approx. 0.6 L
26
To load the generator
Connect the device to the 230 V∼ socket 3.
ATTENTION! This socket can be loaded con-
tinuously (S1) with 2600 W and short term (S2) for
a maximum of 2 minutes with 2800 W.
Note: Some electric devices (sabre saws, drills etc.)
can use more electricity when doing heavy duty tasks.
Storing the engine
Before putting away, let the generator run with-
out load so that the device can „cool down“.
Turn the on / off switch 11 to the „OFF“ position.
Close the petrol tap 14.
Overload protection
2 x 230 V sockets
WARNING! This generator is fitted
with an overload protector.
This cuts off the sockets
load switch
6
the sockets 3 can be used again.
3
. By activating the over-
Start the engine
ATTENTION! When starting with the express
13
start
you can injure your hand with the sudden
kick back.
Wear protective gloves when starting.
Open the petrol tap 14 by turning the tap down-
wards.
Put the on / off switch 11 to the on position.
Turn the choke lever 12 to I I (in the left
position).
Start the engine with the express start 13 by
sharply pulling the handle. If the engine has not
started pull the handle again.
Push the choke lever 12 back once the engine
has started (in the right position).
Note: The procedure described in this chapter
is suitable for cold and warm starting.
10 GB
ATTENTION! If this happens reduce the
amount of electrical output which you are
extracting from the generator or remove
defective devices which are attached.
ATTENTION! Faulty overload switches
should only be replaced with identically
constructed overload switches with the
same performance data. Please use our
customer service department.
Cleaning, maintenance, stor-
age, transport and ordering
replacement parts
Before cleaning and maintenance work, turn off the
engine and pull the spark plug connector
the spark plug
27
.
28
out of
ATTENTION! Turn the device off imme-
diately and contact your Service Station:
- With unusual vibrations or noises.
- If the engine seems overloaded or has backfired.
Note: alternative spark plugs to F7RTC:
Bosch WR7DC
Petrol filter (Fig. A)
Cleaning
Keep the safeguards, air vents (fig. B / Pos. B1)
and the engine housing as dust and dirt free as
possible. Wipe the device with a clean cloth or
blow it with compressed air with low pressure.
We recommend that you clean the device after
every use.
Regularly clean the device with a damp cloth
and a little soft soap. Do not use any cleaning
products or solvents which could attack the plastic part of the device. Ensure that no water can
penetrate the housing.
Air filter
Also refer to the service information.
Clean the air filter regularly, and if necessary
exchange it.
O
pen both brackets (fig. K / Pos. K1) and remo
the air filter lid (fig. K / Pos. K2).
Remove the filter element (fig L / Pos. L1).
When cleaning the element do not use any strong
cleaners or petrol.
Clean the element by tapping it on a flat surf
If it is very dirty wash with soapy water, rinse
with clean water and leave to dry.
Put it back together in the opposite order.
ace.
Spark plug (fig. M–N)
Check the spark plug 27 after the first 20 hours of
use for dirt and if necessary clean it with a copper
wire brush. Then service the spark plug after every
50 hours of use.
Remove the spark plug connector 28 (fig. M)
with a turning movement.
Remove the spark plug 27 (fig. N) with the spark
plug socket
Put it back together in the opposite order.
25
included.
Note: The petrol filter 5 is a filter bowl located
directly under the petrol cap
added.
Turn the ON /O FF switch 11 to the “OFF“
position.
Open the petrol cap 1.
Remove the petrol filter 5 and clean in a
non-flammable solvent or solvent with a high
tlash point.
Reinsert petrol filter 5.
Close the petrol cap 1.
1
, filtering any petrol
Changing the oil, checking the
oil level (before each use)
Changing the oil should take place when the engine
is warm.
Only use engine oil (15 W–40).
ve
Put the generator on a suitable mat, slightly
tilted towards the oil drain plug
Open the oil fill plug 8.
Open the oil drain plug and pour the warm
engine oil into a collection tank.
After pouring out the old engine oil, close the
oil drain plug and put the generator upright.
Pour in engine oil up to the top mark on the
dipstick (approx. 0.6 l).
ATTENTION! When checking the oil level
with the dipstick (oil fill plug) do not screw it
on, just plug it in until the threads.
The old oil must be disposed of according to
the regulations.
9
Low oil switch off
The low oil switch-off responds, if there is not enough
engine oil. In this case, the engine will not start or
switches off automatically after a short period of
operation. A restart will only be possible after
.
11 GB
Cleaning, maintenance, storage, transport … / Disposal / Troubleshooting guide
topping-up the oil level (see Chapter “Oil change,
checking the oil level (before every use)“).
Preparation for storage
Empty the petrol tank with a petrol suction pump.
Start the engine and leave it running until the
rest of the petrol has been used up.
Change the oil after each season. To do this,
remove the old oil from the warm engine and
refill with new oil.
Remove the spark plug (fig. N). Fill about 20 ml
of oil into the cylinder using an oil can. Slowly
pull the express start so that the oil protects the
cylinder from the inside. Screw the spark plug
back in.
Store the device in a well ventilated place or
area.
Preparation for transporting
Empty the petrol tank with a petrol suction pump
or alternatively using the petrol tap and a suitable canister.
Once it it ready for use, leave the engine running
until the rest of the petrol has been used up.
Empty the engine oil from the engine (as de-
scribed).
Remove the spark plug connector (Fig. M) from
the spark plug.
Secure the device with a tension belt to prevent
it slipping out of place.
Ordering spare parts
When ordering replacement parts you should give
the following information:
Type of device
Device article number
Device ID number
Note: Spare parts not listed (e.g. carbon brushes,
switches) can be ordered through our call centre.
Disposal
The packaging is
made of environmentally friendly materials. It can be disposed of at your local
recycling centre.
Do not dispose of
electric equipment in the household waste!
According to European Directive 2012 / 19 / EU,
used electrical devices must be collected and recycled in an environmentally friendly manner.
Contact your local refuse disposal authority for more
details of how to dispose of your worn-out devices.
Never pour away residual petrol but must be properly stored / disposed.
For information on proper petrol disposal or disposing of your device, please contact your municipal
administration.
Troubleshooting guide
Fault Cause Remedy
Engine does
not start
Automatic oil
cut-out has not
responded
Spark plug
fouled
No fuel Refuel / have
Check oil level,
top up engine oil
Clean or replace
spark plug
(electrode
spacing 0.6 mm)
the petrol cock
checked
Find current information at
www.kompernass.com
12 GB
Loading...
