Sharp CDEA-135-V Service manual

CD-EA135V

SERVICE MANUAL

No. S7363CDEA135V

VIDEO CD MINI SYSTEM

MODEL CD-EA135V

CD-EA135V Video CD Mini System consisting of CD-EA135V
(main unit) and CP-EA135 (speaker system).

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

NTSC/PAL

This Service Manual is for the CD-EA135V, which is a minor-

modification model of the CD-E805V. This manual, therefore,
describes only the changed points from the service manual.
Please refer to the CD-E805V, service manual
(No. S3331CDE805V/) for the following servicing items.

CD-E805V

Page

REMOVING AND REINSTALLING THE MAIN PARTS............. 9

ADJUSTMENT ......................................................................... 10

WAVEFORMS OF CD CIRCUIT.............................................. 42

TROUBLESHOOTING............................................................. 43

FUNCTION TABLE OF IC ....................................................... 47

CONTENTS

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

VOLTAGE SELECTION..................................................................................................................................................... 2

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

DISASSEMBLY.................................................................................................................................................................. 6

BLOCK DIAGRAM ............................................................................................................................................................. 9

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 12

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 34

TYPES OF TRANSISTOR AND LED............................................................................................................................... 34

VOLTAGE ........................................................................................................................................................................ 35

FL DISPLAY..................................................................................................................................................................... 36

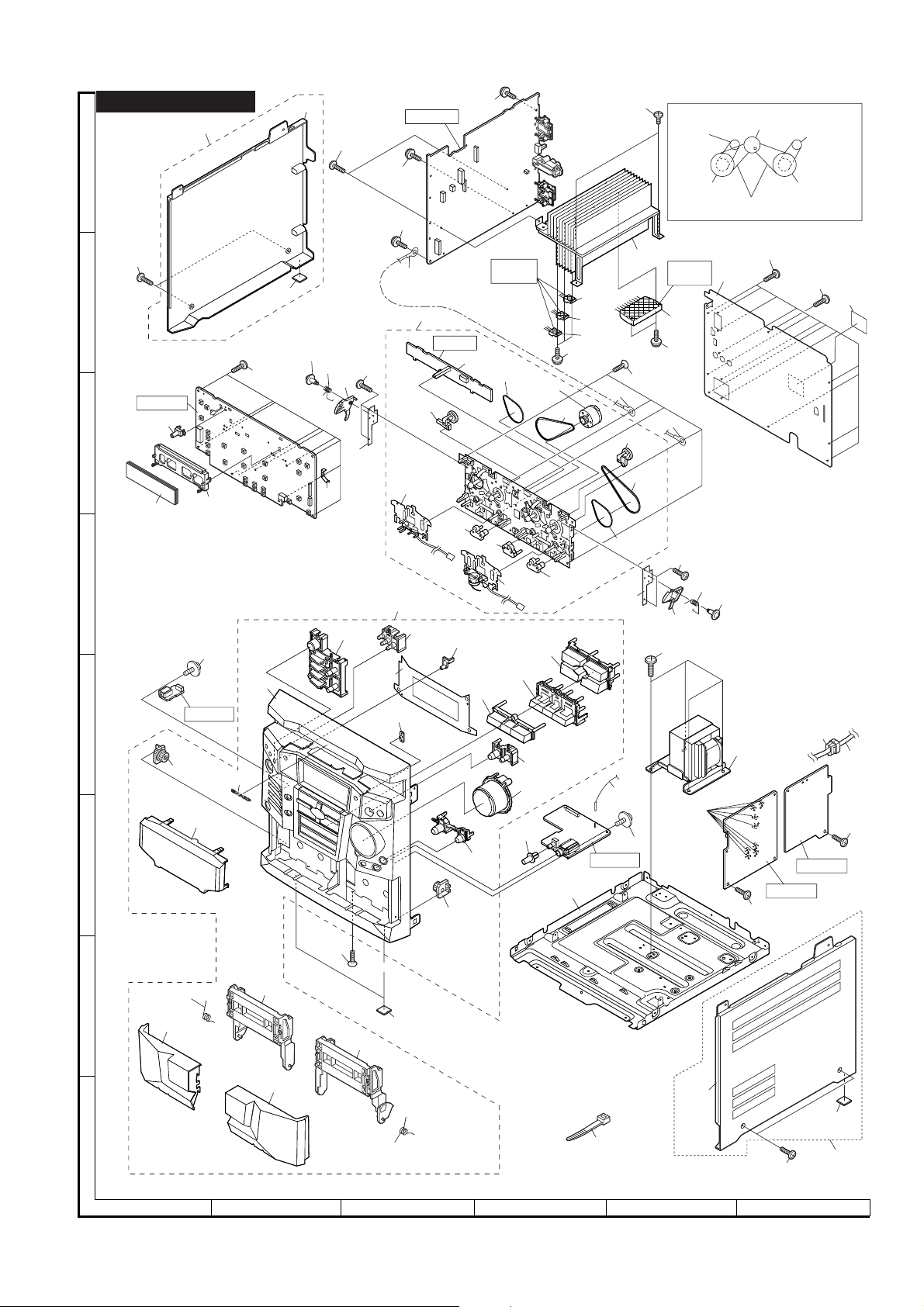

REPLACEMENT PARTS LIST/EXPLODED VIEW

Page

SHARP CORPORATION

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

CD-EA135V

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.

1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE

PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.

2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY

PRESET BEFORE SHIPMENT.

DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

QACCE0015AW00

– 2 –

QPLGA0004AWZZ

CD-EA135V

CD-EA135V

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

SPECIFICATIONS

General

Power source AC 110/127/220/230 - 240 V, 50/60 Hz
Power

consumption
Dimensions Width: 270 mm (10-5/8")

Weight 6.2 kg (13.7 lbs.)

53 W

Height: 305 mm (12")
Depth: 342 mm (13-1/2")

Amplifier

Output power MPO: 78 W (39 W + 39 W) (10 % T.H.D.)

RMS: 40 W (20 W + 20 W) (10 % T.H.D.)
RMS: 34 W (17 W + 17 W) (0.9 % T.H.D.)

Output terminals Speakers: 6 ohms

Headphones: 16 - 50 ohms (recommended:
32 ohms)

Video out: 1 Vp-p (75 ohms)

Input terminals Video/Auxiliary (audio signal): 500 mV/47 k

ohms
Microphone: 1 mV/600 ohms

Video CD

Video output
format

PAL/NTSC

CD player

Type 3-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser

D/A converter 1-bit D/A converter
Frequency

response
Dynamic range 90 dB (1 kHz)

pickup

20 - 20,000 Hz

Tuner

Frequency range FM: 88 - 108 MHz

AM: 531 - 1,602 kHz

Cassette deck

Frequency
response

Signal/noise ratio 55 dB (TAPE 1, playback)

Wow and flutter 0.3 % (WRMS)

CP-EA135

Type 2-way type speaker system

Maximum input
power

Rated input power 20 W
Impedance 6 ohms
Dimensions Width: 200 mm (7-7/8")

Weight 2.4 kg (5.3 lbs.)/each

50 - 14,000 Hz (normal tape)

50 dB (TAPE 2, recording/playback)

5 cm (2") tweeter
12 cm (4-3/4") woofer
40 W

Height: 305 mm (12")
Depth: 187 mm (7-3/8")

Specifications for this model are subject to change without
prior notice.

– 3 –

CD-EA135V

p

CD-EA135V

Front panel

NAMES OF P ARTS

1. Disc Tray

2. Timer Set Indicator

3. Video CD Digest/Time Search Button

4. Video CD On Screen Display On/Off Button

5. Video CD Playback Control Button

6. Memory/Set Button

7. On/Stand-by Button

8. Clock Button

9. Timer/Sleep Button

10. Tuning and Time Up Button

11. Tuning and Time Down Button

12. Headphone Socket

13. Tape 2 Record Pause Button

14. Tape 1 Cassette Compartment

15. Equaliser Mode Select Button

16. Extra Bass/Demo Mode Button

17. Volume Up and Down Buttons

18. Disc Skip Button

19. Disc Tray Open/Close Button

20. Tape 2 Cassette Compartment

21. Video CD/CD/MP3 Disc Button

22. Tape (1 2) Button

23. Video CD Stop or Return,
CD/MP3 Disc/Tape Stop Button

24. Tape 2 Reverse Play Button

25. Video CD Skip or Previous, CD/MP3 Disc Track Down or
Fast Reverse, Tape 2 Fast Wind,
Tuner Preset Down Button

26. Tape 2 Reverse Mode Select Button

27. Tuner (Band) Button

28. Video/Auxiliary Button

29. Video CD Play or Repeat or Select or Resume,
CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button

30. Video CD Skip or Next,
CD/MP3 Disc Track Up or Fast Forward, Tape 2 Fast Wind,
Tuner Preset Up Button

31. Microphone Level Control

32. Microphone Socket

10
11

12
13

14

1
2
3

4
5

6
7
8
9

21
22

23
24

25
26

27
28

29
30

15
16

17
18

19
20

31 32

Display

1. Disc Number Indicators

2. Disc Play Indicator

3. MP3 Disc Indicator

4. Tape Reverse Mode Indicator

5. Tape 2 Reverse Play Indicator

6. Tape 1 Play or Tape 2 Forward Play Indicator

7. FM Stereo Mode Indicator

8. FM Stereo Receiving Indicator

9. Memory Indicator

10. Extra Bass Indicator

11. Timer Recording Indicator

12. Timer Play Indicator

13. Disc Pause Indicator

14. Disc Repeat Play Indicator

15. Karaoke Mode Indicator

16. Tape 2 Record Indicator

17. Sleep Indicator

Rear panel

1. Video Output Socket

2. AC Voltage Selector

3. AC Power Lead

4. FM 75 Ohms Aerial Terminal

5. FM Aerial Earth Terminal

6. AM Loop Aerial Socket

7. Span Selector Switch

8. Video/Auxiliary (Audio Signal) Input Sockets

9. S

eaker Terminals

2 31 879456 10

16 1713 14

15

4

1

5
6
7

2

8
9

3

11
12

– 4 –

CD-EA135V

Remote control

CD-EA135V

1. Remote Control Transmitter

2. Disc Number Select Buttons

3. Disc Memory Button

4. Programme Clear Button

5. Echo Level Up and Down Buttons

6. Karaoke Mode Button

7. Video CD Auto/On Button

8. Video CD Playback Control Auto/Off Button

9. Video CD On Screen Display On/Off Button

10. Video CD Digest/Time Search Button

11. Video CD Bookmark Button

12. PAL/NTSC Select Button

13. Video CD/CD/MP3 Disc Button

14. Tape (1 2) Button

15. On/Stand-by Button

16. Disc Random Button

17. MP3 Disc Display Button

18. Direct Search Buttons

19. Tuner Preset Up and Down Buttons

20. Extra Bass Button

21. Equaliser Mode Select Button

22. Volume Up and Down Buttons

23. Tuner (Band) Button

24. Video/Auxiliary Button

25. Tape 2 Reverse Play Button

26. Video CD Skip or Previous, CD/MP3 Disc Track Down or
Fast Reverse, Tape 2 Fast Wind Button

27. Disc Pause Button

28. Video CD Skip or Next, CD/MP3 Disc Track Up or Fast Forward,
Tape 2 Fast Wind Button

29. Tape 2 Record Pause Button

30. Video CD Stop or Return,
CD/MP3 Disc/Tape Stop Button

31. Video CD Play or Repeat or Select or Resume,
CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button

1

2
3
4

15
16
17

5
6

18
7
8
9

19

25 26

27 28

10
11
12
13
14

20

21

22

29 30 31

23

24

Buttons with " " mark in the illustration or highlighted in bold on the
left can be operated on the remote control only.

CP-EA135

1. Tweeter

2. Woofer

3. Bass Reflex Ducts

4. Speaker Wire

1

2
3

3

4

– 5 –

CD-EA135V

(B1)x2
ø3x10mm

(A1)x2
ø3x12mm

(A1)x2
ø3x12mm

(B1)x2
ø3x10mm

(B1)x4
ø3x10mm

Rear
Panel

Side Panel
(Right)

Side Panel
(Left)

Top Cabinet

Front

Panel

Lock Lever

CD Player Unit
(Bottom View)

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

3. Take off nylon bands or wire holders where they need to

4. Take sufficient care on static electricity of integrated

STEP

1 Top Cabinet 1. Screw ...................... (A1) x4 6-1

2 Side Panel 1. Screw ...................... (B1) x8 6-1

3 CD Tray Cover/ 1. Turn on the power supply,.. 6-2

4 Rear Panel 1. Screw ...................... (D1) x9 6-2

5 Main PWB 1. Screw ...................... (E1) x4

6 Front Panel 1. Screw .......................(F1) x1 7-1

7 Display PWB 1. Screw ...................... (G1) x9

- 2. Bracket .................... (G2) x1 7-2

8 Mic PWB 1. Screw ...................... (H1) x1 7-2

9 Tape Mechanism 1. Open the cassette holder. 7-3

10

11 Turntable 1. Hook.........................(L1) x2 7-4

12 Loading Tray 1.

13 Video CD PWB 1. Screw ......................(N1) x2 7-6

14 CD Mechanism 1. Hook........................ (P1) x2 8-1

Note 1: How to open the changer manually. (Fig. 6-3)

1. In this state, turn fully the lock lever in the arrow direction through

2. After that, push forward the Loading tray.

Note 2:

1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electro­static damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front
movement.

DISASSEMBLY

outlet before starting to disassemble the unit.
be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were
before disassembling.

circuits and other circuits when servicing.

CD-EA135V

REMOVAL PROCEDURE FIGURE

(Left/Right)

CD Player Unit open the disc tray, take out

Headphones PWB

(Note 2) 2. Hook........................ (N2) x1

the hole on the loading tray bottom.

the CD tray cover, and close.
(Note 1)

2. Screw ...................... (C1) x1

3. Hook........................ (C2) x3

4. Hook........................ (C3) x2

5. Socket ..................... (C4) x4

2. Socket ..................... (E2) x4

3. Flat Cable ............... (E3) x1 7-1

4. Flat Wire.................. (E4) x1

2. Hook.........................(F2) x2

3. Flat Wire...................(F3) x1

3. Flat Cable ............... (G3) x1 7-3

2. Tip ........................... (H2) x1

2. Screw...................... (J1) x5

1. Screw ...................... (K1) x1 7-2

2. Stabilizer Holder ......(L2) x1

Turn fully the lock lever in the
arrow direction

2.

Push the loading tray backward
to engage the claw with the
groove and remove it in the
direction of the arrow.(M1) x6

3. Socket ..................... (N3) x4

2. Hook........................ (P2) x2

.

6-2, 7-1
7-1, 7-2

7-2, 7-3

6-3
7-5

– 6 –

CD-EA135V

(C3)x1

Pull

Rear
Panel

(C1)x1
ø3x10mm

Video
CD PWB

(C4)x4

(D1)x8
ø3x10mm

Figure 6-1

2

Figure 6-2

Figure 6-3

1

(E1)x1
ø3x10mm

CD Tray Cover

(C2)x3

CD Player
Unit

(C3)x1

Main PWB

Lug Wire

(E1)x1
ø3x10mm

(D1)x1
ø3x10mm

1
2

(E2)x1

CD Player Unit

Loading
Tray

(L2)x1

(L1)x2

Turntable

(E3)x1

CD-EA135V

(F2)x1

(E1)x2

ø3x6mm

Power PWB

Transformer
PWB

Display PWB

(F3)x1

(E2)x1

(E2)x1

ø3x10mm

Figure 7-1

Front Panel

(F1)x1

Front
Panel

(E4)x1

Headphones
PWB

Main PWB
(F2)x1

Figure 7-4

(M1)x3

Loading Tray

3

Mic
PWB

(G2)x1

(G1)x1
ø3x10mm

Display PWB

(G1)x8
ø3x10mm

Tape
Mechanism

(J1)x5
ø3x10mm

(H2)x1

(H1)x1
ø3x10mm

Lug Wire

(E2)x1

ø3x10mm

(K1)x1

(G3)x1

Tape
Mechanism

Figure 7-2

Front Panel

Headphones
PWB

Open

1

(N3)x2

2

(M1)x3

Figure 7-5

(N1)x2
ø3x10mm

Video CD

PWB

Loading
Tray

Lug Wire

Figure 7-3

Cassette
Holder

(N2)x1

(N3)x2

Figure 7-6

– 7 –

CD-EA135V

(P1)x1

CD
Mechanism

(P2)x2

(P1)x1

Loading Tray

Figure 8-1

CP-EA135

STEP

Screwdriver

REMOVAL PROCEDURE FIGURE

1 Woofer 1. Front Panel ............. (A1) x1 8-2

2 Tweeter 1. Screw ...................... (B1) x2 8-3

Driver should
be pried away
from Speaker Box.

2. Screw ...................... (A2) x4 8-3

(A1)x1

Speaker Box

(B1)x2
ø3x10mm

(A2)x4
ø4x12mm

Tweeter

Speaker Box

Woofer

Figure 8-3

Figure 8-2

– 8 –

CD-EA135V

PICKUP UNIT

FOCUS COIL

TRACKING COIL

50

45
26

49
46

44
41

31
27

2356

TJM4558CD

OPE AMP.

+B8

JK690

VIDEO OUT

+5V(+B7)

D
C

B
A

+B12
1
6

25

2

ICM1

DRAM

1625635T

CNS702

~

5
7

~

10

21

~

24

~

~~

TO DISPLAY SECTION

IC3

48

QM1

+B8

+3.3V
(+B11)

+3.3V

Q1

+3.3V
LASER

DRIVER

+B11

20

VO4+

4

VO4–

5
6

VO3+
VO3–

7

VO2+

8
9

VO2–
VO+

10

VO–

11

CONSTANT

VOLTAGE

Q2

+5V

+B4

22

1

12

VIN1
VIN2
VIN3
VIN4

VCONT

IC2

FWD

LA6574H

REV

VO5–

FOCUS/TRACKING/

SPIN/SLED DRIVER

VO5+

29

30

26

+B13

1
31
51
81

+B12

13

~~

28

4

12

49
52

+B12

XL1

16.9344 MHz

49

+5V

13
15

17
24

25
27
28

2
3

95

94

ARFS

AVDD1

7

AVDD2

18

VDD

38

LVDD

41

RVDD

46

XVDD

47

VVDD

75

AIN

2

~

DIN

5

10

VREF
EIN

12

FIN

13
20

FDO

TDO

19

22

21

24

ICM3

17,19,21,22 PIN

93

91

AJN

ARCLK

VDD5

68

ICM2

ES3880FM

VIDEO CD DECODER

~~

45

47

54

62

63
72
75
77
91

100

5
16
32
53
44

45

~

48

64

59

+B12

43

32

41

43

51

56

57

ES3889F

VCD COMPANION

78

66

60

73

48

XIN

XOUT

IC1

LC78637E

CD SERVO

SLDO

SPDO

23

48

88

LROMCE#

44

30

31

41

ICM3

90

67

DRF

72

~~

87

LSC1#

50

26

AJN

ARFS

3323

64

65

66

DO

RES

WRQ

CONT3

CONT1

CONT2

71

34

70

82

79
68
66
65

LOE#

64
62

~~

55

80

100

6

1

25

ARCLK

37

71

74

XL2

27 MHz

Figure 9 BLOCK DIAGRAM (1/3)

– 9 –

63

62

DI

CL

VVSS

VSS

ASDFIN

ASLRCK

XVSS

FSX

RVSS

LVSS
TEST

VSS

SBCK

AVSS2
AVSS1

CONI3

26

27

DSC_C

69

99
97
95
93
85
83
81

8

98
96
94
92
89

~

86
84

82
80

79

61

CE

CONT5

CNP5

1

WRG
DRF

QM2 QM3

A
B
C
D

1
2

12
13

15
22

24

~~

CE_
OE_

2
3
4
5
6
7
8
9

10

1 1

12

1
2
3
4
5
6
7
8

CNP6

CNP3

1
2
3
4
5
6

1
2
3
4
5
6

CNP4

ICM4

IX0528AW

CE
DO
DI
CLK

CD RES
CLAMP SW.

O/C SW
DISC N.SW

DSA_STB
MPEG_POW

R-CH
A_GND
L-CH
D_GND
+5V(+B7)
A10V(+B8)
D_GND
+8V(+B4)

1

1

2

2

3

3

4

4

5

5

6

6

1

1

2

2

3

3

4

4

5

5

6

6

+B12

32
30

25
23

EPROM

21

~~

17

CNS701

SECTION

TO DISPLAY

CNS601

TO MAIN SECTION

SW4

PICKUP IN

M2

M

SLED

MOTOR

M1

M

SPINDLE

MOTOR

SW1
OPEN/
CLOSE

SW2
CLAMP

SW3

DISC

NUMBER

M

M3

T/T UP/DOWN

LOADING MOTOR

+B13

77
69
57

55
51
50
44
43
40
37
28
17

5

3

QM4

2

4

~

+B12

+B7

Q4

6

Q3

+B12

CD-EA135V

FM

ANTENNA

SO302

FM ANTENNA

TERMINAL

AM LOOP

ANTENNA

CNP301

121

+B3

4

GND

FM/AM

OUT

18

FM+B

10.7 MHz

CF351

985

FM

DET

MPXIN

16

17

VCO

X351

456 kHz

MO/ST

FM/AM

12

13

L

14

R

15

FM IF

8432

FM

OSC

T301

OSC. BUFF

Q302

AM BAND

COVERAGE

6

9

FM

OSC.

T302

BF301

2

B.P.F.

T303

1

FM
RF

AM TRACKING

IC301

TA7358AP

FM FRONT END

57

L312

T306

CF303

IC303

LA1832S

FM IF DET./

FM MPX./AM IF

T351

AM IF

21

AM MIX

FM/AM IF MPX.

21

23

AM RF IN

AM OSC IN

450 kHz

CF352

AM IF

7

STEREO

JK1
MIC

VRK1

MIC LEVEL

FROM VIDEO CD

CNP6

TAPE 1

P.B. HEAD

TAPE 2

REC./P.B. HEAD

ERASE

HEAD

12

13

L-CH
R-CH

L-CH
R-CH

9

40

LATCH

DATA

CLOCK

ROUT

LOUT

RIN

LIN

VCC

22

REC.

P.B.

AC BIAS

ICK1

M65856SP

MIC AMP.

42
41

35
36

32
31

23

1
2

3

SWITCHING

Q101­Q104

BI601CNS601

1

3
4

POP REDUCE

SWITCHING

Q105
Q106

BIAS
OSC

ICK2

KIA4558P

OPE AMP.

6

7

5

2

1

3

+B4QK1

IC101

PLAYBACK AND RECORD/

L(T1)
R(T1)

L(T2)
R(T2)

L NF

R NF

L REC.

R REC.

REF

Q112

Q111
L103

AN7345K

PLAYBACK AMP.

1

24

2

23

3

22

6
9

16

14

12

T1/T2

REC

NOR/
HIGH

15

SWITCHING

Q114

SWITCHING

P.B

H/N

T1/T2

19

Q113

+B

FM

13

L

4

R

21

5

20

REC.RL

7

18

L NF

8

17

R NF

ALC

10

SWITCHING

Q109

VT

+B3

Q360

SWITCHING

+B4

P.B.

BIAS

Q110

20

FM

X352

4.5 MHz

1

22

OSC

PLL(TUNER)

7

JK690

VIDEO/AUX IN

L
R

TAPE

TUNER

CD

+B2

+B2

1615

IC302

LC72131

FM/AM

9

L

R

L
R

L
R

L
R

MOTOR
DRIVER

Q706

Q707
Q708

SOLENOID

DRIVER

CE

DI

CLK

4

3

16
10
15
11
14
12
13

11

9

MO/ST
10

5

21

8

17

IC601

LC75341

AUDIO PROCESSOR

18

7

MECHANISM

DO

6

17

23

+B2

Q711
Q712

TAPE

ASS'Y

3

+B3

MUTING

CLK

Q107
Q108

–20dB

ATT

Q601
Q602

SYSTEM
MUTE

REC/PLAY

T1/T2

BIAS

Q603
Q604

1

DI

2

CE

24

R

21

L

4

Figure 10 BLOCK DIAGRAM (2/3)

– 10 –

CD-EA135V

C

+B3

2119

5~

70

-

85

79

86

-

100

SP. DET.

D905
D906

FL701

FL DISPLAY

56

VLOAD

VDD

2

145

+B4

SW601

SPAN

SELECTOR

~

41

27

51

50 48

44 45

+B4

46

VDD

IC701

IX0554AW

SYSTEM MICROCOMPUTER

897

RESET

RESET

11 1210 15 16 17

XL701

4.19 MHz

Q709

VDD

+B4

+B4

40 30

AVDD

CEDIDO

CLK

­20 21 22 23 24

TO TAPE

MECHANISM

25

13

39
38
37

+B4

34
33

-

31
29

41

RX701

REMOTE

1

SENSOR

2

SW701-SW726

+B PROTECT

TO VIDEO CD

+B2

3

KEY

SECTION

+B4

HEADPHONES

JK701

STEM

TE

Q603
Q604

1

L

2

14

R

IC901

STK43205

POWER AMP.

/PLAY

LD+7V

+B6
+B2

+13V
+B4

+5.6V

AN78L05

VF1

T1/T2

–VF

VF2

+VCC

15

8

KTC2026

IC855

A+10V

+B3

IC854

IC851,IC852,IC853, IC854:

VOLTAGE REGULATOR

-VCC

9

–B1

KIA7812AP

KIA7810AP

+B5

+5V

13

+B1

IC851

IC852

IC853

KIA7805AP

Q901
Q902
Q903
Q904

R-OUT

10

L-OUT

7

D802

D804

D803

VOLTAGE

REGULATOR

Q801

T3.15A L 250V

T3.15A L 250V

T2A L 250V

T2A L 250V

SP RELAY

ON-OFF

POWER TRANSFORMER

F802

F801

F804

F803

Q905

PT801

T.F.

MAIN

SPEAKER TERMINAL

GROUND

RL914

230-240 V

220 V
127 V
110V

AC POWER SUPPLY CORD

AC 110/127/220/230-240 V,

SW801
VOLTAGE
SELECTOR

50/60 Hz

SO901

BIAS

Figure 11 BLOCK DIAGRAM (3/3)

– 11 –

CD-EA135V

1

2

1
/

4

R

6

6

C132

C

C104
180P

C103
180P

C640
22/50

CD SIGNAL
VIDEO SIGNAL
MIC SIGNAL

R617

2.2K

R615

4.7K 4.7K

R614

R616

2.2K

R620
22K

Q102

KTC3200 GR

0V

0.7V

0V

0.7V

0V

Q104

KTC3200 GR

Q103
KTC3200 GR

0V

0.7V

0V

0.7V

SWITCHING

0V

Q101

KTC3200 GR

R613
390

Q601

KTC3199 GR

Q602

KTC3199 GR

R612
390

S_MUTE

R104

2.2K

R106

3.3K

R105

3.3K

R103

2.2K

R605

10K

R611

2.2K

R610

C639

1/50

2.2K

C609

1/50

SWITCHING

0V

SWITCHING

R110

4.7K

KTC3199 GR

R109

4.7K

0V

SWITCHING

R107

R621
22K

9.3V

9.3V

Q112

KTA1266 GR

R102

1K

R101

1K

47K

R108

0V

0V

Q106

Q105

KTC3199 GR

0V

0V

47K

C602

C625

0.0022

8.6V

C106

C105

0.022

560P

C601

R607

3.9K

C611

0.0022

C629

0.001

R363

2.7K

PLAYBACK

560P

PLAYBACK

220P

C653

220/16

220P

C652

C607

0.12

C615

C617
C619

C621

R609

220

+B

R146

R147

10K

10K

R112

15K

R

R114

L

C107
330P

R113

IC101

AN7345K

AND

RECORD/

AMP.

R111

15K

1

220P

C651

2
3
4

C605

5

0.1

(ML)

6

C613

1/50

7

4.7/50
8

1/50

9

1/50

10

1/50

11

12
C623
1/50

L

0V

R148

4.7K

0V

C112

100/25

C114

0.033

1K

C108
330P

24

23

22

123

C109

1K

330P

R117

100K
C113

0.033

C111

100/25

DI

CE
VSS
LOUT

LBASS
LTRE
LIN
LSEL0
L4
L3

L2
L1

CCB

INTERFACE

–

+

–

+

–

+

AUX

DECK

TUNER

CD

IC601

LC75341

AUDIO PROCESSOR

SWITCHING

Q113

KRC104 M

3.4V

3

2

1

C141

100/16

1

0V

3.4V

3

2

Q114

SWITCHING

KRC104 M

R116
56

R118

100K

C110

330P

–

Hich=T1

–

R115
56

C116
560P

+

112K

+

R119

560P

R122

R124

15K

C118

47/25

R120

3.9K

20

21

45 6

3.9K
R123

15K

C117C115
47/25

R121

10K

C120

C121

10K

–

+
+

VREF

–

ROUT

–

+

RBASS

–

+

RTRE

RSEL0

–

+

R149

150

C150

47/25

68K

R150

8.2K

R126

0.0022

R128

5.6K

19

18

IC101

AN7345K

78 9

0.022

C143

3.3/50

R127

8.2K

C119

0.0022

24

CLK
VDD

23
22
21
20
19

RIN

18
17

R4

16

R3

15

R2

14

R1

13

–20dBATT

MUTING

0V

0V

KTC3199 GR

270P

C124

17

Hich=CHROME

R129

5.6K

270P

C123

R136

Q108

R130

R131

C603

C606

0.1(ML)
C614

C618

C620

C622

1/50

220K

R138

0.7V

100

R132

1.5K

C126
22/50

–

+

+

–

C125

22/50

R133

1.5K

+B

C608

0.12

10K

C128

100

C127

C616

C624

1/50

C130

0.022

56K
56K112K

C129

0.022

R

R

0.0033

16

0.0033

1

1

2

1

R134

A

FM SIGNAL
PLAYBACK SIGNAL

RECORD SIGNAL

BI601

CNS601

R-CH

1

2
3
4

CNP6

TO

VIDEO CD

PWB

P21 12-D

5
6
7

8

B

C

D

1

A_GND

3

L-CH

4

CD_GND

5

D_5V

6

A_5V

7

D_GND

8

(DRIVER)

9

LD+7V

1

GND(A_GND)

2
3
4

D_GND(DRIVER)

5

6
7
8

9

10

P16 1-F

11

TO POWER SECTION

12

13
14

15
16
17

+B

+B

L-CH

R_CH
LD+7V

A_5V
D_5V
GND (CD_GND)

CD(A_GND)

GND (D_GND)

+B_PROTECT
M_+13.5V

A_+10V
SW_5V

SP_DET
SP_RLY

GND (M_GND)

+B

R619

330

R618

330

+B

+B

+B

+B
+B

Q603

KTC3199 GR

SYSTEM MUTE

Q604

KTC3199 GR

SYSTEM MUTE

E

TAPE 1

PLAYBACK HEAD

CNP101

R-CHL-CH

1
2
3

T1_R

1

A_GND

2

T1_L

3

F

2
3

4

1

5
6

CNS102

1
2
3
4

5

6

1
2
3
4
5
6
7

BI102

M_GND

ERASE
T2_R2

T2_R1
T2_L1
T2_L2

ERASE HEAD

R-CH

L-CH

TAPE 2

RECORD/

G

PLAYBACK HEAD

SWITCHING

C102

560P

C101
560P

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 12 SCHEMATIC DIAGRAM (1/13)

– 12 –

CD-EA135V

47/25

8

2K

/

R126

24

CLK

+B

VDD

23

C603

22

VREF

RTRE

RIN

MUTING

0V

0V

C124

R129

5.6K

C123

R4
R3
R2
R1

–20dBATT

270P

270P

C608

21

0.12

20

C606

0.1(ML)

19

C614

18

C616

17

C618

16

C620

15
14

C622

1/50

13

C624

1/50

R136

220K

R138

10K

0.7V

Q108

KTC3199 GR

100

R132

C130

1.5K

R130

C128

0.022

C126
22/50

17

–

+

56K

Hich=CHROME

56K

+

–

C125

22/50

100

R133

C129

1.5K

C127

R131

0.022

ROUT

RBASS

RSEL0

R

8.2K

28

K

18

01

45K

78 9

50

3.3

.

R603

0.0033

16

0.0033

R601

1K

1K

22/50

1/50

1/50

1/50

R

R134

C131
47/25

R602

1K

C610

1/50

R606

3.9K

C612

0.0022

4.7/50

C626

0.0022

REC_R

R139

10K

10K

C132

47/25

C133

22/50

14

15

RIPPLE

Nor/CrO2

ALC

ALC

10 11 12

R135

10K

J635

R608

220

+B

MUTING

0.7V

Q107

KTC3199 GR

C134

220/10

13

Vcc

GND

10K

C135

0.022

0V

REC_L

R137
220K

R158

220

Q109

SWITCHING

KTA1266 GR

0V

82

R142

(1/2W)

47K

R143

C137

0.047(ML)

R364

2.7K

KOK OUT(L)

KOK IN(L)

+B

+B

R140
47K

11.6V

4.7K

R141

2

11.6V

KTC3203 Y

0V

0V

0V

22K

R144

C138

0.0082

C139

0.039(ML)

C630

0.001

Q110
KRC104 M

1

0V

Q111

R145

4.7

T_BIAS
3

BIAS

BIAS OSC.

L103

330µH

0V

REC/PLAY

C140

47/25

+B

R691

C691
390P

5.6K

R690

C690
390P

5.6K

KOK OUT(R)
KOK IN(R)

+B

+B

+B

+B

A_+10V

+B

T-T1 T2

+B+B

SP_DET

SP_RLY

–20dB

SW_5V

1234567891011121314151617181920

1

T_BIAS

M_+13.5V

A_+10V

REC/PLAY

T_T1/T2

CNP701A

DISPLAY PWB

P18 1-F

D_GND

S_MUTE

TO

DI

CLK

CLK

DI

+B-PROTECT

CE

DO

CE

DO

R693

68K

R692

68K

R688

1

CHASSIS

+B

+B

KOK_LATCH

MIC IN

SPAN

TUN_R

A GND
TUN_L

D_GND

A_+10V

KOK OUT(L)

KOK IN(L)

A_GND
A_+10V

KOK OUT(R)

KOK IN(R)

D_GND

CLK

KOK LATCH

MIC IN

CNP701B

20

FFC701

CLK

DO

CE

DI

DI

BIV1

121

18
19
20
21
22

23
24

25

26

BIK1

1

3
4
5
6
7
8

9
10
11
12

CNSV1

2

CNP8

VIDEO OUT

L-CH

JK690

VIDEO OUT/AUX IN

R-CH

SW601

SPAN SELECTOR

50 kHz/9 kHz

100 kHz/10 kHz

P15 11-H

TO TUNER SECTION

CNSK1

1

2
3

MIC PWB

P24 3-H

4
5

CNPK1
6
7
8
9

10
11

P23 12 - C

TO VIDEO CD PWB

TO

7

8 9 10 11 12

Figure 13 SCHEMATIC DIAGRAM (2/13)

– 13 –

CD-EA135V

22K

C302

0.001

A

B

C

D

E

F

AM

LOOP

ANTENNA

SO302

FM ANTENNA

TERMINAL

FM 75 OHMS

1

GND

CNP302

1
22

D301

DS1SS133

D302

DS1SS133

BF301
B.P.F.

123

C323

C338

0.001

0.022

FM FRONT END

IC301

C303

D305

DS1SS133

C308

4.7P
(CH)

C314

10P(CH)

0.0047

0.0047

C304

0.01

C315

TA7358AP

123456 789

C305

4.7P
(CH)

0.001

C320

0.001

C309

FM RF

L312

R311

R314

22

C316

100K

0.022

VD302

SVC211C

R313

C317

FM SIGNAL

AM OSC.

AM BAND

COVERAGE fL

C311
18P

15P(CH)

C310

C312

0.022

33K

R325

47K

0.001

R327

33

AM TRACKING

AM ANTENNA

T306

10

R302

T301

FM OSC.

T303

C335

560P

C334

22P
(UJ)

C306

0.022

C324

4.7P

COVERAGE fL

(UJ)

T302

FM IF

R322

680

C318
100P

Q302

KTC3194 Y

OSC. BUFFER

C307
10/50

FM BAND

VD303

SVC211C

C330

R323

CF303

1

15P

2

(UJ)

68K

R309

C313

C331

0.047
C332

0.022

VD301

SVC348S

10K

22P

(CH)

3

R316

4.7K

R336

10K

TP301

+B

C381

12P

C382

15P

C342

R382

(CH)

150

(CH)

0.022

X352

4.5 MHz

R365

R358

3.9K

5.6K

R351

0.022

10/50

C351

C352

C393

0.001

C397

0.022

R381

C389

1/50

22 21 20

X OUT

X IN

123456

R375

470

10K

24 23 2122

10K

VSS

C361

C362

3.3/50

AM OSC IN

AM OSC OUT

AM MIX OUT

FM IF IN

123

0.022

C350

C392

C394

47/25

0.001

R380

1.5K

IC302

AOUT

LC72131

DI

CE

1K

1K

1K

R372

R374

R373

0.022

FM AFC

REG

T351

AM IF

C380

10/50

19 18

AIN

CL

0.022

C363

AM RF IN

R379

PDDO

1K

R378

AM SIGNAL

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

MAIN PWB-A1 (2/3)

23456

Figure 14 SCHEMATIC DIAGRAM (3/13)

+B

– 14 –

C342

0.022

10K

R365

R358

3.9K

24 23 2122

5.6K

R351

FM IF IN

123 456 78 9

10/50

0.022

C351

C352

C361

C362

3.3/50

AM OSC IN

AM OSC OUT

AM MIX OUT

0.022

C350

0.022

FM AFC

REG

T351

AM IF

0.022

C363

AM RF IN

R352

2.2/25

C364

20

VSM

1K

1

2

0.022

C365

0.001

C366

1819

FM/AM OUT

AM LOW CUT

AM IF IN

GND

3

CF352

C353

R350

2.7K
C367

1/50

SD

0.022

0.022
C354

STEREO

FM DET

R353

CF351

270

X351

TP302

456 kHz

TP

R357

R356

1/50

C368

MPX IN

MPX VCO

VCC

IF OUT

10 11 12

C357

2.2/50

470K

1K

C369

C356

0.001

C355

PHASE

C374

0.015

27P(UJ)

151617 14 13

L-CH OUT

R-CH OUT

R355

3.3K

22P

0.015

C373

MO/ST

PHASE

(FM/AM)

1/50

C358

C370

C371
1/50

C372

1/50

IC303

LA1832S

FM IF DET./FM MPX./AM IF

1/50

CD-EA135V

R361 10K

R362 10K

R393

SD

IF IN

MO/ST

1110

R377

C386
330P

ST IND

R376

1K

1K

47K

C393

0.001

C397

0.022

+B

R382

150

C381

(CH)

12P

X352

4.5 MHz

C382

(CH)

15P

R375

470

+B

10K

R381

C389

1/50

22 21 20

VSS

X OUT

X IN

123456

C394

47/25

R380

1.5K

IC302

AOUT

LC72131

DI

CE

1K

1K

R374

R373

C392

0.001
C380

10/50

19 18 17 16 15 14 13 12

CL

1K

R372

C387

2.2K

R379

PD

AIN

VDD

FM IN

DO

FM/AM

1K

R378

LC72131

PLL (TUNER)

0.022

L351

100µH

C385

AM IN

YPA1CY103N

CONT

IF

FM/AM

987

+B

IC302

0.01

R386

22K

C399

0.022

R395

47K

R360

4.7K

C398

100/10

R387

5.6K

R388

3.9K

R359

SWITCHING

1.8K

100/10

+B

R384

C396
C395

0.022

Q360

KTA1266 GR

R385

5.6K

5.6K

ZD351

DZ5.1BSB

R392

270

R391

270

R383

5.6K

C391

47/25

+B

C388

0.001

C384

0.001

+B

CE

DI

CLKDOA+10V

TO MAIN PWB P13 12-C

7

8 9 10 11 12

AGND

192621242322

DGND

TUN_R

18

TUN_L

2025

Figure 15 SCHEMATIC DIAGRAM (4/13)

– 15 –

CD-EA135V

C

Out

R919

0.22

(2W)

+Vcc

C915

D905

IC901

10/63

DS1SS133

C916

R918

10/63

–Vcc

0.22

Out

Ch2

(2W)

R914

0.1(1W)
C912

0.01(ML)

R920

R916

5.6K

0.22

(2W)

C902

0.22/50

C914

100/63

DS1SS133

270

R924

R

R922

D906

R902

56K

+
–

Fusible

100(1/4W)

Q902

KTC3199 GR

R-CH

Ch2

820

R912

C910

47/50

DS1SS133

470P

C904

D907

C908
470P

R908

Q904

151413121110987654321

C906

3.3P

56K

(CH)

1K

R910

KTC3199 GR

STK43205

POWER AMP.

1K

R904

Q903

KTC3199 GR

C925

47/50

IC901

R935

22K

R936

22K

R937

56K

+B

L901

0.29µH
L902

0.29µH

L

C926

0.22
(ML)

R

C928

0.22
(ML)

R940

4.7

C927

0.22
(ML)

C929

0.22
(ML)

R941

4.7

L

R

L-CH

+

Ch1

C907

470P
C905

3.3P
(CH)

R907

56K

R911
820

C909
47/50

–

R909

1K

R925

C913

100/63

R921

100(1/4W)

Fusible

22K

L

C932

0.22

0.22

R917

R913

0.1(1W)
C911

0.01(ML)

R915

5.6K

Ch1

(2W)

R923
270

Q901

KTC3199 GR

A

R903

1K

B

C903
470P

R901

56K

C901

0.22/50

C

D

E

F

TO MAIN PWB P12 1-C

G

L-CH

1

(A_GND)
GND

2

R-CH

3

SP_RLY

16

SP_DET

15

M_+13.5V

12

LD+7V

4

A_+10V

13

+B_PROTECT

11

D_5V

7

A_5V

6

SW_5V

14

D_GND
DRIVER GND

5

GND
(CD_GND)

8

GND(D_GND)

10

CD(A_GND)

9

GND(M_GND)

17

CHASSIS

CNS801

+B

IC855

KTC2026

22K

R859

D857

DS1SS133

SILICON

C863

22/50

220

R860

ZD852

DZ8.2BSB

D852

DS1SS133

C865

10/50

VOLTAGE REGULATOR

10K

R852

+B

+B

+B

+B
+B

+B

VOLTAGE REGULATOR

13V

+B

0.1

C851

D851

DS1SS133

(ML)

R854

IC852

KIA7810AP

22K

R853

22K

D859

DS1SS133

C854

VOLTAGE REGULATOR

0.1

(ML)

C858

0.1

22K

R926

R927

22K

IC851

KIA7812AP

31

2

D858

DS1SS133

3

1

2

(ML)

IC853

KIA7805AP

13

2

R861

330

10

R862

C948

2200/50

C864

0.1(ML)

R857

3.3(1/2W)

C855

0.1

(ML)

C859

0.1

(ML)

C949

2200/50

+B

+B

+B

18V

C856
3300/35

+B+B

BI801

-B

-B
+B

SUB_B

1

3
4
5
6
7
8
9

CHASSIS

FW701

FROM

DISPLAY PWB

P19 12-E

1

1
2
3

2

4

3

5

4

6

5

7

6

8

7
8

CNP802

1
2
3
4
5
6

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 16 SCHEMATIC DIAGRAM (5/13)

– 16 –

FM SIGNAL

CD-EA135V

801

L

C927

0.22
(ML)

C929

0.22
(ML)

R941

4.7

CHASSIS

CNS801

1

3
4
5
6
7
8
9

CHASSIS

FW701

FROM

DISPLAY PWB

P19 12-E

+B

R942

150(1/2W)

R943

150(1/2W)

R

DS1SS133

KTC3199 GR

SP RELAY

D911

Q905

ON-OFF

0.2V

RL914

4.4V

R946

47K

R_OUT

L_OUT

WTM901

M_+13.5V

+B

SP_RLY

R_CH

GND
L_CH

1
2
3
4
5

SP_L-CH
SP_R-CH

6 OHMS MIN

SP_L-CH_GND
SP_R-CH_GND

FW901

HEADPHONES
PWB-A3

CNP705

1

1
2
3
4
5

5

SO901
SPEAKER
TERMINAL

JK701

HEADPHONES

MAIN PWB-A1 (3/3)

F802

D805

1N4004S

220/63

T3.15A L 250V

T3.15A L 250V

F803

T2A L 250V

F804

T2A L 250V

C805

22/100

D806

1N4004S

F801

C812

0.1(ML)

0.1

C813

(ML)

PT801

POWER

TRANSFORMER

T.F.

SW801

VOLTAGE SELECTOR

230-240 V
220 V
127 V
110 V

CNP805

CNS805

1

1

2

2

50/60 Hz

AC 110/127/ 220/230-240 V

AC POWER SUPPLY CORD

RL204F

C807

0.1(ML)

0.1(ML)

C803

47/50

–28V

–28V

Q801

VOLTAGE

REGULATOR

C808

0.1(ML)

C809

0.1(ML)

ZD803

DZ30BSB

R808

2.2K
(1/2W)

C804

CNP801

+B

R801

+B

-B

-B

100K

Vcc

GND

D802

D3SBA60F

D804

1N4004S

R802

47K

C802

C801

100/35

47

R805

D803

C806

ZD802

DZ6.8BSA

47/50

R806

–33V

R807

10

KTA1274 Y

ZD801

DZ6.2BSA

47K

+B

12K

R803

47

R804

1

1
2
3

2

4

3

5

4

6

5

7

6

8

7
8

TRANSFORMER

CNP802

1
2
3
4

UNSW_5.6V

5
6

P_IN

-VF
VF2

C814

0.1(ML)

C815

VF1

C861

(ML)

0.1(ML)

+B

3

1

2

D856

0.1

DS1SS133

IC854

AN78L05

VOLTAGE REGULATOR

PWB-B2

POWER PWB-B1

7

8 9 10 11 12

Figure 17 SCHEMATIC DIAGRAM (6/13)

– 17 –

CD-EA135V

1

4

C

C

S

G7

G07

E

R

A

B

C

D

E

TO

MAIN PWB

P13 10-H
CNP701B

F

G

H

TAPE MECHANISM
PWB-F

CNP7

P23 12 - B

TO VIDEO CD PWB

FFC701

20

1

+

M

–

CNS702

6
5
4
3
2
1

7
6
5
4
3

1

20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

CNP701A

SOL
SOL

BI702

ESS_ACK

ESS_STB
ESS_DI
ESS_DO
DSA_DATA

DSA_ACK

SPAN
MIC IN
KARAOKE LATCH
CE
DO
CLK
DI
+B_PROTECT
D_GND
S_MUTE
T_T1/T2

REC/PLAY
T_BIAS
M_+13V
SW_5V
SP_DET
SP_RLY
–20dB

1
2
3

4
5
6
7
8

9

FFC702

FL701

FL DISPLAY

F2

F2

P18

P17

P16

P15

P14

P13

P12

1K

D716

10K

R787

DS1SS133

P11

R754

+B_PROTECT

FPA/FPB

KRA107 M

2

SOLENOID

KTA1273 Y

KTA1273 Y

SOLENOID

1.5

R794

45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1

C707

1/50

FOR

47K

R750

PHILIPPINES

ONLY

D704

DS1SS133

D701

DS1SS133

R789

47/25

10K

C712

R753

R788

10K

R755

4.7K

R772

10K

R770

10K

+B

+B

+B

1

R_REC

1

2

T2 RUN

3

+MTR

4

SOL2

5

SOL1

6

F_REC

7

T1 RUN

8

GND

9

9

CNP702

R760

8.2K

R740

4.7K

D710

DS1SS133

D709
DS1SS133

P10

10K

Q711

1

DRIVER

Q708

DRIVER

P09

P08

4.7K

R786

3

MOTOR
DRIVER

Q706

KTA1273 Y

Q707

P07

R745
R744
R743
R742
R784
R785

R741

R746

P06

2

81 82 83 84 85 86 87 88 89 90 91 92 93 9

S10

80

S9

S11
VLOAD

79

S12

78

S13

77

S14

76

S15

75
74

DIST3/S16
DIST2/S17

73

DIST1/S18

72
71
70
69

DIST

68
67
66
65
64
63

ILU LED1

1K

62

ESS DO

1K

ESS DI

61

1K

ESS STB

60

1K

ESS ACK

59

1K

58

MPEG POWER

1K

DISC NO SW V_ONLY

57

KARAOKE LATCH

56

1K

MIC SW

55

1K

54

O/C_SW

R734

53

T1 RUN

1K

52

T2 RUN

51

SP

+B

Q712
KRC104 M

M_+13V

JOG2
1K

R758

JOG1
1K

R764

RLY

R780
10K

R731

46 45 44 43 42 41 40 39 38 350 49 48 47

10K

R735

R732

3

1K

1K

R777
10K

R778
10K

R779
10K

1

+B

P05

P04

P03

P02

P01

S6S7S8

S1

S2S3S4

S5

IC701

IX0554AW

SYSTEM

MICROCOMPUT

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

VDD

T_SOL_B

+B

560

R729

2.2K

R728

680

R727

680

R726

1K

R725

304VT2E1

G10

G10

VSS

R765

4.7K

LED701

G08

G09

G9

G8

REMOCON

SP DET

1K

1K

R733

R724

W

LAMP
D

1K

R736

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 18 SCHEMATIC DIAGRAM (7/13)

– 18 –

V

VDD

S6

DISPLAY PWB-A2

CD-EA135V

P05

P04

P03

P02

P01

G10

G08

019181716151413121110987654321

586878889909192939495969798

S5

G09

S2S3S4

S1

G9G8G7G6G5G4G3G2G1

G10

IC701

IX0554AW

SYSTEM

MICROCOMPUTER

_ONLY

CH

REMOCON

VSS

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

64544434241403938373635343332

680

680

560

2.2K

R729

R726

R727

R728

T_SOL_B

1K

R725

1K

R724

SP DET

1K

R733

G04

G05

G06

G07

REC/PLAY

CD RESOUT

DISC_NO SW/

DSA DATA

T2_PLAY SW/

FPA/FPB SW

CD CLAMP SW

AVDD

P_IN

AVREF

1K

1K

+B

R736

R721

G03

-20dBATT
DSA_STB

T-BIAS

T_T1/T2

SPAN

RESET

VPP/IC

CD CLK

CD DI
CD DO
CD CE

PROTECT

LVL_DET

KEY 0

R720

G02

99

VDD

WRQ

DRF
VDD

CLK

AVSS

KEY 1

R719

CE

DO

G01

100

X2
X1

DI

31

KEY 2

1K1K1K

R718

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

F1

R763
R701
R702
R703
R704
R705
R706
R707
R708

XL701

4.19 MHz

R769

R709
R710
R711
R712
R713
R714
R715
R716

R717
R737
R739

C720

0.022

R722

F1

R795

1.5

C701
1/50

C702

1000/6.3

+B

1K
100
1K
1K
1K
1K
1K
1K
1K

C704
15P

C705
18P

1K

1K
1K
1K
1K
1K
1K
1K
1K

100
100
1K

1K

L701

100µH

+B

4.7K

R791

R759

5.6K

10K

R771

+B

R747

4.7K

R748

10K

+B

MPEG_POWER

DSA_STB

DISC_NO SW

O/C_SW

CLAMP SW

RES OUT

CD CLK

CD DI
CD DO
CD CE

DRF

WRQ(DSP)

BI701

+B

WTM701

VF2

-VF

P_IN

VF1

UNSW5.6

12

13

11

12

10

11

9

10

8

9
8

7
6

7
6
5
4
3

1

1

6

CNS701

FW701

+B

CNP5

P21 12 - A

5
4
3
2

1

1

6

TO VIDEO CD PWB

CNP802

TO

POWER PWB

P17 7-H

R765

4.7K

LED701

304VT2E1

7

R761

10K

R756

4.7K

+B

R768

10K

R767

10K

R766

10K

R773

10K

+B

KEY 2

KEY 1

KEY 0

R774

5V BACK UP

+B

RD22

1.5K

SW724 SW725

DISC

SKIP

TAPE

STOP PLAY

TUNING

DOWN

R781

0.01

C715

RD23

VOLUME

UP

TUNING

UP

+B

10K

+B

RD19

RD20

RD21

SET

1K

820

SW723SW721

OPEN/

CLOSE

1K820 1.5K 3.9K2.2K 2.7K680

VIDEO/

AUX

REC/

PAUSE

680 2.2K

SW722

X-BASS/

EQUALIZER

DEMO

TUNER

CD

680 820 1.5K1K

ON/

STAND-BY

MEMORY/

RESET

47K

KRC102 M

2

D713

DS1SS133

Q709

3

1

D715

SW726

VOLUME

DOWN

FORWARD

RD06RD05RD01 RD02 RD04RD03

2.7K2.2K

SW706SW701 SW702 SW703 SW705SW704

TIMER/
SLEEP

+B

D714

DS1SS133

REMOTE SENSOR

DS1SS133

FAST

RD07

3.9K

SW707

CLOCK

GP1UM271

C714

3.3/50

R782

100K

FAST

REWIND

RX701

123

RD17 RD18RD12RD11 RD13 RD16RD14 RD15RD10

5.6K

RD08

SW708

+B

REVERSE

5.6K

P.B.C

D712

DS1SS133

+B

10K
SW719SW717SW711 SW712 SW713 SW718SW714 SW715 SW716

PLAY

R783

C717

RD09

10K

SW709

OSD

D711

DS1SS133

100

47/25

SW720

REVERSE

MODE

SW710

DIGEST

8 9 10 11 12

Figure 19 SCHEMATIC DIAGRAM (8/13)

– 19 –

CD-EA135V

4

7

DRF

VIDEO CD PWB-C (1/2)

A

C1

47/25

C38

0.01

+B

+B

Q1

LASER DRIVER

C2

0.01

PICKUP UNIT

VCC

7

VREF

B

7

6

6

E

5

5

A

4

4

B

3

3

F

2

2

C

1

1

CNS1A

C

TR–

1

TR+

TR+

FO+

FO+
FO–

TR–

D

GND

1

2

2

3

3

4

4

5

5

PD

6

6

VR

7

7

LD

8

8

CNS2A

7
6
5
4
3
2
1

CNS1B

1
2
3
4
5
6
7
8

CNS2B

VCC

7

VREF

6

E

5

A

4

B

3

F

2

C

1

CNP1

TR–

1

TR+

2

FO+

3

FO–

4

GND

5

PD

6

VR

7

LD

8

CNP2

R9
10

KTA1504 GR

CD SIGNAL

R7

47

C3

47/25

C4

0.0033

C34

100P

C33

0.022

C32

100P

C55

100P

C30

100P

C54

100P

C28

100P

+B

C27

0.022

EFMIN

TDO

8.2K

R13

5

4

6.8K

R16

SLCO

6

SLDO

6.8K

R15

120K
R41

VVSS

SPDO

C36

0.22/50

0.1

680

680

C37

R39

R40

PDO2

VVDD

PCKIST

LC78637E

CD SERVO

MPEG RESET

CONT5

PAL/NTSC

1K

R18

C35

0.047

PDO1

CONT2

CONT1

IC1

SBCK/FG

DEFECT

V/*P

VSS

CONT3

FSEQ

MONI1

VDD5

378

MONI2

MONI3

+B

C5

0.047

C8

R12

C11

0.01

C9

330/6.3

2

C46

0.01

330

+B

C6

+B

C21

0.056

C12

100P

0.22/50

+B

80 79 78 77 76 75 74 73 72 71 70 69 68 6

0.0033
RF

1

LPF

2

AIN

3

CIN

4

BIN

5

DIN

6

AVSS1

7

AVDD1

TP2

8

FEC

9

RFMON

10

VREF

11

JITTC

12

EIN

13

FIN
TEC

14
15

TE
TEIN

16

AVSS2

17

+B

AVDD2

18

LDD

19

LDS

20

FDO

21 22 23 24 25 26 27 28 29 30 31 32 33 3

6.8K

1

R14

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

SW4

PICKUP IN

E

CD MOTOR PWB-D

F

G

+

SPIN

M

–
+

SLIDE

M

–

PU-IN

6
5
4
3
2
1

CNP3A

6
5
4
3
2
1

CNS3A

6
5
4
3
2
1

CNS3B

SP+

6

SP–

5

SL+

4

SL–

3

PUIN

2

GND

1

CNP3

+B

+B

IC2

CONSTANT

VOLTAGE

Q2

KTA1271 Y

15 16 17 18 19 20 21 29

VIN3

VIN2

REG-IN

REG-OUT

VREF

+B

+B

C57

C56

100/10

100/10

+B

22 23 24 25 26 27 28

VCC

VIN4

GND

VCONT

FWD

REV

+B

10K

R51

R44
15K

R20

3.3K

LA6574H

FOCUS/TRACKING/

SPIN/SLED DRIVER

C20

0.01

VO2+

VO2–

VO–

VO+

VCC1

VIN1

14 13 12 11 10 9 8 30

+B+B

GND GND

VO3–

VO3+

7654321

VO4–

VO4+

VO5+

C41

VO5–

C40

100/10

VCC2

+B

100/10

+B

R50

+B

R49

1

1

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 20 SCHEMATIC DIAGRAM (9/13)

– 20 –

0

1

CONT5

C36

C37

R18

100P

C34
C33

0.022

C32

100P

C55

100P

C30

100P

C54

100P

C28

100P

+B

C27

0.022

0.22/50

C35

0.047

.

680

680

R39

R40

75 74 73 72 71 70 69 68 67 66 6162636465

VSS

CONT2

CONT1

CONT3

VDD5

3

VVDD

PDO2

78

PDO1

IC1

LC78637E

CD SERVO

SBCK/FG

DEFECT

V/*P

FSEQ

MONI1

R44

15K

R20

3.3K

MONI2

PAL/NTSC

26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

1K

DRF

*RES

10

MONI3

MONI4

DO

DATACK

*WRQ

ASDFIN

ASDACK

ASLRCK

16MOUT

FSX/16MIN

9

MONI5

VSS

+B

C13

0.022

DI

DATA
LRSY

EFLG

XVSS

XOUT
XVDD
RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

VDD

C14

C10

C2F

DOUT

CL

CE

XIN

TEST

100/10

0.022

+B

L2

2.2 µH

R48

4.7K

60

59
58

57

56
55
54

53
52

51

50
49
48
47
46
45
44
43
42
41

0.01

C22

R38
R37
R36
R35
R34
R33
R32

R29

2.2K

R28

2.2K

12

XL1

16.9344 MHz

R43
220

+B

+B

R24

2.2K

C60

1/50

R25

2.2K

L1

0.82 µH

11

R26
22K

1K
1K
1K
1K
1K
1K
1K

C49

8P(CH)

C50

10P(CH)

KTC3875 GR

Q4

330

R23

C59

0.047

+B

C58

0.047

330

R22

Q3

KTC3875 GR

CD-EA135V

WRQ

1

DRF

2

CE

3

DO

4

DI

5

CL

6

CD RES

7

CLAMP SW

8

O/C_SW

9

DISC NO SW

AGND

A10V
R-CH
L-CH

DATA
LRSY

+5V

10

DSA_STB

11

MPEG_POW

12

CNP5

29

P22 1 - C

TO MPEG SECTION

30

R-CH

1

AGND

2

L-CH

3

DGND

4

+5V

5

A10V

6

DGND

7

+8V

8

CNP6

31
32
33
34
35
36
37
38

39

P22 1 - B, E, F

TO MPEG SECTION

+B

RM2

33

MPEG_POW
DSA_STB

RM4

33

C42

0.01

C62

0.01

+B

+B

C48

0.022

+B

+B

C51

0.022

+B

+B

+B

PAL/NTSC

DATACK

CNS701

CNS601

P12 1 - C

FROM MAIN PWB

P19 12 - D

FROM DISPLAY PWB

C61

1000/6.3

R50

R49

1

1

D_GND

+B

+B

• The numbers 1 to 12 are waveform numbers shown in CD-E805V page 42.

7

8 9 10 11 12

Figure 21 SCHEMATIC DIAGRAM (10/13)

– 21 –

DGND

MPEG RESET

CNP4

40

41

BI4

1

1

1

2

2

2

3

3

3

4

4

4

5

5

5

6

6

6

CNS4

CD LOADING
MOTOR PWB-E

+

M

–

LOADING MOTOR

SW1

OPEN/CLOSE

SW2

CLAMP

SW3

DISC NUMBER

M3

T/T UP/DOWN

CD-EA135V

10K

10/10

UN2211

330

KTA1046 Y

47/25

22P(CH)

10/16

0.022

220/6.3

0.1

0.1

1.5K

1.2K

1625635T

0.1

100/10

8.2K

0.022

10/16

0.01

0.1

0.022

10/16

SI3033LU

IX0528AW

100

100

4.7K

0.022

10/16

ES3880FM

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

33

100

0.022

33

0.02

33

32 31 30 29 28 27 26 25 24 23

123456789

10

171819202122

11 12 13 14 15 16

80

79 78

77

76

75

74

73

72

71

70

69 68

67

66

65

64

63 62

61

60

59

58

57

56

55

54 53

52

51

19 20 21 22 23 24 25 26 27 28 29 30

89

10 11 12 13 14 15 16 17 18

1234567

123456789

10 11 12

50 49 48 47 46 45 44 43 42 41 40 39

13 14 15 16 17 18 19 20 21 22 23 24 25

38 37 36 35 34 33 32 31 30 29 28 27 26

DBUS15

DA8

DA3

DBUS12

DBUS8

DBUS7

DA6

DA7

DBUS14

DBUS1

DBUS9

DA4

DBUS2

DA1

DA0

DBUS0

DA2

DBUS5

DBUS4

DA5

DBUS6

DBUS3

DBUS10

DBUS13

DBUS11

OS-CON

DRAM

VIDEO CD DECODER

EPROM

MPEG POWER
DSA_STB

D_GND

+5V

LRSY
DATACK

DATA

PAL/NTSC

ADJ

VC

GND

OUT

IN

LD3

LD4

LD5

LD6

LD7

LA10

LA11

LA9

LA8

LA13

LA14

LA17

LD2

LD1

LD0

LA0

LA1

LA2

LA3

LA4

LA5

LA6

LA7

LA12

LA15

LA16

ARFS

RCLK

AJN

LROMCE#

PJM

VCC

A17

A14

A13

A8

A9

A11

OE_

A10

CE_

D7D6D5D4D3GND

D2D1D0A0A1A2A3A4A5A6A7

A12

A15

A16

VPP

CAS2_/UCAS

OE_/A9

RFSET#

VSS

D15

D14

D13

D12

VSS

D11

D10D9D8

CAS_/OE_A8A7A6A5A4VSS VCC

A3A2A1

A0

RAS_

WE_

VCC

D7D6D5

D4

D3D2D1

D0

VCC

DWE#

RAS#

GND

CAS#

TDMFS

TDMDR

TDMCLK

ARFS

ARCLK

AJN

DOE#

ATFG/SEL_PLL1

ATCLK

AOUT/SEL_PLL0

ACLK

LA17

LA16

LA15

LA14

LA13

LA12

VCC

GND

LA11

LA10

LA9

LA8

LA7

LA6

LA5

LA4

LA3

LA2

LA1

LA0

LCS0#

LCS1#

LOE#

LWR#

LD7

LD6

LD5

LD4

LD3

LD2

LD1

LD0

AUX7

AUX5

AUX6

VCC3

YUV0

GND
AUX4
AUX3
AUX2
AUX1
AUX0
PCLA

PCLA2X

CPUCLK

HSYNC
VSYNC

YUV7
YUV6
YUV5
YUV4
YUV3
YUV2
YUV1

VCC3

GND

DBUS15

DBUS14

DBUS13

DBUS12

DBUS11

DBUS10

DBUS9

DBUS8

DBUS7

DBUS6

DBUS5

DBUS4

DBUS3

DBUS2

DBUS1

DBUS0

MA8

MA7

MA6

MA5

MA4

MA3

MA2

MA1

MA0

VCC3

R-CH
AGND
L-CH
A10V

MPEG RESET

321

54

33
31
34
32

29
30

35
36
37
38

39
40
41

1

23

P21 11 - B, E

TO CD SECTION

P21 11 - E~G

TO CD SECTION

+B

+B

+B

+B

+B +B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

RM34

QM2

RM36

QM3

CM58

CM61

CM38

CM57

CM39

RM83

CM36

CM37

QM4

RM82

ICM4

CM34

RM31

RM30

CM35

CM26

CM28

CM27

CM59

CM33

RM44

RM43

RM42

CM30

CM56

RM45

R

R

RM38

RM41

ICM2

CM40

ICM1

CM

CM31

CM32

A

B

C

D

E

F

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 22 SCHEMATIC DIAGRAM (11/13)

– 22 –

CD-EA135V

RM30
RM31

100K

2.2K

CM55

22P(CH)

RM74

100

CM7

100/16

+B

CM54

22P(CH)

+B

DSA_ACK
DSA_DATA
HSS_DO

HSS_DI
HSS_STB
HSS_ACK

VDAC

VGND

CNP7

CNP8

1
2
3
4
5
6

1

2

CNS702

P18 1 - C

FROM DISPLAY PWB

CNSV1

P13 12 - A

FROM MAIN PWB

CM50

+

IC3

4

8

CM48

100/10

CM45

100/10

10K

RM55

RM50

10

KTC3265 Y

2.2K

RM69

RM70

220

3.3K

RM71

RSET

COMP

RSCK_SER_IN

RSD/SPLL0

GND

RM16

4.7K

1
2
3

CM49

33P(CH)

10K

RM61

10K

RM60

CM43
10/16

VCM

VREF
MIC2
MIC1

AOL+

AOL-

AOR­AOR+
AVDD

VREFP

VREFM

AGND

AUX15

AUX14
AUX13

AUX12
AUX11
AUX10

NC

33P(CH)

RM56

100K

QM1

RM75

CM6

0.1

AGND

VCC
GND

NC

CM51

RM63

22K

IC3

TJM4558CD

OPE AMP.

+B

RM51

10K

10K

RM52

CM41

10/16

33

RM1
RM3

33
33

RM5

33

RM6

33

RM7
RM8

33

4.7K

RM78

+B

CM13

0.001

CM12

LM3

27P(CH)

3.3 µH

+B

33
33

RM32

10

RM33

33

+B

CM14

0.1

CM15

22P(CH)

LD7

LD6

LD5

0.1

CM16

LD4

LD3

LD2

LD1

+B +B

PCK

PCK2

81 50

DSC_D7
HSYNC#

82

DSC_D6

83

VSYNC#

84

DSC_D5

85

YUV7

86

YUV6

87

YUV5

88

YUV4

89

VDD

90

GND

91

YUV3

92

DSC_D4

93

YUV2

94

DSC_D3

95

YUV1

96

DSC_D2

97

YUV0

98

DSC_D1

99

GND

100

GND

123456789

CM17

0.1

VDD

RM23

4.7K

CM11

27P(CH)

GND

VCC

RM14
100K

XL2

27 MHz

RM80

1K

XIN

VDD

GND

GND

XOUT

AUX03

AUX04

VCD COMPANION

DCLK/EXT-CLK

AUX02

DSC_5

AUX01

DSC_D0

AUX00

DSC_C

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

LDO

0.1

CM18

1K

RM81

CM5

+B

CM9

VDD

AUX05

AUX06

ICM3

ES3889F

MUTE

AUX07

RST#

CM19

100/10

0.1

PLLCAP

VCC

0.1

RM13

VDAC

MCLK

RM9
150

150

VGND

AUX08

RM12

150

VGND

TWS/SPLLOUT

33P(CH)

RM62

10K

CM46

33P(CH)

100K

RM53

CM42
10/16

4.7K

RM77

100/16

+B

RM11
150

YDAC

VVDD

TSO

AUX09

CM47

CM2

+B

58 57 56 55 54 53 52 5169 68 67 66 65 64 63 62 61 60 5980 79 78 77 76 75 74 73 72 71 70

VVDD

CDAC

RWS/SPLL1

TSCK

7
6

––
+

5

+B

0.1

100K

RM54

+B

CM8

0.1

RM10

220

VGND

VGND

GND

RSTOUT#

ARFS

+B

RM58

220

CM53

RM65

10/16

1K

RM66

CM52
10/16

22K

RM64

10K

10K

RM59

CM44

10/16

CM1

1000/6.3

RM72

0.1

CM3

49
48
47
46

CM25

45

0.1

44

+B

43
42
41
40

CM23

39
38

ARCLK

37
36
35
34

AJN

33

+B

CM22

32

10P(CH)

31

RM49

4.7K

CM20

0.1
RM27

4.7K

220

0.1

CM21

RM57

RM76

12

100/10

RM67

100K

+B

100K

CM24

100/10

CM4

1K

RM68

RM73

0.1

RM15

4.7K

CM29

0.022

MPEG RESET

ACLK

ATFG

AOUT

ATCLK

RM26

4.7K

VIDEO CD PWB-C (2/2)

7

8 9 10 11 12

Figure 23 SCHEMATIC DIAGRAM (12/13)

– 23 –

CD-EA135V

JK1
MIC

CHASSIS

GND

LUG1

DK2

0.01

MICSW

DATA

424140393837363534333231302928272625242322

RK11

1K

47P

CK35

DS1SS133

RK3
56K

RK2
56K

RK1
10K

ICK1

M65856SP

RK10

1K

CK34

47P

+B

DK1

DS1SS133

CK41

100/16

+B

MIC AMP.

CK3

VCFIL

RK9

47P

CK33

10K

RK4

MIC1IN

1K

220P

CK1

VALC

MCLKCONT

LATCH

CLOCK

A

RK8

5.6K

0.1

CK54

MIC

VOLUME

CK13

0.001

CK14

LPF2IN2

LPF1OUT

LPF2IN1

0.0047

CK22

2.2/50

CK12

LPF1IN1

LPF2IN2

4.7K

0.001

RK73

CK23

0.0047

0.1

CK11

MICOUT

MIC2VOLIN

VOLIN

LPF2OUT

2.2/50

CK24

0.1

CK10

LIN

2.2/50

CK25

0.068

0.22

CK16

ADCONT

VCC

0.22

CK20

CK15

ADINTIN

ADINTOUT

DAINTIN

DACONT

4.7K

RK72

DAINTOUT

0.068

CK21

B

C

CK17

220/10

21 20 19 18 17 16 15 14 13 12 11 10

REF

GND

CK18

100/16

CK19

0.022

RK7

1K

VRK1

20k(B)

2.2/50

4.7/50

0.47/50

CK9

CK8

CK7

987654321

ALC2

MIC2IN

MIC2OUT

MIC2NFIN

MIC1VOLIN

RIN

ROUT

LOUT

0.15

2.2/50

CK30

2.2/50

CK29

CK31

2.2/50

CK26

D

+B

QK1

CK43

RK12

100

ZDK1

CK44
47/25

RK13

RK15

RK38

100

1.2K

+B

100

CNPK1

KTC3203 Y

100

RK14

+B

MIC IN

11

DATA

CLOCK

MIC LATCH

89

10

RK40

1K

7

RK36

390

A_+10V

MIC IN(R)

MIC OUT(R)

634

5

220P

CK47

RK37

390

A_GND

RK43

RK42

10K

RK41

10K

RK39

1K

MIC IN(L)

1

2

CK49
100P

8.2K

4

MIC OUT(L)

47/25

E

MTZJ5.6B

F

CK40

100/16

G

RK44

6.8K

6

+ + –

KIA4558P

7

RK49

10K

5

ICK2

CK45

2.2/50

47/50

CK52

CK53

RK45

47/50

CK51

3

RK50
RK48

6.8K

1

10K

RK47

10K

8.2K

47/25

8.2K

RK46

220P

CK48

2

–

8

CK50

100P

CK46

2.2/50

ICK2

KIA4558P

OPE AMP.

MIC SIGNAL

MIC PWB-G

CNSK1

H

FROM

MAIN PWB

P13 12-F

• NOTES ON SCHEMATIC DIAGRAM can be found on page 34.

1

23456

Figure 24 SCHEMATIC DIAGRAM (13/13)

– 24 –

JK1
MIC

VRK1

MIC LEVEL

CK19
CK20
CK22

CK18

CK17

CK16

CK13

CK11

CK10

CK54

MIC PWB-G

CK21

CK15

RK73

CK23

CK14

CK24

CK12

RK72

CK25

CK9

CK48

ICK1

RK7

CK51

ICK2

RK46

333231302928272625 4140 42393837363534242322

101112131415161718192021

CK8

4
3
2
1

CK50

CK30

CK26

RK8

RK45

CK7

CK52

5
6
7
8

CK29

RK1

CK53

RK50

CK49
RK44
RK47

RK43

CK46

CK33

23456789

CK1

RK4

CK44

RK48

RK49

CK47

1

CK35

CK34

CK3

B
C
E

ZDK1

RK37
RK38

CK45

RK2

RK41

RK11

RK3

QK1

RK12

RK40

RK36

CK40

RK10

CK31

CK41

RK13

RK39

RK9

LUG1
DK2
DK1

RK14

11
10

9
8
7
6
5

CNPK1

4
3
2
1

RK42

CD-EA135V

CK43

RK15

CNSK1

TO

MAIN PWB

P27 7-A

7

8 9 10 11 12

Figure 25 WIRING SIDE OF P.W.BOARD (1/9)

– 25 –

CD-EA135V

C

C

9

2

2

C601

C625

A

MAIN PWB-A1

CNSK1

TO MIC PWB

P25 12-D

CNPK1

21 3456789

RDBLBLBLBL

WHWHWHBLWH

B

C

D

E

F

G

H

AM LOOP

ANTENNA

SPAN SELECTOR

100 kHz/10 kHz

JK690

VIDEO OUT/

AUX IN

P30 1 - C

CNP8

TO VIDEO CD

PWB

SO302

FM

ANTENNA

TERMINAL

FM

75 OHMS

GND

1
2

SW601

50 kHz/9 kHz

R-CH

L-CH

VIDEO

OUT

CNSV1

WH

2

BK

1

SO901

SPEAKER

TERMINAL
R-CH

L-CH

R-CH

L-CH

C302

C394

C307

9

C306

8
7
6

IC301

5
4
3

C304

2
1

C303

BF301

123

D301

2
1

CNP302

C338

C323

R692

R688

R690

R693
R691
C691

D302

T303

C331

C690

C330

R620
R616

WH

2

BIV1

C640

BK

+
+

–
–

R381

R314

C305

C317

VD301

1

R941

RL914

C384

C382

C381

R322

C315

C314

R336

D911

R316

R940

R373
R374

1

R379

22

C392

C397

C380

C320

C389

R325

R302
C310

T302

C308

L312

C334

R323

C332

C335

R612

BCE

Q604

R946

C929

R372

X352

51011

IC302

20

R377

C393

R380

BCE

Q302

R327
C311

R309

C312

123

C309

VD302

D305

R365

R313

C316

C362

T306

Q602

B

R614

C
E

R618

B
C

Q902

E

R924

E
C

Q905

B

C927

C926

C928

C387

15

R375

T301

C324

VD303

CF303

R311

C342

R610

R943

C318

C352

C313

C350

C361

R621

C912

12
L351

C385

R358

C363

C639

R611

R916

R942

R360

R393

R382

3
2

CF352

1

R352

1

24

C367

R350

C364

R384

R387

R359

R386

C386

B

Q360

C
E

T351

CF351

C354

C351

5

20

R351

IC303

C365

Q601

BCE

D906
R936
R937

R912
C906

R908
R910

C391

C353

C366

R385

R383

10

R613

L901

L902

R378

R392

C398

C399

15

C369

R615

C910

D907

R904

C908

R395

R391

C370

R353

12

13

R357

Q603

ECB

Q903

B

E

C

C

E

B

C902

C904

C914

C395

C356

C357

X351

R356

Q904

R914

R388

R376

R355

C371

C374

C368

C372

R619

R902

R922

101112131415

IC901

C396

C355

R361

R617

C901

C916

R920

ZD351

C388

C358

C373

J635

R362

C925

C932

R921

R918

R935

C915

R925

C614

C616

C618

C620

R605

R919

C608
R606

C606

R901
C903

123456789

C610

R364

C907

R917

C630

D905

C602
C653

C612

C622

C909

C913

R913

24

13

R608

R603

C626

Q901

C911

R911

C905R903
R907

C603

20

15

C624

R602

5

IC601

10

R609

BCE

R9
R9

R

1

23456

Figure 26 WIRING SIDE OF P.W.BOARD (2/9)

– 26 –

R917

TO MIC PWB

P25 12-D

1

21 3456789

RDBLBLBLBL

WHWHWHBLWH

C610

8

C602

6

C653

6

C612

24

C630

13

R364

C622

R608

D905

C909

C907

C913

R913

CNPK1

C603

R603

20

15

C624

C626

Q901

C911

R911

C905
R907

10 11

BIK1

C601

C652

R602

C651

1

5

IC601

10

12

R609

C625

BCE

R927
R926

R909

TO VIDEO CD PWB

CNS601

12345678

WH

12

WH
BL
WH
BL
WH
BL
WH
BL
WH
BL

RD

1

C609
C607

R607

R601

C613

C615

C617

C619

R363

C621

C623

R915

C948

P30 1-E

CNP6

RDBLBLBLBL

GRGRGR

C605

RD

C611

BL
GR
BL
GR
BL

C629

GR
BL

C851

R923

C864

R854

IC851

D852

321

D858

FFC701

1

1

BI601

9

R860

D859

TO DISPLAY PWB

P29 12-E
CNP701A

20

C119

19

18

17

16

15

14

13

12

11

10

9

R119

8

CNP701B

7

C115

6

5

4

3

2

1

Q114

Q113

C854

R853

IC852

D851

3

IC855

D857

B
C
E

C949

R137

R121

R123

R117

C855

21

R859

TAPE1 PLAYBACK HEAD

201

C127

B
C

C131

Q107

E

C125

R131

R127

R129
C123

C121

C107

C117

R115

3
2

C113

1

CNP101

C102

C101

123

123

R149

C858

R852

321

R857

C865

ZD852

5

WTM901

1

R139

R133

C111

Q105

E
C
B

C859

R862

R861

P33 10-E

R135

C129
12

C143

C109

R101

R113

Q106

E
C
B

R110

R109

R148

C863

FROM

C134

R158

R138

10

5

1

R102

C105

R107

C141

R147

IC853

R130
R134

C133

C135

15

IC101

20

R116

7

R114

6
5
4
3

C106

2
1

C104

R108

BI102

E
C
B

R146

Q110

C132

13

24

Q112

C856

R136

R126
R128
C124
R150

R118

C103

R111

C138

C139

123

C112

C110

C108

L103

1

ECB

C120

C128

Q103

Q104

R145

R141

9

BI801

Q108

C130
R132

C126

C140

Q109

R122

C114

BCE
BCE

BCE
BCE

R140

C116

R105

R103

Q101

R104

Q102

BCE

C118

C150

R120

R112
R106

C137

R144
R143

BCE

Q111

R124

R142

CD-EA135V

COLOR TABLE

BR

BROWN

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

BI102

7

BL
YL
WH
BK
PK
WH
BK

1

TAPE2 RECORD/PLAYBACK

HEADPHONES
PWB-A3

JK701

HEADPHONES

FW901

GR
WH
GR
WH

GR
WH

GR
RD

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

GY

BR

P33 11-E

FROM

CNP705

12345

15

8
7
6
5

4
3
2
1

CNS801

HEAD

WH

BK

CNS102

BL

6

YL

5

WH

4

PK

3
2

1

CNP801

P32 4-A

TO POWER PWB

7

8 9 10 11 12

Figure 27 WIRING SIDE OF P.W.BOARD (3/9)

– 27 –

CD-EA135V

5

S

S
E

A

B

CNP7

C

D

E

F

P30 1-D

TO VIDEO CD PWB

CNP5

P30 1-C

TO VIDEO CD PWB

CNP802

P32 4-A

TO POWER PWB

CNS702

6
5
4
3
2
1

CNS701

12
11
10

9
8
7
6
5
4
3
2
1

FW701

1

X-BASS/DEMO

RD19

SW725

VOLUME

C714

D714

Q709

321

R782
C715

RD20

SW721

UP

D715

BL
WH
BL

WH
BL
RD

WH
BK
WH
BK
WH
BK
WH
BK
WH
BK
WH
RD

SW723

OPEN/

CLOSE

SW722

EQUALIZER

7

1

13

BI701 BI702

1

1

WTM701

66

RD21

DISPLAY PWB-A2

RD23

RD22

D713

D711

SW726

VOLUME

DOWN

C712

R781

R795

D712

Q706

B
C
E

D710

E
C
B

SW724

DISC
SKIP

2
3
1

RX701

C717

C701

R783

R786

R748

E

D709

Q707

C
B

Q708

R777
R778
R779
R740
R760

1

FFC702

TAPE MECHANISM PWB

C702

R774

R756

P33 9-A

TO

R703

987654231

CNP702

9

R705

R704

R706

R771

R780

R707

R791

R708

R709

R769

R759

SW717

FORWARD

R763
R701

R702

C705

R710

SW713

VIDEO/

AUX

SW716

PLAY

FAST

L701

100

C704

1

SW712

TUNER

R717
R737

95
5

XL701

RD11

RD12

81

90

10

R711

R712

RD13

FL701

80

85

75

70

IC701

15

20

25

30

R713

RD15
RD16

191817161514131211109876521

65

35

R716

R715

R739

60

40

31

R714

5

45

R

G

H

1

23456

Figure 28 WIRING SIDE OF P.W.BOARD (4/9)

– 28 –

60

55

45

0

1

C720

16

R722

15

714

39

SW715

STOP

SW720

REVERSE

MODE

51
50

R766
R720
R718

RD10

R719

Q711

RD14
RD17
RD18

D716

123

REVERSE

SW718

FAST

REWIND

R746
R735
R734

SW711

CD

R768
R767

R773

321

SW719

PLAY

Q712

R750

R758
R764

SW714

TAPE

4140 45443938373635343332313029

D704

FOR

R728
R727
R726

R736

D701

ONLY

PHILIPPINES

R784

R785

R741
R772

R731

R732

R729

R755

R747

R724

R733
R761
R765

R745
R744
R743

R787

R754

R721

R770

R753

R725

SW703

REC/PAUSE

LED701

R742

SW702

MEMORY/

SET

RD02

SW710

DIGEST

RD01

RD06
RD05

RD04
RD03

R794

R789

RD07

SW706
TIMER/

SLEEP

RD09

C707

SW707

CLOCK

SW705

TUNING

R788

SW709

OSD

SW701

ON/

STAND-BY

UP

SW704

TUNING

DOWN

SW708

P.B.C

RD08

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CNP701A

16

17

18

19

20

COLOR TABLE

BR

BROWN

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

CD-EA135V

FFC701
1

CNP701B

20

P27 9-A

TO MAIN PWB

7

8 9 10 11 12

Figure 29 WIRING SIDE OF P.W.BOARD (5/9)

– 29 –

CD-EA135V

A

B

FROM

CNSV1

P26 1 - F

MAIN PWB

C

FROM

CNS701

P28 1 - D

DISPLAY PWB

D

FROM

CNS702

P28 1 - C

DISPLAY PWB

FROM

CNS601

P27 8 - A

E

F

MAIN PWB

VIDEO CD PWB-C (BOTTOM VIEW)

CM55

RM65

RM67

RM76
RM73

CNP8

2
1

12
11
10

9
8
7
6
5
4

CNP5

3
2
1

6
5
4
3
2
1

8
7
6
5
4
3
2
1

C60

CNP2

CM1

RM12

CM7

QM1

RM4

R37
R33
R34
R35
R32
R38
R36

CNP7

RM5

RM77

RM3
RM1

C62

CNP6

C42

RM36

CM58

C32

RM78

RM6

C61

QM2

RM34

C3

RM9

RM69

RM70

C33

C51

CM38

QM3

B C E

RM72

RM75

RM68

RM71

CM2

C54
C30
C55
C28
C34

CM24
RM8

RM7

RM2

RM80

C14

RM83

CM48

RM66

CM54

CM45

CM43

RM56

RM10

RM15
RM16

CM21

CM57

RM82

13

RM60

CM44

12345678

CM51

RM63

CM5

RM13

CM22

RM27

CM39

45

CM61

C11

C1

RM53

RM51

RM11

RM26

C50

RM49

R43

QM4

C9

CM53

CM50

CM41

XL2

XL1

C12

R7

CM52

RM64

RM59

RM54

RM14

CM18

RM23

C49

RM57

CM42

CM13

CM12

CM11
CM9
CM19

CM16

CM17
CM14

RM43

C27

C6

C21

R44

CNP1

CM15

RM81

R48

C35

R28

R39

C36

R29

1234567

CM27

C41

C40

23222120191817 3029 32312827262524

10111213141516

R50

C56

ICM4

RM38

R49

CM37

RM44

R51

CM36

RM45

RM42

CM29

C20

CM34

CM59

CM31

CM30

CM32

Q2

123456789

CM40

E

C

B

1
2
3
4

CNP4

5
6

6
5
4
3

CNP3

2
1

C57

CNS4

FROM

P33 7 - E

FROM

CNS3A

P33 11 - F

CD LOADING

MOTOR PWB

PWB

CD MOTOR

G

CNS2A

P33 7 - H

FROM PICKUP UNIT

CNS1A

P33 7 - G

FROM PICKUP UNIT

H

• The numbers 1 to 12 are waveform numbers shown in CD-E805V page 42.

1

23456

Figure 30 WIRING SIDE OF P.W.BOARD (6/9)

– 30 –

VIDEO CD PWB-C (TOP VIEW)

CD-EA135V

12

3

7
8

CM35

CM33
CM56

80

81

85
90

RM41

95

100

1

1

10
16

25 26

14

15

5

5

20

10

7075

ICM2

10

20

15 20 25

45

35

ICM1

30

30

5

29

25

IC3

1

1

C8

80

90

95

1

65
70

75

5

4

LM3

85

5

10 15 20 25

50

55

IC1

10 15

C2

CM49
RM58
CM46

CM26

51

RM30

50

31
30

CM28

L2

R41

C37

RM31

RM32

R40

C5

RM33

100

61

80

R12

81

60

55

6065

45
40
35

50

41

1

IC2

28

RM52

ICM3

L1

41

45

35
30
25

C46

5

RM61

CM3

60657075

40

21

20

8

RM62

CM8

55

C48

CM47

RM50

RM55

RM74

CM6
CM4

51

50

45
40

35

30

31

CM23

CM20

CM25

11
10

C22

C13

R20
R15

R14

C10

R18

R16

R13

R23

R9

C59

Q3

R25

R26

C4

C38

Q4

R24

Q1

R22

C58

9

6
1

2

45

7

8 9 10 11 12

Figure 31 WIRING SIDE OF P.W.BOARD (7/9)

– 31 –

CD-EA135V

6
5
4
3

CNP802

2
1

C809

C808

FROM MAIN PWB

P27 12-G

CNS801

8
7
6
5

4

CNP801

3
2
1

D802

F802

T3.15A L 250V

COLOR TABLE

BR

BROWN

RD(R)

WH(W)

OR

YL

GR

BL
VL
GY

BK
PK

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

TO MAIN
CHASSIS

POWER PWB-B1

A

C805

3

C861

2
1

B

C

D856

C813

IC854

F804

T2A L 250V

C806

C807

F803

C812

D804

T2A L 250V

R802

R801

C815

R805

R807

ZD802

D803
D805

C814

ECB

Q801

C803

ZD803

R808

C802

R806
D806

ZD801

R803

C801

C804

FROM DISPLAY PWB

P28 1-E

FW701

R804

F801

T3.15A L 250V

D

PT801

POWER

TRANSFORMER

E

T.F.

110 V

127 V

220 V

230-240 V

F

AC POWER

BL

2

1

BR

CNP805

CNS805

2

1

BL

BR

SUPPLY CORD

AC 110/127/220/230-240 V,

50/60 Hz

G

127 V 110 V

220 V

H

VOLTAGE SELECTOR

230-240 V

SW801

TRANSFORMER PWB-B2

1

23456

Figure 32 WIRING SIDE OF P.W.BOARD (8/9)

– 32 –

TAPE MECHANISM
ASSEMBLY

P28 4 - F

TO DISPLAY PWB

CNP702

CD-EA135V

COLOR TABLE

BR

BROWN

RD(R)

OR

ORANGE

YL

YELLOW

GR

GREEN

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W)

WHITE

BK

BLACK

PK

PINK

RED

1

3456789

SW

SOLENOID

1

2

CD LOADING MOTOR PWB-E

SW1

OPEN/CLOSE

+

–

FFC702

9

T/T UP/DOWN

LOADING

MOTOR

M3

TAPE MECHANISM PWB-F

SW

2

1

+

-

TAPE 1

PLAYBACK HEAD

PK

BK

WH

GR

BK

WH

PK

23

1

TAPE

MOTOR

SOLENOID

RECORD/PLAYBACK/

1 2 3 4 5 6

SW

TAPE 2

ERASE HEAD

CNP4

P30 6 - D

TO VIDEO CD PWB

CNS4

P30 4 - G

CNP1

TO VIDEO CD PWB

P30 2 - G

CNP2

TO VIDEO CD PWB

1
2
3
4
5
6

RD

WH
BK
WH
BK
WH

CNS1A

CNS2A

1

BI4

6

1
2
3
4
5
6
7

1
2
3
4
5
6
7
8

RD
WH
BL
WH
BL
WH
BL

RD
WH
GY
WH
GY
WH

GY

WH

SW3

DISC

NUMBER

CNS1B

SW2

CLAMP

1
2
3
4
5
6
7

1
2
3
4
5
6
7
8

CNS2B

TO MAIN PWB

PICKUP UNIT(306)

17

8

1

CNP101

P27 10 - A

FROM MAIN PWB

P30 6 - D

TO VIDEO CD PWB

CNS3A

6

WH

6

CNS3B

6

CNP3A

PICKUP IN

+

–

CNS102

P27 12 - D

CNP3

12345

RD

GR

GR

WH

WH

12345

12345

–

SW4

M1

SPINDLE MOTOR

CD MOTOR
PWB-D

+

M2

SLED MOTOR

7

8 9 10 11 12

Figure 33 WIRING SIDE OF P.W.BOARD (9/9)

– 33 –

CD-EA135V

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

indicates AM
indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ 1 ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

REF. NO DESCRIPTION POSITION

SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 SPAN SELECTOR

SW701 ON/STAND-BY ON—OFF
SW702 MEMORY/SET ON—OFF
SW703 REC/PAUSE ON—OFF
SW704 TUNING DOWN ON—OFF
SW705 TUNING UP ON—OFF
SW706
SW707
SW708 P.B.C ON—OFF
SW709 OSD ON—OFF
SW710 DIGEST ON—OFF
SW711

TIMER/SLEEP
CLOCK

CD

50 kHz/9 kHz—

100 kHz/10 kHz

ON—OFF
ON—OFF

ON—OFF

TYPES OF TRANSISTOR AND LED

REF. NO DESCRIPTION POSITION

SW712 TUNER ON—OFF
SW713 VIDEO/AUX ON—OFF
SW714 TAPE ON—OFF
SW715 STOP ON—OFF
SW716 PLAY ON—OFF
SW717 FAST FORWARD ON—OFF
SW718 FAST REWIND ON—OFF
SW719 REVERSE PLAY ON—OFF
SW720 REVERSE MODE ON—OFF
SW721 X-BASS/DEMO ON—OFF
SW722 EQUALIZER ON—OFF
SW723 OPEN/CLOSE ON—OFF
SW724 DISC SKIP ON—OFF
SW725 VOLUME UP ON—OFF
SW726 VOLUME DOWN ON—OFF
SW801 VOLTAGE SELECTOR

110 V—127 V—

220 V—230-240 V

FRONT

VIEW

B C E

FRONT

VIEW

E C B

(S) (G) (D)
(1) (2) (3)

KRA107 M
KRC102 M
KRC104 M
KTA1046 Y
KTA1266 GR
KTA1273 Y

KTA1274 Y
KTA1271 Y
KTC3194 Y
KTC3199 GR
KTC3200 GR
KTC3203 Y

– 34 –

B

(D)

(3)

E

(G)

(1)

TOP

VIEW

KTA1504 GR
KTC3265 Y
KTC3875 GR
UN2211

C
(S)
(2)

FRONT
VIEW

304VT2E1KTC2026

VOLTAGE

CD-EA135V

IC1 IC701

PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE

1 9.34 V 1 4.87 V 51 5.18 V
2

1.63 V 2 4.72 V

3

1.63 V 3

4

1.64 V 4

561.62 V 5 4.71 V
0 V 6 4.75 V 56 0 V

7

3.25 V 7 4.78 V 57 5.19 V

1.6 V 8 5.12 V

8

N.C. 9

9
10 1.63 V 10 4.84 V 60 5.02 V
11 1.08 V 11 2.28 V 61 4.76 V
12 1.63 V 12 2.0 V 62 5.02 V
13 1.53 V 13 0 V 63 N.C.
14 1.53 V 14 N.C. 64 N.C.
15 1.54 V 15 0 V 65 N.C.
16 1.62 V 16 4.79 V 66 N.C.
17 0 V 17 0 V 67 N.C.
18 3.25 V 18 0 V 68 N.C.
19 3.25 V 19 5.0 V 69 -18.66 V
20 0 V 20 0 V 70 -18.60 V
21 1.63 V 21 0 V 71 -18.66 V
22 1.64 V 22 0 V 72 -8.21 V
23 1.64 V 23 0 V 73 -18.6 V
24 1.63 V 24 5.10 V 74 -18.63 V
25 3.22 V 25 0 V 75 -14.47 V
26 3.25 V 26 5.19 V 76 -18.63 V
27 0 V 27 5.19 V 77 -8.31 V
28 0 V 28 5.0 V 78 -12.22 V
29 N.C. 29 5.0 V 79 -18.62 V
30 N.C. 30 0 V 80 -10.22 V
31 N.C. 31 5.0V 81 -8.23 V
3233N.C.

N.C.
34 0 V 34 4.79 V 84 -18.52 V
35 N.C. 35 0.43 V 85 -8.23 V
36 N.C. 36 1.69 V 86 -10.26V
37 0 V 37 0 V 87 -18.62 V
38 3.22 V 38 5.0 V 88 -18.56 V
39 N.C. 39 0.46 V 89 -18.62 V
40 0 V 40 0.43 V 90 -18.62 V
41 3.22 V 41 0.43 V 91 -11.32 V
42 N.C. 42 0.44 V 92 -16.25 V
43 0 V 43 0.44 V 93 -16.54 V
44450 V 44 12.02 V 94 -16.62 V

N.C. 45 3.61 V 95 -16.61 V
46 3.22 V 46 0.5 V 96 -16.54 V
47 3.22 V 47 4.79 V 97 -16.54 V
48 1.58 V 48 4.54 V 98 -16.61 V
49 1.64 V 49 0.5 V 99 -16.63 V
50 0 V 50 5.18 V 100 -16.52 V
51 0 V
52 N.C.
53 N.C.
54 N.C.
55 0 V
56 0 V
57 0 V
58 1.59 V
59 1.57 V
60 0 V
61 0 V
62 4.7 V
63 0 V
64 5.0 V
65 5.0 V
66 4.73 V
67 0 V
68 5.0 V
69 0 V
70 0 V
71 0 V
72 5.04 V
73 1.36 V
74 0 V
75 3.25 V
76 1.0 V
77 0 V
78 1.58 V
79 1.58 V
80 1.68 V

5.19 V

14.6 mV

0 V

32335.0 V 82 -18.55 V

5.0 V 83 -18.36 V

ICM4

PIN NO. VOLTAGE

1

0 V

2

0.9 V

3

3.99 V

4

1.68 V

5

2.55 V

2.55 V

6
7

2.4 V

2.4 V

8

2.4 V

9
10 2.5 V
11 2.66 V
12 2.78 V
13 3.70 V
14 3.70 V
15 3.33 V
16 4.86 V
17 3.53 V
18 3.42 V
19 3.45 V
20 3.45 V
21 3.77 V
22 4.67 V
23 2.64 V
24 4.85 V
25 2.52 V
26 2.44 V
27 2.40 V
28 3.27 V
29 3.28 V
30 318.8 mV
31 4.82 V
32 0 V

52

5.15 V
0 V

53

0 V

54
55 0 V

58594.74 V

4.75 V

IC2

PIN NO. VOLTAGE

1

7.78 V

2

6.0 mV

3

5.4 mV

4

2.11 V

5

2.08 V

2.1 V

6
7

2.08 V

2.1 V

8

2.08 V

9
10 2.1 V
11 2.08 V
12 4.91 V
13 1.64 V
14 1.63 V
15 1.63 V
16 1.63 V
17 1.64 V
18 1.63 V
19 4.26 V
20 3.22 V
21 1.62 V
22 4.91 V
23 1.63 V
24 1.64 V
25 2.95 V
26 0 V
27 4.80 V
28 4.80 V

ICM1

PIN NO. VOLTAGE

1 0 V
2

4.75 V

3

4.77 V

4

4.77 V

564.68 V
0 V

7

3.29 V

3.26 V

8

4.25 V

9
10 3.78 V
11 N.C.
12 N.C.
13 N.C.
14 N.C.
15 N.C.
16 N.C.
17 0 V
18 0 V
19 N.C.
20 N.C.
21 2.66 V
22 2.46 V
23 2.46 V
24 2.46 V
25 0 V
26 0 V
27 2.43 V
28 2.43 V
29 2.43 V
30 2.43 V
31 0 V
32330 V

4.86 V
34 0 V
35 N.C.
36 N.C.
37 N.C.
38 N.C.
39 N.C.
40 N.C.
41 0 V
42 0 V
43 0 V
44450 V

0 V
46 0 V
47 0 V
48 0 V
49 0 V
50 0 V

IC101

PIN NO. VOLTAGE PIN NO. VOLTAGE

1 3.0 mV

14.5 mV

2 21.3 mV
3 0.562 V 3
4 1.962 V
5 4.93 V

0.650 V

6 1.317V

4.2 mV

7 4.94 V
8 0.584 V 8

9 3.35 V 9
10 3.28 V 10 4.94 V
11 2.4 mV 11 4.94 V
12 2.4 mV 12 4.94 V
13 6.8 V 13 4.94 V
14 4.08 V 14 4.94 V
15 2.4 mV 15 4.94 V
16 3.32 V 16 4.94 V
17 0.581 V 17 4.95 V
18 4.1 mV 18 4.94 V
19 2.639 V 19 4.94 V
20 17.56 mV 20 4.93 V
21 1.964 V 21 4.97 V
22 0.557 V 22 4.96 V
23 14.8 mV 23 9.93 V
24 3.0 mV 24 14.6 mV

IC851

PIN NO. VOLTAGE

1 16.31 V

20 V

3 12.06 V

PIN NO. VOLTAGE PIN NO. VOLTAGE

1 2.78 V 51 2.79 V
2 4.48 V
3

4.85 V

4

0 V
5 2.26 V
6 2.3 V 56 1.14 V
7 2.34 V 57 1.51 V
8 2.42 V
9

2.43 V
10 2.44 V 60 1.39 V
11 2.44 V 61 1.39 V
12 1.69 V 62 1.07 V
13 2.36 V 63 N.C.
14 2.33 V 64 0 V
15 2.31 V 65 4.95 V
16 2.23 V 66 4.95 V
17 2.34 V 67 N.C.
18 2.36 V 68 0 V
19 2.29 V 69 0 V
20 2.34 V 70 0 V
21 2.31 V 71 4.96 V
22 2.24 V 72 0 V
23 2.35 V 73 0 V
24 2.32 V 74 0 V
25 2.32 V 75 4.95 V
26 2.32 V 76 4.95 V
27 2.31 V 77 4.95 V
28 4.81 V 78 4.95 V
29 4.93 V 79 4.95 V
30 0 V 80 0 V
31 2.9 V 81 4.97 V

32331.02 V 82 2.55 V

3.3 V 83 2.74 V
34 0.77 V 84 2.45 V
35 0.78 V 85 2.59 V
36 0.57V 86 2.58 V
37 1.27 V 87 2.55 V
38 2.30 V 88 2.81 V
39 1.22 V 89 0 V
40 4.52 V 90 0.78 V
41 4.46 V 91 0 V
42 N.C. 92 0 V
43 1.91 V 93 0 V
44 2.44 V 94 0 V
45 5.0 V 95 4.96 V
46 5.0 V 96 1.56 V
47 4.83 V 97 0 V
48 5.0 V 98 1.58 V
49 4.17 V 99 4.97 V
50 0 V 100 0 V

IC601

14.3 mV1

2

8.3 mV
4 4.97 V
5
6

4.94 V
7

4.97 V

4.94 V

IC852

PIN NO. VOLTAGE

1 16.26 V

0 V

2
3 9.87 V

ICM2

52
53
54
55 1.13 V

58591.31 V

IC303

PIN NO. VOLTAGE

1 2.04 V
2 5.03 V
3 2.04 V
4 2.04 V
5
6 5.10 V
7 5.10 V
8 3.47 V

9105.03 V

11 1.84 V
12 1.23 V
13 2.258 V
14 1.15 V
15 1.148 V
16
17
18
19 2.176 V
20 1.469 V
21 2.02 V
22 2.02 V
23 5.04 V
24 3.53 V

IC853

PIN NO. VOLTAGE

1 16.28 V
3
2

4.18 V

4.83 V

4.83 V

1.42 V

0 V

4.32 V

2.03 V

16.2 mV

1.47 V

0 V

5.2 V

PIN NO. VOLTAGE PIN NO. VOLTAGE

1 0 V 51 0 V
20 V
3
4
5 5.0 V
6 5.0 V 56 0 V
7 N.C. 57 0 V
8 1.24 V

9
10 5.02 V 60 4.95 V
11 5.0 V 61 0 V
12 N.C. 62 0 V
13 3.26 V 63 0 V
14 5.0 V 64 0.84 V
15 5.0 V 65 1.95 V
16 5.0 V 66 4.14 V
17 2.87 V 67 N.C.
18 N.C. 68 N.C.
19 2.55 V 69 0 V
20 0 V 70 N.C.
21 0 V 71 2.42 V
22 2.47 V 72 0 V
23 5.02 V 73 4.94 V
24 5.0 V 74 2.24 V
25 0 V 75 0 V
26 0 V 76 N.C.
27 N.C. 77 0 V
28 N.C. 78 4.94 V
29 N.C. 79 2.51 V
30 N.C. 80 1.85 V
31 0 V 81 1.09 V

32335.09 V 82 4.57 V

34 N.C. 84 4.90 V
35 N.C. 85 1.45 V
36 N.C. 86 1.29 V
37 0 V 87 1.41 V
38 0 V 88 1.95 V
39 N.C. 89 1.65 V
40 N.C. 90 4.94 V
41 0 V 91 0 V
42 2.2 V 92 1.56 V
43 0 V 93 1.47 V
44 4.94 V 94 1.58 V
45 2.19 V 95 1.36 V
46 2.21 V 96 1.36 V
47 2.21 V 97 1.55 V
48 2.21 V 98 1.12 V
49 N.C. 99 1.17 V
50 N.C. 100 0 V

PIN NO. VOLTAGE

1 2.46 V

2

3

4

5

6 5.0 V

7 5.78 V

8 4.64 V

9
10 21.3 mV
11 5.09 V
12 3.5 mV
13 5.09 V
14 5.09 V
15 13.0 mV
16 2.487 V
17 5.10 V
18 1.0 mV
19 1.1 mV
20 9.92 V
21 0.6 mV
22 2.46 V

PIN NO. VOLTAGE

1 9.88 V

2 0.59 V

3 5.66 V

ICM3

N.C.
N.C.

N.C.

0.44 V 83 1.43 V

IC302

26.3 mV

26.3 mV

17.1 mV

16.3 mV

28.6 mV

IC854

52
53
54
55 1.85 V

58590 V

IC901

PIN NO. VOLTAGE

10 V
20 V
3––
4 23.3 V
5 -22.1 V
60 V
7
8

9
10 0 V
11 0 V
12 -23.6 V
13 0 V
14 0 V
15 0 V

IC855

PIN NO. VOLTAGE

E 7.70 V

B 12.07 V

C 8.23 V

PIN NO. VOLTAGE

1

2

3

4

5

6 4.53 V

7 4.52 V

8 8.83 V

1.24 V

4.94 V

1.19 V

4.94 V

0 V

24.5 V

-24.5 V

ICK2

4.49 V

4.53 V

4.53 V
0 V

4.53 V

ICK1

PIN NO. VOLTAGE

1 0.8 V
2

0.97 V

3

0.73 V

4

2.35 V

564.47 V

2.32 V

7

2.32 V

2.34 V

8

1.88 V

9
10 2.33 V
11 1.88 V
12 1.88 V
13 2.34 V
14 2.34 V
15 2.35 V
16 2.35 V
17 2.35 V
18 2.35 V
19 2.35 V
20 0.55 V
21 2.35 V
22 0 V
23 4.85 V
24 0.24 V
25 2.35 V
26 2.35 V
27 2.35 V
28 2.35 V
29 2.35 V
30 2.35 V
31 2.35 V

32332.35 V

2.35 V
34 2.35 V
35 2.35 V
36 2.34 V
37 2.34 V
38 0 V
39 0 V
40 0 V
41 4.59 V
42 4.59 V

IC301

PIN NO. VOLTAGE

1

0.955 V

1.669 V

2
3

5.22 V

1.649 V

4

0.4 mV

5
6 5.24 V
7 4.52 V

895.20 V

5.23 V

IC3

PIN NO. VOLTAGE

1

8.54 V

4.15 V

2
3

4.15 V

0 V

4

4.15 V

5
6 4.15 V
7 4.98 V
8 9.82 V

QM4

PIN NO. VOLTAGE

1

1.25 V

0 V

2
3

3.89 V

4.96 V

4

0 V

5
6 2.85 V

– 35 –

CD-EA135V

FL701 VVKNA10SS23-1

GRID ASSIGNMENT

FL DISPLAY

1a
2a

3a

ANODE CONNECTION

1G
P1
P2
P3
P4
P5
P6
P7
P8
P9

P10
P11
P12
P13
P14
P15
P16
P17
P18

1

1a
1b
1c

2

2a
2b

2c

3

3a

3b

3c

2G 3G 4G 5G

a

b

c

2G 3G 4G 5G 6G 7G 8G 9G 10G

MP3

a

b

k

j

h

f

m

d
g

p
e
n

r
c

(

)

a
b
k

j
h

f

m

d
g

p
e
n

r

c

a
b
k

j
h

f

m

d
g

p
e
n

r

c

6G

col

Dp

RDS

a
b
k

j
h

f

m

d
g

p
e
n

r

c

b

m

PTY

a
b
k

j
h

m

d
g

p
e
n

c

9G

PTYI

small dot

f

r

col
Dp

10G

ST

a
b
k

j
h

f

m

d
g

p
e
n

r

c

a
b
k

j
h

f

m

d
g

p
e
n
r
c

7G

f

g
e

(2G~9G)(1G)

8G1G

a

k

h

j

c

p

r

n

small dot

d

TA

TP

a
b
k

j
h

f

m

d
g

p
e
n

r
c

(white)

(Rsh.o)

SLEEP

X-BASS

MEMORY

MHz

kHz

REC

– 36 –

PARTS GUIDE

VIDEO CD MINI SYSTEM

MODEL CD-EA135V

CD-EA135V Video CD Mini System consisting of CD-EA135V
(main unit) and CP-EA135 (speaker system).

CD-EA135V

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

CD-EA135V

PRICE
RANK

DESCRIPTIONNO. PART CODE NO. PARTS CODE

CD-EA135V

INTEGRATED CIRCUITS

IC1 VHILC78637E-1 J AY CD Servo,LC78637E
IC2 VHILA6574H+-1 J AN Focus/Tracking/Spin/Sled Driver,

IC3 VHITJM4558CD1 J AE Ope Amp.,TJM4558CD
IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0554AWZZ J AX System Microcomputer,

IC851 VHIKIA7812AP1 J AF Voltage Regulator,KIA7812AP
IC852 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC853 VHIKIA7805AP1 J AF Voltage Regulator,KIA7805AP
IC854 VHIAN78L05/-1 J AE Voltage Regulator,AN78L05
IC855 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
IC901 VHISTK43205-1 J AT Power Amp.,STK43205
ICK1 VHIM65856SP-1 J AX Mic Amp.,M65856SP
ICK2 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
ICM1 VHI1625635T-1 J AZ DRAM,1625635T
ICM2 VHIES3880FM-1 J BA Video CD Decoder,ES3880FM
ICM3 VHIES3889F/-1 J BC VCD Companion,ES3889F
ICM4 RH-IX0528AW00 J AT EPROM IC,IX0528AW

LA6574H

Amp.,AN7345K

LA1832S

IX0554AW

TRANSISTORS

Q1 VSKTA1504GR-1 J AB Silicon,PNP,KTA1504 GR
Q2 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q3,4 VSKTC3875GR-1 J AB Silicon,NPN,KTC3875 GR
Q101~104 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q105~108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q111 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q113,114 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q601~604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q706~708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q711 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q712 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q901~905 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QK1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QM1 VSKTC3265Y/-1 J AC Silicon,NPN,KTC3265 Y
QM2 VSUN2211///-1 J AC Digital,NPN,UN2211
QM3 VSKTA1046Y+-1 J AF Sillicon,PNP,KTA1046 Y
QM4 VHISI3033LU-1 J AG Regulator 3.3V,SI3033LU

DIODES

D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D701 VHDDS1SS133-1 J AB Silicon,DS1SS133
D704 VHDDS1SS133-1 J AB Silicon,DS1SS133

D709~716 VHDDS1SS133-1 J AB Silicon,DS1SS133
D802 VHDD3SBA60F-1 J AG Silicon,D3SBA60F
D803 VHDRL204F//-1 J AC Silicon,RL204F
D804~806 VHD1N4004S/-1 J AB Silicon,1N4004S
D851,852 VHDDS1SS133-1 J AB Silicon,DS1SS133
D856~859 VHDDS1SS133-1 J AB Silicon,DS1SS133
D905~907 VHDDS1SS133-1 J AB Silicon,DS1SS133
D911 VHDDS1SS133-1 J AB Silicon,DS1SS133
DK1,2 VHDDS1SS133-1 J A B Silicon,DS1SS133
LED701 VHP304VT2E1-1 J AC LED,Red,304VT2E1
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD801 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD802 VHEDZ6R8BSA-1 J AC Zener,6.8V,DZ6.8A
ZD803 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB
ZD852 VHEDZ8R2BSB-1 J AB Zener,8.2V,DZ8.2BSB
ZDK1 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

[For Philippines Only]

PRICE

RANK

DESCRIPTION

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

1 PT801 RTRNP0476AWZZ J AY Power

T301 RCILB0065AWZZ J AC OSC.,FM
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Tracking
T306 RCILB0067AWZZ J AD OSC.,AM
T351 RCILI0019AWZZ J AD AM IF

COILS

L1 RCILC0011AWZZ J AD 0.82 µH
L2 RCILC0012AWZZ J AD 2.2 µH
L103 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351 VP-DH101K0000 J AB 100 µH,Choke
L701 VP-DH101K0000 J AB 100 µH,Choke
L901,902 RCILZ0137AFZZ J AA 0.29 µH
LM3 RCILC0013AWZZ J AE 3.3 µH

VARIABLE RESISTOR

VRK1 92LVRR1674A J AF 20 kohms (B) [Mic Level]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCSVC211C/-1 J AG Silicon,Variable

Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz
XL1 RCRSP0020AWZZ J AG Crystal,16.9344 MHz
XL2 RCRSP0023AWZZ J AH Ceramic,27 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.19 MHz

CAPACITORS

C1 RC-EZY476AF1E J AB 47 µF,25V,Electrolytic
C2 VCKYCY1CB103K J AA 0.01 µF,16V
C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C4 VCKYTV1HB332K J AA 0.0033 µF,50V
C5 VCKYCY1CB473K J AA 0.047 µF,16V
C6 VCKYCY1CB103K J AA 0.01 µF,16V
C8 VCKYTV1HB332K J AA 0.0033 µF,50V
C9 RC-EZY337AF0J J AA 330 µF,6.3V,Electrolytic
C10 VCKYCY1EF223Z J AB 0.022 µF,25V
C11 RC-EZY224AF1H J AB 0.22 µF,50V,Electrolytic
C12 VCKYTV1HB101K J AA 100 pF,50V
C13 VCKYCY1EF223Z J AB 0.022 µF,25V
C14 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C20 VCKYCY1CB103K J AA 0.01 µF,16V
C21 VCKYCY1CB563K J AB 0.056 µF,16V
C22 VCKYCY1CB103K J AA 0.01 µF,16V
C27 VCKYTV1HF223Z J AA 0.022 µF,50V
C28 VCKYTV1HB101K J AA 100 pF,50V
C30 VCKYTV1HB101K J AA 100 pF,50V
C32 VCKYTV1HB101K J AA 100 pF,50V
C33 VCKYCY1EF223Z J AB 0.022 µF,25V
C34 VCKYTV1HB101K J AA 100 pF,50V
C35 VCKYCY1CB473K J AA 0.047 µF,16V
C36 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C37 VCKYCY1CB104K J AB 0.1 µF,16V
C38 VCKYCY1CB103K J AA 0.01 µF,16V
C40,41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C42 VCKYCY1CB103K J AA 0.01 µF,16V
C46 VCKYCY1CB103K J AA 0.01 µF,16V
C48 VCKYCY1EF223Z J AB 0.022 µF,25V
C49 VCCCCY1HH8R0D J AA 8 pF (CH),50V
C50 VCCCCY1HH100D J AA 10 pF (CH),50V

– 1 –

CD-EA135V

PRICE
RANK

C51 VCKYCY1EF223Z J AB 0.022 µF,25V
C54,55 VCKYTV1HB101K J AA 100 pF,50V
C56,57 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C58,59 VCKYCY1CB473K J AA 0.047 µF,16V
C60 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C61 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C62 VCKYCY1CB103K J AA 0.01 µF,16V
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C103 VCKYBT1HB181K J AA 180 pF,50V
C104 VCKYMN1HB181K J AA 180 pF,50V
C105,106 VCKYMN1HB561K J AA 560 pF,50V
C107~110 VCKYMN1HB331K J AA 330 pF,50V
C111,112 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C113,114 VCTYPA1EX333K J AA 0.033 µF,25V
C115,116 VCKYMN1HB561K J AA 560 pF,50V
C117,118 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C119,120 VCTYMN1CX222K J AA 0.0022 µF,16V
C121 VCTYMN1EF223Z J AA 0.022 µF,25V
C123,124 VCKYMN1HB271K J AA 270 pF,50V
C125,126 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C127,128 VCTYPA1CX223K J AA 0.022 µF,16V
C129,130 VCTYMN1CX332K J AA 0.0033 µF,16V
C131,132 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C133 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C134 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C135 VCTYMN1EF223Z J AA 0.022 µF,25V
C137 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C138 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C139 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C140 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C141 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C143 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C150 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C302 VCKYMN1HB102K J AA 0.001 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C308 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCSMN1HL180J J AA 18 pF,50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C320 VCKYBT1HB102K J AA 0.001 µF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ220J J AA 22 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350 VCKZPA1HF223Z J AA 0.022 µF,50V
C351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C365 VCTYPA1CX223K J AA 0.022 µF,16V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V

DESCRIPTION

NO.

C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C389 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C391 RC-EZY476AF1E J AB 47 µF,25V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCKYBT1HB102K J AA 0.001 µF,50V
C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C601 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C602 VCTYMN1EF223Z J AA 0.022 µF,25V
C603 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C605,606 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C607,608 VCFYHA1HA124J J AB 0.12 µF,50V,Thin Film
C609,610 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C611,612 VCTYMN1CX222K J AA 0.0022 µF,16V
C613,614 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C615,616 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C617~624 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C625,626 VCTYMN1CX222K J AA 0.0022 µF,16V
C629,630 VCKYMN1HB102K J AA 0.001 µF,50V
C639 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C640 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C651~653 VCKYMN1HB221K J AA 220 pF,50V
C690,691 VCKYMN1HB391K J AA 390 pF,50V
C701 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C702 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C704 VCCSMN1HL150J J AA 15 pF,50V
C705 VCCSMN1HL180J J AA 18 pF,50V
C707 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C712 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C714 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C715 VCTYMN1EF103Z J AB 0.01 µF,25V
C717 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C720 VCTYMN1EF223Z J AA 0.022 µF,25V
C801 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C802,803 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C804 VCEAZA1JW227M J AD 220 µF,63V,Electrolytic
C805 VCEAZA2AW226M J AC 22 µF,100V,Electrolytic
C806,807 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C808,809 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C812~815 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C851 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C854,855 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C856 RC-EZ0107AWZZ J AG 3300 µF,35V,Electrolytic
C858,859 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C861 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C863 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C864 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C865 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C901,902 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C903,904 VCKYMN1HB471K J AA 470 pF,50V
C905,906 VCCCMN1HH3R3C J AA 3.3 pF (CH),50V
C907,908 VCKYMN1HB471K J AA 470 pF,50V
C909,910 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C911,912 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar
C913,914 VCEAZA1JW107M J AC 100 µF,63V,Electrolytic
C915,916 VCEAZA1JW106M J AB 10 µF,63V,Electrolytic
C925 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C926~929 VCQYKA1HM224K J AB 0.22 µF,50V,Mylar
C932 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
C948,949 RC-EZ0104AWZZ J AH 2200 µF,50V,Electrolytic
CK1 VCTYPA1CX103K J AA 0.01 µF,16V
CK3 VCCSPA1HL221J J AA 220 pF,50V
CK7 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CK8 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
CK9 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK10,11 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
CK12 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK13 VCTYPA1CX472K J AA 0.0047 µF,16V
CK14 VCKYPA1HB102K J AA 0.001 µF,50V
CK15 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester
CK16 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
CK17 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
CK18 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK19 VCKZPA1HF223Z J AA 0.022 µF,50V
CK20 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
CK21 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester

PARTS CODENO. PART CODE

PRICE
RANK

DESCRIPTION

– 2 –

CD-EA135V

PRICE
RANK

CK22 VCTYPA1CX472K J AA 0.0047 µF,16V
CK23 VCKYPA1HB102K J AA 0.001 µF,50V
CK24~26 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK29,30 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK31 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film
CK33~35 VCCSPA1HL470J J AA 47 pF,50V
CK40,41 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK43,44 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK45,46 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK47,48 VCCSPA1HL221J J AA 220 pF,50V
CK49,50 VCCSPA1HL101J J AA 100 pF,50V
CK51,52 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
CK53 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK54 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
CM1 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
CM2 RC-EZY107AF1C J AB 100 µF,16V,Electrolytic
CM3,4 VCKYCY1CB104K J AB 0.1 µF,16V
CM5 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
CM6 VCKYCY1CB104K J AB 0.1 µF,16V
CM7 RC-EZY107AF1C J AB 100 µF,16V,Electrolytic
CM8,9 VCKYCY1CB104K J AB 0.1 µF,16V
CM11,12 VCCCCY1HH270J J AA 27 pF (CH),50V
CM13 VCKYTV1HB102K J AA 0.001 µF,50V
CM14 VCKYCY1CB104K J AB 0.1 µF,16V
CM15 VCCCCY1HH220J J AA 22 pF (CH),50V
CM16~20 VCKYCY1CB104K J AB 0.1 µF,16V
CM21 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
CM22 VCCCCY1HH100D J AA 10 pF (CH),50V
CM23 VCKYCY1CB104K J AB 0.1 µF,16V
CM24 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
CM25 VCKYCY1CB104K J AB 0.1 µF,16V
CM26 VCKYCY1EF223Z J AB 0.022 µF,25V
CM27 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CM28 VCKYCY1EF223Z J AB 0.022 µF,25V
CM29 VCKYTV1HF223Z J AA 0.022 µF,50V
CM30 VCKYCY1CB104K J AB 0.1 µF,16V
CM31 VCKYCY1EF223Z J AB 0.022 µF,25V
CM32 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CM33 VCKYCY1EF223Z J AB 0.022 µF,25V
CM34 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CM35 VCKYCY1EF223Z J AB 0.022 µF,25V
CM36 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CM37 VCKYCY1CB104K J AB 0.1 µF,16V
CM38 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic
CM39 VCKYCY1CB104K J AB 0.1 µF,16V
CM40 VCKYCY1CB103K J AA 0.01 µF,16V
CM41~44 RC-EZY106AF1C J AB 10 µF,16V,Electrolytic
CM45 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
CM46 VCCCCY1HH330J J AA 33 pF (CH),50V
CM47 VCKYCY1CB104K J AB 0.1 µF,16V
CM48 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
CM49~51 VCCCCY1HH330J J AA 33 pF (CH),50V
CM52,53 RC-EZY106AF1C J AB 10 µF,16V,Electrolytic
CM54~56 VCCCCY1HH220J J AA 22 pF (CH),50V
CM57 VCKYCY1CB104K J AB 0.1 µF,16V
CM58 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CM59 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CM61 RC-EZ0007AWZZ J AF 10 µF,10V,Electrolytic

DESCRIPTIONNO. PART CODE NO. PARTS CODE

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

J635 VRD-ST2CD103J J AA 10 kohm,1/6W
R7 VRS-CY1JB470J J AA 47 ohms,1/16W
R9 VRS-CY1JB100J J AA 10 ohm,1/16W
R12 VRS-CY1JB331J J AA 330 ohms,1/16W
R13 VRS-CY1JB822J J AA 8.2 kohms,1/16W
R14~16 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R18 VRS-CY1JB102J J AA 1 kohm,1/16W
R20 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R22,23 VRS-CY1JB331J J AA 330 ohms,1/16W
R24,25 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R26 VRS-CY1JB223J J AA 22 kohms,1/16W
R28,29 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R32~38 VRS-CY1JB102J J AA 1 kohm,1/16W
R39,40 VRS-CY1JB681J J AA 680 ohms,1/16W
R41 VRS-CY1JB124J J AA 120 kohms,1/16W
R43 VRS-CY1JB221J J AA 220 ohms,1/16W
R44 VRS-CY1JB153J J AA 15 kohms,1/16W
R48 VRS-CY1JB472J J AA 4.7 kohms,1/16W

VRS-CY1JB000J J AA

0 ohm,Jumper,0.8×1.55mm,Green

PRICE

RANK

R49,50 VRD-ST2EE1R0J J AA 1 ohm,1/4W
R51 VRS-CY1JB103J J AA 10 kohm,1/16W
R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111 VRD-ST2CD153J J AA 15 kohms,1/6W
R112 VRD-MN2BD153J J AA 15 kohms,1/8W
R113,114 VRD-ST2CD102J J AA 1 kohm,1/6W
R115,116 VRD-ST2CD560J J AA 56 ohms,1/6W
R117,118 VRD-MN2BD104J J AA 100 kohm,1/8W
R119,120 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R121,122 VRD-MN2BD103J J AA 10 kohm,1/8W
R123,124 VRD-MN2BD153J J AA 15 kohms,1/8W
R126,127 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R128,129 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R130,131 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R132,133 VRD-MN2BD101J J AA 100 ohm,1/8W
R134,135 VRD-MN2BD103J J AA 10 kohm,1/8W
R136,137 VRD-ST2CD224J J AA 220 kohms,1/6W
R138 VRD-ST2CD103J J AA 10 kohm,1/6W
R139 VRD-MN2BD103J J AA 10 kohm,1/8W
R140 VRD-MN2BD473J J AA 47 kohms,1/8W
R141 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R142 VRD-RT2HD820J J AA 82 ohms,1/2W
R143 VRD-MN2BD473J J AA 47 kohms,1/8W
R144 VRD-MN2BD223J J AA 22 kohms,1/8W
R145 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R146,147 VRD-MN2BD103J J AA 10 kohm,1/8W
R148 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R149 VRD-ST2EE151J J AA 150 ohms,1/4W
R150 VRD-MN2BD683J J AA 68 kohms,1/8W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361,362 VRD-MN2BD103J J AA 10 kohm,1/8W
R363,364 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-ST2CD102J J AA 1 kohm,1/6W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R601~603 VRD-ST2CD102J J AA 1 kohm,1/6W
R605 VRD-ST2CD103J J AA 10 kohm,1/6W
R606,607 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R608,609 VRD-MN2BD221J J AA 220 ohms,1/8W
R610,611 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R612,613 VRD-MN2BD391J J AA 390 ohms,1/8W

DESCRIPTION

– 3 –

CD-EA135V

PRICE
RANK

R614,615 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R616 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R617 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R618,619 VRD-ST2CD331J J AA 330 ohms,1/6W
R620,621 VRD-MN2BD223J J AA 22 kohms,1/8W
R688 VRD-ST2CD1R0J J AA 1 ohm,1/6W
R690,691 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R692,693 VRD-MN2BD683J J AA 68 kohms,1/8W
R701 VRD-MN2BD101J J AA 100 ohm,1/8W
R702 VRD-MN2BD102J J AA 1 kohm,1/8W
R703,704 VRD-ST2CD102J J AA 1 kohm,1/6W
R705 VRD-MN2BD102J J AA 1 kohm,1/8W
R706,707 VRD-ST2CD102J J AA 1 kohm,1/6W
R708~716 VRD-MN2BD102J J AA 1 kohm,1/8W
R717 VRD-ST2CD101J J AA 100 ohm,1/6W
R718~720 VRD-MN2BD102J J AA 1 kohm,1/8W
R721 VRD-ST2CD102J J AA 1 kohm,1/6W
R722 VRD-MN2BD102J J AA 1 kohm,1/8W
R724,725 VRD-ST2CD102J J AA 1 kohm,1/6W
R726,727 VRD-ST2CD681J J AA 680 ohms,1/6W
R728 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R729 VRD-MN2BD561J J AA 560 ohms,1/8W
R731 VRD-MN2BD103J J AA 10 kohm,1/8W
R732 VRD-MN2BD102J J AA 1 kohm,1/8W
R733 VRD-ST2CD102J J AA 1 kohm,1/6W
R734~736 VRD-MN2BD102J J AA 1 kohm,1/8W
R737 VRD-ST2CD101J J AA 100 ohm,1/6W
R739 VRD-ST2CD102J J AA 1 kohm,1/6W
R740 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R741 VRD-MN2BD102J J AA 1 kohm,1/8W
R742~745 VRD-ST2CD102J J AA 1 kohm,1/6W
R746 VRD-MN2BD102J J AA 1 kohm,1/8W
R747 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R748 VRD-ST2CD103J J AA 10 kohm,1/6W
R750 VRD-ST2CD473J J AA 47 kohms,1/6W
R753 VRD-MN2BD102J J AA 1 kohm,1/8W
R754 VRD-MN2BD103J J AA 10 kohm,1/8W
R755,756 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R758 VRD-MN2BD102J J AA 1 kohm,1/8W
R759 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R760 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R761 VRD-ST2CD103J J AA 10 kohm,1/6W
R763,764 VRD-MN2BD102J J AA 1 kohm,1/8W
R765 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R766~768 VRD-MN2BD103J J AA 10 kohm,1/8W
R769 VRD-MN2BD102J J AA 1 kohm,1/8W
R770~774 VRD-MN2BD103J J AA 10 kohm,1/8W
R777~780 VRD-MN2BD103J J AA 10 kohm,1/8W
R781 VRD-MN2BD473J J AA 47 kohms,1/8W
R782 VRD-MN2BD104J J AA 100 kohm,1/8W
R783 VRD-ST2CD101J J AA 100 ohm,1/6W
R784,785 VRD-MN2BD102J J AA 1 kohm,1/8W
R786 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R787 VRD-MN2BD103J J AA 10 kohm,1/8W
R788,789 VRD-ST2CD103J J AA 10 kohm,1/6W
R791 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R794,795 VRD-ST2EE1R5J J AA 1.5 ohms,1/4W
R801 VRD-ST2CD104J J AA 100 kohm,1/6W
R802 VRD-ST2CD473J J AA 47 kohms,1/6W
R803 VRD-ST2CD123J J AA 12 kohms,1/6W
R804,805 VRD-ST2EE470J J AA 47 ohms,1/4W
R806 VRD-ST2CD473J J AA 47 kohms,1/6W
R807 VRD-ST2EE100J J AA 10 ohm,1/4W
R808 VRD-RT2HD222J J AA 2.2 kohms,1/2W
R852 VRD-ST2CD103J J AA 10 kohm,1/6W
R853,854 VRD-ST2CD223J J AA 22 kohms,1/6W
R857 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R859 VRD-ST2CD223J J AA 22 kohms,1/6W
R860 VRD-ST2EE221J J AA 220 ohms,1/4W
R861 VRD-MN2BD331J J AA 330 ohms,1/8W
R862 VRD-MN2BD100J J AA 10 ohm,1/8W
R901,902 VRD-MN2BD563J J AA 56 kohms,1/8W
R903,904 VRD-MN2BD102J J AA 1 kohm,1/8W
R907,908 VRD-MN2BD563J J AA 56 kohms,1/8W
R909 VRD-ST2CD102J J AA 1 kohm,1/6W
R910 VRD-MN2BD102J J AA 1 kohm,1/8W
R911,912 VRD-MN2BD821J J AA 820 ohms,1/8W
R913,914 VRN-VV3AAR10J J AB 0.1 ohm,1W
R915,916 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R917~920 VRN-VV3DAR22J J AC 0.22 ohms,2W

1 R921,922 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R923,924 VRD-MN2BD271J J AA 270 ohms,1/8W

DESCRIPTION

NO.

R925~927 VRD-ST2CD223J J AA 22 kohms,1/6W
R935 VRD-MN2BD223J J AA 22 kohms,1/8W
R936 VRD-ST2CD223J J AA 22 kohms,1/6W
R937 VRD-ST2CD563J J AA 56 kohms,1/6W
R940,941 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R942,943 VRD-RT2HD151J J AA 150 ohms,1/2W
R946 VRD-ST2CD473J J AA 47 kohms,1/6W
RD01 VRD-ST2CD681J J AA 680 ohms,1/6W
RD02 VRD-MN2BD821J J AA 820 ohms,1/8W
RD03 VRD-MN2BD102J J AA 1 kohm,1/8W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD07 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD09 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD681J J AA 680 ohms,1/8W
RD11 VRD-MN2BD821J J AA 820 ohms,1/8W
RD12 VRD-MN2BD102J J AA 1 kohm,1/8W
RD13 VRD-ST2CD152J J AA 1.5 kohms,1/6W
RD14 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD15 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD16 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD17 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD18 VRD-MN2BD103J J AA 10 kohm,1/8W
RD19 VRD-MN2BD681J J AA 680 ohms,1/8W
RD20 VRD-ST2CD821J J AA 820 ohms,1/6W
RD21 VRD-MN2BD102J J AA 1 kohm,1/8W
RD22 VRD-ST2CD152J J AA 1.5 kohms,1/6W
RD23 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RK1 VRD-ST2CD103J J AA 10 kohm,1/6W
RK2,3 VRD-ST2CD563J J AA 56 kohms,1/6W
RK4 VRD-ST2CD103J J AA 10 kohm,1/6W
RK7 VRD-ST2CD102J J AA 1 kohm,1/6W
RK8 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RK9~11 VRD-ST2CD102J J AA 1 kohm,1/6W
RK12 VRD-ST2CD101J J AA 100 ohm,1/6W
RK13 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RK14,15 VRD-RT2HD101J J AA 100 ohm,1/2W
RK36,37 VRD-ST2CD391J J AA 390 ohms,1/6W
RK38 VRD-ST2CD101J J AA 100 ohm,1/6W
RK39,40 VRD-ST2CD102J J AA 1 kohm,1/6W
RK41,42 VRD-ST2CD103J J AA 10 kohm,1/6W
RK43 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RK44,45 VRD-ST2CD682J J AA 6.8 kohms,1/6W
RK46,47 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RK48~50 VRD-ST2CD103J J AA 10 kohm,1/6W
RK72,73 VRD-ST2CD472J J AA 4.7 kohms,1/6W
RM1~8 VRS-CY1JB330J J AA 33 ohms,1/16W
RM9 VRS-CY1JB151J J AA 150 ohms,1/16W
RM10 VRS-CY1JB221J J AA 220 ohms,1/16W
RM11~13 VRS-CY1JB151J J AA 150 ohms,1/16W
RM14 VRS-CY1JB104J J AA 100 kohm,1/16W
RM15,16 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM23 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM26,27 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM30,31 VRS-CY1JB330J J AA 33 ohms,1/16W
RM32 VRS-CY1JB100J J AA 10 ohm,1/16W
RM33 VRS-CY1JB330J J AA 33 ohms,1/16W
RM34 VRS-CY1JB103J J AA 10 kohm,1/16W
RM36 VRS-CY1JB331J J AA 330 ohms,1/16W
RM38 VRS-CY1JB330J J AA 33 ohms,1/16W
RM41 VRS-CY1JB822J J AA 8.2 kohms,1/16W
RM42~44 VRS-CY1JB101J J AA 100 ohm,1/16W
RM45 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM49 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM50 VRS-CY1JB100J J AA 10 ohm,1/16W
RM51,52 VRS-CY1JB103J J AA 10 kohm,1/16W
RM53,54 VRS-CY1JB104J J AA 100 kohm,1/16W
RM55 VRS-CY1JB103J J AA 10 kohm,1/16W
RM56,57 VRS-CY1JB104J J AA 100 kohm,1/16W
RM58~62 VRS-CY1JB103J J AA 10 kohm,1/16W
RM63,64 VRS-CY1JB223J J AA 22 kohms,1/16W
RM65,66 VRS-CY1JB102J J AA 1 kohm,1/16W
RM67,68 VRS-CY1JB104J J AA 100 kohm,1/16W
RM69 VRS-CY1JB222J J AA 2.2 kohms,1/16W
RM70 VRS-CY1JB221J J AA 220 ohms,1/16W
RM71 VRS-CY1JB332J J AA 3.3 kohms,1/16W
RM72 VRS-CY1JB221J J AA 220 ohms,1/16W
RM73 VRS-CY1JB222J J AA 2.2 kohms,1/16W
RM74 VRS-CY1JB101J J AA 100 ohm,1/16W
RM75 VRS-CY1JB221J J AA 220 ohms,1/16W

PARTS CODENO. PART CODE

PRICE
RANK

DESCRIPTION

– 4 –

CD-EA135V

PRICE
RANK

RM76 VRS-CY1JB120J J AA 12 ohms,1/16W
RM77,78 VRS-CY1JB472J J AA 4.7 kohms,1/16W
RM80,81 VRS-CY1JB102J J AA 1 kohm,1/16W
RM82 VRS-CY1JB152J J AA 1.5 kohms,1/16W
RM83 VRS-CY1JB122J J AA 1.2 kohms,1/16W

DESCRIPTIONNO. PART CODE NO. PARTS CODE

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI102/CNS102 QCNWN1974AWZZ J AM Connector Ass’y,7/6Pin
BI601/CNS601 QCNWN2465AWZZ J AG Connector Ass’y,9/8Pin
BI701/CNS701 QCNWN2478AWZZ J AH Connector Ass’y,13/12Pin
BI702/CNS702 QCNWN2477AWZZ J AF Connector Ass’y,7/6Pin
BI801/CNS801 QCNWN2502AWZZ J AH Connector Ass’y,9/8Pin
BIK1/CNSK1 QCNWN2575AWZZ J AH Connector Ass’y,12/11Pin
BIV1/CNSV1 QCNWN2479AWZZ J AE Connector Ass’y,2/2Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP5 QCNCM932MAFZZ J AE Plug,12Pin
CNP6 92LCONE8P53254 J AC Plug,8Pin
CNP7 92LCONE6P53254 J AC Plug,6Pin
CNP8 92LCONE2P53254 J AB Plug,2Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP302 92LCONE2P5268 J AB Plug,2Pin
CNP701A QCNCWZY20AWZZ J AG Socket,20Pin
CNP701B QCNCWZX20AWZZ J AG Socket,20Pin
CNP702 QCNCWZY09AWZZ J AC Socket,9Pin
CNP705 QCNCW012EAWZZ J AC Socket,5Pin
CNP801 92LCONE8P5267X J AD Plug,8Pin
CNP802 QCNCW012FAWZZ J AC Plug,6Pin

1 CNP805 QCNCM049BAWZZ J AC Plug,2Pin

CNPK1 92LCONEBP53253 J AC Plug,11Pin
CNS1A/B QCNWN2329AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN2330AWZZ J AH Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin

1 F801,802 QFS-D322CAWNI J AC Fuse,T3.15A L 250V
1 F803,804 QFS-D202CAWNI J AC Fuse,T2A L 250V

FFC701 QCNWN2476AWZZ J AF Flat Cable,20Pin
FFC702 QCNWN2496AWZZ J AD Flat Cable,9Pin
FL701 VVKNA10SS23-1 J AW FL Display
FW701 QCNWN2562AWZZ J AD Flat Wire,6Pin
FW901 QCNWN2470AWZZ J AC Flat Wire,5Pin
JK1 QJAKJ0007AWZZ J AF Jack,Mic
JK690 QSOCJ0311AWZZ J AF Jack,Video Out/AUX In
JK701 QJAKM0004AWZZ J AK Jack,Headphones
LUG1 QLUGP0002AWZZ J AB Lug
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 RMOTV0373AFZZ J AL Motor with Worm Pulley

RL914 RRLYD0016AWZZ J AH Relay
RX701 VHLGP1UM271-1 J AH Remote Sensor,GP1UM271
SO302 QTANC0206AWZZ J AD FM Terminal
SO901 QTANA0423AWZZ J AE Terminal,Speaker
SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close]
SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Clamp]
SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]
SW601 QSW-S0024AWZZ J AE Switch,Slide Type

SW701 92LSWICHT1663T J AC Switch,Key Type [On/Stand-by]
SW702 92LSWICHT1663T J AC Switch,Key Type [Memory/Set]
SW703 92LSWICHT1663T J AC Switch,Key Type [Rec/Pause]
SW704 92LSWICHT1663T J AC Switch,Key Type [Tuning Down]
SW705 92LSWICHT1663T J AC Switch,Key Type [Tuning Up]
SW706 92LSWICHT1663T J AC Switch,Key Type [Timer/Sleep]
SW707 92LSWICHT1663T J AC Switch,Key Type [Clock]
SW708 92LSWICHT1663T J AC Switch,Key Type [P.B.C]
SW709 92LSWICHT1663T J AC Switch,Key Type [OSD]
SW710 92LSWICHT1663T J AC Switch,Key Type [DIGEST]
SW711 92LSWICHT1663T J AC Switch,Key Type [CD]
SW712 92LSWICHT1663T J AC Switch,Key Type [Tuner]
SW713 92LSWICHT1663T J AC Switch,Key Type [Video/AUX]
SW714 92LSWICHT1663T J AC Switch,Key Type [Tape]
SW715 92LSWICHT1663T J AC Switch,Key Type [Stop]
SW716 92LSWICHT1663T J AC Switch,Key Type [Play]
SW717 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]
SW718 92LSWICHT1663T J AC Switch,Key Type [Fast Rewind]

[T/T Up/Down Loading]

[Span Selector]

PRICE

RANK

SW719 92LSWICHT1663T J AC Switch,Key Type [Reverse Play]
SW720 92LSWICHT1663T J AC Switch,Key Type

SW721 92LSWICHT1663T J AC Switch,Key Type [X-Bass/Demo]
SW722 92LSWICHT1663T J AC Switch,Key Type [Equalizer]
SW723 92LSWICHT1663T J AC Switch,Key Type [Open/Close]
SW724 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]
SW725 92LSWICHT1663T J AC Switch,Key Type [Volume Up]
SW726 92LSWICHT1663T J AC Switch,Key Type [Volume Down]

1 SW801 QSOCE0008AWZZ J AH Switch,Rotary Type

WTM701 QCNCW019FAWZZ J AB Holder,Flat Wire,6Pin
WTM901 QCNCW019EAWZZ J AB Holder,Flat Wire,5Pin

DESCRIPTION

[Reverse Mode]

[Voltage Selector]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— –– Pickup Unit
306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

(Not Replacement Item)

CABINET PARTS

201 92LCAB5154AASY J BD Front Panel Ass’y
201- 1 ———— –– Front Panel

201- 2 GCOVA1487AWSA J AH Cover,Cassette [Tape 1]
201- 3 GCOVA1488AWSA J AH Cover,Cassette [Tape 2]
201- 4 GDORF0118AWSA J AE Holder,Cassette [Tape 1]
201- 5 GDORF0119AWSA J AE Holder,Cassette [Tape 2]
201- 6 HDECQ1015AWSA J AF Panel,AMP.
201- 7 JKNBZ0921AWSA J AF Button,On/Stand-by
201- 8 JKNBZ0931AWSA J AE Button,Open/Close
201- 9 JKNBZ0935AWSA J AF Button,Operation A
201-10 JKNBZ0936AWSA J AF Button,Operation B
201-11 JKNBZ0934AWSA J AG Button,Function
201-12 JKNBZ0926AWSA J AE Button,X-BASS/Equalizer
201-13 GCOVA1460AWSA J AC Cover,Sensor
201-14 GCOVA1351AWSA J AB Cover,Timer LED
201-15 MSPRD0151AWFJ J AB Cassette Spring [Tape 1]
201-16 MSPRD0152AWFJ J AB Cassette Spring [Tape 2]
201-17 MLIFP0008AWZZ J AD Damper
201-18 HBDGB1007AWSA J AD Badge,SHARP
201-19 JKNBZ0930AWSA J AL Button,Volume
201-20 JKNBZ0927AWSA J AF Button,Video CD
201-21 HDECQ0978AWSA J AF Panel,FL
202 92LCAB4905BASY J AN Side Panel Ass’y,Left

202- 1 ———— –– Side Panel,Left
202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB4905CASY J AN Side Panel Ass’y,Right
203- 1 ———— –– Side Panel,Right

203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 GCAB-1197AWZZ J AM Loading Tray
205 GCAB-1215AWSA J AT Top Cabinet
206 GCOVA1479AWSA J AK Cover,CD Tray
207 GITAR1215AWSA J AM Rear Panel

207 GITAR1216AWSA J AM Rear Panel [For Philippines]
208 KMECB0033AWZZ J BG Tape Mechanism Ass’y
208- 1 92LF513-893 J BF Head Plate Block [Tape 2]
208- 2 92LF525-357 J BD Motor with Pulley [Tape]
208- 3(PWB-F) 92LF567-718 J –– Tape Mechanism PWB Ass’y
208- 4 92LF522-063 J AZ Clutc Ass’y Block [Tape 2]
208- 5 92LFF20B-13 J AN Belt,Main
208- 6 92LF514-133 J AL Pinch Roller [Tape 2]

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

[Except for Philippines]

– 5 –

CD-EA135V

PRICE
RANK

208- 7 92LFF19S-31 J AL Belt,FF/REW [Tape 2]
208- 8 92LF514-135 J AL Pinch Roller [Tape 1]
208- 9 92LF522-061 J AZ Clutc Ass’y Block [Tape 1]
208-10 92LFF19S-52 J AL Belt,FF/REW [Tape 1]
208-11 92LF513-895 J BD Head Plate Block [Tape 1]
208-12 92LF514-134 J AL Pinch Roller [Tape 2]
209 LANGK0110AWFW J AE Bracket,Cassette Lock [Tape 1]
210 LANGK0111AWFW J AE Bracket,Cassette Lock [Tape 2]
212 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord
213 LCHSM0183AWFW J AN Chassis,Main
214 LCHSM0155AWZZ J AS Chassis,Loading
215 LHLDM1018AWZZ J AE Stabilizer
216 LHLDZ1455AWZZ J AF Holder,CD Mechanism
217 LHLDZ1358AWZZ J AF Stabilizer Holder
218 LHLDZ1433AWZZ J AD Holder,Gear
219 LHLDZ1458AWZZ J AD Holder,FL Display
220 LHLDZ1412AWZZ J AC Holder,LED
221 MCAMP0010AWZZ J AE Gear,Cam Upper
222 MCAMP0011AWZZ J AE Gear,Cam Lower
223 MLEVP0109AWZZ J AB Lever,Cam Lock
224 MLEVP0110AWZZ J AB Lever,Switch A
225 MLEVP0111AWZZ J AB Lever,Switch B
226 MLEVP0112AWZZ J AB Turntable Actuator
227 MLOKC0003AWZZ J AD Lock Lever,Cassette [Tape 1]
228 MLOKC0004AWZZ J AD Lock Lever,Cassette [Tape 2]
229 MSPRC0033AWFJ J AB Spring,Friction
230 MSPRD0109AWFJ J AB Spring,Cassette Lock [Tape 1]
231 MSPRD0110AWFJ J AB Spring,Cassette Lock [Tape 2]
232 MSPRP0057AWFW J AC Spring,Tray Lock
233 MSPRP0068AWFW J AB Spring,Motor Gear
235 NGERH0152AWZZ J AC Gear,Turntable Drive
236 NGERH0153AWZZ J AC Gear,Drive
237 NGERW0020AWZZ J AC Gear,Center
238 NGERW0021AWZZ J AC Gear,Idler
239 NGERW0022AWZZ J AD Gear,Worm
240 NGERW0023AWZZ J AC Motor Gear
241 NTNT-0022AWZZ J AK Turntable
242 PCUSG0022AWZZ J AB Cushion,Leg
243 PMAGF0007AWZZ J AD Magnet
244 PRDAR0292AWFW J AW Heat Sink

1 245 QACCE0015AW00 J AK AC Power Supply Cord with

246 QCNWN1860AWZZ J AC Lug Wire

1 247 QFSHD0001AWZZ J AB Holder,Fuse

249 92LMT0304302 J AB Plate,Metal
250 92LNBAND1318A J AA Nylon Band,80mm
251 92LPT0303002 J AB Roller
258 MLEVF0117AWFW J AC Plate,Support
260 TLABS0354AWZZ J AC Label,Class 3A
261 QCNWN2030AWZZ J AD Lug Wire
262 JKNBK0012AWSL J AG Knob,Mic Level
263 LANGT0153AWFW J AC Bracket,Karaoke Support
264 TSPC-1256AWZZ J AC Label,Specifications

601 XHBSD30P06000 J AA Screw,ø3×6mm
602 XEBSD30P12000 J AA Screw,ø3×12mm
603 LX-EZ0010AWFD J AA Screw,ø3×10mm
604 XEBSD30P10000 J AA Screw,ø3×10mm
605 LX-HZ0009AWFD J AC Screw,Special
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 92LSC0314WBZI J AB Screw,ø3×14mm
608 XJBSD20P05000 J AA Screw,ø2×5mm
609 XHBSD40P08000 J AA Screw,ø4×8mm
611 XJBSF30P10000 J AA Screw,ø3×10mm
612 XJSSD30P10000 J AA Screw,ø3×10mm
613 XESSD30P10000 J AA Screw,ø3×10mm
614 LX-JZ0010AFFD J AA Screw,ø3×10mm
615 LX-JZ0036AWFD J AB Screw,Special
616 LX-JZ0037AWFD J AB Screw,ø3×18mm
618 92LSC2608RBZI J AA Screw,ø2.6×8mm
619 XJBSD30P10000 J AA Screw,ø3×10mm
620 92LSC0310RBZI J AB Screw,ø3×10mm

DESCRIPTION

CNS805

[For Thailand Only]

NO.

PARTS CODENO. PART CODE

SPAKZ0895AWZZ J AD Pad,Support
TCAUZ0035AWZZ J AB Sheet,Caution
TGANE0017AW01 J AD Warranty Card

TINST0136AWZZ J AH Operation Manual [For Thailand]
TINSZ0930AWZZ J AN Operation Manual

TLABE0764AWZZ J AB Label,Bar Code
TLABZ1398AWZZ J AC Label,Feature [Tape 1]
TLABZ1440AWZZ J AC Label,Feature [Tape 2]
92LBAG1460C1 J AB Polyethylene Bag,Accessories
92LFANT1746A J AD FM Antenna
RRMCG0364AWSA J AS Remote Control

GFTAT1017AWSA J AK Battery Lid,Remote Control

PRICE
RANK

DESCRIPTION

[For Philippines Only]

[Except for Thailand]

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~3 92LPWB5154MANS J –– Main/Display/Headphones

PWB-A1~3 92LPWB5156MANS J –– Main/Display/Headphones

1 PWB-B1,2 92LPWB5154PWRS J –– Power/Transformer

PWB-C 92LPWB4941VCDS J –– Video CD
PWB-D QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-E QPWBF0749AWZZ J AD CD Loading Motor (PWB Only)
PWB-F(208-3) 92LF567-718 J –– Tape Mechanism
PWB-G 92LPWB5154MICS J –– Mic

(Combined Ass’y)
[Except for Philippines]

(Combined Ass’y)
[For Philippines]

(Combined Ass’y)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

CP-EA135

SPEAKER BOX PARTS

901 GBOXS0132AWSA J Speaker Box Ass’y
902 CWAKP1083AW01 J Net Frame Ass’y
903 PDUC-0024AWSA J AF Duct Panel,Left
904 PDUC-0025AWSA J AF Duct Panel,Right
905 XJBSD40P12000 J AA Screw,ø4×12mm
906 XJBSD30P10000 J AA Screw,ø3×10mm
907 TSPC-1299AWZZ J AC Label,Specifications
908 PCUSZ0049AWZZ J AB Port Cushion
909 QCNWN2567AWZZ J Speaker Cord Ass’y

910 PCUSG0022AWZZ J AB Cushion,Leg
SP1,2 RSPA10115AW6W J AY Woofer
SP3,4 RSPA00102AW6T J AQ Tweeter

(with Capacitor C1,2)

PACKING PARTS

SPAKA0434AWZZ J AK Packing Add.,Top/Bottom
SPAKZ1038AWZZ J AC Pad,Center
SSAKH0126AWZZ J Polyethylene Bag,Speaker

ACCESSORIES/PACKING PARTS

QANTL0005AWZZ J AG AM Loop Antenna
QCNWG0046AWZZ J AL Video Cord

1 QPLGA0004AWZZ J AF Adaptor,AC Plug

SPAKA0417AWZZ J AL Packing Add.,Left/Right
SPAKC1635AWZZ J AT Packing Case
SPAKP0032AWZZ J AF Polyethylene Bag,Unit

– 6 –

CD-EA135V

CD-EA135V

A

701

306

306-2

304

701

B

306-1

704

306-3

302

C

301

702

D

303

703x2

E

M1

F

305

M2

G

305x2

SW4

PWB-D

H

1

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

CD-EA135V

BELT CONNECTION

FF/REW
ROLLER
ASS'Y

FLYWHEEL
ASS'Y
TAPE2

Silicon

207

Grease

IC901

616x2

231

605

228

609x4

247x8

Tape
Motor

MAIN BELT

619x12

PT801

PWB-B1

614

FF/REW
ROLLER
ASS'Y

FLYWHEEL
ASS'Y
TAPE1

619

264

212

245

619

PWB-B2

PWB-F

208-8

201-14

614

208-3

208-12

201-9

Silicon
Grease

208-10

208-1

201-10

208-2

201-11

208-5

208-6

IC851
IC852

IC853

615x3

601x2

246

208-7

244

613x5

261

208-4

208-5

606x2

210

CD-EA135V

202

A

619x2

B

PWB-A2

220

C

FL701

219

202-2

604x9

202-1

605

230

263

611x2

606x2

227

209

PWB-A1

614

614

246

208

208-9

208-11

D

201

201-7

603

201-1

PWB-A3

201-20

201-21

201-13

E

201-17

201-18

201-6

F

201-8

201-17

201-12

201-19

262

261

603

PWB-G

213

612

G

201-15

201-2

H

201-4

201-3

201-5

242x2

201-16

250

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

1

23456

Figure 8 CABINET EXPLODED VIEW (1/2)

– 8 –

203-1

619x2

203-2

203

CD-EA135V

CD-EA135V

A

249
243

B

241

C

217

215

CD
MECHANISM

216

618x2

258

602x2

260

SW3

205

602x2

SW2

SW1

D

251

251

204

235

PWB-E

226

224

M3

240

225

M3

E

251

PWB-C

F

223

620x2

221

238

G

222

236

229

237

251

239

233

608

236

218

232

214

251

H

1

206

23456

607

607

Figure 9 CABINET EXPLODED VIEW (2/2)

– 9 –

CP-EA135

CD-EA135V

SP3,

901

9074

A

906x2

B

905x4

SP1, 2

C

908

D

903

908

E

F

902

904

SP3,

4

TWEETER

SP1,

2

WOOFER

G

BK WH

909

SP1, 2

WOOFER

910x4

C1,
C2
Capacitor

1.8 µF,
100V (N.P.)

SP3, 4

TWEETER

C1,
C2
Capacitor

1.8 µF,
100V (N.P.)

RD

BK

H

1

23456

Figure 10 SPEAKER EXPLODED VIEW

– 10 –

CD-EA135V

COPYRIGHT 2003 BY SHARP CORPORATION

©

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

SHARP CORPORATION
AV Systems Group
Audio Systems Division
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0307-297DS•HA•M

EX
