Samsung M4370LX User Guide

Download

Samsung Multifunction

MultiX

press

M537x series M437x series

User’s Guide

BASIC

This guide provides information concerning installation, basic operation and troubleshooting on Windows.

ADVANCED (ADMINISTRATOR’S GUIDE)

This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

Printing on special media 58

1. Introduction

Key benefits 6

Features by model 8

Useful to know 13

About this user’s guide 14

Safety information 15

Machine overview 20

Control panel 24

Connecting a network cable 25

Turning on the machine 26

Understanding the LEDs 27

Display screen and useful menu 30

Understanding the pop-up keyboard 39

Installing the driver locally 40

Reinstalling the driver 43

Setting the paper size and type 63

Selecting an output location 65

3. Printing

Printer driver features 67

Basic printing 68

Opening printing preferences 70

Using special print features 78

Using Direct Printing Utility 86

Changing the default print settings 88

Setting your machine as a default machine 89

Print Settings in Machine 90

Setting Device Options 91

Printing to a file (PRN) 93

Mac printing 94

2. Media and tray

Loading originals 46

Selecting print media 50

Loading paper in the tray 51

Linux printing 96

UNIX printing 98

4. Copying

Understanding the copy screen 101

Basic copy 110

Using the Quick Copy menu 111

ID card copying 112

5. Scan & Send(Scanning)

Understanding the Scan & Send screen 115

Basic scan 123

Scanning with TWAIN-enabled software 124

Using Samsung Easy Document Creator 125

Mac scanning 127

Linux scanning 129

6. Scan & Send(Faxing)

Preparing to fax 131

Using a fax in your computer 132

Understanding the fax screen 134

Sending a fax 143

7. Setting up an address book

Understanding the address screen 151

Using the control panel 153

Using SyncThru™ Web Service 157

8. Management tools

Accessing management tools 166

SyncThru™ Web Service 167

Easy Capture Manager 174

Samsung AnyWeb Print 175

Easy Eco Driver 176

Using Samsung Easy Document Creator 177

Using Samsung Easy Printer Manager 178

Using Samsung Printer Status 181

Using Samsung Printer Experience 183

Using Box 190

Receiving a fax 145

9. Consumables and accessories

Ordering supplies and accessories 194

Available Consumables 195

Precautions 196

Available accessories 197

Available maintenance parts 199

Installing accessories 200

Checking replaceable’s lifespan 202

Using a USB Drive device 203

Replacing the staple cartridge 207

10. Troubleshooting

Redistributing toner 210

Replacing the toner cartridge 213

Replacing the imaging unit 216

Tips for avoiding paper jams 220

11. Appendix

Specifications 283

Regulatory information 294

Clearing original document jams 221

Clearing paper jams 233

Understanding display messages 255

Power and cable connecting problems 265

Solving other problems 266

1. Introduction

These are the main components of your machine:

This chapter includes:

•Key benefits 6

• Features by model 8

• Useful to know 13

• About this user’s guide 14

• Safety information 15

• Machine overview 20

• Control panel 24

• Turning on the machine 26

• Connecting a network cable 25

• Understanding the LEDs 27

• Display screen and useful menu 30

• Understanding the pop-up keyboard 39

• Installing the driver locally 40

• Reinstalling the driver 43

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports Eco feature (see "Eco tab" on page 75).

• To save paper, you can print multiple pages on one single sheet of paper (see "Using special print features" on page 78).

• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using special print features" on page 78).

• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.

• We recommend using recycled paper for saving energy.

Fast high resolution printing

• You can print with a resolution of up to 1200 x 1200 dpi effective output (1200 x 600 x 2bit).

• Fast, on-demand printing.

- M537x series

▪ For single-side printing, up to 53ppm (A4) or 55ppm (Letter).

- M437x series

▪ For single-side printing, up to 43ppm (A4) or 45ppm (Letter).

Convenience

• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps (see "Google Cloud Print™" on page 358).

• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 174).

Key benefits

• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 181 or "Using Samsung Easy Printer Manager" on page 178).

• Samsung Easy Document Creator is an application to help users scan, compile, and save documents in multiple formats, including .epub format. These documents can be shared via social networking sites or fax (see "Using Samsung Easy Document Creator" on page 177).

• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 175).

• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.

• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 285).

• Print watermark: You can customize your documents with words, such as “Confidential” (see "Watermark" on page 74).

• You can print in various operating systems (see "System requirements" on page 289).

• Your machine is equipped with a USB interface and/or a network interface.

Support XOA applications

The machine supports XOA custom applications.

• Regarding the XOA custom applications, please contact your XOA custom application provider.

Features by model

Some features and optional goods may not be available depending on model or country.

Operating System

(●: Included, Blank: Not available)

Software

You can install the printer driver and software when you insert the software CD into your CD-ROM drive. For windows, select the printer driver and software in the Select Software to Install window.

Operating System M437x series M537x series

Windows ● ●

Mac ● ●

Linux ● ●

Unix ● ●

Software M437x series M537x series

PCL printer driver ● ●

PS printer driver

● ●

XPS printer driver

● ●

Direct Printing Utility

● ●

Features by model

(●: Included, Blank: Not available)

Samsung Easy Printer Manager

Scan to PC Settings ● ●

Fax to PC Settings ● ●

Device Settings ● ●

Samsung Printer Status ● ●

Samsung AnyWeb Print

● ●

Samsung Easy Document Creator ● ●

Easy Capture Manager ● ●

SyncThru™ Web Service ● ●

SyncThru Admin Web Service ● ●

Easy Eco Driver ● ●

Fax Samsung Network PC Fax ● ●

Scan Twain scan driver ● ●

a. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your

computer’s OS support the software.

Software M437x series M537x series

Features by model

Variety feature

Features M437x series M537x series

Hi-Speed USB 2.0 ● ●

Network Interface Ethernet 10/100/1000 Base TX wired LAN ● ●

IEEE 1284B parallel connector

Google Cloud Print™

● ●

AirPrint ● ●

Eco printing ● ●

Duplex (2-sided) printing ● ●

USB Drive interface

● ●

Optional tray (SCF) ○ ○

Optional tray (HCF) ○ ○

Finisher (1Bin) ○ ○

Finisher (2Bin) ○ ○

Mailbox ○ ○

Stand (Tall) ○ ○

Stand (Short) ○ ○

Fax Kit ○ ○

Foreign Device Interface (FDI) ○ ○

Features by model

Staple ○ ○

Document Feeder

Dual Scan Document Feeder (DSDF) ● ●

Automatic Document Feeder (ADF)

Fax Multi-send ● ●

Delay send ● ●

Duplex send ● ●

Duplex receive ● ●

Secure receive ● ●

Send/ Receive forward - fax ● ●

Send/ Receive forward - email ● ●

Scan Scanning to email ● ●

Scanning to SMB server ● ●

Scanning to Box ● ●

Scanning to FTP server ● ●

Scanning to PC ● ●

Scan to USB ● ●

Duplex scan ● ●

Features M437x series M537x series

Features by model

(●: Included, ○: Optional, Blank: Not available)

Copy ID card copying ● ●

Reduced or enlarged copying ● ●

Booklet ● ●

Poster ● ●

Book ● ●

N-up ● ●

Adjust background ● ●

Image Shift ● ●

Edge erase ● ●

Duplex copy ● ●

a. If you use the parallel port, you cannot use the USB cable. b. You can only print files stored on a USB Drive device.

Features M437x series M537x series

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 69).

• Remove the driver and install it again (see "Installing the driver locally" on page 40).

• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 89).

Where can I purchase accessories or supplies?

• Inquire at a Samsung distributor or your retailer.

• Visit www.samsung.com/supplies. Select your country/region to view product service information.

The status LED flashes or remains constantly on.

A paper jam has occurred.

• Open and close the door (see "Front view" on page 21).

• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 217).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 194).

• Try a different print resolution setting (see "Opening printing preferences" on page 70).

• Replace the toner cartridge (see "Replacing the toner cartridge" on page 197).

Where can I download the machine’s driver?

• Turn the product off and on again.

• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the LEDs" on page 27).

• You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

About this user’s guide

This user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.

• Do not discard this manual and keep it for future reference.

• Read the safety information before using the machine.

• If you have a problem using the machine, refer to the troubleshooting chapter.

• Terms used in this user’s guide are explained in the glossary chapter.

• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.

• The screenshots in this administrator’s guide may differ from your machine depending on the machine’s firmware/driver version.

• The procedures in this user’s guide are mainly based on Windows 7.

General icons

Icon Text Description

Gives users information to protect the machine from

Caution

Note

possible mechanical damage or malfunction.

Provides additional information or detailed specification of the machine function and feature.

Conventions

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

• Machine refers to printer or MFP.

1. Introduction

Safety information

These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.

Important safety symbols

Explanation of all icons and signs used in this chapter

Warning

Caution

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Operating environment

Warning

Do not use if the power cord is damaged or if the electrical outlet is not grounded.

This could result in electric shock or fire.

Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).

This could result in electric shock or fire.

• If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.

Do not attempt.

• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.

This could result in electric shock or fire.

Do not bend, or place heavy objects on the power cord.

Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire.

Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.

This could result in electric shock or fire.

1. Introduction

Safety information

Caution

During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet.

This could result in electric shock or fire.

Be careful, the paper output area is hot.

Burns could occur.

If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

If the plug does not easily enter the electrical outlet, do not attempt to force it in.

Call an electrician to change the electrical outlet, or this could result in electric shock.

Operating method

Caution

Do not forcefully pull the paper out during printing.

It can cause damage to the machine.

Be careful not to put your hand between the machine and paper tray.

You may get injured.

Be care when replacing paper or removing jammed paper.

New paper has sharp edges and can cause painful cuts.

When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch.

Burns can occur.

When re movin g jamme d pape r, do not use tweez ers o r shar p metal objects.

It can damage the machine.

Do not allow pets to chew on the AC power, telephone or PC interface cords.

This could result in electric shock or fire and/or injury to your pet.

Do not allow too many papers to stack up in the paper output tray.

It can damage the machine.

1. Introduction

Safety information

Do not block or push objects into the ventilation opening.

This could result in elevated component temperatures which can cause damage or fire.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This machine's power reception device is the power cord.

To switch off the power supply, remove the power cord from the electrical outlet.

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water leaks.

This could result in electric shock or fire.

Caution

Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.

If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety. The machine could fall, causing injury or machine damage.

Then lift the machine:

• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.

• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.

• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.

Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays.

The place should be well-ventilated and be far from direct light, heat, and humidity.

Place the machine in the environment where it meets the operating temperature and humidity specification.

Otherwise, quality problems can occur and cause damage to the machine.

see "General specifications" on page 283

When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a wellventilated space or open a window to circulate the air periodically.

1. Introduction

Safety information

Do not place the machine on an unstable surface.

The machine could fall, causing injury or machine damage.

Maintenance / Checking

Use only No.26 AWG

Otherwise, it can cause damage to the machine.

Make sure you plug the power cord into a grounded electrical outlet.

Otherwise, this could result in electric shock or fire.

Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.

Otherwise, it can cause damage to the machine, and could result in electric shock or fire.

Do not put a cover over the machine or place it in an airtight location, such as a closet.

If the machine is not well-ventilated, this could result in fire.

Do not overload wall outlets and extension cords.

This can diminish performance, and could result in electric shock or fire.

or larger, telephone line cord, if necessary.

Caution

Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.

This could result in electric shock or fire.

When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.

You could get injured.

Keep cleaning supplies away from children.

Children could get hurt.

Do not disassemble, repair or rebuild the machine by yourself.

It can damage the machine. Call a certified technician when the machine needs repairing.

The machine should be connected to the power level which is specified on the label.

If you are unsure and want to check the power level you are using, contact the electrical utility company.

a. AWG: American Wire Gauge

To clean and operate the machine, strictly follow the user's guide provided with the machine.

Otherwise, you could damage the machine.

1. Introduction

Safety information

Supply usage

Caution

Keep the power cable and the contact surface of the plug clean from dust or water.

Otherwise, this could result in electric shock or fire.

• Do not remove any covers or guards that are fastened with screws.

• Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.

• The machine should only be repaired by a Samsung service technician.

When storing supplies such as toner cartridges, keep them away from children.

Toner dust can be dangerous if inhaled or ingested.

Using recycled supplies, such as toner, can cause damage to the machine.

In case of damage due to the use of recycled supplies, a service fee will be charged.

For consumables that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.

• When disposing of the supplies, follow the instructions for disposal. Refer to the reseller for disposal instructions.

• Do not wash the supplies.

• For a waste toner bottle, do not reuse it after emptying the bottle.

If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.

Do not disassemble the toner cartridge.

Toner dust can be dangerous if inhaled or ingested.

Do not burn any of the supplies such as toner cartridge or fuser unit.

This could cause an explosion or uncontrollable fire.

When toner gets on your clothing, do not use hot water to wash it.

Hot water sets toner into fabric. Use cold water.

When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.

Toner dust can be dangerous if inhaled or ingested.

1. Introduction

Machine overview

Components

Machine Power cord Quick installation guide

Software CD

a. The software CD contains the print drivers, user’s guide, and software applications. b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Misc. accessories

Imaging unit

1. Introduction

Machine overview

7 8

Front view

Dual scan document feeder cover

Dual scan document feeder width guides

Dual scan document feeder input tray

4 Dual scan document

feeder output tray

Right door

Right door handle

7 Second cassette feeder

tray handle

High capacity feeder

handle

a. Optional device. b. To purchase the Wireless/NFC or Card Reader kit, contact the retailer or distributor where you

purchased the machine. Only authorized service providers, distributors, or retailers are permitted to install the Wireless/NFC or Card Reader kit.

9High capacity

feeder

10 High capacity

feeder door

11 Second cassette

feeder door

12 Standard tray

(Tray 1)

Front door

Center tray

Control panel

16 Wireless/NFC or

Card Reader kit

area

USB port

Scanner lock

Scanner glass

White sheet

21 Multi-purpose tray

paper width guide

22 Multi-purpose tray

support

1. Introduction

Machine overview

FDI

Inner view

Rear view

1 Toner cartridges

2 Front cover door

3Imaging unit

1 Dual scan document feeder cable

2USB port

3 USB printer port

4 FDI (Foreign Device Interface)

5Network port

6 2Bin Finisher Port

7 Power switch

8Power receptacle

1. Introduction

Machine overview

Standard 2 Bin Finisher view(optional)

1 Standard 2Bin Finisher front door

2 Finishing tray

3Top tray

4 Standard 2Bin Finisher front door handle

5Staple

1. Introduction

Control panel

Control Panel

Status LED

When you use the display screen, use your finger only. The screen may be damaged with a sharp pen or anything else.

Shows the status of your machine (see "Understanding the LEDs" on page 27).

Display screen

2 Motion sensor hole Motion sensor.

3 a. Power LED Shows the power status of your machine.

b. (Power /

Wakeup) button

Shows the current machine status and prompts during an operation. You can set menus easily using the display screen.

Turn the power on or off. When the blue LED is on, the machine is powered on and you can use it. If you turn the machine off, press this button for more than two seconds. Then, confirmation window appears.

1. Introduction

Connecting a network cable

This machine has a bulit-in network interface card. You can connect your machine to a network using a network cable.

1. Introduction

Turning on the machine

Keep in mind that you should use the power cord supplied with the machine. Otherwise, it can cause damage or fire to the machine.

Connect the machine to the electricity supply first.

• Some parts inside of the machine may be hot when power is on, or after printing. Be careful not to burn yourself when working inside the machine.

• Do not disassemble the machine when it is turned on or plugged in. Doing so may give you an electric shock.

• If you turn the machine off directly using the power switch, it could cause the hard disk problem in the machine.

You can also turn the machine on pressing the (Power/Wakeup)

1. Introduction

Understanding the LEDs

Understanding the status LED

The color of the status LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel" on page 24).

• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Troubleshooting" on page 193).

• You also can resolve the error with the guideline from the computers’ Samsung Printer Status program window (see "Using Samsung Printer Status" on page 181).

• If the problem persists, call a service representative.

Status Description

Off • The machine is off-line.

• The machine is in power save mode.

Blue On The machine is on-line and can be used.

Blinking Fax The machine is sending or receiving faxes.

Copy The machine is copying documents.

Scan The machine is scanning documents.

Print • When the status LED slowly blinks, the machine is receiving data from the computer.

• When the status LED blinks rapidly, the machine is printing data.

1. Introduction

Understanding the LEDs

Status Description

Red On

• A toner cartridge has almost reached its estimated cartridge life

. It is recommended to replace the toner cartridge.

• A paper jam has occurred (see "Clearing paper jams" on page 217).

• The cover is opened. Close the cover.

• There is no paper in the tray. Load paper in the tray (see "Loading paper in the tray" on page 51).

• The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 239).

• An imaging unit has almost reached its estimated cartridge life

. It is recommended to replace the toner cartridge.

Blinking • A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message (see "Understanding display

messages" on page 239). When the problem is cleared, the machine resumes its original task.

• The toner cartridge life

or imaging unit is near the end of its life. Order a new toner cartridge or imaging unit. You can temporarily improve

print quality by redistributing the toner.

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages

may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.

b. When the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or continue printing from the SyncThru™Web Service (Settings > Machine

Settings > System > Setup > Supplies Management>Toner Cartridge Stop) or Samsung Easy Printer Manager (Device Settings > System > Supplies Management > Toner Cartridge Stop). Turning off this option and continuing to print may damage the device’s system.

Check the message on the display screen. Follow the instructions in the message or refer to the troubleshooting chapter (see "Understanding display messages" on page 239). If the problem persists, call for service.

1. Introduction

Understanding the LEDs

Understanding the power LED

The color of the status LED indicates the machine's current status.

Status Description

Off The machine is off-line.

Blue On The machine is on-line and can be used.

Blinking The machine is in power save mode. When data is received, or any screen is pressed, it switches to on-line automatically.

1. Introduction

Display screen and useful menu

Menu navigation

You can tailor the machine’s range of functions to fit your needs with both menus and widgets. Access features by scrolling through the available onscreen menus.

Manual terms

Tap

Lightly touch the screen and release your finger. For example:

• Tap the on-screen keyboard to enter characters or other text.

• Tap a menu item to select it.

• Tap an application’s icon to launch the application.

Swipe

Lightly drag your finger across the screen.

For example:

• Swipe up or down on a home screen or menu to scroll it.

Panning

Touch and hold an icon, then tilt the device left or right.

For example:

• Use panning to move icons from your home screens or application menus to other pages.

Command Keys

• (Back): Return to the previous screen, option or step.

Touch and hold

Lightly touch and hold your finger to the screen For example:

• Touch and hold a widget on the home screen to move it.

• Touch and hold on a field to display a pop-up menu of options.

• (Home): Go to the main home screen.

• (Recent): Show recently used apps.

• Quick launch: A customizable key. See the next section for options.

1. Introduction

Display screen and useful menu

Add quick launch

Home Screen Overview

From the display screen, tap the (Settings) icon > Display > More

Settings > Quick Launch.

Select the desired quick launch function.

• None: The icon is not shown.

• Screen Capture ( ): Capture the current screen to an image file.

The main home screen is the starting point for many applications and functions. You can customize it with application icons, shortcuts, and widgets to give you instant access to information and applications. You can open the default page

at any time by tapping the icon . The screen images in this user guide may

differ from your machine depending on its options or model.

• Applications ( ): Open a screen showing all apps.

• Search ( ): Open the search screen.

Tap (Back) to return to the settings menu.

Depending on authentication settings, a machine’s users may need to enter an ID and password. If this is enabled, the machine can only be used by a user with an authorized ID and password on the machine. Contact the machine’s administrator.

Navigating the Home Screens

The machine initially has seven home screens. You can place application icons on any page.

From the main home screen, swipe left or right. The main home screen is located in the center and three additional pages are located on each side.

1. Introduction

Display screen and useful menu

Navigating the application menus

Customizing your home screen

By default, this machine has several application menus available in the main home screen. If you want to access all application menus and widgets, tap the

icon and swipe the screen left or right.

As you add applications, the number of application menus available to you increases.

Accessing recently-used apps

You can easily find any app that you used recently.

Tap the icon from anywhere to open the recently-used

applications window.

Tap an application’s icon in this window to open it.

You can customize your home screen to suit your needs.

Creating shortcuts

Shortcuts are different from widgets. While widgets can only launch applications, shortcuts can do this and activate features and actions.

Adding a shortcut from the home screen

Tap the icon to go to the main home screen.

Touch and hold the home screen to view a list of available shortcuts to

select from.

• Set wallpaper

- Home Screen : Set the wallpaper for the Home Screen.

- Login Screen : Set the wallpaper for the Login Screen.

- Home and Login Screens : Set the wallpaper for the Home and Login Screens.

• Apps, XOA Apps, Widgets and Programs : Place apps, XOA apps,

widgets, and program icons on home screen.

• Folder : Create a folder on the home screen.

• Page : Add another page to the home screen.

1. Introduction

Display screen and useful menu

Adding a shortcut from the Apps menu

Tap the icon to go to the main home screen.

Tap the icon to view your current applications.

Scroll through the list and locate the desired application.

Touch and hold the application icon. This creates a shortcut to the

application and shows the main home screen.

Drag the shortcut to a desired position on the screen and release it. To

move to a different page, drag the shortcut to the edge of the screen until the screen scrolls to the desired page.

Deleting a shortcut

Touch and hold a shortcut until it becomes movable.

You can drag shortcut and place a shortcut in the trash, both items turn

red.

Adding and removing widgets

Widgets are self-contained applications that reside on your widgets tab and on any page of the home screen. Unlike shortcuts, a widget appears as an on-screen application.

Adding a widget

Tap the icon to go to the main home screen.

Tap the icon and tap the Widget tap at the top of the screen.

Scroll through the list and locate your desired widget.

Touch and hold the widget icon. This creates a copy of the widget and

opens the main home screen.

Drag the widget to a desired position on the screen and release it. To

move the widget to a different page, drag it to the edge of the screen until the screen scrolls to the desired page.

Removing a widget

This action does not uninstall a program, it only removes the shortcut from the home screen.

Touch and hold a widget until it becomes movable.

You can drag shortcut and place a shortcut in the trash, both items turn

red.

1. Introduction

Display screen and useful menu

This action does not uninstall a widget, it only removes the copy from the home screen.

Moving icons in the Apps menu

Tap the icon to go to the main home screen.

Tap the icon to view your current applications.

Tap the Apps tab at the top of the screen if it is not already selected.

Drag the icon to a desired position on the screen and release it. To move

to a different page, drag the icon to the edge of the screen until the screen scrolls to the desired page.

• Login Screen : Set the wallpaper for the Login Screen. To use this

feature, you may need to log-in as an administrator (see"Log-in" on page 315).

• Home and Login Screen : Set the wallpaper for both screens. To use

this feature, you may need to log-in as an administrator (see"Log-in" on page 315).

Tap one of the following options in the next window that appears.

• Gallery: Select a wallpaper from photographs and images in the

machine’s gallery.

• Live wallpapers: Select an animated image.

• Wallpapers: Select from several built-in stationary images.

Select a wallpaper and tap OK, Set wallpaper, or Cancel.

Changing the Wallpaper

You can customize the Wallpaper (background) of your home screens.

From any home screen, touch and hold on an empty area of the screen.

Then select Set wallpaper option.

Tap one of the following options in the window that appears.

• Home Screen : Set the wallpaper for the Home Screen.

1. Introduction

Display screen and useful menu

Notification Bar

The notification bar includes a pull-down list to show information about currently running processes, toner status, screen brightness, and recent notifications.

Job Status

When you tap Job Status from the home screen or Apps, the screen lists Current Job, Completed Job, Secure Print, Secure Fax and Active Notice.

Current Job

Displays a list of jobs in progress and pending.

Completed Job

Displays a list of the completed jobs, including information about jobs in which an error has occurred.

Secured Print / Fax

Displays a list of secured jobs. For secured print, You need to enter the ID and

On the home screen, touch and hold the notification bar until the pull-down appears, then drag down to expand it.

Password set in the printer driver set in the printer (see "Print Mode" on page

76). For secured fax, you need to enter the Password.

Active Notice

Displays any error messages and codes that have occurred.

1. Introduction

Display screen and useful menu

Command keys

Counter

You can check how many pages/jobs were printed, copied, scanned, and faxedout. You can check the counter by device or users.

Tab Counter from the home screen or Apps.

You can also use this feature from the SyncThru™ Web Service. Open the Web browser from your networked computer and type the IP address of your machine. When SyncThru™ Web Service opens, click Information tab > Usage Counters (see "Counter" on page 36).

Button Name Description

Quick Menu Open the quick menu.

My Program Open a list of the apps you added.

All Period Select the period of checking counter.

From, To Set the period of checking counter.

Search for a desired menu or app.

You can print a usage counter report.

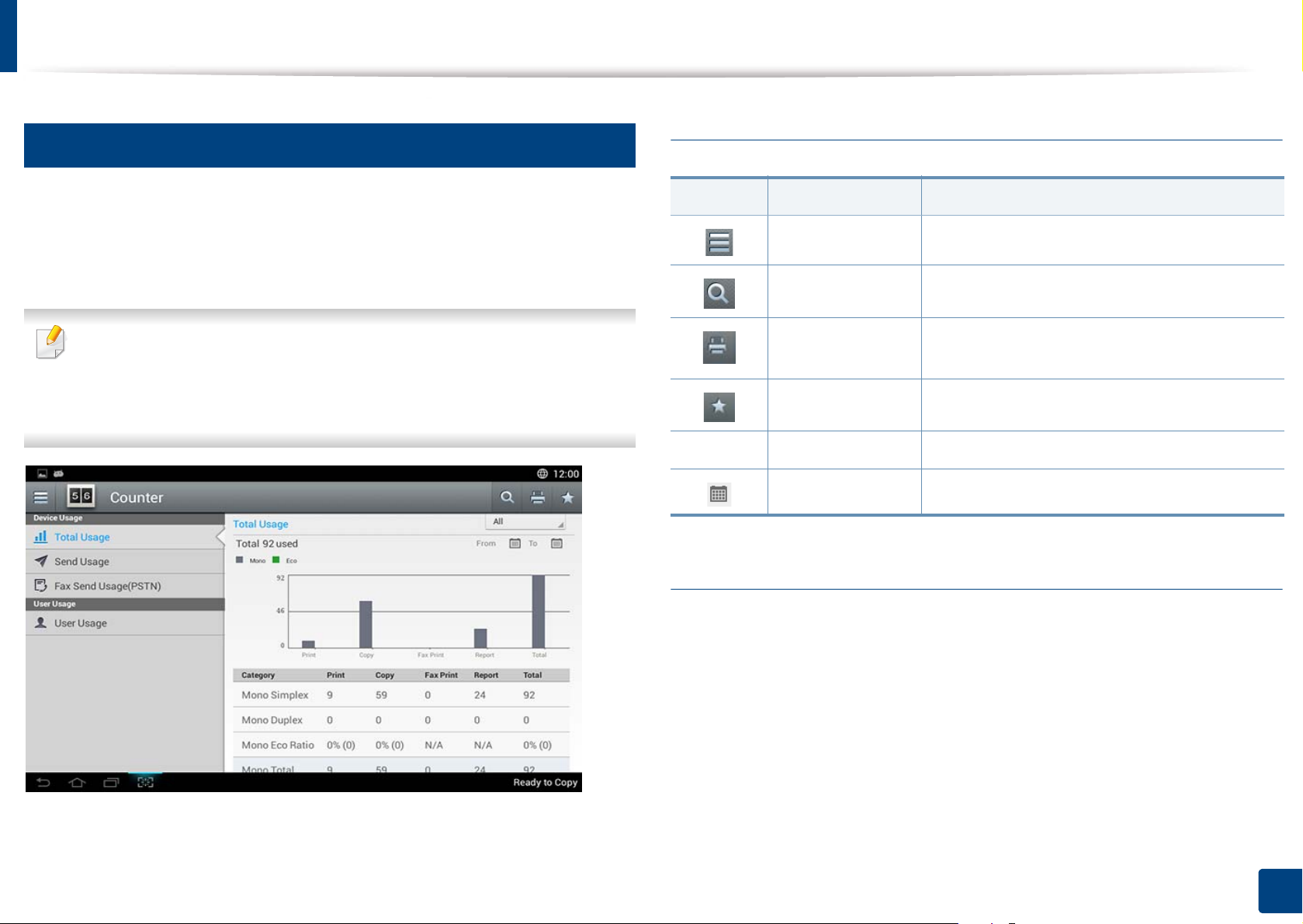

Understanding the Counter menu

• Total Usage: Each category shows the usage count by job types ( Print, Copy, Fax Print, Report, Total ).

- All : Tap and select

• Send Usage: Shows the count of Send ( Email, SMB, FTP, USB, PC, Others) jobs.

• Fax Send Usage(PSTN): Shows the count of Fax Send Usage.

• User Usage (Login user only): Each category shows the printing usage by user.

1. Introduction

Display screen and useful menu

To use User Usage, you may need to select Application Authentication and Standard Accounting Only from Settings > Admin Settings > Security > Mode or Method

on the home screen or Apps.

USB

To use the USB feature, tap Box > USB on the home screen or Apps (see "Using a USB Drive device" on page 276).

To use this feature, you need to insert a USB memory device into the USB port on your machine.

Tap Help from the home screen or Apps.

The Help screen is displayed.

Select a topic and follow the built-in navigation.

Click the (Help) from the home screen or (quick menu) and then

click on any option you want to know about.

My Page

The My Page app allows you to easily change your profile information and settings. Your My Page profile stores your contact information as well as your personal settings. You can use these settings to personalize the machine to suit your usage habits and accessibility needs.

Help

Help provides online information to help with your machine questions.

The Help app provides information about the menus and functions available in the machine. Use the pane on the left side of the screen to navigate the Help app. You can also select the headings below each section to browse the help topics.

1. Introduction

Display screen and useful menu

To use this feature, tap My Page on the home screen or Apps.

Command keys

Button Name Description

Change Password

Profile Image Allows you to choose an image for your profile.

Allows you to change the password.

Understanding the My Page menu

Allows you to modify various settings to make your experience using the machine more enjoyable.

• Personalization

- Usage: The Frequency of Usage graph shows how many print, copy, fax,

send, or other jobs you have performed, while the quota information indicates how close you are to your usage quotas.

• Apps Settings

Button Name Description

Quick Menu Open the quick menu.

My Program Open a list of the apps you added.

Sub menu (Action overflow)

Search for a desired menu or app.

Open the sub menu.

- +Me Setting: The +Me setting setting specifies whether or not the

machine sends information about your usage to the Box or another destination. You can also specify where your usage information is sent.

- Send Feedback: The Send Feedback setting specifies whether or not

the machine sends information about your usage to the manufacturer. Sending feedback helps the manufacturer improve the machine through updates or patches.

1. Introduction

Understanding the pop-up keyboard

You can enter letters, numbers, or special symbols using the pop-up keyboard on the display screen. This keyboard uses the standard QWERTY layout for ease of use.

When you touch an input area, the keyboard pops up on the screen. The keyboard initially shows lowercase letters.

• ABC Mode( ): Tap this key to return the keyboard layout to the

default letter keys. Use the Shift key ( ) to toggle between lower-case

and upper-case letters.

•Space bar( ): Tap this key to enter a space.

• Shift key( ): Tap this key to enter one upper-case letter. Tap this key

twice to toggle caps-lock.

• Symbol/Numeric Mode( ): Tap this key to enter numbers, symbols,

and emoticons.

1. Introduction

Installing the driver locally

A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 347).

• The installation window in this User’s Guide may differ depending on the machine and interface in use.

• Only use a USB cable no longer than 3 meters (118 inches).

Windows

Make sure that the machine is connected to your computer and

powered on.

Insert the supplied software CD into your CD-ROM drive.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.

Review and accept the installation agreements in the installation

window. Then, click Next.

Select USB on the Printer Connection Type screen. Then, click Next.

Follow the instructions in the installation window.

From the Windows 8 Start Screen

If the installation window does not appear, click Start > All programs > Accessories > Run.

• The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.

•You can download Samsung Printer Experience app from the Windows

Store. You need have a Microsoft account to use the Windows Store.

1 From Charms, select Search. 2 Click Store.

1. Introduction

Installing the driver locally

3 Search and click Samsung Printer Experience. 4 Click Install.

• If you install the driver using the supplied software CD, V4 driver is not

installed. If you want to use the V4 driver in the Desktop screen, you can

download from the Samsung website, www.samsung.com >find your

product > Support or downloads.

• If you want to install Samsung’s printer management tools, you need to install them using the supplied software CD.

Make sure that your computer is connected to the Internet and powered

on.

Make sure that the machine is powered on.

Connect the computer and the machine with a USB cable.

The driver is automatically installed from the Windows Update.

Mac

Make sure that the machine is connected to your computer and powered on.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Mac desktop.

• For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.

Double-click the MAC_Installer folder > Installer OS X icon.

Click Continue.

Read the license agreement and click Continue.

Click Agree to agree to the license agreement.

Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

1. Introduction

Installing the driver locally

Enter the password and click OK ( or Install Software).

Select USB Connected Printer on the Printer Connection Type and click Continue.

Click Add Printer button to select your printer and add it to your printer list.

After the installation is finished, click Close.

Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Installing the Unified Linux Driver

4 5 6

7 8

9 10 11

Open Terminal program and go to the folder that you copied the package to.

Extract the package.

Move to uld folder.

Execute "./install.sh" command (If you're not logged in as root, execute the command with "sudo" as "sudo ./install.sh")

Proceed with installation.

When installation finished, launch printing utility(Go to System > Administration > Printing or execute "system-config-printer" command in Terminal program).

Click Add button.

Select your printer.

Click Forward button and add it to your system.

You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.

Make sure that the machine is connected to your computer and

powered on.

Copy Unified Linux Driver package to your system.

1. Introduction

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall the driver.

Windows

Make sure that the machine is connected to your computer and

powered on.

From the Start menu, select Programs or All Programs > Samsung

Printers > Uninstall Samsung Printer Software.

• For Windows 8,

1 From Charms, select Search > Apps.

2 Search and click Control Panel.

3 Click Programs and Features.

4 Right-click the driver you want to uninstall and select Uninstall.

Insert the software CD into your CD-ROM drive and install the driver

again (see "Installing the driver locally" on page 40).

From the Windows 8 Start Screen

Make sure that the machine is connected to your computer and

powered on.

Click on the Uninstall Samsung Printer Software tile in the Start

screen.

5 Follow the instructions in the window.

Follow the instructions in the installation window.

Follow the instructions in the window.

• If you cannot find a Samsung Printer Software tile, uninstall from the desktop screen mode.

• If you want to uninstall Samsung’s printer management tools, from the

Start screen, right-click the app > Uninstall > right-click the program you want to delete > Uninstall and follow the instruction in the window.

1. Introduction

Reinstalling the driver

Mac

If the printer driver does not work properly, uninstall the driver and reinstall it.

Open the Applications folder > Samsung > Printer Software

Uninstaller.

To uninstall printer software, click Continue.

Check the program you want to delete and click Uninstall.

Enter the password and click OK.

After the uninstallation is finished, click Close.

If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

Open Terminal program.

Move to uld folder extracted from Unified Linux Driver package.

Execute "./uninstall.sh" command (If you're not logged in as root,

execute the command with "sudo" as "sudo ./uninstall.sh")

Proceed with uninstallation.

1. Introduction

2. Media and tray

This chapter provides information on how to load originals and print media into your machine.

This chapter includes:

• Loading originals 46

• Selecting print media 50

• Loading paper in the tray 51

• Printing on special media 58

• Setting the paper size and type 63

• Selecting an output location 65

Loading originals

You can use the scanner glass or the Dual scan document feeder (DSDF) to load an original for copying, scanning, and sending a fax.

On the scanner glass

Make sure that no originals are in the DSDF. If an original is detected in the DSDF, the machine gives it priority over the original on the scanner glass. To get the best scan quality, especially for colored or gray-scaled images, use the scanner glass.

Preparing originals

• Do not load paper larger than 216 x 356 mm (8.5 x 14 inches).

• Make sure any glue, ink, or correction fluid on the paper is completely dry before loading.

Open the DSDF.

2. Media and tray

Loading originals

Place the original face down on the scanner glass and align it with the

registration guide at the top left corner of the glass.

• Leaving the DSDF open while copying may affect copy quality and toner consumption.

• Dust on the scanner glass may cause black spots on the printout. Always keep it clean.

• If you are copying a page from a book or magazine, lift the DSDF until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm (1 inch), start copying with the lid open.

• Be careful not to break the scanner glass. You may get hurt.

• Do not put hands on the scanner glass while closing the DSDF. The DSDF may fall on your hands and cause injury.

• Do not look at the light inside of the scanner while copying or scanning. It is harmful to eyes.

Close the DSDF.

2. Media and tray

Loading originals

In the Dual scan document feeder (DSDF)

Preparing originals

• Do not load paper smaller than 105 x 148 (4.13 x 5.85 inches) or larger than 216 x 356 mm (8.5 x 14 inches).

• Do not attempt to load the following types of paper, in order to prevent paper jam, low print quality, and machine damage.

- Carbon-paper or carbon-backed paper

- Coated paper

- Onion skin or thin paper

- Wrinkled or creased paper

- Curled or rolled paper

Flex or fan the edge of the paper stack to separate the pages before

loading originals.

Load the originals face up into the DSDF. Make sure that the bottom of

the original stack matches the paper size marked on the document input tray.

- Torn paper

• Remove all staples and paper clips before loading.

• Make sure any glue, ink, or correction fluid on the paper is completely dry before loading.

• Do not load booklets, pamphlets, transparencies, or documents with other unusual characteristics.

Using the DSDF, you can load up to 100 sheets of paper (80 g/m2, 20 lb bond) for one job.

2. Media and tray

Loading originals

Adjust the document width guides to the paper size.

Dust on the DSDF glass may cause black lines on the printout. Always keep the glass clean.

2. Media and tray

Selecting print media

You can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meet the guidelines for use with your machine.

Guidelines for select the print media

Print media that does not meet the guidelines outlined in this user’s guide may cause the following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the machine.

Properties, such as weight, composition, grain, and moisture content, are important factors that affect the machine’s performance and the output quality. When you choose print materials, consider the following:

• The type, size, and weight of the print media for your machine are described in print media specifications (see "Print media specifications" on page 285).

• Desired outcome: The print media you choose should be appropriate for your project.

• Brightness: Some print media are whiter than others and produce sharper, more vibrant images.

• Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper.

• Some print media may meet all of the guidelines in this user’s guide and still not produce satisfactory results. This may be the result of the sheets characteristics, improper handling, unacceptable temperature and humidity levels, or other variables over which cannot be controlled.

• Before purchasing large quantities of print media, ensure that it meets the requirements specified in this user’s guide.

• Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.

• The amount of paper put into the tray may differ according to media type used (see "Print media specifications" on page 285).

• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.

• Using inflammable print media can cause a fire.

• Use designated print media (see "Print media specifications" on page

285).

The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit and, in rare cases may cause a fire.

The amount of paper put into the tray may differ according to media type used (see "Print media specifications" on page 285).

2. Media and tray

Loading paper in the tray

Standard tray / optional Cassette Feeder with a Stand

Load the print media you use for the majority of your print jobs into the standard tray. The standard tray can hold a maximum of 520 sheets of plain paper.

You can purchase an optional tray (see "Available accessories" on page 270).

• Standard tray contains one tray(Tray 1).

• Optional Second Cassette Feeder contains one tray(Tray 1).

• You can extend until three Second Cassette Feeder with Short Stand (Tray 3) or one Second Cassette Feeder with tall Stand (Tray 1) or one Second Cassette Feeder with High Capacity Feeder (Tray 2).

• Optional High Capacity Feeder contains one trays(Tray 1).

• The process to load paper in tray 1, tray 2, tray 3, and tray 4 is the same.

Pull out the tray.

• If you have installed the optional Second Cassette Feeder with a stand or optional High Capacity Feeder, refer to the installation guide provided with it.

Using photographic paper or coated paper may cause problems, that require repairs. Such repairs are not covered by the warranty or service agreements.

2. Media and tray

Loading paper in the tray

Squeeze the paper width guide, and pull it to the end of the tray.

1 Paper width guide

Squeeze the paper length guide, and pull it to the end of the tray.

1 Paper length guide

Flex and fan the edge of the paper stack to separate the pages before

loading papers.

2. Media and tray

Loading paper in the tray

Load paper.

Adjust the paper width guide to the desired paper width.

2. Media and tray

Loading paper in the tray

After inserting paper into the tray, squeeze the paper width guides and

slide them to the desired paper size marked at the bottom of the tray.

• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.

• Do not overload the tray. Otherwise, it may cause paper jams. Make sure that the paper is below the maximum paper capacity guide inside the tray.

1 paper capacity

• Do not push the paper guide too far causing the media to wrap.

• If you do not adjust the paper width guide, it may cause paper jams.

guide

2. Media and tray

Loading paper in the tray

Insert the tray back into the machine.

When you print a document, set the paper type and size for the tray.

• See "Setting the paper size and type" on page 63.

If you experience problems with paper feeding, check whether the paper meets the media specification (see "Print media specifications" on page

285). Then, try placing one sheet at a time in the multi-purpose tray (see "Multi-purpose tray" on page 55).

Multi-purpose tray

The multi-purpose tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes.

• Always load only the specified print media to avoid paper jams and print quality problems (see "Print media specifications" on page 285).

• Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray.

Open the multi-purpose tray and pull out the extension if necessary.

Tips on using the multi-purpose tray

• Load only one type, size, and weight of print media at a time in the multipurpose tray.

• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose tray. This also applies to other types of print media.

• Print media should be loaded face down with the top edge going into the multi-purpose tray first and be placed in the center of the tray.

Flex or fan the edge of the paper stack to separate the pages before

loading originals.

2. Media and tray

Loading paper in the tray

Load the paper.

Squeeze the multi-purpose tray paper width guides and adjust them to

the width of the paper. Do not force too much, otherwise the paper will bend resulting in a paper jam or skew.

When you print a document, set the paper type and size for the multi-

purpose tray.

• See "Setting the paper size and type" on page 63.

2. Media and tray

Loading paper in the tray

Media sizes automatically detected

This machine can automatically detect various sized-paper. Refer to the table below.

Standard tray/

Size

Letter ●●Available

Legal ●●Available

Oficio ●●Available

Second Cassette

Feeder

Capacity Feeder

/High

Multi-purpose tray Duplex printing

Standard tray/

Size

PostCard 4x6

a. This machine could detect the similar sized paper as the auto detected paper depending on

the size.

b. Optional device.

Second Cassette

Feeder

Capacity Feeder

●(Standard tray only)

/High

Multi-purpose tray Duplex printing

Not available

(●: Detected, Blank: You cannot load the paper in the tray.)

Folio ●●Available

A4 ●●Available

ISO B5 Available

JIS B5 Available

Statement Available

Executive ●●Available

A5 Available

A6 Not available

2. Media and tray

Printing on special media

The table below shows the available special media for each tray.

The paper setting in the machine and driver should match to print without a paper mismatch error.

To change the paper setting set in the machine, from SyncThru™ Web Service click Settings tab > Machine Settings > System > Input Tray (see "Settings tab" on page 170).

Or, you can set it from the control panel.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 70).

For example, if you want to print on labels, select Labels for Paper Type.

When using special media, we recommend you feed a piece of paper at a time. Check the maximum input number of media for each tray (see "Print media specifications" on page 285).

Types

Standard tray/

Second Cassette

Feeder

High Capacity

Feeder

Multi-purpose tray

Types

Standard tray/

Second Cassette

Feeder

High Capacity

Feeder

Multi-purpose tray

Preprinted ●● ●

Recycled ●● ●

Envelope ●

(ISO B5, Monarch,

DL, C5, C6, No10

(ISO B5, Monarch, DL,

C5, C6, No10 only)

●

only)

Labels ●●

CardStock ●● ●

Bond ●● ●

Archive ●● ●

LetterHead ●● ●

Punched ●● ●

a. Optional device.

(●: Supported, Blank: Not supported)

Plain ●● ●

Thick ●● ●

Thin ●● ●

Cotton ●● ●

Color ●● ●

The media types are shown in the Printing Preferences. This paper type option allows you to set the type of paper to be loaded in the tray. This setting appears in the list so that you can select it. This will let you get the best quality printout. If not, the desired print quality may not be achieved.

2. Media and tray

Printing on special media

Envelope

Successful printing on envelopes depends upon the quality of the envelopes.

To print an envelope, insert it with the flap facing up.

• Use only well-constructed envelopes with sharp-and well-creased folds.

• Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, selfadhesive seals, or other synthetic materials.

• Do not use damaged or poorly made envelopes.

• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

1 Acceptable 2 Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature about 170 °C (338 °F) for 0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.

• When selecting envelopes, consider the following factors:

- Weight: The weight of the envelope paper should not exceed 90 g/m2

(16 lb) otherwise, a jam may occur.

- Construction: Prior to printing, envelopes should lie flat with less than

6 mm (0.25 inches) curl, and should not contain air.

- Condition: Envelopes should not be wrinkled, nicked, or damaged.

- Temperature: Use envelopes that are compatible with the heat and

pressure of the machine during operation.

• For the best print quality, position margins no closer than 15 mm (0.6 inches) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

2. Media and tray

Printing on special media

Labels

Load the paper with the side to be printed on facing down.

To avoid damaging the machine, use only labels designed for use in laser machines.

- Condition: Do not use labels with wrinkles, bubbles, or other

indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.

• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or damaged.

• Do not load paper that does not have space between labels running the same direction as the paper is being fed. Otherwise, it could cause paper jams.

• When selecting labels, consider the following factors:

- Adhesives: The adhesive material should be stable at your machine’s

fusing temperature about 170 °C (338 °F) for 0.1 second.

- Arrangement: Only use labels with no exposed backing between them.

Labels can peel off sheets that have spaces between the labels, causing serious jams.

- Curl: Prior to printing, labels must lie flat with no more than 13 mm (0.5

inches) of curl in any direction.

2. Media and tray

Printing on special media

Card stock/ Custom-sized paper

• Do not print on media smaller than 98 mm (3.8 inches) wide or 148 mm (5.8 inches) long.

Letterhead/Preprinted paper

Tray Single-sided double-sided

Tray 1, 2, 3, 4 Face up Face down

Multi-purpose tray

Face down Face up

• In the software application, set margins to at least 6.4 mm (0.25 inches) away from the edges of the material.

• Preprinted paper must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature about 170 °C (338 °F) for 0.1 second.

2. Media and tray

Printing on special media

• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.

• Forms should be sealed in a moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper, verify that the ink used is compatible with Laser printers.

2. Media and tray

Setting the paper size and type

The paper setting in the machine and driver should match to print without a paper mismatch error.

To change the paper setting set in the machine, from the Samsung Easy Printer

Manager select (Switch to advanced mode) > Device Settings.

Or, you can set it from the control panel.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 70).

After loading paper in the paper tray, set the paper size and type using the display screen.

Tray Settings

To change detailed tray settings, tap Settings > Tray Settings and select the tray and options you want on the display screen.

• Tray 1, MP Tray : You can set the Paper Size and Paper Type.

• Tray 2, Tray 3, Tray 4 : You can set the Paper Size and Paper Type.

If the optional three Second Cassette Feeder are installed, you can use this functions.

2. Media and tray

Setting the paper size and type

• Paper Size: Allows you to change the paper size.

- You can change the paper list on the display screen. The paper lists are

divided into the available A/B type and letter type paper in this machine.

- If there is no required size paper or you need to use custom sized paper,

press the cardinal point arrows to set the paper size. You can also set and save the custom size using Custom Size. You can select the custom size whenever you need it.

• Paper Type: Allows you to change the paper type.

Options

Scroll through the options by swiping up and down.

• Auto Tray Switch: Determine whether or not the machine continues printing when it detects the paper does not match. For example, if both tray 1 and tray 2 are filled with the same size paper, the machine automatically prints from tray 2 after the tray 1 runs out of paper.

When the paper is substituted, some image loss may occur.

• Tray Confirmation Message: When you load paper into a tray, you can set

the confirmation message to appear automatically. This machine can detect some paper sizes and types automatically. If you want to set the paper size and type, or the machine cannot detect them, you can set the size and type directly in the confirmation window.

• Tray Protection: If you set tray 1 to On, for example, then tray 1 is excluded

during tray switching.

This setting works for copy or print jobs: It doesn't affect fax jobs.

• Tray Priority Settings: You can set the tray priority. If first setting is tray 1,

the machine automatically prints from tray 1 after the second setting tray runs out of paper.

• Auto Continue: This option allows you to continue printing when the paper size you have set is mismatched with the paper in the tray. When this option is activated, the machine continues printing using similar or large size paper. If this option is inactivated, the machine waits until the required size paper is loaded in the tray.

• Paper Substitution: When the requested paper for a print job is not available in the tray, this feature allows you to substitute similar paper size, For example, if the requested letter sized paper is not available in the tray, this machine substitutes A4 for the requested paper.

2. Media and tray

Selecting an output location

The surface of the center tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it.

1 Center tray

The machine sends output to the center tray by default.

If the optional standard 2Bin Finisher is installed, you can use more output trays.

Selecting an output location in copying mode

You can select an output location for copy jobs on the display screen. Tap Copy > Finishing > Multi Bin (see "Finishing" on page 105).

Selecting an output location in printing mode

You can select an output location for print jobs from your computer. Tap Output Tray Options in the Finishing tab (see "Output options" on page 74).

Selecting an output location in faxing mode

You can select an output location for fax jobs on the display screen (see "Setting Received Fax Printing" on page 147).

2. Media and tray

3. Printing

This chapter explains common printing tasks.

This chapter includes:

• Basic printing 68

• Opening printing preferences 70

• Setting Device Options 91

• Using special print features 78

• Using Direct Printing Utility 86

• Changing the default print settings 88

• Setting your machine as a default machine 89

• Print Settings in Machine 90

• Setting Device Options 91

• Printing to a file (PRN) 93

• Mac printing 94

• Linux printing 96

• UNIX printing 98

Printer driver features

• The procedures in this chapter are mainly based on Windows 7.

• Check the operating systems that are compatible with your machine (see "System requirements" on page 289).

Feature

PCL/PSab/

XPS

Windows Mac Linux Unix

Your printer drivers support the following standard features:

• Paper orientation, size, source, and media type selection

• Number of copies

You can also use various special printing features. The following table shows a general overview of features supported by your printer drivers:

Some models or operating system may not support the certain feature(s) in the following table.

Feature

PCL/PSab/

XPS

Windows Mac Linux Unix

Fit to page printing ●●

Reduce and enlarge

●●

printing

Different source for

●●

first page

Cover page options ●●●●

Raster compression ●

(PCL only)

Output options ●●●●

Watermark ●●

Overlay ●

(PCL only)

Double-sided

●●●●

printing (duplex)

Machine quality

●●●●

option

Poster printing ●●

Multiple pages per

●●●●

sheet

Booklet printing ●

a. The PostScript driver is recommended for best print image quality from PostScript-based

applications such as Acrobat Reader®, Adobe Illustrator®, Adobe Photoshop®, etc.

b. Download the software from the Samsung website and install it: (http://www.samsung.com

> find your product > Support or Downloads). Before installing, check whether your computer’s OS support the software.

c. XPS printer driver can be installed only on Windows Vista OS or higher.

(●: Supported, Blank: Not supported)

3. Printing

Basic printing

• Mac printing (see "Mac printing" on page 94).

• Linux printing (see "Linux printing" on page 96).

• UNIX printing (see "UNIX printing" on page 98).

The following Printing Preferences window is for Notepad in Windows 7. Your Printing Preferences window may differ, depending on your operating system or the application you are using.

Open the document you want to print.

Select Print from the File menu.

Select your machine from the Select Printer list.

The basic print settings including the number of copies and print range are selected within the Print window.

To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application’s Print window to change the print setting (see "Opening printing preferences" on page 70).

To start the print job, click OK or Print in the Print window.

3. Printing

Basic printing

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as follows:

• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar.

• You can cancel the print job with the Cancel Print from the computers’ Samsung Printer Status program window (see "Using Samsung Printer Status" on page 181).

3. Printing

Opening printing preferences

When you select an option in Printing Preferences, you may see a warning

mark, , or . An exclamation mark ( ) means you can select that

certain option but it is not recommended, and ( ) mark means you cannot select that option due to the machine’s setting or environment.

Open the document you want to print.

Select Print from the File menu.

Select your printer driver from the Select Printer list.

Click Properties or Preferences.

The screenshot may differ depending on model.

• You can apply Eco features to save paper and toner before printing (see

"Easy Eco Driver" on page 176).

• You can check the machine’s current status pressing the Printer Status

button (see "Using Samsung Printer Status" on page 181).

3. Printing

Opening printing preferences

Favorites tab

Listed items help you choose pre-defined settings.

The screenshot may differ depending on model.

Basic tab

Basic tab to set various printing options.

Orientation

This option allows you to select the direction in which information is printed on a page.

Layout Options

This option allows you to select various ways to layout your document.

• Single Page Per Side: This option is a basic layout option. This option allows

you to print a page on one side of a paper.

• Multiple Pages Per Side: See "Printing multiple pages on one sheet of

paper" on page 78.

• Poster Printing: See "Printing posters" on page 79.

• Booklet Printing: See "Printing booklets" on page 79.

• Page Border: This option allows you to print your document on which border line is. This option is not available for Poster Printing and Booklet

Printing.

3. Printing

Opening printing preferences

Double-Sided Printing

This option allows you to print on both sides of paper (see "Printing on both sides of the paper" on page 80).

Finishing Options

This option allows you to specify the staple.

The Staple option is available only when the optional standard 2Bin Finisher installed.

Paper tab

Paper Options

• Original Size: This option allows you to set the actual paper size of the originals.

• Output Size: This option allows you to scale your print job to any selected paper size regardless of the originals size (see "Fitting your document to a selected paper size" on page 81).

- Percentage: This option allows you to change the size of a page’s

contents to appear larger or smaller on the printed page by typing in a percentage you want (see "Change the size by percentage of your document" on page 81).

• Source: Make sure that Source is set to the corresponding paper tray. Use MP Tray when printing on special materials, such as envelopes and transparencies.

• Type: This option allows you to set the type of paper to be loaded in the tray. This will let you get the best quality printout. If not, the desired print quality may not be achieved.

Use the Paper tab options to set the basic paper handling specifications.

Copies

This option allows you to choose the number of copies to be printed. You can select 1 to 9999 copies.

• Speical Page: This option is allows you to make special pages such as covers. You can add, delete or update the special page settings to the list. This option is available only when you use the PCL printer driver.

3. Printing

Opening printing preferences

Toner Save

Graphics tab

The Toner Save setting allows the user to save printing toner when printing a

Use the Graphic tab options to adjust the print quality for your specific printing needs.

Quality

The higher the setting, the sharper the clarity of printed characters and graphics. The higher setting also may increase the time it takes to print a document.

Font/Text

Select Clear Text to print text darker than on a normal document.

Check All Text Black to print in solid black, regardless of the color it appears on the screen.

Graphic Controller

It allows user to emphasize edges of texts and fine lines for improving

draft version of a document. Select Off to print in normal mode and select On to print with less toner applied to the page.

Finishing tab

• Sort Options: This option allows you to sort out the printouts easily.

- None: Disables this option.

- Offset: When printing multiple copies, this option shift the output

position of each set.

This feature is available only when the standard 2Bin Finisher is installed.

• Staple Options: This option allows you to specify the staple. This option is available only when the optional standard 2Bin Finisher is installed.

• Output Tray Options: This option allows you to specify the tray where to output the printed documents (see “Tray setting” on page 46).

readability and align each color channel registration in color printing mode.

3. Printing

Opening printing preferences

Advanced tab

Use the Advanced tab to set various printing options.

Watermark

See "Using watermarks" on page 82.

Overlay

See "Using overlay" on page 84.

Output options

If you click Reset, settings in the Advanced option returns to the default setting.

Security

Encrypts printing data first, and transmits it to the machine. This feature protects the printing information to prevent your data from being comprised on your network. Job Encryption feature is enabled only when the hard drive is installed. The hard drive is used to decrypt the printing data.

Job Accounting

This option allows you to print with the given permission.

• Print Order: This options allows you to set the sequence in which the pages

will print. Print Odd Pages and Print Even Pages are available only when you

use the PCL printer driver.

• Skip Blank Pages: This option allows you to specify not to print blank pages

in the original data.

• Manual Margin: This option allows you to specify binding margin. Binding

margin adjusts binding position. This option is not available when you use the PS printer driver.

• User permission: If you check this option, only users with user permission can start a print job.

• Group permission: If you check this option, only groups with group permission can start a print job.

• Click the question mark( ) from the upper-right corner of the window and click on any option you want to know about.

• Administrators can enable job accounting and configure permissions in the control panel or SyncThru™ Web Service. For the detailed

information about them (see "SyncThru™ Web Service" on page 167).

3. Printing

Opening printing preferences

Result Simulator

Eco tab

Result Simulator shows the result of reduced emission of carbon dioxide, used

The Eco tab allows you to save print resources and lead you to eco-friendly printing. When you select Eco Printing, you can see the eco image ( ) on some options. Also, some options are not available to use in the eco mode.

Eco Options

• Printer Default: If you select this option, this feature is determined by the

setting you’ve made on the control panel of the machine.

• None: Disables this option.

• Eco Printing: Eco mode gets activated. Select Double-Sided Printing,

Layout, and Skip Blank Pages you want to use in eco mode. As long as you do not change the options from the other tabs, the document will be print

out as set in the eco mode.

• Passcode: If the administrator sets On-Forced in Default Eco Mode for this

machine, the eco mode is always set by this machine’s eco setting, while the Eco Options in the printer driver is disabled. If you need to change the print settings, click Password and enter the password or contact your administrator.

electricity, and the amount of saved paper in accordance with the settings you selected.

• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the eco mode is disabled.

• Referred to the calculation coefficient about CO2, energy and paper from

IEA(International Energy Agency), the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each

model has a different index.

• The power consumption in printing mode refers to the average printing power consumption in this machine.

• The actual saved or reduced amount may differ depending on the operating system used, computing performance, application software, connection method, media type, media size, job complexity, etc.

Samsung tab

Use the Samsung tab to display the copyright and the version number of the driver. If your computer is connected to the Internet, you can have access to services.

3. Printing

Opening printing preferences

Print Mode

This option allows you to choose how to print or save the printing file by using the HDD in your machine. The default Print Mode is Normal which is for printing without storing the printing file on the HDD. You can also use this option in other tabs.

• Normal: This mode prints without storing your document.

• Proof: This mode is useful when you print more than one copy. You can

print one copy first to check, then print the rest of the copies later.

• Confidential: This mode is used for printing confidential documents. You

need to enter a password to print it (see "Job Status" on page 35).

• Store: This mode is used only for storing documents on the HDD. If

necessary, you can load and print the stored documents. You can find the stored file in the Box (see "Using Box" on page 190). First, choose a document box in Save Location and then set Options.

• Job Name: This option is used when you need to find a stored file using

the control panel.

• User ID: This option is used when you need to find a stored file using the

control panel. The user name automatically appears as the user name that you use to log on Windows.

• Enter Password: If the Property of the stored documents you selected

is Secured, you have to enter the password for the stored document. This option is used for loading a stored file using the control panel.

• Confirm Password: Re-enter the password to confirm it.

Using a favorite setting

The Favorites option, which is visible on each preferences tab except for the Favorites tab and Samsung tab, allows you to save the current preferences for

future use.

• Store and Print: This mode is used when printing and storing documents at

the same time. If necessary, you can load and print the stored documents. You can find the stored file in the Box (see "Using Box" on page 190). First, choose a document box in Save Location and then set Options.

• Spool: This option can be useful when handling large amounts of data. If

you select this setting, the printer spools the document into the mass storage device and then prints it from the mass storage device queue, decreasing the computer’s work load.

• Print Schedule: Select this setting to print the document at a specified time.

To save a Favorites item, follow these steps:

3. Printing

Opening printing preferences

Change the settings as needed on each tab.

Using help

Enter a name for the item in the Favorites input box.

Click the option you want to know on the Printing Preferences window and press F1 on your keyboard.

Click Save.

Enter name and description, and then select the desired icon.

Click OK. When you save Favorites, all current driver settings are saved.

To use a saved setting, select it in the Favorites tab. The machine is now set to print according to the settings you have selected.

To delete saved settings, select it in the Favorites tab and click Delete.

3. Printing

Using special print features

Special print features include:

• "Printing multiple pages on one sheet of paper" on page 78.

• "Printing posters" on page 79.

• "Printing booklets" on page 79.

• "Printing on both sides of the paper" on page 80.

• "Change the size by percentage of your document" on page 81.

• "Fitting your document to a selected paper size" on page 81.

• "Using watermarks" on page 82.

• "Using overlay" on page 84.

Printing multiple pages on one sheet of paper

You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Basic tab, select Multiple Pages per Side in the Type drop-

down list.

Select Page Border to print a border around each page on the sheet.

Select the number of pages you want to print per sheet

(2, 4, 6, 9, or 16) in the Pages per Side drop-down list.

Select the page order from the Page Order drop-down list, if necessary.

Click the Paper tab, select the Original size, Source, and Type.

Click OK or Print until you exit the Print window.

3. Printing

Using special print features

Printing posters

This feature allows you to print a single-page document onto 4, 9, or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Basic tab, select Poster Printing in the Type drop-down list.

Select the page layout you want.

Specification of the page layout:

Click OK or Print until you exit the Print window.

You can complete the poster by pasting the sheets together.

Printing booklets

This feature prints your document on both sides of a paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.

If you want to make a booklet, you need to print on Letter, Legal, A4, JIS B5, Statement, Executive, A5, Ledger, or JIS B4 sized print media.

Select the Poster Overlap value. Specify Poster Overlap in millimeters

or inches by selecting the radio button on the upper right of Basic tab to make it easier to paste the sheets together.

Click the Paper tab, select the Original size, Source, and Type.

To change the print settings from your software application, access the

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Basic tab, select Booklet Printing from the Type drop-down

list.

Click the Advanced button. Then select the option you want.

Click the Paper tab, select the Original size, Source, and Type.

3. Printing

Using special print features

The Booklet Printing option is not available for all paper sizes. In order to find out the available paper size for this feature, select the available paper size in the Original size option on the Paper tab.

If you select an unavailable paper size, this option can be automatically canceled. Select only available paper. (paper without or mark).

Click OK or Print until you exit the Print window.

Printing on both sides of the paper

You can print on both sides of a paper; duplex. Before printing, decide how you want your document oriented. You can only use this feature with Letter, Legal, Oficio, US Folio, A4, ISO B5, JIS B5, Statement, Executive, A5, 8K, 16K, Ledger, Tabloid Extra, or JIS B4 sized paper.

From the Double-Sided Printing section, select the binding option you

want.

• Printer Default: If you select this option, this feature is determined

by the setting you’ve made on the control panel of the machine. This option is available only when you use the PCL printer driver.

• None: Disables this feature.

• Long Edge: This option is the conventional layout used in

bookbinding.

• Short Edge: This option is the conventional layout used in calendars.

Do not print on both sides of the special media, such as labels, envelopes, or thick paper to print on both sides of paper. It may cause a paper jam or damage the machine.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Basic tab.

• Reverse Double-Sided Printing: Check this option to reverse the

print order when duplex printing.

Click the Paper tab, select the Original size, Source, and Type.

Click OK or Print until you exit the Print window.

3. Printing

Using special print features

Change the size by percentage of your document

You can change the size of a document to appear larger or smaller on the printed page by typing in a percentage you want.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Paper tab.

Select actual paper size of the originals from the Original Size.

Enter the scaling rate in the Percentage input box.

You can also click the up/down arrows to select the scaling rate.

Fitting your document to a selected paper size

This printer feature allows you to scale your print job to any selected paper size regardless of the document size. This option can be useful when you want to check fine details on a small document.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Paper tab.

Select actual paper size of the originals from the Original Size.

You cannot use this feature when you select a size of paper from the Output Size.

Select the Source and Type.

Click OK or Print until you exit the Print window.

Select the size of paper to be printed in the tray from the Output Size.

Select the Source and Type.

Click OK or Print until you exit the Print window.

3. Printing

Using special print features

Using an existing watermark

Using watermarks

The watermark option allows you to print text or image over an existing document. For example, you use it when you want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document.

There are several predefined watermarks that come with the machine. They can be modified, or you can add new ones to the list.

• Header: You can add the selected text to the Top left, Top center, or Top

right.

• Footer: You can add the selected text to the Bottom left, Bottom center,

or Bottom right.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Advanced tab, and select the desired watermark from the

Watermark drop-down list. You will see the selected watermark in the

Triple Cassette Feeder image.

Click OK or Print until you exit the print window.

• Watermark Message: Allows users to enter the watermark which is the

user want to print.

• Image file: Allows users to load the watermark image which is the user want to print.

• Watermark name: Allows users to enter the watermark name for adding to watermark drop-down list.

• First Page Only: Prints watermark only on the first page. Not checked by default.

3. Printing

Using special print features

Creating a watermark

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

From the Advanced tab, select Edit... from the Watermark drop-down

list.

Enter a text message in the Watermark Message box. You can enter up

to 256 characters.

When the First Page Only box is checked, the watermark prints on the first page only.

Select watermark options.

You can select the font name, style, size, and shade from the Font Attributes section, as well as set the angle of the watermark from the Watermark Alignment and Angle section.

Editing a watermark

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Advanced tab, select Edit... from the Watermark drop-down

list.

Select the watermark you want to edit from the Current Watermarks list

and change the watermark message and options.

Click Update to save the changes.

Click OK or Print until you exit the Print window.

Deleting a watermark

Click Add to add a new watermark to the Current Watermarks list.

When you finish editing, click OK or Print until you exit the Print

window.

To stop printing the watermark, select None from the Watermark drop-down list.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Advanced tab, select Edit... from the Watermark drop-down

list.

Select the watermark you want to delete from the Current Watermarks

list and click Delete.

Click OK or Print until you exit the Print window.

3. Printing

Using special print features

Using overlay

This option is available only when you use the PCL printer driver.

What is an overlay?

An overlay is text and/or images stored on the computer hard drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing exactly the same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the machine just print the letterhead overlay on your document.

Create or open a document containing text or an image for use in a new

page overlay. Position the items exactly as you wish them to appear when printed as an overlay.

To save the document as an overlay, access Printing Preferences (see

"Opening printing preferences" on page 70).

Click the Advanced tab, and select Create from the Overlay drop-down

list.

In the Save As window, type a name up to eight characters in the File

name box. Select the destination path, if necessary (The default is

C:\Formover).

Click Save.

Click OK or Print until you exit the Print window.

When a confirming message window appears, click Yes.

Creating a new page overlay

To use a page overlay, you must create a new page overlay containing your logo or image.

The file is not printed. Instead, it is stored on your computer hard disk

drive.

The overlay document size must be the same as the document you print with the overlay. Do not create an overlay with a watermark.

3. Printing

Using special print features

Using a page overlay

After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:

Create or open the document you want to print.

To change the print settings from your software application, access

Printing Preferences (see "Opening printing preferences" on page 70).

Click the Advanced tab.

Select the Print Overlay from the Overlay drop-down list.

If the overlay file you want does not appear in the Overlay File 1 or

Overlay File 2 drop-down list, select Load from the Overlay List. Select

the overlay file you want to use.

If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Load window.

After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box.

Click OK or Print until you exit the Print window.

The selected overlay prints on your document.

The resolution of the overlay document must be the same as that of the document you will print with the overlay.

Deleting a page overlay

You can delete page overlays that you no longer use.

In the Printing Preferences window, click the Advanced tab.

Select Print Overlay from the Overlay drop down list.

Select the overlay you want to delete from the Overlay List box.

If the overlay file you want does not appear in the Overlay List, select Load from the Overlay List. Select the overlay file you want to delete.

Click Delete.

If necessary, check Confirm Page Overlay When Printing box. If this

box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document.

If this box is not checked and an overlay has been selected, the overlay automatically prints with your document.

When a confirming message window appears, click Yes.

Click OK or Print until you exit the Print window.

3. Printing

Using Direct Printing Utility

This chapter explains how to use Direct Printing Utility to print PDF files without open the files.

• HDD should be installed on your machine, to print PDF files using this program.

• You cannot print PDF files that are restricted to print. Deactivate the printing restriction feature, and retry printing.

• You cannot print PDF files that are restricted by a password. Deactivate the password feature, and retry printing.

• Whether or not a PDF file can be printed using the Direct Printing Utility

program depends on how the PDF file was created.

• The Direct Printing Utility program supports the PDF version 1.7 and below. For a higher version, you must open the file to print it.

What is Direct Printing Utility?

Printing

There are several ways you can print using the Direct Printing Utility.

From the Direct Printing Utility window

From the Start menu select Programs or All Programs.

• For Windows8, from Charms, Select Search > Apps.

Find Samsung Printers > Direct Printing Utility.

Select your machine from the Select Printer drop-down list and click

Browse.

Select the PDF file you wish to print and click Open.

The PDF file is added in the Select Files section.

Direct Printing Utility is a program that sends a PDF file directly to your machine to print without having to open the file. It sends data through the Windows spooler using the port of the printer driver. It only supports PDF format.

To install this program:

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

Customize the machine settings for your needs.

Click Print. The selected PDF file is sent to the machine.

3. Printing

Using Direct Printing Utility

Using the right-click menu

Right-click on the PDF file you wish to print and select Direct Printing.

The Direct Printing Utility window appears with the PDF file is added.

Select the machine you wish to use.

Customize the machine settings for your needs.

Click Print. The selected PDF file is sent to the machine.

3. Printing

Changing the default print settings

Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver.

Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7/8, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

Change the settings on each tab.

Click OK.

If you want to change the settings for each print job, change it in Printing Preferences.

Right-click on your machine.

For Windows XP/Server 2003/Server 2008/Vista, select Printing

Preferences.

For Windows 7/8 or Windows Server 2008 R2, from context menus, select Printing preferences.

If Printing preferences has a ►, you can select other printer drivers connected to the selected printer.

3. Printing

Setting your machine as a default machine

Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7/8, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

Select your machine.

Right-click your machine and select Set as Default Printer.

For Windows 7 or Windows Server 2008 R2, if Set as default printer has a

►, you can select other printer drivers connected to the selected printer.

3. Printing

Print Settings in Machine

You can set print related settings. When there is no specific input for printing options, the machine prints with the settings you set here. Set the frequently used printing settings. This feature can be useful if your company has a specific printing form.

Tab Settings > Print Settings from the display screen.

General

• General: You can set Skip Blank Page, Paper Source and Emulation.

- Skip Blank Pages: You can skip the blank pages during printing.

- Paper Source: You can select the tray as a paper source.

- Emulation: You can choose the emulation format.

Layout

• Layout: Provides paper layout related options.

- Orientation: Select the paper orientation.

- Duplex: Select the paper orientation for duplex mode.

- Number of Copies: Select the number of copies you want to print.

- Margin: Adjust the margin for Common Duplex, Common Simplex and

Emulation.

3. Printing

Setting Device Options

When you install the optional devices such as optional tray, memory, etc, this machine automatically detects and sets the optional devices. If you cannot use the optional devices you installed in this driver, you can set the optional devices in Device Options.

Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

For Windows XP/2003, select Printers and Faxes.

• For Windows 2008/Vista, select Control Panel > Hardware and

Sound > Printers.

• For Windows 7, select Control Panel > Hardware and Sound >

Devices and Printers.

• For Windows 8, search for Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

Select Device Options.

The Properties window may differ depending on the driver or operating system you are using.

Select the appropriate option.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

• Tray Options: Select the optional tray you installed. You can select

the tray.

• Storage Options: Select the optional memory you installed. If this feature is checked, you can select the Print Mode.

• Printer Configuration: Select the printer language for the print job.

• Administrator Settings: You can select the Printer Status and EMF

Right-click your machine.

For Windows XP/2003/2008/Vista, press Properties.

For Windows 7, Windows 8, and Windows Server 2008 R2, from context menus, select the Printer properties.

If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer.

Spooling.

• Admin Job Accounting: Allows you to associate user and account identification information with each document you print.

- User permission: If you check this option, only users with user

permission can start a print job.

- Group permission: If you check this option, only groups with

group permission can start a print job.

3. Printing

Setting Device Options

If you want to encrypt job accounting password, check Job Accounting Password Encryption.

• Custom Paper Size Settings: You can specify custom paper size.

Click OK until you exit the Properties or Printer properties window.

3. Printing

Printing to a file (PRN)

You will sometimes need to save the print data as a file.

To create a file:

Check the Print to file box at the Print window.

If you type in only the file name, the file is automatically saved in My Documents, Documents and Settings or Users. The saved folder may

differ, depending on your operating system or the application you are using.

Click Print.

Type in the destination path and the file name, and then click OK.

For example c:\Temp\file name.

3. Printing

Mac printing

Some features may not be available depending on models or options. It means that the features are not supported.

This section explains how to print using a Mac.

Printing a document

When you print with a Mac, you need to check the printer driver setting in each application you use. Follow the steps below to print from a Mac:

Open the document you want to print.

Open the File menu and click Page Setup (Document Setup in some

applications).

Changing printer settings

You can use advanced printing features provided by your machine.

Open an application and select Print from the File menu. The machine name, which appears in the printer properties window, may differ depending on the machine in use. Except for the name, the composition of the printer properties window is similar to the following.

Printing multiple pages on one sheet of paper

You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft pages.

Open an application, and select Print from the File menu.

Choose your paper size, orientation, scaling, other options, and make

sure that your machine is selected. Click OK.

Open the File menu and click Print.

Choose the number of copies and indicate which pages to print.

Click Print.

Select Layout from the drop-down list under Orientation. In the Pages

per Sheet drop-down list, select the number of pages you want to print

on one sheet of paper.

Select the other options to use.

Click Print.

The machine prints the selected number of pages to print on one sheet of paper.

3. Printing

Mac printing

Printing on both sides of paper

You can print on both sides of the paper. Before printing in the duplex mode, decide on which edge you will be binding your finished document. The binding options are, as follows:

• Long-Edge Binding: This option is the conventional layout used in book

binding.

• Short-Edge Binding: This option is the type often used with calendars.

From your Mac application, select Print from the File menu.

Select Layout from the drop-down list under Orientation.

Select a binding orientation from Two-Sided option.

Using help

Click the question mark on the bottom-left corner of the window and click on the topic you want to know about. A pop-up window appears with information about that option's feature, which is provided from the driver.

Select the other options to use.

Click Print and; the machine prints on both sides of the paper.

If you print more than 2 copies, the first copy and the second copy might print on the same sheet of paper. Avoid printing on both sides of paper when you are printing more than 1 copy.

3. Printing

Linux printing

Some features may not be available depending on models or options. It means that the features are not supported.

Printing from applications

There are a lot of Linux applications that allow you to print using Common UNIX Printing System (CUPS). You can print on your machine from any such application.

Open the document to print.

Open the File menu and click Page Setup (Page Setup in some

applications).

Click Print.

Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lp or lpr printing system or other applications for odd-even printing.

Printing files

You can print text, image, pdf files on your machine using the standard CUPS, directly from the command line interface. The CUPS lp or lpr utility allows you to do that. You can print these files by using below command format.

"lp -d <printer name> -o <option> <file name>"

Please refer to lp or lpr man page on your system for more details.

Choose your paper size, orientation, and make sure that your machine is

selected. Click Apply.

Open the File menu and click Print.

Select your machine to print.

Choose the number of copies and indicate which pages to print.

Change other printing options in each tab, if necessary.

3. Printing

Linux printing

Configuring printer properties

You can change the default printing options or connection type with a printing utility supplied by O/S.

Launch Printing utility(Go to System > Administration > Printing

menu or execute "system-config-printer" command in Terminal program).

Select your printer and double-click it.

Change default printing options or connection type.

Click Apply button.

3. Printing

UNIX printing

Some features may not be available depending on models or options. It means that the features are not supported.

Proceeding the print job

After installing the printer, choose any of the image, text, or PS files to print.

Execute “printui <file_name_to_print>” command.

For example, if you are printing “document1”

printui document1

This will open the UNIX Printer Driver Print Job Manager in which the user can select various print options.

Select a printer that has been already added.

Select the printing options from the window such as Page Selection.

Changing the machine settings

The UNIX printer driver Print Job Manager in which the user can select various print options in printer Properties.

The following hot keys may also be used: “H” for Help, “O” for OK, “A” for Apply, and “C” for Cancel.

General tab

• Paper Size: Set the paper size as A4, Letter, or other paper sizes, according

to your requirements.

• Paper Type: Choose the type of the paper. Options available in the list box are Printer Default, Plain, and Thick.

• Paper Source: Select from which tray the paper is used. By default, it is Auto Selection.

• Orientation: Select the direction in which information is printed on a page.

• Duplex: Print on both sides of paper to save paper.

Select how many copies are needed in Number of Copies.

To take advantage of the printer features provided by your printer driver, press Properties.

Press OK to start the print job.

Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing.

3. Printing

UNIX printing

• Multiple pages: Print several pages on one side of the paper.

• Page Border: Choose any of the border styles (e.g., Single-line hairline,

Double-line hairline)

Image tab

In this tab, you can change the brightness, resolution, or image position of your document.

Text tab

Set the character margin, line space, or the columns of the actual print output.

Margins tab

Printer-specific settings tab

Select various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.

• Use Margins: Set the margins for the document. By default, margins are not

enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.

• Unit: Change the units to points, inches, or centimeters.

3. Printing

4. Copying

This chapter gives you step-by-step instructions for copying documents.

This chapter includes:

• Understanding the copy screen 101

• Basic copy 110

• Using the Quick Copy menu 111

• ID card copying 112

Samsung M4370LX User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

BASIC

1. Introduction

Key benefits

Features by model

Useful to know

About this user’s guide

Safety information

Machine overview

Control panel

Connecting a network cable

Turning on the machine

Understanding the LEDs

Display screen and useful menu

Understanding the pop-up keyboard

Installing the driver locally

Reinstalling the driver

2. Media and tray

Loading originals

Selecting print media

Loading paper in the tray

Printing on special media

Setting the paper size and type

Selecting an output location

3. Printing

Printer driver features

Basic printing

Opening printing preferences

Using special print features

Using Direct Printing Utility

Changing the default print settings

Setting your machine as a default machine

Print Settings in Machine

Setting Device Options

Printing to a file (PRN)

Mac printing

Linux printing

UNIX printing

4. Copying
