Installation Instructions
PanelView 600 Terminals
Catalog Numbers 2711-K6Cxx, 2711-B6Cxx
Top ic Pa ge
Hazardous Location Considerations
European Union Directive Compliance
Wiring and Safety Guidelines
Enclosures
Required Tools
Mounting Dimensions
Cutout Dimensions
Clearances
Install the Terminal in a Panel
Install the Memory Card

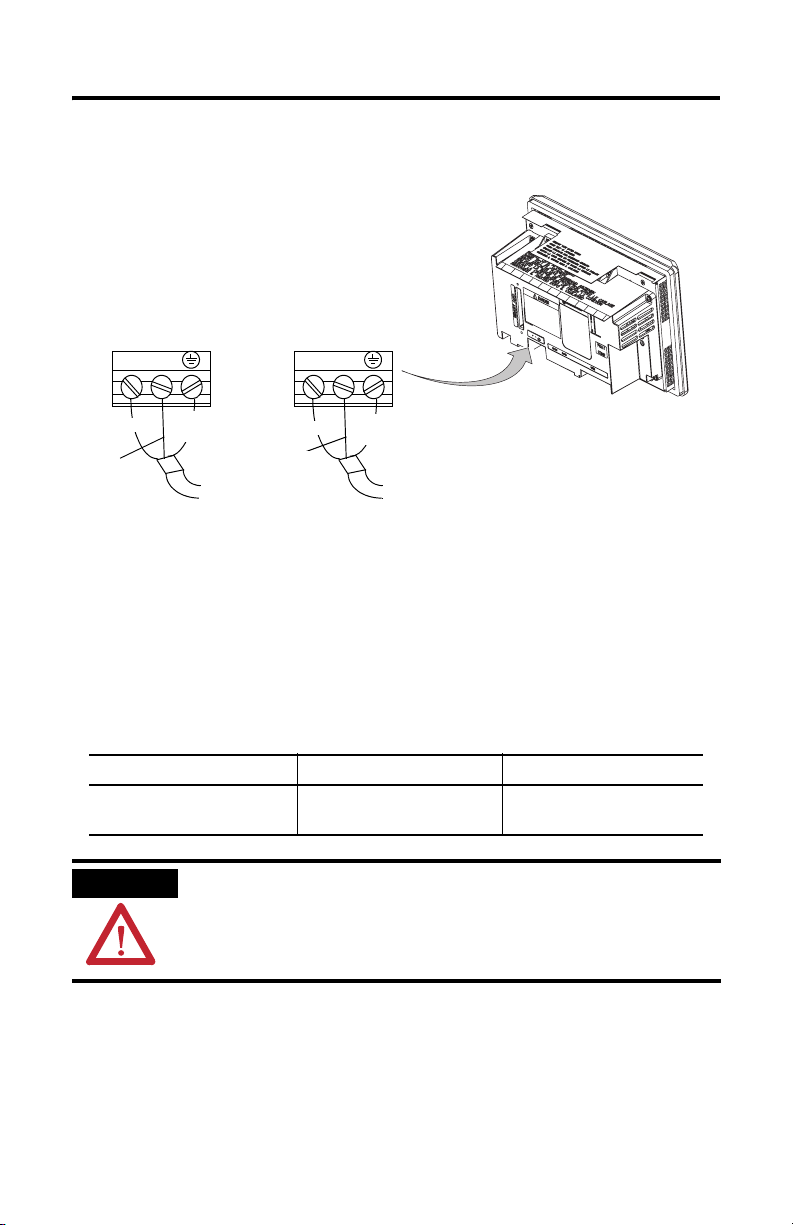

Connect AC Power
Connect DC Power
EtherNet/IP Protocol
ControlNet Protocol
Battery Removal and Disposal
For More Information
3
4
5
5
5
6
6
7
8
10
11
12
14
14
14
15
2 PanelView 600 Terminals
Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical equipment.
Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication
SGI-1.1
available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com
equipment and hard-wired electromechanical devices. Because of this difference, and also because of the
wide variety of uses for solid state equipment, all persons responsible for applying this equipment must
satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many
variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot
assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING
Identifies information about practices or circumstances that can cause an explosion in
a hazardous environment, which may lead to personal injury or death, property
damage, or economic loss.
) describes some important differences between solid state
IMPORTANT
ATTENTION
SHOCK HAZARD
BURN HAZARD
Identifies information that is critical for successful application and understanding of
the product.
Identifies information about practices or circumstances that can lead to personal injury
or death, property damage, or economic loss. Attentions help you identify a hazard,
avoid a hazard and recognize the consequences.
Labels may be on or inside the equipment, for example, a drive or motor, to alert
people that dangerous voltage may be present.
Labels may be on or inside the equipment, for example, a drive or motor, to alert
people that surfaces may reach dangerous temperatures.
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 3
Hazardous Location Considerations
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D; Class II,
Division 2, Groups F and G; Class III; or non-hazardous locations only. The
following WARNING statement applies to use in hazardous locations.
WARNING
See the nameplate on terminal for hazardous locations certifications.
EXPLOSION HAZARD
• Substitution of components may impair suitability for Class I, Class II, Class III
Division 2.
• Do not replace components or disconnect equipment unless power has been
switched off or the area is known to be non-hazardous.
• Do not connect or disconnect components unless power has been switched off
or the area is known to be non-hazardous.
• This product must be installed in an enclosure. All cables connected to the
product must remain in the enclosure or be protected by conduit or other means.
• All wiring must comply with N.E.C. article 501-4(b), 502-4(b), 503-3(b) as
appropriate.
ATTENTION
In Class I, Class II, Class III Division 2 Hazardous locations, the PanelView 600
terminal must be wired per the National Electric Code as it applies to hazardous
locations. Peripheral equipment must also be suitable for the location in which it is
installed.
The PanelView 600 terminals have an operating temperature code of T4 (maximum
operating temperature of 135 °C or 275 ° F). Do not install the terminals in
environments where atmospheric gases have ignition temperatures less than
135 °C (275 °F).
WARNING
When you connect or disconnect the battery an electrical arc can occur. This could
cause an explosion in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding. Replace the battery only
with the indicated catalog number.
For Safety information on the handling of lithium batteries, including handling and
disposal of leaking batteries, see Guidelines for Handling Lithium Batteries,
publication AG 5-4
Do not dispose of battery in a fire or incinerator. Dispose of used batteries in
accordance with local regulations.
Store batteries in a cool, dry environment. We recommend 25 °C (77 °F) with
40…60% relative humidity. You may store batteries for up to 30 days between
-45…85 °C (-49…185 °F), such as during transportation. To avoid possible leakage,
do not store batteries above 60 °C (140 °F) for more than 30 days.
.
Publication 2711-IN010G-EN-P - February 2009
4 PanelView 600 Terminals
European Union Directive Compliance
If a PanelView 600 Operator Terminal is installed within the European Union or
EFTA regions and has a CE mark, the following regulations apply.
EMC and Low Voltage Directives
This apparatus is tested to meet Council Directive 89/336/EEC Electromagnetic
Compatibility (EMC), and amending directives 91/263/EEC, 92/31/EEC, 93/68/EEC;
72/23/EEC Low Voltage Directive, and amending directive 93/68/EEC using the
following standards, in whole or in part:
• EN 50081-2:1993 EMC - Generic Emission Standard, Part 2 - Industrial
Environment
• EN 61000-6-2:1999 EMC - Generic Immunity Standard, Part 2 - Industrial
Environment
• EN 61131-2:1995 Programmable Controllers Part 2: Equipment Requirements
and Tests
• Low Voltage Directive (Safety Sections of EN 61131-2)
The product described is intended for use in an industrial environment.
Intended Use of Product
According to these Standards, the factor which determines, for EMC purposes,
whether an apparatus is deemed to be ‘Industrial’ or ‘Residential, commercial and
light industrial’, is given in Clause 1 of EN50081-2 as follows:
Apparatus covered by this standard is not intended for connection to a
public mains network but is intended to be connected to a power network
supplied from a high- or medium-voltage transformer dedicated for the
supply of an installation feeding a manufacturing or similar plant.
The PanelView 600 terminals are intended for use solely in an industrial
environment as defined above. When installed in Europe, any other application is
in contravention of European Union Directives, and a breach of these laws.
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 5
Wiring and Safety Guidelines
Install the PanelView 600 terminal using publication 70E, Electrical Safety
Requirements for Employee Workplaces. In addition to the NFPA general
guidelines, follow these recommendations:
• Connect the PanelView terminal to its own branch circuit.
The input power source should be protected by a fuse or circuit breaker
rated at no more than 15 amps.
• Route incoming power to the PanelView 600 terminal by a separate path
from the communications cable.
• Where power and communication lines must cross, they should cross at
right angles. Communications lines can be installed in the same conduit as
low level DC I/O lines (less than 10 Volts).
• Grounding minimizes noise from Electromagnetic Interference (EMI) and is
a safety measure in electrical installations. To avoid EMI, shield and ground
cables appropriately.
• A source for grounding recommendations is the National Electrical Code
published by the National Fire Protection Association of Boston.
Enclosures
The PanelView 600 terminal must be mounted in an environment that provides
IEC-1131-2 Pollution degree 2 protection.
Mount the PanelView 600 terminal in a panel or enclosure to protect the internal
circuitry. The terminal meets NEMA Type 12/13 and 4X (indoor use) ratings only
when mounted in a panel or enclosure with the equivalent rating.
Allow enough space within the enclosure for adequate ventilation. Consider the
heat produced by other devices in the enclosure. The ambient temperature around
the PV600 terminal must be between 0… 55 °C (32…131 °F).
Make provisions for accessing the back panel of the terminal for wiring,
maintenance, installing a memory card, and troubleshooting.
Required Tools
Other than the tools required to make the panel cutout, the tools required for
installation are:
• small slotted screwdriver.
• torque wrench (N•m, lb•in). with slotted or phillips head driver.
Publication 2711-IN010G-EN-P - February 2009
6 PanelView 600 Terminals
Mounting Dimensions
290 mm
(11.40 in.)
6.9 mm
(0.27 in.)
Top View
192 mm
(7.55 in.)
91 mm
(3.60 in.)
116 mm
(4.57 in.)
Cutout Dimensions
Use the full size template shipped with the terminal to mark the cutout dimensions.
The figure below shows a reduced size cutout.
PanelView 600 Terminals
167 mm
(6.57 in.)
Recommended Panel
Cutout Dimensions
264 mm
(10.39 in.)
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 7
Clearances
Allow adequate space for mounting, air flow, maintenance, and for installing a
memory card, and legend inserts.
Side, Top and Bottom Clearances
Leave 51 mm (2 in.)
for Mounting and Air flow
TERMINAL CUTOUT
Use Full Size
Template shipped with
Terminal
Front View
Leave 25 mm (1 in.)
for Mounting and Air Flow
Approximately
220 mm (8.65 in.) is
required to insert and
remove a memory card
with the memory card
retainer.
6.9 mm
(0.27 in)
91 mm
(3.60 in.)
card
Leave 51 mm (2.0 in.)
for Mounting and Wiring Connections
Back Clearance
Top View
Memory Card Retainer
Leave 38 mm (1.5 in.) for Mounting,
Air Flow and Legend Insert
116 mm
(4.57 in.)
Publication 2711-IN010G-EN-P - February 2009
8 PanelView 600 Terminals
Install the Terminal in a Panel
To install the PV600 terminal in a panel:
ATTENTION
• Disconnect all electrical power from the panel before making the cutout.
• Make sure the area around the panel cutout is clear.
• Take precautions so that metal cuttings do not enter any components that may
already be installed in panel.
• Failure to follow this warning may result in personal injury or damage to the panel
components.
1. Cut an opening in the panel using the panel cutout provided with the
terminal. Remove any sharp edges or burrs.

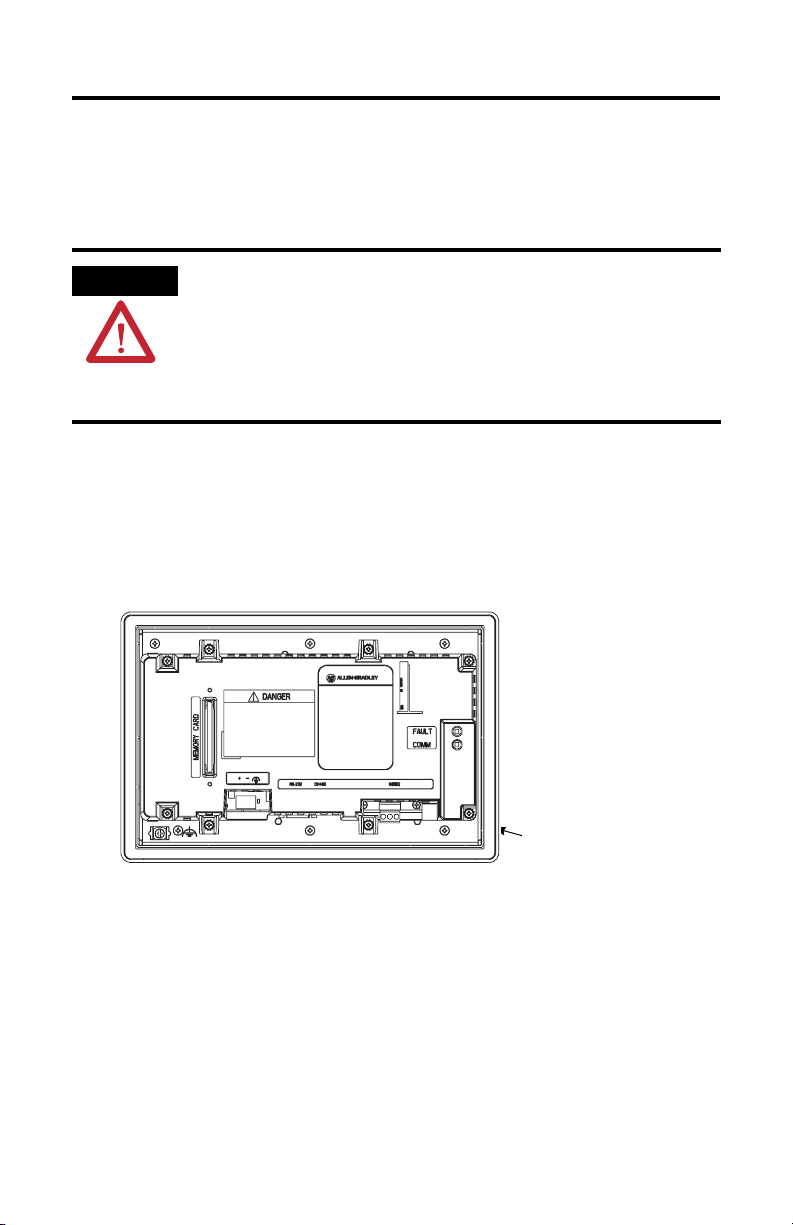

2. Make sure the terminal sealing gasket is properly positioned on the terminal
as shown below. This gasket forms a compression type seal. Do not use
sealing compounds.
Sealing Gasket
3. Although the keypad legend strip can be installed at any time, we
recommend that you install it after the terminal is installed.
4. Place the terminal in the panel cutout.
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 9
5. Install the 4 mounting clips (2 on top, 2 on bottom); the ends of the clips
slide into the slots on the terminal. Tighten the clip mounting screws by
hand until the gasket seal contacts the mounting surface uniformly.
Install 4 Mounting Clips:
Top - Left and Right Slots
Bottom - Left and Right Slots
Protective Installation Labels
6. Alternately tighten the mounting clip screws to a torque of 1.13 N•m
(10 lb•in). Do not over–tighten.
ATTENTION
Tighten mounting clips to a torque of 1.13 N•m (10 lb•in) to provide a proper
seal and to prevent potential damage to the terminal. Allen-Bradley assumes no
responsibility for water or chemical damage to the terminal or other equipment
within the enclosure because of improper installation.
7. Remove the 2 protective labels covering the top vents of the terminal.
ATTENTION
Remove the protective installation labels covering the top vents to prevent
overheating and damage to the terminal.
Publication 2711-IN010G-EN-P - February 2009
10 PanelView 600 Terminals
Install the Memory Card
The memory card retainer is required for UL508 installations where a memory card
is inserted in the card slot. The retainer protects against Electrostatic Discharge
(ESD) up to 15 KV and prevents accidental removal of a memory card in high
vibration environments.
To attach the memory card retainer:
Memory Card
Retainer
1. Secure the base of the retainer over the existing memory card slot using the
two screws provided. Tighten screws to a torque of 0.7…0.9 N•m
(6…8 lb•in).
2. Insert the memory card and install the retainer until it is properly seated.
3. To remove the retainer, press the tabs on each side and pull.
Retainer Base
Base Mounting Screws
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 11
Connect AC Power
The electrical rating for the PanelView 600 terminal is shown below.
Terminal Type Supply Voltage Power Consumption
PV600 85…240V AC, 47…63 Hz 60 VA maximum
The PanelView 600 terminal is an IEC 1131-2 Equipment Class I device and requires
you to connect the (Protective Earth) terminal to an earth conductor.
ATTENTION
WARNING
• The PanelView 600 terminal is designed for safe use when installed in a suitably
rated NEMA Type 12, 13, 4X (indoor use only), IP54 or IP65 enclosure.
• Do not apply power to the terminal until all wiring connections have been made.
Failure to do so may result in electrical shock.
Explosion Hazard - Do not connect or disconnect equipment while circuit is live unless
area is known to be non-hazardous.
To connect AC power to the PanelView 600 terminals:
1. Secure the AC power wires to the L1 and L2N screws on the terminal block.
2. Secure the Earth Ground/Protective Earth wire to the screw on the
terminal block.
ATTENTION
Improper wiring of the power terminals may result in voltage at the
communication connector shells. Refer to the following figure when wiring.
Publication 2711-IN010G-EN-P - February 2009
12 PanelView 600 Terminals
3. Apply power to the terminal.
120/240V AC, 3 Wire, European
120/240V AC, 3 Wire,
U.S. Color Code
L1
L2
Harmonized Color Code
L1
L2
Black (line)
White
(neutral)
Green
Green
(earth ground)
To Power Source
Brown (line)
Blue
(neutral)
Green/Yellow
(protective earth)
To Power Source
Power Terminal
Block (fixed)
Connect DC Power
The L1 versions of the PanelView 600 terminal (catalog number 2711-K6C1L1,
2711-B6C1L1) connect to a 24V DC power source.
The electrical ratings for the PanelView 600 are shown below. Electronic circuitry
and an internal fuse protect the terminal from reverse polarity and over–voltage
conditions.
Terminal Type Supply Voltage Power Consumption
PV600 18…32V DC,
(24V DC nominal)
ATTENTION
For DC powered units, use a Class 2/SELV (Safety Extra-Low Voltage), isolated and
ungrounded power supply as input power to the terminals. This power source provides
protection so that under nominal and single fault conditions, the voltage between
conductors and between conductors and Functional Earth/Protective Earth does not
exceed a safe value.
24 Watts maximum
(1.0 Amps @ 24V DC)
Publication 2711-IN010G-EN-P - February 2009
PanelView 600 Terminals 13
ATTENTION
• Do not connect the PanelView terminal to an AC power source. Connecting to an AC
power source may damage the terminal.
• The PanelView 600 terminal is designed for safe use when installed in a suitably
rated NEMA Type 12, 13, 4X (indoor use only), IP54 or IP65 enclosure.
To connect DC power to the PV600 terminal:
1. Secure the DC power wires to the DC Negative and DC Positive screws on
the terminal block.
2. Secure the Earth Ground wire to the screw on the terminal block.
WARNING
ATTENTION
Explosion Hazard - Do not connect or disconnect equipment while circuit is live
unless area is known to be non-hazardous.
Do not apply power to the terminal until all wiring connections have been made.
Failure to do so may result in electrical shock.
3. Apply 24V DC power to the terminal.
Power Terminal
Block (fixed)
+
Earth Ground
DC Negative
DC Positive
Publication 2711-IN010G-EN-P - February 2009
14 PanelView 600 Terminals
EtherNet/IP Protocol
The PanelView terminal is initially set to DHCP with BootP support (Dynamic Host
Configuration Protocol) enabled. If your network has a DHCP/BootP server, you
can connect the PanelView terminal to the EtherNet/IP network and the
DHCP/BootP server will automatically establish an IP address. If your network does
not have a DHCP/BootP server, you need to program an IP address. This is done by
accessing Configuration Mode on the PanelView terminal and selecting
Communication Setup. For details, refer to the PanelView Standard Operator
Terminals Manual.
IMPORTANT
If a PanelView is connected to an EtherNet/IP network and has the same IP address as
another device on the network, both devices will drop off the network.
ControlNet Protocol
IMPORTANT
When making ControlNet connections, only use the PanelView Channel B for redundant
communications. Connecting Channel B to a Channel A only ControlNet network will
result in:
• the PanelView not being able to communicate over the network.
• a PanelView communications fault after several minutes.
Battery Removal and Disposal
The terminal contains a lithium battery, which is intended to be replaced during the
life of the product.
ATTENTION
The clock module contains lithium. Do not dispose of the battery in a fire or incinerator, or
the clock module may explode. Follow disposal regulations in your area for lithium
battery disposal.
At the end of its life, the battery contained in this product should be collected separately
from any unsorted municipal waste.
Publication 2711-IN010G-EN-P - February 2009
Follow these steps to remove or replace the battery.
2
1
PanelView 600 Terminals 15
3
4
5
6
7
8
For More Information
For Refer to Refer to
More detailed information on the PV600 and the
other Standard PanelView terminals.
If you would like a publication, you can download a free electronic version from
the internet: http://www.literature.rockwellautomation.com
To purchase a publication, contact your local distributor or Rockwell Automation
Representative.
Standard PanelView
Terminals User Manual
2711-UM014
Publication 2711-IN010G-EN-P - February 2009
Rockwell Automation Support
Rockwell Automation provides technical information on the Web to assist you in
using its products. At http://support.rockwellautomation.com
technical manuals, a knowledge base of FAQs, technical and application notes,
sample code and links to software service packs, and a MySupport feature that you
can customize to make the best use of these tools.
For an additional level of technical phone support for installation, configuration and
troubleshooting, we offer TechConnect support programs. For more information,
contact your local distributor or Rockwell Automation representative, or visit
http://support.rockwellautomation.com
.
Installation Assistance
If you experience a problem within the first 24 hours of installation, please review
the information that's contained in this manual. You can also contact a special
Customer Support number for initial help in getting your product up and running.
, you can find
United States 1.440.646.3434
Monday – Friday, 8 a.m. – 5 p.m. EST
Outside United
States
Please contact your local Rockwell Automation representative for any
technical support issues.
New Product Satisfaction Return
Rockwell Automation tests all of its products to ensure that they are fully
operational when shipped from the manufacturing facility. However, if your
product is not functioning and needs to be returned, follow these procedures.
United States Contact your distributor. You must provide a Customer Support case number
Outside United
States
PanelView, PanelView 600, Allen-Bradley, Rockwell Automation, and TechConnect are trademarks of
Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
(call the phone number above to obtain one) to your distributor in order to
complete the return process.
Please contact your local Rockwell Automation representative for the return
procedure.
Publication 2711-IN010G-EN-P - February 2009 PN-40536
Supersedes Publication 2711-IN010F-MU-P - August 2007 Copyright © 2009 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
Loading...
