Rockwell Automation 1762-IQ16 User Manual

Installation Instructions

MicroLogix 1762-IQ16 DC Input Module

Catalog Number 1762-IQ16

Table of Contents

Topic Page

Important User Information 2 North American Hazardous Location Approval 4 Additional Resources 5 Overview 6 Module Description 7 Mount the Module 8 Field Wiring Connections 11 Grounding the Module 11 Wiring the Finger-Safe Terminal Block 13 I/O Memory Mapping 14 Specifications 15

2 MicroLogix 1762-IQ16 DC Input Module

WARNING

IMPORTANT

ATTENTION

SHOCK HAZARD

BURN HAZARD

Important User Information

Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication

SGI-1.1

available from your local Rockwell Automation sales office or online at

http://literature.rockwellautomation.com

equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

) describes some important differences between solid state

Publication 1762-IN010C-EN-P - June 2013

Identifies information that is critical for successful application and understanding of the product.

Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard and recognize the consequences.

Labels may be on or inside the equipment (for example, drive or motor) to alert people that dangerous voltage may be present.

Labels may be on or inside the equipment (for example, drive or motor) to alert people that surfaces may reach dangerous temperatures.

Environment and Enclosure

ATTENTION

This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating.This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbances.

This equipment is supplied as open-type equipment. It must be mounted within an enclosure that is suitably designed for those specific environmental conditions that will be present and appropriately designed to prevent personal injury resulting from accessibility to live parts. The enclosure must have suitable flame-retardant properties to prevent or minimize the spread of flame, complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the enclosure must be accessible only by the use of a tool. Subsequent sections of this publication may contain additional information regarding specific enclosure type ratings that are required to comply with certain product safety certifications.

In addition to this publication, see:

• Industrial Automation Wiring and Grounding Guidelines, for additional installation requirements, Allen-Bradley publication 1770-4.1

• NEMA Standards 250 and IEC 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure.

MicroLogix 1762-IQ16 DC Input Module 3

Preventing Electrostatic Discharge

This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment:

• Touch a grounded object to discharge potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on component boards.

• Do not touch circuit components inside the equipment.

• Use a static-safe workstation, if available.

• Store the equipment in appropriate static-safe packaging when not in use.

Publication 1762-IN010C-EN-P - June 2013

4 MicroLogix 1762-IQ16 DC Input Module

WARNING

AVERTISSEMENT

North American Hazardous Location Approval

The following modules are North American Hazardous Location approved: 1762-IQ16

The following information applies when operating this equipment in hazardous locations:

Products marked "CL I, DIV 2, GP A, B, C, D" are suitable for use in Class I Division 2 Groups A, B, C, D, Hazardous Locations and nonhazardous locations only. Each product is supplied with markings on the rating nameplate indicating the hazardous location temperature code. When combining products within a system, the most adverse temperature code (lowest "T" number) may be used to help determine the overall temperature code of the system. Combinations of equipment in your system are subject to investigation by the local Authority Having Jurisdiction at the time of installation.

EXPLOSION HAZARD

• Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.

• Do not disconnect connections to this equipment unless power has been removed or the area is known to be nonhazardous. Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product.

• Substitution of components may impair suitability for Class I, Division 2.

• If this product contains batteries, they must only be changed in an area known to be nonhazardous.

• All wiring must comply with N.E.C. article 501-4(b).

• The interior of the enclosure must be accessible only by the use of a tool.

• For applicable equipment (relay modules, etc.), exposure to some chemicals may degrade the sealing properties of materials used in the following devices: Relays, Epoxy. It is recommended that the User periodically inspect these devices for any degradation of properties and replace the module if degradation is found.

Informations sur l’utilisation de cet équipement en environnements dangereux:

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne conviennent qu'à une utilisation en environnements de Classe I Division 2 Groupes A, B, C, D dangereux et non dangereux. Chaque produit est livré avec des marquages sur sa plaque d'identification qui indiquent le code de température pour les environnements dangereux. Lorsque plusieurs produits sont combinés dans un système, le code de température le plus défavorable (code de température le plus faible) peut être utilisé pour déterminer le code de température global du système. Les combinaisons d'équipements dans le système sont sujettes à inspection par les autorités locales qualifiées au moment de l'installation.

RISQUE D’EXPLOSION

• Couper le courant ou s’assurer que l’environnement est classé non dangereux avant de débrancher l'équipement.

• Couper le courant ou s'assurer qu e l'environnement est classé non dangereux avant de débrancher les connecteurs. Fixer tous les connecteurs externes reliés à cet équipement à l'aide de vis, loquets coulissants, connecteurs filetés ou autres moyens fournis avec ce produit.

• La substitution de composants peut rendre cet équipement inadapté à un e utilisation en environnement de Classe I, Division 2.

• S’assurer que l’environnement e st classé non dangereux avant de changer les piles.

Publication 1762-IN010C-EN-P - June 2013

MicroLogix 1762-IQ16 DC Input Module 5

Additional Resources

Resource Description

MicroLogix 1100 Programmable Controllers User Manual, publication 1763-UM001

MicroLogix 1200 Programmable Controllers User Manual, publication 1762-UM001

MicroLogix 1400 Programmable Controllers User Manual, publication 1766-UM001

MicroLogix 1100 Programmable Controllers Installation Instructions, publication 1763-IN001

MicroLogix 1200 Programmable Controllers Installation Instructions, publication 1762-IN006

MicroLogix 1400 Programmable Controllers Installation Instructions, publication 1766-IN001

Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

A more detailed description of how to install and use your MicroLogix 1100 programmable controller and expansion I/O system.

A more detailed description of how to install and use your MicroLogix 1200 programmable controller and expansion I/O system.

A more detailed description of how to install and use your MicroLogix 1400 programmable controller and expansion I/O system.

Information on installing and using the

MicroLogix 1100 programmable controller. Information on installing and using the

MicroLogix 1200 programmable controller. Information on installing and using the

MicroLogix 1400 programmable controller. More information on proper wiring and grounding

techniques.

If you would like a manual, you can:

• download a free electronic version from the Internet:

http://literature.rockwellautomation.com

• purchase a printed manual by contacting your local Allen-Bradley distributor or Rockwell Automation representative

Publication 1762-IN010C-EN-P - June 2013

6 MicroLogix 1762-IQ16 DC Input Module

ATTENTION

Debris strip

45163

Overview

The 1762 input module is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry

environments (Pollution degree 2

(3)

(IEC 60664-1)

Install your module using these installation instructions.

1762 Input Module

(1)

) and to circuits not exceeding Over Voltage Category II

(2)

(1)

(2)

(3)

Publication 1762-IN010C-EN-P - June 2013

Do not remove the protective debris strip until after the module and all other equipment in the panel near the module are mounted and wiring is complete. Once wiring is complete, remove protective debris strip. Failure to remove strip before operating can cause overheating.

Electrostatic discharge can damage semiconductor devices inside the module. Do not touch the connector pins or other sensitive areas.

Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that occasionally a temporary conductivity caused by condensation shall be expected.

Over Voltage Category II is the load level section of the electrical distribution system. At this level transient voltages are controlled and do not exceed the impulse voltage capability of the product’s insulation.

Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC) designations.

MicroLogix 1762-IQ16 DC Input Module 7

ATTENTION

Left side viewFront view

This equipment is sensitive to electrostatic discharge (ESD). Follow ESD prevention guidelines when handling this equipment.

45164

45165

Module Description

Description Description

1a Upper panel mounting tab 5 pull loop 1b Lower panel mounting tab 6 module door with terminal identification label 2 I/O diagnostic LEDs 7 bus connector cover 3 DIN rail latch 8 bus connector with male pins 4 flat ribbon cable with bus connector

9 terminal block

(female pins)

To comply with UL restrictions, this equipment must be powered from a source compliant with Class 2 or Limited Voltage/Current.

Publication 1762-IN010C-EN-P - June 2013

8 MicroLogix 1762-IQ16 DC Input Module

ATTENTION

45166

Measurements do not include mounting feet or DIN rail latches.

90 mm (3.5 in.)

87 mm (3.43 in.)

40.4 mm (1.59 in.)

Mount the Module

General Considerations

Most applications require installation in an industrial enclosure to reduce the effects of electrical interference and environmental exposure. Locate your controller as far as possible from power lines, load lines, and other sources of electrical noise such as hard-contact switches, relays, and AC motor drives. For more information on proper grounding guidelines, see the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Additional grounding connections from the power supply's mounting tabs or DIN rail (if used) are not required unless the mounting surface cannot be grounded. Refer to Industrial Automation Wiring and Grounding Guidelines, Allen-Bradley publication 1770-4.1 information.

Mounting Dimensions

, for additional

Publication 1762-IN010C-EN-P - June 2013

MicroLogix 1762-IQ16 DC Input Module 9

TIP

Top

Bottom

Side

44913

Side

45167

End anchor

Module Spacing

Maintain spacing from objects such as enclosure walls, wireways and adjacent equipment. Allow

50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

MicroLogix

1100/1200/1400

1762 I/O

DIN Rail Mounting

The module can be mounted using the following DIN rails: 35 x 7.5 mm (EN 50 022 - 35 x 7.5) or 35 x 15 mm (EN 50 022 - 35 x 15).

Before mounting the module on a DIN rail, close the DIN rail latch. Press the DIN rail mounting area of the module against the DIN rail. The latch will momentarily open and lock into place.

Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-EAH35) for vibration or shock environments.

For environments with greater vibration and shock concerns, use the panel mounting method described below, instead of DIN rail mounting.

Publication 1762-IN010C-EN-P - June 2013

10 MicroLogix 1762-IQ16 DC Input Module

TIP

90 (3.54)

100.06 (3.939)

40.4 (1.59)

14.2 (0.568)

MicroLogix

1100/1200/1400

1762 I/O

95 (3.74)

44914

For more than two I/O modules: measure (number of modules - 1) x 40 mm (1.59 in.)

NOTE: All dimensions are in mm (in.). Hole spacing tolerance: ±0.4 mm (0.016 in.).

45168

Bus connector covers

1762 expansion bus connector cover

Panel Mounting

Use the dimensional template shown below to mount the module. The preferred mounting method is to use two M4 (#8) panhead screws per module. M3.5 (#6) panhead screws may also be used, but a washer may be needed to ensure a good mechanical contact. Mounting screws are required on every module.

System Assembly

The expansion I/O module is attached to the controller or another I/O module by means of a flat ribbon cable after mounting as shown below.

Publication 1762-IN010C-EN-P - June 2013

Use the pull loop on the connector to disconnect modules. Do not pull on the ribbon cable.

MicroLogix 1762-IQ16 DC Input Module 11

WARNING

ATTENTION

WARNING

Field Wiring Connections

Grounding the Module

In solid-state control systems, grounding and wire routing helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw of the controller to the ground bus prior to connecting any devices. Use AWG #14 wire. For AC-powered controllers, this connection must be made for safety purposes.

You must also provide an acceptable grounding path for each device in your application. For more information on proper grounding guidelines, refer to the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

EXPLOSION HAZARD

• In Class I, Division 2 applications, the bus connector must be fully seated and the bus connector cover must be snapped in place.

• In Class I, Division 2 applications, all modules must be mounted in direct contact with each other as shown on page 10. If DIN rail mounting is used, an end anchor must be installed ahead of the controller and after the last 1762 I/O module.

To comply with the CE Low Voltage Directive (LVD), all connected I/O must be powered from a source compliant with the Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).

If you connect or disconnect wiring while the field-side power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

Publication 1762-IN010C-EN-P - June 2013

12 MicroLogix 1762-IQ16 DC Input Module

ATTENTION

IN 7

IN 5

IN 3

IN 1

IN 6

IN 4

IN 2

IN 0

24V DC

IN 15

IN 13

IN 11

IN 9

COM 0

IN 14

IN 12

IN 10

IN 8

24V DC

COM 1

+DC (sinking)

-DC (sourcing)

-DC (sinking) +DC (sourcing)

+DC (sinking)

-DC (sourcing)

-DC (sinking) +DC (sourcing)

44923

Input Wiring

Basic wiring of input devices to the 1762-IQ16 is shown below.

Basic Input Wiring to the 1762-IQ16 Module

Simplified Input Circuit Diagram

A write-on label is provided with the module. Mark the identification of each terminal with permanent ink, and slide the label back into the door.

Publication 1762-IN010C-EN-P - June 2013

VCC

ASIC Signal

GND

Sinking/Sourcing Inputs - Sourcing/sinking describes the current flow between the I/O module and the field device. Sourcing I/O circuits supply (source) current to sinking field devices. Sinking I/O circuits are driven by a current sourcing field device. Field devices connected to the negative side (DC Common) of the field power supply are sinking field devices. Field devices connected to the positive side (+V) of the field supply are sourcing field devices.

MicroLogix 1762-IQ16 DC Input Module 13

TIP

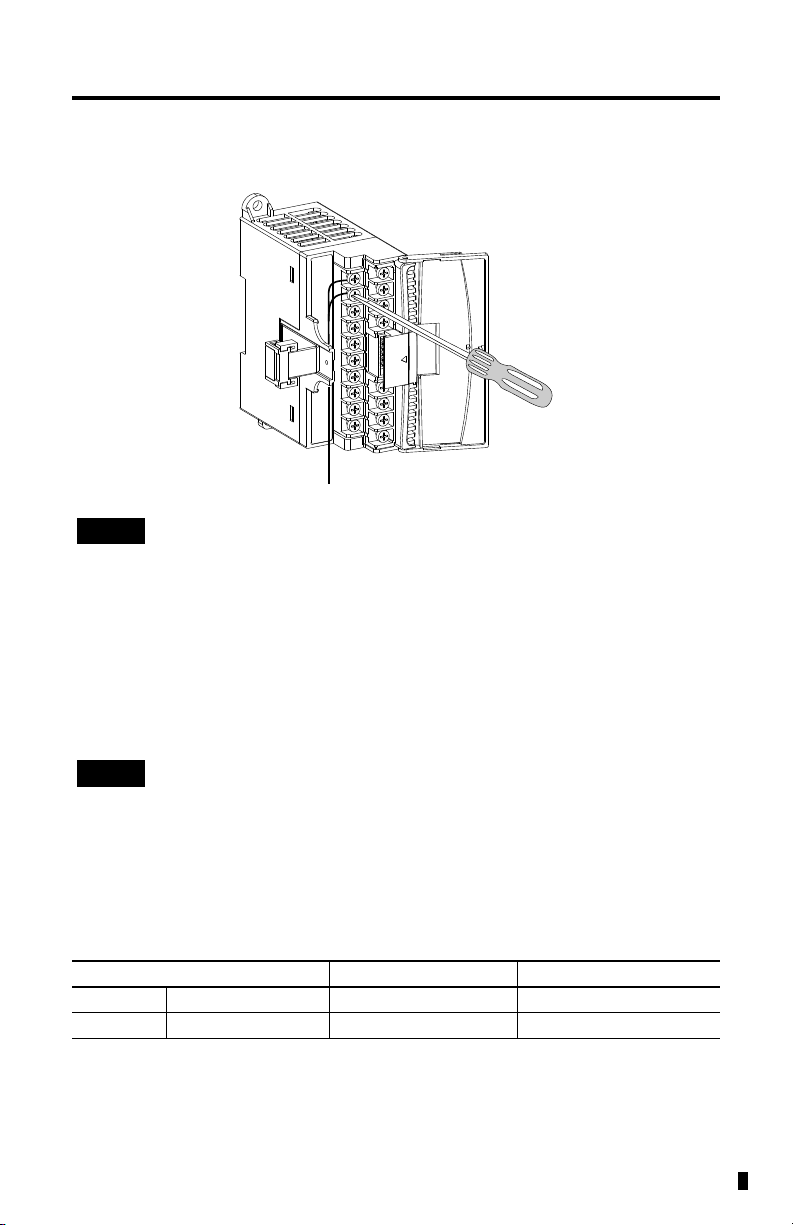

Wiring the Finger-Safe Terminal Block

Finger-safe cover not shown for clarity.

When wiring the terminal block, keep the finger-safe cover in place.

1. Route the wire under the terminal pressure plate. You can use the stripped end of the wire or a spade lug. The terminals will accept a 6.35 mm (0.25 in.) spade lug.

2. Tighten the terminal screw making sure the pressure plate secures the wire. Recommended torque when tightening terminal screws is 0.90 Nm (8 lb-in.).

If you need to remove the finger-safe cover, insert a screw driver into one of the square wiring holes and gently pry the cover off. If you wire the terminal block with the finger-safe cover removed, you will not be able to put it back on the terminal block because the wires will be in the way.

Wire Size and Terminal Screw Torque

Each terminal accepts up to two wires with the following restrictions:

Wire Type Wire Size Terminal Screw Torque

Solid Cu-90 °C (194 °F) #14…22 AWG 0.90 Nm (8 lb-in.) Stranded Cu-90 °C (194 °F) #16…22 AWG 0.90 Nm (8 lb-in.)

Publication 1762-IN010C-EN-P - June 2013

14 MicroLogix 1762-IQ16 DC Input Module

I1:x.0/0

Slot number

(1)

Data file

File Type Input (I)

Slot delimiter

Word delimiter

Bit delimiter

Bit (0...15)

Word (always 0 for this module)

(1)

I/O located on the controller (embedded I/O) is slot 0. I/O added to the controller (expansion I/O) begins with slot 1.

I/O Memory Mapping

Input Data File

For each input module, the input data file contains the current state of the field input points. Bit positions 0…15 correspond to input terminals 0…15.

Bit Position 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Word

0rrrrrrrrrrrrrrrr

r = read only

1762 Expansion I/O Addressing

The addressing scheme for 1762 Expansion I/O is shown below.

Publication 1762-IN010C-EN-P - June 2013

MicroLogix 1762-IQ16 DC Input Module 15

Specifications

General

Attribute Value

Dimensions, HxWxD 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.) Shipping weight, approx. 230g (8.11oz) Wire size See Wire Size and Terminal Screw Torque

Wiring category Pilot duty rating Not rated Enclosure type rating IP20 North American temp code T3C

(1)

Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

(1)

2 - on signal ports

on page 13

Input

Attribute Value

Voltage category Operating voltage range 10…30V DC

Number of inputs 16 Bus current draw, max 70 mA @ 5V DC (0.35 W) Heat dissipation, max. 5.4 Total Watts @ 30V DC

Signal delay, max On Delay: 8.0 ms

Off-State voltage, max 5V DC Off-State current, max 1.5 mA On-State voltage, min 10V DC On-State current 2.0 mA min @ 10V DC

Nominal impedance 3K ohm IEC input compatibility Type 1 Isolated groups Group 1: inputs 0…7; Group 2: inputs 8…15 Input group to backplane Isolation Verified by one of the following dielectric tests: 1200V AC for 1s or

24V DC (sink/source)

10…26.4V DC. See Derating Charts on page 17

4.3 Total Watts @ 26.4V DC

Off Delay: 8.0 ms

8.0 mA nom @ 24V DC

12.0 mA max @ 30V DC

1697V DC for 1s 75V DC working voltage (IEC Class 2 reinforced insulation)

(1)

Publication 1762-IN010C-EN-P - June 2013

16 MicroLogix 1762-IQ16 DC Input Module

Input

Attribute Value

Vendor I.D. Code 1 Product type code 7 Product code 97

(1)

Environmental

Attribute Value

Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold),

IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock):

-20... 65 °C (-4...149 °F) See Derating Charts on page 17

Temperature, storage IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold),

IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock):

-40…85 °C (-40…185 °F)

Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):

5...95% non-condensing

Vibration IEC 60068-2-6 (Test Fc, Operating):

5 g @ 10... 500 Hz Altitude, operating, max 2000 m (6562 ft) Shock, operating IEC 60068-2-27 (Test Ea, Unpackaged Shock):

30 g Shock, nonoperating IEC 60068-2-27 (Test Ea, Unpackaged Shock):

Panel mount - 50 g

DIN mount - 40 g Emissions CISPR 11

Group 1, Class A ESD immunity IEC 61000-4-2:

4 kV contact discharges

8 kV air discharges

4 kV indirect Radiated RF immunity IEC 61000-4-3:

10V/m with 1 kHz sine-wave 80% AM from 80…2700 MHz

Publication 1762-IN010C-EN-P - June 2013

MicroLogix 1762-IQ16 DC Input Module 17

Environmental

Attribute Value

EFT/B immunity IEC 61000-4-4:

±2 kV at 5 kHz on signal ports Surge transient immunity IEC 61000-4-5:

Conducted RF immunity IEC 61000-4-6:

±1 kV line-line(DM) and ±2 kV line-earth(CM) on signal ports

10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz

Derating Charts for each input for 1762-IQ16 Input Module

Publication 1762-IN010C-EN-P - June 2013

18 MicroLogix 1762-IQ16 DC Input Module

Certifications

Certification (when product is marked)

Value

(1)

c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File

E322657.

UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for

U.S. and Canada. See UL File E334470.

CE European Union 2004/108/EC EMC Directive, compliant with:

EN 61326-1; Meas./Control/Lab., Industrial Requirements EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)

C-Tick Australian Radiocommunications Act, compliant with:

AS/NZS CISPR 11; Industrial Emissions

KC Korean Registration of Broadcasting and Communications Equipment,

compliant with: Article 58-2 of Radio Waves Act, Clause 3

(1)

See the Product Certification link at http://www.rockwellautomation.com/products/certification for Declaration of Conformity, Certificates, and other certification details.

Publication 1762-IN010C-EN-P - June 2013

Notes:

MicroLogix 1762-IQ16 DC Input Module 19

Publication 1762-IN010C-EN-P - June 2013

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products. At

http://www.rockwellautomation.com/support/

technical and application notes, sample code and links to software service packs, and a MySupport feature that you can customize to make the best use of these tools.

For an additional level of technical phone support for installation, configuration and troubleshooting, we offer TechConnect support programs. For more information, contact your local distributor or Rockwell Automation representative, or visit http://www.rockwellautomation.com/support/

, you can find technical manuals, a knowledge base of FAQs,

Installation Assistance

If you experience a problem within the first 24 hours of installation, please review the information that's contained in this manual. You can also contact a special Customer Support number for initial help in getting your product up and running.

United States or

1.440.646.3434

Canada Outside United

States or Canada

Use the Worldwide Locator

http://www.rockwellautomation.com/support/americas/phone_en.html, or

contact your local Rockwell Automation representative.

New Product Satisfaction Return

Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

United States Contact your distributor. You must provide a Customer Support case

number (call the phone number above to obtain one) to your distributor to complete the return process.

Outside United States Please contact your local Rockwell Automation representative for the

return procedure.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication RA-DU002

http://www.rockwellautomation.com/literature/

Allen-Bradley, Rockwell Automation, MicroLogix, and TechConnect are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

, available at

Publication 1762-IN010C-EN-P - June 2013

Rockwell Automation 1762-IQ16 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

North American Hazardous Location Approval

Additional Resources

Overview

Module Description

Mount the Module

Grounding the Module

Wiring the Finger-Safe Terminal Block

Wire Size and Terminal Screw Torque

Specifications
