Quectel Wireless Solutions 16182009002 User Manual
Quectel
M10
Quectel Cellular Engine
M10 User Guide
M10_User_Guide_V1.00 - 1 -
Quectel
Document Title
Version
Date
Status
Document Control ID
General Notes
Quectel offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Quectel. The information provided is
based upon requirements specifically provided to Quectel by the customers. Quectel has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Quectel within a larger electronic system remains the responsibility of the
customer or the customer’s system integrator. All specifications supplied herein are subject to
change.
Copyright
This document contains proprietary technical information which is the property of Quectel
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of a
utility model or design. All specification supplied herein are subject to change without notice at
any time.
Copyright © Shanghai Quectel Wireless Solutions Co., Ltd. 2009
M10 User Guide
1.00
2009-06-27
Release
M10_User_Guide_V1.00
M10_User_Guide_V1.00 - 2 -
Quectel
1 .EVB kit introduction
1.1 EVB top and bottom view
Figure 1: EVB top view
M10_User_Guide_V1.00 - 3 -
Quectel
Figure 2: EVB bottom view
A: Debug port
B: Main UART port
C: Test points
D: Adapter interface
E: Module operating status indication LEDs
F: PWRKEY button
G: EMERG_OFF button
H: VBAT switch
I: VCHG switch (charge function)
J: Download switch
K: Connector for M10-TE-A board
L: Screw holes for fixing the M10-TE-A
M: Headset socket
N: Handset socket of audio channel 2
O: Handset socket of audio channel 1
P: Antenna connector fixing hole
Q: Screw holes for EVB placement

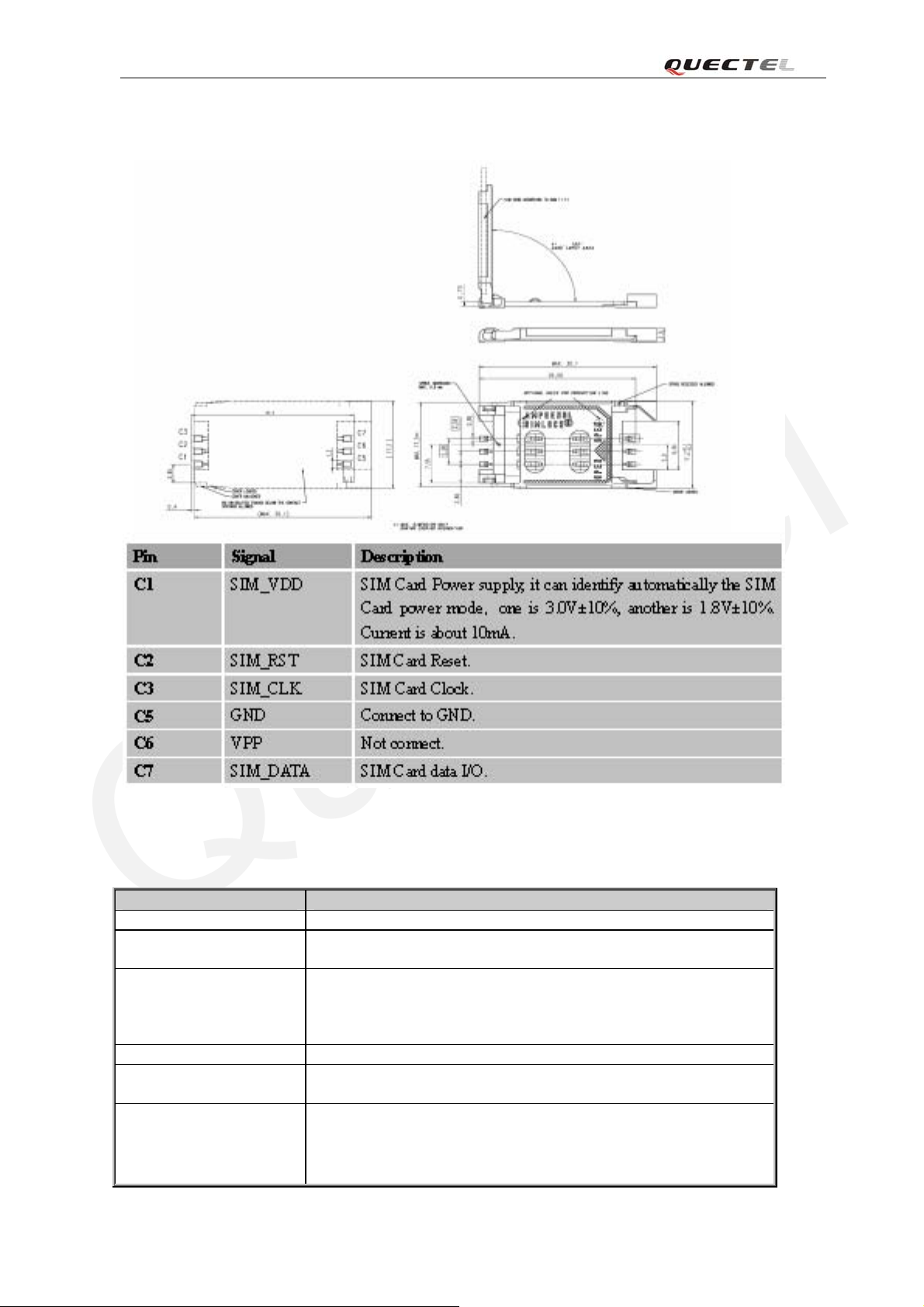

R: SIM card socket
1.2 EVB accessory
Figure 3: Accessory introduction
A: 5V DC switching adapter
B: USB to UART converter cable
C: Antenna
D: RF cable
E: Headset
M10_User_Guide_V1.00 - 4 -
Quectel
F: Bolts and nuts for fixing module and EVB
Figure 4: EVB and accessories
2.Operational description
2.1 Tune up procedure
Firstly，please equip the module and accessories as the figure 4.
M10_User_Guide_V1.00 - 5 -
Quectel
Then ,switching the H switch to ON state, J switch to ON state； Press the F button PWRKEY for about
2 second, then the LED glint，and the module is tuningup successfully；( the location of All Switches and
buttons please see the Figure 1)
2. M10 features

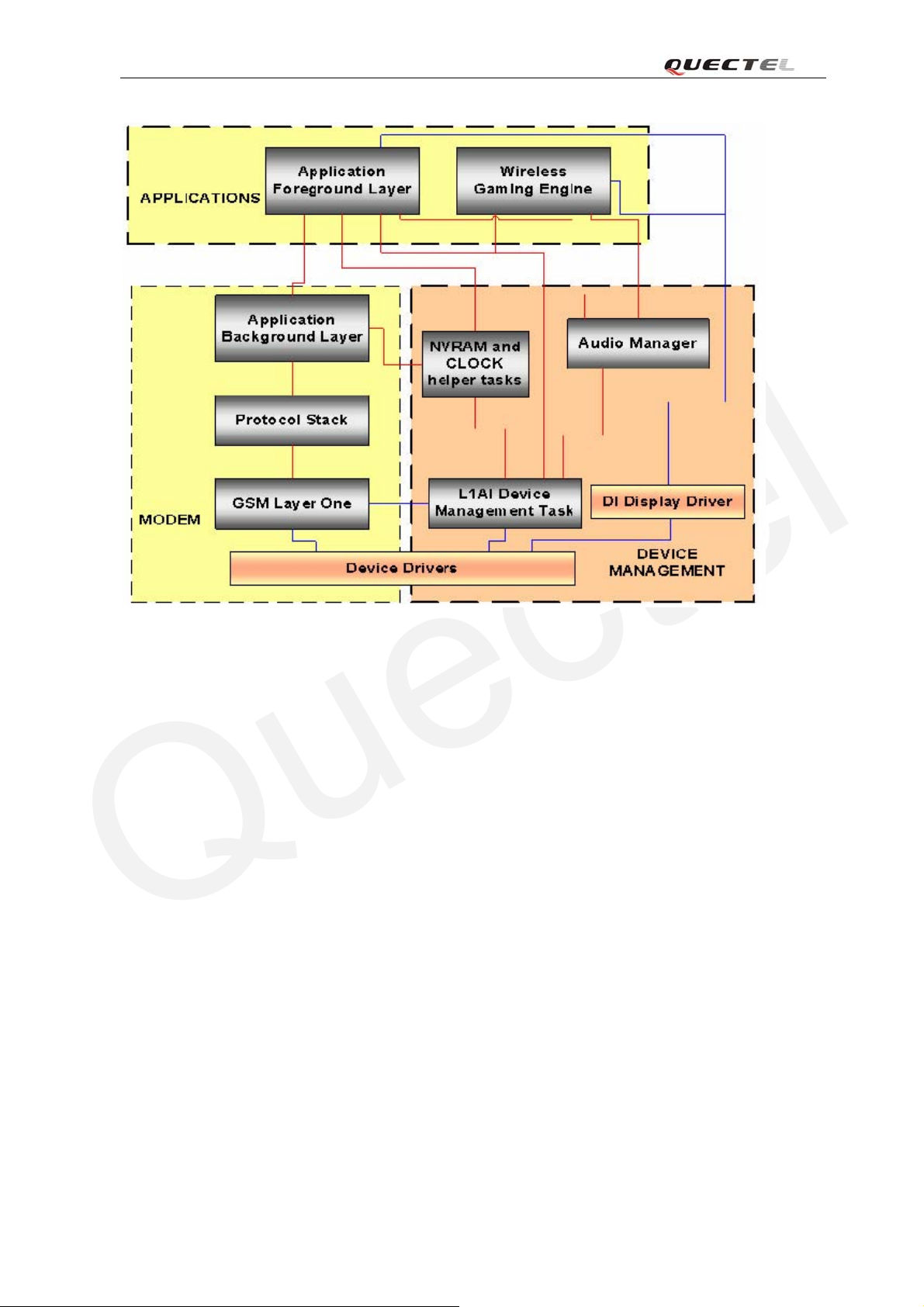

2.2.1 General specification
M10 is a Quad-band GSM/GPRS module delivers GSM/GPRS 850/900/1800/1900MHz performance for
voice, SMS, Data, and Fax in a small form factor and with low power consumption. M10 can be used for WLL
applications/M2M application and much more.
Quad- band GSM/GPRS module with a size of 29x29x3.6mm
● Customized MMI and keypad/LCD support
● An embedded Powerful TCP/IP protocol stack
● Supply voltage range 3.4 ... 4.5 V
● Normal Operation Temperature: -35°C ~80°C
● GPRS multi-slot Class 12
● GSM R99
2.2.2 Hardware Specification

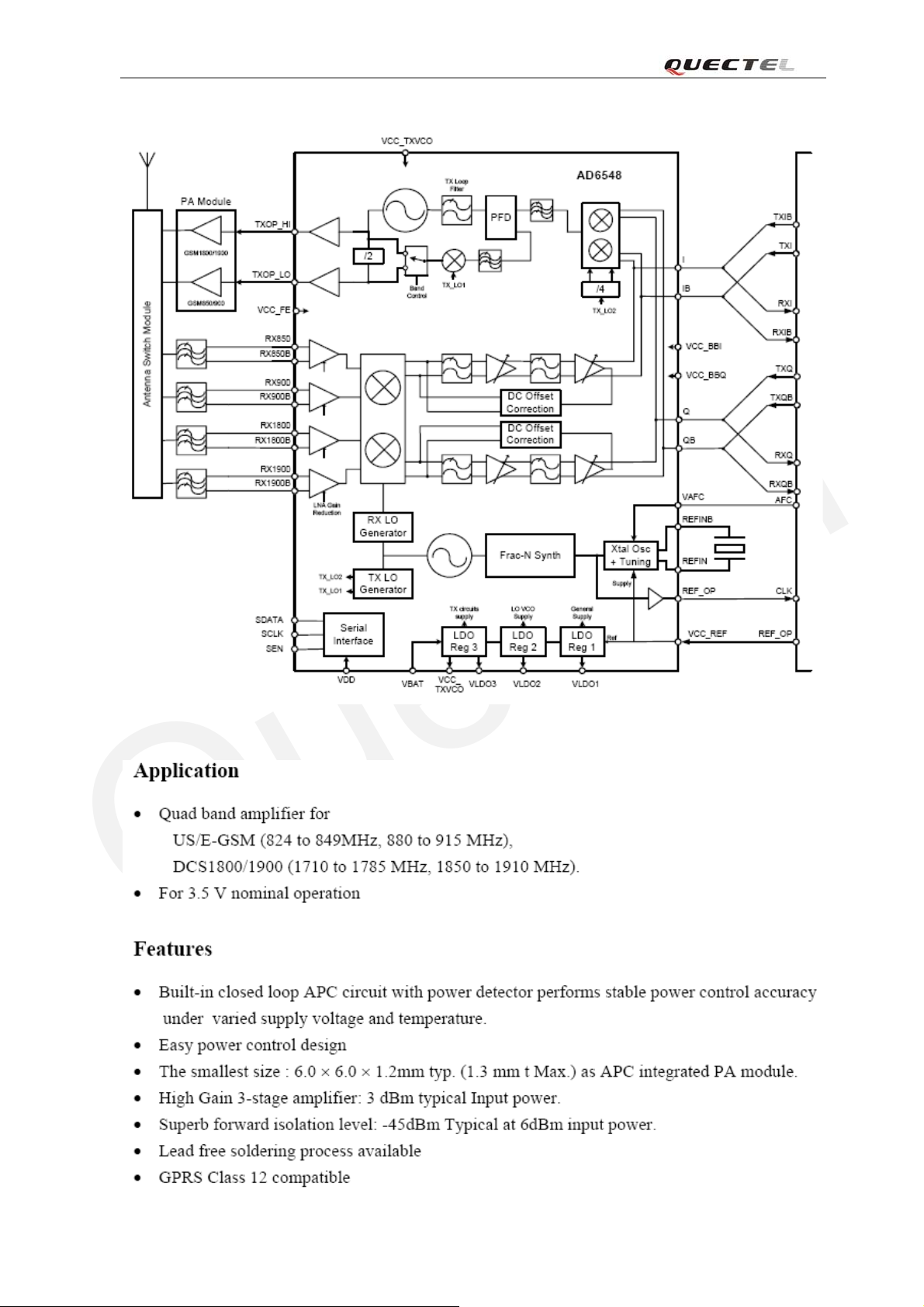

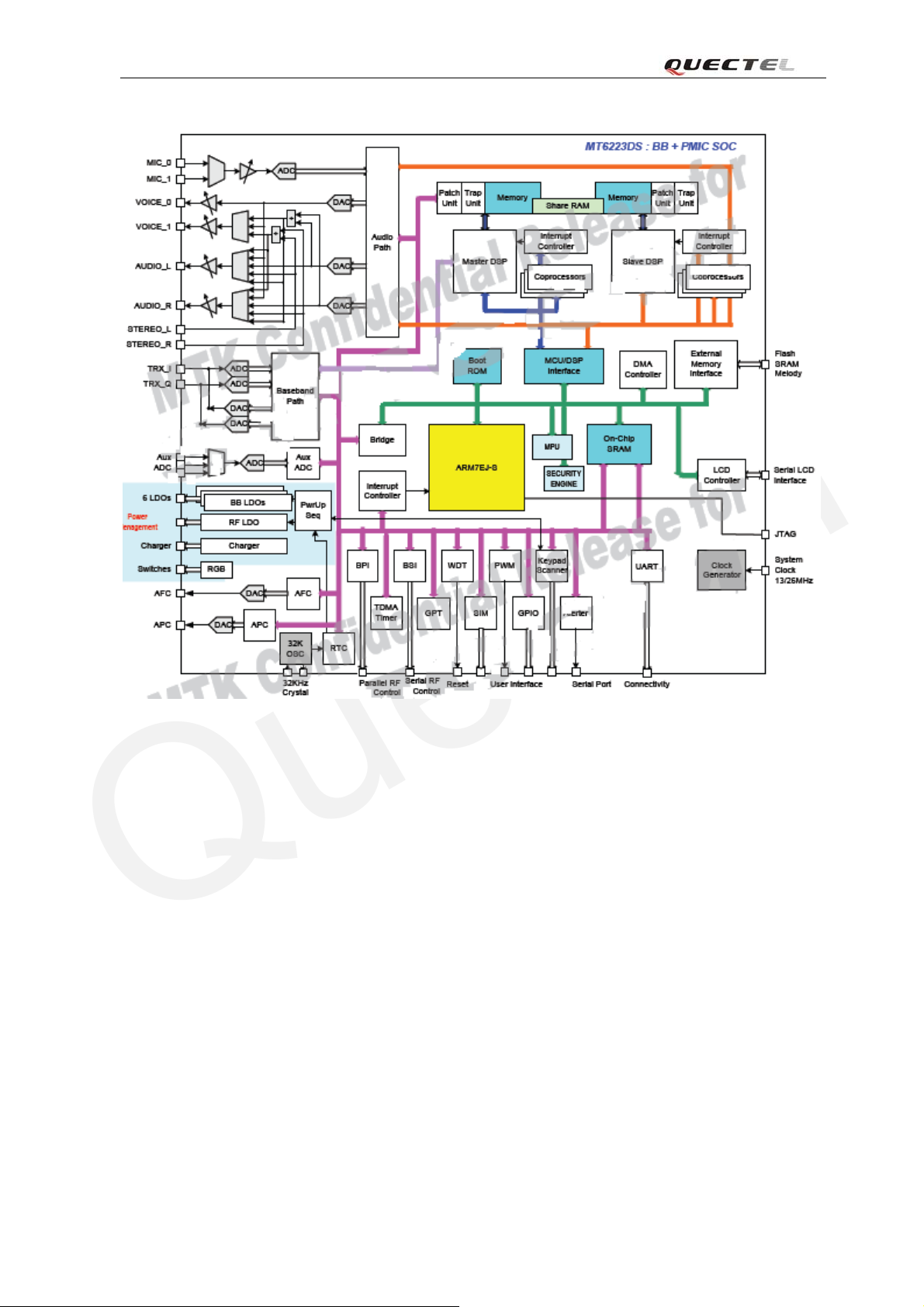

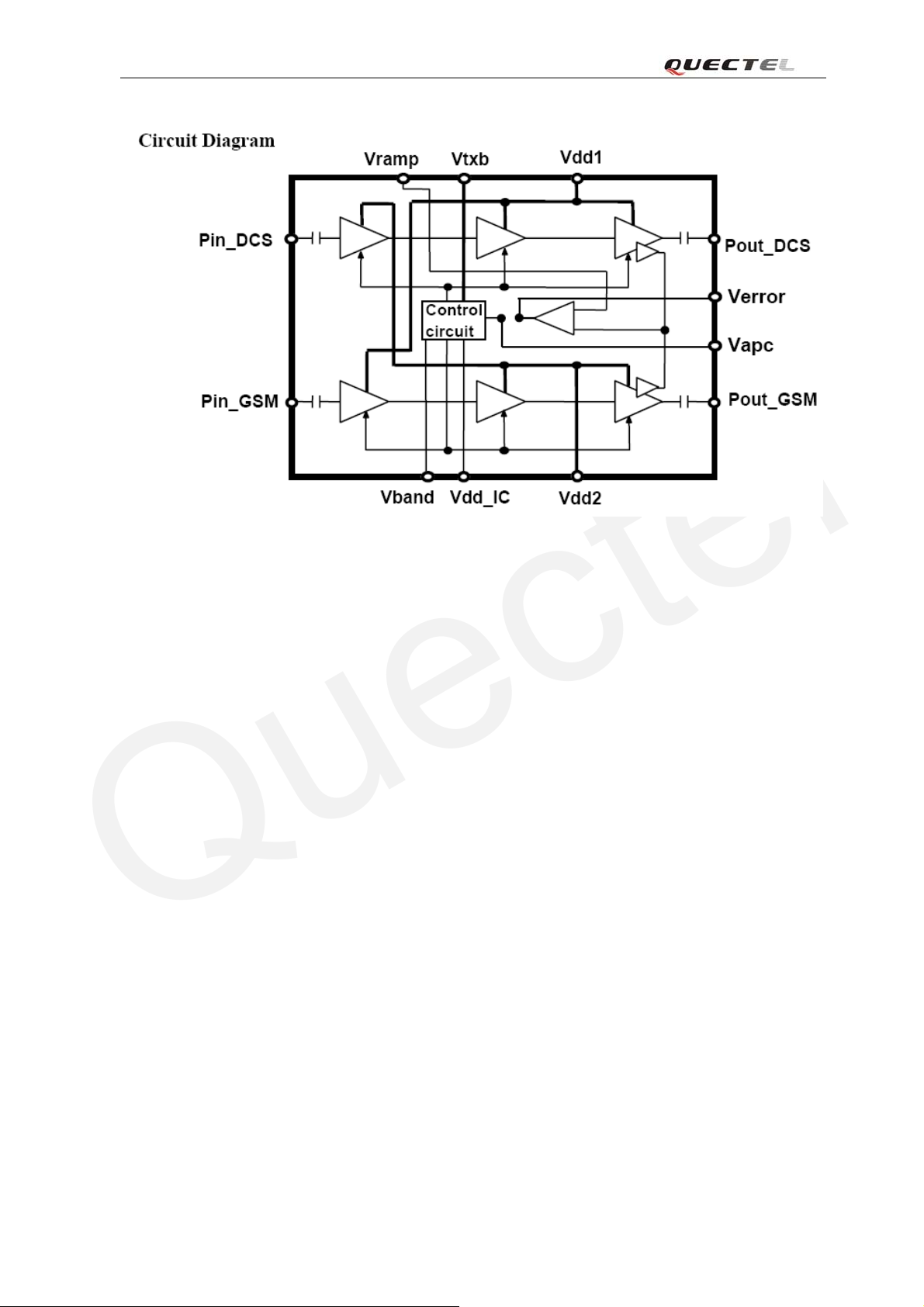

The hardware block diagram for M10 is shown as below:
M10_User_Guide_V1.00 - 6 -
