Prology DVD-200 Service manual

R

MOBILE VIDEO SYSTEM

POWER

PROLOGY

IR

MODEL: DVD-200

Note:

Multi-subtitle Language Function
Multi-audio Language Function

STOP

EJECT

PLAY/PAUSE

Multi-angle Function
Parental Control

Saturn High-Tech, Inc.,

CONTENTS

Page

Disassembly Instructions ..................................................................................................................................3

Disassembly Diagram.......................................................................................................................................4

Block Diagram ..................................................................................................................................................5

Printed Circuit Board.........................................................................................................................................6

Wiring Diagram ............................................................................................................................................... 11

Exploded View ..............................................................................................................................................12

Exploded View Parts List ..............................................................................................................................13

Schematic Diagram ........................................................................................................................................14

Electrical Parts List .........................................................................................................................................19

Specifications.................................................................................................................................................. 23

2

DISASSEMBLY INSTRUCTIONS

1. Remove two screws (A) from each side of the top cabinet and remove three screws (B) located on the rear of

the top cabinet then remove the Top Cabinet.

2. Remove four screws (C) located on the under the bottom cabinet then remove four Rubber Foot.

4. Remove two screws (D) located on the under the bottom cabinet and remove two screws (E) from each side

of the top panel then remove the Top Panel.

5. Remove two screws (F) from the deck front bracket and remove two screws (G) from the deck rear bracket

then remove the Main Board and the Bottom Cabinet.

6. Remove two screws (H) from the deck front bracket then remove the Deck Front Bracket.

7. Remove two screws (I) from the deck rear bracket then remove the Deck and the Deck Rear Bracket.

3

DISASSEMBLY DIAGRAM

4

BLOCK DIAGRAM

5

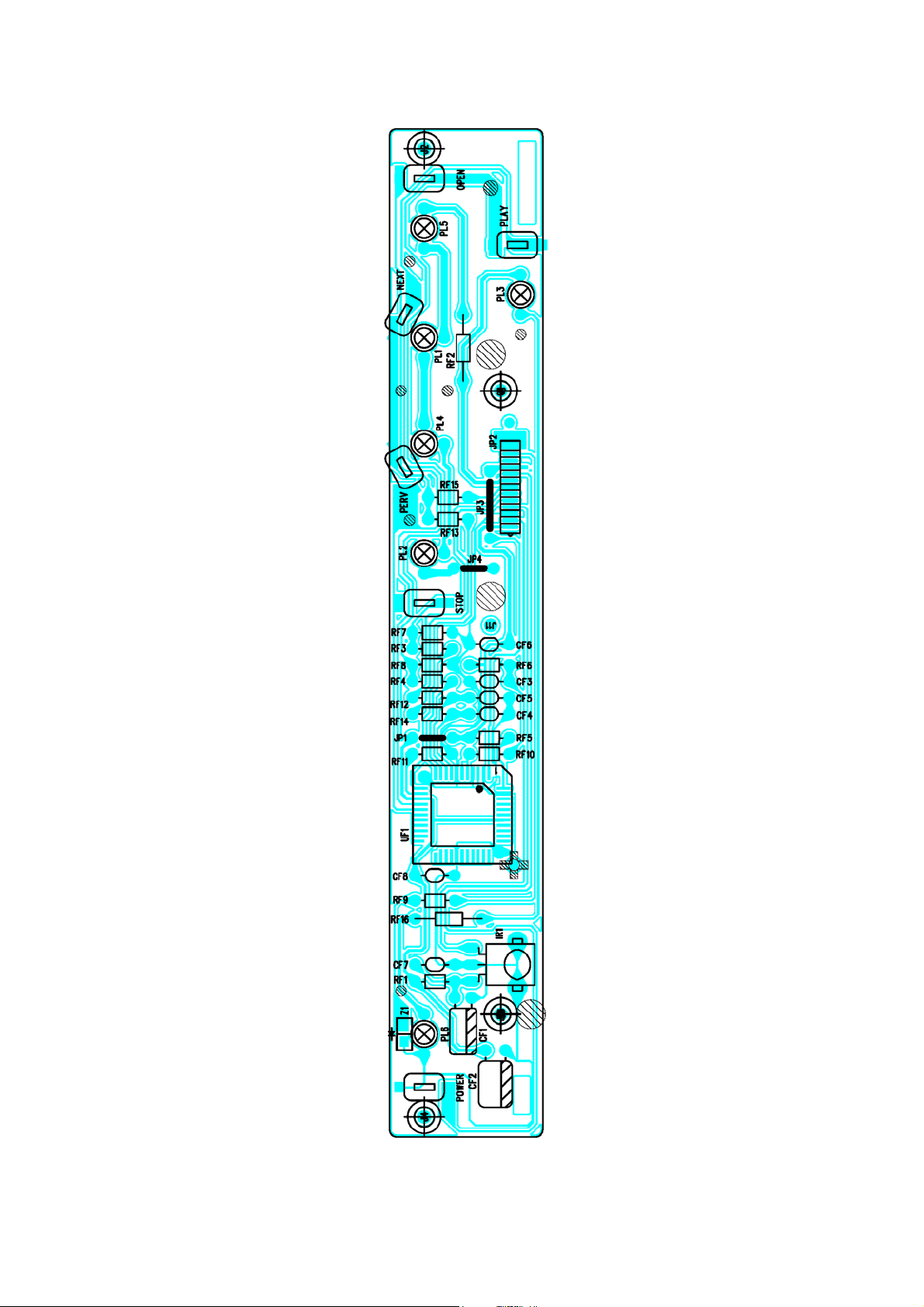

MAIN BOARD

PRINTED CIRCUIT BOARDS

TOP VIEW

6

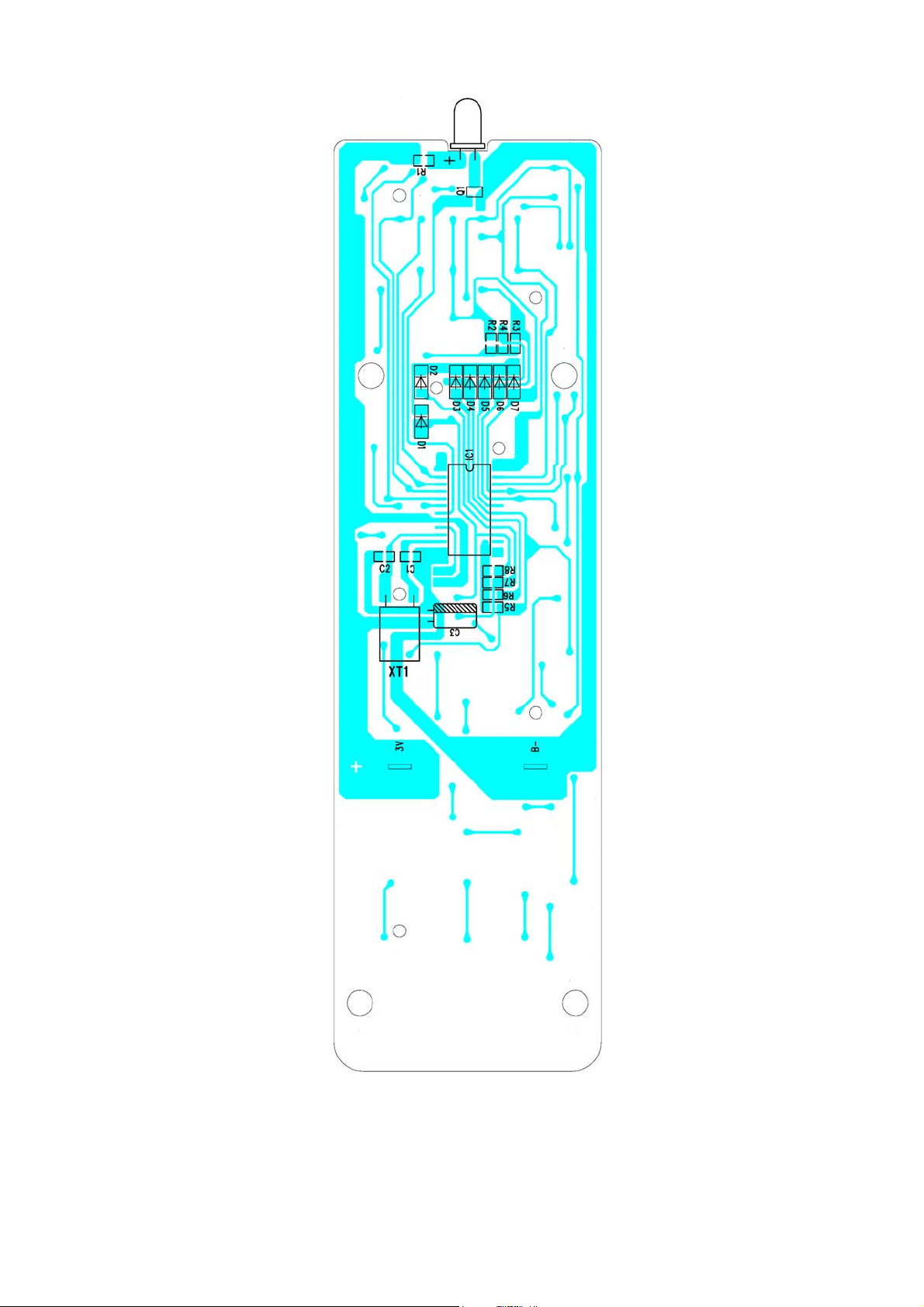

MAIN BOARD

BOTTOM VIEW

7
