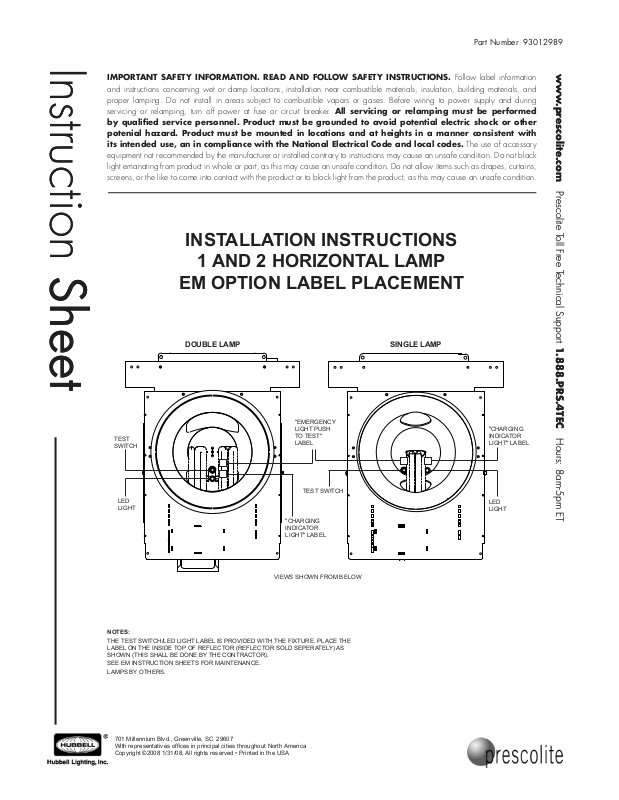

Instruction Sheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW SAFETY INSTRUCTIONS. Follow label information and instructions concerning wet or damp locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed

by qualiﬁed service personnel. Product must be grounded to avoid potential electric shock or other potenial hazard. Product must be mounted in locations and at heights in a manner consistent with its intended use, an in compliance with the National Electrical Code and local codes. The use of accessory

equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not black light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens, or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

INSTALLATION INSTRUCTIONS

1 AND 2 HORIZONTAL LAMP

EM OPTION LABEL PLACEMENT

Part Number 93012989

www.prescolite.com Prescolite Toll Free Technical Support 1.888.PRS.4TEC Hours: 8am-5pm ET

DOUBLE LAMP

"EMERGENCY LIGHT PUSH

TEST SWITCH

LED LIGHT

NOTES:

THE TEST SWITCH/LED LIGHT LABEL IS PROVIDED WITH THE FIXTURE. PLACE THE LABEL ON THE INSIDE TOP OF REFLECTOR (REFLECTOR SOLD SEPERATELY) AS SHOWN (THIS SHALL BE DONE BY THE CONTRACTOR).

SEE EM INSTRUCTION SHEETS FOR MAINTENANCE. LAMPS BY OTHERS.

TO TEST" LABEL

TEST SWITCH

"CHARGING INDICATOR LIGHT" LABEL

VIEWS SHOWN FROM BELOW

SINGLE LAMP

"CHARGING INDICATOR LIGHT" LABEL

LED LIGHT

701 Millennium Blvd., Greenville, SC 29607
