InstructionSheet
Part No...........................................
www.prescolite.com Prescolite Toll Free Technical Support 1.888.PRS.4TEC Hours: 8am - 5pm ET
other potential hazard.
y
r
g
ht from the product, as this may cause an unsafe condition.
93040525
–
This product contains chemicals known to the State of California to cause cancer, birth defects and/or othe
r
ghly
wash your hands after installing, handling, cleaning, or otherwise touching this product.

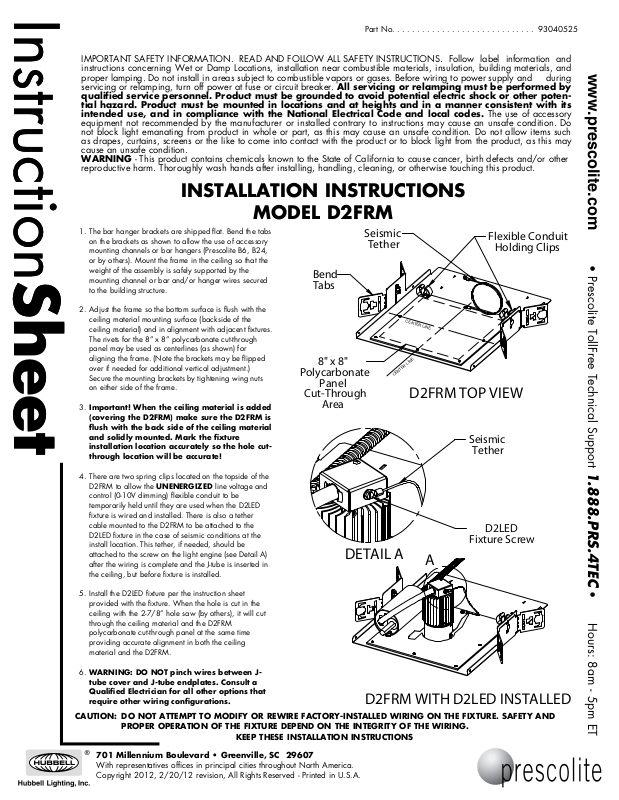

INSTALLATION INSTRUCTIONS
MODEL D2FRM
InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its
intended use, and in compliance with the National Electrical Code and local codes. The use of accessory
equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do
not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such
as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may
cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
1. The bar hanger brackets are shipped flat. Bend the tabs
on the brackets as shown to allow the use of accessory
mounting channels or bar hangers (Prescolite B6, B24,
or by others). Mount the frame in the ceiling so that the
weight of the assembly is safely supported by the
mounting channel or bar and/or hanger wires secured
to the building structure.
2. Adjust the frame so the bottom surface is flush with
ceiling material mounting surface (backside of the
ceiling material) and in alignment with adjacent fixtures.
The rivets for the 8” x 8” polycarbonate cut-through
panel may be used as centerlines (as shown) for
aligning the frame. (Note the brackets may be flipped
over if needed for additional vertical adjustment.)
Secure the mounting brackets by tightening wing nuts
on either side of the frame.
3. Important! When th
(covering the D2FRM) make sure the D2FRM is
flush with the back side of the ceiling material
and solidly mounted. Mark the fixture
installation location accurately so the hole cutthrough location will be accurate!
4. There are two spring clips located on the topside of the
D2FRM to allow the UNENERGIZED line voltage and
control (0-10V dimming) flexible conduit to be
temporarily held until they are us
fixture is wired and installed. There is also a tether
cable mounted to the D2FRM to be attached to the
D2LED fixture in the case of seismic conditions at the
install location. This tether, if needed, should be
attached to the screw on the light engine (see Detail A)
after the wiring is complete and the J-tube is inserted in
the ceiling, but before fixture is installed.
5. Install the D2LED fixture per the instruction sheet
provided with the fixture. When the hole is cut in the
ceiling with the 2-7/8” hole saw (by others), it will cut
through the ceiling material and the D2FRM
polycarbonate cut-through panel at the same time
providing accurate alignment in both the ceiling
material and the D2FRM.
6. WARNING: DO NOT pinch wires between J-
tube cover and J-tube endplates. Consult a
Qualified Electrician for all other options that
re
quire oth
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND
e ceiling material is added
er wiring configurations.
PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93040525
INSTALLATION INSTRUCTIONS
MODEL D2FRM
Bend
Tabs
the
8" x 8"
Polycarbonate
Panel
Cut-Through
Area
ed when the D2LED
KEEP THESE INSTALLATION INSTRUCTIONS
Seismic
Tether
C
E
N
T
E
R
L
I
N
E
E
N
I
L
R
E
T
N
E
C
D2FRM TOP VIEW
DETAIL A
A
D2FRM WITH D2LED INSTALLED
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
Flexible Conduit
Holding Clips
Seismic
Tether
D2LED
Fixture Screw
701 Millennium Boulevard • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2012, 2/20/12 revision, All Rights Reserved - Printed in U.S.A.
