Pioneer VSX-D1011-G, VSX-D1011-K, VSX-D1011-S Operating Instruction

AUDIO/VIDEO MULTI-CHANNEL
RECEIVER

VSX-D1011-S
VSX-D1011-K
VSX-D1011-G

Operating Instructions

NOTE:

Thank you for buying this Pioneer product.
Please read through these operating instructions
so you will know how to operate your model
properly. After you have finished reading the
instructions, put them away in a safe place for
future reference.

THE NO USER-SERVICEABLE PARTS COMPARTMENT WARNING IS LOCATED ON THE APPLIANCE BONNET

Installing the Receiver

VENTILATION: When installing this unit,

make sure to leave space around the unit for
ventilation to improve heat radiation (at least 60
cm at top, 10 cm at rear, and 30 cm at each side).

WARNING: Slot and openings in the cabinet

are provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating, to prevent fire hazard, the openings
should never be blocked and covered with items,
such as newspapers, tablecloths, curtains, etc.
Also do not put the apparatus on the thick carpet,
bed, sofa, or fabric having a thick pile.

H040 En

2

En

TWO VOLTAGE SELECTOR

Operating Environment
SWITCHES (multi-voltage
model only)

Only multi-voltage model is provided with these
switches. Mains voltages in Saudi Arabia are 127
V and 220 V only. Never use this model with the
110 V setting in Saudi Arabia.

Only multi-voltage model is provided with
this(these) switch(switches).
European models are not pro-vided with these
switches.

The line voltage selector switches are on the rear
panel. Check that they are set properly before
plugging the power cord into the household wall
socket. If the voltage is not properly set or if you
move to an area where the voltage requirements
differ, adjust the selector switches as follows.

1. Use a medium-size screwdriver.

2. First, insert the screwdriver in the groove of the

larger voltage selector, and adjust so that the tip
of the groove points to the voltage value of your
area.

3. Next, insert the screwdriver in the groove of the

amaller voltage selector and adjust until the
voltage is the same as at the larger one.

Operating environment temperature and

humidity:

+5°C – +35°C (+41°F – +95°F); less than 85%RH

(cooling vents not blocked)

Do not install in the following locations

• Location exposed to direct sunlight or strong
artificial light

• Location exposed to high humidity, or poorly
ventilated location H045 En

[For European model]

TWO VOLTAGE SELECTORS

220V

110V

120−127V

110V
120-127V

CAUTION 220 V
Power source voltage is factory adjusted 220 volts. If
your area is different, change voltage selectors settings.

230
240V

220V
230-240V

3

En

Table of Contents

Features ................................................. 6

Before You Start ....................................7

Checking the Supplied Accessories ........................... 7

Preparing the Remote Control .................................... 7

Loading the batteries ............................................. 7

Operating range of remote control unit ............... 8

Installing the Receiver ................................................. 8

Opening the Front Panel ............................................. 8

Easy Setup Guide Part 1 ....................... 9

Home Theater: The Basics .......................................... 9

1) Your Home System ............................................ 9

2) The Source Material ........................................... 9

3) The Listening Modes .......................................... 9

Conclusion .............................................................. 9

1 Hooking Up Your DVD Player & TV ..................... 10

Digital Connections .............................................. 10

2 Speaker Connections ........................................... 11

3 Setting up the Main Unit ...................................... 12

4 Assigning the Digital Inputs ................................ 12

Easy Setup Guide Part 2 ..................... 13

1 QUICK Setup ......................................................... 13

2 Playing a DVD with Surround Sound ................. 14

Connecting Your Equipment .............. 15

Connecting your TV ................................................... 15

Connecting Video Components ................................ 16

Connecting a DVD player ..................................... 16

Connecting VCRs or DVRs ................................... 17

Connecting a Video Component

to the Front Panel ................................................. 17

Connecting Satellite TV (SAT) Components ...... 18

Connecting Analog Audio Components .................. 19

Connecting to the Multi Channel Analog Inputs

(DVD-Audio or Super Audio CD (SACD) compatible

player) .............................................................................

Connecting Digital Audio Components ................... 21

Digital Input Default Settings .............................. 22

Connecting the Radio Antennas ............................... 23

Using outdoor antennas ...................................... 23

Connecting Speakers ................................................. 24

Speaker impedance .............................................. 25

Placing Your Speakers ............................................... 26

Speaker placement ............................................... 26

AC Power Cord ........................................................... 26

AC Outlet [switched 100W max]

(European model only).............................................. 26

20

Displays & Controls ............................ 27

Display ........................................................................ 27

Front Panel ................................................................. 28

Remote Control .......................................................... 30

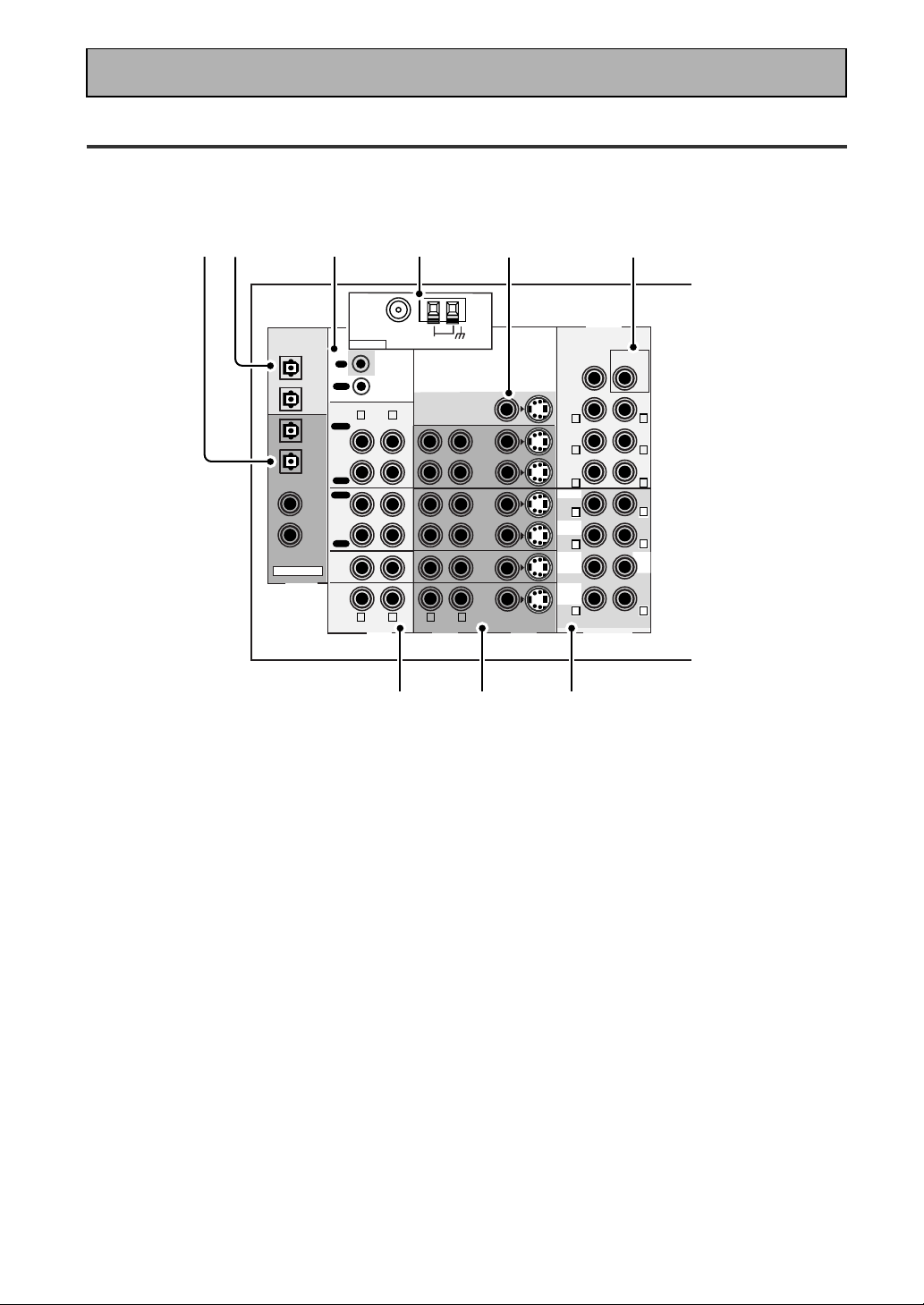

Back Panel .................................................................. 32

Setting Up for Surround Sound ........ 34

SURRBACK SYSTEM (Surround Back System) ...... 35

NORMAL setup .......................................................... 36

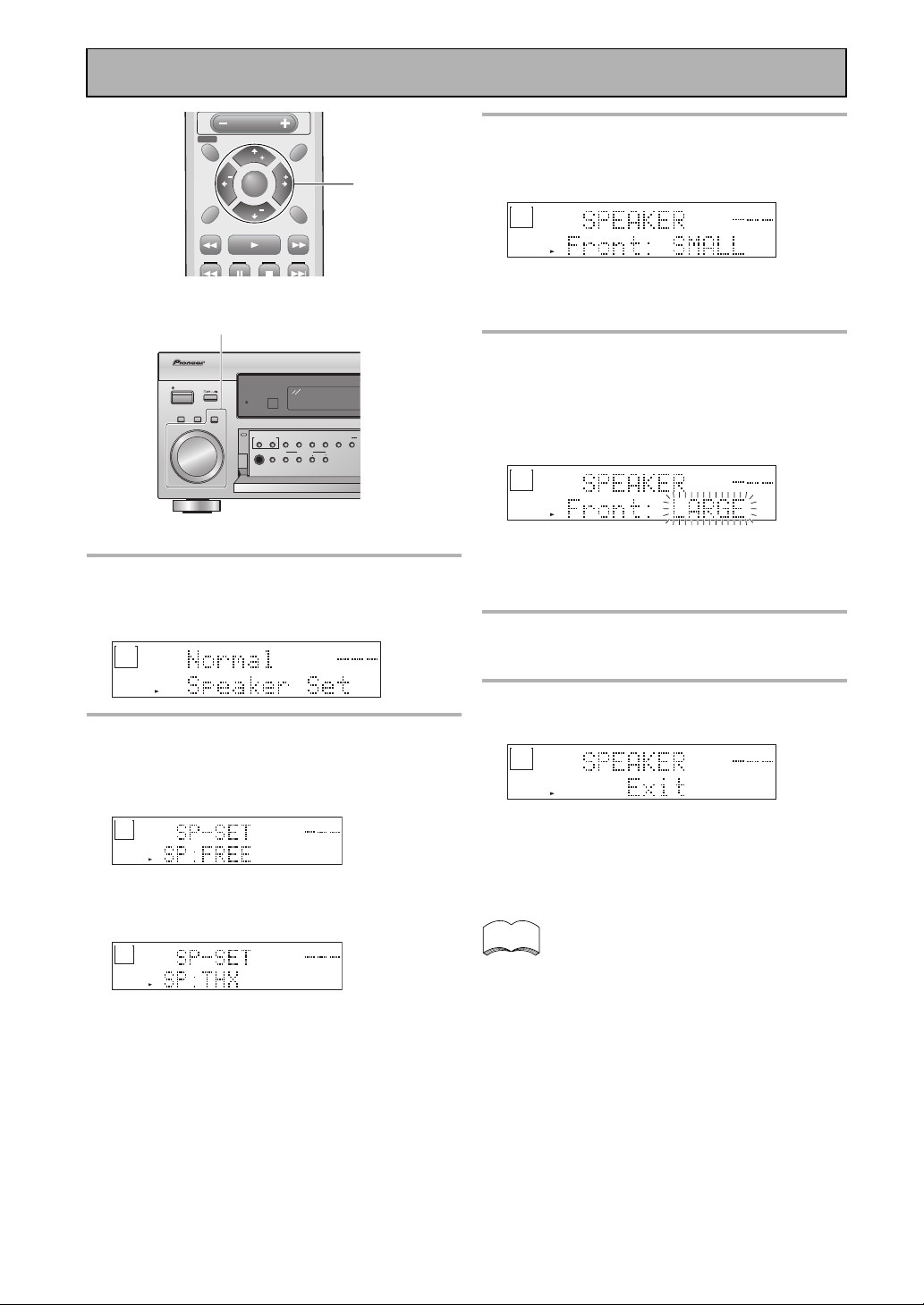

SPEAKER SETTING .............................................. 37

CHANNEL LEVEL (channel balance) ................... 39

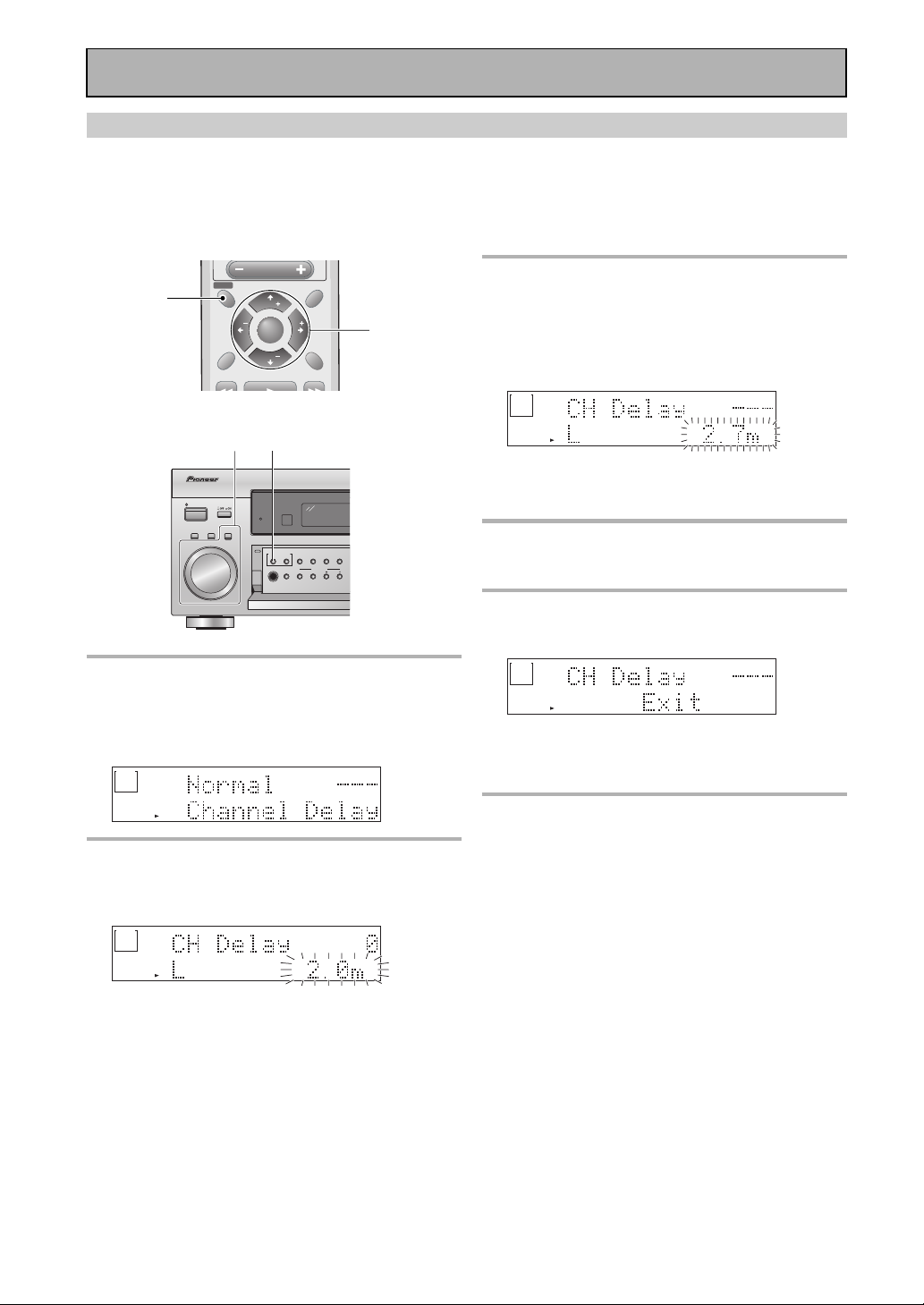

CHANNEL DELAY ................................................. 40

Basic Operation ...................................41

Stereo and Multichannel Playback ........................... 41

Switching ANALOG/DIGITAL Signal Input ......... 42

Listening Modes ........................................................ 43

STEREO modes ..................................................... 43

MOVIE modes (SURROUND mode) .................... 44

MUSIC modes (SURROUND mode) .................... 45

Adjusting the Effect of a Listening Mode ........... 46

Adding/Adjusting the Effect in

Dolby Pro Logic II Music Mode ........................... 46

Listening with ACOUSTIC CALIBRATION EQ .......... 47

Reducing Noise During Playback

(DIGITAL NR Function) .............................................. 47

Listening in MIDNIGHT Mode ................................... 48

Listening in LOUDNESS Mode ................................. 48

Adjusting Bass and Treble (TONE CONTROL) ........ 49

Listening in HI–BIT/SAMPLING Mode ...................... 50

DVD-Audio/MULTI CHANNEL IN Playback .............. 50

SB CH MODE button .................................................. 51

SB CH MODE ......................................................... 51

VIRTUAL SURROUND BACK Mode..................... 51

DUAL MONO setting and Playback .......................... 52

Using Headphones .................................................... 52

Video Select ............................................................... 53

Adjusting the Brightness of the Display

(DIMMER) ................................................................... 53

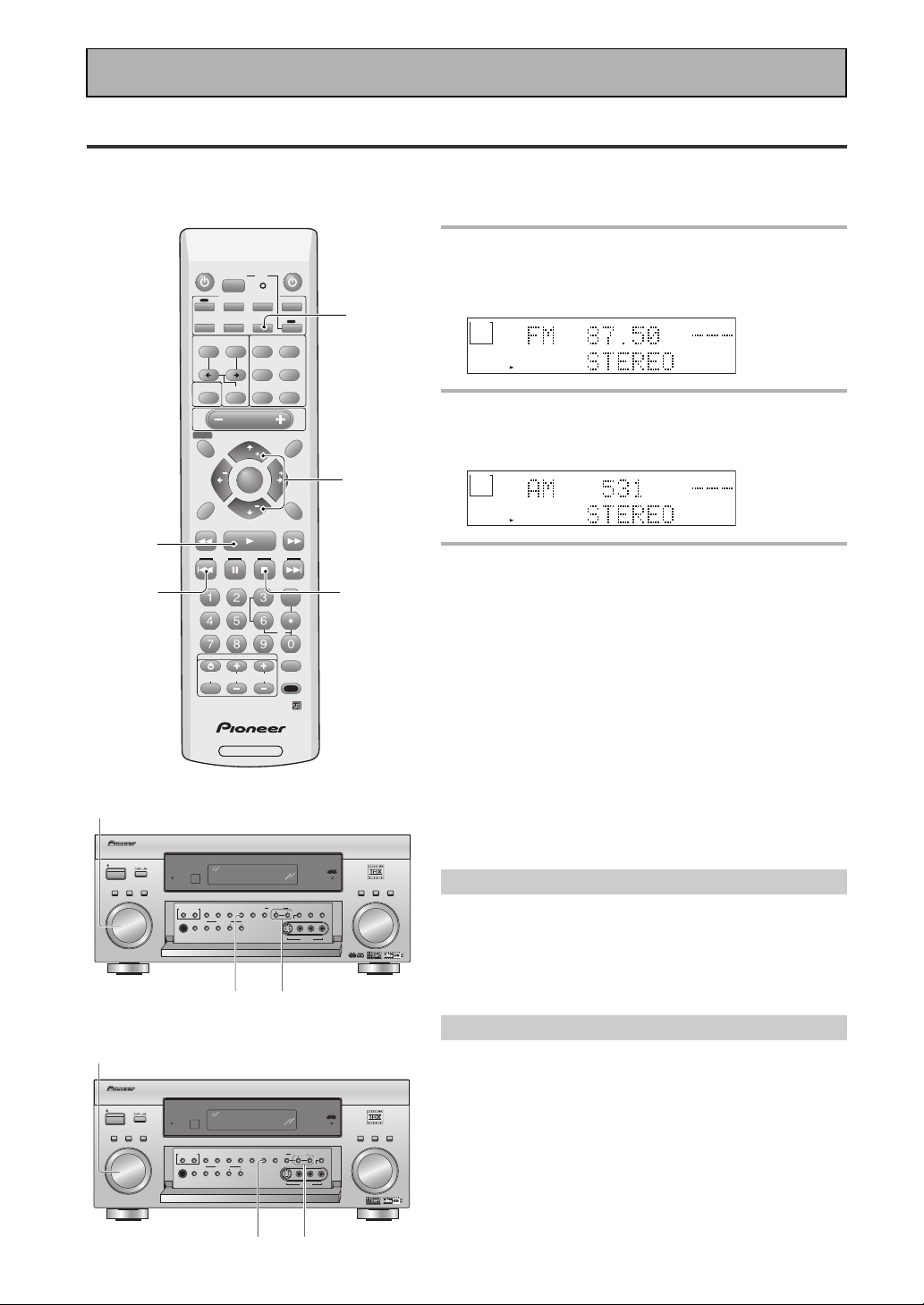

Using the Tuner ................................... 54

Automatic and Manual Tuning ................................. 54

MPX Mode ............................................................ 54

RF ATT Mode (European model only) ................ 54

Channel Step Setting (multi-voltage model only) ... 55

To Change Channel Steps

(multi-voltage model only) .................................. 55

Direct Access Tuning ................................................. 55

Memorizing Frequently Used Stations .................... 56

Naming Memorized Stations .................................... 57

Recalling Memorized Stations .................................. 58

4

En

Table of Contents

An introduction to RDS (European model only) ..... 59

Using the RDS display ......................................... 59

Searching for RDS programs

(European model only) .............................................. 60

Basics of EON (Enhanced Other Network

information) (European model only) ....................... 61

Using EON (European model only) .......................... 61

Clearing all stations from

the RDS or EON search (European model only) ..... 62

Remote Control of Other

Components ........................................ 63

Setting Up the Remote Control to Control Other

Components ............................................................... 63

Recalling Settings Stored in the

Remote Control ..................................................... 63

Programming Signals from Other Remote

Controls (LEARNING Mode) ................................ 64

Using Remote Control with Other Components ..... 65

CD/MD/CD-R/VCR/DVD/LD/DVD Recorder/

Cassette Deck operations ..................................... 65

Cable TV/ Satellite TV/

Digital TV/ TV operations ..................................... 66

Setting up the DIRECT FUNCTION ........................... 67

Using Other Functions........................ 68

Recording from Audio/Video Components ............. 68

SECOND ZONE (Speaker System B)/FRONT BI-AMP

Setup ........................................................................... 69

Stereo playback in another room (SECOND

ZONE) .................................................................... 69

Bi-amping the front speakers

(FRONT BI-AMP) ................................................... 69

A/B Speaker Button .............................................. 70

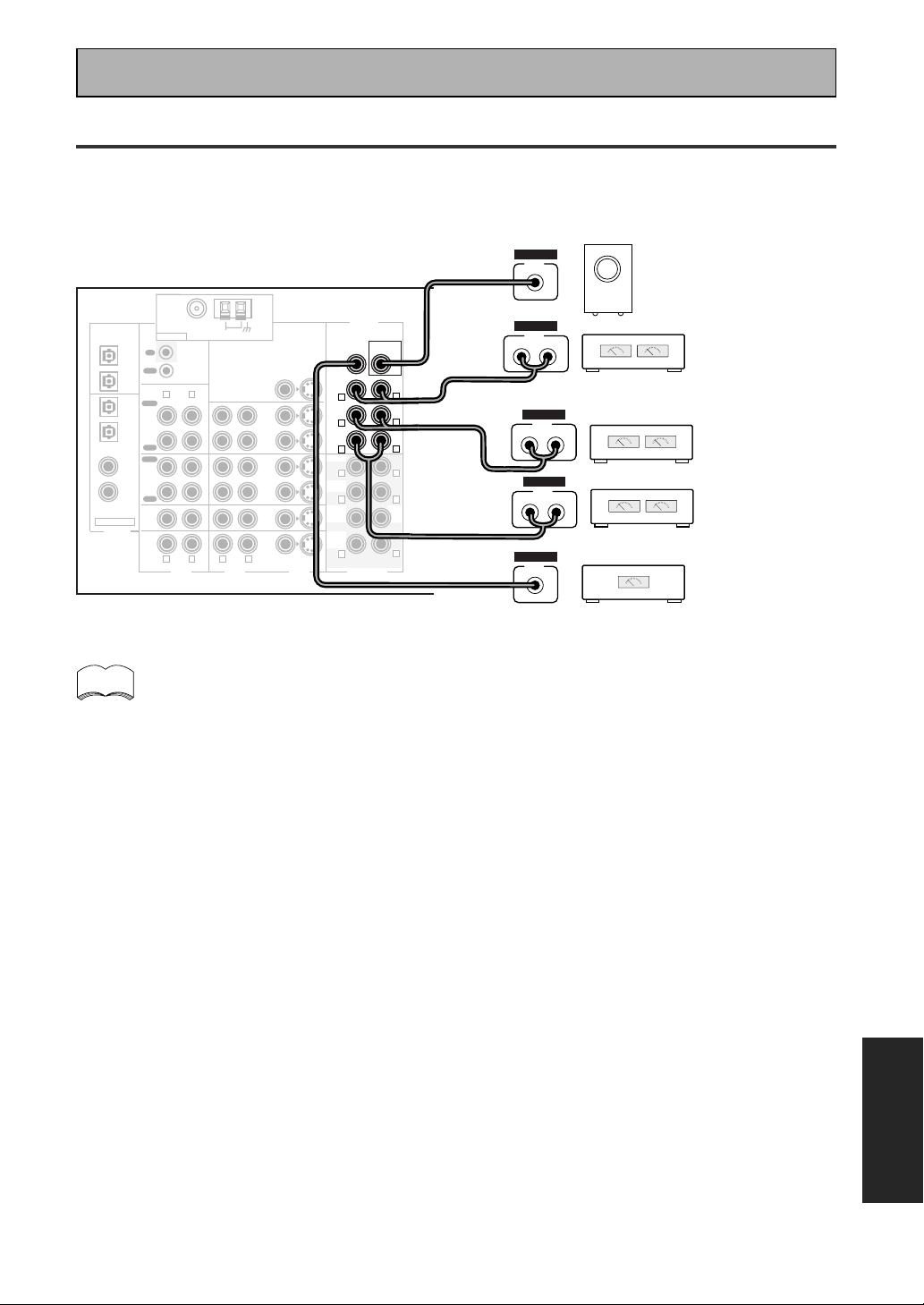

Connecting Additional Amplifiers ............................ 71

Multi Operations ........................................................ 72

Performing Multi Operations ............................... 73

SYSTEM OFF .............................................................. 74

Using SYSTEM OFF .............................................. 75

The PIONEER SR System: Operating other PIONEER

components ............................................................... 75

Resetting the Remote Control .................................. 76

Erasing Multi Operations ..................................... 76

Erasing Learned Remote Control Commands ... 76

Erasing All Remote Control settings ................... 76

Resetting the Main Unit ............................................ 77

Fine Tuning Your System ................... 78

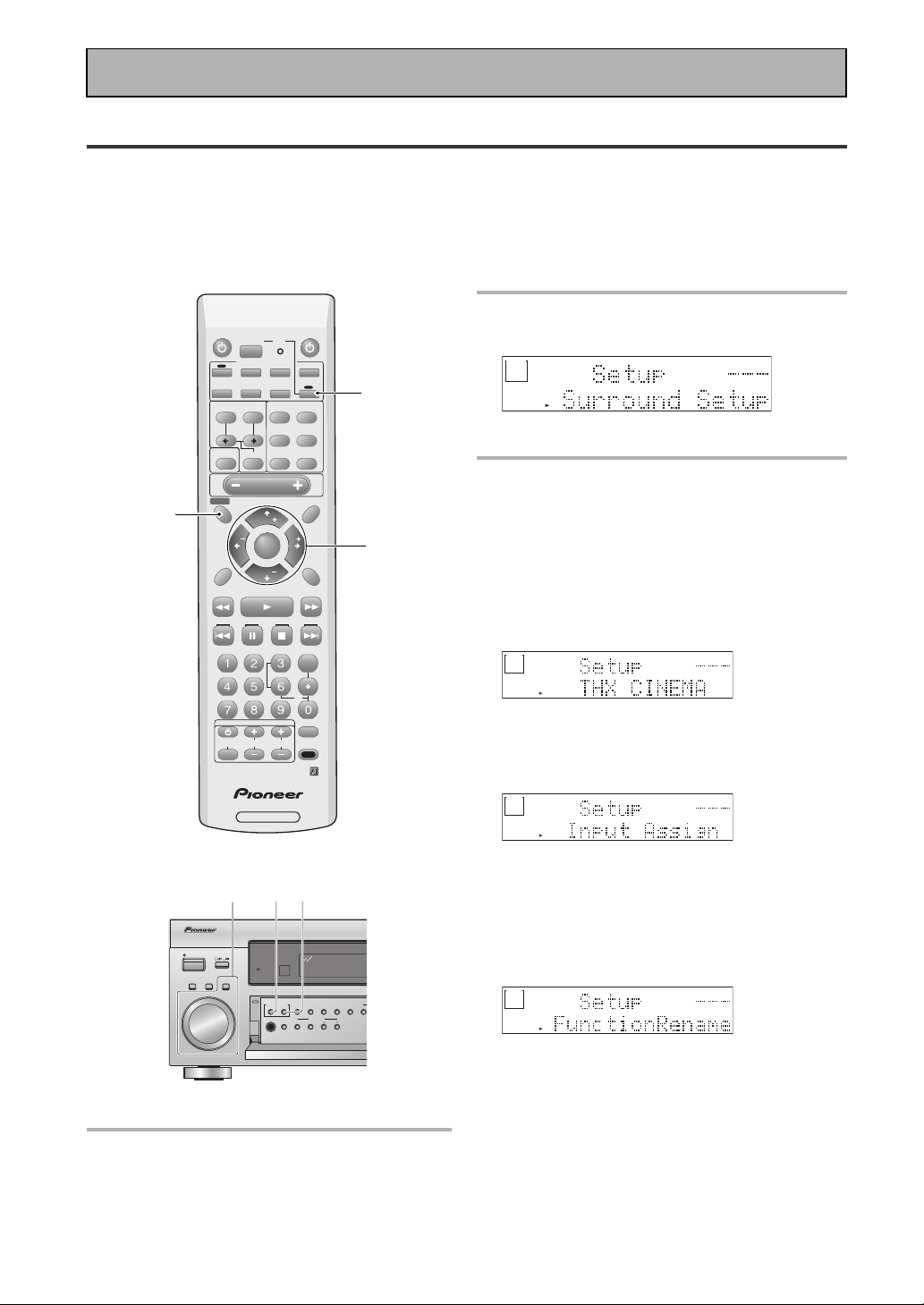

Other System Settings .............................................. 78

THX CINEMA Setup ................................................... 79

Assigning the Digital Inputs ...................................... 80

FUNCTION RENAME ................................................. 81

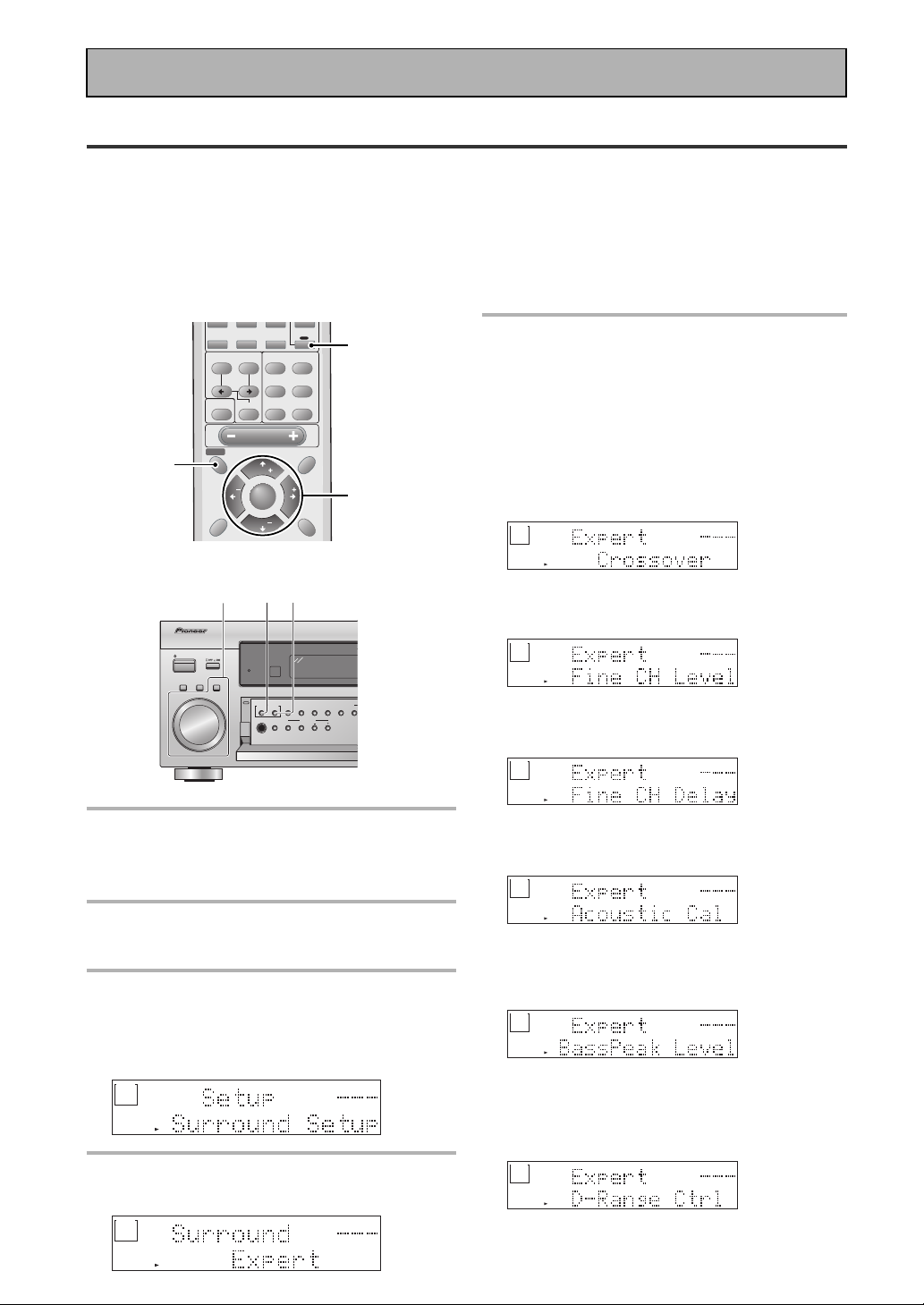

Expert Setup ............................................................... 82

CROSSOVER NETWORK ...................................... 83

FINE CHANNEL LEVEL ......................................... 84

FINE CHANNEL DELAY ........................................ 85

ACOUSTIC CAL EQ ............................................... 87

BASS PEAK LEVEL ............................................... 89

DYNAMIC RANGE CONTROL .............................. 90

Techno Tidbits & Problem-solving..... 91

Dolby ........................................................................... 91

Dolby Digital ......................................................... 91

Dolby Pro Logic II ................................................. 91

Dolby Digital Surround EX .................................. 92

DTS ............................................................................. 92

DTS ........................................................................ 92

DTS-ES .................................................................. 92

DTS Neo:6 ............................................................. 92

DTS 96/24 .............................................................. 92

THX ............................................................................. 93

Speaker Placement Information ............................... 94

Preset Code List ......................................................... 96

Troubleshooting ......................................................... 98

Schemata of Setup .................................................. 103

Specifications (European model) ........................... 104

Specifications (multi-voltage model) ...................... 105

EASY SETUP GUIDE

PREPARATION

PREPARATION

SURROUND SETUP

BASIC

En

EXPERT

5

Features

High Quality, Balanced Multichannel Design

The VSX-D1011 receiver is constructed with Pioneer’s industry-leading advanced and well balanced
multichannel Featuresconcept. This means it is designed to reproduce music and movie soundtracks as close as
possible to the intentions of the producer during mastering. The receiver uses a revolutionary 3-D Frame
Construction technique and a Symmetrical Power Train Design, with high-performance Advanced Direct Energy
MOS-FET output devices, generating 100 watts of power for 7 independent channels.

Multichannel Acoustic Calibration EQ System (MCACC)

In order to make setting up as easy as possible for users we have created the MCACC system. This unique and
convenient way of getting good surround sound from the receiver makes trouble-free set up a snap. The
MCACC system creates a monitoring environment to establish the parameters of the sound in regards to each
speaker for the specific room you are using. The Acoustic Calibration EQ feature makes sure each speaker is
used to maximum effect in conjunction with the overall sound. The resulting settings finely attune the overall
surround sound for the space used.

Dolby Digital EX, DTS-ES, DTS 96/24 and the Latest Audio and Video
Formats

The VSX-D1011 is equipped with Dolby Digital EX decoding, the very latest Dolby Digital contribution to home
theater with surround back speakers in addition to surround speakers. These additional speakers make home
theater even more realistic and powerful. Naturally, you can also play all existing audio formats, including the
recently developed Dolby Pro Logic II and DTS-ES Extended Surround formats on the VSX-D1011 as well. On
the video side, the component video output is fully compatible with high definition, progressive-scan digital
video (720p).

Lucasfilm and THX are trademarks or registered
trademarks of Lucasfilm, Ltd. & TM. Surround EX
is a jointly developed technology of THX and Dolby
Laboratories, and is a trademark of Dolby
Laboratories. All rights reserved. Used under
authorization.

Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, “Surround EX” and double-D
symbol are trademarks of Dolby Laboratories.

"DTS", "DTS-ES Extended Surround" and "Neo:6" are
trademarks of Digital Theater Systems, Inc.

Universal Player Compatibility (DVD Audio/Super

This receiver incorporates the latest technology and is able to handle cutting edge audio formats, like DVD Audio
and Super Audio CD (SACD) which are just hitting the market. Its high compatibility offers a variety of inputs to
decode all types of sources at the highest possible quality. The receiver’s multichannel input connections lets you
hook up eight discrete channels of audio.

Audio CD [SACD]

Audio Scaler (HI BIT/HI SAMPLING)

This new technology enables the user to hear CD and DVD, as well as other soundtracks at a wider dynamic
range, allowing for finer audio reproduction. This Audio Scaler approximates the audio of high end formats just
becoming available now.

Easy-to-use Remote Control

This new remote control is extremely convenient to use. One button is dedicated to one task in the control of the
receiver, eliminating confusing buttons whose purpose are unclear. In addition, this remote can be used to
operate a variety of other components simply by recalling the appropriate setup codes.

The Energy-saving Design

The European model is designed to use 0.7 W of energy when the receiver is in standby mode, while the multi­voltage model is designed to use 0.9 W.

6

En

)

Before You Start

SOURCE

MULTI CONTROL

RECEIVER

MOVIE MUSIC

ENTER

MULTI

OPERATION

SURROUND
MODE

STEREO/

DIRECT

SYSTEM

OFF

ACOUSTIC

EQ

SB CH
MODE

INPUT

MIDNIGHT

CHANNEL

−

+

−

CHANNEL

+

TEXT OFF BAND

DIMMER TONE

LOUDNESS EFFECT/CH SEL

SIGNAL SEL

BASS/TREBLE

DISC

DNR

VIDEO SEL

SUB TITLE

REMOTE
SETUP

HI-BIT

D.ACCESSRF ATT

MPX

TV CONTROL

CLASS

MUTE

MENU TOP MENUTEXT ON

TUNER EDIT

GUIDE

SYSTEM

SETUP

AUDIO

RETURN

CHANNEL VOLUME

INPUT

SELECT

+

10

MULTI CH
INPUT

RECEIVER

ST

TUNE

MASTER

VOLUME

ST

TUNE

DVD/LD

ENTER

ENTER

VCR 2

TV/SAT

CD

VCR1/DVR

TV CONT

TUNER

RECEIVER

Checking the Supplied Accessories

Please check that you have received all of the following supplied accessories.

PREPARATIONPREPARATION

AM Loop Antenna

Remote Control Unit

memo

Multi-voltage model has two power cords. These accessories will be different depending on the

FM Wire Antenna

AUDIO/VIDEO MULTI-CHANNEL
RECEIVER

VSX-D1011-S
VSX-D1011-K
VSX-D1011-G

Operating Instructions

Operating

Instructions

“AA” IEC LR6
batteries x 2

AC Power Cord x 2

(multi-voltage model only)

country of purchase. Please use the correct cord for your country.

Preparing the Remote Control

Loading the batteries

Load the batteries into the remote control as shown below. Please use alkaline batteries. When you notice a
decrease in the operating range, replace all batteries with new ones.

123

“AA” IEC LR6

batteries x 2

PREPARATION

CAUTION!

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions.

• Never use new and old batteries together.

• Insert the plus and minus sides of the batteries properly according to the marks in the battery case.

• Batteries with the same shape may have different voltages. Do not use different batteries together.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s

rules that apply in your country or area.

7

En

Before You Start

Operating range of remote control unit

The area in which you can use the remote control to operate the VSX-D1011 is fairly large. To use, point the
remote control toward the remote sensor on the front panel of this unit while within the range shown below.

Remote control may not function properly if:

• There are obstacles between the remote control and the
remote sensor.

• Direct sunlight or fluorescent light is shining onto the
remote sensor.

• The receiver located near a device emitting infrared rays.

• Operated simultaneously with another remote control

which uses infrared rays.

30

30

7m

Installing the Receiver

CAUTION!

• Do not cover this unit in any way, for exam­ple with a sheet or piece of cloth. This would
prevent proper heat dispersal.

• Do not any place object directly on top of this
unit. This also would prevent proper heat
dispersal.

Opening the Front Panel

To open the front panel push gently on the lower third of the
panel with your finger.

8

En

Easy Setup Guide Part1

Home Theater: The Basics

Most consumers are used to using stereo equipment to listen to music but many people are not used to home theater
systems that give you many more options when listening to soundtracks. In fact, home theater is not really
complicated and this little guide should give you an understanding of the basics. Home theater refers to the use of
multiple audio tracks combined with multiple speakers to create a surround sound effect.
There are three different factors involved in getting surround sound. Each contribute to what kind of sound you get.
These factors are:

1) The equipment you are using for your home theater setup. Particularly important is the number of speakers you are
using. We call this your speaker configuration.

2) The source material you are using. This is the actual product (like a DVD) or broadcast (like cable TV) you are listening
to/watching. We call this the source.

3) The last factor is the listening mode you choose on the VSX-D1011 receiver. These are explained below and in
subsequent chapters but most likely the PRO LOGIC II MOVIE for moves and the PRO LOGIC II MUSIC for music will
be fine.
Let's start with the home theater setup you have in your home.

1) Your Home System

The heart of your system is the VSX-D1011 receiver and it is very flexible in getting you theater-like surround sound.
You can use this receiver with anywhere from two to seven speakers (front left, front right, center, surround left and
right, and surround back left and right) and a subwoofer to get home theater surround sound. We recommend you use
seven speakers and a subwoofer. If this is not possible follow the instructions in "QUICK Setup" in the "Easy Setup
Guide Part 2" and you will still be able to get good surround sound. Also, a DVD player is essential for home theater and
you can also hook up satellite or cable TV tuner to this receiver and get a more home theater-like sound from these
sources.

2) The Source Material

DVDs have become the basic source material for home theater because they are convenient to use and offer excellent
sound and picture quality as well as allow users to enjoy home theater soundtracks with more than two channels of
audio. For example, Dolby Pro Logic plays back four channels (front left, front right, center and a single channel for both
surround speakers), Dolby Digital and DTS sources usually have six discrete channels (front left, front right, center,
surround left and right and a channel that powers the subwoofer) of sound. Since the subwoofer channel is only for
bass sounds it is expressed as .1 of a channel and this multichannel setup has been named 5.1 channel sound.
It is important you consult the manual that came with your DVD player as well to make sure the player is outputting a
surround soundtrack and all the other settings are appropriate for your home theater.

EASY SETUP GUIDE

PREPARATION

3) The Listening Modes

This receiver has many different listening modes and they are designed to cover all the speaker configurations and
types of sources you might be using. In general, the PRO LOGIC II MOVIE listening mode is the easiest way to get
realistic surround sound for movies. For music the basic listening mode for music is PRO LOGIC II MUSIC.

To listen to music in stereo simply choose the STEREO listening mode. Other possibilities (like listening to a stereo CD
with all seven speakers or taking a stereo source and getting multichannel home theater-like sound) are explained in
listening modes (pages 43–45).

Conclusion

These are the three basic factors that contribute to your home theater sound. The easiest thing is to hook up seven
speakers and a subwoofer and simply play your DVDs with PRO LOGIC II MOVIE listening mode. This will give you
realistic and enjoyable home theater sound. First hook up your equipment, like your DVD player, TV and speakers. Then
follow the Easy Setup Guide instructions to set up your system for surround sound. It is very important you do one of
the surround sound setups to get optimal sound from your receiver.
For more details on any of the information presented here check the main section of the manual.

9

En

Easy Setup Guide Part1

Before making or changing the connections, switch off the power and disconnect the power cord from
the AC outlet.

11

1 Hooking Up Your DVD Player & TV

11

In order to use Dolby Digital/DTS soundtracks, which are at the heart of home theater, you need to hook up your
DVD player with digital audio connections. You can do this by either a coaxial or an optical connection, you don’t
need to do both. The quality of these two types of connections is the same but since some DVD players only
have one type of digital terminal you need to figure out which yours has and hook it up to the appropriate
terminal on the receiver. In order to do this you will need the proper cable. For coaxial connections you can use a
regular RCA video cord or the specially-made coaxial cords, they have the same type of plugs. For optical
connections you will need a special optical cable which you can buy at your local stereo store. For more
information on cords and cables see page 21. You should also hook up your DVD player with analog audio
connections. Use regular RCA stereo cords for these connections. Also hook up the video connection on your
DVD player, and your TV to this receiver. For your TV it's easiest to use a regular composite (RCA) video cord, as
shown below. S Video and Component video cords are of higher quality than RCA video cords and may also be
used with this unit.

Digital Connections

Some DVD players have both coaxial and optical terminals, but there is no need to connect both. If your DVD
player has a coaxial terminal (not a PCM-only output) for the audio out hook it up using this terminal. Follow the
diagram below. This is the best scenario, as you will be able to follow the default settings of this receiver and
won't need to assign the digital inputs (you should use DIGITAL IN 3).

If your DVD player only has an optical terminal for the audio output you can hook it up using one of the DIGITAL
IN terminals between 1-2 (for example, DIGITAL IN 2). In this case, you will need to assign the digital input
(which means tell the receiver which input you used for your DVD digital audio). See page 12 for this.

SUB
WOOFER

L

L

(Single)

L

L

L

CEN­ TER

L

RL

R

RCA stereo cord

DVD/
LD
IN

VIDEO S VIDEO

L

AC OUTLET

RCA video cord

SPEAKERS

FRONT

Å

RL R RLL

FRONT

L RRLL

ª

·

coaxial cord

optical cord

AC OUTLET

SURROUND BACK /

CENTER SURROUND

SURROUND

CENTERSURROUND

BACK

ANALOG

AUDIO

VIDEO

VIDEO

OUT

DIGITAL

OUTPUT

L

R

L

R

ı

ª

ª

You only need to make
one DIGITAL connection.

·

·

VIDEO INPUT

DVD player

(not a PCM-only
output)

RCA video cord

1

IN

(TV/

SAT)

2

IN

(CD-R/

TAPE1)

3

IN
(DVD/
LD)

4

IN
(CD)

ASSIGNABLE

DIGITAL

MONITOR OUT

FM UNBAL

PCM/
2DIGITAL /

ANTENNA

DTS/MPEG

IN

OUT1

OUT

OUT2

R

1

IN

PLAY

(TV/
SAT)

IN

2

CD-R/

IN

TAPE1

(CD-R/
TAPE1)

OUT

REC

PLAY

3

IN

(DVD/

IN

LD)

MD/

TAPE2

4

IN

OUT

(CD)

REC

CD

IN

ASSIGNABLE

DIGITAL

LINE

IN

RLR

AUDIO AUDIO VIDEO

CONTROL

VCR1/
DVR

OUT

VCR2

OUT

TV/
SAT
IN

DVD/
LD
IN

IN

IN

VIDEO S VIDEO

PRE OUT

CENTER

FRONT

R

SUR­ROUND

R

SUR­ROUND
BACK

R

FRONT

R

SUR-
ROUND

R

SUB
WOOF­ER

SUR­ROUND
BACK

R

MULTI CH IN

75Ω

AM LOOP

MONITOR OUT 1

L

L

10

En

Easy Setup Guide Part1

22

2 Speaker Connections

22

Home theater is designed to be setup with five, or seven speakers (front left & right; center; surround left &
right; and, optimally, surround back left & right) and a subwoofer, but you can use this receiver with fewer
speakers. Hook up the speakers you have to the A speaker terminals on the back of the receiver. If you only
have two speakers hook them up as FRONT. If you have three hook up the single speaker as CENTER. Follow
the diagram below in order to hook up all your speakers. A center speaker is very important for watching films
because in digital soundtracks the dialog comes from the center speaker. If you do not have a center speaker
you must tell the receiver the center channel is off or when you listen to digital soundtracks you won't hear any
dialog. This can be easily accomplished by following the steps in the Surround Sound QUICK setup instructions
from page 13 in this Easy Setup Guide.
If possible, use surround back speakers. These speakers are important to take full advantage of all the sound
channels on new, eight channel home theater DVDs. The diagram below also explains how to hook up a
subwoofer which provides realistic bass sounds. For the subwoofer use a mono (single plug) RCA cord and for
the other speakers use regular speaker cords. See pages 94–95 for advice on speaker placement.
Make sure you connect the speaker on the right to the R terminal and the speaker on the left to the L terminal.
Also make sure the positive and negative (+/–) terminals on the receiver match those on the speakers.
