PIAGGIO Beverly Tourer 300ie User Manual

PIAGGIO WOULD LIKE TO THANK YOU
for choosing one of its products. We have prepared this booklet to help you to get the very best from your scooter. Please read it carefully before riding

the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and use it for a long
time at full satisfaction. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.

Beverly Tourer 300ie

Ed. 01

The instructions given in this booklet are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance
procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centres. The booklet also contains
instructions for simple repairs. Any operations not specifically described in this booklet require the use of special tools and/or particular technical
knowledge: to carry out these operations, refer to any authorised Dealer or Service Centres.

2

Personal safety

Failure to completely observe these instructions will result in serious risk of personal

injury.

Safeguarding the environment

Sections marked with this symbol indicate the correct use of the vehicle to prevent dam-

aging the environment.

Vehicle intactness

The incomplete or non-observance of these regulations leads to the risk of serious

damage to the vehicle and sometimes even the invalidity of the guarantee.

The signs that you see on this page are very important. They are used to highlight parts
of the booklet that should be read with particular care. The different symbols are used
to make each topic in the manual simple and quick to locate.

3

4

INDEX

VEHICLE...................................................................................... 7

Dashboard................................................................................ 9

Analogue instrument panel....................................................... 9

Clock......................................................................................... 12

Key switch................................................................................. 12

Locking the steering wheel.................................................... 13

Releasing the steering wheel................................................ 13

Switch direction indicators........................................................ 14

Horn button............................................................................... 14

Light switch............................................................................... 15

Start-up button.......................................................................... 15

Engine stop button.................................................................... 16

The immobilizer system............................................................ 16

Keys...................................................................................... 16

Immobilizerdevice enabled indicator led............................... 17

Operation............................................................................... 18

Programming the immobilizer system................................... 19

Accessing the fuel tank............................................................. 20

Power supply socket................................................................. 21

Opening the saddle............................................................... 22

Identification.............................................................................. 22

Rear top box opening................................................................ 24

Bag clip..................................................................................... 24

USE.............................................................................................. 25

Checks...................................................................................... 26

Refuelling.................................................................................. 26

Tyre pressure............................................................................ 28

Shock absorbers adjustment.................................................... 29

Running in................................................................................. 30

Starting up the engine............................................................... 31

Stopping the engine.................................................................. 32

Anti-theft ring............................................................................. 32

Stand......................................................................................... 32

Automatic transmission............................................................. 34

Safe driving............................................................................... 34

MAINTENANCE........................................................................... 37

Engine oil level.......................................................................... 38

Engine oil level check............................................................ 38

Engine oil top-up................................................................... 39

Warning light (insufficient oil pressure)................................. 39

Engine oil change.................................................................. 40

Hub oil level.............................................................................. 41

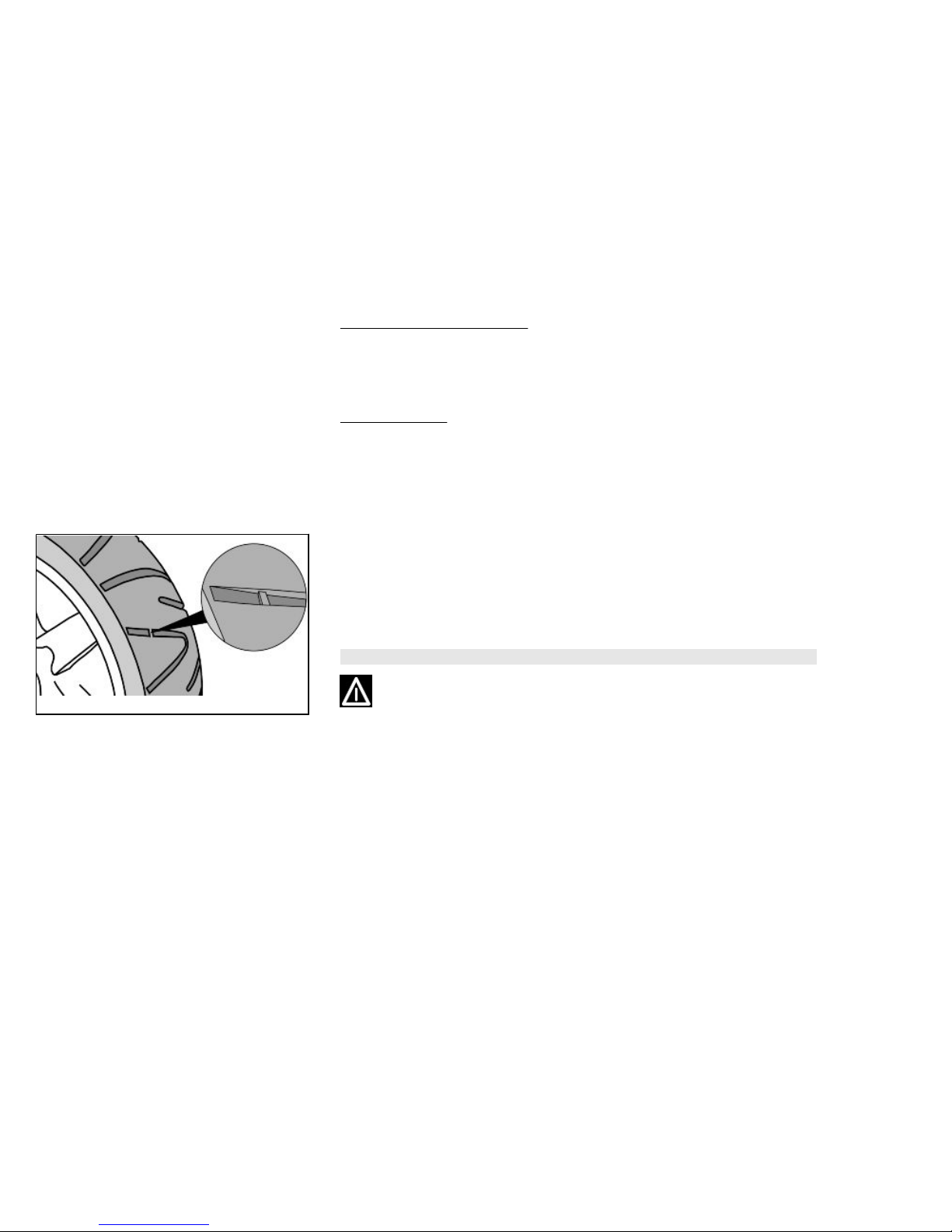

Tyres......................................................................................... 43

Spark plug dismantlement........................................................ 45

Removing the air filter............................................................... 46

Air filter cleaning....................................................................... 47

Cooling fluid level...................................................................... 47

Checking the brake oil level...................................................... 49

Braking system fluid top up................................................... 49

Battery....................................................................................... 50

Use of a new battery............................................................. 51

Long periods of inactivity.......................................................... 52

Fuses........................................................................................ 52

Lamps....................................................................................... 56

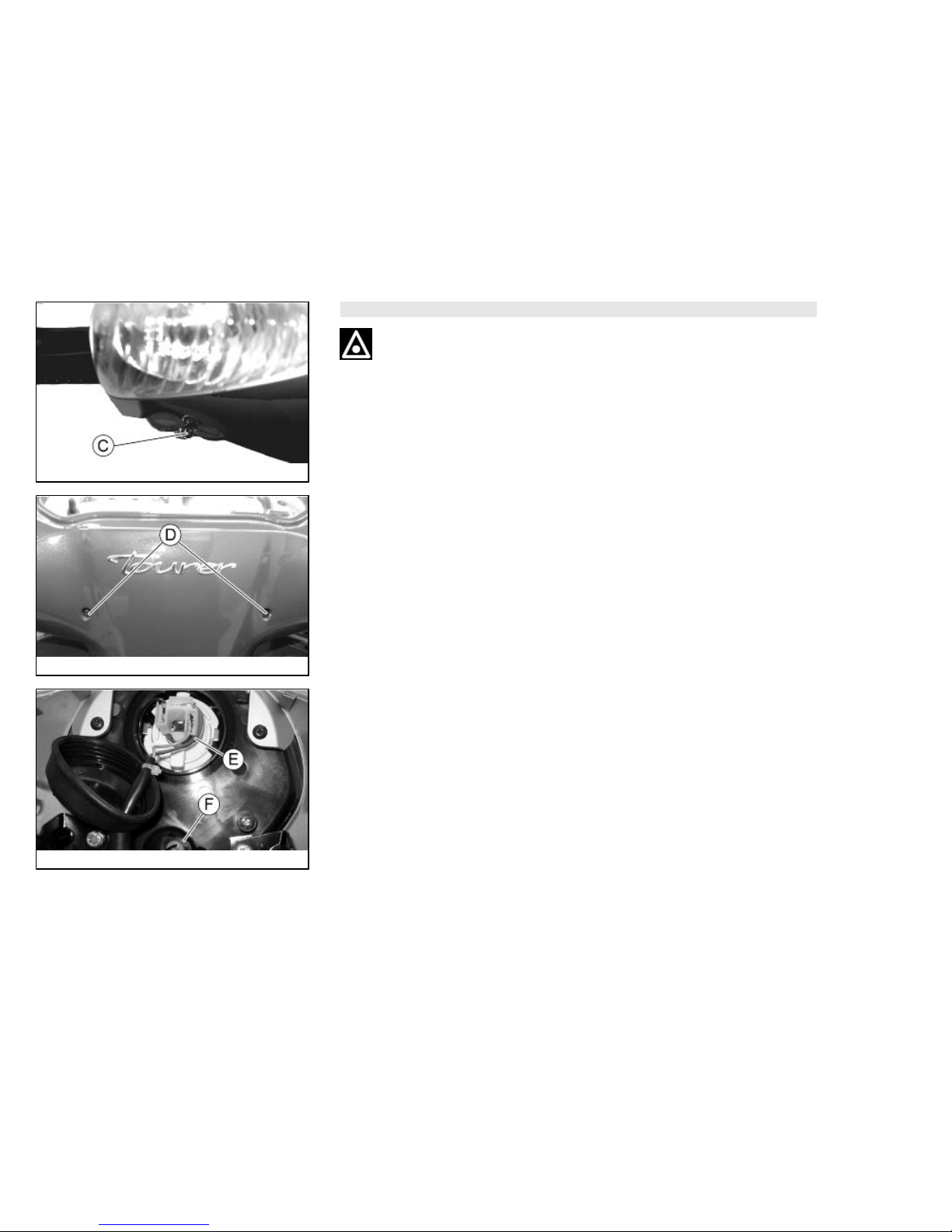

Front light group........................................................................ 58

Headlight adjustment............................................................. 60

Front direction indicators........................................................... 61

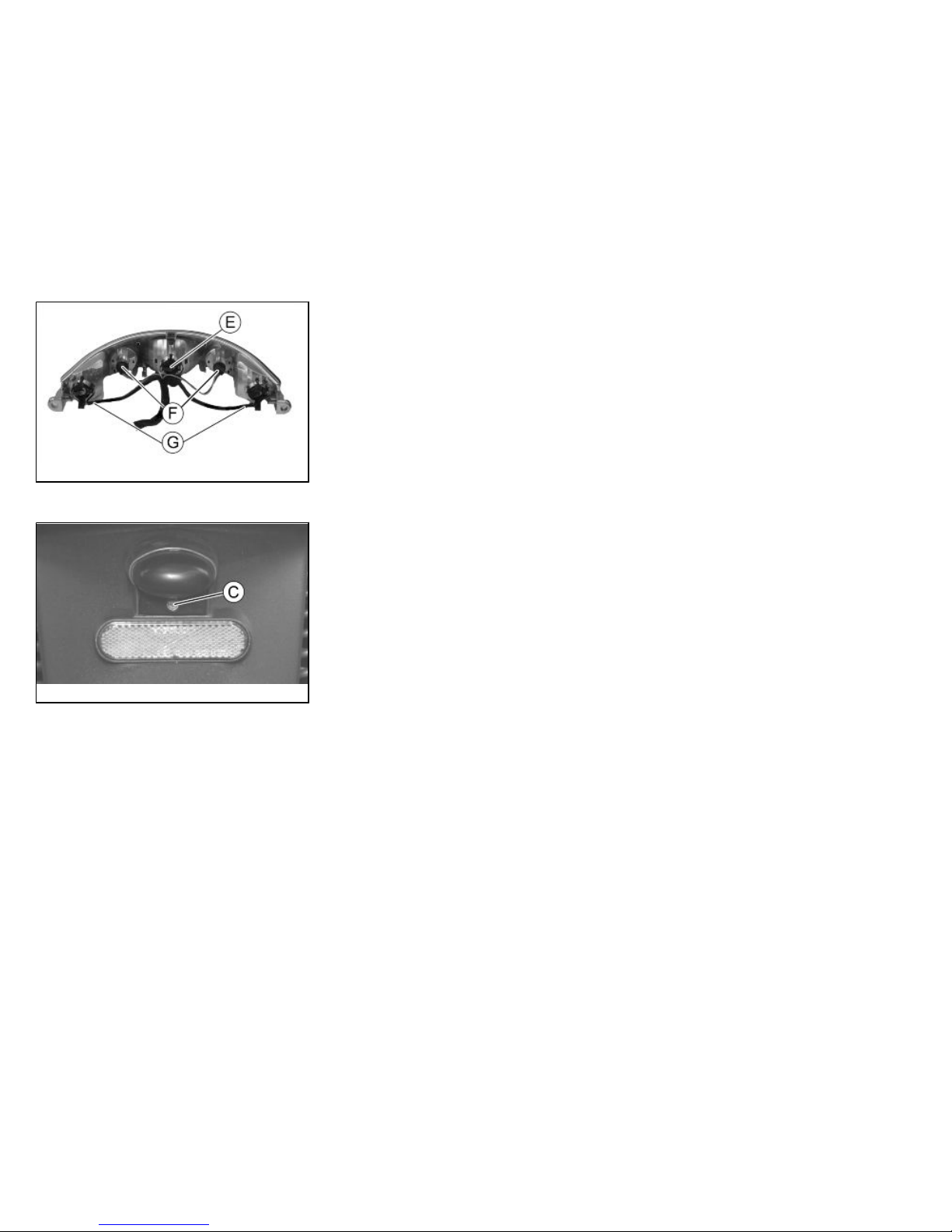

Rear optical unit........................................................................ 61

Number plate light..................................................................... 63

Helmet compartment lighting bulb............................................ 64

Rear-view mirrors...................................................................... 64

Front and rear disc brake.......................................................... 64

Puncture.................................................................................... 65

Periods of inactivity................................................................... 66

Cleaning the vehicle.................................................................. 67

Troubleshooting........................................................................ 68

5

TECHNICAL DATA...................................................................... 73

Kit equipment............................................................................ 78

SPARE PARTS AND ACCESSORIES........................................ 79

Warnings................................................................................... 80

PROGRAMMED MAINTENANCE............................................... 83

Scheduled maintenance table................................................... 84

6

Beverly Tourer 300ie

Chap. 01

Vehicle

7

01_01

8

Dashboard (01_01)

A = Ignition key-switch
B = Bag hook
C = Saddle electric opening switch
D = Horn button
E = Turn indicator switch
F = Rear brake lever
G = Light switch with passing
H = Instrument panel
I = Emergency cut-off switch RUN/OFF
L = Front brake lever
M = Throttle grip
N = Starter button

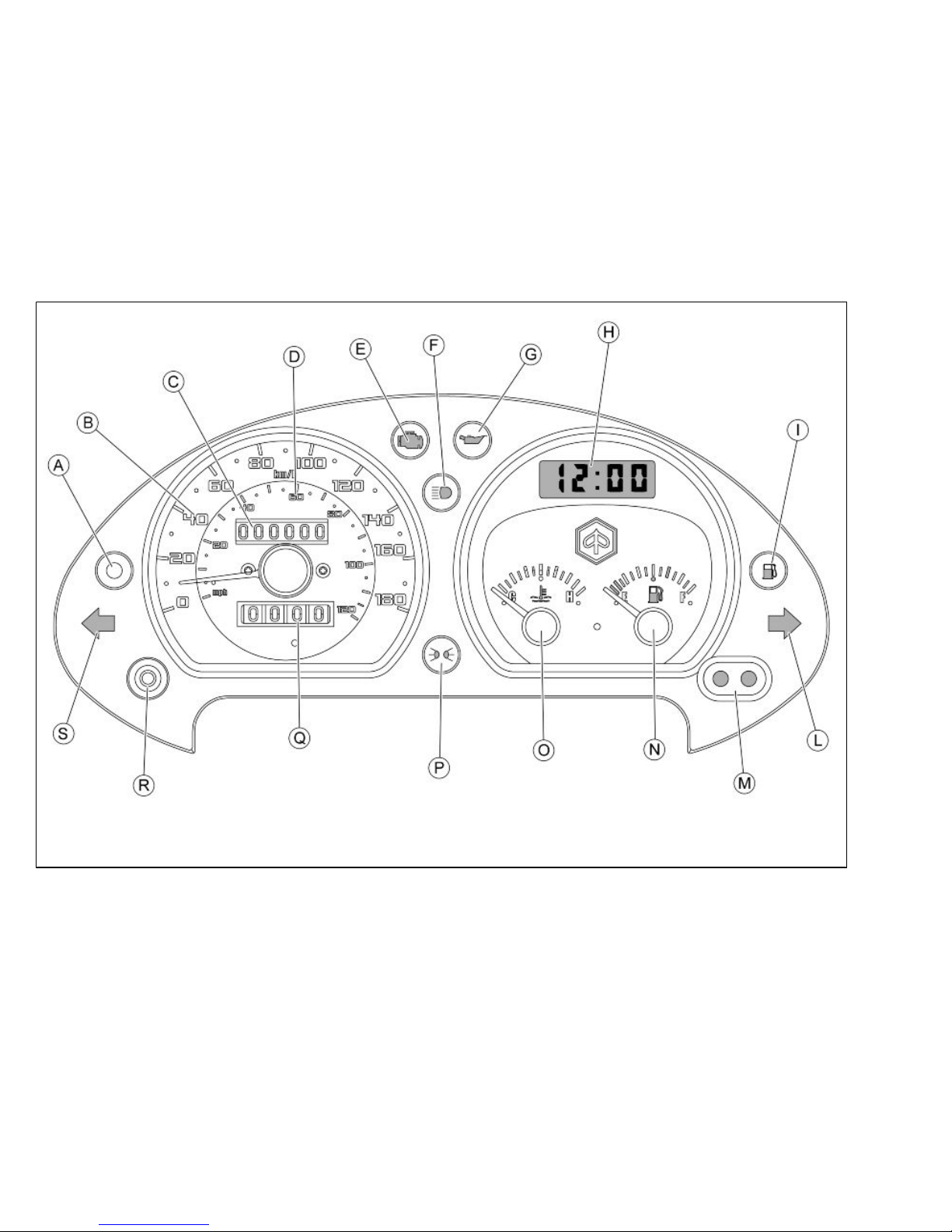

Analogue instrument panel (01_02)

A = Immobilizer LED
B = Speedometer (mph)
C = Total Odometer
D = Speedometer (km/h)
E = Injection telltale light
F = High-beam warning light

9

1 Vehicle

G = Oil pressure warning light
H = Digital clock
I = Low fuel warning light
L = Right turn indicator warning light
M = Clock controls
N = Fuel gauge
O = Water temperature gauge
P = Headlight warning light
Q = Trip odometer
R = Odometer reset button
S = Left turn indicator warning light

10

01_02

11

1 Vehicle

01_03

Clock (01_03)

Located in the instrument panel, it displays hours and minutes with 1 to 12-hour time,
AM or PM.

Operate the function selection button «B» and month, day and seconds are also dis­played besides hours and minutes.

To adjust the different functions, select the desired function with button «A» and adjust
with button «B». The time counter can be reset by pressing button «A» with the clock
in the seconds function.

Key switch (01_04)

Ignition key «A» is located on the front leg shield back plate near the bag hook.

01_04

SWITCH POSITIONS
ON«1»: Ready to start position, non-extractable key, mechanical antitheft device dis-

abled.

OFF «2»: Ignition disabled, extractable key, mechanical antitheft device disabled.
LOCK «3»: Ignition disabled, extractable key, mechanical antitheft device enabled.

12

01_05

Locking the steering wheel (01_05)

Turn the handlebar to the left (as far as it will go), turn the key to «LOCK» and remove
the key.

01_06

Releasing the steering wheel (01_06)

Reinsert the key and turn it to «OFF».

13

1 Vehicle

01_07

Switch direction indicators (01_07)

Move switch «E» to the left to indicate a left turn; move switch «E» to the right to
indicate a right turn. Push the central part of switch «E» to deactivate the turn indica­tors.

01_08

Horn button (01_08)

Push the button «D» to sound the horn.

14

01_09

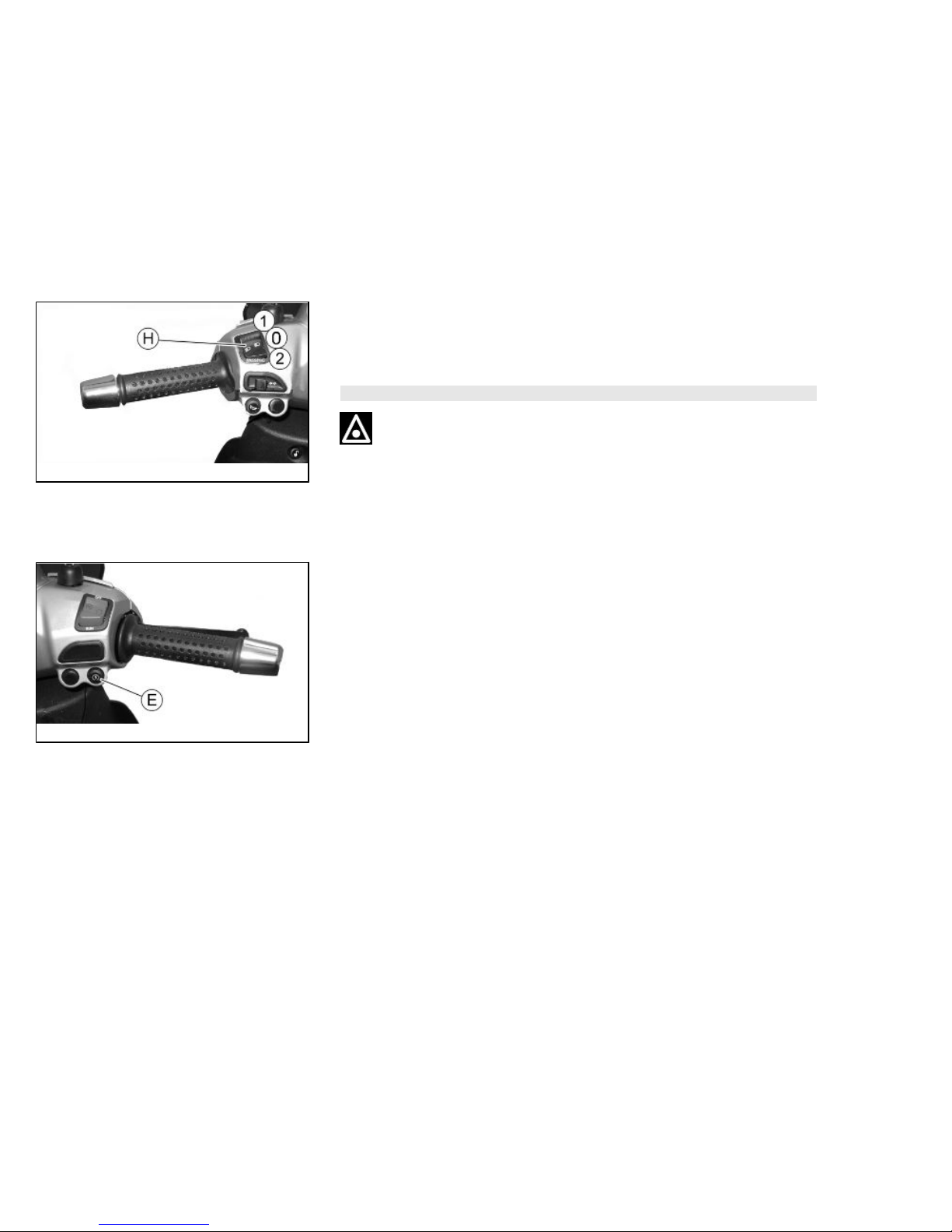

Light switch (01_09)

When the light switch «H» is set to «0», the low-beam light is on. When set to «1»,
the high-beam light is activated. If the light switch «H» is pressed when set to «2», the
high-beam light flashing is activated. The switch goes back to «0» automatically.

CAUTION

DO NOT CARRY ANY GARMENTS ON THE FRONT HEADLIGHT ASSEMBLY.
THIS MAY CAUSE THE BULBS TO OVERHEAT AND THEREFORE, TO THEIR
ABNORMAL WEAR.

01_10

Start-up button (01_10)

Starter button «E»

15

1 Vehicle

01_11

Engine stop button (01_11)

The engine can be started when the emergency cut-off switch «I» is set to «1»
RUN; if the emergency cut-off switch «I» is set to «0» OFF, the engine cannot be

started, or it shuts off if already running.

The immobilizer system

In order to enhance theft protection, the vehicle is equipped with a «PIAGGIO IMMO­BILIZER » electronic engine locking device that is activated automatically when the

ignition key is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system checks
the starter key, and only if this key is recognised will the Immobilizer system allow the
vehicle to be started.

01_12

Keys (01_12, 01_13, 01_14)

Two types of keys are supplied together with the vehicle.
Key «A» is the «MASTER» key.
Only a single copy of this key is supplied, which is necessary to program all your other

keys and for your dealer to perform some maintenance operations. For this reason it
is advised that it be used only in exceptional circumstances.

The key «B» (single copy supplied) is used for regular operations such as:

- Engine start-up.
Together with the two keys, you will be given a CODE CARD bearing the same code

imprinted onto the two keys.

16

01_13

01_14

WARNING

LOSING THE MASTER KEY PREVENTS ANY FURTHER REPAIR OF THE "PIAG­GIO IMMOBILIZER" SYSTEM AND OF THE ENGINE CONTROL UNIT.

WARNING

KEEP THE "CODE CARD" AND THE MASTER KEY IN A SAFE PLACE (NOT IN
THE VEHICLE).

01_15

Immobilizerdevice enabled indicator led (01_15)

The activation of the «PIAGGIO IMMOBILIZER» system is signalled by the a flashing
indicator «A».

In order to reduce battery discharge, the indicator LED turns off automatically after 48
hours of uninterrupted functioning.

Should the system fail, different LED flashing patterns will provide the Authorised
Service Centre with information on the type of fault detected.

17

1 Vehicle

Operation

Each time the starter key «B» is removed while in the «OFF» or «LOCK» positions,
the protection system activates the engine lock. Turning the starter key «B» to «ON»
disables the engine lock, provided that the safety system recognises the code trans­mitted by the key. If the code is not recognised, turn the starter key «B» first to
«OFF» and then back to «ON» again; if lock persists, try again using the «A» MASTER
key. If the engine cannot be started, contact an Authorised Service Centre, which
is provided with the electronic equipment required to detect and repair the system.

When the supplementary starter keys are required, remember that the all the keys,
whether new or existing, should be programmed.

Contact an Authorised Service Centre and bring the «A» MASTER key and all
«B» starter keys that you own.

The codes of starter keys not submitted for the new programming procedure are de­leted from the memory. Any lost starter keys will therefore not be enabled to start the
engine.

WARNING

EACH KEY HAS ITS OWN AND UNIQUE CODE, WHICH MUST BE STORED IN
THE SYSTEM CONTROL UNIT MEMORY.

VIOLENT SHOCKS MAY AFFECT THE ELECTRONIC COMPONENTS OF THE
KEY.

IF THE VEHICLE IS SOLD, THE MASTER-HANDGRIP KEY (AS WELL AS THE
OTHER STARTER KEYS) AND THE «CODE CARD» MUST ALSO BE TRANS­FERRED TO THE NEW OWNER.

18

Programming the immobilizer system (01_16)

Below is described the procedure to follow for programming the PIAGGIO IMMOBIL­IZER system and/or for storing other key codes. The programming procedure should
be carried out with the engine stop switch set to «RUN».

START PROCEDURE

Insert the «MASTER» key «A» into the key switch (in «OFF») and turn it to «ON».
After 1 - 3 seconds, turn the key to «OFF » again and pull it out.

INTERMEDIATE STAGE

After extracting the «MASTER» key «A», insert, within ten seconds, the key that is
going to be programmed «B» and turn it immediately to «ON». After 1-3 seconds, turn
the key to «OFF» again and pull it out. In this way, a maximum of 7 keys can be
programmed by repeating the above procedure and keeping the indicated times.

FINAL STAGE

After extracting the key to be programmed «B», insert the «MASTER» key «A» again
and turn it to «ON» (perform this operation within the 10 seconds following the ex­traction of the previous key). Leave it in this position for 1 to 3 seconds and return it
to «OFF».

19

1 Vehicle

01_16

CORRECT PROGRAMMING CHECK PHASE

Insert the «MASTER» key «A» disabling the transponder «C» (i.e., by tilting the key
cap by 90°), and turn the key to «ON». Perform the engine start-up operation. Ensure
that the engine does not start. Insert the programmed key «B» and repeat the start­up operation. Check that engine starts.

WARNING

SHOULD YOU START THE ENGINE WITH THE MASTER KEY (WITH TRANS­PONDER OFF) OR IN THE EVENT OF WRONG OPERATION DURING PROGRAM­MING, REPEAT THE PROCEDURE FROM THE BEGINNING.

01_17

Accessing the fuel tank (01_17, 01_18)

Insert the key into the switch and press down until the glove box opens. In the event
that the key switch is in «LOCK», turn the key to «OFF» or «ON» before pressing
down. Press lever «B» and open the cover over the fuel tank cap «C».

20

01_18

01_19

Power supply socket (01_19)

There is a plug socket «D» inside the helmet compartment.
The plug socket may be used for external consumers (mobile phone, inspection light,

etc.).

CAUTION

PROLONGED USE OF THE PLUG SOCKET MAY RESULT IN PARTIAL DIS­CHARGE OF THE BATTERY

Electric characteristic

Plug socket

12 V - 180 W MAX

21

1 Vehicle

01_20

01_21

Opening the saddle (01_20, 01_21)

With the key in position «OFF» or «ON» or with the engine on, you can electrically
open the saddle by pressing button «E».. If the electric opening does not work, use
the emergency lever «A».

Identification (01_22, 01_23)

Identification registration numbers are made up of a prefix and a number, stamped on
the chassis and on the engine. These numbers must always be quoted when ordering
spare parts. We recommend checking that the chassis registration number stamped
on the vehicle corresponds with that on the vehicle documentation.

22

CAUTION

BE REMINDED THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS
CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE,
ETC.).

01_22

Chassis number

To read the chassis number, remove the lid «A» in the helmet compartment.

01_23

Engine number

The engine number «B» is stamped near the rear left shock absorber lower support.

23

1 Vehicle

01_24

Rear top box opening (01_24)

Insert the key into the switch and press down until the glove compartment opens. In
the event that the switch is in «LOCK», turn the key to «OFF» or «ON» before pressing
it.

01_25

Bag clip (01_25)

To use the retractable bag hook «B» mounted on the leg shield back plate, pull it
slightly towards the back of the vehicle.

24

Beverly Tourer 300ie

Chap. 02

Use

25

02_01

Checks (02_01)

Before using the vehicle, check:

1. That there is enough fuel in the fuel tank.

2. Front and rear brake fluid level

3. That tyres are properly inflated.

4. The correct functioning of the tail lights, the headlight, and the turn indicators.

5. The correct functioning of front and rear brakes.

6. The oil level in the gearcase.

7. Engine oil level.

8. The coolant level

02_02

Refuelling (02_02)

Reach the fuel tank and unscrew the cap «A».
Use premium unleaded petrol, with minimum octane rating of 95.
A specific gauge on the instrument panel indicates the fuel level.

WARNING

SWITCH OFF THE ENGINE BEFORE REFUELLING WITH PETROL.
PETROL IS HIGHLY INFLAMMABLE.
DO NOT SMOKE AND KEEP NAKED FLAMES AT A DISTANCE:FIRE HAZARD.
DO NOT INHALE FUEL FUMES.

26

DO NOT ALLOW PETROL TO COME INTO CONTACT WITH HOT ENGINE OR
ANY PLASTIC PARTS.

CAUTION

PETROL DAMAGES THE PLASTIC PARTS OF THE BODYWORK.

CAUTION

DO NOT USE THE VEHICLE TO THE COMPLETE EXHAUSTION OF THE FUEL;
SHOULD THIS OCCUR, DO NOT ATTEMPT TO START THE ENGINE. TURN THE
KEY SWITCH TO «OFF» AND TOP-UP THE TANK AS SOON AS POSSIBLE.
FAILURE TO FOLLOW THESE GUIDELINES COULD DAMAGE THE FUEL PUMP
AND/OR THE CATALYTIC CONVERTER.

Characteristic

Fuel tank (reserve)

10 l ± 0.5

27

2 Use

02_03

Tyre pressure (02_03)

Check tyre pressure and wear periodically as indicated in the scheduled maintenance
table. Tyres feature wear indicators; replace tyres as soon as these indicators become
visible on the tyre tread. Also check that the tyres do not show signs of splitting at the
sides or irregular tread wear; if this occurs, go to an authorised workshop or at least
to a workshop equipped to replace tyres.

CAUTION

TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCOR­RECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RID­ING DANGEROUS.

TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS
SET FORTH BY LAW.

TYRES

Front tyre Tubeless, 110/70 - 16'' 52P
Rear tyre Tubeless, 140/70 - 16'' 65P

TYRE INFLATION PRESSURE

Front tyre pressure (with
passenger)

2 bar (-)

Rear tyre pressure (with
passenger)

2.2 bar (2.5 bar)

28

02_04

02_05

Shock absorbers adjustment (02_04, 02_05)

The preloading of the springs can be adjusted to 4 positions acting on the ring nut
located in the lower part of the shock absorbers with the specific spanner supplied.

Position 1: minimum preload: rider only
Position 2 medium preloading: rider only
Position 3 medium preloading: rider and passenger
Position 4: maximum preloading: rider, passenger, and luggage.

In order to carry out this operation you will need to use the specific spanner in the kit.
Spring preloading increases by turning the ring nut towards «A», but decreases if the
ring nut is turned towards «B».

CAUTION

RIDING THE VEHICLE WITH THE SPRING PRELOADING NOT CORRECTLY SET
FOR THE RIDER AND POSSIBLE PASSENGER, COULD REDUCE THE COM­FORT OF THE RIDE AND THE PRECISION OF THE STEERING.

WARNING

WE RECOMMEND WEARING GLOVES WHILE CARRYING OUT THIS OPERA­TION IN ORDER TO AVOID INJURIES.

29

2 Use

WARNING

IT IS ABSOLUTELY FORBIDDEN TO ADJUST THE PRELOAD DIFFERENTLY ON
THE TWO SHOCK ABSORBERS

02_06

Running in (02_06)

DURING THE FIRST 1000 KM DO NOT RIDE THE VEHICLE OVER 80% OF ITS
MAX. SPEED. AVOID OPENING THE THROTTLE GRIP COMPLETELY OR KEEP­ING A CONSTANT SPEED ALONG LONG SECTIONS OF ROAD. AFTER THE
FIRST 1000 KM INCREASE SPEED PROGRESSIVELY, IF POSSIBLE, UNTIL THE
MAXIMUM PERFORMANCE IS OBTAINED.

CAUTION

IN ORDER TO AVOID DAMAGING THE VEHICLE, PLEASE COMPLY WITH THE
RULES LISTED ABOVE.

30

02_07

02_08

Starting up the engine (02_07, 02_08)

The vehicle is equipped with an ignition prevention system controlled by the side
stand.

The engine cannot be started if the side stand is lowered.
If the engine is on, it will turn itself off if the side stand is lowered.
To start the engine it is necessary, before pressing the starter button, to pull and keep

pulled the front or rear brake lever, which activates the appropriate switch allowing
start-up.

1. Rest the vehicle on its centre-stand, ensuring the rear wheel is not touching the
ground.

2. Keep the hand grip accelerator at the minimum.

3. Insert the key into the ignition switch «A» and turn it to «ON».

4. Make sure that the emergency stop switch «B» is in position «RUN» and the side
stand is up and not engaged.

5. Pull lever «C» of the front or rear brake and then activate the starter button «D».

WARNING

THE AUTOMATIC TRANSMISSION MAKES THE REAR WHEEL TURN EVEN
WHEN THE THROTTLE IS SLIGHTLY TWISTED. RELEASE THE BRAKE CARE­FULLY AFTER STARTING, AND THEN ACCELERATE GRADUALLY.

CAUTION

DO NOT START-UP THE ENGINE IN CLOSED AREAS BECAUSE EXHAUST
GASES ARE TOXIC.

31

2 Use

02_09

Stopping the engine (02_09)

Fully untwist the throttle grip, then rotate the key in the switch «A » to «KEY
OFF» (extractable key).

02_10

Anti-theft ring (02_10)

The «D» ring on the right side of the vehicle is used to fasten the vehicle to an object
using a scooter chain. Do not use the ring for other purposes.

WARNING

THIS ACCESSORY IS NOT A THEFT PREVENTION GUARANTEE, IT IS ONLY A
DETERRENT.

Stand (02_11)

Centre stand

Push with your foot on the centre stand's fork «F» while lifting the vehicle backward,
holding onto the handlebar.

32

02_11

Side stand

Push with your foot on the stand's prong «L» until it releases into position, while low­ering the vehicle onto the stand.

WARNING

THE SIDE STAND CAUSES THE ENGINE TO TURN ITSELF OFF WHENEVER IT
IS LOWERED.

WARNING

TAMPERING MAY CAUSE SERIOUS ENGINE MALFUNCTION.
CAUTION

DUE TO THE HIGH TEMPERATURES THE CATALYTIC CONVERTER CAN
REACH, ALWAYS TAKE CARE, WHEN PARKING THE VEHICLE, THAT THE SI­LENCER DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS,
TO AVOID SERIOUS BURNS.

CAUTION

DO NOT SHUT OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UNBURNED
FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING THE
CONVERTER TO OVERHEAT AND POSSIBLY DESTROYING IT.

33

2 Use

02_12

Automatic transmission (02_12)

To ensure simple, pleasurable riding, the vehicle is equipped with automatic trans­mission with regulator and centrifugal clutch. The system is designed to provide the
best performance (acceleration and consumption) while riding on both flat roads and
uphill.

If you have to stop on an uphill slope (traffic lights, traffic jam, etc.) use only the brake

to keep the vehicle still, leaving the engine running at idle speed. Using the
engine to keep the vehicle still can cause the clutch to overheat, due to the
friction of the clutch mechanism itself against the clutch bell.

It is therefore recommended to avoid conditions of prolonged clutch slippage (other
than those previously indicated) like driving uphill fully laden on steep slopes or starting
off with driver and passenger at slopes greater than 25%.

Observe the following precautions if the clutch overheats:

1.Do not continue riding in such conditions.

2. Let the clutch cool down with the engine at idle speed for a few minutes.

02_13

Safe driving (02_13)

Some simple tips are provided below that will enable you to use your vehicle on a daily
basis, confidently and safely. Your skill and your mechanical knowledge are the basis
of safe riding. We recommend trying out the vehicle in traffic-free zones in order to
acquire a good knowledge of the vehicle it self.

1. Before riding off, remember to put on your helmet and fasten it correctly.

2.Reduce speed on rough roads and ride with care.

3. After riding on a long stretch of wet road without using the brakes, braking can be

poor at the beginning. Under these conditions, it is a good idea to operate the brakes
from time to time.

4. Do not brake hard on wet, dirt or slippery road surfaces.

34

5. Avoid riding off by mounting the scooter when resting on the support. In any case,
the rear wheel should not be turning when it comes into contact with the ground, in
order to avoid abrupt departures.

6. When riding the vehicle on roads with sand, mud, snow mixed with salt, etc., we
recommend that you clean the brake disc frequently with a non-aggressive detergent
in order to avoid the formation of abrasive build-ups in the holes, which could result
in early wear of brake pads.

CAUTION

ALWAYS RIDE WITHIN YOUR LIMITS RIDING UNDER THE INFLUENCE OF AL­COHOL OR OTHER DRUGS AND CERTAIN MEDICINES IS EXTREMELY DAN­GEROUS.

CAUTION

IN ORDER TO PREVENT ANY ACCIDENTS RIDE VERY CAREFULLY AFTER
ADDING ACCESSORIES AND WHILE CARRYING LUGGAGE. ADDING ACCES­SORIES AND LUGGAGE CAN REDUCE THE VEHICLE'S STABILITY, PERFORM­ANCE AND SAFETY DURING USE.

WARNING

NEVER RIDE THE SCOOTER EQUIPPED WITH ACCESSORIES (TOP BOX AND/
OR WINDSHIELD) AT A SPEED HIGHER THAN 100 km/h.

THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES­SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW.

IF THERE ARE ANY NON-PIAGGIO ACCESSORIES INSTALLED, OR AN AB­NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON-

35

2 Use

DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD
BE FURTHER REDUCED.

CAUTION

DO NOT ADJUST THE MIRRORS WHILE RIDING. THIS COULD CAUSE YOU TO
LOOSE CONTROL OF THE VEHICLE.

CAUTION

ANY CHANGES TO THE VEHICLE PERFORMANCE AS WELL AS ALTERATIONS
TO ORIGINAL STRUCTURAL PARTS IS STRICTLY FORBIDDEN BY LAW, AND
RENDERS THE VEHICLE NO LONGER CONFORMING TO THE APPROVED TYPE
AND DANGEROUS FOR RIDING.

36

Beverly Tourer 300ie

Chap. 03

Maintenance

37

Engine oil level

In 4-stroke engines, engine oil is used to lubricate the distribution elements, the bush­es and the thermal group. An insufficient quantity of oil can cause serious damage
to the engine.In all four-stroke engines, a loss of efficiency in oil performance and
certain consumption should be considered normal. Consumption can particularly re­flect the conditions of use (i.e. when driving at "full acceleration" all the time, oil
consumption increases). The replacement frequencies provided for by the mainte­nance programme are defined, depending on the total contents of oil in the engine
and average consumption measured following standardised methods.

In order to prevent any problems, we recommend checking oil level more fre­quently than indicated in the Scheduled Maintenance table or before setting off
on long journeys. The scooter is, however, equipped with an oil pressure warn­ing light on the instrument panel.

03_01

Engine oil level check (03_01, 03_02)

Every time the vehicle is used, visually inspect the level of the engine oil when the
engine is cold (after completely unscrewing the oil cap/dipstick). The oil level should
be somewhere between the MAX and MIN index marks on the level rod; «A»; while
the oil is being checked, the vehicle must be resting on its centre stand on an even,
horizontal surface.

If the check is carried out after the vehicle has been used, and therefore with a hot
engine, the level line will be lower; in order to carry out a correct check, wait at least
10 minutes after the engine has been stopped so as to get the correct level.

38

03_02

Engine oil top-up

Always check oil level before topping-up and add oil without exceeding the MAX
level. Getting an oil level between the MIN and MAX levels requires ~ 400 cm³ of oil.

Take your vehicle to an Authorised Service Centre to have the engine oil checked
and if necessary, topped-up as indicated in the scheduled maintenance table.

03_03

Warning light (insufficient oil pressure) (03_03)

The scooter is equipped with a warning light «G» that lights up when the key is turned
to «ON».

However, this light should switch off once the engine has been started.

If the light comes on during braking, at idling speed or while turning a corner,
it is necessary to check the oil level and top-up if required. If after having topped­up the oil, the warning light still comes on while braking, at idle speed or while
turning a corner, it will be necessary to take your vehicle to an Authorised Serv­ice Centre.

39

3 Maintenance

03_04

Engine oil change (03_04)

Have oil changed and the cartridge filter «C» replaced as indicated in the scheduled
maintenance table at an Authorised Service Centre. The engine should be emptied
by draining the oil through drainage plug «B » of the mesh filter on the flywheel side.
In order to facilitate the oil drainage, loosen the cap/dipstick. Since a certain quantity
of oil still remains in the circuit, add approx. 950 ÷ 1000 cm³ of oil through the cap
«A. Then start the engine, leave it running for a few minutes and shut it off: after 5
minutes, check the level and if necessary, top-up without exceeding the MAX lev-
el. The cartridge filter must be replaced at every oil change. For top-ups and changes,
use new oil of the recommended type.

WARNING

RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH INADE­QUATE LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.

WARNING

EXCESSIVE OIL LEVEL AT TOP-UPS CAN LEAD TO SCALE FORMATION AND
VEHICLE MALFUNCTION.

CAUTION

USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL CHANGE, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS EQUIP­PED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND
LEGAL WAY.

40

CAUTION

USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE
OF THE ENGINE.

Recommended products

AGIP CITY HI TEC 4T

Engine oil

SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil

03_05

Hub oil level (03_05, 03_06)

Check the oil in the rear hub. To check the rear hub oil level, proceed as follows:

1. Rest the vehicle on its centre stand on an even surface.

2. Unscrew the hub oil dipstick «A», dry it with a clean cloth and then reinsert it,
screwing it fully into place.

3. Pull out the dipstick to check that the hub oil level is slightly over the notch indicated

by the arrow in the figure. This is the correct level and it must remain constant at all
times.

4. Screw the oil dipstick back into place completely.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THE ONE INDI-

CATING THE MAX LEVEL, REFER TO OTHER MODELS BY THE MANUFACTUR­ER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.

41

3 Maintenance

03_06

CAUTION

RIDING THE VEHICLE HUB WITH INSUFFICIENT HUB LUBRICATION OR WITH
CONTAMINATED OR IMPROPER LUBRICANTS ACCELERATES THE WEAR
AND TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE.

CAUTION

USED OIL CAN HARM THE ENVIRONMENT. COLLECTION AND DISPOSAL
SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULATIONS IN FORCE.

CAUTION

AN EXCESSIVE QUANTITY OF OIL CAN LEAD TO SPILL OVER, WHICH MAY
CAUSE THE ENGINE AND THE WHEEL TO GET DIRTY.

CAUTION

WHEN REPLACING THE HUB OIL DO NOT LET THE OIL COME INTO CONTACT
WITH THE REAR BRAKE DISC.

CAUTION

FOR OIL REPLACEMENT, CONTACT ANY AUTHORISED SERVICE CENTRE AS
THEY ARE EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY
FRIENDLY AND LEGAL WAY.

42

Recommended products

AGIP ROTRA 80W-90

Rear hub oil

SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications

Characteristic

Transmission oil

250 cm³

03_07

Tyres (03_07)

Check tyre pressure and wear periodically as indicated in the scheduled maintenance
table. Tyres feature wear indicators; replace tyres as soon as these indicators become
visible on the tyre tread. Also check that the tyres do not show signs of splitting at the
sides or irregular tread wear; if this occurs, go to an authorised workshop or at least
to a workshop equipped to replace tyres.

CAUTION

TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCOR­RECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RID­ING DANGEROUS.

TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS
SET FORTH BY LAW.

43

3 Maintenance

WARNING

THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING
THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY
BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS.

TYRES

Front tyre Tubeless, 110/70 - 16'' 52P
Rear tyre Tubeless, 140/70 - 16'' 65P

TYRE INFLATION PRESSURE

Front tyre pressure (with
passenger)

2 bar (-)

Rear tyre pressure (with
passenger)

2.2 bar (2.5 bar)

44

03_08

03_09

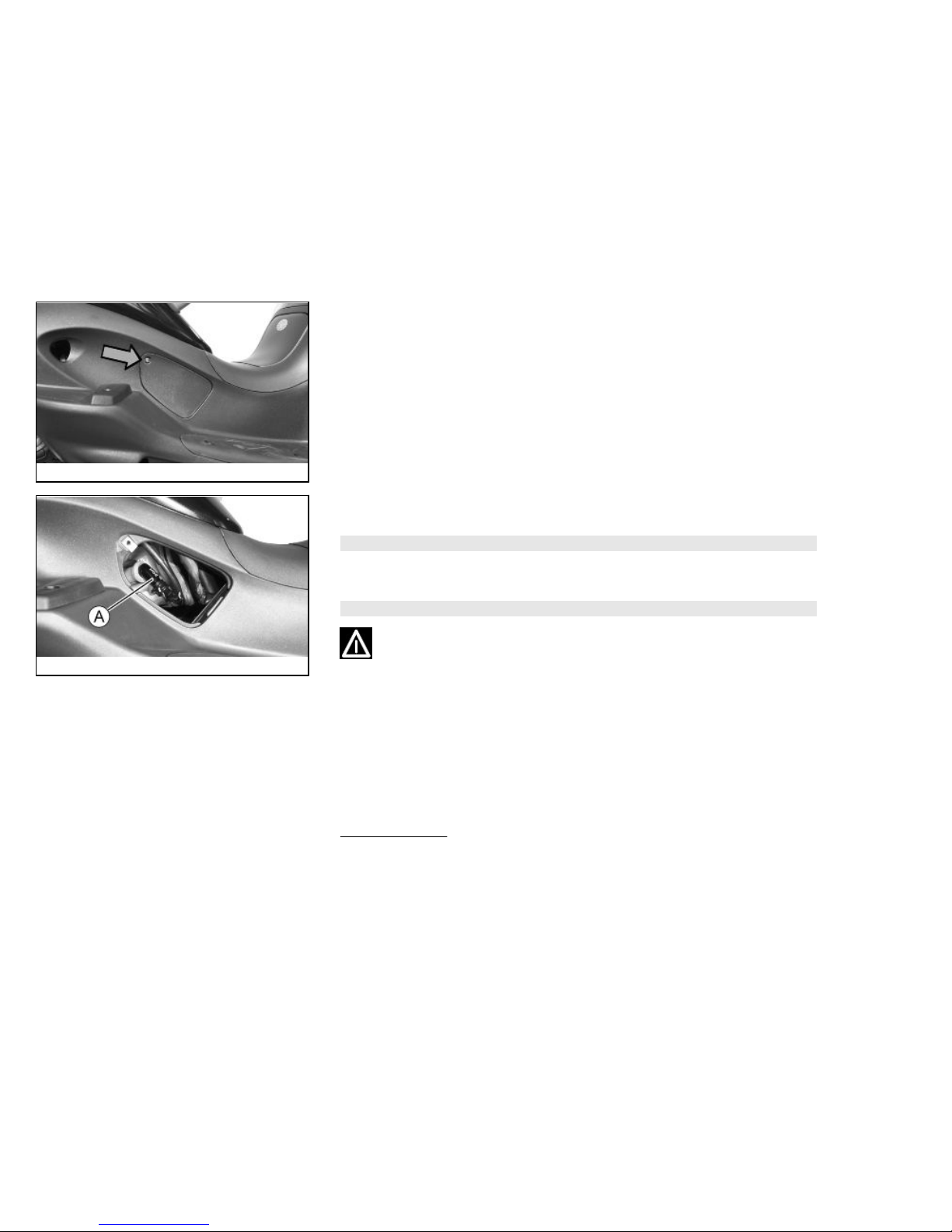

Spark plug dismantlement (03_08, 03_09)

Proceed as follows:

1. Remove the access cover over the spark plug on the right-hand side of the scooter
and reach into the spark plug with your hand;

2. Disconnect spark plug HV wire cap «A»;

3. Unscrew the spark plug using the spark plug wrench supplied;

4. When refitting, place the spark plug into the hole at the required angle and tighten

by hand until it is finger tight;

5. Use the wrench only for final tightening of the spark plug;

6. Place hood «A» fully over the spark plug.
N.B.
USING SPARK PLUGS OTHER THAN THE INDICATED TYPE OR SHIELDLESS

SPARK PLUG CAPS CAN CAUSE ELECTRICAL SYSTEM FAILURES.
WARNING

THE SPARK PLUG MUST BE REMOVED WHEN THE ENGINE IS COLD. CHECK
AND REPLACE THE SPARK PLUG AS INDICATED IN THE SCHEDULED MAIN­TENANCE TABLE. USING NON-COMPLYING ELECTRONIC CENTRAL UNITS
AND ELECTRONIC IGNITIONS OR SPARK PLUGS OTHER THAN THOSE PRE­SCRIBED MAY SERIOUSLY DAMAGE THE ENGINE. IF THE SPARK PLUG IS
REMOVED AFTER THE ENGINE HAS FLOODED, IT IS RECOMMENDED TO
KEEP THE TUBE CONNECTED TO THE SPARK PLUG AND THE SPARK PLUG
IN CONTACT WITH A GROUND CONNECTION FAR FROM THAT SPARK PLUG
HOLE IN ORDER TO PREVENT EXPELLED FUEL FROM CATCHING FIRE.

Characteristic

Spark plug

NGK CR8EKB

45

3 Maintenance

Electrode gap

0.7 to 0.8 mm

03_10

03_11

Removing the air filter (03_10, 03_11)

To access the air filter:

1. Lift the footrest mat and undo the three screws «A».

2. Remove the right footrest to have access to the nine screws «B» and unscrew them.

3. Remove the air filter cover «C».

46

03_12

Air filter cleaning (03_12)

1. Wash the sponge with water and mild soap.

2. Dry it with a clean cloth and short blasts of compressed air.

3. Impregnate the sponge with a mixture of 50% petrol and 50% specified oil.

4. Gently squeeze the filtering element, let it drip dry and then refit it.
CAUTION

IF THE VEHICLE IS USED ON DUSTY ROADS, IT IS NECESSARY TO SERVICE
THE AIR FILTER MORE OFTEN TO AVOID DAMAGING THE ENGINE.

Recommended products

AGIP FILTER OIL

Oil for air filter sponge

Mineral oil with specific additives for increased adhesiveness

03_13

Cooling fluid level (03_13, 03_14, 03_15, 03_16)

Engine cooling is carried out by a forced-circulation coolant system. The coolant con­sists of a mixture 50% de-ionised water and 50% glycol ethylene-based antifreeze
solution with corrosion inhibitors. The coolant supplied with the scooter is already
mixed and ready for use.

For proper engine functioning, make sure that the temperature of the coolant remains
in the middle zone of the corresponding gauge. If the needle of the gauge enters the
red zone, stop the engine, let it cool down and check the coolant level; if the level is
OK, contact an Authorised Service Centre.

Check coolant when the engine is cold and as indicated in the scheduled maintenance
tables, following the steps below.

47

3 Maintenance

03_14

03_15

03_16

1. Set the vehicle upright on the stand and remove the cover by undoing screw «A».

2. Remove the expansion tank cover «B» by turning it anticlockwise.

3. Look inside the expansion tank and check that fluid level is always between the
«MIN» and «MAX» levels.

4. Top-up the fluid when it is close to the minimum mark.

If the level is not correct, proceed to top-up when the engine is cold. If the coolant
needs to be topped up frequently or the expansion tank is completely dry, check the
cooling system to find the cause of the problem. It is therefore essential to have the
cooling system checked at an Authorised Service Centre.

Replace coolant as indicated in the scheduled maintenance table. Take your vehicle
to an Authorised Service Centre for this operation.

WARNING

TO AVOID THE RISK OF SCALDING, DO NOT UNSCREW THE EXPANSION
TANK COVER WHILE THE ENGINE IS STILL HOT.

WARNING

IN ORDER TO AVOID HARMFUL FLUID LEAKS WHILE RIDING, IT IS IMPORTANT
TO MAKE SURE THAT THE LEVEL DOES NOT EXCEED THE REFERENCE
TONGUE TOO MUCH.

TO ENSURE CORRECT ENGINE OPERATION, KEEP THE RADIATOR GRILLE
CLEAN.

Recommended products

AGIP PERMANENT SPEZIAL

coolant

48

Monoethylene glycol-based antifreeze fluid, CUNA NC 956-16

03_17

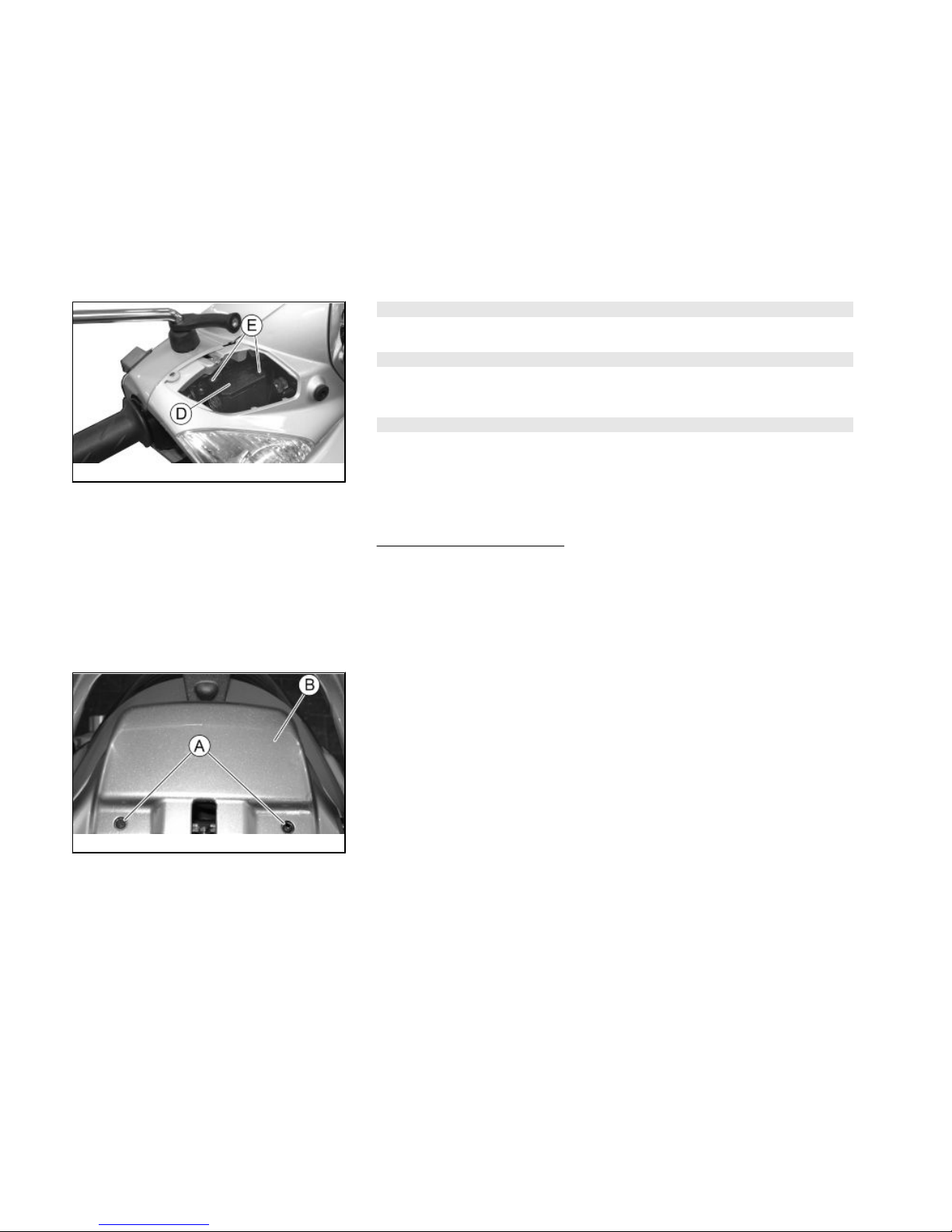

Checking the brake oil level (03_17)

The brake fluid reservoirs are found on the pumps under the front handlebar cover.
The procedures to check the brake fluid level for the front and rear brakes are identical.
Proceed as follows:

1. Place the scooter on its centre stand and make sure the handlebar is centred;

2. Loosen screw «A» and remove cover «B»;

3. Check the fluid level through the respective sight glass «C». A certain lowering of

the level is caused by wear on the pads.
Should the level appear to be below the minimum mark, please contact an Authorised

Service Centre or Dealer in order to have a thorough inspection of the braking system
carried out.

03_18

Braking system fluid top up (03_18, 03_19)

Proceed as follows:
Remove reservoir cover «D» and loosen the two screws «E» and top-up the brake

fluid level using only the prescribed brake fluid and without exceeding the maximum
level.

Under standard climatic conditions, replace coolant as indicated in the scheduled
maintenance table.

This operation must be carried out by trained personnel; take your vehicle to an au-

thorised Service centre or Dealer.
WARNING
BRAKING CIRCUIT FLUID IS HIGHLY CORROSIVE; DO NOT LET IT COME INTO

CONTACT WITH PAINTED PARTS.

49

3 Maintenance

03_19

CAUTION
ONLY USE DOT 4-CLASSIFIED BRAKE FLUID.
WARNING
THE BRAKE FLUID IS HAZARDOUS: IN CASE OF ACCIDENTAL CONTACT,

WASH OFF WITH WATER.
WARNING
THE BRAKING CIRCUIT LIQUID IS HYGROSCOPIC, AND ABSORBS THE HU-

MIDITY OF SURROUNDING AIR. IF THE HUMIDITY IN THE BRAKING FLUID
EXCEEDS A CERTAIN VALUE, IT WILL LEAD TO INEFFICIENT BRAKING. NEV­ER USE BRAKING FLUID KEPT IN CONTAINERS THAT HAVE ALREADY BEEN
OPENED, OR PARTIALLY USED.

Recommended products

AGIP BRAKE 4

Brake fluid

FMVSS DOT 4 Synthetic fluid

03_20

Battery (03_20, 03_21)

To access the battery, proceed as follows:

1. Place the scooter on its centre stand;

2. lift the saddle, paying attention to the points mentioned above.

3. remove the retainer «A» and the cover «B».

4. Release the elastic strap «C».

The battery is the electrical device that requires the most frequent attention and the
most thorough maintenance.

The main points of maintenance to be observed are as follows:

50

03_21

WARNING

DO NOT DISCONNECT THE BATTERY CABLES WITH THE ENGINE RUNNING,
THIS CAN CAUSE PERMANENT DAMAGE TO THE VEHICLE ELECTRONIC CON­TROL UNIT.

WARNING

USED BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION
AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULA­TIONS IN FORCE.

Characteristic

Battery

12 V/12 Ah

Use of a new battery

Ensure that the terminals are connected correctly and check the voltage.

CAUTION

DO NOT REVERSE THE POLARITY: RISK OF SHORT CIRCUIT AND DAMAGE
TO THE ELECTRICAL SYSTEM.

51

3 Maintenance

Long periods of inactivity

Battery performance will decrease if the vehicle is not used for a long time. This is the
result of the natural phenomenon of battery discharging plus residual absorption by
vehicle components with constant power consumption. Poor battery performance may
also be due to environmental conditions and the cleanliness of the poles. In order to
avoid difficult starts and/or irreversible damage to the battery, follow any of these
steps:

- At least once a month start the engine and run it slightly above idle speed for 10-15
minutes. This keeps all the engine components, as well as the battery, in good working
order.

- Take your vehicle to a garage (as indicated in the "Vehicle not used for extended
periods" section) to have the battery removed. Have the battery cleaned, charged fully
and stored in a dry, ventilated place. Recharge at least once every two months.

CAUTION
THE BATTERY MUST BE RECHARGED WITH A CURRENT LOAD EQUAL TO 1/10

OF THE BATTERY RATED CAPACITY AND FOR A PERIOD NOT LONGER THAN
8 HOURS. TAKE THE VEHICLE TO AN AUTHORISED PIAGGIO SERVICE CEN­TRE FOR THIS OPERATION. WHEN REFITTING THE BATTERY MAKE SURE THE
LEADS ARE CORRECTLY CONNECTED TO THE TERMINALS.

Fuses (03_22, 03_23, 03_24, 03_25)

The electrical system is equipped with:

1. Six protective fuses «A» located inside the side panel on the right-hand side;

2. Four protective fuses «B» located inside the compartment on the upper left-hand

side.
The chart shows the position and specifications of the fuses in the vehicle.

52

CAUTION

BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).

CAUTION

MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED
INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC­IFICATIONS OF THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK OF
FIRE.

FUSES

Fuse No. 1 Capacity:30 A

Protected circuits:Battery

recharge circuit.
Live:Fuses No.7-8-9-10.

Fuse No. 2 Capacity:5A

Protected circuits:Clock,
Immobilizer.

Fuse No. 3 Capacity:15A

53

3 Maintenance

Protected circuits:Plug socket,
helmet compartment light switch,
electric fan (with remote control),
pre-installation for anti-theft
device.

Live:Saddle opening actuator.

Fuse No. 4 Capacity:10 A

Protected circuits:Injection load
(via remote control).

Fuse No. 5 Capacity:15A

Protected circuits:Light switch
(via remote control)

Fuse No. 6 Capacity:7.5 A

Protected circuits:Injection ECU.

Fuse No. 7 Capacity:7.5 A

Protected circuits:Headlight
remote control, stop lights, starter
circuit.

Fuse No. 8 Capacity:7.5 A

Protected circuits:Side lights,
license plate light, instrument
panel lighting, horn.

Fuse No. 9 Capacity:7.5 A

Protected circuits:Electric fan
remote control, injection load

54

remote control, Immobilizer aerial,
injection ECU.

Fuse No. 10 Capacity:7.5 A

Protected circuits:Pre­installation for anti-theft device,
turn indicators, instrument panel.

03_22

03_23

55

3 Maintenance

03_24

03_25

Lamps

LIST OF BULBS

High-/low-beam bulb Type: Halogen (H4)

Quantity: 1

56

Power: 12V - 55/60W

Front side light bulb Type: All glass

Quantity: 1
Power: 12V - 5W

Turn indicator bulbs Type: Spherical

Quantity: 4
Power: 12V - 10W

Rear side light bulb Type: All glass

Quantity: 2
Power: 12V - 3W

Stop light bulb Type: Spherical

Quantity: 1
Power: 12V - 10W

Instrument panel lighting bulbs Type: All glass

Quantity:5
Power: 12V - 1.2W

Helmet compartment light bulb Type: Cylindrical

Quantity: 1
Power: 12V - 5W

License plate light bulb Type: All glass

Quantity: 1

57

3 Maintenance

Power: 12V - 5W

03_26

03_27

Front light group (03_26, 03_27, 03_28, 03_29, 03_30)

To remove the front headlight assembly, proceed as follows:

1. Remove the screws «A» of the brake fluid reservoir caps.

2. Remove the 3 windshield screws and the windshield proper.

3. Remove the rear-view mirrors.

4. Remove the screws "C" of the upper coupling.

5. Remove the screws "C" of the lower coupling.

6. Remove the two screws "D" of the front handlebar cover.

7. Detach the front handlebar cover.

This gives access to the bulbs.
Release the spring and take out the bulb of the high-beam/low-beam headlamp «E».
To replace the tail light «F», pull out the rubber bulb holder from its seat.
To reassemble, repeat the operation but in reverse order.

WARNING

THE TWIN-FILAMENT (HIGH-BEAM AND LOW-BEAM) BULB IS HALOGEN: DO
NOT TOUCH THE BULB WITH YOUR FINGERS TO AVOID COMPROMISING ITS
FUNCTIONING

58

03_28

03_29

03_30

CAUTION

DO NOT CARRY ANY GARMENTS ON THE FRONT HEADLIGHT ASSEMBLY.
THIS MAY CAUSE THE BULBS TO OVERHEAT AND THEREFORE, TO THEIR
ABNORMAL WEAR.

59

3 Maintenance

03_31

03_32

Headlight adjustment (03_31, 03_32)

Proceed as follows:

1. Place the vehicle, in running order and with the tyres inflated to the prescribed
pressure, on a flat surface 10-m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the scooter is perpendicular to the screen;

2. Turn on the headlight and check that the borderline of the projected light beam on
the screen is not higher than 9/10 or lower than 7/10 of the distance from the ground
to the centre of vehicle headlamp;

3. If this is not the case, regulate the headlight by turning screw «A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-

GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE­HICLE IS USED.

CAUTION

DO NOT CARRY ANY GARMENTS ON THE FRONT HEADLIGHT ASSEMBLY.
THIS MAY CAUSE THE BULBS TO OVERHEAT AND THEREFORE, TO THEIR
ABNORMAL WEAR.

60

03_33

03_34

Front direction indicators (03_33, 03_34)

- To reach the burnt bulb, remove screws «G» and the transparent glass.

- Press the bulb and turn it anticlockwise.

03_35

Rear optical unit (03_35, 03_36, 03_37, 03_38, 03_39)

To access to rear light unit bulbs, proceed as follow:

1. Remove the plastic cover «A» of the rear luggage rack.

2.Remove the screw «B».

3. Remove screws «C» and the lateral panels of the side, paying attention not to

damage the retaining straps.

4. Remove the two screws «D» of the light assembly being tested and remove it.

61

3 Maintenance

03_36

03_37

03_38

To replace the rear light bulb «E» release the clip and take out the bulb holder.
To replace the stop light bulbs «F» take out the rubber bulb holders and slide off the

bulbs.
To replace the turn indicator bulbs «G» turn the bulb holder anticlockwise and extract

it. Now hold the bulb, press and turn it clockwise and extract it.

62

03_39

03_40

Number plate light (03_40)

Remove the screw «C», then take out the bulb holder.

63

3 Maintenance

03_41

Helmet compartment lighting bulb (03_41)

Open the helmet compartment, take out the snap-on transparent glass and replace
the bulb.

Rear-view mirrors

Adjust the mirrors by applying slight pressure to the side of the mirror to move it to the
desired position.

03_42

Front and rear disc brake (03_42)

The brake disc and pad wear is automatically compensated, therefore it has no effect
on the functioning of the front and rear brakes. For this reason it is not necessary to
adjust the brakes. An excessively elastic brake lever stroke may indicate the presence
of air in the braking circuit or a failure in the braking system. In this case, mainly due
to the importance of brakes to guarantee safe riding conditions, the vehicle should be
taken to an Authorised Service Centre or Dealer.

CAUTION

BRAKING SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.

64

CAUTION

HAVE THE BRAKE PADS CHECKED BY THE DEALER ACCORDING TO THE
CHECKS SPECIFIED IN THE SCHEDULED MAINTENANCE TABLE. HOWEVER,
IN THE EVENT OF NOISES COMING FROM THE FRONT AND/OR REAR BRAK­ING SYSTEM DURING OPERATION, IT IS ADVISABLE TO HAVE THE BRAKING
SYSTEM CHECKED BY AN AUTHORISED SERVICE CENTRE OR DEALER. AF­TER REPLACING THE BRAKE PADS, DO NOT USE THE SCOOTER UNTIL YOU
HAVE OPERATED THE BRAKE LEVER SEVERAL TIMES IN ORDER TO ALLOW
THE PLUNGERS TO SETTLE AND THE LEVER STROKE TO BE SET TO THE
CORRECT POSITION.

CAUTION

THE PRESENCE OF SAND, MUD, SNOW MIXED WITH SALT, ETC. ON THE
ROAD, CAN DRASTICALLY REDUCE THE LIFE OF THE BRAKE PADS. IN OR­DER TO AVOID THIS, WE RECOMMEND WASHING THE VEHICLE FREQUENTLY
WHEN RIDING IN THESE ROAD CONDITIONS.

Puncture

The vehicle is equipped with Tubeless tyres (without inner tube). In the event of a
puncture, Tubeless tyres - unlike tyres with inner tubes - go flat very slowly, resulting
in a greater steering safety. In the event of a puncture, an emergency repair can be
carried out using an "inflate and repair" spray can. For a final repair, take your vehicle
to an Authorised Service Centre or Dealer. The replacement of a tyre involves re-
moving the wheel in question. Take your vehicle to an Authorised Service Centre
or Dealer for these operations.

65

3 Maintenance

CAUTION

TO USE THE "INFLATE AND REPAIR" SPRAY CAN PROPERLY, FOLLOW THE
INSTRUCTIONS ON THE PACKAGING.

WARNING

THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING
THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY
BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS.

03_43

Periods of inactivity (03_43)

We recommend carrying out the following operations:

1. Clean the vehicle thoroughly and then cover it with a canvas;

2. With the engine off and the piston in the bottom dead centre position, remove the

spark plug, and pour into its hole 1 t0 2 cc of the recommended oil. Operate the starter
button 1-2 times for roughly 1 second to turn the engine over slowly, then insert the
spark plug again;

3. Ensure that the fuel tank is at least half full (in order to ensure the total im-
mersion of the fuel pump); spread antirust grease on the unpainted metal parts;

keep the wheels lifted above the ground by resting the chassis on two wooden wedges;

4. As regards the battery, follow the instructions in the «Battery» section.

Recommended products

AGIP CITY HI TEC 4T

Oil to lubricate flexible transmissions (throttle control)

66

Oil for 4-stroke engines

Cleaning the vehicle

Use a low pressure jet of water to soften the caked dirt and mud deposited on the
painted surfaces. Once softened, sponge off mud and dirt using a car body sponge
soaked in a car body shampoo and water solution (2-4% of car shampoo in water).
Then rinse with abundant water, and dry with a shammy cloth. For the engine exterior,
use petrol, a brush and clean cloths. Petrol can damage paintwork. Remember that
any polishing with silicone wax must always be preceded by washing.

CAUTION

DETERGENTS CAN POLLUTE WATER. THE VEHICLE MUST BE WASHED AT A
WASH STATION EQUIPPED WITH A SPECIAL WATER PURIFICATION SYSTEM.

WARNING

THE USE OF A HIGH-PRESSURE WATER JET IS STRONGLY DISCOURAGED
FOR ANY ENGINE CLEANING OPERATION; HOWEVER, IF NO OTHER MEANS
ARE AVAILABLE, IT IS THEN NECESSARY TO:

• ONLY USE A FANLIKE SPRAY JET.

• DO NOT PLACE THE NOZZLE CLOSER THAN 60 CM.

• DO NOT USE WATER AT TEMPERATURES OVER 40ºC.

• DO NOT USE HIGH-PRESSURE WATER JETS.

• DO NOT STEAM WASH.

67

3 Maintenance

• DO NOT AIM THE JET DIRECTLY AT: THE CARBURETTOR, THE ELECTRIC
CABLES, THE SLOT DIFFUSERS IN THE TRANSMISSION COVER AND THE
SCROLL COVER.

CAUTION

NEVER WASH THE SCOOTER IN DIRECT SUNLIGHT, ESPECIALLY IN SUMMER
WHEN THE BODYWORK IS STILL HOT AS THE SHAMPOO COULD DAMAGE
THE PAINTWORK IF IT DRIES BEFORE BEING RINSED OFF. NEVER USE
CLOTHS SOAKED IN ALCOHOL, PETROL, DIESEL OIL OR KEROSENE FOR
CLEANING THE PAINTED OR PLASTIC SURFACES, IN ORDER NOT TO DAM­AGE THE LUSTRE FINISH OR ALTER THEIR MECHANICAL PROPERTIES. US­ING SILICONE-BASED WAX CAN DAMAGE THE PAINTED SURFACES, DE­PENDING ON THE VEHICLE COLOUR (SATIN COLOURS). FOR FURTHER
INFORMATION ON THIS MATTER, CONTACT AN AUTHORISED SERVICE CEN­TRE.

Troubleshooting

STARTING FAILURE

Emergency switch in «OFF» Set the switch back to «ON»
Fuse blown Replace the blown fuse and have

the vehicle checked by an

Authorised Service Centre.

68

STARTING DIFFICULTIES (SEE «START-UP

PROBLEMS» SECTION)

Lack of fuel in tank. Refuelling
Injection system fault Contact an Authorised Service

Centre

Faulty fuel pump Contact an Authorised Service

Centre

Flat battery Recharge the battery.

* IMPORTANT: DO NOT USE THE SCOOTER TO THE COMPLETE
EXHAUSTION OF FUEL; SHOULD THIS OCCUR, DO NOT
ATTEMPT TO START THE ENGINE. TURN THE KEY SWITCH TO
«OFF» AND TOP-UP THE FUEL TANK AS SOON AS POSSIBLE.
FAILURE TO FOLLOW THESE GUIDELINES COULD DAMAGE THE
FUEL PUMP AND/OR THE CATALYTIC CONVERTER.

IGNITION PROBLEMS

Faulty spark plug Contact an Authorised Service

Centre.

Faulty ignition / injection control
unit. Due to the presence of high
voltage, this check should only be
carried out by an expert.

Contact an Authorised Service

Centre

69

3 Maintenance

LACK OF COMPRESSION

Loose spark plug. Screw in the spark plug tightly
Cylinder head loose, piston gas

rings worn.

Contact an Authorised Service

Centre.

Valve stuck Contact an Authorised Service

Centre.

HIGH CONSUMPTION AND LOW PERFORMANCE

Clogged or dirty air filter Try to blow out with compressed

air, otherwise replace the filter

INSUFFICIENT BRAKING

Greasy disc. Worn pads. Faulty
braking system. Presence of air in
the front and rear brake circuit.

Contact an Authorised Service

Centre.

INEFFICIENT SUSPENSION

Shock absorber fault, oil leak, end
buffers damaged; shock absorber
preloading incorrectly set

Contact an Authorised Service

Centre.

70

AUTOMATIC TRANSMISSION PROBLEMS

Variator rollers and/or driving belt
damaged

Contact an Authorised Service

Centre.

71

3 Maintenance

72

Beverly Tourer 300ie

Chap. 04

Technical data

73

04_01

74

ENGINE TECHNICAL DATA

Type Single-cylinder, 4-stroke
Cubic capacity 278 cm³
Bore x stroke 75 X 63 mm
Compression ratio 11 ± 0.5 : 1
Engine idle speed 1,700 ± 100 rpm
Timing system 4 valves, single overhead

camshaft, chain-driven.
Valve clearance Intake: 0.10 mm Exhaust: 0.15 mm
Max. power 16.1 kW at 7,250 rpm
MAX. torque 23 Nm at 6,000 rpm
Transmission Automatic expandable pulley

variator with torque server, V-belt,

self-ventilating dry automatic

centrifugal clutch and transmission

housing with forced-circulation air

cooling.
Final reduction gear Gear reduction unit in oil bath.
Lubrication Engine lubrication with lobe pump

(inside crankcase), chain-driven,

with double filter: mesh and paper.
Cooling Forced coolant circulation system.
Electric start-up Oil-coated freewheel and torque

limiter.

75

4 Technical data

Ignition Electronic inductive discharge

ignition, high efficiency, with
separate HV coil.

Ignition advance α/N three-dimensional map

managed by control unit
Spark plug NGK CR8EKB
Alternative spark plug ­Fuel supply 32 MIU1.E9 Electronic injection,

with Ø 32-mm throttle body and

electric fuel pump.
Fuel Unleaded petrol (95 RON)
Exhaust silencer Absorption-type exhaust silencer

with a 3-way catalytic converter

and lambda probe.
Emission regulations EURO 3

VEHICLE TECHNICAL DATA

Frame Tubular and steel sheets.
Front suspension Hydraulic telescopic fork with Ø 35-

mm stem
Rear suspension Two double-acting shock

absorbers, adjustable to four

positions at preloading.
Front brake Ø 260-mm disc brake with

hydraulic control activated by

handlebar right-side lever.

76

Rear brake Ø 260-mm disc brake with

hydraulic control activated by

handlebar left-side lever.
Wheel rim type Light alloy wheel rims.
Front rim 16'' x 3.00
Rear rim 16 x 3.50''
Front tyre Tubeless, 110/70 - 16'' 52P
Rear tyre Tubeless, 140/70 - 16'' 65P
Front tyre pressure (with

passenger)

2 bar (-)

Rear tyre pressure (with
passenger)

2.2 bar (2.5 bar)

Kerb weight 165 kg ± 5 kg
Maximum weight allowed 350 kg
Battery SEALED 12V / 12Ah BATTERY

CAPACITY

Engine oil 1.3 l
Transmission oil 250 cm³
Cooling system fluid 1.75 l
Fuel tank (reserve) 10 l ± 0.5

77

4 Technical data

04_02

Kit equipment (04_02)

The tools are stored under the saddle.
The toolkit includes:

•

One box-spanner

•

One twin screwdriver

•

One special spanner for adjusting rear shock absorbers

78

Beverly Tourer 300ie

Chap. 05

Spare parts and

accessories

79

05_01

Warnings (05_01)

WARNING

TO PREVENT ACCIDENTS AND TO GUARANTEE PROPER STABILITY, PER­FORMANCE AND SAFETY, RIDE THE VEHICLE VERY CAREFULLY WHEN IT IS
FITTED WITH ACCESSORIES OR WITH UNUSUAL LOADS.

WARNING

IT IS ALSO RECOMMENDED THAT ORIGINAL PIAGGIO SPARE PARTS BE
USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY
GUARANTEE AS THOSE INITIALLY FITTED ON THE SCOOTER. THE USE OF
NON-ORIGINAL SPARE PARTS RENDERS THE WARRANTY VOID.

WARNING

PIAGGIO MARKETS ITS OWN LINE OF ACCESSORIES THAT ARE RECOG­NISED AND GUARANTEED FOR USE. IT IS THEREFORE ESSENTIAL TO CON­TACT AN AUTHORISED DEALER OR SERVICE CENTRE IN ORDER TO CHOOSE
AND FIT ACCESSORIES CORRECTLY. THE USE OF NON-ORIGINAL ACCES­SORIES MAY AFFECT THE STABILITY AND OPERATION OF YOUR VEHICLE
AND REDUCE SAFETY LEVELS WITH POTENTIAL RISKS FOR THE RIDER.

80

WARNING

NEVER RIDE THE SCOOTER EQUIPPED WITH ACCESSORIES (TOP BOX AND/
OR WINDSHIELD) AT A SPEED HIGHER THAN 100 km/h.

THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES­SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW.

IF THERE ARE ANY NON-PIAGGIO ACCESSORIES INSTALLED, OR AN AB­NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON­DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD
BE FURTHER REDUCED.

WARNING

BE EXTREMELY CAREFUL WHEN INSTALLING AND REMOVING THE MECHAN­ICAL ANTITHEFT DEVICE ON THE VEHICLE (U-SHAPED PADLOCK, DISC
BLOCK, ETC.).

MAINLY NEAR THE BRAKE PIPES, TRANSMISSIONS AND/OR ELECTRIC CA­BLES, AN INCORRECT INSTALLATION OR REMOVAL OF THE ANTITHEFT
DEVICE AS WELL AS LEAVING IT ON BEFORE STARTING THE VEHICLE CAN
SERIOUSLY DAMAGE ITS COMPONENTS, COMPROMISE THE CORRECT
FUNCTIONING OF THE VEHICLE AND USERS' SAFETY.

81

5 Spare parts and accessories

82

Beverly Tourer 300ie

Chap. 06

Programmed

maintenance

83

06_01

Scheduled maintenance table (06_01)

Adequate maintenance is fundamental to ensure long-lasting, optimum operation and
performance of your vehicle.

To this end, a series of checks and maintenance operations (at the owner's expense)
have been suggested, which are included in the summary table on the following page.
Any minor faults should be reported without delay to an Authorised Service Centre
or Dealer without waiting until the next scheduled service to solve it.

All scheduled maintenance services must be carried out at the specified intervals,
even if the stated mileage has not yet been reached. Punctual scooter servicing is
essential to ensure your warranty remains valid. For any further information concern­ing Warranty procedures and 'Scheduled Maintenance', please refer to the 'Warranty
Booklet'.

MAINTENANCE TABLE

Km x 1,000 1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80

Driven pulley roller casing L L L L L L L L

Safety locks I I I I I

84

Km x 1,000 1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80

Ignition spark plug R R R R R R R R

Centre stand L L L L L L L L L L L L L L L L

Driving belt R R R R R R R R

Throttle control A A A A A A A A A

Air filter I I I I I I I I
Oil filter R R R R R R R R R

Valve clearance A A A A

Electrical system and battery I I I I I I I I I

Coolant level * I I I I I I I I I

Brake fluid * I I I I I I I I I

Engine oil R I R I R I R I R I R I R I R I R

Hub oil R I R I R I R I R

Brake pads I I I I I I I I I I I I I I I I I

Sliding blocks / variable speed rollers R R R R R R R R

Tyre pressure and wear I I I I I I I I I

Vehicle test ride I I I I I I I I I

Suspension I I I I I I I I I

Steering I I I I I I I I I

I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY C: CLEAN, R: REPLACE, A: ADJUST, L: LUBRICATE
* Replace every 2 years

85

6 Programmed maintenance

RECOMMENDED PRODUCTS TABLE

Product Description Specifications

AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the

requirements of API GL3 specifications

AGIP CITY HI TEC 4T Oil to lubricate flexible transmissions (throttle

control)

Oil for 4-stroke engines

AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for increased

adhesiveness

AGIP GP 330 Grease for brake levers, throttle White calcium complex soap-based spray

grease with NLGI 2; ISO-L-XBCIB2

AGIP CITY HI TEC 4T Engine oil SAE 5W-40, API SL, ACEA A3, JASO MA

Synthetic oil
AGIP BRAKE 4 Brake fluid FMVSS DOT 4 Synthetic fluid
AGIP PERMANENT SPEZIAL coolant Monoethylene glycol-based antifreeze fluid,

CUNA NC 956-16

UNIT OF MEASURE - CONVERSION - ENGLISH SYSTEM

TO INTERNATIONAL SYSTEM (IS).

1 Inch (in) 25.4 Millimetres (mm)
1 Foot (ft) 0.305 Meter (m)
1 Mile (mi) 1.609 Kilometre (km)
1 US Gallon (USgal) 3.785 Litre (l)
1 Pound (lb) 0.454 Kilogram (kg)
1 Cubic inch (in³) 16.4 Cubic centimetres (cm³)

86

1 Foot pound (ft lb) 1,356 Newton meter (Nm)
1 Miles per hour (mi/h) 1.602 Kilometres per hour (km/h)
1 Pound per square inch (PSI) 0.069 (bar)
1 Fahrenheit (°F) 32+(9/5) Celsius (°C)

87

6 Programmed maintenance

88

TABLE OF CONTENTS

A

Air filter: 46, 47

B

Battery: 50, 51
Brake: 49, 64

C

Checks: 26
Clock: 12

D

Disc brake: 64

E

Engine oil: 38–40
Engine stop: 16

F

Fuel: 20
Fuses: 52

H

Headlight: 60
Horn: 14
Hub oil: 41

I

Identification: 22
Immobilizer: 16, 19
Instrument panel: 9

K

Key switch: 12
Keys: 16

L

Light switch: 15

M

Maintenance: 37, 83, 84
Mirrors: 64

P

Puncture: 65

R

Refuelling: 26

S

Saddle: 22
Scheduled maintenance: 84
Shock absorbers: 29
Spark plug: 45
Stand: 32

Start-up: 15
Switch: 12, 14, 15

T

Tank: 20
Technical Data: 73
Top box: 24
Transmission: 34
Tyre pressure: 28
Tyres: 43

V

Vehicle: 7, 67

89

The descriptions and illustrations given in this publication are not binding. While the basic specifications as described and illustrated in this manual
remain unchanged, PIAGGIO-GILERA reserves the right, at any time and without being required to update this publication beforehand, to make any
changes to components, parts or accessories, which it considers necessary to improve the product or which are required for manufacturing or con­struction reasons.

Not all versions/models shown in this publication are available in all countries. The availability of each model should be checked at the official Piaggio sales network.

"© Copyright 2008 - PIAGGIO & C. S.p.A. Pontedera. All rights reserved. Reproduction of this publication in whole or in part is prohibited."

PIAGGIO & C. S.p.A. - After sales

V.le Rinaldo Piaggio, 23 - 56025 PONTEDERA (Pi)
