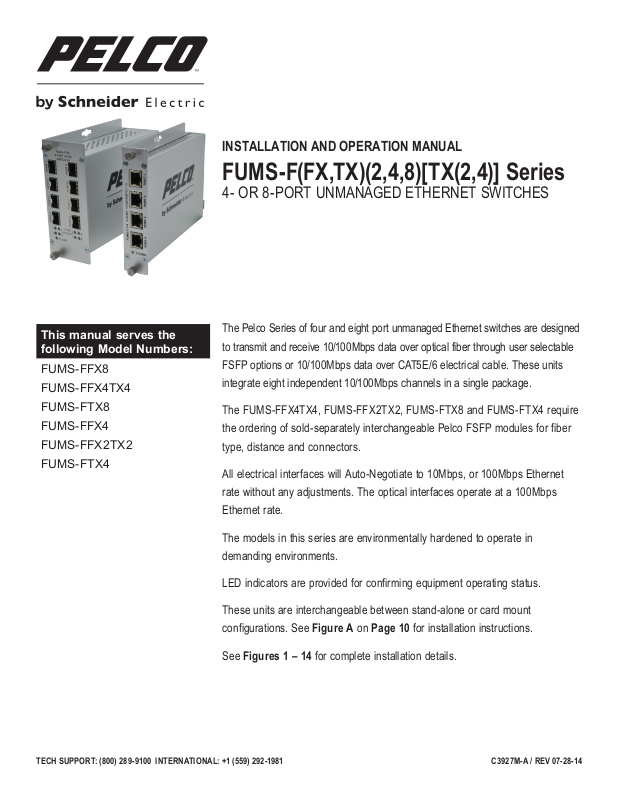

INSTALLATION AND OPERATION MANUAL
FUMS-F(FX,TX)(2,4,8)[TX(2,4)] Series
4- OR 8-PORT UNMANAGED ETHERNET SWITCHES
This manual serves the following Model Numbers:
FUMS-FFX8
FUMS-FFX4TX4
FUMS-FTX8
FUMS-FFX4
FUMS-FFX2TX2
FUMS-FTX4
The Pelco Series of four and eight port unmanaged Ethernet switches are designed to transmit and receive 10/100Mbps data over optical fiber through user selectable FSFP options or 10/100Mbps data over CAT5E/6 electrical cable. These units integrate eight independent 10/100Mbps channels in a single package.
The FUMS-FFX4TX4, FUMS-FFX2TX2, FUMS-FTX8 and FUMS-FTX4 require the ordering of sold-separately interchangeable Pelco FSFP modules for fiber type, distance and connectors.
All electrical interfaces will Auto-Negotiate to 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interfaces operate at a 100Mbps Ethernet rate.
The models in this series are environmentally hardened to operate in demanding environments.
LED indicators are provided for confirming equipment operating status.
These units are interchangeable between stand-alone or card mount configurations. See Figure A on Page 10 for installation instructions.
See Figures 1 – 14 for complete installation details.
TECH SUPPORT: (800) 289-9100 INTERNATIONAL: +1 (559) 292-1981 |
C3927M-A / REV 07-28-14 |
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the points where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14.Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus.
15.WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16.Installation should be done only by qualified personnel and conform to all local codes.
17.Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is designed for indoor use only and it must not be installed where exposed to rain and moisture.
18.Use only installation methods and materials capable of supporting four times the maximum specified load.
19.Switch does not support Internet Group Management Protocol (IGMP) and should not be used as a core switch.
20.A CCC-approved power cord must be used to power this equipment when used in China.
21.CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
The product and/or manual may bear the following marks:
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.
CAUTION:
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
TECH SUPPORT: (800) 289-9100 INTERNATIONAL: +1 (559) 292-1981 |
C3927M-A / REV 07-28-14 |
INSTALLATION AND OPERATION MANUAL
FIGURE 1 – FUMS-FFX4TX4
DETERMINED BY |
FSFP MODULES |
RJ-45 |
|
|
|
|
OPTICAL FIBERS |
SELECTION OF |
|
|
|
|
|
AND |
|
|
|
|||
|
|
|
||||
|
|
|
||||
FIGURE 2 – FUMS-FFX4TX4
FRONT PANEL |
|
|
|
|
|
REAR PANEL |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FUMS-F(FX,TX)(2,4,8)[TX(2,4)] Series
BLACK WITH WHITE STRIPES
BLACK
Power Supply:
Surface Mount: 8-15 VDC @ 2W
Rack Mount: From Rack
NOTE: Remove Electrical
Connector for Rack
Mount Units
TECH SUPPORT: (800) 289-9100 INTERNATIONAL: +1 (559) 292-1981 |
C3927M-A / REV 07-28-14 |
INSTALLATION AND OPERATION MANUAL |
FUMS-F(FX,TX)(2,4,8)[TX(2,4)] Series |
||
FIGURE 3 – FUMS-FFX8 |
|
|
|
DETERMINED BY |
FSFP MODULES |
|
|
OPTICAL FIBERS |
SELECTION OF |
|
|
|
|
|
BLACK WITH WHITE STRIPES |
|
|
|
BLACK |
|
|
|
Power Supply: |
|
|
|
Surface Mount: 8-15 VDC @ 2W |
|
|
|
Rack Mount: From Rack |
|
|
|
NOTE: Remove Electrical |
|
|
|
Connector for Rack Mount |
|
|
|
Units |
FIGURE 4 – FUMS-FFX8 |
|
|
|
FRONT PANEL |
REAR PANEL |
|
|
TECH SUPPORT: (800) 289-9100 INTERNATIONAL: +1 (559) 292-1981 |
C3927M-A / REV 07-28-14 |
