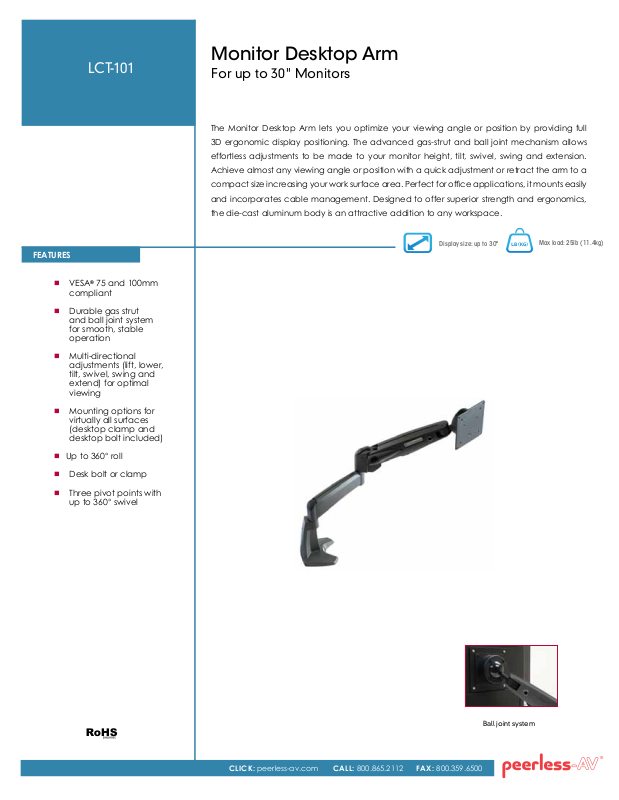

LCT-101

Monitor Desktop Arm

For up to 30" Monitors

The Monitor Desktop Arm lets you optimize your viewing angle or position by providing full

3D ergonomic display positioning. The advanced gas-strut and ball joint mechanism allows

effortless adjustments to be made to your monitor height, tilt, swivel, swing and extension.

Achieve almost any viewing angle or position with a quick adjustment or retract the arm to a

compact size increasing your work surface area. Perfect for ofce applications, it mounts easily

and incorporates cable management. Designed to offer superior strength and ergonomics,

the die-cast aluminum body is an attractive addition to any workspace.

FEATURES

 VESA® 75 and 100mm

compliant

 Durable gas strut

and ball joint system for smooth, stable operation

 Multi-directional

adjustments (lift, lower, tilt, swivel, swing and extend) for optimal viewing

 Mounting options for

virtually all surfaces (desktop clamp and desktop bolt included)

 Up to 360° roll

 Desk bolt or clamp

 Three pivot points with

up to 360° swivel

Display size: up to 30"

Max load: 25lb (11.4kg)

CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500

Ball joint system

Model Numbers

LCT-101 Monitor Desktop Stand for up to 30" Monitors

Product Speciﬁcations

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

LCT-101

23.30" x 14.66" x 4.25" (591 x 372 x 107mm)

Package Speciﬁcations

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS

LCT-101

18.62" x 12.75" x 6.12" (472 x 323 x 155mm)

Accessories

PTM200(-S): Universal Tablet Cradle ACC918: Security Fasteners

9.0lb (4.0kg) 25.0lb (11.4kg) Powder coat Black

10.0lb (4.5kg) 735029238212

Arm, mounting

hardware

All dimensions = inch (mm)

UNITS IN

PACKAGE

21.50"

(546 mm)

23.30"

(592 mm)

11.88"

(302 mm)

8.44"

(215 mm)

14.66"

(372 mm)

12.22"

(311 mm)

16.05"

(408 mm)

FRONT VIEW SIDE VIEW SIDE VIEW

EXTENSION ARM

A R C H I T E C T S S P E C I F I C A T I O N S

The 100-Series Desktop Stand shall be a Peerless-AV model LCT-101 and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.

23.14"

(588 mm)

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

LIT-1065
