PSS 250
ORBITAL SANDER
Operation and Safety Notes
6
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
GB / IE / CY Operation and Safety Notes Page 5
11
1
2
10
6
A
3
4
5
6
78
B C
9
D E F
12
Table of contents
Introduction
Intended use ..................................................................................................................Page 6
Features..........................................................................................................................Page 6
Delivery contents ...........................................................................................................Page 6
Technical Data ...............................................................................................................Page 7
General safety advice for electrical power tools
1. Workplace safety .....................................................................................................Page 7
2.
Electrical safety .........................................................................................................Page 7
3. Personal safety ..........................................................................................................Page 8
4.
Careful handling and use of electrical power tools ................................................Page 8
Appliance-specific safety Instructions ..........................................................................Page 9
Original ancillaries / and accessories..........................................................................Page 10
Operation
Operation ......................................................................................................................Page 10
Switching On and Off ..................................................................................................Page 10
Setting the oscillation speed .........................................................................................Page 10
Attaching a sanding pad ..............................................................................................Page 10
Vacuuming dust .............................................................................................................Page 10
Instructions, tips and tricks ............................................................................................Page 11
Maintenance and Cleaning ........................................................................Page 12
Service centre ........................................................................................................Page 12
Warranty ...................................................................................................................Page 12
Disposal ......................................................................................................................Page 12
Conformity Declaration / Manufacturer ..........................................Page 13
5 GB/IE/CY
Introduction

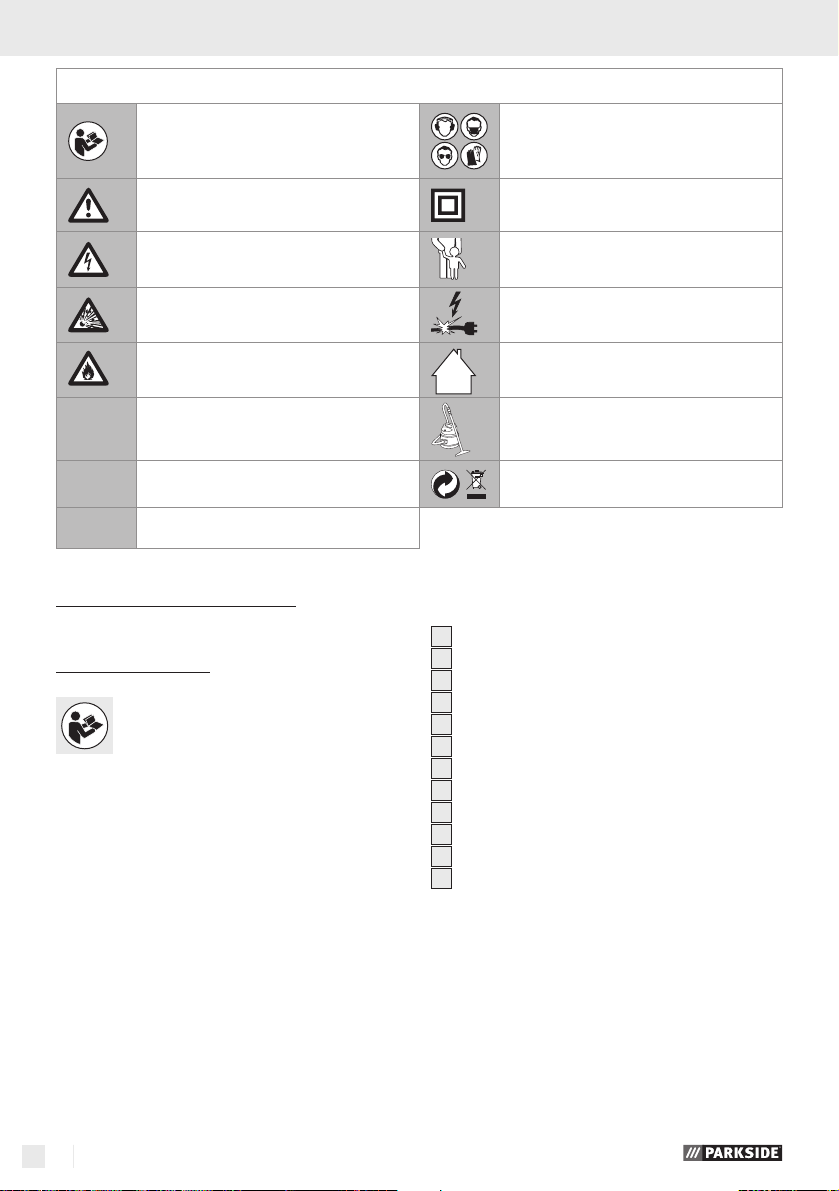

The following pictograms are used in these operating instructions / on the device:
Wear hearing protection, dust protection
Read instruction manual!
Observe caution and safety notes! Safety class II
mask, protective glasses and protective
gloves.
Caution – electric shock!
Danger to life!
Risk of explosion!
Risk of fire!
n
V
W
0
No load speed Dust hazard!
Volt (AC)
~
Watts (Effective power)
Orbital sander PSS 250
Q
Introduction
Before using the appliance for the first time
familiarize yourself with all functions of
the appliance and inform yourself about
the correct handling of electrical tools. Please read
the following operating instructions carefully. Retain
these instructions for future reference. Additionally,
pass them on to whoever might acquire the appliance at a future date.
Keep children away from electrical
power tools!
Risk of loss of life by electric shock from
damaged mains lead or mains plug!
Protect electrical power tools from
moisture!
Dispose packaging and appliance in
an environmentally-friendly way!
Q
Features
1
ON / OFF switch
2
Locking button for the ON / OFF switch
3
Release button
4
Dust collection box
5
Connection (vacuum dust extraction)
6
Clamping bars
7
Tensioning lever
8
Sanding plate
9
Sanding Pad
10
Oscillation speed selection
11
Grip surface
12
Reducer
Q
Intended use
The oscillating sander is suited for dry sanding of
wood, plastics and paints. Any other use or modification is considered improper use and involves significant accident risks. The manufacturer declines to
accept responsibility for damage(s) arising out of
usage contrary to the instructions specified below.
The appliance is not meant for commercial use.
6 GB/IE/CY
Q
Delivery contents
1 x Orbital sander PSS 250
1 x Sanding sheet (Grit 120), see Fig. F
1 x Dust collection box
1 x Reducer, see Fig. D
1 x Operating manual
Introduction / General safety advice for electrical power tools
Q
Technical Data
Nominal voltage: 230 V ~ 50 Hz
Nominal power: 250 W
Idle speed: n
Idle oscillation speed: n
Sanding sheet dimensions: Hook and loop fastening
Protection class: II /
Noise and vibration data:
Values determined in accordance with EN 60745
The sound pressure level (A-weighted) of the
device is typically 82 dB(A). Uncertainty K = 3 dB.
The sound level while working can exceed 93 dB (A).
7.000 - 12.000 rpm
0
14.000 - 24.000 rpm
0
93 x 185 mm
Clamp fastening
93 x 230 mm
General safety advice for
electrical power tools
WARNING!
and instructions! Failure to observe the safety
advice and instructions may result in electric shock,
fire and / or serious injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE! THE TERM “ELECTRICAL TOOL” USED
IN THE SAFETY ADVICE REFERS TO ELECTRICAL
TOOLS POWERED BY MAINS ELECTRICITY (BY
MEANS OF A MAINS LEAD) AND ELECTRICAL
TOOLS POWERED BY RECHARGEABLE BATTERIES (WITHOUT A MAINS LEAD).
Read all the safety advice
Wear ear protection!
Evaluated acceleration, typical:
Hand / arm vibration a
Uncertainty K = 1,5 m / s
WARNING!
= 5,5 m / s
h
2
The vibration level given in
2
these instructions has been measured in accordance
with a standardised measurement procedure specified
in EN 60745 and can be used to compare devices.
Different uses of the device give rise to different
vibration levels and in many cases they may exceed
the values given in these instructions. It is easy to
underestimate the vibration load if the electrical power
tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment
of the vibration loads experienced during a particular
period of working, you should also take into account
the intervening periods of time when the device is
switched off or is running but is not actually in use.
This can result in a much lower vibration load over
the whole of the period of working.
1. Workplace safety
a) Keep your working area clean and
well lit. Untidy or poorly lit working areas
can lead to accidents.
b)
Do not work with the device
in potentially explosive environments in which there are
inflammable liquids, gases or dusts.
Electrical power tools create sparks, which can
ignite dusts or fumes.
c)
Keep children and other
people away while you are
operating the electrical tool.
Distractions can cause you to lose control of
the device.
2. Electrical safety
To avoid danger to life from
electric shock:
a)
The mains plug on the device must match
the mains socket. The plug must not
be modified in any way. Do not use
an adapter plug with devices fitted
with a protective earth. Unmodified
plugs and matching sockets reduce the risk of
electric shock.
7 GB/IE/CY
General safety advice for electrical power tools
b) Avoid touching earthed surfaces such
as pipes, radiators, ovens and refrigerators with any part of your body.
There is an increased risk of electric shock if
your body is earthed
c) Keep the device away from rain or
moisture. Water entering an electrical device
increases the risk of electric shock.
d)
device, to hang up the device or to pull
e) When working outdoors with an
f) Use a residual current device (RCD)
Do not use the mains lead for
any purpose for which it was
not intended, e.g. to carry the
the mains plug out of the mains socket.
Keep the mains lead away from heat,
oil, sharp edges or moving parts of
the device. Damaged or tangled mains leads
increase the risk of electric shock.
electrical power tool always use extension cables that are also approved
for use outdoors. The use of an extension
cable suitable for outdoor use reduces the risk
of electric shock.
for protection if operating the electrical power tool in a moist environment
is unavoidable. The use of an RCD reduces
the risk of electric shock.
.
3. Personal safety
a) Remain alert at all times, watch what
you are doing and always proceed
with caution. Do not use the device if
you are tired or under the influence
of drugs, alcohol or medication. One
moment of carelessness when using the device
can lead to serious injury.
b)
personal protective equipment such as dust
Wear personal protective
equipment and always wear
safety glasses. The wearing of
masks, non-slip safety shoes, safety helmets or
ear protectors, appropriate to the type of electrical power tool used and work undertaken,
reduces the risk of injury.
c) Avoid unintentional operation of
the device. Check that the electrical
power tool is switched off before you
connect it to the mains, pick it up or
carry it. Accidents can happen if you carry
the device with your finger on the ON / OFF
switch or with the device switched on.
d) Remove any setting tools or spanners
before you switch the device on. A tool
or spanner left attached to a rotating part of a
device can lead to injury.
e) Avoid placing your body in an un-
natural position. Keep proper footing
and balance at all times. By doing this
you will be in a better position to control the
device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear
loose clothing or jewellery. Keep your
hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long
hair can become trapped in moving parts.
g) If vacuum dust extraction and collection
devices are fitted do not forget to
that they are properly connected
correctly used. The use of these devices
reduces the hazard presented by dust.
4.
Careful handling and use
check
and
of electrical power tools
a) Do not overload the device. Always
use an electrical power tool that is
intended for the task you are undertaking. By using the right electrical power
tool for the job you will work more safely and
achieve a better result.
b) Do not use an electrical power tool if
its switch is defective. An electrical power
tool that can no longer be switched on and off
is dangerous and must be repaired.
c) Pull the mains plug from the socket
before you make any adjustments
to the device, change accessories
or when the device is put away. This
precaution is intended to prevent you from
unintentionally starting the device.
8 GB/IE/CY
General safety advice for electrical power tools
d) When not in use always ensure that
electrical power tools are kept out of
reach of children. Do not let anyone use
the device if he or she is not familiar
with it or has not read the instructions
and advice. Electrical power tools are danger-
ous
when they are used by inexperienced people.
e) Look after the device carefully. Check
that moving parts are working properly and move freely. Check for any
parts that are broken or damaged
enough to detrimentally affect the
functioning of the device. Have damaged parts repaired before you use
the device. Many accidents have their origins
in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp.
Carefully maintained cutting tools with sharp
cutting edges are less likely to jam and are
easier to control.
g) Use the electrical power tool, accesso-
ries, inserted tools etc. in accordance
with these instructions and advice, and
the stipulations drawn up for this particular type of device. In doing this,
take into account the working conditions and the task in hand. The use of
electrical power tools for purposes other than
those intended can lead to dangerous situations.
Appliance-specific
safety Instructions
To avoid the risk of injury or fire as well
as health risks:
J When working outdoors, connect
the appliance via a residual current
circuit-breaker with a maximum
breaking current of 30 mA.
J Only use an extension cord certified
for use outdoors.
J Secure the workpiece firmly. Use
clamps / vices to firmly hold the workpiece. It is thus better secured than just with
your hand.
J In case of danger, immediately pull
the power plug from the socket.
J Always run the power cord away
from the appliance to the rear.
J
make sure that nobody is placed in any danger
and that there are no inflammable materials
near the working area.
J
Any harmful / noxious dusts generated from
sanding represent a risk to the health of the
person operating the device and to anyone
near the work area.
J
rise to dusts that are hazardous to health, the
sander must be connected to a suitable external
dust extraction device.
DANGER OF FIRE FROM FLYING
SPARKS! Abrading metal creates
flying sparks. For this reason, always
WARNING!
Wear protective glasses and
NOXIOUS FUMES!
WARNING!
When sanding wood and in particular
when working on materials that give
a dust mask!
DUST HAZ
ARD!
J Ensure sufficient ventilation when work-
ing on plastics, paints, lacquers, etc.
J Do not soak materials or surfaces to be
worked with liquids containing sol
vents.
J Avoid sanding of lead-based paints or
other materials that are hazardous to
health.
J Material containing asbestos may not
be worked on. Asbestos is considered a
carcinogen.
J The appliance is designed for dry sur-
face sanding of wood, plastic, metal
and smoothing compounds as well as
painted surfaces.
J Never work on moistened materials
or wet surfaces. Water entering an electrical device increases the risk of electric shock.
J Always hold the appliance firmly with
two hands while working (see also
Fig. D, E).
J Never support your hands next to or
in front of the device or on the surface
being worked as there is a risk of
injury in the event of slipping.
J Always switch off the appliance and
allow the sanding pad
9
to come to
9 GB/IE/CY
General safety advice for electrical power tools / Operation
a stop before setting down the oscillating sander.
J Always pull the power plug out of the
socket for all work pauses, before any
work on the appliance (e.g. changing
the sanding paper) and when not in use.
J
The appliance must always be kept
clean, dry and free of oil or lubricating greases.
Q
Original ancillaries / and
accessories
J Only use accessories and tools that are specified
in the operating instructions. The use of tools
and accessories other than those recommended
in the operating instructions could lead to an
increased risk of personal injury for you.
Q
Operation
Q
Operation
Take note of the mains voltage! The voltage must
agree with the information on the type plate of
the appliance (appliances that are designated as
230 V can also be connected to 220 V).
Q
Switching On and Off
Switching on intermittent function:
j Press the ON / OFF switch
Switching off intermittent function:
j Release the ON / OFF switch
Switching on continuous operation :
j Press the ON / OFF switch
and press the locking button
Switching off continuous operation:
j Press the ON / OFF switch
again.
10 GB/IE/CY
1
.
1
.
1
, hold it pressed
2
.
1
then release it
Q
Setting the oscillation speed
You can set the desired oscillation speed as
needed with the oscillation speed selector
10
.
The required oscillation speed depends on the
material being worked and can be determined
through practical tests.
Q
Attaching a sanding pad
WARNING!
Before performing work on the
appliance, always disconnect the power.
NOTE: Before attaching a new sanding pad
remove dust and dirt from the sanding plate
9
,
8
.
Sanding sheets with hook and loop
fastening:
j Fix one side of the sanding sheet
one side of the backing plate
j Then attach the sanding sheet
ing plate
8
and press it firmly into place.
9
flush with
8
.
9
to the back-
Sanding sheets without hook and loop
fastening:
j Open the two clamping levers
j Push one end of the sanding sheet
the open clamping bar
7
.
6
and clamp the
9
under
sheet firmly in place by locking the clamping
7
lever
back in place.
j Repeat this procedure at the other end.
Various materials require different grit values. You
can read which grit value is best suited for which
work in our recommendations under “Instructions, tips
and tricks”.
Q
Vacuuming dust
WARNING!
A risk of fire exists when working with
electrical appliances that have a dust
collection box
4
or can be attached to a vacuum
cleaner via an external suction adapter! Under certain conditions the sanding dust in the dust box (or
in the vacuum’s dust bag) may self-ignite, e.g. as
a result of flying sparks generated when abrading
FIRE HAZARD!
Operation
metals or metal objects left in wood. This can happen especially if the wood dust has paint particles
on it or is mixed with other chemical substances
and the sanded material is hot after extensive
working. You should therefore avoid overheating
of products being sanded as well as the appliance
and always empty the dust collection box
4
or
the dust bag of the vacuum cleaner before work
pauses.
Wear a dust mask!
Vacuuming dust with the dust
collection box
Attach the dust collection box:
j Push the dust collection box
4
on to the
device.
Remove the dust collection box:
j Press the release button(s)
collection box
NOTE: Always empty the dust collection box
4
off the device.
3
and pull the dust
4
in due time and shake any remaining dust out; this
will ensure optimal vacuum performance.
Dust extraction using an external
vacuum extraction device
Connecting:
j For vacuum dust removal using a vacuum
cleaner, push the suction hose of a vacuum
cleaner approved for use as a dust extraction
device (e.g. a workshop vacuum cleaner) into
the connection
5
– see Fig. D.
NOTE: If it is necessary to use the reducer
12
piece
nection
, push the reducer piece into the con-
5
.
Removing:
j Pull the hose of the dust extraction device off
the connection
if one is used.
5
or off the reducer piece 12,
Q
Instructions, tips and tricks
j Move the oscillating sander parallel, in flat
circles or alternating between lengthwise and
side-to-side motions.
j Do not press down with the oscillating sander.
The sanding pads become clogged, which
reduces the sanding performance.
9
j Clean the sanding pad
occasionally with
the vacuum cleaner.
j The removal performance and therefore the
result of your work are determined by the correct
selection of the speed and sanding pad
j Never sand different materials with the same
9
sanding pad
The following table offers some values, which are
for information only and may simplify the selection
of a sanding pad
Wood Sanding Pad / Grit
Sanding of wood 40 - 240
Pre-sanding, e.g.
of rough, unplaned
beams and boards
Surface sanding 80, 100, 120
Fine sanding of hard
woods
Paints / Lacquers Sanding Pad / Grit
Sanding of paint /
lacquer coats
or base coats
such as filler and
smoothing compound
Sanding off paint 40, 60
Sanding off primer
coats
Final sanding of base
coats before painting
(e.g. wood then metal).
9
.
40, 60
180, 240
40 - 320
80, 100, 120
180, 240, 320
9
grit.
11 GB/IE/CY
Maintenance and cleaning / Service centre / Warranty / Disposal
Q
Maintenance and Cleaning
WARNING!
Before performing any work on the appliance,
disconnect the power plug.
DANGER OF INJURY!
The warranty covers only material or manufacturing faults, not normal wear or damage to fragile
parts such as switches or rechargeable batteries.
The appliance is intended solely for private, not
commercial, use.
j Clean the appliance regularly, preferably
always immediately after use.
j Do not use any sharp objects for cleaning the
appliance. Never permit fluids to permeate
inside the appliance.
j Use a cloth to clean the casing. Never use pet-
rol, solvents or cleansers that damage plastics.
A vacuum cleaner is required for thorough
cleaning of the appliance.
j Ventilation openings must never be obstructed.
j Remove adhering sanding dust with a brush.
Q
Service centre
J
J
WARNING!
repaired only by qualified specialist
personnel using original manufacturer
parts only. This will ensure that your device
remains safe to use.
WARNING!
lead needs to be replaced, always
have the replacement carried out by
the manufacturer or its service centre.
This will ensure that your device remains safe
to use.
Have your device
If the plug or mains
If this product has been subjected to improper or
inappropriate handling, abuse, or interventions
not carried out by one of our authorised sales and
service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston (Great Britain)
WV14 7EG
Tel.: 0870 / 787-6177
Fax: 0870 / 787-6168
e-mail: support.uk@kompernass.com
IE
Kompernaß Service Ireland
Tel.: 1850 930 412 (0,082 €/Min.)
* Standard call rates apply.
Mobile operators may vary.
e-mail: support.ie@kompernass.com
Q
Warranty
This appliance is guaranteed for 3 years
from the date of purchase. It has been carefully produced and meti-culously checked
before delivery. Please keep your receipt
as proof of purchase. Contact your service
centre by telephone in case of questions
pertaining to the warranty. Your goods can
be transmitted free of cost only in this manner. This warranty applies only to the initial
purchaser and is non-transferable.
12 GB/IE/CY
Q
Disposal
The packaging is made from environ-
mentally-friendly material and can be
disposed off at your local recycling plant.
Do not dispose of electrical
appliances in normal household
refuse!
According to European Directive 2002 / 96 / EC
for used electrical and electronic appliances and
its adoption into national laws, worn-out electrical
Disposal / Conformity Declaration / Manufacturer
tools must be collected separately and subjected to
an environmentally friendly recycling procedure.
Your local communal or municipal authorities can
provide information on how to dispose of the wornout appliance.
Q
Conformity Declaration /
Manufacturer
We, Kompernaß GmbH, Burgstr. 21,
D-44867 Bochum, Germany, hereby declare that
this product complies with the requirements of the
following EC directives:
EC machine guideline
(98 / 37 / EC)
EC Low Voltage Directive
(2006 / 95 / EC)
EMC (Electromagnetic Compatibility)
(2004 / 108 / EC)
Type / Appliance Designation:
Parkside Orbital sander PSS 250
Bochum, 31.07.2009
Hans Kompernaß
- Managing Director-
Subject to technical changes in the course of
further developments.
13 GB/IE/CY
IAN 35324
KOMPERNASS GMBH
Burgstraße 21
D-44867 Bochum
© by ORFGEN Marketing
Last Information Update: 07 / 2009 · Ident.-No.: PSS 250072009-6
6
Loading...
