Introduction
Congratulations on the purchase of your
new appliance. You have selected a high
quality product. The operating instructions
are part of this product. They contain
important information on safety, usage
and disposal. Before using the product, familiarise
yourself with all operating and safety instructions.
Use the product only as described and for the
areas of application specified. Please also pass
these operating instructions on to any future
owner(s).
Intended use
This appliance is intended for installing and removing screws as well as drilling in wood, metal,
ceramic and plastic and impact drilling in bricks
and masonry. It is not suitable for impact drilling
in natural stone such as granite. The light on this
appliance is intended to illuminate the immediate
work area of the appliance.
Use this product only as described and for the
areas of applications specified. The appliance is
not meant for commercial use. Any other usage
of or modification to the appliance is deemed to
be improper usage and carries the risk of serious
personal injury. The manufacturer accepts no responsibility for damage(s) resulting from improper
usage.
Features
Speed selector
Rotational direction switch / Lock
ON/OFF switch / Speed control
Bit holder
Battery charge level button
Battery display LED
Battery pack
Release button for battery pack
LED work light
Additional handle
Chuck
Torque selection ring
Rapid charger
Red charge control LED
Green charge control LED
Package contents
1 Cordless hammer drill PSBSA 18-Li B2
1 Rapid charger PLG 18 A1
1 Battery pack
1 Additional handle
1 User manual
Technical data
Cordless hammer drill: PSBSA 18-Li B2
Rated voltage: 18 V
Drive: 2 speed drive
T2A
0–440 rpm
0
Idle speed: 1st gear: n
Hammer frequency: 0–26400 /min
Max. torque: 40 Nm
Torque stages: 1–20 + 1 drill setting /
Chuck clamping range: max. 13 mm
Recommended hole
diameters: max. 13 mm for steel
Battery: PAP 18 A1
Type: LITHIUM ION
Rated voltage: 18 V
Capacity: 1.5 Ah
Rapid charger: PLG 18 A1
INPUT:
Rated voltage: 230–240 V ~, 50 Hz
Power consumption: 40 W
OUTPUT:
Rated voltage: 18 V
Charging power: 1.8 A
Charging time: approx. 60 min
Fuse (internal): 2 A
Protection class: II /
2nd gear: n0 0–1650 rpm
+ 1 hammer drill setting
max. 30 mm for wood
max. 15 mm for bricks
2
PSBSA 18-Li B2
Noise and vibration data:
Noise measurement value determined in accordance
with EN 60745 The A-rated noise level of the power
tool is typically:
Sound pressure level: 87,1 dB(A)
Sound power level: 98,1 dB(A)
Uncertainty K: 3 dB
Vibration values (vector total of three directions)
determined in accordance with EN 60745
Vibration emission value max.
a = 10.775 m/s
Uncertainty K = 1.5 m/s
Wear ear protection!
NOTE
► The vibration level specified in these instruc-
tions has been measured in accordance
with the standardised measuring procedure
specified in EN 60745 and can be used to
make equipment comparisons. The specified
vibration emission value can also be used to
make an initial exposure estimate.
2
2
WARNING!
► The vibration level varies in accordance with
the use of the power tool and may be higher
than the value specified in these instructions
in some cases. There is a risk of underestimation of the vibration load if the power tool is
used regularly in this manner. Try to keep the
vibration loads as low as possible. Measures
to reduce the vibration load are, e.g. wearing
gloves and limiting the working time. Wherein
all states of operation must be included (e.g.
times when the power tool is switched off and
times where the power tool is switched on but
running without load).
General Power Tool
Safety Warnings
WARNING!
► Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
GB
CY
PSBSA 18-Li B2
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
3
b) Avoid body contact with earthed or grounded
GB
CY
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD re-
duces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
4
PSBSA 18-Li B2
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
5. Use and handling of the cordless
electrical power tool
a) Charge a rechargeable battery unit using only
the charger recommended by the manufacturer.
Chargers are often designed for a particular
type of rechargeable battery unit. There is the
danger of fire if other types of rechargeable
battery units are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable battery units may
lead to the danger of injury or fire.
c) When they are not being used, store recharge-
able battery units away from paperclips,
coins, keys. nails, screws or other small metal
objects that could cause the contacts to be
bridged. Short-circuiting the contacts of a
rechargeable battery unit may result in heat
damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens,
avoid contact with the fluid. If contact occurs,
flush the affected area with water. Seek additional medical help if any of the fluid gets into
your eyes. Escaping battery fluid may cause
skin irritation or burns.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries!
Protect the battery against heat, e. g.,
against continuous intense sunlight,
fire, water and moisture.
Danger of explosion.
6. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement parts. This will ensure that the safety of
the power tool is maintained.
Appliance-specific safety instructions
for hammer drills
■
■ Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
■ Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden
wiring. Cutting accessory contacting a “live”
wire may make exposed metal parts of the
power tool “live” and could give the operator
an electric shock.
Wear ear protectors. Exposure to
noise can cause hearing loss.
Safety instructions for charger
■ This appliance may be used by
children aged 8 years and above
and by persons with limited physical,
sensory or mental capabilities or
lack of experience and knowledge,
provided that they are under supervision or have been told how to use
the appliance safely and are aware
of the potential risks. Children must
not use the appliance as a plaything.
Cleaning and user maintenance
tasks may not be carried out by children unless they are supervised.
■ If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
This charger is suitable for indoor use
only.
GB
CY
PSBSA 18-Li B2
5
WARNING!
GB
CY
■ Do not operate the appliance with a dam-
aged cable, supply cord or mains plug. A
damaged power cord causes danger to life
by electric shock.
Appliance-specific safety instructions
for cordless screw hammer drills
■ Immobilise the workpiece securely. A
workpiece that is held in place with a clamp/
vice can be worked much more safely than a
workpiece held with the hand.
■ Hold the power tool firmly. When tightening or
loosening screws, a high reaction moment can
quickly occur.
■ Switch off the power tool immediately if the tool
being used gets blocked. Be prepared for high
reaction moments as these can cause kick-back.
■ When working on the appliance, as well as
during transport and storage, always place
the rotation direction switch in the middle
position (locked). This will prevent unintentional
activation of the device.
■ Dusts from materials such as lead-containing
coatings, some wood types, minerals and
metal can be harmful to one’s health and
cause allergic reactions, lead to respiratory
infections and / or cancer. Material containing
asbestos may only be worked by specialists.
♦ Provide for good ventilation of the working place.
Observe the relevant regulations in your country for
the materials to be worked.
■
■ ATTENTION – SERVICE LINES! DANGER!
Take steps to ensure that you do not hit any
service lines (electricity, gas, water) when
working with the electric tool. If necessary,
check with a service line detector before you
start to cut or drill into a surface.
Wear a dust mask.
Genuine accessories/additional
equipment
■ Use only the additional equipment and acces-
sories specified in the operating instructions.
Using attachments or accessory tools other than
those recommended in the operating instructions
can lead to a risk of injury.
Before first use
Charging the battery (see fig. A)
CAUTION!
► Always unplug the appliance before you re-
move the battery pack from or connect it to
the charger.
HINWEIS
► Three appliances - three compatible batteries.
Interchangeable!
(see chapter ordering a replacement battery)
■ Never charge the battery pack when the ambient
temperature is below 10°C or above 40°C.
♦ Connect the battery pack
charger (see Fig. A).
♦ Push the mains plug into the socket. The operating
LED
will light up red.
♦ The green LED
process is complete and the battery pack is
ready.
♦ Push the battery pack
ance.
■ Never recharge a battery pack again immedi-
ately after rapid charging. This could overcharge
the battery pack thus reducing the lifespan of
the battery and charger.
♦ Switch off the charger between successive
charging sessions for at least 15 minutes. Also
disconnect the power plug from the socket.
indicates that the charging
Attaching/disconnecting the battery
pack to/from the appliance
Inserting the battery pack:
♦ Move the rotation direction switch to the middle
position (lock). Allow the battery pack to click
into the handle.
to the battery
back onto the appli-
6
PSBSA 18-Li B2
Removing the battery pack:
♦ Press the release button
battery pack.
and remove the
Checking the battery charge level
♦ Press the battery charge level button to
check the status of the battery (see also main
diagram).
The status/remaining charge will be shown on
the battery display LED as follows:
♦ RED/ORANGE/GREEN = maximum charge/
power
RED/ORANGE = medium charge/power
RED = low charge – charge the battery
Attaching the auxiliary handle
♦ Screw the additional handle onto the left-
hand or the right-hand side of your appliance
depending on the way you work.
Changing tools
Your cordless combi drill has a fully automatic
spindle lock .
When the motor is stopped, the power train is
locked so that the chuck
ing . After you have attached the desired tool
and tightened it by turning the chuck , you can
continue working. The spindle lock is automatically
released when the motor starts (ON/OFF switch
pressed ).
can be opened by turn-
Selecting torque/operating mode
The torque selector allows adjustment of the torque
or selection between the drill setting
hammer drill setting
♦ Select a low level for small screws or soft
materials.
♦ Select a high level for large screws, hard materials
or removing screws.
♦ Select the drill setting for drilling work by adjust-
ing the torque selection ring to the position
♦ Select the hammer drill setting for hammer drilling
work by adjusting the torque selection ring to
the position
.
.
and the
.
2 speed gearbox
CAUTION!
► Only operate the speed selection switch
when the appliance is at a standstill.
Otherwise the appliance can be damaged.
In first gear (speed selector switch
position: 1)
you can reach a speed of approx. 440 rpm and
a high torque. This setting is suitable for all screwdriving but also for the use of accessories.
In second gear (speed selector switch
position: 2)
you can reach a speed of approx. 1650 rpm for
carrying out drilling work.
in
in
First use
Switching on and off
Switching on:
♦ To start the appliance, press and hold the ON/
OFF switch
The LED work light illuminates when the
ON/OFF switch is depressed even lightly.
♦ This allows illumination of the work area in low
light conditions.
Switching off:
♦ Release the appliance’s ON/OFF switch
switch off the appliance.
Setting the rotational speed
Pressing the ON/OFF switch lightly provides a
low rotational speed. Increasing pressure increases
the speed.
NOTE
► The integrated motor brake ensures a quick
stop.
Changing the direction of rotation
♦ Change the direction of rotation by pressing the
rotational direction switch towards the left
or right.
.
to
GB
CY
PSBSA 18-Li B2
7
Tips and tricks
GB
CY
♦ Before operation, check whether the screw or
♦ Screw bits are labelled according to their di-
Torque:
♦ Smaller screws/bits can be damaged if you set
Tip! This symbol indicates proper
behaviour!
drill bit is correctly positioned, i.e. centred in the
drill chuck.
mensions and their shape. If you are uncertain,
always check whether the bit fits tightly in the
screw head without any free play.
the torque or rotational speed too high.
Drilling in metal:
♦ use a metal drill (HSS). For optimum results, you
should cool the drill bit with oil. Metal drill bits
can also be used to drill into plastics. Start with
a 3 mm diameter drill bit and then increase the
size until the desired hole diameter is achieved.
Drilling in brick:
♦ use a carbide-tipped masonry drill.
(max. recommended hole diameter: Ø 15 mm)
Drilling in wood:
♦ use a wood drill with a lathe centre; for deep
holes, use an “auger bit”; for large-diameter
holes, use a Forstner bit. Small screws can be
screwed directly into soft wood.
Hard screw joints (in metal):
♦ Particularly high torques occur, for example, in
metal screw joints made using drive sockets.
Select a low rotational speed.
Soft screw joints (e.g. in soft wood):
♦ Here, too, you should use a low rotational speed,
e.g. to avoid damaging the surface of the wood
upon contact with the bolt head. Use a countersink.
When drilling in wood, metal and other
materials, observe the following:
♦ Use a high speed for drill bits with small diam-
eter and a low speed for drill bits with large
diameter.
♦ Select a low speed for hard materials and a
high speed for soft materials.
♦ Mark the location where you want to drill using
a centre punch or nail. Select a low rotational
speed when starting.
♦ Pull the rotating drill bit from the hole repeatedly
to remove dust and chips and clear the hole.
Maintenance and cleaning
WARNING! RISK OF INJURY! Switch
the power tool off and remove the
battery before starting any work on
the power tool.
The cordless combi drill is maintenance-free.
■ The appliance must always be kept clean, dry
and free from oil or grease.
■ Never allow fluids to get into the appliance.
■ To clean the casing, use a soft dry cloth.
Never use petrol, solvents or cleansers which
can damage plastic.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
climate is cool and dry.
NOTE
► Replacement parts not listed (such as carbon
brushes, switch) can be ordered via our service
hotline.
8
PSBSA 18-Li B2
Warranty
You are provided a 3-year warranty on this
appliance, valid from the date of purchase. This
appliance has been manufactured with care and
inspected meticulously prior to delivery. Please
retain your receipt as proof of purchase. In the
event of a warranty claim, please contact your
customer service department by telephone. This
is the only way to guarantee free return of your
merchandise.
The warranty only covers claims for material and
manufacturing defects, not for damage sustained
during transport, components subject to wear and
tear or damage to fragile components such as
switches or batteries. This appliance is intended
solely for private use and not for commercial
purposes.
The warranty shall be deemed void in the case of
misuse or improper handling, use of force or interventions which have not been carried out by one of
our authorised service centres. Your statutory rights
are not restricted by this warranty.
The warranty period is not extended as a result of
repairs accomplished under the warranty. This also
applies to replaced and repaired components. Any
damage or defects present at the time of purchase
must be reported immediately after unpacking, but
no later than two days after the date of purchase.
Repairs accomplished after expiry of the warranty
period shall be subject to charge.
Service
WARNING!
► Have the power tool repaired by the
service centre or a qualified electrician
only using genuine replacement parts.. This
will ensure that the safety of the appliance is
maintained.
► Always ensure that the plug or the mains
cable is replaced only by the manufacturer
of the power tool or by an approved customer service provider. This will ensure that
the safety of the appliance is maintained.
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 270421
CY
Service Cyprus
Tel.: 8009 4409
E-Mail: kompernass@lidl.com.cy
IAN 270421
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
GB
CY
PSBSA 18-Li B2
9
Disposal
GB
The packaging is made from environmen-
CY
tally friendly material and can be disposed of at your local recycling plant.
Do not dispose of power tools in your
normal domestic waste!
European Directive 2012/19/EU requires that
worn-out power tools be collected separately and
recycled in an environmentally compatible manner.
Do not dispose of batteries in your
normal domestic waste!
Defective or worn-out rechargeable batteries must
be recycled according to Directive 2006/66/EC.
Take the battery pack and/or appliance to the
existing collection facilities.
Please consult your local authorities regarding
suitable disposal of worn out power tools/battery
packs.
Translation of the original
Conformity Declaration
We, KOMPERNASS HANDELS GMBH, Custodian
of Documents: Mr. Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, GERMANY, hereby declare
that this product complies with the following standards, normative documents and the EC directives:
Machinery Directive
(2006 / 42 / EC)
EU Low Voltage Regulations
(2006 / 95 / EC)
EMC (Electromagnetic Compatibility)
(2004 / 108 / EC)
RoHS Directive
(2011 / 65 / EU)
Applied harmonised standards:
EN 60745-1:2009/A11:2010
EN 60745-2-1:2010
EN 60745-2-2:2010
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
EN 60335-2-29:2004/A2:2010
EN 60335-1:2012/A11:2014
EN 62233:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
10
Type/appliance designation:
Cordless hammer drill PSBSA 18-Li B2
Year of manufacture: 08 - 2015
Serial number: IAN 270421
Bochum, 04/05/2015
Semi Uguzlu
- Quality Manager Subject to technical changes in the interest of
progress.
PSBSA 18-Li B2

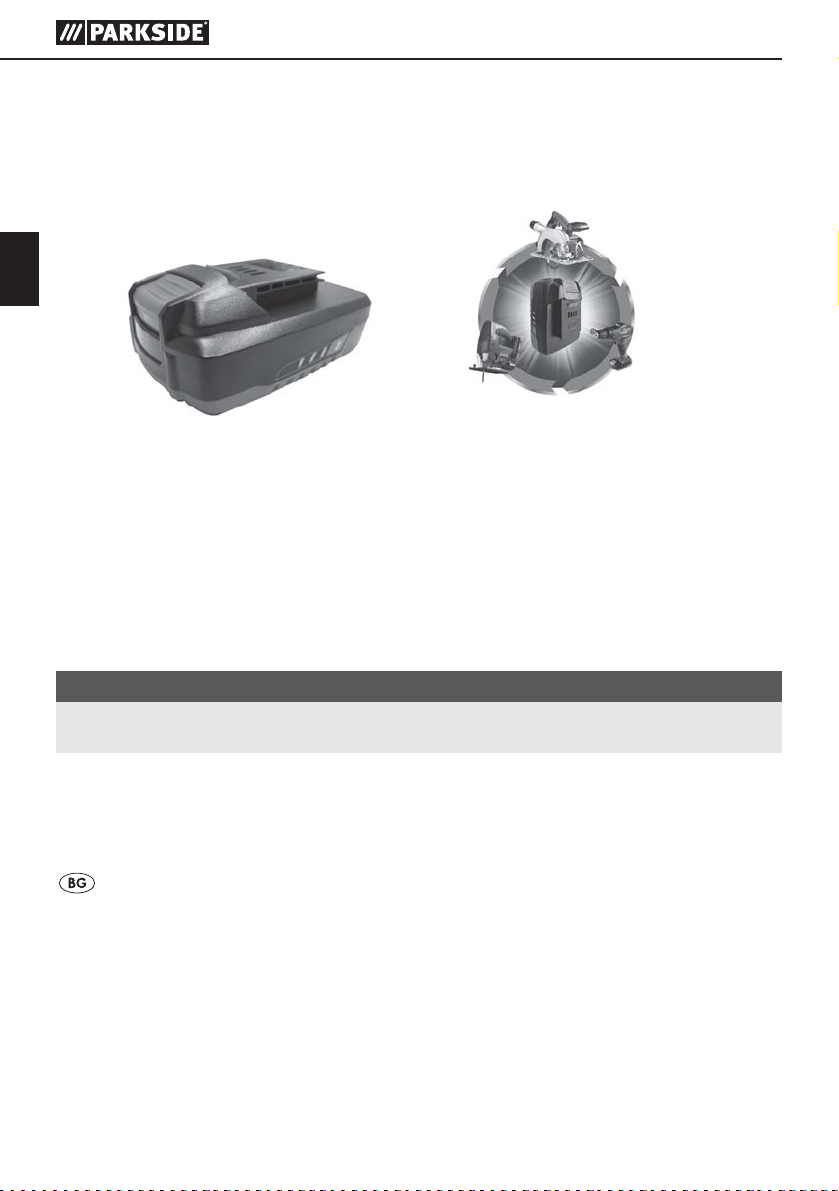

Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on
www.kompernass.com or by telephone.
The price of the replacement battery is €20 including VAT and shipping. Due to limited stocks, this item
may sell out quickly.
Three appliances - three compatible
Online ordering
To order a replacement battery from the Accessory Shop:
■ use your Internet browser to call up the page www.kompernass.com.
■ Click on the corresponding flag on the right side at the bottom of the page to select desired country
and the language.
■ Click on the tab "Shop" and then select the appropriate replacement battery under the heading
"Topseller".
■ After you have placed the rechargeable battery in the shopping cart, click the "Checkout" button and
follow the on-screen instructions to complete the ordering process.
NOTE
► Online ordering of replacement parts is not possible in all countries. In this case, please contact the
customer service hotline.
batteries. Interchangeable!
GB
CY
■ This promotion is limited to one battery per customer / appliance, as well as a period of two months
following the end of the promotion. Thereafter the replacement battery can be ordered as a replacement part under other conditions.
Telephone ordering
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
CY
Service Cyprus
Tel.: 8009 4409
To ensure fast processing of your order, have the article number of your appliance to hand
(e.g. IAN 270421) in case of questions. The article number can be found on the rating plate or the title
page of this manual.
PSBSA 18-Li B2
11
12
PSBSA 18-Li B2
Sadržaj
Uvod ..........................................................14
Namjenska uporaba ........................................................14
Oprema .................................................................. 14
Opseg isporuke ............................................................ 14
Tehnički podaci ............................................................ 14
Opće sigurnosne napomene za uporabu električnog alata ..............15
1. Sigurnost radnog mjesta ................................................... 15
2. Električna sigurnost. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. Sigurnost osoba .......................................................... 16
4. Korištenje i rukovanje električnim alatom .......................................16
5. Korištenje i rukovanje električnim alatom .......................................17
6. Servis ..................................................................17
Sigurnosne upute za udarne bušilice ............................................17
Sigurnosne napomene za punjače .............................................. 18
Sigurnosne napomene specifične za baterijske vibracijske bušilice .....................18
Originalni pribor / dodatni uređaji .............................................18
Prije uključivanja uređaja .........................................18
Punjenje paketa baterije (vidi sliku A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Umetanje paketa baterija u uređaj/vađenje ...................................... 19
Provjera stanja baterije ....................................................... 19
Planina dodatna ručka ....................................................... 19
Zamjena alata .............................................................19
Predodabir okretnog momenta / izbor načina rada ................................19
2-stupanjski prijenosnik ....................................................... 19
Puštanje u pogon ................................................19
Uključivanje/isključivanje .....................................................19
Podešavanje broja okretaja ...................................................20
Promjena smjera okretanja .................................................... 20
Savjeti i trikovi ..............................................................20
Održavanje i čišćenje .............................................21
Jamstvo ........................................................21
Servis ..........................................................22
Uvoznik ........................................................22
Proizvođač: ...............................................................22
Tehnički podaci ............................................................ 22
Zbrinjavanje ....................................................22
Prijevod originalne izjave o sukladnosti .............................23
Narudžba zamjenske baterije .....................................24
Online narudžba ........................................................... 24
Telefonska narudžba ........................................................ 24
HR
PSBSA 18-Li B2
13
UDARNA BUŠILICA ODVIJAČ
NA BATERIJE PSBSA 18-Li B2
Uvod
Čestitamo na kupnji Vašeg novog uređaja.
HR
Time ste se odlučili za visokovrijedan
proizvod. Upute za rukovanje sastavni su
dio ovog proizvoda. One sadrže važne
napomene za sigurnost, rukovanje i zbrinjavanje. Prije uporabe uređaja upoznajte se sa
svim pripadajućim uputama za uporabu i svim
sigurnosnim napomenama. Proizvod koristite isključivo na opisani način i u navedenim područjima
uporabe. U slučaju predaje proizvoda trećim osobama priložite i predajte i svu dokumentaciju.
Namjenska uporaba
Ovaj uređaj je namijenjen za uvrtanje i odvijanje
vijaka, kao i za bušenje u drvetu, metalu, keramici
i plastici i za vibracijsko bušenje u cigli i zidovima.
Ovaj uređaj nije prikladan za vibracijsko bušenje u
prirodnom kamenu, na primjer granitu. Svjetlo ovog
uređaja namijenjeno je za osvjetljavanje neposrednog radnog područja uređaja. Uređaj koristite
samo na opisani način i u opisanim područjima
uporabe. Uređaj nije namijenjen za komercijalnu
uporabu. Svaki drugi način uporabe i svaka izmjena uređaja smatra se nenamjenskom i krije znatnu
opasnost od nastanka nezgode. Proizvođač ne
preuzima odgovornost od štete nastale uslijed
korištenja uređaja protivno njegovoj namjeni.
Oprema
Prekidač za odabir stupnja prijenosa
Prekidač za odabir smjera okretanja / blokada
Prekidač UKLJ/ISKLJ / Regulacija broja okretaja
Držač bitova
Tipka za stanje baterije
LED zaslon baterije
Paket baterija
Tipka za deblokadu paketa baterija
LED radna svjetiljka
Dodatna ručka
Prihvatnik alata
Predodabir okretnog momenta
Uređaj za brzo punjenje
Crvena LED svjetiljka za kontrolu punjenja
Zelena LED svjetiljka za kontrolu punjenja
Opseg isporuke
1 Udarna bušilica odvijač na baterije PSBSA 18-Li B2
1 Uređaj za brzo punjenje PLG 18 A1
1 Paket baterija
1 Dodatna ručka
1 Upute za uporabu
Tehnički podaci
Udarna bušilica odvijač na baterije
PSBSA 18-Li B2
Nazivni napon: 18 V
Prijenosnik: 2-stupanjski prijenosnik
Broj okretaja u
T2A
0 - 440 min
0
-1
praznom hodu: 1 stupanj: n
2 stupanj: n0 0 - 1650 min
Frekvencija udaraca: 0 - 26400 min
Maks. okretni moment: 40 Nm
Stupnjevi okretnog
momenta: 1 - 20 + 1 stupanj
bušenja / + 1 vibracijski
stupanj
Zatezno područje
prihvatnika alata: max. 13 mm
Preporučeni promjeri
bušenja: maks. 13 mm za čelik
maks. 30 mm za drvo
maks. 15 mm za ciglu
Baterija: PAP 18 A1
Tip: LITIJ-IONSKA
Nazivni napon: 18 V
Kapacitet: 1,5 Ah
Uređaj za brzo punjenje baterije: PLG 18 A1
ULAZ / Input:
Nazivni napon: 230 - 240 V ~, 50 Hz
Snaga: 40 W
IZLAZ / Output:
Nazivni napon: 18 V
Struja punjenja: 1,8 A
Trajanje punjenja: oko 60 min
Osigurač (unutarnji): 2 A
Razred zaštite: II /
-1
-1
14
PSBSA 18-Li B2
Informacije o buci i vibracijama:
Mjerne vrijednosti za buku izmjerene prema
EN 60745. A - razina emisije buke električnog
alata tipično iznosi:
Razina zvučnog tlaka: 87,1 dB(A)
Razina jačine zvuka: 98,1 dB(A)
Nesigurnost K: 3 dB
Vrijednosti vibracija (zbroj vektora triju smjerova)
izračunat u skladu s normom EN 60745:
Vrijednost emisije vibracija max.
a = 10,775 m/s
Nesigurnost K = 1,5 m/s
Obavezno nošenje zaštite sluha!
NAPOMENA
► Razina vibracija navedena u ovim uputama
izmjerena je u skladu s EN 60745 normiranom procedurom mjerenja i može se koristiti
za usporedbu uređaja. Navedena razina
emisije vibracija može se koristiti i za uvodnu
procjenu izloženosti.
2
2
UPOZORENJE!
► Razina vibracija mijenja se ovisno o uporabi
električnog alata i u mnogim slučajevima
može biti iznad vrijednosti navedene u ovim
uputama. Vibracijsko opterećenje može se
i podcijeniti ako se električni alat redovito
koristi na takav način. Pokušajte opterećenje
vibracijama držati što manjim. Primjerne
mjere za smanjenje opterećenja vibracijama
su nošenje rukavica prilikom uporabe uređaja
i ograničenje radnog vremena. Pritom morate
uzeti u obzir sve sastavne dijelove ciklusa
pogona (primjerice razdoblja u kojima je
električni uređaji isključen, kao i razdoblja
u kojima je uređaj uključen ali radi bez
opterećenja).
Opće sigurnosne
napomene za uporabu
električnog alata
UPOZORENJE!
► Pročitajte sve sigurnosne napomene i napo-
mene za uporabu. Nepridržavanje sigurnosnih napomena i uputa može uzrokovati strujni
udar, požar i/ili dovesti do teških ozljeda.
Sačuvajte sve sigurnosne napomene i upute
za ubuduće.
Pojam „električni alat“ koji se koristi u sigurnosnim
napomenama odnosi se na električni alat s mrežnim
napajanjem (s mrežnim kabelom) i na električni
alat s pogonom na baterije (bez mrežnog kabela).
1. Sigurnost radnog mjesta
a) Vaše radno mjesto držite čistim i dobro osvi-
jetljenim. Nered i neosvijetljeno radno područje
mogu uzrokovati nezgode.
b) Električni alat ne koristite u eksplozivnom
okruženju u kojem se nalaze zapaljive tekućine, plinovi ili prašina. Električni uređaji stvaraju
iskre koje mogu zapaliti prašinu ili pare.
c) Djecu i druge osobe držite podalje tijekom
korištenja električnog alata. U slučaju odvlačenja pažnje možete izgubiti kontrolu nad
uređajem.
HR
PSBSA 18-Li B2
15
2. Električna sigurnost
a) Utikač električnog alata mora pristajati u
utičnicu. Utikač se ni na koji način ne smije
mijenjati. Ne koristite adapterske utikače
HR
zajedno s uzemljenim električnim alatom.
Neizmijenjeni utikači i odgovarajuće utičnice
umanjuju rizik od strujnog udara.
b) Izbjegavajte tjelesni kontakt s uzemljenim
površinama kao što su cijevi, sustavi grijanja,
štednjaci ili hladnjaci. Rizik od strujnog udara
veći je kada je Vaše tijelo uzemljeno.
c) Električni alat zaštitite od kiše i vlage.
Prodiranje vode u električni uređaj povećava
rizik od strujnog udara.
d) Ne koristite kabel za druge namjene, primje-
rice za nošenje uređaja, vješanje uređaja ili
izvlačenje utikača iz utičnice. Kabel uređaja
držite podalje od izvora topline, ulja, oštrih
bridova i pokretnih dijelova uređaja. Oštećeni
ili zapetljani kabeli povećavaju rizik od strujnog
udara.
e) Ako električni alat koristite na otvorenom,
koristite samo produžne kabele koji su odobreni za uporabu na otvorenom. Uporaba
takve vrste produžnog kabela prikladnog za
uporabu na otvorenom umanjuje rizik od strujnog
udara.
f) Ako nije moguće izbjeći uporabu električnog
alata u vlažnom okruženju, koristite fido
sklopku. Korištenje fido sklopke smanjuje rizik
od strujnog udara.
3. Sigurnost osoba
a) Uvijek budite pažljivi i pazite na ono što radite,
i električnim alatom rukujte razumno. Električni
alat ne koristite ako ste umorni ili pod utjecajem droga, alkohola ili lijekova. Samo jedan
trenutak nepažnje za vrijeme uporabe električnog alata može dovesti do ozbiljnih ozljeda.
b) Nosite osobnu zaštitnu opremu i uvijek nosite
zaštitne naočale. Nošenje osobne zaštitne
opreme kao što je maska protiv prašine, nošenje
sigurnosnih cipela s potplatima koji ne klize,
zaštitnih rukavica, zaštitne kacige ili zaštite za
sluh – ovisno o vrsti i namjeni električnog alata
– umanjuje rizik od ozljeda.
c) Izbjegavajte nehotično uključivanje uređaja.
Uvjerite se da je električni alat isključen prije
nego ga priključite na napajanje i/ili bateriju,
uhvatite ili nosite. Ako prilikom nošenja uređaja
prst držite na prekidaču UKLJ/ISKLJ ili uključeni
uređaj uključite u struju, može doći doći do
nezgode.
d) Alat za podešavanje ili ključeve za matice
uklonite prije uključivanja električnog alata.
Alat ili ključ koji se nalazi u rotirajućem dijelu
uređaja mogu dovesti do ozljeda.
e) Izbjegavajte neprirodan položaj tijela. Pobri-
nite se da čvrsto stojite i održavajte ravnotežu
u svakom trenutku. Na taj ćete način moći bolje
kontrolirati električni alat u neočekivanim situacijama.
f) Nosite prikladnu odjeću. Ne nosite široku
odjeću ili nakit. Kosu, odjeću i rukavice držite
podalje od pokretnih dijelova. Pokretni dijelovi
mogu zahvatiti ležernu, široku odjeću, nakit ili
kosu.
g) Ako je moguće montirati usisivač i sustav za
prihvat piljevine, uvjerite se da su priključeni
i da se ispravno koriste. Uporaba usisivača
može smanjiti ugroženost prašinom.
4. Korištenje i rukovanje električnim
alatom
a) Ne preopterećujte uređaj. Koristite električni
alat prikladan za vrstu posla koji obavljate.
Prikladnim električnim alatom moći ćete bolje
i sigurnije raditi u navedenom području.
b) Ne koristite električne alate s oštećenim preki-
dačem. Električni alat koji ne možete uključiti
i isključiti opasan je i treba ga popraviti.
c) Izvucite utikač iz utičnice i/ili odstranite bateriju
prije nego što započnete podešavati uređaj,
mijenjati pribor ili odložite uređaj. Ova mjera
predostrožnosti onemogućuje nehotično uključivanje uređaja.
d) Električni alat koji se ne koristi čuvajte izvan
dohvata djece. Osobama koje nisu upoznate
s načinom rada uređaja ili nisu pročitale upute
nemojte dozvoliti da koriste uređaj. Električni
alat je opasan ako njime rukuju osobe bez
iskustva.
16
PSBSA 18-Li B2
e) Pažljivo održavajte električni alat. Provjerite
funkcioniraju li svi pokretni dijelovi uređaja
besprijekorno i da možda nisu zaglavljeni,
provjerite da dijelovi uređaja eventualno nisu
odlomljeni ili da dijelovi nisu do te mjere
oštećeni, da ometaju rad električnog alata.
Prije uporabe uređaja oštećene dijelove dajte
popraviti. Uzrok brojnih nezgoda su loše održa-
vani električni alati.
f) Sav alat za rezanje održavajte oštrim i čistim.
Pažljivo održavani alat za rezanje s oštrim
oštricama rjeđe se zaglavljuje i lakše se navodi.
g) Električni alat, pribor i drugi alat koristite
prema odgovarajućim uputama. Pritom u
obzir uvijek uzmite i uvjete rada, kao i vrstu
posla koji treba obaviti. Uporaba električnog
alata u druge svrhe osim ovdje opisanih može
uzrokovati opasne situacije.
5. Korištenje i rukovanje električnim
alatom
a) Baterije punite samo pomoću punjača koje je
preporučio proizvođač uređaja. Kod punjača
predviđenog za određenu vrstu baterija postoji
opasnost od požara ako se koristi s drugom
vrstom baterija.
b) U električnim uređajima koristite samo za to
predviđene baterije. Uporaba drugih baterija
može dovesti do ozljeda i do opasnosti od
požara.
c) Bateriju koja se ne koristi držite podalje od
metalnih spajalica, kovanica, ključeva, čavala, vijaka i drugih sitnih metalnih predmeta
koji mogu premostiti kontakte. Kratki spoj
između kontakata baterije može uzrokovati
opekline ili požar.
d) U slučaju pogrešne primjene može doći do
curenja tekućine iz baterije. Izbjegavajte kontakt s takvom tekućinom. U slučaju kontakta
isperite vodom. Ako tekućina dospije u oči,
zatražite dodatnu liječničku pomoć. Tekućina
koja iscuri iz baterija može dovesti do iritacije
kože i do opeklina.
OPREZ! OPASNOST OD EKSPLOZIJE!
Baterije koje nisu predviđene za
ponovno punjenje nikako se ne smiju
puniti.
Bateriju zaštitite od visokih tempera-
tura, npr. i od trajnog utjecaja sunčeve
svjetlosti, vatre, vode i vlage.
Postoji opasnost od eksplozije.
6. Servis
a) Popravak električnog alata prepustite isključivo
kvalificiranim stručnjacima, i koristite samo
originalne rezervne dijelove. Na taj način
osiguravate trajnu sigurnost električnog alata.
Sigurnosne upute za udarne bušilice
■ Nosite zaštitu za sluh pri uporabi
udarnih bušilica. Utjecaj buke može
prouzročiti gubitak sluha.
■ Rabite dodatnu držku, koja je dostavljena
zajedno sa uređajem. Gubitak kontrole nad
strojem može prouzrokovati ozljede.
■ Držite električni alat isključivo na izoliranim
površinama za pridržavanje, kad izvodite
radove pri kojima bi uporabni alat mogao zahvatiti električne vodove ili vlastiti mrežni kabel.
Dodir s vodom pod naponom također stavlja
metalne dijelove električnog alata pod napon i
time prijeti opasnost od strujnog udara.
HR
PSBSA 18-Li B2
17
Loading...
