Panasonic TX-L24C3B Operating Instructions

Model No.

TX-L24C3B

Operating Instructions

LCD Television

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

English

UK and Ireland model

Features

DVB-T tuner built-in

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.

DVB-T2 tuner built-in

DVB-T2 is an advanced digital terrestrial system for more efficient transmission.

Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

GUIDE Plus+ (p. 18)

This TV supports the TV Guide services sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection (p. 70)

Enjoy high definition digital picture and high quality sound by using an HDMI cable. tThis TV supports HDMI (Version 1.4 with Audio Return Channel).

Timer Programming (p. 19, 41)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder.

VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 51)

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD

It is possible to play moving pictures recorded on an SD Card in AVCHD format. AVCHD is a high definition video recording format. (p. 69)

Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 58)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.

Dolby Digital Plus decoder

It is possible to decode Dolby Digital Plus audio track (multi-channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

Owner ID (p. 48)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

Supports Audio Description signal (p. 15, 30)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk

Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.

You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

tTo retune your TV

[Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 36)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

tDue to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.

2

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/

OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,

OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY

INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/

Contents

Be Sure to Read

Safety Precautions····································································4

Quick Start Guide

Accessories / Options······························································6

Identifying Controls·································································8

Basic Connection··································································· 10

Auto Setup··············································································· 12

Enjoy your TV!

Basic Features

Watching TV ············································································ 14 Using TV Guide······································································· 18 Viewing Teletext····································································· 21 Watching External Inputs ··················································· 24 How to Use VIERA TOOLS ··················································· 26 How to Use Menu Functions············································· 27

Advanced Features

Retuning from Setup Menu··············································· 36 Tuning and Editing Channels············································ 37 Timer Programming ····························································· 41 Child Lock················································································· 43 Input Labels············································································· 44 Setup for Internet Connection ········································· 45 Shipping Condition ······························································ 47 Owner ID··················································································· 48 Using Common Interface ··················································· 49 Updating the TV Software·················································· 50 Using Media Player ······························································· 51 Link Functions (Q-Link / VIERA Link)······························· 58 External Equipment······························································ 66

Notice for DVB functions

The compatibility with future services is not guaranteed. Check the latest information on the available services at the following website. http://panasonic.jp/support/global/cs/tv/

FAQs, etc.

Technical Information·························································· 68 FAQs ··························································································· 72 On screen messages····························································· 74 Glossary····················································································· 76 Maintenance ··········································································· 77 Licence ······················································································ 77 Index ·························································································· 78 Specifications·········································································· 79

3

Example 1

Example 2

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 Hz

Precautions Safety

Safety Precautions

Warning

Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below: tThis TV is designed to operate on AC 220-240 V, 50 Hz.

tInsert the mains plug fully into the socket outlet. tEnsure that the mains plug is easily accessible. tRemove the mains plug when cleaning the TV.

tDo not touch the mains

plug with a wet hand.

tDo not damage the mains lead.

tDo not place a heavy object on the lead.

tDo not place the lead near a high temperature object.

tDo not pull on the lead. Hold onto the mains plug body when disconnecting the plug.

tDo not move the TV with the lead plugged into a socket outlet. tDo not twist the lead, bend it excessively or stretch it.

tDo not use a damaged mains plug or socket outlet. tEnsure the TV does not crush the mains lead.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark

on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –Blue: Neutral Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol .

How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

4

Warning

Take care

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below: tDo not remove covers and never modify the TV yourself as live parts are

accessible when they are removed. There are no user serviceable parts inside.

tDo not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

tDo not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

tDo not place the TV on sloped or unstable surfaces.

tDo not insert foreign objects into the TV through the air vents.

tDo not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

tDo not apply strong force or impact to the display panel.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally. tKeep the dangerous parts out of reach of young children.

tDo not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

tVentilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

tWhether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV

Minimum distance
10
10	10	10
		(cm)

Before moving the TV, disconnect all cables. tTransport only in upright position.

When not in use for a long time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet. tRemove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

Excessive volume

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

Precautions Safety

5

Options / Accessories Guide Start Quick

Accessories / Options

Standard accessories

Remote Control	Batteries for the	Pedestal	Assembly screw for
tN2QAYB000487	Remote Control (2)	tTBL0E0135	Pedestal (3)
	tR6	(p. 7)	tXYN4+F12FJK
	(see below)
			M4 × 12
TV
Operating Instructions		Product Registration Leaflet

tAccessories may not be placed all together. Take care not to throw them away unintentionally.

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

Wall-hanging bracket
tTY-WK23LR2W	Rear of the TV		Depth of screw : minimum 6 mm,
	100 mm
			maximum 11 mm
		100 mm	Diameter : M4
			Screw for fixing the TV onto the wall-hanging bracket
			(not supplied with the TV)

(View from the side)

Holes for wall-hanging bracket installation

Warning

tUsing other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.

tCarefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off. tHandle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will

void your warranty.

tDo not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

tTake care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

tTo prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.

Installing / removing remote’s batteries

1 2 Close

Pull open

Hook	Note the correct
	polarity (+ or -)

Caution

tIncorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. tDo not mix old and new batteries.

tReplace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries). tDo not use rechargeable (Ni-Cd) batteries.

tDo not burn or break up batteries.

Batteries must not be exposed to excessive heat such as sunshine, fire, etc. tMake sure you dispose of batteries correctly.

tEnsure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed. tDo not disassemble or modify the remote control.

6

Attaching the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

tDo not disassemble or modify the pedestal.

Caution

tDo not use any pedestal other than the one provided with this TV.

tDo not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.

tDuring setup, make sure that all screws are securely tightened.

tEnsure that the TV does not suffer any impact during installation of the pedestal. tEnsure that children do not climb onto the pedestal.

tInstall or remove the TV from the pedestal with at least two people.

Securing the TV

Use only the supplied assembly screws to fasten the pedestal securely to the TV.

tTighten the three assembly screws loosely at first, then tighten them firmly to fix securely. tCarry out the work on a horizontal and level surface.

Hole for pedestal installation

Foam mat or thick soft cloth

Options / Accessories Guide Start Quick

7

Identifying Controls

Remote Control

		1	15
		2
			16
		3
	Quick	4	17
		6	18
	Start	5
		7	19
	Guide
		8	20
	Identifying	9	21
			22
		10	23
	Controls	11	24
		12
		13	25
		14	26
			27

1Standby On / Off switch tSwitches TV On or Off standby

2 [Media Player](p. 51)

tSwitches to SD Card viewing / listening mode

3 [Main Menu](p. 27)

tPress to access Picture, Sound and Setup Menus

4 Aspect(p. 17)

tChanges aspect ratio

5 Information(p. 15)

tDisplays channel and programme information

6 VIERA TOOLS(p. 26)

tDisplays some special feature icons and accesses

easily

7 [VIERA Link Menu](p. 62)

8OK

tConfirms selections and choices

tPress after selecting channel positions to quickly

change channel tDisplays the Channel List

9[Option Menu](p. 16)

tEasy optional setting for viewing, sound, etc.

10	Teletext	(p. 21)
11	tSwitches to teletext mode
	Subtitles	(p. 17)
12	tDisplays subtitles
	Numeric buttons
	tChanges channel and teletext pages
	tSets characters
	tWhen in Standby mode, switches TV On (Press for
	about 1 second)
13	Sound Mute
14	tSwitches sound mute On or Off
	Volume Up / Down
15	Input mode selection
	tTV - switches between DVB and Analogue modes

(p. 14)

tAV - switches to AV input mode from Input Selection list(p. 24)

16Direct TV Recording(p. 60, 62)

tRecords programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection

17Normalise(p. 27)

tResets picture and sound settings to their default levels

18Exit

tReturns to the normal viewing screen

19TV Guide(p. 18)

20Cursor buttons

tMakes selections and adjustments

21Return

tReturns to the previous menu / page

22Coloured buttons

(red-green-yellow-blue)

tUsed for the selection, navigation and operation of

various functions

23Hold

tFreeze / unfreeze picture(p. 16)

tHolds the current teletext page (teletext mode)

(p. 22)

24Index(p. 23)

tReturns to the teletext index page (teletext mode)

25Last view(p. 15)

tSwitches to previously viewed channel or input mode

26Channel Up / Down

27Connected equipment operations(p. 25, 55, 64)

8

TV

	4
1	5
	6
	7
2

89

3 This LED is not indicated for this model.

1 CI slot (p. 49)

2 SD Card slot (p. 51)

3 Headphones jack (p. 67)

4Function select

t[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass] / [Treble] /

[Balance] / [Auto Setup] (p. 36)

[Music] or [Speech] mode in the Sound Menu

Using the On Screen Displays - Operation guide

5Channel Up / Down, Value change (when using the F button), Switching the TV On (press either button for about 1 second when in Standby mode)

6 Changes the input mode

7Mains power On / Off switch tUse to switch the mains power.

If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On

/Off switch.

8Remote control signal receiver

tDo not place any objects between the TV remote control signal receiver and remote control.

9 Power and Timer LED tRed : Standby

Green : On

Orange : Timer Programming On

Orange (flash) : Recording of Timer Programming or Direct TV Recording in progress

Red with orange flash : Standby with Timer Programming On or Direct TV Recording

tThe LED blinks when the TV receives a command from the remote control.

Many features available on this TV can be accessed via the On Screen Display menu.

Operation guide

Operation guide will help you to operate by using the remote control.

Example : [Owner ID]

Owner ID

Please enter new PIN

PIN	* * * *
EXIT	9 PIN entry
0
RETURN

Operation guide

How to use remote control

MENU

Open the main menu

Move the cursor / select the menu item

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

RETURN

Return to the previous menu

EXIT	Exit the menu system and return to the normal
	viewing screen

Auto power standby function

The TV will automatically go to Standby mode in the following conditions:

tno signal is received and no operation is performed for 30 minutes in Analogue TV mode t[Off Timer] is active in the Setup Menu (p. 16)

tno operation is performed for the period selected in [Auto Standby] (p. 32)

tThis function does not affect the recording of Timer Programming and Direct TV Recording.

Controls Identifying Guide Start Quick

9

Connection Basic Guide Start Quick

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

Example 1		Example 2
Connecting aerial		Connecting DVD Recorder / VCR
TV only		TV, DVD Recorder or VCR
Rear of the TV	Terrestrial aerial	Rear of the TV	Terrestrial aerial
	AC 220-240 V		AC 220-240 V
	50 Hz		50 Hz
Mains lead		Mains lead
			RF cable

Aerial input

terminal

RF cable

Aerial input terminal

Fully wired HDMI

compliant cable Fully wired SCART cable

HDMI	AV
	RF IN
DVD Recorder
or VCR	RF OUT	RF cable

Note

tConnect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 60).

tFor HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable (p. 67). tQ-Link and VIERA Link connection (p. 58, 59)

tPlease also read the manual of the equipment being connected.

10

Example 3

Connecting DVD Recorder / VCR and Satellite Receiver

TV, DVD Recorder / VCR and Satellite

Rear of the TV

Terrestrial aerial

AC 220-240 V

50 Hz

Mains lead

Fully wired HDMI compliant cable

Aerial input

terminal

Fully wired SCART cable

Fully wired HDMI

compliant cable

RF cable

Fully wired SCART cable

HDMI Recorder/AV

AV 2

AV 1

HDMI

RF OUT

Satellite	DVD Recorder	RF IN
	or VCR
Receiver
	RF OUT	RF cable
	RF IN	RF cable

Connection Basic Guide Start Quick

11

Setup Auto Guide Start Quick

Auto Setup

Search and store TV channels automatically.

tThese steps are not necessary if the setup has been completed by your local dealer.

tPlease complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

1	Plug the TV into mains socket and switch On
		tTakes a few seconds to be displayed.
		tIf the red LED shows on the TV, press the Standby On / Off switch on
		the remote control for at least 1 second to turn the TV On.

2

3

TV

Select your country

Country Selection

United Kingdom Ireland

Example :

Auto Setup - DVB and Analogue

DVB Scan		CH 21			68
Analogue Scan		CH 21			68
This will take about 6 minutes.
CH		Channel Name		Type	Quality
62	CBBC Channel			Free TV	10
62	BBC Radio Wales			Free TV	10
62	E4			Free TV	10
62	Cartoon Nwk			Free TV	10
29				Analogue	-
33	BBC1			Analogue	-
Free TV: 8	Pay TV: 0	Radio: 0	Data: 0	Analogue: 2
		Searching

Example :

Auto Setup - DVB and Analogue

	DVB Scan		CH 5				69
	Analogue Scan		CH 1		99 H:21			41
	This will take about 6 minutes.
	CH		Channel Name		Type		Quality
	62	CBBC Channel			Free TV		10
	62	BBC Radio Wales			Free TV		10
	62	E4			Free TV		10
	62	Cartoon Nwk			Free TV		10
	29				Analogue		-
	33	BBC1			Analogue		-
	Free TV: 8	Pay TV: 0	Radio: 0			Analogue: 2
			Searching

Sending Preset Data
Please wait!
0%	100%

Remote control unavailable

Input Owner ID

Owner ID

Please enter new PIN
PIN	* * * *

select set

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters. tActual number of channels may differ due

to channel duplication.

If Q-Link or similar technology (p. 60) compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.) tIf downloading has failed, you can

download later through the Setup Menu.

“Q-Link Download” (p. 30)

Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

tMake a note of the PIN number in case you forget it. The PIN number cannot be reset. tYou can input or change the Owner ID later.[Owner ID] (p. 48)

tTo skip this step

EXIT

tThis step will be skipped in the Auto Setup after [Shipping Condition] (p. 47) is performed.

12

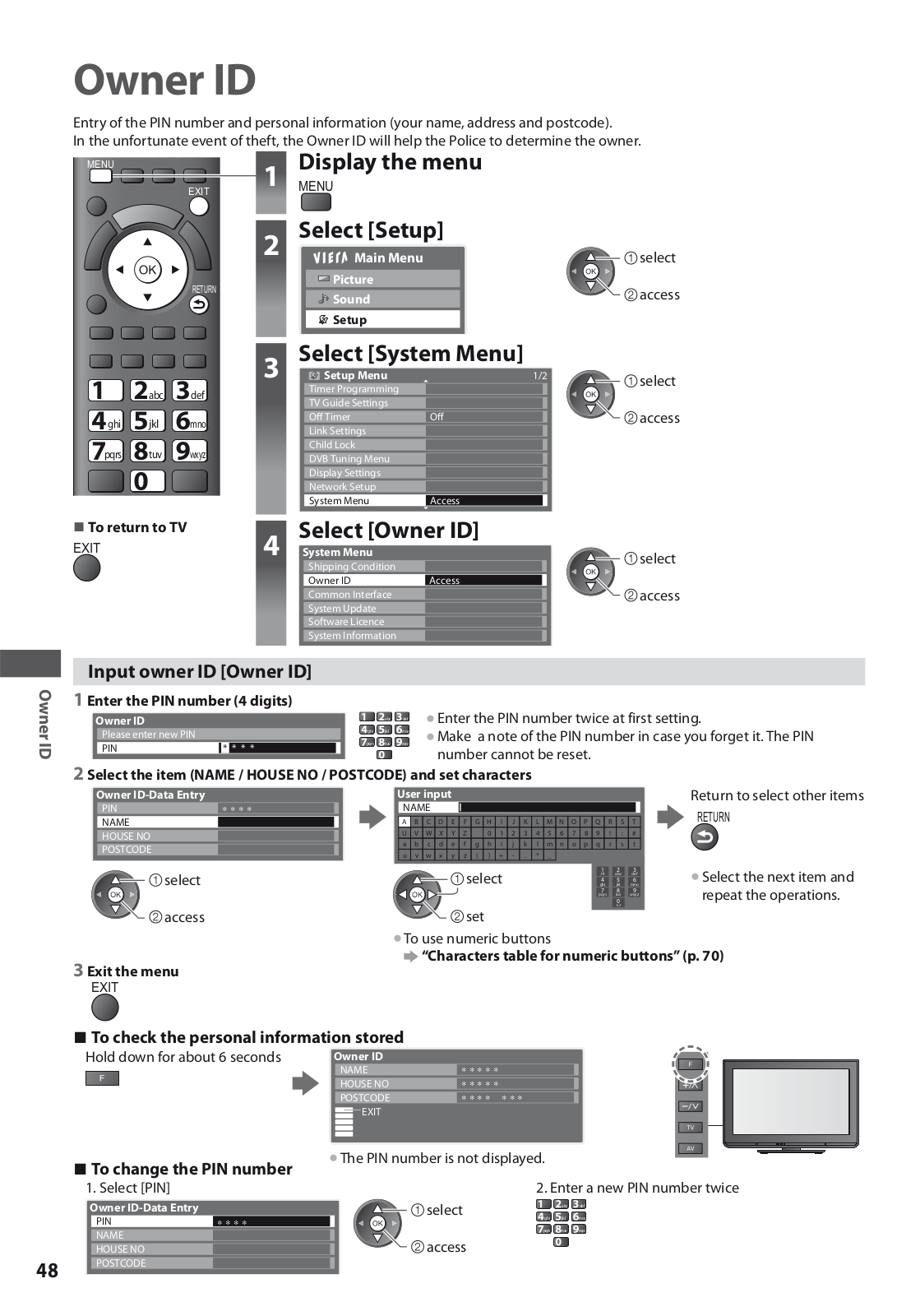

3	How to input Owner ID
	1 Enter the PIN number (4 digits)				mno tEnter the PIN number twice at first setting.
	Owner ID		ghi	jkl
				abc	def
	Please enter new PIN
	PIN	* * * *	pqrs	tuv	wxyz

2 Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

select

PIN

NAME

access

HOUSE NO

POSTCODE

3 Enter your name, house number and postcode

Set characters

select

User input

NAME

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

set

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

!

:

#

a

b

c

d

e

f

g

h

i

j

k

l

m

n

o

p

q

r

s

t

u

v

w

x

y

z

(

)

+

-

.

*

_

1 2 3

.!:# abc def

4 5 6 ghi jkl mno

7 8 9 pqrs tuv wxyz

0

tYou can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 70)

4 Exit to go to next step

EXIT

Return to select other items

RETURN

tSelect the next item and repeat the operations.

4	Select [Home]
	Select [Home] viewing environment (highlight [Home] in yellow) to use in your home environment.
	Please select your viewing environment.			select
	Home	Shop

set

[Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

tYou can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

1 Return to viewing environment selection		2 Select [Home]
screen		Please select your viewing environment.
				select
Shop		Home	Shop
				set
You have selected shop mode
		RETURN
Automatic Demo
Off	On

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

[Shipping Condition] (p. 47)

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.

tTo check channel list at-a-glance“Using TV Guide” (p. 18)

tTo edit or hide (skip) channels“Tuning and Editing Channels” (p. 37 - 40) tTo retune all channels[Auto Setup] (p. 36)

tTo initialise all settings[Shipping Condition] (p. 47)

Setup Auto Guide Start Quick

13

TV Watching

Watching TV
SD CARD	INPUT		1	Turn power on		t1SFTTGPSBCPVU TFDPOE
	TV	AV
MENU ASPECT	N	DIRECT TV REC	2			t.BJOTQPXFS 0O 0GGTXJUDITIPVME CF0O Q
		EXIT		Select DVB or Analogue
				TV		t"MTPQPTTJCMF UP TFMFDUUIFNPEFQSFTTJOHUIF57
						CVUUPOPOUIF TJEFQBOFMPGUIF57 Q̓
OPTION		RETURN
TEXT STTL INDEX HOLD						*OGPSNBUJPOCBOOFS (p. 15)
				1 BBC ONE WALES	19:50	All DVB Channels
				Coronation Street		For info press
				19:30 - 20:00	Now
	abc	def

	ghi	jkl	mno		Select a channel
	pqrs	tuv	wxyz	3

LAST VIEW

VQ

or

EPXO

Volume

	abc	def
ghi	jkl	mno
pqrs	tuv	wxyz

%7#DIBOOFMQPTJUJPOOVNCFST SVOGSPN POXBSET "OBMPHVFDIBOOFMQPTJUJPO OVNCFST SVOJOUIF

SBOHFT t5P TFMFDUBUXPPS UISFF EJHJU DIBOOFM QPTJUJPO

OVNCFS FH

def wxyz wxyz

Select a channel using Information banner (p. 15)

*UJT QPTTJCMFUPDPOGJSN UIFDIBOOFM OBNF BOE QSPHSBNNFJOGPSNBUJPO CZVTJOH UIF *OGPSNBUJPOCBOOFSCFGPSFDIBOHJOH DIBOOFMT

1 Display Information banner if it is not displayed	2 While the banner is displayed, select the channel
	TFMFDUDIBOOFM
	XBUDI

Select a channel using TV Guide (p. 18)

*UJTQPTTJCMFUPDPOGJSNUIFDIBOOFMBOEQSPHSBNNFJOGPSNBUJPOCZVTJOHUIF57(VJEF &1( CFGPSFDIBOHJOHDIBOOFMT

1 Display TV Guide	2 Select a current	3 Select [View] %7# NPEF
	programme or channel
	TFMFDU	&BTUFOEFS	TFMFDU
	BDDFTT		XBUDI
		7JFX
			5JNFS1SPHSBNNJOH

Note

t5PXBUDIQBZ 57 ̓“Using Common Interface” (p. 49)

14

Other useful functions

Display Information banner

Display Information banner t"MTPBQQFBSTXIFODIBOHJOH BDIBOOFM

1	7				2		8		3		4
	&YBNQMF %7#
		1 BBC ONE WALES
											All DVB Channels
5					Radio				19:50
		Coronation Street						Also in			Select favourites
6		19:30 - 20:00			Now						For info press

Mute Encrypted AD STTL TEXT Multi Audio 45

1	$IBOOFM QPTJUJPOBOEOBNF	5	1SPHSBNNF
2	$IBOOFM UZQF <3BEJP> <%BUB> <)%57> FUD	6	1SPHSBNNF4UBSU̓ ̓'JOJTIUJNF %7#
3	$VSSFOU UJNF		$IBOOFMOVNCFS FUD "OBMPHVF
4	<"MM %7# $IBOOFMT> PS <'BWPVSJUFT > Q %7#	7	1SPHSFTTUJNFJOEJDBUPSPG UIFTFMFDUFEQSPHSBNNF
	t5P TXJUDI	8	%7#
	CMVF		4BNFQSPHSBNNFBWBJMBCMFBT)%CSPBEDBTU

t5PEJTQMBZUIFFYUSBJOGPSNBUJPOGPS EFUBJMT

Features available / Message meanings

[Mute]

4PVOENVUF0O

[Bad signal]

1PPS57 TJHOBMRVBMJUZ

[AD]

"VEJP%FTDSJQUJPO TFSWJDFBWBJMBCMF t5IJTGVODUJPODBOBJEWJTVBMMZ

JNQBJSFEWJFXFST CZBEEJOHBO

BEEJUJPOBMBVEJP USBDLUPEFTDSJCF FWFOUTPOTDSFFO

t'PSTFUUJOHT(p. 30)

[TEXT]

5FMFUFYUTFSWJDFBWBJMBCMF

[Multi Audio]

.VMUJQMF BVEJPBWBJMBCMF

[Stereo], [Mono], [NICAM]

"VEJP NPEF

[Encrypted]		[STLL]	1 - 90
				0GG5JNFSSFNBJOJOHUJNF
4DSBNCMFEQSPHSBNNF		4VCUJUMF TFSWJDFBWBJMBCMF
				t'PSTFUUJOHT ̓(p. 16)
t5PDPOGJSNBOPUIFSUVOFEDIBOOFMOBNF
	t5PXBUDIUIFDIBOOFMMJTUFEJOUIFCBOOFS t*OGPSNBUJPOPOUIFOFYUQSPHSBNNF %7#

TV Watching

t5PIJEF	t&YUSBJOGPSNBUJPO %7#	t5PTFUEJTQMBZUJNFPVU
EXIT	1SFTT BHBJO UP IJEFUIFCBOOFS	̓[Banner Display Timeout] (p. 31)

t<"%> <455-> <5&95> <.VMUJ"VEJP>JOEJDBUJPOTBSFEJTQMBZFEBTBWBJMBCMFPOQBSUJDVMBSQSPHSBNNFT CVUNBZOPUCFBWBJMBCMFGPSBMM

JOEJWJEVBMQSPHSBNNFTCFJOHCSPBEDBTU %JTQMBZUIF FYUSBJOGPSNBUJPOUPDPOGJSNBWBJMBCJMJUZPGUIFTF GVODUJPOT &YBNQMF

1 BBC ONE WALES			19:50	All DVB Channels
Coronation Street			Now	Exit info
19:30 - 20:00

<"%>

AD

Last view

Switch to previously viewed channel or input mode easily t1SFTT BHBJOUP SFUVSOUP UIFQSFTFOUWJFX

LAST VIEW

Note

t4XJUDIJOHDIBOOFMJTOPUBWBJMBCMFXIJMF UIF SFDPSEJOHPG5JNFS 1SPHSBNNJOH PS %JSFDU57 3FDPSEJOH JTJOQSPHSFTT
t8BUDIJOH MFTTUIBO TFDPOETJTOPUSFHBSEFEBTUIF QSFWJPVTMZWJFXFE DIBOOFM PSJOQVU NPEF	15

Hold

Freeze / unfreeze picture

HOLD

TV Watching

Display the selectable settings for the current status

Check or change the current status instantly

OPTION t5PDIBOHF

TFMFDU DIBOHF

	[Audio Description]			[Subtitle Language]
				%7#NPEF
	%7#NPEF
				"MMPXTZPVUPTFMFDUUIF MBOHVBHFJOXIJDITVCUJUMFTTIPVME
	4FU UP<"VUP>JG UIFQSPHSBNNF IBT"VEJP %FTDSJQUJPO TFSWJDF
				BQQFBS JGBWBJMBCMF
	UIFOZPVXJMMIFBSBOBEEJUJPOBM BVEJPUSBDLUPEFTDSJCF			t5IJTTFUUJOHJT OPU NFNPSJ[FEBOE JU XJMMSFUVSOUP UIF
	FWFOUTPOTDSFFO
	t5P BEKVTUUIF WPMVNF GPS "VEJP %FTDSJQUJPO			EFGBVMUTFUUJOHPODFZPVFYJUUIF DVSSFOUQSPHSBNNF
	[Audio Description Menu] (p. 30)			[Teletext Character Set]
	[Multi Audio]			4FUTUIFUFMFUFYUMBOHVBHFGPOU
				[Setup Menu] (p. 31)
	%7#NPEF
	"MMPXTZPVUPTFMFDU CFUXFFO BMUFSOBUJWFMBOHVBHF			[Teletext Language]
	GPSTPVOEUSBDLT JGBWBJMBCMF
	t5IJT TFUUJOH JTOPU NFNPSJ[FEBOE JU XJMM SFUVSOUPUIF			%7#NPEF
				"MMPXTZPVUPTFMFDUCFUXFFO BMUFSOBUJWF MBOHVBHFGPS
	EFGBVMUTFUUJOHPODFZPV FYJU UIFDVSSFOUQSPHSBNNF
				UFMFUFYU JGBWBJMBCMF
	[Monaural Audio]			[NICAM]
	%7#NPEF
				"OBMPHVF NPEF
	"MMPXTZPVUPTFMFDUTUFSFP NPOBVSBM JGBWBJMBCMF
	t5IJT TFUUJOH JTOPU NFNPSJ[FEBOE JU XJMM SFUVSOUPUIF			4XJUDIFT /*$".TPVOE JGBWBJMBCMF
				̓[Sound Menu] (p. 29)
	EFGBVMUTFUUJOHPODFZPV FYJU UIFDVSSFOUQSPHSBNNF
				[Volume Correction]
				"EKVTUT WPMVNFPG JOEJWJEVBMDIBOOFMPS JOQVUNPEF

Off Timer

Turn the TV off automatically after a fixed period 0GG NJOVUFT

1 Display the menu

MENU

2 Select [Setup]
	Main Menu					TFMFDU
	Picture					BDDFTT
	Sound
	Setup
3 Select [Off Timer] and set the time
	Setup Menu	1/2				TFMFDU
	Timer Programming					TFU
	TV Guide Settings
				t5PDBODFM ̓4FU UP <0GG> PS UVSOUIF57PGG
	Off Timer	Off
	Link Settings
				t5PEJTQMBZUIF SFNBJOJOH UJNF ̓“Display Information banner” (p. 15)
	DVB Tuning Menu
	Child Lock			t8IFOUIFSFNBJOJOH UJNF JTXJUIJO NJOVUFT UIFSFNBJOJOHUJNF XJMMGMBTIPOUIF
	Display Settings
				TDSFFO
	Network Setup

System Menu

16

Aspect

Change the aspect ratio (image size)

ASPECT &OKPZWJFXJOHUIFJNBHFBUJUTPQUJNVN TJ[FBOEBTQFDU

1SPHSBNNFTVTVBMMZDPOUBJOBOi"TQFDU$POUSPM4JHOBMw 8JEFTDSFFOTJHOBM FUD BOE UIF57XJMMDIPPTFUIFBTQFDU

SBUJPBVUPNBUJDBMMZBDDPSEJOHUPUIFi"TQFDU$POUSPM4JHOBMw Q̓

If you would like to change the aspect ratio manually

1 Display Aspect Selection list						2 While the list is displayed,
						select the mode			t:PVDBOBMTP DIBOHFUIFNPEFPOMZ
ASPECT								TFMFDU
	Aspect Selection
		"VUP							VTJOHUIF "41&$5 CVUUPO
								TUPSF	ASPECT
		;PPN
										1SFTT SFQFBUFEMZ VOUJMZPVSFBDI
		;PPN
		;PPN								UIFEFTJSFE NPEF
	$IBOHF			&9*5
		4FMFDU
				3&563/

"TQFDU 4FMFDUJPOMJTU

<"VUP>

5IFCFTUSBUJPJTDIPTFOBOEUIFJNBHFFYQBOEFEUPGJMMUIFTDSFFO 'PSEFUBJMT̓ Q̓

< >		<;PPN >
	%JSFDUMZEJTQMBZTUIFJNBHFBU		%JTQMBZT B MFUUFSCPYPS JNBHF
	XJUIPVUEJTUPSUJPO BOBNPSQIJD		XJUIPVUEJTUPSUJPO
< >		<;PPN >
	%JTQMBZT UIFJNBHF BUUIFTUBOEBSE		%JTQMBZTB MFUUFSCPY BOBNPSQIJD
	XJUIPVU EJTUPSUJPO		JNBHFGVMM TDSFFO XJUIPVU EJTUPSUJPO
< >		<;PPN >
	%JTQMBZT UIFJNBHF BUUIFTUBOEBSE		%JTQMBZTB MFUUFSCPY BOBNPSQIJD
	XJUIPVU EJTUPSUJPO		JNBHFGVMM TDSFFOXJUIPVUEJTUPSUJPO
			"U̓ EJTQMBZTUIFJNBHFBUJUTNBYJNVN
			XJUITMJHIUFOMBSHFNFOU

Note

t"TQFDU JTGJYFE UP< >XIFO<7JFXJOH.PEF>JT TFU UP<(BNF>JOUIF1JDUVSF.FOV t/PUBWBJMBCMFJOUFMFUFYUTFSWJDF

t"TQFDUNPEFDBO CF NFNPSJ[FETFQBSBUFMZGPS4% 4UBOEBSEEFGJOJUJPO BOE )% )JHI EFGJOJUJPO TJHOBMT

Display subtitles

DVB mode

Display / hide subtitles JGBWBJMBCMF

STTL	t5PDIBOHFUIFMBOHVBHFGPS%7# JGBWBJMBCMF
	[Preferred Subtitles] (p. 31)
Analogue mode
Display subtitles		Hide subtitles
STTL		EXIT

Note

t5IJTJTUIFTBNFBTTXJUDIJOHUP"OBMPHVFUFMFUFYU TFSWJDFBOETFMFDUJOHi1 w TVCUJUMFTFSWJDF Q t:PVDBOOPUDIBOHF UIFDIBOOFMXIFOUIJT GVODUJPO JTBDUJWF

TV Watching

17

Guide TV Using

Using TV Guide

57(VJEF¦&MFDUSPOJD1SPHSBNNF(VJEF &1( QSPWJEFT BOPOTDSFFOMJTUJOH PG UIF QSPHSBNNFT DVSSFOUMZCSPBEDBTUBOE UIF

GPSUIDPNJOHCSPBEDBTUT PWFSUIFOFYU TFWFO EBZT EFQFOEJOHPOUIF CSPBEDBTUFST

t5IJT57 TVQQPSUTUIF(6*%&1MVT TZTUFN t5IF3PWJCSBOEJOHQBSUOFS XJMMTVQQMZ UIFSBUJOHJOGPSNBUJPOJO UIFQSPHSBNNFJOGPSNBUJPOBOEUIFSFDPNNFOEFEHSPVQJO

UIF 4FBSDIMJTU t%7#BOE "OBMPHVFDIBOOFMTBSF EJTQMBZFE PO UIFTBNF57 (VJEFTDSFFO <%>NFBOT%7#DIBOOFMBOE<">NFBOT "OBMPHVF

DIBOOFM 5IFSFXJMM CFOPQSPHSBNNFMJTUJOHTGPS"OBMPHVFDIBOOFMT t8IFOUIJT57JTUVSOFEPOGPSUIFGJSTU UJNF PSUIF57 JTTXJUDIFEPGG GPS NPSF UIBOBXFFL JUNBZ UBLFTPNF UJNFCFGPSF57 (VJEFJT DPNQMFUFMZ TIPXO

SD CARD INPUT	1	Select DVB or Analogue
		TV
TV AV

MENU ASPECT

N

DIRECT TV REC

2

View TV Guide

EXIT

7

8

9

&YBNQMF

6

1

57(VJEF

8FE 0DU

8FE 0DU

4FBSDI

"MM $IBOOFMT

"MTPJO

##$0/&

2

%*:404 8F PQFOJO UIF#BUUFSTCZT

5JNF

D

##$0/&

&BTUFOEFS

%*:404

)PMJEBZ/FXT

OPTION

RETURN

3

D

##$5)3&&

)PU8BST

)PMJEBZ1SPHSBN

D

&

&NNFSEBM

$PSPOBUJPO 4USFFU

5IF #JMM

D

##$'063

0 DMPDL/FXT##$

1FQTJ$IBS

(PPECZF

4

D

##$ 8

1BOPSBNB

4QSJOHXBUDI

$PBTU

D

##$J

*N"$FMFCSJUZ

1PQ*EPM

/FXT

5

D

##$ 3BEJ

3VHCZ

5P

4QPSUT

4FMFDU DIBOOFM

*OGP

TEXT

STTL INDEX HOLD

&9*5

1BHFVQ

5JNFS1SPHSBNNJOH

4FMFDUQSPHSBNNF

GUIDE

3&563/

1BHF EPXO

3&563/

OPTION

4FMFDU "EWFSU

IPVST

IPVST

4FBSDI

$BUFHPSZ

1 $VSSFOUEBUF BOEUJNF

2 57 (VJEFUJNF

3 "EWFSUJTFNFOU

4<%> %7# <"> "OBMPHVF

5$IBOOFM QPTJUJPOBOE OBNF

6 57(VJEFEBUF

abc	def	7	4PNFQSPHSBNNFT NBZBMTPCFCSPBEDBTU JO)%
To return to TV		8	t:PVDBOTFMFDU )% PS4%CSPBEDBTUCFGPSF WJFXJOHPS TFUUJOH5JNFS1SPHSBNNJOH
			1SPHSBNNF
EXIT
PS		9	-PHPPGUIF3PWJCSBOEJOHQBSUOFS

To change the layout of TV Guide[TV Guide View] (p. 30)

To watch the programme

1 Select a current

2 Select [View] %7# NPEF

t*GBQSPHSBNNFFYJTUTJOCPUI)%BOE4%CSPBEDBTUT UIF

programme or channel

&BTUFOEFS

TFMFDU

<7JFX0QUJPOT>TDSFFOXJMMCFEJTQMBZFEUPTFMFDU)%PS

4%CSPBEDBTU %7#NPEF

BDDFTT

7JFX

5JNFS1SPHSBNNJOH

DIY SOS

View Options

TFMFDU

TFMFDU

101

BBC ONE

19:30-20:00 Wed 27 Oct 2010

119

BBC HD

19:30-20:00 Wed 27 Oct 2010

XBUDI

XBUDI

t5PVTF5JNFS̓1SPHSBNNJOH

̓(p. 19)

To the previous day %7# NPEF

To view a channel list of the selected category

SFE

CMVF

To the next day %7# NPEF

$BUFHPSZMJTU

Category

HSFFO

All Channels

View details of the programme %7# NPEF

All Channels

All DVB Channels

1 Select the programme

2 View details

All HD Channels

TFMFDU

t1SFTTBHBJO UPSFUVSO UP57

All Analogue Channels

0OMZ"OBMPHVF DIBOOFMTBSF

Free DVB Channels

MJTUFE

(VJEF

TV/Data DVB Channels

Favourites1

Favourites2

t5P MJTU GBWPVSJUF DIBOOFMT

Favourites3

18

Favourites4

̓(p. 38)

To search programme types and view a channel list of the searched programmes %7#NPEF

ZFMMPX
4FBSDIMJTU		5ZQFMJTU	TFMFDUUZQF
Search		Prog.Type
		All Types	WJFX
Search Titles...		All Types
Movie		Movie
News and Factual		News
.		.
.		.
.		.

To search programme titles and view a list of the searched programmes %7#NPEF

ZFMMPX

4FBSDIMJTU

Search

Search Titles...

Movie

News and Factual

.

.

.

1Select

[Search Titles...]

TFMFDU

BDDFTT

2 Set characters (maximum: 19 characters)

TFMFDU

TFU

t5PVTF OVNFSJDCVUUPOT ̓“Characters table for numeric buttons” (p. 70)

3 Start [Search]

HSFFO

t"MMUIFQSPHSBNNFUJUMFT JODMVEJOHUIFXPSE ZPV TFUXJMMCF MJTUFE t4FBSDIJOH XJUIPVUBOZ DIBSBDUFSTXJMMMJTUBMM QSPHSBNNFTJODMVEJOH DVSSFOUQSPHSBNNFT

Other useful functions

Timer Programming (DVB mode)

5JNFS1SPHSBNNJOHDBOSFNJOEZPVUPXBUDIBQSPHSBNNFPSSFDPSE POFPOBO FYUFSOBMSFDPSEFS

1 Select the forthcoming programme 2 Select the function ([Ext Rec.] or [Reminder])

	TFMFDU			5JNFS1SPHSBNNJOHTDSFFO						TFMFDU
	TFU	Timer Programming					Wed 27.10.2010 10:46
		Function	No.		Channel Name		Date	Start	End	TUPSF
		Ext Rec.	D	1	BBC ONE		Wed 27 Oct	20:00	20:30
					DIY SOS			(30 min.)
		---		---			--/--	--:--	--:--
	-&% XJMM UVSO UPPSBOHFJG5JNFS							(--- min.)
		---		---			--/--	(--- min.)
								--:--	--:--
	1SPHSBNNJOHJTTFU	[Ext Rec.]			:
	0SBOHF-&%XJMMGMBTIJGUIF SFDPSEJOHPG
	5JNFS1SPHSBNNJOHJT JOQSPHSFTT	UP SFDPSEUIF QSPHSBNNFUPUIF FYUFSOBMSFDPSEFS<&YU̓3FD>
		8IFO UIF TUBSUUJNFDPNFT UIFDIBOOFMXJMMCFTXJUDIFEBVUPNBUJDBMMZ BOE UIF
		WJEFPBOEBVEJP TJHOBMT XJMMCF PVUQVU NJOVUFT CFGPSFUIF TUBSUJOHUJNF B
		SFNJOEFSNFTTBHFBQQFBSTJGZPVBSFXBUDIJOH57
		[Reminder]				:
		UPSFNJOEZPVUPXBUDIUIFQSPHSBNNF
		8IFOZPVBSFXBUDIJOH57 BSFNJOEFSNFTTBHFBQQFBST NJOVUFT CFGPSFUIF
	-&%	TUBSUUJNF 1SFTTUIF0,CVUUPOUPTXJUDIUPUIFQSPHSBNNFE DIBOOFM

To check / change / cancel a timer programming

To return to TV Guide

event

RETURN

“Timer Programming” (p. 41)

If you select a current programme

If a programme exists in both HD and SD broadcasts

"DPOGJSNBUJPOTDSFFOBTLJOHXIFUIFSZPV XJTIUPXBUDIPS 5IF<5JNFS 0QUJPOT>TDSFFOXJMM CFEJTQMBZFE UPTFMFDU )% PS4%

SFDPSEUIFQSPHSBNNF XJMMBQQFBS

CSPBEDBTU

4FMFDU<5JNFS1SPHSBNNJOH>BOE TFU <&YU 3FD>UPSFDPSEGSPN

TFMFDU

Timer Options

UIFUJNFZPVGJOJTIQSPHSBNNJOHUIFUJNFSFWFOUTFUUJOH

DIY SOS

101

BBC ONE

19:30-20:00

Wed 27 Oct 2010

TFU

&BTUFOEFS

TFMFDU

119

BBC HD

19:30-20:00

Wed 27 Oct 2010

BDDFTT

5JNFS 1SPHSBNNJOH TDSFFO

7JFX

5JNFS1SPHSBNNJOH

Timer Programming

Wed 27.10.2010 10:46

Function

No.

Channel Name

Date

Start

End

Ext Rec.

D

1

BBC ONE

Wed 27 Oct

20:00 20:30

DIY SOS

(30 min.)

XJMM CFEJTQMBZFE JG

---

---

--/--

--:--

--:--

(--- min.)

---

---

--/--

--:--

--:--

)%CSPBEDBTU JT TFU

(--- min.)

Guide TV Using

19

Guide TV Using

Note t5IJTGVODUJPOJTOPUBWBJMBCMFJO"OBMPHVFNPEF

t5JNFS1SPHSBNNJOH SFNJOEFS NFTTBHFTXJMMSFNBJOEJTQMBZFE VOUJM POFPGUIF GPMMPXJOHPDDVST t :PVQSFTT UIF 0,CVUUPOUPWJFXUIFQSPHSBNNFPSUIF&9*5 CVUUPOUPDBODFM UIFSFNJOEFS t 5IF UJNFSQSPHSBNNJOHFWFOUUIBUUIFSFNJOEFSJTTFUGPSFOET

t/P PUIFSDIBOOFMDBOCFTFMFDUFEXIJMFUIFSFDPSEJOHPG5JNFS1SPHSBNNJOH JTJO QSPHSFTT t8IFOSFDPSEJOHQSPHSBNNFT CFTVSFUPNBLFUIFQSPQFSTFUUJOHTPO UIFSFDPSEFSDPOOFDUFEUP UIF57 (p. 41)

Guide link programming (Timer Programming from the TV Guide signal)

(VJEFMJOLQSPHSBNNJOHJT5JNFS1SPHSBNNJOHXIJDIJTDPOUSPMMFE CZJOGPSNBUJPOGSPNUIF57(VJEF JGQSPHSBNNFTUBSUBOE FOE UJNFTBSFDIBOHFE CZUIFCSPBEDBTUFS UIF UJNFSQSPHSBNNJOH FWFOUXJMM GPMMPXUIFDIBOHF "4QMJU1SPHSBNNFQSPHSBNNJOHJTB(VJEFMJOLQSPHSBNNJOHXIJDI JTJOUFSSVQUFECZPOFPSNPSFPUIFSQSPHSBNNFT /PUF UIBU (VJEFMJOLQSPHSBNNJOH JODMVEJOH4QMJU1SPHSBNNFQSPHSBNNJOH POMZXPSLTSFMJBCMZ JG DPSSFDU JOGPSNBUJPO JT

SFDFJWFE GSPNCSPBEDBTUFST

5JNFS1SPHSBNNJOH TDSFFO

&YBNQMF

Timer Programming

Wed 27 Oct 2010 10:46

57 (VJEF

Function

No.

Channel Name

Date

Star t

End

8FE 0DU

8FE 0DU

4FBSDI

"MM $IBOOFMT

Ext Rec.

D

1

BBC ONE

Wed 27 Oct

20:00

20:30

##$ 0/&

DIY SOS

Guide

(30 min.)

%*:404 8F PQFO JO UIF#BUUFSTCZT

Reminder

D

14

E4

Wed 27 Oct

21:00

22:30

5JNF

The Bill

Guide

(90 min.)

D

##$0/&

&BTUFOEFS

%*: 404

)PMJEBZ /FXT

Ext Rec.

D

72

BBC 2W

Wed 27 Oct

22:45

23:00

D

##$5)3&&

)PU8BST

)PMJEBZ 1SPHSBN

<TIMER>

(15 min.)

D

&

&NNFSEBM

$PSPOBUJPO 4USFFU

5IF #JMM

Ext Rec.

D

1

BBC ONE

Thu 28 Oct

10:30

11:30

D

##$'063

0 DMPDL /FXT ##$

1FQTJ $IBS

(PPECZF

Red Cap

S/P

(60 min.)

D

##$ 8

1BOPSBNB

4QSJOHXBUDI

$PBTU

---

---

--/--

--:--

--:--

D ##$J

*N"$FMFCSJUZ

1PQ*EPM

/FXT

(--- min.)

D ##$3BEJ

3VHCZ

5P

4QPSUT

Change function				1/1
Store timer	EXIT
			Page up
	Select	0 9
	RETURN		Page down		i wPSi wXJMM CFEJTQMBZFE JOUIF57 (VJEFJG
Delete		Subtitles auto

i4 1wJTEJTQMBZFEJG UIFUJNFSJT TFU GSPN UIF57 5JNFS1SPHSBNNJOH JTTFUBTUIF (VJEFMJOL (VJEFBOEUIFQSPHSBNNFJTB4QMJU1SPHSBNNF QSPHSBNNJOH

i(VJEFwJTEJTQMBZFE JGUIF UJNFSJTTFUGSPNUIF57 (VJEF

(VJEF MJOLQSPHSBNNJOH

Note t*G ZPV FEJUUIFTUBSU UJNFPS FOEUJNFPGB(VJEF MJOLQSPHSBNNJOHFWFOUCZ NPSFUIBO NJOVUFT JUXJMMOPMPOHFSGPMMPX

UIF CSPBEDBTUFSTDIBOHFT UP UIFTUBSUPS FOEUJNF 5IF TUBSUBOEFOEUJNFTXJMM CFDPNFGJYFE t8IJMTUNBLJOHUIF4QMJU1SPHSBNNFQSPHSBNNJOH FWFOUGPS <&YU3FD> ZPVDBOOPU SFDPSEBOZDIBOOFMTCFUXFFOUIF JOUFSSVQUFEQSPHSBNNFT t5IF4QMJU 1SPHSBNNF QSPHSBNNJOH FWFOUGPS3FNJOEFSXJMMCF DMFBSFECZQSFTTJOHUIF 0, CVUUPOPODFUPWJFX t5IF4QMJU 1SPHSBNNF QSPHSBNNJOH FWFOUGPS3FNJOEFSXJMMTXJUDI UP UIF QSPHSBNNFEDIBOOFM CZQSFTTJOHUIF0, CVUUPO

FWFO JGJUJTCFUXFFOUIFJOUFSSVQUFEQSPHSBNNFT t5IF4QMJU1SPHSBNNFQSPHSBNNJOH EPFTOPUXPSLJGUIFTFQBSBUFE QBSUTBSFCSPBEDBTU PO EJGGFSFOUDIBOOFMT

View advertisement

&OUFS ZPVSQPTUDPEFXIFO VTJOHUIJTGVODUJPOGPS UIF GJSTU UJNF

[Guide Plus+ Postcode] in [TV Guide Settings] (p. 30)

*GZPVIBWFBMSFBEZFOUFSFEZPVS QPTUDPEFJOi"VUP4FUVQw XIFOGJSTUVTJOH UIF57 Q ZPVEP OPUIBWFUPFOUFSJUBHBJO

*GZPVFOUFSBOJODPSSFDU QPTUDPEF GPS ZPVS BSFB PS OPQPTUDPEFJTFOUFSFE BEWFSUJTFNFOUTNBZOPUCFEJTQMBZFEDPSSFDUMZ

Display advertisement information

OPTION t5PEJTQMBZUIFMBUFTUBEWFSUJTFNFOU ZPVXJMMOFFEUPVQEBUFUIFJOGPSNBUJPO

5PVQEBUF UIF JOGPSNBUJPO DPOUJOVPVTMZ UIF57NVTUCFMFGUJO4UBOECZNPEF

To change advertisements

To return to TV Guide

OPTION RETURN

PS

Note t4PNF BEWFSUJTFNFOUTBSFGPSGVUVSFQSPHSBNNFT

*O UIJTDBTFJU JT QPTTJCMFUP VTFUIF(VJEFMJOLQSPHSBNNJOHGVODUJPO t5IFBEWFSUJTFNFOUTEJTQMBZFEPOUIF57(VJEF BSFTFOUGSPNUIF(6*%&1MVT TZTUFNTPUIBUUIFZDBOOPUCFEFMFUFE

NBOVBMMZPSXJMMOPU CFMPTUFWFO XIFOUIF57JT UVSOFE 0GG XJUI.BJOT QPXFS0O 0GG TXJUDI

20

Viewing Teletext

:PVDBO FOKPZOFXT XFBUIFS GPSFDBTUTBOE TVCUJUMFT FUD EFQFOEJOHPOUIF CSPBEDBTUFS t5IF BWBJMBCJMJUZ PGUFMFUFYUTFSWJDFT GPSB QSPHSBNNFJTJOEJDBUFECZ<5&95>JO UIFJOGPSNBUJPO CBOOFS

1 BBC ONE Wales	19:50	All DVB Channels
Coronation Street		Select favourites
19:30 - 20:00	Now	For info press
	TEXT

*OGPSNBUJPOCBOOFS(p. 15)

%JTQMBZFEJGQSPHSBNNFIBTUFMFUFYUTFSWJDF

%FQFOEJOHPO UIF CSPBEDBTUFS UIFEJHJUBM UFMFUFYU .)&( TFSWJDFTNBZOPUCFBWBJMBCMF *OUIJTDBTF UIFPQFSBUJPOPGUIF UFMFUFYUTFSWJDFTNBZCFUIFTBNFBTUIF BOBMPHVFUFMFUFYUTFSWJDFT Q

Digital teletext (MHEG)

%JHJUBMUFMFUFYUTFSWJDFTEJGGFSHSFBUMZGSPNBOBMPHVFUFMFUFYU 8IFOZPVTXJUDIUPBEJHJUBMUFMFUFYUTFSWJDF UIFJNBHFT ZPVTFFDBODPOUBJOHSBQIJDTBOEUFYU MBJEPVUBOEDPOUSPMMFEJOB NBOOFSEFDJEFECZUIF CSPBEDBTUFS

SD CARD	INPUT		1 Select DVB	t%7#QSPHSBNNFTIBWFEJHJUBMUFMFUFYU
	TV	AV	TV
MENU ASPECT	N	DIRECT TV REC		TFSWJDFT .)&(

	EXIT	2	Switch to Teletext
			TEXT
				&YBNQMF
				17:51 28 Feb
OPTION	RETURN
TEXT	STTL INDEX HOLD

abc def

ghi jklmno

pqrs tuv wxyz

LAST VIEW

PROGRAMME

REC

TV

To return to TV

TEXT

How to operate services

*OBMMDBTFT JUJTQPTTJCMFUPOBWJHBUF UIF QBHFT VTJOHCVUUPOTPOUIFSFNPUFDPOUSPM CVU

CFDBVTF UIF DPNNBOET BWBJMBCMFNVTUBQQMZUPBMMNBOVGBDUVSFST PGEJHJUBMFRVJQNFOU TPNF

POTDSFFODPNNBOETNBZ OPU DPSSFTQPOEFYBDUMZUPUIF SFNPUFDPOUSPM CVUUPOT

t4FMFDU HP	t4ZNCPM
t#BDL LFZ	t$PMPVSFEDIBSBDUFST	t8IFOPQUJPOTXJUIOVNCFSTBSF
RETURN		EJTQMBZFE
			abc	def
	$PMPVSFECVUUPO	ghi	jkl	mno
		pqrs	tuv	wxyz

Note t"TTPPOBTZPVTXJUDIUPBEJHJUBMDIBOOFMXJUIMJOLTUPBUFMFUFYUTFSWJDF TPGUXBSFJTEPXOMPBEFE JOUIFCBDLHSPVOEUPFOBCMFUIFUFMFUFYUGVODUJPO 5IJTNFBOTUIBUXIFOTXJUDIJOHUPBEJHJUBM

DIBOOFM ZPVTIPVMEXBJUGPSBQQSPYJNBUFMZ TFDPOETCFGPSFQSFTTJOHUIF5&95CVUUPO UIJTXJMM

BMMPXUIFTPGUXBSFUPEPXOMPBE *GZPVQSFTTUIF5&95CVUUPOCFGPSFEPXOMPBEJTDPNQMFUF JUXJMM CFJHOPSFEBOEZPVXJMMIBWFUPQSFTTUIF5&95CVUUPOBHBJOXIFOUIFEPXOMPBEJTDPNQMFUF t8IJMFOBWJHBUJOHEJHJUBMUFMFUFYU ZPVXJMMGJOEUIFSFJTBTIPSUEFMBZXIFONPWJOHCFUXFFOQBHFTXIJMF UIFQBHFEPXOMPBET 5IFSFJTPGUFOBQSPNQUTIPXOTPNFXIFSFPOUIFQBHF GPSFYBNQMFi-PBEJOHw UP

MFUZPVLOPXUIBUUIJTJTIBQQFOJOH

Teletext Viewing

21

Teletext Viewing

Analogue teletext

"OBMPHVFUFMFUFYUTFSWJDFT BSFUIFUFYUJOGPSNBUJPOQSPWJEFECZ UIF CSPBEDBTUFST

5IFGFBUVSFTNBZWBSZEFQFOEJOH POUIFCSPBEDBTUFST

What is FASTEXT (FLOF) mode?

*O '"45&95NPEF GPVSEJGGFSFOUMZDPMPVSFETVCKFDUTBSF TJUVBUFEBU UIF CPUUPNPGUIFTDSFFO 5PBDDFTT NPSFJOGPSNBUJPOBCPVU

POFPG UIFTF TVCKFDUT QSFTT UIFBQQSPQSJBUFMZDPMPVSFE CVUUPO 5IJTGBDJMJUZ FOBCMFTGBTUBDDFTT UPJOGPSNBUJPO PO UIFTVCKFDUT

TIPXO

What is List mode?

*O -JTUNPEF GPVSEJGGFSFOUMZ DPMPVSFEQBHF OVNCFST BSF TJUVBUFE BUUIFCPUUPN PG UIF TDSFFO &BDIPGUIFTF OVNCFST DBOCF BMUFSFEBOETUPSFEJO UIF57T NFNPSZ “Store frequently viewed pages” (p. 23)

To change mode[Teletext] (p. 31)

SD CARD	INPUT		1	Select Analogue
	TV	AV		TV
MENU ASPECT	N	DIRECT TV REC	2	Switch to Teletext
		EXIT							t%JTQMBZTUIFJOEFYQBHF DPOUFOUWBSJFT
				TEXT
									EFQFOEJOH PO UIFCSPBEDBTUFST
					4VCQBHFOVNCFS
OPTION		RETURN			<< 01 02 03 04 05 06 07			>>
							17:51 28 Feb		5JNF EBUF
							TELETEXT
TEXT STTL INDEX HOLD						INFORMATION
									$PMPVS CBS
	abc	def		$VSSFOU QBHF OVNCFS
ghi	jkl	mno	3	Select the page
pqrs	tuv	wxyz
					abc	def		VQ
				pqrs	tuv	wxyz	or		or	$PMPVSFECVUUPO
				ghi	jkl	mno
		LAST VIEW						EPXO		$PSSFTQPOET UP UIFDPMPVSCBS
To return to TV				To adjust contrast					"TUIF CMVFCBSJTEJTQMBZFE
				MENU
EXIT				1SFTTUXJDF
FULL / TOP / BOTTOM
MENU					501				#0550.	/PSNBM '6--
		HSFFO
					&YQBOEUIF501 IBMG				&YQBOE UIF#0550.IBMG
Reveal hidden data									HOLD
Reveal hidden words e.g. quiz page answers								Stop automatic updating
MENU				t1SFTTBHBJOUPSFIJEF					*GZPVXJTIUPIPME UIFDVSSFOUQBHFXJUIPVUVQEBUJOH
		SFE						HOLD		t1SFTTBHBJO UPSFTVNF

22

INDEX

Subtitles

Return to the main index page

View a favourite page stored

INDEX

STTL

t'BDUPSZTFUUJOH JTi1 w

TVCUJUMFTFSWJDF POUIF CMVF

CVUUPO -JTUNPEF

View in multi window

Watch TV and Teletext in two windows at once

TEXT

t0QFSBUJPOTDBOCFNBEFPOMZJO5FMFUFYUTDSFFO

t&BDIUJNFQSFTTFE 5FMFUFYU

57BOE5FMFUFYU

57

Store frequently viewed pages

Store frequently viewed pages in the colour bar -JTUNPEFPOMZ

"TQBHFJTEJTQMBZFE

t*G ZPV XJTI UPVTF4VCUJUMFT

$PSSFTQPOEJOH

QSFTT BOEIPME

EPOPUDIBOHFOVNCFS PO

CMVF CVUUPO

DPMPVSFE CVUUPO

5IFOVNCFSDIBOHFT

UP

XIJUF

To change stored pages

	&OUFSOFXQBHFOVNCFS
$PMPVSFECVUUPOZPVXBOUUP		abc	def	QSFTTBOEIPME
	ghi	jkl	mno
DIBOHF
	pqrs	tuv	wxyz

View sub page

View sub page (Only when teletext is more than one page)

"QQFBSTBUUPQPGUIFTDSFFO

t5IF OVNCFS PGTVC QBHFT WBSJFTEFQFOEJOH POUIF

CSPBEDBTUFST VQ UP QBHFT

t*U NBZ UBLFTPNFUJNF GPSTFBSDIJOH EVSJOHXIJDI UJNF

ZPVDBOXBUDI57

To view specific sub page

&OUFSUIF EJHJUOVNCFS

MENU

CMVF

FYBNQMF 1

mno

Watch TV while waiting for update

View the TV picture while searching for a teletext page
5FMFUFYUBVUPNBUJDBMMZVQEBUFTJUTFMGXIFOOFXJOGPSNBUJPOCFDPNFTBWBJMBCMF
	$IBOHFTUP57 TDSFFO UFNQPSBSJMZ
MENU	P108	"QQFBSTXIFOVQEBUJOH
ZFMMPX		JTDPNQMFUFE
	:PVDBOOPUDIBOHF UIFDIBOOFM

t5IFOFXTQBHFQSPWJEFTBGVODUJPOUIBUJOEJDBUFTBSSJWBMPGMBUFTU OFXT i/FXT'MBTIw

7JFXUIFVQEBUFE

QBHF

ZFMMPX

Teletext Viewing

23

Inputs External Watching

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
tTo connect the equipment			(p. 10, 11, 66, 67)
The Remote Control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 25)
SD CARD	INPUT		1 Turn the TV on
	TV	AV
MENU ASPECT	N	DIRECT TV REC

When connecting with SCART as example 2 or 3 (p. 10, 11)

EXIT

Receives input signals automatically when playback starts

tInput signals are automatically identified by the SCART (pin 8) terminal.

tThis function is also available for HDMI connections (p. 67).

If input mode is not switched automatically

OPTION		RETURN		Perform 2 and 3
			2	tCheck the setup of the equipment.
TEXT STTL INDEX HOLD				Display the input selection menu
				AV
	abc	def	3	Select the input mode connected to the equipment
ghi	jkl	mno
				Input Selection		select
pqrs	tuv	wxyz		AV1
				AV2		watch
				COMPONENT
		LAST VIEW		HDMI1
				HDMI2
				TV
				SD Card
	PROGRAMME			tYou can also select the input using the AV button on the remote control or the side
				panel of the TV (except [SD Card]).
				Press the button repeatedly until the desired input is selected.
		REC		t[SD Card] : Switches to Media Player		[Using Media Player] (p. 51)
				tYou can label or skip each input mode (except [SD Card]). “Input Labels” (p. 44)
			4	Skipped inputs will not be displayed when the AV button is pressed.
	TV			View
				AV1	Displays the selected mode
To return to TV
TV

	Terminal	AV1	AV2	COMPONENT	HDMI1	HDMI2
	Manual input	AV1
	(default setting		AV2	COMPONENT	HDMI1	HDMI2
		AV1-RGB
	in“Input Labels”)
	Auto input				EC/HDMI1	EC/HDMI2
		EC/AV1	−	−	Applicable for	Applicable
	(EC mode or
		EC/AV1-RGB			EC mode and	for
	VIERA Link)
					VIERA Link	VIERA Link

tIf the above information is permanently displayed on the top left of the screen, press the button to clear.

Note

tIf the external equipment has an aspect adjustment function, set it to [16:9]. tFor details, see the manual of the equipment or ask your local dealer.

24
