Panasonic SC-HTB770S User Manual
Quick Start Guide
Fully insert the wire.
r: White
s: Blue line
Red
White
To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Push
Green
Press into the
groove.
≥ Tighten screws securely.
1 Fully insert the
wire.
r: White
s: Blue line
Push
Speaker placement
Speaker with,
Red connector:
To the right
White connector:
To the left
Green connector:
In the center
To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Push
Green
≥ Tighten screws securely.
Press the cable
into the groove.
Press the cable into the groove.
Red or White
Home Theater Audio System SC-HTB770

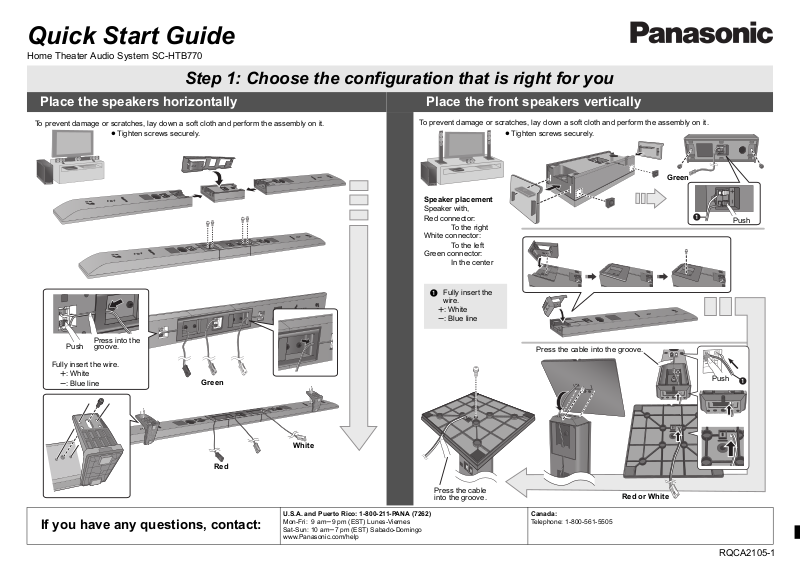

Step 1: Choose the configuration that is right for you
Place the speakers horizontally Place the front speakers vertically
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Mon-Fri: 9 ams9 pm (EST) Lunes-Viernes
Sat-Sun: 10 ams7 pm (EST) Sabado-Domingo
www.Panasonic.com/help
Canada:
Telephone: 1-800-561-5505
RQCA2105-1
Step 2: Connect the cables
TV
Main unit
HDMI cable
Be sure to connect to the
TV’s ARC compatible
terminal. (Refer to the TV’s
operating instructions.)
Red
White
Green
TV
Main unit
HDMI cable
Optical digital
audio cable
Red
White
Green
e.g. TV remote control
e.g. TV remote control
Do not connect the AC power supply cord to the main unit and the active
subwoofer until all other connections are completed.
When the TV is HDMI (ARC) compatible
HDMI IN
(ARC)
(ARC)
66 6
CENTER
R
L
DIGITAL
AUDIO
AC IN
SPEAKERS/HAUT-PARLEURS
IN
Using this system
When the TV is VIERA LinkTM “HDAVI ControlTM” or
HDMI CEC compatible
TV
AV OUT
TV
(ARC)
AV OUT
Turn on the active subwoofer.
On the TV, select this home theater system as the TV’s speakers from the VIERA
Link menu.
HDMI (ARC)
Audio Return Channel:
Allows a home theater system to receive and play audio from the TV through a HDMI cable without
additional wiring.
When the TV is non HDMI (ARC) compatible
HDMI IN
OPTICAL
OUT
DIGITAL
AUDIO
HDMI cable is required for VIERA Link “HDAVI Control”.
IN
TV
(OPT1)
66 6
CENTER
R
L
AC IN
SPEAKERS/HAUT-PARLEURS
DIGITAL
AUDIO
IN
TV
(OPT1)
(ARC)
≥ If the TV is not a Panasonic TV, set the “Receiver” or “External speakers” to “On”.
Press [i VOL j] on the TV’s remote control to adjust the volume.
§ Operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
When the TV is not VIERA LinkTM “HDAVI ControlTM”
or HDMI CEC compatible
INPUT
SELECTOR
TV
AV OUT
Turn on the main unit, active subwoofer and the TV.
TV
(ARC)
AV OUT
Press [INPUT SELECTOR] to select the TV sound.
Press [i VOL j] to adjust the volume.
≥ If there is sound from the TV’s speakers too, then use the TV’s remote control to lower the volume to
minimum.
For wall mounting and other details, be sure to refer to the Owner’s Manual.
