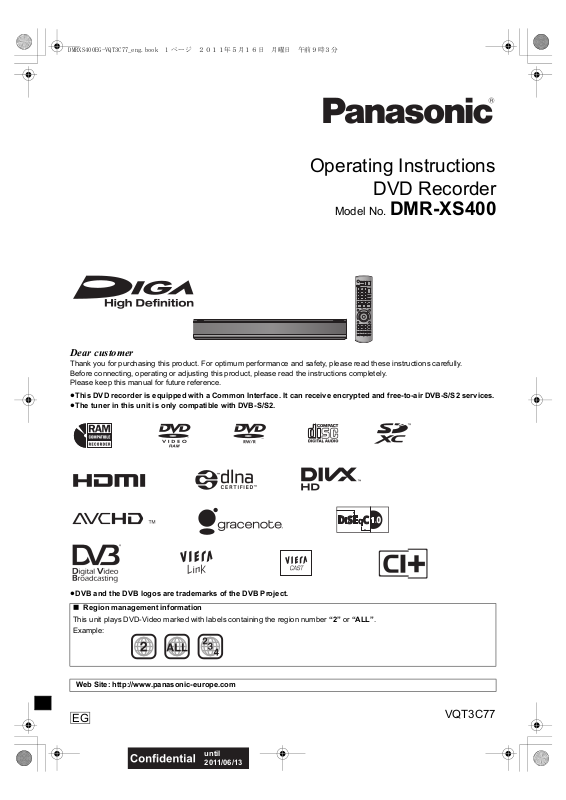

Panasonic DMR-XS400 Operating Instructions

Operating Instructions

DVD Recorder

Model No. DMR-XS400

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

≥This DVD recorder is equipped with a Common Interface. It can receive encrypted and free-to-air DVB-S/S2 services. ≥The tuner in this unit is only compatible with DVB-S/S2.

≥DVB and the DVB logos are trademarks of the DVB Project.

∫ Region management information

This unit plays DVD-Video marked with labels containing the region number “2” or “ALL”.

Example:

Web Site: http://www.panasonic-europe.com

VQT3C77

Safety precautions

WARNING CAUTION

∫ Unit

≥To reduce the risk of fire, electric shock or product

damage, – Do not expose this unit to rain, moisture, dripping or

splashing.

– Do not place objects filled with liquids, such as vases, on

this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to

qualified service personnel. – Do not let metal objects fall inside this unit. – Do not place heavy items on this unit.

∫ AC mains lead

≥To reduce the risk of fire, electric shock or product

damage, – Ensure that the power supply voltage corresponds to the

voltage printed on this unit. – Insert the mains plug fully into the socket outlet. – Do not pull, bend, or place heavy items on the lead. – Do not handle the plug with wet hands. – Hold onto the mains plug body when disconnecting the

plug. – Do not use a damaged mains plug or socket outlet.

≥Install this unit so that the AC mains lead can be

unplugged from the socket outlet immediately if any problem occurs.

∫ SD card

≥Keep the Memory Card out of reach of children to prevent

swallowing.

∫ Unit

≥This unit utilizes a laser. Use of controls or adjustments or

performance of procedures other than those specified herein may result in hazardous radiation exposure.

≥Do not place sources of naked flames, such as lighted

candles, on this unit.

≥This unit may receive radio interference caused by mobile

telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

≥This unit is intended for use in moderate climates.

∫ Placement

≥Place this unit on an even surface. ≥To reduce the risk of fire, electric shock or product

damage, – Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit is well ventilated.

– Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

– Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

∫ Batteries

≥Danger of explosion if battery is incorrectly replaced.

Replace only with the type recommended by the manufacturer.

≥Mishandling of batteries can cause electrolyte leakage and

may cause a fire. – Do not mix old and new batteries or different types at the

same time. – Do not heat or expose to flame. – Do not leave the battery(ies) in a car exposed to direct

sunlight for a long period of time with doors and windows

closed. – Do not take apart or short circuit. – Do not recharge alkaline or manganese batteries. – Do not use batteries if the covering has been peeled off. – Remove batteries if you do not intend to use the remote

control for a long period of time. Store in a cool, dark

place.

≥When disposing the batteries, please contact your local

authorities or dealer and ask for the correct method of disposal.

VQT3C77

Getting started

(Inside of product)

Features

CLASS 1 LASER PRODUCT

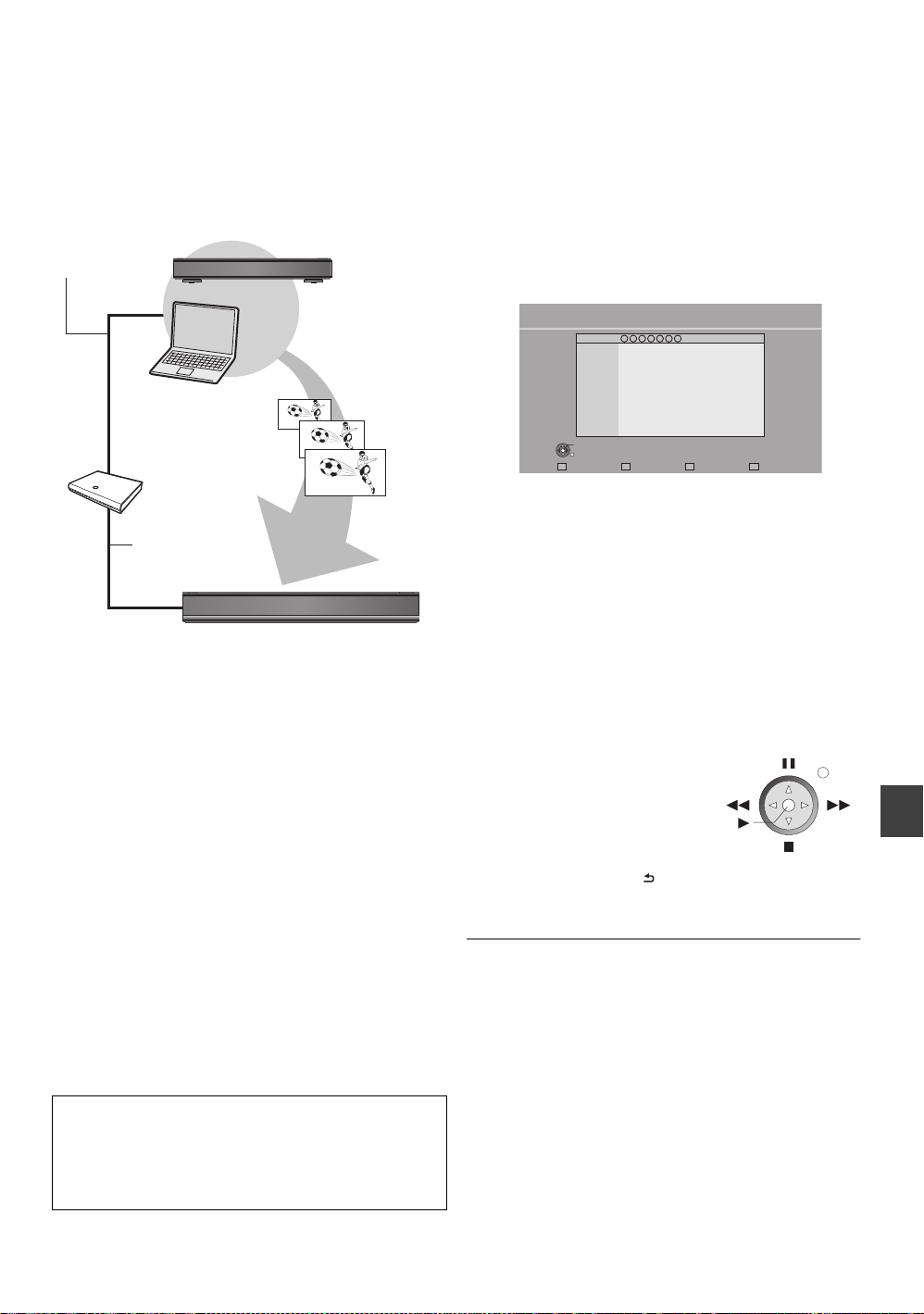

∫ DLNA (> 74, 75)

You can enjoy the video and photos saved on the HDD of this unit on DLNA (Client) compatible equipment connected via a network. Additionally, you can enjoy viewing video, photos and music saved on a DLNA Certified media server and Panasonic DLNA compatible recorders.

∫ VIERA CAST (> 71)

Internet services (such as YouTube, Picasa Web Albums, etc.) can be accessed easily by using the VIERA CAST button.

∫ EPG (> 26, 32)

Timer recording is made easier because the TV Guide allows you to see programme information.

Getting started

Supplied accessories

Please check and identify the supplied accessories. (Product numbers correct as of May 2011. These may be subject to change.)

1 Remote control

(N2QAYB000644)

2 Batteries for remote control 1 AC mains lead

≥Do not use AC mains lead with other equipment.

VQT3C77

Table of contents

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

∫ Getting started

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . 3

HDD and media information. . . . . . . . . . . . . . . . . . . .6

Recording mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

HDD and media you can use for recording and play . . . . . . 6

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control reference guide . . . . . . . . . . . . . . . . . . . . . . 10

CI module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Network connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Other TV connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Amplifier connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Common Operations. . . . . . . . . . . . . . . . . . . . . . . . . 18

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

HOLD function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Basic operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Menu screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

FUNCTION MENU screen . . . . . . . . . . . . . . . . . . . . . . . . . 19

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Easy Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Network Easy Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Auto Setup method when using a single cable router . . . . 23

∫ Watching broadcasts

Watching broadcasts . . . . . . . . . . . . . . . . . . . . . . . . 24

Using Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Channel information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Operations while watching broadcast. . . . . . . . . . . . . . . . . 25

Using TV Guide system . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

REWIND LIVE TV/PAUSE LIVE TV. . . . . . . . . . . . . . . . . . 27

∫ Recording

Recording TV programmes . . . . . . . . . . . . . . . . . . . 28

Operation during Recording . . . . . . . . . . . . . . . . . . . . . . . . 29

Direct TV Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Notes for recording of an encrypted broadcast . . . . . . . . . 31

Timer recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Manually programming timer recording . . . . . . . . . . . . . . . 33

Timer recording options . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Timer recording from channel information . . . . . . . . . . . . . 34

To cancel recording when timer recording has already

begun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Notes on timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . 34

To confirm and edit a timer programme . . . . . . . . . . . . . . . 35

∫ Playing back video

Playing DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Playing recorded video contents. . . . . . . . . . . . . . . 37

Using the DIRECT NAVIGATOR (VIDEO). . . . . . . . . . . . . 38

Playback from Chapter View . . . . . . . . . . . . . . . . . . . . . . . 40

Operation during play. . . . . . . . . . . . . . . . . . . . . . . .41

∫ Editing video

Deleting recorded titles . . . . . . . . . . . . . . . . . . . . . . 43

Editing recorded titles . . . . . . . . . . . . . . . . . . . . . . . 44

∫ Copying video

Copying titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Copying to HDD with DIRECT NAVIGATOR . . . . . . . . . . 50

Copying titles with copying list . . . . . . . . . . . . . . . . . . . . . 50

Notes for copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Copying Title Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Copying HD Video (AVCHD format) from HDD . . . . . . . . 54

Copying a finalised disc . . . . . . . . . . . . . . . . . . . . . . . . . . 55

∫ Photo

Playing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Photo play option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Slideshow Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Editing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Copying photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Selecting and copying the photos . . . . . . . . . . . . . . . . . . . 60

Copying automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

∫ Music

Playing music/Copying music to HDD . . . . . . . . . . 62

Playing music recorded on HDD . . . . . . . . . . . . . . . . . . . . 63

Operations during music play . . . . . . . . . . . . . . . . . . . . . . 64

Useful functions during music play . . . . . . . . . . . . . . . . . . 64

Editing music/playlist . . . . . . . . . . . . . . . . . . . . . . . 65

∫ With Other Equipment

Recording from external equipment. . . . . . . . . . . . 66

Manual Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Flexible Recording via AV input . . . . . . . . . . . . . . . . . . . . 66

Linked timer recording

(SKY Digital STB, etc.)–EXT LINK . . . . . . . . . . . . . . . . . . 66

Copying the HD Video or the SD Video . . . . . . . . . 67

Copying HD Video (AVCHD format) . . . . . . . . . . . . . . . . . 67

Copying SD Video (MPEG2 format) . . . . . . . . . . . . . . . . . 67

∫ Convenient functions

Media management . . . . . . . . . . . . . . . . . . . . . . . . . 68

Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Enjoying VIERA CAST . . . . . . . . . . . . . . . . . . . . . . . 71

VIERA Link/Q Link functions. . . . . . . . . . . . . . . . . . 72

Playing contents from other equipment

(Server) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Playing contents on other equipment (Client). . . . 75

Playback menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Changing the unit’s settings . . . . . . . . . . . . . . . . . . 78

Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

DVB Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

HDD / Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Software (Firmware) Update . . . . . . . . . . . . . . . . . . 89

Update software (firmware) of this unit . . . . . . . . . . . . . . . 89

CI Plus compatible CAM software (firmware) update . . . . 89

Other Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Switching the aspect ratio of the screen . . . . . . . . . . . . . . 90

TV operation setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

VQT3C77

∫ Troubleshooting

Messages on the unit’s display . . . . . . . . . . . . . . . .91

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . .92

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

TV screen and video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Recording, timer recording and copying . . . . . . . . . . . . . . 94

Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

VIERA Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

To reset this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

∫ Reference

Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Regarding DivX and MKV . . . . . . . . . . . . . . . . . . . . .99

Operations that can be performed

simultaneously . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Operations that can be performed while recording or

copying a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Starting the timer recording while executing other

operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Audio information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Maximum numbers of titles that can be recorded . . . . . . 103

About JPEG/MP3/DivX/

MKV/MPEG2/AVCHD files . . . . . . . . . . . . . . . . . . . . . . . 103

Recording modes and approximate recording times. . . . 105

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video


Music

With Other Equipment

Convenient functions

Troubleshooting

Reference

About descriptions in these operating instructions

≥ Pages to be referred to are indicated as “> ±±”.

VQT3C77

HDD and media information

Recording mode

Recording Mode DR HG/HX/HE/HL/HM XP/SP/LP/EP,

FR (> below)

Getting started

Recordable media

Multiple audio

Feature Programmes can be recorded

in a nearly perfect broadcasted state.

Quality Quality as the broadcast

Record all multiple audio Record only one audio

Recording can be done with reduced recording volume in HD quality.

High definition

§1

Recording can be done with reduced recording volume in SD quality.

Standard definition

(audio language)

Subtitles / Teletext Can be recorded

Surround audio Surround audio as the

broadcast

Can be recorded (only one subtitle or teletext) Depends on the settings (> 83,

Stereo audio

Audio for HG / HX / HE / HL /

§2

HM Recording)

§1

The SD quality programme can not be converted to HD quality.

§2

You cannot select during play whether it appears or disappears.

¾ Recording modes and approximate recording times (> 105)

∫ FR (Flexible Recording Mode)

The unit automatically selects a recording rate between XP and EP (8 hours) that will enable the recordings to fit in the remaining disc space with the best possible recording quality.

HDD and media you can use for recording and play

Media type Standard symbol Recordable contents Playable contents

Hard disk drive (HDD)

DVD-Video

§4

§1

[HDD]

[DVD-V] –

§2

≥Video ≥AVCHD ≥JPEG ≥Music copied from music CD ≥MP3

≥Movie and music ≥Video in finalised disc

(–: Impossible)

VQT3C77

DVD-RAM

§1

DVD-R

DVD-R DL

[DVD-R]

DVD-RW

§1

[DVD-RW]

+R/+R DL [+R]

§1

+RW

[RAM]

[+RW]

≥Video ≥JPEG

≥Video ≥AVCHD

≥Video

§2

–

§3

≥AVCHD

≥DivX

–

≥MKV ≥JPEG

§3

≥MP3

≥AVCHD

§3

–

≥AVCHD

§3

Media type Standard symbol Recordable contents Playable contents

Audio CD (CD-DA)

≥Music

–

(–: Impossible)

(including CD-R/RW)

[CD]

–

≥DivX ≥MKV ≥JPEG

≥MP3

≥JPEG ≥AVCHD

SD Cards

§1

[SD]

USB memories [USB]

≥MPEG2 ≥JPEG

≥AVCHD ≥MPEG2

–

≥DivX ≥MKV

§5

§3, 5

§5

≥JPEG ≥MP3

§1

Rewritable media

§2

Compatible with recording copyright protected titles ([RAM] CPRM compatible disc only).

§3

This unit can playback media recorded with AVCHD compatible devices (Panasonic video camera, etc.). However, it may not be able to playback, add, or edit depending on the device that was used to record.

§4

Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.

§5

It cannot be played back directly from the media. Playback is possible by copying to the HDD.



≥ [+RW] 8X Speed +RW disc is not supported. ≥ [USB] Video images of the copyright-protected DivX contents stored on USB device can be output only through the HDMI output terminal. ≥ With certain recording states and folder structures, the play order may differ or playback may not be possible.

Getting started

VQT3C77

HDD and media information

Notes

The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by such loss.

Examples of causes of such losses are ≥A disc recorded and edited with this unit is played in a DVD

Getting started

Recorder or computer disc drive manufactured by another company.

≥A disc used as described above and then played again in

this unit.

≥A disc recorded and edited with a DVD Recorder or

computer disc drive manufactured by another company is played in this unit.

Notes for the disc

∫ Cartridge-protection

For a DVD-RAM with a cartridge

PROTECT

∫ Disc recorded on another device

≥DVD-RW recorded in DVD Video Recording (DVD-VR)

format – This unit can playback and copy to HDD. – This unit does not support editing or recording. – It is possible to record and edit with DVD-Video format

by formatting discs with this unit.

≥It may be necessary to finalize the disc or close the

session on the equipment used for recording to play on this unit.

≥Discs recorded on equipment other than this unit may

not be used for recording on this unit.

∫ Regarding 8 cm Disc

This unit cannot record or edit the 8 cm disc. Only

playback or copy to the HDD is possible.

∫ Discs that cannot be played

≥Blu-ray Disc (BD-Video, BD-RE, BD-R) ≥2.6 and 5.2 GB DVD-RAM, 12 cm ≥DVD-Audio ≥HD DVD ≥WMA discs, DivX Plus HD discs ≥Super Video CD, Super Audio CD, Video CD ≥+R (8 cm), CD-ROM, Photo CD, PD, etc.



≥ The producer of the disc can control how discs are played. So you may

not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

≥ Operation and sound quality of CDs that do not conform to CD-DA

specifications (copy control CDs, etc.) cannot be guaranteed.

Notes for the USB devices

≥This unit does not guarantee connection with all USB

devices.

≥FAT16 and FAT32 file systems are supported. ≥This unit supports USB 2.0 High Speed. ≥Although this unit can use USB 3.0 devices as USB 2.0

devices, in certain cases USB 3.0 devices cannot be used due to differing connector shape, larger current ratings, etc. (Use of USB 2.0 devices is recommended.)



≥ This unit’s USB port does not support bus-powered USB device. ≥ USB memories support DivX and MKV files less than 4 GB.

∫ Play on other players

[DVD-R] [DVD-RW] [+R] [+RW] Finalisation is needed. (> 69)

[+RW]

If the disc failed to play on other equipment, we recommend you create a Top Menu (> 69).

VQT3C77

Notes for the SD cards

e.g.,

DO NOT

∫ Compatible SD card

– SD Memory Card (from 8 MB to 2 GB) – SDHC Memory Card (from 4 GB to 32 GB) – SDXC Memory Card (48 GB, 64 GB)

≥This unit is compatible with SD Memory Cards that

meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC Memory Cards in FAT32 format and SDXC Memory Cards in exFAT format.

∫ Setting the protection

Switch the write-protect switch to the “LOCK” position.

Media handling

∫ How to hold a disc or SD card

Do not touch the recorded surface or the terminal surface.

Getting started

∫ If there is dirt or condensation on the disc

Wipe with a damp cloth and then wipe dry.

LOCK

DO DO NOT

∫ Using miniSD card or microSD card

Mini-type and micro-type cards can also be used, but must be used with adaptor cards. These are usually supplied with such cards, or otherwise customer provided.



≥ Useable memory is slightly less than the card capacity. ≥ If the SD card is formatted on other equipment, the time necessary for

recording may be longer. Also, if the SD card is formatted on a PC, you may not be able to use it on this unit. In these cases, format the card on this unit (> 68).

≥ SDHC Memory Cards and SDXC Memory Cards can be used in

equipment that is compatible with the appropriate cards. (SDHC Memory Cards can also be used in equipment compatible with SDXC Memory Cards)

Using either of these cards in a non-compatible PC or noncompatible equipment may result in formatting etc. and the loss of recorded content.

∫ Handling precautions

≥Do not attach labels or stickers to discs. ≥Do not use record cleaning sprays, benzine, thinner, static

electricity prevention liquids or any other solvent.

≥Do not use ballpoint pens or other hard writing implements,

when writing on the label side of the disc.

≥Do not expose the terminals of the SD card to water,

garbage or other strange things.

≥Do not drop stack, or impact discs. Do not place objects on

them.

≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or

labels (rental discs, etc.).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as

heart shapes.

≥Do not place in the following areas:

– In direct sunlight. – In very dusty or humid areas. – Near a heater. – Locations susceptible to significant difference in

temperature (condensation can occur).

– Where static electricity or electromagnetic waves occur.

DO NOT

VQT3C77

STATUS

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

VOL

abc

jkl

tuv

ghi

qrs

def

mno

xyz

TIME SLIP

DISPLAY

DIRECT TV REC

AUDIO

-10s +60s

REC MODE EXT LINK

REC

TEXT STTL

CHAPTER

MANUAL SKIP

REWIND LIVE TV

PROG/CHECK

 

 

















 





















  





 

R6/LR6, AA

Control reference guide

Instructions for operations are generally described using the remote control.

∫ Remote control

1 Turn the unit on or off (> 18, 20) 2 Select drive (HDD, DVD, SD or USB) (> 18) 3 Select channels and title numbers, etc./Enter numbers or characters

(The character buttons may be used when operating VIERA CAST contents.)

4 To delete unwanted recorded titles, timer programmes, photos or music

(> 43)

Getting started

5 Basic operations for recording and play 6 Programme information within TV Guide screen (> 26)/

Show channel information (> 25)/ Show Information (> 39)/Show status messages (> 41)

7 Selection/OK (> 19), Frame-by-frame (> 42) 8 Show DIRECT NAVIGATOR, Top Menu (> 36, 38) 9 Show OPTION menu (> 44, 58, 65) : Colour buttons

Use in accordance with instruction on the screen.

; Recording functions (> 28) < Show Teletext (> 25) = Show subtitles (> 25) > Create chapter (> 40) ? Skip the specified time (> 42) @ Transmit the remote control signal

≥Point it at remote control signal sensor on this unit. (> 11)

A TV operation area (> 90) B Channel select (> 24)/

Change pages in the DIRECT NAVIGATOR screen etc. (> 38)

C Show VIERA CAST (> 71) D Input select (> 24, 28, 66) E Timer Recording screen (> 33) F Exit the menu screen G Show the TV Guide screen (> H S I Return to previous screen J Direct TV Recording (> 30) K EXT LINK function (> 66) L Show Playback menu (> 76) M Select audio (> 25, 42) N Skip approx. 1 minute forward (> 41) O Skip approx. 10 seconds backward (> 41)

Insert batteries

Insert so the poles (i and j) match those in the remote control. ≥Use alkaline or manganese batteries.

how FUNCTION MENU screen (> 19)

26)

VQT3C77

∫ Main unit

%1//10+06'4(#%' ','%6























Pull to flip down the front panel.

PLAY

COPY

EXT -L

SDUSB

HDD SDVD

2 3 41 5 6

910

Getting started

1 Standby/on switch (Í/I) (> 18, 20)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2 Disc tray (> 18) 3 Recording indicator

≥The indicator will light up while recording. ≥The indicator will blink while recording is paused.

4 Remote control signal sensor

– Angle: Approx. 20° up and down, 30° left and right – Distance: Within approx. 7 m in front of the unit

5 Open/close disc tray (> 18) 6 USB port (> 18) 7 SD card slot (> 18) 8 Stop 9 Start play : CI (Common Interface) slot ; CI module eject button

< Display

1 Disc indicator 2 Copying indicator (> 46) 3 USB port indicator 4 SD card slot indicator 5 EXT LINK indicator 6 Timer recording indicator

This indicator lights up when the timer recording

standby is activated. 7 Remote control signal indicator 8 Drive (HDD, DVD or SD) indicator 9 Main display section indicator

Current time/playback counter, various messages 10 Playback indicator

¾ Rear panel terminals (> 14)

VQT3C77

CI module

CAM

Smart Card

CI module

CI (Common Interface) slot

This unit

CI module

An appropriate CI module is required to view or record the encrypted broadcast.

You need a CI module, CAM (Conditional Access Module) together with a certified Smart Card, and a subscription with the corresponding broadcaster. ≥If not viewing/recording an encrypted broadcast, you do not need to insert the CI module.

1 Insert the certified Smart Card into the CAM (both optional).

Getting started

2 Insert the CI module into the CI (Common Interface) slot of this unit.

VQT3C77

TV service encryption is automatically cancelled and the service can be viewed or recorded. (The recording might be prohibited by broadcasters.) ≥Depending on the CI module, a PIN may be demanded. If prompted to enter a PIN code, enter the set PIN code with the

number buttons.

¾ Notes for recording of an encrypted broadcast (> 31)



≥ You can insert one or two different CAMs with Smart Cards into this unit. ≥ Be sure to insert the CI module horizontally into the slot. ≥ Insert the CAM and the Smart Card with the correct direction. ≥ When removing the CI module, press the CI module eject button and pull it straight out. ≥ For more details, see the manual of the CAM and Smart Card, or consult the dealer. ≥ The Common Interface supports the modules according to DVB Specification and CI Plus Specification. ≥ Turn off the unit before you insert or remove the CI module.

About CI Plus compatible broadcast

“CI Plus” is a technical specification that imposes copy protection on the broadcasted programmes.

≥All CI Plus protected programmes are encrypted.

It may take some time to display the encrypted programme.

∫ Retention limit

There are some titles for which the playback is disabled after a predetermined time. (e.g., Permitted playback period is 90 minutes after recording.)

≥When the programme is imposed a limit on the playable period, the icon will appear on the

DIRECT NAVIGATOR screen after recording. (> 38)

≥These titles cannot be copied to the disc. (> below, Copying is prohibited)

∫ CI Plus copy protection

When the CI Plus compatible broadcast is recorded, the title may be copy protected. ≥There are following types of the copy protection depending on the broadcast:

Copying not restricted

≥Depending on the programme, you can copy only to DVD-RAM (CPRM compatible discs only).

One generation copy is permitted

≥You can copy to DVD-RAM (CPRM compatible discs only) only once.

However, the original title will be deleted.

≥You cannot copy from the copied DVD-RAM (CPRM compatible discs) to HDD or another disc.

Copying is prohibited

≥You cannot copy to the disc.

For details, refer to your CAM’s operating instructions or consult your dealer.

Getting started

VQT3C77

Connection

AC IN

10BASE-T/100BASE-TX

OPTICAL

AUDIO

VIDEO

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

AV1 (TV)

VIDEO

RGB/S VIDEO





AV2

(EXT)

VIDEO

RGB/S VIDEO





OUT

IN 1IN 1

IN 2IN 2

LNB 13V/ 18V 400mA max

HDMI

IN 1IN 1

IN 2IN 2

LNB 13V/ 18V 400mA max

IN 1IN 1

IN 2IN 2

LNB 13V/ 18V 400mA max

IN 1IN 1

IN 2IN 2

LNB 13V/ 18V 400mA max

Satellite dish

This unit’s rear panel

To household mains socket

(AC 220 to 240 V, 50 Hz)

Cooling fan

AC mains lead

(supplied)

≥Connect only after all

other connections are complete.

HDMI cable

Satellite cable (> above)

Satellite dish

Multi switcher Single cable

router

Basic connections

When connected to an HDMI compatible unit, you can enjoy high quality, digital video and audio.

≥Before connection, turn off all equipment and read the appropriate operating instructions.

∫ Satellite cable

≥To record 2 programmes simultaneously or view TV during recording

A Connect both LNB IN 1 and LNB IN 2 to the satellite dish.

Getting started

B When using Single cable router, connect satellite cable to LNB IN 1 terminal and activate two user bands. (> 23)

≥When you use only one satellite cable

C Connect LNB IN 1 terminal. (2 programmes simultaneous recording and viewing TV during recording are

impossible)

Required setting:

Set “HDMI Audio Output” to “On” (> 85). (The default setting is “On”.)

VQT3C77

¾ If the TV does not have the HDMI terminal, connect

TICAL

AUDIO

VIDEO

AV1 (TV)

VIDEO

RGB/S VIDEO





AV2

(EXT)

VIDEO

RGB/S VIDEO





OUT

This unit’s rear panel

Set Top Box or video equipment

21-pin Scart cable

the TV with the 21-pin Scart cable or Audio/Video cable (> 16)



≥ Supply power from another device when you use 2 or more devices to

receive satellite broadcast, because this unit does not supply power when it is turned in standby.

When the unit is not to be used for a long time

To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off

[approx. 0.2 W (“Power Save in Standby” is activated)]

About HDMI cable

≥Please use High Speed HDMI Cables that have the HDMI

logo (as shown on the cover).

≥When outputting 1080p signal, please use HDMI Cables

5.0 meters or less.

≥Recommended Panasonic HDMI cable part number:

RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.



≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 72).

However, to perform PAUSE LIVE TV (> 27) and Direct TV Recording (> 30) for programmes that cannot be received by this unit, you need to connect a 21-pin Scart cable (> 16).

≥ You cannot connect this unit to DVI devices that are incompatible with

HDCP. Depending on the device, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)

≥ If you are connecting to a TV that is only compatible with 2 channel

audio output, audio with 3 channels or more will be down mixed (> 108) and output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)

Connect the Set Top Box or video equipment

Getting started

≥A 21-pin adaptor is required for AUDIO/VIDEO terminal.

VQT3C77

Connection

IN 1

IN 2

Broadband router, etc.

Internet

LAN cable

This unit’s rear panel

AV1 (TV)

VIDEO

RGB/S VIDEO





AV2

(EXT)

VIDEO

RGB/S VIDEO





OUT

VIDEO

AUDIO

21-pin Scart cable

This unit’s rear panel

AV1 (TV)

VIDEO

RGB/S VIDEO





AV2

(EXT)

VIDEO

RGB/S VIDEO





OUT

VIDEO

AUDIO

AUDIO IN VIDEO IN

Audio/Video cable

This unit’s rear panel

Network connection

Following functions will be available when this unit is connected to the network.

≥DLNA functions (> 74, 75) ≥Network Service functions (> 71) ≥Automatically acquiring the title of the CD (> 62) ≥Updating the software (firmware) of this unit from Internet

(> 89)

Getting started

For details about connection method, refer to the instructions supplied with the connected equipment.

LNB 13V/ 18V 400mA max

IN 2

IN 1

10BASE-T/100BASE-TX

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

Other TV connections

21-pin Scart terminal

OPTICAL



≥ Set according to the connected TV. (> 85, AV1 Output) ≥ The 21-pin Scart cable connection with the Q Link compatible TV

supports “Q Link” (> 72).



≥ Use category 5 or above straight LAN cables (STP) when connecting to

peripheral devices.

≥ Inserting any cable other than a LAN cable in the LAN terminal can

damage the unit.

VQT3C77

AUDIO/VIDEO terminals

≥Connect to terminals of the same colour.

∫ Connect the unit directly to the TV

VCR

This unit

DO NOT

10BASE-T/100BASE-TX

OPTICAL

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

IN 1IN 1

IN 2IN 2

LNB 13V/ 18V 400mA max

HDMI

HDMI INHDMI OUT

This unit’s rear panel

HDMI cable

Amplifier

HDMI cable

(ARC compatible)

OPTICAL IN

This unit’s rear panel

Amplifier

Optical digital

audio cable

If you connect the unit through an AV selector or VCR to the TV, video signal will be affected by copy protection systems and the picture may not be shown correctly.

≥When connecting to a TV with a

built-in VCR

Connect to the input terminals on the TV side if there are both TV and VCR input terminals.

When using DIGITAL AUDIO OUT terminal

∫ Using Optical digital audio cable

Getting started

Amplifier connections

When using HDMI AV OUT terminal



≥ Linked operation is possible by connecting to a TV or amplifier

compatible with VIERA Link.

≥ When using a TV or an amplifier that does not display “ARC compatible”

on the HDMI terminal (not compatible with ARC), it is necessary to connect the TV and the amplifier with a digital audio cable to enjoy the TV audio on the amplifier.

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

OPTICAL

AUDIO

VIDEO

OUT

VIDEO

RGB/S VIDEO

AV1 (TV)

AV2

(EXT)

VIDEO











≥ When connecting a TV with an HDMI terminal, set “HDMI Audio Output”

to “Off” (> 85).

≥ When you use the optical digital audio cable, insert the tip correctly into

the terminal.

VQT3C77

Common Operations

TIME SLIP

DISPLAY

STATUS

DIRECT TV REC

AUDIO

-10s +60s

REC MODE EXT LIN K

REC

TEXT STTL

CHAPTER

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

MANUAL SKIP

VOL

abc

jkl

tuv

ghi

qrs

def

mno

xyz

INPUT

REWIND LIVE TV

PROG/CHECK

TV operation area (> 90)

Press [< OPEN/CLOSE] on the main unit to open the tray and insert a disc.

SD card

USB memory

Unit’s display

Getting started

Preparations

Turning on this unit

1 Turn on the TV, then select the appropriate

AV input to suit the connections to this unit.

2 Press [Í] on the remote control or [Í/I]

on this unit.

The Easy Setting will start at the initial power on after purchasing this unit. (> 20)

VQT3C77

Inserting or removing a media

≥When the indicator on this unit's display blinks, do not

turn off the unit or remove the media. Such action may result in loss of the media contents.

≥When inserting the media, ensure that it is facing the right

way up.

≥Wipe off the dust or fingerprints from the discs before use.

(> 9)

≥Return discs to their cases or cartridges after use; this

helps to protect the discs against scratches and dust.

≥When removing the SD card, press on the centre of the

card and pull it straight out.

≥If you connect a Panasonic product with a USB connection

cable, setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

∫ To select a drive

Press [DRIVE SELECT] to select the media drive that you operate.

∫ Release disc protection

[RAM]

If the disc is protected when writing to the disc, release the protection (> 8, Cartridge-protection, > 68, Setting the protection).

HOLD function

The HOLD function deactivates all buttons on the unit and remote control.

Press and hold [OK] and [RETURN ]

simultaneously until “X HOLD” appears on the unit’s display.

To cancel the HOLD function

Press and hold [OK] and [RETURN ] simultaneously until “X HOLD” disappears.

Basic operation

OK OK

Select

Enter

EXIT

Page

CopySelect

OPTION

05.01

08.01

10.01

03.02 PLAY RETURN

PHOTO / MUSIC

KD2A01.01

01.01

02.01

Delete

Page Up

Page Down

USB

RETURN

USB device is inserted.

View Photos

Play Video

Play / Copy Music ( MP3 )

Copy Video ( MPEG2 )

Copy Video ( AVCHD )

Copy New Photos

This unit is basically operated via the following method by using the remote control.

To select and enter

FUNCTION MENU screen

You can easily access the desired functions via the FUNCTION MENU.

1 Press [FUNCTION MENU].

To return to the previous screen

To exit the screen

Press

RETURN

Display navigation

Operating method can also be confirmed on the screen. Available functions and buttons used are displayed on each screen.

Menu screen

Selecting screen for each operation is displayed when the media is inserted, and you can access the operation screen easily. e.g., [USB]

2 Select the item, then press [OK].

≥Repeat step 2 if necessary.

FUNCTION MENU

HDD

Playback Contents

TV Guide Timer Recording Copy Network

View Others

Drive Select

Disc / SD Card / USB

Playback Contents

Video (> 37)

Photo (> 56)

Music (> 62)

TV Guide (> 26, 32)

Timer Recording (> 33)

Copy

Copy Video (> 50)

Copy Video (AVCHD) to DVD-R (> 54)

Network

Home Network (DLNA) (> 75)

Internet Content (> 71)

Video

Photo Music

Titles recorded to the HDD can be viewed, edited, or deleted.

RETURN

Getting started

≥Display items differ depending on what is recorded in each

media.

If the menu screen is not displayed, display it by performing the following operation.

1 While stopped

Press [OPTION].

2 Select “Drive Select”, then press [OK]. 3 Select the media, then press [OK].

≥Menu screen for each media appears.

View (> 24)

≥ “View” is displayed when this unit is connected with the TV

that supports “HDAVI Control 2” or later. (> 72)

Others

Ext Link Standby (> 66)

Flexible Recording via AV input (> 66)

Setup (> 78)

Drive Select

Disc / SD Card / USB



≥ Selectable items will change depending on the type and status of the

media.

VQT3C77

Settings

Auto Setup

RETURN

Satellite

Progress

This will take up to 40 minutes.

Checking LNB1

Satellite

LNB in 1 LNB in 2

Press RETURN to skip Satellite installation

Searching Satellite

Checking... Checking...

Power Save in Standby

From To

Power Save

0 6

Easy Setting

1 Turn on the TV, then select the

appropriate AV input to suit the connections to this unit.

2 Press [Í] to turn the unit on. (> 18)

Getting started

3 Select the language.

∫ When using a Single cable router

1 Press [RETURN ] after selecting the

language.

2 Go to page 23, step 1.

4 Follow the on-screen instructions and

make the following settings.

≥Country ≥Number of cables to connect ≥Search mode

Auto Setup starts.

These operations (Searching Satellite and Searching Channels) may take some time.

5 Set “Power Save” to “On”, “On Timer”

or “Off”, then press [OK].

On It will go into the Power Save in Standby

mode.

On Timer Set the start and stop time and then

press [OK]. ≥“Power Save in Standby” is activated

when the set time comes.

Off It is possible to start quickly from the

standby mode. (Quick Start mode) ≥If you use Home Network ( DLNA )

Server function (> 86), select “Off”. This function is not available with other settings.

When “Easy Setting has been completed.” appears, Easy Setting is complete.

To stop partway

Press [RETURN ].

After tuning has been completed, clock will be set automatically. If the clock setting screen appears, set the time manually (> 87, Clock).

VQT3C77

To restart set up

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “Auto Setup” in “DVB Tuning”, then press [OK].

¾ If the TV aspect setting screen appears (> 84, TV

Aspect)

¾ To confirm that channels have been tuned correctly

(> 24, Using Channel List)

Network Easy Setting

Network Easy Setting ( Home Network Connection Check )

Completed.

Network connection check has finished.

Press OK.

1. LAN cable connection : Pass

2. IP address setting : Pass

3. Connection to gateway : Pass

After completing “Easy Setting”, you can continue with “Network Easy Setting”.

1 Follow the on-screen instructions and

make the following settings.

≥Network Easy Setting ( Home Network Connection

Check )

≥Home Network ( DLNA ) Server function ≥Network Easy Setting ( Internet Connection Test )

Network Easy Setting

Network Easy Setting have been finished. Press OK.

RETURN

This screen appears, Setup is complete.

2 Press [OK].

When you experience problems with settings

∫ Network Easy Setting ( Home Network

Connection Check )

≥If there is no problem, the following screen is displayed.

≥If there is any problem, the following message is

displayed on the screen.

Display

1. LAN cable connection:

“Fail”

2. IP address setting: “Fail”

3. Connection to gateway:

1. LAN cable connection:

“Fail”

“Pass”

2. IP address setting: “Fail”

3. Connection to gateway:

1. LAN cable connection:

“Fail”

“Pass”

2. IP address setting: “Pass”

3. Connection to gateway:

1. LAN cable connection:

“Fail”

“Pass”

2. IP address setting: “Home

network available”

3. Connection to gateway:

“Fail”

Check the

following

≥Connection of

the LAN cables (> 16)

≥Settings of the

hub and router

≥Connection and

settings of the hub and router

≥Settings of “IP

Address / DNS Settings” (> 85)

Getting started

VQT3C77

Settings

Network Easy Setting (Internet Connection Test)

Completed.

Press OK.

Network connection check has finished. Internet functions are available.

- Connection to the Internet : Pass

∫ Network Easy Setting ( Internet

Connection Test )

≥If there is no problem, the following screen is displayed.

Getting started

≥If there is any problem, the following message is

displayed on the screen.

Display Check the following

Cannot find the server. (B019)

No connection could be made to the server. (B020)

To restart Network Easy Setting

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “Network Easy Setting” in “Network”, then press

[OK].

≥“Primary DNS” and “Secondary

DNS” settings of “IP Address / DNS Settings” (> 85)

≥The server may be busy or the

service may have been suspended. Please wait a few moments, and then try again.

≥Settings of “Proxy Server

Settings” (> 85) and the router



≥ Refer to the operating instructions of the hub or router. ≥ Home Network ( DLNA ) Server function setting can be set only when

you selected “Off” for “Power Save in Standby” in “Easy Setting”. (> 20, step 5)

≥ Even if you set “Home Network ( DLNA ) Server function” to “Off”, it is

possible to set to “On” later. (> 86)

≥ You can perform this setup anytime by selecting “Network Easy Setting”

in the Setup menu. (> 85)

≥ You can redo these settings individually using “Network Settings”.

(> 85)

To redo settings individually

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “Network Settings” in “Network”, then press [OK]. 4 Select “IP Address / DNS Settings” (> 85) or “Proxy

Server Settings” (> 85), then press [OK].

Check security before using Home Network ( DLNA ) Server function

If you set “Home Network ( DLNA ) Server function” to “On”, all connected devices on the same network can access this unit. Ensure that the router for your home network has adequate security system to prevent unauthorized access.

VQT3C77

Auto Setup method when using

User Band Settings

Select

RETURN

Start Auto Setup Please confirm user band settings before starting Auto Setup. Tuner 1

User Band User Band Frequency User Band PIN

Tuner 2

User Band User Band Frequency User Band PIN

C1 1284 MHz (preset: 1284 MHz) Off

C2 1400 MHz (preset: 1400 MHz) Off

Auto Setup

RETURN

Satellite

Progress

This will take up to 40 minutes.

Checking LNB1

Satellite

Tuner 1 Tuner 2

Press RETURN to skip Satellite installation

Searching Satellite

Checking... Checking...

a single cable router

When a single cable router is used, it is necessary to change the settings of this unit and then run Auto Setup.

6 Make the settings of user band.

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press

[OK].

Setup

DVB Tuning HDD / Disc Picture Sound Display Connection Network Others

RETURN

3 Select “Antenna System” in “DVB

Tuni n g”.

4 Press [2, 1] to select “Single Cable”.

DVB Tuning

Favourites Edit Channel List Auto Setup Manual Tuning Update Channel List Signal Condition Antenna System LNB Configuration Preferred Language

RETURN

Single Cable

User Band You can set C1 to C8. Set to a User

Band not used by any other device. ≥When only one User Band of the

Router is assigned, set “Tuner 2” side to “Off”. Note that you will not be able to record 2 programmes simultaneously or watch TV during recording.

User Band Frequency

User Band PIN

Set the User Band Frequency with number buttons.

If the single cable router requires a PIN to access an user band, enter the PIN.

≥For details, read the manual of the single cable

router, etc.

7 Select “Start Auto Setup”, then press

[OK].

8 Select the search mode, then press

[OK].

Auto Setup starts.

These operations (Searching Satellite and Searching Channels) may take some time.

Getting started

5 Press [3, 4] to select “Auto Setup”,

then press [OK].

1 Select “Yes”, then press [OK]. 2 Select the country, then press [OK].

After tuning has been completed, clock will be set automatically. If the clock setting screen appears, set the time manually (> 87, Clock).

To set Power Save settings

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “Standby Settings” in “Others”, then press [OK]. 4 Select “Power Save in Standby”, then press [OK]. 5 Refer to page 20, step 5.

To start Network Easy Setting

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “Network Easy Setting” in “Network”, then press

[OK].

4 Refer to page 21.

VQT3C77

Watching broadcasts

Watch ing broadcasts

TIME SLIP

DISPLAY

STATUS

DIRECT TV REC

AUDIO

-10s +60s

REC MODE EXT LIN K

REC

TEXT STTL

CHAPTER

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

MANUAL SKIP

VOL

abc

jkl

tuv

ghi

qrs

def

mno

xyz

INPUT

REWIND LIVE TV

PROG/CHECK

AV2

AV1

Input Selection

RETURN

Change

Select

All DVB Channels

Select

View

RETURN

Category 123/ABC

Sorting 123...

Page up

Page down

Channel names

Watching broadcasts



≥ The length of time the channel information is displayed can be changed.

(> 84, On-Screen Information)

≥ Depending on the settings of “Recording for Encrypted Channel” (> 81),

it may not be possible to view certain programmes. (> 31, Notes for recording of an encrypted broadcast)

Using Channel List

You can select from the list of channel names.

After performing step (> left)

1 Press [OK].

≥To change the category, press the “Red” button. ≥To sort the channel, press the “Blue” button.

If encrypted channels do not appear

To watch an encrypted broadcast, insert the CI module into the CI slot. (> 12)

≥Depending on the CI module, a PIN may be demanded. If

prompted to enter a PIN code, enter the set PIN code with the number buttons.

≥Set according to the CI module. (> 85, Common Interface)

VQT3C77

Press [INPUT SELECT] and select “TV”, then press [OK].

Press [CH WX] to select the channel.

Everytime you change the channel, channel information appears automatically.

Unit’s display;

≥You can also select the channel with the number

buttons.

2 Select the channel, then press [OK].

To skip unwanted channels

The channel is skipped next time you select the channel.

1 While watching the broadcast to skip, press [DEL]. 2 Press [OK].



≥ You can also select the skipped channel with the number buttons. ≥ When you want to restore the skipped channel, edit the Channel

List. (> 79)

¾ To edit the Channel List (> 79, Channel List)



≥ Selection of channel is made easy by creating a Favourite of the

channels. (> 78, Favourites Edit)

Channel information

All DVB Channels

10:30

NEWS 9:00 - 11:00

Now

Dolby DEncrypted

Set timer

Change category







e.g.,

Press [STATUS ].

1 Current Category 2 Encrypted broadcast 3 Subtitle 4 Te le tex t 5 Multiple audio/Sub Channel 6 Set timer (> 34)

To show detailed information

Press [STATUS ] again.

To hide the information screen

Press [EXIT].

To change Category

Press the “Blue” button.

≥Register your favourite channels

1 Press [OPTION]. 2 Select “Digital TV Menu”, then press [OK]. 3 Select “Favourites Edit”, then press [OK]. 4 Refer to page 78 (Favourites Edit).

To switch between the current programme and the next programme

Press [2, 1].

To switch to another channel

Press [3, 4], then press [OK].

Operations while watching broadcast

To show subtitle

When “ ” appears in channel information (> left)

Press [STTL ].

To hide subtitle

Press [STTL ].

To change subtitle language

1 Press [OPTION]. 2 Select “Subtitle Language” in “Digital TV Menu”, then

press [OK].

3 Select the desired language.

≥Press [EXIT] to exit the screen.



≥ Some subtitle content is displayed using Teletext. (> below)

Switching audio

Press [AUDIO].

≥Audio will switch according to the contents of the

programme every time it is pressed.

To s h o w Te l e t e x t

When “ ” appears in channel information (> left)

Press [TEXT ].

To select the page or access to certain topic areas and navigation

≥Use [3, 4, 2, 1], number buttons or colour buttons, etc.

according to on-screen instructions.



≥ Some functions of Teletext are deactivated during recording. ≥ You can change the display mode (> 84, Teletext).

Watching broadcasts

Aspect

You can switch the screen mode. (> 90)

VQT3C77

Watching broadcasts

Landscape view

Portrait view

To select content in the broadcast

When a programme includes audio signals and subtitle etc., you can select signals.

1 Press [OPTION]. 2 Select “Digital TV Menu”, then press [OK]. 3 Select “Multi Audio”, “Sub Channel” or

“Subtitle Language”, then press [OK].

4 Select the item.

Using TV Guide system

Watching broadcasts

1 Press [GUIDE].

Each press switches the appearance.

SAT 01.01.2011 08:05

SAT, 01.01.2011

8:00 - 8:45

Select Channel

Landscape

Time:

8:00 8:30 9:00 9:30 10:00

OK Select Programme RETURN

+24 hours Prog. Type Category

All Types

All DVB Channels

Portrait/Landscape

Page Up

Page Down

OPTION

Info

Page up/down

Press [CH WX].

To view a programme list for another day

Press the “Red” button (Previous) or the “Green” button (Next).

¾ Timer Recording using the TV Guide System (> 32)



≥ Selection of channel is made easy by creating a Favourite of the

channels you watch often. (> 78, Favourites Edit)

≥ Some broadcast may not send programme information.

To see programme information

(Programmes with the symbol)

While displaying TV Guide screen

Press [STATUS ].

Additional information is available for these programmes.

2 Select the programme, then press [OK].

3 Select “View”, then press [OK].

SAT 01.01.2011 08:05

All Types

OK Select Channel RETURN

SAT 01.01.2011 8:00 - 8:45

RETURN

Portrait

Info

+24 hours Prog. Type Category

SAT, 01.01.2011

8:00 - 8:45 8:45 - 11:00 11:00 - 11:45 11:45 - 13:00 13:00 - 13:30 13:30 - 14:00 14:00 - 15:00 15:00 - 17:00

Select Programme

Selection Screen SAT 01.01.2011 8:05

OPTION

Portrait/Landscape

View

Timer Rec Set

Timer Rec Edit

Timer Rec Cancel

All DVB Channels

Page Down

VQT3C77

REWIND LIVE TV/PAUSE LIVE

Pause

8:05 9:35

8:10

6:53:12 01.01.2011

Play



6:53.50

This unit temporarily saves a live TV programme you are watching with this unit’s tuner on HDD and you can use the following functions.

∫ REWIND LIVE TV

You can rewind live TV programme up to 1.5 hours before as long as temporary save has not been stopped.

∫ PAUSE LIVE TV

You can pause live TV programme and restart watching from the paused position.

≥PAUSE LIVE TV also works when watching a

programme via external input.

Select the HDD drive to perform these functions correctly.

1 While watching TV

(REWIND]LIVE]TV)

Press [SLOW/SEARCH 6] to rewind.

≥“REWIND LIVE TV” appears on the unit’s display.

(PAUSE]LIVE]TV)

Press [PAUSE ;] to pause.

≥“PAUSE LIVE TV” appears on the unit’s display.

Display information

∫ While pausing or rewinding a broadcast:

Press [STATUS ].

8:05 9:35

Pause





≥Press [STATUS ] again.

∫ While pausing a programme via external input:

Press [STATUS ].

6:53:12 01.01.2011



Play

6:53.50



1 The time that you can rewind the live programme. 2 The amount of time temporarily saved on HDD

(maximum: 1.5 hours).

3 The time of the current playback position. 4 The time which is 1.5 hours after PAUSE LIVE TV or

REWIND LIVE TV started. ≥After 1.5 hours from PAUSE LIVE TV or REWIND LIVE

TV started, current time is displayed.



8:50



Watching broadcasts

2 When you want to resume

Press [PLAY/a1.3 1].

≥You can perform search or Quick View, etc. ≥If temporary save stops (> right), playback will be

performed by that point.

To stop REWIND LIVE TV or PAUSE LIVE TV

1Press [STOP∫]. 2 Select “Yes”, then press [OK].

To hide the display information

Press [EXIT].



≥ Temporary save stops in the following cases:

– When switching to other channels or other screen – When recording of the watching programme is started – When timer recording is started – When performing PAUSE LIVE TV or REWIND LIVE TV for more than

8 hours (This may vary depending on the HDD free space.)

≥ These functions do not work in the following cases:

– When the clock is not set – When set clock manually (Copy protected title (Copying is prohibited)

only) (> 13) – While recording 2 programmes simultaneously – While copying – While watching a programme being recorded – When a radio programme is selected – While watching an encrypted programme – (REWIND]LIVE]TV) When “REWIND LIVE TV” is set to “Off” (> 81) – (PAUSE]LIVE]TV) When a timer recording via external input is started

while watching a programme via external input

≥ (PAUSE]LIVE]TV) You can operate this unit with the TV remote control by

using VIERA Link (> 72). Refer to the TV operating instructions for operation.

≥ (PAUSE]LIVE]TV) When you connect the TV with a HDMI cable and a 21-

pin Scart cable, it is possible to pause programmes that cannot be received with the tuner of this unit (> 16).

VQT3C77

Recording TV programmes

Recording

TIME SLIP

DISPLAY

STATUS

DIRECT TV REC

AUDIO

-10s +60s

REC MODE EXT LINK

REC

TEXT STTL

CHAPTER

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

MANUAL SKIP

VOL

abc

jkl

tuv

1 4

ghi

qrs

def

mno

xyz

INPUT

REWIND LIVE TV

PROG/CHECK

“REC1” or “REC2” will light

Unit’s display

Automatic Stop at 8:45

REC1/OTR

Recording Time

Continuous recording

30 min

8:00 - 8:45

This operation will only record to HDD.

¾ About CI Plus restriction (> 13) ¾ Notes for recording of an encrypted broadcast (> 31)

Recording

Press [REC MODE] and select the conversion mode, then press [OK].

≥This unit will record the programmes in DR mode

once, and then automatically convert to the selected recording mode while this unit is in standby.

¾ Recording mode (> 6) ¾ Recording modes and approximate recording

times (> 105)

Conversion Mode Setting

Remain: (DR)m

High Definition

Standard Definition

Off (DR)

≥The recorded title will be kept in DR mode

without any conversion when “Off (DR)” is selected.

≥The conversion mode set here is inherited as an

initial value for the next recording or timer recording.

≥If the confirmation message appears

Press [OK].

RETURN

Data Size

Large

Small

Large

Small

VQT3C77

Press [INPUT SELECT] and select “TV”, then press [OK].

Press [CH WX] to select the channel.

≥You can also select the channel with the number

buttons or Channel List (> 24).

Press [REC ¥].

Recording starts.

REC1

Select the “Automatic Stop”, then press [OK].

≥One touch recording (OTR)

Recording stops automatically when the programme ends.

≥You can also select “Recording Time” or

“Continuous recording”. (> 29)

To set the recording time

e.g., While recording 2 programmes simultaneously

REC2

HDD

REC1/OTR AUTO

Recording programme displayed on the TV

Recording programme not displayed on the TV

Time Remaining 45:54 (DR)

HDD

Page

Select

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00

0:01(DR)

1 Select “Recording Time” or “Continuous recording” in

step on page 28.

Recording Time

You can set the length of recording time from 30 minutes to 4 hours. Select the recording time. ≥You can also set the time with

[REC ¥].

Continuous recording

The recording is continued until you press [STOP ∫].

2 Press [OK].

Operation during Recording

To check the recording programme

Press [STATUS ].

¾ Notes for recording of an encrypted broadcast (> 31) ¾ To convert the recording mode after recording in DR

mode (> 46)



≥ One recording will terminate when simultaneous recording is being done

and timer recording starts.

≥ When “Automatic Standby after OTR” is set to “On” (> 87), this unit is

turned to standby mode if this unit is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time”.

≥ The SD quality programme can not be converted to HD quality.

∫ Recording mode conversion

Conversion will be performed after the unit is turned off. It will take about the same time as the recorded duration.

¾ To confirm whether the conversion is completed

(> 46)

¾ To cancel a conversion (> 46, To cancel a “During

standby” conversion)



≥ When a programme is recorded in encrypted form, conversion will

not start until decryption has finished. (> 31)

≥ The title before conversion (the title recorded in DR mode) will be

deleted once the conversion is completed.

≥ When the HDD does not have enough remaining space, conversion

will not start.

≥ This function is stopped when this unit is turned on. Conversion will

start from the beginning again once the unit is turned off.

≥ The conversion will not start if the timer recording is scheduled within

the time required for the conversion.

≥ When converted, audio track, multi channel audio, audio language

and subtitle will be converted with the same settings as at the start of recording.

≥ Teletext will not be recorded.

Recording

To switch the Channel

Press [CH WX].

To switch the Input

Press [INPUT SELECT].

To display the recording programme on the TV

It is necessary to display the recording programme onto the TV screen to perform operations such as pause.

Press [CH WX] or [INPUT SELECT] to select the recording channel.

Simultaneous rec and play

You can play the recording title from the beginning or the titles previously recorded to the HDD.

1 While recording

Press [DIRECT NAVIGATOR].

“[” is displayed on the recording programme.

2 Select the title, then press [OK].

VQT3C77

Recording TV programmes

REC1

REC2

Unit’s display

“REC1” and “REC2” will light

To stop recording

Press [STOP ∫].

∫ When recording 1 programme

If the following screen appears

Stop Recording

Recording of this programme is in progress. Stop this recording ?

Yes

Select “Yes”, then press [OK].

Recording

∫ When recording 2 programmes

If the following screen appears

Stop Recording

2 recordings are in progress. Which recording would you like to stop ?

1 Select the programme, then press [OK]. 2 Select “Yes”, then press [OK].

RETURN

To pause recording

It is necessary to display the programme you want to pause on the TV. (> 29, To display the recording programme on the TV)

Press [PAUSE ;].



≥ Press again to restart recording.

(A title is not split into separate titles.)

≥ If paused while recording, the paused part may become a still picture for

a moment during playback of that programme.

To perform 2 programmes simultaneous recording

While recording

Record another programme with steps –

on page 28.



≥ Either of programmes is necessary to be recorded from this unit’s tuner. ≥ 2 programme simultaneous recording is not possible in the following

conditions:

– While executing “Flexible Recording via AV input” to the disc

– While high speed copying ≥ Channel or input cannot be switched except to the recording

programmes.

Direct TV Recording

You can immediately start recording the watching programme on the TV without switching the channels on this unit by using VIERA Link or Q Link (> 72).

≥Recording mode will be the mode that was selected for the

previous recording. (> 28, step )

Press [¥ DIRECT TV REC] and hold for about 1 second.

To stop recording partway

Press [STOP ∫].



≥ You can also operate this unit with the TV remote control. Refer to the

TV operating instructions for operation. ≥ When you connect the TV with a 21-pin Scart cable (> 16), it is possible

to record programmes that cannot be received with the tuner of this unit.

(Recording mode: XP, SP, LP, EP) ≥ If you switch TV channels while recording broadcasting using the TV’s

tuner, Direct TV Recording stops. ≥ (Q]Link) During Ext Link Standby mode or recording, Direct TV

Recording is unavailable. (> 66)

VQT3C77

Notes for recording of an

COPY

encrypted broadcast

This unit allows you to record/view/play an encrypted programme by decryption using a supporting CI module.

Recording of encrypted broadcast

The recording of encrypted broadcasts differs according to the “Recording for Encrypted Channel” (> 81) settings as follows.

Supporting CI

module is inserted

Automatic

Decrypt Recording

Encrypt Recording

Depending on the specifications of the CI module, the broadcast may be recorded in the encrypted form. (> below)

Record (Decrypted)

Record (Decrypted) Recording impossible

Record (Encrypted) Record (Encrypted)

Supporting CI module is not

inserted

Record (Encrypted)

≥When “Encrypt Recording” is selected

Programme “A” “B”

While recording programme “A”, start recording programme “B”.

While viewing/playing programme “A”, start timer recording programme “B”.

While recording programme “A”, view/play programme “B”.

Record

(Encrypted)

Viewing/

playing

possible

Record

(Encrypted)

Record

(Encrypted)

Record

(Encrypted)

Viewing/

playing

possible

Encrypted titles

Programmes recorded in encrypted form ( ) have the following restrictions: – The encrypted title can be played back, but it does not

mean that it is decrypted and saved in the decrypted form.

– Depending on the programme, it may not be possible to

playback/decrypt after recording.

– There are restrictions on the playback and editing of

encrypted programmes.

– To copy an encrypted programme, decryption must be

performed.

Recording

2 encrypted programmes simultaneous recording/viewing/playing

Two programmes (e.g., “A” and “B”) which need the same CI module for decryption will be recorded/viewed/played as follows:

≥When “Automatic” is selected

Programme “A” “B”

While recording programme “A”, start recording programme “B”.

While viewing/playing programme “A”, start timer recording programme “B”.

While recording programme “A”, view/play programme “B”.

≥When “Decrypt Recording” is selected

Programme “A” “B”

While recording programme “A”, start recording programme “B”.

While viewing/playing programme “A”, start timer recording programme “B”.

While recording programme “A”, view/play programme “B”.

Record

(Decrypted)

Viewing/

playing

possible

Record

(Decrypted)

Record

(Decrypted)

Viewing/

playing

impossible

Record

(Decrypted)

Record

(Encrypted)

Record

(Encrypted)

Viewing/

playing

impossible

Recording

impossible

Record

(Decrypted)

Viewing/

playing

impossible

Decryption

Decryption is performed when the unit is turned off. It will take about the same time as the recorded duration.

“COPY” on the unit's display remains lighted during decryption.

¾ It is also possible to decrypt manually (> 47)



≥ To decrypt, insert the CI module into the CI slot (> 12). During

decryption, do not remove the CI module from this unit.

≥ The title before decryption will be deleted once decryption is completed. ≥ When the HDD does not have enough remaining space, decryption will

not start.

≥ This function is stopped when this unit is turned on. Decryption will start

from the beginning again once the unit is turned off.

≥ The decryption will not start if the timer recording is scheduled within the

time required for the decryption.

≥ When a decryption fails, the screen icon ( ) is changed to “ ”.

VQT3C77

Timer recording

Landscape

SAT, 01.01.2011

SAT 01.01.2011 08:05

All DVB Channels

All Types

OPTION

Page Down

Page Up

+24 hours Prog. Type Category

Time:

Info

Select Channel

Select Programme

RETURN

Portrait/Landscape

8:00 - 8:45

8:00 8:30 9:00 9:30 10:00

Selection Screen SAT 01.01.2011 8:05

Timer Rec Set

Timer Rec Edit

Timer Rec Cancel

View

RETURN

SAT 01.01.2011 8:00 - 8:45

Timer Recording SAT 01.01.2011 8:05

30:24 DR

Channel

1 SAT 01.01

Day/Date Stop

8:00 9:00

Start

RETURN

Category/ AV

Date/ Weekly

Title Name

DR OFF

Mode

OFF

Conv. Subtitles

HDD

All DVB Channels

All Types

Timer icon (red)

This operation will only record to HDD.



ghi

p qrs

DEL

SKIP

STOP

REC MODE E XT LINK

REC

TEXT STTL

VOL

INPUT

abc

jkl

tuv

INPUT

SELECT

SLOW/SEARCH

PAUSE

PAUSE LIVE TV

AUDIO

TIME SLIP

MANUAL SKIP

-10s +60s

DRIVE SELECT

Recording

STATUS

OPTION

CHAPTER

PAGE

def

mno

w xyz

PROG/CHECK

REWIND LIVE TV

PLAY/x1.3

EXIT

RETURN

DIRECT TV REC

DISPLAY

Confirm the programme and make corrections if necessary using [3, 4, 2, 1].

(> 33, Timer recording options)

Press [OK].

The timer programme is stored and the timer icon (red) is displayed.

To cancel a timer recording on the TV Guide screen

1 Select “Timer Rec Cancel”, then press [OK] in step .

(“F” in the TV Guide disappears)

2 Select “Yes”, then press [OK].

Press [GUIDE].

Select the programme, then press [OK].

≥When the programme currently broadcasting is

selected, following screen is displayed.

VQT3C77

Select “Timer Rec Set”, then press [OK].

To modify the timer recording on the TV Guide screen

1 Select “Timer Rec Edit”, then press [OK] in step . 2 Go to step 3 on page 33.

¾ About CI Plus restriction (> 13) ¾ Using TV Guide system (> 26) ¾ Notes for recording of an encrypted broadcast (> 31)



≥ When timer recording from the external equipment, use manually

programming timer recording. (> 33) ≥ You can enter up to 64 programmes up to a month in advance.

(Each daily or weekly programme is counted as one programme.) ≥ The receipt of the TV Guide system data is only possible via the aerial

input of this unit. The receipt of the TV Guide data via Set Top Box is not

possible. ≥ You can set the start and finish time to make the timer recording work

successfully. (> 81, Timer Record Start Buffer, Timer Record Stop

Buffer) ≥ Some broadcast may not send programme information.

Set the timer recording manually (> 33).

To search the programmes

Channel Name

Schedule

Mode

Space

OK RETURN

Page Up

Page Down

Turn Timer Off

Total 0/64

Timer Recording

30:30 DRHDD SAT 01.01.2011 8:05

Delete

New Timer Programme

Info

Channel Name

Schedule

Mode

Space

Timer Recording

30:30 DRHDD SAT 01.01.2011 8:05

New Timer Programme

Programme Name

SAT 01.01 8:00 - 9:00

Check for available space on HDD, when the “!” is displayed. (> 35)

Timer icon (red)

e.g.,

While displaying TV Guide screen

Press the “Yellow” button (Prog.Type) or the “Blue” button (Category).

2 Select the item, then press [OK].

Landscape view

Portrait view Only the selected programme types

To return to the previous TV Guide list

Select “All Types” of the programme type or “All DVB Channels” of the Category in step 2.



≥ Category and programme types may not be assigned correctly

depending on the programme information.

The unit displays programmes in grey that do not belong to the selected programme type.

are displayed.

¾ To confirm and edit the timer programme (> 35)



≥ You can enter up to 64 programmes up to a month in advance. (Each

daily or weekly programme is counted as one programme.)

≥ When recording from the external equipment, “Mode (recording mode)”

is XP, SP, LP, EP or FR.

Timer recording options

Select the items and change the items.

Timer Recording SAT 01.01.2011 8:05

Channel

1 SAT 01.01

Title Name

OK RETURN

HDD

30:24 DR

Day/Date Stop

Start

8:00 9:00

Category/ AV

Date/ Weekly

Mode

DR OFF

Conv. Subtitles

OFF

Recording

Manually programming timer recording

1 Press [PROG/CHECK].

2 Select “New Timer Programme”, then

press [OK].

3 Select the items and change the items.

(> right, Timer recording options)

4 Press [OK].

The timer programme is stored and the timer icon (red) is displayed.

Channel Press [3, 4].

≥You can select Category/AV with the

“Red” button to switch Favourites, AV input, etc.

Day/Date Press [3, 4].

You can select “Date” or “Weekly” by pressing the “Green” button.

≥Auto Renewal Recording

The unit will record the new programme over the old one.

(Only daily/weekly timer recording)

Press the “Yellow” button a few times.

“Renew : ON” is displayed.

Start/Stop Press [3, 4].

≥Press and hold [3, 4] to alter in

15-minute increments.

Mode/Conv. Press [3, 4].

(> 28, step )

Subtitles (Only when item other than “OFF” is

selected in “Conv.”)

Press [3, 4].

Title Name Select “Title Name”, then press [OK].

(> 70, Entering text)

VQT3C77

Timer recording

All DVB Channels

10:30

NEWS 9:00 - 11:00

Now

Dolby DEncrypted

Set timer

Change category

e.g.,

Stop Recording

Yes

Timer recording of this programme is in progress. Stop this recording ?

RETURN

Timer recording from channel information

You can make timer recording of the current or next programme.

1 While watching a programme

Press [STATUS ].

Recording

2 Display the channel information of a

programme to record.

≥Switch the programme with [2, 1]. ≥Switch the channel with [3, 4].

3 Press the “Yellow” button. 4 Go to step 3 on page 33.

≥You cannot change “Channel” and “Day/Date”.

To cancel recording when timer recording has already begun

Press [STOP ∫].

Notes on timer recording

≥When recording except in DR mode, the audio language,

audio content and subtitle language will be selected

according to the following settings:

– “Multi Audio” of “Preferred Language” (> 80)

– “Audio for HG / HX / HE / HL / HM Recording” (> 83)

– “Subtitles” of “Preferred Language” (> 80) ≥When recording except in DR mode, teletext will not be

recorded. ≥(Only when recording broadcast in other than DR mode)

This unit will record in the DR mode once, and then

convert to the selected mode automatically during standby.

If the title has not been decrypted, conversion will start

after decryption. ≥Depending on the state of the unit, playback may stop

when recording begins. ≥Even if you turn the unit off during the timer recording, the

recording is continued. ≥When you programme successive timer recordings to

start, about last 1 minute of earlier programme will not be

recorded.

Programme

Recorded Recorded

¾ Starting the timer recording while executing other

operation (> 100)

¾ About 2 programme simultaneous recording (> 30)

Programme

Not recorded

∫ When recording 1 programme

Select “Yes”, then press [OK].

∫ When recording 2 programmes

Stop Recording

2 recordings are in progress. Which recording would you like to stop ?

1 Select the programme, then press [OK]. 2 Select “Yes”, then press [OK].



≥ If you have already set a daily/weekly timer recording, the recording will

start at the next scheduled time.

VQT3C77

RETURN

To confirm and edit a timer

Icons

Recording mode (> 6)

programme

Press [PROG/CHECK].

Timer Recording

Channel Name



 

Total 4/64

Turn

RETURN

Timer Off

To deactivate a timer programme

Select the programme, then press the “Red” button.

≥The timer icon “F” (> right) will change from red to grey. ≥Press the “Red” button again to activate timer recording

standby. (The timer icon “F” will change to red.)

To delete a timer programme

Select the programme, then press [DEL].

To edit a timer programme

1 Select the programme, then press [OK]. 2 Change the timer recording options.

(> 33, Timer recording options)

30:30 DRHDD SAT 01.01.2011 08:05

Schedule

Delete

Mode

Info

SAT 08.01 11:00 - 11:45 SAT 08.01 10:00 - 11:50 SAT 08.01 11:30 - 1:00 SAT 01.01 8:00 - 10:45

New Timer Programme

Space

Page Up

Page Down

Screen icons

F Red: Timer recording standby is activated.

Grey: Timer recording standby is deactivated.

[ Currently recording programme

A part or all of the programme will not be recorded since the programme is overlapping.

The HDD is full.

Copy-protected programme It was not recorded.

The programme did not complete recording because of some reason.

Auto Renewal Recording is set (> 33).

(When “Recording for Encrypted Channel” is set to “Decrypt Recording” only) A part or all of the programme will not be recorded since the encrypted programme is overlapping.

OK Displayed if the recording can fit in the remaining

space

Daily or weekly timer programme is set. (up to a maximum of one month from the present time)

(Date)

! It may not be possible to record because:

– there is not enough space left. – the number of possible titles has reached its

maximum. (> 103)

– programmes are deactivated, etc.

Recording

To show programme information

Press [STATUS ].

To exit the timer recording list

Press [EXIT].



≥ Failed programmes are deleted from the timer recording list at 4 a.m.

two days later.

VQT3C77

Playing DVD-Video

Playing back video

TIME SLIP

DISPLAY

STATUS

DIRECT TV REC

AUDIO

-10s +60s

REC MODE E XT LINK

REC

TEXT STTL

CHAPTER

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

MANUAL SKIP

VOL

abc

jkl

tuv

1 4

ghi

qrs

def

mno

xyz

REWIND LIVE TV

PROG/CHECK

INPUT

Playing back video

Insert a disc.

≥Play starts from the point specified by the disc.

Select the item, then press [OK].

≥Some items can also be selected using the

number buttons.

VQT3C77

Playback starts.

To display Top Menu

1 Press [OPTION]. 2 Select “Playback Menu”, then press [OK]. 3 Select “Top Menu”, then press [OK]. ≥If the Top menu is not displayed

Press [DIRECT NAVIGATOR].

Playing recorded video contents

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0:01(DR)

F: Selected folder no./Total folder no. including DivX and MKV title.

Select the title, then press [OK].

DivX and MKV file only

∫ [HDD]:

1 Press [DRIVE SELECT], then

select “HDD”.

2 P r e ss [ D IRECT NAVIGAT O R ].



DRIVE SELECT

ghi

p qrs

DEL

SKIP

STOP

STATUS

OPTION

REC

TEXT STTL

CHAPTER



VOL

INPUT

abc

jkl

tuv

INPUT

SELECT

SLOW/SEARCH

PAUSE

PAUSE LIVE TV

REC MODE EX T LINK

AUDIO

TIME SLIP

MANUAL SKIP

-10s +60s

PAGE

def

mno

w xyz

PROG/CHECK

REWIND LIVE TV

PLAY/x1.3

EXIT

RETURN

DIRECT TV REC

DISPLAY

≥Resume play function

If the following screen appears, select the point to start playback.

Playback

Where do you want to start playback from ?

Last Stopped

Beginning

RETURN

∫ AVCHD: If the menu screen is not displayed

Press [PLAY/a1.3 1].

To playback of the playlist created on other equipment

1 Press [FUNCTION MENU]. 2 Select “Playlists” in “Others”, then press [OK]. 3 Select the playlist, then press [OK].

¾ To display the menu screen (> 19) ¾ About DivX VOD content (> 99)



≥ Multiple titles may not playback continuously depending on the disc.

Press [DIRECT NAVIGATOR], and playback by selecting the title.

≥ Playback of DivX and MKV is not possible during recording. ≥ Some DivX and MKV file may not be played back, depending on the

video resolution and frame rate condition.

Using the tree screen to find a folder

DivX and MKV

1 While the file list is displayed

Press [OPTION].

2 Select “Select Folder”, then press [OK].

Video Menu

CD ( Video )

Select Folder

01_01_2010

1 / 5

Playing back video

∫ Except [HDD]:

1 Insert the media. 2 Select the item in the menu

screen, then press [OK].

≥It will go to step automatically

depending on the disc.

RETURN

Page 01/01

≥You cannot select folders that contain no compatible

files.

3 Select the folder, then press [OK].

The file list for the folder appears.

VQT3C77

Playing recorded video contents

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0:01(DR)

Label

Selected title

Icons (> right)

Programme type ([HDD] only)

Thumbnail ([HDD] only)

Time Remaining 45:54 (DR)

HDD

Grouped Titles

Start Time Prog.Type:

Rec time

Social/Economic

SportNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name

All

Movie

9:00 0:01(DR)

Movie

Using the DIRECT NAVIGATOR (VIDEO)

Press [DIRECT NAVIGATOR].

e.g., [HDD]

Playing back video

Only “All” will be displayed in “Label” when using the media other than HDD.

Label

[HDD]

Titles recorded to HDD will be categorized automatically. You can quickly find the recorded titles by selecting the label.

Select the label with [2, 1].

Screen icons

[ Currently recording programme

Protected title

Title was not recorded due to recording protection

Title cannot be played

(When copying a title to the HDD, or when data is damaged etc.)

Title is copy protected (One generation copy is permitted) (> 13)

Title is imposed a limit on the playable period. (> 13)

≥Playback period limit can be checked in the

information of that title. (> 39)

≥The icon turns grey after the playback period

has passed.

≥Title cannot be edited (except deleting) or

copied.

≥When the title has not been played and

decrypted, it will not be displayed.

Encrypted title

Title has failed to be decrypted ≥Press [STATUS ] to show the reason of the

failure.

Grouped titles

Title has not yet been played

Title is recorded using a different encoding system from that of the TV system on the unit. Alter the “TV System” setting on this unit to suit (> 84).

To sort a selected title from the “All” label into the programme type labels, set “Prog.Type” of the title. (> 45, Changing programme type of title)

≥To change the displayed label, go to “Changing the

programme type” on page 39.

≥High Definition video (AVCHD) acquired from the disc, SD

card or USB device is sorted to “Video ( AVCHD )” automatically.

VQT3C77

Radio programme

Recorded in 1080/50p contents

Recorded in 1080/60p contents

Recording did not complete as the timer recording has started.

Switching to the PHOTO or MUSIC screen

∫ [HDD]

1 Press the “Red” button.

2 Select “PHOTO” or “MUSIC”, then

press [OK].

Showing Information

Select the title, then press [STATUS ].



≥ Information of a recording title cannot be displayed.

∫ [RAM]

Press the “Red” button.

The screen switches from “VIDEO” to “PHOTO”.

Switching the appearance

[HDD]

1 Press [OPTION]. 2 Select “Grouped Titles” or “All Titles”,

then press [OK].

Grouped Titles

All Titles Displays all titles.

Two or more titles recorded in the daily/weekly timer recording mode are bundled and displayed as one item.

To view the individual titles in grouped titles

[HDD]

While displaying Grouped Titles screen:

Select the item marked with , then press [OK].

Changing the programme type

[HDD]

Programme type displayed in the label can be changed.

1 Select the programme type, then press the

“Green” button.

2 Select the item, then press [OK].



≥ “All”, “Not Viewed” and “Video ( AVCHD )” cannot be changed.

Playback grouped titles

[HDD]

The titles will be played continuously.

Select the group, then press [PLAY/a1.3 1].



≥ This function cannot be used if the group includes any encrypted title

().

Editing the grouped titles

[HDD]

1 Select the title or the group, then press the

“Yellow” button.

A check mark is displayed. Repeat this step.

≥Press the “Yellow” button again to cancel.

≥If you perform “Remove”, select the title in the group.

2 Press [OPTION]. 3 Select the item, then press [OK].

Create Group

Release Grouping

Remove Selected titles are removed from the group.

Selected titles are bundled to form a group.

Select “Create”, then press [OK].

All the titles in the group are released.

Select “Release”, then press [OK].

Select “Remove”, then press [OK].

Changing the group name

[HDD]

1 Select the group, then press [OPTION]. 2 Select “Edit”, then press [OK]. 3 Select “Enter Title Name”, then press

[OK].

(> 70, Entering text)

≥Even if the group name is changed, the title names in the

group will not be changed.

Playing back video

VQT3C77

Playing recorded video contents

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0:01(DR)

Chapter

Title

Chapter Chapter Chapter

Chapter Marks

Playback from Chapter View

[HDD] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

1 Press [DIRECT NAVIGATOR].

2 Select the title, then press [OPTION]. 3 Select the “Chapter View”, then press

[OK].

Chapter View screen e.g., [HDD]

PLAY

Playing back video

001

0:00.00

RETURN

OPTION

Press OK to start playing from the selected chapter. Selected chapter can be edited via OPTION. Press RETURN to go back to previous menu.

0:12.29

Page 001/001

Delete

SelectEdit Chapter Mark

4 Select the chapter, then press [OK].

¾ Editing chapters in Chapter View (> 47)

To create Chapter Marks

[HDD] [RAM]

Regarding chapters

You can divide a title into multiple chapters. Each section between the division points (Chapter Marks) becomes a chapter.

≥Chapter Creation

[HDD]

This unit can create chapters automatically while recording broadcasting. (> 81)



≥ If the title is recorded in the encrypted form, the chapter will be

created only after the title is decrypted.

During the playback or pause

Press [CHAPTER].

To delete the Chapter Mark

1 While paused

Press [SKIP :] or [SKIP 9] and skip to the location

you want to delete. 2 Press [CHAPTER]. 3 Select “Yes”, then press [OK].

VQT3C77



≥ The maximum number of chapters:

(Depends on the state of recording.)

[HDD]: Approx. 1000 per title [RAM]: Approx. 1000 per disc

≥ [HDD] When the title has the maximum number of chapters, you cannot

perform the Resume play function (> 37) or the “Change Thumbnail” (> 45) with the title.

≥ Chapters cannot be created in encrypted title ( ).

Operation during play

DivX and MKV file only



≥ Depending on the media and the type of file, some operations may not

be possible.

≥ Depending on the media, it may take time for the menu screen, pictures,

sound, etc. to start.

≥ Discs continue to rotate while menus are displayed. Press [STOP ∫]

when you have finished playback to protect the unit’s motor, your TV screen, etc.

≥ Titles that are copy protected (Copying is prohibited) cannot be viewed

going back in time more than the allowed playback period. (> 13)

Showing status messages

Press [STATUS ] twice.

e.g.,

8:05:50 01.01.2011

Remain HDD

 T1 0:05.14 DR

0:30.00

Title number and elapsed time during play and recording mode

Manual Skip

∫ Skip forward 1 minute

Press [MANUAL SKIP +60s].

∫ Skip backward 10 seconds

Press [MANUAL SKIP -10s].

≥Each time you press, play skips forward or backward.



≥ DivX and MKV: This function is not effective.

Quick View

Play speed is quicker than normal.

Press and hold [PLAY/a1.3 1].

≥Press again to return to normal speed.



≥ DivX and MKV: This function is not effective. ≥ [DVD-RW] This function is not effective even if it is finalised.

≥ This function cannot be used on encrypted titles ( ).

Pause

Playing back video

Stop

Press [STOP ∫].

The stopped position is memorized.

Resume play function

Press [PLAY/a1.3 1] to restart from this position. ≥The resume play function does not work depending on the

disc.

Stopped position

[HDD]: Stopped position for each title is memorized. Discs: Only previous stopped position is memorized.

The position is cleared if the tray is opened or the unit is turned off.

Press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

≥Press [PLAY/a1.3 1] to restart play.



≥ The speed increases up to 5 steps.

([+R] [+RW] Up to 3 steps)

≥ Audio is heard during first level search forward. ≥ DivX and MKV: Audio is not heard during all levels search.

Press [PAUSE ;].

≥Press [PAUSE ;] again or [PLAY/a1.3 1] to restart play.

Slow-motion

While paused, press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

≥Press [PLAY/a1.3 1] to restart play.



≥ The speed increases up to 5 steps. ≥ DivX and MKV: This function is not effective. ≥ AVCHD: Forward direction [SLOW/SEARCH 5] only.

≥ This function cannot be used on encrypted titles ( ).

VQT3C77

Operation during play

10min.

This automatically disappears after approximately 5 seconds. To show the screen again press [TIME SLIP] again.

Frame-by-frame

While paused, press [2](2;) or [1](;1).

≥Each press shows the next frame. ≥Press and hold to change in succession forward or

backward.

≥Press [PLAY/a1.3 1] to restart play.



≥ DivX and MKV: This function is not effective. ≥ AVCHD: Forward direction [1](;1) only.

≥ This function cannot be used on encrypted titles ( ).

Skipping the title or chapter

Skip to the title or chapter you want to play.

During play or while paused, press [SKIP :] or [SKIP 9].



≥ It will skip to the beginning of chapters (> 40) if the title contains

Playing back video

chapters.

≥ [HDD] It will not skip the title. But the title in the grouped titles during the

“Playback grouped titles” (> 39) will be skipped.

≥ [SKIP 9] is not effective for encrypted titles ( ).

Changing audio

Press [AUDIO].

≥It will switch depending on the contents recorded every

time it is pressed.

Switching subtitles

∫ [HDD]

Press [STTL ].

≥If you want to switch the subtitle language, select the

subtitle with “Subtitle Language” in the Disc menu (> 76).

∫ [DVD-V], DivX, MKV and AVCHD:

Display with “Subtitles” in the Disc menu

(> 76).



≥ DivX and MKV: If the subtitles text are not displayed correctly, try

changing the language settings (> 99, Displaying subtitle text).

Displaying the Teletext

[HDD]

Skipping the specified time (Time Slip)

1 Press [TIME SLIP]. 2 Select the time with [3, 4], then press

[OK].

Play skips the specified time.

≥Press and hold [3, 4] to change the time by

10-minute.



≥ [DVD-V], DivX, MKV and AVCHD: This function is not effective.

Press [TEXT ].



≥ Teletext display mode is TOP (FLOF) only. ≥ Some functions may not work. ≥ Teletext cannot be displayed when the subtitles are set to ON.

Aspect

You can switch the screen mode. (> 90)

VQT3C77

Deleting recorded titles

Editing vid eo

TIME SLIP

DISPLAY

STATUS

DIRECT TV REC

AUDIO

-10s +60s

REC MODE EXT L INK

REC

TEXT STTL

CHAPTER

RETURN

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

SELECT

INPUT



DRIVE SELECT



DEL

EXIT

OPTION

MANUAL SKIP

VOL

abc

jkl

tuv

1 4

ghi

qrs

def

mno

xyz

INPUT

REWIND LIVE TV

PROG/CHECK

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0:01(DR)

......

Last title recorded

Available

disc space

Later

recorded

titles

This space becomes available for recording after all the later recorded titles are deleted.

Title Deleted

Once deleted, recorded content cannot be restored to its original state. Make certain before proceeding.

Deleting during play

1 While playing

Press [DEL].

2 Select “Delete”, then press [OK].

∫ Available disc space after deleting

≥[HDD] [RAM]

The space deleted becomes available for recording.

≥[DVD-RW] [+RW]

Available recording space increases only when the last recorded title is deleted.

Editing video

≥[DVD-R] [+R]

Available space does not increase even after the contents are deleted.

≥You cannot delete items on finalised discs.

While stopped

Press [DRIVE SELECT], then select “HDD” or “DVD”.

Press [DIRECT NAVIGATOR].

Select the title, then press the “Yellow” button.

A check mark is displayed. Repeat this step. ≥Press the “Yellow” button again to cancel.

Press [DEL].

Select “Delete”, then press [OK].

VQT3C77

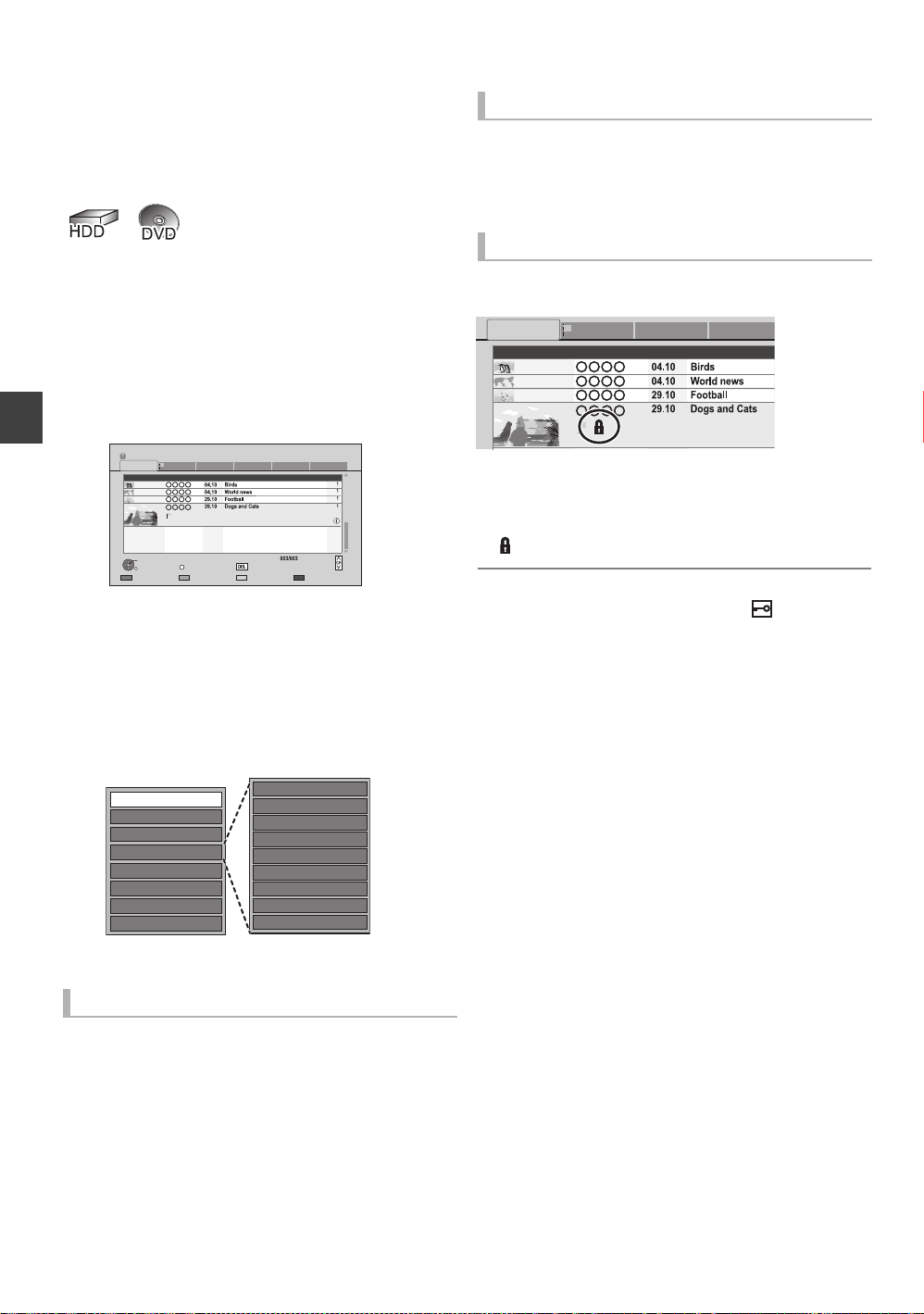

Editing recorded titles

Set up Protection

Cancel Protection

Partial Delete Divide Title

Change Prog.Type

Change Thumbnail

File Conversion File Decryption

Enter Title Name

Delete Title

Playback

Information

Chapter View

Create Group

Release Grouping

Edit

All Titles

Start Time Prog.Type:

Rec time

Social/Economic

MovieNot Viewed

Channel Date Title Name

All

Movie

9:00

≥Once deleted, divided or partially deleted, recorded

content cannot be restored to its original state. Make certain before proceeding.

≥With titles that are copy protected (Copying is prohibited),

you cannot perform editing other than Delete. (> 13)

≥You cannot edit finalised discs.



≥ Depending on the media and the type of file, some operations may not

be possible.

1 Press [DIRECT NAVIGATOR]. 2 Select the title.

Grouped Titles VIDEO

Time Remaining 45:54 (DR)

Social/Economic

Channel Date Title Name Titles

Start Time

9:00 0:01(DR)

Prog.Type:

Movie

OPTION

Sport Video (AVCHD)MovieNot Viewed

Rec time

Page

Delete

Select Copy

Page Up

Page Down

Editing video

DIRECT NAVIGATOR

HDD

All

PLAY RETURN

PHOTO / MUSIC

≥Multiple editing

Press the “Yellow” button.

A check mark is displayed. Repeat this step. ≥Press the “Yellow” button again to cancel.

Entering title name

Select “Enter Title Name” in “Edit”, then press [OK].

(> 70, Entering text)

Setting protection

[HDD] [RAM] [+R] [+RW] Protection setting prevents the title from accidental deletion.

1 Select “Set up Protection” or “Cancel

Protection” in “Edit”, then press [OK]. 2 Select “Yes”, then press [OK].

appears when setting the protection.



≥ This function cannot be used on encrypted titles ( ).

3 Press [OPTION]. 4 Select the item, then press [OK].

≥“Edit” has several functions (e.g., File Conversion).

Deleting

1 Select “Delete Title”, then press [OK].

2 Select “Delete”, then press [OK].

VQT3C77

Partial deleting

Start

Continue

0:43.21

End

Start End

Please set the start point with playback operation and skip.

RETURN



Change

Finish

0:00.22

Change

RETURN



Start play and select the image of a thumbnail.

Select the item for prog.type change.

RETURN

Movie

Prog.Type

( No Prog.Type )

Prog.Type

Set Cancel

( No Prog.Type )

Prog.Type

Change Prog.Type

[HDD] [RAM]

1 Select “Partial Delete” in “Edit”, then

press [OK].

2 Press [OK] at the start point and end point

to delete.

≥Press [PLAY/a1.3 1] to start the playback when the

title is paused.

3 Select “Continue”, then press [OK].

≥Select “Next”, then press [OK] to delete other sections.

Up to 20 sections can be set. (> go to step 2)

4 Select “Delete”, then press [OK].

≥Chapter Mark is generated in the scene that was

partially deleted.

5 Press [RETURN ].



≥ You can find the desired point by using search or Time slip function, etc. ≥ You cannot set points if they are too close to each other. You cannot set

an end point before a start point.

≥ This function cannot be used on encrypted titles ( ).

Dividing title

[HDD] [RAM]



≥ Video and audio just before and after the division point may momentarily

cut out.

≥ [HDD] Divided titles form a group of titles. ≥ You can find the desired point by using search or Time slip function, etc.

≥ This function cannot be used on encrypted titles ( ).

Changing thumbnail

[HDD] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

1 Select “Change Thumbnail” in “Edit”, then

press [OK].

2 Press [PLAY/a1.3 1] to start play. 3 Press [OK] at the point to use as a

thumbnail.

≥To change the point

Restart play and select “Change”, then press [OK] at

the point to change.

4 Select “Finish”, then press [OK].



≥ [DVD-R] [DVD-RW] [+R] [+RW] It is possible to change the image displayed

on the Top Menu after finalising or creating Top Menu.

≥ You can find the desired point by using search or Time slip function, etc.

≥ This function cannot be used on encrypted titles ( ).

Editing video

PLAY

Divide

Preview

Continue

0:00.22

RETURN

Divide

1 Select “Divide Title” in “Edit”, then press

[OK].

2 Press [OK] at the point to divide the title. 3 Select “Continue”, then press [OK]. 4 Select “Divide”, then press [OK].

≥To confirm the division point

Select “Preview”, then press [OK]. (The unit plays 10 seconds before and after the division point.)

≥To change the division point

Restart play and select “Divide”, then press [OK] at the division point.

Changing programme type of title

[HDD]

Programme type information in the title can be edited.

1 Select “Change Prog.Type” in “Edit”, then

press [OK].

2 Select the item to change a programme

type, then press [OK].

3 Select the programme type, then press

[OK].

4 Select “Set”, then press [OK].

VQT3C77

Editing recorded titles

File Conversion

Convert the selected title by changing its recording mode. Please select recording mode and other options, then press OK.

RETURN

Subtitles

Off

Recording Mode

HL -- Longer Play

Timing

During standby

COPY

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00

0:01(DR HL)

(DR HL)

File Conversion

[HDD]

File Conversion is a function to convert the recording mode of the title in DR mode and AVCHD contents. The size of the converted title will be small regularly. It will take about the same time as the recorded duration.

1 Select “File Conversion” in “Edit”, then

press [OK].

e.g.,

2 Select the recording mode (> 6, 105), then

press [4].

3 Select whether to record the subtitle or

not, then press [4].

Editing video

Automatic Subtitles will be recorded for titles with

subtitles. You cannot switch the subtitle on or off during the playback.

Off Subtitle will not be recorded.

∫ “Now” conversion:

Select “Start”, then press [OK].

∫ “During standby” conversion:

Press [OK].

≥Conversion is performed when the unit is turned off.

“COPY” on the unit’s display remains lighted during conversion.

≥If the title is encrypted ( ), conversion will start

after decryption.

To cancel a “Now” conversion

Press and hold [RETURN ] for more than 3 seconds.

To confirm whether the conversion is completed

Press [DIRECT NAVIGATOR]. e.g.,

4 Select when to start the conversion, then

press [OK].

Now Conversion begins immediately after

During standby

≥If an encrypted title ( ) is included, “Now” cannot be

selected.

step 6. Recording and playback are impossible during conversion. Timer recording will not be performed during conversion.

Conversion will be performed after the unit is turned off in a time slot for which no timer recording is set.

5 Select whether to delete the original title

or not, then press [OK].

Convert & Delete

Convert Only The original title remains after

≥The original title will be deleted after File Conversion

when a title that is copy protected (One generation

VQT3C77

copy is permitted) is selected. (> 13)

The original title will be deleted to save HDD capacity after conversion.

conversion.

When “±± > ±± (Recording mode for conversion)” is displayed, the conversion has not finished.

To cancel a “During standby” conversion

After performing steps 1–3 (> 44) 1 Select “File Conversion” in “Edit”, then press [OK]. 2 Select “Yes”, then press [OK].



≥ To use “File Conversion”, the HDD needs enough storage capacity. ≥ The size of converted title might increase depending on the title (such as

radio programmes).

≥ Teletext will not be recorded. ≥ File Conversion is stopped when this unit is turned on during performing

“During standby” conversion. Conversion will start from the beginning again once the unit is turned off.

≥ When converted, the audio content and subtitle language will be

selected according to the following settings: – “Multi Audio” of “Preferred Language” (> 80). – “Audio for HG / HX / HE / HL / HM Recording” (> 83) – “Subtitles” of “Preferred Language” (> 80).

≥ In titles with the Auto Renewal Recording function (> 33) set, a

programme may be unintentionally converted while in “During standby”.

File Decryption

HDD

Decrypting

Chapter View screen

[HDD]

Encrypted titles ( ) can be decrypted manually.

1 Select “File Decryption”, then press [OK]. 2 Select whether to delete the original title

or not, then press [OK].

Yes The original title will be deleted to save

HDD capacity after decryption.

No The original title remains after decryption.

3 Select “Start”, then press [OK].

Decryption starts.

“Decrypting” appears during decryption.

≥When a title that is copy protected (One generation

copy is permitted) is selected, the original title will be deleted after decryption. (> 13)

≥When a decryption fails, the screen icon ( ) is

changed to “ ”.

Editing chapters

[HDD] [RAM]

Select “Chapter View”, then press [OK].

PLAY

Press OK to start playing from the selected chapter. Selected chapter can be edited via OPTION. Press RETURN to go back to previous menu.

Page 001/001

Delete

0:12.29

SelectEdit Chapter Mark

001

0:00.00

RETURN

OPTION

∫ Edit Chapter Mark:

Select the point where you want to start a new chapter while viewing the title.

1 Press the “Green” button. 2 Press [OK] at the point you want to

divide.

≥Repeat this step.

3 Press [RETURN ] to go to Chapter

View screen.

Editing video

To cancel the decryption

Press and hold [RETURN ] for more than 3 seconds.



≥ For decryption, the CI module that supports the programme is

necessary.

≥ Depending on the programme, playback/decryption may not be possible. ≥ During decryption, do not remove the CI module from this unit.

∫ To delete the chapter:

1 Select the chapter, then press [DEL].

≥Multiple editing

Select the chapter, then press the “Yellow” button. A check mark is displayed. Repeat this step until you select the chapters to be deleted. ≥Press the “Yellow” button again to cancel.

2 Select “Delete”, then press [OK].

∫ To combine chapters (Delete chapter mark):

1 Select the chapter, then press

[OPTION].

2 Select “Combine Chapters”, then press

[OK].

3 Select “Combine”, then press [OK].

The selected chapter is combined to the next chapter.

¾ Playback from Chapter View (> 40)



≥ This function cannot be used on encrypted titles ( ).

VQT3C77

Copying titles

Copying video

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles VIDEO

Start Time Prog.Type:

Rec time

PLAY RETURN

PHOTO / MUSIC

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0:01(DR)

OPTION

¾ About CI Plus restriction (> 13)



DRIVE

INPUT

SELECT

ghi

p qrs

DEL

SKIP

STOP

STATUS

PAUSE LIVE TV

OPTION

REC MODE EXT LINK

REC

TEXT STTL

TIME SLIP

CHAPTER

Copying video



abc

jkl

tuv

PAUSE

VOL

PAGE

def

mno

w xyz

PROG/CHECK

INPUT SELECT

SLOW/SEARCH

REWIND LIVE TV

PLAY/x1.3

EXIT

RETURN

DIRECT TV REC

DISPLAY

AUDIO

MANUAL SKIP

-10s +60s

Press the “Blue” button.

To start copying the selected title

Select “Yes”, then press [OK].

≥To change selection (> 49)

Set other settings, then press [OK].

e.g.,

Automatic Standby after Copy

Subtitles

Subtitles: Only valid for DR title with subtitles. Please set copy setting and press OK.

Off

RETURN

(> 49, Setting the copying options)

Select “Yes”, then press [OK] to start copying.



≥ Encrypted titles ( ) cannot be copied. (> 31) ≥ If you wish to choose the audio language, select the language from

“Multi Audio” of “Preferred Language” before copying (> 80).

≥ [DVD-R] Use “Copy Video ( AVCHD ) to Disc” when copying HD Video

(AVCHD format) in high definition. (> 54)

VQT3C77

Insert a disc.

Press [DRIVE SELECT] to select “HDD”, then press [OK].

Press [DIRECT NAVIGATOR].

Select the title, then press the “Yellow” button.

A check mark is displayed. Repeat this step.

≥Press the “Yellow” button again to cancel.

To change the selection

HDD

Page

Select Copy

Grouped Titles DVD-RAM Remain

Start Time Prog.Type:

Rec time

OK RETURN

Social/Economic

Sport Video (AVCHD)MovieNot Viewed

Copy

Channel Date Title Name Titles

All

Page Up

Page Down

Movie

9:00 0:01(DR)

90%

OPTION

Screen icons

1 Select “No”, then press [OK] in step

(> 48).

e.g., [HDD] > [RAM]

Remaining space

You can check if there is enough disc volume at the copy destination.

The order of copying

∫ To change the selected titles

Select the title, then press the “Yellow” button.

A check mark is displayed. Repeat this step.

≥Press the “Yellow” button again to cancel.

∫ To change the picture quality

1 Select the title, then press [OPTION]. 2 Select “Conversion Select”, then

press [OK].

3 Select the picture quality, then press

[OK].

Repeat steps 1–3 if you want to select the picture quality for other titles.

3 Go to step (> 48).

Titles that will be copied to the disc in normal speed

¾ Screen icons on the DIRECT NAVIGATOR (> 38)

Setting the copying options

Select the item in step (> 48).

1 Select the item. 2 Press [2, 1] to change the settings.

Automatic Standby after Copy

Subtitles Select “Automatic” or “Off”.

Finalise

([HDD] > [DVD-R] [DVD-RW] [+R] only)

Create Top Menu

([HDD] >

[+RW] only)

Select “On” or “Off”.



≥ If “On” is selected, this unit is turned to standby

mode when it is not operated for approximately 5 minutes after completing copy.



≥ If you wish to choose the subtitle, select the

language from “Subtitles” of “Preferred Language” before copying (> 80).

Select “On” or “Off”.



≥ If “On” is selected in “Finalise”, the discs become

play-only and you can also play them on other DVD equipment. However, you can no longer record or edit.

≥ If “Off” is selected, it is possible to perform

“Finalise” or “Create Top Menu” later. (> 69)

Copying video

VQT3C77

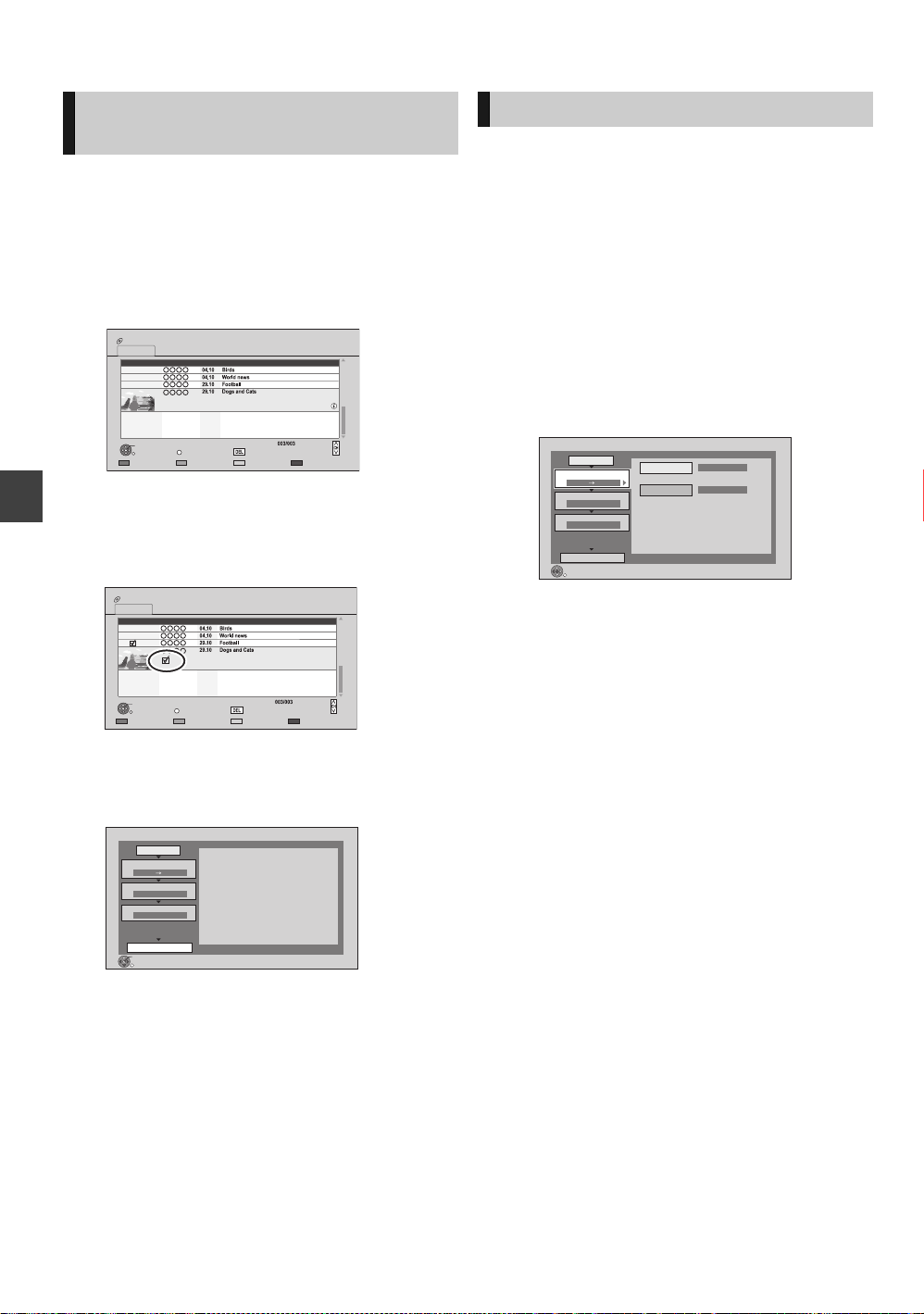

Copying titles

Copy

HDD

DVD

Source

Destination

Cancel All

Copy Direction

Copy Mode

Create List

Start Copying

HDD DVD

High Speed

Select the copy direction.

RETURN

Information of the copy destination

- DVD-RAM

- Copy restricted titles can be copied on to disc

Copying to HDD with DIRECT NAVIGATOR

[RAM] [+RW] > [HDD]

1 Insert a disc.

The menu screen appears.

2 Select “Play Video”, then press [OK].

e.g., [RAM]

DIRECT NAVIGATOR

DVD-RAM

All

PLAY RETURN


All Titles VIDEO

Time Remaining 1:00 (SP)

Channel Date Title Name

Start Time Rec time

9:00 0:30 (SP)

OPTION

Page

Delete

Select Copy

Page Up

Page Down

3 Select the title, then press the “Yellow”

button.

A check mark is displayed. Repeat this step.

DIRECT NAVIGATOR

DVD-RAM

All

Copying video

PLAY RETURN


≥Press the “Yellow” button again to cancel.

All Titles VIDEO

Time Remaining 1:00 (SP)

Channel Date Title Name

Start Time Rec time

9:00 0:30 (SP)

OPTION

Page

Delete

Select Copy

Page Up

Page Down

Copying titles with copying list

[HDD] > [RAM] [DVD-R] [DVD-RW] [+R] [+RW] [RAM] [+RW] > [HDD]

1 Insert a disc.

The menu screen appears.

2 Select “Copy”, then press [OK]. 3 Set the copy direction.

1 Select “Copy Direction”, then press [1] (right). 2 Set “Source”. 3 Press [2] to confirm.

4 Set the recording mode (> 6, 105).

1 Select “Copy Mode”, then press [1] (right). 2 Set “Recording Mode”. 3 Press [2] to confirm.

4 Press the “Blue” button.

Copy

Cancel All

Copy Direction

HDD

DVD

Copy Mode

Create List

RETURN

High Speed

Start Copying

Press OK to start copying.

≥To change the detailed settings for copy, refer to

“Copying titles with copying list” (> right).

5 Select “Start Copying”, then press [OK]. 6 Select “Yes”, then press [OK] to start

copying.

VQT3C77

5 Register titles for copy.

Copy

Cancel All

Copy Direction

Copy Mode

Create List

Other Settings

Start Copying

HDD DVD

Please change the settings if required.

RETURN

Off

Subtitles

Finalise

1 Select “Create List”, then press [1] (right). 2 Select “New item”, then press [OK]. 3 Select the titles, then press [OK].

e.g., [HDD]

Create List Grouped Titles

HDD

Time Rec time

Size 1360 MB

9:00

0:30 (SP)

RETURN

OPTION

Date Channel

01.01

02.01

03.01

04.01

05.01

06.01

Time

Title Name

9:00

15:00

9:30 10:00 18:30

2:00 11:00 15:00

3:45

9:00

Page

001/003

Select

(> 52, Selecting the titles for the copying list)

4 Press [2] to confirm.

6 Set other settings.

1 Select “Other Settings”, then press [1] (right).

e.g.,

Page Up

Page Down

7 Select “Start Copying”, then press [OK]. 8 Select “Yes”, then press [OK] to start

copying.

Titles

1 1 1 1 1 1 1 1 1

To cancel all registered copying settings and lists

After performing steps 1–2 1 Select “Cancel All”, then press [OK]. 2 Select “Yes”, then press [OK].

¾ To display the menu screen (> 19)



≥ Encrypted titles ( ) cannot be copied. (> 31) ≥ If you wish to choose the audio language and subtitle language, select

the language from “Multi Audio” of “Preferred Language” before copying (> 80).

≥ Titles in the grouped titles and other titles cannot be registered

simultaneously.

≥This screen does not appear depending on the

copying mode. (> go to step 7)

2 Select the copying option, then press [OK].

≥Subtitles

Select “Automatic” or “Off”, then press [OK].



≥ If you wish to choose the subtitle, select the language from

“Subtitles” of “Preferred Language” before copying (> 80).

≥Finalise

Create Top Menu

Select “On” or “Off”, then press [OK].



≥ If “On” is selected in “Finalise”, the discs become play-only

and you can also play them on other DVD equipment. However, you can no longer record or edit.

≥ If “Off” is selected, it is possible to perform “Finalise” or

“Create Top Menu” later. (> 69)

3 Press [2] to confirm.

Copying video

VQT3C77

Copying titles

Page 01/01

Size:

Destination Capacity:

No. Size

New item (Total=0)

Title

( 0% )

0 MB

20806 MB

Add

Delete

Move

Delete All

Selecting the titles for the copying list

Select the item in step 5-3 (> 51).

Press the “Yellow” button.

A check mark is displayed. Repeat this step until you select all necessary items.

≥Press the “Yellow” button again to cancel.

The title will be copied in the order of the copying list. If you want to specify the order, edit the copying list after the items are selected. (> right)

≥Other operation

1 Press [OPTION]. 2 Select the item, then press [OK].

Information Information is shown.

Sort

(All Titles screen

Titles are sorted according to the selected item.

only)

Grouped Titles All Titles

Switch to Grouped Titles screen or All Titles screen.

Information

Sort

Grouped Titles

Copying list icons and functions

Copying list indicators

Titles that cannot be copied in high speed

Copying video

(NTSC)

(PAL)

Data size of each registered item

mode Title contains photos ≥Photos cannot be copied. Title recorded using a different encoding

system from that of the TV system currently selected on the unit.

≥Titles displaying these marks cannot be

selected.

Editing the copying list

Select the title after step 5-3 (> 51).

1 Press [OPTION]. 2 Select the item, then press [OK].

Delete All All titles that you registered to copy are

deleted.

Select “Yes”, then press [OK].

Add Add new items to the copying list.

1 Select the title, then press the

“Yellow” button.

A check mark is displayed. Repeat this step until you select all necessary items. ≥Press the “Yellow” button again to

cancel.

2 Press [OK].

Delete Select “Yes”, then press [OK].

Move Move selected items or change the order

of items on the copying list.

Select the destination, then press [OK].

VQT3C77

Size:

Data size recorded to the copy destination ≥When copying at normal speed, the

total data size will change according to the recording mode.

≥The total data size shown may be

larger than the sum of the data sizes for each registered item, because of data management information being written to the copy destination, etc.

Notes for copying

Notes for high speed copy

The following recording mode and media combinations support high speed copying.

Original title’s

recording mode

XP/SP/ LP/EP/

DVD-RAM only

Converting the recording mode will result in a normal speed copy.



≥ It is impossible to copy at high speed in the following cases:

– [HDD] > [DVD-R] [DVD-RW] [+R] [+RW] :

≥ Copy including a title that was recorded to HDD with “Rec for High

Speed Copy” set to “Off” (> 81)

≥ Titles that contain many deleted segments ≥ Titles that have been copied to the HDD from an SD card or a

Panasonic video camera, etc. with HDD (SD Video) (> 67)

– [HDD] > [+R] [+RW] :

≥ Titles recorded in “EP” mode and “FR (recordings 5 hours or longer)”

mode

≥ Titles recorded in 16:9 aspect

– [HDD] > [DVD-R] [DVD-RW] :

≥ Titles recorded in 16:9 aspect using “EP” mode or “FR (recordings

5 hours or longer)” mode

Media

Notes for normal speed copy

≥You cannot copy to the disc in the following cases.

[DVD-R] [DVD-RW] [+R] [+RW] – When there is not enough free space on the HDD. – When the number of titles recorded to the HDD and the

number of titles to be copied to the disc is greater than 999 in total.

≥[DVD-R] [DVD-RW] [+R] [+RW]

If copy is cancelled during the step while temporarily copying to the HDD, then nothing will be copied.

≥[DVD-R] [DVD-RW] [+R] [+RW]

Even if the title was not copied to the disc, the amount of remaining writable disc space becomes less.

≥When copying title recorded in 1080/50p or 1080/60p, it

cannot copy in progressive. (> 109)

Notes for copying to the DVD-RAM

[RAM]

When copying to DVD-RAM using “8 hours” mode, play may not be possible on DVD players that are compatible with DVD-RAM. Use “6 hours” mode if playback may be on other equipment. (> 81, Recording time in EP mode)

About maintaining the chapter mark

≥The position of the chapter might shift slightly.

≥It will not maintain the exceeded amount if it exceeds the

maximum chapter numbers on a disc. – [RAM] [DVD-R] [DVD-RW] : Approx. 1000 – [+R] [+RW] : Approx. 254

(Depends on the state of recording.)

Copying video

VQT3C77

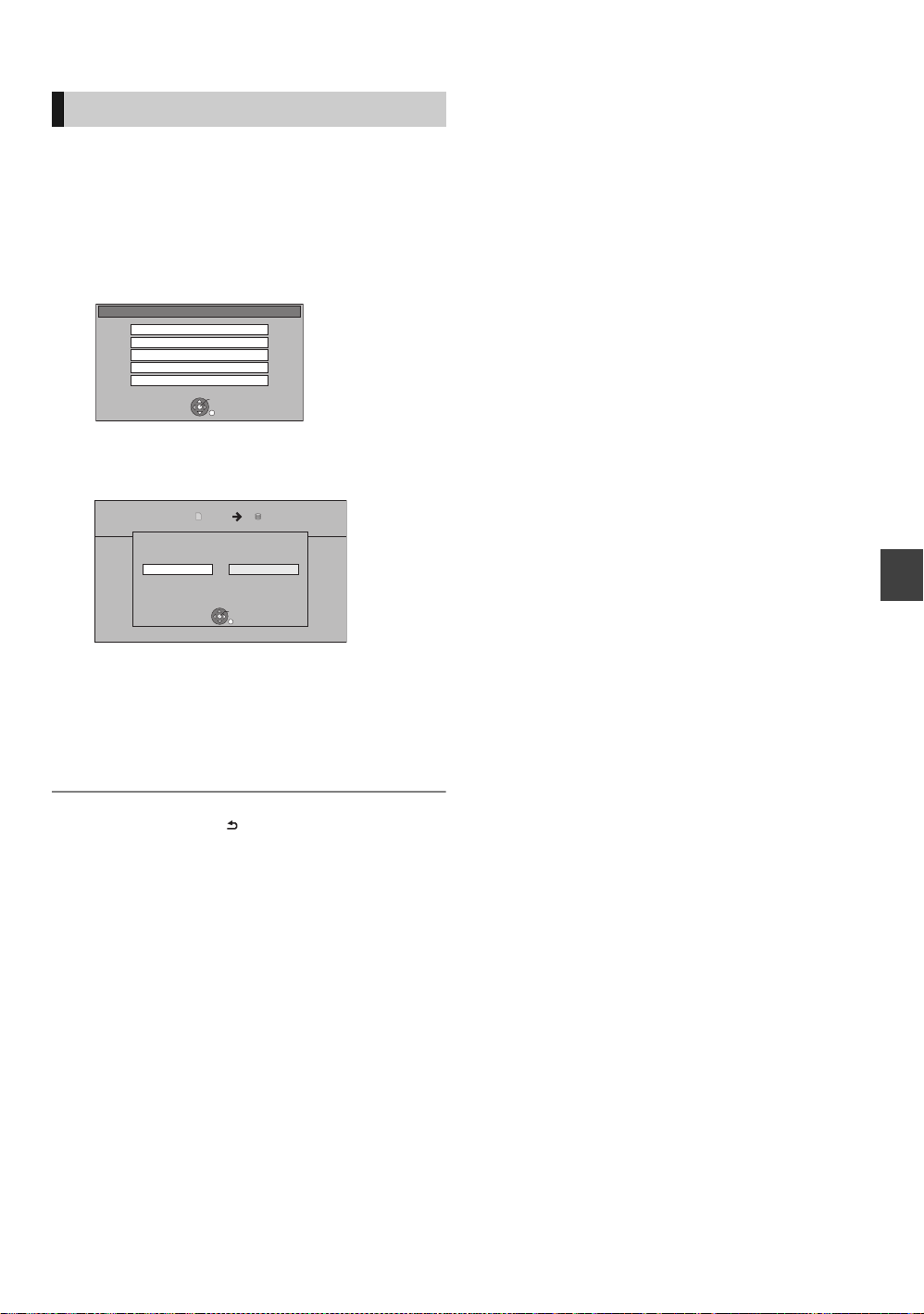

Copying titles

Copying Title Playing

[HDD] > [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

1 Playback the title to copy.

≥Multiple audio, subtitle and Teletext displayed during

playback will be copied. –Select the multiple audio with “Multi Audio” in the

Disc menu (> 76)

–Select the subtitle with “Subtitle Language” in the

Disc menu (> 76)

2 Press [OPTION]. 3 Select “Copy Title Playing”, then press

[OK].

4 Select “Start”, then press [OK].

≥Copying will start from the beginning of the title regardless

of the playing position.

To stop copying

Press and hold [RETURN ] for 3 seconds.



≥ Encrypted titles ( ) cannot be copied. ≥ You can record to or play HDD while high speed copying.

Press [OK] to exit the screen display.

≥ Press [STATUS ] to confirm the current progress.

Copying video

Copying HD Video (AVCHD format) from HDD

You can copy HD Video (AVCHD format) recorded on HDD by a Panasonic video camera etc. to a disc.

∫ [HDD] > [DVD-R] (High Definition)

1 Insert a new disc.

The menu screen appears.

2 Select “Copy Video ( AVCHD ) to

Disc”, then press [OK].

3 Go to step 5 on page 51, “Copying

titles with copying list”.

¾ To display the menu screen (> 19)



≥ This function can only be used for unformatted disc. ≥ Discs will be automatically finalised after copy, making recording no

longer possible.

≥ You can choose the thumbnail image of the Top Menu before using

this function. (> 45, Changing thumbnail)

≥ The following HD Video (AVCHD format) cannot be copied to the

disc in high definition. – Exceeding 18 Mbps – 1080/50p or 1080/60p – Without the AVCHD information (video recorded with certain non-

Panasonic equipment, etc.)

≥[DVD-R] [DVD-RW] [+R] To play the disc on other players, it

is necessary to finalise them after copy (> 69).

≥[+RW] To play the disc on other players, we recommend

you create Top Menu (> 69), but they may not play on all DVD players.

∫ Speed and recording mode when copying

The high speed copy is performed if available.

¾ Notes for copying (> 53)



≥ [RAM] [DVD-R] [DVD-RW] [+R] [+RW] When copying the titles in DR, HG,

HX, HE, HL or HM modes, copy will be performed at normal speed in FR mode.

≥ When copying the titles in XP, SP, LP, EP or FR modes and the

copy destination (disc) does not have enough space, copy will be performed at normal speed in FR mode.

∫ [HDD] > [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

(Standard Definition)

Go to step 1 on page 50, “Copying titles with copying list”.

≥Select XP, SP, LP, EP or FR mode in step 4-2.

¾ Copying HD Video (AVCHD format) from other

equipment (> 67)

VQT3C77

Copying a finalised disc

Copy

Cancel All

Copy Direction

Copy Mode

Copy Time

Start Copying

DVD HDD

Press OK to change the setting.

2:00

RETURN

Hour2 Min.00

Set the time a few minutes longer.

01/02

01 Mouse

Cattle

Tiger Rabbit

[DVD-V] > [HDD]

While playing a disc, the content being played is copied to the HDD according to the set time.

1 Press [FUNCTION MENU].

7 When the Top Menu is displayed

Select the title you want to start copying, then press [OK].

2 Select “Copy Video” in “Copy”, then

press [OK].

3 Set “Copy Mode”.

1 Select “Copy Mode”, then press [1] (right).

≥“Recording Mode” is selected.

2 Press [OK], then select the recording mode.

≥You can only select XP/SP/LP/EP.

3 Press [2] to confirm.

4 Set “Copy Time”.

1 Select “Copy Time”, then press [1] (right). 2 Select “Time Setting”, then press [OK]. 3 Select “On” or “Off”.

≥When copying all the content on the disc select

“Off”.

≥When you select “On”, set the copying time.

≥Set a few minutes longer than the source title, in

order to include the operation time before play begins.

4 Press [2] to confirm.

After the last title on the disc has finished playing the Top Menu is recorded until the set time is reached.

To stop copying

Press [STOP ∫]. You can also press and hold [RETURN ] for 3 seconds. ≥If stopped partway, copying will be up to that point.



≥ Operations and on-screen displays during copy are also recorded. ≥ Almost all DVD-Video on sale have been treated to prevent illegal

copying, and cannot be copied.

≥ The content is recorded as 1 title from the start of copy to the end. ≥ If play does not begin automatically press [PLAY/a1.3 1] to start.

Copying video

5 Select “Start Copying”, then press [OK]. 6 Select “Yes”, then press [OK] to start

copying.

VQT3C77

Playing photos


HDD

Page

SelectSlideshow

Calendar


OPTION

03.01.2010

29.10.2010

25.02.2011

05.01.2010

0002/0002

Copy

OK RETURN

VIDEO / MUSIC

8 12 18

DIRECT NAVIGATOR

Date & Event Name Photos

Album 4

Page Up

Page Down

Album 3Album 2Album 1All

Label

Page

SelectSlideshow


OPTION

001_AAA

0001/0001

Copy

OK RETURN

DIRECT NAVIGATOR

Folder Name Photos

SD card

HDD

SelectSlideshow

Calendar


OPTION

03.01.2010

29.10.2010

25.02.2011

05.01.2010

Copy

OK RETURN

VIDEO / MUSIC

8 12 18

DIRECT NAVIGATOR

Date & Event Name Photos

Page

0002/0002

Page Up

Page Down

Album 4Album 3Album 2Album 1All

e.g., [HDD]

Album (> below)

[RAM] [DVD-R] only


∫ [HDD]

1 Press [FUNCTION MENU].

2 Select “Photo” in

“Playback Contents”, then press [OK].

∫ [RAM] [DVD-R] [CD] [SD] [USB]

1 Insert the disc, SD card or

USB memory.

2 Select “View Photos”, then

press [OK].

Select the event, then press [OK].

e.g., [HDD]

Select the photo, then press [OK].

≥Press [2, 1] to display the previous or next

photo.

To stop the Slideshow

Press [RETURN ].

To pause the Slideshow

Press [PAUSE ;]. ≥Press [PAUSE ;] again to restart.

To exit the Calendar screen

Press [PAUSE ;].

¾ Slideshow Settings (> 57)



≥ You cannot play photos while recording or copying. ≥ It may take a few moments for photos to display. ≥ When there are many files and/or folders, some files may not be

displayed or be playable.

∫ DIRECT NAVIGATOR (PHOTO) screen

VQT3C77

e.g., [SD]

≥To select the label

Press [2, 1].

≥Start Slideshow

1 Select a date or folder, then press the “Green”

button.

2 Select “Start Slideshow” then press [OK].

≥Switching the Calendar screen ([HDD])

Press [PAUSE ;].

Event

It is displayed for each recording date. ≥It is displayed for each folder for media other than HDD.

Screen icons:

Album ([HDD])

(Label)

Placing photos in albums of your choice makes it easier to find them. (> 58)

Photo protected

[HDD]

New photo which is stored and not viewed

Switching to the VIDEO or MUSIC

Slideshow

RETURN

Start Slideshow

Interval

Transition Effect

Repeat Play

Normal

Fade

Music Selection

No background music

Background Music

No List

Random BGM

Off

screens

[HDD]

1 While the DIRECT NAVIGATOR (PHOTO) screen

displayed

Press the “Red” button.

2 Select “VIDEO” or “MUSIC”, then press

[OK].

[RAM]

While the DIRECT NAVIGATOR (PHOTO) screen displayed

Press the “Red” button.

≥The screen switches from “PHOTO” to “VIDEO”.

Photo play option

1 While displaying a photo

Press [OPTION].

2 Select the item, then press [OK].

Photo Menu

≥Start Slideshow

You can start a slideshow.

≥Rotate RIGHT, Rotate LEFT

Slideshow Settings

You can set the items for slideshow.

While displaying DIRECT NAVIGATOR (PHOTO)

Press the “Green” button.

≥Start Slideshow

You can start a slideshow.

≥Interval

You can setup the time until the next photo is to display.

≥Transition Effect

Effect for the next photo to display can be set.

≥Repeat Play

You can setup to playback repeatedly.

≥Music Selection

You can select background music on (either from HDD or USB) or off.


≥Rotation information will not be stored depending on the

media.

≥Information

Information (shooting date etc.) is shown.

Aspect

You can switch the screen mode. (> 90)

≥Background Music

You can select background music from HDD (My Favourites or Playlists) or USB (Folder).

≥Random BGM

You can playback the BGM in random order.

VQT3C77

Editing photos

SD Card

RETURN

SD card is inserted.

Play Video ( AVCHD ) View Photos Copy Video ( AVCHD )

Copy New Photos

Copy Video ( MPEG2 )

e.g., [SD]

e.g., [HDD]

HDD

SelectSlideshow

Calendar


OPTION

03.01.2010

29.10.2010

25.02.2011

05.01.2010

Copy

OK RETURN

VIDEO / MUSIC

8 12 18

DIRECT NAVIGATOR

Date & Event Name Photos

Page

0002/0002

Page Up

Page Down

Album 4Album 3Album 2Album 1All


[RAM] only

∫ [HDD]

1 Press [FUNCTION MENU]. 2 Select “Photo” in “Playback

Contents”, then press [OK].

∫ [RAM] [SD]

1 Insert the disc or the SD card.

2 Select “View Photos”, then press

[OK].

∫ Editing the event:

Select the event, then press [OPTION].

3 Select the item, then press [OK].

e.g., [HDD]

Slideshow

Calendar

Copy Photos

Edit

Delete Photos

Add to Album

[HDD]

1 While selecting “All” label:

Select “Add to Album” in “Edit”, then press [OK].

2 Select the destination album, then press

[OK].

3 Press [OK].

Combine Events

[HDD]

1 While selecting album label and select multiple

events:

Select “Combine Events” in “Edit”, then press [OK].

Edit

Add to Album

Enter Event Name

RETURN

VQT3C77

∫ Editing the photo:

1 Select the event, then press [OK]. 2 Select the photos to edit, then

press [OPTION].

≥Multiple editing

Select the item, then press the “Yellow” button. (Repeat this step.) A check mark appears.

≥Press the “Yellow” button again to cancel.

2 Select “Yes”, then press [OK].

Remove from Album

[HDD]

1 While selecting album label:

Select “Remove from Album” in “Edit”, then press [OK].

2 Select “Yes”, then press [OK].

Enter Album name

[HDD]

While selecting album label:

Select “Enter Album Name” in “Edit”, then press [OK].

(> 70, Entering text)

Enter Event Name

Select “Enter Event Name” in “Edit”, then press [OK].

(> 70, Entering text)

Deleting

[HDD] “All” label only [RAM] [SD]

1 Select “Delete Photos”, then press [OK].

2 Select “Yes”, then press [OK].


Changing protection

[RAM] [SD]

1 While selecting photo:

Select “Set up Protection” or “Cancel Protection”, then press [OK].

2 Select “Yes”, then press [OK].

appears when the protection is set.

≥Even if the protection is set, the photo may be deleted by

another unit.

VQT3C77

Copying photos

SD Card

RETURN

SD card is inserted.

Play Video ( AVCHD ) View Photos Copy Video ( AVCHD )

Copy New Photos

Copy Video ( MPEG2 )

Page

SelectSlideshow


OPTION

001_AAA

0001/0001

Copy

OK RETURN

DIRECT NAVIGATOR

Folder Name Photos

SD card

HDD Album Selection

Please select the destination album.

Album 1 Album 2 Album 3 Album 4

Copy Photos

RETURN

HDDSD card

Selecting and copying the photos

[HDD] > [RAM] [SD] [RAM] [DVD-R] [CD] > [HDD] [SD] [SD] [USB] > [HDD] [RAM]

∫ [HDD]

1 Press [FUNCTION MENU]. 2 Select “Photo” in “Playback

Contents”, then press [OK].

∫ [RAM] [DVD-R] [CD] [SD] [USB]

1 Insert a disc, the SD card or USB

memory.

e.g., [SD]


2 Select “View Photos”, then press

[OK].

3 Press the “Blue” button.

4 Select the copying destination, then

press [OK].

5 When copy to HDD:

Select “Yes” or “No”, then press [OK].

≥If you select “Yes”:

Select the album, then press [OK].

≥You can categorise and manage the events and

photos on the HDD by copying to the album. (> 56)

6 Select “Yes”, then press [OK].

Copying starts.

To stop copying

Press and hold [RETURN ] for 3 seconds.

2 Select the event or the photo, then

press the “Yellow” button.

A check mark is displayed. Repeat this step.

e.g., [SD]

≥Press the “Yellow” button again to cancel.

VQT3C77



≥ The name of the copied photos will be changed. ≥ If the number of files/folders to be copied exceeds the maximum

(> 103), copying will stop partway through.

Copying automatically

SD Card

RETURN

SD card is inserted.

Play Video ( AVCHD ) View Photos Copy Video ( AVCHD )

Copy New Photos

Copy Video ( MPEG2 )

Yes No

Start copying ?

Copy New Photos

RETURN

HDDSD card

Timer recording or Ext Link recording cannot start during copying.

[RAM] [DVD-R] [CD] [SD] [USB] > [HDD] Newly added photos will automatically be copied to the HDD.

1 While stopped

Insert a disc, an SD card or an USB memory.

e.g., [SD]

2 Select “Copy New Photos”, then press

[OK].


3 Select “Yes”, then press [OK].

Copying starts.

4 Once the copy is completed, select

“Yes” or “No”, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.



≥ Photos without shooting date will be categorised using the creation date. ≥ If the space on the destination drive runs out or the number of

files/folders to be copied exceeds the maximum (> 103), copying will stop partway through.

≥ The name of the copied photos will be changed.

VQT3C77

Playing music/Copying music to HDD

Music

e.g., [USB]

Playing track

e.g., [CD] (MP3)

Selected folder No. /Total folder

If the folder has no track, “–” is displayed as folder number.

To play other music (track)

[DVD-R] only

≥Music CD: All tracks in the CD will be recorded. ≥MP3: All tracks in the folder will be recorded.

(Cannot record track-by-track.)

≥It will be recorded as 1 album to the HDD in 1 recording.

While stopped

Select the item, then press [OK].

DIRECT NAVIGATOR

CD ( MP3 )

No.

0001 0002 0003 0004 0005

OPTION

Slideshow Copy All

RETURN

Track List

Track Name Artist

0.09

to HDD

∫ Music CD

Insert a disc.

To stop copying

Press and hold [RETURN ] for 3 seconds.

The unit starts accessing the Gracenote® Database and searches for the title information.

≥If search results indicate that multiple titles

Music

were found

Select the appropriate title, then press [OK].

Playback will automatically start.



≥ The track/artist name will be displayed if the information is contained in

ID3 tag of the MP3 file.

≥ If there is a large amount of photo data etc. within a MP3 file, play may

not be possible.

≥ While copying, no other operations can be performed. Timer recordings

will not proceed.

≥ The maximum number of tracks on HDD: 40000

(Depends on the remaining capacity.)

∫ About the Gracenote® Database

≥If the title is not in the built-in database, it is possible to

acquire the title automatically by connecting to the network via the Internet. (> 16, 21)

≥If there are music CDs with very similar title information,

then the incorrect title information may be obtained. If no

∫ MP3

1 Insert a disc or USB

title suggestions are found, enter the music CD title information manually after recording to the HDD has completed.

memory.

USB

Play Video View Photos Play / Copy Music ( MP3 ) Copy Video ( AVCHD ) Copy Video ( MPEG2 ) Copy New Photos

USB device is inserted.

RETURN

≥[DVD-R] [CD] Playback will automatically

start if only MP3 is recorded.

Using the tree screen to find a folder

MP3

1 While the Track List is displayed

Press [OPTION].

2 Select “Select Folder”, then press [OK].

DIRECT NAVIGATOR

CD ( MP3 )

Select Folder

0.09

FOK5 / 12

VQT3C77

2 Select “Play / Copy Music

( MP3 )”, then press [OK].

Playback will start.

∫ To copy music to HDD

1 Press the “Blue” button.

2 Select “Copy”, then press

[OK].

Copying starts.

RETURN

3 Select the folder, then press [OK].

Playing music recorded on

DIRECT NAVIGATOR

Music Menu MUSIC

OK RETURN

Please select to access music.

Artists

Frequently Played

Albums

Total Tracks 53

HDD

Random Play

My Favourites

OPTION

Playlists

VIDEO / PHOTO

Slideshow Add to My

Favourites

DIRECT NAVIGATOR

0.09 4.30

RETURN

No.

Track Name Artist

Track List

OPTION

HDD

0001 0002 0003 0004 0005

Playing track

HDD

[HDD]

1 When the HDD is selected

Press [FUNCTION MENU].

2 Select “Music” in “Playback Contents”,

then press [OK].

4 Select the track, then press [OK].

Switching to the VIDEO or PHOTO screens

While the DIRECT NAVIGATOR (Music Menu) screen

is displayed

Press the “Red” button.

3 Select the item, then press [OK].

Artists

Albums

My Favourites

Playlists

Frequently Played

Random Play

1 Categorised by artist 2 Categorised by album 3 Tracks registered in “My Favourites” 4 Tracks registered in “Playlists” 5 Tracks most often played recently (up to 30 tracks) 6 Random playback of all tracks

∫ When “Artists” is selected

1 Select the initial of the artist. 2 Select the name of the artist, then press [OK]. 3 Select the album, then press [OK].

∫ When “Albums” is selected

1 Select the initial of the album. 2 Select the album, then press [OK].













DIRECT NAVIGATOR

HDD

RETURN

Music Menu MUSIC

Total Tracks 53

Artists

Albums

My Favourites

Playlists

Frequently Played

Random Play

Please select to access music.

OPTION

VIDEO / PHOTO

2 Select “VIDEO” or “PHOTO”, then press

[OK].

Music

∫ When “Playlists” is selected

Select the playlist, then press [OK].

VQT3C77

Playing music/Copying music to HDD

Operations during music play

[HDD] [DVD-R] [CD] [USB]

Stop Press [STOP ∫]. Pause Press [PAUSE ;].

≥Press [PAUSE ;] again or [PLAY/a1.3 1] to

restart play.

Search Press [SLOW/SEARCH 6] or

Skip During play or while paused, press

[SLOW/SEARCH 5].

≥Press [PLAY/a1.3 1] to restart play.

[SKIP :] or [SKIP 9].

Useful functions during music play

[HDD] [DVD-R] [CD] [USB]

Registering a track to the “My Favourites”

[HDD]

While the Track List screen is displayed

Select the track, then press the “Green”

Music

button.

≥Up to 99 tracks can be registered.

Displaying photos (Slideshow)

Photos stored on the “Album” of the HDD can be played back as slideshow during playback of the music.

While playing the music

Press the “Red” button.

≥To change the photos to display

1 While slideshow playing

Press [OPTION].

2 Select “Select Photo Album”, then press [OK]. 3 Select the album, then press [OK].

e.g.,

Select Photo Album

Please select the album to start slideshow.

Sample Photos

Album 1 Album 2 Album 3 Album 4

While playing music a photo slideshow can be displayed.

To end the slideshow

Press [RETURN ].

¾ How to create the photo album (> 58, Add to Album) ¾ To play music continuously even if the Power off link

works (> 72)

RETURN

Information

[HDD]

While the Track List screen is displayed

1 Select the track. 2 Press [OPTION]. 3 Select “Information”, then press [OK].

Repeat Play Random

Refer to “Repeat Play” or “Random” in Play menu (> 76).

Sound Effects

Refer to “Sound Effects” in Sound menu (> 77).

VQT3C77

Editing music/playlist

1 Press [FUNCTION MENU]. 2 Select “Music” in “Playback Contents”,

then press [OK].

DIRECT NAVIGATOR

HDD

RETURN

≥When doing “Delete All Tracks”, “Clear My

Favourites” or “Clear Frequently Played” (> go to step 4).

Music Menu MUSIC

Total Tracks 53

Artists

Albums

My Favourites

Playlists

Frequently Played

Random Play

Please select to access music.

OPTION

VIDEO / PHOTO

3 Select the item, then press [OK]. 4 Press [OPTION].

Deleting

∫ While displaying the “Track List” screen

1 Select “Delete”, then press [OK]. 2 Select “Delete”, then press [OK].

Editing the name

Select “Edit Album Name”, “Edit Track Name”, “Edit Artist Name” or “Edit Playlist Name”, then press [OK].

(> 70, Entering text)

Removing all tracks

Tracks themselves are not deleted from the HDD.

∫ While displaying the “Playlists” screen

1 Select “Remove All Tracks”, then press

[OK].

2 Select “Remove”, then press [OK].

5 Select the item, then press [OK].

e.g., while selecting “Albums”

Delete Album

Add to Playlist

Edit Album Name

Playback Settings

Deleting all tracks

∫ While displaying the “Music Menu” screen

1 Select “Delete All Tracks”, then press

[OK].

2 Select “Yes”, then press [OK]. 3 Select “Delete”, then press [OK].

∫ While displaying the “Artists” screen

1 Select “Delete All Tracks”, then press

[OK].

2 Select “Delete”, then press [OK].

Deleting albums

∫ While displaying the “Album View” or “Albums”

screen

1 Select “Delete Album”, then press [OK]. 2 Select “Delete”, then press [OK].

∫ While displaying the “Music Menu” screen

1 Select “Clear My Favourites” or “Clear

Frequently Played”, then press [OK].

2 Select “Clear”, then press [OK].

Removing tracks

∫ While displaying the “My Favourites”, “Track List” of

“Playlists” or “Frequently Played” screen

1 Select “Remove”, then press [OK]. 2 Select “Remove”, then press [OK].

The selected track is removed.

Add to playlist

You can register your favourite albums and tracks into 10 preset playlists.

1 Select “Add to Playlist”, then press [OK]. 2 Select the playlist, then press [OK].

≥New playlist cannot be added. ≥Up to 999 tracks can be registered to each playlist.

Music

VQT3C77

Recording from external equipment

With Other Equipment

REC1/OTR

Recording Time

Automatic Stop

Continuous recording

30 min



≥ It will be recorded in Standard Definition quality even if the programme is

in High Definition quality.

Manual Recording

Recording media: [HDD] Recording mode: XP, SP, LP, EP

Preparation

≥Connect the Set Top Box or video equipment (> 15)

1 While stopped

Press [INPUT SELECT] and select the input channel, then press [OK].

e.g., If you have connected to AV2 input terminals, select “AV2”.

2 Press [REC MODE] to select the

recording mode.

3 If recording broadcasts from Set Top Box:

Select the channel on the Set Top Box.

If recording from other video equipment:

Start play on the video equipment.

4 Press [REC ¥].

Recording starts.

5 Set the time to record. (> 29)

With Other Equipment

Input AV2

2 Press [FUNCTION MENU]. 3 Select “Flexible Recording via AV

input” in “Others”, then press [OK].

Flexible Recording via AV input

Please set recording time. Record in FR mode.

Maximum recording time

8 hour 00 min.

Set recording time

RETURN

Hour8Min.

Start

Cancel

4 Select “Hour” and “Min.” and set the

recording time.

5 Start play on the other equipment. 6 Select “Start”, then press [OK].

To stop recording partway

Press [STOP ∫].

To show the remaining time

Press [STATUS ].

Linked timer recording (SKY Digital STB, etc.)–EXT LINK

Recording media: [HDD] Recording mode: XP, SP, LP, EP

≥Connect the equipment with AV2 input terminal (> 15). ≥Set “AV2 Input” and “Ext Link” (> 85). ≥Make timer programming on the external equipment.

To skip unwanted parts

Press [PAUSE ;] to pause recording. ≥Press [PAUSE ;] again to restart recording.

To stop recording

Press [STOP ∫].

Flexible Recording via AV input

Recording media:

Recording mode: FR

This function is not available with DVD-R DL and +R DL.

Preparation

≥Connect the Set Top Box or video equipment (> 15)

1 While stopped

VQT3C77

[HDD] [RAM] [DVD-R] [DVD-RW] [+R]§ [+RW]

Press [INPUT SELECT] and select the input channel, then press [OK].

e.g., If you have connected to AV2 input terminals, select “AV2”.

Press [EXT LINK].

≥“EXT-L” lights on the unit’s display

To cancel the External link

1 Turn on this unit. 2 Press [EXT LINK] to stop recording or to cancel linked

timer recording standby. (“EXT-L” disappears.)



≥ It will be recorded in standard definition quality even if the programme is

in high definition.

≥ During Ext Link Standby mode or recording, you cannot select external

input other than AV2.

≥ This function does not work when “TV System” is set to “NTSC” (> 84). ≥ This function does not work while recording 2 programmes

simultaneously with timer recording.

≥ The beginnings of recordings may not be recorded correctly in some

cases.

≥ Programmes are recorded as one title on this unit when the end time of

the earlier timer recording and the start time of the later timer recording are close to each other. To divide the titles, go to “Dividing title” (> 45).

Copying the HD Video or the SD Video

e.g., [SD]

SD Card

RETURN

SD card is inserted.

Play Video ( AVCHD ) View Photos Copy Video ( AVCHD )

Copy New Photos

Copy Video ( MPEG2 )

e.g., Connecting to the Panasonic video camera

USB connection cable

(specified cable such as accessories of the USB equipment)

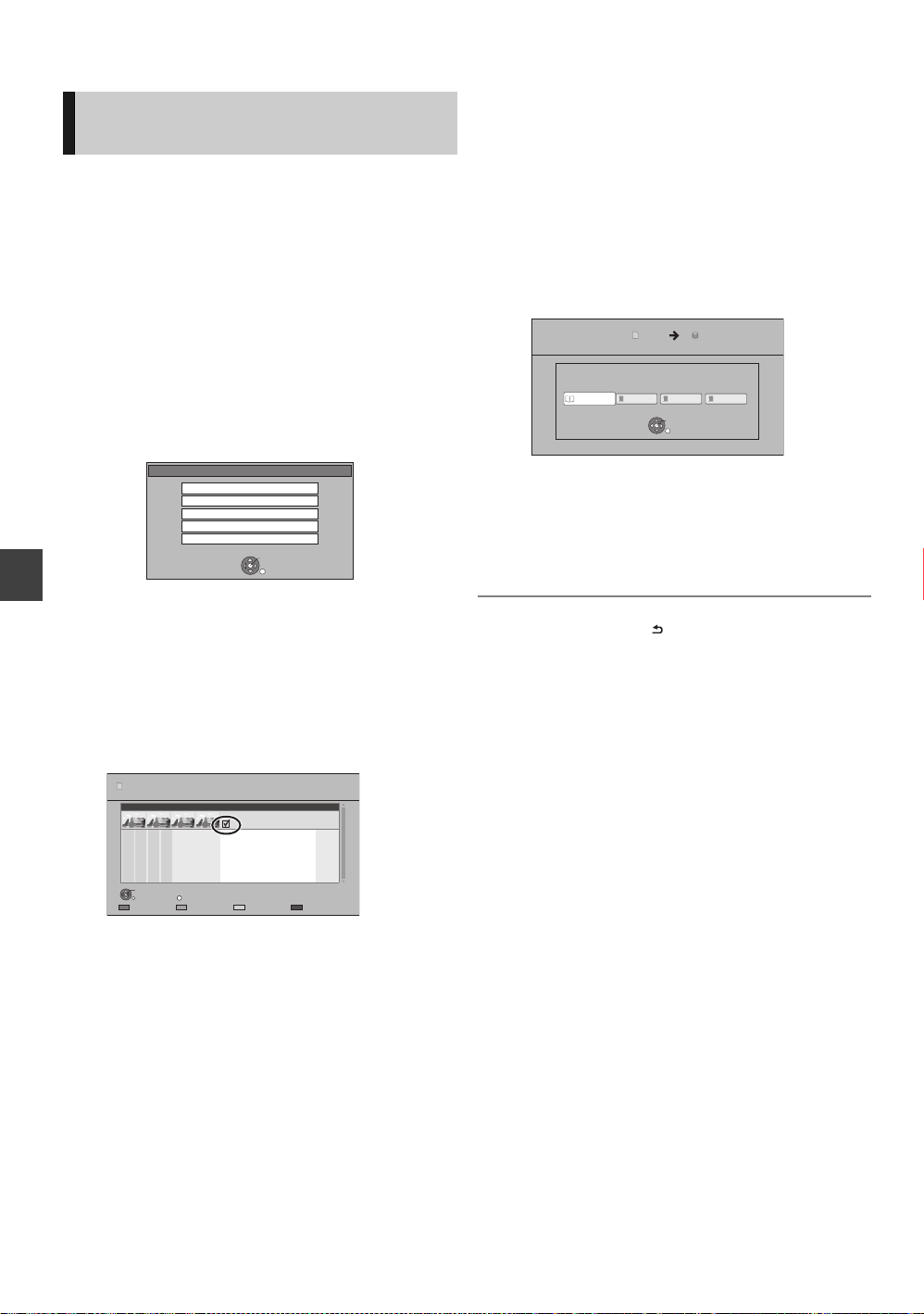

Copying HD Video (AVCHD format)

It is possible to copy the HD video (AVCHD format) recorded on the Panasonic video camera, etc. to the HDD or disc.

[RAM] [DVD-R] [DVD-RW] [+R] [+RW] > [HDD] [SD] [USB], video camera, etc. > [HDD]

∫ From video equipment

Connect the video camera.

≥Make the video camera ready for data transfer

on the video camera.

∫ From a disc or an SD card

Insert a disc or SD card.

To stop copying

Press and hold [RETURN ] for 3 seconds.

¾ Copying HD Video (AVCHD format) from HDD (> 54)



≥ Copy cannot be executed while recording or playback. ≥ An AVCHD title with 100 or more scenes will be divided into titles every

99th scene and copied.

Copying SD Video (MPEG2 format)

It is possible to copy the SD video (MPEG2 format) recorded on the Panasonic video camera, etc. to the HDD or disc. [SD] [USB], video camera, etc. > [HDD] [RAM]

∫ From video equipment

Connect the video camera.

≥Select the appropriate mode that makes the

video camera ready for data transfer on the video camera.

∫ From an SD card

Insert an SD card.

e.g.,

SD Card

Play Video ( AVCHD ) View Photos Copy Video ( AVCHD ) Copy Video ( MPEG2 ) Copy New Photos

SD card is inserted.

RETURN

2 Select “Copy Video ( AVCHD )”, then

press [OK].

3 Select the title, then press the “Yellow”

button.

A check mark is displayed. Repeat this step. ≥Press the “Yellow” button again to cancel.

(All the recordings on the same date become a title.)

4 Press [OK]. 5 Select “Start”, then press [OK].

≥It may take time for the copying to start.

2 Select “Copy Video ( MPEG2 )”, then

press [OK].

3 Select “Start Copying”, then press [OK].

≥To change the copy destination and the titles to copy

(> 50)

4 Select “Yes”, then press [OK] to start

copying.

To stop copying

Press and hold [RETURN ] for 3 seconds.



≥ You cannot playback SD Video on an SD card or in the HDD of the

Panasonic video camera, etc. with this unit. You must copy the files to the HDD or a DVD-RAM.

≥ You cannot playback or record while copying SD Video.

VQT3C77

With Other Equipment

Media management

Convenient functions

Files

Time Remaining 5:38 EP

DVD Management

DVD-RAM

01 Mouse

Cattle

Disc Name

Delete all titles

Disc Protection

e.g., when the disc is write-protected

1 Press [FUNCTION MENU]. 2 Select “Others”, then press [OK]. 3 Select the item, then press [OK].

≥Selectable items will change depending on the

selected drive.

Providing a name for a disc

[RAM] [DVD-R] [DVD-RW] [+R] [+RW]

Select “Disc Name”, then press [OK].

(> 70, Entering text)

≥The disc name is displayed in the DVD Management

window.

≥[DVD-R] [DVD-RW] [+R] With a finalised disc, the name is

displayed on the Top Menu.

≥[+RW] The disc name is displayed only if you play the disc

on other equipment after creating Top Menu.



≥ Do not perform this operation before copying HD Video (AVCHD format)

to DVD-R or DVD-R DL. (> 54)

Delete all titles

[RAM]

1 Select “Delete all titles”, then press [OK]. 2 Select “Yes”, then press [OK]. 3 Select “Start”, then press [OK].

A message appears when finished.

4 Press [OK].



≥ Photo data or computer data cannot be deleted.

Format

[RAM] [DVD-RW] [+RW] [SD] [+R] (New disc only)

Formatting deletes all contents (including computer data), and they cannot be restored. Check carefully before proceeding.

The contents are deleted when you format a disc or card even if you have set protection.

1 Select “Format Disc” or “Format Card”,

then press [OK].

2 Select “Yes”, then press [OK]. 3 Select “Start”, then press [OK]. 4 Press [OK].

Setting the protection

[RAM]

1 Select “Disc Protection”, then press [OK].

Convenient functions

2 Select “Yes”, then press [OK].

To release the protection Repeat steps 1–2.

≥The screen icon will be switched to “Off”.



≥ When using a cartridge disc, you can also set the protection of cartridge

(> 8, Cartridge-protection).

[RAM] To stop formatting

Press [RETURN ]. ≥You can cancel formatting if it takes more than 2 minutes.

The disc must be reformatted if you do this.



≥ [RAM] Formatting normally takes a few minutes; however, it may take up

to a maximum of 70 minutes.

≥ Do not disconnect the AC mains lead while formatting. This can

render the disc or the card unusable.

≥ When a disc or card has been formatted using this unit, it may not be

possible to use it on any other equipment.

≥ It will become DVD Video format when a DVD-RW recorded in DVD

Video Recording format is formatted with this unit.

VQT3C77

Top Menu

Display after finalising

Title Name

Thumbnail

(Still picture)

[DVD-R] [DVD-RW] [+R] [+RW] You can select the background for DVD-Video Top Menu.

1 Select “Top Menu”, then press [OK]. 2 Select the background, then press [OK].

Top Menu List

7 8



≥ You can change thumbnails displayed in the Top Menu. (> 45,

Changing thumbnail)

Auto-Play Select

[DVD-R] [DVD-RW] [+R] [+RW] You can select whether to show the Top Menu after finalising or creating Top Menu ([+RW]).

1 Select “Auto-Play Select”, then press

[OK].

2 Select “Top Menu” or “Title 1”, then press

[OK].

Top Menu The Top Menu appears first. Title 1 The disc content is played without

displaying the Top Menu.

Finalise

[DVD-R] [DVD-RW] [+R] You can play the disc on compatible DVD players by finalising it on the unit.

1 Select “Finalise”, then press [OK]. 2 Select “Yes”, then press [OK]. 3 Select “Start”, then press [OK]. 4 Press [OK].

After finalising ≥[DVD-R] [+R] The disc becomes play-only and you can

no longer record or edit.

≥[DVD-RW] You can record and edit the disc after

formatting (> 68).



≥ You cannot cancel finalising. ≥ Finalising takes up to 15 minutes (Up to 60 minutes in case of

DVD-R DL and +R DL).

≥ Do not disconnect the AC mains lead while finalising. This can

render the disc unusable.

≥ When finalising a high-speed recording compatible disc, it may take

longer than displayed on the confirmation screen (approximately four times longer).

≥ You cannot finalise discs recorded on other manufacturer’s equipment. ≥ [DVD-R] [DVD-RW] [+R] If you finalise discs recorded on Panasonic

equipment other than this unit, the background selected as “Top Menu” may not be displayed.

≥ Discs finalised on this unit may not be playable on other players due to

the condition of the recording.

Create Top Menu

[+RW]

You can create Top Menu for displaying on other equipment.

Make selections from “Top Menu” and “Auto-Play Select” (> left) before creating Top Menu.

1 Select “Create Top Menu”, then press

[OK].

2 Select “Yes”, then press [OK]. 3 Select “Start”, then press [OK].

≥Creating Top Menu starts. You cannot cancel creating. ≥Creating Top Menu can take a few minutes.

4 Press [OK].



≥ You cannot use the Top Menu for playing on this unit. ≥ The created menu is deleted when you record or edit the disc.

Convenient functions

VQT3C77

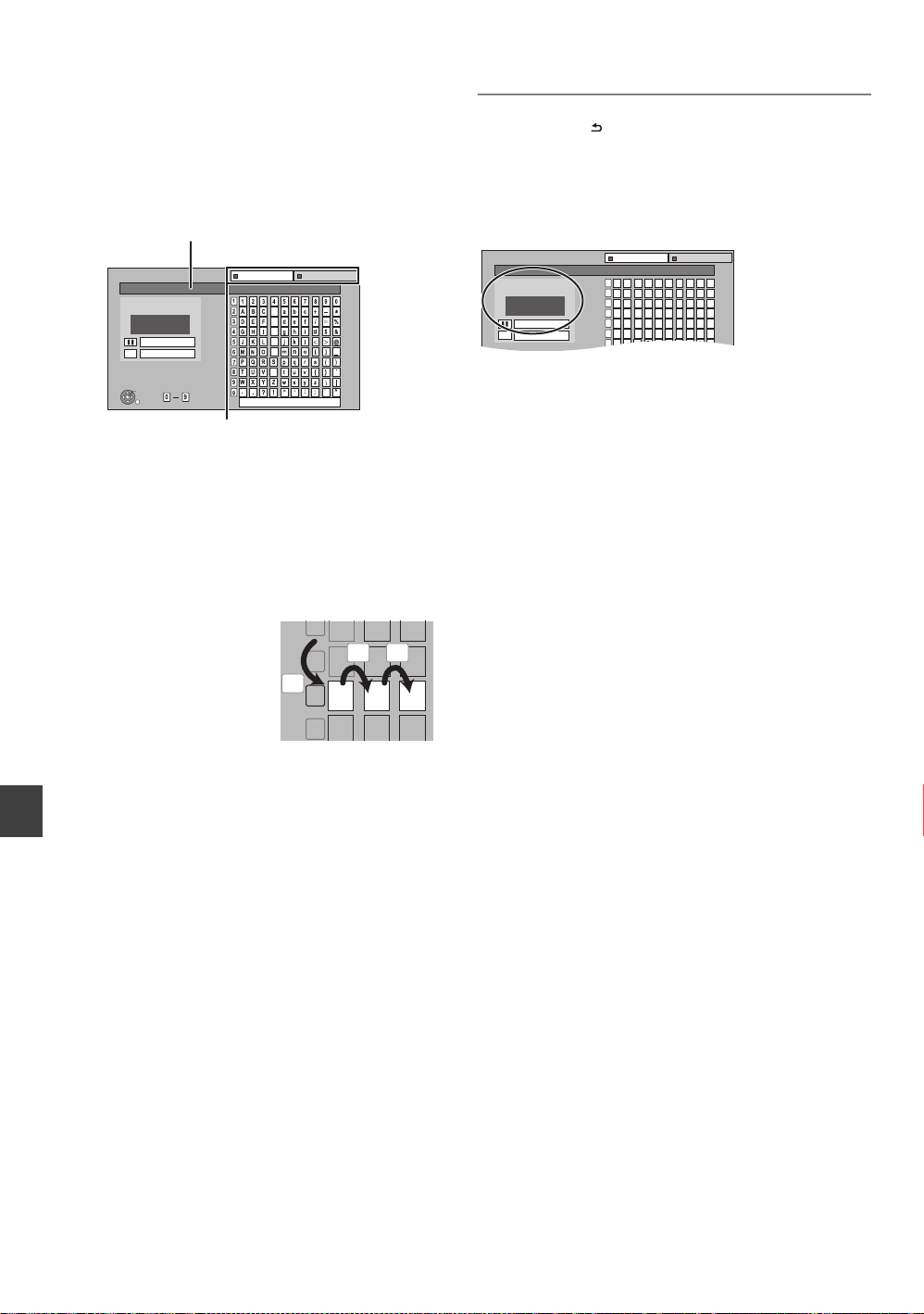

Entering text

Name field: shows the text you have

entered

Press the “Red” button or “Green” button to select character type and press [OK].

JKL

PQR

TUV

qrs

Chapter1_

Enter Title Name

12345

ABC a

DEF d

GH INOg

JKL j

67890 bc ef/ % hi $

kl@

n ]

PQRSpq r s ( )

Top Menu Preview ( DVD-Video )

Preparation

≥Show the Enter Title Name screen.

1 Select a character, then press [OK].

Repeat this step to enter other characters.

Enter Title Name

Top Menu Preview ( DVD-Video )

Delete Set



RETURN

≥To delete a character

Select the character in the name field, then press [PAUSE ;].

≥To enter characters with number buttons

e.g., entering the letter “R”

1 Press [7] to move

to the 7th row.

2 Press [7] twice to

highlight “R”.

3 Press [OK].

Standard Characters Other Characters

Space

To e n d pa rtw a y

Press [RETURN ]. Text is not added.

For your reference

The name of the DVD-Video that will be displayed in the Top Menu after finalisation is previewed.

Standard Characters Other Characters

Chapter 1

Delete

Set





≥ The maximum number of characters depends on the media. ≥ If a name is long, parts of it may not be shown in some screens.

Convenient functions

2 Press [STOP ∫] (Set).

“Writing...” appears then the screen returns to the DIRECT NAVIGATOR screen and so on.

VQT3C77

Enjoying VIERA CAST

You can access a selection of Internet services from the Home screen with VIERA CAST, such as YouTube, Picasa Web Albums. (Current as of May 2011)

To exit from VIERA CAST

Press [EXIT].

Preparation

≥Network connection (> 16) ≥Network Easy Setting (> 21, 85)

1 Press [VIERA CAST].

The message is displayed. Please read these instructions carefully and then press [OK].

2 Select the item, then press [OK].

≥Operable buttons:

[3, 4, 2, 1], [OK], [RETURN ], coloured buttons and number buttons.

VIERA CAST Home screen

e.g.,

XXXXXX

XXXXXXXXXXX

Featured Photos

Setup & Help

BACK

Images are for illustration purpose, contents may change without notice.

XXXXXX

Featured Videos

XXXXXX



≥ When playing content from a disc, SD card or USB device VIERA CAST

cannot be accessed.

≥ In the following cases, settings are possible using “Internet Content

Settings” (> 85) – When restricting the use of VIERA CAST. – When the audio is distorted.

≥ If using slow Internet connection, the video may not be displayed

correctly. A high-speed Internet service with a speed of at least 6 Mbps is recommended.

≥ Be sure to update the software (firmware) when a software (firmware)

update notice is displayed on the screen. If the software (firmware) is not updated, you will not be able to use the VIERA CAST function.

≥ VIERA CAST home screen is subject to change without notice. ≥ The services through VIERA CAST are operated by their respective

service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

≥ All features of websites or content of the service may not be available. ≥ Some contents may be inappropriate for some viewers. ≥ Some contents of VIERA CAST may only be available for specific

countries and may be presented in specific languages.

≥ If timer recording starts, VIERA CAST will stop.

VQT3C77

Convenient functions

VIERA Link/Q Link functions

What is VIERA Link “HDAVI Control”?

VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or receiver under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details.

Preparation

1 Connect this unit to your TV or receiver using an HDMI

cable. (> 14)

2 Set “VIERA Link” to “On” (> 85). (The default setting is

“On”.)

3 Set the “HDAVI Control” operations on the connected

equipment (e.g., TV).

≥Set the input channel on the VIERA to suit the

terminal to be used as “HDAVI Control”.

4 Turn on all “HDAVI Control” compatible equipment, then

select this unit’s input channel on the connected TV so that the “HDAVI Control” function works properly.

≥Also when the connection or settings are changed,

repeat this procedure.

What is Q Link?

Q Link is a convenient function that offers linked operations of this unit and a Panasonic TV. You can use this function by connecting the equipment with a fully wired 21-pin Scart cable.

Preparation

Connect this unit to your TV with a fully wired 21-pin Scart cable (> 16).

For your reference

Convenient functions

The following systems from other manufacturers have similar functions to Q Link from Panasonic. For details, refer to your TV’s operating instructions or consult your dealer.

≥Q Link (registered trademark of Panasonic) ≥DATA LOGIC (registered trademark of Metz) ≥Easy Link (registered trademark of Philips) ≥Megalogic (registered trademark of Grundig) ≥SMARTLINK (registered trademark of Sony)

Automatic input switching Power on link

(VIERA]Link) (Q]Link)

When the following operations are performed, the TV will automatically switch the input channel and display the

corresponding action. Additionally when the TV is off, the TV will automatically turn on. – When play starts on the unit – When an action that uses DIRECT NAVIGATOR or

FUNCTION MENU etc, is performed

Power off link

(VIERA]Link) (Q]Link)

When you set the TV to standby mode, the unit is also automatically set to standby mode. ≥Power off link function does not work when recording,

copying etc.

Playing music continuously even after turning off power to the TV

(VIERA]Link)

The following operations make it possible to keep the power of the unit on and to play music continuously. When the unit is directly connected to an amplifier/receiver.

1 While playing music

Press [OPTION].

2 Select “TV Power Off”, then press [OK].

≥Sound may be discontinued for several seconds when the

power to the TV is turned off.

PAUSE LIVE TV

(VIERA]Link)

You can operate this unit with the TV remote control.

Refer to “PAUSE LIVE TV” on page 27.

Direct TV Recording

(VIERA]Link) (Q]Link)

This function allows you to immediately start recording the programme that you are viewing on the TV.

Refer to the TV operating instructions for operation.

≥This unit will record the programmes in DR mode once,

and then automatically convert to the selected recording mode while this unit is in standby. (> 28)

§2

§1

VQT3C77

Easy control only with VIERA remote

e.g.,

Exit

Control Panel

control

(VIERA]Link)

You can operate this unit using the TV remote control.

Refer to the operating instructions of the TV about the buttons that you can use.

Using the OPTION menu

1 Press [OPTION] on the TV

remote control.

2 Select the item, then press

[OK].

∫ Control Panel

Using the Control Panel, you can operate with the TV remote control.

Select “Control Panel” from the OPTION menu.

§1

Control Panel

Switch to TV

FUNCTION MENU

Aspect Playback Menu

Digital TV Menu Drive Select

RETURN



≥ This unit supports “HDAVI Control 5” function.

“HDAVI Control 5” is the newest standard (current as of December,

2010) for Panasonic HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

≥ VIERA Link “HDAVI Control”, based on the control functions provided by

HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

≥ These functions may not work normally depending on the equipment

condition. About “HDAVI Control” function, read the manual of the connected equipment (e.g., TV) too.

≥ Use the remote control supplied with this unit if you cannot operate this

unit using buttons on the TV remote control.

≥ The operation of this unit may be interrupted when you press

incompatible buttons on the TV remote control.

§1

This function is available with the TV that supports “HDAVI Control 2” or later.

§2

This function is available with the TV that supports “HDAVI Control 3” or later.

Convenient functions

VQT3C77

Playing contents from other equipment (Server)

This unit (Server)

LAN cable

Broadband router, etc

DLNA compatible equipment

(Client)

LAN cable

You can enjoy the video and photos saved on the HDD of this unit on DLNA (Client) compatible equipment connected via a network.

≥The titles with remote access restriction (e.g., copy

restriction) signals sent from broadcasters are not available for this function.

≥You cannot playback music from the playback equipment

(Client).

e.g.,

Convenient functions

For details regarding the connection and operation of equipment connected via a network, refer to their respective operating instructions.

Preparation

≥Network connection (> 16) ≥Network Easy Setting (> 21, 85) ≥When DLNA (Server) Function is deactivated, make the

settings. (> 86, Home Network ( DLNA ) Server Settings)

1 Operate the playback equipment

(Client) to display the list of titles on this unit.

≥Refer to their respective operating instructions.

2 Select the item to playback (folder),

then press [OK].



≥ Ensure that the router for your home network has adequate security

system to prevent unauthorized access.

≥ The DLNA compatible device that is to be connected to the unit should

be connected to the same hub or broadband router as the unit.

≥ Files not on the HDD cannot be played back. ≥ Editing is not possible. ≥ Following titles can not be played back:

– A title with remote access restriction – A title with copy protection (Copying is prohibited) (> 13) – A title currently being recorded on this unit – A title with audio only format – A title with incompatible format – A title is encrypted

≥ Playback via DLNA compatible equipment may not be performed when

this unit is in the following conditions: – While simultaneously recording 2 programmes – While simultaneously performing High speed copy and recording – While displaying the Setup menu – While executing functions using a network, such as “VIERA CAST”

≥ There may be some video that cannot be played back on DLNA

compatible equipment depending on the equipment.

≥ You cannot playback simultaneously from 2 or more items of DLNA

compatible equipment.

VQT3C77

Playing contents on other equipment (Client)

This unit (Client)

Broadband router, etc.

DLNA compatible equipment (Server)

LAN cable

Servers found on the network are displayed. Please select one.

Home Network (DLNA)

Update

OK RETURN

e.g.

You can enjoy viewing video, photos and music saved on a DLNA Certified media server (such as a PC with Windows 7 installed etc.) connected via a network with this unit. You also can enjoy viewing them with Panasonic DLNA compatible recorders (DIGA).

e.g.,

1 Press [FUNCTION MENU].

2 Select “Home Network (DLNA)” in

“Network”, then press [OK].

≥A list of equipment connected via the network is

displayed.

≥This list can be updated by pressing the “Red”

button.

3 Select the equipment to playback the

contents, then press [OK].

4 Select the item to playback (folder),

then press [OK].

≥Menu structure will be different depending on the

equipment connected to this unit. Select the contents by repeating the operation.

Preparation

≥Network connection (> 16) ≥Network Easy Setting (> 21, 85)

≥Perform Home Network settings of the DLNA compatible

equipment (Server).

≥When connected to a PC with Windows 7 installed

Add the contents and folder to the Windows Media Player library.

Playlist of Windows Media contents that are stored in the libraries.

Regarding setting method of Windows 7 refer to its instructions or help.

≥When connected to a Panasonic DLNA compatible

recorder (DIGA)

When a message requesting operation of the equipment to be registered is displayed, perform steps 1–4.

≥The countries where DIGA is available are limited.

Refer to following site for availability.

http://panasonic.jp/support/global/cs/

For details about the setting and operation method of connected equipment, and compatible equipment, refer to the following Website and the operating instructions for each item of equipment.

http://panasonic.jp/support/global/cs/ (This site is in English only.)

Player can play back only the

≥Convenient functions can be used by pressing

[OPTION] depending on the contents.

≥Control Panel

Control Panel is displayed once the playback starts. Operation can be performed with [3, 4, 2, 1], [OK] and [EXIT].

≥Press [OK] if the Control

Panel is not displayed.

≥Press [RETURN ] to

hide the Control Panel.



≥ You may not be able to use the Control Panel even if you use the

Panasonic DLNA compatible equipment.

≥ Depending on the contents and the connected equipment, playback may

not be possible.

≥ Items displayed in grey on the display cannot be played back by this

unit.

≥ Depending on the performance of the connected PC, video frames may

be dropped during playback, or video may not playback at all.

Exit

Convenient functions

VQT3C77

Playback menu

Disc

Play Picture Sound Other

Angle

Soundtrack

1 2/0 ch

Subtitles

Off

Menu Item Setting

LPCM/ Digital/ Digital+/ DTS/MPEG:

Common procedures

1 Press [DISPLAY].

e.g.,

≥The menu is not displayed when playing photos.

2 Select the menu, then press [1] (right). 3 Select the item, then press [1] (right). 4 Select the setting.

≥Some items can be changed by pressing [OK].

To clear the Playback menu

Press [EXIT].

Depending on the condition of the unit (playing, stopped, etc.) and media contents, there may be some items that you cannot select or change.

Disc menu—Setting the disc content

Video

The original video recording method (MPEG-4 AVC etc.) appears.

Soundtrack

Show or change the soundtrack.

Convenient functions

Subtitles

Turn the subtitle on/off, and change the language depending on the media.

Multi Audio

Switch in the case of multiple audio.

Subtitle Language

Select the subtitle language in the case of multiple languages.

Angle

Change the number to select an angle.

Audio Channel

Change audio (LR/L/R) during playback.

With some discs, you may only be able to make changes using the menus (> 36) on the disc.

Audio attribute

Signal type

k (kHz): Sampling frequency

b (bit): Number of bits

ch (channel): Number of channels

Language

Thai

ENG: FRA: DEU: ITA: ESP: NLD: SVE: NOR:

English French German Italian Spanish Dutch Swedish Norwegian

DAN: POR: RUS: JPN: CHI: KOR: MAL: VIE:

Danish Portuguese Russian Japanese Chinese Korean Malay Vietnamese

THA: POL: CES: SLK: HUN: FIN: ¢:

Polish Czech Slovak Hungarian Finnish Others

Play menu—Change the play sequence

Repeat Play

(Only when the elapsed time is being displayed on the unit’s display.) Select the item which you want to repeat. The items displayed differ depending on the type of media.

Select “Off” to cancel.

Random

(Only when playing music) Select whether to play random or not.

VQT3C77

Picture menu—Change the picture quality

Sound menu—Change the sound effect

Mode

Select the picture quality mode during play.

Normal Default setting

Soft Soft picture with fewer video artifacts

Fine Details are sharper

Cinema Mellows movies, enhances detail in dark

Cartoon A mode suitable for viewing animations.

scenes.

Advanced Settings

HD optimizer It will compensate the mosaic noise in the

Chroma Process

Detail Clarity The picture becomes sharp and detailed.

Super Resolution

video and haze around the characters precisely.

You can enjoy high definition and full texture video by processing the HDMI colour signals in high precision during playback.

Standard picture quality video is corrected to sharp and crisp picture quality when it is output as 1080i/1080p from the HDMI terminal.

Progressive

Select the method of conversion for progressive output to suit the type of title being played. (> 109)

Auto Automatically detects the film and video

Video Select when using “Auto”, and the content

Film

content, and appropriately converts it.

is distorted.

Select this if the edges of the film content appear jagged or rough when “Auto” is selected. However, if the video content is distorted as shown in the illustration to the right, then select “Auto”.

Sound Effects

≥This function is effective when “Digital Audio Output” is

set to “PCM”. (> 83)

Re-master 1 Re-master 2

(Discs recorded at 48 kHz or less) Sound becomes more natural by adding

higher frequency signals not recorded on the track.

Dialogue Enhancer

The volume of the centre channel is raised to make dialogue easier to hear.

Other menu—Change the display position

Position

Change where this menu screen appears on your TV.

Convenient functions

VQT3C77

Changing the unit’s settings

Setup

RETURN

DVB Tuning HDD / Disc Picture Sound Display Connection Network Others

Favourites Editor

Select block

Sorting 123...

123/ABCSelect favouritesSelect category

RETURN

Add

Select channel

All DVB Channels

Favourites 1

1 2 3

Channel names

You can change the unit’s settings using the Setup menu. ≥The settings remain intact even if you switch the unit to

standby.

Common procedures

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press

[OK].

3 Select the menu, then press [OK]. 4 Select the item, then press [OK]. 5 Select the option, then press [OK].

≥Follow the instruction on the screen if the operation

method is different.

≥Depending on the connection or the status of this

unit some items cannot be selected or changed.

∫ About the PIN

PIN is required to change the following settings. Enter the 4-digit PIN following the on-screen instructions.

≥The PIN is common for the following items.

Convenient functions

– DVD-Video Parental Control – Lock (Internet Content Settings)

PIN can be changed via the “PIN Entry” in “Others”. (> 87)

1 Select the number, then press [1] (right).

≥You can also use the number buttons.

2 Repeat step 1 to enter 4-digit PIN. 3 Press [OK] to confirm.

e.g., PIN Entry

PIN Entry

Remember the PIN.

0 0 0 0

≥Make a note of PIN in case you forget it.

DVB Tuning

Setup

DVB Tuning

Favourites Edit Channel List Auto Setup Manual Tuning Update Channel List Signal Condition Antenna System LNB Configuration Preferred Language

∫ Favourites Edit

You can create four favourites of channels for making viewing and recording easier.

After editing as follows, save the Favourites.

Press [RETURN ], then press [OK].

≥To select the other Favourites list

Press the “Green” button.

≥To add channels to the Favourites list

1 Select the channel in the “All DVB Channels” column,

then press [OK]. Repeat this step.

≥“Red” : Select the Category. ≥“Yellow” : Add continuous block of channels to the list at

once.

≥Press [3, 4] to make the block, then press [OK].

≥“Blue” : Change the sorting mode.

≥To change the order of the channels list

1 Select the channel in the “Favourites” column to move,

then press the “Green” button.

2 Select the new position, then press the “Green” button.

≥To delete channels

1 Select the channel in the “Favourites” column, then press

[OK].

≥“Yellow”: Delete all channels.

≥To change the name of the Favourites list

1 Press the “Red” button in the “Favourites” column. 2 Press [3, 4, 2, 1] to select a character, then press

[OK]. Repeat this step to enter other characters.

≥“Red”: Delete a character. ≥“Blue”: Delete all characters.

3 Press [RETURN ].

VQT3C77

∫ Channel List

Channel names

Progress

Satellite

No.

Searching

QualityTypeChannel Name

RETURN

This will take about 10 minutes.

Update Channel List

Free TV:0 Pay TV:0

Radio:0

You can edit the Channel List.

All DVB Channels

1 2 3 4 5 6 7

Select

Hide

RETURN

Move Reveal all 123/ABCCategory

Sorting 123...

Page up

Page down

≥To skip unwanted channels

1 Select the channel. 2 Press [OK].

The check mark is removed.

≥“Red” : Change the Category. ≥“Yellow” : Clear the all skip setting. ≥“Blue” : Change the sorting mode.

≥To change the channel number assignment

1 Select the channel, then press the “Green” button. 2 Press [3, 4] to reassign the channel number. 3 Press [OK].

≥If another channel is already assigned to the channel

number, the two channels will be switched.

∫ Auto Setup

You can restart the Easy Setting. (> 20)

Select the Auto Setup method.

∫ Manual Tuning

You can add each new channels manually that the Auto Setup could not complete successfully.

∫ Update Channel List

You can update channels to the latest one.

1 Select the method and settings.

≥Search Mode

All Channels Search for all channels. Free

Channels

≥Scan Mode

Quick In this mode, scanning takes place in

Full In this mode, the scanning is thorough

2 Press [OK].

The unit starts searching for newly available satellite digital channels.

Search for free channels only.

a short period of time.

but takes more time.

Search by selected

Satellite is selected and transponders are searched for channels.

satellite

Search all satellites

All satellites and transponders are searched for channels.

Select “Yes”, then press [OK].

“Finished” is displayed when the search is finished. Press [RETURN ].

Convenient functions

VQT3C77

Changing the unit’s settings

Channel Name

Signal Condition

RETURN

Change Input

Channel Up

Channel Down

Signal Strength

Signal Quality

Parameter MHz,V, kS/s

Satellite

Signal Input

LNB in 1

HDD / Disc

Settings for Playback

Menu DVD-Video Parental Control Subtitle Text

Soundtrack Subtitles

∫ Signal Condition

You can check the quality and strength of signals.

≥Press [2, 1] to select the LNB. ≥Press [CH WX] to select the channel.

e.g.,

Signal Quality

Red bar The signal quality is bad. Yellow bar The signal quality is poor. Green bar The signal quality is good.

Signal Strength

0 Signal strength is 0%. 10 Signal strength is 100%.

≥When the signal is too strong (red bar), reduce the signal

amplification at your aerial.

≥When the signal is weak:

– adjust the position and direction of the dish. – check that the current digital broadcast channel is

correctly broadcasting.

∫ Antenna System

You can receive several satellites if you have DiSEqC control antenna system or single cable router.

1 Select “Antenna System”. 2 Press [2, 1] to select antenna system.

Convenient functions

One LNB Compatible with Single LNB.

MiniDiSEqC Up to 2 LNBs can be controlled.

DiSEqC1.0 Up to 4 LNBs can be controlled.

Single Cable Compatible with single cable router.

≥This unit supports DiSEqC Version 1.0.

∫ LNB Configuration

You can set LNB setting and User Band when necessary. ≥If you do not know the connected satellite, select “No

Satellite” in “Satellite”. (Available satellite will be searched in Auto Setup.)

≥If you select “User defined” in “Satellite”, set “Test

Transponder Frequency” manually.

∫ Preferred Language

Select the language for multi broadcast. If the selected language is not available, then the original language will be selected.

HDD / Disc

Setup

HDD / Disc

Settings for Playback Settings for Recording HDD Management

∫ Settings for Playback

¾ Soundtrack

Select the audio language. ≥If “Original” is selected, the original language of each

disc will be selected.

≥Enter a code with the number buttons when you

select “Other ¢¢¢¢”. (> 88, Language code list)

¾ Subtitles

Select the language for subtitle. ≥If “Automatic” is selected and the language selected

for “Soundtrack” is not available, subtitles of that language will automatically appear if available on that disc.

≥Enter a code with the number buttons when you

select “Other ¢¢¢¢”. (> 88, Language code list)

¾ Menu

Select the language for disc menus.

≥Enter a code with the number buttons when you

select “Other ¢¢¢¢”. (> 88, Language code list)

¾ DVD-Video Parental Control

Set a rating level to limit DVD-Video play.

≥Follow the on-screen instructions. ≥PIN is required to change. (> 78)

¾ Subtitle Text

Select the language for DivX and MKV subtitles text (> 99).

≥This item is displayed only after playing back a DivX

or MKV file with subtitle text.

VQT3C77

∫ Settings for Recording

HDD / Disc

Settings for Recording

Timer Record Start Buffer Timer Record Stop Buffer REWIND LIVE TV Recording for Encrypted Channel Aspect for Recording Chapter Creation Rec for High Speed Copy DVD Speed for High Speed Copy Recording time in EP mode

¾ Timer Record Start Buffer

This function sets the timer recording to start earlier than the TV Guide time.

¾ Timer Record Stop Buffer

This function sets the timer recording to stop later than the TV Guide time.

¾ REWIND LIVE TV

Turn on/off the REWIND LIVE TV function. ≥When “Automatic Standby” is set to “Off” (> 86), “On”

cannot be selected.

¾ Recording for Encrypted Channel

Limitation for record/view/play of the encrypted programme will change. (> 31)

≥“Automatic” and “Encrypt Recording” cannot be

selected in the following cases. – “One cable” has been selected in “Easy Setting” or

“Auto Setup”. (> 20, 79)

– “Single Cable” has been selected in “Antenna

System” and one user band is disabled. (> 23, 80)

¾ Aspect for Recording

Sets the aspect ratio when recording or copying except in DR mode. ≥If “Automatic” is selected, the title will be recorded

with the original aspect ratio at the time when recording started (including when recording started at a commercial, etc.).

≥In the following cases, the programme will be

recorded with the original aspect ratio. – [HDD] [RAM] When the recording mode is set to “XP”,

“SP”, “LP”, “EP” or “FR” with the “Rec for High Speed Copy” set to “Off”

≥In the following cases, aspect is fixed to 4:3.

– [DVD-R] [DVD-RW] When the recording mode is set to

“EP” or “FR (recordings 5 hours or longer)” mode.

– When recording to a +R, +R DL and +RW.

¾ Chapter Creation

[HDD]

Set the Chapter Creation method. ≥Even if “Automatic” is selected, depending on the

programme to be recorded, the chapter may not be created correctly.

¾ Rec for High Speed Copy

You can copy titles to DVD in high speed mode, if you set to “On” before recording a programme.

≥This setting is valid for the following cases:

– Recording from external equipment – Copying from a finalised DVD-Video disc

≥If “On” is selected, the following restrictions are

applied to recorded titles. – The settings in “Aspect for Recording” (> above)

and in “Bilingual Audio Selection” (> 83) are applied to titles.

– You cannot switch the audio when watching a

programme via AV input.

Convenient functions

¾ DVD Speed for High Speed Copy

Select the speed of high-speed copying. If “Normal ( Silent )” is selected, the time required for

copying will double (approximately).

¾ Recording time in EP mode

Select the maximum number of hours for recording in EP mode (> 105, Recording modes and approximate recording times). ≥When recording to DVD-RAM using “8 hours” mode, it

may not be possible to play on DVD players.

VQT3C77

Changing the unit’s settings

Setup


Still Mode Seamless Play NTSC Video Output

∫ HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

HDD / Disc

HDD Management

Delete all titles

Delete all photos

Format HDD


¾ Delete all titles

Delete all titles (video) on the HDD. ≥Delete does not work if one or more titles are

protected.

¾ Delete all photos

Delete all photos on the HDD.

¾ Format HDD

Formatting deletes all contents, and they cannot be restored. Check carefully before proceeding.

Convenient functions

∫ Still Mode

Select the type of picture shown when you pause play (> 108, Frames and fields).

Automatic

Field Select if jittering occurs when “Automatic” is

selected. (The picture is coarser.)

Frame Select if small text or fine patterns cannot

be seen clearly when “Automatic” is selected. (The picture is clearer and finer.)

∫ Seamless Play

Select the play mode between playlist chapter segments and partially deleted titles. ≥If you set “On” the chapters in playlists are played

seamlessly. This does not work when there are several audio types included on the playlist and when using Quick View (PLAYa1.3).

≥This function cannot be used on encrypted titles ( ).

∫ NTSC Video Output

Select how to output the NTSC image.

VQT3C77

Sound

Setup

Sound

Dynamic Range Compression Downmix Bilingual Audio Selection Digital Audio Output Audio Delay Audio for HG / HX / HE / HL / HM Recording

Sound

Digital Audio Output

Dolby Digital / Dolby Digital Plus DTS MPEG

PCM Down Conversion

∫ Dynamic Range Compression

[DVD-V]

Change the dynamic range for late night viewing.

∫ Downmix

Select the downmix system of multi-channel to 2-channels sound. ≥Select “Surround encoded”, when the connected

equipment supports the virtual surround function.

≥There is no effect on “Bitstream” via HDMI AV OUT and

DIGITAL AUDIO OUT terminal.

≥The audio will be output in “Stereo” in the following cases.

– AVCHD playback

∫ Bilingual Audio Selection

Select whether to record the audio type (“M1” or “M2”) when:

– File Conversion (> 46) – Copying to a DVD-R, DVD-RW, +R and +RW. – “Rec for High Speed Copy” is enabled. (> 81)

∫ Digital Audio Output

¾ PCM Down Conversion

Select how to output audio with a sampling frequency of 96 kHz. ≥It will be converted to 48 kHz regardless of the setting

in the following cases. – The signals have a sampling frequency of over

96 kHz.

– The disc has copy protection.

≥If “Off” is selected, signals are output as 96 kHz ≥If “On” is selected, signals are converted to 48 kHz.

(Choose when the connected equipment cannot process signals with a sampling frequency of 96 kHz.)

¾ Dolby Digital / Dolby Digital Plus ¾ DTS ¾ MPEG

Select the audio signal to output. ≥Select “PCM” when the connected equipment cannot

decode the respective audio format.

≥Not making the proper settings may result in noise.

∫ Audio Delay

Mis-sync between the video and audio is corrected by delaying the audio output.

Convenient functions

∫ Audio for HG / HX / HE / HL / HM

Recording

If the programme has multi channel audio, priority is given to what you select.

≥This setting will give effect in the following cases.

– File Conversion (> 46)

VQT3C77

Changing the unit’s settings

Setup

Display

Language On-Screen Information Unit’s Display Screen Saver Teletext

Setup

Connection

Aspect for 4:3 Video

TV Aspect

TV System HDMI Connection

AV2 Settings Common Interface

AV1 Output

Connection

HDMI Connection

HDMI Video Format Deep Colour Output HDMI Audio Output Contents Type Flag VIERA Link

Display

∫ Language

Select the language for on-screen menus.

∫ On-Screen Information

Select the approximate time until the channel information screen (> 25) disappears automatically.

∫ Unit’s Display

Changes the brightness of the unit’s display. ≥If “Dim” is selected the display turns dark during play and

disappears when the unit is turned off. It reappears momentarily if a button is pressed. While using this mode, the standby power consumption can be reduced.

∫ Screen Saver

This is to prevent burn-in on the screen. ≥If “On” is selected, the masked-off area on the screen

becomes grey. Depending on the condition of the unit (Connection, Setting) the masked-off area on the screen becomes grey.

Convenient functions

Connection

∫ TV Aspect

Set to match the type of TV connected.

≥Pan & Scan

Side picture is trimmed for 16:9 picture. The pictures may be shown in the letterbox style depending on the content.

≥Letterbox

Black bands appear for 16:9 picture.

∫ Aspect for 4:3 Video

To play a 4:3 title, set how to show pictures on a 16:9 widescreen TV.

∫ TV System

Set in accordance with the TV System for the connected TV.

∫ HDMI Connection

VQT3C77

∫ Teletex t

Select the Teletext (> 25) display mode.

¾ HDMI Video Format

You can only select items compatible with the connected equipment. ≥If “Automatic” is selected, the output resolution best

suited to the connected TV (1080p, 1080i, 720p or 576p/480p) is automatically selected.

≥To enjoy High Quality Video up-converted to 1080p,

you need to connect the unit directly to 1080p compatible HDTV. If this unit is connected to an HDTV through other equipment, it must also be 1080p compatible.

¾ Deep Colour Output

Connection

AV2 Settings

AV2 Input Ext Link

Setup

Network

Network Easy Setting Network Settings

Network

Network Settings

Proxy Server Settings Internet Content Settings Home Network ( DLNA ) Server Settings

IP Address / DNS Settings

Network Settings

Internet Content Settings

Automatic Volume Control

Lock

This setting is for selecting whether to use Deep Colour output when a TV that supports Deep Colour is connected.

¾ HDMI Audio Output

Select “Off” when connected to a TV with an HDMI cable, and connected to an amplifier not compatible with HDMI with a DIGITAL AUDIO OUT terminal.

Network

¾ Contents Type Flag

Depending on the playback content, the TV will output adjusting to the optimal method when a TV that supports Contents Type Flag is connected.

¾ VIERA Link

Set to use “HDAVI Control” function when connected with an HDMI cable to a device that supports “HDAVI Control”. ≥Select “Off” when you do not want to use “HDAVI

Control”.

∫ AV1 Output

Set according to the terminal of the connected TV.

∫ AV2 Settings

¾ AV2 Input

Set according to the output from the external equipment.

∫ Network Easy Setting

Press [OK] to start Network Easy Setting. (> 21)

∫ Network Settings

¾ IP Address / DNS Settings

Check the connection of the network or set the IP address and DNS. ≥Press [OK] to show the respective setting.



≥ “Connection Speed Setting” is enabled only when “Connection

Speed Auto-configure” is turned “Off”.

¾ Proxy Server Settings

Check and set the connection to the Proxy server. ≥Press [OK] to show the respective setting.

¾ Internet Content Settings

Convenient functions

¾ Ext Link

Set “Ext Link 1” when a Set Top Box which transmits a control signal via the 21-pin Scart cable is connected. ≥This setting cannot be made when “TV System” is set

to “NTSC” (> 84).

∫ Common Interface

Access to software contained on CI module. (> 12) ≥Select “Slot 1:” or “Slot 2:” and press [OK].

Follow the on-screen instructions.



≥ On-screen instructions may not correspond to the remote control

buttons.

≥ For more information about TV service, please contact your service

provider.

≥ Depending on the card, in some cases its use together with this unit may

be limited or not possible.

¾ Lock

You can restrict using VIERA CAST.

≥Follow the on-screen instructions. ≥PIN is required to change. (> 78)

¾ Automatic Volume Control

Volume that is different depending on the contents is adjusted automatically to the standard volume while using the VIERA CAST.

≥Depending on contents, this function will not work. ≥Select “Off” when the audio is warped.

VQT3C77

Changing the unit’s settings

Network Settings

Home Network ( DLNA ) Server Settings

Home Network ( DLNA ) Server function

Setting device name Registration type for remote devices Remote device list

Setup

Others

Standby Settings Enlgish Remote Control Clock PIN Entry System Update System Information DivX Registration Initialize

¾ Home Network ( DLNA ) Server Settings

You can set the DLNA (Server) function (> 74)

¾ Home Network ( DLNA ) Server

function

You can switch between enable/disable of the DLNA (Server) function. ≥If “On” is selected, “Power Save in Standby” is

fixed to “Off”. (> right)

¾ Setting device name

It is also possible to change the name of this unit on the network.

≥Select from a preset list

Select the preset name, then press [OK].

≥Create name

Enter the name. (> 70, Entering text)

¾ Registration type for remote devices

Automatic All connected devices on the same

network can access this unit.

Manual Only registered devices can

access this unit.

Convenient functions

¾ Remote device list

≥This function cannot be enabled when “Manual” is

selected in “Registration type for remote devices”. (> above)

≥To register equipment manually

1 Select the device name or the MAC Address for

the device you want to register, then press [OK].

2 Select “Yes”, then press [OK].

Others

∫ Standby Settings

Others

Standby Settings Enlgish

Standby Settings

Power Save in Standby Enlgish Automatic Standby Automatic Standby after OTR Automatic Standby after Copy

¾ Power Save in Standby

On It will go into the “Power Save in

On Timer “Power Save in Standby” is activated

Off It is possible to start quickly from the

≥This function cannot be enabled when the DLNA

function is enabled in “Home Network ( DLNA ) Server Settings”. (> left)

¾ Automatic Standby

Set the time to turn the unit to standby mode automatically. After the unit has finished operating, the unit will be turned to standby mode once the set time has passed.

≥When “REWIND LIVE TV” is set to “On” (> 81), “Off”

cannot be selected.

Standby” mode.

when the set time comes. ≥If the clock has not been set, “Power

Save in Standby” is activated at all hours.

standby mode. (Quick Start mode)

≥To deregister equipment

1 Select the registered equipment, then press

[OK].

2 Select “Yes”, then press [OK].



≥ The maximum number of equipment that can be registered is

16.

VQT3C77

¾ Automatic Standby after OTR

If “On” is selected, this unit is turned to standby mode when it is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time” (> 28).

¾ Automatic Standby after Copy

If “On” is selected, this unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy (> 50, Copying to HDD with DIRECT NAVIGATOR, Copying titles with copying list).

∫ Clock

If the time is not set correctly, use the settings listed in the method below.

Clock

Automatic

Time Date

0 00

Please set the clock. OK: access RETURN: leave

RETURN

Time Zone

Automatic

2010

∫ Remote Control

Change the remote control code on the main unit and the remote control if you place other Panasonic products close together. ≥Use “DVD 1”, the factory set code, under normal

circumstances.

1 Select the code, then press [OK]. 2 While pressing [OK], press and hold the number button

([1] to [6]) for more than 5 seconds.

3 Press and hold [OK] for more than 5 seconds. 4 Press [OK].

≥Operation is possible only with Panasonic remote controls

with “IR6” printed at the bottom when the remote control code of this unit is set to “DVD 4”, “DVD 5” or “DVD 6”.

DVD

IR6

≥Automatic

This unit usually obtains time and date information from digital broadcasts. But, if the time is not set correctly, set it to “Off” and perform “Manual setting”.

≥Time Zone

When the time is not correct, set “Time Zone”. (GMT -6 to + 6)

≥Manual setting

1 Select “Off” of “Automatic”, then press [OK]. 2 Select the item you want to change. 3 Change the setting. 4 Press [OK] when you have finished the settings.



≥ When the clock is set manually, you cannot perform

playing/recording/PAUSE LIVE TV/REWIND LIVE TV of the programmes that are copy protected (Copying is prohibited). (> 13)

∫ PIN Entry

You can set/change the PIN. (> 78)

Convenient functions

VQT3C77

Changing the unit’s settings

Others

System Update

Software Update in Standby Enlgish Software Update Now ( Broadcast ) Software Update Now ( Internet ) Software Licence

Others

Initialize

Shipping Condition Default Settings

∫ System Update

¾ Software Update in Standby

When you set this unit to standby mode, software (firmware) updates (> 89) are downloaded automatically at the time you have specified.

¾ Software Update Now ( Broadcast )

Software of this unit will be updated from broadcasts if update information is detected. (> 89)

¾ Software Update Now ( Internet )

Software of this unit will be updated from Internet if update information is detected. (> 89)

¾ Software Licence

Information about the software licence is displayed.

∫ System Information

Display software (firmware) and HDAVI Control version of this unit.

∫ DivX Registration

Convenient functions

You need this registration code to purchase and play DivX Video-on-Demand (VOD) content (> 99).

Language code list

Enter the code with the number buttons.

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla:

Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783 Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7 082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178

6678

Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165 Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686 Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869 Norwegian: 7879 Oriya: 7982 Pashto, Pushto: 8083 Persian: 7065 Poli sh: 8 076 Portuguese: 8084 Punjabi: 806 5 Quechua: 8185

Rhaeto-Romance:

Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yo r u b a : 8 9 7 9 Zulu: 9085

8277

VQT3C77

∫ Initialize

¾ Shipping Condition

All the settings except for basic settings return to the factory preset. The timer recording programmes are also cancelled.

¾ Default Settings

All the settings other than the tuning settings, clock settings, disc language settings, rating PIN, remote control code, network settings etc. return to the factory presets.

Software (Firmware) Update

All DVB Channels

10:30

NEWS 9:00 - 11:00

Now

Dolby DEncrypted

Change category

CAM Upgrade Info

You cannot operate the unit until the update is complete. Removing the AC mains lead while the update is in progress may damage the unit. Don’t remove the AC mains lead during the update.

Update software (firmware) of this unit

Software of this unit can be updated automatically by the following methods at the specified time. (Default setting is 3 a.m. > 88, Software Update in Standby)

– From broadcasts – From Internet

≥To update the Software (Firmware) immediately, use

the following function:

– Software Update Now ( Broadcast ) (> 88)

Software of this unit will be updated from broadcasts if

update information is detected.

– Software Update Now ( Internet )

Software of this unit will be updated from Internet if

update information is detected.

Network connection and setting are required. (> 16,

21)

(> 88)

CI Plus compatible CAM software (firmware) update

Software (firmware) of CAM (compatible CI Plus) can be updated automatically from broadcasts. Availability of software (firmware) update is detected while viewing the programmes compatible with CI Plus.

1 When notification is displayed on the

screen, select “Yes” and press [OK].

≥If for some reason the notification is not displayed,

or if cancelled, the notification is instead displayed on the Channel information (> 25). e.g.,

To execute CAM software upgrade, press the “Red” button.

2 Follow the instructions on the screen.

∫ The unit’s display during the update

e.g.,

≥When “FINISH” is displayed, update of the software

(firmware) has completed.



≥ It may take up to a few hours until the update is completed depending on

the network or broadcast environment.

≥ If the timer recording is scheduled within the following time at the start of

the download, the download will not be executed. – From broadcast: Within 4 hours – From Internet: Within 1 hour

≥ You can also download the latest software (firmware) from the following

website and burn it to a CD-R to update the software (firmware). http://panasonic.jp/support/global/cs/

≥ If you do not want to perform the software (firmware) update, set the

“Software Update in Standby” to “Off”. (> 88)



≥ Do not remove the CAM from this unit while updating. ≥ CAM software (firmware) update notice is not displayed in the following

cases: – When recording a programme – When timer recording and CAM update occur simultaneously – When displaying FUNCTION MENU, DIRECT NAVIGATOR, etc.

≥ Operations such as view, playback, or record cannot be performed while

upgrading the CAM. Any buttons on the remote control or the unit cannot be used while upgrading the CAM.

≥ If the timer recording is started, CAM software upgrade is cancelled to

start recording.

≥ For details, refer to your CAM’s operating instructions or consult your

dealer.

Convenient functions

VQT3C77

Other Settings

PAGE



DRIVE SELECT



VOL

INPUT

TV operation area

Brand Code Brand Code

AIWA 35

BENQ 58/59 BRANDT 10/15

CENTREX 66 CURTIS 05

DESMET 05

ELEMIS 05

FINLUX 61

Panasonic 01/02/03/04

AKAI 27/30 BEKO 05/71/72/73/74

BUSH 05

DAEWOO 64/65

DUAL 05

FERGUSON 10/34

FISHER 21

MITSUBISHI 05/19/20/47

METZ 05/28/79

MIVAR 24

NEC 36

NOKIA 25/26/27/60/61

OLEVIA 45

ORION 05

PHILCO 41/48/64

PHONOLA 05

PROVIEW 52

RADIOLA 05

NOBLEX 33

NORDMENDE 10

ONWA 30/39/70

PEONY 49/69

PHILIPS 05/06/46

PIONEER 37/38

PYE 05

SABA 10

FUJITSU 53

ITT

GOLDSTAR 05/50/51

GRADIENTE 36

JVC 17/30/39/70

KOLIN 45

05/50/51

MAG 52

LOEWE 07/46

FUNAI 63/67

GOODMANS 05

GRUNDIG 09

IRRADIO 30

KDS 52

KONKA 62

HITACHI 05/22/23/40/41

SALORA 26

SANSUI 05

32/42/43/65/68SAMSUNG

SCHNEIDER 05/29/30

SELECO 05/25

SIEMENS 09

SONY 08

TELEFUNKEN 10/11/12/13/14

TOSHIBA 16/57

YAMAHA 18/41

WHITE WESTINGHOUSE

SANYO 21/54/55/56

05/69/75/76/77/78

SEG

SINUDYNE 05

31/33/66/67/69TCL

TEVION 52 THOMSON 10/15/44

SHARP 18

Switching the aspect ratio of the screen

When black bars are shown at the top, bottom, left, and right sides of the screen, you can enlarge the image to fill the screen.

1 Press [OPTION]. 2 Select “Aspect”, then press [OK]. 3 Select the item, then press [OK].

Normal Normal output Side cut The black bars on the right and left

Zoom The black bars on the top and bottom



≥ It may also be adjusted using the screen mode of the TV etc. ≥ The screen mode is switched to “Normal” in the following situations:

– when you change the channel

– when you start or end the playback of a title

– when the unit is turned off or on.

≥ [DVD-V] “Side cut” does not have any effect. ≥ When “TV Aspect” (> 84) is set to “Pan & Scan” or “Letterbox”, the

“Zoom” effect is disabled.

TV operation setting

The TV can be operated from the TV operation area of the remote control. Perform the setting if you cannot operate the TV with the buttons in the TV operation area.

Convenient functions

1 While pressing [TV Í], enter the code

(> right) with the number buttons.

2 Point the remote control at the TV

Test by turning on the TV and changing channels.

≥Repeat the procedure until you find the code that

allows correct operation.

≥If the brand of your TV is not listed or the code

number is invalid for the TV, this remote control is not compatible with your TV.



≥ If your TV brand has more than one code listed, select the one that

allows correct operation.

VQT3C77

sides of the 16:9 image disappear and the image is enlarged.

sides of the 4:3 image disappear and the image is enlarged.

Manufacturer and Code No.

Messages on the unit’s display

The following messages or service numbers appear on the unit’s display when something unusual is detected during startup and use.

DVD 

(“∑” stands for a number.)

CAM-UP GUIDE

FINISH

HARD ERR

NoERAS

NoREAD

NoWRIT

PLEASE WAIT

PROG FULL

REMOVE

START

SW-DL

UNSUPPORT

UPD /

(“∑” stands for a number.)

The remote control and main unit are using different codes. Change the code on the remote control. (> 87)

CAM is being updated. (> 89)

TV Guide data is being downloaded. (> 26)

The software (firmware) update is complete. (> 89)

If there is no change after turning the unit on and off, consult the dealer where the unit was purchased.

You cannot delete items on this disc. The disc may be damaged. Use a new disc.

≥The disc is dirty or badly scratched. The

unit cannot record, play, or edit. (> 9)

≥This message may appear when the

lens cleaner has finished cleaning. Press [< OPEN/CLOSE] on the main unit to eject the disc. (> 18)

You cannot write to this disc. The disc may be damaged. Use a new disc.

≥Displayed when the unit is started and

turned off.

≥There was a power failure or the AC

plug was disconnected while the unit was on. The unit is carrying out its recovery process. This process restores the unit to normal operation. The unit is not broken. Wait until the message disappears.

There are already 64 timer programmes. Delete unnecessary timer programmes. (> 35)

The USB device is drawing too much power. Remove the USB device.

Update of the software (firmware) is started. You cannot operate the unit until the update is complete. (> 89)

Software (firmware) is downloading. Download will stop when the unit is turned on, or the timer recording starts. (> 89)

You have inserted a disc the unit cannot play or record on. (> 6) You tried to operate with a noncompatible USB memory.

The software (firmware) is being updated. You cannot operate the unit until the update is complete. (> 89)

U59

U61

U76

U77

U88

U99

H or F

(“∑” stands for a number.)

XHOLD

The unit is hot. The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Select a position with good ventilation when installing the unit. Do not block the cooling fan on the rear of the unit.

(When a disc is not inserted) Displays when a malfunction has occurred. This is displayed when the unit is in the recovery process to return to normal operation. Once the display clears you can use the unit again. If it remains displayed, consult the dealer where the unit was purchased.

HDMI cannot be output because it is connected to a model that does not support copyright protection.

Due to the current disc not having authorised copyright information, video output is not performed.

(When a disc is inserted) Displays when there was something unusual detected with the disc while recording, playback or copy. This is displayed when the unit is in the recovery process to return to normal operation. Once the display clears you can use the unit again. If it remains displayed, consult the dealer where the unit was purchased.

The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby mode. Now press [Í/I] on the main unit again to turn the unit on.

≥There is something unusual. (The

service number displayed after H and F depends on the unit’s condition.)

≥Check the unit using the

troubleshooting guide. (> 92) If the service number does not disappear, do the following.

1. Disconnect the plug from the household mains socket, wait a few seconds, then reconnect it.

2. Press [Í/I] to turn the power on. (The unit may be fixed.)

If the service number does not disappear despite after doing the above, request service from the dealer. Inform the dealer of the service number when requesting service.

The HOLD function is activated. Press and hold [OK] and [RETURN ] at the same time until “X HOLD” disappears. (> 18)

Troubleshooting

VQT3C77

Troubleshooting guide

Before requesting service, make the following checks. If the problem still persists, consult your dealer for instructions. Updating to the latest software (firmware) may solve the problem. (> 89)

The followings do not indicate a problem with this unit:

≥Regular disc rotating sounds or louder rotating sounds

when recording or high speed copying.

≥Poor reception due to atmospheric conditions. ≥Image disturbance during search. ≥Interruptions in reception due to periodic broadcasting

breaks.

≥When the unit is turned on or off, there may be an

unexpected sound. This does not indicate a problem with this unit.

∫ The unit doesn’t work.

One of the unit’s safety devices may have been activated.

Reset the unit as follows: 1 Press [Í/I] on the main unit to switch the unit to

standby. ≥If the unit doesn’t switch to standby, press [Í/I] on

the main unit for about 3 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.

2 Press [Í/I] on the main unit to switch it on. If the unit

still cannot be operated, consult the dealer.

∫ Cannot eject a disc.

The unit may have a problem. 1 While the unit is off, press and hold [OK], the yellow

button and the blue button on the remote control at the same time for more than 5 seconds. – “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) on the remote control or

Troubleshooting

[Í/I] on the main unit until “06 FTO” is displayed on the unit’s display.

3 Press [OK] on the remote control or

[< OPEN/CLOSE] on the main unit.

Power

The unit is turned off automatically.

¾ If you connected this unit to a “HDAVI Control”

compatible TV with an HDMI cable, or connected this unit to a Q Link-compatible TV with a fully wired 21-pin Scart cable, this unit will be automatically set to standby mode when the TV is set to standby mode.

The unit does not turn on when pressing [Í].

¾ Linked timer recordings with external equipment is in

recording standby (“EXT-L” on the unit’s display blinks when [Í] is pressed). Press [EXT LINK] to cancel the recording standby.

Displays

The display is dim.

¾ Change “Unit’s Display”. (> 84)

“0:00” is flashing on the unit’s display.

¾ Set the clock. (> 87)

The time recorded on the disc and the available time shown do not add up.

¾ [DVD-R] [+R] If you record or edit about 200 times or more,

the remaining capacity of the disc is reduced and then recording or editing may be disabled (for the second layer on DVD-R DL and +R DL, this happens after about 60 times).

¾ Available disc space display may be different from actual.

Varying may be large especially when recorded in DR mode.

The clock does not display on the unit when switched to standby.

¾ The clock does not display when “Power Save in

Standby” is activated. Ensure “Power Save in Standby” is set to “Off”. (> 86)

VQT3C77

TV screen and video

Screen size is wrong.

¾ Check the “TV Aspect” or “Aspect for 4:3 Video”. (> 84) ¾ Adjust the aspect ratio setting on TV. Refer to your TV’s

operating instructions.

¾ If the 16:9 aspect ratio image is output to a 4:3 TV and

the image will be stretched vertically, set “TV Aspect” to 4:3. (> 84)

¾ Check “Aspect for Recording” before recording or file

conversion. (> 81)

¾ If you connect to 4:3 TV, set “HDMI Video Format” to

“576p/480p”. (> 84)

Pictures do not appear with the HD quality although HD setting was made.

¾ The pictures are output with 576p/480p depending on the

programme.

The screen changes automatically.

¾ If there is no operation for 5 minutes or more, the

displayed screen switches to the other states automatically (only when the “Screen Saver” is set to “On”). (> 84)

There is a lot of image lag when playing video.

¾ Set “HD optimizer” in the Picture menu to “Off”. (> 77) ¾ Set “Audio Delay”. (> 83)

¾ The unit’s “TV System” setting differs from the TV system

used by the disc now playing. While stopped, keep pressing [∫] (STOP) and [< OPEN/CLOSE] on the main unit for 5 or more seconds. The system switches from PAL to NTSC or vice versa. (> 84)

¾ Picture may not be seen when more than 4 devices are

connected with HDMI cables. Reduce the number of connected devices.

¾ The picture may be distorted or a black screen may

appear between scenes recorded with different aspect ratios.

¾ DVD-R DL and +R DL discs have two writable layers on

one side. Video and audio may momentarily cut out when the unit is switching layers.

¾ Set “Deep Colour Output” (> 85) or “Contents Type Flag”

(> 85) to “Off”.

Sound

No sound. Distorted sound.

¾ Check the connections or amplifier’s settings. (> 14, 17) ¾ Press [AUDIO] to select the audio. (> 25, 42) ¾ To output audio from a device connected with an HDMI

cable, set “HDMI Audio Output” to “On”. (> 85)

Cannot switch audio.

¾ You cannot switch the audio if “Digital Audio Output” is

set to “Bitstream” (> 83)

The images from this unit do not appear on the TV. The picture is distorted during play, or video will not play correctly.

¾ Check the connection and the TV’s input settings. ¾ An incorrect resolution is selected in “HDMI Video

Format”. Reset the setting as follows: 1 While the unit is on, press and hold [OK], the yellow

button and the blue button on the remote control at the same time for more than 5 seconds. – “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) on the remote control or

[Í/I] on the main unit until “04 PRG” is displayed on the unit’s display.

3 Press and hold [OK] on the remote control or

[< OPEN/CLOSE] on the main unit for at least 3 seconds. Set the item again. (> 84) – When Dolby Digital Plus is not output in bitstream,

select “Yes” in “Default Settings” and make proper settings. (> 88)

Troubleshooting

VQT3C77

Troubleshooting guide

Unit's display

Operation

The remote control doesn’t work.

¾ The remote control and main unit are using different

codes. Change the code on the remote control.

Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. (> 87)

¾ Software (firmware) is updating when “UPD /” is

displaying on the unit’s display. Wait until the update is completed. (> 89)

¾ The HOLD function is activated. (> 18)

The unit is on but cannot be operated.

¾ Drive has not been selected properly.

Cannot tune channels.

¾ Check the connections.

Startup is slow.

¾ Startup takes time in the following situations:

– A disc is inserted. – The clock is not set. – Immediately after a power failure or the AC mains lead

is connected. – When the unit is connected with an HDMI cable. – When the “Power Save in Standby” is activated. (> 86)

Recording, timer recording and copying

Cannot record. Cannot copy.

¾ Some broadcasts are copyright protected. ¾ You cannot record to the disc by pressing the [REC ¥] or

timer recording.

¾ The disc is protected with “DVD Management” or

“Cartridge-protection”. (> 8, 68)

¾ Some programmes on digital broadcast channels are

copy-restricted and the number of times you can copy in DR, HG, HX, HE, HL, HM mode is assigned by the broadcaster.

¾ [DVD-R] [DVD-RW] [+R] [+RW] Since it will copy to HDD

temporarily, copying is not possible if there is insufficient available capacity on the HDD. Delete unnecessary titles on the HDD. (> 43)

¾ You cannot copy on finalised discs. ¾ [DVD-R] [DVD-RW] [+R] [+RW] Copying or editing may not be

possible on these discs after ejecting and loading the disc or turning the unit on/off for approximately 30 times after being copied to.

¾ Discs recorded on equipment other than this unit may not

be able to be recorded to.

¾ This unit cannot record/copy NTSC signals to discs that

already have PAL signal recordings. Play of discs recorded with both PAL and NTSC on another unit is not guaranteed.

Cannot record from external equipment.

¾ Check that the connection and input channel is correct.

(> 15)

Troubleshooting

VQT3C77

Timer recording does not work properly.

¾ Refer to “Notes on timer recording”. (> 34)

A part or whole of a recorded title has been lost.

¾ If there is a power failure or the AC mains lead is

disconnected from the household mains socket while recording or editing, the title may be lost or the HDD/disc may become unusable.

We cannot offer any guarantee regarding lost programmes or discs.

An unusually loud sound is coming from the rotating disc.

¾ If you want copy to perform more quietly, select “Normal

( Silent )” in “DVD Speed for High Speed Copy”. (> 81)

Encrypted titles cannot be decrypted.

¾ Depending on the encrypted service, it may not be

possible to decrypt certain content.

You have forgotten your rating PIN. You want to cancel the rating level.

¾ Refer to “To reset the rating level settings”. (> 97)

Image for the Quick View is not smooth.

¾ Image may not be played back smoothly in case of DR,

HG, HX, HE, HL, HM mode titles or AVCHD format titles.

¾ This function does not work when recording is in XP or

FR mode.

Play

Cannot playback.

¾ The disc is dirty, scratched or marked. (> 9) ¾ You tried to play a +RW that needs to have a Top Menu

on the equipment used for recording.

¾ You cannot playback while executing the “Flexible

Recording via AV input”.

¾ The disc that is recorded by using other equipment and

not finalised may not be able to playback.

¾ When the icon is turned grey on the

DIRECT NAVIGATOR screen, the playable period has ended and the title is copy protected (Copying is prohibited). (> 13, 38)

¾ Depending on the encrypted service, it may not be

possible to play back certain titles if they have been recorded without being decrypted.

Audio and video momentarily pause.

¾ (DVD-R DL and +R DL only) When playing a title

recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal programme. However, video and audio may momentarily cut out when the unit is switching layers.

DVD-Video is not played.

¾ You have set a ratings level. (> 80, DVD-Video Parental

Control)

¾ Ensure the disc is for the correct DVD-Video region

number, and is not defective.

The resume play function does not work.

¾ Memorized positions are cancelled when

– open the disc tray. – [CD] [SD] [USB] turn off the unit. ([HDD] will not be cancelled)

Cannot play the disc on other players.

¾ [DVD-R] [DVD-RW] [+R] [+RW] The disc must be finalised or

have a Top Menu created after recording or copying (> 69).

¾ [DVD-R] The disc created in AVCHD format can only be

played back on AVCHD compatible equipment.

Edit

The available recording time doesn’t increase even after deleting titles on the disc.

¾ [DVD-R] [+R] Available space on the disc does not

increase even after deleting titles.

¾ [DVD-RW] [+RW] Available space on the disc increases

when you delete the last title.

Cannot edit.

¾ You may not be able to edit on the HDD if there is no

available space. Delete any unwanted titles to create empty space. (> 43)

Cannot create a playlist.

¾ Creation or editing of playlists cannot be done on this

unit.

Troubleshooting

VQT3C77

Troubleshooting guide


The contents of the SD card cannot be read.

¾ Remove the card from the slot and then insert again. If

this does not solve the problem, turn off and turn on the unit again.

Copying, deleting and setting protection takes a long time.

¾ When there are a lot of folders and files, it may

sometimes take a few hours.

Photos do not playback normally.

¾ The images that were edited on the PC, such as

PROGRESSIVE JPEG, etc., may not play back. (> 103)

Music

Tracks could not be copied to the HDD.

¾ If there are copyright protected tracks such as SCMS

restrictions, they will not be copied.

¾ Recording from CDs that do not conform to CD-DA

specifications (copy control CDs, etc.) cannot be guaranteed.

USB

TV Guide

The TV Guide System does not receive any data.

¾ If signal quality is bad (ghost images or limited

reception), the TV Guide system may not be able to receive any data.

The empty field is displayed for some or all channels.

¾ Some channels are not supported by the TV Guide

system.

The TV Guide information is not displayed properly.

¾ Set the clock correctly. (> 87) ¾ There was a programme change, or TV Guide

information from a broadcast station was possibly not correctly transmitted. Check the current programme, e.g. on the Web site for the TV Guide system provider or station provider.

The TV Guide data transfer was interrupted.

¾ The TV Guide system shows the data that was received

up to the interruption.

¾ The programme information may be incomplete.

This unit does not recognize the USB connection correctly.

¾ If inserted during playback the USB device may not be

recognized by this unit. Disconnect and reconnect the USB device. If it still does not recognize the connection, turn this unit off and on again.

¾ USB devices connected using a USB hub may not be

Troubleshooting

recognized by this unit.

The TV Guide data is not updated.

¾ You cannot download TV Guide data during recording in

the following cases. – “One cable” has been selected in “Easy Setting” or

“Auto Setup”. (> 20, 79)

– “Single Cable” has been selected in “Antenna System”

and one user band is disabled. (> 23, 80)

VQT3C77

Broadcast

Network

Digital broadcasts cannot be received.

¾ The dish may not be pointing in the direction of the

satellite. If problem persists consult your local TV aerial installer.

¾ To receive an encrypted broadcast, a CI module valid for

the broadcast is required.

¾ When you use only one terminal, you may not view

correctly if you connect the satellite cable to the LNB IN 2 terminal.

¾ When you use single cable router, additional settings are

required. (> 23)

Picture regularly breaks up on some channels.

¾ Adjust the aerial reception with “Manual Tuning”. (> 79)

Picture very infrequently breaks up on some or all channels.

¾ Electrical atmospheric interference caused by local or

distant lightning storms or heavy rain with wind in “leafy” locations may cause pictures to break up and audio to mute or distort momentarily.

¾ The receiver (LNB) of the satellite dish must be suitable

for digital reception.

You cannot access this unit from DLNA compatible equipment on the network.

¾ Check the network connection and the network settings.

(> 16, 21, 74, 75, 85)

¾ It may not be possible to connect depending on the types

of the equipment or the status of the equipment.

To reset this unit

To return all the settings to the factory preset

¾ Perform “Shipping Condition” or “Default Settings”.

(> 88)

To reset the rating level settings

¾ The rating level returns to the factory preset.

1 While the unit is on, press and hold [OK], the yellow

button and the blue button on the remote control at the same time for more than 5 seconds. – “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) on the remote control or

[Í/I] on the main unit until “03 VL” is displayed on the unit’s display.

3 Press [OK] on the remote control or

[< OPEN/CLOSE] on the main unit. – “INIT” is displayed on the unit’s display.

VIERA Link

VIERA Link doesn’t work.

¾ Some functions may not work depending on the version

of “HDAVI Control” of the connected equipment. This unit supports “HDAVI Control 5” functions.

¾ If the connection for the equipment connected with HDMI

was changed, or if there was a power failure or the plug was removed from the household mains socket, “HDAVI Control” may not work. In this case, change TV (VIERA) setting for “HDAVI Control” again.

Troubleshooting

VQT3C77

Unit care

Reference

This unit

VCR

DO NOT

∫ Indemnity concerning recorded content

Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component).

Cleaning

∫ This unit

≥Wipe with a soft, dry cloth. ≥Never use alcohol, paint thinner or benzine to clean this

unit.

≥Before using chemically treated cloth, carefully read the

instructions that came with the cloth.

∫ This unit’s lens

Use the Lens cleaner (not supplied) to clean the unit’s lens.

Lens cleaner: RP-CL720AE ≥This lens cleaner may not be available for sale in all

countries, e.g. not available in Germany, please consult your Panasonic dealer for advice.

Setup precautions

When moving the unit

Before moving the unit, ensure the disc tray is empty. 1 Turn the unit off. (Wait until “BYE” disappears from the

display.)

2 Remove the AC mains lead from the household mains

socket.

3 Move only after the unit has come to a complete stop

(approx. 3 minutes) in order to avoid subjecting to vibration and shock. (Even after turning the unit off, the HDD continues operating for a short time.)

HDD (Hard disk drive) handling care

The HDD is a high precision recording instrument and because of its long recording capability and high speed operation it is a very special device that is easily susceptible to damage.

As a basic rule, save important content to a disc as backup.

∫ The HDD is a device that is not built to

withstand vibration/shock or dust

Depending on the setup environment and handling of the HDD some content may become damaged and play and recording may no longer be possible. Especially during operation, do not subject the unit to any vibration, shock, or remove the AC mains lead from the household mains socket. In the event of a power failure during recording or play, the content may be damaged.

≥Place the unit on a surface that is flat and not subject

to vibration or impact.

≥Do not place on anything that

generates heat like a VCR, etc.

≥Place in an area where

condensation does not occur. Conditions where condensation may occur

– When there is an extreme

change in temperature (moving from a very hot location to a very cold location, or vice versa, or when subjected to an air conditioner or when cooled air directly impacts the unit).

Reference

– When there is high humidity or a lot of steam in the room. – During the rainy season.

In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone.

∫ Cigarette smoke etc. causes malfunction

or breakdown

The unit may breakdown if cigarette smoke or bug spray/vapour, etc. gets inside the unit.

∫ The HDD is a temporary storage device

The HDD is not an everlasting storage device for recorded content. Use the HDD as a temporary storage place for oneoff viewing, editing, or copying. It is recommended to save the recorded content on a disc or to keep the original data or CDs that they were copied from.

∫ Immediately save (backup) all content as

soon as you feel there may be a problem with the HDD

If there is an irregularity within the HDD, repetitive strange sounds or problems with picture (block noise, etc.) may result. Using the HDD in this condition may worsen the problem and in the worst case the HDD may no longer be usable. As soon as you notice this type of problem, copy all content to disc and request service. Recorded content (data) on a HDD that has become unusable is unrecoverable.

VQT3C77

Regarding DivX and MKV

ABOUT DIVX VIDEO-ON-DEMAND:

This DivX Certified

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

10 alphanumeric characters

DivX Registration screen before registration

ABOUT DIVX VIDEO:

DivX

is a digital video format created by DivX, Inc. This

is an official DivX Certified

device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

[DVD-R] [CD] [USB]

≥Video images of the copyright-protected DivX VOD

contents stored on USB device can be output only through the HDMI output terminal.

∫ Display the unit’s registration code.

1 Press [FUNCTION MENU]. 2 Select “Setup” in “Others”, then press [OK]. 3 Select “DivX Registration” in “Others”, then press [OK].

DivX Registration

You must register this unit to play protected DivX videos.

The registration code is necessary to register this unit.

Registration Code:

Please register at www.divx.com/vod/

Displaying subtitle text

You can display subtitle text on the DivX and MKV video disc on this unit. This function has no relation to the subtitles specified in DivX and MKV standard specifications and has no clear standard. The operation might be different or it may not operate properly depending on the way the file was made or the state of this unit (playing, stopped, etc.).

Display with “Subtitles” in the Disc menu (> 76).



≥ DivX and MKV video files that do not display “Text” do not contain

subtitle text.

≥ If the subtitle text is not displayed correctly, try changing the language

settings. (> 80, Subtitle Text)

≥ You may not display subtitle text depending on a file.

∫ Subtitles text file of DivX and MKV

≥Subtitles text that satisfy the following conditions can be

displayed on this unit. – File format: MicroDVD, SubRip, or TMPlayer – File extension (DivX):

“.SRT”, “.srt”, “.SUB”, “.sub”, “.TXT” or “.txt”

– File extension (MKV):

“.SRT”, “.srt”, “.SSA”, “.ssa”, “.ASS” or “.ass”

≥The DivX video file and subtitles text file are inside the

same folder, and the file names are the same except for the file extensions.

≥Depending on the methods used to create the file or the

state of the recording, only parts of the subtitles may be displayed, or the subtitles may not be displayed at all.

≥After playing DivX VOD content for the first time, the

registration code is not displayed.

≥If you purchase DivX VOD content using a registration

code different from this unit’s code, you will not be able to play this content.

To cancel the unit’s registration

Select “Yes” in “DivX Registration”. Use the deregistration code to cancel the registration in www.divx.com.

Regarding DivX VOD content that can only be played a set number of times

Some DivX VOD contents can only be played a set number of times. When you play this content, the number of times already played and initially playable number of times is displayed.

≥The remaining number of plays decreases each time a

programme is played. However, when playing from the point where play was previously stopped, the remaining number of plays does not decrease due to the resume play function.

Reference

VQT3C77

Operations that can be performed simultaneously

¾ To simultaneously record/play two programmes which need the same CI module for decryption (> 31)

Operations that can be performed while recording or copying a title

(≤: Possible, –: Impossible)

Playback of

HDD

While recording programme

While recording from external equipment

§1

≤

§1

≤

While copying in normal speed mode – – – – – While copying in high speed mode [With finalising or creating Top Menu

–––––

([+RW])] While copying in high speed mode [Without finalising or creating Top Menu

≤ ––––

([+RW])]

§1

Titles recorded in 1080/60p cannot playback.

§2

DivX and MKV video cannot playback.

§3

AVCHD format titles cannot playback.

≥Simultaneous operation is not possible while executing the “Flexible Recording via AV input”.

Starting the timer recording while executing other operation

Executing operation

Recording the title

§1

Playing the title

Editing the title ≤ Editing photo or music –

Copying a title in high speed mode [without finalising or creating Top Menu ([+RW])]

Copying a title in high speed mode [with finalising or creating Top Menu ([+RW])]

Reference

Copying a title in normal speed mode – Formatting –

Converting a title in “File Conversion” (Only when “Now” is selected)

Copying HD Video (AVCHD format) –

§1

The operation will terminate when simultaneous recording is being done and timer recording starts.

§2

Executing operation will be terminated.

Starting of the timer

recording

≤

–

Playback of

discs

§1, 2

≤

§1, 2, 3

≤

Playback of

SD Card

§1

≤

––≤

Executing operation

Executing “Flexible Recording via AV

§2

input”

Executing PAUSE LIVE TV/REWIND

§1

LIVE TV

Copying photos

Copying music

Finalising/Creating Top Menu


– ≤

(≤: Possible, –: Impossible)

Starting of the timer

Playback of

music

recorded on

HDD

recording

≤

–

100

VQT3C77

Panasonic DMR-XS400 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
