Operating Instructions

Blu-ray Disc™ Player / HDD Recorder

Model No. DMR-PWT635

DMR-PWT530

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

• This Blu-ray Disc Player / HDD Recorder is for viewing and recording free to view channels only. It does not receive pay TV or encrypted channels.

Region management information

BD-Video: This unit can play BD-Video discs

supporting the region code “B”.

e.g., e.g.,

Web Site: http://www.panasonic-europe.com

Model number suffix “EB” denotes UK model.

DVD-Video:

This unit can play DVD-Video discs supporting the region number “2” or “ALL”.

VQT4L30

Page 2

Safety precautions

WARNING

Unit

• To reduce the risk of fire, electric shock or product damage,

- Do not expose this unit to rain, moisture,

dripping or splashing.

- Do not place objects filled with liquids, such as

vases, on this unit.

- Use only the recommended accessories.

- Do not remove covers.

- Do not repair this unit by yourself. Refer

servicing to qualified service personnel.

- Do not let metal objects fall inside this unit.

- Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or product damage,

- Ensure that the power supply voltage

corresponds to the voltage printed on this unit.

- Insert the mains plug fully into the socket

outlet.

- Do not pull, bend, or place heavy items on the

lead.

- Do not handle the plug with wet hands.

- Hold onto the mains plug body when

disconnecting the plug.

- Do not use a damaged mains plug or socket

outlet.

• The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

• Keep the Memory Card out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Do not place sources of naked flames, such as lighted candles, on this unit.

• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

• This unit is intended for use in moderate climates.

Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or product damage,

- Do not install or place this unit in a bookcase,

built-in cabinet or in another confined space. Ensure this unit is well ventilated.

- Do not obstruct this unit’s ventilation openings

with newspapers, tablecloths, curtains, and similar items.

- Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

Batteries

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• Mishandling of batteries can cause electrolyte leakage and may cause a fire.

- Do not mix old and new batteries or different

types at the same time.

- Do not heat or expose to flame.

- Do not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with doors and windows closed.

- Do not take apart or short circuit.

- Do not recharge alkaline or manganese

batteries.

- Do not use batteries if the covering has been

peeled off.

- Remove batteries if you do not intend to use

the remote control for a long period of time. Store in a cool, dark place.

• When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

VQT4L30

Page 3

Caution for AC Mains

Fuse cover

Figure A Figure B

Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Fuse (5 ampere)

Supplied accessories

Please check and identify the supplied accessories.

(Product numbers are correct as of March 2013. These may be subject to change.)

Remote control:

[PWT635] (N2QAYB000762) [PWT530] (N2QAYB000763)

Batteries for remote control: 2 pcs. AC mains lead (K2CT2YY00098): 1pc. RF coaxial cable (K1TWACC00003): 1pc.

• Do not use AC mains lead with other equipment.

Indemnity concerning recorded content

Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component).

Restriction on use of unauthorized copied content

This unit adopts the following technology for copyright protection.

Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some

commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

To request additional

1pc.

VQT4L30

Page 4

Table of contents

Safety precautions . . . . . . . . . . . . . . . . . . . . . .2

Caution for AC Mains Lead. . . . . . . . . . . . . . . .3

Supplied accessories . . . . . . . . . . . . . . . . . . . .3

Getting started

HDD and media information . . . . . . . . . . . . . . .6

- Playable/Reco rdable contents. . . . . . . . . . . . . . . . .6

- Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Control reference guide . . . . . . . . . . . . . . . . .12

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .14

- Basic connect ions . . . . . . . . . . . . . . . . . . . . . . .14

- Amplifier/receiver c onnections . . . . . . . . . . . . . . .15

- Network conne ction . . . . . . . . . . . . . . . . . . . . . .17

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

- TV operation buttons . . . . . . . . . . . . . . . . . . . . .18

- Easy Setting . . . . . . . . . . . . . . . . . . . . . . . . . . .19

- Easy Network S etting . . . . . . . . . . . . . . . . . . . . .21

FUNCTION MENU screen . . . . . . . . . . . . . . .23

Watching broadcasts

Watching broadcasts . . . . . . . . . . . . . . . . . . .24

- Using Channe l List . . . . . . . . . . . . . . . . . . . . . . .24

- Using TV Guide system. . . . . . . . . . . . . . . . . . . .25

- Using channe l information . . . . . . . . . . . . . . . . . .25

- Operations wh ile watching broadcast . . . . . . . . . . .26

- REWIND LIVE TV /PAUSE LIVE TV . . . . . . . . . . . .27

Recording

Recording TV programmes. . . . . . . . . . . . . . .28

- Operation du ring Recording . . . . . . . . . . . . . . . . .29

Timer recording. . . . . . . . . . . . . . . . . . . . . . . .30

- Various functio ns with Freeview . . . . . . . . . . . . . .31

- Manually progra mming timer recording . . . . . . . . . .32

- Timer recording o ptions. . . . . . . . . . . . . . . . . . . .33

- Timer recording f rom channel information . . . . . . . .33

- Remote recordin g from outside . . . . . . . . . . . . . . .33

- Notes on timer recording . . . . . . . . . . . . . . . . . . .33

- To confirm and edit a timer programme . . . . . . . . . .34

Playing back video

Playing titles on the HDD . . . . . . . . . . . . . . . .35

- DIRECT NAVIGA TOR (VIDEO) screen . . . . . . . . . .35

Playing titles on the media . . . . . . . . . . . . . . .38

- Notes for BD-Liv e discs . . . . . . . . . . . . . . . . . . . .39

Operation during play . . . . . . . . . . . . . . . . . . .40

- General opera tions. . . . . . . . . . . . . . . . . . . . . . .40

- 3D video playb ack . . . . . . . . . . . . . . . . . . . . . . .42

Editing video

Deleting recorded titles . . . . . . . . . . . . . . . . . .43

Editing recorded titles . . . . . . . . . . . . . . . . . . .44

Copying video

Copying titles . . . . . . . . . . . . . . . . . . . . . . . . .47


Playing photos . . . . . . . . . . . . . . . . . . . . . . . .48

- DIRECT NAVI GATOR (PHOTO) screen . . . . . . . . . 48

- Photo pla y option. . . . . . . . . . . . . . . . . . . . . . . . 49

- Slideshow settings . . . . . . . . . . . . . . . . . . . . . . . 49

Editing photos . . . . . . . . . . . . . . . . . . . . . . . . .50

Copying photos. . . . . . . . . . . . . . . . . . . . . . . .51

- Selecting and copying the photos . . . . . . . . . . . . .51

- Copying a utomatically. . . . . . . . . . . . . . . . . . . . . 51

Music

Playing music . . . . . . . . . . . . . . . . . . . . . . . . . 52

- Copying mu sic (MP3) to HDD . . . . . . . . . . . . . . . . 52

- Playing mu sic recorded on HDD . . . . . . . . . . . . . . 53

- Operation s during music play . . . . . . . . . . . . . . . . 54

Editing music/playlist . . . . . . . . . . . . . . . . . . .55

With Other Equipment

Copying the HD Video or the SD Video . . . . .56

- Copying HD Video (AVCHD) . . . . . . . . . . . . . . . . 56

- Copying S D Video (MPEG2) . . . . . . . . . . . . . . . .57

Smart Home Networking (DLNA) . . . . . . . . . . 58

- Using this u nit as Server . . . . . . . . . . . . . . . . . . . 58

- Using this u nit as Client. . . . . . . . . . . . . . . . . . . .59

- Using this u nit as Media Renderer . . . . . . . . . . . . .60

Convenient functions

VIERA Connect (Enjoying Internet Service) . .61

- To enjoy v ideo communication (e.g., SkypeTM) . . . . .61

Format SD card . . . . . . . . . . . . . . . . . . . . . . .62

Registering the external HDD (USB HDD) . . .63

- Connectin g the USB HDD . . . . . . . . . . . . . . . . . . 63

- Disconnect ing the USB HDD . . . . . . . . . . . . . . . .63

- Registering the USB HDD . . . . . . . . . . . . . . . . . . 64

VIERA Link functions . . . . . . . . . . . . . . . . . . .65

Playback menu . . . . . . . . . . . . . . . . . . . . . . . .66

Changing the unit’s settings (Setup). . . . . . . .68

- Common pro cedures . . . . . . . . . . . . . . . . . . . . .68

- Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

- HDD / Disc / US B HDD . . . . . . . . . . . . . . . . . . . .72

-Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

- Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

- Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

- Connectio n . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

-Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

- Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

- Langua ge code list. . . . . . . . . . . . . . . . . . . . . . . 83

Software (Firmware) Update. . . . . . . . . . . . . .84

Other operations . . . . . . . . . . . . . . . . . . . . . . .85

VQT4L30

Page 5

- Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . 85

- Switching the aspect ratio of the screen . . . . . . . . . 85

- HOLD function . . . . . . . . . . . . . . . . . . . . . . . . . 85

Troubleshooting

Troubleshooting guide. . . . . . . . . . . . . . . . . . 86

- General operation . . . . . . . . . . . . . . . . . . . . . . . 86

- Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

- TV screen and video . . . . . . . . . . . . . . . . . . . . . 87

- Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

- Recording, timer recording and copying . . . . . . . . . 89

-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

-Edit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

- Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

-USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

-TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

- Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

- VIERA Link . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

-Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

- Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

- Messages on the un it’s display . . . . . . . . . . . . . . 93

- When you experience problems with

Easy Network Setting

. . . . . . . . . . . . . . . . . . . . 94

Reference

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 96

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

About descriptions in these operating instructions

• These operating instructions are applicable to mo dels DMR-PWT635 and DMR-PWT530. The illustrations in these Operating Instructions show images of DMRPWT635 unless otherwise indicated.

• [PWT635] :indicates features applicable to

DMR-PWT635 only.

• [PWT530] :indicates features applicable to

DMR-PWT530 only.

• Pages to be referred to are indicated as “> ±±”.

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video


Music

With Other Equipment

Convenient functions

Troubleshooting

Reference

VQT4L30

Page 6

Getting started

HDD and media information

For more details, refer also to the specifications. (> 96)

Playable/Recordable contents

Media type Standard symbol Playable contents

• Video

Built-in hard disk drive

(HDD)

External HDD

(> 9)

BD-Video

[HDD]

[USB_HDD]

• AVCHD/AVCHD 3D

•JPEG

• MPO (3D photo)

•MP3

§1

• Video

• AVCHD/AVCHD 3D

• SD Video (MPEG2)

•MP4

• Xvid

•JPEG

• MPO (3D photo)

•MP3

• Video

§2, 3

§4

•MPEG2

•MKV

(–: Impossible)

Recordable

contents

–

BD-RE

BD-R

DVD-Video

DVD-R

DVD-R DL

[BD-V]

–

• Video

[BD-RE]

• AVCHD/AVCHD 3D

•JPEG

–

• MPO (3D photo)

• Video

[BD-R]

• AVCHD/AVCHD 3D

• Xvid

§2

–

•MKV

§5

[DVD-V]

[DVD-R]

• Video

• Xvid

•JPEG

• MPO (3D photo)

• AVCHD

•MKV

–

§3

–

•MP3

VQT4L30

Page 7

Media type Standard symbol Playable contents

DVD-RW

[DVD-RW]

• Video

•AVCHD

§2

Getting started

(–: Impossible)

Recordable

contents

–

+R/+R DL [+R]

+RW [+RW]

Audio CD (CD-DA)

(including CD-R/RW)

• Video

•AVCHD

• Video

•AVCHD

•Music

[CD]

• Xvid • MKV

•JPEG

• MPO (3D photo)

§2

•MP3

SD Cards

• AVCHD/AVCHD 3D

• SD Video (MPEG2)

[SD]

•MP4 •JPEG

§2

§4

•JPEG

• MPO (3D photo)

§2, 3

§4

•MPEG2

•MKV

USB memory [USB]

• AVCHD/AVCHD 3D

• SD Video (MPEG2)

•MP4

• Xvid

•JPEG

• MPO (3D photo)

•MP3

Playable contents as DLNA client

Refer to “Playable contents”. (> 59)

§1

It cannot be recorded directly. (Only compatible with copying from the built-in HDD)

§2

Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be able to play back depending on the device.

§3

It cannot be played back directly from the USB HDD or USB memory. Playback is possible by copying to the built-in HDD. (> 56)

§4

Recorded with SD-Video format compatible devices (Panasonic video camera, etc.). It can be played back only after copying to the HDD. (> 57)

§5

Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.

–

• The producer of the disc can control how d iscs are played. So you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

• With certain recording states and folder structures, the play order may differ or playback may not be possible.

VQT4L30

Page 8

Getting started

HDD and media information

About extension of files

MP4: “.MP4” “.mp4” “.MOV” “.mov” MPEG2: “.MPG” “.mpg” “.MPEG” “.mpeg” “.M2TS” “.m2ts”

Xvid: “.AVI” “.avi”

Subtitle text files: “.SRT” “.srt” “.SUB” “.sub” “.TXT” “.txt”

MKV: “.MKV” “.mkv”

Subtitle text files: “.SRT” “.srt” “.SSA” “.ssa” “.ASS” “.ass”

JPEG: “.JPG” “.jpg” MPO: “.MPO” “.mpo” MP3: “.MP3” “.mp3”

• The video file and subtitle text files are inside th e same folder, and the file names are the same except for the file extensions.

• Some files may not be played back even if they have these extensions.

“.MTS” “.mts” “.TS” “.ts”

“.SUB” “.sub” “.TXT” “.txt”

VQT4L30

Page 9

Getting started

Notes

Notes for an External HDD (USB HDD)

You can use an external HDD in the following two ways. (A single HDD cannot handle those two ways simultaneously.)

• For recorded titles

Moving titles in the built-in HDD to a USB HDD to save the capacity of the built-in HDD.

• The USB HDD must first be registered on this unit. (> 63)

• For data files

Playing back MP4, JPEG, MP3, etc. (data files) in a USB HDD with this unit.

• The USB HDD must be formatted in FAT12, FAT16, FAT32 and NTFS file system.

• The USB HDD over 2 TB is not usable.

• This unit supports USB 2.0 High Speed.

• Although this unit can use USB 3.0 dev ices as USB 2.0 devices, in certain cases USB 3.0 devices cannot be used due to differing connector shape, larger current ratings, etc. (Use of USB 2.0 devices is recommended.)

• This unit does not recognize USB HDDs other than those in which the size of one sector is 512-bytes. (For details, consult the dealer of your USB HDD.)

• This unit does not guarantee connectio n with all USB devices.

Notes for the disc

• Disc recorded on a recorder, PC, etc.

• It may be necessary to finalize the disc, create Top Menu or close the session on the equipment

used for recording to play on this unit.

• Discs that cannot be played

- DVD-RAM that cannot be removed from their cartridges

- DVD-RAM - DVD-Audio

-HD DVD

- CD-ROM, Photo CD, PD, etc.

- Super Video CD, Super Audio CD, Video CD

• Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

VQT4L30

Page 10

Getting started

DO NOT

DO DO NOT

DO NOT

HDD and media information

Notes for the SD cards

• Compatible SD card

- SD Memory Card

(from 8 MB to 2 GB, FAT12 and FAT16 formats)

- SDHC Memory Card

(from 4 GB to 32 GB, FAT32 format)

- SDXC Memory Card

(48 GB, 64 GB, exFAT format)

• Using miniSD card or microSD card

Mini-type and micro-type cards can also be used, but must be used with adaptor cards (optional).

To format an SD card

Refer to “Format SD card”. (> 62)

• Usable memory is slightly less than the card capacity.

• If the SD card is formatted on other equip ment, the time necessary for recording may be longer or the card may not be able to be used on this unit. In these cases, format the card on this unit.

• SDHC Memory Cards and SDXC Memory Cards can b e used in equipment that is compatible with the appropriate cards. (SDHC Memory Cards can also be used in equipment compatible with SDXC Memory Cards)

Notes for the USB memories

USB memories support FAT12, FAT16, FAT32 and NTFS file systems.

Media handling

• Do not touch the recorded surface of the discs or the terminal surface of the SD cards.

• If there is dirt or condensation on the disc, wipe with a damp cloth and then wipe dry.

• Do not attach labels or stickers to discs.

• Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

• Do not use ballpoint pens or other hard writing implements, when writing on the label side of the disc.

• Do not drop, stack, or impact discs.

• Do not place objects on discs.

• Do not use the following discs:

- Discs with exposed adhesive from removed

stickers or labels (rental discs, etc.).

- Discs that are badly warped or cracked.

- Irregularly shaped discs.

• The USB memory over 2 TB is not usable.

• This unit supports USB 2.0 High Speed.

• This unit does not guarantee connectio n with all USB devices.

VQT4L30

• Do not expose the terminals of the SD card to water, garbage or other strange things.

• Do not place in the following areas:

- In hot places, such as under the direct

sunlight.

- In very dusty or humid areas.

- Locations susceptible to significant difference

in temperature (condensation can occur).

- Where static electricity or electromagnetic

waves occur.

Page 11

Unit care

Getting started

HDD/USB HDD handling care

• The HDD is a high precision device

The HDD is a high precision recording instrument and is easily susceptible to damage. Therefore, be careful of the following points while the unit is turned on, especially during operation, otherwise the HDD and the recorded content may be damaged:

- Do not subject the unit to any vibration and shock.

- Do not remove the AC mains lead from the household mains socket.

This unit cannot save (backup) the HDD titles to media. You have to be very careful when handling the unit and editing the title.

• If the HDD or USB HDD is damaged, the recorded content cannot be recovered.

Setup precautions

• Place the unit on a surface that is flat and not subject to vibration or impact.

• Do not place on anything that generates heat like a Set Top Box, etc.

• Place in an area where condensation does not occur. Conditions where condensation may occur

- When there is an extreme change in

temperature (e.g., when subjected to an air conditioner or when cooled air directly impacts the unit).

- When there is high humidity or a lot of steam

in the room.

In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone.

• The unit may breakdown if cigarette smoke or bug spray/vapour, etc. gets inside the unit.

When moving the unit

Before moving the unit, ensure the disc tray is empty. 1 Switch the unit to standby mode. (Wait until

“BYE” disappears from the display.)

2 Remove the AC mains lead from the

household mains socket.

3 Move only after the unit has come to a

complete stop (approx. 3 minutes) in order to avoid subjecting to vibration and shock. (Even after the unit is switched to standby mode, the HDD continues operating for a short time.)

Cleaning

• This unit

- Wipe with a soft, dry cloth.

- Never use alcohol, paint thinner or benzine to clean this unit.

- Before using chemically treated cloth, carefully read the instructions that came with the cloth.

• This unit’s lens

Use the Lens cleaner (optional) to clean the unit’s lens.

Lens cleaner: RP-CL720AE

• This lens cleaner may not be available for sale in all countries, e.g. not available in Germany, please consult your Panasonic dealer for advice.

When requesting this unit for repair

The registration of the USB HDD may be cancelled in the process of repairing this unit. You can use the USB HDD again by re-registering, but all recorded content already on the USB HDD will be lost. In such cases, the recorded content (data) cannot be recovered.

To dispose or transfer this unit

This unit may contain private information. Before disposing of or transferring this unit, perform the following to delete the data, including personal or secret information:

- Format HDD (> 68, 73)

- Perform “Shipping Condition” (> 68, 82)

VQT4L30

Page 12

Getting started

STATUS

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

RADIO/

INPUT



DRIVE SELECT



EXIT

OPTION

VOL

abc

jkl

tuv

ghi

qrs

def

mno

xyz

DEL

PROG/CHECK

TIME SLIP

NETFLIX

-10s +60s

SETUP

REC TEXT STTL

CHAPTER

MANUAL SKIP

REWIND LIVE TV

INTERNET

LAST VIEW

BACK/

RETURN

 

 

















 



















  

  



 

PWT635

R6/LR6, AA

(Alkaline or manganese batteries)

Control reference guide

Instructions for operations are generally described using the remote control.

Remote control

9 Show DIRECT NAVIGATOR, Top Menu,

Pop-up Menu (> 35)

: Show OPTION menu (> 44, 50, 55) ; Colour buttons (Use in accordance with

instruction on the screen.)

< Start recording (> 28) = Listen to Audio Description (> 26, 41) > Show the Timer Recording screen (> 32) ? Create chapter (> 41) @ Show Setup menu (> 68) A Skip the specified time (> 41) B TV operation buttons (> 18) C Channel select (> 24)/Change pages in the

DIRECT NAVIGATOR screen etc.

D Show the VIERA Connect screen (> 61) E Switching to the radio channel list (> 24) F [PWT635] Start up a video communication

1 Transmit the remote control signal

• Point it at remote control signal sensor on this unit. (> 13)

2 Switch the unit from on to standby mode or

vice versa

3 Select drive (HDD, BD, SD or USB) 4 Select channels and title numbers, etc./Enter

numbers or characters

5 Switch to the previously watched channel

(> 24)

6 Basic operations for recording and play,

REWIND LIVE TV/PAUSE LIVE TV (> 27)

7 Show Information (> 25, 36, 40) 8 Selection/OK, Frame-by-frame (> 40)

VQT4L30

(> 61)

G Exit the menu screen H Show the TV Guide screen (> 25) I Show the FUNCTION MENU screen (> 23) J Ret K Show subtitles (> 26, 41) L Show Digital teletext (> 26) M Show NETFLIX screen (> 61) N To delete unwanted recorded titles, timer

programmes, photos or music (> 43)

O Skip approx. 1 minute forward (> 41) P Skip approx. 10 seconds backward (> 41)

Insert batteries

Insert so the poles (i and j) match those in the remote control.

urn to previous screen

Page 13

Main unit



Pull to flip down the front panel.





SD card

USB memory

Disc

  



[PWT635]

Display

1 Standby/on switch (Í/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2 Open/close disc tray

Getting started

6 Recording indicator

• The indicator will light up while recording.

• The indicator will blink while recording is paused and before recording starts.

7 Remote control signal sensor

• Angle: Approx. 20° up and down, 30° left and right

• Distance: Within approx. 7 m in front of the unit

8 St op 9 Start play

: [PWT635] CALL LED

• The LED will light up when this unit receives incoming call etc. of the video communication. (> 61)

Display

12 5 7643

3 Disc tray 4 USB port 5 SD card slot

HDD SD

COPY

• When removing the SD card, press on the centre of the card and pull it straight out.

1 Drive (HDD, BD or SD) indicator 2 Disc indicator

• While writing to/reading from the media, do not switch the unit to standby mode or remove the media. Such action may result in loss of the media contents.

• When inserting the media, ensure that it is facing the right way up.

3 Copying indicator 4 USB port indicator 5 SD card slot indicator 6 Remote control signal indicator 7 Timer recording indicator

• This indicator lights up when the timer recording standby is activated.

8 Main display section indicator

- Current time

- Playback counter

- Various messages (> 93)

9 Playback indicator

SDUSB

PLAY

VQT4L30

Page 14

Getting started

HDMI

VHF/UHF

RF IN

This unit’s rear panel

Household mains socket (AC 220 to 240 V, 50 Hz)

Cooling fan

AC mains lead (supplied)

• Connect only after all other connections are complete.

HDMI cable

To the aerial

Aerial cable

RF coaxial cable (supplied)

TV’s rear panel

Connection

Basic connections

3D programmes can be played back when this unit is connected to a 3D compatible TV.

• Before connection, turn off all equipment and read the appropriate operating instructions.

To connect and register the USB HDD (optional)

Refer to “Registering the external HDD (USB HDD)”. (> 63)

[PWT635] To connect the Communication Camera (optional)

Refer to “VIERA Connect (Enjoying Internet Service)”. (> 61)

[PWT530] To connect the Wireless LAN Adaptor (optional)

Refer to “Network connection”. (> 17)

About HDMI cable

Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI Cables 5.0 meters or less.

VQT4L30

Page 15

Getting started

HDMI

HDMI INHDMI OUT

HDMI cable

Amplifier/

receiver

HDMI cable

(ARC compatible)

3D programmes can be played back when this unit is connected to a 3D compatible amplifier/receiver and a 3D compatible TV.

• You will not be able to view 3D programmes with this connection if your amplifier/receiver is not 3D compatible.

When the unit is not to be used for a long time

To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when the unit is in standby mode.

[approx. 0.2 W (“Quick Start” is not activated and “RF OUT ( Aerial Signal )” is set to “Off”)]

• This unit cannot connect the TV that does not have the HDMI terminal.

• Keep the RF coaxial cables as far away as possible from other cables.

• Do not roll up the RF coaxial cables.

• The HDMI connection supports VIERA Link “HDAVI Control” (> 65).

• You cannot connect this unit to DVI devices that are incompatible with HDCP. Depending on the device, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)

• If you are connecting to a TV that is on ly compatible with 2 channel audio output, audio with 3 channels or more will be down mixed and output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)

Amplifier/receiver connections

HDMI terminal

• VIERA Link function is possible by conn ecting to a TV or amplifier/receiver compatible with VIERA Link.

• When using a TV or an amplifier/receiver t hat does not display “ARC compatible” on the HDMI terminal, it is necessary to connect the TV and the amplifier/receiver with a digital audio cable to enjoy the TV audio on the amplifier/receiver.

VQT4L30

Page 16

Getting started

HDMI IN

HDMI

HDMI cable

Amplifier/receiver

HDMI cable

(ARC compatible)

3D programmes can be played back when this unit is connected to a 3D compatible TV.

• This connection only supports up to 5.1ch.

OPTICAL IN

Amplifier/receiver

Optical digital

audio cable

AUDIO IN

Audio cable

Amplifier/receiver

Connection

∫ Amplifier/receiver not compatible with 3D

DIGITAL AUDIO OUT terminal

• When you do not want the audio to be output from the TV, set “HDMI Audio Output” to “Off” (> 68, 77).

AUDIO OUT terminal

• Connect to terminals of the same colour.

• VIERA Link function is possible by connect ing to a TV or amplifier/receiver compatible with VIERA Link.

• When using a TV or an amplifier/receiver that does not display “ARC compatible” on the HDMI terminal, it is necessary to connect the TV and the amplifier/receiver with a digital audio cable to enjoy the TV audio on the amplifier/receiver.

VQT4L30

Page 17

Getting started

Broadband router, etc.

Internet

LAN (ethernet) cable

Internet

Wireless router, etc.

[PWT530]

Wireless LAN Adaptor

Network connection

When this unit is connected to the network, you can enjoy network functions (DLNA function, VIERA Connect, Remote Recording, etc.).

For details about connection method, refer to the instructions supplied with the connected equipment.

After you make the LAN cable/Wireless LAN connection, the network setting is needed. (> 21, Easy Network Setting)

∫ Precautions of Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

• Data transmitted and received over radio waves may be intercepted and monitored.

• This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

- Do not expose this unit to high temperatures

or direct sunlight.

- Do not bend, or subject this unit to strong

impacts.

- Keep this unit away from moisture.

- Do not disassemble or alter this unit in any

way.

LAN cable connection

• Use category 5 or above straight LAN c ables (STP) when connecting to peripheral devices.

• Inserting any cable other than a LA N cable in the LAN terminal can damage the unit.

Wireless LAN connection

• [PWT635] Wireless LAN is built in. (There is no need to connect a Wireless LAN Adaptor.)

• [PWT530] Connect the Wireless LAN Adaptor DY-WL5 (optional).

• [PWT530] Only the Wireless LAN Adaptor DY-WL5 (optional) can be used. Read the operating instructions for DY-WL5 thoroughly when using it. Connect/disconnect DY-WL5 when the unit is in standby mode and not using the network functions, such as downloading a programme, etc.

• For up-to-date compatibility information on your Wireless router refer to http://panasonic.jp/support/global/cs/ (This site is in English only.)

• The unit is not compatible with public wireless LAN services.

VQT4L30

Page 18

Getting started

STATUS

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

RADIO/

INPUT



DRIVE SELECT



EXIT

OPTION

VOL

abc

jkl

tuv

ghi

qrs

def

mno

xyz

DEL

PROG/CHECK

TIME SLIP

NETFLIX

-10s +60s

SETUP

REC TEXT STTL

CHAPTER

MANUAL SKIP

REWIND LIVE TV

INTERNET

LAST VIEW

BACK/

RETURN

TV operation buttons (> right)

Select and enter buttons

To return to the previous screen

To exit the screen

FUNCTION MENU (> 23)

Setup (> 68)

Settings

VQT4L30

TV operation buttons

The TV can be operated from the TV operation buttons of the remote control.

• Perform the setting if you cannot operate the TV with the TV operation buttons.

While pressing [TV Í], enter the code with the number buttons.

Manufacturer and Code No.

Brand Code Brand Code

Panasonic 01/02/03/04 AIWA 35 AKAI 27/30 BEKO 05/71/72/73/74 BENQ 58/59 BRANDT 10/15 BUSH 05 CENTREX 66 CURTIS 05 DAEWOO 64/65 DESMET 05 DUAL 05 ELEMIS 05 FERGUSON 10/34 FINLUX 61 FISHER 21 FUJITSU 53 FUNAI 63/67 GOLDSTAR 05/50/51 GOODMANS 05 GRADIENTE 36 GRUNDIG 09 HITACHI 05/22/23/40/41 IRRADIO 30 ITT

25 JVC 17/30/39/70 KDS 52 KOLIN 45 KONKA 62

05/50/51 MAG 52 METZ 05/28/79 MITSUBISHI 05/19/20/47

MIVAR 24

• If the brand of your TV is not listed or the code number is invalid for the TV, this remote control is not compatible with your TV.

• If your TV brand has more than one code listed, select the one that allows correct operation.

NEC 36 NOBLEX 33 NOKIA 25/26/27/60/61 NORDMENDE 10 OLEVIA 45 ONWA 30/39/70 ORION 05 PEONY 49/69 PHILCO 41/48/64 PHILIPS 05/06/46 PHONOLA 05 PIONEER 37/38 PROVIEW 52 PYE 05 RADIOLA 05 SABA 10 SALORA 26

32/42/43/65/68SAMSUNG SANSUI 05 SANYO 21/54/55/56 SCHNEIDER 05/29/30 SEG

05/69/75/76/77/78 SELECO 05/25 SHARP 18 SIEMENS 09 SINUDYNE 05 SONY 08

31/33/66/67/69TCL TELEFUNKEN 10/11/12/13/14 TEVION 52 THOMSON 10/15/44 TOSHIBA 16/57 WHITE

WESTINGHOUSE

YAMAHA 18/41

Page 19

Getting started

Progress

DVB Auto Setup

CH 21 68

Free TV: 2 Pay TV: 0 Data: 0Radio: 0

Searching

Actual number of channels may differ due to channel duplication.

Quality

Type

Channel Name

RETURN

This will take about 3 minutes.

10 10

Free TV

Owner ID

Please enter new PIN

PIN entry

You now have the opportunity to enter your

details and help the police to crack crime.

See Instruction Book.

* * * *

RETURN

Owner ID-Data Entry

NAME

HOUSE NO

POSTCODE

PIN 0000

RETURN

Change PIN

Select

Number

PIN Entry

Enter a new 4-digit PIN, then press OK. This PIN will be used for controlling viewing and playback. PIN will be set to “0000” by pressing “RETURN” when there is no number input.

- - -

RETURN

Easy Setting

1 Turn on the TV, then select the appropriate

AV input to suit the connections to this unit.

2 Press [Í] on the remote control or [Í/I] on

this unit.

• The Easy Setting will start at the initial power on.

Auto Setup starts. (This operation may take some time.) e.g.,

After tuning has been completed, clock will be set automatically.

• If the region selection screen appears, select repeatedly until you reach the available region.

• If the clock setting screen appears, set the time manually (> 81, Clock).

3 Enter the PIN.

This PIN will be used only for the Owner ID-Data Entry screen.

4 Set the Owner ID-Data Entry (“NAME”,

“HOUSE NO” and “POSTCODE”).

e.g.,

1 Select the item, then press [OK]. 2 Select the character, then press [OK].

Repeat this step.

3 Press [BACK/RETURN ]. 4 Repeat steps 1-3 to enter all data. 5 Press [BACK/RETURN ] to exit from

the Owner ID-Data Entry screen.

5 Enter the new PIN for parental control.

• The default PIN is “0000”.

1 Enter the new 4-digit PIN with the number

buttons.

• Make a note of the PIN you have decided on in case you forget it.

2 Press [OK].

1 Press the number buttons to enter 4-digit

PIN.

2 Repeat step 1 to confirm.

• Make a note of PIN in case you forget it. The PIN number cannot be reset.

• Steps 3 – 5 will be skipped in the Easy Setting after “Shipping Condition” (> 82) is performed. (> go to step 6 on page 20)

VQT4L30

Page 20

Getting started

Quick Start

On Off

Timer Setting for Quick Start 6:00 23:00

Settings

6 Set “Quick Start” to “On”, “Off” or “Timer

Setting for Quick Start”, then press [OK].

•On

It is possible to start quickly from standby mode.

•Off

Power consumption in standby mode is minimized. (> 96)

However, startup time from standby mode will be longer.

• Timer Setting for Quick Start

“Quick Start” is activated when the set time comes. (If the clock has not been set, this function is not activated at all hours.)

When “Easy Setting has been completed.” appears, Easy Setting is complete.

• Select “Yes” to proceed to “Easy Network Setting”. (> 21)

• Select “No” to finish the Easy Setting.

To stop partway

Press [BACK/RETURN ].

To restart setup

1 Press [SETUP]. (> 18) 2 Select “Auto Setup” in “Tuning”, then press

[OK].

3 Select “Yes”, then press [OK].

To display the Owner ID information on TV

1 While the unit is on, press and hold [OK], the

yellow button and the blue button on the remote control at the same time for more than 5 seconds.

- “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) on the remote

control until “01 OID” is displayed on the unit’s display.

3 Press [OK] on the remote control.

The PIN is not displayed.

To confirm that channels have been tuned correctly

Refer to “Using Channel List”. (> 24)

To change PIN for parental control

Refer to “PIN Entry”. (> 81)

To change the region for Channel Sorting

Refer to “Channel Sorting by Region”. (> 71)

VQT4L30

• If tuning is cancelled partway through, it may not be possible to receive the channels. Restart setup again.

Page 21

Getting started

RETURN

Easy Network Setting

Settings and tests for connection required for home network and the Internet will be conducted. First, please select a connection mode.

LAN cable connection: Connect a LAN cable to the unit and select “Wired”.

Wireless LAN connection: Select “Wireless”.

Current setting : Wired

Wired Wireless

e.g.,

Easy Network Setting

After completing “Easy Setting”, you can continue with “Easy Network Setting”.

1 Select “Wired” or “Wireless”, then press

[OK].

[PWT635]

2 Follow the on-screen instructions and make

the following confirmation and settings.

“Wired” connection:

- Home Network Connection Check

- Home Network function

- Remote Recording function

- Internet Connection Test

“Wireless” connection:

• Before beginning wireless connection setup obtain your Network name (SSID). An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices.

• [PWT530] If “Wireless LAN Adaptor is not

connected.” is displayed, check that the Wireless LAN Adaptor is fully inserted. Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice.

- Wireless Settings

- Home Network Connection Check

- Home Network function

- Remote Recording function

- Internet Connection Test

Connection method to wireless access point

Search for wireless network: 1 Select “Search for wireless network”, then

press [OK].

2 The available wireless networks will be

displayed. Select your network name and press [OK].

- If your Network name is not displayed search again by pressing the red button on the remote control.

- Stealth SSID will not be displayed. Enter manually by using “Wireless Settings”. (> 68, 78)

• If your wireless network is encrypted, Encryption Key Input Screen will be displayed. Input the encryption key of your network.

WPS (PUSH button):

If your Wireless router supports WPS (PUSH button), you can easily perform the settings by pressing WPS button on it. WPS (Wi-Fi Protected Setup™) is a standard that facilitates settings relating to the connection and security of wireless LAN devices.

1 Select “WPS (PUSH button)”, then press [OK]. 2 Press WPS button or corresponding button of

Wireless router until the lamp starts flashing.

• Wi-Fi Protected Setup™-compatible Wireless router may have the mark.

• For details, refer to the operating instruction of Wireless router.

3 Press [OK].

3 When “Easy Network Setting is finished.”

appears. Press [OK].

VQT4L30

Page 22

Getting started

Settings

When you experience problems

Refer to “When you experience problems with Easy Network Setting”. (> 94)

To restart Easy Network Setting

1 Press [SETUP]. (> 18) 2 Select “Easy Network Setting” in “Network”,

then press [OK].

To redo settings individually

If “Easy Network Setting” did not work properly or when you change the settings individually, perform the following steps: 1 Press [SETUP]. (> 18) 2 Select “Network Settings” in “Network”, then

press [OK].

3 Refer to “Network Settings”. (> 78)

Check security before using Home Network function

If you set “Home Network function” to “On”, all connected devices on the same network can access this unit. Ensure that the router for your home network has adequate security system to prevent unauthorized access.

• Refer to the operating instructions of t he hub or router.

• If you set “Home Network function” or “ Remote Recording function” to “On”, the setting for “Quick Start” is fixed to “On”.

• Do not use this unit to connect to a ny wireless network for which you do not have usage rights. During automatic searches in a wireless network environment, wireless networks (SSID) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.

• After performing network settings on this unit, the settings (encryption level, etc.) of the Wireless router might change. When you have trouble getting online on your PC, perform the network settings on your PC in accordance with the settings of Wireless router.

• Please be aware that connecting to a network without encryption may result in the content of the communication being illegitimately viewed by a third party, or the leaking of data such as personal or secret information.

VQT4L30

Page 23

FUNCTION MENU screen

FUNCTION MENU

Drive Select

RETURN

Timer Recording

Others

Disc / SD Card / USB / USB HDD

Network

Playback Contents

TV Guide

HDD

Timer Recording

Playback Contents

TV Guide

Video


Music

BACK/

RETURN

Press

e.g.,

You can easily access the desired functions, such as playback, timer recording, the unit’s settings etc. via the FUNCTION MENU.

1 Press [FUNCTION MENU].

2 Select the item, then press [OK]

Getting started

FUNCTION MENU list

FUNCTION MENU

Playback Contents

Video (> 35) Video (AVCHD) (> 39) Video (MP4) (> 38) Photo (> 48) Music (> 52) Top Menu (> 38)

Menu (> 38) TV Guide (> 25) Timer Recording (> 32) Network

Home Network ( DLNA Client ) (> 59)

Home Network ( Media Renderer ) (> 60)

Network Service (> 61)

Remote Recording (> 33) Others

Playlists (> 38)

Copy Video ( AVCHD ) (> 56)

Copy Video ( MPEG2 ) (> 57)

Copy New Photos (> 51)

SD Card Management (> 62)

BD-Video Data Management (> 39)

Setup (> 68)

• You can change the unit’s settings of Tuning, Sound, Display, Connection, Network etc. in the Setup menu.

Drive Select

HDD Blu-ray Disc / DVD SD Card USB Device USB HDD

• Selectable items will change depending on the type and status of the media.

VQT4L30

Page 24

Watching broadcasts

Watch ing broadcasts

Channel names Encrypted channel

Watching broadcasts

Instructions for operations are generally described using the remote control. (> 12)

Press [CH WX] to select the channel.

• You can also select the channel by the following operations.

- Using number buttons

- Using Channel List (> right)

- Using TV Guide system (> 25)

- Using channel information (> 25)

To switch to the channel you have previously watched

Press [LAST VIEW ].

• This function will work only for the channels you have watched for more than 10 seconds.

To switch to the radio channels or to the all channels

Press [RADIO/TV].

• When you are watching the 3D programme, subtitles and TV Guide, etc., may not display correctly depending on the settings. (> 42, 3D Type, Signal Format)

About the PIN for parental control

If you have locked channels (> 72, Child Lock List), you may be asked to enter the PIN. In that case, enter the 4-digit PIN with the number buttons by following the on-screen instructions.

• PIN can be changed via “PIN Entry”. (> 81)

Using Channel List

You can select from the list of channel names.

1 Press [OK].

All DVB Channels

1 2 3 4 5 6 7

Select

View

RETURN

Page up

Page down

2 Select the channel, then press [OK].

To edit the channel list

Refer to “Channel List”. (> 70)

• Encrypted channels cannot be watch ed.

VQT4L30

Page 25

Watching broadcasts

10:30

Now

ADMPEG

Change category

All DVB Channels

9:00 - 11:00

Set timer









STTL TEXT Multi Audio

e.g.,

Using TV Guide system

1 Press [GUIDE].

TV Guide screen appears.

TUE 01/01/2013 8:05

8:00 - 9:45

TUE 01/01

8:00 8:30 9:00 9:30 10:00 10:30

RETURN

Information

Category: All DVB Channels

Category+24 hoursTimer Rec.

2 Select the programme, then press [OK]. 3 Select “View”, then press [OK].

Page up/down

Press [CH WX].

To view a programme list for another day

Press the green button (Previous) or the yellow button (Next).

To see programme information

Press [STATUS ].

To retrieve the programme data for the area where data have not been acquired

Select the area, then press [STATUS ].

• Some broadcasters may not send the programme data. You cannot retrieve the data from them.

To set a timer Recording using the TV Guide System

Refer to “Timer recording”. (> 30)

• Selection of channel is made easy by crea ting a Favourite of the channels you watch often. (> 70, Favourites Edit)

• If you make access to Rovi Guide via VIERA Connect, you can use an additional TV Guide which can search programmes by keywords and can display the detailed information, etc. (current as of March, 2013). (> 61)

Page Up

Page Down

Using channel information

While watching a programme Press [STATUS ].

HDD

Remain 71:20

9:00 - 11:00

Now

Set timer

MPEG STTL TEXT

Channel information appears.

1 Set timer (> 33) 2 Current Category 3 Programme with Guidance information for

parental control (> 73, Child Lock)

4 Audio Description 5 Subtitle 6 Digital teletext 7 Multiple audio

To show detailed information

Press [STATUS ] again.

To hide the information screen

Press [EXIT ].

To change Category

Press the blue button.

• To register your favourite channels

1 Press [OPTION]. 2 Select “Digital TV Menu”, then press [OK]. 3 Select “Favourites Edit”, then press [OK]. 4 Refer to “Favourites Edit”. (> 70)

To switch between the current programme and the next programme

Press [2, 1].

To switch to another channel

Press [3, 4], then press [OK].

All DVB Channels

Change category

10:30

VQT4L30

Page 26

Watching broadcasts

Operations while watching broadcast

To show subtitle

When “STTL” appears in channel information (> 25)

Press [STTL ].

• Press again to hide subtitle.

Switching audio

When “Multi Audio” appears in channel information (> 25)

1 Press [OPTION]. 2 Select “Multi Audio” in “Digital TV Menu”, then

press [OK].

3 Select the desired audio.

• Press [EXIT ] to exit from the screen.

To listen to the Audio Description

Audio Description adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

When “AD” appears in channel information (> 25)

1 Press [AD].

2 Select “Audio Description” and set to

“Automatic”.

3 Select “Volume”, then adjust the volume with

[2, 1].

To show Digital teletext (MHEG)

When “TEXT” appears in channel information (> 25)

1 Press [TEXT ]. 2 Use [3, 4, 2, 1], number buttons or colour

buttons, etc. according to on-screen instructions.

• Some functions of Digital teletext are deactivated during recording.

• “Freeview Players” applies access control for some MHEG services. If you have locked viewing of Digital teletext (MHEG) (> 72, Freeview Players), PIN is required to start viewing.

Aspect

You can switch the screen mode. Refer to “Switching the aspect ratio of the screen”. (> 85)

• Audio Description may not be available dep ending on the type of audio format.

• When “Dolby D / Dolby D + / Dolby TrueHD”, “MPEG” or “HE-AAC” is set to “Bitstream”, the Audio Description may not work. Set them to “PCM” (> 75, Digital Audio Output).

• You can also set “Audio Description” active in the Setup menu. (> 72)

VQT4L30

Page 27

Watching broadcasts

Pause

8:05 9:35

8:50







8:50:55 01/01/2013

Play



8:50.50

REWIND LIVE TV/PAUSE LIVE TV

This unit temporarily saves a live TV programme you are watching with this unit’s tuner on HDD.

REWIND LIVE TV

You can rewind live TV programme to the point where temporary save has started (up to

1.5 hours).

PAUSE LIVE TV

You can pause live TV programme and restart watching from the paused position.

1 While watching TV

REWIND LIVE TV:

Press [SLOW/SEARCH 6] to rewind.

PAUSE LIVE TV:

Press [PAUSE ;] to pause.

• The maximum amount of the temporary save is 1.5 hours.

2 When you want to resume:

Press [PLAY/a1.3 1].

• You can perform search or Quick View, etc.

• If temporary save stops (> right), playback will be performed by that point.

Display information

While pausing or rewinding a broadcast:

Press [STATUS ].

1 The time that you can rewind the live

programme.

2 The amount of time temporarily saved on

HDD.

3 The time of the current playback position.

To stop REWIND LIVE TV or PAUSE LIVE TV

1Press [STOP∫]. 2 Select “Yes”, then press [OK].

To hide the display information

Press [EXIT ].

• The unit cannot rewind and play more than 1.5 hours prior to the current time.

• Temporary save stops in the following cases:

- When switching to other channels or other screen

- When recording of the watching programme is started

- When two programmes simultaneous recording is started

- When performing PAUSE LIVE TV or REWIND LIVE TV

for more than 8 hours (This may vary depending on the HDD free space.)

• These functions do not work in the fo llowing cases:

- When the clock is not set

- While recording two programmes simultaneously

- While copying

- While watching a programme being recorded

- When a radio programme is selected

- REWIND LIVE TV:

When “REWIND LIVE TV” is set to “Off” (> 73)

• PAUSE LIVE TV: You can operate this unit with the TV remote control by using VIERA Link (> 65). Refer to the TV operating instructions.

• Press [STATUS ] again.

VQT4L30

Page 28

Recording

Automatic Stop (Guide Link) at 8:45

REC1/OTR

Recording Time

Continuous recording

30 min

8:00 - 8:45

Recording TV programmes

The titles can only be recorded to built-in HDD and cannot be copied from built-in HDD to the media other than USB HDD.

• This unit can record two programmes being broadcasted at the same time.

1 Select the channel to record.

2 Press [REC ¥].

Recording starts.

• “REC1” or “REC2” will light on the unit’s display.

3 Select “Automatic Stop”, then press

[OK].

• One touch recording (OTR)

Recording stops automatically when the programme ends.

To set the recording time

1 Select “Recording Time” or “Continuous

recording” in step 3 (> left).

Recording Time:

You can set the length of recording time from 30 minutes to 4 hours.

• You can select the recording time with

[2, 1].

Continuous recording:

The recording is continued until you press [STOP ∫].

2 Press [OK].

• One recording will terminate when simultaneous recording is being done and timer recording starts.

• Digital teletext will not be recorded.

• Following contents or media cannot be played back while recording.

- 3D BD-Video (playback in 3D)

- Xvid and MKV file

- photo

- USB HDD (For data files) and USB memory

• Copying cannot be performed while reco rding.

• When “Automatic Standby after OTR” is set to “On” (> 80), this unit is turned to standby mode if this unit is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time”.

• You can also select “Recording Time” or “Continuous recording”. (> right)

VQT4L30

Page 29

Recording

Recording programme displayed on the TV

Recording programme not displayed on the TV

Stop Recording

Yes

Recording of this programme is in progress. Stop this recording ?

RETURN

Page

Select

OPTION

Start Time Prog.Type:

Rec Time

Play RETURN

PHOTO / MUSIC

Channel Date Title Name

Delete

Drama

9:00 0h10m

04/10 04/10 29/10 29/10

Operation during Recording

To check the recording programme

Press [STATUS ].

e.g., While recording two programmes simultaneously

HDD

REC1/OTR AUTO

REC2

To stop recording

Press [STOP ∫].

When recording one programme:

If the following screen appears

Select “Yes”, then press [OK].

To pause recording

After displaying the recording programme, press [PAUSE ;].

• Press again to restart recording. (A title is not split into separate titles.)

• Timer recording programme cannot be paused.

To record two programmes simultaneously

While recording, perform steps 1–3 on page 28.

• Channel can only be switched betwee n the recording programmes.

Simultaneous rec and play

You can play the recording title from the beginning or the titles previously recorded to the HDD.

1 Press [DIRECT NAVIGATOR].

• If the DIRECT NAVIGATOR screen of music is displayed, press the red button, then select “VIDEO”.

When recording two programmes:

If the following screen appears

2 recordings are in progress. Which recording would you like to stop ?

Stop Recording

RETURN

1 Select the programme, then press [OK]. 2 Select “Yes”, then press [OK].

“[” is displayed on the recording programme.

2 Select the title, then press [OK].

VQT4L30

Page 30

Recording

Page Down

Information

Page Up

Category+24 hoursTimer Rec.

TUE 01/01

8:00 - 9:45

TUE 01/01/2013 8:05

Category: All DVB Channels

8:00 8:30 9:00 9:30 10:00 10:30

RETURN

Timer recording

• This operation will only record to built-in HDD.

• This unit can record two programmes being broadcasted at the same time.

1 Press [GUIDE].

TV Guide screen appears.

2 Select the programme, then press the

red button.

The timer icon “F” (red) is displayed.

• If on-screen instructions are displayed, follow them.

To use TV Guide system

Refer to “Using TV Guide system”. (> 25)

To select the programmes of a specific category

1 On the TV Guide screen:

Press the blue button.

2 Select the item, then press [OK].

• To return to the previous TV Guide list Select “All DVB Channels”.

To edit the timer recording on the TV Guide screen

1 Select the programme to edit, then press the

red button. 2 Select “Timer Rec Edit”, then press [OK]. 3 Go to step 3 on page 32, “Manually

programming timer recording”.

• Some options cannot be changed when “Guide Link” is effective. (> 31, 33)

To cancel a timer recording on the TV Guide screen

1 Select the programme to cancel, then press

the red button.

2 Select “Timer Rec Cancel”, then press [OK].

(“F” disappears)

If the screen for selecting single or series timer recording appears

Select “Single Timer Rec.” or “Series Timer Rec.” (> 31), then press [OK].

If “Programme Selection” screen appears

Depending on the signal sent from the broadcaster, both High Definition picture programme and Standard Definition picture programme exist.

Select the programme, then press [OK].

Programme Selection SUN 01/01/2012 19:40

The same programme in High Definition picture quality exists. Please choose programme.

Channel Schedule Contents

MON 02/01

3/6 Comedy-drama series about housemates who are actually awere...

RETURN

23:00 - 0:00

TUE 03/01 23:00 - 0:00

3/6 Comedy-drama series about housemates who are actually awere...

VQT4L30

Page 31

Recording

Timer programme overlaps with others. Some part or all of programmes may not be recorded completely.

RETURN

Overlapped Timer Recording

Keep Change

If “Overlapped Timer Recording” screen appears

You can eliminate the overlapping or may change with repeat event for the duplicated programme.

1 Select “Change”, then press [OK]. 2 Follow the on-screen instructions.

Overlapped Timer Recording

Please delete unnecessary programme to resolve.

New Programme

Existing Programmes

RETURN

THU 11/10 23:15 - 23:45 TWO Wales

THU

11/10

23:00 - 23:30 Holiday

THU

11/10

23:00 - 23:30 Animals

Episode 01/ 02

ConfirmDelete Repeat

Red: Delete programme

Green: Record Repeat programme

Yellow: Exit

(Overlapping is not resolved)

Operation during Recording

Refer to “Operation during Recording”. (> 29)

• This unit has several functions that enable timer record ings to be controlled by the signal sent from the broadcaster. (> right) If the signal is not sent correctly, the recording may lack the beginning or the ending part of the programmes.

• Category may not be assigned correctly dep ending on the programme information.

• Some broadcasters may not send programme information. When programme information is not displayed correctly, use manual timer recording. (> 32)

• Titles recorded using “Series Timer Rec.” are bundled and displayed as a “group” in the DIRECT NAVIGATOR screen (> 35).

• If the unit cannot record the selected p rogramme, the unit will record the repeat programme if it is available. However, this unit will not record the repeat programme, if any part of the selected programme is recorded.

• The series recording will be cancelled if there has been no episode of the series for 13 weeks.

Various functions with Freeview

Guide Link

The recording’s start and stop times can be controlled by the broadcaster, e.g. delayed start.

• This is indicated by “Guide Link” in the Timer Recording screen (> 33).

• The “Guide Link” function may not work if you manually change the start time or the stop time over 10 minutes.

Series Timer Recording

You can record all the episodes of a series by setting just one timer recording.

• To check the schedule of the series

On the Selection Screen (> 32, Recording recommended programme, step 1): Press the blue button.

Series Information TUE 01/01/2013 19:40

Channel Schedule Contents

RETURN

Programme for which you set the timer

recording

The episode to be recorded

Repeat programme

High definition programme

Split Programme

You can record a programme separated into two or more parts by some other programmes, e.g. news. When setting timer from the 1st split programme, other parts of the programme will be automatically set and indicated by the timer icon on the TV Guide.

• This is indicated by “Split” in the Timer Recording screen (> 33).

TUE 01/01

2/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00 WED 02/01

3/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00

THU 03/01

3/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00

VQT4L30

Page 32

Recording

Selection Screen TUE 01/01/2013 19:40

RETURN

Drama TUE 01/01/2013 20:00 - 21:00

View

Single Timer Rec.

Series Timer Rec.

Delete

Recommended

Series Info

SAT 10/03 19:45 - 20:00

Recommendation List

RETURN

Page Up

Page Down

Turn Timer Off

Resolve overlap

Total 0/32

Timer Recording

30:30HDDRemain TUE 01/01/2013 8:05

Delete

Info

Channel Name

Schedule

Space

New Timer Programme

Timer Recording

30:30HDDRemain TUE 01/01/2013 8:05

Channel Name

Schedule

Space

New Timer Programme

Programme Name

MON 02/01 8:00 - 9:00

Timer recording

Recording recommended programme (Recommendation Booking)

You can record a programme that the broadcaster recommends.

1 On the TV Guide screen:

Select the programme, then press [OK].

2 Select “Recommended”, then press [OK].

3 Select the programme, then press [OK].

• If the screen for selecting single or series timer recording, or “Programme Selection” screen appears, refer to page 30.

4 Press [OK].

The timer icon (red) is displayed on the Recommendation List.

• To exit from the screen

Press [EXIT ].

To cancel the timer recording on the Recommendation List

1 Select the programme with the timer icon

(red), then press [OK].

2 Select “Yes”, then press [OK].

(The timer icon disappears.)

Manually programming timer recording

1 Press [PROG/CHECK].

2 Select “New Timer Programme”, then press

[OK].

3 Select the items and change the items.

(> 33, Timer recording options)

4 Press [OK].

The timer programme is stored.

To confirm and edit the timer programme

Refer to “To confirm and edit a timer programme”. (> 34)

Operation during Recording

Refer to “Operation during Recording”. (> 29)

• “Recommended” cannot be selected if there is no recommended programme.

VQT4L30

Page 33

Recording

Timer Recording TUE 01/01/2013 8:05

30:24

RETURN

Category

Date/ Weekly

Channel

1 TUE 01/01

Day/Date Stop

8:00 9:00

Start

Title Name

HDDRemain

e.g.,

10:30

Now

MPEG

Change category

All DVB Channels

9:00 - 11:00

Set timer

STTL TEXT

e.g.,

Timer recording options

Select the items and change the items.

Channel

• You can select Category with the red button.

Day/Date

• You can select “Date” or “Weekly” by pressing the green button.

Start/Stop

• Press and hold [3, 4] to alter in 15-minute increments.

Auto Renewal Recording

(Only daily/weekly/series timer recording) The unit will record the new programme over the old one. 1 Select “Renew”. 2 Select “ON”.

Title Name

1 Select “Title Name”, then press [OK]. 2 Refer to “Entering text”. (> 85)

Timer recording from channel information

You can make timer recording of the current or next programme.

1 While watching a programme

Press [STATUS ].

2 Display the channel information of a

programme to record.

• Switch the programme with [2, 1].

• Switch the channel with [3, 4].

3 Press the yellow button. 4 Go to step 3 on page 32, “Manually

programming timer recording”.

• Some options cannot be changed when “Guide Link” is effective. (> 31)

Remote recording from outside

You can set a recording from a mobile phone or a PC, etc. away from home. (You must register to a service to use this function.) For details, please check the following website. http://panasonic.jp/support/global/cs/

(This site is in English only.)

Preparation

• Network connection (> 17, 21)

• Remote Recording Function Settings (> 68

• This unit will always be connected to the Internet when this function is activated.

• Please note that a regular maintena nce or unexpected trouble may interrupt the service, and that the service content may be changed or revoked and operation menu screens may be changed with or without a prior notice.

Notes on timer recording

• You can enter up to 32 programmes within a month in advance. (Each daily, weekly or series programme is counted as one programme.)

• Even if you switch the unit to standby mode during the timer recording, the recording is continued.

• When you programme successive timer recordings to start, about last 1 minute of earlier programme will not be recorded.

• Timer recording will not start while:

- copying HD Video (AVCHD) from USB device

or SD card

- copying photos/music

-formatting

• When “Pure Sound mode” is activated, timer recording does not start during playback of BD-Video, DVD-Video or music CD. (> 73)

VQT4L30

, 79)

Page 34

Recording

Channel Name

Schedule

Space

New Timer Programme

SAT 08/01

SAT 08/01 10:00 - 11:50

11:00 - 11:45

11:30 - 1:00

8:00 - 10:45

SAT 08/01

SAT 01/01

RETURN

Page Up

Page Down

Turn Timer Off

Resolve overlap

Total 3/32

Timer Recording

30:30HDDRemain TUE 01/01/2013 8:05

Delete

Info

e.g.,

Guide

S/P

Timer recording

To confirm and edit a timer programme

1 Press [PROG/CHECK].

2 Select the programme, then perform the

operations.

To deactivate a timer programme

Press the red button.

• The timer icon “F” will change from red to

grey.

• Press the red button again to activate timer

recording standby. (The timer icon “F” will change to red.)

To delete a timer programme

Press [DEL].

To edit a timer programme

1 Press [OK]. 2 Change the timer recording options.

• Refer to “Timer recording options”. (> 33)

3 Press [OK].

To show programme information

Press [STATUS ].

To exit the timer recording list

Press [EXIT ].

Screen icons

Red: Timer recording standby is activated.

Grey: Timer recording standby is deactivated.

Currently recording programme

[

A part or all of the programme will not be recorded since the programme is overlapping.

• Programme overlapping can be resolved with repeat programme if available. Select the programme, then press the green button. (> 31, If “Overlapped Timer Recording” screen appears)

• This function is not available for t he timer

programmes that were set manually.

The HDD is full.

Copy-protected programme It was not recorded.

The recording of the programme was not completed because of some reason.

Auto Renewal Recording is set (> 33).

Guide Link (> 31)

Split Programme (> 31)

Series Timer Recording (> 31)

Displayed if the recording can fit in the

remaining space

Daily or weekly timer programme is set.

(Date)

It may not be possible to record because:

- there is not enough space left.

- the number of possible titles has reached its maximum. (> 98)

- programmes are deactivated, etc.

• “No Data” is displayed on a series recording item if there will be no episode of the series for the next 8 days. We recommend you delete the “No Data” item after you confirm the last episode of the series is recorded.

VQT4L30

Page 35

Playing titles on the HDD

Playing back video

Time Remaining 45h54m

HDD

Page

Select

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec Time

Play RETURN

PHOTO / MUSIC

Drama Sport AVCHDMovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0h01m

003/003

04/10 04/10 29/10 29/10



Time Remaining 45h54m Registration number 1

USB HDD

Grouped Titles VIDEO

Drama

Sport

AVCHD

Movie

Not Viewed

DIRECT NAVIGATOR

All

USB HDD

&

“For recorded titles” only

1 Press [DRIVE SELECT] to select “HDD”,

then press

• If the DIRECT NAVIGATOR screen of photo or music is displayed, press the red button, then select “VIDEO”.

e.g.,

1 Tab (> 36) 2 Programme type

• [USB_HDD] When connecting registered USB HDD, “USB HDD” tab and registration number appears. Select “USB HDD” tab.

e.g.,

2 Select the title, then press [OK].

Playback starts.

Resume play function

If the following screen appears, select the point to start playback.

Where do you want to start playback from ?

Last Stopped

[D IRECT NAV IGATOR ].

Playback

Beginning

RETURN

Playing back video

DIRECT NAVIGATOR (VIDEO) screen

Screen icons

[ Currently recording programme

Protected title

Title was not recorded due to recording protection Title cannot be played

(When data is damaged etc.)

Grouped titles

Title has not yet been played

Title is recorded using a different encoding system from that of the unit. Change the “TV System” (> 68, 76).

Radio programme

3D contents

• This icon will not display even with 3D programmes when a broadcast programme is recorded.

Recorded in 1080/50p contents

Recorded in 1080/60p contents

This icon is displayed with the following titles when “Child Lock” is set to “On”. (> 73)

- Title with Guidance information

- Title restricted by Child Lock List (> 72)

• PIN is required to play.

Title has been recorded in Series timer recording. Title has been recorded in Series timer recording and has not yet been played. Recording did not complete as the timer recording has started.

Title cannot be played from DLNA client not compatible with DTCP-IP (> 58)

VQT4L30

Page 36

Playing back video

Playing titles on the HDD

Tab

Titles will be categorised automatically. You can quickly find the recorded titles by selecting the tab.

To select the tab

Press [2, 1].

To change the displayed programme type tab

1 Select the programme type, then press the

green button.

2 Select the item, then press [OK].

To change the programme type of title

Refer to “Changing programme type of title”. (> 45)

Switching to the PHOTO or MUSIC screen

1 Press the red button.

2 Select “PHOTO” or “MUSIC”, then press [OK].

Showing Information

Select the title, then press [STATUS ].

Switching the appearance

1 Press [OPTION].

2 Select “Grouped Titles” or “All Titles”, then

press [OK].

Grouped Titles:

Two or more titles recorded in the daily/weekly/series timer recording mode are bundled and displayed as one item.

All Titles:

Displays all titles.

Playing back grouped titles

1 On the Grouped Titles screen:

Select the item marked with .

2 When playing all titles:

Press [PLAY/a1.3 1].

When playing the individual title:

Press [OK] and select the title, then press [OK].

VQT4L30

Page 37

Playing back video

Chapter

Title

Chapter Marks

Press OK to start playing from the selected chapter. Selected chapter can be edited via OPTION. Press RETURN to go back to previous menu.

Page 001/001

0:00.00

001

0:12.29

Play

SelectEdit Chapter Mark

RETURN

OPTION

Delete

Editing the grouped titles

1 Select the title or the group, then press the

yellow button.

• A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

• If you perform “Remove”, select the title in the group.

2 Press [OPTION].

3 Select the item, then press [OK].

Create Group:

Selected titles are bundled to form a group. Select “Create”, then press [OK].

Release Grouping:

All the titles in the group are released. Select “Release”, then press [OK].

Remove:

Selected titles are removed from the group. Select “Remove”, then press [OK].

Changing the group name

1 Select the group, then press [OPTION]. 2 Select “Edit”, then press [OK].

3 Select “Enter Title Name”, then press [OK].

4 Refer to “Entering text”. (> 85)

Playback from Chapter View

Regarding chapters

You can divide a title into multiple chapters. Each section between the division points (Chapter Marks) becomes a chapter.

• Chapter Creation

This unit can create chapters automatically while recording broadcasting. (> 73)

1 Select the title, then press [OPTION]. 2 Select “Chapter View”, then press [OK].

e.g., [HDD]

3 Select the chapter, then press [OK].

To edit the chapter in Chapter View

Refer to “Editing chapters”. (> 46)

VQT4L30

Page 38

Playing back video

OK RETURN

Page 0001 / 0003

Parent Folder

Videos \ Video \USB

Folder 01

Folder 02

video01.mkv

video02.mkv

video03.mkv

video04.mkv

Page Up

Page Down

Playing titles on the media

Menu screen

Selecting screen for each operation is displayed when the media is inserted, and you can access

“For data files” only

1 Insert the media.

Depending on the type of the media, play starts from the specified position, or the screen appears.

• AVCHD: If the menu screen is not displayed

Press [PLAY/a1.3 1].

2 When the DIRECT NAVIGATOR screen or

menu screen etc., appears:

Select the item or title, then press [OK].

• Repeat this step if necessary.

Playback starts.

To play back the playlist created on other equipment

1 Press [FUNCTION MENU]. 2 Select “Playlists” in “Others”, then press [OK]. 3 Select the playlist, then press [OK].

the operation screen easily.

e.g., [USB]

• Display items differ depending on what is recorded in each media.

If the menu screen is not displayed, display it by performing the following operation.

1 While stopped

2 Select “Drive Select”, then press [OK]. 3 Select the media, then press [OK].

Video list screen

e.g.,

USB

Play Video View Photos Play / Copy Music ( MP3 ) Copy Video ( AVCHD ) Copy Video ( MPEG2 ) Copy New Photos

USB device is inserted.

Press [OPTION].

RETURN

• Some files may not be played back, depending on the video resolution and frame rate condition.

VQT4L30

Screen icons:

Folder

Titles

Move to the parent folder

Page 39

Playing back video

DIRECT NAVIGATOR

Video ( AVCHD )

RETURN

Date Day

Time

Title Name

Rec time

0:30.41

Page 01/01

OPTION

No.

01/01 5:00 02/01 9:30 03/01 10:00 03/01 11:30

01/01

SUN MON TUE TUE

SUN 9:00

SD Card

001 002 003 004 005

DIRECT NAVIGATOR screen

e.g.,

DIRECT NAVIGATOR

BD-RE

All

Play RETURN


All Titles VIDEO

Channel Date Title Name

29/10 Start Time 22:46 Rec Time 0h10m(HM)

04/10 04/10 29/10

OPTION

Page 003/003

Page Up

Page Down

Switching to the PHOTO screen

Press the red button. The screen switches to “PHOTO”.

Showing Information

Select the title, then press [STATUS ].

Playback from Chapter View

1 Select the title, then press [OPTION]. 2 Select “Chapter View”, then press [OK]. 3 Select the chapter, then press [OK].

• Regarding chapters Refer to “Regarding chapters”. (> 37)

DIRECT NAVIGATOR (AVCHD) screen

[SD]

e.g.,

Notes for BD-Live discs

[BD-V]

BD-Live allows you to enjoy more functions such as subtitles, exclusive images and online games by connecting this unit to the Internet.

Preparation

1 Perform network connection and settings.

(> 17, 21)

2 Insert a disc.

For the playback method, refer to the instructions for the disc.

Delete BD-Video data

If you no longer need BD-Live data recorded on the built-in HDD, you can delete data with the following operation.

1 Press [FUNCTION MENU].

2 Select “BD-Video Data Management” in

“Others”, then press [OK].

3 Select “Delete BD-Video data”, then press

[OK].

4 Select “Yes”, then press [OK].

5 Select “Start”, then press [OK]. 6 Press [OK].

• The usable functions and the opera ting method may vary with each disc, please refer to the instructions on the disc.

• You can restrict Internet access when BD-Live functions are used (> 68, 73, BD-Live).

• When “Pure Sound mode” is set to “On”, this unit cannot use BD-Live functions. (> 73)

Showing Information

1 Select the title, then press [OPTION]. 2 Select “Information”, then press [OK].

About screen icons on the DIRECT NAVIGATOR

Refer to “Screen icons”. (> 35)

VQT4L30

Page 40

Playing back video

8:05:50 01/01/2012

T1 0:05.14

0:30.00

Remain HDD

Operation during play

• Depending on the media and the type of file, some operations may not be possible.

• Depending on the media, it may take time for the menu screen, pictures, sound, etc. to start.

• Discs continue to rotate while menus are displayed. Press [STOP ∫] when you have finished playback to protect the unit’s motor, your TV screen, etc.

General operations

Status messages

Press [STATUS ] twice.

e.g.,

Stop

Press [STOP ∫].

Press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

•Press [PLAY/a1.3 1] to restart play.

• The speed increases up to 5 steps.

([+R] [+RW]: Up to 3 steps)

• Xvid, MKV, MP4 and MPEG2 ([USB_HDD] [USB]): Audio is

not heard during all levels search.

Pause

Press [PAUSE ;].

•Press [PLAY/a1.3 1] to restart play.

Slow-motion

While paused, press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

•Press [PLAY/a1.3 1] to restart play.

• The speed increases up to 5 steps.

• Xvid, MKV, MP4 and MPEG2 ([USB_HDD] [USB]):

Slow-motion is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction

[SLOW/SEARCH 5] only.

Resume play function

Press [PLAY/a1.3 1] to restart from the stopped position.

• The resume play function does not work depending on the media.

• Discs: On ly previous stopped position is memorized. The position may be cleared if the tray is opened or the unit is switched to standby mode.

Quick View

[HDD] [USB_HDD] (For recorded titles) [SD]

Press and hold [PLAY/a1.3 1].

• Press again to return to normal speed.

VQT4L30

Frame-by-frame

While paused, press [2](2;) or [1](;1).

• Each press shows the next frame.

• Press and hold to change in succession forward or backward.

•Press [PLAY/a1.3 1] to restart play.

• Xvid, MKV, MP4 and MPEG2 ([USB_HDD] [USB]): Frame-by-frame is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [1](;1) only.

Page 41

Playing back video

Manual Skip

Skip forward 1 minute:

Press [MANUAL SKIP +60s].

Skip backward 10 seconds:

Press [MANUAL SKIP -10s].

• Xvid and MKV: Manual Skip is not effective.

Skipping the specified time

1 Press [TIME SLIP]. 2 Select the time with [3, 4].

• Press and hold [3, 4] to change the time by

10-minute.

3 Press [OK].

• Play skips the specified time.

• [BD-V] [DVD-V], Xvid, MKV, AVCHD, MP4 and

MPEG2 ([USB_HDD] [USB]): [TIME SLIP] is not effective.

To display menu

[BD-V] [DVD-V] 1 Press [OPTION]. 2 Select “Playback Menu”, then press [OK].

3 Select “Top Menu”, “Pop-up Menu” or “Menu”,

then press [OK].

Skipping the title or chapter

Press [SKIP :] or [SKIP 9].

• [HDD] [USB_HDD] (For recorded titles): It will not skip the

title. But the title in the grouped titles will be skipped. (> 36)

To delete the Chapter Mark

[HDD] [USB_HDD] (For recorded titles) 1 While paused

Press [SKIP :] or [SKIP 9] and skip to the location you want to delete.

2 Press [CHAPTER]. 3 Select “Yes”, then press [OK].

Changing audio

Select the desired audio with “Multi Audio” in the Disc menu (> 66).

Switching subtitles

[HDD] [USB_HDD] (For recorded titles) [BD-RE] [BD-R]:

1 Press [STTL ].

2 Select “On” or “Off”.

• If you want to switch the subtitle language, select it in the Disc menu (> 66).

[BD-V] [DVD-V], Xvid and MKV:

Display with “Subtitles” in the Disc menu (> 66).

Listening to the Audio Description

[HDD] [USB_HDD] (For recorded titles) [BD-RE] [BD-R]

1 Press [AD].

2 Select “Audio Description” and set to

“Automatic”.

3 Select “Volume”, then adjust the volume with

[2, 1].

To create Chapter Marks

[HDD] [USB_HDD] (For recorded titles) During the playback or pause

Press [CHAPTER].

• When “Dolby D / Dolby D + / Dolby TrueHD”, “MPEG” or “HE-AAC” is set to “Bitstream”, the Audio Description may not work. Set them to “PCM” (> 75, Digital Audio Output).

• You can also set “Audio Description” active in the Setup menu. (> 72)

Aspect

You can switch the screen mode. Refer to “Switching the aspect ratio of the screen”. (> 85)

VQT4L30

Page 42

Playing back video

Operation during play

3D video playback

Preparation

Connect 3D compatible TV to this unit. (> 14)

• Perform the necessary preparations for the TV.

Play back following the instructions displayed on the screen.

Preparatory 3D settings

Perform the following settings as necessary.

3D BD-Video Playback

It is also possible to play back 3D discs in 2D (conventional video). (> 68, 72)

3D Type

If 3D video cannot be played back in 3D, you may be able to play it in 3D by changing the setting. (> 68, 76)

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video and cannot be played back correctly, you may be able to play it by changing the setting. (> 68, 76)

3D Playback Message

Hide the 3D viewing warning screen. (> 68, 76)

Graphic Display Level

Adjust the 3D position for the playback menu or message screen etc. (> 66)

3D settings during playback

Change this setting when the screen is not correctly displayed for 3D compatible programmes.

1 Press [OPTION].

2 Select “3D Settings”, then press [OK].

3 Select the item, then press [OK].

Signal Format

Original

Keep original picture format.

Side by side

3D picture format comprising of left and right screens.

2D to 3D

Converts 2D pictures to 3D effect while playing.

3D Picture Mode

Normal

Normal 3D effects.

Soft

Soft 3D effects.

• This function cannot be enabled when “Signal Format” is set to “2D to 3D”.

Manual Settings

Distance

Set the amount of depth perception.

Screen Type

Selects how the screen appears during 3D playback (flat or round).

Frame Width

Set the amount of feathering at the edge of screen.

Frame Colour

Set the colour of feathering at the edge of screen.

• Depending on the contents, displayed items are different.

• 3D BD-Video can be played back in 3D only when this unit is connected to the Full HD 3D compatible TV.

• This unit only guarantees the playba ck of the Frame Sequential and the Side-by-Side (Half) programme types.

• Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue. In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

• Depending on the connected TV, the video being played back might switch to 2D video due to changes in resolution etc. Check the 3D setting on the TV.

• 3D video might not output the way it is set in “HDMI Video Format” (> 76) and “24p Output” (> 77).

• It may display as Side-by-Side when play back of the 3D video is started.

• 3D BD-Video cannot be played back in 3D while recording. Also, 3D playback stops when the timer recording starts.

VQT4L30

Page 43

Deleting recorded titles

Editing vid eo

Start Time Prog.Type:

Rec Time

Channel Date Title Name

Movie

9:00

04/10 04/10 29/10 29/10

Once deleted, recorded content cannot be restored to its original state. Make certain before proceeding.

“For recorded titles” only

1 On the DIRECT NAVIGATOR screen:

Select the title.

DIRECT NAVIGATOR

HDD

All

Play RETURN

PHOTO / MUSIC

2 Press [DEL].

3 Select “Delete”, then press [OK].

Multiple deleting

Select the title, then press the yellow button in step 1.

Grouped Titles VIDEO

Time Remaining 45h54m

OPTION

04/10 04/10 29/10 29/10

Start Time Prog.Type:

Drama Sport AVCHDMovieNot Viewed

Rec Time

9:00 0h01m

Movie

Page

Delete

Select

Page Up

Page Down

Channel Date Title Name Titles

Editing video

Deleting during play

1 Press [DEL] while playing.

2 Select “Delete”, then press [OK].

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

VQT4L30

Page 44

Editing video

Time Remaining 45h54m

HDD

Page

Select

Grouped Titles VIDEO

OPTION

Start Time Prog.Type:

Rec Time

Play RETURN

PHOTO / MUSIC

Drama Sport AVCHDMovieNot Viewed

DIRECT NAVIGATOR

Channel Date Title Name Titles

All

Delete

Page Up

Page Down

Movie

9:00 0h01m

04/10 04/10 29/10 29/10

Set up Protection

Cancel Protection

Partial Delete

Divide Title

Change Prog.Type

Change Thumbnail

Enter Title Name

Delete Title

Playback

Information

Chapter View

Create Group

Release Grouping

Edit

All Titles

04/10 04/10 29/10 29/10

Editing recorded titles

Once deleted, divided or partially deleted, recorded content cannot be restored to its original state. Make certain before proceeding.

“For recorded titles” only

• PIN is required to edit the titles with in some functions.

(> 35)

1 On the DIRECT NAVIGATOR screen:

Select the title.

Deleting

1 Select “Delete Title”, then press [OK].

2 Select “Delete”, then press [OK].

Entering title name

1 Select “Enter Title Name” in “Edit”, then press

[OK].

2 Refer to “Entering text”. (> 85)

Setting protection

Protection setting prevents the title from accidental deletion.

2 Press [OPTION]. 3 Select the item, then press [OK].

e.g.,

• “Edit” has several functions.

Multiple editing

Select the title, then press the yellow button in step 1.

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

VQT4L30

All

Channel Date Title Name

MovieNot Viewed

Start Time Prog.Type:

9:00 Movie

1 Select “Set up Protection” or “Cancel

Protection” in “Edit”, then press [OK].

2 Select “Yes”, then press [OK].

appears when setting the protection.

Drama

Rec T

Page 45

Editing video

Select the item for prog.type change.

RETURN

Sport

Prog.Type

( No Prog.Type )

Prog.Type

Set Cancel

( No Prog.Type )

Prog.Type

Change Prog.Type

Partial deleting

1 Select “Partial Delete” in “Edit”, then press

[OK].

2 Press [OK] at the start point and end point to

delete.

• You can find the desired point by using play, search, etc. (> 40)

3 Select “Continue”, then press [OK].

• Select “Next”, then press [OK] to delete other sections. Up to 20 sections can be set. (> go to step 2)

4 Select “Delete”, then press [OK].

• Chapter Mark is generated in the scene that was partially deleted.

5 Press [BACK/RETURN ].

Dividing title

1 Select “Divide Title” in “Edit”, then press [OK].

2 Press [OK] at the point to divide the title.

• You can find the desired point by using play, search, etc. (> 40)

3 Select “Continue”, then press [OK].

4 Select “Divide”, then press [OK].

Changing thumbnail

1 Select “Change Thumbnail” in “Edit”, then

press [OK].

2 Press [OK] at the point to use as a thumbnail.

• You can find the desired point by using play, search, etc. (> 40)

3 Select “Finish”, then press [OK].

To change the point

After performing step 2. Restart play and select “Change”, then press [OK]

at the point to change.

Changing programme type of title

[HDD]

Programme type information in the title can be edited.

To confirm the division point

After performing step 2. Select “Preview”, then press [OK].

• The unit plays 10 seconds before and after the division point.

To change the division point

After performing step 2. Restart play and select “Divide”, then press [OK]

at the division point.

• Divided titles will become a group of titles.

1 Select “Change Prog.Type” in “Edit”, then

press [OK].

2 Select the item to change a programme type,

then press [OK].

3 Select the programme type, then press [OK]. 4 Select “Set”, then press [OK].

VQT4L30

Page 46

Editing video

Editing recorded titles

Editing chapters

1 Select “Chapter View”, then press [OK].

2 Perform the editing operations.

Edit Chapter Mark:

Select the point where you want to start a new chapter while viewing the title. 1 Press the green button. 2 Press [OK] at the point you want to divide.

• Repeat this step.

3 Press [BACK/RETURN ] to go to

Chapter View screen.

To delete the chapter:

1 Select the chapter, then press [DEL].

Multiple editing

Select the chapter, then press the yellow button. A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

2 Select “Delete”, then press [OK].

To combine chapters (Delete chapter mark):

1 Select the chapter, then press [OPTION]. 2 Select “Combine Chapters”, then press

[OK].

3 Select “Combine”, then press [OK].

The selected chapter is combined to the next chapter.

Playback from Chapter View

Refer to “Playback from Chapter View”. (> 37)

• The maximum number of chapters: (Depends on the state of recording.)

Approx. 1000 per title

• When the title has the maximum number of c hapters, you cannot perform the Resume play function (> 35) or the “Change Thumbnail” (> 45) with the title.

VQT4L30

Page 47

Copying titles

Copying video

§1, 2

Start Time

Prog.Type:

Rec Time

Channel Date Title Name

Movie

9:00

04/10 04/10 29/10 29/10

Standby status can be changed if required. Please press OK to start copying.

RETURN

Automatic Standby after Copy

Off

§1

“For recorded titles” only

§2

The title in the source media will be deleted.

1 Connect the USB HDD.

2 Press [DRIVE SELECT] to select “HDD”,

then press [DIRECT NAVIGATOR].

• If the DIRECT NAVIGATOR screen of photo or music is displayed, press the red button, then select “VIDEO”.

3 Select the title, then press the yellow

button.

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

Copying video

To register the external HDD (USB HDD)

Refer to “Registering the USB HDD”. (> 64)

• You cannot copy the following titles to the USB HDD.

- Protected titles

- HD Video (AVCHD)

- SD Video (MPEG2)

To change the selection

1 Select “No”, then press [OK] in step 5 (> left).

2 Select the title, then press the yellow button.

Repeat this step to select titles.

3 Press the blue button. 4 Go to step 5 (> left).

Screen icon

Titles that cannot be copied

About screen icons on the DIRECT NAVIGATOR

Refer to “Screen icons”. (> 35)

4 Press the blue button.

5 Select “Yes”, then press [OK].

• If you select “No”, you can change the selection. (> right)

6 Set other settings, then press [OK].

e.g.,

(> right, Setting the copying options)

7 Select “Yes”, then press [OK].

Setting the copying options

1 Select the item in step 6 (> left). 2 Press [2, 1] to change the settings.

• Automatic Standby after Copy On:

This unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy.

VQT4L30

Page 48


§2 §3§1

HDD

Page

SelectSlideshow

Calendar


OPTION

03/01/2012 29/10/2012 25/02/2013 15/03/2013

0002/0002

Copy

RETURN

VIDEO / MUSIC

8 12 18

DIRECT NAVIGATOR

Date & Event Name Photos

All Album 1 Album 2 Album 3 Album 4

Page Up

Page Down

Ta b

HDD

Page

SelectSlideshow

Calendar


OPTION

03/01/2012 29/10/2012 25/02/2013 15/03/2013

0002/0002

Copy

RETURN

VIDEO / MUSIC

8 12 18

DIRECT NAVIGATOR

Date & Event Name Photos

All Album 1 Album 2 Album 3 Album 4

Page Up

Page Down

e.g., [HDD]

Album (> below)

Playing photos

§1

“For data files” only (JPEG, MPO)

§2

[BD-RE] only

§3

[DVD-R] only

• In order to play back 3D photo (MPO), this unit should be connected to a Full HD 3D compatible TV.

1 [HDD]

1 Press [FUNCTION MENU]. 2 Select “Photo” in “Playback

Contents”, then press [OK].

[USB_HDD] [BD-RE] [DVD-R] [CD] [SD] [USB] 1 Insert or connect the media.

The menu screen appears. (> 38)

2 Select “View Photos”, then press

[OK].

2 Select the event, then press [OK].

e.g., [HDD]

To exit the Calendar screen

Press [PAUSE ;].

• When there are many files and/or folde rs, some files may not be displayed or not be playable. (> 98)

DIRECT NAVIGATOR (PHOTO) screen

Event

It is displayed for each recording date.

• It is displayed for each folder for media other than HDD.

• To select the tab

Press [2, 1].

• Start Slideshow

Refer to “Slideshow settings”. (> 49)

• Switching to the Calendar screen

([HDD] “All” tab only)

Press [PAUSE ;].

3 Select the photo, then press [OK].

•Press [2, 1] to display the previous or

next photo.

VQT4L30

Screen icons

Album

Placing photos in albums of your

(Tab)

choice makes it easier to find them. (> 50)

3D photos (MPO) are automatically

(Tab)

sorted. Select from this tab to play back in 3D. (It will play back in 2D when selected from other tabs.)

Photo protected

New photo which is stored and not viewed

Page 49


Slideshow

RETURN

Start Slideshow

Interval

Transition Effect

Repeat Play

Normal

Fade

Music Selection

No background music

Background Music

No List

Random BGM

Off

Switching to the VIDEO or MUSIC screens

[HDD]: 1 On the DIRECT NAVIGATOR screen:

Press the red button.

2 Select “VIDEO” or “MUSIC”, then press [OK].

[BD-RE]:

On the DIRECT NAVIGATOR screen: Press the red button.

Photo play option

1 While displaying a photo:

Press [OPTION].

2 Select the item, then press [OK].

Aspect

You can switch the screen mode. (> 85)

Graphic Display Level

You can change the 3D position of the screen display, etc., during the 3D photo playback.

Photo Menu

•Start Slideshow

You can start a slideshow.

• Rotate RIGHT/Rotate LEFT

e.g.,

• The information of the rotated photos will not be stored depending on the media.

• This function is not available during the 3D photo playback.

• Information

Information (shooting date etc.) is shown.

Slideshow settings

1 On the DIRECT NAVIGATOR screen:

Press the green button.

2 Select the item, then press [OK].

Start Slideshow

You can start a slideshow.

Interval

You can set up the time until the next photo is to display.

Transition Effect

Effect for the next photo to display can be set.

Repeat Play

You can set up to play back repeatedly.

Music Selection

You can select background music on (either from HDD or USB) or off.

Background Music

You can select background music from HDD (My Favourites or Playlists) or USB (Folder).

Random BGM

You can play back the BGM (Background Music) in random order.

This function is not available during the 3D photo playback.

To pause the Slideshow

Press [PAUSE ;].

•Press [PAUSE;] again to restart.

To stop the Slideshow

Press [BACK/RETURN ].

VQT4L30

Page 50


e.g., [HDD]

Editing photos

1 On the DIRECT NAVIGATOR screen:

DIRECT NAVIGATOR

HDD

All Album 1 Album 2 Album 3 Album 4

RETURN

VIDEO / MUSIC

Date & Event Name Photos

03/01/2012 29/10/2012 25/02/2013 15/03/2013

Calendar

OPTION

Page

SelectSlideshow

To edit the event:

Select the event.

To edit the photo:

1 Select the event, then press [OK].

2 Select the photo to edit.

• To select multiple events or photos

Press the yellow button when selecting the event or photo. A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

2 Press [OPTION].

• Selectable items will change depending on the media and the type of file.

0002/0002

Page Up

Page Down

Copy


8 12 18

3 Select the item, then press [OK].

Edit

• Add to Album

[HDD]

1 Select the destination album, then press

[OK].

2 Press [OK].

• Combine Events

[HDD]

Select “Yes”, then press [OK].

• Remove from Album

[HDD]

Select “Yes”, then press [OK].

• Enter Album Name

[HDD]

Refer to “Entering text”. (> 85)

• Enter Event Name

Refer to “Entering text”. (> 85)

Delete Photos

Select “Yes”, then press [OK].

Set up Protection

[SD]

Select “Yes”, then press [OK].

appears when the protection is set.

• Even if the protection is set, the photo may be deleted by another unit.

Cancel Protection

[SD]

Select “Yes”, then press [OK].

VQT4L30

Page 51

Copying photos

Copy Photos

HDDSD card

HDD Album Selection Please select the destination album.

Album 1 Album 2 Album 3 Album 4

RETURN

Yes No

Start copying ?

Copy New Photos

RETURN

HDDSD card

“For data files” only (JPEG, MPO)

Selecting and copying the photos

[HDD] > [SD]

[USB_HDD] [SD] [USB] > [HDD]


To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• The name of the copied photos will be changed.

• If the number of files/folders to be cop ied exceeds the maximum (> 98), copying will stop partway through.

1 On the DIRECT NAVIGATOR screen:

To copy the event:

Select the event, then press the blue button.

To copy the photo: 1 Select the event, then press [OK]. 2 Select the photos to copy, then press the

blue button.

• To select multiple events or photos

Press the yellow button when selecting the event or photo.

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

2 When copying to HDD:

Select “Yes” or “No”, then press [OK].

• If you select “Yes”: Select the album, then press [OK].

e.g., [SD]

Copying automatically

[USB_HDD] [SD] [USB] > [HDD] Newly added photos will automatically be copied to the HDD.

1 Insert the media.

The menu screen appears. (> 38)

2 Select “Copy New Photos”, then press [OK].

e.g., [SD]

3 Select “Yes”, then press [OK].

Copying starts.

4 Once the copy is completed, select “Yes” or

“No”, then press [OK].

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• You can categorise and manage the

events and photos on the HDD by copying to the album. (> 48)

3 Select “Yes”, then press [OK].

Copying starts.

• Photos without shooting date will be c ategorised using the creation date.

• If the space on the destination drive runs out or the n umber of files/folders to be copied exceeds the maximum (> 98), copying will stop partway through.

• The name of the copied photos will be changed.

VQT4L30

Page 52

Music

§1 §2

e.g., [CD] (MP3)

Playing music

§1

“For data files” only (MP3)

§2

[DVD-R] only

Music CD:

Insert the disc.

Playback will automatically start.

MP3:

1 Insert or connect the media.

The menu screen appears. (> 38)

• [DVD-R] [CD] Playback will automatically

start if only MP3 is recorded.

2 Select “Play / Copy Music ( MP3 )” or

“Play Music ( MP3 )”, then press [OK].

Playback will start.

• Using the tree screen to find a folder 1 Press [OPTION]. 2 Select “Select Folder”, then press [OK]. 3 Select the folder, then press [OK].

To play other music (track)

Select the item, then press [OK].

Copying music (MP3) to HDD

[USB_HDD] [USB] > [HDD]

After performing steps 1–2 (> left)

1 Press the blue button. 2 Select “Copy”, then press [OK].

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• While copying, no other operations can be performed. Timer recordings will not proceed.

• All tracks in the folder will be copied.

• Tracks recorded to HDD in one operation will be regarded as one album.

DIRECT NAVIGATOR

CD ( MP3 )

No.

0001 0002 0003 0004 0005

• The track/artist name will be displayed if the in formation is contained in ID3 tag of the MP3 file.

• If there is a large amount of photo data etc. within a MP3 file, play may not be possible.

VQT4L30

Track List

Track Name

Page 53

Music

DIRECT NAVIGATOR

Music Menu MUSIC

RETURN

Please select to access music.

Artists

Frequently Played

Albums

Total Tracks 53

HDD

Random Play

My Favourites

OPTION

Playlists

VIDEO / PHOTO

Playing music recorded on HDD

[HDD]

1 Press [FUNCTION MENU]. 2 Select “Music” in “Playback Contents”, then

press [OK].

3 Select the item, then press [OK].

Artists

1 Press [2, 1] to select the initial of the

artist.

2 Select the name of the artist, then press

[OK]. 3 Select the album, then press [OK]. 4 Select the track, then press [OK].

Albums

1 Press [2, 1] to select the initial of the

album. 2 Select the album, then press [OK]. 3 Select the track, then press [OK].

Frequently Played

Tracks most often played recently (up to 30 tracks).

Select the track, then press [OK].

Random Play

Random playback of all tracks.

Playback starts.

Switching to the VIDEO or PHOTO screens

1 On the DIRECT NAVIGATOR (Music Menu)

screen: Press the red button.

2 Select “VIDEO” or “PHOTO”, then press [OK].

Showing Track Information

On the track list screen:

1 Select the track, then press [OPTION].

2 Select “Information”, then press [OK].

My Favourites

Tracks registered in “My Favourites”.

Select the track, then press [OK].

• Registering a track to the “My Favourites”.

(Up to 99 tracks) While the track list screen is displayed: Select the track, then press the green button.

Playlists

1 Select the playlist, then press [OK]. 2 Select the track, then press [OK].

VQT4L30

Page 54

Music

Please select the album to start slideshow.

RETURN

While playing music a photo slideshow can be displayed.

Select Photo Album

Sample Photos

Album 1

Album 2

Album 3

Album 4

Playing music

Operations during music play

[HDD] [USB_HDD] [DVD-R] [CD] [USB]

Stop

Press [STOP ∫].

Pause

Press [PAUSE ;].

•Press [PLAY/a1.3 1] to restart play.

Press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

•Press [PLAY/a1.3 1] to restart play.

Skip

Press [SKIP :] or [SKIP 9].

Repeat Play/Random

Refer to “Repeat Play” or “Random” in Play menu (> 66).

Sound Effects

Refer to “Sound Effects” in Sound menu (> 67).

Displaying photos (Slideshow)

Photos stored on the “Album” of the HDD can be played back as slideshow during playback of the music.

While playing the music Press the red button.

• To change the photos to display 1 While slideshow playing

Press [OPTION].

2 Select “Select Photo Album”, then press

[OK].

3 Select the album, then press [OK].

e.g.,

To end the slideshow

Press [BACK/RETURN ].

How to create the photo album

Refer to “Add to Album”. (> 50)

To play music continuously even if the Power off link works

Refer to “Playing music continuously even after turning off power to the TV”. (> 65)

VQT4L30

Page 55

Editing music/playlist

DIRECT NAVIGATOR

Music Menu MUSIC

RETURN

Please select to access music.

Artists

Frequently Played

Albums

Total Tracks 53

HDD

Random Play

My Favourites

OPTION

Playlists

VIDEO / PHOTO

Add to Playlist

Edit Album Name

Playback Settings

Delete Album

1 On the DIRECT NAVIGATOR screen:

Press [OPTION].

e.g.,

Music

Delete All Tracks

1 If the confirmation screen appears:

Select “Yes”, then press [OK].

2 Select “Delete”, then press [OK].

Delete Album

Select “Delete”, then press [OK].

Delete

Select “Delete”, then press [OK].

2 Select the item, then press [OK].

e.g., while selecting an Album

• Editing operations will change depending on the screen.

Edit Album Name/Edit Track Name/Edit Artist Name/Edit Playlist Name

Refer to “Entering text” on page 85.

Remove All Tracks

Select “Remove”, then press [OK].

• Tracks themselves are not deleted from the HDD.

Clear My Favourites/Clear Frequently Played

Select “Clear”, then press [OK].

• Tracks themselves are not deleted from the HDD.

Remove

Select “Remove”, then press [OK].

• Tracks themselves are not deleted from the HDD.

Add to Playlist

You can register your favourite albums and tracks into 10 preset playlists.

Select the playlist, then press [OK].

• New playlist cannot be added.

• Up to 999 tracks can be registered to each playlist.

VQT4L30

Page 56

With Other Equipment

Time Rec time

Size 200 MB

0:30

9:00

HDD

Copy Video ( AVCHD ) Destination Capacity

Size

002 003 004 AVCHD

AVC HD

001

No. Channel

e.g., [SD]

Copying the HD Video or the SD Video

3 Select the title, then press the yellow button.

“For data files” only

This unit cannot copy the titles in the HDD to the media. Be careful when deleting the original title on the media.

e.g., Connecting to the Panasonic video camera

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel. (All the recordings on the same date become a title.)

USB connection cable

(optional)

• If you connect a Panasonic product with a USB connec tion cable, setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

Copying HD Video (AVCHD)

[USB_HDD] [SD] [USB], video camera, etc. > [HDD]

• The original file must be in the AVCHD standard.

1 Connect the video camera or insert the

media.

• Make the video camera ready for data transfer.

The menu screen appears. (> 38)

2 Select “Copy Video ( AVCHD )”, then press

[OK].

4 Press [OK]. 5 Select “Start”, then press [OK].

• It may take time for the copying to start.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• An AVCHD title with 100 or more scenes will be divided into titles every 99th scene and copied.

Screen icons

(NTSC)

(PAL)

Title recorded using a different encoding system from that of the unit.

• Titles displaying these marks cannot be selected.

VQT4L30

Page 57

With Other Equipment

Copy Video ( MPEG2 )

List

Start

RETURN

Press OK to start copying.

USB HDD

Page 01/01

Size:

Destination Capacity:

No. Size

New item (Total=0)

Title

( 0% )

0 MB

20806 MB

Copying SD Video (MPEG2)

[USB_HDD] [SD] [USB], video camera, etc. > [HDD]

• The original file must be in the SD-Video standard.

1 Connect the video camera or insert the

media.

• Make the video camera ready for data transfer.

The menu screen appears. (> 38)

2 Select “Copy Video ( MPEG2 )”, then press

[OK].

e.g.,

All titles of SD video on the media that can be copied are registered in the copying list.

3 Select “Start”, then press [OK]. 4 Select “Yes”, then press [OK] to start

copying.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

To edit the copying list

1 Select “List”, then press [1] (right) after

step 2. (> left) 2 Press [OPTION]. 3 Select the item, then press [OK].

Delete All:

All titles that you registered to copy are

deleted.

Select “Yes”, then press [OK].

Add:

Add new items to the copying list.

1 Select the title, then press the yellow

button. Repeat this step to select titles.

2 Press [OK].

Delete:

Selected titles are deleted.

• Select the title, then press the yellow button before step 2. Repeat this step to select titles.

Select “Yes”, then press [OK].

Move:

Change the order of items on the copying list.

• Select the title to move before step 2.

Select the destination, then press [OK].

4Press [2].

Screen icons

• The titles will be copied in the order of the copying list. If you want to specify the order, edit the copying list after the titles are selected.

• The total data size shown may be larger than the sum of the data sizes for each registered item.

Data size of each registered item

Size:

Data size recorded to the HDD

(NTSC)

(PAL)

Title recorded using a different encoding system from that of the unit.

• Titles displaying these marks cannot be selected.

VQT4L30

Page 58

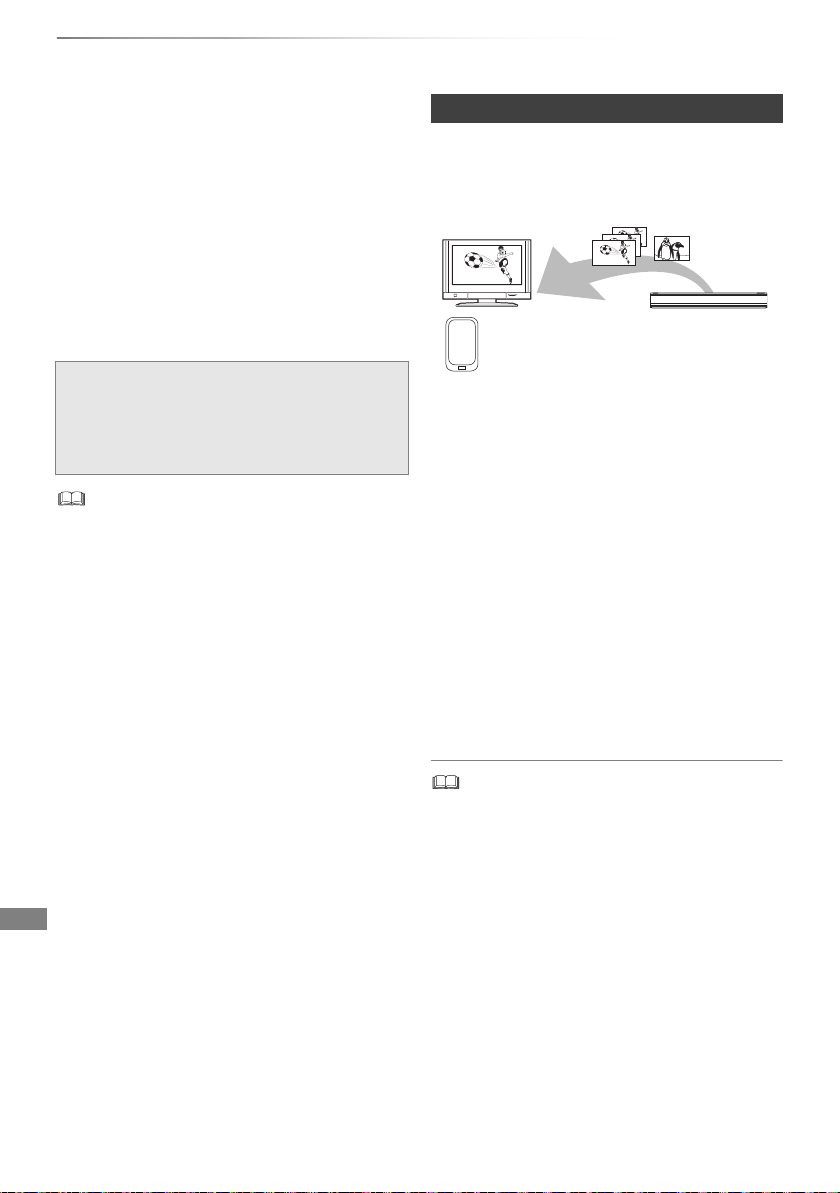

With Other Equipment

This unit (Server)

DLNA compatible

equipment (Client)

Smart Home Networking (DLNA)

Smart Home Networking (DLNA) allows you to watch the contents and broadcasts on Server equipment connected on the same network from Client equipment. This unit can be used both as Server and Client. Additionally, if used as Client, this unit can also be used as Media Renderer, which can be controlled by a Smartphone, etc.

Preparation

• Network connection (> 17, 21)

• Perform Home Network settings of the DLNA compatible equipment.

For more details, refer to the following website and the operating instructions for each item of equipment.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

• Some video or broadcasts cannot be enjoyed depending on the DLNA (Client) compatible equipment, the condition of this unit, or the file type.

• Ensure that the router for your home network has adequate security system to prevent unauthorized access.

Using this unit as Server

You can watch broadcasts received by this unit (Multiroom TV Streaming), videos and photos saved on HDD of this unit on DLNA (Client) compatible equipment.

For details regarding the connection and operation of equipment connected via a network, refer to their respective operating instructions.

DLNA function compatible software should be installed. For more details, refer to the Panasonic website. (> left)

Preparation

• When DLNA (Server) Function is deactivated, make the settings. (> 68, 79, Home Network Settings)

1 Operate the playback equipment (Client) to

display the list of contents on this unit.

• Refer to their respective operating instructions.

VQT4L30

2 Select the item, then press [OK].

• The titles with access restriction (e.g., cop y restriction) signals sent from broadcasters are not available for this function.

• You cannot play back music from the playback equipment (Client).

• The DLNA compatible device that is to be connected to the unit should be connected to the same hub or broadband router as the unit.

• Files not on the HDD cannot be played back.

• Playing back 3D video recorded on this unit may not work properly.

• 3D photos copied to this unit canno t be played back in 3D.

• Editing is not possible.

• The name of this unit is not displayed on the server list of DLNA compatible equipment (Client) while playing back a BD-Video.

Page 59

With Other Equipment

This unit (Client)

DLNA compatible

equipment (Server)

Using this unit as Client

You can share videos, photos and music stored in the DLNA Certified media server (such as a PC with Windows 7 installed etc.).

1 Press [FUNCTION MENU]. 2 Select “Home Network ( DLNA Client )” in

“Network”, then press [OK]. A list of equipment connected via the network is displayed.

• This list can be updated by pressing the red button.

3 Select the equipment, then press [OK]. 4 Select the item, then press [OK].

• Menu structure will be different depending on the equipment. Select the contents by repeating the operation.

• Convenient functions can be used by pressing [OPTION] depending on the contents.

• Control Panel

Control Panel is displayed once the playback starts. Operation can be performed with [3, 4, 2, 1], [OK] and [EXIT ].

• Press [OK] if the Control Panel is not

displayed.

• (While paying video or photo) Press

[BACK/RETURN ] to hide the Control Panel.

• You may not be able to use the Control Panel even if you use the Panasonic DLNA compatible equipment.

• Depending on the contents and the connected equipment, playback may not be possible.

• Playlist of Windows Media contents that are stored in the libraries.

• While playing back the 3D programme, yo u cannot set “3D Settings”. (> 42)

• Items displayed in grey on the display c annot be played back by this unit.

• Depending on the performance of the connected PC, video frames may be dropped during playback, or video may not be played back at all. (> 92)

Player can play back only the

Playable contents

When this unit works as a DLNA client, following contents are playable.

Video

Digital

Example of

file

extension

.mpg .mpeg

.m2ts .ts

.mts

.mpg .mpeg

Container

Recorded programmes (XP/SP/LP/

1, 2

EP/FR)

Recorded programmes (DR/HG/HX/

HE/HL/HM)

AVCHD

MP4 H.264 AAC .mp4

MPEG2 MPEG2

§1

Only when the server is another DIGA. (> 58)

§2

Recording mode in Panasonic Blu-ray Disc

Video codec

MPEG2

MPEG2 H.264

1, 2

H.264

Audio codec

Dolby Linear PCM

MPEG HE-AAC

Dolby

Dolby Linear PCM

recorder


Format Example of file extension

JPEG .jpg

MPO .mpo

Audio

Audio codec Exampl e of file extension

MP3 .mp3

FLAC .flac

Linear PCM –

• Depending on the server, the contents other than stated above can be played back.

VQT4L30

Page 60

With Other Equipment

This unit

(Media Renderer)

Controller

Server

This unit

(Media Renderer)

Server

Controller

Smart Home Networking (DLNA)

Using this unit as Media Renderer

This unit will work as Media Renderer, which allows you to play back the contents on DLNA Server by operating a Digital Media Controller (a smartphone, etc.).

Possible applications:

Digital Media Controller compatible software should be installed.

Following steps are necessary to use this unit as Media Renderer.

• Depending on the contents and the connected equipment, playback may not be possible.

• Items displayed in grey on the display c annot be played back by this unit.

• This unit can be played back via connected equipment only when controlled using Digital Media Controller.

• Depending on the performance of the connected PC, video frames may be dropped during playback, or video may not be played back at all. (> 92)

1 Press [FUNCTION MENU]. 2 Select “Home Network ( Media Renderer )”

in “Network”, then press [OK].

3 Operate the Digital Media Controller

compatible equipment.

To exit from Home Network ( Media Renderer ) screen

Press [BACK/RETURN ].

VQT4L30

Page 61

VIERA Connect (Enjoying Internet Service)

Convenient functions

BACK

XXXXXX

Featured Videos

Setup & Help

XXXXXX

Communication Camera TY-CC20W or TY-CC10W

This unit’s rear panel

e.g.,

VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy Internet contents such as photos, videos, etc. from VIERA Connect home screen. This unit has no full browser function and all features of websites may not be available.

e.g.,

VIERA Connect Home screen

• Images are for illustration purpose, contents may change without notice.

Preparation

• Network connection (> 17, 21)

[PWT635]

To enjoy video communication (e.g., Skype

• Connect this unit with optional Communication Camera (TY-CC20W or TY-CC10W). Depending on the area, this optional camera may not be available. Please consult your local Panasonic dealer for advice.

• For operating method refer to the following website. http://panasonic.jp/support/global/cs/ (This site is in English only.)

• Cannot be used while recording, copying, or playing BD-Video.

1 Press [INTERNET].

The message is displayed. Please read it carefully and then press [OK].

• NETFLIX can be accessed directly by pressing [NETFLIX] button.

• [PWT635] The video communication service can be accessed directly by pressing [ ] button.

2 Select the item, then press [OK].

• Operable buttons: [3, 4, 2, 1], [OK], [BACK/RETURN ],

colour buttons and number buttons.

To exit from VIERA Connect

Press [EXIT ].

• When playing content from a disc, SD ca rd or USB device VIERA Connect cannot be accessed.

• In the following cases, settings are possible using “Network

)

Service Settings” (> 68, 78)

- When restricting the use of VIERA Connect.

- When the audio is distorted.

• If using slow Internet connection, the video may not be displayed correctly. A high-speed Internet service with a speed of at least 6 Mbps is recommended.

• Be sure to update the software (firmware) when a software (firmware) update notice is displayed on the screen. If the software (firmware) is not updated, you will not be able to use the VIERA Connect function.

• The services through VIERA Connect are operat ed by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

• All features of websites or content of the service may not be available.

• Some contents may be inappropriate for some viewers.

• Some contents of VIERA Connect may only be available for specific countries and may be presented in specific languages.

• If timer recording starts, VIERA Connect will stop.

Convenient functions

VQT4L30

Page 62

Convenient functions

Format SD card

Formatting deletes all contents (including computer data), and they cannot be restored. Check carefully before proceeding.

1 Press [FUNCTION MENU]. 2 Select “SD Card” in “Drive Select”, then

press [OK].

3 Select “SD Card Management” in “Others”,

then press [OK].

4 Select “Format Card”, then press [OK]. 5 Select “Yes”, then press [OK]. 6 Select “Start”, then press [OK]. 7 Press [OK].

• The contents are deleted when you format a card even if you have set protection.

• Do not disconnect the AC mains lead while formatti ng. This can render the card unusable.

• When a card has been formatted using this unit, it may not be possible to use it on any other equipment.

VQT4L30

Page 63

Convenient functions

This unit’s rear panel

e.g.,

USB HDD

Registering the external HDD (USB HDD)

Connecting the USB HDD

“For recorded titles” only

If you intend to move recorded titles to a USB HDD, the USB HDD must be registered to this unit first.

Limitation information

• A USB HDD with a capacity of less than 160 GB cannot be used.

• Registering of a USB HDD will format the USB HDD and all the content already recorded will be deleted.

• Up to eight USB HDDs can be registered on this unit.

• Registered USB HDDs cannot be used with devices other than this unit.

Connect this unit with optional USB HDD.

Regarding the external HDD (USB HDD)

Please use a confirmed USB HDD.

For the latest information on confirmed USB HDDs, please check the following website.

http://panasonic.jp/support/global/cs/

• Certain non-confirmed USB HDDs cannot be used with this unit.

• If a problem occurs with the USB HDD, please contact the manufacturer of the device.

• Only one USB HDD (For recorded titles) can be connected at the same time.

• Do not connect additional HDDs using a USB hub.

• For details about connection method, refer to the instructions supplied with the USB HDD.

Disconnecting the USB HDD

Please use the following procedure to disconnect. Disconnecting without following this procedure may result in the loss of recorded content from the USB HDD or the internal HDD.

1 Press [SETUP]. 2 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

3 Select “USB HDD Disconnection”, then

press [OK].

4 Select “Yes”, then press [OK]. 5 Disconnect the USB HDD from this unit.

VQT4L30

Page 64

Convenient functions

Registering the external HDD (USB HDD)

Registering the USB HDD

• If the registering screen appears when connecting the USB HDD, go to step 4.

1 Press [SETUP].

2 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

3 Select “USB HDD Registration”, then press

[OK].

4 Select “Yes”, then press [OK].

• If you have already registered eight USB HDDs, it will be necessary to delete one or more of them before registering a new USB HDD. The message screen appears:

1 Select “Yes”, then press [OK]. 2 Select the USB HDD to cancel, then

press [OK]. The confirmation screen appears.

3 Select “Yes”, then press [OK].

5 When the registering is complete, message

screen appears. Press [OK].

To cancel all USB HDD registrations

Refer to “Cancellation of all USB HDD Registrations”. (> 74)

• If you register a USB HDD, all the content already recorded on the USB HDD will be deleted.

• It is not possible to play back the con tent on the USB HDD whose registration has been cancelled.

• You can check the registration number of the USB HDD on the DIRECT NAVIGATOR. (> 35)

6 The confirmation screen appears.

Press [OK].

VQT4L30

Page 65

VIERA Link functions

What is VIERA Link “HDAVI Control”?

VIERA Link “HDAVI Control” is a convenient function which will link the operations of this unit and a Panasonic TV (VIERA) or an amplifier/receiver. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment.

Automatic input switching/ Power on link

When the following operations are performed, the input channel of the TV will be automatically switched and the screen of this unit will be displayed. Additionally when the TV is off, the TV will automatically turn on.

- When play starts on this unit

- When an action that uses DIRECT NAVIGATOR etc, is performed

Power off link

When you set the TV to standby mode, this unit is also automatically set to standby mode.

• Power off link function does not work when recording, copying etc.

Convenient functions

PAUSE LIVE TV

You can operate this unit with the TV remote control. Refer to “PAUSE LIVE TV”. (> 27)

• This function is available with the TV that supports “HDAVI Control 3” or later.

Direct TV Recording

This function allows you to immediately start recording the programme that you are viewing on the TV. Refer to the TV operating instructions for operation.

• This function is available with the TV that supports “HDAVI Control 3” or later.

Easy control only with VIERA remote control

You can operate this unit using the TV remote control. Refer to the operating instructions of the TV about the buttons that you can use.

• This function is available with the TV that supports “HDAVI Control 2” or later.

Playing music continuously even after turning off power to the TV

The following operations make it possible to keep the power of the unit on and to play music continuously. When the unit is directly connected to an amplifier/receiver. 1 While playing music

Press [OPTION].

2 Select “TV Power Off”, then press [OK].

• Sound may be discontinued for several seconds when the power to the TV is turned off.

• This function is available with the TV that supports “HDAVI Control 2” or later.

• This unit supports “HDAVI Control 5” function. “HDAVI Control 5” is the standard for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

• VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

• These functions may not work normally de pending on the equipment condition.

• Use the remote control supplied with this unit if you cannot operate this unit using buttons on the TV remote control.

• The operation of this unit may be inte rrupted when you press certain buttons on the TV remote control.

VQT4L30

Page 66

Convenient functions

Menu Item Setting

e.g.,

Playback menu

A variety of operations and settings such as changing the subtitles and audio languages can be performed during playback of video or music. Also, picture and sound quality can be set to your personal taste.

1 Press [OPTION]. 2 Select “Playback Settings” in “Playback

Menu” or select “Playback Settings”, then press [OK].

Disc Play Picture Sound Other

Soundtrack

Subtitles

Angle

3 Select the menu, then press [1] (right). 4 Select the item, then press [1](right).

5 Select the setting.

• Some items can be changed by pressing [OK].

Depending on the condition of the unit (playing, stopped, etc.) and media contents, there may be some items which cannot be selected or for which the effects do not work properly.

To clear the Playback menu

Press [BACK/RETURN ].

1 ENG

Off

2/0 ch

1 ENG

Disc

Video

The original video recording method (MPEG-4 AVC etc.) appears.

Signal Type

Primary Video

Video

The original video recording method appears.

Soundtrack

Select the type of audio or language.

Secondary Video

Video

Select on/off of images. The original video recording method appears.

Soundtrack

Select on/off of audio and the language.

Soundtrack

Show or change the soundtrack.

Subtitles

Turn the subtitle on/off, and change the language depending on the media.

Multi Audio

Switch in the case of multiple audio.

Subtitle Language

Select the subtitle language in the case of multiple languages.

Subtitle Style

Select the subtitle style recorded on the disc.

Angle

Change the number to select an angle.

Audio Channel

Change audio (LR/L/R) during playback.

With some discs, you may only be able to make changes using the menus on the disc.

Play

Repeat Play

Select the item which you want to repeat.

Random

Select whether to play random or not.

Graphic Display Level

You can change the 3D position of the playback settings display, etc., during the 3D playback.

VQT4L30

Page 67

Convenient functions

LPCM/ Digital/

Digital+/ TrueHD/ DTS/DTS-HD/MPEG/ HE-AAC:


Mode

Select the picture quality mode during play.

•Normal

Default setting.

•Soft

Soft picture with fewer video artifacts.

•Fine

Details are sharper.

•Cinema

Mellows movies, enhances detail in dark scenes.

•Cartoon

A mode suitable for viewing animations.

Advanced Settings

HD optimizer

This will compensate the mosaic noise in the video and haze around the characters precisely.

Chroma Process

The high-resolution processing of HDMI chroma signals produces a high-resolution picture with rich picture quality.

Detail Clarity

The picture becomes sharp and detailed.

Super Resolution

Standard picture quality video is corrected to sharp and crisp picture quality when it is output as 1080i/1080p.

Progressive

Select the method of conversion for progressive output to suit the type of title being played.

•Auto

Automatically detects the film and video content, and appropriately converts it.

•Video

Select this setting when the content is distorted if “Auto” is selected.

•Film

Select this if the edges of the film content appear jagged or rough when “Auto” is selected. However, if the video content is distorted as shown in the illustration to the right, then select “Auto”.

Sound

Sound Effects

• This function is effective when “Digital Audio Output” is set to “PCM”. (> 75)

Re-master 1/Re-master 2

Sound becomes more natural by adding higher frequency signals not recorded on the track.

Dialogue Enhancer

The volume of the centre channel is raised to make dialogue easier to hear.

Other

Position

Change the position where this menu screen appears on your TV.

Audio attribute

Signal type

k (kHz): Sampling frequency

b (bit): Number of bits

ch (channel): Number of channels

Language

ENG English JPN Japanese ARA Arabic

FRA French CHI Chinese HIN Hindi

DEU German KOR Korean PER Persian

ITA Italian MAL Malay IND Indonesian

ESP Spanish VIE Vietnamese MRI Maori

NLD Dutch THA Thai BUL Bulgarian

SVE Swedish POL Polish RUM Romanian

NOR Norwegian CES Czech GRE Greek

DAN Danish SLK Slovak TUR Turkish POR Portuguese HUN Hungarian ¢ Others

RUS Russian FIN Finnish

• The menu is not displayed when playing photos.

VQT4L30

Page 68

Convenient functions

Setup

RETURN

Tuning HDD / Disc / USB HDD Picture Sound Display Connection Network Others

Changing the unit’s settings (Setup)

You can change the unit’s settings of Tuning, Sound, Display, Connection, Network etc. in the menu.

Common procedures

1 Press [SETUP].

2 Select the menu, then press [OK]. 3 Select the item, then make the setting.

(> right)

• Follow the instructions on the screen if further operations are necessary.

• Depending on the connection or the status of this unit some items cannot be selected or changed.

To return to the previous screen

Press [BACK/RETURN ].

Menu list

The locations of the setting items are as follows. For details on each setting item, please refer to the following pages.

Tuni ng

Favourites Edit (> 70) Channel List (> 70) Auto Setup (> 71) Channel Sorting by Region (> 71) Manual Tuning (> 71) Update Channel List (> 71) Signal Condition (> 71) New Channel Message (> 71) Child Lock (> 72)

Child Lock List (> 72) Freeview Players (> 72)

Preferred Multi Audio (> 72)

Multi Audio (> 72) Audio Description (> 72)

Preferred Subtitles (> 72)

Subtitles (> 72)

HDD / Disc / USB HDD

Settings for Playback (> 72)

3D BD-Video Playback (> 72) Soundtrack (> 72) Subtitles (> 72) Menu (> 72) Play Video ( AVCHD ) on BD-RE / BD-R (> 72) BD-Live (> 73) BD-Video Parental Control (> 73) DVD-Video Parental Control (> 73) Child Lock (> 73) Pure Sound mode (> 73)

REWIND LIVE TV (> 73) Chapter Creation (> 73) HDD Management (> 73)

Delete all titles (> 73) Delete all photos (> 73) Format HDD (> 73)

Settings for USB HDD (> 74)

USB HDD Registration (> 74) USB HDD Disconnection (> 74) USB HDD Management (> 74)

Delete all titles (> 74) Format USB HDD (> 74)

Cancellation of all USB HDD Registrations (> 74)

VQT4L30

Page 69

Convenient functions


Still Mode (> 74) Seamless Play (> 74)

Sound

Dynamic Range Compression (> 74) Downmix (> 74) Digital Audio Output (> 75)

PCM Down Conversion (> 75) Dolby D / Dolby D + / Dolby TrueHD (> 75) DTS / DTS-HD (> 75) MPEG (> 75) HE-AAC (> 75) BD-Video Secondary Audio (> 75)

Audio Delay (> 75)

Display

On-Screen Information (> 75) Unit’s Display (> 75) Screen Saver (> 75)

Connection

3D Settings (> 76)

3D Type (> 76) 3D AVCHD Output (> 76) 3D Playback Message (> 76)

TV Aspect (> 76) Aspect for 4:3 Video (> 76) TV System (> 76) HDMI Connection (> 76)

HDMI Video Format (> 76) 24p Output (> 77) Deep Colour Output (> 77) HDMI Audio Output (> 77)

7.1ch Audio Reformatting (> 77) Contents Type Flag (> 77) VIERA Link (> 77)

Network

Easy Network Setting (> 78) Network Settings (> 78)

LAN Connection Mode (> 78) Wireless Settings (> 78)

Connection Setting (> 78)

Double Speed Mode Setting ( 2.4GHz ) (> 78) IP Address / DNS Settings (> 78) Proxy Server Settings (> 78) Network Service Settings (> 78)

Lock (> 78)

Automatic Volume Control (> 78) Remote Recording Function Settings (> 79)

Remote Recording function (> 79)

Device ID (> 79)

Initialize Device Password (> 79) Home Network Settings (> 79)

Home Network function (> 79)

Setting device name (> 79)

Registration type for remote devices (> 79)

Remote device list (> 79)

Others

Standby Settings (> 80)

Quick Start (> 80) Automatic Standby (> 80) Automatic Standby after OTR (> 80) Automatic Standby after Copy (> 80) RF OUT ( Aerial Signal ) (> 80) Power Save for Network Standby (> 80)

Remote Control (> 81) Clock (> 81) Owner ID (> 81) PIN Entry (> 81) System Update (> 82)

Software Update in Standby (> 82) Software Update Now ( Broadcast ) (> 82) Software Update Now ( Internet ) (> 82) Software Licence (> 82)

System Information (> 82) Initialize (> 82)

Shipping Condition (> 82) Default Settings (> 82)

VQT4L30

Page 70

Convenient functions

DVB Favourites Editor

Add allSelect favourites

RETURN

Add

Select channel

All DVB Channels

Favourites 1

Page down

Page up

1 2 3

7 8

All DVB Channels

Select

Hide

RETURN

Page down

Page up

Swap Reveal allTune

Changing the unit’s settings (Setup)

Tuning

Favourites Edit

You can create four favourites of channels for making viewing and recording easier.

After editing as follows, save the Favourites.

Press [BACK/RETURN ], then press [OK].

• To select the other Favourites list: Press the green button.

• To add channels to the Favourites list: Select the channel in the “All DVB Channels” column, then press [OK]. Repeat this step.

• Yellow: Add all the available channels to the

Favourites. (This function is available only when there are no channels in the “Favourites”.)

• To change the order of the channels list: 1 Select the channel in the “Favourites”

column to move, then press the green button.

2 Select the new position, then press the

green button.

• To delete channels: Select the channel in the “Favourites” column, then press [OK].

• Yellow: Delete all channels.

• To change the name of the Favourites list: 1 Press the red button in the “Favourites”

column.

2 Press [3, 4, 2, 1] to select a character,

then press [OK]. Repeat this step to enter other characters.

• Red: Delete a character.

• Blue: Delete all characters.

3 Press [BACK/RETURN ].

Channel List

You can edit the channel list.

• To hide unwanted channels 1 Select the channel. 2 Press [OK].

The check mark is removed.

• Yellow: Reveal all channels.

• To change the channel number assignment 1 Select the channel to change, then press the

green button.

2 Enter the channel number to reassign with

the number buttons.

3 Press [OK].

• To set the channel manually 1 Press the red button. 2 Refer to “Manual Tuning”. (> 71)

VQT4L30

Page 71

Convenient functions

Channel Name

DVB Signal Condition

RETURN

Channel Up

Channel Down

Signal Strength

Bit Error Rate

Signal Quality

Frequency

[ ]

MHz

Network Name

100 100

Auto Setup

You can restart the Auto Setup. (> 19) PIN is required when you have locked channels. (> 72, Child Lock List)

Select “Yes”, then press [OK].

• The timer recording programmes are cancelled.

• If you perform “Channel Sorting by Region” (> below), you can sort the channel list best suited to your region after Auto tuning is finished.

Channel Sorting by Region

If you want to sort the channel list best suited to your region, follow the on-screen instructions to select the region you live in. Normally, you should select “Best signal quality (All Regions)”.

Manual Tuning

You can add new channels manually. 1 Press [3, 4] to select the frequency.

• Adjust the frequency by checking the signal strength and signal quality displays.

2 Press [OK] to start scan.

• The set channel is displayed in the table.

Signal Condition

You can check the quality and strength of signals. Press [CH WX] to select the channel.

• Signal Quality: Green bar: Good Yellow bar: Poor Red bar: Bad

• The channels you can receive are affected by weather conditions, seasons, time (day/night), region, length of the cable that is connected to the aerial, etc.

• When the signal is too strong (red bar), reduce the sign al amplification at your aerial. (For details, consult your dealer.)

New Channel Message

Set whether to obtain the information automatically when a new DVB channel is added.

Update Channel List

You can update the channel list to the latest one.

VQT4L30

Page 72

Convenient functions

Changing the unit’s settings (Setup)

Child Lock

• PIN is required to change. (> 24)

Child Lock List

You can restrict the viewing of channels. You can lock each channel.

1 Select the channel to lock. 2 Press [OK].

is displayed.

• Press [OK] again to cancel.

• Green: Lock all channels.

• Yellow: Unlock all channels.

Freeview Players

You can restrict the viewing of Digital teletext (MHEG) unsuitable to children.

Preferred Multi Audio

Multi Audio

Select the language for multi broadcast. If the selected language is not available, the

original language will be selected.

Audio Description

(When Audio Description is available in the programme) When “Automatic” is selected, Audio Description will be set as default while watching.

HDD / Disc / USB HDD

Settings for Playback

3D BD-Video Playback

Select the playback method of 3D compatible video software.

Soundtrack

Select the audio language.

• If “Original” is selected, the original language of each disc will be selected.

• Enter a code with the number buttons when you select “Other ¢¢¢¢”. (> 83, Language code list)

Subtitles

Select the language for subtitle.

• If “Automatic” is selected and the language selected for “Soundtrack” is not available, subtitles of that language will automatically appear if available on that disc.

• Enter a code with the number buttons when you select “Other ¢¢¢¢”. (> 83, Language code list)

Select the language for disc menus.

• Enter a code with the number buttons when you select “Other ¢¢¢¢”. (> 83, Language code list)

• When “Dolby D / Dolby D + / Dolby TrueHD”, “MPEG” or “HE-AAC” is set to “Bitstream”, the Audio Description may not work. Set them to “PCM” (> 75, Digital Audio Output).

Preferred Subtitles

Subtitles

Choose the subtitle language for broadcast. If the selected language is not available, then the original language will be selected.

VQT4L30

Play Video ( AVCHD ) on BD-RE / BD-R

When playing a disc which contains the following two video formats;

- High Definition video (AVCHD) recorded by the Panasonic video camera, etc.,

- High Definition quality video recorded on this unit,

select which video to play back.

•On: Play the High Definition video (AVCHD)

• Off: Play the High Definition quality title

Page 73

Convenient functions

BD-Live

You can restrict Internet access when BD-Live functions are used.

• If “On ( Limit )” is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.

BD-Video Parental Control

Set an age limit of BD-Video play.

• PIN is required to change. (> 24)

DVD-Video Parental Control

Set a rating level to limit DVD-Video play.

• PIN is required to change. (> 24)

Child Lock

You can restrict playback of the following titles:

- Titles that are recorded with guidance information

- Titles restricted by Child Lock List (> 72)

(Titles with icon in DIRECT NAVIGATOR, etc.)

• PIN is required to change. (> 24)

Pure Sound mode

You can enjoy movies or music in an environment more suitable for viewing by stopping the rotation of the HDD when playing back commercial BD-Videos, DVD-Videos or music CDs.

• If “On” is selected, timer recording does not start during playback BD-Video, DVD-Video or music CD.

REWIND LIVE TV

Turn on/off the REWIND LIVE TV function.

• When “Automatic Standby” is set to “Off” (> 80), “On” cannot be selected.

Chapter Creation

Set the Chapter Creation method.

• Even if “Automatic” is selected, depending on the programme to be recorded, the chapter may not be created correctly.

HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

Delete all titles

Delete all titles (video) on the built-in HDD.

• Delete does not work if one or more titles are protected.

Delete all photos

Delete all photos on the built-in HDD.

Format HDD

Formatting deletes all contents on the built-in HDD, and they cannot be restored. Check carefully before proceeding.

VQT4L30

Page 74

Convenient functions

Changing the unit’s settings (Setup)

Settings for USB HDD

USB HDD Registration

USB HDD Disconnection

This function puts the USB HDD in a state in which it can be safely disconnected. (> 63)

USB HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

Delete all titles

Delete all titles on the USB HDD.

• Delete does not work if one or more titles are protected.

Format USB HDD

Formatting deletes all contents, and they cannot be restored. Check carefully before proceeding.

Cancellation of all USB HDD Registrations

This function cancels the registrations of all the USB HDDs registered on this unit. Only do this if you are going to dispose of this unit.

• Before operation, perform “USB HDD Disconne ction” (> above) and remove the USB HDD.

• It is not possible to play back the conte nt from a USB HDD whose registration has been cancelled.


Still Mode

Select the type of picture shown when you pause play.

•Field: Select if jittering occurs when “Automatic” is selected. (The picture is coarser.)

• Frame: Select if small text or fine patterns cannot be seen clearly when “Automatic” is selected. (The

picture is clearer and finer.)

Seamless Play

The segments can be played back seamlessly.

• When “Off” is selected, frame-dropping between the segments can be avoided, but the video may freeze for a moment between the segments.

• Seamless Play function does not work depending on the condition or the kind of programme.

Sound

Dynamic Range Compression

To lower the dynamic range for playback (e.g., at night).

• This does not work depending on broadcasts and recorded titles.

Downmix

Select the downmix system of multi-channel to 2-channels sound.

• Select “Surround encoded”, when the connected equipment supports the virtual surround function.

• There is no effect on “Bitstream” via HDMI AV OUT and DIGITAL AUDIO OUT terminal.

• The audio will be output in “Stereo” in the following cases.

- AVCHD playback

- [BD-V] : Playback of clicking sound on the

menu and audio with secondary video in picture-in-picture mode.

VQT4L30

Page 75

Convenient functions

Digital Audio Output

PCM Down Conversion

Select how to output audio with a sampling frequency of 96 kHz.

•On: Signals are converted to 48 kHz.

(Choose when the connected equipment cannot process signals with a sampling frequency of 96 kHz.)

•Off: Signals are output as 96 kHz.

• The signals will be converted to 48 kHz

regardless of the setting in the following cases.

- The signals have a sampling frequency of over 96 kHz.

- The disc has copy protection.

- “BD-Video Secondary Audio” is set to “On”. ([BD-V]) (> below)

Dolby D / Dolby D + / Dolby TrueHD DTS / DTS-HD MPEG HE-AAC

Select the audio signal to output.

• Select “PCM” when the connected equipment cannot decode the respective audio format.

• Not making the proper settings may result in noise.

Audio Delay

Mis-sync between the video and audio is corrected by delaying the audio output.

Display

On-Screen Information

Select the time until the channel information screen (> 25) disappears automatically.

Unit’s Display

Changes the brightness of the unit’s display.

• If “Automatic” is selected, the display turns dark during play and disappears when the unit is in standby mode. While using this mode, the standby power consumption can be reduced.

• When “Quick Start” is set to “Off” or “Timer Setting for Quick Start” (> 80), the setting for this function is fixed to “Automatic”.

Screen Saver

This is to prevent burn-in on the screen.

BD-Video Secondary Audio

Turn on/off the clicking sound on the menu and audio with secondary video.

VQT4L30

Page 76

Convenient functions

Changing the unit’s settings (Setup)

Connection

3D Settings

3D Type

If 3D video cannot be played back in 3D, you may be able to play it in 3D by changing the setting.

• Change the settings for 3D on the TV also when “Side by side” is selected.

• This setting is not effective for 3D BD-Video.

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video and cannot be played back correctly, you may be able to play it by changing the setting.

3D Playback Message

Set to display or hide the 3D viewing warning screen.

TV Aspect

Set to match the type of TV connected.

• 16:9: When connected to a 16:9 widescreen TV.

•4:3: Side picture is trimmed for 16:9

picture. The pictures may be shown in the letterbox style depending on the content.

• Letterbox: Black bands appear for 16:9

picture.

Aspect for 4:3 Video

To play a 4:3 title, set how to show pictures on a 16:9 TV.

TV System

Set in accordance with the TV System for the connected TV.

HDMI Connection

HDMI Video Format

You can only select items compatible with the connected equipment.

• If “Automatic” is selected, the output resolution best suited to the connected TV (1080p, 1080i, 720p or 576p/480p) is automatically selected.

• To enjoy High Quality Video up-converted to 1080p, you need to connect the unit to 1080p compatible HDTV. If this unit is connected to an HDTV through other equipment, it must also be 1080p compatible.

VQT4L30

Page 77

Convenient functions

24p Output

When playing BD-Video recorded in 24 frames, this unit displays each frame at 1/24 second intervals–the same interval originally shot with the film movie.

• This item is effective only when this unit is connected to a TV supporting 1080/24p output and “HDMI Video Format” is set to “Automatic” or “1080p”. (> 76)

• When BD-Video images other than 24p are played, images are output at 60p.

Deep Colour Output

This setting is for selecting whether to use Deep Colour output when a TV that supports Deep Colour is connected.

HDMI Audio Output

Select “Off” when connected to an amplifier/receiver with a DIGITAL AUDIO OUT terminal.

7.1ch Audio Reformatting

[BD-V]

Surround sound with 6.1 ch or less is automatically expanded and played back at

7.1 ch.

• If “Off” is selected, sound is played over the original number of channels. (Note that in the case of 6.1 ch audio, playback will be at

5.1 ch)

Audio reformatting is enabled in the following cases:

- When you have selected “PCM” in “Digital Audio Output”. (> 75)

- When the audio is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or LPCM.

Contents Type Flag

If “Automatic” is selected, the optimal method of playback depending on the TV (e.g. cinema) will automatically be selected (only when the TV supports Contents Type Flag).

VIERA Link

Select “Off” when you do not want to use “HDAVI Control”.

VQT4L30

Page 78

Convenient functions

e.g.,

Changing the unit’s settings (Setup)

Network

Easy Network Setting

Press [OK] to start Easy Network Setting. (> 21)

Network Settings

LAN Connection Mode

Select the LAN connection method.

• [PWT530] “Wireless” is enabled only when the

Wireless LAN adaptor DY-WL5 (optional) is connected.

Wireless Settings

This allows to set and check the connection settings of the Wireless router.

Wireless Settings

Connection Setting Double Speed Mode Setting ( 2.4GHz )

The current connection settings and status are displayed.

Current connection settings

Network name ( SSID )

Wireless type Authentication type Encryption type

Current status

Connection status Reception

  

1 Encryption type 2 Reception 3 Type of wireless router

Connection Setting

The Wireless router connection wizard will be displayed.

802.11n (2.4GHz/20MHz)

AES

Connected

IP Address / DNS Settings

Check the connection of the network or set the IP address and DNS.

• To set the IP address and DNS 1 Set “IP Address Auto-assignment” and

“DNS-IP Auto-assignment” to “Off”.

2 Select the item, then press [OK] to show

the respective setting.

• When the router’s DHCP server function is not activated, check the numbers of other connected devices such as personal computers, then assign a number different from those of other devices for the “IP Address” and assign the same number for “Subnet Mask” and “Gateway Address”.

Proxy Server Settings

Check and set the connection to the Proxy server.

• Press [OK] to show the respective setting.

Network Service Settings

Lock

You can restrict using VIERA Connect.

• PIN is required to change. (> 24)

Automatic Volume Control

Volume is adjusted automatically to the standard volume while using VIERA Connect.

• Depending on contents, this function will not work.

• Select “Off” when the audio is warped.

Double Speed Mode Setting ( 2.4GHz )

When a 2.4 GHz wireless format is used, this setting sets the connection speed.

• If you connect using the “Double Speed Mode (40MHz)”, 2 channels use the same frequency band, and there is consequently a greater risk of reception interference. This can cause the connection speed to drop or the connection to become unstable.

VQT4L30

Page 79

Convenient functions

Remote Recording Function Settings

You must register to a service to use this function. For details please check the following website. http://panasonic.jp/support/global/cs/

(This site is in English only.)

Remote Recording function

When you make a timer recording from a smart phone or a PC, etc. away from home, set this function to "On".

Device ID

This is the device ID and device password required for registering to and using a service.

Initialize Device Password

The device password for this unit is initialized.

• When you initialize the device password, you will not be able to use Remote Recording function. To use the Remote Recording function again, you must re-register to the service.

Home Network Settings

You can set the DLNA (Server) function. (> 58)

Home Network function

You can switch between enable/disable of the DLNA (Server) and DMR (Media Renderer) function.

• If “On” is selected, the setting for “Quick Start” is fixed to “On”. (> 80)

• If “Off” is selected, the setting for “Remote Recording function” is fixed to “Off”. (> above)

• This cannot be set to “On” if the connection with the wireless broadband router is not encrypted in the wireless connection.

Setting device name

It is also possible to change the name of this unit on the network.

• Select from a preset list Select the preset name, then press [OK].

• Create name Enter the name. Refer to “Entering text”. (> 85)

Registration type for remote devices

• Automatic: All connected devices on the same network can access this unit.

• Manual: Only registered devices can access this

unit.

Remote device list

• To register equipment manually 1 Select the device name or the MAC

Address for the device you want to register, then press [OK].

2 Select “Yes”, then press [OK].

• To deregister equipment 1 Select the registered equipment, then

press [OK].

2 Select “Yes”, then press [OK].

• This function cannot be enabled when “Automatic” is selected in “Registration type for remote devices”. (> above)

• The maximum number of equipment that can be registered is 16.

VQT4L30

Page 80

Convenient functions

Changing the unit’s settings (Setup)

Others

Standby Settings

Quick Start

•On: It is possible to start quickly from standby

mode.

•Off: Power consumption in standby mode is minimized. (> 96) However, startup time from standby mode will be longer.

• Timer Setting for Quick Start: “Quick Start” is activated when the set time comes. (If the clock has not been set, this

function is not activated at all hours.)

• When “Home Network function” (> 79) or “Remote Recording function” (> 79) is set to “On”, the setting for this function is fixed to “On”.

• I f “Off” or “Timer Setting for Quick Start” is selected, the setting for “Unit’s Display” is fixed to “Automatic”. (

• [PWT635] The setting may be changed to “On” automatically when the setting for video communication is changed. (> 61)

Automatic Standby

Set the time to turn the unit to standby mode automatically. When the unit is not operating, the unit will be turned to standby mode once the set time has passed.

• When “REWIND LIVE TV” is set to “On” (> 73), “Off” cannot be selected.

Automatic Standby after Copy

•On: This unit is turned to standby mode when it

is not operated for approximately 5 minutes after completing copy (> 57).

RF OUT ( Aerial Signal )

Set whether to output the broadcasting signal from RF OUT or not while in standby mode (When “Quick Start” is not activated).

• If “On” is selected, the aerial signal is output from this unit.

Power Save for Network Standby

You can minimize power consumption in standby mode even when the “Quick Start”

function is activated. (> 96)

• When this is set to “On”, startup time when operating [GUIDE] and [DIRECT NAVIGATOR] from standby mode will be longer.

75)

Automatic Standby after OTR

•On: This unit is turned to standby mode when it is not operated for approximately 5 minutes after completing “Automatic Stop” or

“Recording Time” (> 28).

VQT4L30

Page 81

Convenient functions

Remember the PIN.

PIN Entry

0 0 0 0

Remote Control

Change the remote control code on the main unit and the remote control if you place other Panasonic products close together.

• Use “Set Code1”, the factory set code, under normal circumstances.

1 Select the code, then press [OK]. 2 While pressing [OK], press and hold the

number button ([1] to [6]) for more than

5 seconds. 3 Press and hold [OK] for more than 5 seconds. 4 Press [OK].

Clock

If the time is not set correctly, use the settings listed in the method below.

• Automatic

This unit usually obtains time and date information from digital broadcasts.

• Time Zone

When the time is not correct, set “Time Zone”. (GMT - 6 to + 6)

• Manual Setting

1 Select “Off” of “Automatic”, then press [OK]. 2 Select the item you want to change. 3 Change the setting. 4 Press [OK] when you have finished the

settings.

Owner ID

In order to prevent another person from using this unit if it is stolen, you can set a PIN and input your personal information (NAME, HOUSE NO, POSTCODE).

Once the PIN has been set, you cannot return to the factory preset. Make sure not to forget this.

PIN Entry

You can set/change the PIN for parental control.

1 Enter your 4-digit PIN with the number

buttons.

2 Enter the new 4-digit PIN with the number

buttons.

• Make a note of PIN in case you forget it.

e.g.,

3 Press [OK].

VQT4L30

Page 82

Convenient functions

Changing the unit’s settings (Setup)

System Update

Software Update in Standby

When you set this unit to standby mode,

software (firmware) updates (> 84) are

downloaded automatically at the time you

have specified.

Software Update Now ( Broadcast )

Refer to “Software (Firmware) Update”.

(> 84)

Software Update Now ( Internet )

Refer to “Software (Firmware) Update”.

(> 84)

Software Licence

Information about the software licence is

displayed.

System Information

Display Software (firmware) version, HDAVI Control version, Wireless Module version (When using wireless connection only), and terminal ID (ESN) of this unit.

Initialize

Shipping Condition

All the settings except for some settings return to the factory preset.

• The timer recording programmes are also cancelled.

• The device password is also initialized. (> 79)

Default Settings

All the settings other than the tuning settings, clock settings, disc language settings, parental control settings, remote control code, device password, etc. return to the factory presets.

VQT4L30

Page 83

Language code list

Convenient functions

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783 Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178 Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165 Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686

Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 778 4 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869 Norwegian: 7879 Oriya: 7982 Pashto, Pushto: 8083 Persian: 7065 Poli sh: 80 76 Portuguese: 8084 Punjabi: 806 5 Quechua: 8185 Rhaeto-Romance: 8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yo r u b a : 8 9 7 9 Zulu: 9085

VQT4L30

Page 84

Convenient functions

New software version has been found. The software will be updated automatically after this unit is switched to standby. Do not disconnect the AC mains lead.

Software (Firmware) Update

You cannot operate the unit until the update is complete. Don’t remove the AC mains lead during the update. Removing the AC mains lead while the update is in progress may damage the unit.

If a software (firmware) update is available, a notification is displayed.

Software of this unit can be updated automatically by the following methods at the specified time. (Default setting is 3 a.m. > 82, Software Update in Standby)

- From broadcasts

- From Internet

• To update the software (Firmware) immediately, use the following function:

- Software Update Now ( Broadcast ):

Software of this unit will be updated from broadcasts if update information is detected.

- Software Update Now ( Internet )

Software of this unit will be updated from Internet if update information is detected.

Network connection and setting are required. (> 17, 21)

Update of the software (firmware) will start when the unit is turned to standby mode.

The unit’s display during the update

e.g.,

• When “FINISH” is displayed, update of the software (firmware) has completed.

• It may take up to a few hours until the update is completed depending on the network or broadcast environment.

• The timer recording always takes preference over the software (Firmware) download; if the timer recording is scheduled to start, the downloading will be performed at the next opportunity.

• You can also download the latest software (firmware) from the following website. http://panasonic.jp/support/global/cs/

VQT4L30

Page 85

Other operations

Enter Title Name

Space

Set

Delete

RETURN

Name field: shows the text you have

entered

e.g.,

JKL

PQR

TUV

qrs

Unit’s display

Convenient functions

Entering text

Preparation

• Show the “Enter Title Name” screen, etc.

1 Select a character, then press [OK].

Repeat this step to enter other characters.

• To delete a character: Select the character in the name field, then press [PAUSE ;].

• To enter characters with number buttons:

e.g., entering the letter “R”

1 Press [7] to

move to the seventh row.

2 Press [7] twice

to highlight “R”.

3 Press [OK].

2 Press [STOP ∫] (Set).

“Writing...” appears then the screen returns to the previous screen and so on.

To end partway

Press [BACK/RETURN ]. (Text is not added.)

• If a name is long, parts of it may not be shown in some screens.

Switching the aspect ratio of the screen

When the image does not match the screen size of the TV, you can enlarge the image to fill the screen.

1 Press [OPTION]. 2 Select “Aspect”, then press [OK]. 3 Select the item, then press [OK].

Normal:

Normal output

Side cut:

The black bars on the right and left sides of the 16:9 image disappear and the image is enlarged.

Zoom:

The black bars on the top and bottom sides of the 4:3 image disappear and the image is enlarged.

• This function does not work when watching 3D programme and playing back 3D title or 3D photo.

• It may also be adjusted using the scre en mode of the TV etc.

• The screen mode is switched to “Normal” in the following situations:

- when you change the channel

- when you start or end the playback of a title

- when you switch the unit on or to standby mode.

• [BD-V] [DVD-V] “Side cut” does not have any effect.

• When “TV Aspect” (> 76) is set to “4:3” or “Letterbox”, the “Zoom” effect is disabled.

HOLD function

The HOLD function deactivates all buttons on the unit and remote control.

Press and hold [OK] and [BACK/RETURN ] simultaneously until “X HOLD” appears on the unit’s display.

To cancel the HOLD function

Press and hold [OK] and [BACK/RETURN ] simultaneously until “X HOLD” disappears.

VQT4L30

Page 86

Troubleshooting

Troubleshooting guide

Before requesting service, make the following checks. If the problem still persists, consult your dealer for instructions. Updating to the latest software (firmware) may solve the problem. (> 84)

The followings do not indicate a problem with this unit:

• Regular disc rotating sounds or HDD rotating sounds.

• Poor reception due to atmospheric conditions.

• Image disturbance during search.

• Image disturbance when replacing 3D discs.

• Interruptions in reception due to periodic broadcasting breaks.

• When you switch the unit on or to standby mode, there may be an unexpected sound.

General operation

The unit does not work.

• Check the connections. (> 14)

• One of the unit’s safety devices may have been activated. Reset the unit as follows: 1 Press [Í/I] on the main unit to switch the unit

to standby.

• If the unit does not switch to standby, press

[Í/I] on the main unit for about 3 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.

2 Press [Í/I] on the main unit to switch it on. If

the unit still cannot be operated, consult the dealer.

Cannot eject a disc.

1 While the unit is in standby mode, press and

hold [OK], the yellow button and the blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) until “06 FTO” is

displayed on the unit’s display.

3 Press [OK].

The unit is switched to standby mode automatically.

• VIERA Link has worked. (> 65, Power off link)

VQT4L30

Page 87

Troubleshooting

The remote control does not work.

• The remote control and main unit are using different codes. Change the code on the remote control.

Press and hold [OK] and the indicated number button at the same time

Unit's display

• Software (firmware) is updating when “UPD /” is displaying on the unit’s display. Wait until the update is completed. (> 84)

• The HOLD function is activated. (> 85)

Startup is slow.

• Startup takes time in the following situations:

- A disc is inserted.

- The clock is not set.

- Immediately after a power failure or the AC

mains lead is connected.

- When a BD-J application is executing.

- When the “Quick Start” is not activated. (> 80)

• Startup of this unit may be slower depending on the TV settings.

for more than 5 seconds. (> 81)

Displays

“0:00” is flashing on the unit’s display.

• Set the clock. (> 68, 81)

The clock does not display on the unit when switched to standby.

• The clock does not display when “Unit’s Display” is set to “Automatic”. (> 75)

TV screen and video

Screen size is wrong.

• Check the “TV Aspect” or “Aspect for 4:3 Video”. (> 76)

• Adjust the aspect ratio setting on TV.

• If you connect to 4:3 TV, set “HDMI Video Format” to “576p/480p”. (> 68, 76)

The black screen appears on the TV.

• This phenomenon may occur, depending on the TV setting, when “Quick Start” is activated. Depending on the TV, this phenomenon may be prevented by reconnecting to a different HDMI input terminal.

TV reception is not displayed.

• Broadcast signals are not output from this unit’s RF OUT terminal. Select “On” in “RF OUT ( Aerial Signal )”. (> 68, 80)

Picture does not appear with the HD quality although HD setting was made.

• The pictures are output with 576p/480p depending on the title.

The screen changes automatically.

• If “Screen Saver” is set to “On”, the screen saver function will be activated when there is no operation for 5 minutes or more. (> 75)

There is a lot of image lag when playing video.

• Set “HD optimizer” in the Picture menu to “Off”. (> 67)

• Set “Audio Delay”. (> 68, 75)

VQT4L30

Page 88

Troubleshooting

Troubleshooting guide

The images do not appear on the TV. The picture is distorted during play, or video will not play correctly.

• Check the connections. (> 14)

• Check the settings of the connected TV, etc.

• An incorrect resolution is selected in “HDMI Video Format”. Reset the setting as follows: 1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) until “04 PRG”

is displayed on the unit’s display.

3 Press and hold [OK] for at least 3 seconds.

Set the item again. (> 68, 76)

• When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio are not output properly, select “Yes” in “Default Settings” and make proper settings. (> 68, 82)

• The unit’s TV System is different from that of the

disc. While stopped, keep pressing [∫](STOP) and [< OPEN/CLOSE] on the main unit for 5 or more seconds. The system switches from PAL to NTSC or vice versa.

• Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices.

• The picture may be distorted or a black screen may appear between scenes recorded with different aspect ratios.

• Set “Deep Colour Output” (> 68, 77) or “Contents Type Flag” (> 68, 77) to “Off”.

3D video is not output correctly.

• 3D video may be output correctly by changing the following settings:

- “3D Type” of “3D Settings” (> 68, 76)

- “Signal Format” (> 42, 3D settings during

playback)

• Check the settings of the connected TV.

• When a non-3D compatible amplifier/receiver is connected between this unit and a TV, 3D video is not output. (> 16)

• When the amplifier/receiver which is connected between this unit and a TV is off, 3D video is not output. (> 15)

• 3D discs may not be played back correctly due to the settings of the TV.

• When “HDMI Audio Output” is set to “Off”, 3D video may not be output correctly. (> 77)

The same video is displayed in each left and right half of the screen.

• This is a 3D programme of the Side-by-Side type. Change the setting as follows if connecting with a 3D compatible TV:

1 Press [OPTION]. 2 Select “3D Settings”, then press [OK]. 3 Select “Side by side” in “Signal Format”, then

press [OK].

VQT4L30

Page 89

Troubleshooting

Sound

No sound. Distorted sound.

• Check the connections. (> 14)

• Check the settings of the connected TV, etc.

• Select the audio with “Multi Audio”. (> 26, 41)

• To output audio from a device connected with an HDMI cable, set “HDMI Audio Output” to “On”. (> 68, 77)

Cannot change audio channel.

• You cannot change the audio channel if “Digital Audio Output” is set to “Bitstream” (> 75)

Recording, timer recording and copying

Cannot record. Cannot copy.

• Some broadcasts are copyright protected.

• You cannot record/copy to the disc.

Timer recording does not work properly.

• Failed timer recordings are displayed in grey

with on the Timer Recording screen. (> 34)

When you programme a timer recording, check the screen icons. If “!” is displayed, this timer programme may not be recorded because:

- there is not enough space left.

- the number of possible titles has reached its

maximum.

- programmes are deactivated, etc.

• Because the actual broadcast time may be different from the time displayed on the TV Guide, we recommend you set the start time earlier and the end time later by some minutes, up to a maximum of 10 minutes.

The timer recording programmed via VIERA Connect does not work properly.

• Timer recording programmed via VIERA Connect will be recorded with the same conditions as those of manual timer recording, and some functions such as “Guide Link” (> 31) does not work.

Auto Renewal Recording does not work properly.

• The programme will not be overwritten in the following cases:

- the programme is protected

- any programme is being played back or copied

- a screen such as DIRECT NAVIGATOR is

displayed Instead, the programme will be saved as a separate programme and that will be overwritten.

A part or whole of a recorded title has been lost.

• If there is a power failure or the AC mains lead is disconnected from the household mains socket while recording or editing, the title may be lost or the HDD may become unusable. We cannot offer any guarantee regarding lost programmes.

VQT4L30

Page 90

Troubleshooting

Troubleshooting guide

Play

Cannot play back.

• The disc is dirty. (> 10)

• The disc is scratched or marked.

• [BD-R] [BD-RE]

Set “Play Video ( AVCHD ) on BD-RE / BD-R” to “On” and the playback may be possible (> 68,

72).

• The disc may not be able to play back if it was not finalized or a Top Menu was not created on the equipment used for recording.

Audio and video momentarily pause.

• DVD-R DL and +R DL discs have two writable layers on one side. Video and audio may momentarily cut out when the unit is switching layers.

BD-Video or DVD-Video is not played.

• Ensure the disc is for the correct BD-Video region code or DVD-Video region number, and is not defective.

You have forgotten your rating PIN number for prental control.

• The PIN number for parental control and the rating level return to the factory preset.

The default PIN number is “0000”. 1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the unit’s display.

2 Repeatedly press [1] (right) until “03 VL” is

displayed on the unit’s display.

3Press [OK].

• “INIT” is displayed on the unit’s display.

Edit

Cannot edit.

• You may not be able to edit on the HDD if there is no available space. Delete any unwanted titles to create empty space. (> 43)

• You cannot edit to the disc.


The contents of the SD card cannot be read.

• Remove the card from the slot and then insert again. If this does not solve the problem, switch the unit to standby mode and turn it on again.

Copying, deleting and setting protection takes a long time.

• When there are a lot of folders and files, it may sometimes take a long time.

Photos do not play back normally.

• The images that were edited on the PC, such as Progressive JPEG, etc., may not play back. (> 98)

Image for the Quick View is not smooth.

• Image may not be played back smoothly in case of High definition titles.

VQT4L30

Page 91

Troubleshooting

USB

This unit does not recognize the USB device correctly.

• [PWT635] If USB device is connected to this unit while using a video communication the USB device will not be recognized. Press [EXIT ] and reconnect USB device.

• If inserted during playback the USB device may not be recognized by this unit. Disconnect and reconnect the USB device. If it still does not recognize the connection, switch the unit to standby mode and turn it on again.

• USB devices connected using a USB extension cable other than a dedicated one or a USB hub may not be recognized by this unit.

• This unit does not recognize USB HDDs other than those in which the size of one sector is 512-bytes. (For details, consult the dealer of your USB HDD.)

TV Guide

The TV Guide information is not displayed properly.

• Set the clock correctly. (> 68, 81, Clock)

• Some broadcast may not send programme information.

• There was a programme change, or TV Guide information from a broadcast station was possibly not correctly transmitted.

• If signal quality is bad, the TV Guide system may not be able to receive any data.

Broadcast

Picture regularly breaks up on some channels.

• Adjust the reception with “Manual Tuning”. (> 68, 71)

Picture very infrequently breaks up on some or all channels.

• Electrical atmospheric interference caused by bad weather may cause pictures to break up and audio to mute or distort momentarily.

VIERA Link

VIERA Link does not work.

• Some functions may not work depending on the version of “HDAVI Control” of the connected TV, etc. This unit supports “HDAVI Control 5” functions.

• Check the settings of the connected TV, etc.

• If the connection for the equipment connected with HDMI was changed, or if there was a power failure or the plug was removed from the household mains socket, “HDAVI Control” may not work. In this case, change TV (VIERA) setting for “HDAVI Control” again.

• This unit does not support “ONE TOUCH PLAY” function of the Panasonic AV Control Receiver.

VQT4L30

Page 92

Troubleshooting

Troubleshooting guide

Network

You cannot access this unit from DLNA compatible equipment on the network.

• Check the network connection and the network settings. (> 17, 21)

• It may not be possible to connect depending on the types of the equipment or the status of the equipment.

You cannot play contents properly from DLNA compatible equipment on the network.

• There may be some video that cannot be played back on DLNA compatible equipment depending on the equipment.

• Following titles cannot be played back:

- A title with access restriction

- A title with incompatible format

• Playback via DLNA compatible equipment may not be performed when this unit is in the following conditions:

- While playing back a BD-Video

- While simultaneously copying and recording

- While displaying the Setup menu

- While executing functions using a network,

such as “VIERA Connect”

• You cannot play back simultaneously from two or more items of DLNA compatible equipment.

• If the DLNA compatible equipment is not capable of outputting HE-AAC audio format, etc., sound may not be played back.

When using Wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.

• Use 802.11n (2.4 GHz) Wireless router. Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.

• On the “Wireless Settings” screen (> 78), the continuous lighting of at least four “Reception” indicators is the target for a stable connection. If three or fewer indicators are lit or the connection is being interrupted, change the position or angle of your Wireless router. If there is no improvement, connect to a wired network and perform the “Easy Network Setting” (> 21) again.

Reset

To return all the settings to the factory preset

• Perform “Shipping Condition” or “Default Settings”. (> 68, 82)

VQT4L30

Page 93

Troubleshooting

Messages on the unit’s display

The following messages or service numbers appear on the unit’s display when something unusual is detected.

SET 

(“∑” stands for a number.)

The remote control and main unit are using different codes. Change the code on the remote control. (> 87)

CONV

Selected titles in the USB HDD are being converted.

Do not disconnect the USB HDD from this unit.

GUIDE

TV Guide data is being downloaded.

HARD ERR

If there is no change after switching the unit to standby mode and turning it on, consult the dealer.

NoREAD

• The disc is dirty. (> 10) The unit cannot play.

• The lens cleaner has finished cleaning.

Press [< OPEN/CLOSE] on the main unit to eject the disc.

PLEASE WAIT

• Displayed when the unit is started and is switched to standby mode.

• There was a power failure or the AC plug was disconnected while the unit was on. The unit is carrying out its recovery process. Wait until the message disappears.

PROG FULL

There are already 32 timer programmes. Delete unnecessary timer programmes. (> 34)

REMOVE

The USB device is drawing too much power. Remove the USB device.

START

Update of the software (firmware) is started. You cannot operate the unit until the update is complete. (> 84)

SW-DL

Software (firmware) is downloading. Download will stop when the unit is turned on, or the timer recording starts. (> 84)

UNSUPPORT

The media is not supported.

UPD /

(“∑” stands for a number.)

The software (firmware) is being updated. You cannot operate the unit until the update is complete. (> 84)

VQT4L30

Page 94

Troubleshooting

Troubleshooting guide

U59

The unit is hot. The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Select a position with good ventilation when installing the unit.

U61

(When a disc is not inserted) A malfunction has occurred. The unit is trying to restore to the normal operation. Once the message disappears you can use the unit again. If it remains displayed, consult the dealer.

U76

HDMI cannot be output because it is connected to a model that does not support copyright protection.

U77

Due to the current disc not having authorised copyright information, video output is not performed.

U88

(When a disc is inserted) There was something unusual detected with the disc or the unit. The unit is trying to restore to the normal operation. Once the message disappears you can use the unit again. If it remains displayed, consult the dealer.

U99

The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby mode. Now press [Í/I] on the main unit again to turn the unit on.

H or F

(“∑” stands for a number.)

There is something unusual. (The service number displayed after H and F depends on the unit’s condition.) Reset the unit as follows: 1 Disconnect the plug from the household mains

socket, wait a few seconds, then reconnect it.

2Press [Í/I] to turn the power on. (The unit may

be fixed.)

Request service from the dealer. Inform the dealer of the service number when requesting service.

When you experience problems with Easy Network Setting

If there is any problem, the following message is displayed on the screen.

Wireless Settings

Display Check the following

A conflict with other devices occurred.

A time out error occurred.

An authentication error or a time out error occurred.

A device error occurred.

• Please wait a few moments, and then try again.

• Setting of the Wireless router for MAC Address etc.

• The signal may be weak. [PWT530] Using the USB

extension cable supplied with the Wireless LAN Adaptor, adjust the position of the Wireless LAN Adaptor.

• The SSID and the encryption key of the Wireless router.

• Please wait a few moments, and then try again.

• [PWT530] Connection of Wireless LAN Adaptor

• If the problem is not solved, consult your dealer.

XHOLD

The HOLD function is activated. (> 85)

VQT4L30

Page 95

Troubleshooting

Easy Network Setting ( Home Network Connection Check )

Display

1. LAN cable connection or Wireless setting:

2. IP address setting:

3. Connection to gateway:

1. LAN cable connection or Wireless setting:

2. IP address setting:

3. Connection to gateway:

1. LAN cable connection or

“Fail”

“Pass”

“Fail”

“Pass”

Check the

following

• Connection of the LAN cables (> 17)

• Settings of the hub and router

• Connection and settings of the hub and router

• Settings of “IP Address / DNS Settings” (> 68, 78)

Wireless setting:

2. IP address setting:

3. Connection to gateway:

“Pass”

“Fail”

1. LAN cable connection or

“Pass”

Wireless setting:

2. IP address setting:

“Home network available”

3. Connection to gateway:

“Fail”

Easy Network Setting ( Internet Connection Test )

Display Check the following

Cannot find the server. (B019)

• “Primary DNS” and “Secondary DNS” settings of “IP Address / DNS Settings” (> 68, 78)

No connection could be made to the server. (B020)

• The server may be busy or the service may have been suspended. Please wait a few moments, and then try again.

• Settings of “Proxy Server Settings” (> 68, 78) and the router.

VQT4L30

Page 96

Reference

Specifications

Specifications are subject to change without notice. ∫ General

Dimensions: 430 mm (W)

(excluding the projecting parts)

(including the projecting parts)

Mass: [PWT635] Approx. 2.8 kg

Power supply: AC 220 V to 240 V, 50 Hz Power consumption: [PWT635] Approx. 28 W

“Quick Start” is activated and “Power Save for Network Standby” is set to “Off”

“Quick Start” is activated and “Power Save for Network Standby” is set to “On”

“Quick Start” is not activated and “RF OUT ( Aerial Signal )” is set to “Off”

Operating temperature: 5 oC to 40 oC Operating humidity range: 10 % to 80 % RH

∫ TV system

Tuner System: DVB-T/DVB-T2 Country: UK Channel Coverage: UHF 21~68

∫ Video

Recording system:

∫ Audio

Recording system:

Dolby Digital (Max 5.1ch) Dolby Digital Plus (Max 5.1ch) MPEG (2ch)

HE-AAC (Max 5.1ch) Audio out: Audio Out L/R (pin jack) 1 pc. Output level: Full scale: 2.0 Vrms at 1 kHz Output impedance: Less than 1 k≠ Digital audio out:

Optical terminal

(PCM, Dolby Digital, DTS, MPEG) 1 pc.

HDMI terminal:

(PCM, Dolby Digital, DTS, MPEG, Dolby Digital Plus, Dolby TrueHD,

DTS-HD High Resolution Audio)

[PWT530] Approx. 2.6 kg

[PWT530] Approx. 25 W

MPEG-2, MPEG-4 AVC/H.264

DTS-HD Master Audio,

59 mm (H)

238 mm (D)

249 mm (D)

Approx. 4 W

Approx. 3 W

Approx. 0.2 W

(no condensation)

∫ HDMI Output

19 pin type A: 1 pc.

• This unit supports “HDAVI Control 5” function.

∫ Internal HDD capacity

[PWT635] 1TB [PWT530] 500 GB

∫ Other terminals

USB Port (Type A): 2 pcs. SD Card Slot: 1 pc. LAN (Ethernet) Port: 1 pc.

10BASE-T/100BASE-TX

∫ [PWT635] Wireless LAN

Standard compliance: IEEE802.11b/g/n Frequency range: 2.4 GHz band

Security

WPA™/WPA2™

(Encryption type: TKIP/AES,

Authentication type: PSK)

WEP (64 bit/128 bit)

This unit supports WPA and WPA2 encryption.

∫ Optical pick-up

System with 2 lenses

(405 nm wavelength for BDs,

660 nm wavelength for DVDs,

790 nm wavelength for CDs)

∫ LASER specification

Class 1 LASER Product

Wave length:

405 nm (BDs)

660 nm (DVDs)

790 nm (CDs)

Laser power:

No hazardous radiation is emitted with the safety protection

∫ Region code

DVD: #2 BD: Region B

VQT4L30

Page 97

Reference

∫ Playable discs

BD-Video (Blu-ray 3D, BD-Live) BD-ROM Version 2.4 DVD-Video: DVD-Video format CD-DA (Audio CD) BD-RE: Ver. 2.1, JPEG

§1

BD-RE DL: Ver. 2.1, JPEG§1, MPO BD-R: Ver. 1.3, LTH type Ver. 1.3,

Xvid

§1

BD-R DL: Ver. 1.3, Xvid§1, MKV DVD-R: DVD-Video format

AVCHD format

DVD-R DL: DVD-Video format

AVCHD format

MP3

JPEG

Xvid

JPEG

Xvid

DVD-RW: D VD-Video format

DVD Video Recording format,

AVCHD format

+R: Video +R DL: Video +RW: Video CD-R/CD-RW: CD-DA,

§1

BD disc needs to be based on UDF format.

§2

DVD/CD discs need to be based on UDF

, AVCHD format

JPEG

MP3

Xvid§2, MKV

or ISO9660 format.

§3

Finalising is necessary.

∫ SD Card

Compatible media: SD Memory Card Format: FAT12, FAT16, FAT32, exFAT

Data that can be played: JPEG, MPO,

AVCHD format, MPEG-2, MP4

§1

Includes SDHC/SDXC cards. Includes miniSD

cards (need a miniSDTM adaptor). Includes microSD microSDXC

/microSDHCTM/

cards (need a microSDTM

adaptor).

§2

SDXC only

, MPO

, MKV

MPO

, MKV

MPO

, MKV

MPO

∫ USB device

USB standard: USB2.0 High Speed Format: FAT12, FAT16, FAT32, NTFS Data that can be played: MP3, JPEG, MPO,

§1

Audio information

§1

The audio output differs depending on which

terminals are connected to the amplifier/receiver,

and the setting on this unit. (> 75, Digital Audio

Output)

• The number of channels listed is the maximum

possible number of output channels when

connected to amplifier/receiver compatible with

the respective audio format.

Terminal

HDMI AV

OUT

Output using

original audio

Xvid, MKV, MP4, MPEG-2

Digital Audio Output

Bitstream PCM

BD-Video:

7.1ch PCM

§1

DVD-Video:

5.1ch PCM

DIGITAL

AUDIO

OUT

§1

When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital,

§1

§2

DTS Digital Surround or 5.1ch PCM.

§2

The audio output is amplified from 5.1ch or

Dolby Digital/

DTS Digital

Surround

Down-mixed 2ch

6.1ch to 7.1ch depending on the DTS, Inc. specifications.

§1, 2

PCM

VQT4L30

Page 98

Reference

Specifications

About recorded titles

∫ Recording quality and approximate

recording times

Depending on the content being recorded, the recording time may become shorter than indicated.

Recording

quality

[PWT635]

(1 TB)

HDD

[PWT530]

(500 GB)

HD quality 259 hours 129 hours

SD quality 518 hours 258 hours

• Recording time may vary depending on the bit rate of broadcasting:

- High Definition (HD) quality: estimated bit

rate is 8 Mbps

- Standard Definition (SD) quality: estimated

bit rate is 4 Mbps

• Regarding recording time remaining: Remaining time is calculated with a bit rate of 8 Mbps. But the bit rate differs depending on the broadcast, so the displayed remaining

time might be different from the actual remaining time.

∫ Maximum number of titles that can be

recorded

999 titles (When continuously recording for long durations, titles are automatically divided every 8 hours.)

Information for the files other than recorded programmes

∫ JPEG/MPO

Playable media: HDD, BD-RE (SL/DL),

DVD-R, DVD-R DL, CD-R,

CD-RW, SD Card, USB device

Compatible pixels:

Between 34k34 and 8192k8192 pixels

(Sub sampling is 4:2:2 or 4:2:0)

Files: JPEG conforming DCF

(Design rule for Camera File system)

MPO conforming MPF

(Multi Picture Format)

Maximum numbers of folders and files:

Media

Maximum

folders

Maximum

files

HDD – 20000 BD-RE 500 10000 DVD-R 500 10000

CD-R, CD-RW 500 10000

SD Card 500 10000

USB device 500 10000

• This unit is not compatible with Motion JPEG or Progressive JPEG.

∫ MP3

Playable media: HDD, DVD-R, DVD-R DL,

CD-R, CD-RW, USB device

Compression rate: 32 kbps to 320 kbps Sampling rate: 16 kHz, 22.05 kHz, 24 kHz,

32 kHz, 44.1 kHz, 48 kHz

Maximum numbers of folders and files:

Media

Maximum

folders

Maximum

files

HDD – 40000

DVD-R 300 3000

CD-R, CD-RW 300 3000

USB device 300 3000

VQT4L30

Page 99

∫ MKV

Playable media: BD-R (SL/DL), DVD-R,

DVD-R DL, CD-R, CD-RW, USB device

MPEG-4 AVC (H.264) profile is up to High Profile, Level 4. AAC-LC, MP3, Dolby Digital audio, DTS, PCM, Vorbis and FLAC can be decoded.

Reference

Maximum number of folders: 300 folders

(including the root folder)

Maximum number of files: 200 files

∫ MP4

Playable media: SD Card, USB device MPEG-4 AVC/H.264:

Up to High Profile, Level 4.2

Video resolution: Up to 1920k1080

MPEG-4 AAC-LC

Sampling rate: 8 kHz to 48 kHz Number of audio channel: 1 or 2

∫ SD-Video (Standard Definition)

Playable media: SD Card, USB device Codec: MPEG-2 File Format:

SD-Video format

used on Standard Definition Camera

SD-Video Entertainment Video Profile

(Panasonic and some other’s)

∫ HD-Video (High Definition)

Playable media: SD Card, USB device Codec: MPEG-4 AVC/H.264 File Format: AVCHD format conforming

VQT4L30

Page 100

Reference

Licenses

“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/Progressive” are trademarks of Panasonic Corporation and Sony Corporation.

Copyright 2004-2010 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

DVB and the DVB logos are trademarks of the DVB Project.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com

SDXC Logo is a trademark of SD-3C, LLC.

The “S” logo and SkypeTM are trade marks of Skype.

VIERA Connect is a trademark of Panasonic Corporation.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.

HDAVI ControlTM is a trademark of Panasonic Corporation.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Java is a registered trademark of Oracle and/or its affiliates.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

The Freeview service is subject to coverage. An aerial upgrade may be required. The FREEVIEW, FREEVIEW+, FREEVIEW HD and FREEVIEW+ HD words and logos are trade marks of DTV Services LTD. © DTV Services Ltd 2002, 2008.
