Operating Instructions

DVD Recorder

Model No. DMR-EZ17

Basic Operations

The illustrations in these Operating Instructions show images of the silver model of this unit.

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

Region number supported by this unit

Region numbers are allocated to DVD players and DVD-Video according to where they are sold.

• The region number of this unit is “1”.

• The unit will play DVDs marked with labels containing “1” or “ALL”.

Example:

1 ALL

Connection and setting

P38

If you have any questions contact

1-800-211-PANA(7262)

The warranty can be found on page 67.

La referencia rápida en español se encuentra en la página 68-71.

RQT8850-1P

RQT8850

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Precautions

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,

• DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. USE ONLY THE RECOMMENDED ACCESSORIES.

• DO NOT REMOVE THE COVER (OR BACK); THERE

• ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

• that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for

• help.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company Telephone No.: 1-800-211-7262

(Inside of product)

Getting Started

RQT8850

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Unit Care

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The precision parts in the unit are readily affected by the environment, especially temperature, humidity, and dust. Cigarette smoke also can cause malfunction or breakdown.

To clean the unit, wipe with a soft, dry cloth.

Never use alcohol, thinner or benzine to clean the unit.

• Before using chemically treated cloth, carefully read the instructions

• that came with the cloth.

Observe the following points to ensure continued listening and viewing pleasure.

Dust and dirt may adhere to the unit’s lens over time, possibly making it impossible to record or play discs. Use the DVD lens cleaner about once every year, depending on frequency of use and the operating environment. Carefully read the lens cleaner’s instructions before use.

Lens cleaner: RP-CL720PP

Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.

Before moving the unit, ensure the disc tray is empty. Failure to do so will risk severely damaging the disc and the unit.

■ When the unit is not to be used for a long time

To save power, unplug the AC power supply cord from the household AC outlet. This unit consumes a small amount of power, even when it is turned off.

Front Display (➔ 34)

Automatic Bright

Quick Start (➔ 32)

On Approx. 14 W Approx. 14 W Off Approx. 1 W Approx. 2 W

The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by such loss. Examples of causes of such losses are

A disc recorded and edited with this unit is played in a DVD Recorder or computer disc drive manufactured by

•

another company. A disc used as described above and then played again in this unit.

•

A disc recorded and edited with a DVD Recorder or computer disc drive manufactured by another company is

•

played in this unit.

RQT8850

Table of Contents, Accessories

Getting Started

Precautions .................................................................................................................................................................2

IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................................3

Unit Care .....................................................................................................................................................................3

Accessories .................................................................................................................................................................5

Remote Control Information ........................................................................................................................................5

Basic Operations

Watching Television, Playback ........................................................................................................................6

Watching Television Program ....................................................................................................................6

Playing Discs ...............................................................................................................................................6

Recording Television Programs ...................................................................................................................... 7

Scheduled Recording ....................................................................................................................................... 8

Deleting Recordings ......................................................................................................................................... 9

Delete Navigator...........................................................................................................................................9

Delete Recordings During Playback .......................................................................................................... 9

Refer to page 50 for Control Reference Guide.

Advanced Features

Important Notes for Recording ............................................10

Advanced Recording ............................................................11

Recording Modes and Durations ................................................11

When the format confirmation screen is displayed.....................12

Selecting Audio Channels to record ...........................................12

When removing a Recorded Disc ..............................................12

Specifying the Recording Time ..................................................13

Flexible Recording ......................................................................13

Playing while you are recording .................................................14

Advanced Scheduled Recording ..........................................15

To cancel a scheduled recording in progress ............................. 15

To release the unit from recording standby

(Before recording starts) ............................................................15

Check, Change, or Delete Programs .........................................15

Advanced Playback ..............................................................16

Menu Screens on the TV ............................................................16

Selecting Recordings to Play .....................................................16

Search ........................................................................................16

Skip ............................................................................................16

Direct Play ..................................................................................16

Quick View (Play x1.3) ...............................................................16

Slow-motion Play ........................................................................17

Frame-by-Frame Viewing ...........................................................17

Time Slip ....................................................................................17

CM Skip ......................................................................................17

Create Chapters .........................................................................17

Changing Audio during Playback ...............................................17

Playing Still Pictures (JPEG), MP3 .......................................18

Playing Still Pictures (JPEG) ......................................................18

Playing MP3s .............................................................................19

Playing Playlists ....................................................................20

Playlist Properties ......................................................................20

View Chapters ............................................................................20

Entering Text .........................................................................21

Status Messages ..................................................................21

Recording from an External Device ......................................22

Recording from a VCR, etc. ........................................................22

Recording from a DV Camcorder ...............................................23

Advanced Editing

Recordings-Editing ...............................................................24

Accessing the Recording View ...................................................24

Editing Operations to Recordings ..............................................24

Chapters-Creating, Editing ...................................................26

Accessing the Chapter View ......................................................26

Chapter Operations ....................................................................26

Setting Menus

DVD Management ................................................................27

Accessing the Management Menus ...........................................27

Setting On-Screen Menus ....................................................30

Accessing the On-Screen Menus ...............................................30

Changing the Unit’s Settings ................................................32

Accessing the Setup menu ........................................................32

Summary of Settings ..................................................................32

Setting the Closed Caption ........................................................35

Setting the Parental Rating ........................................................36

Connection and Setting

Basic Connection ..................................................................38

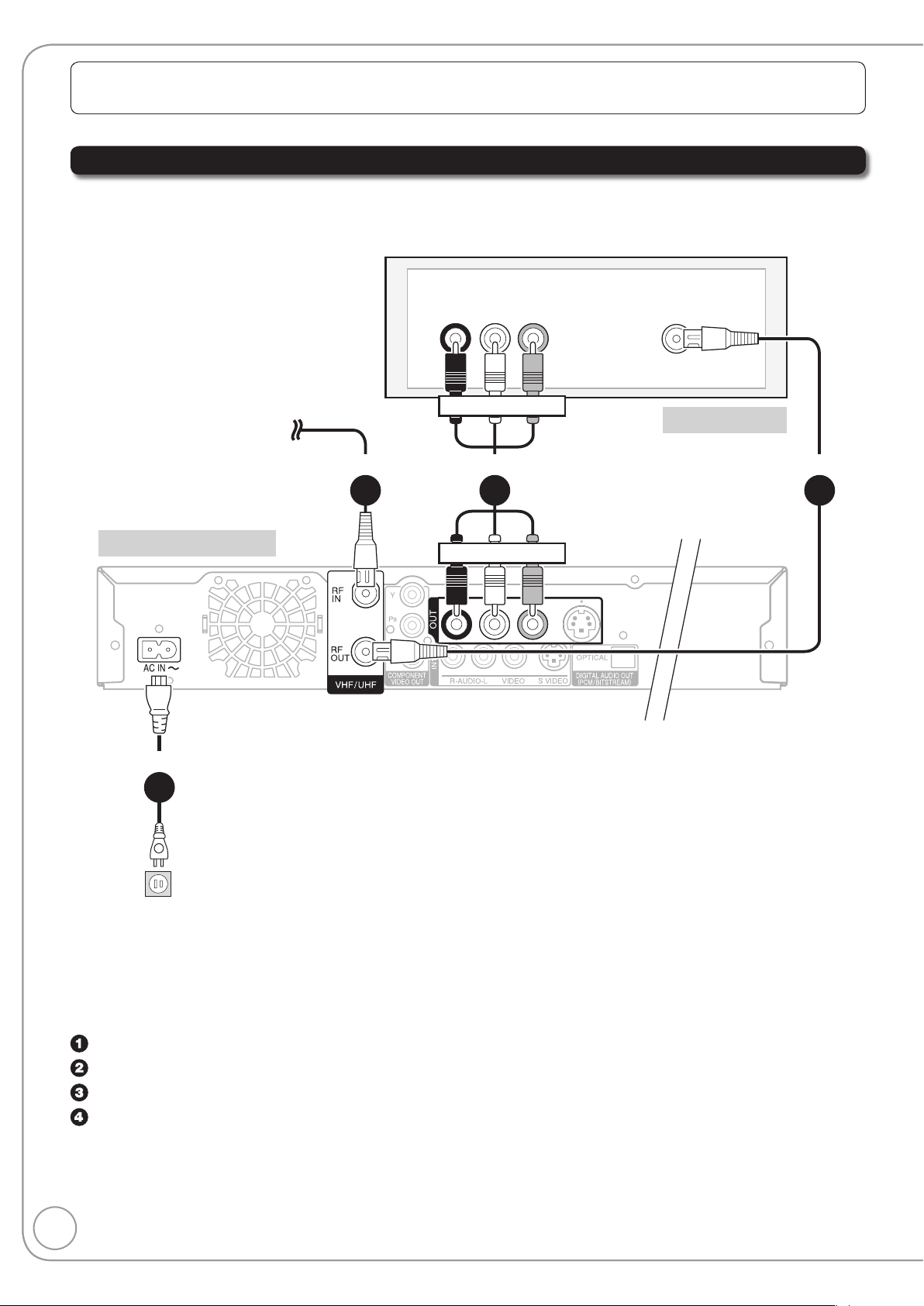

Connecting to a Television with Direct Cable or Antenna

(No Cable Box or Satellite Receiver) ..........................................38

Connecting to a Television and a Cable Box .............................39

Connecting to a Television and a Satellite Receiver ...................40

Using an RF Modulator, if your Television does not have Audio/

Video Terminals ..........................................................................41

Adding a Video Cassette Recorder (VCR) ...........................42

Connecting to a Television and a VCR

(No Cable Box or Satellite Receiver) ..........................................42

Connecting to a Television, a Cable Box and a VCR .................. 42

Connecting to a Television, a Satellite Receiver and a VCR ......42

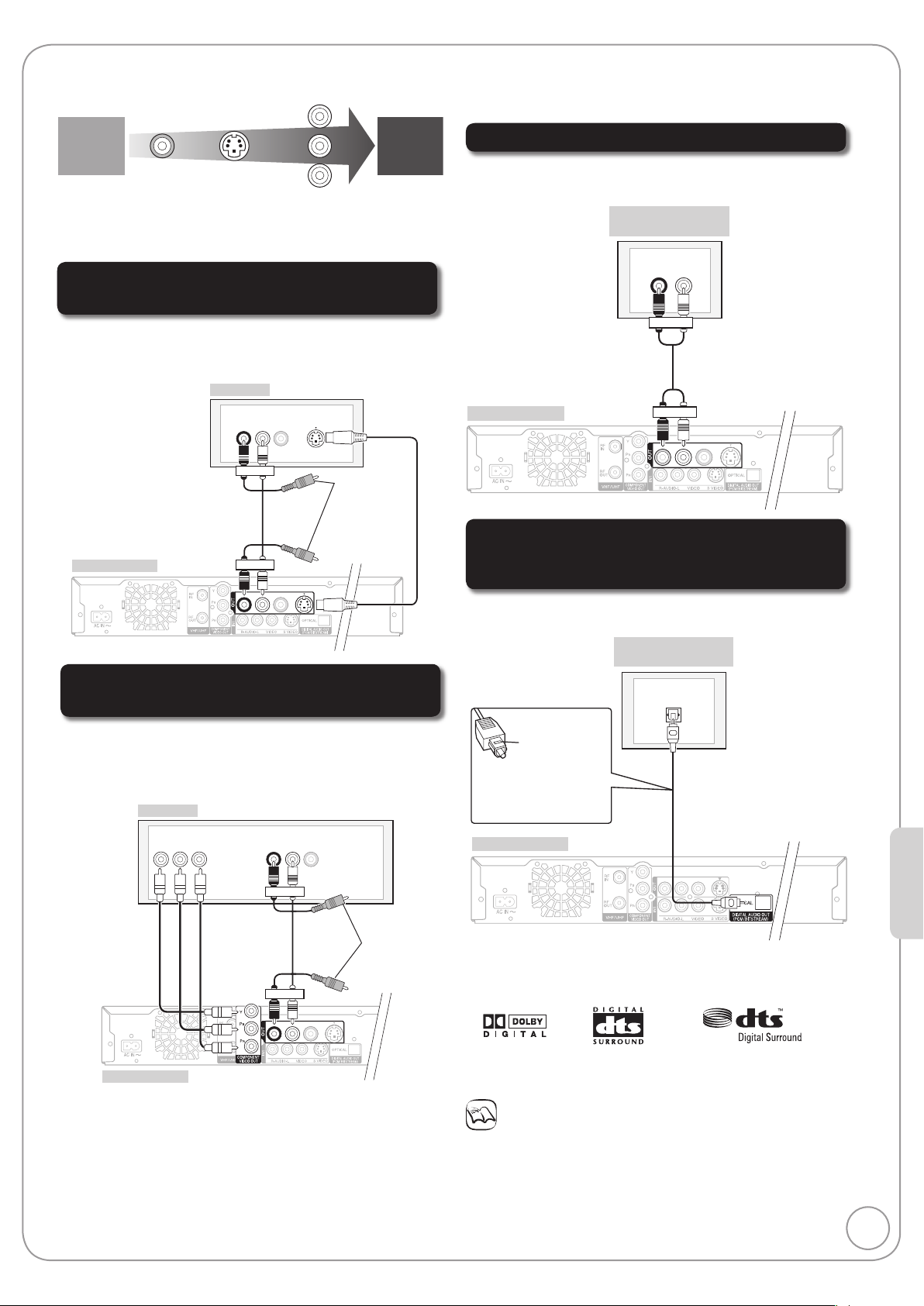

Connection Options for Improved Playback Quality .............43

Using an S Video Cable for Better Video

(S Video Cable not included) ......................................................43

Using Component Cables for Better Video

(Component Video Cables not included) ....................................43

Using an Audio Cable for Better Sound .....................................43

Using an Optical Digital Audio Cable for Better Sound

(Optical Digital Audio Cable not included) ..................................43

Setting the Channels and Clock ...........................................44

Other Settings .......................................................................46

Setting Channel Captions ..........................................................46

Adding and Deleting Channels ...................................................46

Selecting Television Type............................................................46

Clock Settings ............................................................................47

Automatic Off Timer ...................................................................47

Using the Unit’s Remote Control to Operate the TV and the Set

Top Box (Cable Box, Satellite Receiver, etc.) ............................. 48

Getting Started

RQT8850

Reference

Control Reference Guide ......................................................50

Remote Control ..........................................................................50

FUNCTIONS Window ................................................................. 50

Main Unit ....................................................................................51

The Unit’s Display ......................................................................51

Disc Handling .......................................................................52

Usable Discs for Recording and Playback .................................52

Play-only Discs ...........................................................................53

Discs that Cannot be Played ......................................................53

Inserting Discs ...........................................................................53

Disc Care ...................................................................................53

MP3s and Still Pictures (JPEG) ............................................54

MP3 File Information ..................................................................54

Still Picture (JPEG) Information .................................................54

Troubleshooting Guide ..........................................................55

If the Antenna Connector Doesn’t Match ...................................55

When Other Panasonic Products Respond to this Remote

Control ........................................................................................55

To Reset This Unit ...................................................................... 55

General Issues: Power ...............................................................56

General Issues: Displays ............................................................ 56

General Issues: Operation .........................................................57

Playback Issues: Picture ............................................................58

Playback Issues: Sound .............................................................58

Playback Issues: Operation ........................................................ 59

Recording Issues: Recording / Scheduled recording / External

input ...........................................................................................59

Editing Issues: DVD ....................................................................60

Frequently Asked Questions .................................................61

Setup ..........................................................................................61

Discs ..........................................................................................61

Recording ...................................................................................62

Error Messages ....................................................................63

On the Unit’s Display ..................................................................63

On the TV ...................................................................................64

Product Service ....................................................................64

Specifications .......................................................................65

Glossary ...............................................................................66

Limited Warranty ...................................................................67

Referencia rápida en espanõl (Spanish Quick Reference) ...68

Index ....................................................................... Back cover

Accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of December 2006. These may be subject to change.) To order accessories, refer to “Accessory Purchases” on page 67.

1 Remote control (EUR7659T50) 2 Batteries for remote control

1 75 Ω coaxial cable (K2KZ2BA00001) 1 Audio/video cable (K2KA6BA00003)

1 AC power supply cord (K2CB2CB00018) For use with this unit only. Do not use it with

• other equipment. Also, do not use cords for other equipment with this unit.

Product Registration Card Please complete and return the included product registration card, or register via the Internet at: http://www.prodreg.com/panasonic/

Remote Control Information

About batteries

Insert so the poles (+ and –) match those in the remote control.

• Do not use rechargeable type batteries.

•

Using the remote control

Aim at the sensor, avoiding obstacles, up to a maximum range of 7 m (23 feet) directly in front of the unit.

R6/LR6, AA

Do not mix old and new batteries.

• Do not use different types at the same time.

• Do not heat or expose to flame.

• Do not take apart or short circuit.

• Do not attempt to recharge alkaline or manganese batteries.

• Do not use batteries if the covering has been peeled off.

•

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

RQT8850

Watching Television, Playback

Preparation:

• Turn on the television and select the appropriate video input to suit the connections to this unit.

Watching Television Program

This DVD recorder has a tuner which allows it to directly receive and record analog and terrestrial digital channels. High Definition (HD) programming is

“down-converted” and recorded in Standard Definition (SD).

to turn the unit on.

to select desired channel.

You can also select channels with the numbered buttons.

To directly enter channels for analog and digital broadcasts:

•

Antenna Mode: Cable TV Mode:

e.g., “3”:

To enter the sub channel number for a digital broadcast:

•

Antenna Mode: Cable TV Mode:

e.g., “3-1”:

The hyphen appears automatically on “Antenna Mode” if you enter two numbers.

[0] ➔ [3] ➔ [ENTER]

“13”:

[1] ➔ [3] ➔ [ENTER]

[3] ➔ [-] ➔ [1] ➔ [ENTER]

“13-1”:

[1] ➔ [3] ➔ [1] ➔ [ENTER]

e.g., “5”:

“15”:

e.g., “1-1”:

“15-1”:

[0] ➔ [0] ➔ [5] ➔ [ENTER] [0] ➔ [1] ➔ [5] ➔ [ENTER]

[1] ➔ [-] ➔ [1] ➔ [ENTER] [1] ➔ [5] ➔ [-] ➔ [1] ➔ [ENTER]

Notes

This unit can receive free cable

• television but it cannot receive paid services. This unit can receive music channels

• from digital broadcasters, but you cannot record them. Data broadcasts are not for viewing or recording. Multi-channel surround broadcast is

• output in stereo (on 2 channels).

Playing Discs

Refer to “Advanced Playback” (➔ 16 to 17) for detail information on playback.

RAM

-R

-R DL -RW(V) +R +R DL +RW DVD-V -RW(VR) CD

to turn the unit on.

to open the tray (Button located on front of the unit).

Insert a disc.–

Stopping Play

Press [g STOP]. – The stopped position is

memorized.

– The stopped position is cleared

when you press [g STOP] several times.

– The tray closes and play begins.

Pausing Play

Press [h PAUSE]. – Press again to restart play.

Tips

Icons such as “

• discs. Refer to pages 52 and 53.

RAM

” indicate usable

Notes

RAM

-R

•

-RW(VR)

Playback starts from the most recent recording.

•

DVD-V CD

Playback starts from the beginning of the disc. The unit takes some time to read the

• disc before play starts. Discs continue to rotate while menus are

• displayed. Press [g STOP] when you finish to preserve the unit’s motor and your television screen.

-R DL -RW(V) +R +R DL +RW

RQT8850

Basic Operations

Recording Television Programs

REC

Refer to “Important Notes for Recording” (➔ 10) and “Advanced Recording” (➔ 11 to 14) for detail information on recording.

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparation:

• Turn on the television and select the appropriate video input to suit the connections to this unit.

RAM

•

If the disc is protected, release protection (➔ 27).

to turn the unit on.

to open the tray (Button located on front of the unit).

Insert a disc with enough remaining blank space and press

–

[; OPEN/CLOSE] again to close the tray.

to select desired channel.

Antenna Mode: Cable TV Mode:

REC

To select with the numbered buttons (➔ 6)

–

When no channel setting is performed on the unit and broadcast is

–

REC

recorded directly from the cable box or satellite receiver, select a channel on the connected equipment and press [INPUT SELECT] to select “IN1” or “IN2”.

to select the recording mode.

RECREC

Recording mode (➔ 11)

Remaining time

to start recording.

REC

Tips

Icons such as “

• discs. Refer to pages 52 and 53.

RAM

” indicate usable

Pausing Recording

Press [h PAUSE].

Stopping Recording

Press [g STOP].

– Press again to restart recording.

Notes

•

-R -R DL -RW(V) +R +R DL +RW

management information after recording finishes. You cannot change the channel or recording mode during recording.

•

It takes about 30 seconds for the unit to complete recording

Scheduled Recording

Refer to “Advanced Scheduled Recording” (➔ 15) for detail information on scheduled recording.

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparation:

• Turn on the television and select the appropriate video input to suit the connections to this unit.

RAM

•

If the disc is protected, release protection (➔ 27).

• Insert a disc with enough remaining blank space.

• Confirm that the clock on the unit’s display is set to the correct time.

• If connected via a cable box or satellite receiver, set channel there before scheduled recording starts.

Schedule list Remaining Recording Time

ChannelNo

Date On

New Scheduled Recording

Press ENTER to set new schedule.

ENTER

CANCEL

SUB MENU

3/26 Tue 12:53 PM

Off Mode Check

Timer Off

1:58 SPDVD

e, r to select “New Scheduled Recording”,

then

w, q to move through the items and e, r to set

the items.

Channel/Input – TV Station/External Input Date/Frequency – You can set a daily or weekly program. On (start time) / Off (end time)

– Hold button to change in 30-minute increments. Mode – Recording mode Name – Press [ENTER], see page 21.

SCHEDULED RECORDING

Channel/

Input

4-1

Channel, Caption

4-1 KPO-SD

Preview of selected

ENTER

channel

RETURN

Repeat steps 2−4 to program other recordings.–

when you have finished programming.

“z” lights on the unit’s display.–

SUB MENU

Date/

Frequency

--------

Remaining Recording Time

3/26 Tue 12:53 PM

Off

--:-- --

Set Channel/Input.

0 9

Cancel

Name

Mode

Number

1:58 SPDVD

Tips

Icons such as “

•

RAM

” indicate usable

discs. Refer to pages 52 and 53.

Notes

Be sure to perform step 5 before the

• scheduled recording time. Scheduled recording will work only if “z” is displayed. “z” flashes when the unit cannot go to

• scheduled recording standby. (e.g., a recordable disc is not in the disc tray) It does not flash if Quick Start is off. When scheduled recordings are set to

• start one immediately after another, the unit cannot record the beginning of the later program. If two scheduled recording times

• overlap, the first recording always has priority. The second recording will start only after the first recording has finished When starting time for a scheduled

• recording is the same, the recording that you programmed later has priority. If you set DST (Daylight Saving Time)

• to On when manually setting the clock, scheduled recording may be affected when summer time switches to winter time and vice versa.

RQT8850

Basic Operations

Deleting Recordings

Important: Once deleted, contents cannot be recovered.

Preparation:

• Turn on the television and select the appropriate video input to suit the connections to this unit.

RAM

•

• Insert a disc and press [; OPEN/CLOSE] again to close the tray.

Delete Navigator

RAM

If the disc is protected, release protection (➔ 27).

-R

-R DL -RW(V) +R +R DL +RW

With the unit stopped

DVD-RAM

e, r to select “Delete”

then

DELETE Navigator

DELETE Navigator DVD-RAM

DVD-RAM

10 10/27 Mon

***

Delete

e, r, w, q to select the recording, then

w to select “Delete” then

FUNCTIONS

Playback

Program

Delete

Other Functions

ENTER

Recordings

8 10/27 Mon

01 1. 1. SUN

***

Page 02/02

SUB MENU Select NextPrevious

Cartridge Protection Off Disc Protection Off

***

01 1. 1. SUN

***

0 9

No.

Tips

To return to the previous screen

Press [RETURN].

To view other pages

Press [e, r, w, q] to select “Previous” or “Next” and press [ENTER].

You can also press [u, i] to view other pages.

•

Multiple editing

Select with [e, r, w, q] and press [h PAUSE]. (Repeat.)

A check mark appears. Press [h PAUSE] again to cancel.

•

Delete Recordings During Playback

RAM

-R

-R DL -RW(V) +R +R DL +RW

During playback

w to select “Delete” then

Notes

You cannot delete while recording.

•

+R +R DL +RW

Even if you have set protection on other equipment, such recordings are deleted.

Tips

Icons such as “

• discs. Refer to pages 52 and 53.

RAM

Deleting an item increases the

• available disc space by the amount of space taken by the item deleted.

-R -R DL +R +R DL

• does not increase after deletion.

-RW(V) +RW

• increases when you delete the last recording (the recording space may increase slightly when other recordings are deleted).

RAM

” indicate usable

Available disc space

Important Notes for Recording

Recording of multi lingual broadcasts

Recording of Widescreen broadcasts

Copy-once Recording

Analogbroadcasts:

RAM

Both Main and SAP audio can be recorded.

You can change the audio during playback. (➔ 17, Changing Audio during Playback)

Main SAP

Hello Hola

If you record from external equipment

• Select both “Main” and “SAP” on the external equipment.

-R -R DL -RW(V) +R +R DL +RW

Select the Main or SAP audio before recording.

[➔ 34, Multi-channel TV Sound (Analog)] The selected audio only is recorded.

Main

If you record from external

Hello

• equipment Select “Main” or “SAP” on the external equipment.

Digitalbroadcasts:

Press [AUDIO] to switch audio. The selected audio only is recorded.

RAM

Recorded in 16:9 aspect (Widescreen)

If you have a regular 4:3 aspect TV and you receive 16:9

• aspect images from a digital broadcast, they will appear in the letterbox format (➔ 66).

It is not possible to record digital broadcasts that allow “One time only recording” onto DVD-R, DVD-R DL, DVD-RW,

• +R, +R DL, +RW or 8 cm (3˝ ) DVD-RAM discs. Use the CPRM (➔ 66) compatible DVD-RAM.

CPRM compatible discs only

RAM

-R -R DL -RW(V) +R +R DL +RW

Recorded in 4:3 aspect

-R -R DL -RW(V) +R +R DL +RW

Playing the disc on other DVD players

Recording to DVD-R DL and +R DL

12 cm (5˝ )

Yes

-R -R DL -RW(V) +R +R DL

The disc must be finalized after recording (➔ 29).

It is necessary to finalize DVD-R, etc. on this unit after recording. You can then play them in the same manner as a commercially sold DVD-Video. However, the discs become play-only and you can no longer record.* * You can record again if you format DVD-RW.

Record to DVD-R, etc.

Finalize

+RW

We recommend you create the menu before playing a +RW disc on other equipment (➔ 29).

DVD-R DL and +R DL discs have two layers of recording surface on one side.

Recordings are divided when recording changes from the first layer to the second. Some images and audio

•

-R DL

may be lost at this point.

Recordings are not divided in this way when recording changes from the first layer to the second, but play

•

+R DL

may stop momentarily at the point where the layers change. Recordings are divided when they exceed 8 hours in length.

DVD-R DL

(Disc inner side)

The second layer

The available space

The first layer

Recording 1

Recording 3

Play on other DVD equipment

G H C

2345

ê /I ê

CD SEQUENTIAL

DOUBLE RE-MASTER

C R A E S

R E T N E

O V Y

A L P S I

D U N E

M P O T

R U T E R

O U N E M

F F

D C I N 9 V

N E P O

D N U O R

S .

P E

R O T I N O M

E D O

M E R U T C I

DISC

Recording 2

Recording/Playback direction

;º1: /65/9

DISC EXCHANGE DISC SKIP<OPEN/CLOSE

Layer change: Recording divided, some images and audio lost.

(Disc outer side)

RQT8850

Advanced Features

EP (6H)

EP (8H)

Advanced Recording

Recording Modes and Durations

DVD-RAM DVD-R,

DVD-RW, +R,

Recording Mode

Single-sided

(4.7 GB)

Double-sided*

(9.4 GB)

XP (High quality) 1 hour 2 hours 1 hour

SP (Standard play) 2 hours 4 hours 2 hours

LP (Long play) 4 hours 8 hours 4 hours

EP (Extra long play) 8 (6*2) hours 16 (12*2) hours 8 (6*2) hours

+RW

(4.7 GB)

DVD-R DL*

45 minutes*2)

, +R DL*3 (8.5 GB)

1 hour

45 minutes

3 hours

35 minutes

7 hours

10 minutes

14 hours

20 minutes

(10 hours

FR (Flexible Recording) 8 hours maximum

*1 It is not possible to record or play continuously from one side of a

double sided disc to the other.

*2 When “Recording Time in EP Mode” has been set to “EP-

Extended Play (6H)” in the Setup menu (➔ 33).

The sound quality is better when using “EP-Extended Play (6H)”

than when using “EP-Extended Play (8H)”.

*3 Refer to “Recording to DVD-R DL and +R DL” (➔ 10).

8 hours maximum

for one side

Picture quality

Recording time

8 hours maximum 14 hours 20 minutes maximum

Notes

This unit uses variable bit rate (VBR) recording which varies the

• amount of data recorded to suit the images, so actual recording times and remaining recording times shown by the unit will be different. ( Use a disc with plenty of remaining time to be sure. When recording to DVD-RAM using EP (8H) mode, play may not be

• possible on DVD players, even if they are compatible with DVDRAM. In this case use EP (6H) mode.

-R DL +R DL

The difference will be especially noticeable.)

Tips

FR (Flexible recording mode)

•

You can set FR mode when programming scheduled recordings (➔ 8) and flexible recording (➔ 13). Maximum number of recordings to a disc

•

RAM

-R

+R +R DL +RW

To prevent recording errors:

•

Set a scheduled recording period slightly longer than the actual program (to make sure the program is recorded in full).

-R DL -RW(V)

99 recordings on a disc

49 recordings on a disc

Advanced Recording

When the format confirmation screen is displayed

Important: Formatting permanently deletes all disc contents (including computer data), regardless of protection status of disc.

RAM

-RW(V) +RW

The following screen may appear when inserting a new disc, etc.

This disc is not formatted properly. Do you want to format the disc in DVD Management?

Format

Only format the disc if you intend to use it for

Yes

recording.

ENTER

Do not format if you intend to view pre-recorded material from the disc.

w to select “Yes”, then

Tips

Refer to “Formatting Discs” (➔ 28) for more detail of formatting.

•

Selecting Audio Channels to record

When receiving an analog broadcast

-R

-R DL -RW(V) +R +R DL +RW

Select the audio (Main or SAP) in “Multi-channel TV Sound (Analog)” in the Setup menu (➔ 34).

RAM

to select the audio.

Stereo SAP Mono

Changing during recording changes the recorded sound.

Stereo:

SAP: Secondary audio program (SAP).

Mono: Main audio (monaural).

e.g., “Stereo” is selected “((” appears when the unit is receiving the audio type you selected.

Main audio (stereo)

If the broadcast is “Mono+SAP”, audio will be monaural even if you select Stereo mode.

When you record SAP, main audio is also recorded. In such cases, recorded SAP and main audio become monaural.

Select “Mono” if reception is poor during a stereo broadcast.

DVD-RAM

CH 12

((

Stereo

When removing a Recorded Disc

-R

-R DL -RW(V) +R +R DL

After recording, if you press [; OPEN/CLOSE] to eject the disc, the following screen may appears.

Finalizing is necessary to enable playback of the disc on compatible DVD players. Once finalized, recordings cannot be added to the disc. It will take approximately minutes. Start ?

Finalize

Press "REC" to start finalizing. Press the

OPEN/CLOSE finalizing. The disc can be played only on this unit. You can Finalize it later.

button to postpone

to start finalizing.

to eject the disc without

finalizing.

Notes

You cannot stop finalizing once you have started it.

•

Tips

If you want to provide the disc with a name or set play menu select,

• select “Disc Name” (➔ 27) or “Playback will start with:” (➔ 28) in “DVD Management” before finalizing.

Refer to “Finalizing” (➔ 29) for more detail of finalizing.

Notes

You cannot change the audio type in the following cases.

• While a disc other than DVD-RAM is inserted when selecting an

–

analog broadcast

When receiving a digital broadcast

to select the audio.

DVD-RAM

e.g., “English” is selected

Notes

You cannot change the audio type in the following cases.

• When there is no choice of languages in a digital broadcast

– Before scheduled recording a digital broadcast with more than one

•

language channel, set the language in “Audio Language Setting” in the Setup menus (➔ 32). When broadcast offers no language data, such displays as “Audio

•

1 of 3” may appear. In such cases, recording may not be possible in the language selected through the “Audio Language Setting” in the Setup menu.

CH 12

English

RQT8850

Advanced Features

RQT8850

Specifying the Recording Time

OFF 4:00 OFF 1:30

Counter (Cancel) OFF 0:30 OFF 1:00

OFF 3:00 OFF 2:00

Rec. 0:59

Stereo

DVD-RAM

CH 20

4.7 GB

DVD-RAM

4.7 GB

DVD-RAM

4.7 GB

DVD-RAM

4.7 GB

DVD-RAM

RAM

-R

-R DL -RW(V) +R +R DL +RW

This function allows specifying the length of recording time up to 4 hours.

During recording

repeatedly until the desired

Tips

To exit the screen

Press [RETURN].

To stop recording partway

Press [g STOP].

To show the remaining recording time

Press [STATUS] to show the remaining recording time.

time is reached.

The recording time and the unit’s display change

–

as follows:

Notes

This function does not work during scheduled recording or Flexible

• Recording. Recording stops and the set time is cleared if you press [g STOP].

• The unit turns off automatically when the time to stop recording is

• reached as long as you do not operate the unit.

Flexible Recording

RAM

-R

-R DL -RW(V) +R +R DL +RW

The unit sets the best possible picture quality that fits the recording within the remaining disc space. The recording mode becomes FR mode. Refer to “FR (Flexible Recording)” (➔ 11).

With the unit stopped

Flexible Recording

Record in FR mode.

Max recording time 8 Hour 0 Min.

Set recording time

8 Hour 0 Min. CancelStart

Remaining time

Using “Flexible Recording” is convenient in these kinds of situations:

•

When the amount of free space on the disc makes selecting an

–

appropriate recording mode difficult When you want to record a long program with the best picture

–

quality possible

e.g., Recording a 90 minutes program to 4.7GB DVD-RAM disc:

If you select XP mode, the program will not fit on one disc.–

A second disc is necessary for 30 minutes of the program.

If you select SP mode, the program will fit on one disc.–

However there will be 30 minutes remaining disc space.

If you select “Flexible Recording” the program will fit on one disc

–

perfectly.

w, q to select “Hour” and “Min.”

and e, r to set the recording time.

When you want to start recording

w, q, e, r to select “Start”, then

Recording starts.–

RQT8850

Advanced Recording

Playing while you are recording

Chasing Playback

RAM

Allows playback from the beginning of the recording you are recording.

During recording

(at least 20 seconds after recording starts).

Tips

To stop play

Press [g STOP] once.

To stop recording

Press [g STOP] at least 2 seconds after chasing playback stops.

Simultaneous Record and Playback

RAM

Allows playback of a previous recording, while recording something else.

During recording

w, q, e, r to select the

recording to play, then

Tips

To stop play

Press [g STOP].

To exit the DIRECT NAVIGATOR screen

Press [DIRECT NAVIGATOR].

To stop recording

After play stops

1. Press [DIRECT NAVIGATOR] to exit screen.

2. Press [g STOP].

Notes

During playing while you are recording, you cannot edit or delete

• recordings. Closed captions will not appear during simultaneous record and

• playback.

Advanced Scheduled Recording

Schedule list Remaining Recording Time

3/26 Tue 12:53 PM

1:58 SPDVD

ChannelNo Date On

New Scheduled Recording

Off Mode Check

To cancel a scheduled recording in progress

Confirmation screen appears.–

w to select “Stop recording”, then

Notes

Recording stops and the scheduled recording is deleted. (Daily

• and weekly schedules remain and scheduled recording will start as programmed.)

To release the unit from recording standby (Before recording starts)

The unit turns on and “z” on the unit’s display

–

goes out.

•

Be sure to press [^ DVD POWER] to return the unit to standby mode before the scheduled recording time. Scheduled recording will work only if “z” is displayed.

Check, Change, or Delete Programs

The scheduled recording list can be viewed even when the unit is off.

See “Tips” for explanation of icons displayed.–

“z” lights on the unit’s display.–

Notes

•

Recording may fail if there are changes to the station’s programming.

•

The password screen appears when setting parental ratings (➔36). Unless you enter the correct password, recording the program with parental ratings may fail.

Tips

•

You can enter up to 16 programs a month in advance.

Schedule list screen icons

: Currently recording

: Programs are overlapped. Recording of the program with

the later start time starts when the earlier program finishes recording.

Q: You stopped a weekly or daily scheduled recording. The icon

disappears when the next scheduled recording starts.

: The disc was full. (not enough space)

: The TV program may not be recorded due to copy-protect or

ratings.

: Recording stopped (Dirty disc, etc.)

: Recording may become impossible when a wrong password is

PG!

entered through the unit’s parental rating setting procedure.

Check

OK: Recordable

➔ (Date): The last day of daily or weekly recording.

!: It may not be possible to record because:

Overlap: When the date and time overlap with another scheduled

the disc is write-protected.

–

there is no more space left.

–

the number of possible recordings has reached its

–

maximum.

recording, only a part of the program can be recorded.

Advanced Features

e, r to select the program.

or to delete.

You cannot delete programs that are currently

–

recording.

to modify the program.

e, r, w, q to make changes,

then

RQT8850

No.

0 9

DIRECT NAVIGATOR DVD-RAM

Recordings

Page 02/02

10 10/27 Mon

Play

RETURN

8 10/27 Mon

***

01 1. 1. SUN

***

01 1. 1. SUN

***

01 1. 1. SUN

***

01 1. 1. SUN

SUB MENU Select NextPrevious

Advanced Playback

Menu Screens on the TV

DVD-V

Generally, menu screens that appear on the TV may be navigated as follows:

e, r, w, q to select an item, then

You can sometimes use the numbered buttons to select an item.

Tips

To return to the menu screen

Press [DIRECT NAVIGATOR] or [SUB MENU].

Notes

If “5” appears on the TV, the operation is prohibited by the unit or

• disc.

Selecting Recordings to Play

RAM

-R

-R DL -RW(V) +R +R DL +RW -RW(VR)

During playback

There are 5 search speeds. Each press increases

–

the search speed. Press [q PLAY] to restart normal playback.

–

Tips

Depending on the disc, search may not be possible.

•

Skip

During playback or while paused

Each press increases the number of skips.–

Direct Play

e, r, w, q to select the

recording you want to watch, then

Tips

To select the recording with the numbered buttons

e.g., “5”:

“15”:

To view other pages

Press [e, r, w, q] to select “Previous” or “Next” and press [ENTER]. –

You can also press [u, i] to view other pages.

To exit the DIRECT NAVIGATOR screen

Press [DIRECT NAVIGATOR].

[0] ➔ [5] [1] ➔ [5]

During playback, you can access specific recordings or scenes through direct entry of the numbered buttons.

e.g., “5”:

“15”:

(MP3 and JPEG discs only)

e.g., “5”:

“15”:

[0] ➔ [5] [1] ➔ [5]

[0] ➔ [0] ➔ [5] [0] ➔ [1] ➔ [5]

Quick View (Play x1.3)

RAM

Allows you to increase the play speed slightly without distorting the audio.

During playback

(Press and hold.)

Press again to return to normal speed.–

DIRECT NAVIGATOR screen icons

Protected.

Not recorded due to recording protection (Digital broadcasts, etc.) It cannot be played because data is damaged.

Currently recording.

“One time only recording” restriction (➔ 66, CPRM)

Advanced Features

RQT8850

Slow-motion Play

Soundtrack

1 ENG Digital 3/2.1ch

Create Chapters

RAM -R -R DL -RW(V) +R +R DL +RW DVD-V -RW(VR)

While paused

There are 5 slow-motion speeds. Each press

–

increases the speed. Press [q PLAY] to restart normal playback.

–

Notes

If continued for approx. 5 minutes, slow-motion play pauses

• automatically (except

Frame-by-Frame Viewing

RAM -R -R DL -RW(V) +R +R DL +RW DVD-V -RW(VR)

While paused

Each press shows the next or previous frame.

–

Press and hold to advance or reverse frame-by-

–

frame in succession. Press [q PLAY] to restart normal playback.

–

Time Slip

DVD-V

RAM

During playback

Tips

You can skip to the start of a chapter by pressing [u, i].

•

Changing Audio during Playback

to select the audio.

Available audio will differ based on disc type. See below.

RAM -RW(VR)

Stereo Mono L Mono R

e.g.:

RAM

“Stereo” is selected.

RAM -RW(VR)

When playing an analog MTS broadcast, you can choose between Main Audio and SAP Audio.

Main Audio SAP Audio

DVD-V

This allows you to change items like the audio channel number and the sound track language (➔ 30).

DVD-RAM

Play

Stereo

RAM

-R

-R DL -RW(V) +R +R DL +RW -RW(VR)

Use to skip in 1-minute or 10-minute increments.

During playback

e, r to select the time, then

Each press of e or r advances the interval

–

by 1 minute (press and hold for 10-minute intervals).

CM Skip

RAM -R -R DL -RW(V) +R +R DL +RW -RW(VR)

Skips 1-minute forward with each press.

During playback

e.g., English is the selected language.

Notes

If you cannot change the audio type when you have used only

•

an optical digital audio cable for connection, set “Dolby Digital” to “PCM” (➔ 34). Alternatively, you may connect to an amplifier or system component with an audio cable and change the input on the amplifier or system component to suit the connection (➔ 43).

RQT8850

Playing Still Pictures (JPEG), MP3

Playing Still Pictures (JPEG)

Picture (JPEG) View screen is shown.

Pictures Menu Picture(JPEG) View

CD(JPEG)

08 8 10/27 Mon

Folder

002

001

005 006 007

--- --- ---

009

Page 01/01

Play

003 004

008

e, r ,w, q to select a picture,

then to view.

Notes

•

Still pictures (JPEG) recorded on CD-R/RW can be played on this unit.

•

Thumbnails for large JPEG files and images with aspect ratios other than 4:3 may not display.

Tips

To stop viewing a picture

Press [g STOP].

To exit the menu screens

Press [DIRECT NAVIGATOR].

Selecting Still Pictures in Another Folder

From the Picture (JPEG) View screen

e, r, w, q to select “Folder” then

Pictures Menu

CD(JPEG)

: Selected Folder No./Total Folder No.

: Selected Folder

Folder

CD-RW for Check /JPEG/

/JPEG/JPEG1/

/JPEG/JPEG2/ /MP3/ /MP3/MP3 group1/ /MP3/MP3 group2/ (&WMA)/ /MP3/MP3 group3/ (Layer)/ /MP3/MP3 group3/ (Layer)/WMA/ /No File/ /PCdata/ /WMA/ /WMA/WMA/

ENTER

F 1/2

If the folder has no compatible JPEG file “--” is displayed as the folder no.

e, r to select the desired folder,

then

Notes

•

You cannot operate the scroll bar that appears in the Folder screen.

To view other pages

Press [e, r, w, q] to select “Previous” or “Next”, then press [ENTER]. You can also press [u, i] to view other pages.

To select the still picture with the numbered buttons

e.g., “5”: [0] ➔ [0] ➔ [5] “15”: [0] ➔ [1] ➔ [5]

When you insert discs which contain both MP3 and still pictures (JPEG)

The screen shown below is displayed.

Playback mode is set to MP3. To display pictures, please select Pictures Menu from FUNCTIONS.

ENTER

1. Press [ENTER] to exit the screen.

2. Press [FUNCTIONS].

3. Press [e, r] to select “Menu”, then press [ENTER].

4. Press [e, r] to select “Pictures”, then press [ENTER].

Tips

To return to the previous screen Press [RETURN].

Slideshow

From the Picture (JPEG) View screen

e, r, w, q to select “Folder”,

then

e, r to select “Start

Start Slide Show

Slide Interval

Slide Show” then

Tips

To stop the Slideshow

Press [g STOP].

To change the rate at which pictures are displayed

1. In step 2 above, press [e, r] to select “Slide Interval”, then press

[ENTER].

2. Press [w, q] to select desired interval (0 to 30 seconds), then

press [ENTER].

Advanced Features

RQT8850

Rotate Pictures

Rotate Left

Zoom In

Rotate Right

ENTER

001 Both Ends Freezing 002 Lady Starfish 003 Life on Jupiter 004 Metal Glue

1 : My favorite

2 3 4

Total Track

Tree

G 1 T 1 Total 1/111

GroupNo.

No.

0 9

A B C

TreeTrackTotal

1 : 101

GroupNo.

Total

1/49

No.

0 9

CD-RW for Check /JPEG/ /JPEG/JPEG1/ /JPEG/JPEG2/ /MP3/

/MP3/MP3 group1/

/MP3/MP3 group2/ (&WMA)/ /MP3/MP3 group3/ (Layer)/

1/3

Tree

TreeTrackTotal

1 : 101

GroupNo.

Total

1/49

No.

0 9

CD-RW for Check /JPEG/ /JPEG/JPEG1/ /JPEG/JPEG2/ /MP3/

/MP3/MP3 group1/

/MP3/MP3 group2/ (&WMA)/ /MP3/MP3 group3/ (Layer)/

1/3

Tree

Playing MP3s

While playing a picture

e, r to select “Rotate

Right” or “Rotate Left”, then

Notes

To return to the picture to its original position

Press [e, r] to select the opposite rotation in step 2 and press [ENTER].

•

Rotation information is not stored.

Zoom

While playing a picture

Rotate Right

Rotate Left

Zoom In

ENTER

To zoom in:

e, r to select “Zoom

In”, then

Selected group

Group No.

Track No. in the group

Track list is shown.–

Track No./Total tracks in

all groups

e, r to select a track, then

to play.

Tips

“ ” indicates the track currently playing.

•

To stop playing

Press [g STOP].

To exit the menu screens

Press [DIRECT NAVIGATOR].

To view other pages

Press [u, i].

To select the track with the numbered buttons

e.g., “5”: [0] ➔ [0] ➔ [5] “15”: [0] ➔ [1] ➔ [5]

Using the Tree Screen to Find a Group

From the track list

Notes

To return to the picture to its original size

Press [e, r] to select “Zoom out” in step 2 and press [ENTER].

•

When zooming in, the still picture may be cut off.

•

“Zoom In” information is not stored.

•

“Zoom In” and “Zoom out” do not work with images that have a resolution larger than 640 x 480 pixels.

Picture Properties

While playing a picture

twice to display picture properties.

Shooting Date

11/30 12:03 AM

11/26/2004Date 002/030No.

again to exit.

Notes

Depending on the camera or editing software, shooting dates may

• not be displayed correctly.

q while a track is highlighted to

display the tree screen.

Selected Group No. /Total Group No.

If the group has no compatible track, “- -” is displayed as the group number.

Selected Group

e, r to select a group, then

The track list for the selected group appears.–

Notes

When there is a large amount of still picture data etc. within an MP3

• file, play may not be possible. You cannot operate the scroll bar that appears in the tree screen.

•

Tips

To return to the track list

Press [RETURN].

When you insert discs which contain both MP3 and still pictures

• (JPEG), files selection screen appears. (➔ 18, Tips) Press [ENTER].

RQT8850

Playing Playlists

RAM

-RW(VR)

You cannot create or edit playlists on this unit. However, you can playa playlist that has been created or edited on other equipment.

View Chapters

After selecting a playlist (step 4)

With the unit stopped

e, r to select “Other Functions”

then

FUNCTIONS

Cartridge Protection Off

Delete

Disc Protection Off

Playlists Flexible Recording DV Camcorder Rec.

Setup

DVD Management

DVD-RAM

Playback

Recording

Playback

Other Fanctions

ENTER

e, r to select “Playlists”, then

e, r to select “View Chapters”

then

e, r, w, q to select the chapter,

then

Tips

To return to the playlist screen

Press [SUB MENU], then select “View Playlists” and press [ENTER].

To view other pages

Press [u, i].

e, r, w, q to select the playlist

to play, then

Playlist Properties

After selecting a playlist (step 4)

e, r to select “Properties”, then

Playlist information (e.g., length and date) is

–

shown.

RQT8850

Advanced Features

1:45 SP12/24 6:34 PM

CH 4-1

KRON-SD

Now: FOOTBALL FOCUS

No Display

Next: BASEBALL

PG: NR

T12 0:01.23 SP

T12 0:12.34 SP

Rec.

English

DVD-RAM

4 - 1 KPO-SD

Rec.

English

DVD-RAM

4 - 1 KPO-SD

Remain

(1) (2)

(3)

(4) (5)

(7)(6)

(11) (12) (13)

(8) (9) (10)

12:00am - 1:00pm

1:00pm - 2:00pm

When viewing the Name screen.

Recording Name

Delete

ENTER

Set

12345

ABC a

DEF d

GH INOg

JKL j

M PQRSp

TUV t

WXY Z w

67890 bc ef/ % hi $#& kl @

]

n qrs( ) uv{ } xyz

;

Space

e, r, w, q to select characters

then

Repeat this step to enter other characters.–

Status MessagesEntering Text

The following messages and displays appear to let you know what operations are being performed and the status of the unit.

Press [STATUS] to cycle through available

–

displays.

when you’ve ﬁ nished

entering text.

Tips

Using the numbered buttons to enter characters

e.g.: entering the letter “R”

1. Press [7] to move to the 7th row.

2. Press [7] twice to highlight “R”.

3. Press [ENTER].

To enter a space

Press [ CANCEL] then press [ENTER].

To delete a character

Press [h PAUSE] on a character in the name field.

To cancel in the middle

Press [RETURN]. Characters will not be saved.

Notes

Long recording names may not be displayed.•

■ Display examples (1) Current media (2) Shows current recording or play status. (3) Channel information (4) The current date and time (5) Remaining recording time and recording mode (e.g.: “1:45 SP” indicates 1 hour and 45 minutes in

SP mode)

Disc remaining time may slightly differ between

• different models.

(6) Elapsed play time/Recording mode (7) Elapsed recording time and recording mode

Only displayed when receiving a digital broadcast:

(8) Channel (9) Current program (10) Parental Rating of the program (➔ 37) (11) Channel caption (12) Next program (13) Start and finish times of the program

Advanced Features

RQT8850

Recording from an External Device

Recording from a VCR, etc.

Connect cables while the power to both the unit and the external device is off.

Front of the unit

Tips

You can also connect to the IN1 on the rear.

• If the audio output of the other equipment is monaural, connect to

• L/MONO on the IN2 input terminals at the front.

You can get a sharper, clearer picture by connecting with an S Video cable instead of the yellow video cable.

Yellow White Red

at the point you want to

start recording to the disc.

RAM

S Video cable

-R

-R DL -RW(V) +R +R DL +RW

Audio/Video cable

Preparation:

Turn on the unit and connected equipment.

•

RAM

•

If the disc is protected, release protection (➔ 27). When recording MTS (Multi-channel TV Sound)

• broardcasts (➔ 10)

Insert a disc.

to select the recording

mode (➔ 11).

e, r to select the input where

your external device is connected, then

Input Select

Front panel inputs are IN2.–

Input Select

2 IN1

3 IN2

4DV

ENTER

Start play on the external device.

Advanced Features

RQT8850

Recording from a DV Camcorder

Connect cables while the power to both the unit and the external device is off.

Front of the unit

4-pin DV Cable

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparation:

Turn on the unit.

•

RAM

•

If the disc is protected, release protection

(➔ 27).

w to select “Record to DVD” and

press

w to select “Rec.” then

Notes

If the desired audio is not recorded, select the kind of audio for

• “Select Audio Channel For DV Input” in the Setup menu (➔ 34).

RAM

Programs are recorded as a single item; breaks in the images

• create chapters. If you use video camcorders from other manufacturers, these are

• not guaranteed to work. It is not possible to operate the unit from the connected DV

• equipment. The DV equipment name may not be shown correctly.

• Date and time information is not recorded, even if displayed on the

• camcorder. The DV IN terminal is not meant to be connected to a computer.

• This unit uses a 4-pin “DV IN” connector;

• Your DV camcorder may use a 4-pin or 6-pin external connector. Please consult your DV camcorder’s manufacturer to confirm correct external connection. You cannot record and play simultaneously.

•

Tips

When recording finishes

The confirmation screen appears. Press [ENTER] to finish DV camcorder recording.

Insert a disc.

to select the recording

mode (➔ 11).

Turn on the DV equipment and

pause play on the DV equipment at the point you want recording to start.

“DV camcorder connection” screen may appear.

DV camcorder connection

DV connection detected. Start recording ?

CancelRecord to DVD

SELECT

ENTER

RETURN

When “DV camcorder connection” screen does not appear

Perform steps 1–3 (➔ above)

1. With the unit stopped Press [FUNCTIONS].

2. Press [e, r] to select “Other Functions” then press [ENTER].

3. Press [e, r] to select “DV Camcorder Rec.” then press [ENTER].

You can proceed to step 5 (➔ right).

To stop recording

Press [■ STOP]. The confirmation screen appears. Press [ENTER].

If the DV camcorder recording function does not work properly, check the connections and DV equipment settings, and turn the unit off and back on. If that does not work, follow the instructions on page 22.

RQT8850

Recordings-Editing

Properties

No. Ch.

Date

01 4

6/20/2002 Wed

Start Rec. Time

10:00 AM 2:15 (SP)

Dinosaur

ENTER

Tips

Recording/Chapter

•

Normally, programs are recorded as a single item consisting of one chapter.

Recording

Chapter

Start End

RAM

You can divide a recording into multiple chapters.

Recording

Chapter Chapter Chapter Chapter

After finalizing, recordings are divided into chapters of the following lengths.

-R -R DL -RW(V)

+R +R DL

Maximum numbers of items on a disc

•

Recordings 99 49 Chapters Approx. 1000 Approx. 254

: Chapters are approx. 5 minutes long

: Chapters are approx. 8 minutes long

RAM -R -R DL -RW(V) +R +R DL +RW

Accessing the Recording View

Tips

To exit the menu screens

Press [DIRECT NAVIGATOR].

To view other pages

Press [e, r, w, q] to select “Previous” or “Next” and press [ENTER]. –

You can also press [u, i] to view other pages.

Multiple editing

Select with [e, r, w, q] and press [h PAUSE]. (Repeat.)

A check mark appears. Press [h PAUSE] again to cancel.

–

Editing Operations to Recordings

Delete Recording

Perform steps 1−3 of “Accessing the Recording View”.

RAM -R -R DL -RW(V) +R +R DL +RW

Important: Once deleted, contents cannot be recovered.

e, r to select “Delete Recording”, then

e, r, w, q to select a recording.

Multiple editing (➔ right, Tips)–

to display the menu list.

To view more options

Press [e, r] to select “Edit Recording”, then press [ENTER].

Items that cannot be selected are grey.

•

Edit Name

Setup Protection

Delete Recording

Properties

Edit Recording

View Chapters

Cancel Protection

Change Thumbnail

Divide Recording

If you select “View Chapters” (➔ 26)

Refer to “Editing Operations to Recordings” (➔ right).

w to select “Delete” then to

confirm.

Recording Properties

Perform steps 1−3 of “Accessing the Recording View”.

RAM -R -R DL -RW(V) +R +R DL +RW -RW(VR)

e, r to select “Properties”,

then

Recording information is shown (e.g., date,

–

time).

Recording Name

Perform steps 1−3 of “Accessing the Recording View”.

RAM -R -R DL -RW(V) +R +R DL +RW

e, r

to select “Edit Name” then

Notes

You cannot edit during recording.

•

+R +R DL

when you edit discs. The available space on these discs decreases each time you edit their contents.

Management information is recorded in unused sections

You can give a name for the recording (➔ 21).–

Advanced Editing

RQT8850

Setup Protection / Cancel Protection

DVD-RAM

DIRECT NAVIGATOR Recor

10 10/27 Mon

07 08

8 10/27 Mo

DVD-RAM

DIRECT NAVIGATOR Change Thumbnail

Change

Exit

0:01.05

--:--.--

Change

Start play and select the thumbnail position.

ENTER

DVD-RAM

DIRECT NAVIGATOR Divide Recording

0:00.11

--:--.--

Divide

Exit

Play

Preview

ENTER

DVD-RAM

DIRECT NAVIGATOR Divide Recording

0:00.11

--:--.--

Divide

Exit

Play

Preview

ENTER

Divide Recording

Perform steps 1−3 of “Accessing the Recording View” (➔ 24).

RAM

Use to prevent accidental erasure of recordings.

e, r to select “Setup Protection”

or “Cancel Protection”, then

w to select “Yes”, then

The lock symbol appears when the recording is protected.

Change Thumbnail

Perform steps 1−3 of “Accessing the Recording View” (➔ 24).

RAM -R -R DL -RW(V) +R +R DL +RW

Changes the thumbnail picture shown in the Recording View screen.

e, r

to select

“Change Thumbnail”, then

Perform steps 1−3 of “Accessing the Recording View” (➔ 24).

RAM

Once divided, recordings cannot be recombined.

e, r to select “Divide Recording”

then

at the point you want to

divide.

For quicker editing (➔ Left,

–

Selecting “Preview” then pressing [ENTER]

–

plays the recording from 10 seconds prior, to 10 seconds after the division point.

To change the point to divide at:

–

Restart play and press [e,r] to select “Divide” then press [ENTER] to bring to the point where you want to divide.

Tips

)

to start play.

at the point you want to

use as the thumbnail.

To change the thumbnail:

–

Restart play and press [e, r] to select “Change” then press [ENTER] at the point you want to use as the thumbnail.

e, r to select “Exit”, then

Tips

For quicker editing

Use search (➔ 16), Slow-motion (➔ 17) or Time Slip (➔ 17) to find

•

the desired point. To skip to the start or end of a recording, press [u] (start) or [i]

•

(end). For better precision, use Slow-motion (➔ 17) and Frame-by-Frame (➔ 17).

•

e, r to select “Exit” then

w to select “Divide” then

The recording is divided at that point.–

Notes

Divided recordings retain the name of the original.

• A short amount of video and audio just before and after the division

• point gets cut out. You cannot divide a recording when the resulting parts are too short

• or when the total number of recordings exceeds 99.

RQT8850

Properties

Edit Recording

View Chapters

Delete Recording

DVD-RAM

DIRECT NAVIGATOR Create Chapter

Create

Exit

0:43.21

Play

ENTER

Chapters-Creating, Editing

Accessing the Chapter View

RAM

Allows viewing and editing chapters individually.

e, r, w, q to select a recording.

to display the menu list.

e, r to select “View Chapters”,

then

e, r, w, q to select a chapter.

Multiple editing (➔ Tips)–

Chapter Operations

Create Chapter

Perform steps 1−6b of “Accessing the Chapter View” (➔ left).

e, r to select “Create Chapter”

then

at the point you want to

divide.

e, r to select “Exit” then

Notes

A short portion of the recording just after the creation point may be lost.

•

Tips

For quicker editing (➔ 25, Tips)

Delete Chapter

Important: Once deleted, recorded contents cannot be recovered.

menu list.

Tips

To exit the menu screens

Press [DIRECT NAVIGATOR].

To view other pages

Press [e, r, w, q] to select “Previous” or “Next” and press [ENTER]. –

You can also press [u, i] to view other pages.

Multiple editing

Select with [e, r, w, q] and press [h PAUSE]. (Repeat.)

A check mark appears. Press [h PAUSE] again to cancel.

–

To play,

To edit, to display the

Delete Chapter

Create Chapter

Combine Chapters

View Recordings

You can go back to the Recording View.

Refer to “Chapter Operations” (➔ right).

Perform steps 1−6b of “Accessing the Chapter View” (➔ left).

e, r to select “Delete Chapter”,

then

to select “Delete”, then

Combine Chapters

Perform steps 1−6b of “Accessing the Chapter View” (➔ left).

e, r to select “Combine

Chapters”, then

w to select “Combine”

then

The selected chapter gets combined with the

–

next chapter.

DVD Management

Accessing the Management Menus

Preparation:

•

Release protection (disc, cartridge ➔ right).

RAM

Insert a disc.

With the unit stopped

e, r to select “Other Functions”

then

FUNCTIONS

Cartridge Protection Off

Program

Delete

Disc Protection Off

Playlists Flexible Recording DV CamcorderRec.

Setup

DVD Management

DVD-RAM

Playback

Other Functions

ENTER

Naming Discs

-R

RAM

-R DL -RW(V) +R +R DL +RW

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ left).

e, r select “Disc Name”

then,

You can give a name for the disc (➔21).–

Tips

The disc name is displayed in the DVD MANAGEMENT window.

• With a finalized discs and +RW, the name is displayed on the Top

• Menu.

Setting Protection

RAM

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ left).

e, r select “Disc Protection” then

e, r to select “DVD

Management”, then

Tips

To return to the previous screen

Press [RETURN].

To exit the screen

Press [RETURN] several times.

w to select “Yes” then

Some options require different operations;

–

follow the on-screen prompts.

Protection of cartridge disc

(With a cartridge)

RAM

With the write-protect tab in the protect position, you cannot record to, edit, format, or delete from the disc.

Setting Menus Advanced Editing

RQT8850

DVD Management

Deleting All Recordings

Important: Once deleted, contents cannot be

recovered.

RAM

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ 27).

e, r select “Delete All

Recordings” then

w to select “Yes” then

w to select “Start” then

A message appears when deleting is finished.–

to complete.

Notes

Do not disconnect the AC power supply cord while formatting. This

• can render the disc unusable. When a disc has been formatted using this unit, it may not be

• possible to use it on any other equipment.

•

-R -R DL +R +R DL CD

• unit.

•

RAM

The disc must be reformatted if you do this.

•

RAM

switched to “PROTECT”. Release the protection to continue.

•

The message “Unable to format” appears when trying to format discs the unit cannot use.

-RW(VR)

-RW(V)

Pressing [RETURN] during format will cancel the process.

The disc cannot be formatted if the write protect tab (➔ 27) is

Formatting cannot be performed.

You can format only as DVD-Video format on this

Selecting Whether to Show the Top Menu First

-R -R DL -RW(V) +R +R DL +RW

Before finalizing a disc, select whether the top menu shows after finalizing. Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ 27).

e, r to select

“Playback will start

with:”, then

Notes

Deleting does not work if one or more recordings are protected.

•

Formatting Discs

Important: Once formatted, contents cannot be

recovered.

RAM -RW(V) +RW -RW(VR)

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ 27).

e, r to select “Format Disc

(DVD)” then

w to select “Yes” then

w to select “Start” then

Formatting starts (

–

maximum of 70 minutes). A message appears when formatting is

–

finished.

may take up to a

RAM

e, r to select desired item, then

DVD’s Top Menu:

• The Top Menu appears first. First Recording:

• The disc content is played without displaying the Top Menu.

to complete.

Setting Menus

RQT8850

Finalizing

Create Top Menu

-R -R DL -RW(V) +R +R DL

You can play these discs on compatible DVD players by finalizing it on the unit. The menu you create with the unit can also be used on most DVD players.

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ 27).

e, r to select “Finalize”, then

w to select “Yes”, then

w to select “Start”, then

Finalizing starts and cannot be canceled.

–

(may take up to 15 minutes) ( A message appears when finalizing is

–

finished.

-R DL

+R DL

up to 60 minutes)

+RW

+RW discs contain no Top Menu Data. Top Menu is a convenient function. We recommend you create the menu before playing a +RW disc on other equipment.

Perform preparation steps 1−3 of “Accessing the Management Menus” (➔ 27).

e, r to select “Create DVD Top

Menu”, then

w to select “Start”, then

“Create DVD Top Menu” cannot be canceled

–

once started. “Create DVD Top Menu” takes a few minutes.

–

to complete.

Notes

Do not disconnect the AC power supply cord while finalizing. This

• can render the disc unusable. When finalizing a high-speed recording compatible disc, it may take

• longer than displayed on the confirmation screen (approximately 4 times longer). After finalizing

•

–

-R -R DL +R +R DL

can no longer record or edit it.

–

* This time varies greatly depending on the condition and mode of

recording.

You can record and edit the disc after formatting

-RW(V)

although it becomes play-only after finalizing. The disc finalized on the unit may not be playable on other players depending on the condition of the recording. There is a pause of several seconds between recordings and chapters during playback. Recordings are divided into about 5-minute chapters* (+R

8 minutes).

+R DL

Tips

After you have finished recording and try to eject the disc, a screen

• asking if you want to finalize the disc appears ( ➔12).

The disc becomes play-only and you

Notes

Recording or editing on the disc may delete the top menu. In that

• case, create the top menu again. You cannot use the top menu for playing on this unit.

•

RQT8850

Setting On-Screen Menus

Accessing the On-Screen Menus

When playing discs, disc settings can be displayed and changed. Menu options will differ based on disc type and contents.

Disc

Play Video Audio Other

Menu Item Setting

Soundtrack

Subtitle

Audio channel

Digital 2/0 ch

Off

Stereo

e, r to select a menu then q.

e, r to select an item then q.

e, r to select a setting.

Follow the on-screen prompts to change individual settings.

Notes

Some settings may not be changeable, based on the unit’s current

•

activity (playing, stopped, etc.) and disc contents.

Tips

To exit the on-screen menus

Press [DISPLAY].

Disc Menu

RAM -R -R DL -RW(V) +R +R DL +RW DVD-V

-RW(VR)

Soundtrack

RAM

-R

The disc’s audio attributes appear. (➔ below, Audio attributes)

DVD-V

Select the audio and language. (➔ below, Audio attributes, Sound track/Subtitle language)

-R DL -RW(V) +R +R DL +RW -RW(VR)

Subtitle

RAM -R -R DL -RW(V) +R +R DL +RW -RW(VR)

(Only discs that contain subtitle on/off information) Turn the subtitle on/off.

Subtitle on/off information cannot be recorded using this unit.

• If the subtitles overlap the closed captions recorded on discs, turn

• the subtitles off.

DVD-V

Turn the subtitle on/off and select the language. (➔ below, Sound track/Subtitle language)

Audio channel

“Changing Audio during Playback” (➔ 17)

Angle

Change the number to select an angle.

DVD-V

RAM -RW(VR)

Sound track/Subtitle language

CES: Czech MAL: Malay CHI: Chinese NLD: Dutch DAN: Danish NOR: Norwegian DEU: German POL: Polish ENG: English POR: Portuguese ESP: Spanish RUS: Russian FIN: Finnish SLK: Slovak FRA: French SVE: Swedish HUN: Hungarian THA: Thai ITA: Italian VIE: Vietnamese JPN: Japanese KOR: Korean

Others

Audio attributes

LPCM/% Digital/DTS/MPEG: Signal type

k (kHz): Sampling frequency b (bit): Number of bits ch (channel): Number of channels

Notes

•

You cannot make a change when there is no recording.

•

Some discs allow changes to sound tracks, subtitles, and angles only by using the disc’s menus (➔ 16).

Play Menu

RAM -R

-RW(VR) CD

Repeat play

This function works only when the elapsed play time is displayed. Select the item for repeat play. Depending on the disc, the items that can be selected will differ. Select “Off” to cancel.

-R DL

-RW(V) +R

+R DL +RW

DVD-V

Setting Menus

RQT8850

Video Menu

RAM

-R

-R DL -RW(V) +R +R DL +RW DVD-V

-RW(VR)


Set picture mode. Normal: Default setting Cinema: Mellows movies, enhances detail in dark scenes.

DNR (Digital Noise Reduction)

“On” reduces noise and picture degradation.

Progressive [Only when you have selected “480p” in “TV Type” (➔ 46)]

Select “On” to enable progressive output.

•

Select “Off” if the picture is stretched horizontally.

•

When progressive output on, you cannot use the TV’s closed captions, but you can use this unit’s closed captions. Go to this unit’s Setup menu to turn on closed captions. (➔ 35).

Transfer [Only when you have selected “On” in “Progressive” (➔ above)]

Select the method of conversion for progressive output to suit the type of material being played.

Auto1 (normal): Film and video contents are detected

Auto2: When using “Auto1” and video content is

automatically and converted properly.

distorted as shown below.

Line-in NR (Only when IN1 or IN2 is selected)

Reduces video tape noise during recording. Depending on the video signal, jittering may occur.

On: Noise reduction works for any video input. Off: Noise reduction is off. Select when you want to record

input as is.

Audio Menu

-R

RAM

-R DL -RW(V) +R +R DL +RW DVD-V

-RW(VR)

V. Surround Sound (Dolby Digital with 2.0 or over

channels only)

This function does not work for SAP recordings.

•

Enjoy a surround-sound effect if you are using 2 front speakers (L/R) only.

•

Turn off if it causes distortion.

Natural / Emphasis / Off

Dialog Enhancer (Dolby Digital, 3-channel or over only, including a center channel)

When “On”, the volume of the center channel is raised to make dialogue easier to hear.

Other Menu

Signal meter

Allows you to check the strength of the digital broadcast signal.

Only the strength of the digital broadcast received through the

• antenna is displayed accurately.

Position

Change where this menu screen appears on your TV.

RQT8850

Changing the Unit’s Settings

Accessing the Setup menu

With the unit stopped

e, r to select a menu

then q to go to the item list.

Menus Items Options

Setup

Signal Source (Antenna / RF IN)

Set Channels Automatically

Channel Settings

Channel

Setup

Disc Video Audio

Display

TV Screen

Channel Settings

Closed Caption

Audio Language Setting

SELECT

ENTER

TAB

RETURN

Cable

e, r to select an item to change

then

Summary of Settings

All factory default settings are indicated with “Underlined” text.

Channel

Signal Source (Antenna / RF IN)

Select to suit the type of antenna you are using. [Antenna] [Cable]

Set Channels Automatically

Channel Settings (➔ 46)

Closed Caption (➔ 35)

[Set]: Choose whether to show closed captions. [Analog]: Settings for closed captions in analog broadcasts. [Digital]: Settings for closed captions in digital broadcasts. [Digital Setting]: Detailed settings for closed captions. [CC reset]: Resets settings for closed captions.

For details (➔ 35, Setting the Closed Caption)•

Audio Language Setting

Select the preferred digital broadcast language. [English] [French] [Spanish]

Setup

e, r to select an option

then

Some options require different operations;

–

follow the on-screen prompts.

Notes

Changed settings remain intact even when switching the unit to

•

standby.

Tips

To return to the previous screen

Press [RETURN]. Even if you have changed an option, the change is not activated until you press [ENTER].

To exit the screen

Press [SETUP].

Off Timer

Select how long the unit remains on when it is not being used. [2 Hours] [6 Hours] [Off]

Remote Control Code (➔ 55)

[Set Code 1] [Set Code 2] [Set Code 3]

Clock Settings

Press [ENTER] to show the following settings.

Set Clock Automatically (➔ 47)

Set Clock Manually (➔ 45)

Set the time change dates for DST (➔ 45)

Set the beginning and end dates for DST.

Adjust Time Zone (➔ 47)

This corrects the time set in Auto Clock Setting. The status is not displayed on the Setup menu when the Auto Clock Setting is not set. [–1] [0] [1]

Quick Start

1 Sec. Quick Start for Recording on DVD-RAM. From the power off state, recording on DVD-RAM starts about 1 second after first pressing [^ DVD POWER] and then sequentially pressing [* REC] (Quick Start Mode). Power consumption is also higher when the unit is turned off if this is set to “On”. [On] [Off]

Restore Default Settings

This returns Setup menus to default settings, except for the clock, channel settings, ratings level, closed caption, and on-screen language. [Yes] [No]

Setting Menus

RQT8850

Disc

Settings for Recording

Press [ENTER] to show the following setting.

Settings for Playback

Press [ENTER] to show the following settings.

Ratings

Set a ratings level to limit DVD-Video play. Follow the on-screen instructions. Enter a 4-digit password with the numbered buttons when the password screen is shown. Do not forget your password.

Setting ratings (When level 8 is selected)

• [8 No Limit]: All DVD-Video can be played.

[1] to [7]: Prohibits play of DVD-Video with corresponding

[0 Lock All]: Prohibits play of all DVD-Video.

Changing ratings (When level 0 to 7 is selected)

• [Unlock Recorder] [Change Password] [Change Level] [Temporary Unlock]

ratings recorded on them.

Audio Language

[English] [French] [Spanish] [Original] [Other ]

Subtitle Language

[Automatic] [English] [French] [Spanish] [Other ]

Menu Language

[English] [French] [Spanish] [Other ]

Notes

DVD-V

Choose the language for audio, subtitles and disc menus. If a language which is not recorded is selected, or if languages are already fixed on the disc, the language set as the default on the disc will be played instead.

[Original] The original language of each disc will be

[Other

[Automatic] If the language selected for “Audio Language”

selected. This is the language code setting. Input a code

]

number with the numbered buttons. (➔ below “Language code list”)

is not available, subtitles of that language will automatically appear if available on the disc.

Recording Time in EP Mode

Select the maximum number of hours for recording in EP mode. [EP-Extended Play (6H)]: You can record for 6 hours on an unused 4.7 GB disc. [EP-Extended Play (8H)]: You can record for 8 hours on an unused 4.7 GB disc.

Video

Still Mode (paused video)

Select the type of picture shown when you pause play. (➔ 66, “Frame and field”)

[Automatic] [Field] Select if jittering occurs when “Automatic” is selected. [Frame] Select if you cannot see small text or fine patterns

clearly when “Automatic” is selected.

Black Level Control

Select “Normal”, “Lighter” or “Darker” to adjust the black level control to the desired setting for picture enhancement. Press [ENTER] to show the following settings.

Input Level

Adjusts the black level of the input signal. [Lighter] [Darker]

Output Level (Composite/SVideo)

Adjusts the black level of the output signal from the VIDEO OUT and S VIDEO OUT terminal. [Lighter] [Darker]

Output Level (Component)

Adjusts the black level of the output signal from the COMPONENT VIDEO OUT (Y/PB/PR) terminals. [Lighter] [Normal] [Darker]

Language code list Enter the code with the numbered buttons.

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Ameharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765

Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783 Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178 Gujarati: 7185

Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165 Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686 Lingala: 7678

Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869 Norwegian: 7879 Oriya: 7982 Pashto,Pushto: 8083 Persian: 7065 Polish: 8076 Portuguese: 8084 Punjabi: 8065 Quechua: 8185

Rhaeto-Romance:

8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471

Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yoruba: 8979 Zulu: 9085

RQT8850

Changing the Unit’s Settings

Audio

Dynamic Range Compression

DVD-V

(Dolby Digital only) Change the dynamic range (➔ 66) for easier listening in low volume. [On] [Off]

Multi-channel TV Sound (Analog)

-R -R DL -RW(V) +R +R DL +RW

Select whether to record the main or secondary audio program (SAP) when recording to these discs. (You cannot select the audio type on the unit when recording from an external device. Select it on the external device.) [Main] [Secondary Audio Program (SAP)]

Digital Audio Output

Change the settings when you have connected equipment through the unit’s DIGITAL AUDIO OUT terminal (➔ 43). Press [ENTER] to show the following settings.

PCM Down Conversion

Select how to output audio with a sampling frequency of 96 kHz or 88.2 kHz. Signals are converted to 48 kHz or 44.1 kHz despite the settings if the signals have a sampling frequency of over 96 kHz or 88.2 kHz, or the disc has copy protection.

[On] Signals are converted to 48 kHz or 44.1 kHz. (Choose

when the connected equipment cannot process signals with sampling frequency of 96 kHz or 88.2 kHz.)

[Off] Signals are output as 96 kHz or 88.2 kHz. (Choose

when the connected equipment can process signals with sampling frequency of 96 kHz or 88.2 kHz.)

Dolby Digital *

Choose whether to output by “Bitstream”, which processes Dolby Digital signals on other connected equipment, or to convert the signals to “PCM (2ch)” on the unit before output.

[Bitstream] When you have connected the unit to equipment

[PCM] When you have connected the unit to equipment

DTS *

Choose whether to output by “Bitstream”, which processes DTS signals on other connected equipment, or to convert the signals to “PCM (2ch)” on the unit before output.

[Bitstream] When you have connected the unit to a piece of

[PCM] When you have connected the unit to a piece of

Select Audio Channel For DV Input

You can select the kind of audio when recording from the unit’s DV IN terminal (➔ 23).

[Stereo 1] Records audio (L1, R1) [Stereo 2] Records added audio such as narration (L2, R2)

[Mix] Records both Stereo 1 and Stereo 2.

* Incorrect settings can cause noise to be output which can be harmful to your ears and speakers, and audio will not be recorded properly on media such as mini discs.

displaying the Dolby Digital logo.

that doesn’t have Dolby Digital logo.

equipment displaying the DTS logo.

equipment that doesn’t have DTS logo.

subsequent to original recording.

Display

Status Messages

Choose whether to show status messages automatically or not. [Automatic] [Off]

On-screen Language

Choose the language for these menus and the on-screen messages. [English] [Español] [Français]

Black Background (Analog)

Select whether to show the black background, normally shown when TV reception is poor. [On] [Off]

Front Display

Changes the brightness of the unit’s display. [Bright]

[Dim] [Automatic] The display turns dark during playback. When the unit

is turned off, the unit’s display disappears. While using this mode the standby power consumption can be reduced.

Parental Rating (➔ 36)

Enables you to limit viewing and recording of particular television programs. [U.S. TV Rating]: U.S. TV program ratings [MPAA Rating]: U.S. movie ratings [CELR Rating]: Canadian English ratings [CFLR Rating]: Canadian French ratings [Change Password]

For details (➔ 37, Parental Rating List)•

TV Screen

TV Type (➔ 46)

Choose the setting to suit your TV and preference. [Aspect 4:3 & 480i (interlace)] [Aspect 4:3 & 480p (progressive)]

[Aspect 16:9 & 480i (interlace)] [Aspect 16:9 & 480p (progressive)]

4:3 TV settings for DVD-Video

You can select how to display the image on the TV when you watch 16:9 images (DVD-Video) on a 4:3 standard aspect TV (➔ 46). [Pan and Scan (Stretch to fit)]:

Video recorded for a widescreen is played with the sides cut off if Pan & Scan was specified. If 16:9 software prohibits Pan & Scan, the image will appear in the letterbox style (with black bands above and below the picture) despite the setting here.

[Letterbox (Shrink to fit)]:

Video recorded for a widescreen is played in the letterbox style.

4:3 TV settings for DVD-RAM

You can select how to display the image on the TV when you watch 16:9 images (DVD-RAM) on a 4:3 standard aspect TV (➔ 46).

[4:3] Recordings are played as recorded. [Pan and Scan (Stretch to fit)] Video recorded for a widescreen is

played with the sides cut off.

[Letterbox (Shrink to fit)] Video recorded for a widescreen is

played in the letterbox style.

Setting Menus

RQT8850

Setting the Closed Caption

Choose whether to show closed captions.

▲, ▼ to select “Channel”, then q.

Settings for closed captions in digital broadcasts

Perform steps 1-5 of “Setting the Closed Caption”.

▲, ▼ to select “Digital”, then

▲, ▼ to select “Closed Caption”,

then

▲, ▼ to select “Set”, then

▲, ▼ to select “On”, then

Select “Off” if you don’t want closed captions.

Settings for closed captions in analog broadcasts

Perform steps 1-5 of “Setting the Closed Caption”.

▲, ▼ to select “Analog”, then

▲,▼ to select the item, then

CC1-4:

T1-4: Textual information (Appears over

Information related to pictures (Appears at bottom of screen)

entire screen)

▲,▼ to select the item, then

[Primary]: Primary Language [Secondary]: Secondary Language [Service 3]: Service 3 Language [Service 4]: Service 4 Language [Service 5]: Service 5 Language [Service 6]: Service 6 Language

Detailed settings for closed captions in digital broadcasts

Perform steps 1-5 of “Setting the Closed Caption”.

▲, ▼ to select “Digital Setting”,

then

▲,▼ to select the item, then

[Size]: Text size [Font]: Text font [Style]: Text style (Raised, Depressed, etc.) [Foreground]: Color of text [Fore Opacity]: Opacity of text [Background]: Color of text box [Back Opacity]: Opacity of text box [Outline]: Outline color of text (Identify the

setting options on the screen.)

▲,▼ to select the option, then

Resets all settings for closed captions

Perform steps 1-5 of “Setting the Closed Caption”.

▲,▼ to select “CC reset”, then

RQT8850

Changing the Unit’s Settings

Setting the Parental Rating

The V-chip system (➔ below, Notes) used in this unit allows you to limit viewing and recording of certain programs that may contain scenes unsuitable for children. If the unit starts receiving a broadcast with the set rating information, a password screen appears and you will be unable to view or record until you enter the password. You can view or record after entering your password.

e, r to select “Display” then q.

e, r to select “Parental Rating”

then

e, r to select the rating, then

w, then

Enter a 4-digit password with the

numbered buttons and

Setup

Channel

Setup

Disc Video Audio

SELECT

Display

ENTER

TV Screen

A screen appears advising that you have set

–

a password. Press [ENTER].

If you select “Off” for “Set”:

A screen appears advising that you haven’t set a rating. Press [ENTER].

To change the password

Perform steps 1-3 of “Setting the Parental Rating”.

Ratings

Enter a 4-digit password,

then press ENTER to store.

Password

Number

- -

0 9

RETURN

* * * *

Enter a 4-digit password with the

numbered buttons and

U.S. TV Rating: U.S. TV program ratings

• MPAA Rating: U.S. movie ratings

• CELR Rating: Canadian English ratings

• CFLR Rating: Canadian French ratings

•

e, r, w, q to select “On” for

“Set”.

e.g., U.S. TV Rating

Setup

Channel

Setup

Disc Video Audio

Display

TV Screen

For details about other ratings (➔ 37, Parental Rating

•

U.S. TV Rating

Set On

TV-NR Viewable

TV-Y Viewable

TV-Y7 Viewable

TV-G Viewable

-- --D--L--S--

TV-PG

-- --D--L--S--

TV-14

-- --L--S--

TV-MA

V V V

List)

w, q to move to “Set”, e, r to

select the rating item, then q.

e, r to select the limitation.

The limitation options that appear depend

–

on the rating you select in step 4. Select “Viewable”, “--”, or “Off” to cancel.

e, r to select “Change

Password” then

Enter the new password with the

numbered buttons and

A screen appears advising that you have set

–

a password. Press [ENTER].

Tips

To clear the password

(➔ 55, To reset the ratings level settings)

Notes

Recording may fail when a wrong password was entered for

• scheduled recording settings. “V-chip” technology enables restricted shows to be locked

• according to TV ratings. The V-chip system that is used in this set is capable of blocking

• “NR” programs (non rated, not applicable and none) as per FCC Rules Section 15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

Emergency Bulletins (Such as EAS messages, weather warnings

–

and others) Locally originated programming • News • Political

–

Public Service Announcements • Religious • Sports • Weather

–

Setting Menus

RQT8850

Parental Rating List

U.S. TV Rating (U.S. TV Program Ratings)

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

[FV]: Fantasy/Cartoon Violence [D]: Dialogue with sexual content [L]: Offensive Language [S]: Sex [V]: Violence

MPAA Rating (U.S. Movie Ratings)

MPAA

[Viewable] [Blocked]

[FV Blocked] [Viewable] [Blocked]

[Viewable] [Blocked]

[--]:Viewable [X]:Blocked

D,L,S,V (all selected)

• Any combination of D, L, S, V

•

[--]:Viewable [X]:Blocked

D,L,S,V (all selected)

• Any combination of D, L, S, V

•

[--]:Viewable [X]:Blocked

L,S,V (all selected)

• Any combination of L, S, V

•

[Viewable]

[Blocked]

[Off] MPAA Rating is set to “off”.

[G] General audiences. All ages admitted.

[PG] Parental guidance suggested. Some material may not be suitable for pre-teenagers.

[PG-13] Parents strongly cautioned. Some material may be inappropriate for children under 13.

[R] Restricted. Under 17 requires accompanying parent or adult guardian.

[NC-17] No one 17 and under admitted.

[X] Adults only.

Not Rated.

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6.

Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

CELR Rating (Canadian English Ratings)

CELR

[Viewable]

[Blocked]

[Off] CELR Rating is set to “off”.

[C] Programming intended for children under age 8. No offensive language, nudity or sexual content.

[C8+]

[G] General programming, suitable for all audiences.

[PG] Parental Guidance suggested. Some material may not be suitable for children.

[14+]

[18+] 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

CFLR Rating (Canadian French Ratings)

CFLR

[Viewable]

[Blocked]

[Off] CFLR Rating is set to “off”.

[G]

[8 ans+]

[13 ans+]

[16 ans+]

[18 ans+] Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Exempt - Exempt programming.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

RQT8850

VHF/UHF

RF IN

Rear of TV

Rear of this unit

AUDIO IN

R L

VIDEO

step

Red White Yellow

Basic Connection

Note: The terminals on the rear of your TV may not appear as shown below.

Please read terminal labels carefully to ensure correct connections.

•

If your TV does not have AV IN terminals (➔ 41).

Connecting to a Television with Direct Cable or Antenna (No Cable Box or Satellite Receiver)

Cable from the wall or

antenna signal

To a household AC outlet (AC 120V, 60 Hz)

Coaxial cable from the wall or antenna signal to the “RF IN” on the unit.

Coaxial cable Audio/video cable AC power supply cord

(included)

from the “RF OUT” on the unit to the “VHF/UHF RF IN” on the TV.

from the “OUT” on the unit to the “AV IN” on the TV.

(included)

from the “AC IN~” on the unit to a household AC outlet.

RQT8850

Connection and Setting

Note: The terminals on the rear of your TV and Cable Box may not appear as shown below.

AUDIO OUT

R L

VIDEO

OUT

RF IN

RF OUT

VHF/UHF

RF IN

AUDIO IN

R L

VIDEO

step

Red White Yellow

step

Red White Yellow

Rear of Cable Box

Rear of TV

Rear of this unit

Please read terminal labels carefully to ensure correct connections.

•

Consult your cable service provider about the appropriate cable box to use.

•

Additional coaxial cable and audio/video (AV) cable are required.

•

If your TV does not have AV IN terminals (➔ 41).

Connecting to a Television and a Cable Box

Cable from the wall

To a household AC outlet (AC 120V, 60 Hz)

Coaxial cable from the wall to the “RF IN” on the unit. Coaxial cable

TV.

Audio/video cable

Coaxial cable from the “RF OUT” on the unit to the “RF IN” on the cable box.

(included)

from the “RF OUT” on the cable box to the “VHF/UHF RF IN” on the

from the “OUT” on the unit to the “AV IN” on the TV.

Audio/video cable from the “AV OUT” on the cable box to the “IN1” on the unit. AC power supply cord

(included)

from the “AC IN~” on the unit to a household AC outlet.

RQT8850

Basic Connection

AUDIO OUT

R L

VIDEO

OUT

SATELLITE IN

RF OUT

VHF/UHF

RF IN

AUDIO IN

R L

VIDEO

step

Red White Yellow

step

Red White Yellow

step

Rear of Satellite Receiver

Rear of TV

Rear of this unit

VHF/UHF

Note: The terminals on the rear of your TV and Satellite Receiver may not appear as shown below.

Please read terminal labels carefully to ensure correct connections.

•

Additional coaxial cable and audio/video (AV) cable are required.

•

If your TV does not have AV IN terminals (➔ 41).

Connecting to a Television and a Satellite Receiver

Satellite

antenna

Coaxial cable from the satellite antenna to the “SATELLITE IN” on the satellite receiver. Coaxial cable

on the TV. Audio/video cable

Audio/video cable from the “AV OUT” on the satellite receiver to the “IN1” on the unit. AC power supply cord

To a household AC outlet (AC 120V, 60 Hz)

(included)

from the “RF OUT” on the satellite receiver to the “VHF/UHF RF IN”

from the “OUT” on the unit to the “AV IN” on the TV.

(included)

from the “AC IN~” on the unit to a household AC outlet.

RQT8850

Connection and Setting

Using an RF Modulator, if your Television does not have Audio/Video Terminals

AUDIO IN

R L

VIDEO

RF IN

RF OUT

VHF/UHF

RF IN

step

Red White Yellow

Rear of TV

Rear of this unit

Rear of Video Cassette Recorder or Cable Box or Satellite Receiver

RF Modulator

RF OUT

step

Connecting to a Television

Connect cables in steps

and (same as those on page 38) as follows.

Cable from the wall

or antenna signal

Rear of this unit

Red White Yellow

step

RF IN

RF OUT

step

Red White Yellow

AUDIO IN

VIDEO

R L

RF Modulator

Rear of TV

VHF/UHF

RF IN

Connecting to a Television with a Video Cassette Recorder or a Cable Box or Satellite Receiver

Connect cables in steps

Cable from the wall or

antenna signal

(Video Cassette

Recorder or Cable

Box Only)

and (same as those on page 39 or 40) as follows.

RQT8850

Adding a Video Cassette Recorder (VCR)

AUDIO OUT

L R

VIDEO

OUT

RF IN

RF OUT

RF IN

step

Yellow White Red

step

Rear of VCR

Rear of Cable Box

Rear of this unit This unit’s front panel

Additional coaxial cable and audio/video (AV) cable are required.

•

Connecting to a Television and a VCR (No Cable Box or Satellite Receiver)

Perform step on page 38.

Coaxial cable

(included)

from the “RF OUT”

on the VCR to the “VHF/UHF RF IN” on the TV.

Audio/video cable

“OUT” on the unit to the Coaxial cable from the “RF OUT” on the unit

(included)

“AV IN” on the TV.

from the

to the “RF IN” on the VCR.

Audio/video cable from the “IN1” on the

unit to the “AV OUT” on the VCR.

Perform step on page 38.

Rear of this unit

AUDIO IN

VIDEO

AUDIO IN

VIDEO

R L

Red White Yellow

step

Red White Yellow

Rear of TV

VHF/UHF

RF IN

Connecting to a Television, a Cable Box and a VCR

Perform step , , , on page 39.

Coaxial cable from the “RF OUT” on the unit to the “RF IN” on the VCR.

Coaxial cable from the “RF OUT” on the VCR to the “RF IN” on the cable box.

Audio/video cable from the “AV OUT” on

the VCR to the “

IN2

” on the unit.

Perform step on page 39.

RF IN

RF OUT

step

Red White Yellow

AUDIO OUT

VIDEO

OUT

R L

step

Rear of VCR

Connecting to a Television, a Satellite Receiver and a VCR

Perform step , , on page 40.

Coaxial cable on the satellite receiver to the “RF IN” on

(included)

from the “RF OUT”

Yellow White Red

the VCR. Coaxial cable from the “RF OUT” on the

VCR to the “VHF/UHF RF IN” on the TV.

Audio/video cable from the “AV OUT” on

the VCR to the “

IN2

” on the unit.

Perform step on page 40.

Rear of VCR

step

Yellow White Red

AUDIO OUT

VIDEO

OUT

L R

RF IN

RF OUT

AUDIO IN

R L

step

Rear of Satellite Receiver

VIDEO

Rear of TVThis unit’s front panel

VHF/UHF

RF IN

RF OUT

step

RQT8850

Connection and Setting

Standard Quality Picture

Highquality Picture

VIDEO IN terminal

S VIDEO IN terminal

COMPONENT VIDEO IN terminal

Rear of TV

Rear of this unit

AUDIO IN

R L

VIDEO

Red White

COMPONENT

VIDEO IN

YPB PR

Rear of this unit

OPTICAL IN

Rear of Amplifier or System Component

Connection Options for Improved Playback Quality

• You can enjoy better quality sound by changing the

You can enjoy high-quality picture by using the following terminals for connection.

Using an S Video Cable for Better Video (S Video Cable not included)

The S VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal. (Actual results depend on the television).

Rear of TV

VIDEO

S VIDEO

AUDIO IN

R L

• audio cable connection between this unit and your TV on pages 38 to 40 as follows.

Using an Audio Cable for Better Sound

Use this connection to play sound through speakers connected to an amplifier or system component.

Rear of Amplifier or System Component

AUDIO IN

R L

Red White

Audio cable

(not included)

Rear of this unit

Red White

Rear of this unit

Red White

Audio/video cable

(included)

Red White

Leave the yellow cable unconnected.

S Video cable

(not included)

Using Component Cables for Better Video (Component Video Cables not included)

The COMPONENT VIDEO OUT terminals on this unit can be used for either interlace or progressive output (➔ 66) to provide a purer picture than the S VIDEO OUT terminal.

Using an Optical Digital Audio Cable for Better Sound (Optical Digital Audio Cable not included)

This method allows you to enjoy multi-channel surround sound on DVD-Video.

Insert fully with this side up.

Do not bend cable sharply.

Optical digital audio cable

(not included)

Component

video cables

(not included)

Audio/video

(included)

cable

Leave the yellow cable unconnected.

•

Connect an amplifier or system component with a built-in decoder displaying these logo marks.

•

Adjust settings in “Digital Audio Output” (➔ 34).

Notes

You cannot use DTS Digital Surround decoders not meant for DVD.

•

Before purchasing an optical digital audio cable, check the terminal

•

shape of the equipment to be connected.

RQT8850

Setting the Channels and Clock

Aspect Ratio Selection

Select TV type and press ENTER.

(Please refer to Operation Instruction

for details)

4:3 TV

16:9 Widescreen TV

16:9

4:3

Quick Start Setting

The unit can be turned on faster, in about

1 second. Please note that Quick Start

mode slightly increases power

consumption when the unit is off.

(See Operation Instructions for details)

Turn Quick Start on ?

Off

Automatic Clock and Channel Settings

Does this unit get its TV signal via RF IN?

Example: Antenna, Cable TV or Cable Box connected to the

unit’s RF IN.

Yes

Preparation:

Turn on the television and select the appropriate video

• input to suit the connections to this unit. These are the first settings you make upon buying the

• unit. You don’t need to make these settings again.

to turn the unit on.

Language:

e, r to select, then

TV Aspect Ratio:

e, r to select “4:3 TV” or “16:9 Widescreen TV” then

When connecting to a 4:3 standard aspect TV:

• Select “4:3 TV”. When connecting to a 16:9 widescreen TV:

• Select “16:9 Widescreen TV”.

Quick Start Function:

e, r to select “On” or “Off” then

Select Language

Seleccione el idioma

Sélection de langue

English

Español

Français

Press ENTER Pulse ENTER

Appuyer sur ENTER

Automatic Clock and Channel

Setting: e, r to select “Yes” or “No” then

When connecting the cable from the wall

• (cable TV or antenna) to the unit’s RF IN: Select “Yes”. The unit then displays the source selection screen (➔ 45). When not connecting the cable from the

• wall (cable TV or antenna) to the unit’s RF IN: Select “No”. The unit then displays “Set Clock Manually” screen (➔ 45, Manual Clock Setting).

Tips

•

“Quick Start” function (➔ 32)

If you set Quick Start to on, you can start recording to DVD-RAM about 1 second after you press [^ DVD POWER] to turn the unit on and then sequentially press [* REC]. The following happens when you have selected “On”. –

Power consumption in standby mode increases because power is supplied to the unit.

To return to the previous screen

Press [RETURN].

RQT8850

Connection and Setting

The types of transmission:

Automatic Clock and Channel Settings

Please select the wire connected to RF IN.

Antenna

Cable

Set Clock Automatically

Clock Setting completed successfully.

4/4/2006 12:15 AM

DST..................... On

Time Zone.......... EST

Set Clock Manually

SAT AM

DST

EST

1 1 2000 12

Off

Time Zone

EST

Month Day Year

Hour Minute

e, r to select “Antenna” or “Cable”, then

to start automatic channel/

Manual Clock Setting

Perform steps 1–5 on page 44.

w, q to select the item you want

to change.

clock setting.

Confirm the time, then

DST (Daylight Saving Time) shows the

–

summertime setting. Time Zone shows the time difference from

–

Greenwich Mean Time (GMT).

See “Notes” (➔ right).

Tips

If the unit displays “No channels were found.”, turn off the unit

• and confirm the cable or antenna input is connected to the RF IN terminal. Restart the set up again (➔ below). If “Auto Clock Setting is incomplete.” is displayed, press [ENTER]

• and set the clock manually (➔ right). If the clock is not correct, set the clock with “Adjust Time Zone”

• (➔ 47) or “Set Clock Manually” (➔ 32). You can delete channels you don’t need after completing Auto

• Channel Setting (➔ 46).

Restarting the Auto-Setup

(after relocation, for example)

1. When the unit is on and stopped, press and hold [CH 2] and

[CH 1] on the main unit at the same time for about 5 seconds.

The unit turns off.

2. Press [^ DVD POWER] to turn the unit on.

(The signal source, and channel captions revert to their default values. All scheduled recordings are cleared.)

To cancel in the middle

Press [RETURN].

Notes

•

Conditions of the received channel may cause automatic channel/ clock setting to take extra time.

e, r to change the setting.

Repeat steps 6-7 to change other items.–

to confirm new date and

time and to initiate the clock.

Notes

•

The automatic clock setting can take a few minutes.

•

Time Zone

EST (Eastern Standard Time) = GMT –5 CST (Central Standard Time) = GMT –6 MST (Mountain Standard Time) = GMT –7 PST (Pacific Standard Time) = GMT –8 AST (Alaska Standard Time) = GMT –9 HST (Hawaii Standard Time) = GMT –10 For other areas: xx hr

DST (Daylight Saving Time)

•

If you select “On”, the clock is advanced one hour beginning at 2 a.m. on the second Sunday in March and ending at 2 a.m. on the first Sunday in November. Set the DST period manually when it varies according to regions (➔ below).

To set the DST period manually

1. Press [SETUP].

2. e, r to select “Setup” then q.

3. e, r to select “Clock Settings” then press [ENTER].

4. e, r to select “Set the time change dates for DST” then press [ENTER].

5. e, r, w, q to set the “Month”, “Day”, “Hour”, and “Minute” then press [ENTER].

Set the time change dates for DST

Setup

Beginning

Month

Day

Hour Minute

Restore Default

Reinitializes the settings.

Channel

Setup

Disc Video Audio

Display

TV Screen

3 SUN2nd 2

End

Month

Day

11 SUN1st 2

SELECT

ENTER

RETURN

RQT8850

Other Settings

Setup

Channel

Setup

Disc Video Audio

Display

TV Screen

Deleted

4-1

Added

4-2

5 6

Added

- - -

C003

KRON-SD KRON-HD

C005

- - -

C009

Add/DelChannel Caption

Channel Settings

Added

Deleted

CBS

ENTER

Setup

Channel

Setup

Disc Video Audio

Display

TV Screen

Deleted

4-1

Added

4-2

5 6

Added

- - -

C003

KRON-SD KRON-HD

C005

- - -

C009

Add/DelChannel Caption

Channel Settings

Added

Deleted

CBS

ENTER

Setting Channel Captions

The captions you select or modify are used as channel names and displayed on the Direct Navigator screen.

With the unit stopped

e, r to select “Channel”, then q.

e, r to select “Channel Settings”,

then

e, r to select channel, then w, q

to select the “Caption” column.

Adding and Deleting Channels

To add channels, delete undesired channels, or channels that have poor reception.

Perform steps 1-3 of “Setting Channel Captions”.

e,r to select channel, then w,q

to select the “Add/Del” column.

e,r to select “Added” or

“Deleted”, then

Selecting Television Type

This setting does not need to be changed when connected to a 4:3 standard aspect TV that is not compatible with progressive output.

With the unit stopped

To select the caption:

e, r to select the caption.

After selecting the “Channel” column with

–

[w, q], repeat steps 4-5a to set other channels.

To modify the caption:

2. e, r to select a character, then q to move to the next character.

Repeat this step to enter other characters.

–

3. to confirm changes.

After selecting the “Channel” column with

–

[w, q], repeat steps 4-5b to set other channels.

to complete.

Notes

Available characters for channel captions

•

A-Z, a-z, 0-9, _, -, (space)

e, r

to select “TV Screen”, then

e, r to select “TV Type” then

Setup

Channel

Setup

Disc Video Audio

Display

TV Screen

ENTER

TV Type

4:3 TV

Aspect 4:3 & 480i (interlace)

Aspect 4:3 & 480p (progressive)

16:9 Widescreen TV

Aspect 16:9 & 480i (interlace) Aspect 16:9 & 480p (progressive)

e,r to select the item, then

If you select “480p”, the confirmation screen

–

appears. Follow the on-screen instructions.

Notes

Aspect 4:3/16:9

•

4:3 16:9

4:3 standard aspect television 16:9 widescreen television

•

480p/480i

Select “480p” if the television is compatible with progressive output. Select “480i” if the television is not compatible with progressive output or you are unsure about television compatibility.

•

Digital programs broadcast in the 16:9 aspect ratio may appear with black bands at the edges of the screen on 4:3 aspect televisions. The bands are added to enable the correct aspect ratio to be shown.

Tips

To return to the previous screen

Press [RETURN].

To exit the screen

Press [SETUP].

RQT8850

Connection and Setting

Clock Settings

Set Clock Automatically

Clock Setting completed successfully.

4/4/2006 12:15 AM

DST..................... On

Time Zone.......... EST

With the unit stopped

e, r to select “Setup”,

then q.

e, r to select “Clock Settings”,

then

Set Clock Automatically

Perform steps 1–3 of “Clock Settings”.

e, r to select “Set Clock

Automatically”, then

Tips

To cancel in the middle

Press [RETURN]. The unit then displays “Set Clock Manually” screen (➔ 45, Manual Clock Setting).

•

Time Zone

Time Zone shows the time difference from Greenwich Mean Time (GMT).

•

DST (Daylight Saving Time)

If you select “On”, the clock is advanced one hour starting at 2 a.m. on the second Sunday in March and ending at 2 a.m. on the first Sunday in November. Set the DST period manually when it varies according to regions (➔ 45).

Adjust Time Zone

Adjust the time zone (–1 or 1) if it was not set correctly with auto clock setting. You can set this menu only after “Set Clock Automatically” is completed.

to start auto setting.

The following dialog appears when setting is complete.

to complete.

Notes

This may take some time, up to a few hours in some cases.

•

If the following message appears

•

Setup

Channel

Setup

Disc Video Audio

Display

TV Screen

If the time is correct, w to select “Yes”, then [ENTER]. – If you select “No”, auto setting starts again, then the above

screen reappears. Repeat this step until the correct time appears.

If the clock is not correct, set the clock with “Adjust Time Zone”

• (➔ right) or “Set Clock Manually”(➔ 32).

Set Clock Automatically

Setting completed as follows.

Finished the setup with this clock time?

Note: Selecting “No” will start channel

scanning again and renew the clock time.

Yes No

12/14/2005 5:28 AM

DST.................. Off

Time Zone....... EST

ENTER

RETURN

Perform steps 1–3 of “Clock Settings”.

e, r to select “Adjust Time

Zone”, then

e, r to select “–1” or “1” then

Adjust Time Zone

Tips

To return to the previous screen

Press [RETURN].

To exit the screen

Press [SETUP].

Automatic Off Timer

This determines how long the unit stays on when it’s not being used. Default = 6 hours (then it switches to standby) To turn off the “Off Timer”, or to change the setting to 2 hours, see page 32.

RQT8850

Other Settings

Using the Unit’s Remote Control to Operate the TV and the Set Top Box (Cable Box, Satellite Receiver, etc.)

TV operation buttons

Set Top Box operation buttons

Point the remote control at the TV

or Set Top Box.

To set the code for the TV:

While pressing and holding ,

enter the code from the table right using the numbered buttons.

e.g., 0250: press [0] ➔ [2] ➔ [5] ➔ [0]

set the code for the

While pressing and holding ,

Set Top Box:

enter the code from the table right using the numbered buttons.

e.g., 1786: press [1] ➔ [7] ➔ [8] ➔ [6]

Test the TV or Set Top Box functions of the remote control for operability.

To switch to the Set Top Box mode:

–

Press and hold [CH 1] and [RETURN] simultaneously for 5 seconds or longer.

To switch to the TV mode:

–

Press and hold [^ TV POWER] and [RETURN] simultaneously for 5 seconds or longer. If the functions do not work, repeat steps

–

1 to 3 using different codes, if available. Some TVs and Set Top Boxes may not be compatible with the unit’s remote control.

Remote Control Codes for the TV

Manufacturer Code Panasonic 0051 / 0055 / 0250 / 0650 Advent 0761 / 0783 / 0815 / 0817 / 0842 Akai 0030 / 0098 / 0672 / 0702 / 0812 America Action 0180 AOC 0003 / 0019 / 0030 / 0052 / 0137 / 0185 Apex 0748 / 0765 / 0767 / 0879 Audiovox 0003 / 0092 / 0180 / 0451 / 0623 / 0802 / 0875 Axion 1937 Bang & Olufsen 0620 / 1620 Broksonic 0003 / 0236 / 0463 Casio 0611 / 1205 Daewoo 0019 / 0039 / 0066 / 0067 / 0091 / 0092 / 0451 /

0623 / 0661 / 0672 / 1661

Emerson 0019 / 0038 / 0039 / 0154 / 0158 / 0171 / 0177 /

0178 / 0179 / 0180 / 0181 / 0182 / 0183 / 0185 /

0236 / 0270 / 0280 / 0282 / 0463 / 0623 Envision 0030 / 0813 Epson 0833 / 0840 Fisher 0154 / 0159 Fujitsu 0179 / 0186 / 0683 / 0809 / 0853 GE 0021 / 0027 / 0029 / 0047 / 0051 / 0055 / 0135 /

0138 / 0174 / 0178 / 0251 / 0279 / 0282 / 0451 /

0747 / 1347 / 1447 Go-Video 0886 Haier 0768 / 1034 Hannspree 1348 / 1351 / 1352 Hewlett Packard 1088 / 1089 / 1101 / 1494 / 1502 Hisense 0748 Hitachi 0016 / 0032 / 0038 / 0056 / 0095 / 0097 / 0145 /

0151 / 0173 / 0227 / 0279 / 0409 / 0413 / 1145 In Focus 0736 / 0738 / 0739 / 0741 / 0752 / 0759 / 0781 /

1164 / 1516 JVC 0036 / 0053 / 0069 / 0160 / 0169 / 0182 / 0731 /

1253 KLH 0765 / 0767 LG 0178 / 0317 / 0442 / 0457 / 0700 / 0856 / 1178 /

1265 Loewe 0136 Magnavox 0020 / 0024 / 0028 / 0030 / 0036 / 0054 / 0096 /

0179 / 0186 / 0187 / 0230 / 0386 / 0706 / 0802 /

1254 / 1454 Marantz 0030 / 0054 / 0444 / 0704 / 0854 / 0855 / 1154 Memorex 0016 / 0106 / 0150 / 0154 / 0178 / 0179 / 0463 Mitsubishi 0014 / 0019 / 0093 / 0098 / 0145 / 0150 / 0155 /

0178 / 0331 / 0358 / 0836 / 0868 / 1250 Norcent 0748 / 0824 Optoma 0887 Orion 0179 / 0236 / 0463 / 1463 Philips 0054 / 0690 / 1154 / 1454 Philips Magnavox 0020 / 0024 / 0028 / 0030 / 0036 / 0054 / 0096 /

0179 / 0186 / 0187 / 0230 / 0386 / 0690 / 0706 /

0802 / 1154 / 1254 / 1454 Pioneer 0038 / 0166 / 0172 / 0679 / 0866 Polaroid 0765 / 0865 / 1262 / 1276 / 1314 / 1316 / 1326 /

1327 / 1328 / 1341 / 1498 / 1523 Proscan 0047 / 0747 / 1347 / 1447 Proview 0835 / 1401 / 1498 RCA 0018 / 0019 / 0029 / 0038 / 0047 / 0090 / 0135 /

0174 / 0278 / 0679 / 0747 / 1047 / 1147 / 1247 /

1347 / 1447 / 1547 Runco 0017 / 0030 / 0251 / 0497 / 0603 Sampo 0030 / 0032 / 0039 / 0052 / 0100 / 0110 / 1755 Samsung 0019 / 0030 / 0032 / 0056 / 0060 / 0178 / 0329 /

0408 / 0427 / 0587 / 0702 / 0766 / 0812 / 0814 /

1060 Sansui 0463 Sanyo 0088 / 0107 / 0146 / 0154 / 0159 / 0232 / 0484 /

0799 / 0893 Sharp 0039 / 0093 / 0153 / 0157 / 0165 / 0220 / 0281 /

0386 / 0398 / 0491 / 0688 / 0689 / 0818 / 0851 Sony 0000 / 0011 / 0080 / 0111 / 0273 / 0353 / 0810 /

0834 / 0867 / 1100 Sva 0587 / 0748 / 0768 / 0865 / 0870 / 0871 / 0872

RQT8850

Connection and Setting

Remote Control Codes for the TV (Continued)

Manufacturer Code

Sylvania 0020 / 0028 / 0030 / 0054 / 0065 / 0096 / 0171 /

Symphonic 0171 / 0180 Syntax-Brillian 1007 / 1144 / 1240 / 1255 / 1257 / 1258 / 1331 Tatung 0003 / 0049 / 0055 / 0396 / 1756 Thomson 0209 / 0210 / 0047 Toshiba 0036 / 0060 / 0149 / 0154 / 0156 / 0650 / 0832 /

Ultra Products 0391 Viewsonic 0857 / 0864 / 0885 / 1755 Westinghouse 0885 / 0889 / 0890 / 1282 / 1577 Yamaha 0019 / 0030 / 0769 / 0833 / 0839 Zenith 0016 / 0017 / 0092 / 0178 / 0463 / 1265

0381

0845 / 1156 / 1256 / 1265 / 1356 / 1656 / 1704

Remote Control Codes for the Set Top Box:

Cable Box

Manufacturer Code Panasonic 0000 / 0107 ABC 0003 / 0008 Americast 0899 Bell South 0899 Digeo 1187 Director 0476 General Instrument 0003 / 0276 / 0476 / 0810 GoldStar 0144 Hamlin 0009 / 0273 Jerrold 0003 / 0276 / 0476 / 0810 Memorex 0000 Motorola 1376 / 0276 / 0476 / 0810 / 1187 Pace 0008 / 0237 / 1877 Paragon 0000 Philips 0317 / 1305 Pioneer 0144 / 0533 / 0877 / 1877 Pulsar 0000 Quasar 0000 Regal 0273 / 0279 Runco 0000 Samsung 0144 Scientific Atlanta 0008 / 0477 / 0877 / 1877 Sony 1006 Starcom 0003 Supercable 0276 Torx 0003 Toshiba 0000 Zenith 0000 / 0525 / 0899

Satellite Receiver

Manufacturer Code Panasonic 0152 / 0247 / 0701 / 1786 AlphaStar 0772 Chaparral 0216 Crossdigital 1109 DirecTV 0099 / 0247 / 0392 / 0566 / 0639 / 0724 /

Dish Network System 0775 / 1005 / 1170 / 1505 / 1775 Dishpro 0775 / 1005 / 1505 / 1775 Echostar 0775 / 1005 / 1170 / 1505 / 1775 Expressvu 0775 / 1775 GE 0392 / 0566 General Instrument 0869 GOI 0775 / 1775 Goodmans 1246 Hisense 1535 Hitachi 0819 / 1250 HTS 0775 / 1775 Hughes 0749 / 1442 / 1749 Hughes Network Systems

0749 / 0819 / 1076 / 1108 / 1109 / 1142 / 1377 / 1392 / 1414 / 1442 / 1443 / 1444 / 1609 / 1639 / 1640 / 1749 / 1856

0749 / 1142 / 1442 / 1443 / 1444 / 1749

Satellite Receiver (Continued)

Manufacturer Code iLo 1535 Janeil 0152 Jerrold 0869 JVC 0775 / 1170 / 1775 LG 1226 / 1414 Magnavox 0722 / 0724 Memorex 0724 Mitsubishi 0749 Motorola 0856 / 0869 NEC 1270 Next Level 0869 Paysat 0724 Philips 0099 / 0722 / 0724 / 0749 / 0819 / 1076 / 1142 /

Pioneer 1442 Proscan 0392 / 0566 Proton 1535 RadioShack 0869 RCA 0143 / 0392 / 0566 / 0855 / 1392 Samsung 1108 / 1109 / 1142 / 1276 / 1377 / 1442 / 1609 Sanyo 1219 Sony 0639 / 1639 / 1640 Star Choice 0869 Tivo 1142 / 1442 / 1443 / 1444 Toshiba 0749 / 0790 / 0819 / 1285 / 1749 UltimateTV 1392 / 1640 Uniden 0722 / 0724 US Digital 1535 USDTV 1535 Voom 0869 Zenith 1856

1442 / 1749

Cable Box / Personal Video Recorder Combination

Manufacturer Code Americast 0899 Digeo 1187 General Instrument 0476 / 0810 Jerrold 0476 / 0810 Motorola 0476 / 0810 / 1187 / 1376 Pace 0237 / 1877 Pioneer 0877 / 1877 Scientific Atlanta 0877 / 1877 Sony 1006 Supercable 0276 Zenith 0899

Digital Broadcast Satellite / Personal Video Recorder Combination

Manufacturer Code DirecTV 0099 / 0392 / 0639 / 1076 / 1142 / 1377 /

Dish Network System 0775 / 1505 Dishpro 0775 / 1505 Echostar 0775 / 1170 / 1505 Expressvu 0775 Hughes Network Systems JVC 1170 Motorola 0869 Philips 1142 / 1442 Proscan 0392 RCA 1392 Samsung 1442 Sony 0639 / 1640 Star Choice 0869

1392 / 1442 / 1443 / 1444 / 1640

1142 / 1442 / 1443 / 1444

RQT8850

bt ck

bq br

9 bk bl bm

co cp

Control Reference Guide

Remote Control

Turn the unit on or off ................................................ (➔ 6)

1

Select channels and recording numbers etc./

2

Enter numbers .......................................................... (➔ 6)

Cancel

3

Basic operations for recording and play

4

Skip the specified time ............................................ (➔ 17)

5

Direct Navigator ................................................ (➔ 16, 18)

6

Selection/Enter, Frame-by-frame .................... (➔ 6, 8, 17)

7

Show sub menu .......................................... (➔ 18, 20, 24)

8

Select audio ...................................................... (➔ 12, 17)

9

Show on-screen menu ............................................ (➔ 30)

bk

Start recording .......................................................... (➔ 7)

bl

Change recording mode ........................................... (➔ 7)

bm

Transmission window

bn

TV and Set Top Box operations .............................. (➔ 48)

bo

Channel select .......................................................... (➔ 6)

bp

Input select (TV, IN1, IN2, DV) ................................ (➔ 22)

bq

Sub channel access for digital broadcasts ............... (➔ 6)

br

Delete items .............................................................. (➔ 9)

bs

Skip 1 minute forward ............................................. (➔ 17)

bt

Show scheduled recording list .................................. (➔ 8)

ck

Show FUNCTIONS window ..............................(➔ below)

cl

Return to previous screen

cm

Show setup menu ................................................... (➔ 32)

cn

Create chapters ...................................................... (➔ 17)

co

Show status messages........................................... (➔ 21)

cp

Start Flexible Recording ......................................... (➔ 13)

cq

FUNCTIONS Window

By using the FUNCTIONS window you may access the main functions quickly and easily.

With the unit stopped

FUNCTIONS

DVD-RAM

Playback

Program

Delete

Other Functions

ENTER

Cartridge Protection Off Disc Protection Off

e, r to select a menu item,

then

If you select “Other Functions”, press [e, r]

–

to select a menu item and press [ENTER].

Different discs display different functions.–

RQT8850

Reference

Main Unit

The unit’s display Disc tray

Remote control signal sensor

1

2 3 45678 9

Opening the front panel

Press down on the part with your finger.

POWER on/off button (POWER ^/I) ........... (➔ 6)

Press to switch the unit from on to standby mode or vice versa.

• In the standby mode, the unit is still consuming a small amount of power.

Connector for a digital video (DV)

camcorder ................................................. (➔ 23)

IN2 input terminals (IN2) .......................... (➔ 22)

The Unit’s Display

Recording indicator

Main display section

Disc indicator

This indicator lights up when a disc that is supported by this unit is inserted.

Channel Select ........................................... (➔ 6)

Stop button ............................................. (➔ 6, 7)

Play/✕1.3 button ......................................... (➔ 6)

Reset button ............................................. (➔ 55)

Start recording ............................................ (➔ 7)

Disc tray open/close button ........................ (➔ 6)

Scheduled recording indicator (➔ 8

On:

When a scheduled recording program is registered and a recordable disc is inserted.

Flashes:

The scheduled recording indicator flashes when the unit cannot go to scheduled recording standby (e.g. there is no disc, etc). It does not flash if Quick Start is off.

Progressive indicator

This indicator lights up when you select “On” in “Progressive” (➔ 31).

345

)

RQT8850

Disc Handling

Usable Discs for Recording and Playback

Recording 16:9 aspect

Disc type Rewritable Finalization Needed

DVD -RAM

Ye s N o Ye s Ye s

DVD -R

No Yes No (4:3 aspect) No

DVD -R DL

No Yes No (4:3 aspect) No

DVD -RW

Yes Yes No (4:3 aspect) No

+R No Yes No (4:3 aspect) No

+R DL No Yes No (4:3 aspect) No

+RW Yes No No (4:3 aspect) No


Recording broadcasts that

allow one copy (CPRM)

(➔ 10)

Standard symbol

RAM

before finalization

-R

after finalization

DVD-V

before finalization

-R DL

after finalization

DVD-V

before finalization

-RW(V)

after finalization

DVD-V

before finalization

after finalization

DVD-V

before finalization

+R DL

after finalization

DVD-V

+RW

Finalization needed for playback on other equipment (➔ 29).

RAM

can be played back on Panasonic DVD recorders and DVD-

RAM compatible DVD players.

and

-R DL

compatible with these discs.

For further information (➔ 10, Important Notes for Recording).

•

Use of Panasonic discs is recommended.

can be played back only on equipment

+R DL

For available recording times for different discs under different recording modes, see “Recording Modes and Durations” on page 11. Formatting and/or recording/initializing constraints may prevent you from playing or recording certain discs.

•

Please see specifications (➔ 65) for compatible disc versions and recording speeds.

Tips

Visit Panasonic’s homepage for more information

• about DVDs. http://www.panasonic.com/playDVD-R Buy Discs from www.panasonic.com and receive

• Special 20% Discount! Coupon Code: DVDMEDIA *Offer good only in 50 United States.

will show an increase in available space whenever a recording

•

RAM

has been erased.

•

and

-RW(V)

space when their last recording has been erased.

-R -R DL +R +R DL

space after deleting recordings. You may not be able to record depending on the condition of the discs and you may not be able to play them due to the condition of the recording. When recording MTS broadcast, refer to page10.

discs will only show an increase in available

+RW

The discs will show no increase in available

Play-only Discs

Disc type

DVD-Video

DVD-RW

(DVD Video

Recording

format)

Audio CD

Standard symbol

DVD-V

-RW(VR)

Uses

High quality movie and music discs

DVD-RW video recorded on another DVD recorder*

You can play programs that allow

• “One time only recording” if they have been recorded to a CPRM compatible disc. By formatting (➔ 28) the disc,

• you can record to it in DVD-Video format. It may be necessary to finalize

• the disc on the equipment used for recording.

Recorded audio and music

• (including CD-R/RW*) CD-R* and CD-RW* with music

• recorded in MP3 (➔ 54) Still pictures (JPEG) recorded on

• CD-R/RW*

Discs that Cannot be Played

2.6/5.2 GB DVD-RAM, 12 cm (5˝)

•

3.95/4.7 GB DVD-R for Authoring

• DVD-R recorded in DVD Video Recording format

• DVD-R (DVD-Video format), DVD-R DL, DVD-RW

• (DVD-Video format), +R, +R DL recorded on another unit and not finalized (➔ 66) PAL discs

• DVD-Video with a region number other than “1” or

• “ALL” Blu-ray, HD DVD

• DVD-Audio

• Video CD

• DVD-ROM, +R 8 cm (3˝), CD-ROM, CDV, CD-G,

• Photo CD, CVD, SVCD, SACD, MV-Disc, PD, DivX Video Disc, etc.

Notes

Note about using a DualDisc:

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.

* Play may be impossible on some DVD-RW (DVD Video Recording format), CD-R or CD-RW discs due to the condition of the recording.

You can play still pictures (JPEG), CD-DA and MP3 format data recorded on CD-R/RW. Close the session or finalize the disc after recording.

• The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating

• instructions. Read the disc’s instructions carefully.

Inserting Discs

Notes

to open the tray.

Insert a disc.–

Insert label-up.

When using 8 cm (3˝ ) DVD-RAM or

• 8 cm (3˝ ) DVD-R, remove the disc from the cartridge. It is not possible to record or play

• continuously from one side of a double sided disc to the other. You will need to eject the disc and turn it over.

to close the tray.

Disc Care

RAM

Use cartridges to protect them from scratches and dirt.

Holding a disc

Handle discs by the edges to avoid inadvertently scratching or getting oil from your fingers on the disc. Do not touch the signal surface of discs (the shiny side).

Cleaning discs

Discs are not indestructible and occasionally dirt or condensation may appear. Clean by gently wiping with a soft, dry lint-free cloth in a straight line from the center of the disc to the edge of the disc. Return discs to their cases when not in use; this helps to protect against scratches and dirt.

Storing discs

Do not place or store discs in the following locations:

Direct sunlight

• Very dusty or humid areas

• Near a heat source

• Places that undergo extreme shifts in temperature (condensation can

• occur) Where static electricity or electromagnetic waves occur

•

Discs to avoid

Discs that are not perfectly circular in shape

• Warped discs, which may not balance properly in your unit, causing

• improper operation or damage to the unit Cracked discs

• Discs with exposed adhesive (from removed stickers or labels, such

• as may occur with rental discs or improperly cared-for discs that were previously labeled or re-labeled)

Reference

RQT8850

MP3s and Still Pictures (JPEG)

001

001 Group

001track.mp3 002track.mp3 003track.mp3

001track.mp3 002track.mp3 003track.mp3 004track.mp3

002 Group

001 Group

003 Group

001

001 Group

001track.mp3 002track.mp3 003track.mp3

001track.mp3 002track.mp3 003track.mp3 004track.mp3

002 Group

001 Group

003 Group

MP3 File Information

Playable discs

File format MP3

Number of folders (groups)

Number of files (tracks)

Bit rates 32 kbps to 320 kbps Sampling frequency ID3 tags not compatible

If there is a large amount of still picture data etc.

• within an MP3 file, play may not be possible.

Files must have the extension “.mp3” or “.MP3”. Maximum number of folders (groups) recognizable: 99 folders (groups) (including the root folder) Maximum number of files (tracks) recognizable: 999 files (tracks) (Total number for all the MP3, JPEG and other type of files.)

16 kHz/22.05 kHz/24 kHz/ 32 kHz/44.1 kHz/48 kHz

Still Picture (JPEG) Information

Notes

•

Compatible formats: ISO9660 level 1 or 2 (except for extended formats) and Joliet

•

This unit is compatible with multi-session; however, reading or play of the disc may take time if there are a lot of sessions.

•

Operation may take time to complete when there are many files (tracks) and/or folders (groups); some files (tracks) may not display or be playable.

•

Images recorded at a very high resolution may take a long time to display.

•

English alphabetical characters and Arabic numerals are displayed correctly. Other characters may not display correctly.

•

The display order on this unit may differ from how the order is displayed on a computer.

•

Depending on how you create the disc (writing software), files (tracks) and folders (groups) may not play in the order you number them.

•

This unit is not compatible with packet-write format.

•

Depending on the recording conditions, the disc may not play.

Tips

You can play MP3s and still pictures (JPEG) on this unit by making folders as shown below. Depending on how you create the disc (writing software), play may not be in the order you number the folders.

Playable discs

File format JPEG

Files must have the extension “.jpg” or

“.JPG”. Number of pixels Number of folders

between 34✕34 and 6144✕4096

(Sub sampling is 4:2:2 or 4:2:0)

Maximum number of folders

recognizable:

99 folders (including the root folder) Number of files Maximum number of files

recognizable:

999 files (Total number for all the

MP3, JPEG and other type of files.) MOTION JPEG not compatible

How to structure MP3 folders Prefix with 3-digit numbers in the order you want to play them.

Order of play

Structure of still pictures (JPEG) Files inside a folder are displayed in the order they were updated or taken.

•

When the highest level folders are “DCIM” folders, they are displayed first on the tree.

Order of play

Root


P0000001.jpg P0000002.jpg


001

004 Folder

002 Folder


P0000003.jpg P0000004.jpg

P0000004.jpg P0000005.jpg



P0000010.jpg P0000011.jpg

P0000011.jpg P0000012.jpg


003 Folder


P0000006.jpg P0000007.jpg

P0000007.jpg P0000008.jpg

P0000008.jpg P0000009.jpg


RQT8850

Reference

REC

Troubleshooting Guide

If the Antenna Connector Doesn’t Match

Use one of the following connections to suit the antenna lead to the unit’s RF IN terminal, and the 75 Ω coaxial cable to the antenna terminals on your TV or other equipment. Refer to the other equipment’s operating instructions for more information.

Type This unit Other equipment (television etc.)

A twin lead

from the antenna

(Flat) Twin lead 300 Ω cable

300−75 Ω transformer

To this unit’s RF IN terminal

75−300 Ω transformer

75 Ω coaxial cable

VHF or UHF

Television

When Other Panasonic Products Respond to this Remote Control

Use this function to synchronize the codes for the remote control and the main unit when there are other Panasonic products close to your unit.

With the unit stopped

e, r to select “Setup”, then q.

e, r to select “Remote Control

Code”, then

e, r to select the code “Set

Code1”, “Set Code2”, or “Set Code3”, then to set.

Tips

To return to the previous screen

Press [RETURN].

To exit the screen

Press [SETUP].

To Reset This Unit

To reset the channel information and the clock settings

On the main unit

Press and hold both buttons for about 5 seconds.

To reset the ratings level settings

You can reset both parental rating (➔ 36) and DVD-Video rating (➔ 33).

With the unit stopped

to open the disc tray.

While pressing and holding ,

press and hold the numbered

button

, , or corresponding to the code set in step 4 for more than 5 seconds to set.

to complete.

When the following indicator appears on the unit’s display

RECREC

Change the code on the remote control to match the

–

code displayed for the main unit (➔ step 5).

On the main unit

Press and hold

both buttons for about 5 seconds.

To restore the unit if it freezes

On the main unit

Press and hold for more than 10 seconds.

The unit is off.–

or On the main unit

Press and hold for

REC

more than 1 second with a pointed object.

RQT8850

Troubleshooting Guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to “Customer Services Directory” on page 67.

The following does not indicate a problem with the unit:

Regular disc rotating sound.

• Poor reception due to atmospheric conditions.

• Image disturbance during search.

• Periodic interruptions to the reception due to satellite broadcasting breaks.

• Operations not working due to a poor-quality disc. (Try again using a Panasonic disc.)

• The unit freezing due to the activation of one of its safety devices (➔ 55, To restore the unit if it freezes).

•

General Issues Power

No power. Insert the AC power supply cord securely into a known active AC

The unit switches to standby mode.

• 38 to 40 outlet.

This is a power saving feature. Change “Off Timer” in the Setup menu

• 32 to “Off” to always keep the unit on.

One of the unit’s safety devices is activated. Press [POWER 8] on

• the main unit to turn the unit on.

General Issues Displays

The display is dim. Change “Front Display” in the Setup menu.• 34

“12:00A” is flashing on the unit’s display.

The recording time display, and the displayed recording times of MP3s are different from the actual time.

Compared to the actual recorded time, the elapsed time displayed is less.

Set the clock.• 32, 47

Times shown may disagree with actual times.•

-R

•

-R DL +R +R DL

if recordings are deleted.

Available space on a DVD-RW (DVD-Video format) or +RW disc

• − increases when you delete the last recording (space may increase slightly when you delete other recordings).

If you record or edit about 200 times or more, the remaining capacity

• − of DVD-R, DVD-R DL, +R, and +R DL is reduced and then recording or editing may be disabled (for the second layer on DVD-R DL and +R DL, this happens after about 60 times).

The time during searching may not be displayed accurately.• −

The displayed recording/play time is converted from the number of

• − frames at 29.97 frames (equal to 0.999 seconds) to one second. There will be a slight difference between the time displayed and the actual elapsed time (e.g., actual one-hour elapsed time may display as approximately 59 minutes 56 seconds). This does not affect the recording.

The remaining capacity does not increase even

Page

−

Page

−

General Issues Operation

Page

Cannot operate the TV or Set Top Box with the unit’s remote

Change the manufacturer code on the remote control.• 48

Select TV or Set Top Box mode on the remote control.• 48

control.

The remote control doesn’t work.

The remote control code is wrong. Change to the correct code.• 55

The batteries are depleted. Replace them with new ones.• 5

Point the remote control at the remote control sensor on the main unit.• 5

Remove obstacles between the remote control and main unit.• −

Remove dust from the transmission window and the unit’s sensor.• −

Colored glass may obstruct the signal reception/transmission.• −

Don’t place the signal sensor in direct sunlight or in areas that may be

• − subject to sun exposure.

It may be necessary to set the code on the remote control again after

• 55 changing the batteries.

It may be necessary to set the manufacturer code again after

• 48 changing the batteries.

The unit is on but cannot be operated.

Some operations are prohibited by the disc.• −

The unit is warm (“U59” appears on the unit’s display). Wait until “U59”

• − disappears.

One of the unit’s safety devices may have been activated.

• − Reset the unit as follows: Press [POWER 8] on the main unit to switch to off. If the unit doesn’t switch to off, reset the unit (➔ 55, “To restore the unit if it freezes”).

“U88” is displayed and the disc cannot be ejected.

The unit is carrying out the recovery process. Do the following to eject

• − the disc:

(1)Press [POWER 8] on the main unit to switch to off.

If the unit doesn’t switch to off, reset the unit (➔ 55, “To restore the unit if it freezes”).

(2)While the unit is off, press and hold [g] and [CH 1] on the main unit

at the same time for about 5 seconds. (Ejection may take extra time depending on discs.) The disc may be defective. Try another disc.

Cannot eject a disc. The unit is recording.• −

The unit may have a problem. Eject the disc as in (2) above.• −

Startup is slow. Startup takes time in the following situations:

• A disc other than a DVD-RAM is inserted.

–

The clock is not set.

–

Immediately after a power failure or the AC power supply cord is

–

connected.

−

A password screen appears and you are unable to view or record.

Time is incorrect after using Auto Clock Setting.

If the television starts receiving a broadcast with the set rating

• 36 information, a password screen appears and you will be unable to view or record. Enter your password to continue.

Try again. If the time is still incorrect, set the clock manually (➔ 32).•

Reference

RQT8850

Troubleshooting Guide

Playback Issues Picture

TV reception worsens after connecting the unit.

The images from the unit do not appear on the TV. Picture is distorted.

Status messages do not appear. The black background does not appear. The 4:3 aspect ratio picture expands left and right. Screen size is wrong.

There is a lot of after-images when playing video. When playing DVD-Video using progressive output, one part of the picture momentarily appears to be doubled up. There is no apparent change in picture quality when making adjustments in the Video menu using the on-screen menus.

Page

This can occur because the signals are being divided between the

• − unit and other equipment. It can be solved by using a signal booster, available from electronics retailers. Make sure recorder is connected to an appropriate AV input of the TV.

• 38 to 40 Make sure the TV’s input setting (e.g., VIDEO 1) is correct.• − The TV isn’t compatible with progressive signals. Press and hold

• − [ CANCEL] for about 5 seconds. The setting will change to interlace. Select “Automatic” in “Status Messages” in the Setup menu.• 34

Select “On” in “Black Background (Analog)” in the Setup menu.• 34

Use the TV to change the aspect. If your TV does not have that

• 31 function, set “Progressive” in the Video menu to “Off”. Check the settings for “TV Type”, “4:3 TV settings for DVD-Video”, or

• 34 “4:3 TV settings for DVD-RAM” in the Setup menu. Set “DNR” in the Video menu to “Off”.• 31

Set “Progressive” in the Video menu to “Off”. This problem is caused

• 31 by the editing method or material used on DVD-Video, but should be corrected if you use interlaced output.

The effect cannot be seen with certain types of video. •

−

Playback Issues Sound

No sound. Low volume. Distorted sound. Cannot hear the desired audio type.

Cannot switch audio. You cannot change the audio type when a DVD-R, DVD-R DL, DVD-

Check the connections and the “Digital Audio Output” settings.

• 34, Check the input mode on the amplifier if you have connected one. Check audio/video (AV) cables.• 38 to 43 Check if TV is muted.• − Check if amplifier is muted.• − Press [AUDIO] to select the audio.• 17 Sound is not output while fast-forwarding during chasing playback

• − and simultaneous record and playback. Set “V.Surround Sound” in the Audio menu to “Off” in the following cases:

•

When using discs that do not have surround sound effects, such

–

as Karaoke discs When playing analog MTS broadcast recordings

– The sound effects will not work when the bitstream signal is output

• − from the DIGITAL AUDIO OUT terminal.

• − RW (DVD-Video format), +R, +R DL, or +RW disc is in the disc tray. You cannot change the audio type when playing a recording of an

• 12 analog MTS broadcast on a DVD-R, DVD-R DL, DVD-RW (DVDVideo format), +R, +R DL or +RW disc. You can select “Main” or “Secondary Audio Program (SAP)” in “Multi-channel TV Sound (Analog)” in the Setup menu before recording. Only one language channel is recorded from digital MTS broadcasts,

• 12 so you will be unable to change languages during playback.

You have used a digital connection. Set “Dolby Digital” to “PCM” or

• 34, 43 connect using audio cables (analog connection). There are discs whose audio cannot be changed due to how the

• − disc was created.

Page

38 to 43

RQT8850

Reference

Playback Issues Operation

Page

Play fails to start even when [q PLAY] is pressed. Play starts but then stops immediately.

Insert the disc correctly with the label facing up.• − Ensure disc is for the correct DVD-Video region number, and is not

• Cover, defective.

53 The disc is dirty.• 53 You tried to play a blank disc or a disc that is unplayable on the unit.• 53, 54 When recording to DVD-RAM using EP (8H) mode, play may not be

• 33 possible on DVD players that are compatible with DVD-RAM. In this case use EP (6H) mode. You cannot play discs during DV automatic recording.• −

Audio and video momentarily pause.

This occurs between playlist chapters.• − This occurs as scenes change during Quick View.•

-R DL

•

Images and audio may be interrupted momentarily

+R DL

when play reaches the point where the recording passes from the first layer to the second.

DVD-Video is not played. You have set a ratings level to limit DVD-Video play. Change this

• 33 setting.

Alternative sound track and subtitles cannot be selected.

The languages are not recorded on the disc.• − You may have to use the disc’s own menus to select languages and

• 16 audio tracks.

No subtitles. When progressive output is on, TV’s closed captions cannot be

• 35 displayed. Go to the Setup menu and turn this unit’s closed captions on. Subtitles are not recorded on the disc.• − Set “Subtitle” in the Disc menu to “On”.• 30

Angle cannot be changed. This function depends on software availability. Angles can only be

• − changed during scenes where different angles are recorded.

You have forgotten your ratings password.

With the tray open, press and hold [* REC] and [q] on the main unit

• simultaneously for about 5 or more seconds.

Quick View does not work. This does not work when audio is other than Dolby Digital.• −

This does not work while recording in XP or FR mode.• −

The resume play function does not work.

Memorized positions are canceled when the unit is turned off or when

• − the tray is opened.

−

Recording Issues Recording / Scheduled recording / External input

Cannot record. You haven’t inserted a disc or the disc you inserted cannot be

• 52 recorded on. Insert a disc the unit can record onto.

RAM

-RW(V) +RW

The write-protect tab on the cartridge is set to “PROTECT” or the disc

• 27

The disc is unformatted. Format the disc.•

is protected with the “DVD Management” settings. Some programs have limitations on the number of times they can be

• 52, 66 recorded (CPRM). The disc is full or nearly full. Delete unneeded recordings or use

• 9, 24 another disc. You cannot record on finalized DVD-R, DVD-R DL, DVD-RW (DVD-

• − Video format), +R, +R DL, or DVD-RW (DVD Video Recording format) discs. If you repeatedly insert discs or turn the unit on and off about 50

• − times or more, the recording or editing of DVD-R, DVD-R DL, DVDRW (DVD-Video format), +R, +R DL, and +RW discs may be disabled. A DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL,

• − or +RW disc recorded on the unit may not be recordable on other Panasonic DVD recorders. The broadcast you are trying to record is copy-protected.• −

Page

RQT8850

Troubleshooting Guide

Recording Issues Recording / Scheduled recording / External input (Continued)

Recording does not stop even when [g STOP] is pressed.

Scheduled recording does not work properly.

The scheduled recording program remains even after recording finishes. Part or all of a recording has been lost.

Stripe-shaped black noise is recorded. Cannot record video or sound from the external device.

The DV Camcorder recording function does not work.

If you start recording immediately after turning on the unit while

• 32

“Quick Start” is set to “On”, you cannot stop recording for a few seconds. The scheduled recording program is incorrect or different scheduled

• 15

recording times overlap. Correct the program.

The unit is not on scheduled recording standby. (“z” on the unit’s

•

display is not on.) Press [^ DVD POWER] to turn the unit off and make sure that “z” is on. The clock is not correct. Set the clock.• 32, 47 The scheduled recording program remains if set to daily or weekly.•

• −

If the power shuts down or the plug is disconnected from the household AC outlet while recording or editing, the program may be lost or the disc may become unusable. We cannot offer any guarantee regarding lost recordings or discs. You will have to format the disc

RAM

( An external playback device is interfering with the TV because the

• −

device is too close to the TV. Move the device away from the TV. The external device is not correctly connected.• 22, 23 The proper external input channel (IN1, IN2, or DV) is not selected.

• 22

Press [INPUT SELECT] to change. If images cannot be recorded or if the recording is aborted, check the

• 23

connections and the DV equipment settings. You cannot start recording until the images from the DV equipment

• −

appear on the television. Recording may not be performed as desired if the time codes on the

• −

tape in the DV equipment are not successive. Depending on the equipment, the DV Camcorder recording may not

• −

operate properly. You can only record audio/video images on a DV tape.•

-RW(V) +RW

) or use a new disc.

Page

8, 15

−

Editing Issues DVD

Cannot format. The disc is dirty. Wipe with a damp cloth and then wipe dry.• 53

Disc may be defective or of poor quality.• − You tried formatting a disc that is not compatible with the unit.•

Discs created on a computer may not be formatted. •

+RW

Cannot create chapters. The unit writes the chapter division information to the disc when you

Cannot delete chapters. When the chapter is too short to delete, use “Combine Chapters” to

The available recording time doesn’t increase even after deleting recordings on the disc.

• − turn it off or remove the disc. The information is not written if there is an interruption in the power. These operations are not possible with still pictures.• −

• 26 make the chapter longer Available space on DVD-R, DVD-R DL, +R, or +R DL does not

• − increase even after deleting previous recordings. Available space on DVD-RW (DVD-Video format) or +RW increases

• − when you delete the last recording.

RAM

Page

−

RQT8850

Reference

Frequently Asked Questions

Setup

Do I need to connect Audio/ video cables from the unit to the TV?

What equipment is necessary to play multi-channel surround sound?

Can the headphones and speakers be directly connected to the unit?

The television has an S-VIDEO IN terminal and COMPONENT VIDEO IN terminals. Which should I connect with?

Is my TV progressive output compatible?

Discs

Can I play DVD-Video bought in another country?

Can a DVD-Video that does not have a region number be played?

What are the constraints regarding DVD-R, DVD-R DL, DVD-RW, +R, +R DL, and +RW compatibility with the unit?

What are the constraints regarding CD-R and CD-RW compatibility with the unit?

Page

To enjoy vision and sounds from this unit to the TV, always use

• 38 to 41 audio/video (AV) cables for connection. If your television does not have AUDIO/VIDEO terminals, an RF modulator is necessary. Consult your local dealer for more information.

You cannot play back multi-channel sound on this unit without other

• 43 equipment. You must connect this unit with an optical digital audio cable to an amplifier with a built-in Dolby Digital or DTS decoder.

You cannot directly connect to the unit. Connect through the

• − amplifier, TV, etc.

The output picture quality increases in the following order:

• − VIDEO IN terminal ➔ S-VIDEO IN terminal ➔ COMPONENT VIDEO IN terminals.

All Panasonic TVs that have 480p input terminals are compatible.

• Consult the manufacturer if you have another brand of TV.

You can play them if the video standard is NTSC.• −

However, you cannot play DVD-Video if its region number does not

• Cover include “1” or “ALL”.

Discs either without region number or region number “1” or “All” will

• − not play on this unit.

The unit records and plays DVD-R, DVD-R DL, DVD-RW (DVD-

• 52, 53 Video format), +R, +R DL, and +RW, and plays DVD-RW (DVD Video Recording format).

The unit also records and plays high speed recording compatible

• 65 discs.

After recording but before finalizing these discs (except +RW disc):

•

You may not be able to play and record discs on this unit

–

after recording them on other Panasonic products or other manufacturer’s equipment. You may not be able to play and record discs on other equipment

–

after recording them on this unit. After finalizing the disc, however, you will be able to play it on any DVD-Video compatible player.

This unit plays CD-R/CD-RW discs which have been recorded in one

• 53, 54 of the following standards: CD-DA, MP3, and still pictures (JPEG). Close the session or finalize the disc after recording. This unit can recognize up to 99 folders (groups) and 999 files (tracks) on a disc with MP3 or still pictures (JPEG).

You cannot write to a CD-R or CD-RW with the unit.• −

−

Page

−

RQT8850

Frequently Asked Questions

Recording

Can I record from a commercially purchased video cassette or DVD?

Can DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL, and +RW recorded on the unit be played on other equipment?

Can I record digital audio signals using the unit?

Can a digital audio signal from the unit be recorded to other equipment?

Can I switch to SAP during recording?

Page

Most commercially sold video cassettes and DVDs are copy

• −

protected; therefore, recording is usually not possible.

You can play these discs on compatible equipment such as DVD

•

players after finalizing the disc on this unit.

+RW

•

• −

•

• 12

• 10, 12

It is not necessary to finalize +RW. To enable play on other DVD

players, please use “Create DVD Top Menu” in the DVD Management menu.

In any case, ability to play a disc depends on the condition of the recording, the quality of the disc, and the capability and format constraints of the DVD player.

You cannot record digital signals. The digital audio terminals on the unit are for output only. (The audio recorded from a digital video camcorder using the DV automatic recording function, however, is recorded digitally.)

You can record if using the PCM signal. When recording DVD, change the “Digital Audio Output” settings to the following via the Setup menu:

PCM Down Conversion: “On”

–

Dolby Digital: “PCM”

–

DTS: “PCM”

– However, only

As long as digital recording from the disc is permitted.

–

As long as the recording equipment is compatible with 48 kHz

–

sampling frequency.

You cannot record MP3 signals.• −

With DVD-RAM, you can, and the audio recorded also changes. Press [AUDIO] to change to SAP.

You cannot change the audio type when recording an analog MTS broadcast on a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL or +RW disc. Establish the appropriate setting before recording with “Multi-channel TV Sound (Analog)” in the Setup menu.

Only one language channel is recorded from digital MTS broadcasts, so you will be unable to change languages during recording. Set the language in “Audio Language Setting” in the Setup menus.

RQT8850

Reference

Error Messages

On the Unit’s Display

An error has occurred. The number following “H” or “F” depends

, F

H (“ ” stands for a service number.)

RC (“ ” stands for a number.)

HARD ERR (“HArd” and “Err” are alternately displayed.)

NO READ (“NO” and “REAd” are alternately displayed.)

FULL There are already 16 scheduled recording programs. Delete

UNSUPPORT (“UNSUP” and “POrt” are alternately displayed.)

UNFORMAT (“UNFOr” and “MAt” are alternately displayed.)

U59 The unit is very warm.

U61 There was a power failure or the AC power supply cord was

U88 There was something unusual detected with the disc while recording,

U99

• − on the status of the unit. Check the items below and in the Troubleshooting Guide. If the service number still does not disappear after the check, reset the unit (➔ 55, “To restore the unit if it freezes” ).

If the service numbers fail to clear, note the service numbers and

• contact a qualified service person.

The remote control and main unit are using different codes. Change

• 55 the code on the remote control.

If there is no change after turning the unit on and off, consult the

• − dealer where the unit was purchased.

The disc is dirty or badly scratched. The unit cannot record, play, or

• 53 edit.

The disc may be incompatible or of poor quality.• 53

You have used a lens cleaner and it has finished operation. Press

• 3 [; OPEN/CLOSE] on the main unit to eject the disc.

Displayed when the unit is started. This is not a malfunction.• −

The unit is carrying out its recovery process. You cannot operate the

• − unit while “ ” is displayed.

• 15 unnecessary scheduled recording programs.

You have inserted a disc the unit cannot play or record on.• 53

You have inserted a new DVD-RW/+RW or a DVD-RAM/DVD-RW

• 28 (DVD-Video format) recorded on other equipment. You can format the disc when the format confirmation screen is displayed.

• − The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Reinstall the unit in an area with adequate ventilation. Do not block the cooling fan on the rear of the unit.

• − disconnected while the unit was on. The unit is carrying out its recovery process. This process restores the unit to normal operation. The unit is not broken. Wait until the message disappears.

• 57 playing; there was a power failure or the AC power supply cord was disconnected while the unit was on. The unit is carrying out its recovery process. This process restores the unit to normal operation. The unit is not broken. Wait until the message disappears.

The unit fails to operate properly. Press [POWER ^/I] on the main

• unit to switch the unit to standby. Press [POWER ^/I] on the main unit again to turn the unit on.

Page

−

RQT8850

Error Messages

On the TV

Cannot finish recording completely.

Cannot play. You inserted an incompatible disc (discs recorded in PAL video, etc.).• −

Cannot record on the disc. The disc may be dirty or scratched.• 53

Unable to format.

Please check the disc.

Cannot record. Disc is full.

Cannot record. The number of recordings has exceeded the maximum limit.

Error has occurred. Please press ENTER.

No disc. You haven’t inserted a disc. Correctly insert a disc that the unit can

Please change the disc.

Please set the clock. The clock is not set when recording programs or setting scheduled

This is a non-recordable disc. The unit cannot record on the disc you inserted. Insert a DVD-RAM or

This disc is not formatted properly.

The program was copy-protected.• −

The disc may be full.• −

There are already 99 recordings (

•

RAM -RW(V) +RW

Even if you erase recorded content from the DVD-R, DVD-R DL, +R or +R DL, there is no increase in disc space. Available recording space on a DVD-RW (DVD-Video format) or +RW disc increases when the last recording is deleted (space may increase slightly when you delete other recordings).

Use a new disc.• −

Press [ENTER] to start the recovery process. You cannot operate the

• −

unit while it is recovering (“ ” (Self Check) appears on the unit’s display).

• 52, 53

play.

The disc is upside down. If it is a single-sided disc, insert it so the

• 53

label is facing up.

There may be a problem with the disc. Press [; OPEN/CLOSE] on

•

the main unit to remove the disc to check for scratches and dirt. (The unit turns off automatically after you open the tray.)

• 32, 47

recording. Set the clock.

• 52

unfinalized DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL, or +RW disc.

The disc may be incompatible or of poor quality.• 53

You inserted an unformatted DVD-RAM, DVD-RW, or +RW disc.

• 28

Format the disc with the unit.

The operation is prohibited by the unit or disc.• −

Create space by erasing unwanted recordings.

+R DL +RW

49 recordings).•

Page

−

9, 24,

−

Product Service

1. Damage requiring service−The unit should be

serviced by qualified service personnel if: (a) The AC power supply cord or AC adaptor has

been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a

marked change in performance; or (e) The unit has been dropped or the cabinet

damaged.

2. Servicing−Do not attempt to service the unit

beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts−When parts need replacing

ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check−After repairs or service, ask the

servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation: Refer to “Customer Services Directory” on page 67.

RQT8850

Reference

Specifications

Power supply: AC 120 V, 60 Hz Power consumption: Approx. 24 W Standby mode: (Shipping Condition) Approx. 2.4 W (User Setting: Quick Start: ON): Approx. 14.1 W

Recordable discs:

DVD-RAM: 2X SPEED (Ver. 2.0)

DVD-R(SL):

DVD-R(DL):

DVD-RW: 1X SPEED (Ver. 1.1)

+R(SL): 2.4X SPEED (Ver. 1.0)

+R(DL): 2.4X SPEED (Ver. 1.0)

+RW: 2.4X SPEED (Ver. 1.1)

Recording system:

DVD-RAM: DVD Video Recording format DVD-R: DVD-Video format DVD-R DL (Dual Layer):

DVD-RW: DVD-Video format +R +R DL (Double Layer) +RW

Recording time:

Max. 8 hours (using 4.7 GB disc) XP: Approx. 1 hour SP: Approx. 2 hours LP: Approx. 4 hours EP: Approx. 6 hours or 8 hours

Playable discs:

DVD-RAM: DVD Video Recording format DVD-R: DVD-Video format DVD-R DL (Dual Layer):

DVD-RW: DVD-Video format, DVD Video Recording format +R +R DL (Double Layer) +RW DVD-Video, CD-Audio (CD-DA) CD-R/CD-RW (CD-DA, MP3, JPEG)

Optical pick-up:

System with 1 lens, 2 integration units (662 nm wavelength for DVDs, 780 nm wavelength for CDs)

2-3X SPEED (Ver. 2.1) 2-5X SPEED (Ver. 2.2) 1X SPEED (Ver. 2.0) 1-4X SPEED (Ver. 2.0) 1-8X SPEED (Ver. 2.0) 1-16X SPEED (Ver. 2.1) 2-4X SPEED (Ver. 3.0) 2-8X SPEED (Ver. 3.0)

1-2X SPEED (Ver. 1.1) 2-4X SPEED (Ver. 1.2) 2-6X SPEED (Ver. 1.2)

2.4-4X SPEED (Ver. 1.1)

2.4-8X SPEED (Ver. 1.2)

2.4-16X SPEED (Ver. 1.3)

2.4-8X SPEED (Ver. 1.1)

2.4-4X SPEED (Ver. 1.2)

DVD-Video format

Television system: TV system: NTSC system, 525 lines, 60 fields Antenna reception input:

RF converter output:

Quick Start for Recording (Quick Start : ON): 1 Sec. Quick Start for Recording on DVD-RAM* * From the power off state, recording on DVD-RAM starts about 1

second after first pressing the Power button and then sequentially pressing the REC button (Quick Start Mode).

Video system: Recording system:

Input: LINE (pin jack) ×2

Output: LINE (pin jack) ×1

Component video output:

Audio system: Recording system:

Analog Input: LINE (pin jack) ×2

Analog Output: LINE (pin jack) ×1

Number of channels:

Digital Output: Digital audio optical output connector ×1

DV Input: IEEE 1394 Standard, 4 Pin ×1

Regional Code: # 1

Clock unit: Quartz-controlled 12-hour digital display

Operating temperature range:

Operating humidity range:

Dimensions: 430 mm (W) × 59 mm (H) × 252 mm (D)

Mass:

Analog TV Channel: 2 to 69 ch Analog CATV Channel: 1 to 135 ch Digital TV Channel: 2 to 69 ch Digital CATV Channel: 1 to 135 ch

Not provided

MPEG2 (Hybrid VBR)

S connector ×2 Y:

S connector ×1 Y:

B, PR ×1 Y:

Y, P (480i/480p) PB:

Dolby Digital (2 ch)

Reference input: 309 mVrms FS: 2 Vrms (1 kHz, 0 dB) Input impedance: 47 kΩ

Reference output: 309 mVrms FS: 2 Vrms (1 kHz, 0 dB) Output impedance: 1 kΩ (Load impedance: 10 kΩ)

Recording: 2 channels Playback: 2 channels

(PCM, Dolby Digital, DTS)

5 °C to 40 °C (41 °F to 104 °F)

10 % to 80 % RH (no condensation)

[16 15/16˝ (W) × 2 3/8˝ (H) × 9 15/16˝ (D)]

Approx. 2.8 kg (Approx. 6.16 lbs)

1.0 Vp-p; 75 Ω

0.286 Vp-p; 75 Ω

1.0 Vp-p; 75 Ω

0.286 Vp-p; 75 Ω

1.0 Vp-p; 75 Ω

0.7 Vp-p; 75 Ω

PR:

0.7 Vp-p; 75 Ω

LASER Specification:

Class I LASER Product Wave Length: 780 nm (CDs)

662 nm (DVDs)

Laser Power: No hazardous radiation is emitted with

the safety protection

Notes

Specifications are subject to change without notice.

RQT8850

Glossary

Bitstream

This is a signal compressed and converted into digital form. It is converted back to a multi-channel audio signal, e.g., 5.1-channel, by a decoder.

CPRM (Content Protection for Recordable Media)

CPRM is technology used to protect broadcasts that are allowed to be recorded only once. Such broadcasts can be recorded only with CPRM-compatible recorders and discs.

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be multi-channel audio. A large amount of audio information can be recorded on one disc using this method.

Down-mixing

This is the process of remixing the multi-channel audio found on some discs into two channels. It is useful when you want to listen to the 5.1-channel audio recorded on DVDs through your TV’s speakers. Some discs prohibit down-mixing. If this is the case, this unit can only output the front two channels.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs. Dynamic range compression means reducing the gap between the loudest and softest sounds. This means you can hear dialog clearly at low volume.

Film and Video

DVD-Video are recorded using either film or video. The unit can determine which type has been used, then uses the most suitable method of progressive output. Film is 24 or 30 frames per second, with motion picture film generally being 24 frames per second. Video is 60 fields per second (2 fields making up 1 frame).

Finalize

A process that makes play of a recorded CD-R, CD-RW, DVD-R, etc. possible on equipment that can play such media. You can finalize DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R,and +R DL on the unit. After finalizing, the disc becomes play-only and you can no longer record or edit. However, finalized DVD-RW can be formatted to become recordable.

Formatting

Formatting is the process of making media such as DVD-RAM recordable on recording equipment. You can format DVD-RAM, DVD-RW (only as DVD-Video format) and +RW on this unit. Formatting irrevocably erases all contents.

Frame and field

Frame refers to the single images that constitute the video you see on your TV. Each frame consists of 2 fields.

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color still pictures. If you select JPEG as the storage system on digital cameras, etc., the data will be compressed to 1/10-1/100 of its original size. The benefit of JPEG is less deterioration in picture quality considering the degree of compression.

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to approximately one-tenth of its size without any significant loss of audio quality. You can play MP3s you have recorded onto CD-R and CD-RW.

Pan & Scan/Letterbox

In general, DVD-Video are produced with the intention that they will be viewed on a widescreen TV (16:9 aspect ratio), so images often don’t fit regular TVs (4:3 aspect ratio). 2 styles of picture, “Pan & Scan” and “Letterbox”, deal with this problem.

Pan & Scan: The sides are cut off so the picture

fills the screen.

Letterbox:

Black bands appear at the top and bottom of the picture so the picture itself appears in an aspect ratio of 16:9.

Progressive/Interlace

NTSC, the video signal standard, has 480 interlaced (i) scan lines, whereas progressive scanning uses twice the number of scan lines. This is called 480p. Using progressive output, you can enjoy the high-resolution video recorded on media such as DVD-Video. Your TV must be compatible to enjoy progressive video.

Protection

You can prevent accidental erasure by setting writing protection or erasure protection.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

Thumbnail

This refers to a miniature representation of a picture used to display multiple pictures in the form of a matrix.

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

DMR-EZ17

SERIAL NUMBER

User memo: DATE OF PURCHASE

Frame Field Field

A frame still shows 2 fields, so there may be some blurring between

• them, but picture quality is generally better. A field still shows less picture information so it may be rougher, but

• there is no blurring.

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Limited Warranty

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic DVD Recorder

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

DVD Recorder

Rechargeable Batteries, DVD-RAM Disc (in exchange for defective item)

During the “Labor” warranty period there will be no charge for labor. Dur ing the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (7262) or visit Panasonic Web Site: http://www.panasonic.com For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax (787)-768-2910.

“t

he warrantor”) will, for the length of the period indicated on the chart

Product or Part Name

Parts

One (1) Year One (1) Year

Ten (10) Days Not Applicable

Labor

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this

excludes damages for lost time, travel to and from the servicer, loss of media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF

MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

“

LIMITED

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

hĴp://www.panasonic.com/consumersupport

or, contact us via the web at:

hĴp://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

hĴp://www.pstc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.) Panasonic Service and Technology Company 20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787)750-4300, Fax (787)768-2910

Reference

RQT8850

Referencia rápida en espanõl (Spanish Quick Reference)

AUDIO OUT

R L

VIDEO

OUT

RF IN

RF OUT

VHF/UHF

RF IN

AUDIO IN

R L

VIDEO

Paso

Rojo Blanco Amarillo

Paso

Panel trasero de la TV

Panel trasero de la videograbadora

Panel trasero de esta unidad

Rojo Blanco Amarillo

VHF/UHF

RF IN

RF OUT

AUDIO IN

R L

VIDEO

RF IN

RF OUT

Paso

Modulador RF

Paso

Panel trasero de la TV

Panel trasero de la videograbadora

Panel trasero de esta unidad

Rojo Blanco Amarillo

Conexión básica

Nota:

Puede que los terminales en el panel trasero de su TV no sean similares a como se ilustran a continuación. Por favor consulte las etiquetas de los terminales con atención para asegurar conexiones

Conexión a una televisión o videograbadora (dispositivo que NO sea de recepción de señal de cable ni satelital)

Se requiere cable coaxial y cable de audio/vídeo adicionales.

•

Cable de la pared o

señal de antena

correctas.

Uso del modulador RF en el caso de que su televisión carezca de terminales de audio/vídeo

Conecte los cables en el paso y paso (como se

•

menciona anteriormente) como se indica a continuación.

Cable de la pared o

señal de antena

A la toma de corriente de CA (120 V CA, 60 Hz)

Para disfrutar de una mejor calidad de imagen

La terminal S VIDEO OUT logra una imagen más

• viva que la del terminal VIDEO OUT (los resultados reales dependen de la televisión).

Los terminales COMPONENT VIDEO OUT en esta

• unidad se pueden utilizar para la salida entrelazada o progresiva, para proporcionar una imagen más pura que la del terminal S VIDEO OUT.

RQT8850

Espanõl

Ajuste de los canales y el reloj

Ajuste automático del reloj

Ajuste del reloj automático terminado.

4/4/2006 12:15 AM

HL........... ............Act

Huso h. ............HHC

para iniciar el ajuste

Preparación:

Encienda la televisión y seleccione la entrada de video apropiada a las conexiones de esta unidad.

para encender la unidad.

e, r para seleccionar el idioma,

y luego

Select Language

Seleccione el idioma

Sélection de langue

English

Español

Français

Press ENTER

Press ENTER Pulse ENTER

Pulse ENTER

Appuyer sur ENTER

e, r para seleccionar la relación

de aspecto “TV de 4:3” o “TV ancho de 16:9” y luego

automático de canales/reloj.

Confirmar hora, luego

HL (horario de verano) muestra el ajuste para

–

el verano. Huso h.(la zona horaria) muestra la diferencia

–

de hora con la hora del Meridiano de Greenwich (GMT).

Consejos prácticos

Si aparece la pantalla “Ajuste manual del reloj”.

1. Oprima [w,q] para seleccionar la opción que desee modificar y

oprima [e,r] para cambiar el ajuste.

2. Oprima [ENTER].

Se mostrará una pantalla con una imagen o con un fondo negro. El reloj se pone en funcionamiento.

Al conectar a una TV con relación de aspecto

• 4:3: seleccione “TV de 4:3”. Al conectar a una TV con pantalla

• panorámica 16:9: seleccione “TV ancho de 16:9”.

e, r para seleccionar la

función de inicio rápido “Act.” o “Desactivado”, luego

e, r para seleccionar si desea

o no recibir señal de TV del terminal RF IN de la unidad, y luego

Cuando seleccione “No”, la unidad entonces

–

mostrará la pantalla “Ajuste manual del reloj”. (➔ derecha)

e, r para seleccionar “Antena” o

“Cable”, luego

RQT8850

Referencia rápida en espanõl (Spanish Quick Reference)

Preparación:

Encienda la televisión y seleccione la entrada de

• video apropiada a las conexiones de esta unidad.

Selección de un canal

para encender la unidad.

para seleccionar el canal

deseado.

También puede seleccionar canales con los botones numéricos.

Para ingresar directamente los canales para emisiones

•

análogas y digitales:

Modo Antena:

Por ejemplo, “3”:

Modo Cable TV:

Por ejemplo, “5”:

•

Para ingresar el número menor de canal para una emisión digital:

Modo Antena:

Por ejemplo, “3-1”:

Modo Cable TV:

Por ejemplo, “1-1”:

[0] ➔ [3] ➔ [ENTER]

“13”:

[1] ➔ [3] ➔ [ENTER]

[0] ➔ [0] ➔ [5] ➔ [ENTER]

“15”:

[0] ➔ [1] ➔ [5] ➔ [ENTER]

[3] ➔ [-] ➔ [1] ➔ [ENTER]

“13-1”:

[1] ➔ [3] ➔ [1] ➔ [ENTER]

[1] ➔ [-] ➔ [1] ➔ [ENTER]

“15-1”:

[1] ➔ [5] ➔ [-] ➔ [1] ➔ [ENTER]

Consejos prácticos

Detener la reproducción

Oprima [g STOP].

La posición de detención se memoriza.

–

La posición de detención se borra al oprimir [g STOP] varias veces.

–

Pausar la reproducción

Oprima [h PAUSE].

Oprima de nuevo para reiniciar la reproducción.

–

Selección de grabaciones para reproducir

RAM

-R

Realice los pasos 1 y 2 de “Reproducción de discos” (➔ izquierda).

1. Oprima [DIRECT NAVIGATOR].

2. e, r, w, q para seleccionar la grabación que desea ver, luego

-R DL -RW(V) +R +R DL +RW

oprima [ENTER].

-RW(VR)

Grabación de programas de televisión

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparación:

Encienda la televisión y seleccione la entrada de

• video apropiada a las conexiones de esta unidad.

RAM

•

Si el disco está protegido, libere la

protección.

para encender la unidad.

para abrir la bandeja

(botón ubicado en el frente de la unidad).

Inserte un disco con suficiente espacio

–

disponible y oprima el botón de nuevo para cerrar la bandeja.

Reproducción de discos

RAM

-R

-R DL -RW(V) +R +R DL +RW DVD-V

-RW(VR) CD

para encender la unidad.

para abrir la bandeja

(botón ubicado en el panel frontal de la unidad).

Inserte un disco.–

La bandeja se cierra y

–

comienza la reproducción.

para seleccionar el canal

deseado.

Para seleccionar con los botones numéricos

–

(➔ izquierda)

para seleccionar el modo

de grabación.

para comenzar a grabar.

Consejos prácticos

Pausar la grabación

Oprima [h PAUSE].

Oprima de nuevo para reiniciar la grabación.

–

Detener la grabación

Oprima [g STOP].

RQT8850

Espanõl

Grabación programada

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparación:

•

Encienda la televisión y seleccione la entrada de video apropiada a las conexiones de esta unidad.

RAM

•

Si el disco está protegido, libere la protección Inserte un disco con suficiente espacio disponible. Confirme que el reloj en el visualizador de la unidad está ajustado con la hora correcta. Si está conectado vía un receptor de señal de cable o satelital, ajuste el canal ahí antes de que inicie la grabación programada.

Importante: una vez borrados, los contenidos no podrán recuperarse

Borrado de grabaciones con el navegador de borrado (BORRAR Navegador)

RAM

-R

-R DL -RW(V) +R +R DL +RW

Preparación:

Encienda la televisión y seleccione la entrada de

• video apropiada a las conexiones de esta unidad.

RAM

•

Si el disco está protegido, libere la protección Inserte un disco y oprima [; OPEN/CLOSE] de nuevo para cerrar la bandeja.

e, r para seleccionar “Nueva

grabación programada” luego

w, q para desplazarse a través

de los elementos, y e, r para ajustarlos.

Canal/Entrada Estación de TV/Entrada

Fecha/Frecuencia

Act. (hora de inicio) / Des. (hora de finalización)

Modo Modo de grabación– Nombre

Canal, Subtítulo

Vista preliminar del canal seleccionado

–

externa Puede ajustar un programa

–

diario o semanal.

Mantenga el botón

–

oprimido para cambiar en incrementos de 30 minutos.

–

Oprima [ENTER], para ingresar el texto en la pantalla de nombre.

GRABACIÓN PROGRAMADA

Canal/

Entrada

4-1

4-1 KPO-SD

ENTER

RETURN

Frecuencia

----------

SUB MENU

Fecha/

Tiempo grabación restante

3/26

Act.

--:-- --

Vie

Des.

Modo

--:-- --

Nombre

Ingrese el canal/Entrada.

0 9

Número

Cancelar

1:58 SPDVD

12:53 PM

Con la unidad detenida

e, r para seleccionar “Borrar”,

luego

e, r, w, q para seleccionar la

grabación, luego

w para seleccionar “Borrar”,

luego

Consejos prácticos

Para volver a la pantalla anterior

Oprima [RETURN].

Para ver otras páginas

Oprima [e, r, w, q] para seleccionar “Atrás” o “Avanza” y oprima [ENTER].

También puede oprimir [u, i] para ver otras páginas.

•

Edición múltiple

Seleccione con [e, r, w, q] y oprima [h PAUSE]. (Repetir.)

Aparece una marca de verificación. Oprima [h PAUSE] de nuevo

• para cancelar.

Repita los pasos 2 a 4 para programar otras

–

grabaciones.

cuando haya finalizado los

cambios de programación.

El indicador “z” se enciende en el

–

visualizador de la unidad.

Borrar grabaciones durante la reproducción

RAM

-R

-R DL -RW(V) +R +R DL +RW

Durante la reproducción

w para seleccionar “Borrar”,

luego

Index

Angle ......................................................30

Audio

attribute ...............................................30

language .............................................33

receiving, recording ......................12, 34

Audio Language Setting ......................32

Change Thumbnail ...............................25

Channel

adding, deleting ..................................46

audio ...................................................30

captions ..............................................46

Set Channels Automatically ................ 32

Chasing Playback .................................14

Cleaning

disc .....................................................53

lens .......................................................3

main unit ............................................... 3

Clock Settings .......................................47

Closed Caption .....................................35

CM Skip .................................................17

Connection

amplifier, system component ..............43

antenna ....................... 38, 39, 40, 41, 55

cable box.............................................39

DV IN terminal ....................................23

satellite receiver .................................. 40

television ..................... 38, 39, 40, 41, 42

video cassette recorder ................22, 42

CPRM .....................................................66

Create Chapter ................................17, 26

Create DVD Top Menu ...........................29

Delete

all recordings ......................................28

chapter ................................................26

recording .........................................9, 24

Delete Navigator .....................................9

Dialog Enhancer ...................................31

Direct Navigator ..............................16, 18

Divide Recording ..................................25

DNR ........................................................31

DST ..................................................45, 47

DV automatic recording .......................23

DVD-RAM, DVD-R, DVD-R DL, DVD-RW,

+R, +R DL, +RW .....................................52

Enter name

disc ...............................................21, 27

recording .......................................21, 24

External Device ..................................... 22

Finalize ............................................12, 29

Flexible Recording................................13

Format disc .....................................12, 28

FR (Flexible Recording) Mode .............11

FUNCTIONS window ............................50

JPEG .......................................... 18, 54, 66

Language

audio ...................................................33

code list...............................................33

on-screen ............................................34

soundtrack ..........................................30

subtitle ................................................30

MP3 ....................................................19

on-screen ............................................30

Pictures ...............................................18

Setup ..................................................32

Mode

recording .............................................11

still mode.............................................33

MP3 ............................................ 19, 54, 66

Noise reduction (NR)

DNR ....................................................31

Line-in NR ........................................... 31

On-screen

language .............................................34

menus .................................................30

status messages ................................. 21

Parental Rating ...............................36, 37

PCM Down Conversion ........................34

Picture ...................................................31

Playlist ...................................................20

Progressive .....................................31, 66

Properties

playlist .................................................20

recording .............................................24

Protection

cartridge..............................................27

disc .....................................................27

recording .............................................25

Quick Start ............................................32

Quick View .............................................16

Ratings ..................................................33

Record

Flexible Recording ..............................13

from a video cassette recorder ...........22

mode ...................................................11

scheduled .......................................8, 15

Repeat play ...........................................30

Restore Default Settings ......................32

Resume play function ............................6

Scheduled recording ........................8, 15

Setup menu ...........................................32

Signal Source (Antenna / RF IN) .........32

Simultaneous rec and play ..................14

Soundtrack ............................................30

Status messages ..................................21

Subtitle ..................................................30

Thumbnail .............................................66

Time Slip ................................................17

Transfer .................................................31

TV Type ..................................................46

V. Surround Sound. ...............................31

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” is a registered trademark of DTS, Inc. and “DTS 2.0+Digital Out” is a trademark of DTS, Inc.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

-If you see this symbolInformation on Disposal in other Countries outside the

European Union

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Printed in China

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

En Sp

RQT8850-1P

H1206KY1027
