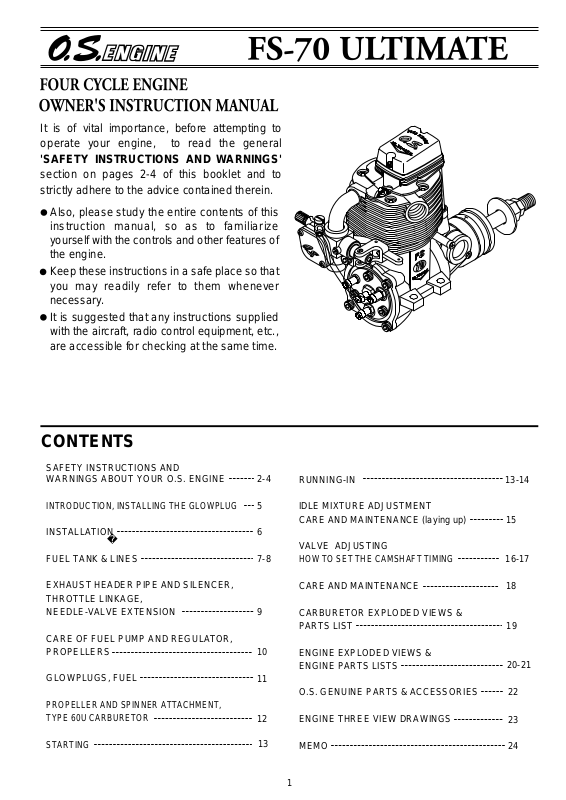

O.S. Engines FS-70 User Manual

Page 1

It is of vital importance, before attempting to operate your engine, to read the general

'SAFETY INSTRUCTIONS AND WARNINGS'

section on pages 2-4 of this booklet and to strictly adhere to the advice contained therein.

Also, please study the entire contents of this instruction manual, so as to familiarize yourself with the controls and other features of the engine.

Keep these instructions in a safe place so that you may readily refer to them whenever necessary.

It is suggested that any instructions supplied with the aircraft, radio control equipment, etc., are accessible for checking at the same time.

CONTENTS

SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE

INTRODUCTION, INSTALLING THE GLOWPLUG

INSTALLATION



FUEL TANK & LINES

EXHAUST HEADER PIPE AND SILENCER, THROTTLE LINKAGE, NEEDLE-VALVE EXTENSION

CARE OF FUEL PUMP AND REGULATOR, PROPELLERS

GLOWPLUGS, FUEL

PROPELLER AND SPINNER ATTACHMENT, TYPE 60U CARBURETOR

2-4

7-8

RUNNING-IN

IDLE MIXTURE ADJUSTMENT CARE AND MAINTENANCE (laying up)

VALVE ADJUSTING HOW TO SET THE CAMSHAFT TIMING

CARE AND MAINTENANCE

CARBURETOR EXPLODED VIEWS & PARTS LIST

ENGINE EXPLODED VIEWS & ENGINE PARTS LISTS

O.S. GENUINE PARTS & ACCESSORIES

ENGINE THREE VIEW DRAWINGS

13-14

16-17

20-21

STARTING

MEMO

Page 2

SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE

Remember that your engine is not a " toy ", but a highly efficient internal-combustion machine whose power is capable of harming you, or others, if it is misused or abused. As owner, you, alone, are responsible for the safe operation of your engine, so act with discretion and care at all times. If at some future date, your O.S. engine is acquired by another person, we would respectfully request that these instructions are also passed on to its new owner.

The advice which follows is grouped under two headings according to the degree of damage or danger which might arise through misuse or neglect.

WARNINGS

These cover events which might involve serious (in extreme circumstances, even fatal ) injury.

NOTES

These cover the many other possibilities, generally less obvious sources of danger, but which, under certain circumstances, may also cause damage or injury.

WARNINGS

Never touch, or allow any object to come into contact with, the rotating propeller and do not crouch over the engine when it is running.

A weakened or loose propeller may disintegrate or be thrown off and, since propeller tip speeds with powerful engines may exceed 600 feet(180 metres) per second, it will be understood that such a failure could result in serious injury, (see 'NOTES' section relating to propeller safety).

Model engine fuel is poisonous. Do not allow it to come into contact with the eyes or mouth. Always store it in a clearly marked container and out of the reach of children.

Model engine fuel is also highly flammable. Keep it away from an open flame, excessive heat, sources of sparks, or anything else which might ignite it. Do not smoke or allow anyone else to smoke, near to it.

Never operate your engine in an enclosed space. Model engines, like automobile engines, exhaust deadly carbonmonoxide. Run your engine only in an open area.

Model engines generate considerable heat. Do not touch any part of your engine until it has cooled. Contact with the muffler(silencer), cylinder head or exhaust header pipe, in particular, may result in a serious burn.

NOTES

This engine was designed for model aircraft. Do not attempt to use it for any other purpose.

Mount the engine in your model securely, following the manufacturers' recommendations, using appropriate screws and locknuts.

Be sure to use the silencer (muffler) supplied with the engine. Frequent exposure to an open exhaust may eventually impair your hearing. Such noise is also likely to cause annoyance to others over a wide area.

Install a top-quality propeller of the diameter and pitch specified for the engine and aircraft. Locate the propeller on the shaft so that the curved face of the blades faces forward-i.e. in the direction of flight. Firmly tighten the propeller nut, using the correct size wrench.

Always check the tightness of the propeller nut and retighten it, if necessary, before restarting the engine, particularly in the case of four-stroke-cycle engines. A safety locknut assembly is provided. Always use it. This will prevent the propeller from flying off in the event of a "backfire", even if it loosens.

If you install a spinner, make sure that it is a precision made product and that the slots for the propeller blades do not cut into the blade roots and weaken them.

Discard any propeller which has become split, cracked, nicked or otherwise rendered unsafe. Never attempt to repair such a propeller: destroy it. Do not modify a propeller in any way, unless you are h igh ly experienced in tuning propellers for specialized competition work such as pylon-racing.

Use an electric starter for this engine. The wearing of safety glasses is also strongly recommended.

Page 3

NOTES

Take care that the glow plug clip or battery leads do not come into contact with the propeller. Also check the linkage to the throttle arm. A disconnected linkage could also foul the propeller.

After starting the engine, carry out any needle-valve readjustments from a safe position behind the rotating propeller. Stop the engine before attempting to make other adjustments to the carburetor.

Adjust the throttle linkage so that the engine stops when the throttle stick and trim lever on the transmitter are fully retarded. Alternatively, the engine may be stopped by cutting off the fuel supply. Never try to stop the engine physically.

Take care that loose clothing (ties, shirt sleeves, scarves, etc.) do not come into contact with the propeller. Do not carry loose objects (such as pencils, screwdrivers, etc.) in a shirt pocket from where they could fall through the propeller arc.

Do not start your engine in an area containing loose gravel or sand. The propeller may throw such material in your face and eyes and cause injury.

For their safety, keep all onlookers (especially small children) well back (at least 20 feet or 6 meters) when preparing your model for flight. If you have to carry the model to the take-off point with the engine running, be especially cautious. Keep the propeller pointed away from you and walk well clear of spectators.

Warning! Immediately after a glowplug-ignition engine has been run and is still warm, conditions sometimes exist whereby it is just possible for the engine to abruptly restart if the propeller is casually flipped over compression WITHOUT the glowplug battery being reconnected. Remember this if you wish to avoid the risk of a painfully rapped knuckle!

INTRODUCTION

The FS-70 ULTIMATE comes equipped with the new O.S. FS70U diaphragm type fuel pump and matching Type 60U carburetor incorporating a built-in pressure regulator. These features ensure that fuel/air mixture strength is maintained at a constant level through maneuvers, for consistent performance and reliable throttle response. In the interests of improved durability, certain ferrous parts that are particularly susceptible to corrosion in four-stroke engines, have a corrosion resistant plating and, for the same reason, a special grease-packed twin-sealed rear ball-bearing is used. To maintain the four-stroke engine's reduced noise levels, the FS-70 ULTIMATE is supplied with an O.S. Type F-4020 baffled silencer (muffler) of substantially enlarged volume, as standard equipment.

Where installation calls for a separate exhaust pipe, these parts are available as optional extras.

INSTALLING THE GLOW PLUG

Carefully insert plug, with washer, fingertight only, before final tightening with the correct size plug wrench.

Glow plug Type F

Intake Pipe

Carburetor Type 60U

Rocker Cover

Cylinder Head

Push Rod Cover

Crankshaft

Crankcase

Beam Mount

Propeller Nut

Propeller Washer

Drive Hub

Lock Nut

Glow plug

Washer

Pump Unit (FS-70U)

Page 4

INSTALLATION

Because the FS-70 ULTIMATE is a powerful, largedisplacement, single-cylinder four-stroke-cycle engine, it is essential to use very substantial engine mounting. Conventional wooden mounting beams should be of rigid hardwood and of at least 15mm or 5/8-in square section.

Make sure that these mounting beams are accurately aligned and firmly integrated with the airframe, reinforcing the adjacent structure to absorb vibration. Use 3mm or larger steel screws, preferably Allen type hexagon socket head cap screws, with washers and locknuts, for bolting the engine to the bearers.

Make sure that the mounting beams are parallel and that their top surfaces are in the same plane.

CORRECT

How to fasten the mounting screws.

Hardwood mounting beams

3mm steel nuts

Spring washer or lock washer

15mm min.

Radial motor mount (cast aluminum)

Tighten second nut firmly down onto first nut.

Tighten this nut first.

Hardwood such as cherry or maple.

Steel washer

3mm steel screw

Front view

Top surfaces are not in the same plane.

Re-align the surfaces as necessary

Top surfaces are in the same plane.

INCORRECT

Opposite beam

Top surfaces are not in the same plane.

Side view

Engine does not rest firmly.

FUEL TANK & LINES

A fuel tank of approximately 300cc capacity is suggested. This allows up to 12-13 minutes flying time, dependent upon the type of fuel used, the size of the propeller and on the proportion of full-throttle to part-throttle operation through the flight.

Make sure that the tank is well rinsed out with methanol or glow fuel before installation and that the pickup weight is well clear of the bottom of the tank when held vertically (see sketch).

3mm steel Allen screw

Spring washer

To prevent the pickup from adhering to the tank wall under suction and restricting fuel flow, slots may be filed in the end of the weight as shown. Alternatively, a Non-Bubble type weight (Code No. 71531000) may be used.

Since high pressure is applied to the fuel tank from the engine crankcase, use a thick-walled strong enough tank and securely seal the area around the cap.

JAPAN

Fuel filter (sold separately)

Fuel supply line

Caps (sold separately)

Fuel filter - Do not use a felt type filter.

T nipples (sold separately)

Tank pressure vent line

10-15mm

Page 5

Make connections using a commercially available thickwalled silicone tubing of approximately 2.5mm bore and

5.0mm outside diameter. It is suggested that tube clips be used at all connections.

The function of the various tubing connected to the engine and tank (see sketch) are as follows:

Line A: Line B: Line C: Line D:

Important

Lines B is already installed when the engine is shipped from the factory. If any of these lines should need to be replaced, due to damage or installation problems, be sure to use tubing of the same dimensions and quality as the originals. The length of Line B is approx 65mm.

Note:

To draw fuel from tank to pump (IN) To deliver fuel from pump to carburetor (OUT) To pressurize fuel tank. Air intake pipe to take air into the crankcase, not a

breather. Be careful not to let the dirt and dust in. Tube length should be less than 150mm.

Since the FS-70 ULTIMATE has a positively pumped fuel supply, it does NOT require muffler pressurization.



Be sure to put the end of the pipe outside the fuselage for air intake.

EXHAUST HEADER PIPE & SILENCER

Install these in the following sequence. Screw the header pipe into the cylinder head until it " bottoms ", then unscrew sufficiently to achieve the desired exhaust angle and tighten the locknut securely with a 14mm wrench. Screw the silencer onto the outer end of the header pipe and tighten the other locknut. The application of a heatproof silicone sealant to the threads of the exhaust system is recommended to reduce the risk of joints loosening and the leakage of exhaust gases and oil residue.

Reminder: Model engines generate considerable heat and contact with the header pipe or silencer may result in a serious burn. If you need to tighten the silencer joints, which may loosen when they are hot, use a thick folded cloth for protection.

THROTTLE LINKAGE

Before connecting the throttle to its servo, make sure that the throttle arm and linkage safely clear any adjacent part of the airframe structure, etc., as the throttle is opened and closed. Connect the linkage so that the throttle is fully closed when the transmitter throttle stick and its trim lever are at their lowest settings and fully open when the throttle stick is in its fully-open position.. Carefully align the appropriate holes in the throttle arm and servo horn so that they move symmetrically and smoothly through their full travel.

Note: The engine is equipped a slide valve carburetor which has a narrower movement between fully closed and fully open. Secure the throttle lever linkage so that it may not move with vibration.

NEEDLE-VALVE EXTENSION

The needle-valve supplied with this engine is designed to incorporate an extension so that, when the engine is enclosed within the fuselage, the needle-valve may be adjusted from the outside. Cut a commercially available rod to the required length, bend one end to an L shape, insert it into needle's center hole and secure it by tightening the set-screw in the needle-valve knob with 1.5mm Allen key. Needle Valve Extension Cable Set (Code No. 72200080) is available from O.S. as an optional part.



Page 6

CARE OF FUEL PUMP & REGULATOR

NEVER disassemble the fuel pump or pressure regulator. Their original performance may not be restored after reassembly.

DO NOT allow foreign matter to enter the fuel system. Dirt inside the pump or regulator, no matter how small, may obstruct the flow of fuel and prevent these components from working properly.

DO NOT obstruct the small rectangular hole at the bottom of the regulator, nor the regulator will not function correctly.

NEVER insert anything into the inlet or outlet nipples in an attempt to clear a suspected obstruction. (See CARE & MAINTENANCE section at the back of this booklet.)

ALWAYS use fuel filters. Keep the fuel tank scrupulously clean and filter all fuel as it enters the tank (e.g.via an O.S.'Super-Filter' Code No.72403050) and use a good quality in-line filter between the tank and pump. Remember to inspect filter screens at regular intervals and rinse clean as necessary.

NEVER use gasoline, kerosene, diesel fuel or other petroleum products for cleaning the pump, regulator or fuel lines. Silicone-rubber parts will be ruined by these materials. Use only alcohol (methanol) or glow fuel for cleansing these items.

Note: If you find noticeable amount of oil coming out into the pump Line D and the engine cannot be adjusted correctly, please return the whole engine to the distributor in your country or direct to O.S.

PROPELLERS

The choice of propeller depends on the design and weight of the aircraft and on the type of flying in which you will be engaged. Determine the best size and type after practical experimentation. As a starting point, refer to the props listed in the accompanying table. Slightly larger, or even slightly smaller, props than those shown in the table may be used, but remember that propeller noise will increase if blade tip velocity is raised, due to higher rpm or if a larger-diameter / lower-pitch prop is used.

Warning: Make sure that the propeller is well balanced. An

unbalanced propeller and / or spinner can cause serious vibration which may weaken parts of the airframe or affect the safety of the radio-control system. DO NOT forget the WARNINGS and NOTES on propeller and spinner safety given on pages 2,3 and 4.

Type Size (DxP

Sport & Stunt models Aerobatic models

13x7-8

13x6

)

GLOWPLUGS

The FS-70 ULTIMATE is supplied with an O.S. Type F glowplug, specially designed for O.S. four-stroke engines.

The role of the glowplug

With a glowplug engine, ignition is initiated by the application of a 1.5-volt power source. When the battery is disconnected, the heat retained within the combustion chamber remains sufficient to keep the plug filament glowing, thereby continuing to keep the engine running. Ignition timing is 'automatic' : under reduced load, allowing higher rpm, the plug becomes hotter and, appropriately, fires the fuel/air charge earlier; conversely, at reduced rpm, the plug becomes cooler and ignition is retarded.

Glowplug life

Particularly in the case of very high performance engines, glowplugs must be regarded as expendable items.

However, plug life can be extended and engine performance maintained by careful use, i.e.:

Install a plug suitable for the engine. Use fuel containing a moderate percentage of nitromethane

unless more is essential for racing events. Do not run the engine too lean and do not leave the battery

connected while adjusting the needle.

When to replace the glowplug

Apart from when actually burned out, a plug may need to be replaced because it no longer delivers its best performance, such as when:

Filament surface has roughened and turned white. Filament coil has become distorted.

Foreign matter has adhered to filament or plug body has corroded.

Engine tends to cut out when idling. Starting qualities deteriorate.

FUEL

The FS-70 ULTIMATE should be operated on a methanol based fuel containing not less than 18% castor-oil, or a top quality synthetic lubricant (or a mixture of both), plus a small percentage (5-30%) of nitromethane for improved flexibility and power. The carburetor is adjusted at the factory for a fuel containing 20% lubricant and 15% nitromethane. Some commercial fuels also contain coloring additives as an aid to fuel level visibility. In some cases, these additives have indicated slightly negative effects on performance. We would suggest that you use such fuels only if you are satisfied that they do not adversely affect running qualities when compared with familiar standard fuels. When changing to a fuel brand or formula that is different from the one to which you are accustomed, it is a wise precaution to temporarily revert to in-flight running-in procedures, until you are sure that the engine is running entirely satisfactorily.

Reminders: AII model engine fuel is poisonous.Do not allow it to come into contact with the eyes or mouth. Always store it in a clearly marked container and out of the reach of children. Though not as volatile as gasoline, model engine fuel is also highly inflammable. Keep it away from an open flame, excessive heat, sources of sparks, or anything else that might ignite it. Smoking is firmly discouraged.

Page 7

PROPELLER & SPINNER ATTACHMENT

There is a risk, particularly with powerful four-stroke engines, of the propeller flying off if the prop nut loosens due to detonation ("knocking") in the combustion chamber when the engine is operated too lean, or under an excessively heavy load.

Obviously, this can be very hazardous. To eliminate such dangers, the O.S. Safety Locknut Assembly was devised. Install this as follows:

Ream the propeller shaft hole to 6.5mm bore with an appropriate reamer, checking that the hole is exactly centered.

Install the prop to the engine shaft, followed by the retaining washer and prop nut and tighten firmly with a 12mm wrench.

Add the special tapered and slotted locknut and secure

3. with a 10mm wrench while holding the prop nut with the 12mm wrench.

Spinners retained by a nose bolt cannot be used with this Locknut.

Since the FS-70 ULTIMATEis intended to be started with an electric starter, the addition of a spinner assembly for centering the starter sleeve is desirable. In this case, optional locknut sets are available from O.S. Propeller Locknut Set for Spinner (Code No. 45810200) Propeller Locknut Set for Tru Turn Spinner (Code No. 45810300).

Propeller Washer

Propeller Nut

Lock Nut

TYPE 60U CARBURETOR

Two adjustable controls are provided on these carburetors. They are as follows:

The Needle Valve

This is used to establish the fuel/air mixture strength required for full power when the throttle is fully open.

The Mixture Control Screw

This is used to establish the mixture strength required for steady idling and a smooth transition to medium speeds. (The varying mixture strength required between part-throttle and full-throttle running is automatically adjusted by coupled movement of the throttle.)

The sequence in which these controls are adjusted is explained in the succeeding sections, under Starting, Running-in and Idling Adjustment.

BASIC POSITION OF THE MIXTURE CONTROL SCREW

The basic position is 1/2 turn screwed in position from the flat with the body face.

Mixture Control Screw

IDLING POSITION OF THE THROTTLE VALVE

The idling position is where the throttle valve comes out approx. 1mm from the body face.

Carburetor Body

Mixture Control Screw

Needle Valve

Throttle Valve

Approx. 1mm

STARTING

The FS-70 ULTIMATEis not equipped with manual choke controls, as they are intended for use with an electric starter only.

A high-torque electric starter not only makes starting the engine much easier, it dispenses with the need for a choke valve by turning the engine over fast enough to cause the fuel pump to prime the cylinder automatically. Starting procedure is as follows:

Check that the current to the glowplug is switched off.

1. Check that the polarity of the starter battery leads rotates the

2. engine counter-clockwise when viewed from the front.

Open the needle-valve approx. 2 turns from the fully closed

3. position and temporarily set the throttle in the fully open position.

Apply the starter and press the starter switch for 5-6

4. seconds, or until fuel is seen to emerge from the exhaust outlet, indicating that the cylinder is now primed.

Close the throttle-arm to within 15-20° of the fully closed position and slowly turn the prop "backwards" (clockwise) by hand until it is arrested by compression.This is to enable the kinetic energy of the prop to subsequently assist the starter through the compression stroke to start the engine.

Energize the glowplug and apply the starter. If the starter

6. fails to rotate the engine completely, this may be due to the cylinder being over-primed, or to the starter battery being insufficiently charged.

Check these conditions and, instead of pressing the starter

7. button after applying the starter, have the starter spinning before applying it to the engine, to give it a "running start". When the engine starts, slowly open the throttle, leaving the needle-valve at its rich starting setting to promote cool running conditions. However, if the engine slows down because the mixture is excessively rich, the needle-valve may be closed a little to speed it up until it runs evenly.

Now disconnect current to the glowplug and gradually close

8. the needle-valve so that the engine rpm increases. Make adjustments to the needle in small steps. Abrupt changes at this stage are likely to cause the engine to stall. Restart the engine by simply applying the starter with the glowplug re-energized and the throttle at its starting setting.

RUNNING-IN ("Breaking-in")

For long life and peak performance, every engine needs special treatment when new, known as "running-in" or "breaking-in". This is a process during which the engine is operated under strictly controlled conditions at the beginning of its life, in order to avoid the risk of immediate damage to certain components through becoming overheated or stressed and to help working surfaces to become smoothed and aligned for maximum mechanical efficiency thereafter. With some engines, this can require a tediously protracted period of bench running, but, as O.S. engines are manufactured to fine tolerances and from the finest quality materials, a relatively brief running-in period is sufficient and can be completed with the engine installed in the aircraft. The recommended procedure is as follows :

Page 8

Start and adjust the engine as detailed in the starting instructions.

Now open the throttle fully and run the engine with the

2. condition of emitting a good deal of white smoke.

Open the needle-valve gradually to increase r.p.m., then

3. close the needle-valve gradually to lower r.p.m. Repeat this procedure until two to three full tanks of fuel have been consumed so that r.p.m. may come close to peak.

Then, proceed IDLE MIXTURE ADJUSTMENT mentioned

4. in the next page.

WARNING: When ground running the engine, avoid dusty or sandy locations. If dust or grit is drawn into the engine, this can have a ruinous effect, drastically shortening engine life in a matter of minutes.

Following the initial running-in session, check for any

5. looseness in the installation due to vibration, then allow the engine a period of moderately rich operation in flight.

For the first flight, have the needle-valve set on the rich

6. side and adjust the throttle trim on the transmitter so that the engine does not stop when the throttle is closed to the idle setting.

With each successive flight, close the needle-valve very

7. slightly until, at the end of about 10 flights, the needle is set for full power. Do not "over-lean" the mixture in an attempt to extract more power.

If overheating should be suspected at any time during flight

8. (i.e.if the engine begins to "labor") reduce power by partially closing the throttle and land the aircraft to enable the needle-valve to be readjusted to a richer setting.

Note: Remember that, when the engine is not yet fully run-in, the carburetor cannot be expected to give its best response in flight. Abrupt operation of the throttle, for example, may cause the engine to stall. Therefore, at this time ,the aircraft should, as far as is possible, be flown at an altitude sufficient to enable an emergency landing to be safely made if the engine stops.

Once the engine has demonstrated that it can be safely

9. operated at full power, the carburetor can be adjusted for optimum throttle response, following the instructions given in the next section.

IDLE MIXTURE ADJUSTMENT

Start the engine, open the throttle fully and set the needle-

1. valve slightly rich (30-45°) from the highest r.p.m. setting.

Close the throttle to the idle position. Allow the engine to idle for about 5 seconds, then reopen the throttle. The engine should accelerate smoothly back to full speed.

If, instead, the engine responds sluggishly and emits an

3. excess of white smoke from the exhaust, the idle mixture is too rich. Turn the mixture control screw approx. 45° clockwise to lean the idle mixture.

On the other hand, if the engine hesitates before picking up

4. speed or even ceases firing completely, the idle mixture is likely to be too lean. Turn the mixture control valve 90° counter-clockwise to substantially enrich the mixture, then back again 45° clockwise.

In paragraphs 3 and 4 above, the 45° total movements are,

5. of course, approximate. It will be necessary to fine-tune the mixture control screw 10-15° at a time to reach the best setting for optimum throttle response.

Continue re-checking the idle mixture setting until the

6. engine responds smoothly and positively to operation of the throttle at all times.

NOTE: The use of a different fuel, particularly one containing

more, or less, nitromethane and/or a different type or proportion of lubricating oil, is likely to call for some readjustment of the Needle-Valve.



Remember that, as a safety measure, it is advisable to increase the Needle-Valve opening by an extra half-turn counter-clockwise, prior to establishing a new setting. A different silencer may alter the exhaust pressure applied to the fuel feed and call for a revised Needle-Valve setting. The use of a different glowplug may also reguire compensating carburetor readjustments.

CARE & MAINTENANCE (laying up)

The fuel pump assembly, carburetor/pressure-regulator and silicone tubing must be cleansed separately in methanol or glow fuel. On no account must they come into contact with kerosene. Before completely reassembling the engine, make sure that no kerosene remains inside that could find its way into the pump unit, carburetor, etc. Inject, sparingly, preserving oils, rust inhibitors, etc. unless approved for silicone-rubber products. An appropriate alternative here may be one of the high-quality synthetic lubricating oils. Finally, seal the engine in a heavy polyethylene bag until required for reinstalling in the airframe.

Debris tends to accumulate in this area

Page 9

VALVE ADJUSTING

Valve clearances are correctly set before any O.S. engine leaves the factory and, in normal use, will seldom require abjustment. However, if,after a very considerable amount of running time, a loss of power is detected, or if the engine has been disassembled for repair, these clearances should be checked and reset as necessary.

The kit comes in a plastic case and includes: (Code No.72200060)

• Feeler gauge 0.04mm

• Feeler gauge 0.1mm

Note: Valve clearances of all O.S. four-stroke-cycle engines must be checked and reset ONLY WHEN THE ENGINE IS COLD. Procedure is as follows.

（Ⅰ）

Remove the cover from the rocker-box on top of the

1. cylinder-head, using the correct size Allen hex key.

Turn the propeller counter-clockwise until compression is first felt, then turn it a futher quarter revolution. At this point, both valves should be closed. (If the prop driver ('drive hub') of your engine is engraved with a letter 'T', this mark should now be at the top.)

The standard valve clearance, on both inlet and exhaust

3. valves, is between 0.04mm and 0.10mm(0.0015-0.004 inch), measured between valve stem and rocker arm. Use the 0.04mm and 0.10mm feeler gauges to check clearances. (See Fig.1.)

• Hex. key 1.5mm

• Wrench 5mm

Note: If the gap is found to be less than 0.04mm, it is not necessary to readjust the clearance if the engine has good compression and starts easily.

Equally, if the gap exceeds

0.10mm but is not more than

0.14mm (i.e. the thickness of both feeler gauges inserted

0.04mm Feeler Gauge

Rocker Arm

Valve

together), it is not essential to readjust the clearance if the engine runs satisfactorily.

Fig.1

If a clearance is found to be outside either of these limits,

（Ⅱ）

it should be reset as follows.

Carefully loosen the locknut

1. on rocker-arm 1/4-1/2 turn

Locknut

Loosen approx. 1/4 to 1/2 turn.

with 5mm wrench. (Fig.2.)

Wrench

Fig.2

Turn adjusting-screw approx.

2. 1/2 turn counter-clockwise to

Adjusting Screw

Turn approx. 1/2 turn.

open gap, using appropriate tool -i.e. Allen hex key. (Fig.3.)

Allen Key

Fig.3

Insert 0.04mm feeler gauge

3. between valve stem and rocker-arm and gently turn adjusting screw clockwise until it stops.(Fig.4.)

Re-tighten locknut while

4. holding adjusting screw stationary. (Fig.5.)

Remove 0.04mm feeler,

5. rotate prop through two revolutions and recheck gap.

If clearance is correct, loosen the locknut on the other

6. rocker-arm and repeat steps 1 to 5 above. Finally, replace rocker box cover.

Remember: Excessive valve clearance will cause loss of power, due to valve (s) not opening sufficiently. On the other hand, a total loss of clearance may cause difficult starting due to valves not closing properly, resulting in loss of compression.

Turn with fingers until it stops.

0.04mm Feeler Gauge

Fig.5

Fig.4

Hold at the screw head.

Tighten Locknut.

HOW TO SET THE CAMSHAFT TIMING

When replacing the camshaft, set the timing as follows.

Secure propeller.

NOTE: If propeller is not secured, crankshaft may move backward and correct timing cannot be set.

Turn the crankshaft so that 'T' mark on the drive hub may

2. match crankcase center line. (This is engine T.D.C. position)

Push the camshaft into camshaft housing until it stops.

3. Locate ' ' mark on the side of camshaft gear in line with the push rod.

Rotate crankshaft right and left a little and make sure that

4. the ' ' mark on the gear is in line with the push rod when the ' T ' mark on the drive hub matches the crankcase center line.

Secure cam cover with screws.

The relation of position between ' ' mark of the gear and teeth may differ from the sketch, by each model.

Fig.1

' ' mark

camshaft

'T' mark on the drive hub

crankcase center line

Fig.2

in line with the push rod

' ' mark of the camshaft gear

Page 10

CARE AND MAINTENANCE

Please pay attention to the matters described below to ensure that your engine serves you well in regard to performance, reliability and long life. As previously mentioned, it is vitally important to avoid operating the engine in conditions where dust, disturbed by the propeller, may be deposited on the engine and enter its working parts. Also, remember to keep your fuel container closed to prevent foreign matter from contaminating the fuel. Do not forget to clean the fuel filters periodically and, from time to time, unscrew the complete needle-valve assembly from the carburetor and remove any foreign matter that has accumulated in this area. (See photo.) If these precautions are neglected, restriction of fuel flow may cause the engine to cut out, or the fuel/air mixture to become too lean causing the engine to overheat.

The use of modern high-performance alcohol based model engine fuels, while promoting cooler running, improved antidetonation combustion and increased power, have the disadvantage of causing bottom end corrosion in a four-stroke engine. This is due to the acidic by products of combustion that accumulate in the engine's crankcase and are not flushed out by fresh air/fuel mixture as in the case of a two-stroke engine. The use of nitromethane in the fuel can also contribute to the problem. As noted earlier, the FS-70 ULTIMATEhas it most vulnerable components protected against such attack but, as a primary defence, users are advised, once again, to avoid running the engine on too lean a mixture and by making sure that the engine is purged of contaminants as much as possible.

Do not leave unused fuel in the engine at the conclusion of a day's flying. Accepted practice is to cut off the fuel supply while the engine is still running - at full throttle - then, expel as much fuel residue as possible by turning the engine over for 5-10 seconds with the electric starter. Finally, inject some after-run oil through the glowplug hole and turn the engine over several times by hand. When the engine is not to be used for some months (for example, as between flying seasons) a worthwhile precaution is to remove it from the airframe and, after washing off the exterior with alcohol (not gasoline or kerosene) to carefully remove the fuel pump, carburetor with intake pipe and all silicone tubing and put them safely aside. Make sure that the engine is reasonably clean externally, then remove the glowplug and immerse the engine in a container of kerosene. Rotate the crankshaft while the engine is immersed. If foreign matter is visible in the kerosene, rinse the engine again in clean kerosene, before removing it, vigorously shaking off the excess and wiping it dry.

CARBURETOR EXPLODED VIEW & PARTS LIST

No.

S.M3x3

1-3

1-2

1-5

1-1

Type of screw

C...Cap Screw M...Oval Fillister-Head Screw F...Flat Head Screw N...Round Head Screw S...Set Screw

1-4

M.+M2.6x7

2 3

C.M3x16

5-2

S.M3x3

5-1

S.M3x3

1 1-1 1-2 1-3 1-4 1-5

5 5-1 5-2

Code No.

25581900 22681980 24981837 26381501 27381940 26711305 44781100 21285220 45571000 44781650 46066319 24881824 44781200 44781400 45515000

Needle Valve Assembly

Needle Assembly

"O" Ring (2pcs.

Set Screw

Needle Valve Holder Assembly

Ratchet Spring Carburetor Body Rotor Guide Screw Universal Nipple S3.5 Mixture Control Valve Assembly

"O" Ring (L) (2pcs.

"O" Ring (S) (2pcs. Slide Valve Throttle Lever Assembly Carburetor Rubber Gasket

The specifications are subject to alteration for improvement without notice.

Description

)

Page 11

EXPLODED VIEW

Type of screw C...Cap Screw M...Oval Fillister-Head Screw

F...Flat Head Screw N...Round Head Screw S...Set Screw

C.M3x12

C.M3x16

C.M2.6x8

F.+M2.6x6

30-2

3-1

3-2

4-1 4-2

5-4 5-3 5-2

5-1

12 13

30-1

30-2

6-1

6-2

6-3

6-4

C.M3.5x20

C.M2.6x18

18-1

18-2

18-3

Page 12

PARTS LIST

No.

1 2

3 3-1 3-2

4 4-1 4-2

5 5-1 5-2 5-3 5-4

6 6-1 6-2 6-3 6-4

10 11 12 13 14 15 16 17

Code No.

44704200 44714300 45961400 45961410 45761600 44753000 44753100 45761200 44750000 44750100 45960210 45960310 45960400 44751000 44751100 45960210 45960310 45960400 44704100 44704000 45515000 44769400 44781000 44714100 29503400 44703200 45906000 44705000 44703100

Rocker Cover

Description

Rocker Cover Gasket Rocker Support Assembly Rocker Support Rocker Arm Retainer (2pc. /1pair) Rocker Arm Assembly (1pair) Rocker Arm (1pc.) Tappet Adjusting Screw (w/nut) Intake Valve Assembly (1pair) Intake Valve (1pc.) Valve Spring (1pc.) Valve Spring Retainer (1pc.) Split Cotter (2pc. /1pair) Exhaust Valve Assembly (1pair) Exhaust Valve (1pc.) Valve Spring (1pc.) Valve Spring Retainer (1pc.) Split Cotter (2pc. /1pair) Cylinder Head (w/Gasket) Cylinder Head (w/Gasket and valve Assembly) Intake Pipe Gasket Intake Pipe Carburetor Complete (Type 60U) Head Gasket Piston Ring Piston Piston Pin Connecting Rod Cylinder Liner

No.

Code No.

44782000

18-1

44782160

18-2

45771000

18-3

22681957

44702000

27708200

44230000

44714200

44701000

45231100

44762000

44714400

44701100

44701109

44766000

44766100

30-1

44766110

30-2

24881824

45664000

44731000

44708000

45810100 71615009 45925050 45925100 45926100

The specifications are subject to alteration for improvement without notice.

Pump Unit (FS-70U) Nipple No.16 Nipple No.5 Nipple No.7 Crankshaft Woodruff Key Crankshaft Ball Bearing (R) Pump Holder Gasket Crankcase Camshaft Ball Bearing (1pc.) Camshaft Cam Cover Gasket Cam Cover Cam Cover Retaining Screw (2ppcs.) Push Rod (2pcs.) Push Rod Cover Assembly (2pcs.) Push Rod Cover (1pc.) Push Rod Cover "O" Ring (2pcs.) Cam Follower (2pcs.) Crankshaft Ball Bearing (F) Drive Hub Locknut Set Glow Plug Type F F-4020 (U) Silencer Assembly F-4020 Silencer Body Exhaust Header Pipe Assembly

Description

O.S. GENUINE PARTS & ACCESSORIES

O.S.GLOW PLUG TYPE F

(71615009)

Needle Valve Extension Cable Set

(72200080)

PROPELLER LOCKNUT SET FOR TRUTURN SPINNER

1/4"-M5

(45810300)

BOOSTER CABLE SET

(72200110)

FLEXIBLE EXHAUST PIPES

Code.No.

72108100 72108110 72108120 72108130

Type

1111A 1111B 1111C 1111D

BOOSTER TERMINAL KIT

(72200130)

(mm)

Length

120 240 170 330

EX EXHAUST HEADER PIPES

(72109500)

Inside

(72109600)

Outside

PROPELLER LOCKNUT SET

(45810200 For Spinner)

NON-BUBBLE WEIGHT

(71531000)

SUPER FILTER (L

(72403050)

)

LONG SOCKET WRENCH WITH PLUG GRIP

(71521000)

VALVE ADJUSTING TOOL LIT

(72200060)

LOCK WASHER

(55500002)

(10sets)

CAP SCREW SETS

(10pcs./sets)

M2.6x8 M2.6x18

M3.5x20

(79871025) (79871055) (79871100)

BLIND NUT

(79870030)

(10pcs./sets)

The specifications are subject to alteration for improvement without notice.

Page 13

THREE VIEW DRAWING

JAPAN

Dimensions(mm)

Specifications

Displacement Bore Stroke PracticalR.P.M. Output Weight

58.9

11.45cc / 0.698cu.in.

27.7mm / 1.091in.

19.0mm / 0.748in.

2.000-15.000r.p.m.

1.2ps / 11.000r.p.m. 455g / 16.0oz.

(without Locknut, Drive Hub, Woodruff Key, F-4020(U) Silencer Assembly)

527.3g / 18.61oz.

(With F-4020(U) Silencer Assembly)

F-4020(U) Silencer Assembly

51g / 1.8oz.

35.1

29.6

UNF1/4-28

4- 3.7

49.5

JAPAN

142

25.6

26.7

87.418

105.4

39.5

MEMO

35.4 54

59.534.5

24.1

50.2

Page 14

6-15 3-Chome Imagawa Higashisumiyoshi-ku Osaka 546-0003, Japan

TEL. (06)6702-0225

FAX. (06)6704-2722

URL : http://www.os-engines.co.jp

60091400 090304
