Olympus TG-1 Instruction Manual

DIGITAL CAMERA

TG-1

Instruction Manual

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● The screen and camera illustrations shown in this manual may differ from the actual product.

Checking the contents of the box

Names of Parts

Digital camera Strap Lithium Ion

Other accessories not shown: Warranty card Contents may vary depending on purchase location.

Names of Parts

Camera unit

1 2 3

5 6

Battery

(LI-90B)

USB-AC

adapter

(F-2AC)

USB cable

(CB-USB8)

1 Connector cover

2 3

4 5 Multi-connector 6 HDMI micro connector

7 Strap eyelet 8 Self-timer lamp/LED Illuminator/

9 Flash

10 Lens

12 13 Battery/card compartment cover

AV cable

(CB-AVC3)

Connector cover lock LOCK knob Speaker

AF illuminator

Lens ring Tripod socket

Battery/card compartment lock

OLYMPUS Setup

CD-ROM

1 Stereo microphone

Attaching the camera strap

2 Monitor 3 Shutter button 4 Indicator lamp 5 n button 6 Zoom buttons 7 R button (shooting movies) 8 Mode dial 9 q button (switching between

shooting and playback)

10 Arrow pad INFO (changing information display)  (erase) 11 A button (OK) 12

 button

Attaching the camera strap

4 5

6 7 8

9 10 11

123

Pull the strap tight so that it does not come loose.

Monitor

Shooting mode display

29 28 27 26

877hPa877hPa 1200m1200m

25 24 23

ORM

Date

1720212219 1218 1516 14

3132

GPS

F3.3F3.31/1001/100

0:340:34

Shooting mode .......p. 17, 24

Landmark .....................p. 43

Flash .............................p. 20

Flash standby/Flash charge

0.00.0

AUTOWBAUTO

ISO

AUTO

....................................p. 59

Macro/super macro/

7 8

S-Macro LED ..............p. 29

Self-timer ......................p. 29

Exposure compensation

....................................p. 30

White balance ...............p. 30

ISO ...............................p. 31

Drive .............................p. 31

Image size (still images)

..............................p. 32, 66

Recording with sound

(movies)/ Wind noise reduction/

Recording Volume ......p. 40

Image size (movies)

..............................p. 40, 67

Recording length(movies)

....................................p. 18

Movie recording icon ....p. 18

GPS icon ......................p. 16



: Searching GPS signal



: Receiving GPS signal

Direction information

Metering .......................p. 37

Conversion Lens ....p. 38, 68

Date stamp ...................p. 39

Compression (still images)

..............................p. 36, 66

Number of storable still

pictures (still images)

....................................p. 17

Current memory ...........p. 65

Battery check ..........p. 13, 60

Histogram .....................p. 20

Atmospheric/

Hydraulic pressure ......p. 16

Altitude/Water depth .....p. 16

Image stabilization

(still images)................p. 37

World time ....................p. 51

AF target mark ..............p. 18

Aperture value ..............p. 18

Shutter speed ...............p. 18

Camera shake warning

Playback mode display

’12/02/26 12:30

2.02.01/10001/1000

100-0004

AUTOWBAUTOWB100

ISO 100

ISO

ORM

MAGICMAGIC

F3.3F3.3

1200m

877hpa877hpa

1200m

Playback mode display

● Standard display

4 75

1 1092 1

3D3D

1010

Still image

● Advanced display

2 3 4 65

Histogram .....................p. 20

Exposure compensation

....................................p. 30

Shadow Adjustment

Technology..................p. 36

White balance ...............p. 30

File number

10103D3D

877hpa877hpa

MAGICMAGIC

’12/02/26 12:30

1200m

F3.3F3.3

ISO

AUTOWBAUTOWB100

100

100-0004

ORM

4/304/30

12:30’12/02/26’12/02/26 12:30

4/304/30

1 Battery check ..........p. 13, 60

26 24

10 119

2.02.01/10001/1000

1312 15 16

2627

Compression (still images)

..............................p. 36, 66

Date and time .........p. 15, 50

Image size

..................p. 32, 40, 66, 67

Grouped image .............p. 34

27 28

Volume ...................p. 21, 46

2/0:340:12/0:34

0:1

Movie

1714

mode ..................p. 28

2 3D image ......................p. 35

3 Eye-Fi transferred .........p. 45

4 Protect ..........................p. 44

5 Adding sound ...............p. 42

6 Upload order .................p. 44

7 Print reservation/number of

18 19

20 21 22 23 24

prints ..................p. 57/p. 56

8 Landmark .....................p. 43

9 Current memory ...........p. 65

10 Frame number/total number

of images (still images)

....................................p. 21

Elapsed time/total shooting

time (movies) ..............p. 22

Direction information

Shutter speed ...............p. 18

Shooting mode .......p. 17, 24

Atmospheric/

Hydraulic pressure ......p. 16

ISO ...............................p. 31

Aperture value ..............p. 18

Altitude/Water depth .....p. 16

Camera Settings

Using the Buttons

Camera Settings

Using the Buttons

Frequently used functions can be accessed using the buttons.

Arrow pad

F (up) /INFO (changing information display) (p. 20, 23)

Shutter button (p. 18, 59)

Zoom buttons (p. 19, 23)

R button (shooting movies) (p. 18)

Mode dial (p. 17, 24)

q button (switching between shooting and playback) (p. 18, 21, 46)

 button (p. 9)

H (left)

G (down) /

 (erase) (p. 22, 44)

I (right)

A button

Operation guide

The symbols FGHI displayed for image selections and settings indicate that the arrow pad shown on the right is to be used.

YMDTime

02 26 12 30

2012

Operation guides displayed on the screen indicate that the  button, A button, or zoom buttons can be used.

Camera Menu 1

ResetReset

Compression Shadow Adjust Auto AF Mode ESP/ Digital Zoom Image Stabilizer

Back

:..

Y/M/D

Back

Normal

Face/iESP

ESP

Off

Back

Operation guide

4/30

Erase/Cancel

Operating the camera by tapping the body

You can operate the camera by tapping the body when [Tap Control] (p. 52) is [On].

Using the Menu

Function menu

Using the Menu

Use the menu to change camera settings.

There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).

Function menu

Press H during shooting to display the function menu. The function menu provides access to frequently used shooting settings.

Selected option

Program Auto

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

Shooting

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the A button to set the function menu.

Shooting mode

Function menu

Setup menu

Press the  button during shooting or playback to display the setup menu. The setup menu provides access to a variety of camera settings, including options not listed in the function menu, display options, and the time and date.

1 Press the  button.

● The setup menu is displayed.

Camera Menu 1

ResetReset Compression Shadow Adjust Auto AF Mode ESP/ Digital Zoom Image Stabilizer

2 Press H to select the page tabs. Use FG

to select the desired page tab and press I.

Page tab

Settings Menu 2 Back

English

File Name Reset

Pixel Mapping

10sec

Info Off TV Out Power SavePower Save

Off

Settings Menu 2 Back

File Name Reset Pixel Mapping

Info Off TV Out Power SavePower Save

Back

Normal

Face/iESP

Submenu 1

10sec

English

3 Use FG to select the desired submenu 1

and then press the A button.

Settings Menu 2 Back

File Name Reset

ESP

Off

Pixel Mapping

Off

Info Off

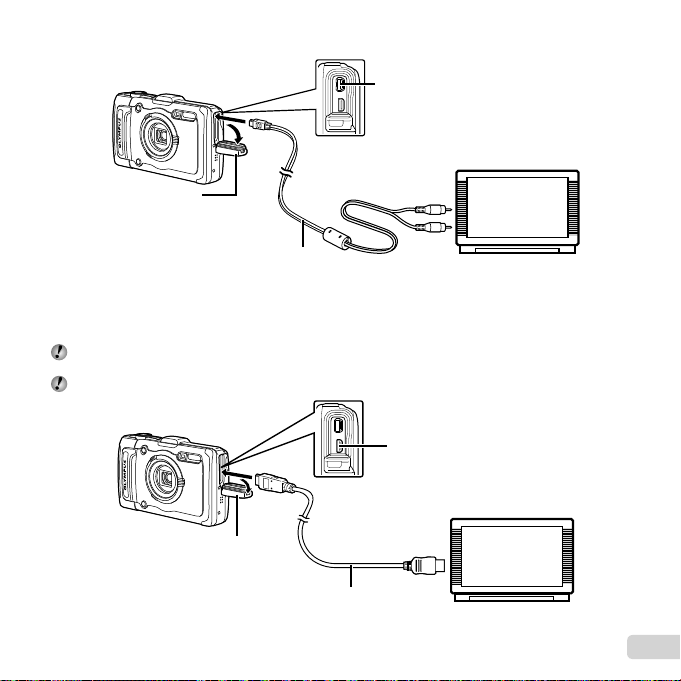

TV Out

Power SavePower Save

4 Use FG to select the desired submenu 2

and then press the A button.

● Once a setting is selected, the display returns to

the Submenu 1.

There may be additional operations. “Menu

Settings” (p. 36 to 54)

5 Press the  button to complete the

setting.

English

10sec

Off

Settings Menu 2 Back

Submenu 2

File Name Pixel Mapping

Info Off TV Out

Power SavePower Save

File Name Reset Pixel Mapping

Info Off TV Out

Power SavePower Save

Off

English

10sec

Menu Index

1 Shooting mode ...........p. 17, 24

(Program Auto)

(iAUTO)



(Low Light)



(Super Sport)



(Scene Mode)

(Magic Filter)

(Custom Mode 1)

(Custom Mode 2)

2 Flash .................................p. 20

3 Macro ...............................p. 29

4 Self-timer ..........................p. 29

5 Exposure compensation ...p. 30

6 White balance ...................p. 30

7 ISO ...................................p. 31

8 Drive .................................p. 31

9 Image Size .......................p. 32

0 z (Camera Menu 1) ........p. 36

Reset Compression Shadow Adjust AF Mode ESP/n Digital Zoom Image Stabilizer

Program Auto

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

a z (Camera Menu 2) ........p. 38

Accessory Settings AF Illuminat. Rec View Pic Orientation Icon Guide Date Stamp Super-Res Zoom

b A (Movie Menu) ..............p. 37

Image Size IS Movie Mode R (Movie sound recording) Wind Noise Reduction Recording Volume

c q (Playback Menu) ........p. 41

Slideshow Photo Surﬁ ng Edit Erase Print Order R (Protect) Upload Order

7 8

Camera Menu 1

ResetReset Compression Shadow Adjust Auto AF Mode ESP/ Digital Zoom Image Stabilizer

dd (Settings Menu 1) .......p. 45

Memory Format/Format Backup Eye-Fi Custom Mode Setup USB Connection q Power On Sound Settings

e d (Settings Menu 2) ......p. 47

File Name Pixel Mapping s (Monitor) Info Off TV Out Power Save l (Language)

f d (Settings Menu 3) ......p. 51

X (Date/time) World Time Reset Database Beauty Settings Tough Settings GPS Settings

Back

Normal

Face/iESP

ESP

Off

Preparing the Camera

Inserting the battery and card

Battery/card compartment lock

LOCK knob

Battery/card compartment cover

Battery lock knob

Write-protect switch

Insert the battery as illustrated with the C mark

toward the battery lock knob. Damage to the battery exterior (scratches, etc.) may

produce heat or an explosion.

Insert the battery while sliding the battery lock knob in

the direction of the arrow. Insert the card straight until it clicks into place. Turn off the camera before opening the battery/card

compartment cover. When using the camera, be sure to close and lock

the battery/card compartment cover. Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery. Always use SD/SDHC/SDXC cards or Eye-Fi card

with this camera. Do not insert other types of memory

cards. “Using the card” (p. 65) Do not touch the contact area of the card directly. This camera can be used without a card by storing

images in its internal memory.

“Number of storable pictures (still images)/Continuous

recording length (movies) in the internal memory and

cards” (p. 66, 67)

To remove the card

Connecting the camera

Indicator lamp

To remove the card

Connecting the camera

Connector cover

Connector cover lock

LOCK knob

Press the card in until it clicks and comes out slightly,

then remove the card.

Charging the battery with the included USB-AC adapter

The included F-2AC USB-AC adapter (hereafter

referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.

The included USB-AC adapter has been designed

to be used for charging and playback. Do not take pictures while the USB-AC adapter is connected to the camera.

Be sure to unplug the power plug of the USB-AC

adapter from the wall outlet when the charging is complete or the playback ends.

The battery can be charged while the camera is

connected to the computer. Charging time varies depending on the performance of a computer. (There may be cases in which it takes approx. 10 hours.)

AC outlet

Indicator lamp

Multi-connector

USB cable (supplied)

Indicator lamp On: Charging Off: Charged

The battery is not fully charged at shipment. Before

When to charge the batteries

Windows

use, be sure to charge the battery until the indicator lamp turns off (up to 4 hours).

If the indicator lamp does not light, the USB-AC

adapter is not connected to the camera correctly, or the battery, camera, or USB-AC adapter may be broken.

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red

Error message

Battery Empty

Installing the PC software and registering user

Installation of [ib] computer software using the

supplied CD is available on Windows computers only.

Windows

Insert the supplied CD in a CD-ROM drive.

Windows XP

● A “Setup” dialog will be displayed.

Windows Vista/Windows 7

● An Autorun dialog will be displayed. Click “OLYMPUS

Setup” to display the “Setup” dialog.

If the “Setup” dialog is not displayed, select “My

Computer” (Windows XP) or “Computer” (Windows

Vista/Windows 7) from the start menu. Double-click

the CD-ROM (OLYMPUS Setup) icon to open the

“OLYMPUS Setup” window and then double-click

“Launcher.exe”. If a “User Account Control” dialog is displayed, click

“Yes” or “Continue”.

●

Click the “Registration” button and follow the onscreen instructions.

To register the camera must be connected to the

computer. “Connecting the camera” (p. 12) If nothing is displayed on the camera screen even

after connecting the camera to the computer, the

battery may be exhausted. Charge the battery and

then connect the camera again.

Install OLYMPUS Viewer 2 and [ib] computer

software.

●

Check the system requirements before beginning installation.

● Click the “OLYMPUS Viewer 2” or “OLYMPUS ib”

button and follow the on-screen instructions to install the software.

OLYMPUS Viewer 2

Macintosh

Operating System

Processor

RAM Free Hard

Drive Space Monitor

Settings

[ib]

Operating System

Processor

RAM

Free Hard Drive Space

Monitor Settings

Graphics

* See online help for information on using the software.

Install the camera manual.

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

Pentium 4 1.3 GHz or better (Core 2 Duo

2.13 GHz or better required for movies) 1 GB or more (2 GB or more

recommended) 1 GB or more 1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000 colors recommended)

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

Pentium 4 1.3 GHz or better (Core 2 Duo 2.13 GHz or better required for movies)

512 MB or more (1 GB or more recommended) (1 GB or more required for movies — 2 GB or more recommended)

1 GB or more 1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000 colors recommended)

A minimum of 64 MB video RAM with DirectX 9 or later.

●

Click the “Camera Instruction Manual” button and follow the on-screen instructions.

Macintosh

Insert the supplied CD in a CD-ROM drive.

●

Double-click the CD (OLYMPUS Setup) icon on

the desktop.

● Double-click the “Setup” icon to display the “Setup” dialog.

Install OLYMPUS Viewer 2.

●

Check the system requirements before beginning

installation.

● Click the “OLYMPUS Viewer 2” button and follow

the on-screen instructions to install the software.

You can register via “Registration” in OLYMPUS

Viewer 2 “Help”.

OLYMPUS Viewer 2

Operating System

Processor Intel Core Solo/Duo 1.5 GHz or better RAM Free Hard

Drive Space Monitor

Settings

Other languages can be selected from the language combo

box. For information on using the software, see online help.

Copy the camera manual.

Mac OS X v10.4.11–v10.7

1 GB or more (2 GB or more recommended) 1 GB or more 1024 × 768 pixels or more

Minimum 32,000 colors (16,770,000 colors recommended)

● Click the “Camera Instruction Manual” button to open

the folder containing the camera manuals. Copy the

manual for your language to the computer.

Language, date, time, and time zone

Updating A-GPS Data

You can also choose the language for the menus and messages displayed in the monitor. The date and time set here are saved to image ﬁ le names, date prints, and other data.

Press the n button to turn on the

camera, use FGHI to select your language and press the A button.

The menus can be used to change the selected

language. [l] (p. 50)

Use FG to select the year for [Y].

Press I to save the setting for [Y].

As in Steps 2 and 3, use FGHI to set

[M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the A button.

For precise time setting, press the A button as the

time signal strikes 00 seconds.

To change the date and time, adjust the setting from

the menu. [X] (Date/time) (p. 50)

Y M D Time

2012

-- --

Date and time setting screen

YMDTime

2012

-- --

Back

:..

Y/M/D

Back

:..

Y/M/D

Use HI to select the [x] time zone and

then press the A button.

Use FG to turn daylight saving time ([Summer])

●

on or off.

The menus can be used to change the selected time

zone. [World Time] (p. 51)

’12.02.26 12:30

Seoul Tokyo

Summer

Before Using GPS

The camera’s GPS (Global Positioning System) feature determines your position (latitude and longitude) and stores this information with pictures taken with the camera. The camera uses supplementary orbital data (assisted GPS or A-GPS) for improved signal acquisition. A-GPS data must be updated every 14 days. Before using GPS, you will need to set the camera clock to the correct date and time. (p. 15)

Updating A-GPS Data

Install the update software (OLYMPUS A-GPS

Utility).

●

Download the update software from the following website and install it on your computer. http://sdl.olympus-imaging.com/agps/

Connect the camera to the computer and

launch the update software.

“Connecting the camera” (p. 12)

Once the software has started, follow the on-screen

instructions.

Using GPS

Select [On] for [GPS Settings] > [GPS] in the

d (Settings Menu 3) tab. “Setup menu” (p. 9)

●

Once the camera has determined the position,  and location coordinates will appear in the display.

GPS

ORM



Blink: Searching GPS signal



Light: Receiving GPS signal

The camera may take a few minutes to determine

position after a period of disuse. If the icon is still ﬂ ashing after several minutes, the camera is probably having difﬁ culty detecting a signal. Move to an unobstructed outdoor area or otherwise change your location.

Press and hold  button in the shooting

or playback display.

Your location will be displayed in the monitor.

●

● Nearby landmarks in the GPS database will be

displayed.

1 2

---------

Updated 1 min ago

Update GPS

Back

Latitude/Longitude

N123°56' 78'' E123°56' 78''

Barometer

877hpa

Altitude/Water Depth

1200m

2012/02/26

00:00

1 Landmark name 2 Landmark information

position

3 Electronic compass 4 Update status 5 GPS tracking active

FGHI

0.00.0

AUTOWBAUTO

ISO

AUTO

0:340:34

LOG

6 7 8 9 0

Select a landmark. Update GPS data.

Some countries or regions may regulate the use of

GPS devices. Follow all local regulations.

Turn GPS off when on board aircraft and in other

locations in which the use of GPS devices is prohibited.

The provision of A-GPS data may be terminated

without prior notice.

Position data may be unavailable or contain errors in

the following locations:

● Locations without a clear view of the sky (indoors,

underground or underwater, or near trees or tall

buildings)

● Locations subject to strong magnetic or radio

interference (near high-voltage power lines,

magnets, electronic devices, or cell phones

operating in the 1.5 GHz band)

GPS data may take more time acquire or be

unavailable in some locations or at certain times of day.

Do not cover the GPS antenna with your hands or

metal objects.

If the battery is low, the camera cannot acquire GPS

data while the camera turns off.

The camera is not equipped for GPS navigation. While [Track] is [On], the GPS receiver will continue

to draw power from the battery when the camera is off.

GPS data are not recorded with movies. Press the INFO button while the camera is turned

off. The current time and the shooting location are displayed for approx. 30 seconds.

6 Latitude 7 Longitude

8 Atmospheric/

Hydraulic pressure 9 Altitude/Water depth 0 Current date and time

Shooting, Playback, and Erasing

Shooting with the optimum aperture

mode indicator

ORM

mode)

0:340:34

value and shutter speed (

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

The default settings of the function are highlighted in

Set the mode dial to P.

Press the n button to turn on the

camera.

Number of storable still pictures (p. 66)

Monitor (standby mode screen)

Hold the camera and compose the shot.

Monitor

Horizontal grip

Vertical grip

When holding the camera, take care not to cover the

ﬂ ash and microphone with your ﬁ ngers, etc.

Press and hold A button to brighten the monitor

when there is difﬁ culty in seeing the monitor. The

0.00.0

monitor brightness returns to the default setting if no

AUTOWBAUTO

operations are performed for 10 seconds.

ISO

AUTO

To view images during shooting

To turn off the camera

Press the shutter button halfway down to

focus on the subject.

●

When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

● The camera was unable to focus if the AF target

mark ﬂ ashes red. Try focusing again.

AF target mark

Press halfway

Shutter speed

“Focusing” (p. 61)

To take the picture, gently press the shutter

button all the way down while being careful not to shake the camera.

Press fully

F3.3F3.31/4001/400

Aperture value

Image review screen

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the q button or press the shutter button halfway down.

To turn off the camera

Press the n button again.

Shooting movies

Press the R button to start recording.

0:340:34

RECREC

0:00

Lights up red

when recording

The effects of the set shooting mode can be used

when shooting movies. When the set shooting mode is  (some modes) or P (some modes), shooting is performed in P mode.

Sound will also be recorded.

Press the R button again to stop recording.

RECREC

0:000:00

Recording time

0:340:34

Continuous recording length (p. 67)

Using the zoom

To take larger images [Super-Res Zoom] (p. 40), [Digital Zoom] (p. 37)

Pressing the zoom buttons adjusts the shooting range.

W side T side

Optical zoom:

Image size Zoom bar

12M/16:9L

Optical zoom range

Zoom bar

44 44

Optical zoom: 4×

Super-resolution zoom: 2× Digital zoom: 4×

To take larger images [Super-Res Zoom] (p. 40), [Digital Zoom] (p. 37)

The type and amount of zoom can be identiﬁ ed from

the appearance of the zoom bar. The display differs depending on the options selected for [Super-Res Zoom] (p. 40), [Digital Zoom] (p. 37) and [Image Size] (p. 32).

4.94.9

ORM

0:340:34

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

8.08.0

ORM

Other

[On] selected for [Super-Res Zoom]:

0.00.0

AUTOWBAUTO

Image size Zoom bar

ISO

AUTO

0:340:34

12M

The magniﬁ cation ratio changes depending on the image size setting.

Super-resolution zoom range

[On] selected for [Digital Zoom]:

Image size Zoom bar

12M/16:9L

Other

If [Image Size] is less than the full resolution, after

reaching the maximum optical zoom, the camera will automatically resize and crop the image to the selected [Image Size], then enter the digital zoom range if [Digital Zoom] is [On].

Photographs taken with the zoom bar displayed in

red may appear “grainy.”

The magniﬁ cation ratio changes depending on the image size setting.

Digital zoom range

Using the ﬂ ash

0.00.0

AUTOWBAUTO

AUTO

ISO AUTO

ISO

ORM

0:340:34

Date

GPS

0.00.0

AUTOWBAUTO

AUTO

ISO AUTO

ISO

ORM

0:340:34

Date

GPS

Reading a histogram

The ﬂ ash functions can be selected to best match the shooting conditions.

Select the ﬂ ash option in the function menu.

Flash Auto

Use HI to select the setting option, and

press the A button to set.

Option Description

Flash Auto

Redeye

Fill In

Flash Off Flash Off Remote Control For details, see “Taking pictures with

Slave

[Remote Control] and [Slave] are not displayed when

[Remote Flash] (p. 38) is set to [Off].

The ﬂ ash ﬁ res automatically in low- light or backlight conditions.

Pre-ﬂ ashes are emitted to reduce the occurrence of red eye in your photos.

The ﬂ ash ﬁ res regardless of the available light.

the Olympus Wireless RC Flash System” (p. 67).

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

Press F (INFO).

●

0.00.0

AUTOWBAUTO

ISO

AUTO

12M

MENUMENU

The displayed shooting information changes in the order shown below each time the button is pressed.

Normal

No information

Detailed

Reading a histogram

If the peak ﬁ lls too much of the frame, the image will appear mostly white.

If the peak ﬁ lls too much of the frame, the image will appear mostly black.

The green section shows luminance distribution within the screen’s center.

To play sound recordings

To play back movies

Viewing images

Press the q button.

Number of frames/

Total number of images

4/30

To play sound recordings

To play sound recorded with an image, select the image and press the A button.

Pictures taken using V mode are displayed as a

group. Press the T button to play back the image in the group.

Use HI to select an image.

Displays previous


Hold I to fast forward and hold H to reverse. The display size of the images can be changed.

“Index view and close-up view” (p. 23)

Playback image

Displays next image

12:30’12/02/26’12/02/26 12:30

Press FG to adjust volume.

To play back movies

Select a movie, and press the A button.

Pausing and

restarting playback

Fast forward

Rewind

Adjusting the

volume

During audio playback

Movie

’12/02/26 12:30’12/02/26 12:30

Movie PlayMovie Play

Press the A button to pause playback. During pause, fast forward or reverse, press the A button to restart playback.

Press I to fast forward. Press I again to increase the fast forward speed.

Press H to rewind. The speed at which the recording rewinds increases each time H is pressed.

Use FG to adjust the volume.

4/30

Operations while playback is paused

To stop movie playback

Operations while playback is paused

Elapsed time/

Total shooting time

Cueing

Advancing and

rewinding one

frame at a time

Resuming

playback

To stop movie playback

Press the  button.

To play back movies on the computer, the included

PC software is recommended. For the ﬁ rst use of the PC software, connect the camera to the computer, then launch the software.

Use F to display the ﬁ rst frame and press G to display the last frame.

Press I or H to advance or rewind one frame at a time. Hold I or H pressed for continuous advance or rewind.

Press the A button to resume playback.

During pause

0:14/0:340:14/0:34

Erasing images during playback (Single image erase)

Display the image you want to erase and

press G ().

Press FG to select [Erase], and press the

A button.

Multiple images or all images can be erased at a time

(p. 44).

Erase Back

Erase

Cancel

4/304/30

Index view and close-up view

To select an image in index view

To scroll an image in close-up view

To stop photo surﬁ ng

Index view enables quick selection of a desired image. Close-up view (up to 10× magniﬁ cation) allows checking of image details.

Press the zoom buttons.

Single-image view Close-up view

4/30

Changing the image information display

Shooting information settings displayed on the screen can be changed.

Press F (INFO).

●

The displayed image information changes in the order shown below each time the button is pressed.

Normal

3D3D

4/30

4/304/30

1010

12:30’12/02/26’12/02/ 2 6 12:30

’12/02/26’12/02/26 12:30

12:30

Index view Photo Surﬁ ng

’12/02/26 12:30

To select an image in index view

Use FGHI to select an image, and press the A button to display the selected image in single-image view.

To scroll an image in close-up view

Use FGHI to move the viewing area.

To stop photo surﬁ ng

Use FG to select [ALL], and press the A button.

ALLALL

2012/

2012/ 02/26

02/26

35ºN

139ºE

Detailed

’12/02/26’12/02/26 12:3012:30

10103D3D

877hpa877hpa

MAGICMAGIC

ISO

100

12M

’12/02/26 12:30

No information

4/304/30

1200m

2.02.01/10001/1000

F3.3F3.3

AUTOWBAUTOWB100

100-0004

ORM

MENUMENU

12M

Portrait

To change the shooting mode

Using Shooting Modes

To change the shooting mode

The shooting mode (P, M, , , , P,

C1, C2) can be changed by rotating the mode dial. “Mode dial” (p. 6)

Shooting with automatic settings

mode)

(

The camera will automatically select the optimal shooting mode for the scene. The shooting condition is decided by the camera and settings cannot be changed, excepting some functions.

Set the shooting mode to M.

The icon changes depending on the scene that the camera automatically selects

ORM

In some cases, the camera may not select the

desired shooting mode.

When the camera cannot identify the optimal mode,

P mode will be selected.

Taking pictures under low light ( Low Light)

Use  (low light) mode to take pictures under low light without a tripod.

Rotate the mode dial to .

Shooting with Super Sport mode ( Super Sport)

In the  (Super Sport) mode, you can shoot the fastmoving objects such as sports.

Rotate the mode dial to .

Using the best mode for the shooting



scene (

12M

Set the shooting mode to .

0:340:34

Use HI to select the mode and then press

the A button to set.

mode)

Icon indicating the scene mode that is set

In  modes, the optimum shooting settings

To take photos with the

(Beauty) setting

are pre-programmed for speciﬁ c shooting scenes. Functions may be limited in some modes.

Option Application

B Portrait/

V Beauty/

G Night Scene*1/M Night+Portrait*1/ N Indoor/W Candle S

Sunset

d Documents/q Beach & Snow/

M Snapshot/k Wide1/l Wide2/ H Macro/U Pet Mode - Cat/ t Pet Mode - Dog/a Snow/

Panorama/ 3D Photo/

 Backlight HDR

When the subject is dark or when taking ﬁ reworks,

noise reduction is automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.

When set to [ Backlight HDR], [Image Size] (p. 32)

is limited to [n] or lower. This is recommended for shooting a ﬁ xed subject.

To take photos with the VV

Depending on the picture, the editing may not be

effective.

1 Select [V Beauty]. 2 Press G to go to the submenu.

3 Use HI to select the retouching setting, and press

the Q button to set.

F Landscape/

/R Self Portrait/

/X Fireworks*1/V Cuisine/

Recommended

The camera takes a picture using the optimum settings for the scene conditions.

(Beauty) setting

ORM

● [Set 1], [Set 2] or [Set 3] retouches the image

according to the Beauty Settings. [Beauty Settings] (p. 51)

4 Point the camera toward the subject. Check the

frameappearing around the face detected by the camera, and then press the shutter button to take the picture.

The unedited image and edited image are both

saved.

If the image cannot be retouched, only the unedited

image is saved.

The [Image Size] (p. 32) of the retouched image is

limited to [n] or lower.

5 Select [OK] or [Beauty Fix] on the review screen, and

press the Q button to save or to retouch the image additionally.

Beauty Fix

1 Use FGHI to select a retouching item, and

MENUMENU

press the Q button.

Back

Eye Color Back

Retouching setting

Beauty Fix

Off

0:340:34

2 Check the retouched effects on the review screen,

To take underwater photos

To lock the focus distance for underwater shoots (AF lock)

To take pictures of your pet’s face, select ([([UU Pet Mode - Cat]/[

Pet Mode - Dog])

To take panoramic photos ([

Panorama])

then press the Q button to start the retouch process and save.

● Settings for Beauty Fix can be registered.

To take underwater photos

Select [M Snapshot], [k Wide1], [l Wide2]*1, [H Macro].

When set to [l Wide2], the focus distance is automatically ﬁ xed to approx. 5.0 m (16.4 ft.).

“Important information about water and shock

resistant features” (p. 69)

To lock the focus distance for underwater shoots (AF lock)

When [M Snapshot], [k Wide1], or, [H Macro] is selected, press the A button.

AF lock mark

To cancel, press the A button again to clear the AF

lock mark.

To take pictures of your pet’s face, select

Pet Mode - Cat]/[tt

Use HI to select [U] or [t] and press the A button to set.

● [Auto Release] is automatically selected, and when

the subject’s face is recognized, the picture is taken automatically.

● To cancel [Auto Release], see “Using the self-timer”

(p. 29).

AF LOCKAF LOCK

ORM

Pet Mode - Dog])

0:340:34

To take panoramic photos ([~~

1 Use HI to select [Auto], [Manual] or [PC], and press

the Q button to set.

Submenu 1 Application

Auto

Manual

For details on installing the PC software, see

When set to [Auto] or [Manual], [Image Size]

0.00.0

The focus, exposure, zoom position (p. 19), and white

The ﬂ ash (p. 20) is ﬁ xed to $ (Flash Off) mode.

Taking pictures with [Auto]

1 Press the shutter button to take the ﬁ rst frame. 2 Move the camera slightly in the direction of the second

frame.

Three frames are taken and combined by the camera. The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.

Three frames are taken and combined by the camera. The user composes the shots using the guide frame and manually releases the shutter.

The frames that were taken are combined into a panorama image using the PC software.

“Installing the PC software and registering user” (p. 13).

(p. 32) is ﬁ xed to 2MB or equivalent.

balance (p. 30) are locked at the ﬁ rst frame.

Target mark

Pointer

Cancel

Screen when combining images

Panorama])

MENU OK

from left to right

AUTOAUTO

Save

3 Move the camera slowly while keeping it straight, and

Shooting 3D images

stop the camera where the pointer and target mark overlap.

● The camera releases the shutter automatically.

To combine only two pictures, press the A button

before taking a third frame.

4 Repeat Step 3 to take a third frame.

● After the third frame is taken, the camera

automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an

image, press the  button.

If the shutter does not automatically release, try

[Manual] or [PC].

Taking pictures with [Manual]

1 Use FGHI to specify at which edge the next

picture is to be connected.

Direction for combining

the next frame

2 Press the shutter button to take the ﬁ rst frame. The

white-boxed part of the ﬁ rst frame is displayed on joint area 1.

MANUALMANUAL

1 212

1st frame

Cancel

MANUALMANUAL

Save

3 Compose the next shot so that joint area 1 overlaps

joint area 2.

4 Press the shutter button to take the next shot.

Press the A button to combine just 2 frames.

5 Repeat steps 3 and 4 to take a third frame.

● After the third frame is taken, the camera

automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an

image, press the  button.

Taking pictures with [PC]

1 Use FGHI to select the direction that the frames

are combined.

2 Press the shutter button to take the ﬁ rst frame, and

then point the camera for the second frame. The shooting procedure is same as that of [Manual].

Panorama shooting is possible for up to 10 frames.

3 Repeat Step 2 until the number of desired frames is

taken, and then press the A button or  button when ﬁ nished.

Refer to the PC software help guide for details on

how to make panorama images.

Shooting 3D images

In this mode, 3D images are shot for viewing on 3D-compatible display devices.

Images shot in 3D mode cannot be displayed in 3D

on this camera’s monitor.

1 Use HI to select [Auto] or [Manual] and then press

MANUALMANUAL

the A button to set.

Submenu 1 Description

Auto

Manual

The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.

After shooting the ﬁ rst frame, move the camera to overlap the subject with the image in the monitor. Then manually release the shutter.

+ 62 hidden pages

Olympus TG-1 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Names of Parts

Camera Settings

Preparing the Camera

Shooting, Playback, and Erasing

Using Shooting Modes
