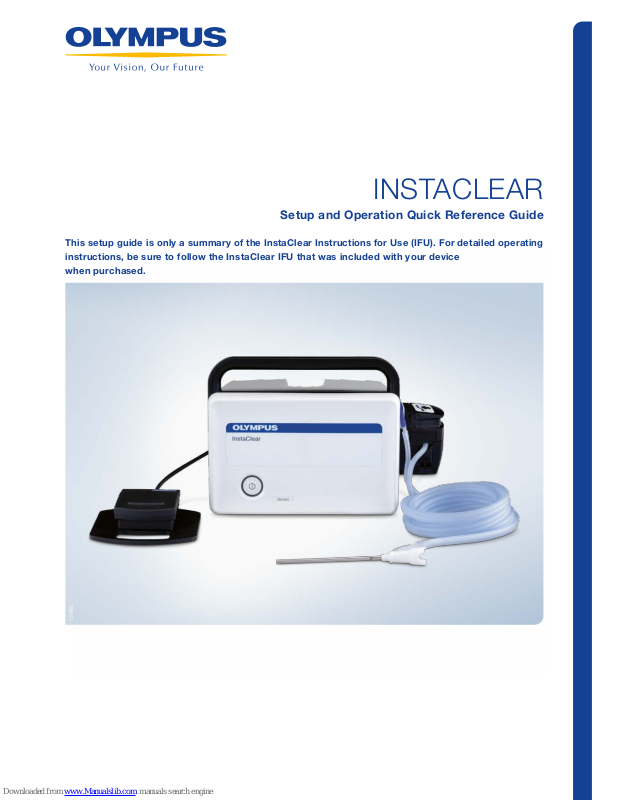

Olympus InstaClear Quick Reference Manual

INSTACLEAR

Setup and Operation Quick Reference Guide

This setup guide is only a summary of the InstaClear Instructions for Use (IFU). For detailed operating
instructions, be sure to follow the InstaClear IFU that was included with your device
when purchased.

15460

1 | Setup

2 | Power-Cord Attachment

3 | Power On

Setup with Suction Module Setup without Suction Module

Ensure the console is properly assembled onto an IV pole before use. To reduce the risk of tipping and possible equipment
damage, always follow the recommended height guidelines shown above.

The power cord needs to be attached to the back of the unit
and to a grounded wall outlet.

Turn the InstaClear system on by pressing the power button
at the lower left corner on the front of the console. The
power switch will illuminate.

15461

1.57 m
maximum

1.3 m
maximum

Attach power cord

Turn the
Console On

15455

1545715448
