Olympus D-370, C-100 User Manual

Download

DIGITAL CAMERA

C-100

CAMERA

OPERATION

D-370

OPERATION MANUAL

● Thank you for purchasing an Olympus digital camera.

● Please read this manual carefully before using your camera. We recommend

that you check that your camera is functioning correctly by taking a number

of test shots.

INTRODUCTION

This manual explains the correct operating procedures for your camera.

Read it carefully and keep it in a safe place for future reference.

ABOUT THIS MANUAL

● The contents of this publication are subject to change without notice. For

the latest information, contact Olympus representative.

● Considerable care was taken in preparing this manual. If, however, you

have any questions or note any errors or omissions, please contact

Olympus representative.

● Duplication of this manual, in whole or in part, other than for personal

use, without the prior permission of Olympus is prohibited. Reproduction

without permission is strictly prohibited.

● Olympus assumes no liability for any damages, loss of profit or claims by

a third party arising from inappropriate use of this product.

● Olympus assumes no liability for any damages, loss of profit, etc. arising

from loss of image data due to repairs by a third party not approved by

Olympus, or any other cause.

● The quality of images recorded with this camera differs from the quality of

photographs taken with an ordinary film-type camera.

TRADEMARKS

All brand names and product names mentioned in this manual are

trademarks and/or registered trademarks of their respective owners.

ABOUT THE CAMERA FILE SYSTEM

The camera file system is the DCF (Design rule for Camera File) system

established by the Japan Electronics and Information Technology Industries

Association (JEITA).

INDEX

CONTENTS 4

PREPARATIONS 7

TAKING PICTURES 22

PLAYING BACK PICTURES 45

OTHER FUNCTIONS 56

PREPARA–

TIONS

PICTURES

TAKING

PLAYINGBACK

PICTURES

FUNCTIONS

OTHER

TROUBLESHOOTING 71

SHOOTING

TROUBLE–

★

This symbol indicates pages recommended for reading by first-time users.

Introduction .......................................................................................... 2

Index .................................................................................................... 3

Contents .............................................................................................. 4

PREPARATIONS 7

Names of parts ★ ............................................................................... 7

Monitor display ..................................................................................... 9

Attaching the strap ★ ........................................................................ 11

Loading the batteries

Choosing a battery ............................................................................ 13

Using the AC adapter (optional) ........................................................ 15

Using a SmartMedia card (optional) .................................................. 16

Turning the camera on/off ★ ............................................................. 18

Menu screen flow ............................................................................... 19

Adjusting the date and time ★ .......................................................... 20

★ .................................................................... 12

TAKING PICTURES 22

Holding the camera ★ ...................................................................... 22

Taking pictures

Using the flash

Using the flash for optimum effect ..................................................... 28

Macro mode ★ ................................................................................. 30

Selftimer ............................................................................................ 31

Digital Tele mode ............................................................................... 33

Sequence mode ................................................................................ 34

Exposure compensation .................................................................... 36

Spot metering mode .......................................................................... 38

White Balance ................................................................................... 39

Image quality ..................................................................................... 41

Panorama mode ................................................................................ 43

★ .............................................................................. 23

★ .............................................................................. 26

CONTENTS

PLAYING BACK PICTURES 45

Playing back an image ★ ................................................................. 45

Index playback ................................................................................... 46

Auto playback .................................................................................... 48

Close-up playback ............................................................................. 49

Erasing an image ★ .......................................................................... 50

Erasing all images ............................................................................. 51

Protecting important images ★ ......................................................... 52

Creating monochrome/sepia images ................................................. 53

Resizing ............................................................................................. 54

Rotating ............................................................................................. 55

OTHER FUNCTIONS 56

Movie mode ....................................................................................... 56

Rec view ............................................................................................ 61

Beep sound ....................................................................................... 62

Displaying image information ............................................................. 63

Adjusting the monitor brightness ....................................................... 64

Card format/Memory setup ................................................................ 65

Memory back-up ................................................................................ 67

Print service ....................................................................................... 68

TROUBLESHOOTING 71

Error messages ................................................................................. 71

Problems ............................................................................................ 72

Specifications .................................................................................... 76

Index .................................................................................................. 78

CONTENTS

●About symbols used in this manual

Indicates important precautions that may lead to failure or

Caution

Note

trouble and operations that should be absolutely avoided.

Indicates items that it is useful to know for effective use of the camera.

Indicates the reference pages in this manual.

Indicates pages recommended for first-time users.

★

NAMES OF PARTS

● Shutter button

● Lens barrier

Turns Record mode ON/OFF

● Macro lever

● Lens

● Flash

● DC-IN jack

● Connector

cover

● USB connector

PREPARA–

TIONS

● Selftimer lamp

NAMES OF PARTS

● Viewfinder

PREPARA–

TIONS

● Monitor

● Tripod socket

●

Use to turn Play mode ON/OFF

(Monitor) button

● Target mark

● Green lamp

● Strap eyelet

●

(OK/Menu) button

● Card cover

● Battery

compartment cover

(Arrow pad)

MONITOR DISPLAY

RECORD MODE SCREEN

1 Battery status 2 Exposure compensation 3 Flash 4 Drive 5 Spot metering 6 White balance

7 Memory gauge

8 Internal memory

No. of recordable images/Recordable time

Item Indication

1 Battery status P.10

Exposure compensation

3 Flash

4 Drive

+1.5, +2.0, –1.5, –2.0 P. 36

5 Spot metering P. 3 8

6 White balance

7 Memory gauge P.9

8 Internal memory P. 9

No. of recordable images/

Recordable time

12 (frames), 12"(seconds) –

0 Digital tele 1.6×, 2.0×, 3.2×, 4.0× P. 3 3

A Image quality SHQ, HQ, SQ1, SQ2 P. 41

0 Digital tele

Image quality

Ref. Page

P. 31, 34, 56

P. 2 6

P. 3 9

PREPARA–

TIONS

Note

• is displayed when the internal memory is used. When you

• Memory gauge changes automatically to indicate whether the

Memory Gauge

Before shooting

(goes off)

use a card, is not displayed.

camera is ready for taking pictures or the camera is recording pictures taken.

Shoot

Wait

Recording

(lights)

Shoot

Wait

Cannot shoot

(lights completely)

MONITOR DISPLAY

PLAY MODE SCREEN

3 Moving image/Print service

1 Battery status 2 Protect

PREPARA–

TIONS

Item Indication

1 Battery status P. 1 0

2 Protect P. 5 2

Moving image/Print service

P.56, 68

4 Image quality SHQ, HQ, SQ1, SQ2 P. 41

Exposure compensation

6 White balance

+1.5, +2.0, –1.5, –2.0 P. 36

7 File name 100-0012 –

8 Date/Time ’01. 1. 1 12:00 P. 20

9 Frame no./Recording time

12 (frames), 12" (seconds)

0 Internal memory

4 Image quality

5 Exposure compensation 6 White balance

7 File name 8 Date/Time 9 Frame no./Recording time 0 Internal memory

Ref. Page

P. 3 9

–

P. 9

Note

Battery status

Lit (green)

Adequate power remaining

For details on how to display image information, see “Displaying image information” (

p.63).

No display

Blinking (red)

Batteries are running low. Replace with new batteries.

(Green lamp is blinking)

Batteries are completely exhausted. Replace with new batteries.

ATTACHING THE STRAP

Pass the short end of

the strap through the

eyelet.

Pass the long end of

the strap through the

loop.

Pull tight and check

that the strap is

securely attached.

Strap eyelet

PREPARA–

TIONS

Caution

Make sure that the strap is securely attached. If the strap is attached incorrectly and the camera comes loose and falls off, Olympus will not be responsible for any damage.

LOADING THE BATTERIES

Check that the lens barrier is closed and both the

monitor and the green lamp are off.

Push the battery compartment

cover toward A and pull up in the direction of B.

PREPARA–

TIONS

Insert the batteries as shown,

making sure that they are

correctly oriented.

Pull down the battery

compartment cover in the direction of C and close

firmly by pressing the

mark in the direction

of D.

Note

• If the battery compartment cover is difficult to close, press on the thumbs without applying unreasonable force.

• If the camera is left without batteries for about one hour, all the settings will be reset to the default settings.

• When powering the camera by batteries, if the batteries start to run low, the red battery status will be displayed. When the batteries are close to exhaustion, the LCD monitor turns off and the green lamp blinks.

mark and [OPEN] mark on the cover with your both

CHOOSING A BATTERY

LITHIUM BATTERY PACKS

CR-V3 lithium battery packs are long

lasting batteries that are especially

useful on trips.

(CR-V3 lithium battery packs cannot be

recharged.)

RECHARGEABLE BATTERIES

Nickel metal hydride (NiMH)

batteries are economical and can

be recharged for repeated use.

NiMH batteries are not easily

affected by cold temperatures and

are suitable for cold regions.

ALKALINE BATTERIES

The R6/AA alkaline batteries used by this camera are easily obtainable.

The number of recordable images varies depending on the brand of battery

and the conditions of use. Turn the monitor off whenever possible to save

the batteries.

PREPARA–

TIONS

CHOOSING A BATTERY

PREPARA–

TIONS

Caution

• Do not use manganese batteries.

• Do not use the following batteries:

● Batteries whose insulating cover is not completely intact.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

● Batteries whose (–) terminal protrudes but has no insulating cover.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

● Batteries whose (–) terminal is flat. (Do not use such batteries, regardless of whether the insulating cover is intact or not.)

USING THE AC ADAPTER (OPTIONAL)

The optional Olympus CAMEDIA AC

adapter (C-7AU, 6V) enables you to

power the camera from a household

electrical outlet.

• If you use batteries to power the camera while the camera is

Caution

turned on for long periods of time (such as when downloading images to a computer), the batteries may run out, resulting in loss of image data. Olympus recommends that you use an AC adapter when the camera will be turned on for long periods of time.

• Do not connect or disconnect the AC adapter when the camera is turned on as this may affect the camera settings.

• Never connect or disconnect the AC adapter while the green lamp is blinking.

Camera

AC adapter

Power source

PREPARA–

TIONS

USING A SMARTMEDIA CARD (OPTIONAL)

A SmartMedia card should be used if you need to store a large number of

pictures. This camera only accepts SmartMedia removable memory. If you

insert a SmartMedia card, the image will be stored on the card and you can

playback the image with the card. If you remove the card from the camera,

the image will be stored on the internal memory and you can playback the

image with the internal memory.

PREPARA–

TIONS

Make sure that the lens barrier

is closed and both the

monitor and the green lamp

are off.

Open the card cover.

Insert the SmartMedia card

correctly as shown.

There is a mark showing the correct

orientation of the card on the inside

of the card cover.

To remove the card, grasp it with your

fingertips and pull it out in the

direction shown.

Card orientation mark

Close the card cover until it

clicks.

Note

Non-Olympus or non-Lexar cards, or cards formatted on other equipment, such as a PC, may not be recognized by the camera. Format the card with the camera before using it. See “Card format/Memory setup” ( p.65).

USING A SMARTMEDIA CARD (OPTIONAL)

PREPARA–

TIONS

Caution

Approx. number of recordable images

Card memory capacity

Internal memory Approx. 1 3 4 7

• Never open the card cover or remove the SmartMedia card or batteries when the camera is turned on. The data on the card may be lost, and once lost, it cannot be restored.

• The SmartMedia card is a precision instrument. Do not subject it to unreasonable force or impact. Do not touch the gold-colored metal area of the card.

• Some of the camera function are ignored if a write-protect seal is affixed to the SmartMedia card. When you use these functions, remove the seal from the card.

Write-protect seal

Image quality

4MB 6 12 16 29

8MB 12 24 33 58

16MB 25 49 66 110

32MB 51 99 132 221

64MB 102 199 265 442

128MB 204 399 532 887

SHQ HQ SQ1 SQ2

TURNING THE CAMERA ON/OFF

WHEN TAKING PICTURES

Turning the camera on.... Open the lens barrier.

Turning the camera off ... Close the lens barrier.

Camera turns on

PREPARA–

TIONS

The camera will turn on in Record mode.

The camera will turn off.

Camera turns off

Note

• When the lens barrier is opened with no card inserted, “NO CARD” will be displayed on the monitor. This is not a malfunction. Use the internal memory of the camera to take pictures.

• The camera’s mode will change to power save mode if you do not carry out any operation for 3 minutes. To take pictures, turn the camera on.

WHEN PLAYING BACK PICTURES

Turning the monitor on... Press the button with the lens barrier

Turning the monitor off... Press the

Camera with the lens barrier closed

Note

The camera’s mode will change to power save mode if you do not carry out any operation for 3 minutes. To play back pictures, turn the camera on.

closed.

The camera will turn on in Play mode and the monitor will turn on.

The camera and the monitor will turn off.

Monitor turns on

lights up goes off

button.

Monitor turns off

MENU SCREEN FLOW

Displaying menu

●

Select the menu using the (arrow pad).

● ●

• The selected menu will be focused and

the v/u mark will be displayed on the

menu bar. Press the the corresponding direction of the v/u

mark.

• The buttons operable on the camera are

displayed below the menu.

/ buttons in

PREPARA–

TIONS

Note

• Some parts of the menu are displayed differently in Record mode and Play mode.

• The current setting of each menu is displayed in the bracket at the right side of its respective menu bar.

• Some of the menu will not be focused depending on the settings or whether a card is inserted or not. This is not a malfunction.

• When the Shutter button is pressed while the menu is displayed, the picture will be taken with the currently displayed (selected) menu settings.

ADJUSTING THE DATE AND TIME

Press the button.

The monitor will turn on.

Press the button.

The Play menu will be displayed.

PREPARA–

TIONS

Select [SETUP] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select the date format [Y-M-D

(Year-Month-Day), M-D-Y

(Month-Day-Year) or D-M-Y

(Day-Month-Year)] using the

/ buttons, and press

the button.

The date adjustment screen will be

displayed.

Set the first item using the

/ buttons and press the

button.

Move to the next item.

ADJUSTING THE DATE AND TIME

Repeat until the date and time

settings are adjusted.

Press the button when the

clock shows 00 seconds.

Setting of the date and time is

completed.

Press the button again.

The date and time adjustment menu

will be completed.

Press the button.

The monitor will turn off.

Caution

Note

The date and time settings will be erased or become incorrect if the camera is left without batteries or the batteries are exhausted. Make sure that the date and time settings are correct before taking an important picture.

The date and time can be adjusted both in Record mode and Play mode using the same procedure.

PREPARA–

TIONS

HOLDING THE CAMERA

Hold the camera firmly with both hands while keeping your elbows at your

sides.

To take vertical pictures, hold the camera as shown and press the Shutter

button gently.

Horizontal position

PICTURES

TAKING

Incorrect way to hold camera

Keep your fingers and the strap away from the lens and flash.

Note

To avoid blurred pictures, do not move the camera when pressing the Shutter button. Hold the camera firmly and press the Shutter button gently.

Vertical position

TAKING PICTURES

When you take a picture, the image is stored in the camera’s internal

memory. If you insert a memory card (optional), the image will be stored on

the card.

TAKING PICTURES USING THE VIEWFINDER

Open the lens barrier.

Slide the lens barrier open until it

clicks.

Position the subject using the

Target mark in the viewfinder.

To take pictures at a distance of less

than 60cm (2ft.), see “Macro mode”

( p. 30).

Press the Shutter button

halfway.

(This condition is called half-

pressed.)

The green lamp next to the

viewfinder lights.

The exposure is locked while the

Shutter button is pressed halfway.

Press the Shutter button fully.

(This condition is called full-pressed.)

The picture is taken.

Green lamp

PICTURES

TAKING

TAKING PICTURES

TAKING PICTURES USING THE MONITOR

Open the lens barrier.

Press the button.

The monitor will turn on.

PICTURES

TAKING

Press the

monitor off.

Compose the picture by looking

at the subject in the monitor.

Take the picture in the same

way as you would when using

the viewfinder.

See “Taking pictures using the viewfinder” ( p. 23).

button again to turn the

Note

• If the green lamp blinks when the Shutter button is pressed halfway, the flash is not fully charged. The green lamp blinks while the camera is recording the picture taken. Wait for 2 to 40 seconds until the green lamp stops blinking.

• When the memory gauge is full, no more images can be taken. Wait a few seconds until the memory gauge goes off before taking any more pictures. When a picture is taken in bright light, such as sunlight, vertical

•

lines may appear on the monitor. This is not a malfunction.

• The monitor is for checking the composition only. Check the hand jitter, focus and exposure accuracy afterwards by displaying the image on a PC.

• It will take longer to record a picture when the monitor is used.

TAKING PICTURES

Caution

will cause the camera to move, resulting in a blurred picture.

• Never remove the battery or AC adapter, or open the card cover while the green lamp is blinking. The picture you have just taken may not be recorded and previous pictures may be destroyed.

WHEN TO USE THE VIEWFINDER AND MONITOR

Viewfinder Monitor

• Press the Shutter button gently. Pressing the button down hard

Taking pictures

Advantages

Disadvantages

When taking a lot of pictures, such as snapshots, scenery, etc. (approx. 60cm/2ft. - long range)

• Less risk of camera movement

• Subject can be seen clearly

When taking close-ups of people, flowers, etc. (approx. 25cm-60cm/ 10''-2ft.)

Actual shooting range can be accurately checked

even in bright surroundings

• Little wear of batteries

Difference between range seen in viewfinder and actual recorded image when taking subjects at close range

•

Risk of camera movement

• Difficult to see in bright or dark surroundings

•

Batteries soon exhausted

• The actual picture will be slightly larger than what you see in the viewfinder.

• When shooting a subject at a close distance, there will be a slight difference between the actual shooting scope (as shown in hatched area on the left) and what you see in the viewfinder.

PICTURES

TAKING

USING THE FLASH

The flash automatically fires in low light and backlit conditions, but the flash

mode can be selected to suit various conditions.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [CAMERA] using the

PICTURES

TAKING

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

Select the flash mode from

the following using the /

buttons: [AUTO], [ ],

[ ], [ ], [ ] or [ ] .

See “Using the flash for optimum

effect” (

function.

p. 28) for details of each

Press the button.

Setting of flash mode is now

completed.

Press the button again to exit

the menu.

Take the picture.

Note

• To comfirm the current flash mode setting, press the button with the lens barrier open. Press the mode setting.

• Range of flash: ~ 2.5m/8ft.

• All the flash mode settings except for Red-eye (

return to Auto mode (default setting) when the lens barrier is closed.

USING THE FLASH

button after the confirmation to change the flash

) will

PICTURES

TAKING

Caution

• The green lamp blinks while the flash is charging and the shutter button will not be pressed. Wait until the green lamp goes off.

• When taking pictures at close range using the flash, the appropriate brightness may not be achieved and there may be pronounced shadows as a result. Olympus recommends that you check the picture on the camera’s LCD monitor.

• The flash cannot be used in Sequence mode, Panorama mode and Movie mode.

USING THE FLASH FOR OPTIMUM EFFECT

Select the flash mode according to the shooting conditions and purpose.

Auto

The flash will fire automatically in dark or backlit conditions.

When taking a subject against the light, set the Target mark on the subject.

Red-eye ( )

When using the flash to photograph a person, their eyes may appear red in

the resulting picture. Red-eye mode significantly reduces this phenomenon

by emitting a pre-flash before the regular flash.

PICTURES

TAKING

Eyes may appear red

• Because of the pre-flash, it takes about 2 seconds before the

Caution

Flash On ( )

The flash fires under any circumstances. Use this mode to brighten up the

subject’s shaded face, in backlit conditions, or under artificial lighting such

as fluorescent lights.

shutter is released. Hold the camera firmly to avoid hand jitter.

• The effectiveness of the red-eye reduction mode may be reduced depending on the distance to the subject, if the subject is not looking directly at the flash or the pre-flash, or individual characteristics such as light-colored eyes. In addition, red-eye is often more pronounced in young children.

Caution

This mode may not have the desired effect under excessively bright light.

USING THE FLASH FOR OPTIMUM EFFECT

Flash Off ( )

In this mode the flash will not fire even in low-light conditions. Use this mode

in situations where flash photography is not permitted.

Night View ( )

Use this mode when taking night views.

The flash is fired first while the shutter speed is reduced to capture the

surrounding conditions.

Night View/Red-eye ( )

Use this mode when taking people against a night background.

The flash is fired first while the shutter speed is reduced to capture the

surrounding conditions. The red-eye phenomenon is reduced by the pre-

flash.

PICTURES

TAKING

Caution

You are recommended to mount the camera on a tripod to avoid camera movement when taking pictures in Flash Off (

) or Night View/Red-eye ( ) Reduction flash

View ( modes. The green lamp blinks to warn of camera movement in dark surroundings, but pictures can still be taken. When taking moving objects, the pictures will be blurred.

), Night

MACRO MODE

Use Macro mode when taking pictures at distances between 25cm (10") and 60cm (2ft.). This mode can also be used to take pictures at a distance of over 60cm, and is useful for taking pictures in bright surroundings, such as snow-covered mountains on a sunny day.

Open the lens barrier.

The camera will turn on in Record

mode.

Slide the Macro lever toward

the symbol.

PICTURES

TAKING

To cancel Macro mode, slide the macro

lever back to its original position.

Press the button.

The monitor will turn on.

Take the picture by looking at

the monitor.

Note

Caution

Macro mode is canceled when the lens barrier is closed.

• Make sure to slide the macro lever completely.

•

When using the Macro mode, keep the distance between the camera and the subject at a distance of more than 25cm (10'').

•

If you try to take a picture at a distance of less than 25cm (10''), the autofocus will not work properly even though the Shutter button is released.

•

If you use the flash in Macro mode, the brightness may not be correct and there may be pronounced shadows as a result. Olympus recommends that you check the picture on the camera’s monitor.

SELFTIMER

You can use the selftimer to take photographs including the photographer.

Use a tripod to keep the camera steady.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [CAMERA] using the

/ buttons and press

the button.

Select [DRIVE] using the /

buttons and press the

button.

PICTURES

TAKING

Select [ SELF-TIMER] using

the / buttons and

press the button.

Setting of selftimer is now completed.

Press the

the menu.

button again to finish

SELFTIMER

Take the picture.

The Selftimer lamp lights for 10 sec.

and then blinks for 2 sec. before the

picture is taken.

Selftimer lamp

PICTURES

TAKING

Note

• The Selftimer is canceled automatically after the picture is taken.

• To cancel the Selftimer after the Shutter button has been pressed, shut the lens barrier off.

DIGITAL TELE MODE

This mode enables you to enlarge the image digitally to magnifications 1.6×,

2×, 3.2× and 4×.

You can only set magnifications 3.2× and 4× in SQ2 modes. See “Image

Quality” (

p. 41).

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The monitor will automatically turn

on.

Press the / buttons

looking at the monitor.

The magnification will change in the

sequence [1.6×] → [2.0×] → [3.2×] →

[4.0×] each time the button is

pressed, and in the sequence [3.2×]

→ [2.0×] → [1.6×] → [No display(1.0)]

each time the

Take the picture by looking at

the monitor.

button is pressed.

PICTURES

TAKING

Note

• Press the button to turn the monitor off and cancel Digital Tele mode.

• The pictures taken in Digital Tele mode may become coarser.

SEQUENCE MODE

This function enables you to take eight or more still pictures in succession (in HQ mode) while the shutter button is pressed. It is ideal for selecting images from a series and taking moving subjects. You can erase a frame other than specified from a series of picture taken. See “Erasing an image” (

Open the lens barrier

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

PICTURES

TAKING

Select [CAMERA] using the

/ buttons, and press

the button.

Select [DRIVE] using the /

buttons, and press the

button.

p. 50).

Select [ SEQUENCE] using

the / buttons and

press the button.

Setting of Sequence mode is now

completed.

Press the button again to exit the

menu.

Press the Shutter button and keep it pressed.

Recording will stop when the shutter button is released.

SEQUENCE MODE

Note

• Sequence mode is canceled when the lens barrier is closed.

• The flash cannot be used in this mode.

• Since the shutter speed is set to the maximum 1/30 sec. to

prevent hand jitter, the resulting picture may be darker than usual.

• It takes a while to record the images taken in this mode.

• The number of recordable pictures will vary depending on the

image quality mode and whether a SmartMedia card is used. If you intend to take a lot of pictures, a SmartMedia card is recommended.

PICTURES

TAKING

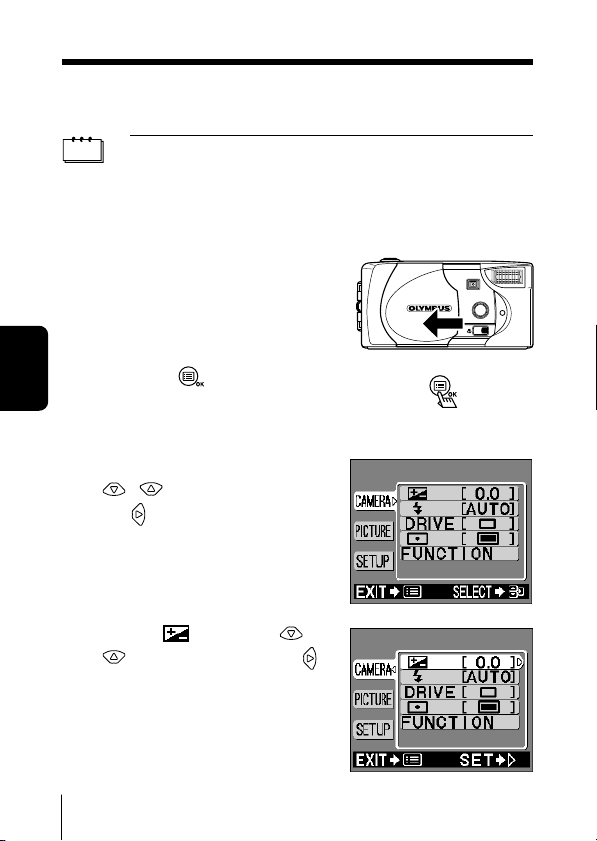

EXPOSURE COMPENSATION

In addition to automatic exposure, you can adjust the exposure in 0.5

gradations to ±2.

PICTURES

TAKING

Note

• This mode can be used to obtain the correct exposure when the brightness of the subject and the background varies greatly.

• Set a [+] value to make the image brighter and a [–] value to make it darker.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [CAMERA] using the

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

Adjust the exposure

compensation setting using

the / buttons and

press the button.

Press [–] to make the image

darker and

Setting of exposure compensation is

completed.

Press the

menu.

Take the picture.

Note

• The setting of exposure compensation will be returned to ±0.0

• When you adjust the exposure compensation, the image

[+] to make it lighter.

button again to exit the

(default setting) when the lens barrier is closed.

displayed on the monitor changes to the relevant brightness setting. If it is hard to see any difference because the subject is dark, display the recorded image on the camera’s monitor to check the brightness.

EXPOSURE COMPENSATION

PICTURES

TAKING

Caution

• The desired brightness (exposure compensation) may not be obtained if the flash is used.

• The exposure compensation values may be inadequate if the subject is in extremely bright or extremely dark surroundings.

SPOT METERING MODE

When taking pictures against the light, the image will appear dark if taken

with the normal light metering setting (Digital ESP). In this case, change the

setting to Spot metering, and you can take the picture according to the

brightness in the middle of the viewfinder without it being affected by the

background light.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

PICTURES

TAKING

The Camera menu screen will be

displayed.

Select [CAMERA] using the

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

Select [ SPOT] using the

/ buttons and press

the button.

Setting of spot metering is

completed.

Press the button again to exit the

menu.

Take the picture.

Note

The metering mode will return to ESP mode (default setting) when the lens barrier is closed.

WHITE BALANCE

The white balance is automatically adjusted to give a natural look, but you

can also set the white balance to suit the weather or lighting when the

desired colors are not achieved.

Note

White balance settings

Auto (AUTO) : There is no display on the monitor.

Daylight ( ): Cloudy ( ): Tungsten Light ( ) : Fluorescent Light ( ) :

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [PICTURE] using the

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

Automatically ensures natural colors. Ensures natural colors outside in full daylight (sunny weather). Ensures natural colors outside in overcast daylight (cloudy weather).

Ensures natural colors in tungsten light. Ensures natural colors in fluorescent light.

PICTURES

TAKING

PICTURES

TAKING

WHITE BALANCE

Select the white balance

setting from the following

using the / buttons

and press the button:

[AUTO], [ ], [ ], [ ],

[ ].

Setting of white balance is

completed.

Press the button again to exit the

menu.

Take the picture.

Note

Caution

• The white balance setting will return to [AUTO] (default setting) when the lens barrier is closed.

• Natural colors are hard to obtain under a mixture of artificial and natural lighting or under fluorescent lights, etc.

• Select [ light.

• The white balance may not function under special lighting.

• Check that the setting is the optimum setting by displaying the

image on the monitor and checking the colors.

] to obtain colors close to those under tungsten

IMAGE QUALITY

Select the desired image quality.

Note

Image quality settings

SHQ

(Super High Quality)

(High Quality)

(Standard Quality)

* Pixel is the unit used to represent the image size.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

Tne Camera menu screen will be

displayed.

Select [PICTURE] using the

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

For clear prints, large prints, and processing on a PC (1280 × 960 pixels*)

For viewing images on a PC or making prints (1280 × 960 pixels*)

For e-mail attachments or taking a lot of pictures SQ1 (1024 × 768 pixels*) SQ2 (640 × 480 pixels*)

PICTURES

TAKING

IMAGE QUALITY

Select the image quality from

the following using the /

buttons and press the

button: [SHQ 1280 × 960], [HQ

1280 × 960], [SQ1 1024 × 768]

or [SQ2 640 × 480].

Setting of image quality is completed.

Press the

menu.

button again to exit the

PICTURES

TAKING

Take the picture.

Note

• The image quality setting will remain even when the lens

• The number of recordable images varies depending on the

• The number of pixels is the same for HQ and SHQ, but the

• When you change to a high image quality and the remaining

barrier is closed.

image quality setting and the storage method used. (The camera’s internal memory capacity is 1MB, SmartMedia cards are currently available in 8MB to 128 MB capacities.)

compression rate is lower for SHQ, resulting in a clearer image when enlarged. SHQ also requires more time to record and play back images than HQ.

recordable image count is low, the internal memory or SmartMedia card warning mark may be displayed. This indicates that there is insufficient memory space. If this happens, select a different image quality.

Warning mark

PANORAMA MODE

The Olympus CAMEDIA brand SmartMedia cards support Panorama mode.

You can join several images to make a composite panorama image using

the included CAMEDIA Master software. Make sure the SmartMedia card is

correctly inserted into the camera before operation.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be displayed.

Select [CAMERA] using the

/ buttons and press

the button.

Select [FUNCTION] using the

/ buttons and press

the button.

PICTURES

TAKING

Select [ PANORAMA] using

the / buttons and

press the button.

Setting of panorama is completed.

The monitor will automatically turn

on.

PANORAMA MODE

Specify the connecting

direction using the arrow pad.

: connects the next image toward

the right

: connects the next image toward

the left

: connects the next image toward

the above

: connects the next image toward

the below

PICTURES

TAKING

Take the pictures so that the edges overlap.

A maximum of 10 images can be connected.

➜

Press the button to finish taking pictures in

panorama mode.

Note

Caution

Panorama mode is canceled when the lens barrier is closed.

• You can only use Panorama mode when using an Olympus CAMEDIA brand SmartMedia.

• Panorama images must be assembled on a computer. Follow the software directions carefully to successfully assemble panorama images.

• Because the exposure and white balance are determined by the first picture taken, do not shoot overly bright or dark images such as the sun in the first frame.

• Use of the SQ mode is recommended to save memory.

• The flash cannot be used in Panorama mode.

➜

PLAYING BACK AN IMAGE

This mode is for displaying images one at a time on the monitor.

The camera plays back images recorded on a SmartMedia card when a

SmartMedia card is inserted in the camera. If you want to display images

recorded in the internal memory, remove the SmartMedia card from the

camera.

Press the button with the

lens barrier closed.

The monitor will turn on and the last

recorded image will be displayed on

the monitor.

Press the / buttons.

Press the button to playback the previous image and the button

to playback the next image.

Press the button to stop playing back the image.

The monitor will go off and the camera will turn off.

PLAYINGBACK

PICTURES

Note

• If the button is pressed quickly twice (double-clicked) when the camera is in Record mode, the camera’s mode will change to Play mode.

• After the camera is turned on, the monitor may light momentarily and an image will be displayed after a short while. This is not a malfunction.

INDEX PLAYBACK

This mode is for displaying images in index mode from single-image

playback mode.

Close the lens barrier and

press the button.

The monitor will turn on.

Press the button.

Press the button to move

PLAYINGBACK

PICTURES

the green frame to the next

image and the button to

move the frame to the

previous image.

Press the button.

The image in the green frame will be

displayed in single-image playback

mode.

INDEX PLAYBACK

Changing the number of images in the index playback

Select the number of images in the index playback from 4, 9 or 16.

Close the lens barrier and

press the button.

The monitor will turn on.

Press the button.

The Play menu screen will be

displayed.

Select [PLAY] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select the number of images

[4], [9] or [16] using the /

buttons and press the

button.

Setting of the number of images in

the index playback is completed.

Press the button again to exit the

menu.

PLAYINGBACK

PICTURES

AUTO PLAYBACK

Close the lens barrier and

press the button.

The monitor will turn on.

Press the button.

The Play menu screen will be

displayed.

Select [PLAY] using the /

PLAYINGBACK

PICTURES

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [START] using the /

buttons and press the

button.

Auto Playback will start. Each image

will be played back for 3 sec. starting

from the image after the one

currently displayed.

To cancel Auto Playback, press the

button.

Note

If you display the Play menu while an image marked by the Moving Image (

]. Display a still picture first.

[

) symbol is being played, you cannot select

CLOSE-UP PLAYBACK

Images can be played back in 4 stages of magnification: 1.5×, 2×, 2.5× and

3×. This function is convenient when you want to check the details of the

picture taken.

Close the lens barrier and

press the button.

The monitor will turn on.

Press the button.

The image will be magnified in the

sequence [1.5×] → [2.0×] → [2.5×] →

[3.0×] each time the button is

pressed.

Press the button on the

close-up playback screen to

enable scroll mode.

Scroll up or down, left or right using

the / / / buttons to

display the area you want to see.

Press the button again to exit

scroll mode.

PLAYINGBACK

PICTURES

Press the button after

exiting scroll mode to return

to the 1× single-image

playback screen.

Note

The above operation cannot be performed while an image marked by the Moving Image ( still picture first.

) symbol is displayed. Display a

ERASING AN IMAGE

Close the lens barrier and

press the button.

The monitor will turn on.

Display the image you want to erase.

See “Playing back an image” ( p. 45).

Press the button.

The Play menu screen will be

displayed.

Select [PLAY] using the /

PLAYINGBACK

PICTURES

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

The image will be erased.

Caution

• You can also move to the erase menu by keeping the button pressed for at least 1 second while the image you want to erase is displayed.

• If the image you want to erase is protected or a write-protect seal is affixed to the SmartMedia card, the image cannot be erased. Unprotect the image or remove the write-protect seal on the SmartMedia card before attempting to erase the image.

• Erased images cannot be restored. Before erasing an image, be sure that you are not erasing important data.

ERASING ALL IMAGES

You can erase all the images in the internal memory or on the SmartMedia card.

• When erasing images in the internal memory, do not insert a

Caution

2 3

SmartMedia card.

• When erasing images on a SmartMedia card, insert the card first.

Close the lens barrier and

press the button.

The monitor will turn on.

Press the button.

The Play menu screen will be displayed.

Select [SETUP] using the /

buttons and press the

button.

Select [ ] or [ ] using the

/ buttons and press

the button.

(When not using a SmartMedia

Select [ ALL ERASE ]

using the / buttons

and press the button.

Select [ ] using the /

buttons and press the

button.

All the images will be erased.

card)

(When not using a SmartMedia card)

PLAYINGBACK

PICTURES

Caution

• Protected images will not be erased.

• If a write-protect seal is affixed to the SmartMedia card, the

images on the card cannot be erased.

• Erased images cannot be restored. Before erasing, make sure that you are not erasing important data.

PROTECTING IMPORTANT IMAGES

Close the lens barrier and

press the button.

The monitor will turn on.

Display the image you want to protect.

See “Playing back an image” ( p. 45).

Press the button.

The Play menu screen will be displayed.

Select [PLAY] using the /

PLAYINGBACK

PICTURES

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [ON] using the /

buttons and press the

button.

The image will be protected.

To cancel the protect setting, select

[OFF].

Note

Caution

• You can also protect an image by keeping the button pressed for at least 1 second while the image you want to protect is displayed.

• The protected image is indicated by a

• The protect setting is saved when the camera is turned off.

• Protected images cannot be erased by [Erasing an image] or

[Erasing all images], but will be erased by formatting the card.

• Images on a card with a write-protect seal cannot be protected.

symbol.

CREATING MONOCHROME/SEPIA IMAGES

You can transform selected images into monochrome or sepia images and

record them as separate image data.

Close the lens barrier and

press the button.

The monitor will turn on.

Display the image you want to

make into a monochrome or

sepia image on the monitor

and press the button.

The Play menu screen will be displayed.

Select [EDIT] using the /

buttons and press the

button.

Select [BLACK & WHITE] or

[SEPIA ON] using the /

buttons and press the

button.

Select [CREATE] using the

/ buttons and press the

button.

The image will be transformed into

monochrome or sepia, and recorded

as separate image data.

PLAYINGBACK

PICTURES

Caution

(When creating monochrome image)

• This function is not available for moving images.

• This function is not available if you are using a SmartMedia

card with a write-protect seal affixed to it.

RESIZING

You can change the size of a selected image to 640 × 480 or 320 × 240 and

record the image as separate image data. Use this function when you send

an e-mail to send the image as an attachment in smaller image size.

Close the lens barrier and

press the button.

The monitor will turn on.

Display the image you want to

resize on the monitor and

press the button.

The Play menu screen will be displayed.

Select [EDIT] using the /

PLAYINGBACK

PICTURES

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [640 × 480 CREATE] or

[320 × 240 CREATE] using the

/ buttons and press

the button.

The size of the image will be changed

and the image will be recorded as

separate image data.

Note

• This function is not available for moving images.

• If the selected image size is 640 × 480 or less, you cannot

select [640 × 480 CREATE] in the menu.

• If the selected image size is 320 × 240, you cannot select [320 × 240 CREATE] in the menu.

• This function is not available if you are using a SmartMedia card with a write-protect seal affixed to it.

ROTATING

You can rotate a selected image 90 degrees clockwise or counterclockwise

and save it as a separate image. This function is useful for turning a vertical

image into a horizontal position.

Close the lens barrier and

press the button.

The monitor will turn on.

Display the image you want to

rotate on the monitor and

press the button.

The Play menu screen will be displayed.

Select [EDIT] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [+90°] or [–90°] using

the / buttons and

press the button.

The image will be rotated, and the

rotated image will be recorded as

separate image data.

PLAYINGBACK

PICTURES

Caution

• This function is not available for moving images.

• This function is not available if you are using a SmartMedia

card with a write-protect seal affixed to it.

MOVIE MODE

RECORDING A MOVING IMAGE

In addition to still pictures, this camera has the ability to take movie pictures.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [CAMERA] using the

/ buttons and press

the button.

FUNCTIONS

OTHER

Select [DRIVE] using the /

buttons and press the

button.

Select [ MOVIE] using the

/ buttons and press

the button.

Setting of Movie mode is completed

and the monitor will automatically

turn on.

Press the

the menu.

Record the moving image by

looking at the monitor. (Press

button again to exit

the Shutter button to start

recording moving images.

Recording stops when the

Shutter button is pressed

again.)

The recordable time is displayed on

the monitor.

MOVIE MODE

Recordable time

FUNCTIONS

OTHER

Note

• Movie mode is canceled when the monitor is turned off by pressing the

• The flash cannot be used in Movie mode.

• It takes a while to record the images taken in this mode.

• The recordable time will vary depending on whether a SmartMedia card is used.

• Sound cannot be recorded.

button.

MOVIE MODE

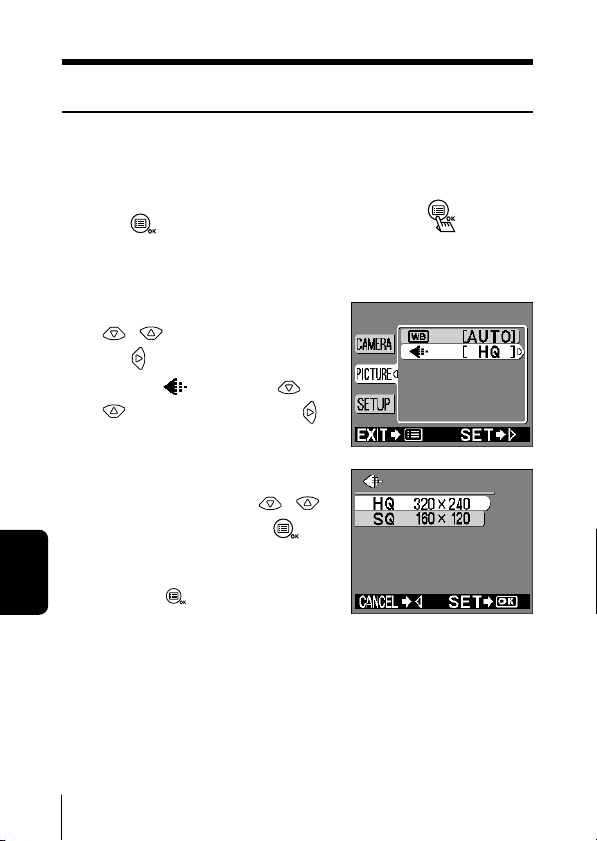

CHANGING THE QUALITY AND SIZE OF A MOVING IMAGE

There are two image quality settings (HQ and SQ) that can be used to

record moving images.

Select Movie mode and press

the button.

The Camera menu screen will be

displayed.

Select [PICTURE] using the

FUNCTIONS

OTHER

/ buttons and press

the button.

Select [ ] using the /

buttons and press the

button.

Select [HQ 320 × 240] or [SQ

160 × 120] using the /

buttons and press the

button.

Setting of image quality is completed.

Press the

menu.

button again to exit the

Record the moving image.

PLAYING BACK MOVING IMAGES

Close the lens barrier and

press the button.

The monitor will turn on.

Display the desired image

with the symbol indicated

and press the button.

The Play menu screen will be displayed.

Select [PLAY] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [START] using the /

buttons and press the

button.

MOVIE MODE

FUNCTIONS

OTHER

The moving image will be played

back.

To cancel the moving image

playback, press the

button.

MOVIE MODE

TO PAUSE PLAYING BACK MOVING IMAGE

Press any button of the (arrow pad) during playback of a moving image

to activate Pause status.

OPERATION DURING PAUSE STATUS

The following buttons can be operated while the moving image is in Pause

status.

Press button Playback resumes

Keep button Fast forward

Press button Rewind

Keep button Fast rewind

Press button First frame of moving image is displayed

Press

FUNCTIONS

OTHER

button Last frame of moving image is displayed

REC VIEW

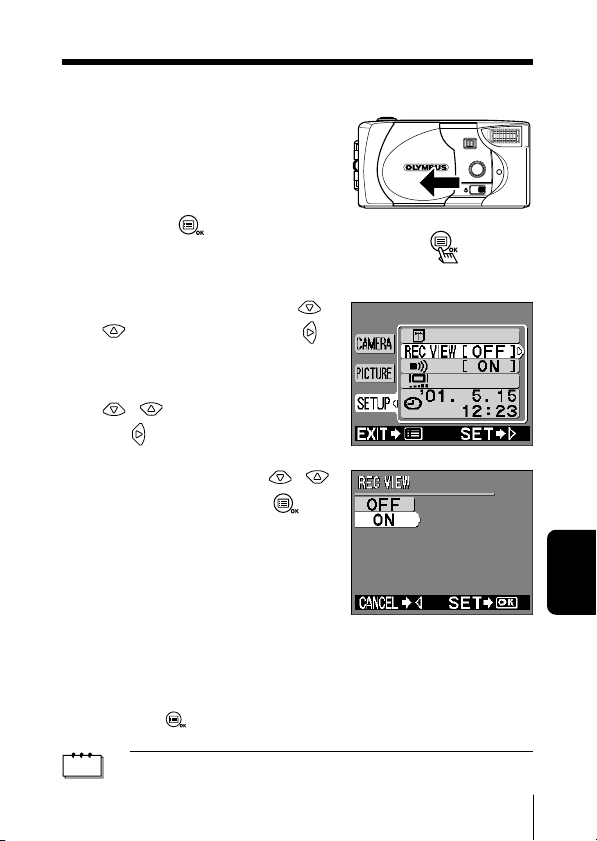

After each picture is taken, you can confirm the image on the LCD monitor.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [SETUP] using the /

buttons and press the

button.

Select [REC VIEW] using the

/ buttons and press

the button.

Select [ON] using the /

buttons and press the

button.

ON:

The last image taken is displayed

after shooting is completed. →

Straight to image confirmation

OFF:

The screen for shooting the next

picture is displayed immediately

after shooting is completed. →

Straight to next shooting

Setting of Rec View is completed.

Press the

button again to exit the menu.

FUNCTIONS

OTHER

Note

The Rec View mode is saved when the camera is turned off.

BEEP SOUND

This function enables you to turn off the beep sound.

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [SETUP] using the /

FUNCTIONS

OTHER

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [OFF] using the /

buttons and press the

button.

The beep sound will be turned off.

Press the

menu.

button again to exit the

Note

• The beep sound setting is not cancelled when the camera is turned off.

• You can also set the beep sound from the Play menu.

DISPLAYING IMAGE INFORMATION

This function enables you to set display or non-display of image information on the monitor while the image is played back. If you enable this function, this information will be displayed for 5 seconds. For details of the items displayed, see “Play mode screen” (

Image data display ON Image data display OFF

Close the lens barrier and

press the button.

The camera will turn on in Play mode.

Press the button.

The Play menu screen will be displayed.

Select [PLAY] using the /

buttons and press the

button.

Select [INFO] using the /

buttons and press the

button.

Select [ON] using the /

buttons and press the

button.

The image information will be

displayed on the playback screen.

Press the button again to exit the

menu.

p.10).

FUNCTIONS

OTHER

Note

The image information setting will return to OFF (default setting) when the camera is turned off.

ADJUSTING THE MONITOR BRIGHTNESS

Open the lens barrier.

The camera will turn on in Record

mode.

Press the button.

The Camera menu screen will be

displayed.

Select [SETUP] using the /

FUNCTIONS

OTHER

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Adjust the brightness of the

monitor using the /

buttons and press the

button.

Press the button to make the

monitor brighter and the

to make it darker.

Press the button.

Setting of monitor brightness is now completed.

Press the

button again to to exit the menu.

button

Note

• The setting is not cancelled when the lens barrier is closed. You can also set the monitor brightness from the Play menu.

•

CARD FORMAT/MEMORY SETUP

This function enables you to format the SmartMedia card or internal

memory. Any images on the card or in the memory will be erased when the

card or memory is formatted.

• When formatting the internal memory, do not insert a

Caution

SmartMedia card.

• When formatting a SmartMedia card, insert the card first.

• Before using a non-Olympus SmartMedia card or a card

formatted on a PC, format the card on the camera first. Olympus CAMEDIA brand SmartMedia cards do not require formatting.

Close the lens barrier and

press the button.

The camera will turn on in Play mode.

Press the button.

The Play menu screen will be

displayed.

Select [SETUP] using the /

buttons and press the

button.

(When formatting a SmartMedia card)

To format the card, select

[ ] using the / buttons

and press the button.

To format the internal memory,

select [ ] using the /

buttons and press the

button.

(When formatting a SmartMedia card)

FUNCTIONS

OTHER

CARD FORMAT/MEMORY SETUP

Select [ FORMAT] using the

/ buttons and press

the button.

Select [ FORMAT] using the

/ buttons and press

the button.

The card or internal memory will be

formatted.

(When formatting a SmartMedia card)

Note

FUNCTIONS

OTHER

Caution

You can also format a card or the internal memory from the Camera menu.

• All protected images will be erased. Once formatted, the SmartMedia card or internal memory cannot be restored.

• If an Olympus template card is formatted, all the card functions will be lost. For details, refer to the instruction manual for the card.

• Cards with a write-protect seal affixed to them cannot be formatted. Remove the seal before formatting the card. Do not re-use seals.

MEMORY BACK-UP

This function enables you to copy (backup) all image data recorded in the

internal memory onto a SmartMedia card. Prepare a SmartMedia card and

insert it before following the procedure below.

Close the lens barrier and

press the button.

The camera will turn on in Play mode.

Press the button.

The Play menu screen will be displayed.

Select [SETUP] using the /

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select [ BACKUP] using

the / buttons and

press the button.

All the images in the internal memory

will be copied onto the card.

FUNCTIONS

OTHER

PRINT SERVICE

This function enables you to set the desired number of prints of an image

recorded on the SmartMedia card for printing on a DPOF printer or at a

photo shop. Settings include confirmation and changing of the settings,

printing of a single image or all images, cancellation of all DPOF settings,

and date imprinting.

Insert the SmartMedia card before following the procedure below. See

“Using a SmartMedia card (optional)” ( p.16).

Close the lens barrier and

press the button.

The camera will turn on in Play mode.

Press the button.

The Play menu screen will be displayed.

Select [PLAY] using the /

FUNCTIONS

OTHER

buttons and press the

button.

Select [ ] using the /

buttons and press the

button.

Select whether or not you

want to cancel the print

service using the /

buttons and press the

button.

This screen is displayed when the

print service has been requested.

Select [RESET] to reset all the

requested print service.

Select the item using the /

buttons and press the

button.

• [ ] ( p.70) [ ]

( p.69)

•

] ( p.69)

• [

• [ ] ( p.70)

] ( p.70)

• [

PRINT SERVICE

Note

SINGLE IMAGE

ALL IMAGES

[ ] and [ ] can be selected if you have requested the print service.

Specify the image and the

number of prints.

Select the image using the /

buttons and specify the number of

prints from 1-9 using the

buttons. When the number of prints is

0, the print service is not requested.

When you have finished

making the settings, press the

button.

Select [ ] using the /

buttons and press the

button.

FUNCTIONS

OTHER

PRINT SERVICE

CANCELLING ALL DPOF SETTINGS

Select [ RESET] using the

IMPRINTING THE DATE

CONFIRM/CHANGE SETTINGS

FUNCTIONS

OTHER

/ buttons and press

the button.

All the DPOF settings will be

cancelled.

Select the item using the /

buttons and press the

button.

[NO] : The date and time will not be

imprinted.

[DATE] : The date will be imprinted.

[TIME] : The time will be imprinted.

Setting is completed for all the DPOF

requested images.

Check the DPOF settings

using the / buttons.

Press the / buttons to

change or cancel the date

imprinting setting.

When you have finished

checking or changing the

above, press the button.

ERROR MESSAGES

Warning/

Monitor display

Error Remedy

No card has been inserted or card is not detected.

Failure to record, display or erase.

Card is write-protected.

Number of recordable images on card has reached zero. No more images can be recorded.

Number of recordable images in internal memory has reached zero. No more images can be recorded.

No images can be displayed.

Insert or reinsert card. Internal memory can be used even though no card has been inserted.

Wipe the gold-colored metal area of the memory card with cleaning paper and reformat. If formatting is impossible, use another memory card.

To record, remove the protect seal. For details, refer to the instruction manual for the SmartMedia card.

Insert another memory card, erase unwanted images, or transfer the images to a PC.

Make a backup using a memory card, or transfer the images to a PC and erase unwanted images.

There are no images in the card. Take pictures and then play back.

There are no images in the internal memory. Take pictures and then play back.

SHOOTING

TROUBLE–

Selected image cannot be displayed.

Images on a card recorded with another brand of camera or images transferred from a PC sometimes cannot be displayed.

PROBLEMS

OPERATING PROBLEMS

The camera does not work

Cause Remedy Ref. Page

Power is off

Batteries not loaded correctly

Battery power is low

Battery performance is poor due to cold temperatures

Power has been automatically turned off

Camera is connected to a PC

Condensation inside camera

The flash does not fire

Cause Remedy Ref. Page

Bright subject

Sequence mode, Movie mode, or Panorama mode is set

SHOOTING

TROUBLE–

The monitor is hard to see

Cause Remedy Ref. Page

Brightness is incorrectly set

In sunlight

Open the lens barrier and turn the camera on.

Reload the batteries correctly.

Load new batteries.

Bring batteries to room temperature before use.

Close lens barrier, then reopen.

The camera will not function while connected to a PC.

Remove batteries from the camera and let the camera dry.

If you want to forcibly fire the flash, set to Flash On mode.

Flash does not fire in Sequence mode, Movie mode, or Panorama mode.

Adjust the brightness.

Block the sunlight with your hand.

P.18

P.12

P.18

—

P.28

P.27

P.64

—

PROBLEMS

No picture is taken when the Shutter button is pressed

Cause Remedy Ref. Page

Power is off

Flash has not finished charging, or previous

Open the lens barrier.

Release Shutter button and wait until green lamp stops blinking.

P.18

P.26

picture is being processed

Internal memory capacity or card capacity is full

Erase unwanted images, transfer the images to a PC, or insert a

P.16, 50

new card.

Batteries run out during recording or while writing data on card

Write-protected seal on card

Change the batteries. (If green lamp is blinking, wait until recording is finished.)

Insert new card or remove the seal.

P.12

P.17

Images cannot be displayed on the monitor

Cause Remedy Ref. Page

Power is off

Close the lens barrier, press the

P.18 monitor button and turn the monitor on.

No images recorded on internal memory or card

Record images and then playback.

P.23

Cannot protect image, erase single or all images, or format card

Cause Remedy Ref. Page

Write-protect seal is affixed to card

Remove seal before using card. Do not use the seal again.

P.17

SHOOTING

TROUBLE–

PROBLEMS

IMAGE FINISH IS POOR

Finished image is too bright

Cause Remedy Ref. Page

Flash mode is set to Flash On

Subject is too bright

The picture is too dark

Cause Remedy Ref. Page

Flash was blocked by finger

Subject is out of range of flash

Subject is too small and backlit

The colors of pictures taken indoors look unnatural

Cause Remedy Ref. Page

Picture is affected by color of lights

Subject is mostly dark

SHOOTING

TROUBLE–

White balance setting is incorrect

Close the lens barrier and set the flash mode to Auto or Flash Off.

Adjust the exposure compensation or change the camera position toward the subject.

Hold the camera correctly.

Take the picture within 2.5m (8ft.)

Set the flash to Flash On.

Set the flash mode to Flash On.

Include a white object in the composition or adjust the white balance to suit the lighting.

Adjust the white balance to suit the lighting.

P.28

P.36

P.22

P.26

P.28

P.39

PROBLEMS

Part of the image is obscured

Cause Remedy Ref. Page

Lens was partly blocked by

Hold the camera correctly.

P.22

finger or strap

Shooting distance is too close

Check the composition of the picture on the monitor before

P.24

taking the picture.

The picture is out of focus

Cause Remedy Ref. Page

The camera moved when the Shutter button was

Hold the camera correctly and press the Shutter button gently.

P.22, 23

pressed (hand jitter)

Lens is dirty

Clean the lens with a lens blower

—

and wipe gently with lens cleaning paper.

Macro mode was not used correctly

Use Macro mode when the subject is within the range of 25-

P.30

60cm (10"-2ft.).

Shutter button was pressed while standing right in front of camera in Selftimer mode

Flash was set to Flash Off in situation requiring use of flash

Press the Shutter button while looking into the viewfinder, not while standing in front of the camera.

As the shutter speed is slow and a longer exposure time is needed, use a tripod or hold the

P.32

P.22, 28

camera firmly.

SHOOTING

TROUBLE–

SPECIFICATIONS

Product type: Digital camera (for recording and displaying) Recording system: Digital recording, compatible with JPEG

Recording media: Internal memory 1MB, SmartMedia card

No. of recordable frames: SHQ/Approx. 1, HQ/Approx. 3,

Sequence mode: 1.3 frames/second, 8 or more (HQ) Erase: Single-frame erase/All frames erase Image pickup element: 1/3.2 inch CCD solid-state image pickup

Recording image: 1280 × 960 pixels (SHQ/HQ mode)

White balance: Full auto TTL

Lens: Olympus lens 4.5mm, F4, 5 elements,

Photometric system: Digital ESP metering system by image pickup

Exposure control system: Programmed auto exposure Aperture: F4, F8 Shutter*:

Shooting range: 0.6m ~ ∞ (Standard mode)

SHOOTING

TROUBLE–

Viewfinder: Optical real image viewfinder (Target mark),

LCD monitor: 1.5 inch TFT color LCD display No. of pixels: Approx. 114,000 pixels On-screen display: Date/Time, frame number, protect, image

(based on DCF) and DPOF

(4MB, 8MB, 16MB, 32MB, 64MB, 128MB)

SQ1/Approx. 4, SQ2/Approx. 7 (When using internal memory)

1,310,000 pixels (gross)

1024 × 768 pixels (SQ1 mode) 640 × 480 pixels (SQ2 mode)

Preset (daylight, cloudy, tungsten light, fluorescent light)

5 groups (equivalent to 35mm lens on 35mm camera)

element

1 ~ 1/1000 sec. (used with mechanical shutter) *Manual setting not available

0.25m ~ ∞ (Macro mode)

LCD monitor

quality, battery level, file number, print service, menu, etc.

SPECIFICATIONS

Flash charging time: Less than approx. 6 sec. (at normal

temperature with new battery)

Flash shooting range: ~ 2.5m/8ft. (ISO100) Flash modes: Auto (automatic flash activation in low light

and backlight), red-eye reduction, flash off, flash on, night view, night view/red-eye

Focus: Pan-focus Selftimer: Approx. 12 sec. delay External connector: DC-IN jack, data INPUT/OUTPUT jack (USB) Date and time: Recorded with image data simultaneously Automatic calendar function:

Automatic adjustment in range of 1981 ~ 2031

Calendar power source: Backup by built-in capacitor Card function: DPOF-compatible print service,

Panorama assembly (when an Olympus standard card is used)

Operating environment

Temperature: 0 ~ 40°C/32 ~ 104°F (operation)

–20 ~ 60°C/–4 ~ 140°F (storage)

Humidity: 30 ~ 90% (operation)

10 ~ 90% (storage)

Power supply: Four R6/AA alkaline batteries, R6/AA nickel

metal hydride batteries or R6/AA NiCd batteries. Or two CR-V3 lithium battery packs (LB-01 manufactured by Olympus), or optional AC adapter. R6/AA manganese batteries cannot be used.

Dimensions: 123(W) × 65(H) × 44.5(D) mm

(4.8"(W) × 2.6"(H) × 1.8"(D)) (not including protrusions)

Weight: 190g/0.4lb (without batteries/card)

SHOOTING

TROUBLE–

Design and specifications are subject to change without notice or obligation on the part of the manufacturer.

INDEX

AC adapter .................................. 15

Alkaline batteries ......................... 13

Arrow pad ...................................... 8

Auto playback.............................. 48

Batteries ...................................... 12

Battery compartment cover ........... 8

Battery status .......................... 9, 10

Beep sound ................................. 62

Card ............................................ 16

Card format ................................. 65

Close-up playback....................... 49

Cloudy ......................................... 39

Connector cover ............................ 7

Date/Time ................................... 10

Daylight ....................................... 39

DC-IN jack ..................................... 7

Digital ESP .................................. 38

Digital Tele mode ......................... 33

Drive .............................................. 9

Erasing all images ....................... 51

SHOOTING

TROUBLE–

Erasing an image ........................ 50

Exposure compensation ............. 36

File name .................................... 10

Flash ............................................. 7

Flash Off ..................................... 29

Flash On ..................................... 28

Fluorescent light .......................... 39

Format ......................................... 65

Frame no./Recording time........... 10

Green lamp ................................... 8

HQ ............................................... 41

Image information ....................... 63

Image quality ............................... 41

Index playback ............................ 46

Internal memory ............................ 9

Lens .............................................. 7

Lens barrier ................................... 7

Light metering ............................. 38

Lithium battery ............................ 13

Macro lever ................................... 7

Macro mode ................................ 30

Memory back-up ......................... 67

Memory gauge .............................. 9

Memory setup ............................. 65

Monitor .......................................... 8

Monitor brightness ...................... 64

Monitor button ............................... 8

Monochrome ............................... 53

Movie mode ................................ 56

Moving image .............................. 56

INDEX

Night View ................................... 29

Night View/Red-eye..................... 29

No. of recordable images/Recordable time ...

Number of recordable images ..... 17

OK/Menu button ............................ 8

Panorama mode.......................... 43

Play mode screen ....................... 10

Playing back an image ................ 45

Print service ................................ 68

Protecting .................................... 52

Rec view ..................................... 61

Rechargeable batteries ............... 13

Record mode screen ..................... 9

Red-eye....................................... 28

Resizing ...................................... 54

Rotating ....................................... 55

Selftimer ...................................... 31

Selftimer lamp ............................... 7

Sepia ........................................... 53

Sequence mode .......................... 34

SHQ ............................................ 41

Shutter button ............................... 7

SmartMedia card ........................ 16

Spot metering .............................. 38

SQ1 ............................................. 41

SQ2 ............................................. 41

Strap eyelet ................................... 8

Target mark ................................... 8

Tripod socket ................................. 8

Tungsten Light ............................. 39

USB connector .............................. 7

Viewfinder ..................................... 8

White Balance ............................. 39

Write-protected seal .................... 17

SHOOTING

TROUBLE–

Olympus D-370, C-100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

INDEX

CONTENTS

NAMES OF PARTS

MONITOR DISPLAY

RECORD MODE SCREEN

PLAY MODE SCREEN

ATTACHING THE STRAP

LOADING THE BATTERIES

CHOOSING A BATTERY

LITHIUM BATTERY PACKS

RECHARGEABLE BATTERIES

ALKALINE BATTERIES

USING THE AC ADAPTER (OPTIONAL)

USING A SMARTMEDIA CARD (OPTIONAL)

TURNING THE CAMERA ON/OFF

WHEN TAKING PICTURES

WHEN PLAYING BACK PICTURES

MENU SCREEN FLOW

ADJUSTING THE DATE AND TIME

HOLDING THE CAMERA

TAKING PICTURES

TAKING PICTURES USING THE VIEWFINDER

TAKING PICTURES USING THE MONITOR

WHEN TO USE THE VIEWFINDER AND MONITOR

USING THE FLASH

USING THE FLASH FOR OPTIMUM EFFECT

Auto

MACRO MODE

SELFTIMER

DIGITAL TELE MODE

SEQUENCE MODE

EXPOSURE COMPENSATION

SPOT METERING MODE

WHITE BALANCE

IMAGE QUALITY

PANORAMA MODE

PLAYING BACK AN IMAGE

INDEX PLAYBACK

Changing the number of images in the index playback

AUTO PLAYBACK

CLOSE-UP PLAYBACK

ERASING AN IMAGE

ERASING ALL IMAGES

PROTECTING IMPORTANT IMAGES

CREATING MONOCHROME/SEPIA IMAGES

RESIZING

ROTATING

MOVIE MODE

RECORDING A MOVING IMAGE

CHANGING THE QUALITY AND SIZE OF A MOVING IMAGE

PLAYING BACK MOVING IMAGES

TO PAUSE PLAYING BACK MOVING IMAGE

OPERATION DURING PAUSE STATUS

REC VIEW

BEEP SOUND

DISPLAYING IMAGE INFORMATION

ADJUSTING THE MONITOR BRIGHTNESS

CARD FORMAT/MEMORY SETUP

MEMORY BACK-UP

PRINT SERVICE

ERROR MESSAGES

PROBLEMS

OPERATING PROBLEMS

IMAGE FINISH IS POOR

SPECIFICATIONS

INDEX
