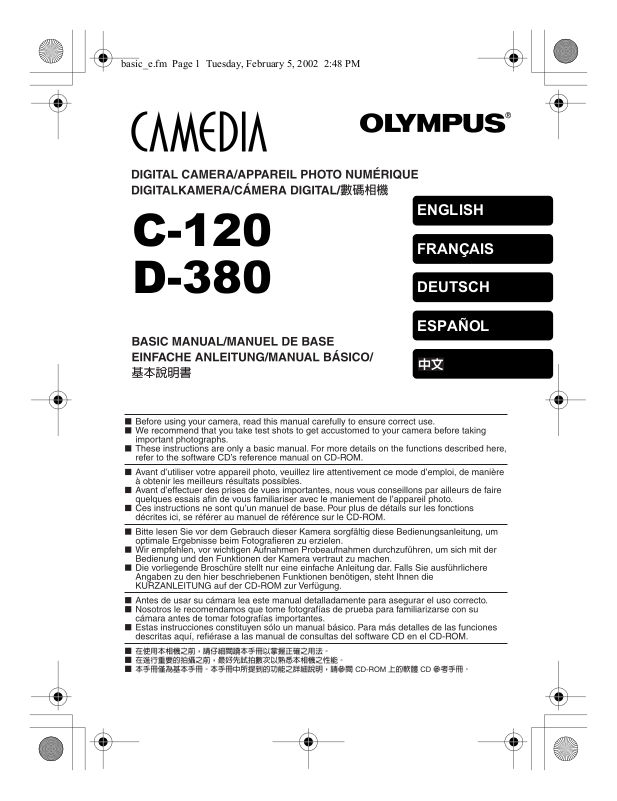

Olympus C-120, D-380 Basic Manual
ENGLISH
C-120
D-380
FRANÇAIS
DEUTSCH
ESPAÑOL
CONTENTS/TABLE DES MATIÈRES/INHALT/CONTENIDO/
ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
En
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
CONTENTS
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
SELECTING THE IMAGE QUALITY (RECORD MODE) 21
PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DOWNLOADING PICTURES TO A COMPUTER . . . . . 29
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 31
ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
These instructions are only for quick reference. For more details
on the functions described here, refer to the “Reference Manual”
on CD-ROM.
2 En
For customers in Europe
“CE” mark indicates that this product complies with the European
requirements for safety, health, environment and customer
protection. “CE” mark cameras are intended for sales in Europe.
For customers in North and South America
For customers in USA
Declaration of Conformity
Model Number : C-120/D-380
Trade Name : OLYMPUS
Responsible Party : Olympus America Inc.
Address : 2 Corporate Center Drive, Melville, New York
Telephone Number : 631-844-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
11747-3157 U.S.A.
For customers in Canada
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Trademarks
• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
• All other company and product names are registered trademarks and/or
trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design
Rule for Camera File System/DCF” standards stipulated by the Japan Electronics
and Information Technology Industries Association (JEITA).
En
En 3
GETTING STARTED
J NAMES OF PARTS
En
Lens barrier
Turns the camera on
and off in the shooting
mode.
Viewfinder
Monitor
Tripod
socket
Shutter button
(Monitor) button
Turns the camera on and off in the playback mode.
Lens
Macro lever
Target mark
DC-IN jack
Self-timer lamp
Green lamp
Arrow pad
(OK/Menu) button
Flash
Connector cover
USB
connector
Card cover
Strap eyelet
Battery
compartment
cover
4 En
J MONITOR INDICATIONS
Shooting mode
1
2
3
4
5
Item Indication
Battery check ,
1
Flash , , , ,
2
Spot metering
3
Memory gauge
4
Internal memory
5
Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
6
Self-timer/Drive , ,
7
White balance WB AUTO, , , ,
8
Record mode SHQ, HQ, SQ1, SQ2
9
Number of storable still
10
pictures/Seconds remaining
Number of pixels
11
Date and time '02.01.12 12:30
12
File number, Frame number/
13
Playing time
Print reservation, Number of prints
14
Protect
15
6
7
8
9
10
Playback mode
14
1
16/16"
1600 × 1208, 1600 × 1200, 1024 × 768, 640 × 480
100-0016, 16/16"
× 2
15
9
11
6
En
8
12
13
• The indicator is displayed when you are storing pictures in the camera’s
internal memory. It does not appear when you insert a card.
• You can view shooting information details of the recorded picture in the
playback mode.
En 5
Memory gauge
The memory gauge lights up when you take a picture. While the gauge is lit,
the camera is storing the picture on the card. The memory gauge indication
changes as shown below depending on the shooting status. When the
memory gauge is full, wait a few moments before taking the next shot.
When taking still pictures
En
Shoot Shoot Shoot
Before
shooting
(Gauge is
off)
One picture
taken
(Lit)
More than
two taken
(Lit)
Wait
No more pictures
can be taken
(Fully Lit)
When recording movies
If you continue shooting
Shoot
Wait
Before shooting
(Gauge is off)
During shooting (Lit)
• Shooting is not possible until the lit area goes off completely.
• Movie recording ends automatically when the memory gauge
is full.
Battery check
If the remaining battery power is low, the battery check indication on the
monitor changes as follows while the camera is turned on.
Lights up (Green) Blinks (Red)
Remaining power
level: high
Remaining power level: low
Replace with a new battery.
No indication
Green lamp on the right of
the viewfinder blinks
Remaining power level:
exhausted
Replace with a new battery.
6 En
J ATTACHING THE STRAP
1
Thread the short end of the strap through
the strap eyelet.
2
Thread the long end of the strap through
the loop that has already gone through the
eyelet.
3
Pull the strap tight, making sure that it is
securely fastened and will not come loose.
J LOADING THE BATTERIES
1
Make sure that:
• The monitor is off.
• The lens barrier is closed.
• The green lamp is off.
2
Slide the battery compartment cover
in the direction of (the direction
indicated by the mark on the
cover), and lift it up in the direction
of .
3
Insert the batteries, making sure that
they are correctly oriented as shown
in the illustration.
When using
AA (R6)
batteries
When using
lithium battery
packs
En
Battery insertion
direction mark
4
Close the battery compartment
cover in the direction of . While
pressing the mark, slide
the cover in the direction of .
If the battery compartment cover will not
close easily, do not force it. Try pressing
[OPEN] and the mark with both
hands.
En 7
AA (R6) alkaline batteries
When you need batteries in a hurry, you can use AA (R6) alkaline batteries,
which are easy to get anywhere. However, the number of pictures that you
can store in the camera may vary considerably with AA batteries, depending
on the battery manufacturer, camera shooting conditions, etc. Use this type
of battery only when you have no other choices available. Turn off the monitor
whenever possible to save power.
En
J
INSERTING THE CARD (SmartMedia)
The card is convenient, for example, when you are traveling and you want to
take a lot of pictures. When the card is inserted, the pictures you have taken
are stored on the card. When no card is inserted, the pictures are stored in
the camera’s internal memory.
1
Make sure that:
• The monitor is off.
• The lens barrier is closed.
• The green lamp is off.
2
Open the card cover.
3
Insert the card as far as it will
go in the direction shown in
the illustration.
There is an arrow inside the card
cover, indicating the direction in
which the card should be inserted.
4
Close the card cover securely
until it clicks.
Card insertion
direction mark
8 En
J TURNING THE POWER ON/OFF
When shooting pictures
Power on: Open the lens barrier.
The camera turns on in the shooting mode.
Power off: Close the lens barrier.
The camera turns off.
Power on Power off
When playing back pictures on the camera
Power on: Press the (monitor) button with the lens barrier closed.
The camera turns on in the playback mode (the monitor turns
on).
Power off: Press the (monitor) button.
The camera turns off (the monitor turns off).
Power on Power off
With the lens
barrier closed
En
If you open the lens barrier without the card inside the camera, NO CARD
appears on the monitor. In this case, you can record pictures in the camera's
internal memory.
En 9
J SETTING THE DATE AND TIME
1
Open the lens barrier.
2
Press .
The shooting mode top menu is displayed.
3
En
Press on the arrow pad to select MODE MENU.
4
Press to select the SETUP tab, then press .
5
Press to select , then press .
6
Press to select one of the following date formats:
(Year/Month/Day)
Y-M-D
(Month/Day/Year)
M-D-Y
(Day/Month/Year)
D-M-Y
Then press .
The cursor moves to the next setting field.
7
Press to set the first field, then press to move to
the next field.
Press to move back to the previous setting field.
8
Repeat the above steps until the date and time are completely
set.
9
Press .
For a more accurate setting, press when the clock hits 00 seconds.
The clock starts when you press .
10
Close the lens barrier.
The camera turns off.
If the camera is left for about 1 hour with the batteries removed, or if the
battery power is exhausted, the date and time settings may be canceled or
become incorrect. Before taking important pictures, check that the date and
time settings are correct.
10 En
MENU FUNCTIONS
J USING THE MENUS AND TABS
When you turn on the camera and press the (OK/Menu) button, the top
menu is displayed on the monitor. The functions of this camera are set from
the menus. This chapter explains how the menus work, using the shooting
mode screens.
Press .
The top menu is displayed.
DRIVE
MODE MENU
FUNCtION
Select each menu using
the arrow pad.
En
Shortcut Menus
• Let you quickly access the most
frequently used menu settings.
• Display operational buttons at
the bottom of the screen, and let
you select items by pressing
.
SHQ 1600*1208
HQ 1600*1200
SQ1 1024*768
SQ2 640*480
CANCELGOSELECt
Mode Menu
• Lets you access the menu
selections to set the metering,
white balance, etc.
• Categorizes the settings into 4
tabs.
• Displays the CAMERA,
PICTURE, CARD and SETUP
tabs. Select the desired tab on
the left of the screen by pressing
.
CAMERA
Tabs
MEtERING
CARDSEt PIC
En 11
