OKI C610, C711 User Guide

C610 / C711

User’s Guide

REFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the inform a t ion in i t. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as t o the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from:

http://www.okiprintingsolutions.com

07105601 Iss. 2; Copyright © 2011. All rights reserved. Oki is a registered trademark of Oki Electric Industry Company, Ltd. Oki Printing Solutions is a tr a d emark of Oki Data Corporation. Energy Star is a trademark of the United States Environmental Protection Agency. Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation. Apple, Macintosh, Mac and Mac OS are registered trademarks of Apple Inc. Other product names and brand names are registered trademarks or trademarks of their

proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the Council Directives 2004/ 108/EC (EMC), 2006/95/EC (LVD), 1999/5/EC (R&TTE) and 2009/125/EC (ErP), as amended where applicable, on the approximation of the laws of the member states relating to Electromagnetic Compatibility, Low Voltage, Radio & Telecommunications Terminal Equipment and Energy Related Products.

The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance.

CABLE TYPE LENGTH

(METRE)

Power 1.8 USB 5.0 Parallel (C711 only) 1.8 LAN 15.0

CORE SHIELD

✘✘

✘✔

✘✘

Preface > 2

MERGENCY FIRST AID

Take care with toner powder:

If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.

If inhaled, move the person to an open area for fresh air. Seek medical attention.

If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.

Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

ANUFACTURER

Oki Data Corporation, 4-11-22 Shibaura, Minato-ku, Tokyo 108-8551, Japan

MPORTER TO THE

Oki Europe Limited (trading as OKI Printing Solutions) Blays House

Wick Road Egham Surrey, TW20 0HJ United Kingdom

EU/

AUTHORISED REPRESENTATIVE

For all sales, support and general enquiries contact your local distributor.

NVIRONMENTAL

INFORMATION

Emergency first aid > 3

ONTENTS

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Emergency first aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Manufacturer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . .3

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Notes, cautions and warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Documentation suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

On-line usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Printing pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Printer overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Rear view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Power saving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Paper recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Face down stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Face up stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Duplex unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Loading paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Operator panel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

How to change the settings - user. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

How to change the settings - administrator . . . . . . . . . . . . . . . . . . . . . . .23

Configuration menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Print information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Shutdown menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Print secure job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Admin setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Boot menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Print statistics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Replacing consumable items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Toner cartridge replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Image drum replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Replacing the transfer belt unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Fuser replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

...the unit casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

...the LED head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

...the paper feed rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Contents > 4

Installing upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Duplex unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Memory upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Additional paper tray(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Setting the driver device options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Storage cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Major printer components and paper path . . . . . . . . . . . . . . . . . . . . . . . .70

Paper sensor error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Clearing paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Oki contact details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Contents > 5

OTES, CAUTIONS AND WARNINGS

NOTE A note provides additional information to supplement the main text.

CAUTION!

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your product's performance and print quality may be degraded.

Use of non-genuine products may invalidate your warranty.

Specifications subject to change without notice. All trademarks acknowledged.

Notes, cautions and warnings > 6

BOUT THIS GUIDE

NOTE Images used in this manual may include optional features that your product does not have installed.

OCUMENTATION SUITE

This guide is part of a suite of online and printed documentation provided to help you become familiar with your product and to make the best use of its many powerful features. The documentation is summarised below for reference and is found on the manuals DVD unless indicated otherwise:

> Installation Safety booklet: provides information for safe use of your product.

This is a paper document that is packaged with the product and should be read before setting up your machine.

> Set-up guide: describes how to unpack, connect and turn on your product.

This is a paper document that is packaged with the product.

> User’s Guide: helps you become familiar with your product and make the best use

of its many features. Also included are guidelines for troubleshooting and maintenance to ensure that it performs at its best. Additionally, information is provided for adding optional accessories as your printing needs evolve.

> Network Guide: helps you become familiar with the functionality of the built in

network interface card.

> Printing Guide: helps you become familiar with the many features of the driver

software supplied with your product.

> Barcode Printing Guide: helps you become familiar with your product’s built in

barcode printing feature.

> Security Guide: helps you become familiar with your product’s security features. > Installation Guides: accompany consumable items and optional accessories to

describe how to install them. These are paper documents that are packaged with the consumables and optional

accessories.

> On-line Help: on-line information accessible from the printer driver and utility

software.

About this guide > 7

ON-

LINE USAGE

This guide is intended to be read on screen using Adobe Reader. Use the navigation and viewing tools provided in Adobe Reader.

There are many cross-references within this book, each highlighted as blue text. When you click on a cross-reference the display will instantly jump to the part of the manual containing the referenced material.

By using the button in Adobe Reader, you can navigate directly back to where you were before.

You can access specific information in two ways:

> In the list of bookmarks down the left hand side of your screen, click on the topic of

interest to jump to the required topic. (If the bookmarks are not available, use the

“Contents” on page 4.)

> In the list of bookmarks, click on Index to jump to the Index. (If the bookmarks are

not available, use the “Contents” on page 4.) Find the term of interest in the alphabetically arranged index and click on the associated page number to jump to the page containing the term.

RINTING PAGES

The whole manual, individual pages, or sections may be printed. The procedure is:

1. From the toolbar, select File > Print (or press the Ctrl + P keys).

2. Choose which pages you wish to print:

(a) All pages, (1), for the entire manual. (b) Current page, (2), for the page at which you are looking.

1 2 3

page numbers.

(d) Click OK.

About this guide > 8

NTRODUCTION

Congratulations on choosing this colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.

Your printer includes these features:

> ProQ2400, multi-level technology produces subtler tones and smoother gradations

of colour to lend photographic quality to your documents.

> 600 x 600, 1200 x 600 dpi (dots per inch) and ProQ2400 print resolution for high

quality image production showing the finest detail.

> Internet Protocol version 6 (IPv6). > Single Pass colour Digital LED technology for high speed processing of your prin ted

pages.

> PostScript 3, PCL 5C, PCL 6 and Epson FX emul ations for industry standard operat ion

and wide compatibility with most computer software.

> 10Base-T and 100Base-TX network connection lets you share this valuable resource

among users on your office network.

> Photo Enhance mode to improve printouts of photographic images (Windows PCL

driver only).

> “Ask Oki” – a user -friendly function for Windows that provides a direct link from your

printer driver screen to a dedicated web site specific to the exact model you are using. This is where you’ll find all the advice, assistance and s upport y ou could need to help you get the best possible results from your Oki printer.

> Template Mana ge r utility for Windows enables the design and print of business

cards, banners, labels with ease.

Additionally, the following optional features are also available:

> Automatic two-sided (duple x) pri nting for economical use of paper and comp ac t

printing of larger documents (standard on dn models).

> Additional paper tray for loading a further 530 sheets to minimise operator

intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media.

> Additional memory allows printing of more complex pages. For example, high

resolution banner printing.

> SD card for storage of overlays, macros and downloadable fonts, and automatic

collation of multiple copies of multipage documents and the download of ICC Profiles.

> Storage Cabinet.

Introduction > 9

RINTER OVERVIEW

RONT VIEW

C610

1. Output stacker, face down. Standard printed copy delivery point. Holds

up to 250 sheets at 80g/m².

2. Operator panel. Menu driven operator controls and LCD

panel

3. Paper tray. Standard paper tray. Holds up to 300 sheets

of 80g/m² paper.

4. Multi purpose tray. Used for feeding heavier paper stocks,

envelopes and other special media. Also for manual feeding of single sheets when required.

a. The display language can be changed to show different languages. (see “Changing the

display language” on page 13).

5. Paper level indicator.

6. Front cover release lever.

7. Multi-purpose tray release recess.

8. Top cover release button.

9. LED heads.

10. Fuser release le vers.

11. Toner cartridges (C,M,Y,K).

12. ID units (C,M,Y,K).

13. Duplex unit (when fitted).

Introduction > 10

C711

1. Output stacker, face down. Standard printed copy delivery point. Holds

up to 350 sheets at 80g/m².

2. Operator panel. Menu driven operator controls and LCD

panel

3. Paper tray. Standard paper tray. Holds up to 530 sheets

of 80g/m² paper.

4. Multi purpose tray. Used for feeding heavier paper stocks,

envelopes and other special media. Also for manual feeding of single sheets when required.

a. The display language can be changed to show different languages. (see “Changing the

display language” on page 13).

5. Paper level indicator.

6. Front cover release lever.

7. Multi-purpose tray release recess.

8. Top cover release button.

9. LED heads.

10. Fuser release le vers.

11. Toner cartridges (C,M,Y,K).

12. ID units (C,M,Y,K).

13. Duplex unit (when fitted).

Introduction > 11

EAR VIEW

This view shows the connection panel, the rear output stacker and the location of the optional duplex (two-sided printing) unit.

C610

6 7

1. ON/OFF switch.

2. AC power socket.

3. Duplex unit (when fitted).

4. Rear, face up stacker. a. The Network Interface may have a protective “plug” which

must be removed before connection can be made.

5. USB interface.

6. ACC interface (host USB).

7. Network interface.

C711

1. ON/OFF switch.

2. AC power socket.

3. Duplex unit (when fitted).

4. Rear, face up stacker. a. The Network Interface may have a protective “plug” which

must be removed before connection can be made.

5. USB interface.

6. ACC interface (host USB).

7. Network interface.

8. Parallel interface.

Introduction > 12

When the rear paper stacker is folded down paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the multi purpose feed tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path and enables feeding of up to 250g/m² media.

HANGING THE DISPLAY LANGUAGE

The default language used by your machine for display messages is English. If required, this can be changed using the Panel Language Set-up utility.

ETTING STARTED

OWER SAVING MODE

If you do not use the machine for a while, it will enter the power saving mode to control the power consumption of the device. To cancel or initiate power saving mode, press the Power Save / Wake Up button on the control panel.

NOTE If your machine is connected locally (via USB or parallel*), when it transitions to Sleep mode its status is viewed as off-line. To use the printer in this state, you must press the Power Save / Wake Up button to exit sleep mode.

*C711 only.

WITCHING OFF

CAUTION!

If you have an SD card fitted, always follow the correct shutdown procedure to ensure that no data is lost.

1. Press the Enter button on the control panel to enter the menu.

2. Press the Menu down button and scroll to the Shutdown menu.

3. Press the Enter button.

4. Press the Enter button to continue.

5. Press the Enter button to execute.

6. At the prompt, turn the power switch OFF.

Introduction > 13

APER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, labels and envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75~90g/m² paper designed for use in copiers and laser printers. Suitable types are:

> M-Real Data Copy Everyday 80g/m²

> Color Copy by Mondi 90g/m²

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery

CAUTION!

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Continued use of pre-printed stationery may cause the paper feed performance to degrade over time and paper jams may occur. Clean the paper feed rollers as described on page 60.

Envelopes

CAUTION!

Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular flap type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.

Labels

CAUTION!

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.

Recommended type is Avery White Label types 7162, 7664, 7666 (A4), or 5161 (Letter).

Paper recommendations > 14

ASSETTE TRAYS

SIZE DIMENSIONS WEIGHT (G/M²)

A6 A5 148 x 210mm B5 182 x 257mm Executive 184.2 x 266.7mm A4 210 x 297mm Letter 215.9 x 279.4mm Legal 13in. 216 x 330mm Legal 13.5in. 216 x 343mm Legal 14in. 216 x 356mm

a. C711: A6 printing from the MP Tray only.

105 x 148mm Light 64 - 74g/m²

Medium Light 75 - 82g/m² Medium 83 - 104g/m² Heavy 105 - 120g/m² Ultra heavy1 121 - 188g/m² Ultra heavy2 189 - 220g/m² Ultra heavy3 221 - 250g/m²

Tray 1/2/3: 64 - 220g/m² MP Tray: 64 - 250g/m²

If you have identical paper stock loaded in another tray (2nd or 3rd tray if you have one, or multi purpose tray) you can set the printer to automatically switch to the other tray when

the current tray runs out of paper. When printing from Windows applications, this function is enabled in the driver settings. When printing from other systems, this function is enabled in the Print Menu. (See “Menu functions” on page 22.)

ULTI PURPOSE TRAY

The multi purpose tray can handle the same sizes as the cassette trays but in weights up to 250

g/m². For very heavy paper stock use the face up (rear) paper stacker. This ensures

that the paper path through the printer is almost straight. The multi purpose tray can feed paper widths from 76mm to 215.9mm and lengths from

127.0mm to 1320mm (banner printing). For paper lengths exceeding 356mm (Legal 14in.) use paper stock between 90g/m² and

128g/m² and the face up (rear) paper stacker. Use the multi purpose tray for printing on envelopes. Up to 10 envelopes can be loaded at

one time, subject to a maximum stacking depth of 10mm.

ACE DOWN STACKER

C610: The face down stacker on the top of the printer can hold up to 250 sheets of

80g/m² standard paper, and can handle paper stocks up to 188g/m². C711: The face down stacker on the top of the printer can hold up to 350 sheets of

80g/m² standard paper, and can handle paper stocks up to 188g/m². Pages printed in reading order (page 1 first) will be sorted in reading order (last page on

top, facing down).

ACE UP STACKER

The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

The face up stacker can hold up to 100 shee ts of 80g/m² st andard paper, and can handl e stocks up to 250

g/m².

Always use this stacker and the multi purpose feeder for paper stocks heavier than 188g/m².

Paper recommendations > 15

UPLEX UNIT

This option provides automatic two-sided printing on the same range of paper sizes as tray 2 (i.e. all cassette sizes except A6), using paper stocks from 64 - 220g/m².

NOTE: The duplex unit comes as standard with dn models.

Paper recommendations > 16

OADING PAPER

NOTE For illustrative purposes, the C711 printer has been shown. If you have a C610 printer, the principle is the same with any exceptions noted.

ASSETTE TRAYS

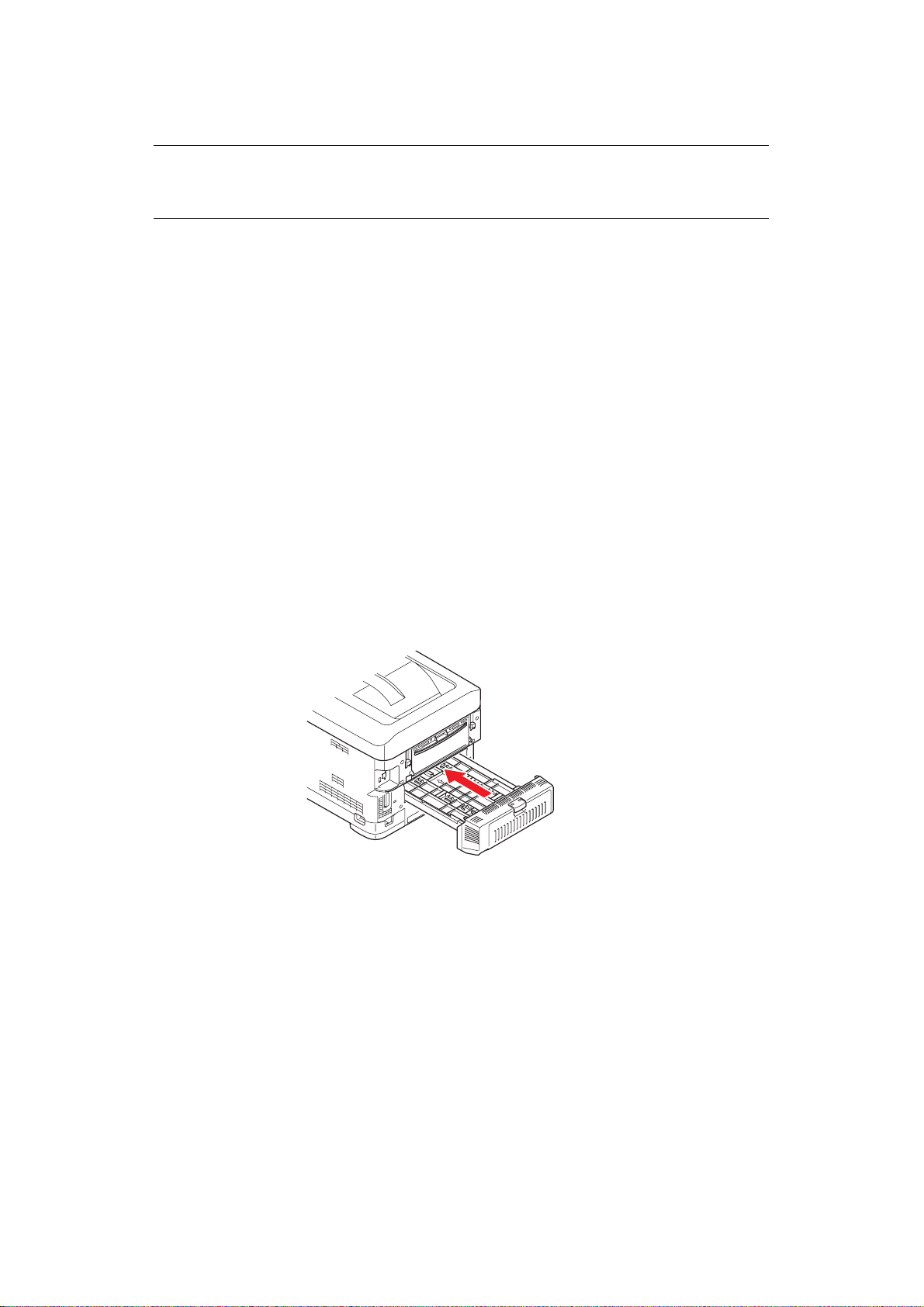

1. Remove the paper tray from the printer.

Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all

sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3).

Loading paper > 17

3. Load paper (letter headed paper face down and top edge towards the front of the printer), as shown.

> Adjust the rear stopper (a) and paper guides (b) to the size of paper being used.

CAUTION!

C711 ONLY: IMPORTANT: Set paper size dial (c) to the size of paper being used (A4 in the above example).

To prevent paper jams:

> Do not leave space between the paper and the guides and rear stopper. > Do not overfill the paper tray. Capacity depends on the type of paper stock. > Do not load damaged paper. > Do not load paper of different sizes or types at the same time. > Close the paper tray gently.

Loading paper > 18

> Do not pull the paper tray out during printing (except as described below for the

2nd tray).

NOTE

> If you have two trays and you are printing from the 1st (upper) tray, you

can pull out the 2nd (lower) tray during printing to reload it. However, if you are printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray. This will cause a paper jam.

> For face down printing, make sure the face up (rear) stacker (a) is closed

(the paper exits from the top of the printer). Stacking capacity is approximately 250 sheets for the C610 and 350 sheets for the C711, depending on paper weight.

> For face up printing, make sure the face up (rear) stacker (a) is open and

the paper support (b) is extended. Paper is stacked in reverse order and tray capacity is approximately 100 sheets, depending on paper weight.

> Always use the face up (rear) stacker for heavy paper (card stock, etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

Loading paper > 19

ULTI PURPOSE TRAY

1. Open the multi purpose tray (a).

2. Fold out the paper supports (b).

3. Press gently down on the paper platform (c) to ensure it is latched down.

4. Load the paper and adjust the paper guides (d) to the size of paper being used.

> For single-sided printing on headed paper load the paper into the multi purpose

tray with pre-printed side up and top edge into the printer.

> For two-sided (duplex) printing on headed paper load the paper with pre-printed

side down and top edge away from the printer. (Optional duplex unit must be installed for this function.)

> Envelopes should be loaded face up with top edge to the left and short edge into

the printer. Do not select duplex printing on envelopes.

> Do not exceed the paper capacity of about 100 sheets or 10 envelopes. Maximum

stacking depth is 10mm.

5. Press the tray latch button inwards to release the paper platform, so that the paper is lifted and gripped in place.

6. Set the correct paper size for the multi purpose tray in the Media Menu (see “Menu

functions” on page 22).

Loading paper > 20

PERATION

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.

For full details of how to access and use the printer security features, please refer to the Security Guide.

Operation > 21

ENU FUNCTIONS

This section lists the menus accessed via the controls on the printer’s operator panel and displayed in the LCD window.

PERATOR PANEL

1. Ready LED ON: Ready to receive data. BLINKING: Processing data. OFF: Offline.

3. Menu Scroll

Buttons

Enters the Menu mode. In Menu mode, forwards or reverses the menu item displayed.

Press for 2 secs. or longer to jump from top to bottom.

2. Display Displays the printer status and

4. On Line Button Switches between ONLINE

any error messages.

and OFFLINE. Exits the menu and goes

ONLINE when pressed in the Menu mode.

Scrolls the HELP screen. Forces printing on the paper

currently loaded when pressed with “WRONG PAPER” or “WRONG PAPER SIZE” displayed.

5. Attention LED ON: A warning occurs. Printing may be possible (e.g low toner).

BLINKING: An error occurs. Printing not possible (e.g. toner empty).

OFF: Normal condition.

7. Enter Button In the ONLINE or OFFLINE mode: enters the Menu mode.

In the Menu mode: determines the setting selected.

9. Help Button Provides advice when an error such as incorrect paper size occurs.

6. Back Button Returns to the previous higher

8. Cancel Button Deletes the data being printed

10. Power Save/ Wake Up Button

level menu item. Pressing this button for more

than 4 seconds initiates the printer shutdown procedure, select Yes to continue or No to abort.

or received when pressed for two seconds or longer.

Deletes the data when pressed for two seconds or longer with WRONG PAPER SIZE, RUN OUT OF PAPER, TRAY 1 IS OPEN, or TRAY 1 IS NOT FOUND is displayed.

Exits the menu and goes ONLINE when pressed in the Menu mode.

Pressing this button switches the machine into sleep or wake-up mode. Refer to

“Power saving mode” on page 13.

Menu functions > 22

OW TO CHANGE THE SETTINGS

It should be noted that many of these settings can be, and often are, overridden by settings in the printer drivers. However, several of the driver settings can be left at “Printer Setti ng”, which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables. In the normal operating condition, known as “standby,” the printer’s LCD window will show

Ready to Print. In this condition, to enter the menu system, press the up and down Menu buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press Enter to enter the menu.

2. Use the up and down MENU buttons on the control panel to scroll through the

menus. When the item you want to change is displayed, press Enter to view the sub-menus for that item.

3. Use the up and down MENU buttons to move up and down through the sub-menu items. When the item you want to change is displayed press Enter to display the setting.

4. Use the up and down MENU buttons to move up and down through the available settings for the sub-menu item. When the item you want to change is displayed press Enter to display the setting. An asterisk (*) will appear next to the setting, indicating that this setting is currently in effect.

USER

5. Do one of the following:

> Press Back again to move up to the list of menus;

or…

> Press On Line or Cancel to exit from the menu system and return to standby.

OW TO CHANGE THE SETTINGS

You can set whether to ENABLE or DISABLE each category in the user menu. Disabled categories are not displayed in the User’s menu. Only a system administrator can

change these settings.

1. Turn OFF the printer. Turn ON the printer while pressing the Enter button. When Boot Menu appears, take your finger off the button.

2. Press the Enter button.

3. At the Enter Password prompt, enter the Admin password:

(a) Using the up and down MENU buttons, scroll to the required letter/digit. (b) Press the Enter button to input and move to the next letter/digit. (c) Repeat steps (a) and (b) until all letters/digits are entered.

Enter your 4 to 9 digit password.

(The default password is aaaaaa).

ADMINISTRATOR

4. Press the Enter button.

5. Press the up or down MENU button until the “category” you want to change is

displayed.

6. Press the Enter button.

7. Press the up or down MENU button until the “item” y ou want to change is displayed.

8. Press the Enter button.

Menu functions > 23

9. Using the up or down MENU button, identify the parameter as required.

10. Press the Enter button. An asterisk (*) will appear next to the setting, indicati ng

that this setting is currently in effect.

11. Press the On Line button to switch to online. The machine will automatically reboot.

ONFIGURATION MENU

ITEM ACTION EXPLANATION

Tray Count Tr ay1

Tr ay 2* Tr ay 3* MP Tray *Note: Only available when

optional trays are present

Supplies Life Cyan Drum

Magenta Drum Yell ow D rum Black Drum Belt Fuser Cyan Toner Magenta To ner Yell ow Toner Black Toner

Network Printer Name

Short Printer Name IPv4 Address Subnet Mask Gateway Address MAC Address Network FW Version Web Remote Version IPv6 Address(Local) IPv6 Address(Global)

Select an item to display the total number of pages printed from the relevant tray.

Select item to display the percentage of a consumable remaining.

Displays the full printer name. Displays an abbreviated version. Displays the IPv4 Address of the network. Displays the Subnet Mask of the network. Displays the Gateway Address of the network. Displays the MAC Address of the printer. Displays the Network firmware revision. Displays the Web remote version.

Displays the IPv6 Address(Local) of the network. Displays the IPv6 Address(Global) of the network.

System Serial Number

Asset Number Lot Number CU Version PU Version Total Memory Flash Memory SD Card Date and Time

a. Display condition: IP Version is IP v4+v6 or IP v6.

Menu functions > 24

Displays information for these items.

RINT INFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION

Configuration Execute Select execute to print out a configuration report. Network Execute Scroll down to this parameter and select ex ecute to print

out Network information.

Demo Page

DEMO1 Execute Scroll down to this parameter and select execute to print

out a demonstration page.

File List Ex ecute Scroll down to this parameter and select execute to print

out a list of job files. (displayed only if FileSystem is installe d).

PS Font List Execute Scroll down to this parameter and select execute to print

out a Postscript emulation typeface list.

PCL Font List Execute Scroll down to this parameter and select execute to print

out a PCL font list.

IBM PPR Font List Execute Scroll down to this parameter and select execute to print

EPSON FX Font List Execute Scroll down to this parameter and select execute to print

Usage Report Execute Scroll down to this parameter and select execute to print

Error Log Execute Scroll down to this parameter and select execute to print

Color Profile List Execute Scroll down to this parameter and select execute to print

HUTDOWN MENU

out an IBM PPR font list.

out an Epson FX emulation font list.

out a list of colour and mono pages printed.

out the error log.

out a list of colour profiles.

This item should always be selected before switching the printer off, to ensure that no data is lost.

ITEM SETTINGS EXPLANATION

Shutdown Start Execute Performs controlled shutdown of the printer.

Only power the printer off when the display indicates that shutdown is complete.

Menu functions > 25

RINT SECURE JOB

NOTE: This menu only displays if the optional SD card is installed.

ITEM ACTION EXPLANATION

Encrypted Job Not Found

Print Delete

Used for printing an encrypted authentication print job (Encrypted Job) stored in the SD card.

After inputting a password, “Searching Job” is displayed until a job appropriate for the password is found.

(Searching time increases in proporti on to the n umber of jobs stored in the SD card, and the printer may take up to 20 sec.)

The search can be cancelled by holding down the Cancel button.

Not Found will be displayed where a file, which could be printed is not available.

The following message will appear if a printable file is available.

Encrypted Job Print Delete

A set of all jobs will be printed if Print is selected and the Enter button is pressed.

The following message will appear if Delete is selected:

Are You Sure? Yes No

The display will return to the source menu if No is selected.

All jobs will be deleted if Yes is selected. Print jobs with encrypted authentication stored in the SD

card are deleted by a delete method specified by the driver after printing or a delete instruction from the menu.

Stored Job Not Found

Print Delete

Used to print out a stored job in the SD card. Not Found will be displayed where a file, which could be

printed is not available. The following message will appear if a printable file is

available.

Stored Job Print Delete

When Print is selected, Set Collating Amount is displayed and the number of pages to print can be specified.

Specify the number of pages to print and press the Enter button.

The following message will appear if Delete is selected:

Are You Sure? Yes No

If No is selected, the display will return to the previous menu.

If Yes is selected, all jobs will be deleted.

Menu functions > 26

ENUS

ITEM ACTION EXPLANATION

Tray Configuration Paper Feed

Default: Tray 1 Auto Tray Switch

Default: On Tray Sequence

Default: Down Unit of Measurement

Default: millimeter Tray1 Config Configure Paper Size/Media Type/Media

Default: Paper Size:

Select tray. Select by scroll and Enter button.

Switches Auto ON/OFF. Select by scroll and Enter button.

Selects Tray sequence Down/Up/Paper feed Tray. Select by scroll and Enter button.

Selects UOM Inches or millimeter. Select by scroll and Enter button.

Weight. Select by scroll and Enter button.

C610 A4/A5/A6/B5/

Legal14/ Legal13.5/ Legal13/Letter/ Executive/ Custom

C711 Cassette/

Custom

Media Type: Plain/

Letterhead/ Bond/ Recycled/Card Stock/Rough/ Glossy/USER TYPE 1-5

Media Weight: Light/Medium

Light/Medium/ Heavy/Ultra Heavy1/Ultra Heavy2

USER TYPE 1 to 5 are displayed only if registered in the host PC.

Menu functions > 27

ITEM ACTION EXPLANATION

Tray Configuration (cont.)

MPTray Config Configure Paper Size/Media Type/Media

Weight/Tray Usage. Select by scroll and Enter button.

Paper Size: A4/A5/A6/B5/

Legal14/Legal

13.5/Legal13/ Letter/ Executive/ Custom/Com-9 Envelope/Com10 Envelope/ Monarch Envelope/DL Envelope/C5/ Index Card

Media Type: Plain/

Letterhead/ Films/Labels/ Bond/

USERTYPE 1 to 5 are displa yed only if registered in the host PC.

Paper weight 189 ~ 250g/m

Recycled/Card Stock/Rough/ Glossy/ USERTYPE 1-5

Media Weight: Light/Medium

Light/Medium/ Heavy//Ultra Heavy1/Ultra Heavy2/Ultra Heavy3

Tray Usage: When

Mismatching/

Do Not Use

Tray 2 Config* Tray 3 Config*

Sets MPTray usage. When Mismatching: if paper mismatch

occurs, paper is requested from the MPTray instead of the specified tray.

Do Not Use: sets MPTray unavailable both in Auto Tray Select and Auto Tray Switch.

*Note: only present if option installed.

Menu functions > 28

ITEM ACTION EXPLANATION

System Adjust Power Save Time

Default: 30

Sleep Time Default: 10

Clearable Warning Default: ONLINE

Auto Continue Default: Off

Manual Timeout Default: 60

Wait Timeout Default: 40

Low Toner Default: Continue

Jam Rcovery Default: On

Error Report Default: Off

Select from 1/2/3/4/5/10/15/30/60/120 Minutes.

Select by scroll and Enter button. Select from 1/2/3/4/5/10/15/30/60/120

Minutes. Select by scroll and Enter button.

Select from: ONLINE/Job. Select by scroll and Enter button. PS job only.

Select from On/Off. Select by scroll and Enter button.

Select from Off/30 seconds/60 seconds. Select by scroll and Enter button.

Select from Off/5/10/20/30/40/50/60/

90/120/150/180/210/240/270/300 seconds. Select by scroll and Enter button.

Select action to take when toner sensor indicates low toner. Select from Continue/ Stop. Select by scroll and Enter button.

Select from On/Off. Select by scroll and Enter button.

Print Position Adjust Default: 0.00

Paper Bla ck Setting

-2/-1/0/+1/+2 Default: 0

Paper Color Setting

-2/-1/0/+1/+2 Default: 0

Films Black Setting

-2/-1/0/+1/+2 Default: 0

Films Color Setting

-2/-1/0/+1/+2 Default: 0

SMR Setting +3/+2/+1/0/-1/-2/-3/ Default: 0

BG Setting +3/+2/+1/0/-1/-2/-3/ Default: 0

Select from X Adjust/Y Adjust/Duplex X

Adjust/Duplex Y adjust. Select by scroll and Enter button. Define measurement.

Used for fine adjustment of the black print on paper.

Used for fine adjustment of the colour print on paper.

Used for fine adjustment of the black print on films.

Used for fine adjustment of the colour print on films.

To correct variations in print results caused by temperature/humidity conditions and difference in print density/frequency.

Change the setting when print quality is uneven.

To correct variations in print results caused by temperature/humility conditions and difference in print density/frequency.

Change the setting when background is dark.

Menu functions > 29

ITEM ACTION EXPLANATION

System Adjust (cont.)

Drum Cleaning Default: Off

Hex Dump Execute Prints out data received from the host PC in the

Sets whether to rotate the drum in idle prior to printing in order to reduce horizontal white lines.

Be warned that this will shorten th e ID life by as much as this rotation. Select by scroll and Enter button.

hexadecimal Dump. Turning off the power supply switch restores Normal Mode.

Menu functions > 30

DMIN SETUP

ITEM SETTINGS EXPLANATION

Enter Password

Network Setup

xxxxxxxxxxxx Enter a password to gain entry to the Admin Setup menu.

TCP/IP Enable

Disable

IP Version IP v4

IP v4+v6 IP v6

NetBEUI Enable

Disable

NetBIOS over TCP

Enable

Disable

Password should be from 6 to 12 digits of alpha/numeric characters (or mix)

The default value is “aaaaaa” Sets TCP/IP Protocol.

Enable: TCP/IP Protocol is available. Disable: TCP/IP Protocol is not available.

Set up the IP version. Operates with IPv4 for IPv4 (not valid with IPv6). Operates with both IPv4 and IPv6 for IPv4+v6. Operates with IPv6 for IPv6 (not valid with IPv4). There is only IPv4 and IPv4+v6 as normal value.

From this stage, if IPv6 only is set from UI, for example Telnet, “IPv6” appears as the value of IP Version on the operation panel. “IPv6” will disappear from the value if “IP v4” or “IP v4+v6” is selected.

Display Condition: TCP/IP should be enabled. Sets Enable/Disable of NETBEUI Protocol.

Sets Enable/Disable of NetBIOS over TCP protocol. Display Conditions:

> TCP/IP should be enabled. > IP Version is not IPv6.

NetWare Enable

Sets Enable/Disable of NetWare Prot ocol.

Disable

EtherTalk Enable

Sets Enable/Disable of EtherTalk Protocol.

Disable

Frame Type Auto

802.2

Sets the frame type. Display Condition: Netware should be enabled.

802.3 Ethernet II SNAP

IP Address Set

IPv4 Address

Auto

Manual

Sets the IP Address setting method. Display Conditions:

> TCP/IP should be enabled. > IP Version is not IPv6.

xxx.xxx.xxx.xxx Sets the IP Address.

Display Conditions:

> TCP/IP should be enabled. > IP Version is not IPv6.

Subnet Mask xxx.xxx.xxx.xxx Sets the Subnet Mask.

Display Conditions:

> TCP/IP should be enabled. > IP Version is not IPv6.

Menu functions > 31

ITEM SETTINGS EXPLANATION

Network Setup (cont.)

Gateway

xxx.xxx.xxx.xxx Sets the Gateway (default router) address.

Address

Web Enable

Disable

Telnet Enable

Disable

FTP Enable

Disable

IPSec Enable

Disable

SNMP Enable

Disable

0.0.0.0 means that there is no router. Display Conditions:

> TCP/IP should be enabled. > IP Version is not IPv6.

Sets Enable/Disable of Web. Enable: Web/IPP is available.

Disable: Web/IPP is not available. Display Condition: TCP/IP should be enabled.

Sets Enable/Disable of Telnet. Enable: Telnet is available.

Disable: Telnet is not available. Display Condition: TCP/IP should be enabled.

Sets Enable/Disable of FTP. Enable: FTP is available.

Disable: FTP is not available. Display Condition: TCP/IP should be enabled.

Sets Enable/Disable of IPSec. Enable via the web. Enable: IPSec is available.

Disable: IPSec is not available. Sets Enable/Disable of SNMP.

Enable: SNMP is available. Disable: SNMP is not available. Display Condition: TCP/IP or NetWare should be enabled.

Network Scale

Hub Link Setting

Normal

Small

Auto Negotiate

100Base-TX Full 100Base-TX Half 10Base-T Full 10Base-T Half

Factory

Execute Specifies whether to initialize the network factory default

Defaults?

Print Setup Personality Auto

PostScript PCL XPS IBM PPR EPSON FX

Copies 1- 999 Selects the number of copies.

When Normal is selected, the network can work effectively even when it is connected to a HUB that has a spanning tree feature. However, printer start up time gets longer when computers are connected with two or three small LANs.

When Small is selected, computers can cover from two or three small LANs to a large LAN, but may not work effectively when the network is connected to a HUB with a spanning tree feature.

Sets a method to link to a HUB. When Auto is set, a connection method to a HUB is selected automatically and attempts to connect.

If another method is selected, attempts to connect to a HUB only by the selected connection method.

settings for the Network. Selects a printer language.

This setting is disabled for Local Print except for Demo Page.

Duplex On/Off Specifies duplex print (option) if a duplex unit is installed

and enabled

Menu functions > 32

ITEM SETTINGS EXPLANATION

Print Setup (cont.)

Binding Long Edge

Short Edge

Media Check Enable

Disable

Resolution 600dpi

600x1200dpi

600dpi multilevel

Toner Save Mode

Mono-Print Speed

On/Off This function works effectively only if the data input is

Auto

Color Speed Normal Speed

Specifies Binding in duplex printing. Display Condition: a duplex unit is installed and enabled. Refer to “Duplex” on page 32.

Sets whether the printer checks the matching of printed data size and that of the tray. Only standard sizes are checked.

Sets default resolution.

color RGB data. This setting is valid in PS and PCL, but does not take effect in the following cases.

(1) PS: If Color Matching is set OFF. (2) PS: If any setting other than ASIC Color Matching is

set. (3) PS: CMYK data when Ink Simulation Mode is used

(valid in any other cases except Case (1) and Case (2) above as long as data is RGB).

(4) PCL binary data (Color/Monochrome). Sets the monochrome print speed. Prints at the mos t

appropriate speed for page process if Auto is set. Prints always at the color print speed if Color is set. Prints always at the monochrome print speed if Normal is

set.

Default Orientation

Form Length 5 lines

Edit Size Cassette Size/

Trapping Off

Portrait

Landscape

64 lines

~ 128 lines

A4/A5/A6/B5/ Legal14/ Legal13.5/ Legal13/Letter/ Executive/ Custom/Com-9 Envelope/Com10 Envelope/ Monarch Envelope/DL Envelope/C5/ Index Card

Narrow Wide

Specifies print orientation. Not valid for PS (valid only for PCL/ IBMPPR/EPSONFX/

HP-GL2). Sets the number of lines that can be printed on a page

Not valid for PS (valid only for PCL/HP-GL2). Default values listed to the left are for Letter/A4. In

practice, however, they change according to the size of paper loaded in the tray.

Sets the size of an area to draw when the host PC does not specify the size via the paper edit size designating command (Not valid for PS - only for PCL).

Sets trapping.

Menu functions > 33

ITEM SETTINGS EXPLANATION

Print Setup (cont.)

PS Setup Network

PCL Setup Font Source Resident Specifies the location of PCL default font.

X Dimension 64 mm

210 mm

~ 216 mm

Y Dimension 127 mm

297 mm

~ 1321 mm

ASCII/RAW Specifies PS communication protocol mode of data from

Protocol

Parallel Protocol*

USB Protocol

ASCII/RAW Specifies PS communication protocol mode of data from

Specifies paper width of Custom paper as a default value. Sets a paper size at right angles to the paper run

direction.

Specifies paper length of Custom paper as a default value. Sets a paper size in the same direction as the paper run

direction.

NIC port. (In RAW mode, Ctrl-T is invalid). PS models only.

Centronics port. (In RAW mode, Ctrl-T is invalid). PS models only. * This menu item is applicable to the C711 only.

USB port. (In RAW mode, Ctrl-T is invalid). PS models only.

Font Number

Font Pitch 0.44 CPI

Font Height 4.00 point

Symbol Set PC-8 Sets the symbol set of PCL (see machine operator panel

I0 ~ I90 Sets the PCL font number.

The valid range of this variable changes depending on the FONT SOURCE setting at the time. If the default font is set for FONT SOURCE, the number starts at 0. If it is not, the number starts at 1. The maximum value is equal to the number of fonts installed in FONT SOURCE.

Width of the PCL default font in characters per inch (CPI).

10.00 CPI

99.99 CPI

12.00 point

999.75 point

Default font is fixed-pitch, scalable font. The value of pitch is displayed down to the second

decimal place. Displayed only when the font selected in Font Number is a

fixed-spacing, scalable font. Height of the PCL default font. The value is displayed

down to the second decimal place (in 0.25 point increments).

Displayed only when the font selected in Font Number is a proportional-spacing, scalable font.

for complete list).

Menu functions > 34

ITEM SETTINGS EXPLANATION

PCL Setup (cont.)

A4 Print Width

White Page Skip

CR Function CR/CR+LF Sets action when CR code is received in PCL.

LF Function LF/LF+CR Sets action when LF code is received in PCL.

Print Margin Normal

78 column

80 column

On/Off Sets whether to eject a page without any data to print

1/5 inch 1/6 inch

Sets the number of characters for A4 paper. Auto LF. This is for 10-CPI characters when Auto CR/LF Mode is set

to OFF. This menu is enabled only when A4 paper is selec ted in

the menu that sets the print width of A4 paper in portrait orientation.

Usually , such A4 paper print width is set slightly narrower than 8 inches (about 7.93 inches).

This setting cannot print 80 10-cpi char acters ( only print s up to 78 10-cpi characters). 80 characters set at A4 Print Width widen the right and left margins.

A PCL command selects or selects/deselects Auto CR/LF mode.

(blank page) upon reception of FF command (OCH) in PCL Mode. OFF: Ejecting.

CR: Carriage Return CR+LF: Carriage Return and Line Feed

LF: Line Feed LF+CR: Line Feed and Carriage Return

Sets a non-printable area of paper. The width of the area along the right and left sides of

paper (left and right sides depend on paper orientation). NORMAL: PCL emulation compatible, approximately 1/

4~1/4.3INCH (depending on paper) is outside the printable area.

True Black

Pen Width Adjust

Tr ay ID#

Tray 2 1 ~ 5 ~ 59 Sets the # to specify T ray 2 for the paper feed destination

Tray 3 1 ~ 20 ~ 59 Sets the # to specify T r ay 3 for the paper feed destination

MPTray 1 ~ 4 ~ 59 Sets the # to specify the MP tray for the paper feed

On/Off Sets whether to use Composite Black (cmyk mixed) or

Pure Black (K only) for the black (100%) in image data. OFF: Mode using Composite Black ON: Mode using Pure Black (PCL only)

On/Off When minimum width is specified in PCL, sometimes a 1-

dot line, looks broken. With PEN WIDTH Adjust set to ON, when the minimum

width is specified, the line width will be emphasized so as to look wider than a 1-dot line.

With PEN WIDTH Adjust set to OFF, the line will appear as before.

command (ESC&l#H) in PCL5e emulation. (Displayed only if Tray 2 is installed).

command (ESC&l#H) in PCL5e emulation. (Displayed only if Tray 3 is installed).

destination command (ESC&l#H) in PCL5e emulation.

Menu functions > 35

ITEM SETTINGS EXPLANATION

IBM PPR Setup

Character Pitch

Font Condense

Character Set

Symbol Set

Letter O Style

Zero Character

Line Pitch 6/8 LPI Sets line space. White

Page Skip CR Function CR/CR+LF Sets action when CR code is received. LF Function LF/LF+CR Sets action when LF code is received.

10 CPI

12 CPI 17 CPI 20 CPI Proportional

12CPI to 20CPI

12CPI to 12CPI

SET-2

SET-1 IBM-437 Sets the Symbol Set for IBM PPR (see machine operator

Enable/Disable Specifies the style t hat replaces ø (9B) and ¥ (9D) with ø

Normal/Slashed Specifies the style of 0(zero). SLASHED: SLASH ZERO

On/Off Sets whether to eject a blank sheet. Available only when

Specifies character pitch in IBM PPR emulation.

Specifies 12CPI pitch for Condense Mode.

Sets a character set.

panel for complete list).

(ou) and Ø (zero).

simplex is set.

Line Length 80/136 column Specifies the number of characters per line. Form Length 11/11.7/12 inch Specifies the length of paper. TOF Position 0.0/0.1/~1.0

inch

Left Margin 0.0/0.1/~1.0

inch

Fit to Letter

Text Height

Enable/Disable Sets the printing mode that can fit print data, equivalent

Same/Diff Sets height of a character.

Sets the position from the top edge of paper.

Sets the amount to shift the horizontal print start position to the right.

to 11 inches (66 lines), in the LETTER-size printable area.

SAME: Regardless of CPI, same height DIFF: According to CPI, character heights vary.

Menu functions > 36

ITEM SETTINGS EXPLANATION

EPSON FX Setup

Character Pitch

Character Set

Symbol Set IBM-437 Sets the Symbol Set for Epson FX Emulation.

Letter O Style

Zero Character

Line Pitch 6/8 LPI Sets line space. White Page

Skip CR Function CR/CR+LF Sets action when CR code is received. Line Length 80/136 column Specifies the number of characters per line. Form Length 11/11.7/12 inch Specifies the length of paper. TOF Position 0.0/0.1/~1.0

10 CPI/12 CPI/ 17 CPI

20 CPI/ Proportional

SET-2

SET-1

Enable/Disable Specifies the style t hat replaces ø (9B) and ¥ (9D) with ø

Normal/Slashed Specifies the style of 0(zero). SLASHED: SLASH ZERO

On/Off Sets whether to eject a blank sheet. Available only when

inch

Specifies character pitch in Epson FX emulation.

Sets a character set.

(see machine operator panel for complete list).

(ou) and Ø (zero).

simplex is set.

Sets the position from the top edge of paper.

Left Margin 0.0/0.1/~1.0

Fit to Letter Enable/Disable Sets the printing mode that can fit print data, equivalent

Text Height Same/Diff Sets height of a character.

Color Setup Ink

Simulation

UCR Low

CMY 100% Density

Sets the amount to shift the horizontal print start position

inch

Off

SWOP Euroscale Japan

Medium High

Enable/Disable Enable/Disable 100% output against the CMY100% TRC

to the right.

to 11 inches (66 lines), in the LETTER-size printable area.

SAME: Regardless of CPI, same height DIFF: According to CPI, character heights vary.

The machine has its own process simulation engine which simulates standard colors in the printer.

This function is available only with PS language jobs.

Selects limitation to the toner layer thickness. If paper curl occurs in dark printing, selecting MEDIUM or

LIGHT sometimes helps reduce this curl. UCR = Under Color Removal.

compensation. Ordinarily, the TRC compensation function holds control for the appropriate print density; thus 100% output is not always possible.

Selecting ENABLE will enable 100% output in any individual color. The actual print, including the TRC compensation function is limited to an appropriate area. This function is for special purposes such as specification in CMYK color reduction in PS.

CMYK Conversion

On/Off Setting to “OFF” will simplify the conversion process of

CMYK data, which will reduce the processing time. This setting is ignored when Ink Simulation function is

used. PS only

Menu functions > 37

ITEM SETTINGS EXPLANATION

Memory Setup

Flash Memory Setup

Receive Buffer Size

Resource Save

Initialize Execute Initializes Resident FLASH.

Auto

0.5 megabyte 1 megabyte 2 megabyte 4 megabyte 8 megabyte 16 megabyte 32 megabyte

Auto

Off

0.5 megabyte 1 megabyte 2 megabyte 4 megabyte 8 megabyte 16 megabyte 32 megabyte

Sets the size of receive buffer

Sets the size of resource saving area.

When the Enter button is pressed, the following confirmation message appears.

Are You Sure? Yes/No If No is selected, the previous menu display resumes. If Yes is selected, the following confirmation message

displays. Execute Now? Yes/No If No is selected, the previous menu display resumes. At

this time, the request to execute FLASH initialization is put into the memory and initialization will be executed at power cycle.

If Yes is selected, shutdown takes place, and FLASH is initialized at power Off/On cycle.

Menu functions > 38

ITEM SETTINGS EXPLANATION

SD Card Setup

This item is displayed only if the SD card (option) is installed.

Initialize Execute Initializes the SD Card to the factory default setting.

Machine performs partition-division, and initializes each partition.

When this menu is executed, the following confirmation message appears.

Are You Sure? Yes/No If No is selected, you will return to the previous menu. If Yes is selected, the following confirmation message

appears. Execute Now? Yes/No If No is selected, you will return to the previous menu. The request to execute SD Card initialization is put into

the memory and initialization will be execut ed at the ne xt power cycle.

If Yes is selected, sh utdown takes place, and the SD Card is initialized at power Off/On cycle.

Resize Partition

PCL nn%/ Common mm%/ PSll%/<Apply>

Specifies the size of partition. Spe cifies a size by ratio to the whole SD Card in % (1% unit).

nn,mm,ll: 1 - 98 and nn+mm+ll=100 The sizes are displayed in the partition list and can be

changed by selecting the partition size to be changed. If Apply is selected, the following confirmation message appears.

Are You Sure? Yes/No

If No is selected, you will return to the previous menu. If Yes is selected, the following confirmation message

appears.

Execute Now? Yes/No

If No is selected, you will return to the previous menu. The request to execute the partition size change request is put into the memory and the SD Card initialization and partition size change will be executed at next power cycle.

If Yes is selected, shutdown takes place. SD Card initialization and partition size change will be executed at Power Off/On cycle. (If one partition size is modified, the others are also modified.) If any partition size is modified, Initialization of SD Card needs to be executed as well.

If a previously used SD Card is installed, SD Card initialization also takes place. If an SD Card, which has been used before, is installed, the layout of this menu may be different from that of each partition. (The previously used layout will be displayed.)

Format Partition

PCL

Common PS

Formats a specified partition. When the Enter button is pressed, the following

confirmation message appears.

Are You Sure? Yes/No

If No is selected, you will return to the previous menu. If Yes is selected, the following confirmation message

appears.

Execute Now? Yes/No

If No is selected, you will return to the previous menu. The request to execute partition formatting is put into the memory and formatting will be executed at next power cycle.

If Yes is selected, shutdown ta kes pl ace and the partit ion is formatted at power Off/On cycle.

Menu functions > 39

ITEM SETTINGS EXPLANATION

System setup

Time Setup Date Format mm/dd/yyyy

Near Life Status

Near Life LED

Time Zone -13:00

Daylight Saving

Time Setting 01/01/2000

Enable/Disable Set LCD panel control at the time of near-life warning for

Enable/Disable Controls the settings of the Attention LED when near

dd/mm/yyyy

yyyy/mm/dd

0:00

~ +13:00

Off

00:00

~ 01/01/2009

00:00 ~ 31/12/2091

23:59

drum, fuser and belt. Enable: Display a near-life warning. Disable: Do not display a near-life warning.

end of life warning of toner, drum, fuser, or belt occurs. Attention LED is lit when enabled, not lit if disabled.

(Displays LCD message.) The temporary recovery by opening and closing of the

cover in Life error is not included. Set desired date format.

Enter the time zone for your country in relation to GMT. Set in quarter units within the range. Use the Menu up/down buttons to increment/decrement

and press the Enter button to set and proceed to the next digit.

Enable/disable daylight saving setting.

Set current date and time. Display format follows the settings selected in Date

Format.

Change Password

Settings Reset

New Password

Verify password

Settings

Save Settings

xxxxxxxxxxxxxx Sets a new password to enter Admin Setup menu

From 6 to 12 alpha/numeric digits can be entered.

xxxxxxxxxxxxxx Forces the User to input the new password to enter Admin

Setup. From 6 to 12 alpha/numeric digits can be entered.

Execute Resets EEPROM of CU. Resets User menu to the factory

default. If Execute is selected, exits from the menu.

Execute Saves menus currently set. With th is fu ncti on, t he menu s

with which operation was last performed are saved, and overwrites with the menus that were previously saved.

When the Enter button is pressed, the following confirmation message appears.

Are You Sure? Yes/No

When No is selected, the preceding menus are restored. When Yes is selected, the current menu settings are

saved and this menu is exited.

Menu functions > 40

ITEM SETTINGS EXPLANATION

Settings (cont.)

ALIBRATION

Restore Settings

Execute Changes to t he menu setting saved.

When the Enter button is pressed, the following confirmation message appears.

Are You Sure? Yes/No If No is selected, the previous menu display resumes. If Yes is selected, changes to the menu settings are

saved and this menu is exited. Display Condition: The menu settings are saved.

ITEM SETTINGS EXPLANATION

Auto Density Mode

Adjust Density Execute If Execute is selected, the printer will immediately

On/Off Se lects whether density adjustment and TRC

compensation is automatically performed. On: Density adjustment is automatically run under the

engine-specified conditions, and reflected in TRC compensation.

Off: The printer does not voluntarily run density adjustment.

adjust density and reflect it in TRC compensation.

This adjustment must be executed when the printer is idling. It can become invalid if executed in any other state.

Adjust Registration

Print Tuning Pattern

Cyan/Magenta/ Yellow/Black Tuning

Cyan/Magenta/ Yellow/Black Darkness

Execute When this menu is selected, the printer performs

Execute Prints the pattern for the user to adjust TRC.

Highlight -3,-2,-1,

0,+1,+2,+3,

Mid-Tone -3,-2,-1,

0,+1,+2,+3,

Dark -3,-2,-1,

0,+1,+2,+3,

-3,-2,-1, 0,+1,+2,+3,

AutoAdjust Registration.

This adjustment must be executed when the printer is idling.

Ordinarily, this function is not needed because TRC is automatically adjusted to the recommended levels through density adjustment and TRC compensation.

Adjustment results will be reflected as offset values (addition) to the corrections through the Adjust Density/TRC Compensation function.

Adjusts HIGHLIGHT (light area) of the TRC. + = Darker

- = Lighter Adjusts MID-TONE area of the TRC.

+ = Darker

- = Lighter Adjusts DARK area of the TRC.

+ = Darker

- = Lighter Adjusts the engine density.

Menu functions > 41

OOT MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in “How to change the settings - administrator” on

page 23.

This menu is in ENGLISH only (default settings in bold type).

Parallel Setup

NOTE This menu item is applicable to the C711 only.

This menu controls the operation of the printer’s Parallel data interface.

ITEM SETTINGS EXPLANATION

Enter Password xxxxxxxxxxxx Enter a password to access the Boot menu.

Password should be from 6 to 12 digits of alpha/numeric characters (or mix)

The default value is “aaaaaa” Parallel Enable / Disable Enables or disables the parallel port. Bi-Direction Enable / Disable ENABLE/DISABLE the bi-directional capability of the

parallel interface. ECP Enable / Disable Extended Capabilities Port, enables/disables this

Ack Width

Narrow/

Medium/ Wide

Ack / Busy Timing Ack in Busy /

Ack while Busy

I-Prime 3µsec/50µsec

Disable

Offline Receive Enable / Disable To Enable/disable of this function. When set to Enable,

function.

Sets ACK width for compatible reception.

= 0.5µs

= 1.0µs

= 3.0µs

ACK IN BUSY: BUSY=LOW-> The end of ACK pulse.

ACK WHILE BUSY: BUSY=LOW -> The centre of ACK

pulse.

3 microseconds: Enabled with the 3µs nInit signal.

50 microseconds: Enabled with the 50µs nInit signal.

the interface retains a receive possible state even when

switching to Offline. Interface sends the BUSY signal only

when the receive buffer is full or a service call occurs.

Menu functions > 42

USB Setup

This menu controls the operation of the printer’s USB data interface.

ITEM SETTINGS EXPLANATION

USB Enable / Disable ENABLES / DISABLES the USB port. Speed 480 / 12 Mbps Selects the interface speed. After setting change the

menu, the printer restarts on exit.

Soft Reset Enable / Disable Enables or disables the SOFT RESET command. Offline Receive Enable / Disable OFFLINE RECEIVE. Serial Number Enable / Disable Specifies whether to ENABLE or DISABLE a USB serial

number.

The USB serial number is used to identify the USB device

connected to your PC.

When you have changed any settings in the USB menu, turn the printer OFF, then ON again.

Security Setup

NOTE This menu only displays if the optional SD card is installed.

ITEM SETTINGS EXPLANATION

Job Limitation Off

Encrypted Job

Make Secure SD Card

Make Normal SD Card

Execute SD Card encoding function is made effective.

Execute SD Card encoding function is set to invalid.

Job limitation mode control. Jobs other than specified ones are rejected.

Formation of the cipher key and encoding function (security mode) information is turned on. At the same time, it initializes the SD card.

After execution, the following confirmat io n messages will appear.

Are You Sure? Yes No

If No is selected, the display will return to the previous menu. If Yes is selected, the printer will be automatically rebooted and the

encoding function will become effective. Display Conditions: SD Card is installed, SD Card encoding function invalidity and

Storage Setup > Enable Initialization > Yes

Deletion of the cipher key and encoding function (security mode) information is turned off. At the same time, it initializes the SD card.

After execution, the following confirmat io n messages will appear.

Are You Sure? Yes No

If No is selected, the display will return to the previous menu. If Yes is selected, the printer will be automatically rebooted and the

encoding function will become invalid. Display Conditions: SD Card is installed, SD Card encoding function invalidity and

Storage Setup > Enable Initialization > Yes

Menu functions > 43

ITEM SETTINGS EXPLANATION

Reset Cipher Key Execute Resets a cipher key to be used on an encrypted SD card.

When this processing is done, all data stored on the SD card cannot be restored.

After execution, the following confirmat io n messages will appear.

Are You Sure? Yes No

If No is selected, the display will return to the previous menu. If Yes is selected, the printer will be automatically rebooted and the

resetting of the cipher key will be executed. Display Conditions:

> SD Card implementation > An encrypted SD card function is enabled.

Menu functions > 44

Storage setup

NOTE This menu only displays if the optional SD card is installed.

ITEM SETTINGS EXPLANATION

Check File System Execut e Resolves mismatch between actual memory and

displayed memory available in a file system. Performs

administration data (F A T information) recov ery . P erforms

recovery only for an SD Card. Check All Sectors Execute Performs recovery of defective SD Card sector

information and a file system mismatch mentioned

above. Enable SD Card No

Yes

Erase SD Card Execute Deletion of all data stored in the SD Card. DoD 5220.22-

Even if a machine is inoperable at installation because of

a faulty SD Card, the machine can be made operable by

setting this parameter to No (ignores the existence of

the SD Card).

When No is set, access to the SD Card results in FAIL

because the SD Card is regarded as not attached.

After setting change and exit from the menu, the printer

will restart.

M sanitizing formula is used for clearing the card. The

machine will restart after changing setup. The following

message appears after pressing the Enter button.

Are You Sure?

Yes

If NO is selected, you will be returned to the source

If Yes is selected the procedure for clearing disk will

start immediately after the machine reboots.

If the Cancel button is held down during erasing, the

following confirmation messages will appear to

discontinue processing.

Do You Wish to Cancel?

Yes

If NO is selected, the procedure will continue. If YES is

selected, the procedure will discontinue. Enable Initialization No

Yes

Prevents a setting change accompanying initialization of

Block Device (SD Card, FLASH).

Menu functions > 45

Power setup

ITEM SETTINGS EXPLANATION

Peak Power Control Normal

Low

Power Save Enable

Disable

Sleep Enable

Disable

USB Host Power Off

Sets Peak Power Control level.

Sets Enable/Disable of Power Save Mode.

If Power Save is disabled, pressing the Power Save /

Wake Up button on the control panel will manually

override this setting.

Sets Enable/Disable of Sleep Mode.

Set power supply for USB-HOST of the whole power save

mode.

When Off, suppress power supply.

When On, do normal power supply.

Language setup

ITEM SETTINGS EXPLANATION

Language Initialize Execute Initialises the message file loaded in FLASH.

When you press the Enter button, the following

message, requesting confirmation, will appear,

Are You Sure?

Yes

If NO is selected, you will be returned to the source

menu.

The procedure for clearing the disk will start immediate ly

after the menu and rebooting.

System setup

ITEM SETTINGS EXPLANATION

High Humid Mode Off

If moistened paper is curled significantly after printing,

change the setting to ON.

Note: Moistened paper means paper that has been left in

a high-humidity environment.

Menu functions > 46

RINT STATISTICS MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu:

1. Turn OFF the printer. Turn ON the printer while pressing the Back button. When Print Statistics Menu displays, take your finger off the button.

2. Press the Enter button.

3. At the Enter Password prompt, enter the Admin password:

Enter your 4 digit password.

(The default password is 0000).

4. Press the Enter button.

5. Press the up or down MENU button until the “item” y ou want to change is displayed.

6. Press the Enter button.

7. Using the up or down MENU button, identify the parameter as required.

8. Press the Enter button. An asterisk (*) will appear next to the setting, i ndicating

that this setting is currently in effect.

9. Press the On Line button to switch to online. The machine will automatically reboot.

This menu is in ENGLISH only (default settings in bold type).

ITEM SETTINGS EXPLANATION

Enter Password **** Enters a password to enter Print Statistics menu.

The default value is “0000”. The password for entry to Print Statistics is different

from the password for entry to Functions-Admin Setup. “Print Statistics” category is not shown when Print

Statistics function is not supported.

Usage Report Enable/Disable Enables/Disables the printing of the Usage Report.

When changing a setting value, the printer is rebooted.

Group Counter Enable/Disable Specifies if the Group counter is displayed in the Usage

Report Print.

Enable: Displayed, Disable: Not displayed.

Conditions for display: Enable must be selected in Print Statistics > Usage

Report.

Supplies Report Enable/Disable Indication of frequency of consumable exchang e/non

indication is set. When Enable is set, also the maintenance counter is

indicated in together. Conditions for display: Enable must be selected in Print Statistics > Usage

Report.

Menu functions > 47

ITEM SETTINGS EXPLANATION

Reset Main Counter Execute The main counter is reset.

When it executes, the below-mentioned verification message is indicated.

Are You Sure? Yes No When No is selected, it returns to original menu

indication. When Yes is selected, the main counter zero is cleared, the menu is passed through.

Conditions for display: Enable must be selected in Print Statistics > Usage

Report.

Reset Group Counter Execute The group counter is reset.

When it executes, the below-mentioned verification message is indicated.

Are You Sure? Yes No When No is selected, it returns to original menu

indication. When Yes is selected, the group counter zero is cleared, the menu is passed through.

Conditions for display: Enable must be selected in Print Statistics > Usage

Report. Enable must be selected in Print Statistics > Group

counter Report.

Reset Supplies Counter

Change Password Changes the password.

New Password **** Sets a new password to enter Print Statistics menu. Verify Password **** Re-enter new password set to enter Pri nt Statistics set in

Execute Frequency of consumable exchange is reset.

(As for maintenance counter it is not reset,) Are You Sure? Yes No When No is selected, it returns to original menu

indication. When Yes is selected, frequency of consumable exchange zero is cleared, the menu is passed through.

Conditions for display: Enable must be selected in Print Statistics > Usage

Report. Enable must be selected in Print Statistics > Supplies

Report.

Enable must be selected in Print Statistics > Usage Report.

New Password for confirmation.

Menu functions > 48

AINTENANCE

NOTE For illustrative purposes, the C711 printer has been shown. If you have a C610 printer, the principle is the same.

EPLACING CONSUMABLE ITEMS

Only use genuine original consumables to ensure the best quality and performance from your hardware. Non original products may adversely affect your printer's performance and invalidate your warranty.

ONER CARTRIDGE REPLACEMENT

NOTE When the LCD display indicates TONER LOW, or if print appears faded, first open the top cover and try tapping the cartridge a few times to evenly distribute the toner powder. This will enable you to obtain the best “yield” from your toner cartridge.

CAUTION!

To avoid toner wastage and possible toner sensor errors, do not change the toner cartridge(s) until “TONER EMPTY” is displayed.

The toner used in this printer is a very fine dry powder. It is contained in four cartridges: one each for cyan, magenta, yellow and black.

Have a sheet of paper handy so that you have somewhere to place the used cartridge while you install the new one.

Dispose of the old cartridge responsibly, inside the pack that the new one came in. Follow any regulations, recommendations, etc., which may be in force concerning waste recycling.

If you do spill any toner powder, lightly brush it off. If this is not enough, use a cool, damp cloth to remove any residue.

Do not use hot water, and never use solvents of an y kind. They will make stains permanent.

WARNING!

If you inhale any toner or get it in your eyes, drink a little water or bathe your eyes liberally in cold water. Seek medical attention immediately.

1. Press the cover release and open the printer’s top cover fully.

WARNING

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

Maintenance > 49

2. Note the positions of the four cartridges.

1. Cyan cartridge 2. Magenta cartridge

3. Yellow cartridge 4. Black cartridge

(a) Pull the coloured toner release lever on the cartridge to be replaced fully

towards the front of the printer.

(b) Lift the right-hand end of the cartridge and then draw the cartridge to the right

to release the left-hand end as shown, and withdraw the toner cartridge out of the printer.

3. Put the cartridge down gently onto a piece of paper to prevent toner from marking your furniture.

4. Clean the top of the ID unit with a clean, lint free cloth.

5. Remove the new cartridge from its box but leave its wrapping material in place for

the moment.

Maintenance > 50

6. Gently shake the new cartridge from end to end several times to loosen and distribute the toner evenly inside the cartridge.

7. Remove the wrapping mat erial and peel of f the adhesiv e tape f rom the underside of the cartridge.

8. Holding the cartridge by its top centre with the coloured lever to the right, lower it into the printer over the image drum unit from which the old cartridge w as removed.

9. Insert the left end of the cartridge into the top of the image drum unit first, pushing it against the spring on the drum unit, then lower the right end of the cartridge down onto the image drum unit.

10. Pressing gently down on the cartridge to ensure that it is firmly seated, push the coloured lever towards the rear of the printer. This will lock the cartridge into place and release toner into the image drum unit.

Maintenance > 51

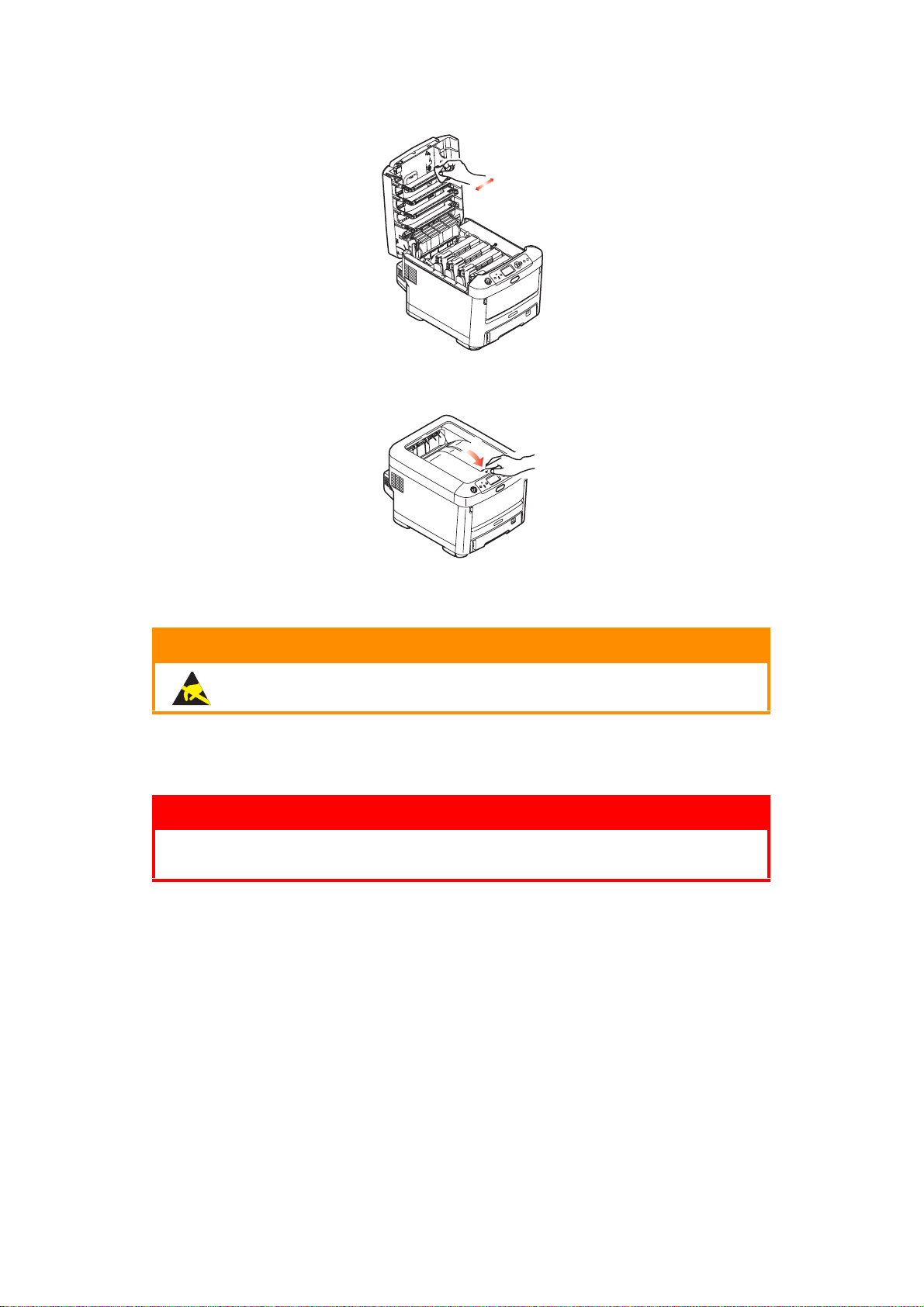

11. Gently wipe the LED head surface with a clean, lint free cloth.

12. Finally, close the top cover and press down firmly at both sides so that the cover

latches closed.

MAGE DRUM REPLACEMENT

CAUTION!

Static sensitive devices, handle with care.

The printer contains four image drums: cyan, magenta, yellow and black.

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

Maintenance > 52

2. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

3. Holding it by its top centre, lift the image drum, complete with its toner c artridge, up and out of the printer.

4. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface.

CAUTION!

The green image drum surface at the base of the ID unit is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

5. With the coloured toner release lever (1) to the right, pull the lever towards you.

This will release the bond between the toner cartridge and the image drum unit.

Maintenance > 53

6. Lift the right-hand end of the toner cartridge (1) and then draw the cartridge to the right to release the left-hand end as shown (2), and withdr aw the toner cartridge out of the image drum cartridge. Place the cartridge on a piece of paper to avoid marking your furniture.

7. Take the new image drum cartridge out of its packaging and place it on the piece of paper where the old cartridge was placed. Keep it the same way round as the old unit. Pack the old cartridge inside the packaging material for disposal.

NOTE: Follow instructions that come with the new image drum for additional information such as the removal of packaging material, etc.

8. Place the toner cartridge onto the new image drum cartridge as shown. Push the left end in first, and then lower the right end in. (It is not necessary to fit a new toner cartridge at this time unless the remaining toner level is very low.)

9. Push the coloured release lever away from you to lock the toner cartridge onto the new image drum unit and release toner into it.

Maintenance > 54

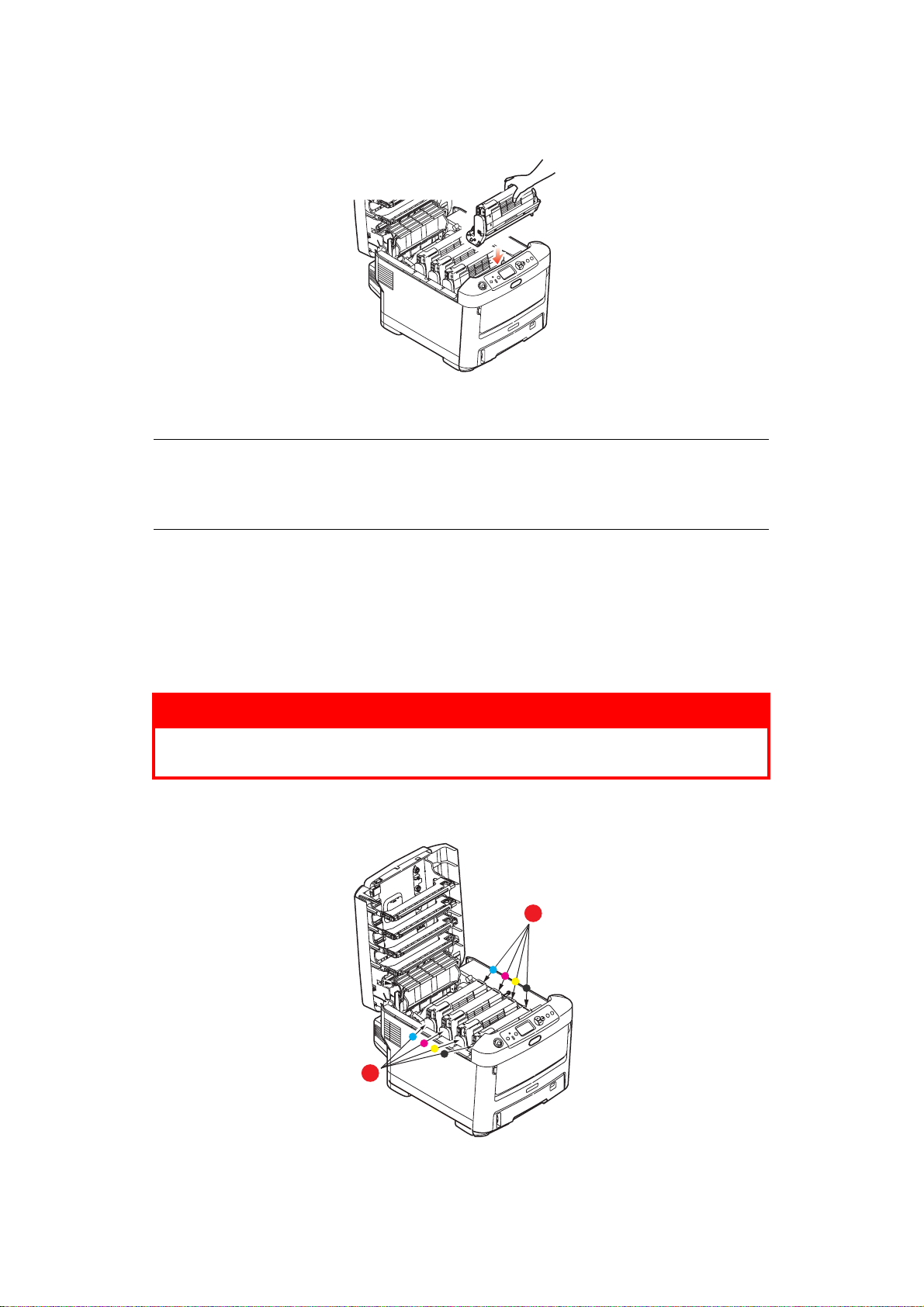

10. Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

11. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

NOTE: If you need to return or transport your printer for any reason, please make sure you remove the image drum unit beforehand and place in the bag provided. This is to avoid toner spillage.

EPLACING THE TRANSFER BELT UNIT

The belt unit is located under the four image drums. Switch off the printer and allow the fuser to cool for about 10 minutes before opening the

cover.

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

2. Note the positions of the four toner cartridges (a) and image drums (b). It is

essential that they go back in the same order.

Maintenance > 55

3. Lift each of the image drum units out of the printer and place them in a safe place away from direct sources of heat and light.

CAUTION!

The green image drum surface at the base of each cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

4. Locate the two fasteners (a) at each side of the belt and the lifting bar (b) at the

front end.

5. Turn the two fasteners 90° to the left. This will release the belt from the printer chassis.

6. Pull the lifting bar (b) upwards so that the belt tilts up towards the front, and withdraw the belt unit (c) from the printer.

Maintenance > 56

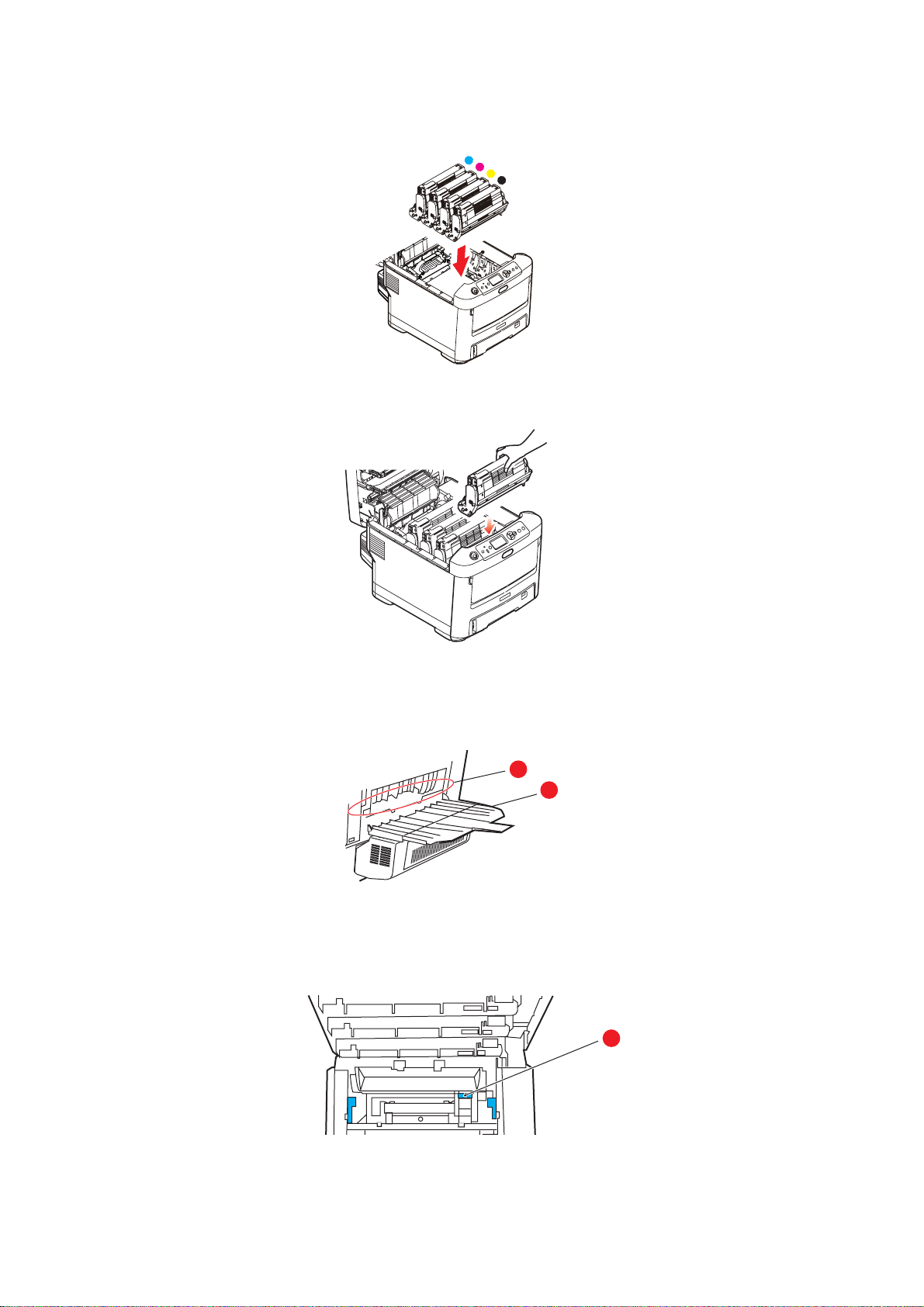

7. Lower the new belt unit into place, with the lifting bar at the front and the drive gear towards the rear of the printer. Locate the drive gear into the g ear inside the printer by the rear left corner of the unit, and lower the belt unit flat inside the printer.

8. Turn the two fasteners (a) 90° to the right until they lock. This will secure the belt unit in place.

9. Replace the four image drums, complete with their toner cartridges, into the printer in the same sequence as they came out: cyan (nearest the rear), magenta, yellow and black (nearest the front).

10. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

USER REPLACEMENT

The fuser is located inside the printer just behind the four image drum units.

WARNING

If the printer has recently been powered on, some fuser components will be very hot. Handle the fuser with extreme care, holding it only by its handle, which will only be mildly warm to the touch. A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover.

1. Press the cover release and open the printer’s top cover fully.

2. Identify the fuser handle (a) on the top of the fuser unit.

Maintenance > 57

3. Pull the two fuser retaining levers (b) towards the front of the printer so that they are fully upright.

4. Holding the fuser by its handle (a), lift the fuser straight up and out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat.

5. Remove the new fuser from its packaging and remove the transit material.

6. Holding the new fuser by its handle, make sure that it is the correct way round. The

retaining levers (b) should be fully upright, and the two locating lugs (c) should be towards you.

7. Lower the fuser into the printer, locating the two lugs (c) into their slots in the metal partition which separates the fuser area from the image drums.

8. Push the two retaining levers (b) towards the rear of the printer to lock the fuser in place.

9. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Maintenance > 58

LEANING

CAUTION!

Use a clean, moist, lint-free cloth for cleaning. Do not use benzine, thinners or alcohol as a cleaning agent.

...

THE UNIT CASING

1. Switch the printer off.

2. Wipe the unit surface with a soft cloth moistened sparingly with water or neutral

detergent.

3. Use a soft dry cloth to dry the unit surface.

...

THE

LED

HEAD

Clean the LED heads when printing does not come out clearly, has white lines or when text is blurred.

There is no need to switch off the printer to clean the lens.

1. Press the cover release and open the printer’s top cover fully.

2. Gently wipe the LED head surface with a clean, lint free cloth.

CAUTION!

Do not use methyl alcohol or other solvents on the LED head as damage to the lens surface will occur.

3. Close the top cover and press down firmly at both sides so that the cover latches

closed.

Maintenance > 59

...

THE PAPER FEED ROLLERS

Clean the paper feed rollers if paper jams frequently occur.

CAUTION!

Use a clean, moist, lint-free cloth for cleaning. Do not use benzine, thinners or alcohol as a cleaning agent.

1. Remove items like a wrist watch or bracelet.

2. Switch the printer off.

3. Remove the paper tray from the printer.

4. Gaining access through the gap left by paper tray, wipe the paper feed rollers with a

clean, lint-free cloth moistened with water.

5. Wipe the feed roller on the paper tray.

6. Replace the paper tray.

Maintenance > 60

NSTALLING UPGRADES

NOTE For illustrative purposes, the C711 printer has been shown. If you have a C610 printer, the principle is the same.

This section explains how to install optional equipment into your printer. This includes:

> duplex (two-sided printing) unit > additional RAM memory > SD card > additional paper tray(s) > cabinet

UPLEX UNIT

The duplex unit adds the function of two-sided printing, using less paper and making large documents easier to handle. It also enables booklet printing, which uses even less paper and makes large documents even easier to handle.

The duplex unit slides straight into the rear of the printer and requires no tools to install.

1. Unpack the new unit and remove any transit material from it.

2. Switch the printer off. It is not necessary to disconnect the AC power cable.

3. Ensure that the unit is the right way up, as shown, and push it into the slot behind

the rear panel. The panel will swing inwards as you push the unit into it. Push the unit all the way in until it stops and latches home.

4. Switch the printer on and wait for it to warm up (about 1 minute).

5. Print a menu map as follows:

(a) Press the Enter button. (b) Press the Menu down button, then the Enter button to select the Print

Information menu. (c) Select Configuration with the Enter button. (d) Press the Enter button once more to execute the Configuration menu. (e) When the Configuration map is printed, press Online to exit the menu system.

6. Examine the first page of the menu map.

7. Near the top of the page, between the two horizontal lines, you will see the current

printer configuration. This list should indicate that the duplex unit is now installed. All that remains is to adjust the printer driver to make full use of the new features

(“Setting the driver device options” on page 68).

Installing upgrades > 61

EMORY UPGRADE

The basic printer model comes equipped with 256MB of main memory. This can be upgraded with an additional memory board of 256MB or 512MB, giving a maximum total memory capacity of 768MB.

1. Switch the printer off and disconnect the AC power cable.

2. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and

lower the front cover.

4. Loosen the screw (a) securing the right-hand side cover.

5. Lift the edge of the side cover slightly and pull the cover away from the printer at

the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

Installing upgrades > 62

6. Carefully remove the new memory board from its wrapping. Try to handle the board only by its short edges, avoiding contact with any metal parts as far as possible. In particular, avoid touching the edge connector.

7. Notice that the memory board has a small cutout in the edge connector, which is closer to one end than the other.

8. Identify the RAM expansion slot in the printer.

9. If the RAM expansion slot already contains a memory upgrade board, that board will

have to be removed before you can install the new one. To remove it, proceed as follows, otherwise skip to step 10.

(a) Release retaining clips and pull the board out of the slot. (b) Place the removed memory board in the antistatic bag which originally

contained the new memory board.

10. Hold the new memory board by its short edge s, so that the edge connector faces in towards the RAM expansion slot, and the small cutout is closer to the rear of the printer.

11. Gently push the board into the RAM expansion slot until it latches in and will not go any further.

12. Locate the retaining clips at the bottom of t he side cover into their rectangular holes near the bottom of the printer.

13. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

Installing upgrades > 63

14. Close the front cover, and close the top cover, pressing down firmly at each side to latch it closed.

15. Reconnect the AC power cable and switch the printer on.

16. When the printer is ready, print a menu map as follows:

(a) Press the Enter button. (b) Press the Menu down button then the Enter button to select the Print

17. Examine the first page of the menu map. Near the top of the page, between the two horizontal lines, you wi ll see the current

printer configuration. This list contains the figure for total memory size. This should indicate the total memory now installed.

Installing upgrades > 64

CARD

The optional SD card enables collating of printed pages and can be used to store over lays and macros, fonts, and secure or proof documents waiting to be printed.

1. Switch the printer off and disconnect the AC power cable.

2. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and

lower the front cover.

4. Loosen the screw (a) securing the right-hand side cover. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

Installing upgrades > 65

5. Notice that the SD card has one chamfered corner.

6. Gently push the SD card into the slot as shown.

7. Locate the retaining clips at the bottom of the side cover into their rectangular hol es

near the bottom of the printer.

8. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

9. Close the front cover and the top cover, pressi ng d own firmly at each side to latch it closed.

10. Reconnect the AC power cable and switch the printer on.

11. When the printer is ready, print a menu map as follows:

(a) Press the Enter button. (b) Press the Menu down button then the Enter button to select the Print

12. Examine the first page of the menu map. This should now indicate that the SD card is installed.

Installing upgrades > 66

DDITIONAL PAPER TRAY(S

1. Switch the printer off and disconnect the AC power cable.

2. Place additional paper tray(s) on desired location.

3. Observing safety rules for lifting and, using locating

guides, place printer on top of the additional paper tray(s).

)

4. Re-connect the AC power cable and switch the printer ON.

All that remains is to adjust the printer driver to make full use of the new features (“Setting the driver device options” on page 68).

Installing upgrades > 67

ETTING THE DRIVER DEVICE OPTIONS

Once your new upgrade has been installed, you may need to update the printer driver so that the additional features are available to your applications.

Accessories such as additional paper trays will only be usable if the printer driver on your computer knows they are there.

In some cases the hardware configuration of your machine is automatically detected when the driver is installed. However, it is advisable to at least check whether all of the available hardware features are listed in the driver.

This procedure is essential if you subsequently add extra hardware features to your machine after the drivers have been installed and set up.

Remember that if your machine is shared between users on different computers, the driver must be adjusted on each user’s machine.

INDOWS

1. Access the driver’s Properties window .

(a) Open the Printers window (called “Printers and Faxes” in Windows XP) via the

Start Menu or from the Windows Control Panel.

(b) Right-click the icon for this machine, and choose Properties from the pop-up

menu.

2. Select the Device Options tab. In the Windows XP PostScript driver the tab may be called Device Settings.

3. Set the options for any devices you have just installed.

4. Click OK to close the window and save your changes.

MAC OS X

Snow Leopard (Mac OS X 10.6) and Leopard (Mac OS X 10.5)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Click Options & Supplies.

4. Click Driver.

5. Select all hardware options appropriate to your machine and click OK.

Tiger (Mac OS X 10.4)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Click Printer Setup….

4. Click the menu and choose Installable Options….

5. Select all hardware options appropriate to your machine and click Apply Changes….

Installing upgrades > 68

Panther (Mac OS X 10.3)

1. Open the Mac OS X Print & Fax Preferences.

2. Click Printing.

3. Click Set Up Printers….

4. Ensure your machine is selected and click Show Info….

5. Click the menu and choose Installable Options….

6. Select all hardware options appropriate to your machine and click Apply Changes….

TORAGE CABINET

Instructions for installing the Storage Cabinet are supplied with the cabinet.

Installing upgrades > 69

ROUBLESHOOTING

Provided that you follow the recommendations in this guide on the use of print media, and you keep the media in good condition prior to use, your printer should give years of reliable service. However, paper jams occasionally do occur, and this section explains how to clear them quickly and simply.

Jams can occur due to paper misfeeding from a paper tray or at any point on the paper path through the printer. When a jam occurs, the printer immediately stops, and the Attention LED on the control panel informs you of the event. If printi ng multi ple pages (or copies), do not assume that, having cleared an obvious sheet, others will not also be stopped somewhere along the path. These must also be removed in order to clear the jam fully and restore normal operation.

AJOR PRINTER COMPONENTS AND PAPER PATH

1. Duplex unit (if fitted). 6. Operator panel.

2. Face-up stacker. 7. Front cover.

3. Paper exit. 8. Paper tray.

4. Fuser unit 9. Additional paper tray (if fitted)

5. Top cover.

Troubleshooting > 70

APER SENSOR ERROR CODES

370

383

373

382

371

381 380, 400

390

391

392

372

CODE # LOCATION CODE # LOCATION

370

371

372

373

380 Paper feed 392

381 Paper path 400 Paper size

a. If fitted.

Duplex unit

382 Paper exit

383

390 MP Tray

391 Paper Tray

Duplex unit

Paper tray

Troubleshooting > 71

LEARING PAPER JAMS

NOTE For illustrative purposes, the C711 printer has been shown. If you have a C610 printer, the principle is the same.

1. If a sheet is well advanced out of the top of the printer, simply grip it and pull gently to draw it fully out. If it does not remov e easily, do not use excessive force. It can be removed from the rear later.

2. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Note the positions of the four toner cartridges (a) and image drums (b). It is

essential that they go back in the same order.

It will be necessary to remove the four image drums to gain access to the paper path.

4. Holding it by its top centre, lift the image drum, complete with its toner c artridge, up and out of the printer.

Troubleshooting > 72

5. Put the assembly down gently onto a piece of paper to prevent toner from marking

your furniture and to avoid damaging the green drum surface, and cover.

CAUTION!

The green image drum surface at the base of the Image Drum is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

6. Repeat this removal procedure for each of the remaining image drum units.

Troubleshooting > 73

7. Look into the printer to check whether any sheets of paper are visible on any part of the belt unit.

CAUTION!

Do not use any sharp or abrasive objects to separate sheets from the belt. This may damage the belt surface.

(a) To remove a sheet with its leading edge at the front of the belt (a), carefully lift

the sheet from the belt and pull it forwards into the internal drum cavity and withdraw the sheet.

(b) To remove a sheet from the central area of the belt (b), carefully separate the

sheet from the belt surface and withdraw the sheet.

sheet from the belt, push the fuser pressure release lever (d) towards the front and down to release the fuser’s grip on the sheet, and withdraw the sheet

Troubleshooting > 74

through the drum cavity area. Then allow the pressure release lever to rise

again.

NOTE If the sheet is well advanced into the fuser (only a short length is still visible), do not attempt to pull it back.

(d) To remove a sheet in the fuser, push the two retaining levers (e) toward s t he

rear of the printer to release the fuser. Withdraw the fuser unit using the handle (f).

(e) Press release lever (g) and pull the trapped paper from the fuser.

(f) Replace fuser unit into the machine and move locking levers (e) toward the rear

of the machine.

Troubleshooting > 75

8. Starting with the cyan image drum unit nearest the fuser, replace the four image drums into the drum cavity, making sure to locate them in the correct order.

Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

9. Lower the top cover but do not press down to latch it closed yet. This will protect the drums from excessive exposure to room lighting while you check the remaining areas for jammed sheets.

10. Open the rear exit tray (h) and check for a sheet of paper in the rear path area (i).

> Pull out any sheets found in this area. > If the sheet is low down in this area and difficult to remove, it is probably still

gripped by the fuser. In this case raise the top cover, reach around and pr ess down on the fuser pressure release lever (d).

11. If you are not using the rear exit tray, close it once any paper has been removed from this area.

Troubleshooting > 76

12. If a duplex unit is fitted, lift lev er (j) and lower the duplex unit cover and pull out an y sheets found in this area. Close the duplex unit cover

13. Pull down the MP Tray using the depressions. Lift the front cover release lever and lower the front cover.

14. Check inside the cover for sheets in this area and remove any that you find, then close the cover.

15. Pull out the paper tray and ensure that all paper is stacked properly, is undamaged, and that the paper guides are properly positioned against the edges of the paper stack. When satisfied, replace the tray.

16. Finally, close the top cover and press down firmly so that the cover latches closed.

When the jam has been cleared, if Jam Recovery is set to ON in the System Adjust Menu, the printer will attempt to reprint any pages lost due to paper jams.

Troubleshooting > 77

PECIFICATIONS

C610 - N31193B C711 - N31194B

ITEM SPECIFICATION

Dimensions C610: 435 x 547 x 340mm (W x D x H) without duplex unit

C711: 435 x 547 x 389mm (W x D x H) without duplex unit

Weight C610: 26Kg approx. (without duplex unit)

C711: 27.6Kg approx. (without duplex unit)

Power supply 220 to 240VAC @ 50/60 Hz ± 2% Power consumption Operating: 1200 max.; 600 W av. (25°C)

Standby: C610: 77 W av. (25°C)

Power saving: 15 W max. Sleep: approx. 1W (25°C)

C711: 90 W av. (25°C)

Operating environment

Print environment 30 to 73% RH @ 10 °C; 30 to 54% RH @ 32 °C

Noise (Sound pressure

level)

Operating 10 to 32 °C/20 to 80% RH (optimum 25 °C wet, 2 °C dry) Off: 0 to 43 °C/10 to 90% RH (optimum 26.8 °C wet, 2 °C dry)

10 to 32 °C @ 30% RH; 10 to 27 °C @ 80% RH Colour 17 to 27 °C @ 50 to 0% RH

Operating: 68dB(A) Standby: 37dB(A)

Specifications > 78

NDEX

Belt

how to replace

.................. 55

Cleaning

the LED head

the paper feed rollers.......60

the unit casing..................59

.................... 59

Duplex

how to install paper size and weight

limits

.................... 61

..............................16

Envelopes

..............................20

Fuser

how to replace

.................. 57

Image drum

how to replace

.................. 52

Maintenance menu................ 42

Major printer components and

paper path

Menu functions...................... 22

Menus

factory default settings

how to use........................22

USB menu......................... 43

Multi purpose tray

how to use

paper metrics ................... 15

.......................... 70

.....23

........................ 20

Operator Panel...................... 22

Paper

jam clearing

jam, error codes............... 71

loading cassette trays ...... 17

loading letterhead ............ 18

recommended types......... 14

supported sheet sizes....... 15

Printer overview.................... 10

..................... 70

SD Card

how to install

Switching off correctly .......... 25

.................... 65

Toner

how to replace

.................. 49

Upgrades

additional paper tray(s)

duplex............................... 61

memory............................ 62

SD card............................. 65

storage cabinet................. 69

.... 67

Index > 79

OKI

Oki Systems (UK) Limited

550 Dundee Road Slough Trading Estate Slough Berkshire SL1 4LE

Tel:+44 (0) 1753 819819 Fax:+44 (0) 1753 819899 http://www.oki.co.uk

Oki Systems Ireland Limited

The Square Industrial Complex Tallaght Dublin 24

Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie

Oki Systems Ireland Limited Northern Ireland

19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland

Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie

Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie

OKI Systems (Czech and Slovak), s.r.o.

IBC – Pobřežní 3 186 00 Praha 8 Czech Republic

Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk

Oki Systems (Deutschland) GmbH

Hansaallee 187 40549 Düsseldorf

Tel: 01805/6544357**

Fax: +49 (0) 211 59 33 45 Website: www.okiprintingsolutions.de info@oki.de

**0,14€/Minute aus dem dt. Festnetz der T-Com (Stand 11.2008)

Διανομέας των συστημάτων OKI

CPI S.A1 Rafailidou str. 177 78 Tavros Athens Greece

Τel: +30 210 48 05 800 Fax:+30 210 48 05 801 EMail:sales@cpi.gr

Oki Systems (Iberica), S.A.U

C/Teide, 3 San Sebastian de los Reyes 28703, Madrid

Tel:+34 91 3431620 Fax: +34 91-3431624 Atención al cliente: 902 36 00 36 Website: www.oki.es

CONTACT DETAILS

01805/OKIHELP**

Oki Systèmes (France) S.A.

44-50 Av. du Général de Gaulle 94246 L'Hay les Roses Paris

Tel:+33 01 46 15 80 00 Télécopie:+33 01 46 15 80 60 Website: www.oki.fr

OKI Systems (Magyarország) Kft.

Capital Square Tower 2 7th Floor H-1133 Budapest, Váci út 76 Hungary

Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu

OKI Systems (Italia) S.p.A.

via Milano, 11, 20084 Lacchiarella (MI)

Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it

OKI Printing Solutions

Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland

Tel:+48 22 448 65 00 Fax:+48 22 448 65 01 Website: www.oki.com.pl E-mail: oki@oki.com.pl Hotline: 0800 120066 E-mail: tech@oki.com.pl

Oki Systems (Ibérica) S.A.

Sucursal Portugal Edifício Prime Av. Quinta Grande 53 7º C Alfragide 2614-521 Amadora Portugal

Tel:+351 21 470 4200 Fax:+351 21 470 4201 Website:www.oki.pt E-mail : oki@oki.pt

Oki Service Serviço de apoio técnico ao Cliente

Tel: 808 200 197 E-mail : okiserv@oki.pt

OKI Europe Ltd. (Russia)

Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow

Tel: +74 095 258 6065 Fax: +74 095 258 6070 e-mail: info@oki.ru Website: www.oki.ru

Technical support: Tel: +7 495 564 8421 e-mail: tech@oki.ru

Oki Systems (Österreich)

Campus 21 Businesszentrum Wien Sued Liebermannstrasse A02 603 22345 Brun am Gebirge

Tel: +43 223 6677 110 Drucker Support: +43 (0) 2236 677110-501 Fax Support: +43 (0) 2236 677110-502 Website: www.oki.at

OKI Europe Ltd. (Ukraine)

Raisy Opkinoy Street,8 Building B, 2 Kiev 02002 Ukraine

Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua

OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti.

Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul

Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr

Oki Systems (Belgium)

Medialaan 24 1800 Vilvoorde

Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be

AlphaLink Bulgaria Ltd.

2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria

tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com

OKI Printing Solutions

Herstedøstervej 27 2620 Albertslund Danmark

Adm.: +45 43 66 65 00 Hotline: +45 43 66 65 40 Salg: +45 43 66 65 30 Fax: +45 43 66 65 90 Website: www.oki.dk

Oki Systems (Finland) Oy

Polaris Capella Vänrikinkuja 3 02600 Espoo

Tel: +358 (0) 207 900 800 Fax: +358 (0) 207 900 809 Website: www.oki.fi

Oki Systems (Holland) b.v.

Neptunustraat 27-29 2132 JA Hoofddorp

Helpdesk: 0800 5667654 Tel:+31 (0) 23 55 63 740 Fax:+31 (0) 23 55 63 750 Website: www.oki.nl

Floor,

Oki contact details > 80

Oki Systems (Norway) AS

Tevlingveien 23 N-1081 Oslo

Tel:+47 (0) 63 89 36 00 Telefax:+47 (0) 63 89 36 01 Ordrefax:+47 (0) 63 89 36 02 Website: www.oki.no

General Systems S.R.L. (Romania)

Sos. Bucuresti-Ploiesti Nr. 135. Bucharest 1 Romania

Tel: +40 21 303 3138 Fax: +40 21303 3150 Website: http://romania.oki.com

Var vänlig kontakta din Återförsäljare i första hand, för konsultation. I andra hand kontakta

Oki Systems (Sweden) AB

Borgafjordsgatan 7 Box 1191 164 26 Kista

Tel. +46 (0) 8 634 37 00 e-mail: info@oki.se för allmänna frågor om Oki produkter

support@oki.se för teknisk support gällandes Oki produkter

Vardagar: 08.30 - 12.00,

13.00 - 16.00 Website: www.oki.se

Oki Systems (Schweiz)

Baslerstrasse 15 CH-4310 Rheinfelden

Support deutsch +41 61 827 94 81 Support français +41 61 827 94 82 Support italiano +41 061 827 9473 Tel: +41 61 827 9494 Website: www.oki.ch

Oki contact details > 81

Oki Europe Limited

Blays House

Wick Road

Egham

Surrey, TW20 0HJ

United Kingdom

Tel: +44 (0) 208 219 2190 Fax: +44 (0) 208 219 2199

www.okiprintingsolutions.com

OKI C610, C711 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Turn OFF the printer. Turn ON the printer while pressing the Back button. When Print Statistics Menu displays, take your finger off the button.

MAC OS X
