Check Package Contents
1 Printer
2 Black light-shield bags (to protect
drum/toner cartridge if unit is shipped)
3 Power Cable
4 CD-ROM
5 This Setup Guide; Safety, Warranty,
Regulatory Information booklet
Note: Drum/Toner Cartridge is inside the
printer.
Note: We recommend you keep your
packing materials and carton in case
you need to ship or transport the
unit.
Set Up the Printer
Lift printer and place it on the selected
location. The printer is very heavy and
should always be lifted by two people.
Never attempt to lift the printer alone.
The printer weighs approximately 63.3
lbs. (28.7kg.)
IMPORTANT!
Other safety information is contained in the
Safety, Warranty and Regulatory
Information booklet supplied with this
product and should be read prior to setting
up the printer.
1 Remove all shipping tape.
2 Remove any packing materials.
Prepare a Location
Note: Space requirements are
approximate.
Select a location for your printer.
C5650n/C5650dn Setup Guide
1
Remove Fuser
Shipping Restraint
Prepare Image Drum/
Toner Cartridges

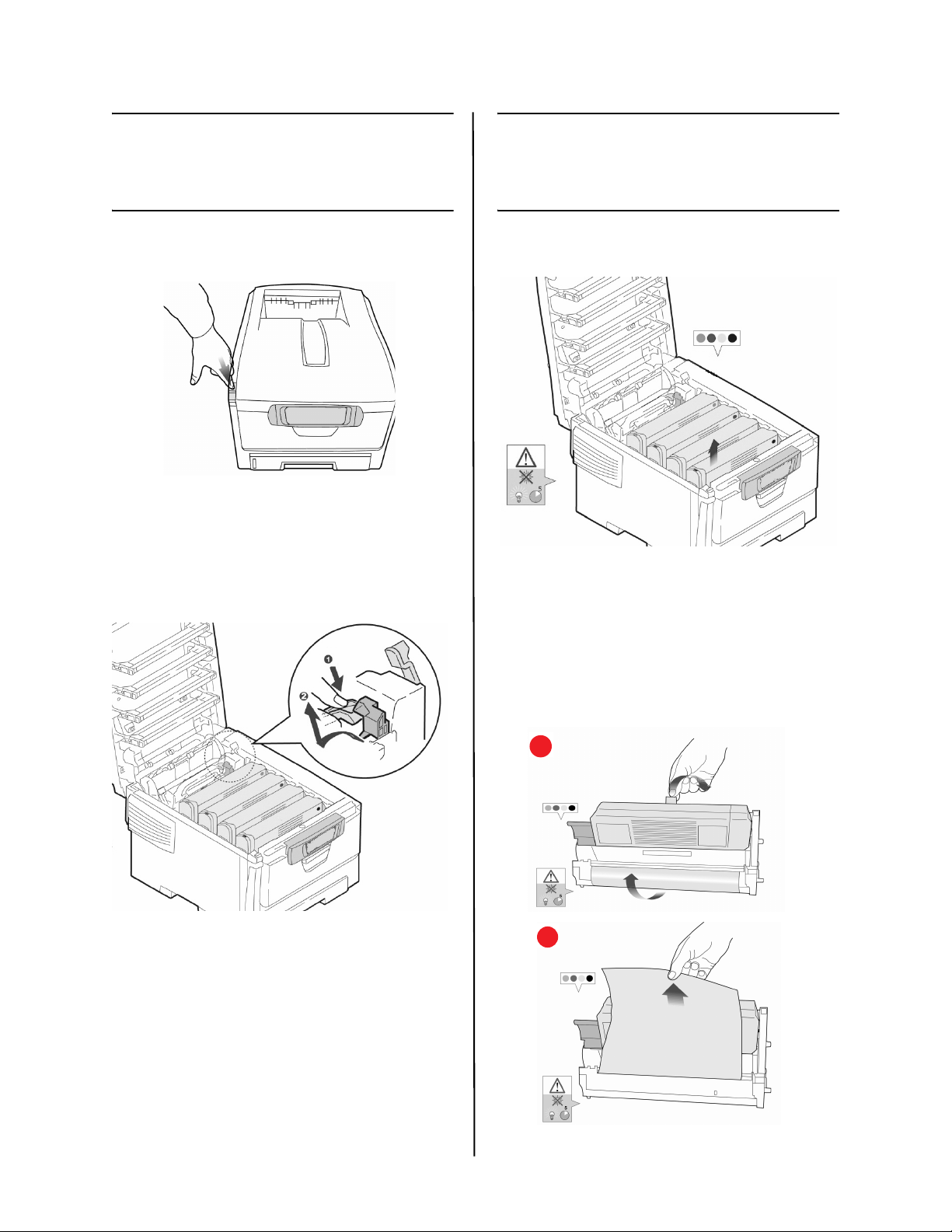

1 Press button and lift the top cover.
2 Press firmly on the blue lock (1) to
release the orange transport restraint.
3 Pull the transport restraint out in the
direction of the arrow (2).
1 Lift the Black drum/toner cartridge
from printer.
Note: Do not expose cartridge to light for
more than 5 minutes.
Note: Do not touch shiny green surface at
bottom of drum cartridge.
2 Lift tape (a), then pull out protective
paper as shown below (b).
a
b
C5650n/C5650dn Setup Guide
2
3 Reinstall drum/toner cartridge in the
printer.
4 Lock toner cartridge with colored lever.
Load Paper
1 Pull out the paper tray.
2 Fan the paper to be loaded then tap
the edges of the stack on a flat surface
to make it flush.
5 Repeat steps 1-4 for remaining drum/
toner cartridges.
6 Close the top cover.
3 Load paper (face down and top edge
towards the front for letterhead
paper).
C5650n/C5650dn Setup Guide
3
4 Set guides to paper size.
a
Note: Do not fill the paper tray above the
paper full mark (a).
5 Close the paper tray.
Attach Reference
Manual
Remove the backing from the VELCRO®
strip on the back of the Handy Reference
Guide and apply the guide to the printer.
C5650n/C5650dn Setup Guide
4

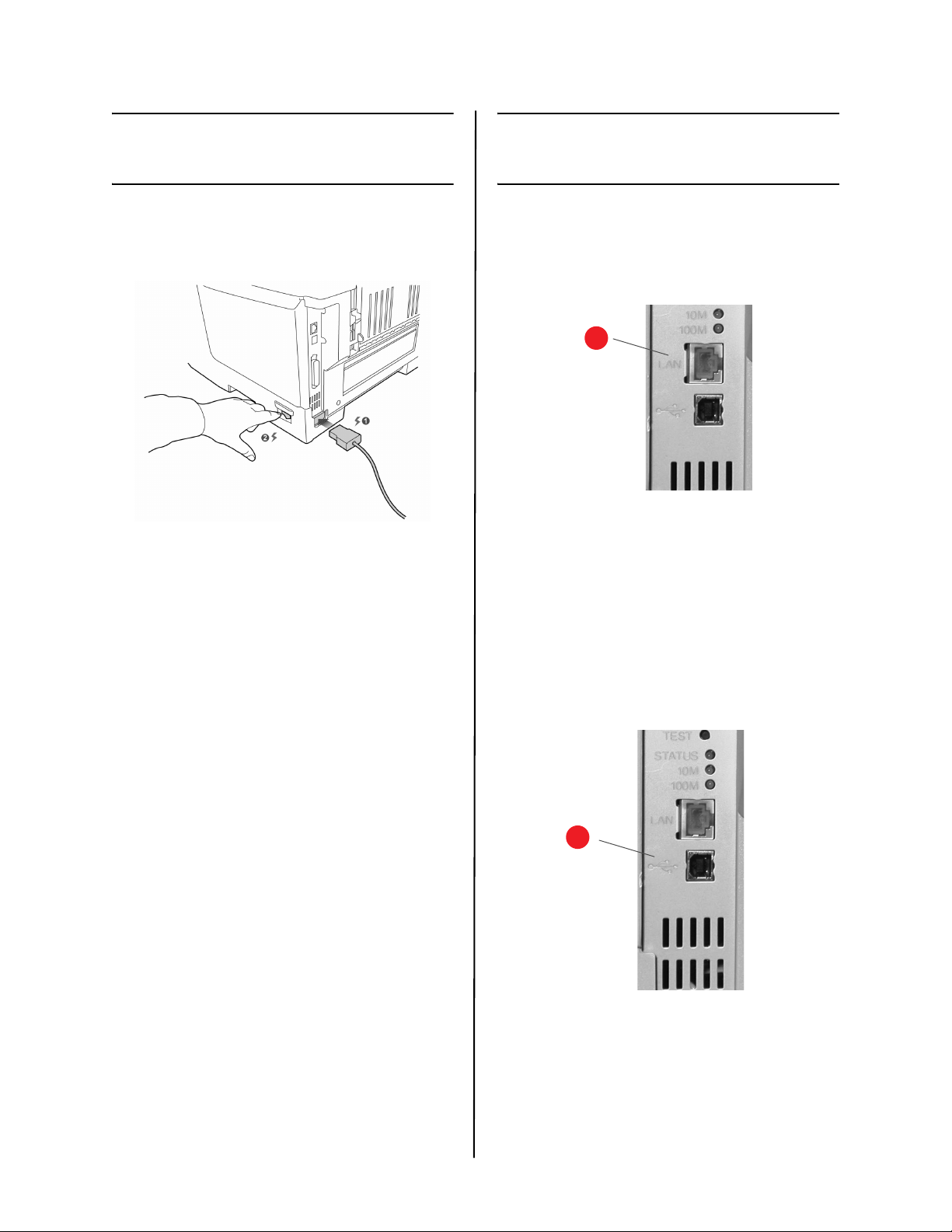

Insert Power Cable
Computer Connection
Insert the power cable (1) and turn the
printer ON (2).
WARNING!
Be sure to use the 15A AC power cord
supplied with the printer. Use of a power
cord NOT supplied with this printer, or an
extension cord, may result in overheating,
and could be a safety hazard.
CAUTION!
To prevent fire or shock hazards, connect
the power plug only to a properly rated
power outlet.
CAUTION!
Do not connect this product to an
uninterruptible power supply (UPS). For
further information please contact Oki Data
at 1-800-OKIDATA or www.okidata.com.
Install Network Cable
Connect the network cable between the
printer network port (a) and the Ethernet
hub or router.
a
USB Connection
Connect the USB cable between the
printer USB port (a) and the computer.
Note: Windows USB—Install the printer
software BEFORE installing the USB
cable. See “Windows - USB Setup”
on page 7.
a
Print a Demo Page
1 Press Menu on the control panel.
Information Menu appears.
2 Press Enter.
3 Press the down arrow until Demo 1
appears.
4 Press Enter.
C5650n/C5650dn Setup Guide
5
Install Software
Windows® - Network Setup
Print the Configuration Sheets
1 Press Menu on the control panel to
select the Information Menu.
2 Press Enter.
3 Press the down arrow to select
Network.
4 Press Enter.
Keep these sheets handy: they contain
information you need to set up the
printer on your network.
Install the Driver
1 Insert the CD in the CD-ROM drive. The
CD will autorun.
2 Select your language.
3 Accept the license agreement.
4 Click Install Driver.
5 Select network printer.
6 Select Directly to the network using
TCP/IP.
7 Enter the IP Address.The IP address
can be found on the Configuration
Sheets.
8 Follow the on-screen instructions.
Test the Printer Driver Installation
To make sure the printer driver is
correctly installed, print a page from any
program. Reinstall the driver if the
installation failed.
Using a Web Browser (optional)
Use your web browser to configure print
server and printer menu settings on an
embedded web page.
1 Activate your web browser (Microsoft
®/
Explorer
or higher, Mozilla
™, Netscape Navigator™ 4.4
®
, Firefox®).
2 Enter the IP Address for the printer.
(Locate the address on the network
Configuration Sheets.)
3 Click on a tab to select categories.
Install Utilities and Downloads
Note: You must be connected to the
internet to install Internet
downloads.
1 Insert the CD in the CD-ROM drive. The
CD will autorun.
2 Select your language.
3 Accept the license agreement.
4 Select Optional Utilities or Internet
Downloads from the CD installer menu
bar.
5 Click on the utilities and downloads you
want to install and follow the
instructions.
Install Documentation
Note: To open the on-line manuals, you
must have Adobe
5.0 or higher installed.
®
Acrobat® Reader
1 Select the Driver Setup tab from the
CD installer menu bar.
2 Click Install User’s Guide.
3 Follow the on-screen instructions to
complete the installation.
4 To view the manuals, click
Start>Programs>OkiData C5650 User
Guide.
To Configure options
1 Click Start>Settings>Printers on the
Windows task bar.
2 Right-click the printer icon and choose
Properties.
3 Click on the Device Options tab.
4 Select the appropriate check box in
Installed Options.
5 Click OK to activate the settings.
C5650n/C5650dn Setup Guide
6
Windows - USB Setup
Install the Driver
1 Turn the Printer OFF.
2 Insert the CD in the CD-ROM drive. The
CD will autorun.
3 Select your language.
4 Accept the license agreement.
5 Click Install Driver.
6 Select local printer.
7 when prompted to select the port you
want your printer to use, select USB.
8 When prompted, connect the USB
cable and switch the printer ON.
Test the Printer Driver Installation
To make sure the printer driver is
correctly installed, print a page from any
program. Reinstall the driver if the
installation failed.
Install Utilities and Downloads
Note: You must be connected to the
internet to install Internet
downloads.
1 Insert the CD in the CD-ROM drive. The
CD will autorun.
2 Select your language.
3 Accept the license agreement.
4 Select Optional Utilities or Internet
Downloads from the CD installer menu
bar.
5 Click on the utilities and downloads you
want to install and follow the
instructions.
Activate Optional Accessories
If your printer has an optional second
paper tray, or duplex unit, you must open
the printer driver and activate the device.
1 Click Start>Settings>Printers on the
Windows tasteable.
2 Right-click the printer icon and choose
Properties.
3 Click the Device Options tab.
4 Select the appropriate check box in
Installed Options.
5 Click OK to activate the current
settings.
Macintosh
®
Connect the cable
See “Computer Connection” on page 5.
Note: Printer operation is not assured if
another USB compatible device is
connected concurrently with it.
Install the Printer Driver
1 Turn on the printer, then turn on the
computer.
2 Place CD in the CD-ROM drive.
3 Double-click the CD icon that appears
on the desktop.
4 Open the MAC folder.
5 Open the OSX folder. Driver Installer
appear.
6 Select the appropriate OS folder.
7 Follow the on-screen instructions.
8 Select any utilities you want to install.
Click Install.
Add the Printer
1 Run the Print Center or Print Setup
Utility. Click Add.
2 Click More Printers.
3 Select OKI USB, OKI TCP/IP, or
Rendezvous/Bonjour from the dropdown menu.
Note: If you are using USB, select OKI
USB and disregard step 4.
4 Enter the printer’s IP address.
5 Select the printer model. Click Add.
6 Quit the Print Center.
Use the Web Page to Configure the
Printer
If you are working in a TCP/IP-enabled
environment, you can use a web browser
to display the printer or job printing
status and to change settings. Settings
for the system and network ports can be
configured under [Printer], [Network]
and [Maintenance] on the web page.
Note: The web page facility is only
available when the printer is
connected to the network.
C5650n/C5650dn Setup Guide
7
Install the Utilities
1 Insert CD in the CD-ROM drive.
2 Double-click the CD icon that appears
on the desktop.
3 Double-click User Software.
4 Double-click the OSX icon.
5 Double-click the utility you want to
install.
6 Follow the on-screen instructions.
Install the Documentation
Note: Adobe® Acrobat® Reader 5.0 or
higher is required to view the
manuals.
1 Insert the CD into your CD-ROM drive.
2 Double-click the CD icon that appears
on the desktop.
3 Scroll to the C5650.pdf file in the root
directory.
To load: drag the .pdf file to the desktop
To view: double-click it.
Service and Support
Available 24 hours a day, 7 days a
week.
• Visit our website:
www.okiprintingsolutions.com
• Call 1-800-654-3282.
C5650n/C5650dn Setup Guide
8
Vérification du contenu
61lbs.
de l’emballage
1 Imprimante
2 Sacs en plastique noirs (pour protéger
les cartouches tambour/toner si
expédiées)
3 Cordon d’alimentation
4 CD-ROM
5 Le présent Guide de configuration;
livret Sécurité, garantie et
réglementation
Remarque : Les cartouches tambour/toner
sont à l'intérieur de l'imprimante.
Remarque : Conservez les matériaux
d'emballage et le carton en cas où
vous auriez besoin d'expédier ou de
transporter l'appareil.
Configuration de
l'imprimante
Soulevez l'imprimante et déposez-la à
l'endroit sélectionné. L'imprimante est
très lourde et doit toujours être déplacée
par deux personnes.
déplacer vous-même.
Poids avec dans l'imprimante
Approximately 63.3 lbs. (28.7 kg). :
IMPORTANT!
D'autres renseignements de sécurité sont
indiqués dans le livret Sécurité, garantie et
réglementation fourni avec l'imprimante et
devraient être consultés avant l'installation
de l'imprimante.
1 Retirez tous les rubans d'expédition.
2 Retirez tout matériel d’emballage.
Ne tentez pas de la
Préparation d'un
emplacement
Note: Les exigences concernant l'espace
requis sont approximatives.
Sélectionnez un emplacement pour
l'imprimante.
C5650n/C5650dn Guide d’installation
Français 1
