Welcome

Welcome to OmniPage Pro X ™, and thank you for buying our software! This User ’s Guide has been provided to help you get started and give you an overview of the program.

Chapter outline

Chapter 1, Installation and setup, tells you ho w to ins tall an d start th e program and select a scanner. It lists the system requirements and provides guidance on registering the product.

Chapter 2, Introduction, explains the OCR process and how it forms part of the OmniPage Pro workflow. It also presents the program’s main working areas and controls, starting with the OCR Toolbar.

Chapter 3, Processing documents, tells you how to do automatic and manual processing and how to combine them. It details processing steps: acquiring pages, zoning, recognizing, proofing and exporting.

Chapter 4, Settings, gives detailed information on each of the choices offered by the pop-up menus in the OCR Toolbar. It also guides you through the choices in the panels of the Preferences dialog box.

Chapter 5, Customizing OCR, provides information on some more advanced features, such as style sets and their zone styles, zone templates, training, user dictionaries and settings files.

Chapter 6, Technical information, gives troubleshooting advice and details the supported file formats and languages.

OmniPage Pro X User’s Guide 7

Using this Guide

This Guide supposes that you know how to work in the Macintosh®

environment. Please refer to your Macintosh help resources if you have questions about how to use dialog boxes, menus, scroll bars, and so on. The following conventions are used in this Guide.

Convention Purpose

Italicized text • Emphasizes menu commands, dialog box options, button

and file names: “C hoose Open... in the File menu.”

• Names sections in this Guide.

• Emphasizes new terms the first time they are used.

Command key symbol (

Note or Tip Introduces a tip or an item of note.

Illustrat es keyboard shortcuts. For example: zC means hold the Command key down as you press the letter “c”.

How to use online Help

OmniPage Pro X has an extensive HTML-based online Help system. Click Help Contents or Help Index in the program’s Help menu to open it. The Help system provides you with three tabbed panels:

u Contents: A three-level table of contents. Click a topic. u Index: A two-level, alphabetical index. Enter a keyword or scroll

to the desired location and click an entry.

u Search: Search keywords thr ough th e who le text of all he lp top ics.

It lists all topics containing the specified word(s).

For advice on other Help facilities, please consult the documentation for your HTML viewer.

Online help contains some topics not included in this User’s Guide: an indexed glossary of terms, settings guidelines for a variety of document types, a Quick Start Guide for reading a sample image file, and documentation on Apple Event support and scripting.

8 Welcome

t To get help on buttons and pop-up menus

Brief help is a va ila ble wi thou t o pen in g the onli ne Help system. Hove r the cursor over any button or pop-up list in the OCR Toolbar or the palettes. A concise descrip tio n of th e con tro l ap pe ars in th e st at us lin e along the base of the OCR Toolbar.

t To get help on topics and procedures

Select Help Index in OmniPage Pro’s Help menu. Begin to type in a keyword you want to find. As you type in the first letters of a keyword, the Help system automatically shows you the first top-level index entry beginning with the letters typed in. OmniPage Pro’s structured index helps you to quickly find answers for your questions.

Click an index entry to display its related top ic. If an entry is linked to more than one topic, a pop-up list appears. Select the desired topic.

t To browse through a series of topics

Use the Previous and Next buttons top right of e ach topic. These allo w you to view topics in the order they appear in the table of contents.

t To view recently viewed pages

Use the Back button to retrace your steps to your previously viewed topics.

t To print a topic

Select the Print button, specify a printer to be used and print settings.

Other online resources

Readme files, in plain text and PDF formats, are located on the installation CD. They contain last-minute information about OmniPage Pro X. Please read one of them before installing the application.

ScanSoft’s web site www.scansoft.com includes a Scanner Guide with regularly updated information about supported scanners and related issues. Access the site from the online Help topic Getting Help.

How to use online Help 9

New features in OmniPage Pro X

The family of OmniPage® products is now augmented by OmniPage Pro X for Macintosh. Here we summarize its most important new features compared to OmniPage Pro 8 for Macintosh.

u A better recognition engine has been integrated, capable of

delivering greater accuracy, particularly on degraded documents.

u Support for the Mac

interface exploits the improved display techniques of the new system. Support is maintained for Mac OS 9.

u A new Assistant facility provides interactive step-by-step guidance

for users new to the world of OCR processing.

u Improved parsing of page elements to retain the formatting and

layout of the original pages, in particular better retention of color graphics and smarter text/graphics detection.

u Better auto-detection and handling of tables and spreadsheets. u Detection and recognition of reverse text (white or pale letters on

black or dark backgrounds).

OS X operating system. A revised user

10 Welcome

u Portable Document Format (PDF) files can be opened and their

contents transformed to editable text.

u Recognized pages can be saved to Portable Document Format

(PDF) files, ready for display, use on the Web or for file transfer.

u Export support added for MS Word 98, 2001 and X and MS

Excel 98.

u Improved export support for HTML (upgraded to HTML 4.0). u Voice read-back facility for texts in English and Spanish.

Chapter 1

Installation and setup

This chapter pro vi des info rmatio n on insta lli ng O mn iPage Pro X and selecting a scanner to use with it.

Please consult the Readme file which provides the most up-to-date information on installing and running the program. Readme is supplied in plain text and PDF formats. These files are copied from the CD to the OmniPage Pro X folder during installation.

This User’s Guide is also supplied in PDF format. It is copied to the sub-folder User’s Guide. The Mac OS X operating system includes a PDF viewer. Under Mac OS 9, please use Adobe Acrobat. The PDF files can be navigated easily using the bookmarks (table of contents), page thumbnails and hyperlinks on cross references and index entries.

Please continue reading this chapter for the following information:

u System requirements u Installing the software u Running the program under Mac OS 9 u Starting OmniPage Pro u Selecting your scanner u Registering OmniPage Pro u Removing OmniPage Pro

OmniPage Pro X User’s Guide 11

System requirements

The minimum system requirements for OmniPage Pro X are:

u iMac, iBook, PowerBook, Power Macintosh or PowerPC

compatible computers with at least a G3 processor

u Mac OS 9.0 or later, Mac OS X (10.1 or above) and QuickTime

4.1 or later (this is normally included in OS X)

u 128 MB of memory (RAM) on Mac OS X; 64MB on Mac OS 9

with 32 MB allocated to OmniPage Pro (or 64 MB allocated to handle full-page color images with more than 256 colors)

u 80 to 100 MB of free hard disk space u A color monitor with at least 256 colors and 800x600 pixel

resolution

u A Macintosh-compatible pointing device u A supported and correctly installed scanner, if you plan to scan

documents.

P erfo rman ce an d sp eed wil l be e nh anced if your computer’s processor, memory and available disk space exceed minimum requirements.

t To install OmniPage Pro X:

12 Installation and setup

Installing the softw are

 Insert the OmniPage Pro CD in the CD-ROM drive.  Double-click OmniPage Pro X Setup.  Select a language and then click Continue. This language will be

used for installation and also as the program’s interface language.

 Read the license agreement. If you click I Agree, you can continue

installation.

Chapter 1

 Personalize your copy in the dialog box that appears.

Type in your name, the name of your company and the serial number. You will find the serial number on the CD case.

 Click OK.  Click Install in the next dialog box to proceed. A further dialog

box lets you choose where the OmniPage Pro files will be installed. Select a drive and optionally a folder location (using Open or New) and click Choose. The program will be installed in a folder named OmniPage Pro X. If you want to keep a previous OmniPage version, install your new versio n to a different location.

All the program files will be copied to the chosen drive and location. Some sub-folders will be created, including Components, Help, Sample Files, Training Files, User Dictionaries, User’s Guide, and Zone Templates.

Note

Under Mac OS 9 you may get a warning message if you have no CarbonLib installed on your machine. In this case double-click the Carbo nLib Setup. The required CarbonLib will be installed, the computer will then restart and the OmniPage Pro installation will start automatically.

Running the program under Mac OS 9

This User ’s Guide and the onlin e help descr ibe the u se of the pr og ram under the Mac OS X operating system. Some dialog boxes have a slightly different appearance under Mac OS 9. Mac OS X supports an Application menu: it includes Preferences... which is in the Edit menu under Mac OS 9 and Quit which is in the File menu in Mac OS 9.

Online Help highlights all differences between Mac OS X and Mac OS 9 with an OS 9 icon.

The Help menu under Mac OS 9 allows you to show or hide balloon help. This relates to system-wide balloon help, which can appear within OmniPage Pro X under OS 9.

Running the program under Mac OS 9 13

Starting OmniPage Pro

There are several ways of starting OmniPage Pro®:

u Open the OmniPage Pro X folder and double-click the OmniPage

Pro X icon. The program launches and the OCR Toolbar will be displayed.

For quicker access, place an alias program icon on your Desktop.

u Drag and drop on e or more image files onto the OmniP a ge Pro X

icon. The program launches and loads the dropped image files. It does

not immediately recognize them.

u Drag and drop an OmniPage Document icon onto the OmniPage

Pro X icon or double-click an OmniPage Document icon. The program launches and opens the previously created

OmniPage Document. See page 56 and Saving an OmniPage Document on page 61.

u Use the Direct OCR feature. See Direct OCR on page66.

14 Installation and setup

Selecting your scanner

Before you can select a scanner in OmniPage Pro X, its driver must already be installed on your system. It should also be tested, to be sur e it is working properly with the scanning software supplied by its manufacturer. Consult the documentation supplied with your scanner.

You can either let OmniPage Pro auto-detect your scanner or you can select a scanner type manua lly in the Sel ect Scanner dial og box. If yo u cannot find your scanner model in the scanner list in this dialog box, OmniPage Pro allows you to select a driver from one of the two

Chapter 1

general scanner driver types supp orte d by the program. You can select either a Photoshop plug-in or a TWAIN driver depending on your scanner.

For specific scanner types which work with a TWAIN driver, you can choose whether to use their own interface or use OmniPage Pro’s interface. For scanners using a Photoshop plug-in driver, its interface is always displayed while scanning.

Each scanner driver provides a different user interface, so the available options may vary.

Tip

t To auto-select a scanner for OmniPage Pro:

 Switch on your scanner and start OmniPage Pro.  Choose Preferences… from the App lication menu (M ac OS 9: Edit

See an overview table i n the online H elp topic Selecting a scanner. This summarizes the user interface differences depending on which type of scanner driver is chosen.

menu) then click the Scanner icon to display the Scanner panel.

 Click the Select… button to get the Select Scanner dialog box.  Click the Auto-Select Scanner button.  Click Verify to be sure the auto-detected scanner is correctly

configured.

 If an auto-detected scanner has a TWAIN driver, you can select

the option Show TWAIN User Interface. For more detail see point 6 in the section To access a scanner through a TWAIN driver.

 Click OK, then Save.

If OmniPage Pro cannot recognize your scanner automatically, select it manually as described in the next section.

Selecting your scanner 15

t To select a scanner manually:

 Follow instructions 1-3 listed above.  Select a scanner manufacturer under Manufacturer in the Select

Scanner dialog box.

 Select a scanner model under Scanner.  Check the driver name under Driver. If you have more than one

driver, select the one you want to use.

 Click Verify to be sure the selected scanner is correctly configured.  Click OK to close the Select Scanner dialog box.  Click Save in the Preferences dialog box.

If the displayed scanner l ist does n ot con tain the manufactur er or type of your scanner, you have two more choices under Manufacturer (Photoshop plug-in) and (TWAIN driver). To decide which of these general scanner drivers your scanner supports, refer to the documentation supplied with your scanner. See the next two sections for more details on selecting (TWAIN driver) or (Photoshop plug-in).

t To access a scanner through a TWAIN driver:

16 Installation and setup

Tip

If you do not have a scanner at all, you can select (Test) under Manufacturer in the Select Scanner dialog box to simulate scanning.

 Follo w instructions 1-3 from the section To auto-select a scanner for

OmniPage Pro.

 Select (TWAIN driver) under Manufacturer.  Select a driver name under Scanner.  Check that your scanner driver delivered by the manufacturer has

appeared under Driver and select it, if it is not already selected.

 Click Verify to check the functioning of your scanner.

 Decide which user interface you want to use for your scanner: the

driver’s own interface or OmniPage Pro’s interface. See the overview table in the online Help topic Selecting a scanner which summarizes the user interface functioning for different scanner drivers.

• Select Show TWAIN User Interface if you want to use the user interface of your scanner driver.

• Deselect Show TWAIN User Interface if you want to start scanning from O mniP a ge P ro using the s canner sett ings in th e Scanner panel of the OmniPage Pro Preferences dialog box.

 Click OK to close the Select Scanner dialog box.  Click Save in the Preferences dialog box.

t To access a scanner through a Photoshop plug-in:

 Copy your scanner driver from the Plug-Ins folder of the Adobe

Photoshop program to the OmniPage Pro X: Components: Scanner Support: Plug-Ins folder.

Chapter 1

It is assumed that the scanner driver delivered by the manufacturer has already been copied to the Adobe Photoshop program’s Plug- Ins folder during scanner installation.

 Follow instructions 1-3 from the section To auto-select a scanner for

OmniPage Pro.

 Select (Photoshop plug-in) under Manufacturer.  Select the driver just copied unde r Scanner. Check the driver name

under Driver.

 Click the Verify button if you want to display the info panels . Th e

driver’s info panel will appear first, then the Scanner Info panel. Inspect and then close them.

 Click OK to close the Select Scanner dialog box.  Click Save in the Preferences dialog box.

Selecting your scanner 17

t To scan in the Classic Environment:

• Select Scan in Classic Mode in the Select Scanner dialog box if it is not already selected. Please wait while the program compiles a scanner list. This option enables you to scan pages even if your scanner has a driver for Mac OS 9 only. If the option is selected, scanning will be performed in the C las sic Environment. If the option is deselected, scanning can only be performed with a scanner driver developed for Mac OS X. The Scan in Classic Mode option is not selectable under Mac OS 9.

Registering OmniPage Pro

ScanSoft’s registration Wizard runs at the end of installation. We provide an ea sy ele ctroni c form that can be comple ted in le ss tha n five minutes. You are asked to enter OmniPage Pro’s serial number, which appears on a sticker on the CD sleeve.

When the form is filled and you click Send, the program will search an Internet connection to immediately perform the registration online.

18 Installation and setup

If you did not register the software during installation, you will be periodically invited to register later. You can go to www.scansoft.com to register on lin e. Cl ick on Support and from the main support screen choose Register in the left-hand column.

For a statement on the use of your registration data, please see ScanSoft’s Privacy Policy.

Removing OmniPage Pro

Move or copy any files you want to keep from the OmniPage Pro X folder. These might be settings, training, template, user dictiorary, export or OmniPage Document files. Then drag the folder to the Trash.

Chapter 2

Introduction

You probably do business correspondence and other written projects on your computer. However, certain sources of information may not be immediately available for use. For example, if you want to incorporate part of a magazine article into a document in your word processor, you somehow have to get its text into your computer. Painstakingly retyping the article is not an appealing solution.

OmniPage Pro X offers a smart solution to in cr ea se y our productivity. Its optical charact er r ecognition (OC R) techn ology accurately and easi ly converts text from scanned p ages and image files into edi table form for use in your favorite computer applications. You do not have to retype whole texts — OmniPage Pro does it for you.

Please continue reading this chapter for information on these topics:

u What is Optical Character Recognition? u Basic steps in the OCR process u The OCR Toolbar u The full OmniPage Pro interface

The OCR Toolbar is the control center for the program. The other main working areas appear when a document is started:

u Thumbnail view: this displays small images of each page. u Image view: this displays an image of the current page. u Text view: this displays the recognition results of the current page.

OmniPage Pro X User’s Guide 19

What is Optical Character Recognition?

Optical character recognition (OCR) is the process of extracting text from images. Images can result from scanning paper documents or opening image files. Images do not have editable text characters; they have many tiny dots (pixels) that together form character shapes. These present a picture of the text on a page.

During OCR, OmniPage Pro analyzes the character shapes in an image and determines character solutions to produce editable text. In other words, the OCR program ‘reads’ the page.

After OCR, you can export the recognized text to a variety of wordprocessing, desktop publishing, and spreadsheet applications.

Beyond OCR

In addition to tex t, OmniP age P ro X can retain the foll owing elem ents in a document after OCR for display and export.

t Graphics

Photos, logos and drawings are examples of graphics. The program cannot recognize handwriting, but signatures can be saved as graphics.

20 Introduction

t Text formatting

Font types, sizes, and styles (such as bold or italic) are examples of character formatting. Indents, tabs, margins and line spacing are examples of paragraph formatting.

t Page formatting

Column structure, paragraph spacing, and placement of graphics are examples of page formatting.

The elements that are retained depend on settings you select before OCR and on the capabilities of the saving format you choose. See chapter 4, Settings, for more information.

Chapter 2

Basic steps in the OCR process

There are three main steps in OmniPage Pro’s OCR process. They correspond to three large numbered buttons in the OCR Toolbar. Documents can be proces sed a uto matica lly or manua ll y. In automatic processing, the Start button takes all specified document pages through the whole process (1-2-3) without a stop. Processing is done according to settings selected in pop-up menus on the OCR Toolbar and in the P r efer en ces dial og bo x. I n ma nual pro cessi ng, ea ch st ep can be performed separately and settings can be modified between each step. The three basic steps are:

1. Acquire page images

Scan pages or load one or more image files. See page36. A miniature image of each page appears in Thumbnail view, the image of one page appears in Image view. A layout description assists auto-zoning and a style set defines a formatting level for the recognized pages. When processing manually, zones should be drawn and styled at this point.

2. Per form OCR

Pages can be recognized with or without proofing. See page 51. During recognition, zones are automatically created on all pages without existing zones. On pages with zones, auto-zoning can be requested. OmniPage Pro performs OCR on text zones and can transfer graphics zones. Recognition results appear in Text view.

3. Export the document

The document can be saved to a specified file name and format, or copied to Clipboard. The document remains open in OmniPage Pro after its first export, allowing text to be further edited and pages added or re-recognized with changed settings and zoning. The document can be saved repeatedly, also to different saving formats.

It can be saved as an OmniPage Document, allowing it to be reopened later in OmniPage Pro X. See page 38, 56 and page 61.

See the topics Automatic processing and Manual processing at the beginning of chapter 3.

Basic steps in the OCR process 21

The OCR Toolbar

The OCR Toolbar appears when you first start the program. It is the control center for all document processing. The OCR Toolbar can be minimized under Mac OS 9.

Start button: Use this to start and re-start automatic processing, and to stop any processing.

Assistant button:

Guides you to select settings and launches automatic processing.

The status line reports the current operation or the operation you can do next.

Get Page button

u The Start button lets you activate or re-activate automatic

Primary language display

Get Page pop-up menu

Original Layout pop-up menu

Style Set pop-up menu

OCR button Export button

OCR pop-up menu

Export pop-up menu

processing. When processing is in progress, it displays Stop.

u The Get Page, OCR and Export buttons are for manual processing.

They allow each step to be performed separately, as follows:

• The Get Page button lets yo u acquir e on e or mor e ima ges from file or by scanning with the specified mode.

• The OCR button lets you send the current page to recognition, or re-recognition, with or without proofing automatically started. It also allows training to be done.

• The Export button lets you save results from all recognized pages in the document to file or copy them to Clipboard.

u The five pop-up menus let you select options. Processing is done

according to the selected options. Before starting automatic processing, you must ensure all these options are suitable.

u The current primary re cognition la nguage is dis played. Thr ee do ts

after the language name denote that at least one secondary language is also selected.

22 Introduction

The full OmniPage Pro interface

The full OmniPage Pro X interface appears when you start a document. The main screen areas of the interface are:

u The OCR Toolbar u The Document window (with Image view and Text view) u The Thumbnail window u The Zone Info and Tools palettes u The Preferences dialog box

Chapter 2

Thumbnail window

The thumbnail of the currently displayed page has a shaded background.

These icons indicate page status.

Zone Info palette

OCR Toolbar

Tools palette

Page indicator

Image view zoom factor

Document window

Image view

Text view zoom factor

Drag this splitter to left or right to resize the views.

The full OmniPage Pro int erface 23

Text view

The Document window

The Document window allows you to view and work with pages in the current document. You can drag this window to different locations. Original page images are displayed in Image view and recognition results are displayed in Text view. A highlight-colored border denotes which view is active. Click inside a view area to activate it.

Both views have scroll bars if the current page cannot be fully displayed. Click on the zoom control at the bottom left corner of a view to change its zoom factor. Choose from fixed or variable values (Zoom to Width and Zoom to View).

The splitter button at the bottom of the window lets you change the amount of space available for each view. To hide Image view completely, drag the splitter to t he left edge o f the D ocument win dow. To restore Image view, drag it to the right.

The Document window can be minimized and restored. Closing the document window closes the current document (with a warning if unsaved changes exist).

24 Introduction

The Thumbnail window

The Thumbnail window appears vertically on the left of the desktop to provide Thumbnail view. This displays numbered miniature pictures (thumbnails) of all pages in the current document. You can use thumbnails to move to other pages, reorder or delete pages. An icon at the bottom right of a page indicates that the page has been recognized.

You can import one or more images to a defined location inside a document by drag-and-drop. You can also use a thumbnail to drag a copy of a page image from a document to the Desktop, a file location or into other applications.

The Thumbnail window has a scroll bar and can be dragged to other locations. The window cannot be closed, under Mac OS 9 it can be minimized.

See Working with documents on page 55 for more information on using thumbnails for page operations.

The Zone Info and Tools palettes

The Zone Info and Tools palettes are displayed whenever Image view is active. You can drag them to different locations. Under Mac OS 9, they can be minimized and restored.

Use the Tools palette to draw regular or irregular zones, modify zones, apply a zone template, reorder zones, erase parts of the image, zoom in or out on the image, handle table zones, or rotate an image.

Hover the cursor over any button in the palettes to read a description of its function in the status line at the base of the OCR Toolbar.

Chapter 2

See Drawing zones manually on page 44 for guidance on using each of these buttons.

Use the Zone Info palette to select zone types, zone contents, zone styles, and a style set for the current page.

The style set True Page® lets you conserve the original page layout.

See Specifying zone types on page 41 and

editing zone styles

for guidance on using these buttons and pop-up menus.

Applying and

on page 91

The full OmniPage Pro int erface 25

Click each icon to view and select different groups of settings.

The Preferences dialog box

This dialog box is the central location for all OmniPage Pro settings not accessible through the OCR Toolbar. To open it, choose Preferences... in the Application menu (Mac OS 9: Edit menu).

The Preferences dialog box has four sections: Scanner, OCR, Spelling and Miscellaneous. Each section can be displayed by clicking its icon on the left.

26 Introduction

Guidance on sele cting settings in each section i s prov ided in chapter 4. You can save your set of preference settings to a Settings file, as described on page 102.

Note

Online Help has a Quick Start Guide. This provides step-by-step instructions for reading a sample image file supplied with the program. The resulting document can be viewed in a target application and serves as a benchmark. You should be able to get similar accuracy from comparable documents of your own.

Chapter 3

Processing documents

This chapter describes how to process documents in OmniPage Pro from start to finish. It tells you ho w the basic steps of OCR ar e linked during automatic and manual processing. It explains how you can exploit the advantages of each type of processing within a single document. The chapter also provides instructions for pe rforming each OCR step and for other tasks you can do with your documents.

Please continue reading this chapter for information on these topics:

u Basic processing steps u Automatic processing u Manual processing u Using automatic and manual processing together u Using the OCR Assistant u Bringing page images into OmniPage Pro u Creating and modifying zones u Performing recognition u Working with documents u Exporting documents u Direct OCR

OmniPage Pro X User’s Guide 27

Basic processing steps

The following diagram summarizes how the basic steps are linked, and directs you to a page in this Guide. This workflow is broadly valid for both automatic and manual processing. The steps performed by the three basic OCR Toolbar buttons have a darker border.

Get

Pages

page 36

Start button

Define a Style

Set

page 87

Describe

page

layout

page 72

Apply a template page 96

Create zones: automatically

page 40 manually

page 44

Perform

OCR

page 50

Proof page

Export

results

page 61

Automatic processing

You can use the Start button to process a new document from start to finish or to finish processing an open document. The operations that occur when you click Start depend on the options selected in the OCR Toolbar’s pop-up menus.

28 Processing documents

For exa mple, O mniPage Pro can scan a st ack of page s fr om a scann er ’s automatic document feeder (ADF), create zones on all pages, recognize the pages, offer the results for proofing, and then let you save the recognition results to file.

During automatic processing, auto-zoning always runs, unless you specify a zone template file. If you want to draw or modify zones manually, you can do this after recognition and first export are finished, and then re-recognize those pages afterwards.

To prepar e fo r automatic process ing

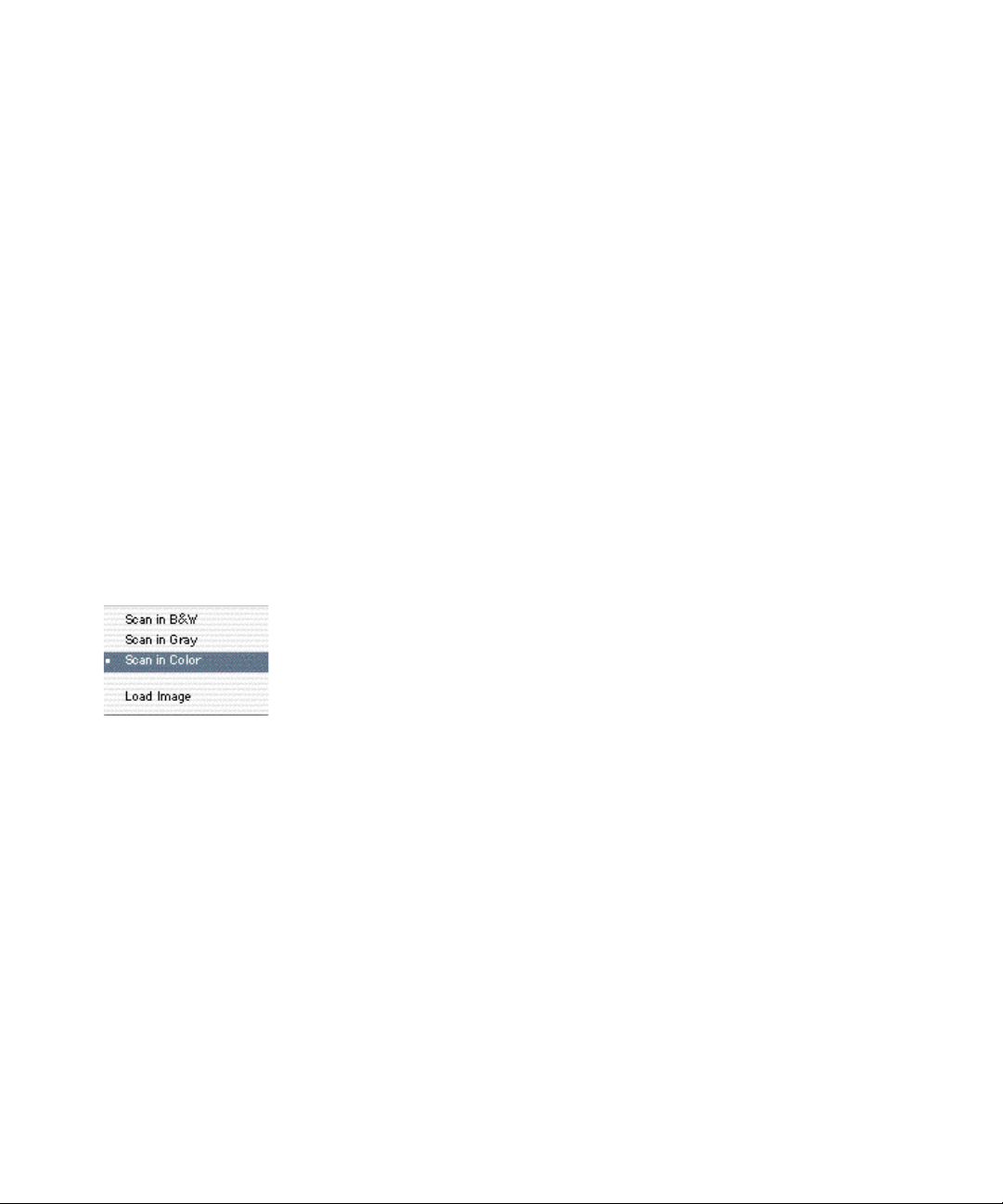

1. Select the source for one or more page images.

Choose Load image to open one or more page images from file.

Choose Scan in B&W to scan in black-and-white.

Choose Scan in Gray to scan in grayscale.

Choose Scan in Color to scan in color (with a color scanner).

See Bringing page images into OmniPage Pro on page36 and Get

Page options on page 70 for information on these choices.

2. Select a style set.

Choose a style set to define the formatting level and page layout

you want applied to the recognition results.

See page 72 and page 73 for information on these choices.

3. Select a page layout description.

Choose a page layout description to influence the auto-zoning.

Choose from Single Column, Multiple Column, Spreadsheet or

Mixed Pages. Or choose a zone template if you have one.

4. Select the type of recognition you want.

Choose Perform OCR to have recognition without proofing. You

can still proof the text later, after its first export. See from pag e50.

Choose OCR & Proof to have proofing started as soon as all pages

are recognized. See page 51.

Chapter 3

5. Select an export target for the document.

You can direct your document to be saved to a file whose name,

location and type you define, or have the recognition results

copied to the Clipboard. See page 64.

6. Ensure all other settings are in order.

Further settings are located in the Preferences dialog box (see

chapter 4). These include recognition languages, user dictionaries

and scanner settings. If you are scanning, place your page(s)

correctly in the scanner. To scan multiple pages from an ADF,

select Scan Until Empty in the Scanner Panel of the Preferences

dialog box.

7. Click the Start button to launch automatic processing.

Automatic processing proceeds as described in the next topic.

Automatic processing 29

To process a new document automatically

We assume you have started OmniPage Pro X and can see the OCR Toolbar, but you have no document open and all settings are ready.

1. Click the Start button to launch automatic processing.

2. All specified pages are scanned or the Load Images dialog box lets

you select image file s. The status li ne reports pro gress as i mages are

acquired. Page images appear briefly in Image view.

3. A miniature image of each page appears in Thumbnai l view as it is acquired. Image view displays each page; when all pages are acquired, it displays the first acquired page.

4. Recognition starts; a progress monitor appears in the OCR Toolbar status line. Automatic or template zoning is done, text is detected and recognized on one page after the other.

5. The first image appears again in Image view with zones. Its recognition results appear in Text view.

6. If proofing was requested, it starts from the top of the first page. Make corrections as desired. Click in Text view to interrupt proofing. Then you can edit or verify the recognized text, move t o other pages or change settings. The proofreading button Ignore becomes Start. Click this to resume proofreading. Click Done to finish proofing before the end of the document.

30 Processing documents

7. The Export dialog box ap pears if you chose e xport to file. De fine a folder, file name and saving format, and choose other export options. If you chose Save and Launch, t he r eco gn iti on results will appear in the targe t a pplica tio n. I f y ou ch os e e xport to Cl ipbo ard, a message tells you when the r eco gn iti on re sul ts ha ve be en pla ced. The document rema ins open in Omni P age P ro for furth er editing. Pages can be re-recognized with changed zoning or settings. New pages can be added. The document can be saved repeatedly.

During processing, the Start button becomes a Stop button. Click it to stop processing. The current processing step is discarded but the results of all completed steps remain. For example, if you click Stop during OCR, there will be no recognized text but the image remains.

Chapter 3

To process an existing document automatically

You can also click Start to perform automatic processing when you have a document open. It does not matter whether its pages were processed automatically or manually. To scan new pages into the document, place them in the scanner correctly. When you click Start, the OCR Instructions dialog box offers you the following choices.

u Load and Process Additional Pages

If the selected source is from file, the Load Images dialog box appears, allowing you to specify files. Otherwise, scanning will start immediately. If Scan Until Empty is selected, all pages in the ADF will be scanned one after the other. All specified pages enter the document and are recognized. Existing pages remain unchanged, even if some of them were unrecognized. If the current page was the last i n the do cumen t when y ou clicke d Start, the new pages are appended to the end of the document. If not, the Acquire Images dialog box lets you specify where to place the new pages. When recognition (and optionally proofing) are completed, the whole document is exported: sent to Clipboard or saved to file through the Export dialog box.

u Process All Unrecognized Pages

Recognition (and optionally proofing) is performed on all unrecognized pages. No new pages can be added if this option is selected. When processing is finished, or if there are no unrecognized pages , export s tarts, to C lipboa rd or f ile as specifie d. When saving to file, th e Export dialog box appears. All change s to all pages are s aved , not j ust th e pag es r ecogniz ed by this comman d.

u Reprocess All Pages

All recognition results for all recognized pages in the document will be discarded, and all images will be (re-)recognized. Any image without zones is auto-zoned. If any zones exist, the Zoning Instructions dialog box lets you choose to use current zones only, to discard all zones and have auto-zoning, or to run auto-zoning in addition to existing zones. Your choice will be applied to all pages containing manually drawn or modified zones.

Automatic processing 31

Manual processing

You can use manual processing when you want greater control over the OCR process. P r ocessing proce eds step-by-st ep. This allows y ou to view and manually zo ne image s befor e you send them fo r re cognit ion. It also lets you modify settings between each processing step or from page to page. That can be important if some pages in the document need different settings from others.

During manual processing you can acquire multiple pages with each click of the Get Page button. Similarly, the Export button is for exporting recognition results from all recognized pages in the document. By contrast, the OCR button is used to have only the current page processed.

Steps for manual processing

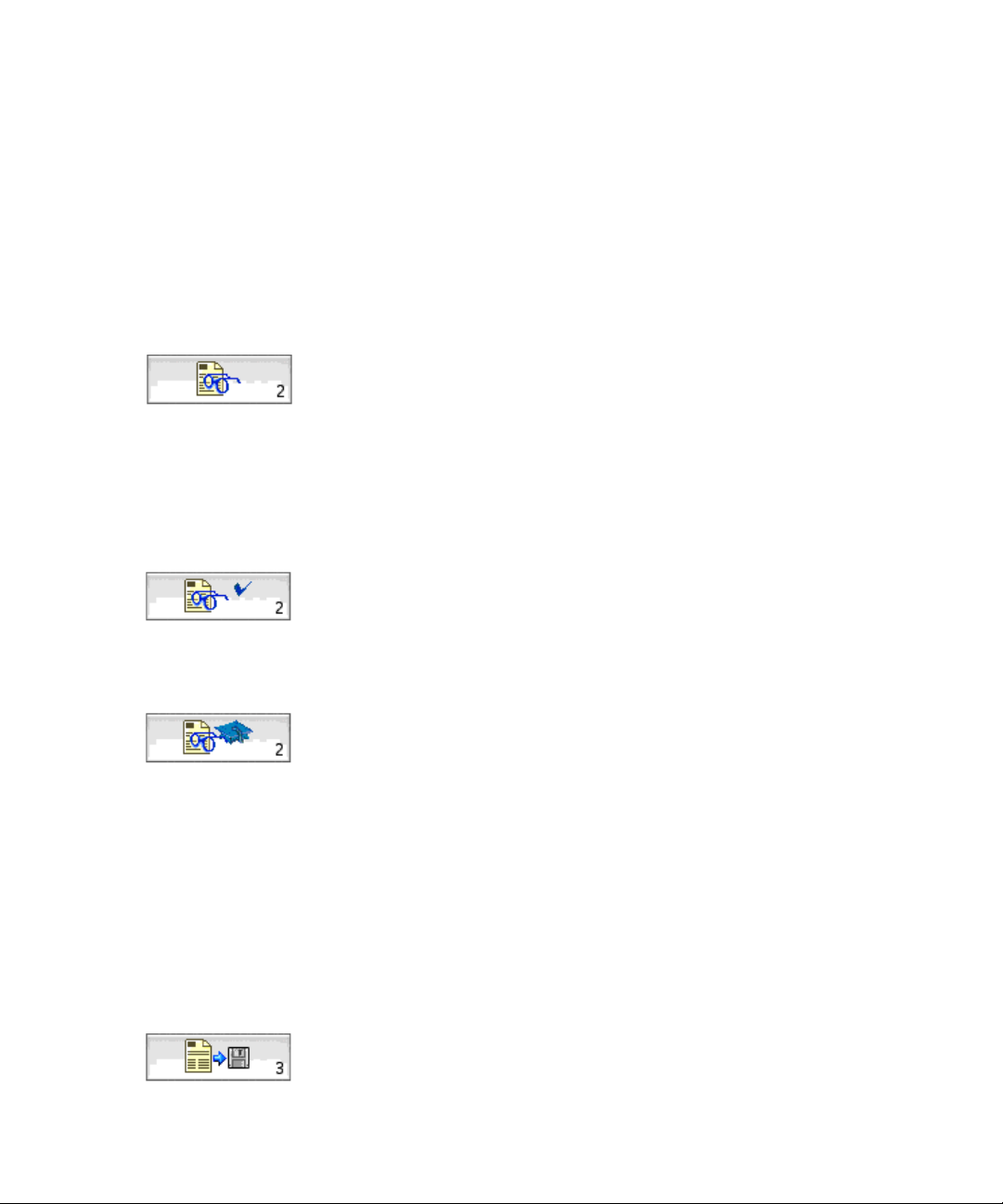

Three OCR Toolbar buttons let you control the process step-by-step:

1. Acquire images

Define the image source in the Get Page pop-up menu. Choose to scan pages or to load one or more image files. Click the Get Page button (number 1). A miniature image of each page appears in Thumbnail view, the image of one page appears in Image view. Recognition does not start. See Bringing page images into OmniPage Pro on page 36 and Get Page options on page 70.

32 Processing documents

2. Create zones on the images

Draw zones i n I ma ge view us in g t he Tools palette. Z o ne s ar e areas that define which parts of a page image should be recognized. You can also load template zones and draw zones in addition to the zones placed from the template. See Creating and modifying zones on page 39 and Zone templates on page 96.

3. Perform OCR Specify to have recognition, with or without proofing, or to do training in the OCR pop-up menu. Click the OCR button (number 2). Choose to use existing zones only or to allow autozoning on all unzoned parts of the page. Any page without zones

Chapter 3

will be auto-zoned. You will see a progress indicator as the current page is recognized. After OCR, recognition results appear in Text view. If you requested proofi ng and th er e ar e susp ect wor ds on the page, proofing begins immediately. If you did not request proofing, you can view, edit and verify the recognized text or start proofing from any point in the text. See Performing OCR on page 50 and Training OCR on page 97.

4. Export the document

Specify an expo rt ta rge t i n the Ex po rt pop-up men u . You can save recognition r esults to on e or more files , or have them copied to the Clipboard. Click the Export button (number 3). If you are saving to file, specify the file name, format and location. See Exporting documents on page 61 for more information.

Using automatic and manual processing together

Automatic processing provides speed and efficiency. After you have selected settings, many pages can be processed from start to finish without user intervention. Manual processing demands more attention, but gives the user greater control over the recognition results. I t is pos sible to tap in to both benefits whil e proces sing a s ingle document. Suppose you have a long document, ideally suited to automatic processing, except for a few pages needing separate zoning or settings. We provide two examples of how you could proceed.

t To start automatically and finish manually:

1. Prepare settings and then process all pages automatically.

2. Export the document to protect it, maybe as an OmniPage

Document.

3. Examine the recognition resu lts, especi ally on pa ges you thi nk will need individual attention. Identify which changes are needed to zoning or settings.

4. Make the required changes o n a page and r epr oces s it m anuall y by clicking on the OCR button.

Using automatic and manual processing together 33

5. Specify a choice in the Zoning Instructions dialog box.

6. Repeat steps 4 and 5 until all pages are adequately recognized.

7. Export the finished document as required.

t To start manually and finish automatically:

1. Prepare settings and acquire all the images for the document by clicking the Get Page button.

2. Examine the images for suitable brightness, orientation and content. Rescan or rotate unsuitable images. Use the eraser tool or zoning to remove or exclude spotty and degraded areas. Reorder pages as desired.

3. Manually zone pages needing special attention. Place pictures or diagrams in Graphics zones and areas you do not want recognized in Ignore zones. Draw and specify text zones.

4. Click the Start button and choose Pr ocess A ll Unrecognized P a ges in the OCR Instructions dialog box.

5. Make a choice in the Zoning Instructions dialog box for all pages. Choose Use Only Current Zones or Keep Current Zones and Find Additional Zones.

34 Processing documents

6. After proofing (if requested), you can export the document.

Using the OCR Assistant

The OCR Assistan t is a useful g uide to user s new t o O mniPage Pro. I t takes you through six panels, using questions and advice to help you choose suitable settings. It then launches automatic processing.

The OCR Assistant can be started only when no other document is open. It offers the choices currently set in OmniPage Pro. Some settings are not offered b y the OCR A ssistant; th ese shoul d be selected in the Preferences dialog box before starting. They are:

u Scanner: All settings. Be sure to turn on Scan Until Empty if you

want to scan multiple pages from an ADF.

Chapter 3

u OCR: A training file and options for saving graphics. u Spelling: A user dictionary and Language Analyst

u Miscellaneous: Retain or drop table grids.

options.

Click the OCR Assistant button to start moving through the six steps: Step 1, Acquiring images: Choose on e of th e sc anning modes (black-

and-white, grayscale or color) or to load image files. If you are scanning pages, place them in the scanner.

Note

You can scan pages only if you have previously selected a scanner through the Prefer ences dia log box. If you are sca nning thr ough the TWAIN interface, use it to choose the scanning mode.

Step 2, Language choices: C hoose a primary language and, if desir ed, one or more secondary languages. Press the command key as you click to make or remove multiple selections.

Step 3, Proofreading: Choose to proofread text immediately after recognition or to proceed to first export without proofing.

Step 4, Original layout: Choose an option that best describes your incoming pages to guide the auto-zoning process.

Step 5, F ormat retention: Choose ho w much formatting you want in your exported document.

Step 6, Export: Choose to save to file or copy to Clipboard. Click Finish to launch automatic processing, as already described. The document remains in OmniPage Pro after first export. Pages can

be added or re-recognized with changed settings. It can be exported repeatedly, to the same or other file formats.

Settings chan ged in the O CR Assistant r emain vali d in OmniP a ge P ro. If you have another document to process which needs the same settings, you do not have to run the OCR Assistant again. Just click the Start button to have it automatically processed.

Using the OCR Assistant 35

Bringing page images into OmniPage Pro

This section describes the different methods for acquiring images:

u Scanning pages u Loading image files u Opening OmniPage Documents u Using drag-and-drop

Scanning pages

You can scan a paper document to generate an electronic image. See Starting OmniPage Pro and Selecting your scanner in chapter 1.

t To scan pages into OmniPage Pro:

1. Place a page in your scanner. You can scan a stack of pages if you have an automatic document feeder (ADF).

2. Select one of the scanning modes in the Get Page pop-up menu.

3. Choose Preferences... in the Edit menu and open the Scanner panel

to make sure the appropriate settings are selected for your page. See page 76. If you want to sequentially scan all pages in an ADF, make sure that Scan Until Empty is selected. Otherwise, you must click the Get Page button to scan each subsequent page.

36 Processing documents

4. Click the Get Page button in the OCR Toolbar. Pages are scanned in order and the resulting images appear in Thumbnail view. The first page is displayed in Image view.

Loading image files

You can load JPEG, PDF, PICT and TIFF ima ge file s int o O m niPage Pro. An image file is an electronic picture of text, such as a fax or scanned image, that is saved in an image file format. You can load more than one file at once. You can also load selected or all pages from multi-page image files (these can be in TIFF or PDF formats).

t To load a single page image file:

1. Select Load Image as the option in the Get Page Pop-up menu.

2. Click the Get Page button. The Load Images dialog box appears. It

is a standard Macintosh dialog box.

3. Specify in the Show pop-up menu which files should be listed: All image files, or only files with a single format.

4. Select the folder containing your file with the From pop-up menu.

5. Select the file you want to load and then click Open. Or, double-

click the file name. The image from the file is displayed in miniature in Thumbnail view and at the specified magnification in Image view.

t To load multiple images from file:

1. Select Load Image in the Get Page pop-up men u and cli ck th e Get Page button. Select which file types should be listed.

2. Under the OS X operating system, select files as follows:

Chapter 3

• Files listed together: Shift+click the first and the last file names. These files and all in between will be selected.

• Non-adjacent files: Command+click each file. Command+click a selected file to deselect it.

3. Click Open after you have selected all the files you want to load. Image files are loaded in the order they are listed and combined into one working document.

4. When opening a multi-page image file (TIFF or PDF), you can select which pages to open. Miniature page images appear in Thumbnail view and the first page is displayed in Image view.

5. Drag page images to new locations in Thumbnail view if the pages do not appear in the desired order.

Note

If you scan or load pages while a document is currently open with its last page displayed, new pages are appended to the end of the document. If the last page is not the active one, you will be asked where to place incoming pages.

Bringing page images into OmniPage Pro 37

Opening OmniPage Documents

You can open an OmniPage Document using the Open command in the File menu. An Om niP age D ocument (OPD) is a file in OmniPage Pro’s proprietary format. OPDs contain original page images, zones, settings and recognition results (if any). Each piece of recognized text remains linked to the image it came from, so text can still be proofed and verified when the OPD is reopened. You can also make editing changes to recognized text, re-recognize pages and add further pages to the document. You can save recognition results from the OPD more than once, for instance to different file formats.

Note

t To open an OmniPage Document:

OmniPage Pro can only have one working documen t open at a time. If you try to open another file while you have a document open, you are prompted to close the current document. However, you can add pages to your current document using the Get Page button.

1. Choose Open... in the File menu. The Open OmniPage Document dialog box appears.

2. Open the folder where your OmniPage Document is located.

3. Double-click a file name or select the file and click Open.

The OmniPage Document opens with one thumbnail image for each page. The original image of the first page appears in Image view and its recognition results (if a ny) in Text view . Som e settings from the OPD are activated.

Note

For advice on saving OmniPage Documents, see page 56 and page 62.

Using drag-and-drop

You can import images into an open document by drag-and-drop from the Desktop or Finder. Use Shift-clicks to select multiple files. You can import multi-page image files; the Select Pages dialog box allows you to specify which of the file’s pages to open.

38 Processing documents

Chapter 3

If you drag and then drop the image icon on Image view, the page or pages are appended to the end of the document.

If you drop the image icon on Thumbnail view, you can choose where to have the page( s) placed. As you drag t he icon o ver t he pages, a black bar appears betwee n two pages . Dr op th e ico n to have t he new page(s ) placed immediately below the bar.

The first of the imported pages becomes the current page. You can launch OmniP age Pro X and load one or more image s to start

a new document. Drag an image file icon from the Desktop or Finder onto the OmniPage Pro X icon.

If you drag an image file icon onto the OmniPage Pro icon when you have the program running with a document, the new image is appended to the document if its last page was active, otherwise a dialog box lets you specify where to place the new image(s).

You can also launch the program by dragging the icon of an OmniPage Document onto the program icon, or by double-clicking the OPD icon. You cannot drag an OPD file into an open document. In this case, you will be invited to save any changes to the current document before it is closed and the OPD opened.

Note

To use drag-and-drop to export recognition results, see page 65.

Creating and modifying zones

Page images are displayed in Image view. This is where zones can be manually created before OCR. Zones are bordered areas that identify parts of a page that will be recognized as text, retained as graphics or ignored. Any part of a page not enclosed by a zone is ignored during OCR, unless you specify that auto-zoning should run.

Note

You can create zone templates to use when you process documents with the same zoning requirements. Zone templates remember the shape, position, order, type, contents, and style of zones. See Zone tem plates on page 96.

Creating and modifying zones 39

This section presents the following topics:

u Creating zones automatically u Specifying zone types u Drawing zones manually u Modifying zones

Creating zones automatically

OmniPage Pro can create zones automatically for you. T o do so, it uses the selected page lay out des cripti on to find blo cks of t ext and gra phics on the page, place these in zones and decide a reading order.

t To run auto-zoning during automatic processing:

1. Choose a setting in the Original Layout pop-up menu that most closely matches the layout of your page or pages. Select Single Column, Multiple Column, Spreadsheet, Mixed Pages, or a template of your own. See Original Layout options on page 72 for more information on these settings.

2. Check all other settings, then click the Start button to begin automatic processing. This will include auto-zoning (unless you applied a template and chose Use Only Current Zones). After recognition, the automatically detected zones are displayed in Image view. Each zone has a number indicating the order in which it was recognized. The zone icon next to the number indicates the zone type. If the zone locations, types or order are not suitable, change the zoning and then re-recognize the page.

t To run auto-zoning during manual processing:

40 Processing documents

1. Choose a setting in the Original Layout pop-up menu that most closely matches the layout of your page or pages.

2. Click the OCR button to have the current page zoned and recognized. If there are no zones on the page, OmniPage Pro will automatically create zones and display them after recognition. If the page has at least one zone, the Zoning Instructions dialog box offers the following choices:

Chapter 3

• Use Only Current Zones (auto-zoning will not run)

• Discard Current Zones and Find New Zones

• Keep Current Zones and Find Additional Zones.

Specifying zone types

All zones are identified as a particular type. This determines the way they are treated during OCR. You can specify zone types using the tools at the top of the Zone Info palette. This palette always appears when Image view is active.

Single Column Text zone

Automatic zone

Table zone Zone type and

contents currently selected.

The Zone Type display box tells you the zone type of the currently or last selected zone. The corresponding zone type tool has a ‘pushed-in’ appearance. When multiple zones with differ ent types ar e selected, the display box will show ‘Mixed Zone Types’.

Click a tool to change the zone type. This will apply to all currently selected zones (if any) and to new zones drawn from no w on. H er e ar e the properties of the different zone types:

t Automatic zone type

This zone type gives OmniPage Pro the right to make its own decisions on how to handle the contents of the zone. It decides whether the zone contains text or graphics. It decides whether text is in columns or not and reversed or not. Any side-by-side columns detected are tre ated as flowing text (movin g top to bottom, the n left to right). Automatic zones have purple borders. After recognition, the automatic zone may be replaced by a set of smaller zones.

Multiple Column Text zone

Ignore zone

Reverse Text zone Graphic zone

Creating and modifying zones 41

t Single Column Text zone type

OmniP ag e P ro tr eats all contents as one block of text; it does not look for columns or detect graphics. Tabs are inserted between any side-byside columns detected within a zo ne, s o this z one ty pe ca n be use d for tables or texts in columns y o u do not wa nt deco lumniz ed or pl ace d in a table grid. These zones have blue borders (denoting a zone containing text).

t Multiple Column Text zone type

OmniPage Pro tries to find columns within the zone area. If it finds them, the text is decolumniz ed (unless True Pag e is selected as th e style set). After recognition, each column is likely to have its own zone. Graphics will not be detected inside the zone area. These zones also have blue borders.

t Table zone type

OmniPage Pro will treat the zone contents as a table. The contents will be placed in a table grid or in tab-separa ted columns, a s reque sted in the Miscellaneous panel of the Preferences dialog box. These zones have orange borders and dividers. They must be rectangular (not irregular).

t Graphic zone type

t Reverse Text zone type

42 Processing documents

OmniPage Pro treats all contents as a graphic area; it will not extract text from the zone. If Retain Graphics is selected, it copies the image area and transfers it to Text view. If True Page is selected as the style set, the graphics areas appear in frames in their original locations. In all other cases, the gr aphics are placed at t he end of the r ecogniz ed text from the page. These zones display a graphic icon and have black or white borders, depending on the background color.

If the page contains reverse text (white or pale letters on a black or dark background), place this in a separate reverse text zone. The text will be recognized and displayed as normal text. If you want the text

reversed in your output document, do this in your target application. These zones have black or white borders, depending on the background color.

t Ignore zone type

OmniPage Pro ignores the zone entirely during auto-zoning. This is useful if you want OmniP age Pr o to draw zones automatically but first want to identify areas to be ignored. By excluding complex tables or areas of line-art you do not need, you can speed up processing considerably. These zones have red borders and stripes.

Chapter 3

Tip

t To specify a zone type:

You can change the zone type of individual zones any time before OCR. For example, suppose auto-zoning placed a Single Column Text zone over two columns of text. If you do not want tabs inserted between the two columns, you can change the zone type to Automatic or Multip le Col umn Text. The columns will then be recognized separately and text will flow from one column to the next.

1. Click the Draw/Select Zones tool in the Tool palette if it is not already selected. If the Tools palette is not visible, check that Image view is active and (in Mac OS 9) that the palette has not been minimized.

2. Select the zone you want to identify by clicking it.

• Shift-click to select additional zones.

• Double-click the Draw/Select Zones tool or choose Select All

in the Edit menu to select all zones on the current page.

3. Click the desired zone type in the Zone Info palette. The zone type of all selected zones will change accordingly. This value will also be used for new zones that you draw.

t To specify zone c o nt e nts:

1. Select a zone whose zone contents you want to modify. Zone contents can be specified only for text zones, that is for Automatic, Single Column Text, Multiple Column Text, Table or Reverse type zones.

Creating and modifying zones 43

2. Select Alphanumeric or Numeric in the Zone Contents pop-up menu.

Drawing zones manually

You can draw and modify zo ne s usin g t oo ls in the Tools palette. I f th e Tools palette does not appear, check that Image view is active and the palette is not minimized (Mac OS 9 only).

Draw/Select Zones tool

Order Zones tool

Table handling tools

Image rotating tools

You can use the tab key to cycle through the zone tools when Image view is active.

t To draw a rectangular zone:

1. Click the Draw/Select Zones tool in the Tools palette if it is not

2. Make sure no existing zones are selected.

3. Click the appropriate zone type in the Zone Info palette.

Polygon tool

Modify Zones tool

Apply Template tool: Apply the zones from the template set in the OCR Toolbar to the current page.

Zoom tool (Option-click to zoom out)

Erase Image tool

already selected. The mouse pointer becomes a drawing tool.

For example, click the Graphic type to draw a zone around a photo. See Specifying zone types on page 41.

44 Processing documents

4. Enclose an area of the image you want as a zone by holding down the mouse button and dragging the drawing tool to form a rectangular box.

5. Release the mouse button when you are done. After drawing a zone, you can resize it by dragging its handles.

6. Repeat steps 3–5 until you have finished drawing zones around each area that you want to process.

You can draw up to 64 separate zones. Draw zones in the order you want them processed. A number at the top left of each zone indicates the reading order. If you draw a zone over an existing one, the borders of the new zone will wrap around the existing zone. The zones will not overlap.

t To draw an irregular zone:

1. Click the Polygon tool in the Tools palette. The mouse pointer becomes a drawing tool in Image view.

2. Make sure no existing zones are selected.

3. Click the appropriate zone type in the Zone Info palette.

4. Position the dra wing tool wher e you want to start drawing th e first

side of the zone and click the mouse button once.

5. Move the drawing tool to form the first side of your zone.

6. Click the mouse button again when th e dotted l ine has the desire d

line length. The line becomes solid.

Chapter 3

7. Draw a perpendicular line in either direction and then click to form the next side of the zone.

8. Repeat step 7 to finish drawing each side of your zone.

9. Double-click to close the shape.

You will not be allowed to draw a line if it constitutes a restricted shape. The following zone shapes are restricted:

Indented along the bottom

Indented along the top

Hole in the middle

If you draw an irregular z one whe n the zon e type is set to Table, it will change to Single Column Text. You cannot change the zone type of an irregular zone to Table.

Creating and modifying zones 45

Modifying zones

Zones can be modified before OCR takes place. You can move, copy, resize, reorder, extend, connect, divide, and delete zones. If you modify zones after recognition, you will have to re-recognize the page for the modifications to take effect.

The Modify Zones tool is for adding and subtracting zone areas. Typically, this results in irregular zones, so it is not available for table type zones. This tool is also for connecting and dividing zones.

t To move zones:

1. Click the Draw/Select Zones tool in the Tools palette if it is not already selected.

2. Place the mouse pointer inside a zone.

3. Hold down the mouse button and drag the zone where you want

to move it. Or use the arrow keys. Only the zone borders are moved. The contents of the page image remain as is.

t To resize zone s:

1. Click the Draw/Select Zones tool if it is not already selected.

t To reorder zones:

46 Processing documents

2. Select the zone you want to resize by clicking it. Handles appear on the zone border.

3. Select a handle, hold the mouse button do wn, and drag t he mouse pointer in the direction you want to enlarge or reduce the zone.

4. Release the mouse button when you are done. The zone border changes to display the modified zone area.

1. Click the Order Zones tool. The numbers in the zones disappear.

2. Click within the zone you want to have recognized first.

The number 1 appears in the zone.

3. Click within the next zone you want recognized. The number 2 appears in the zone.

4. Continue until all the zones are appropriately ordered. If you do not number all the zones, they will be automatically numbered when y ou sel ect a n oth er to ol or start OCR. Unless y ou are using the True Pa ge style s et, the orde r of z ones det ermin es the order in which text will be placed on a recognized page.

t To add an area to a zone:

1. Click the Modify Zones tool in the Tools palette.

2. Position the mouse pointer inside the existing zone at one corner

of the area you want to add to the zone. (Point A in the example below).

3. Hold down the mouse button and drag the mouse pointer to the opposite corner of the area you want to add. (Point B in the example).

4. Release the mouse button. The reshaping zone you have defined (sho wn with a dotted l ine in the example) does not appear, but the existing zone takes on its new shape.

Chapter 3

Zone to be reshaped

Reshaping zone

t To subtract an area from a zone:

Zone to be reshaped

Reshaping zone

Resulting reshaped zone

To remove an area from a zone, use the above pr oce dure, but hol d down the Command key (z) as you draw the reshaping zone.

Resulting

reshaped zone

Creating and modifying zones 47

t To connect two or more zones:

1. Click the Modify Zones tool in the Tools palette.

2. Position the mouse pointer in one of the zones you want to

3. Hold the mouse button down and drag the mouse pointer onto

4. Release the mouse button when you are done.

Two zones to be connected

connect.

the zone(s) you want to connect . Enclo se the whole area you want included in the new connected zone.

The zone borders change to display the new connected zone.

Connecting zone

t To divide a zone:

1. Click the Modify Zones tool in the Tools palette.

2. Position the mouse pointer at the point where you want to divide

3. Hold down the Command key (z) and the mouse button while

4. Release the mouse button when you have completely cut through

Zone to be split into two

Splitting zone

t To delete zones:

Resulting connected zone

the zone.

dragging the mouse pointer over the area where you want the separation to occur.

the zone. The original zone is replaced by two zones.

Resulting zones

48 Processing documents

1. Click the Draw/Select Zones tool in the Tools palette if it is not already selected.

Chapter 3

2. Select the zone you want to delete by clicking it. Handles appear on the selected zone.

• Shift-click to select additional zones.

• Double-click the Draw/Select Zones tool or choose Select All

in the Edit menu to select all zones on the current page.

3. Press the Delete key or choose Clear in the Edit menu. The selected zones disappear, but the page image itself remains. If you do manual zoni ng an d sel ect U se Only Cu rr ent Zones, any part of an image not enclosed by a zone is ignored during OCR.

Table zones

Table zones must be rectangular. During auto-zoning, the program automatically places row and column dividers. The table tools in the Zone Info palette become active if the current page contains at least one table zone. Use the tools to modify dividers in table zones:

Insert rows: Click this, then move the mouse pointer into a table zone. It will appear . Each click inserts a horizontal row divider.

Insert columns: Click this, then move the mouse pointer into a table zone. It will appear . Each click inserts a vertical column divider. Press Control and click to insert a divider only in the current row.

Move dividers: Click this, then move the mouse pointer into a table zone. When it reaches a divider it appears as or . Click and drag the pointer to move the selected divider. You cannot drag a divider beyond its ne ighbor. Avoi d placi ng divid ers very close together and do not let them cut through texts.

Remove dividers: Click this, then mo ve the mouse p ointer into a table zone. When it reach es a divider it a ppears a s or . Click to delete the indicated horizontal or vertical divider.

Remove/Replace All: Click this, then move the mouse pointer into a table zone. It appears as . Click to remove all dividers in the table. The mouse pointer becomes . Click again to have dividers automatically redetected in the table zone.

Creating and modifying zones 49

Performing recognition

Performing recognition involves analyzing character shapes found in an image and generating editable text from them. This is also referred to as performing OCR. After OCR, you can proofread for recognition errors and misspelled words before you export the text to another application.

This section describes the following procedures:

u Performing OCR u Proofreading OCR results u Verifying recognized text u Color markers u Getting page information

Performing OCR

Before performing OC R, make sur e the curr ent zone s and setti ngs ar e appropriate for your document. For example, to transfer the contents of graphic zones to have them embedded in the recognition results, you must select Retain Graphics in the OCR panel of the Preferences dialog box. See OCR settings on page 80.

t To perform OCR on a single current page:

50 Processing documents

1. Select Perform OCR or OCR & Proof in the OCR button’s pop-up menu. OCR & Proof prompts you to check for errors after OCR.

2. Click the OCR button. The page is reco gnized accor ding to the current zo nes and settin gs. If there are no zones on the page, zones are created automatically or with a currently selected zone template. Recognition results appear in Text view. To recognize more than one page at a time, you must use automatic processing (see page 31).

Chapter 3

Proofreading OCR results

Recognized text appears in Text view after OCR so you can check for errors and misspellings in the text before exporting it.

Error checking (pr oofing ) st art s au tom atica lly afte r OCR if y ou chos e OCR & Proof as the OCR option. It starts from the first recognized page and continues through all recognized pages in the document. If you chose P erform OCR you mus t start proofing by choosing Proofread OCR... in the Edit menu as described below. Then, proofing starts from the current cursor position.

You can select main and secondary recognition languages, a user dictionary and whether to use a Language Analyst or not in the Spelling panel of the Preferences dialog box. See Spelling settings on page 82 for more information. See also User dictionaries on page 101.

t To check and correct errors in recognized text:

1. Choose Proofread OCR... in the Edit menu. Proofing stops on words containing an unrecognizable character and displays them red. An unrecognizable character is repl ace d by a red reject character; a tilde (~) by default. If a Language Analyst is enabled, proofing will also stop on:

• Words containing one or more characters recognized with a lower degree of certainty (words displayed green)

• Words flagged by the Language Analyst, for instance for not being found in a main or user dictionary (displayed in blue)

Y ou can choose whether or not to stop on acronyms, abbreviations and proper names in the Spelling panel of the Preferences dialog box. When OmniPage Pro stops on a word, it highlights the word in Text view. These words will also have color markers if Show Markers is enabled in the Edit menu. The Proofread OCR dialog box shows the original image of the word (also highlighted) in its context on the original page.

Performing recognition 51

This tells why this word is offered for proofing.

This displays the word as OmniPage Pro recognized it. Its color also tells why it is displayed.

Click in this window to enlarge the view of the original image. Option-click to reduce the view.

Click Prefs to select error checking options.

Drag corner to change window size.

2. Select one of these options for the word:

• Click Ignore to allow the word to remain as recognized.

• Click Ignore All to skip all instances of the word as reco gniz ed,

during the current proofing session. (The word will not be skipped if it contains a suspect character).

• Click Change to replace the recognized word with the wo r d i n the Change to edit box. Either type a word into the edit bo x or click to open the Suggestions pop-up menu and select a word.

• Click Change All to replace all instances of the word with the word in the Change to edit box.

• Click Change & Add to replace the word with the word in the Change to edit box and to add this word to the current user

dictionary. You cannot add a word with a reject symbol.

52 Processing documents

After you select an option for the word, OmniPage Pro finds the next doubted word. As you proof each word, its colored marking is removed.

3. To interrupt proofing, click in Text view. Then you can make editing changes, verify text, modify settings and even jump to other pages. The proofreader button Ignore becomes Start. Click this to restart proofing. If you remained on the same page, proofing restarts from the point where it was interrupted. If you have jumped to another page, it starts from the top of that page.

4. Click Done or close the Proofread OCR dialog box to save all changes and exit proofing before the end of the document is

Chapter 3

reached. The prog ram informs you whe n the end of the document has been reached; all your changes are saved automatically.

Note

Tip

OmniPage Pro can only perform a spelling check on words that it has recognized. It cannot check words that you have manually typed into Text view.

To delete unneeded characters (for instance generated by ‘noise’ on the image), clear the edit box and click Change. If the program mistakenly splits a word into two, maybe at the end of a line, type in the who le co rr ect w or d when th e first p art of the word is displayed, then empty the edit box when the second part appears.

Verifyin g recogn ized text

You can compare recognized text against its original image to make sure that text was recognized correctly.

t To verify text against its original image:

1. Make sure Text view is active.

2. Hold down the Option key and double-click the word you want

to verify. Or, select the word and choose Verify Text in the Edit menu, or press zY. The Verification window opens and shows a clear close-up of the original word and its surrounding area in the image.

Close button

Click the Verification window to zoom in for a closer view. Optionclick to zoom out.

3. Click the standard Close button to close the Verification window.

The image of the selected word is highlighted.

You can type in a new word to replace the selected recognized word.

Performing recognition 53

Color markers

Words to be stopped on during proofing may appear in color (red, green or blue) in Text view and in the Proofread OCR dialog box.

To temporarily hide color markers in recognized text, make Text view active and choose Hide Markers in the Edit menu. The coloring is removed from all marked words in the current document, and no marking is placed on new pages or documents. To show markers again, choose Show Markers in the Edit menu. Proofing will still stop on all suspected wor ds and display them in the appropria te color, even when markers are hidden in Text view.

Proofing always stops on red words. If Use Language Analyst was enabled in the Spelling panel of the Preferences dialog box at recognition time, proofing will also stop on the green and blue words and these will be available for marking in Text view.

Changing the Use L anguage Analyst setting has no effect on text which has already been recognized.

Color markers are not retained when you export a document to another application.

54 Processing documents

Getting page information

After OCR, you can choose Show Page Info in the File menu (or press zI) to get the following information for the current page:

u Source of the OCR, whether a scan performed by OmniPage Pro

or a file that you have loaded (with the file name and folder).

u Resolution of the scanned image, in dpi (dots per inch). u Image Size, in pixels and inches or centimeters. u Color depth and resolution for color images. u Number of words and characters on the page (including spaces). u Recognition time in minutes and seconds. This excludes time for

scanning, drawing manual zones and writing data to disk.

u Number of reject and suspect characters. u Recognition rate in characters per second and words per minute.

Chapter 3

Working with documents

The Thumbnail window gives an overview of all pages in the document and allows you to perform page-level operations. The Document window allows you to work with each page one after the other. This section describes the following procedures:

u Resizing a page display u Saving a document as you work u Moving to other pages u Reordering pages u Deleting a page u Undoing edits u Modifying images u Modifying text u Printing a document u Listening to a document u Closing a document u Quitting OmniPage Pro

Resizing a page display

You can enlarge (zoom in) or reduce (zoom out) the view of a page displayed in Image view or Text view.

t To resize a page display:

1. Click the view that you want to resize (Text or Image) to make that the active view.

2. Click the box that displays the zoom percentage located in the Info line, along the bottom of the Document window. Select the desired zoom setting in the pop-up menu. In Image view you can also click the Zoom tool in the Tools palette and then click the area of the image you want to enlarge. Option-click to reduce the view.

Working with documents 55

Saving a document as yo u work

If you are working with a long or important document, or want to reopen the document in OmniP ag e Pro in a future session, you should save it as an OmniPage Document soon after beginning your work.

To save the document to disk for the first time, choose Save or Save As... in the File menu. The Save As OmniPage Document dialog box appears, allowing you to choose a location and specify the file name. The recommended extension for an OmniPage Document is .opd.

If the file has already been saved as an OmniPage Document, click Save to have the file updated. The updating includes changes to page images, zoning, recognition results and settings. Choose Save As... to save the latest state of the OmniPage Document under a different name, leaving its state from the previous save under its existing name.

You can also protect your work by clicking the Export button and saving recognition results to file. If your continued work with the document is successful, you can export it again, overwriting the older file.

Moving to other pages

56 Processing documents

You can move to a different page in a docum ent in the fo llowing ways.

u Click the thumbnail of the page you want to display. u Click the forward or backward arrow buttons next to the current

page number located bottom left of the Document window.

u Choose Go to Page... in the Edit menu or double-click the current

page number to open the Go to Page dialog box. Select First Page or Last Page or enter a specific number in the Page edit box.

Reordering pages

You can reorder pages in a document by dragging their thumbnails to different positions in Thumbnail view. Drag-and-drop pages one after the other.

Chapter 3

Deleting a page

You can delete a page from a docum ent that has at least two pages. For example, you may want to delete a page that was poorly scanned.

To delete the current page, choose Delete Current Page in the Edit menu. Or , click the t humbnail of the page you want to dele te and drag it to Trash. Everything is discarded: the thumbnail, page image, and recognition results. Pages are renumbered automatically.

Undoing edits

Choose Undo in the Edit menu immediately to reverse an action that produces an unwanted result in Image view or Text view. After you choose Undo, it changes to Redo. If an action cannot be reversed, the command appears as Can’t Undo.

Modifying images

You can modify an image when Ima ge view is ac tiv e. Drag the splitter at the base of the Document window to the right if Image view is not big enough or not visible at all.

Rotating an image

You can rotate a page image when Image view is act ive. F or example, if a page is accidentally scanned upside down, you do not have to scan it again. You can correct the orientation by rotating it. Click the Rotate tools in the Tools palette to turn the entire page 90 degrees left, 180 degrees, or 90 degrees righ t. I f possi ble, r otate a page before you create zones. All zones are deleted during page rotation.

Note

You can also specify that images coming from scanner should be flipped around their vertical or horizontal axes. These types of rotation cannot be performed on loaded images; they must be specified in the Scanner panel of the Preferences dialog box before scanning is started.

Working with documents 57

Erasing areas of an image

You can erase areas of the actual image using the Erase Image tool in the Tools palette. This is useful if you want to get rid of smudges, signatures, or other types of “noise” on the page before OCR.

1. Use the Zoom tool in the Tools palette to enlarge the area of the image you want to erase.

2. Click the Erase Image tool in the Tools palette. The mouse pointer turns into a square box.

3. Click the box over the image area that you want to erase. A piece of the image disappears with each mouse click. You can also hold the mous e button down and drag the mouse pointer o ver the area you want to erase.

Note

If you do not want to permanently erase parts of the actual image, but want to omit areas of a page from OCR, identify the areas as Ignore zone types prior to auto-zoning, or do not include them in zones when you do manual zoning.

Modifying text

You can modify recognized text in Text view before exporting it to another application. Click in Text view to make it active. Move the splitter at the base of the Document window to the left to give more space to Text view. If you drag it far to the left, Image view disappears completely. Select a suitable magnification for Text view. See also Proofreading OCR results on page 51.

Selecting all text

To apply formatting, such as a particular font, to all text on a page, you can select the entire page by choosing Select All in the Edit menu (or zA). The entire contents of a recognized page is selected when Text view is active with any style set exce pt True Page. With True Pag e, only the text within the selected frame is selected. To remove a selection, click anywhere within it.

58 Processing documents

Chapter 3

Selecting a block of text

Click at the start of the desired text and drag the cursor to the desired end point. Releas e t he mous e butto n. The s e lect ed t ext i s hi ghl ig hte d. With the True Page s tyle set, a selection cannot ex tend beyo nd a singl e frame.

Formatting text

Use commands in the Format menu to apply font, font style, and font size formatting to selected text in your recognized document.

Cutting or copying text and graphics

Choose Cut in the Edit menu to place selected text or a selected graphic on the Clipboard. Cut items are removed from Text view. Choose Copy in the Edit menu to place a copy of selected text or graphics on the Clipboard. Copied items are not removed.

You cannot cut or copy text and gra phics at th e sa me time. If both are selected, only the text will be placed on the Clipboard.

Text on the Clipboard can be pasted back into Text view or into another application. Choose Paste in the Edit menu to place text at the cursor location in Text view. Graphi cs cannot be pasted into Text view, but can be pasted into applications that support the PICT format.

Deleting text or graphics

Choose Clear in the Edit menu (or press the Delete key) to permanently delete selected text or graphics from Text view.

Printing a document

You can print one or more pages of a document. You can print recognized pages if Text view is active or page images if Image view is active. If you have a color printer, you can choose to print pages in color.

Working with documents 59

t To select options and print pages:

1. Choose P age Setup... in t he F ile menu. The op tions avai lable in the Page Setup dialog box depend on your printer.

2. Select the desired options and then click OK.

3. Make the view (Text or Image) from which you want to print

active.

4. Choose Print Text... (or Print Images...) in the File menu. The choices in the dialog box depend on your printer.

5. Select print options for your document. Choose to print all images or a range of pages.

6. Click Print to start the print job.

Listening to a document

English or Spanish text in Text view can be read aloud by the Macintosh Speech Manager software. Choose one of its voices from the Speech Menu. Also select Speak Selection, Speak This Page or Speak Document. The Speech Manager interface appears as the text is read. You can change the reading speed. Select Pause to stop the reading.

60 Processing documents

Closing a document

Choose Close in the File menu (or zW) to close the current document in OmniPage Pro. You can also close the document by closing the Document window. If you have not exported or saved the document or if you have changed it since the last export or save, you will be prompted to save it as an Om niP age D ocument befor e closing.

Quitting OmniPage Pro

Choose Quit in the File menu (or zQ) to close a document and exit OmniPage Pro. If the current document has not been exported or saved or is changed si nce th e la st export or s av e, yo u wil l be prompted to save it as an OmniPage Document before closing.

Chapter 3

Exporting documents

You can export original images or recognition results, for use in other applications by:

u Saving an OmniPage Document u Saving images u Saving recognition results u Saving to Portable Document Format (PDF) u Copying a document to the Clipboard u Using drag-and-drop functionality

Saving an OmniPage Document

You can save your document as an OmniPage Document file if you want to reopen it in OmniPage Pro again. OmniPage Documents retain all the original images, together with their zones and their properties, some settings and any recognition results. The links between text and image are conserved, so proofing and verifying will still work in another session or at a distant location where OmniPage Pro is located.

Choose Save or Save As... in the File Menu, or export the document, choosing OmniPage Document as the saving format. See Saving a document as you work on page 56.

Saving images

You can save images from the current document to one or more image files. Images are stored in the mode they are displayed (black-andwhite, grayscale, color). They are stored at their original resolutions, except for high-definition color images, which are reduced to 256 colors.

Exporting documents 61

Define a saving name and location

Enter a saving format for the file(s).

Make Image view active and choose Save Images... from the File menu. The Save Images dialog box appears:

If you choose these, numerical suffixes will be appended to your file name, to generate unique file names.

For information on the supported image file formats, see page 112. PDF is not offered for saving images, because it is the recognition results that are saved to PDF, not the original images. See the following two topics.

t To export recognition results from a document:

62 Processing documents

Saving recognition results

As soon as you have at least one recognized page in a document, you can save recognition results from all the recognized pages to disk in a variety of file formats. See page111 for information on these formats.

When you do automatic processing, the Export dialog box appears as soon as the last page is recognized or proofed (if requested). Follow the procedure below from point 2 onwards. Point 1 tells you how to start the export manually.

1. Click the Export button with To file... selected in the Export pop- up menu. The Export dialog box appears.

2. Select the folder where you want your file saved.

Chapter 3

Type in a name and define a location for your file.

Select a save format. Select save options

when saving to formats other than OmniPage Document.

This appears if there are unrecognized pages. They will be skipped during export.

This is avai la ble when True Page is set, for some saving formats. Select it to maintain page layout without frames, so text can flow between columns.

Choose this to see your recognition results in their target application immediately after export.

3. Type in a file name for your document, using not more than 28 characters.

4. Select the appropriate file format for your document in the Save Format pop-up menu. Formats able to accept True Page output are listed with a Tp icon. If your target application cannot handle frames, or you do not want frames to be used, click the check box Remove Frames on Export.

5. Select other save options if you are saving the document in a file format other than OmniPage Document.

6. Click Save. The document is saved to disk as specified. If Retain Graphics was selected in the OCR panel of the Preferences dialog box, embedded graphics are saved with the file, providing the selected format supports them. The graphics are sav ed at 75 or 150 dpi, as specified in the Preferences dialog box.

7. If you chose Save and Launch, the target application linked to y our saving format is activ ated and t he r ecogn ition res ults a re loaded . If you chose to save each page to a separate file, only the first file is loaded. OmniPage Pro remains running with the document still available.

Exporting documents 63

Saving to Portable Document Format (PDF)

When saving to PDF, we recommend you choose the True Page style set, because this forms the basis for saving, whatever style set is chosen. Check that all text is visible within the frame borders. You have four choices when saving recognition results to PDF files.

Image only: The PDF file is viewable only and cannot be modified in a PDF editor and text cannot be searched.

Normal: The PDF file can be viewed and searched in a PDF viewer and edited in a PDF editor.

With Image on text: The PDF file is viewable only and cannot be modified in a PDF editor. There is a text file behind each image, so text can be searched. A found word is highlighted in the image.

With image substitutes: Words with reject and suspect characters have image overla ys, so uncertain characte rs display as they wer e in the original document. The PDF file can be viewed, edited and searched.

Copying a document to the Clipboard

You can choose to send a copy of the recognition results from all recognized pages in the document to Clipboard. This can then be pasted into another application. You can also copy the image block from a zone in Image view to the Clipboard.

t To copy an entire document to Clipboard:

64 Processing documents

1. Select To Clipboard in the Export button’s pop-up menu.

2. Click the Start button for automatic processing or the Export

button to export pages manually. The results from every recognized page are copied to the Clipboard. With manual processing this happens immediately. With automatic processing it happens when the last page is recognized or proofed.

3. Paste the Clipboard contents to a target application. Text formatting, such as bold and italics, is retained if you paste it into an application that supports RTF information. Otherwise,

only plain text is pasted. Graphics are retained if you selected Retain Graphics and the target application supports them. The graphics have the resolution chosen in the OCR panel of the Preferences dialog box.

t To copy the image from a zone to Clipboard:

1. Make Image view active.

2. Click the Draw/Select Zones tool in the Tool palette.

3. Select the zone you want to copy by clicking it.

4. Choose Copy in the Edit menu. A copy of the image from the zo ne

area is placed on the Clipboard. It can be pasted into any target application capabl e of handling PICT ima ges. I t retai ns its original resolution and color depth value (up to 256 colors).

Chapter 3

Note

Copying through Clipboard (and Direct OCR) work best for processing just a few pages, especially under Mac OS 9 if an application’s partition is almost full. Save larger documents to a file format compatible with your application.

Using drag-and-drop functionality

Drag-and-drop can be used for import (see page 38) and export.

Dragging a thumbnail for whole page export

You can drag a thumbnail from Thumbnail view to the Desktop, to a folder or to another application that supports drag-and-drop functionality. The image of the thumbnail’s page is placed as a PICT image with the same r eso lutio n a nd mode (black-a nd -whit e, gra ysca le or color) as the original image. If it is dragged to the Desktop or a folder, it is named Picture clipping, with a numerical suffix if necessary.

Dragging a zone from Image view

You can drag a single selected zone from Image view to the same locations. A copy o f the zon e conten ts i s place d as a P ICT ima ge, wi th the same behavior as for a whole page.

Exporting documents 65

Dragging from Text view

You can drag a block of selected recognized text from Text view to the Desktop or another application that supports drag-and-drop functionality. Text formatting will be transferred if possible. The res ult appears on the Desktop as a picture cl ipping icon, and double-cl icking on it allows you to view the text only. But if you drag the icon into a text editing application, it is inserted as editable text. An embedded graphic can be exported by drag-and-drop from Text view. However, you cannot drag-and-drop text and graphics together.

Direct OCR

The Direct OCR™ feature allo ws you to activate OmniP age P ro fro m the Dock (Mac OS 9: Apple menu), perform OCR on one or more images, and have th e r e cogn iz e d text pla ced a t the i ns ert ion point in a target application.

Direct OCR works with virtually any Macintosh application that supports pasting text from the Clipboard. Your Macintosh must have enough memory to run both OmniPage Pro and the application.

66 Processing documents

OmniPage Pro does not have to be running when you start Direct OCR. If it is running with no document, it will remain open afterwards. If it is running with a document open, you will be prompted to close it first. Before starting Direct OCR, be sure the Clipboard does not contain something you still want to paste.

Text formatting, such as bold and italics, is retained if you are pasting into an application that supports RTF information. Otherwise, only plain text will be pasted. Graphics are transferred if Retain Graphics was selected and the target application supports them.

Note

If the Direct OCR icon does not appear automatically in the Dock, you should drag the icon from the OmniPage Pro: OmniPage Extras folder and drop it into the Dock.

Click this icon to see Direct OCR settings.

Chapter 3

Using Direct OCR

You can run Direct OCR using automatic or manual processing. For automatic processing, all settings should be selected suitably in OmniP age Pr o before using Dir ect OCR. If you are uncertain whether settings are suitable or not, or if you want to exclude parts of the pages, use manual processing instead. This allows you to check and change settings and also do manual zoning.

Choose Direct OCR settings (including the choice of automatic or manual processing) in the Miscellaneous panel on the Preferences dialog box before you use Direct OCR.

Select this for automatic processing. The Start button is triggered as soon as you activate Direct OCR. Deselect this to use manual processing.

Select this to keep OmniPage Pro and the document open after Direct OCR is finished .

t To use Direct OCR with automatic processing:

1. Align a page in your scanner or a stack of pages in its automatic document feeder (ADF) if you plan to scan. Be sure Scan Until Empty is enabled if you wan t to sca n multip le pages from the A DF.

2. Open or switch to the application and place the insertion point where you want recognized text to be placed. You do not need to open OmniPage Pro itself.

3. Click the OmniPage Direct OCR icon on the Dock. OmniP age P ro opens in Direct OCR mode. Either scanning starts or the Load Images dialog box appears so you can select image files.

4. Pages are processed automatically. This includes auto-zoning, unless you apply a template and choose Use Only Current Zones. The Export button displays To application, blocking other export

Direct OCR 67

until the Direct OCR operation is finished. P ro ofing starts as so on as the last page is recognized, if OCR & Proof was selected.

5. When recognition or proofing is finished, the recognition results appear at the insertion point in the target application.

t To use Direct OCR with manual processing:

1. Follow points 1 to 3 as for automatic processing.

2. The OCR Toolbar appears. Scanning starts or the Load Images

dialog box lets you name image files.

3. Do manual zoning on the resulting page images if you wish. Modify settings as necessary.

4. Select an OCR method and click the OCR button for each page, or click the Start button and then choose Recognize All Unrecognized Pages.

5. Proof each page if you asked it to start automatically. Verify and edit text as desired. Start proofing manually if you wish.

6. The Export button displays To Application. If you clicked Start, export follows automatically. If not, click the Export button. All recognized pages are placed at the insertion point in the target application.

t What happens after Direct OCR

68 Processing documents

If you selected Keep OmniPage Pro Running after Pasting, with Direct OCR Document Loaded in the Miscellaneous panel of the Preferences dialog box, OmniPage Pro remains open with the images and recognition results, allowing you to verify, edit and save the document to file. If you deselected this option, the recognition results are available only in the target application and on the Clipboard. If OmniPage Pro was closed when you started Direct OCR, it will be closed down. If it was open when you started Dir ect OCR, it will r emain open, without a document.

Chapter 4

Settings

This chapter provides more detailed information on the options available in the pop-up menus on the OCR Toolbar and settings you can select in the Preferences dialog box.

Make sure that settings are appropriate for your document before you start processing it. You may have to experiment with di ffer en t set tin gs to get the results you want.

Please continue reading this chapter for information on these topics:

u OCR Toolbar options

u Get Page options u Original Layout options u Style Set options u OCR options u Export options

u Preference settings

u Scanner settings u OCR settings u Spelling settings u Miscellaneous settings

OmniPage Pro X User’s Guide 69

OCR Toolbar options

The three numbered OCR Toolbar buttons allow you to take a document through each step of the OCR process. The Start button begins automatic processing. You can select options in the five pop-up menus as described below.

Start button

Get Page button and pop-up menu

Pictures on the thre e buttons change as you select diffe rent option s, to indicate what will happen when the button is clicked or when automatic processin g is run. The pictur es on the left show the button’s appearance when each option is selected.

Get Page options

You can select from the following options in the Get Page pop-up menu. The selection is activated at the start of automatic processing (images are acquired and recognized) or by clicking the Get Page button (images are acquired without recognition).

Original Layout and Style Set pop-up menus

OCR button with its pop-up menu open

Export button and pop-up menu

70 Settings

Scan in B&W

Select this to scan paper documents from your scanner with blackand-white scanning. Choose this if you wish to retain diagrams or line-art in your output document. F or best OCR accuracy, choose this for good quality pages with crisp black text on a white background.

Chapter 4

Scan in Gray

Select this to scan paper documents from your scanner with grayscale scanning. Choose this if you wish to retain pictures or photos in your output document. For best OCR accuracy, choose this for lower quality pages, for example with low or varying contrast, or with text on shaded or colored backgrounds.

Scan in Color

Select this to scan paper documents from your scanner in color. Choose this only if you wish to retain color graphics in your recognized document. Handling color documents needs extra memory and time. It yields no accuracy benefits for OCR compared to grayscale scanning (at a giv en resolut ion). It is available only when a color scanner is installed.

Note

The scanner options in the Get Page pop-up menu may vary depending on your scanner configuration. Scanning modes not supported by your scanner will be grayed. If you see only one item Scan Image, you should select the scanning mode (black-and-white, grayscale or color) on the scanner interface.

Load Image

Select Lo ad Image to load one or more existing ima ge file s. Multi-page image files (TIFF and PDF formats) can be handled; you can specify which page images to open. You cannot modify the brightness, contrast, resoluti on o r mode (black-a nd-whit e, gra y or co lor) of i mage files when you load t hem. Th ey ar e opened a s th ey wer e sa ved. I mag es are automatically straightened, if necessary.

For step-by-ste p guidance on scanning, se e Scanning pages on page36. For similar guidance on opening images, see Loading image files on page 36 and Supported image file formats on page 111 and 112.

OCR Toolbar options 71

Original Layout options

You can select from the following options in the Original Layout popup menu. These let you describe the incoming pages, to assist the program in auto-zoning. Auto-zoning always runs when you perform automatic processing (unless you load a zone template), and sometimes runs during manual processing.

Single Column

Select this to have OmniPage Pro automatically draw and order zones on single-column page images, such as letters, memos or book pages. Select it to deter the program from searching for columns.

Multiple Column

Select this to have OmniPage Pro automatically draw and order zones on multiple column page images such as from magazines or newspapers. The program will try to find columns.

Spreadsheet

Select this for pages containing spreadsheets or where you want the whole contents of the page treated as a table. Do not select it for pages containing tables al ong with tex t or othe r non -table el ement s. U se the Miscellaneous panel of the Preferences dialog box to determine whether the table data will be placed in a grid or in tab-separated columns.

72 Settings

Mixed Pages

Select this for complex pages or if you are unsure. Select it also for a multiple-page document with a variety of page layouts. This gives OmniPage Pro full control in drawing and ordering zones on each page.

For more information, see Creating zones automatically on page 40.

Chapter 4

[Zone Templates]

Select the name of a zone template file that you want to use to place zones on new incoming pages. Any zone templates you have created appear at the bottom of th e pop -up men u. The e xample comes from a user who has created two templates to process standardized form-like printed reports – one type arrives each week, the other each month.

To place template zones on an existing page, select the template here, then click the Apply Template tool in the Tools palette. For more information, see Zone templates on page 96.

Style Set options

You can select a page-level style set option from the Style Set pop-up menu. The choice made here determines the appearance or formatting level to be applied to the recognition results coming from new incoming pages.

The selected OCR Toolbar option has no influence on existing pages, even if you r e-re cognize them. U s e the Z one I nfo palet te to cha nge the style set for an existing page.

Tables and graphics can be handled by all style sets. With True Page, these are r eta ine d a t their orig ina l lo cat ion o n th e p age. W ith a ll o ther style sets, tables are placed at their location in the decolumnized text and graphics are placed at the end of the text from the page.

The first four style sets define basic formatting levels. The remaining style sets are fully editable. Choose from the following options:

Plain Format

Select this to have plain text in one font and size that you can define. Text will be left aligned, decolumnized and wrapped (it will use the whole page width).

Similar Fonts

Select this to have text with font formatting retained. Fonts are mapped as specified. Font sizes and bold, italic and underlined texts are detected and maintained. Text is left aligned, decolumnized and wrapped.

OCR Toolbar options 73

Similar Formats

Select this to have results similar to Similar Fonts, but with column widths maintained when multi-column pages are decolumnized.

True Page

Select this to have the original page layout maintained as closely as possible. Text blocks, headings, tables, graphics and other elements are placed in frames. This is recommended when exporting to PDF format (see page 64). It is suitable only for saving formats marked Tp in the Export dialog box.

Article

This is an editable sample style set. Select it to have the Similar Formats layout, but with additional zone styles. You can change the

properties of these zone styles and add new styles.

Contemporary Memo

This is an editable sample style set. Select it to have the Similar Formats layout, but with additional editable zone styles. Use this for

memos or similar documents you want exported with proportionally spaced fonts.

74 Settings

Typewriter Memo

This is an editable sample style set. Select it to have the Similar Formats layout, but with additional editable zone styles. Use this for

memos or similar documents you want exported with monospaced fonts, so they appear to be typewritten.

[Custom styles]

If you have created your own style sets, these appear in the alphabetical order of the lower part of this pop-up menu. Choose a custom style to impose your own formatting wishes on incoming pages. See Creating style sets on page 90.

Chapter 4

OCR options

You can select the following OC R optio ns in the OC R pop- up menu . The selected option is activated during manual processing by clicking the OCR button. This performs recogni tion or training on the curr ent page only. The option is also activated during automatic processing, in which case it may be applied to a series of pages.

Perform OCR

Select Perform OCR to recognize text on pages. During OCR, OmniPage Pro analyzes the image and interprets character shapes to produce editable text. It may also transfer image areas from graphics zones into the recognition results. Proofing will not start automatically.

For more information, see Performing OCR on page 50.

OCR & Proof

Select OCR & P ro of to recogn ize te xt and then automat ically start the OCR Proofreader, allowing you to check for errors.

For more information, see Proofreading OCR results on page 51.

Train OCR

Select Train OCR to teach OmniPage Pro how to recognize special or stylized characters taken from the current page. Automatic processing is not available when this option is selected.

For more information, see Training OCR on page 97.

Export options

You can select from two of the following export options in the Export pop-up menu. Your choice is activated at the end of automatic processing or whenever you click the Export button.

To File

Select this to save your recognition results to a document you will name in a specified file format.

OCR Toolbar options 75

For more information, see Saving a document as you work on page 56, Exporting documents (page61) and Supported file types in online Help.

To Clipboard

Select To Clipboard to place a copy o f a d ocume nt ’s recognition results (text and embedded graphics) on the Clipboard.

See Copying a document to the Clipboard on page 64.

To Application

This option cannot be selected. It appears when Direct OCR is in use. Other export options are not available at that time. When the Direct OCR recognition (and optionally proofing) is finished, the recognition results are placed on the Clipboard, ready for pasting to the cursor position in the target application. See Direct OCR on page 66.

Preference settings

The Preferences dialog box is the central location of OmniPage Pro settings. To open it, click Preferences... in the Application menu (Mac OS 9: Edit menu). The dialog box has four panels. Each panel can be displayed by clicking its icon on the left. When the dialog box is reopened, it displays the last selected panel.

76 Settings

See the online Help topic Settings Guidelines for recommendations in choosing settings and options for various types of documents and tasks.

Scanner settings

Click the Scanner icon on the left of the Preferences dialog box to display this panel. It allows you to select a scanner and the settings that control the way it will scan pages.

Chapter 4

Click this to open the Scanner panel.

To manually adjust the brightness, drag the slider

to left or right.

Click this to close the dialog box and drop all changes made in any of the panels.

Click this to select an installed scanner, set its parameters and test it.

This becomes available as soon as you change a setting. It saves all changes made in all panels.

Scanner

This displays the currently selected scanner. Click Select... to select a different scanner. Only scanners already installed on your system can be selected. For guidance on selecting or changing scanners and drivers, see chapter 1. The controls offered in this Scanner panel depend on the facilities supported by your scanner.

Page Size

Select the dimens ions of th e pag es you pla n to sca n in the Size pop-up menu.

• Select Letter for 8.5 by 11 inch pages.

• Select A4 for 21 by 29.7 cm pages (8.27 x 11.7 inches).

• Select Legal for 8.5 by 14 inch pages.

Page Orientation

Select the orientation of the pages you plan to scan in the Orientation pop-up menu. Be sure to also load pages correctly in your scanner.

• Select Portrait for vertically-oriented pages (the shorter page edge is parallel to the scanning head).

• Select Landscape for horizontally-oriented pages (the longer page edge is parallel to the scanning head).

• Select Flipped to have portrait images rotated by 180 degrees.

Preference settings 77

• Select Flipscape to have landscape images rotated by 180 degrees.

Tip

Flipped and Flipscape options are useful if you are scanning pages in a book and have trouble positioning the book correctly in the scanner. You can also rotate a page image after it is loaded into OmniPage Pro. For more information, see Rotating an image on page 57.

ADF settings

If you use a scanner with an automatic document feeder (ADF), you can use the following settings.

• Select Scan until Empty to scan every page in your scanner’s ADF.

This setting is useful when you want to scan a stack of p ages at once. If it is not selected, OmniPage Pro only scans the first page in your ADF and you must click the Get Page or Start button to scan each subsequent page.

• Select Double-sided Pages to scan pages that have text printed on both sides. OmniPage Pro scans pages and then prompts you to turn them over so it can scan the reverse sides. If you have a stack of double-sided pages, also select Scan Until Empty. After scanning, page images are displayed in Image view in the correct order . If you have a duplex scanner, do not set this; the scanner’s own software can handle the double-sided scanning.

78 Settings

Scanning Resolution

Use this to select a scanning resolution in dots per inch (dpi). The values offered are scanner dependent. For non-color scanning they may range from 200 to 600 dpi, and from 200 to 300 for color scanning. In general, 300 dpi is best for OCR accuracy. 400 dpi may be better for very small print. Higher resolutions may be desirable for saving higher-quality images to file or to OmniPage Documents, at the expense of increased file size, processing time and maybe OCR accuracy.

Chapter 4

Brightness

The brightness setting for scanning a page works like that on a photocopier. This setting can compensate for variations in paper and print quality, so it can have a big influence on OCR accuracy.

Click the Manual Brightness check box and move the slider to lighten or darken the brightness for your scanning.

The following illustrates optimum and unsuitable brightness.

Unsuitable

Tolerable

Good

Best

Good

Tolerable

Unsuitable

Contrast

The contrast setting for s canning a pa ge works like that on a television set. This setting is only activated if you have Grayscale or Color selected in the Scanner settings. It lets you increase or decrease the difference between light and dark areas on the image. Click the Manual Contrast check box and move the slider to make a contrast setting.

Note

Some scanners offer only automatic detection for brightness and contrast. Some require a manual setting. Others offer both methods. In this case, automatic detection may be better; some scanners do this dynamically , varying the setting for different parts of the page. If results are disappointing, try using manual adjustment.

Preference settings 79

Click this to see the OCR panel

OCR settings

Click the OCR icon in the Preferences dialog box to select accuracy and output options.

Use this to decide which character will replace unrecognizable characters in the output.

Character Type

Select a setting to characterize the printed text on your pages in the Character Type pop-up menu.

• Select Normal for conventionally printed text characters. Select it also for dot-matrix te xt s printe d in fine mode or with 24-pins. Select it also for fax files, but ask your senders to use Fine Mode.

• Select Dot Matrix for text characters printed in draft mode with a 9-pin, monospaced dot-matrix printer.

80 Settings

Training File

A training file is a set of up to 256 pre-recognized character shapes linked to OCR solutions, that OmniPage Pro can use to compare with shapes it is trying to recognize. For most recognition tasks, a training file is not necessary. If you have a training file you wish to use, select it in the Training File pop-up menu. None is the only option if y ou h av e not created any training files.

Chapter 4

Training files are useful for recognizing characters that prove difficult to recognize or are being regularly misrecognized. To create a training file, see Training OCR on page 97.

Retain Graphics switch

Select Retain Graphics if you want OmniPage Pro to retain original graphics, such as photographs or drawings, in the recognized document. They will be displayed in Text view and exported to file, provided the selected file format supports graphics. Graphics can be exported by drag-and-drop, copying to Clipboard and Direct OCR.

Make sure that all the pictures you want retained are correctly enclosed in zones with the zone type Graphic. These have black borders and display a graphic icon. See Specifying zone types on page 41.

If you deselect this, the contents of graphics zones are ignored. Pictures will neither appear in Text view nor be available for export.

In the lower part of the panel you specify the resolution for graphics exported in grayscale or color. Exported graphics appear as they do in Text view (black-and-white, grayscale or color).

Reject Character

Words containing unrecognizable characters appear in red in the Proofre ad OCR dia log box an d optiona lly in Text view. Unrecognized characters are replaced by a red reject character. The default character is a tilde (~). Type the character you want to use in the Reject Char acte r edit box.

For example, if OmniPage Pro could not recognize the J in REJECT, and the tilde (~) was the reject character, the string RE~ECT would appear in your recognized document.

Retain Graphics settings

Choose a resolution setting (75 or 150 dpi) to be used for the export of grayscale or color image areas embedded in Text view. The settings are applied when you save recognition results from the whole document to file, send them to Clipboard or use Direct OCR.

Preference settings 81

The settings have no effect on recognition accuracy, nor on the display of the embedded images in Text view. They are not used when saving to OmniPage Documents, nor when saving page images, nor when exporting single graphics zones or areas by drag-and-drop or through the Clipboard.

The 150 dpi setting yields h igher qualit y pictur es, but co nsumes mor e disk space when the file is save d. You can use the 75 dpi setting to save disk space, with a corresponding loss of image quality.

The memory requirements for a typical exported page of a given size, stored at the selected resolution are displayed below the options. This is for a typical page with about 70% text and 30% embedded image.

Spelling settings

Click the Spelling icon on the left of the Preferences dialog box to select recognition languages, user dictionaries and spell checking settings. These settings are used by the Language Analyst during OCR and for proofreading after OCR.

Choose one language here.

Click this to see the Spelling panel

82 Settings

Choose further languages here.

Choose these to limit the types of words that will be stopped on during proofing.

Chapter 4

Main Language

The Main Language pop-up menu enables you to choose the main language for the page(s) you intend to recognize. Your choice determines which characters are validated for recognition and which main dictionary will be used.

The languages available are Danish, Dutch, English (UK and US), Finnish, French, German, Italian, Norwegian, Portuguese (Standard and Brazilian), Spanish and Swedish.

Additional Language(s)

In addition to the M ain Lan guage for re cognition , you may se lect one or more secondary languages. Specifying additional languages broadens the rang e of accen ted le tters validate d for recog nition. It also enables more than one dictionary. Then the program monitors text as it is recognized to determine its language and which dictionary to apply. This lengthens the processing time, so you should only activate additional languages if your pages really contain more than one language.

The Main R ecogn iti on La ngu age is dis pl ayed on th e O CR Toolbar. It is followed by three dots if any additional languages are selected.

t To select secondary languages and dictionaries:

1. Click the Select... button to the right of the Additional Language(s) display. The Select Secondary Languages dialog box appears displaying all the available languages, except the current main language.

In this example, the main language is US English and the secondary language will be Spanish.

2. Click a language name to select it. Command-click to select more than one language.

3. Command-click a selected language to remove its selection.

4. Click OK to save your selected language(s).

Preference settings 83

Note

It is possible to read more languages than those offered as main and secondary languages, providing you disable the Language Analyst and make a suitable language selection. See Supported languages on page 110 for a d vice.

User Dictionary

Select a user (personal) dictionary in the User Dictionary pop-up menu. For information on creating and editing user dictionaries, see User dictionaries on page 101.

Use Language Analyst

Select Use Language Analyst to have dictionaries and other linguistic aids used during recognition. Proofing will then stop on all doubted words, and the Language Analyst may suggest replacement words. This is similar to the automatic spell-checking feature in many word processors. If this is selected, marking is available in Text view for all doubted words – those with rejected or questionable characters and those not found in a dictionary.

If you deselect Use Langua g e Analyst, proofing will stop only on words containing unrecognizable characters, and only these words will be available for marking (in red) in Text view. OmniPage Pro can handle almost sixty more languages than those directly selectable (see the list in Supported languages on page110). To read these languages, you must deselect Use Language Analyst.

84 Settings

Choose other options to decrease the number of words the Language Analyst will stop on:

• Select Ignor e Proper Nouns to ignore any word not beginning a sentence with a capitalized first letter followed by three or more lowercase letters (for example, He saw Jane throw...).

• Select Ignore Abbreviations to ignore a capitalized letter followed by three or fewer lowercase letters and a period (for example, Mrs., Dr., and so on).

• Select Ignore Acronyms to ignore any word with a capitalized letter followed by three or fewer letters of which at least one is capitalized (for example, TIFF, NASA, DoT, and so on).

Click this to see the Miscellaneous panel

Chapter 4

Miscellaneous settings

Click the Miscellaneous icon on the left of the Preferences dialog box to select options for table handling, scripting and the Direct OCR feature.

Tables

Select Retain Table Grids to have gridded tables in the original document placed in grids in Text view after they are recogniz ed. They will also be exported in grids if the target application supports grids.

Deselect this to have the data from all tables detected in the original document placed in tab-separated colu mns. G ri ds will not be used for export.

Scripting

Select Log Script Activity... to have a record of events placed in a file named ‘Script Log’. This applies when OmniPage Pro X is run from the Macintosh system by AppleScript commands driving Apple Events. See the topic Using AppleScript commands in online Help.

Direct OCR

Direct OCR allows you to initiate OCR from the Mac OS X Dock and paste recognized text directly into another open application. (In Mac OS 9 Direct OCR is started from the Apple menu). See Direct OCR on page 66 for more information.

Preference settings 85

Direct OCR settings should be selected before you use the Direct OCR feature because they influence what happens as soon as you use it.

• Select Begin Processing Automatically on Launch if you want OmniPage Pro to trigger the Start button as soon as you activate Direct OCR. Text will be recognized automatically: images will be scanned or loaded, auto-zoned, recognized and (if requested) presented for proofing. Recognition results will be placed at the insertion point in the target application. Deselect Begin Processing Automatically on Launch if you want to control when to start scanning, loading, recognition, and pasting. This is recommended if you want to check settings, change settings from page to page, draw zones manually or verify and edit the recognized text inside OmniPage Pro.

• Select Keep OmniPage Pro Running after Pasting, with Direct OCR Document Loaded if you want the recognized document

to be retained in OmniPage Pro. This allows you to work further with it, adding or re-recognizing pages and saving the results to file. You can save it in more than one format, including the OmniPage Document format. Deselect this setting if you do not want the recognized document to be available in OmniPage Pro after the text is pasted into your app lication. OmniP a ge P r o will also close i f it was not open before you activated Direct OCR.

86 Settings

Note

Y o u can save all the current settings from the Prefer ences dialog box (except which scanner is selected) to a settings file. Y ou can then load this file anytime you want to restore the preselected values. See page 102 for more information.

Chapter 5

Customizing OCR

OmniPage Pro X has many features that allow you to customize the way your documents are handled during OCR and how they appear after recognition. This chapter describes how to use these facilities.

Please continue reading for information on the following topics:

u Specifying the style set u Applying and editing zone styles u Zone templates u Training OCR u User dictionaries u Settings files

Specifying the style set

A style set determines the appe arance of the r ecognition results for e ach recognized pa ge. The progra m is supplied wi th seve n built-in style sets and users can create their own custom style sets.

Each style set contains one or more zone styles. A zone style defines formatting elements such as fonts, text flow, alignment and indentation to be used for text within any zone the zone style is applied to.

OmniPage Pro X User’s Guide 87

The following tables gi ve a n overview of the built-in style sets and the zone styles offered by each of them.

Four of these style sets define basic formatting le vels. These cannot be deleted and allow only limited editing. They are useful mainly for processing documents automatically or for applying standard formatting during manual processing.

The remaining three built-in style sets can be considered samples. They can be edited and deleted. These style sets can accept new zone styles and allow the zone style values to be changed. These are useful for reformatting documents, mainly during manual processing.

Basic built-in style sets

Style set s Formatting Zone style

Plain Format

Similar Fonts Font formatting is maintained. Fonts are mapped as specified, font

Similar Formats

True Page Font and paragraph formatting are maintained. Page layout is con-

The whole text appears in one definable font and font size (by default 10pt. Geneva). There is no font mapping. Text is left aligned and wrapped. Multi-column text is decolumnized.

sizes and bold, italic and underlined text are detected and maintained. Text is left aligned and wrapped. Multi-column text is decolumnized and displayed at page width.

Font formatting, paragraph alignment and indenting are maintained. Multi-column text is decolumnized, and column widths are maintained.

served by placing page elements (text blocks, headings, graphics, tables and so on) in frames. Select this only for saving formats marked with TP in the Export dialog box.

Each of these basic style sets has only one zone style. They cannot be deleted and new zone styles cannot be added. The Zone style Plain allows you to specify one font and font size, but cannot be edited beyond that. The zone styles Auto Fonts and Auto Detect allow only the font mapping settings to be modified.

Whichever style set is chosen, you can still apply font formatting to selected blocks of recognized text in Text view after recognition.

Plain

Auto Fonts

Auto Detect

88 Customizing OCR

All four styles can transmit graphics. For the first three, the graphics are placed at the end of the recognized text. In True Page the graphic is placed in a frame in its location on the original page.

All four styles can accept tables. Fo r the first thre e, tables ar e p laced at their locations in the decolumnized text. In True Page the table is placed in a frame at its location on the original page. Tables appear either in grids or tabbed columns.

Editable built-in style sets

The following style sets are all based on the basic style set Similar Formats. These style sets can all be freely edited.

Style set s Useful for Zone styles

Chapter 5

Article Pages from magazines or newspapers you want to

Contemporary Memo

Typewriter Memo

reformat using manual processing. Poetry or texts where the original line breaks should be conserved.

Memos or similar documents to be displayed and exported with proportionally spaced text.

Memos or similar documents to be displayed and exported as monospaced text, so it appears typewritten. Raskin style is typewriter-like but proportionally spaced.

You can modify the styling of all provided zone styles except Auto Detect. You can add new zone styles. Auto Detect is set as default, but you can change the default zone style. All zone styles except Auto Detect can be deleted. If you try to delete the zone style selected as

default, you will be warned. If you do delete it, the default reverts to Auto Detect.

Author, Auto Detect, Body, Date of Publication, Poetry, Publication, Subject

Auto Detect, Body, cc, Date, From, Subject, To

Auto Detect, Body, cc, Date, From, Raskin style, Subject, To

Specifying the style set 89

Specifying a global style set

Select a style set from the Style Set pop-up menu in the OCR Toolbar. The selected style set is applied to all incoming pages until you change the setting. A new setting here has no effect on existing pages, even if you re-recognize them.

t To modify the style set for a page:

 Make Image view active. The Zone Info palette appears.  Select the desired style set in its Style Set fo r Page pop-up menu.

The zone styles available for the page may change.

 If the page has already been recognized, you will have to recogniz e

it again for the new style set to take effect.

Creating style sets

You can create and use custom style sets. This is useful for imposing consistent formatting on particular types of documents.

For example, if you often recognize recipes, you can design your own style set that contai ns a z one style for th e re cipe tit le, a style for the l ist of ingredients, and a style for the directions. You can then use this style set for all the recipes you recognize, even if the original pages have different layouts and formatting.

90 Customizing OCR

Note

OmniPage Pro X is shipped with three sample style sets, for instance Article. You can use this as a guide when you create zone styles for your new style s et. See page 95 for instructions on editing style sets.

t To create a style set:

 Choose Style Sets... in the Edit menu.

A dialog box appears displaying all available style sets.

 Click New. The New Style Set dialog box appears.  Enter a name for your style set.

For example, you could enter Bibliography as the name if you are creating a style set for handling bibliographies.

 Click New.

The Edit Style Set dialog box appears. Your new style set will inherit its behavior from the style set Similar Formats. That means text is decolumnized, but original column widths can be maintained and frames are not used.

Auto Detect is the only zone

style automatically created.

Chapter 5

 Add zone styles and define their properties as described in the

following section.

Applying and editing zone styles

Much like applying styles to paragraphs in your word processor, OmniPage Pro allows you to apply zone styles to individual zones. The zone styles specify how text from each zone should be formatted.

Style sets and zo ne sty les can be se le cted in the Zone Info palette. You can use only one style set for each page in a document. However, different style sets can be used for different pages in the same document.

Applying and editing zone styles 91

t To apply styles to existing zones:

 Make Image view active. The Zone Info palette appears.  Check that the style set for the page is suitable. Change it if

desired.

 Click the Draw/Select Zones tool in the Tools palette if it is not

already selected.

 Select the zone you want to specify by clicking it.

• Shift-click to select additional zones.

• Double-click the Draw/Select Zones tool or choose Select All

in the Edit menu to select all zones on the current page.

 Select the desired zone style in the Zone Style pop-up menu.  Select other zone properties as desired. Selecting zone type and

zone contents were described on page 41.

Note

t To apply styles to new zones:

Shortcut for applying zone styles

Hold the mouse button down while the mouse pointer is over a zone. A menu of all the zone styles in the current style set is displayed. Select the style you want to use for that zone. If the style set for the page only contains one style, no menu will appear.

There are two ways of doing this. Decide which you prefer:

• Draw a zone. It will inherit the zone style and other properties of the last selected z one. I f mo re tha n one zo ne is select ed, th e zone style is taken from the first zone in the selection.

• Make sure no zones are selected. Select the desired zone style and other properties in the Zone Info palette. Draw the zone.

t To edit zone styles in a style set:

The basic style sets allo w very little editing. You will normally edit the built-in sample style sets or ones you have created yourself.

 Choose Style Sets... in the Edit menu.  Double-click the style set you want to edit, or click Edit.

92 Customizing OCR

The currently selected zone style

Settings for the currently selected zone style

Specimen text for the current zone style

Chapter 5

The Edit Style Set dialog box lists the zone styles in the set.

Click to make font mapping selections for the entire style set.

e m r

t a v

 Click the name of the zone style you want to edit. The formatting

attributes for the selected zone style are displayed.

 Change these formatting attributes as detailed in steps 5 to 11

(described from left to right and top to bottom). Whenever the auto button to the left of an attribute is selected (pressed in), OmniPage Pro will detect and transmit the formatting for you.

 Choose Auto for Font to have automatic character mapping (see

below). Choose a font name to have it applied to all texts inside zones with this zone style instead of mapping.

 Choose Auto to have the original character sizing detected and

retained, or choose one fixed point size for all text in the zones.

 Choose Auto to have attributes (bold, italic, underline) detected

and retained from the original, or choose a value.

 Choose Auto to have paragraph alignment detected and retained,

or choose an alignment for all text in the zones.

 Choose Auto to have tabs detected and retained. Or choose

replacement character(s) to be placed instead of tabs.

 Choose Auto to let the program decide whether to flow text or

not. Choose Word Wrap to make all text flow within the text areas. Choose Hard Line Returns to keep all line endings as they were in the original document.

Applying and editing zone styles 93

 The last three settings define the left and right limits of the text

area and first-line indenting. Choose Auto to let OmniPage Pro decide the values. Enter numerical values or drag the markers in the ruler to change settings. The panel below the ruler displays the effects of your settings.

 Repeat the above steps to edit other zone styles. Click Delete Style

to delete a selected zone style from the style set. Click Make

Default to make a selected zone styl e the defa ult sty le applie d to al l

zones when a style set is first selected for a page.

t To add new zone styles to the current style set:

 Open the Edit Style Set dialog box and click New Style.  Enter a name for the zone style you want to add and click OK.

For example, you could enter

Heading as the name if you are

creating a style for heading-type paragraphs.

 Modify the desired formatting attributes for the new style, as

described in the previous procedure. Repeat steps 2-4 to continue adding new styles to the style set.

 Click OK when you are finished editing the style set.

94 Customizing OCR

 Click Done in the Style Sets dialog box if you do not want to edit

any other style sets.

Font mapping

If Auto is selected as the font setting for a zone style, OmniPage Pro analyses the text styling inside the zone and assigns it to one of four categories. More than one text category may be detected within a single zone. Each category is mapped to a font which you can specify.

u Proportional Serif

Character widths v ary and short line s f inish off letter s trokes . This text is an example of this font type. The default font is Times.

u Proportional Sans-Serif

Character widths vary; letter strokes do not have finishing lines. The default font is Helvetica.

u Monospaced Serif

Character width is the same for each character; short lines finish off the letter strokes. The default font is Courier.

u Monospaced Sans-Serif

Character width is the same for each character; letter strokes do not have finishing lines. The default font is 0RQDFR.

Chapter 5

Note

t To change font mapping for a style set:

Font mapping is not applicable to the Plain Format style set. It is always performed with the style sets Similar Fon ts, Similar Formats or True Page. It is available but not compulsory for editable style sets.

To avoid font mapping duri ng manual processing, specify a font name for a zone style in place of Auto. This font will be applied to all text in all zones with this zone style. To avoid font mapping in automatic processing, select an editable style set, define a zone style with a specific font name instead of Auto, make this the default zone style and then choose the style set in th e OCR Toolbar before starting the automatic processing.

 Choose Style Sets... in the Edit menu.  Double-click the style set for which you want to change font

mapping selections.

 Click Font Mapping... in the Edit Style Set dialog box.

The Automatic Font Mapping dialog box appears.

 Select the font you want used for each category.

You can select any fonts available on your system.

Applying and editing zone styles 95

Zone templates

You can use a zone template to quickly and efficiently create zones on documents that have the same zoning requirements. For example, if you frequently process documents with layouts and content that require the same type of zoning, you can create and save a zone template and apply it to all such pages or documents.

A zone template can have up to 64 zones. It remembers the size, position, order, type, style and contents of zones.

t To save a zone template:

 Create the desired zones on a page image, manually or

automatically with checking and modification as required. See Creating zones automatically on page 40.

 Choose Save Zone Template... in the File menu.

The Save Zone Template dialog box appears.

 Type a name for your file and click Save.

The zone template file is saved in the Zone Templa tes folder within your installation folder.

96 Customizing OCR

t To apply a zone template to future pages:

• Select the zone template you want to use in the Original Layout pop-up menu on the OCR Toolbar. OmniPage Pro places temp late zones on all incoming page imag es while the template remains in effect.

t To apply a zone template to an existing page:

 Make sure the desired template is selected in the Original Layout

pop-up menu on the OCR Toolbar.

 Make Image view active, with the desired page displayed.  Click the Apply Template tool in the Zone Info palette.

t To remove a zone template:

• Select a non-template setting in th e Original La yout pop-up menu on the OCR Toolbar. OmniPage Pro will no longer place template zones on incoming page images. This does not remove template zones from existing zoned pages. J us t delete o r modify the m or choose Discar d Current Zones and Find New Zones in the Zoning Instructions dialog box.

Training OCR

You can create a training file to handle characters that are being consistently misrecognized. A training file is a set of up to 256 prerecognized character shapes each linked to an OCR solution. OmniP ag e P r o compar es the stor ed sha pes with thos e encount ered on incoming documents.

OmniPage Pro X is a powerful, pre-trained OCR product. For recognizing ordinary characters in everyday fonts, training files should not be needed. Training is useful mainly for long documents (or a set of documents) in which a few character shapes are being repeatedly misrecognized in the same way. Training is not useful for poorly formed characters unlikely to occur again in the document. For instance, a character shape damaged by spots on the image is a poor candidate for training. Do not attempt to create a training file for an unsupported language or alphabet.

Chapter 5

t To create a training file:

 Open an image fi le or s can a pa ge th at in cludes t he char act ers y ou

want to train or use a page you have already recognized. If you select a recognized page, its recognition results are deleted. Accept the invita tion that appea rs when you finish, to r e-recogn ize the page with the new training file.

 Create or modify zones on the page image if you want to train

characters from only part of the page.

 Select Train OCR as the option in the OCR pop-up menu.

Training OCR 97

Original image OmniPage Pro’s

interpretation

 Click the OCR button. OmniPage Pro analyzes the page and

opens the Training File dialog box. Original character images are displayed along with OmniPage Pro’s interpretation of each character. Characters appear in the alphabetical order of their interpretations.

Most characters do not need to be trained. Look for uncommon and run-together characters. Look for characters whose interpretation is incorrect. An example in the picture above is the bottom left square.

 Double-click a character you want to train. Or select it and click

Specify.

Click a non-keyboard character you want to associate with the selected character shape.

98 Customizing OCR

The Specify Char acter dialog box dis plays the selected character as it appears in the original page image.

Original Image, including the selected character

Enter a keyboard solution here.

 Specify how you want OmniPage Pro to interpret the character

shape during OCR. Type the desired character(s) in the Character

Chapter 5

Code edit box, or click a non-keyboard character in the scrolling

display to add it to the edit box. In our example, the ‘H’ has been cleared and ‘//’ entered.

 Click OK to accept the character specification.

The Training File dialog box reappears.

 Repeat steps 5–7 to continue specifying characters.

The Delete button is not needed when you create a new training file. Any untouched character is excluded from the training file.

 Click Save... to save the characters whose solutions you changed to

a new training file which you will name. Or, click

Append... to add these characters to an existing training

file which you select. In this case, no new training file is created. After saving or appending a file, you are asked if you wan t to make

this the current training file. Click OK to (re-)recognize the current page using the training file you have just created. Click Cancel to return to the image without recognizing it.

t To load a training file:

 Choose Preferences... from the Application menu (OS 9: Edit).  Click the OCR icon to display the OCR panel.  Select a training file in the Training File pop-up menu.

This file remains loaded until you unload it or replace it with another training file.

t To unload a training file:

 Choose Preferences... from the Application menu (OS9: Edit).  Click the OCR icon to display the OCR panel.

 Select None in the Training File pop-up menu.

Note

It is important to unload a training file when you finish processing pages for which it was prepared. A training file is likely to lower accuracy if it remains loaded for pages with different typestyles.

Training OCR 99

t To edit a training file:

 Choose Training Files... in the Edit menu. The Training Files

dialog box lists all training files in the Training Files folder.

 Double-click the training file you want to edit, or select it and

click Open. The Training File dialog box displays the characters in the training file you specified.

 Double-click a character you want to edit.

The Specify Character dialog box appears.

 Edit the interpretations associated with the selected character

shape, as described under Creating a training file. Type one or more characters into the Chara ct e r Code edit box or select nonkeyboard characters from the scrolling display.

 Click OK to accept each character specification and repeat steps 3

and 4 to continue editing specified characters.

Delete to discard a selected character from the training file.

Click Untypically misformed character shapes are bad candidates for training and should be deleted.

 Click Save... to save the edited training file under its existing

name. Or, click Append... to add the trained characters to an existing training file. The file you selected to edit will not be modified.

100 Customizing OCR

t To delete a training file:

 Choose Training Files... in the Edit menu.  Select a training file to be deleted.  Click Delete and then OK in the warning box. Click Done.

Nuance OMNIPAGE PRO X FOR MACINTOSH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome

Chapter outline

Using this Guide

How to use online Help

Other online resources

New features in OmniPage Pro X

Chapter 1

Installation and setup

System requirements

Installing the softw are

Running the program under Mac OS 9

Starting OmniPage Pro

Selecting your scanner

Registering OmniPage Pro

Removing OmniPage Pro

Chapter 2

Introduction

What is Optical Character Recognition?

Beyond OCR

Basic steps in the OCR process

The OCR Toolbar

The full OmniPage Pro interface

The Document window

The Thumbnail window

The Zone Info and Tools palettes

The Preferences dialog box

Chapter 3

Processing documents

Basic processing steps

Automatic processing

To prepar e fo r automatic process ing

To process a new document automatically

To process an existing document automatically

Manual processing

Steps for manual processing

Using automatic and manual processing together

Using the OCR Assistant

Bringing page images into OmniPage Pro

Scanning pages

Loading image files

Opening OmniPage Documents

Using drag-and-drop

Creating and modifying zones

Creating zones automatically

Specifying zone types

Drawing zones manually

Modifying zones

Table zones

Performing recognition

Performing OCR

Proofreading OCR results

Verifyin g recogn ized text

Color markers

Getting page information

Working with documents

Resizing a page display

Saving a document as yo u work

Moving to other pages

Reordering pages

Deleting a page

Undoing edits

Modifying images

Modifying text

Printing a document

Listening to a document

Closing a document

Quitting OmniPage Pro

Exporting documents

Saving an OmniPage Document

Saving images

Saving recognition results

Saving to Portable Document Format (PDF)

Copying a document to the Clipboard

Using drag-and-drop functionality

Direct OCR

Using Direct OCR
