Model No. NETL15708.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
Call: 08457 089 009
From Ireland: 053 92 36102
E-mail: www.iconsupport.eu
USER'S MANUAL
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC, Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
www.iconeurope.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

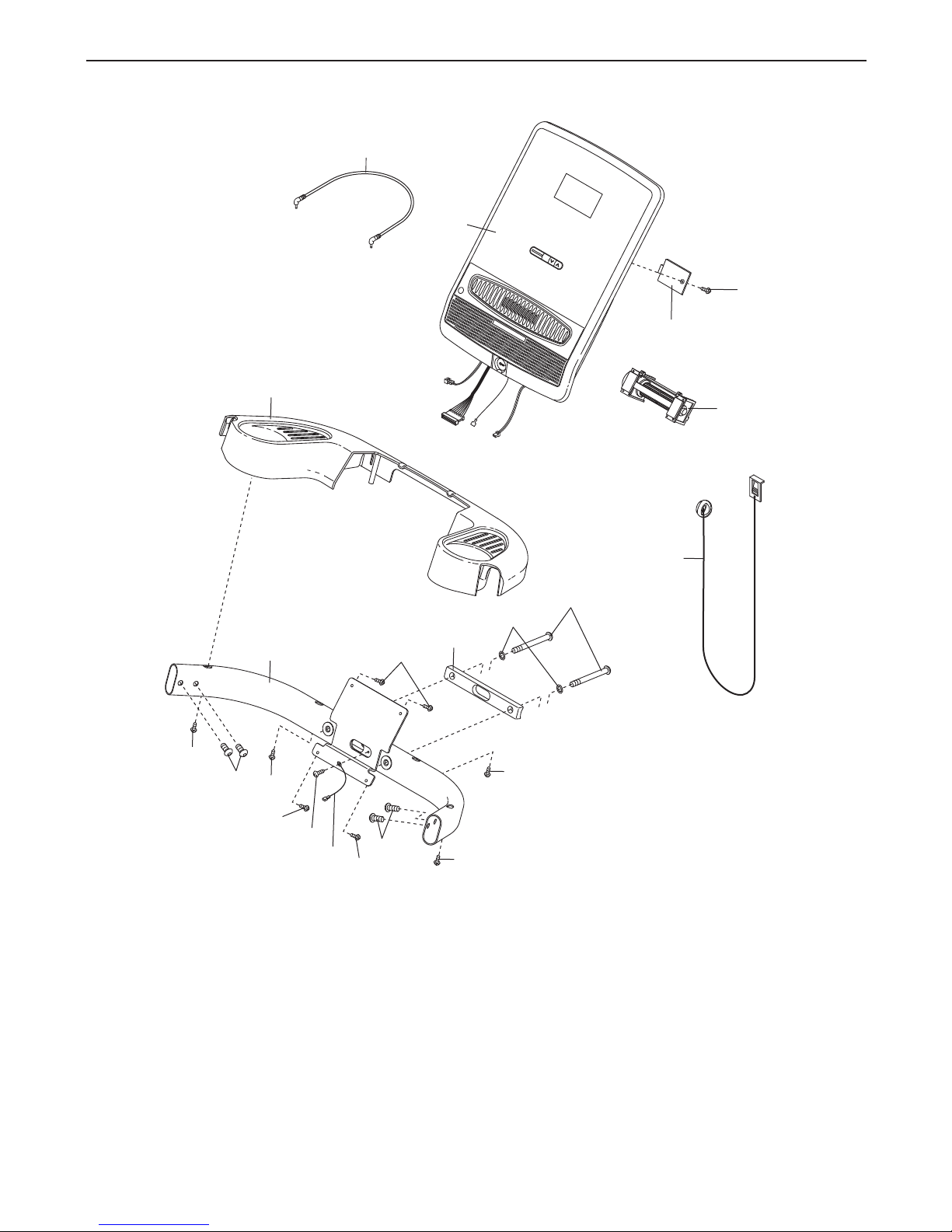

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals.
If a decal is missing or illegible, call the telephone
number on the front cover of this manual and request a free replacement decal. Apply the decal in
the location shown. Note: The decals may not be
shown at actual size.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your incline trainer before using your incline trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this incline trainer are adequately informed of all warnings and precautions.
3. Use the incline trainer only as described.
4. Place the incline trainer on a level surface,
with at least 8 ft. (2.4 m) of clearance behind
it and 2 ft. (0.6 m) on each side. Do not place
the incline trainer on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the incline
trainer.
5. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
trainer with bare feet, wearing only stockings,
or in sandals.
11. When connecting the power cord (see page
12), plug the power cord into an earthed circuit. No other appliance should be on the
same circuit. When replacing the fuse, an
ASTA approved BS1362 type should be fitted
to the fuse carrier. A 13 amp fuse should be
used.
12. If an extension cord is needed, use only a 3conductor, 14-gauge (1 mm
longer than 5 ft. (1.5 m).
13. Keep the power cord away from heated sur-
faces.
14. Never move the walking belt while the power
is turned off. Do not operate the incline
trainer if the power cord or plug is damaged,
or if the incline trainer is not working properly. (See TROUBLESHOOTING on page 21 if
the incline trainer is not working properly.)
2
) cord that is no
6. Do not operate the incline trainer where
aerosol products are used or where oxygen
is being administered.
7. Keep children under age 12 and pets away
from the incline trainer at all times.
8. The incline trainer should be used only by
persons weighing 250 lbs. (115 kg) or less.
9. Never allow more than one person on the incline trainer at a time.
10. Wear appropriate exercise clothes when
using the incline trainer. Do not wear loose
clothes that could become caught in the incline trainer. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the incline
15. Read, understand, and test the emergency
stop procedure before using the incline
trainer (see HOW TO TURN ON THE POWER
on page 14).
16. Never start the incline trainer while you are
standing on the walking belt. Always hold the
handrails while using the incline trainer.
17. The incline trainer is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
9. Never leave the incline trainer unattended
1
while it is running. Always remove the key,
unplug the power cord, and switch the
reset/off circuit breaker to the “off” position
hen the incline trainer is not in use. (See the
w
drawing on page 5 for the location of the
eset/off circuit breaker.)
r
20. Do not attempt to move the incline trainer until
it is properly assembled. (See ASSEMBLY on
page 6, and HOW TO MOVE THE INCLINE
TRAINER on page 20.) You must be able to
safely lift 45 lbs. (20 kg) to move the incline
trainer.
24.
DANGER: Always unplug the power
cord immediately after use, before cleaning
he incline trainer, and before performing the
t
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
ther than the procedures in this manual
o
should be performed by an authorized service
representative only.
25. The incline trainer is intended for in-home use
only. Do not use the incline trainer in any
commercial, rental, or institutional setting.
21. Do not change the incline of the incline
trainer by placing objects under the incline
trainer.
22. Inspect and properly tighten all parts of the
incline trainer regularly.
23. Never insert or drop any object into any
opening on the incline trainer.
SAVE THESE INSTRUCTIONS
26. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
INCLINE TRAINER X3 INTERACTIVE. The INCLINE
TRAINER X3 INTERACTIVE offers a selection of features designed to make your workouts at home more
enjoyable and effective.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
Pulse Sensor
Accessory Tray
Handrail
®
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Fan
Key/Clip
Walking Belt
Walking Platform
Idler Roller
Adjustment Bolts
Wheel
Platform Cushion
Reset/Off
Circuit Breaker
Power Cord
5
ASSEMBLY
#8 x 3/4"
Screw (1)–8
#8 x 1" Tek
Screw (2)–4
3/8" Nut (8)–2
3/8" Star
Washer (9)–6
#8 x 1/2" Screw
(12)–2
1/4" Flat
Washer
(25)–4
3/8" x 2 1/2" Bolt (4)–2
3/8" x 5" Bolt (7)–2
3/8" x 3 1/2" Patch Bolt (3)–4
5/16" x 3/4"
Bolt (6)–4
1/4" x 1"
Patch Bolt (32)–4
ssembly requires two persons. Set the incline trainer in a cleared area and remove all packing materials. Do
A
not dispose of the packing materials until assembly is completed. Note: The underside of the incline trainer
walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the
top of the walking belt or the shipping carton. This is normal and does not affect incline trainer performance. If
there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive
cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and
adjustable wrench .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
1. Make sure that the power cord is unplugged.
1
With the help of a second person, tip the incline
rainer onto its left side. Have the second person
t
hold the incline trainer to prevent it from tipping.
Attach four Base Feet (80) and four Base Foot
Spacers (79) to the Base (78) with four #8 x 1"
Tek Screws (2). Be careful not to overtighten
the Tek Screws.
79
79
80
80
79
80
2
2
79
80
2
78
2
2. Hold the Upright (74) near the incline trainer,
with the brackets on the Upright oriented as
shown.
See the inset drawing. Tie the wire tie in the
Upright (74) around the end of the Upright Wire
(72). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Upright.
Attach the Upright (74) to the Base (78) with
four 3/8" x 3 1/2" Patch Bolts (3) and four 3/8"
Star Washers (9). Start all four Patch Bolts
before tightening any of them. Be careful not
to pinch the Upright Wire (72).
2
Wire
Tie
72
Bracket
74
72
9
74
Wire
Tie
3
3
78
9
7
3. With the help of a second person, carefully tip
the incline trainer down so that the Base (78) is
flat on the floor.
Attach a Wheel (77) to each side of the Base
78) with a 3/8" x 2 1/2" Bolt (4) and a 3/8" Nut
(
(8) (only one side shown).
3
4. Have a second person hold the Left Handrail
(69) near the Yoke (88). Locate the wire tie inside the Yoke. Tie the wire tie around the Left
Pulse Wire (70).
Pull the other end of the wire tie until the Left
Pulse Wire (70) is extending from the hole in the
center of the Yoke (88). At the same time, slide
the Left Handrail (69) into the Yoke. Make sure
not to pinch the Left Pulse Wire.
Attach the Left Handrail (69) to the Yoke (88)
with two 5/16" x 3/4" Bolts (6); do not fully
tighten the Bolts yet.
8
77
4
78
4
70
88
69
6
6
Wire
Ties
Repeat this step with the Right Handrail (75)
and the Right Pulse Wire (71).
5. Hold the Yoke Spacer (87) near the Upright
(74). Make sure that the curved side of the
Yoke Spacer is facing the Upright. Have a
second person hold the Yoke (88) near the
Upright. Insert the Upright Wire (72) through the
Yoke Spacer and the Yoke.
75
71
5
88
74
87
72
Curved
Side
8
6. Slide the two Handrail Covers (76) onto the
lower ends of the Left and Right Handrails (69,
75). See the inset drawing. Make sure that
he curved end of each Handrail Cover is fac-
t
ing the Upright (74).
Slide the lower ends of the Handrails (69, 75)
onto the brackets on the Upright (74).
Attach each Handrail (69, 75) to the Upright (74)
with two 1/4" x 1" Patch Bolts (32) and two 1/4"
Flat Washers (25); do not fully tighten the
Patch Bolts yet.
6
69
74
75
76
Bracket
25
32
76
Bracket
7. Attach the Yoke (88) and the Yoke Spacer (87)
to the Upright (74) with two 3/8" x 5" Bolts (7)
and two 3/8" Star Washers (9). Firmly tighten
the Bolts.
Remove the wire ties from the Upright Wire (72)
and the Pulse Wires (70, 71).
Firmly tighten the 5/16" x 3/4" Bolts (6).
See step 6. Firmly tighten the 1/4" x 1" Patch
Bolts (32), and slide the Handrail Covers (76)
down over the Bolts and against the Upright (74).
76
Curved End
7
25
32
88
74
9
7
6
70
87
72
71
6
Wire
Ties
9
8. Slide the Accessory Tray (86) onto the Yoke
(88). Partially insert the two indicated tabs and
then partially insert the other tabs. Then, fully in-
ert all of the tabs. Make sure not to break the
s
tabs.
8
6
8
Tabs
Attach the Accessory Tray (86) to the Yoke (88)
with four #8 x 3/4" Screws (1). Start all four
Screws before tightening any of them. Do
not overtighten the Screws.
9. Have a second person hold the Console (84)
near the Yoke (88).
Connect the Upright Wire (72), the Left and
Right Pulse Wires (70, 71), and the Console
Ground Wire (89) to the wires extending from
the Console (84). See the inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Insert the excess wire into the Console (84).
88
1
1
9
84
88
89
70
Console
Wires
71
72
Console Wire
72
10
10. Attach the Console (84) to the plate on the Yoke
(88) with four #8 x 3/4" Screws (1). Be careful
not to pinch any wires. Start all four Screws
efore tightening any of them. Do not over-
b
tighten the Screws.
0
1
4
8
11. Attach the Console Cover (73) to the top of the
Upright (74) with two #8 x 1/2" Screws (12). Do
not overtighten the Screws.
88
1
1
11
12
73
12. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included hex
keys in a secure place. One of the hex keys is used to adjust the walking belt (see pages 22 and 23). To pro-
tect the floor or carpet from damage, place a mat under the incline trainer.
74
11
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your incline trainer features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply
silicone spray or other substances to the walking belt or the walking platform. Such substances will dete-
iorate the walking belt and cause excessive wear.
r
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a power cord having an equipment-earthing conductor and an
earthing plug. IMPORTANT: If the power cord is damaged, it
must be replaced with a manufacturer-recommended power
cord.
See drawing 1. Plug the indicated end of the power cord into the
socket on the incline trainer.
See drawing 2. Press the pins on the power cord into the metal clips
in the adapter as shown. Close the adapter cover over the end of the
power cord and tighten the screw in the adapter. IMPORTANT:
Make sure that the adapter cover is secure and the screw has
been tightened before using the power cord.
See drawing 3. Plug the power cord into an appropriate outlet that is
properly installed and earthed in accordance with all local codes and
ordinances.
1
2
Screw
Adapter
3
Socket on Incline Trainer
Adapter
Cover
Pins
Metal
Clips
Outlet
DANGER: Improper connection of the equipment-earthing conductor can result in an in-
creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as
to whether the product is properly earthed. Do not modify the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
12
CONSOLE
DIAGRAM
FEATURES OF THE CONSOLE
The incline trainer console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When the manual mode of the console is selected, the speed and incline of the incline
trainer can be changed with the touch of a button. As
you exercise, the console will display continuous exercise feedback. You can even measure your heart rate
using the handgrip pulse sensor.
In addition, the console features nine 1 step calorie
workouts. Each workout automatically controls the
speed and incline of the incline trainer as it guides you
through an effective exercise session. You can even
use the random workout generator to get a new workout every time you exercise.
The console also features the new iFit interactive workout system. The iFit system enables the console to ac-
cept iFit interactive workout cards containing workouts
designed to help you achieve specific fitness goals. iFit
workouts automatically control the incline trainer while
the voice of a personal trainer coaches you through
every step of your workout. iFit cards are available separately. To purchase iFit cards at any time, please
see the front cover of this manual.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 14. To use the manual mode, see page 14. To use a 1 step calorie workout, see page 16. To use a random workout, see
page 17. To use an iFit card, see page 18. To use
the information mode, see page 19. To use the
stereo sound system, see page 19.
13
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the incline trainer has been ex-
osed to cold temperatures, allow it to warm to
p
room temperature before turning on the power. If
ou do not do this, you may damage the console
y
displays or other electrical components.

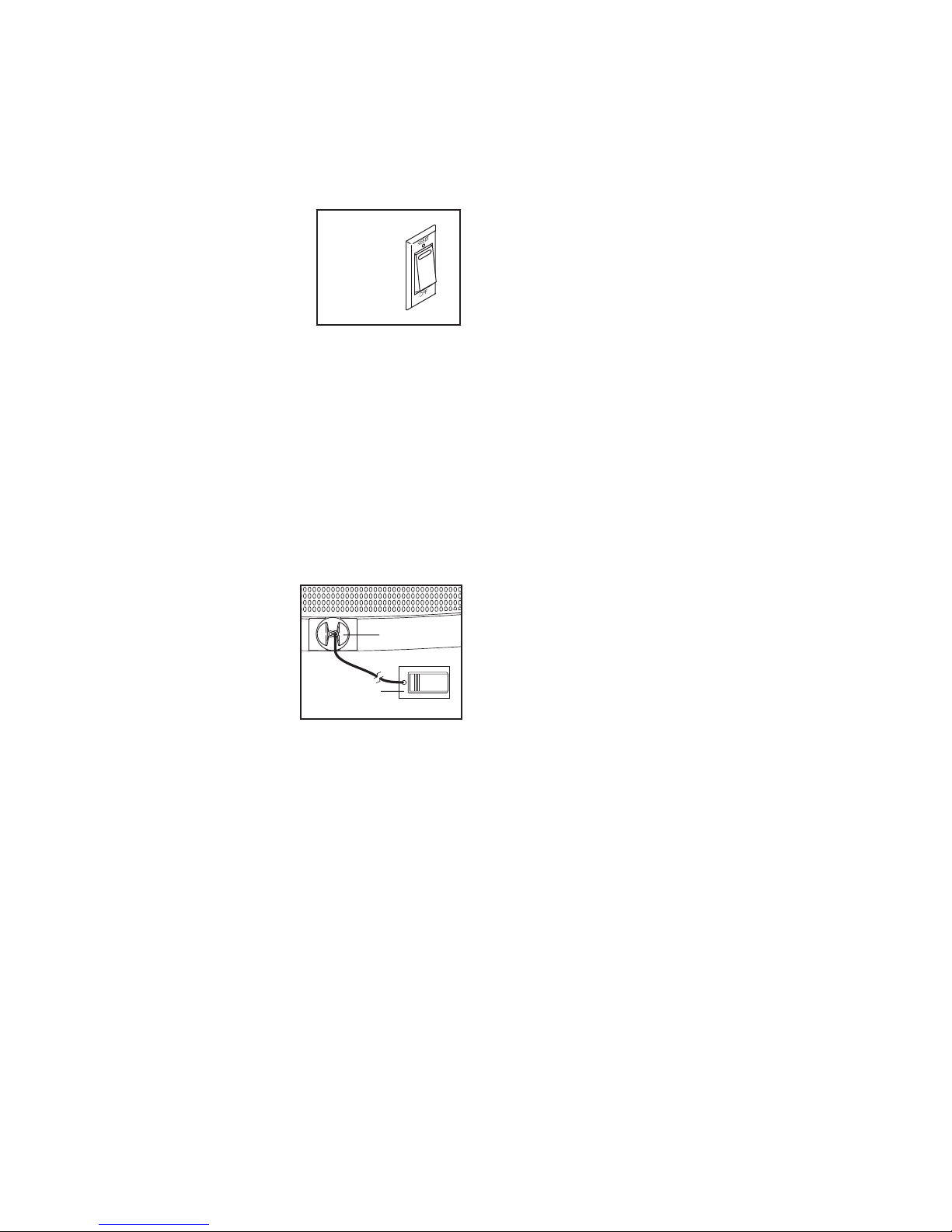

Plug in the power cord (see
page 12). Next, locate the
reset/off circuit breaker on
the incline trainer frame
Reset
near the power cord. Make
sure that the circuit breaker
is in the “reset” position.
IMPORTANT: The console features a display demo
mode, designed to be used if the incline trainer is
displayed in a store. If the displays light as soon
as you plug in the power cord and switch the
reset/off circuit breaker to the reset position, the
demo mode is turned on. To turn off the demo
mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page 19 to turn off the demo mode.
If the console is in demo mode, the incline will automatically rise to the maximum incline level.
Next, stand on the walking
platform of the incline
trainer. Locate the clip attached to the key (see the
Key
drawing at the right), and
slide the clip securely onto
the waistband of your
Clip
clothes. Then, insert the
key into the console. After
a moment, the displays will light. IMPORTANT: In an
emergency situation, the key can be pulled from
the console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward; if the key is not pulled from the console,
adjust the position of the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean
athletic shoes while using the incline trainer. The
first time the incline trainer is used, observe the
alignment of the walking belt, and center the walking belt if necessary (see page 23).
Note: The console can display speed and distance in
either kilometers or miles. To find which unit of measurement is selected, see THE INFORMATION MODE
on page 19. For simplicity, all instructions in this manual refer to kilometers.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
f necessary, press the Incline buttons to lower the
I
incline to the minimum incline level.
2. Select the manual mode.
Each time the key is inserted, the manual mode
will be selected. If you have selected a workout,
press any of the workout buttons repeatedly until
the words MANUAL CONTROL appear in the display.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the 1 Step Speed
buttons numbered 1 to 10.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 2
Km/H. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons next to the Start button. Each time you press a button, the speed setting will change by 0.1 Km/H; if you hold down a
button, the speed setting will change in increments
of 0.5 Km/H. If you press one of the numbered 1
Step Speed buttons, the walking belt will gradually
change speed until it reaches the selected speed
setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered 1
Step Speed buttons.
4. Change the incline of the incline trainer as
desired.
To change the incline of the incline trainer, press
the Incline increase and decrease buttons or one
of the 1 Step Incline buttons numbered 0 to 40.
Each time you press one of the buttons, the incline
will gradually change until it reaches the selected
incline setting. Note: As the incline increases,
the maximum speed of the incline trainer will
decrease. When the incline is from 0% to 15%,
the maximum speed will be 16 Km/H; when the
incline is from 15.5% to 25%, the maximum
speed will be 12.8 Km/H; when the incline is
from 25.5% to 35%, the maximum speed will be
8 Km/H; and when the incline is from 35.5% to
40%, the maximum speed will be 4.8 Km/H.
14
5. Monitor your progress with the display.
When the manual mode is selected, the console of-
ers four display modes. The display mode that you
f
select will determine which workout information is
hown. Press the Display Mode button repeatedly
s
to select the desired display mode.
As you walk or run on the incline trainer, the display can show the following workout information:
• The elapsed time.
• The distance that you have walked or run.
• The number of vertical meters you have climbed.
• The approximate number of calories burned per
hour.
if necessary. In addition, make sure that your
hands are clean.
o measure
T
your heart
ate, stand on
r
ontacts
the walking
C
platform and
hold the metal
contacts on
the handrail for
approximately
ten seconds—
avoid moving your hands. When your pulse is detected, your heart rate will be shown. For the most
accurate heart rate reading, continue to hold
the contacts for about 15 seconds.
7. Turn on the fan if desired.
• The speed of the walking belt.
• The incline level of the incline trainer.
• The approximate number of calories you have
burned.
• Your heart rate. Note: Your heart rate can be displayed only while you use the handgrip pulse
sensor (see step 6).
Regardless of which display mode you select, the
speed or incline setting will appear in the display for
a few seconds each time you change the setting.
If desired, adjust the volume by pressing the
Volume (VOL) increase and decrease buttons on
the console.
To reset the console, press the Stop button, remove the key, and then reinsert the key.
6. Measure your heart rate if desired.
Before using the handgrip pulse sensor, remove
the sheets of clear plastic from the metal contacts
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan. Note: If the fan is on when the
walking belt stops, the fan will automatically turn off
after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and press the Stop
button. Next, remove the key from the console and
put it in a secure place. If the console is in demo
mode (see THE INFORMATION MODE on page
19), the incline will automatically rise to the maximum
incline level.
When you are finished using the incline trainer,
switch the reset/off circuit breaker to the “off” position and unplug the power cord. IMPORTANT: If
you do not do this, the incline trainerʼs electrical components may wear prematurely.
15
HOW TO USE A 1 STEP CALORIE WORKOUT
1. Insert the key into the console.
See step 1 on page 14.
2. Select a 1 step calorie workout.
To select a 1 step calorie workout, press the desired 1 Step Calorie Workouts button until the
name of the workout appears in the display and the
light at the bottom of the desired trail lights up.
When a workout is selected, the display will show a
trail on the side of a mountain.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 2 Km/H.
hen the next segment of the workout begins, the
W
incline trainer will automatically adjust to the speed
nd incline settings for the next segment.
a
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. In addition, if you manually change the speed or incline of the incline trainer during the workout,
the number of calories you burn will be affected.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting or
incline setting may be programmed for consecutive
segments.
3. Start the walking belt.
Press the Start button to start the workout. A moment after you press the button, the incline trainer
will begin to move. Hold the handrails and begin
walking.
At the end of the first segment of the workout, a series of tones will sound. If a different speed and/or
incline setting is programmed for the second segment, the speed setting and/or incline setting will
appear in the display for a moment to alert you and
the incline trainer will automatically adjust to the
speed and incline settings for the next segment.
The workout will continue in this way until you
reach the end of the trail on the display. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline buttons; however, when the next segment begins,
the incline trainer will automatically adjust to
the speed and incline settings for the next segment.
4. Monitor your progress with the display.
See step 5 on page 15. When a 1 step calorie workout is selected, the console offers four display
modes. Press the Display Mode button repeatedly
to select the desired display mode.
The display will show an animation of the trail you
are walking or running. The circle above the trail
will show your progress. Press the Display Zoom
increase and decrease buttons to zoom in or zoom
out. In the display that shows an animation of a
runner, the incline profile represents the incline
level of the trail and the right side of the display will
show the number of vertical meters you have
climbed.
To adjust the contrast of the display, see THE INFORMATION MODE on page 19.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fan if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
16
HOW TO USE A RANDOM WORKOUT
1. Insert the key into the console.
See step 1 on page 14.
the speed and incline settings for the next segment. If you manually change the speed or incline
of the incline trainer during the workout, the dura-
ion of the workout and the number of vertical feet
t
you climb will be affected.
2. Select a random workout.
To select a random workout, press the Random
Trail button. Press one of the 1 Step Calorie
Workouts buttons to select the approximate number of calories you wish to burn. The incline trainer
will create a new workout based on random speed
and incline settings. Press the 1 Step Calorie
Workouts button repeatedly to create different
workouts.
When a random workout is selected, the display
will show the duration of the workout and the number of vertical feet you will climb. The display will
also show the trail.
Each random workout is divided into segments.
One speed setting and one incline setting are programmed for each segment. Note: The same
speed setting or incline setting may be programmed for consecutive segments.
3. Start the walking belt.
Press the Start button to start the workout. A moment after you press the button, the incline trainer
will begin to move. Hold the handrails and begin
walking.
At the end of the first segment of the workout, a series of tones will sound. If a different speed and/or
incline setting is programmed for the second segment, the speed setting and/or incline setting will
appear in the display for a moment to alert you and
the incline trainer will automatically adjust to the
speed and incline settings for the next segment.
The workout will continue in this way until you
reach the end of the trail on the display. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline buttons; however, when the next segment begins,
the incline trainer will automatically adjust to
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 2 Km/H.
When the next segment of the workout begins, the
incline trainer will automatically adjust to the speed
and incline settings for the next segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. In addition, if you manually change the speed or incline of the incline trainer during the workout,
the number of calories you burn will be affected.
4. Monitor your progress with the display.
When a random workout is selected, the console
offers seven display modes. Press the Display
Mode button and the Display Zoom button repeatedly to select the desired display mode. The display
can show the time remaining in the workout, the distance you have walked or run, the speed of the walking belt, the incline of the incline trainer, the approximate number of calories burned per hour, the number of vertical meters you have climbed, the approximate number of calories you have burned, the
elapsed time, an animation of a runner, and the trail
you are walking.
To adjust the contrast of the display, see THE INFORMATION MODE on page 19.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fan if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
17
HOW TO USE AN IFIT CARD
To purchase iFit cards at any time, please see the front
over of this manual.
c
. Insert the key into the console.
1
See step 1 on page 14.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot.
iFit Card
iFit Slot
Next, select an iFit workout by pressing the iFit increase or decrease button. When an iFit workout is
selected, the display will show a trail on the side of
a mountain. In addition, the display will show the
name, maximum incline setting, duration, and maximum speed setting of the workout.
Each iFit workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
3. Start the walking belt.
During the workout, the voice of a personal trainer
will guide you through the workout. The iFit workout will function in the same way as a random
orkout (see step 3 on page 17).
w
f the speed or incline setting for the current seg-
I
ment is too high or too low, you can override the
setting by pressing the Speed or Incline buttons;
however, when the next segment begins, the
incline trainer will automatically adjust to the
speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move. When the
next segment of the workout begins, the incline
trainer will automatically adjust to the speed and incline settings for the next segment.
4. Monitor your progress with the display.
When an iFit workout is selected, the console offers three display modes. Press the Display Mode
button repeatedly to select the desired display
mode. The display can show the time remaining in
the workout, the distance you have walked or run,
the speed of the walking belt, the incline of the incline trainer, the approximate number of calories
burned per hour, the number of vertical meters you
have climbed, and the approximate number of
calories you have burned.
Press the Display Zoom increase and decrease
buttons to zoom in or zoom out.
5. Turn on the fan if desired.
See step 7 on page 15.
6. When you are finished exercising, remove the
key from the console.
Press the Start button to start the workout. A moment after you press the button, the incline trainer
will automatically adjust to the first speed and incline settings of the workout. Hold the handrails
and begin walking.
See step 8 on page 15.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
18
THE INFORMATION MODE
HOW TO USE THE STEREO SOUND SYSTEM
The console features an information mode that keeps
rack of the total distance that the walking belt has
t
moved and the total number of hours that the incline
rainer has been used. The information mode also al-
t
lows you to select kilometers or miles to measure distance, and to turn on and turn off the display demo
mode. You can also adjust the contrast level of the
display.
To select the information mode, hold down the Stop
button, insert the key into the console, and then release the Stop button. When the information mode is
selected, the following information will appear in the
display:
The display will show the
total number of hours the incline trainer has been used
and the total number of miles
that the walking belt has
moved.
The display will show the selected unit of measurement. To change the unit of measurement, press the
Speed increase button. To view distance in kilometers,
select METRIC. To view distance in miles, select
ENGLISH.
To play music or audio books through the consoleʼs
peakers, you must connect your MP3 player, CD
s
player, or other personal audio player to the console.
Locate the audio wire. Plug one end into the audio jack
near the speakers. Then, plug the audio wire into a
jack on your MP3 player, CD player, or other personal
audio player. Make sure that the audio wire is fully
plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume on your personal audio player or press the
Volume (VOL) increase and decrease buttons on the
console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
The console features a display demo mode, designed
to be used if the incline trainer is displayed in a store.
While the demo mode is turned on, the console will
function normally when you plug in the power cord,
switch the reset/off circuit breaker to the reset position,
and insert the key into the console. However, when
you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode
is turned on, the word “ON” will appear in display while
the information mode is selected. To turn on or turn off
the demo mode, press the Speed decrease button.
Note: When the incline trainer is in the demo mode, the
incline will automatically rise to the maximum incline
level.
The display will also show the contrast level of the display. Press the Incline increase and decrease buttons to
adjust the contrast.
To exit the information mode, remove the key from the
console.
19
HOW TO MOVE THE INCLINE TRAINER
Before moving the incline trainer, insert the key into the
console, raise the incline to the maximum incline level,
remove the key, and unplug the power cord.
Due to the size and weight of the incline trainer, moving it
requires two or three persons. Hold the upright firmly
near the console. Tip the incline trainer back until it rolls
freely on the wheels. CAUTION: To decrease the possibility of injury or of damage to the incline trainer, do not lift
the incline trainer by the plastic belly pan. Do not pull on
the console. Carefully roll the incline trainer on the wheels to
the desired location and then lower it to the level position.
CAUTION: To reduce the risk of injury, use extreme caution while moving the incline trainer. Do not attempt to
move the incline trainer over uneven surfaces.
Console
Upright
Belly
Pan
Wheel
20
TROUBLESHOOTING
Most incline trainer problems can be solved by following the steps below. Find the symptom that applies,
nd follow the steps listed. If further assistance is needed, please see the front cover of this manual.
a
PROBLEM: The power does not turn on
OLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 12.) If an ex-
S
tension cord is needed, use only a 3-conductor, 14-gauge (1 mm
(1.5 m).
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
2
) cord that is no longer than 5 ft.
c. Check the reset/off circuit breaker located on the in-
cline trainer frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the incline trainer still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the incline trainer is displayed
in a store. If the displays remain lit when you remove the key and the incline rises to the maximum level, the demo mode is turned on. To turn off the demo mode, hold down the Stop button
for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 19 to turn
off the demo mode.
c
Tripped Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Then, remove the three indicated #8
x 1/2" Screws (12). Lift off the Left Roller Cover (35).
a
35
12
12
21
Locate the Reed Switch (49) and the Magnet (37) on
the left side of the Pulley (38). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
hat the gap between the Magnet and the Reed
t
Switch is about 1/8 in. (3 mm). If necessary, loosen
he #8 x 3/4" Clamp Screw (13), move the Reed
t
Switch slightly, and then retighten the Screw.
Reattach the Left Roller Cover (not shown) and run the
Top
iew
V
1/8 in.
13
49
37
38
incline trainer for a few minutes to check for a correct
speed reading.
PROBLEM: The incline of the incline trainer does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Stop button again. Then,
press the Incline increase or decrease button. The incline trainer will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
If the incline does not calibrate, press the Stop button, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
2
SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm
) cord that is no longer
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, incline trainer per-
formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
b
3–4 in.
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the incline trainer for a few
minutes. Repeat until the walking belt is properly
tightened.
Idler Roller Bolts
c. If the walking belt still slows when walked on, please see the front cover of this manual.
22
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
NPLUG THE POWER CORD. If the walking belt
U
has shifted to the left, use the hex key to turn the
eft idler roller bolt clockwise 1/2 of a turn; if the walk-
l
ing belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert
the key, and run the incline trainer for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 3 to 4 in. (8 to 10 cm) off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the incline trainer for a few minutes. Repeat until
the walking belt is properly tightened.
a
b
23
EXERCISE GUIDELINES
WARNING: B
exercise program, consult your physician.
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning any
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

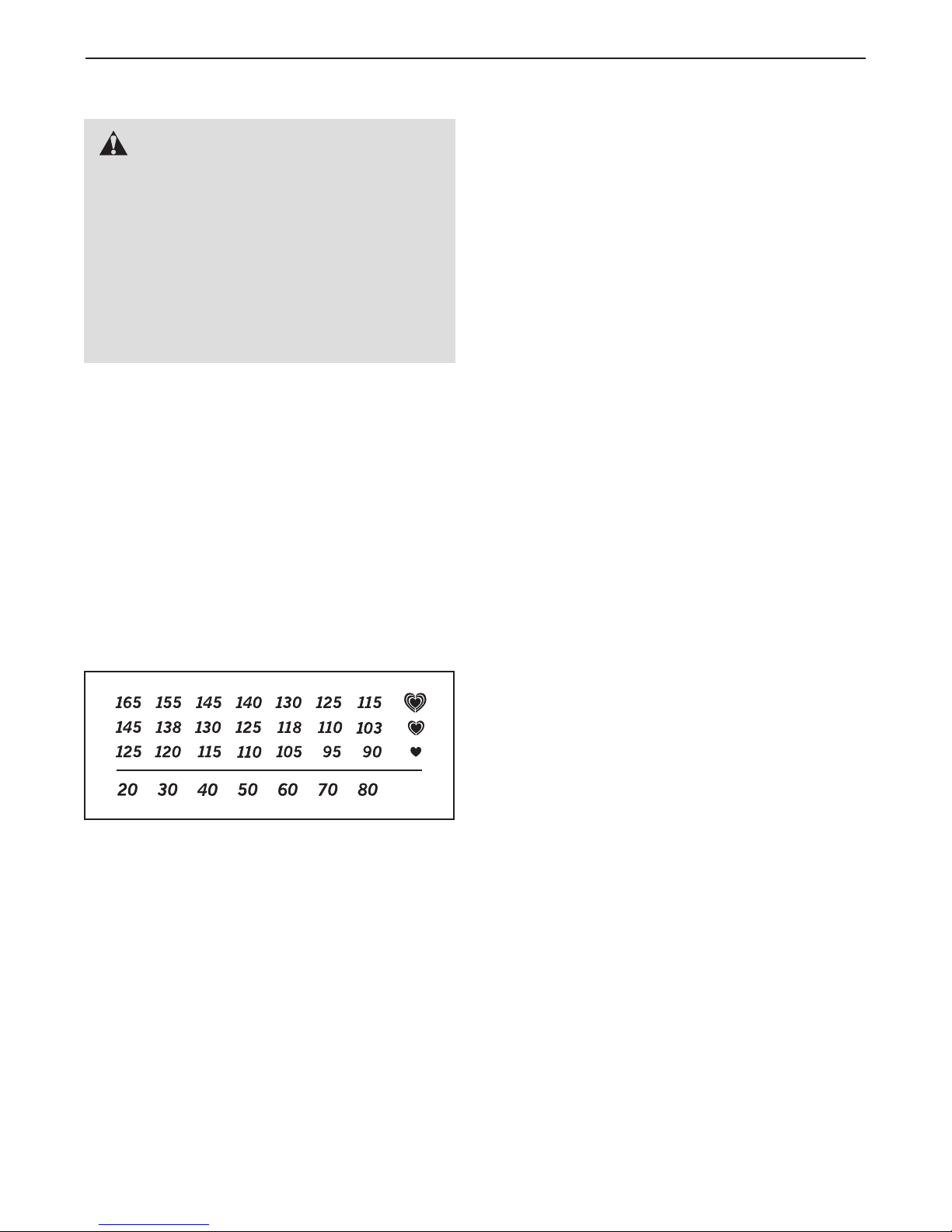

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
24
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
25
PART LIST—Model No. NETL15708.0 R0410A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
36 #8 x 3/4" Screw
1
24#8 x 1" Tek Screw
3 4 3/8" x 3 1/2" Patch Bolt
423/8" x 2 1/2" Bolt
51Incline Motor Wire
645/16" x 3/4" Bolt
723/8" x 5" Bolt
823/8" Nut
983/8" Star Washer
10 4 #6 x 1" Screw
11 8 #8 x 3/4" Tek Screw
12 11 #8 x 1/2" Screw
13 1 #8 x 3/4" Clamp Screw
14 4 Belt Guide Screw
15 2 1/4" x 1 1/2" Screw
16 2 5/16" x 1 3/4" Bolt
17 2 5/16" x 1 3/4" Bolt
18 2 1/4" x 2 1/2" Bolt
19 1 3/8" x 1" Bolt
20 1 3/8" x 1 3/4" Bolt
21 2 3/8" x 4 1/4" Bolt
22 15 #8 x 1/2" Screw
23 5 Motor Bolt
24 3 #8 Star Washer
25 4 1/4" Flat Washer
26 2 Releasable Tie
27 4 1/4" Star Washer
28 4 3/8" Locknut
29 4 5/16" Nut
30 15 Clip
31 2 Plastic Fastener
32 4 1/4" x 1" Patch Bolt
33 1 Hex Key
34 1 5/32" Hex Key
35 1 Left Roller Cover
36 1 Right Roller Cover
37 1 Magnet
38 1 Drive Roller/Pulley
39 1 Belly Pan
40 2 Belt Guide
41 1 Walking Platform
42 1 Walking Belt
43 1 Idler Roller
44 1 Front Hood
45 1 Power Cord
46 1 Receptacle
47 1 Belly Pan Cover
48 1 Reset/Off Circuit Breaker
49 1 Reed Switch
50 1 Reed Switch Clamp
1 1 Left Rear Cushion
5
52 1 Frame
53 1 Belly Pan Plate
54 1 Front Left Cushion
55 1 Front Belly Pan
56 1 Top Incline Motor Cover
57 1 Bottom Incline Motor Cover
58 1 Incline Motor
59 1 Wire Clamp
60 1 Electronics Plate
61 4 Plastic Standoff
62 1 PCB Board
63 1 Controller
64 1 Drive Motor
65 1 Resistance Mechanism
66 4 Pulse Plate
67 4 Pulse Plate Housing
68 2 Pulse Handle
69 1 Left Handrail
70 1 Left Pulse Wire
71 1 Right Pulse Wire
72 1 Upright Wire
73 1 Console Cover
74 1 Upright
75 1 Right Handrail
76 2 Handrail Cover
77 2 Wheel
78 1 Base
79 4 Base Foot Spacer
80 4 Base Foot
81 2 Caution Decal
82 1 Warning Decal
83 2 Base Cap
84 1 Console
85 1 Console Fan
86 1 Accessory Tray
87 1 Yoke Spacer
88 1 Yoke
89 1 Console Ground Wire
90 1 Access Door
91 1 Key/Clip
92 2 Platform Decal
93 1 Motor Belt
94 1 Left Name Decal
95 1 Right Name Decal
96 1 Right Front Cushion
97 1 Right Rear Cushion
98 2 8" Cable Tie
99 8 8" Wire Tie
100 3 Round Grommet
26
Key No. Qty. Description Key No. Qty. Description
101 1 Shield Warning Decal
102 1 Motor Shield
103 1 Audio Wire
104 1 Incline Sensor Wire
105 1 Transformer
106 1 Filter
107 1 Power Cord Adapter
108 1 Drive Motor Plate
109 2 Drive Motor Isolator
110 4 Rubber Washer
111 2 5/16" Flat Washer
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
35
1
12
1
1
1
1
1
1
1
1
1
14
14
16
16
17
17
18
18
27
27
30
30
30
30
30
30
30
30
30
31
31
36
38
37
42
41
40
44
43
40
47
39
33
45
48
34
93
94
95
100
30
30
92
12
12
12
12
12
92
1
1
46
107
EXPLODED DRAWING A—Model No. NETL15708.0 R0410A
28
EXPLODED DRAWING B—Model No. NETL15708.0 R0410A
1
1
1
1
1
1
1
1
1
1
1
1
1
11
11
11
11
12
12
12
50
13
15
15
19
20
23
27
27
28
28
28
49
53
51
54
52
55
56
59
57
58
96
97
64
99
5
98
28
23
23
102
29
29
22
65
26
101
104
22
22
22
22
22
24
24
24
60
62
61
61
63
22
105
22
106
109
108
29
110
111
110
29
111
29
12
2
2
2
80
79
2
4
4
8
8
9
3
9
3
1
0
10
10
10
21
21
9
9
82
81
81
66
67
67
66
71
67
66
67
68
6
8
69
75
73
74
77
77
76
78
70
66
83
83
72
72
76
80
79
80
79
80
79
100
100
32
32
25
25
25
EXPLODED DRAWING C—Model No. NETL15708.0 R0410A
30
7
22
1
1
89
1
1
1
1
6
6
1
9
86
85
8
4
88
87
1
90
91
103
EXPLODED DRAWING D—Model No. NETL15708.0 R0410A
31
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
ide the following information when contacting us:
v
• the model number and serial number of the product (see the front cover of this manual)
the name of the product (see the front cover of this manual)
•
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as
required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
Part No. 292484 R0410A Printed in USA © 2010 ICON IP, Inc.
Loading...
